Review Packard Bell EasyNote LX86 Notebook

Florian Glaser, 12/06/2010

Chic multi-talent. Packard Bell is skilled at offering notebooks with an excellent price-performance ratio. The 17" EasyNote LX98 represents the best proof of that; after all, it's not every day that you find a Radeon HD 5850 and a Blue-ray burner for just 1000 Euros.

Packard Bell EasyNote LX86

Packard Bell, a daughter company of Acer, currently has four variants of the EasyNote LX86 on offer on its German Homepage.  The so-called "JO" models represent the entry level offering.  In addition to four GB of DDR3 memory (2x 2048 MB), a 500 GB HDD (5400 rpm) and a DVD burner, these are also equipped with a six-cell battery (4400 mAh). Depending on the model, the processor employed is either a i5-450M (JO-027GE) or a Core i5-460M (JO-069GE).

Meanwhile those with more money in their pockets can reach for the more expensive "JP" models.  Here Packard Bell not only doubled the amount of memory from four to eight GB (2x 4096 MB) but also the harddrive capacity from 500 GB to a generous full TB (2x 500 GB). Further equipment features include a Blu-Ray burner, a powerful nine-cell battery (9000 mAh) and a quad-core processor.  While the JP-050GE gets a Core i7-720QM, the JP-075GE employs a Core i7-740QM.

As far as we know, the JO-022GE we reviewed is currently only available from the dealer chain Saturn.  With a Core i5-450M, four GB DDR3-RAM, a 500 GB HDD, a Blu-Ray burner and a nine-cell battery, it is a kind of hybrid of the previously mentioned models.  Matter of expense: 999 Euro.  The case is a slightly modified form, which is no stranger after all; Packard Bell simply helped themselves to the Acer Aspire 7745G.

Case

Chic case
Packard Bell EasyNote LX86

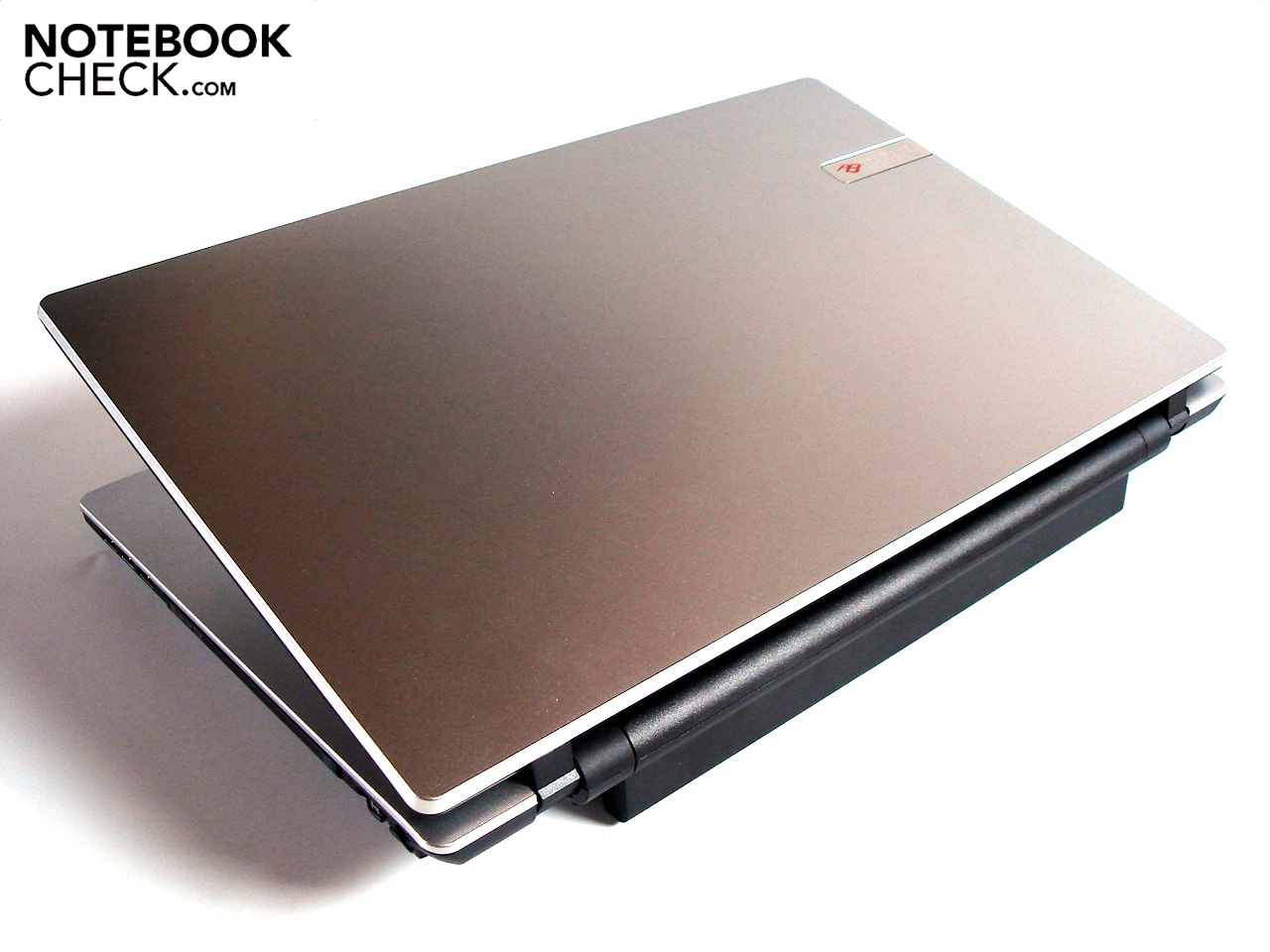

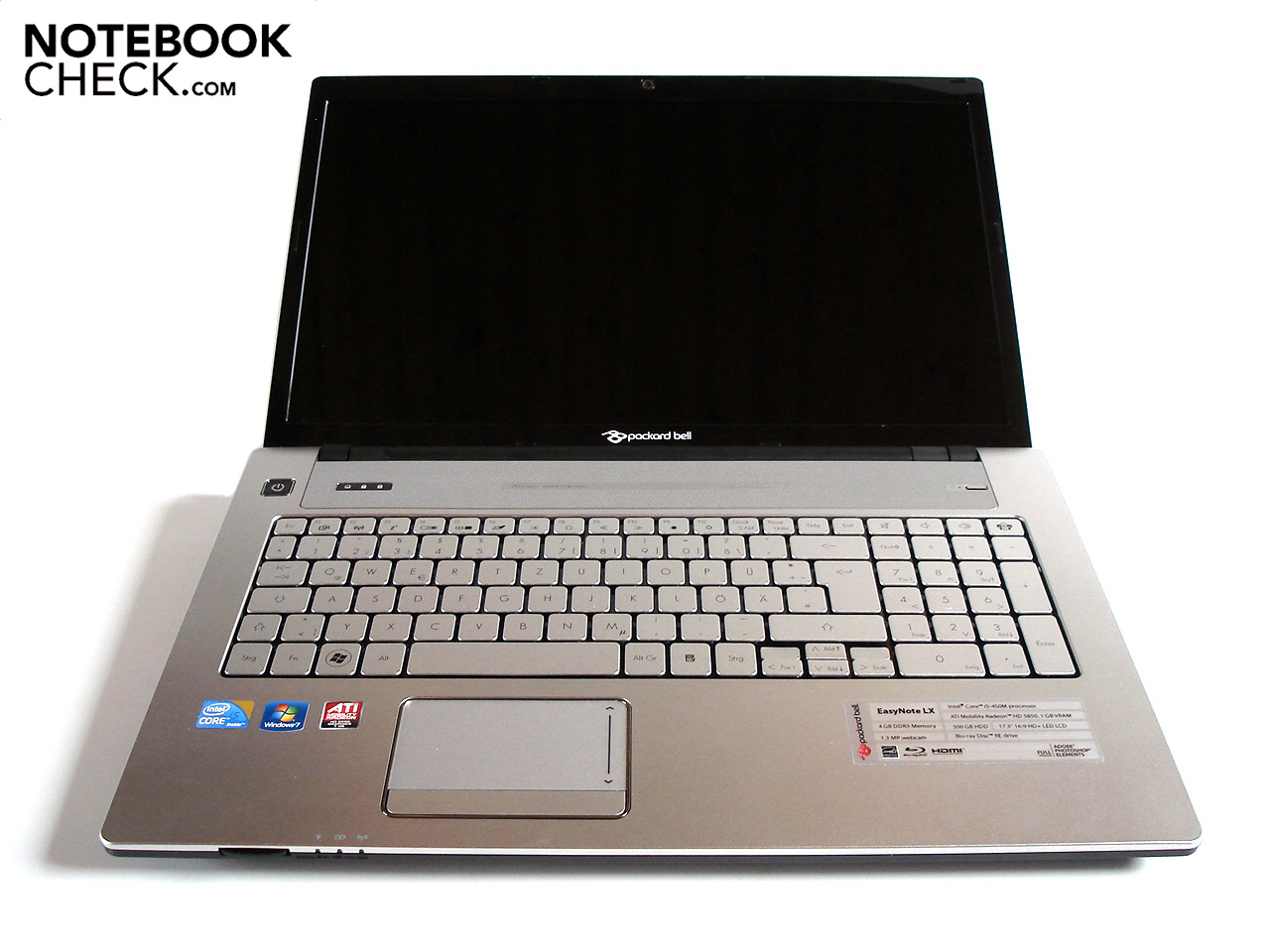

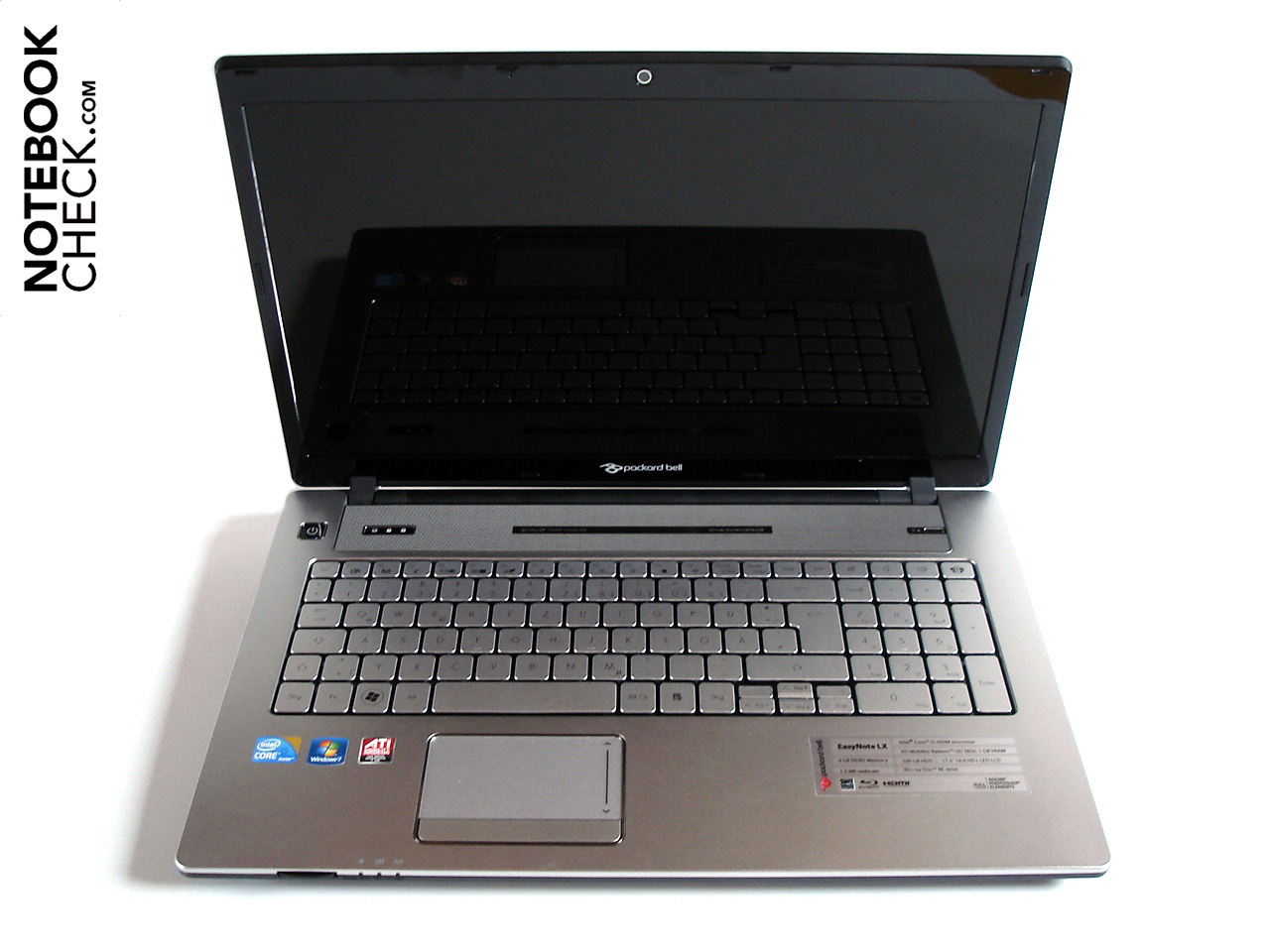

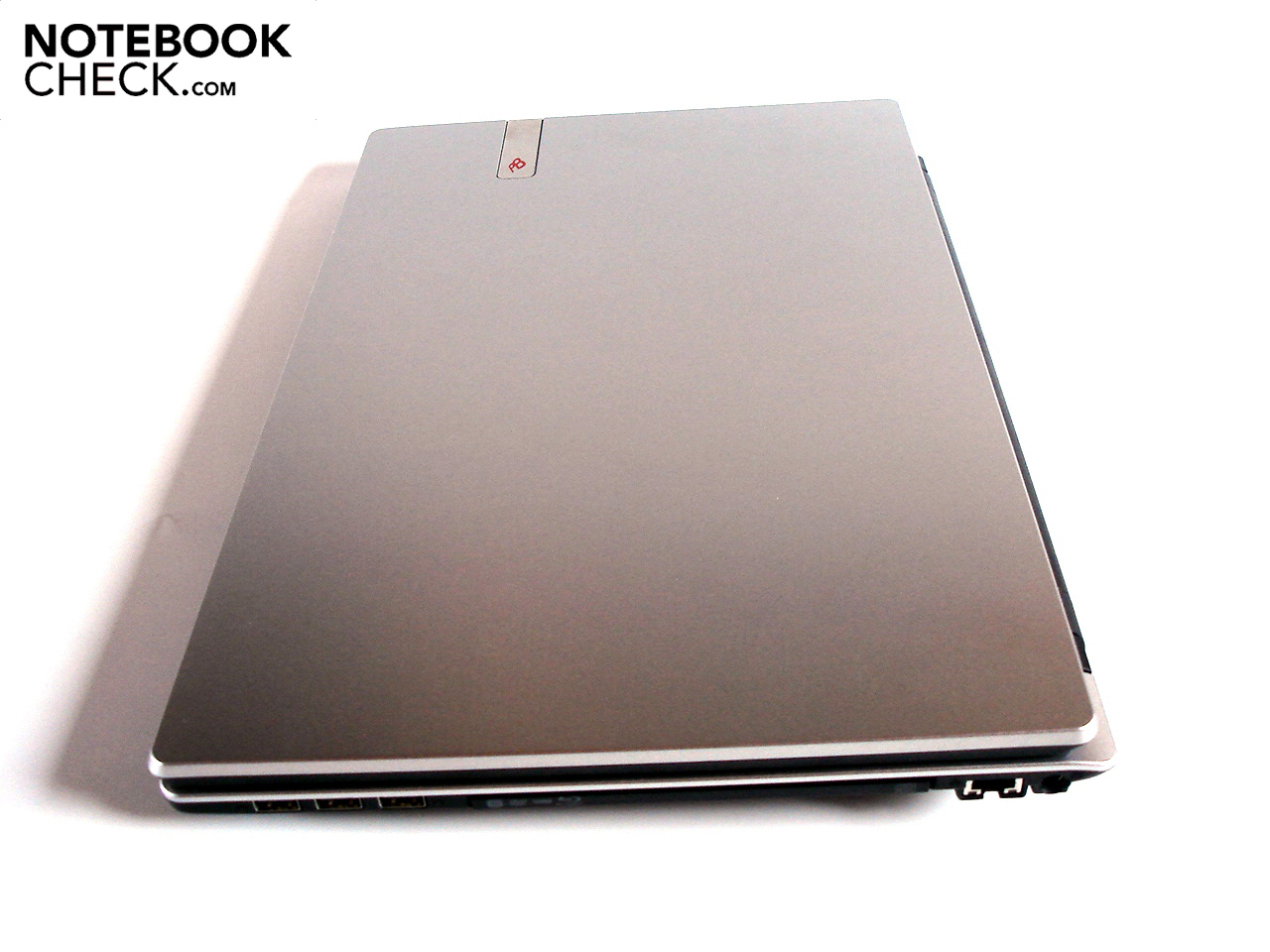

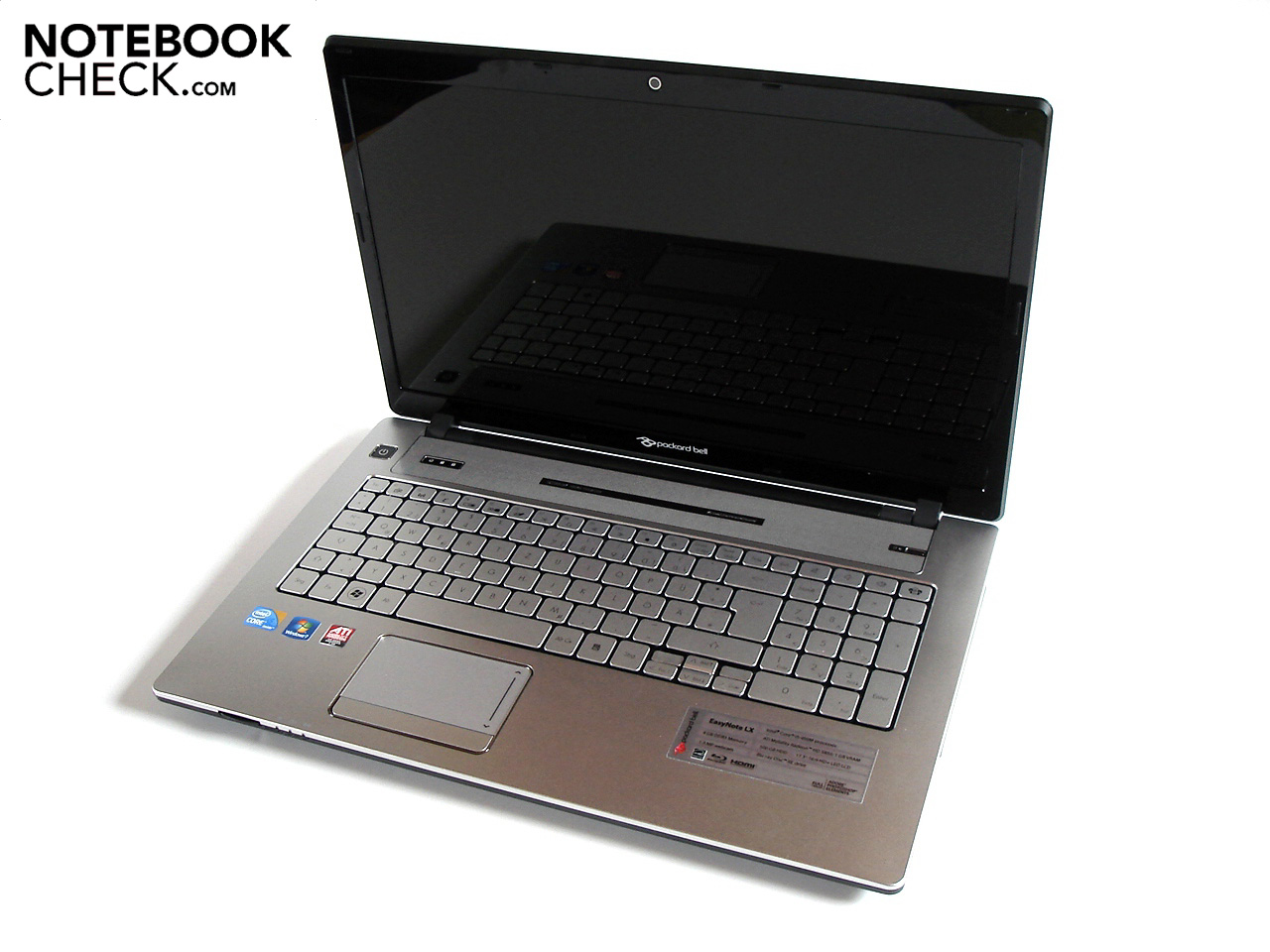

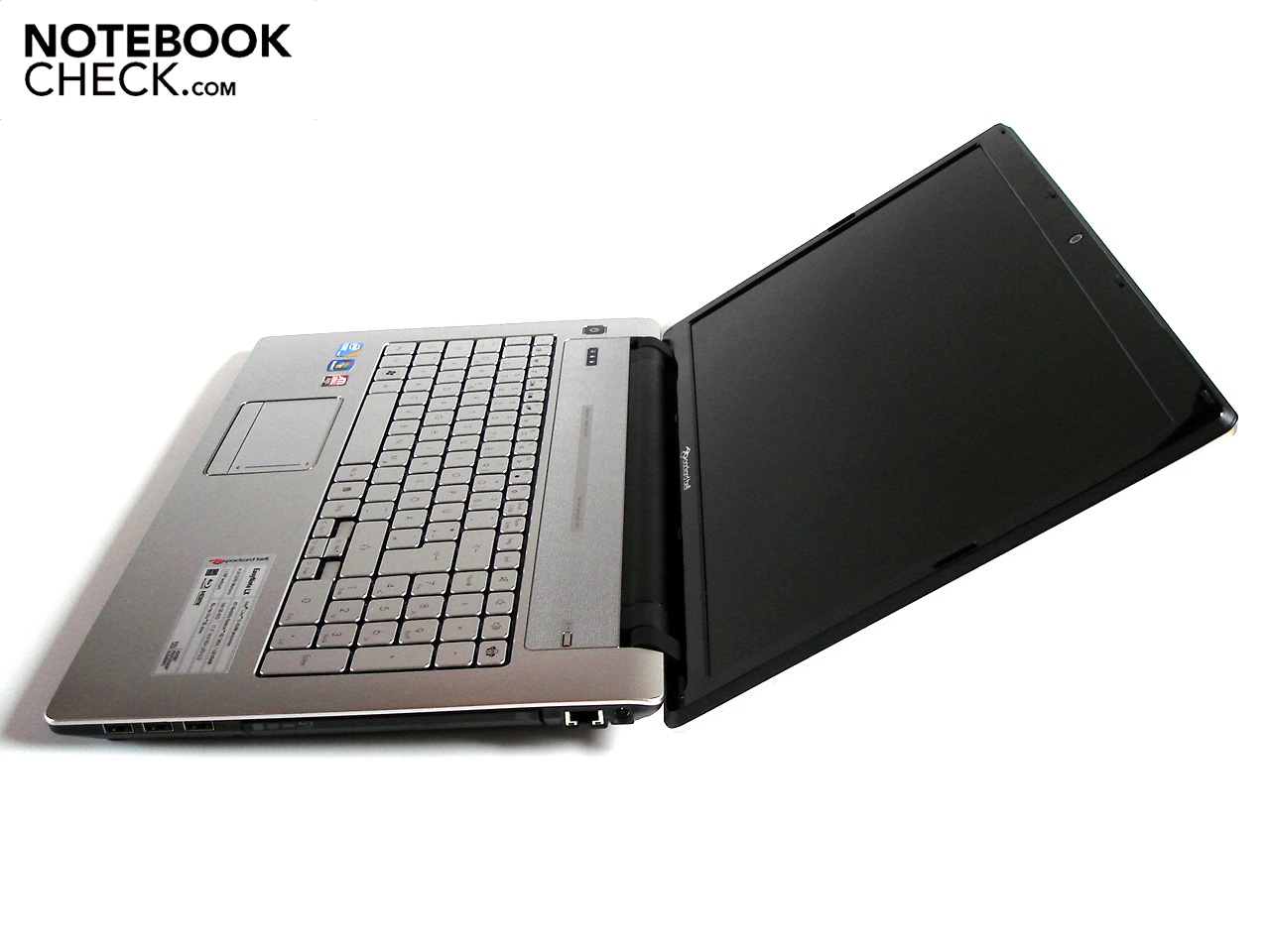

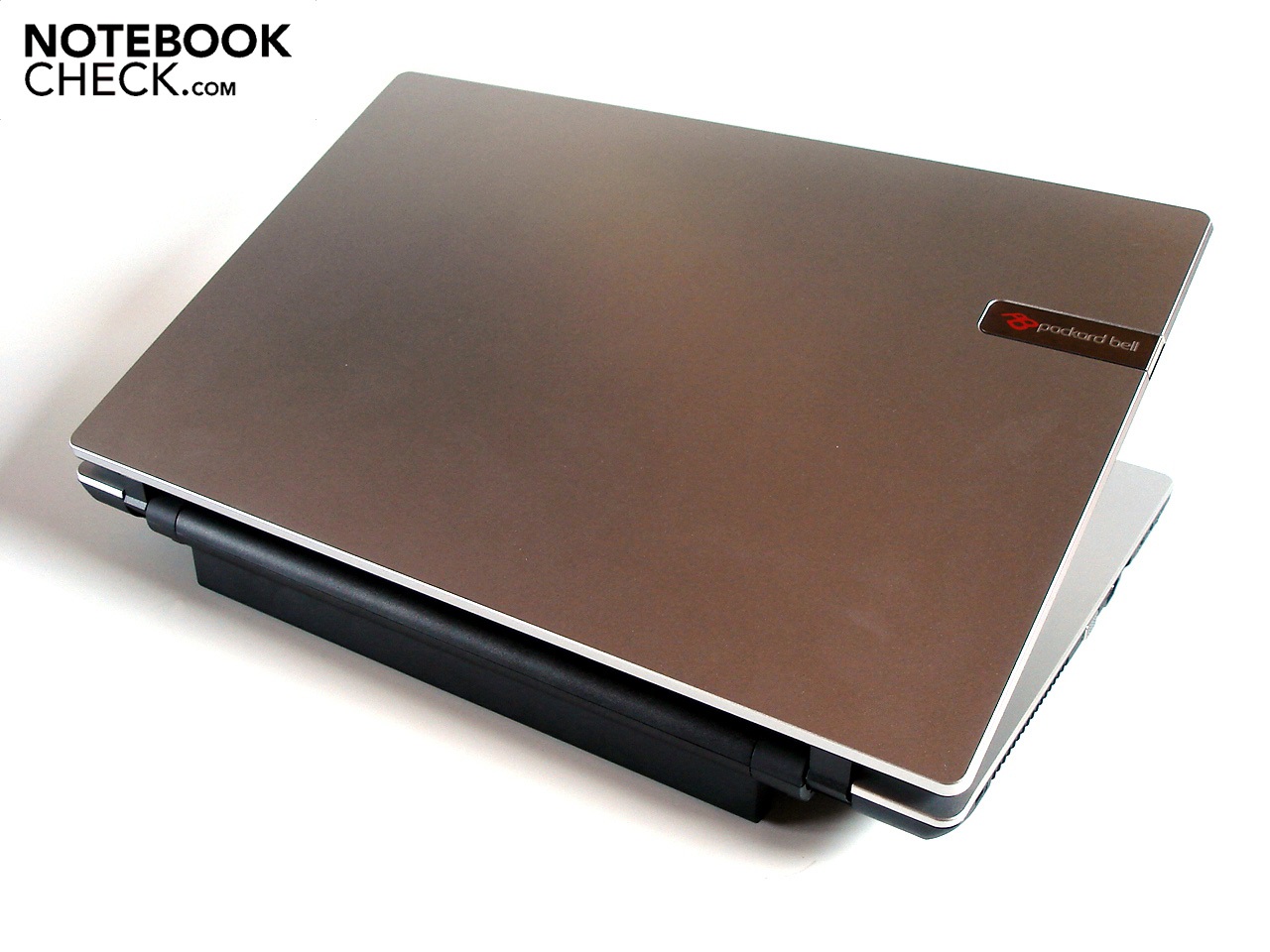

Packard Bell did a good job with the optical design of the EasyNote LX86. Most of the surfaces are kept in matte silver which imparts the 17-incher with a fresh and fine appearance. Stylish elements such as the large speaker grill above the keyboard go a step further to help give the EasyNote LX86 a chic optical appearance. It's clear as soon as one touches its surfaces that Packard Bell relied only on plastic, and not on high-quality aluminum.  However, we still got a nice impression from the material.

Thanks to a moderate weight of around three kilograms (incl. battery), the 410 x 278 x 56 mm notebook can also be transported reasonably well. A further plus is its high resistance to dirt, as the case is relatively impervious apart from the high-gloss display frame.  The EasyNote LX86 also doesn't leave much room for criticism in terms of its finish; every part sits neatly in place.

But we couldn't give it such good marks for stability. The upper side of the notebook gives noticeably both around the level of the touchpad and the level of the optical drive.  The notebook lid doesn't fare much better; it is alarming how much it can be bent, and strong pressure leads, among other things, to image distortions.  The hinges also aren't optimal.  For one, the display wobbles noticeably when the resting surface is shaken, and for another, the chassis resonates heavily when opening.

Connectivity and Communication

Connectivity

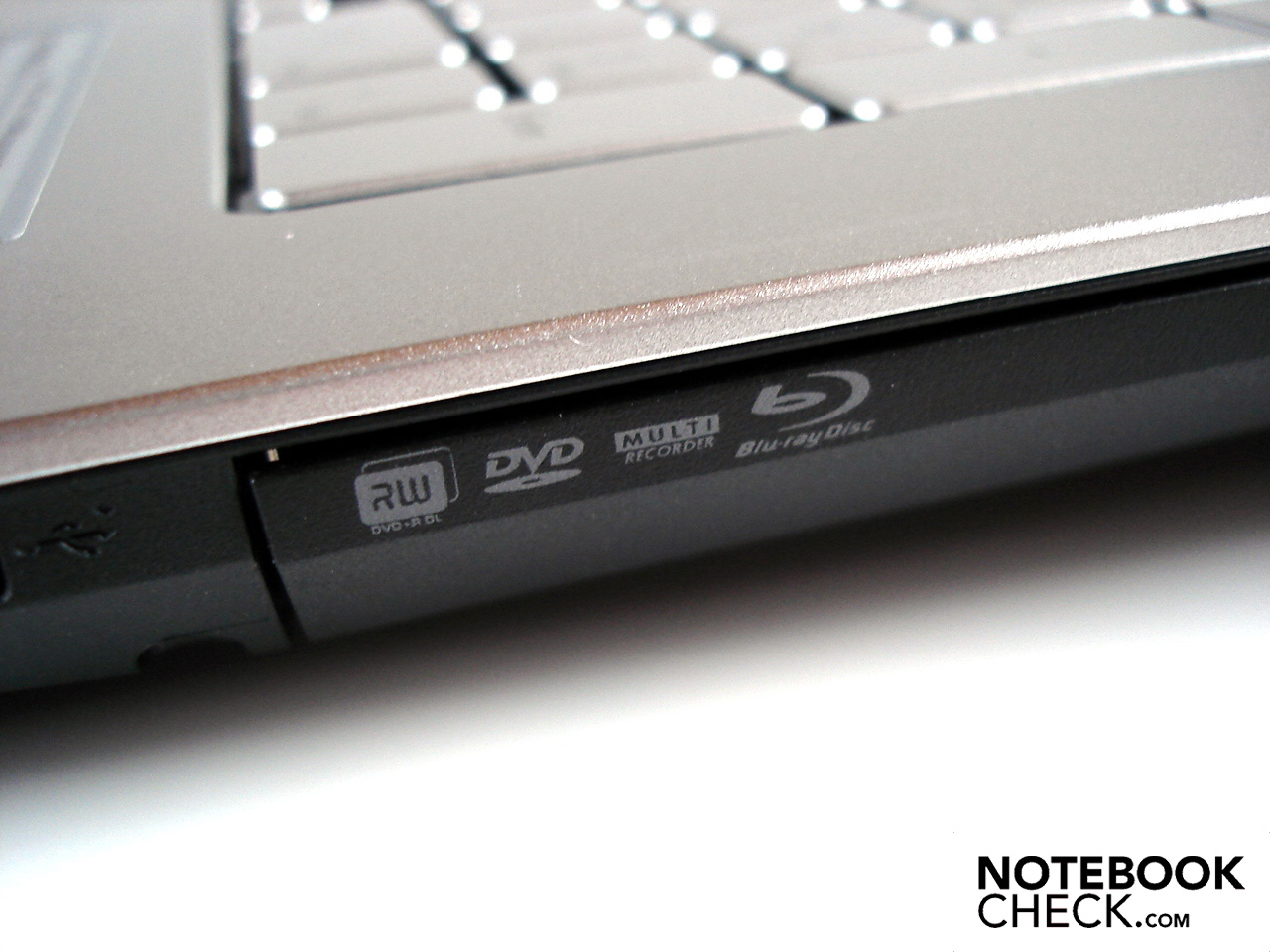

The connection equipment of the EasyNote LX86 corresponds 100% to that of the Acer Aspire 7745G.  That's a shame as that means the user has to do without numerous connections.  In addition to there being no ExpressCard slot, there also aren't any ports for Firewire and eSATA.  Most of the interfaces available are housed on the left side. Here we find a VGA-corresponding HDMI port (microphone, headset, line-in), a USB 2.0 port and as a Kensington lock.  Found on the front side is only a multi-in-1-card reader, while the rear remains completely free.

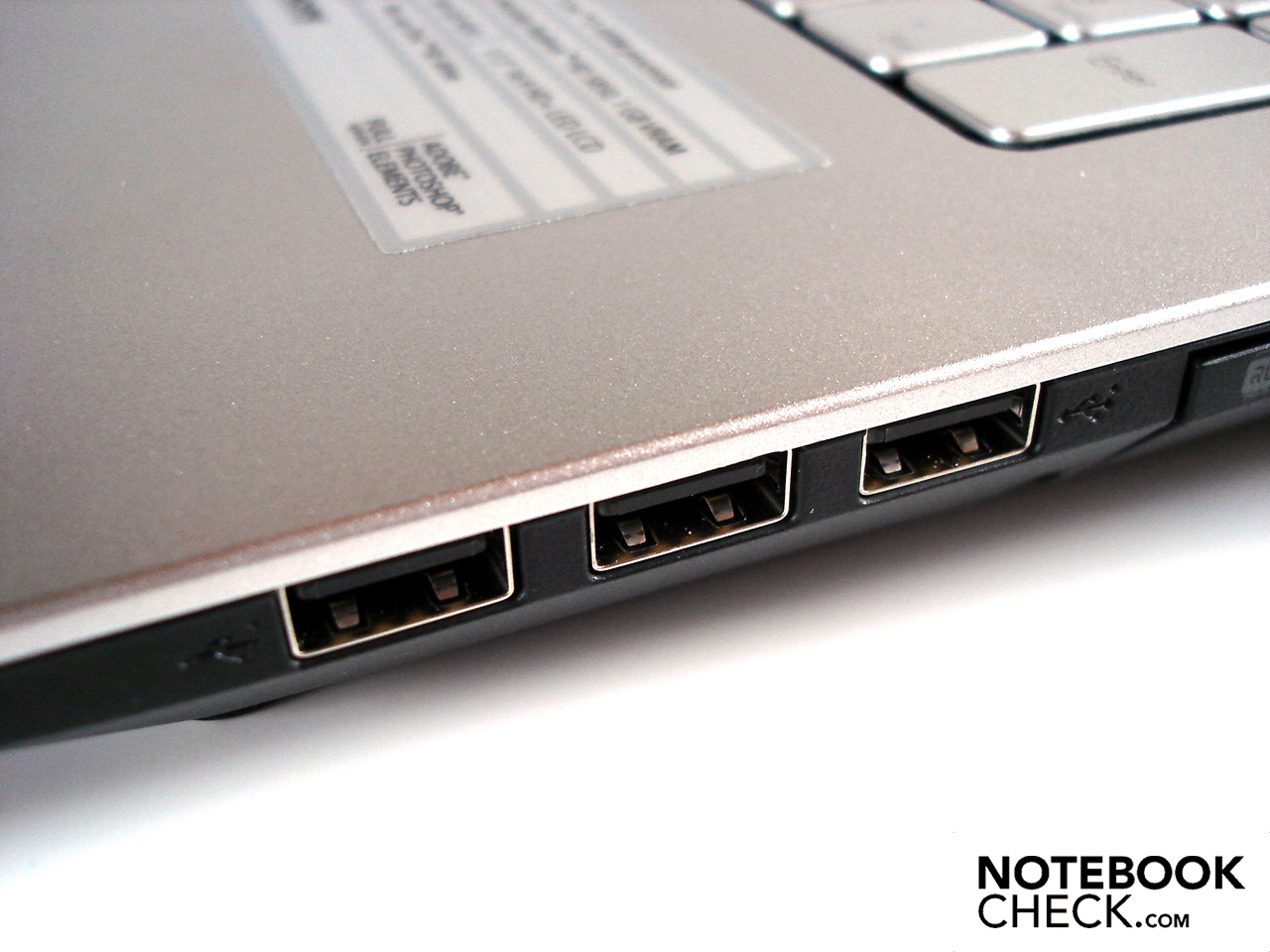

The right side on the other hand is better kitted out with three additional USB 2.0 ports (a total of 4x USB 2.0).  Rounding off are a RJ-45 Gigabit-Lan port and the power supply input.  We consider the arrangement of the connections to be entirely unsuccessful.  Since most connection options sit far forward, available space to the side of the notebook suffers greatly when several cables are plugged in.  Using a mouse can lead to problems.

Communication

There is nothing to fault about the wireless communication. With WLAN (802.11 b/g/n) and Bluetooth (Version 3.0), all possibilities are open for the user.

Additional Equipment

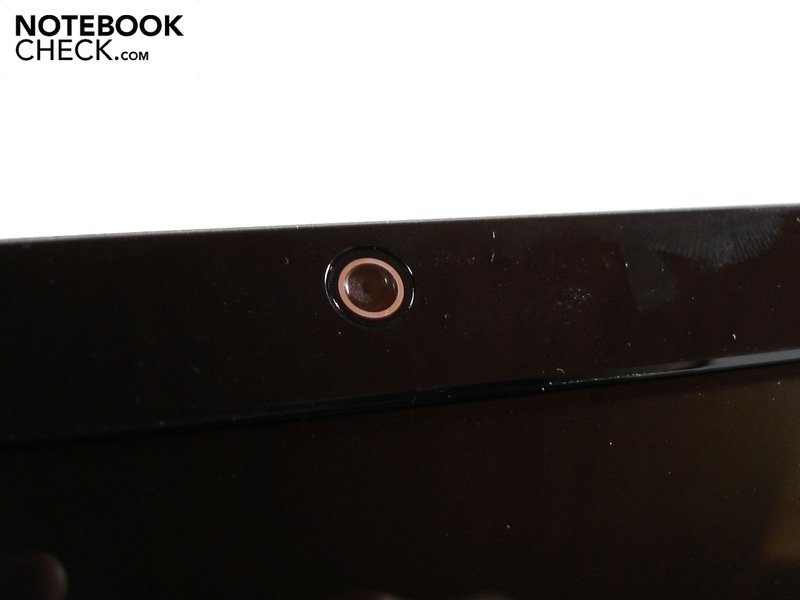

Apart from that, the EasyNote LX86 also gets an integrated webcam with a resolution of 1.3 mega-pixels.  But the highlight of the multimedia notebook is the optical drive, an honest-to-goodness Blu-Ray burner brings delight to both film-fans and users of large quantities of data.

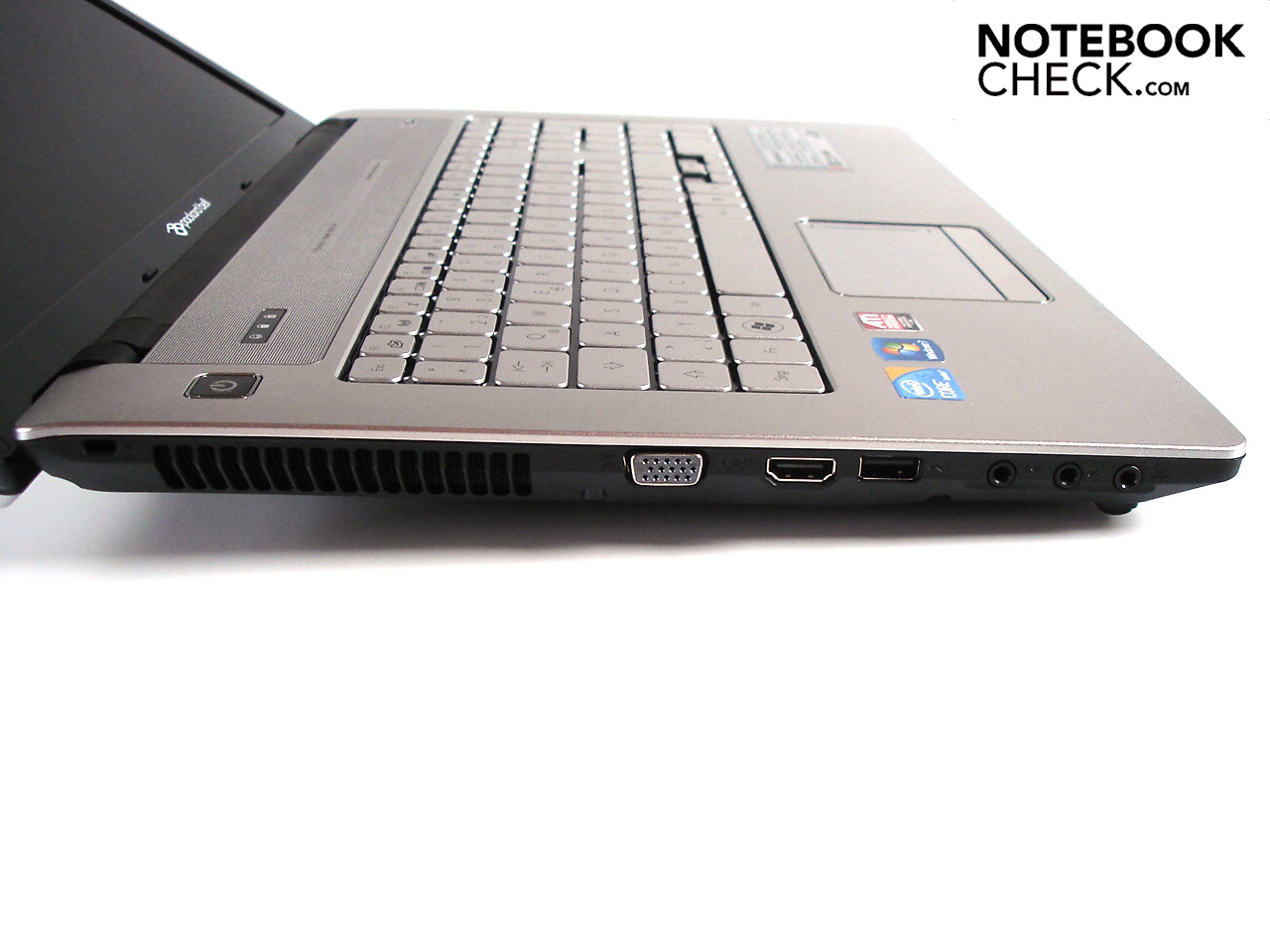

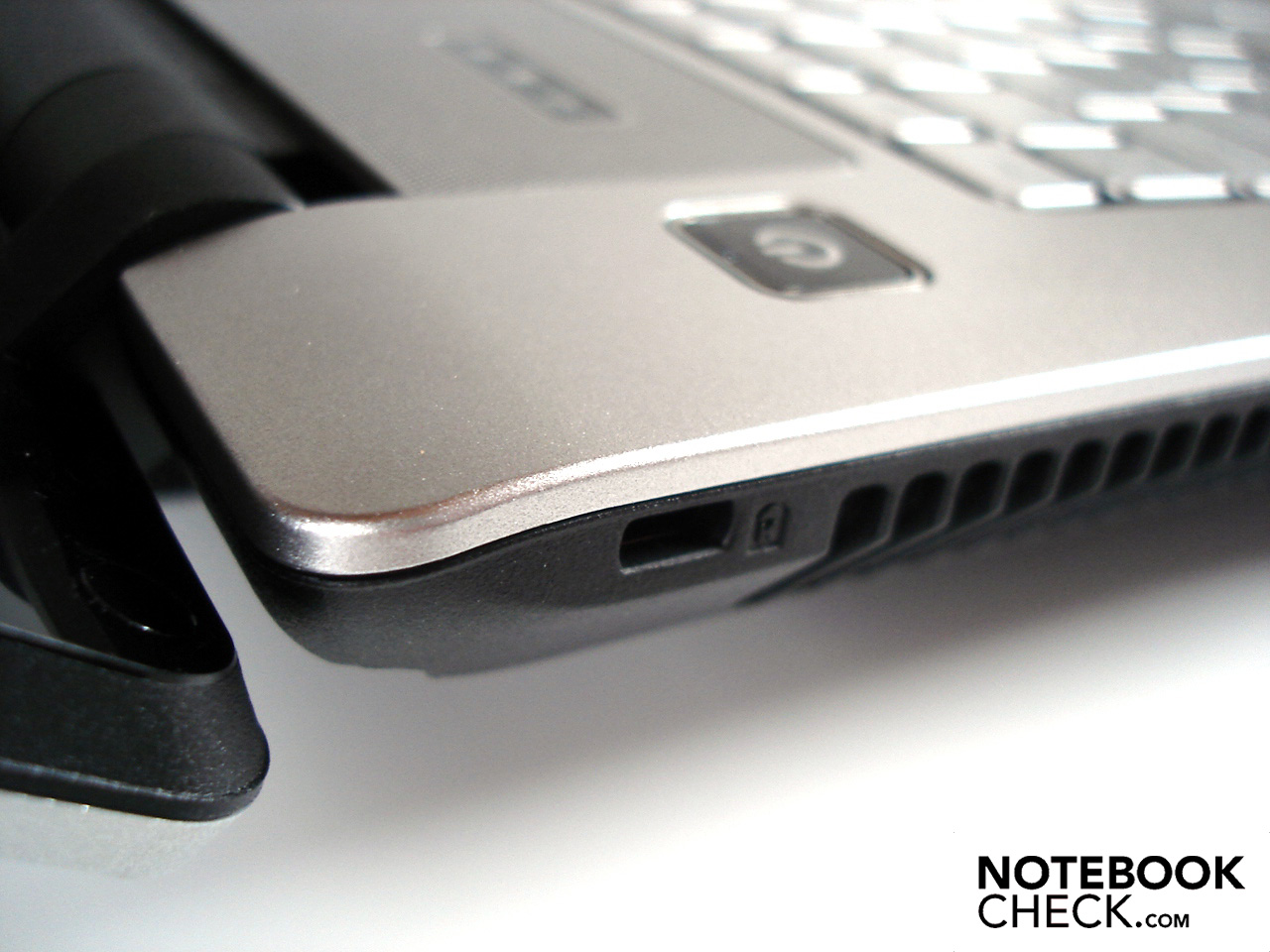

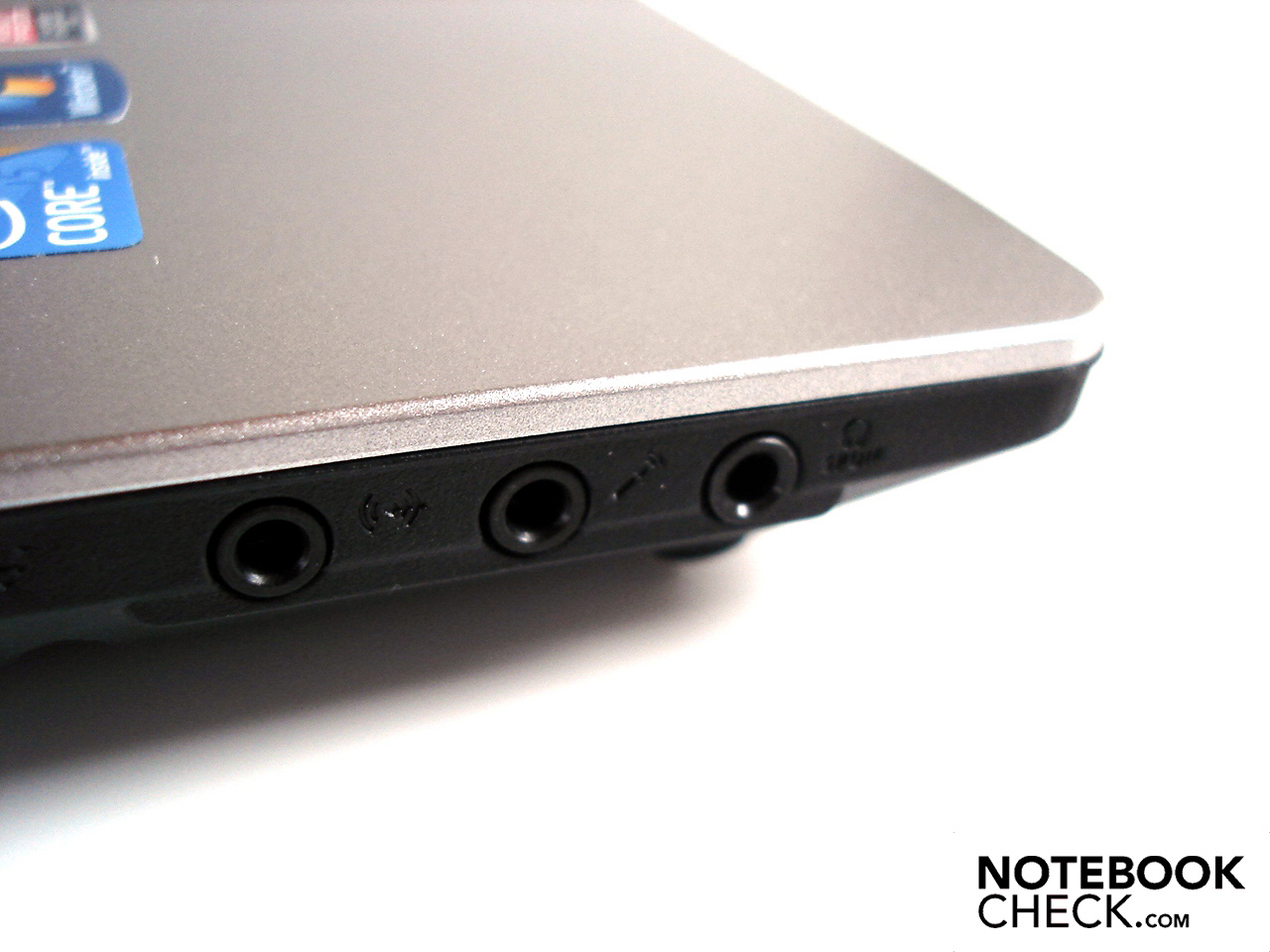

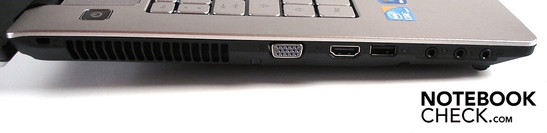

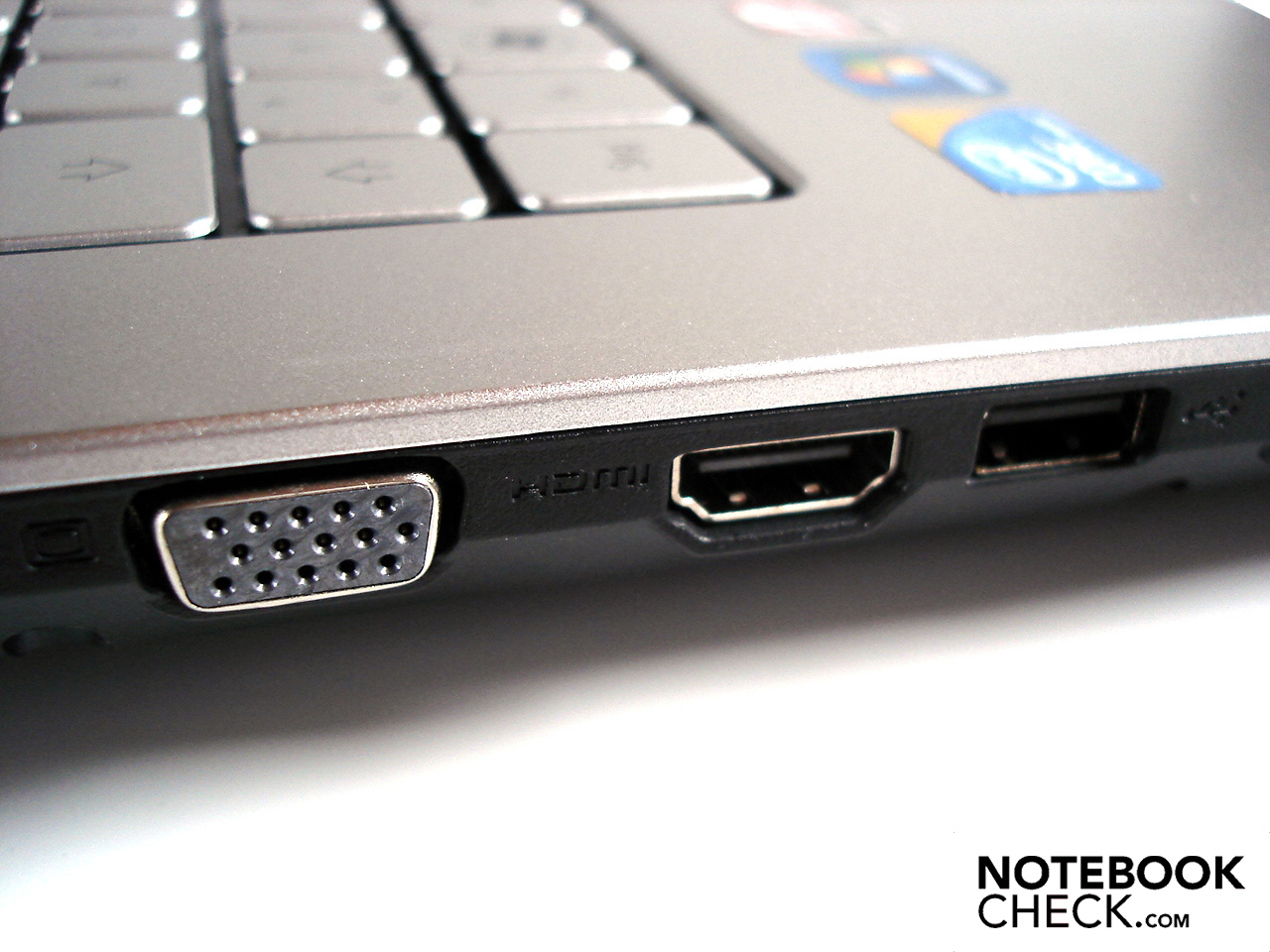

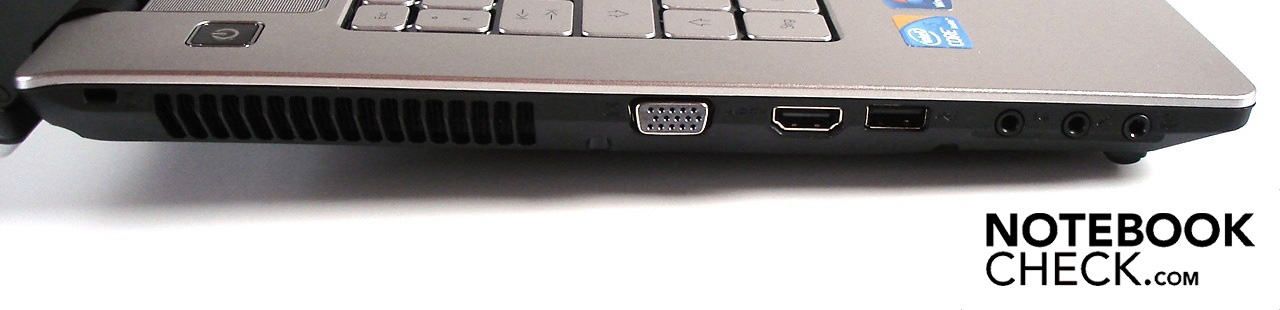

Left: Kensington Lock, VGA, HDMI, USB 2.0, 3x sound
Left: Kensington Lock, VGA, HDMI, USB 2.0, 3x sound

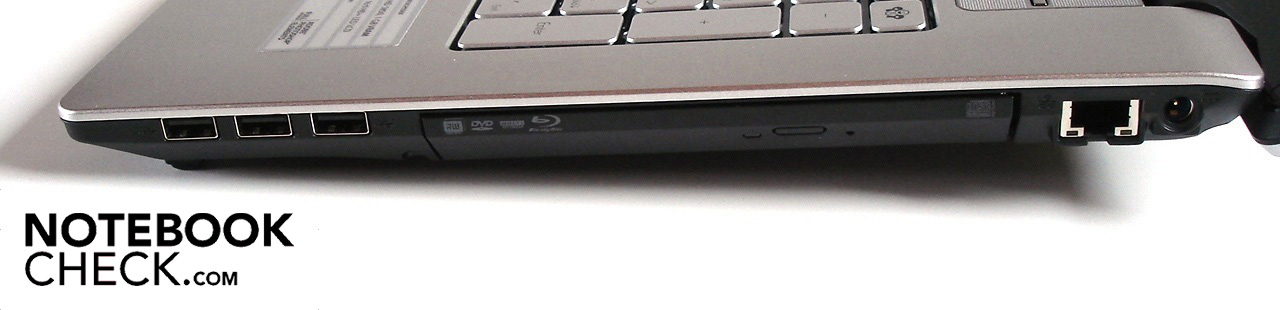

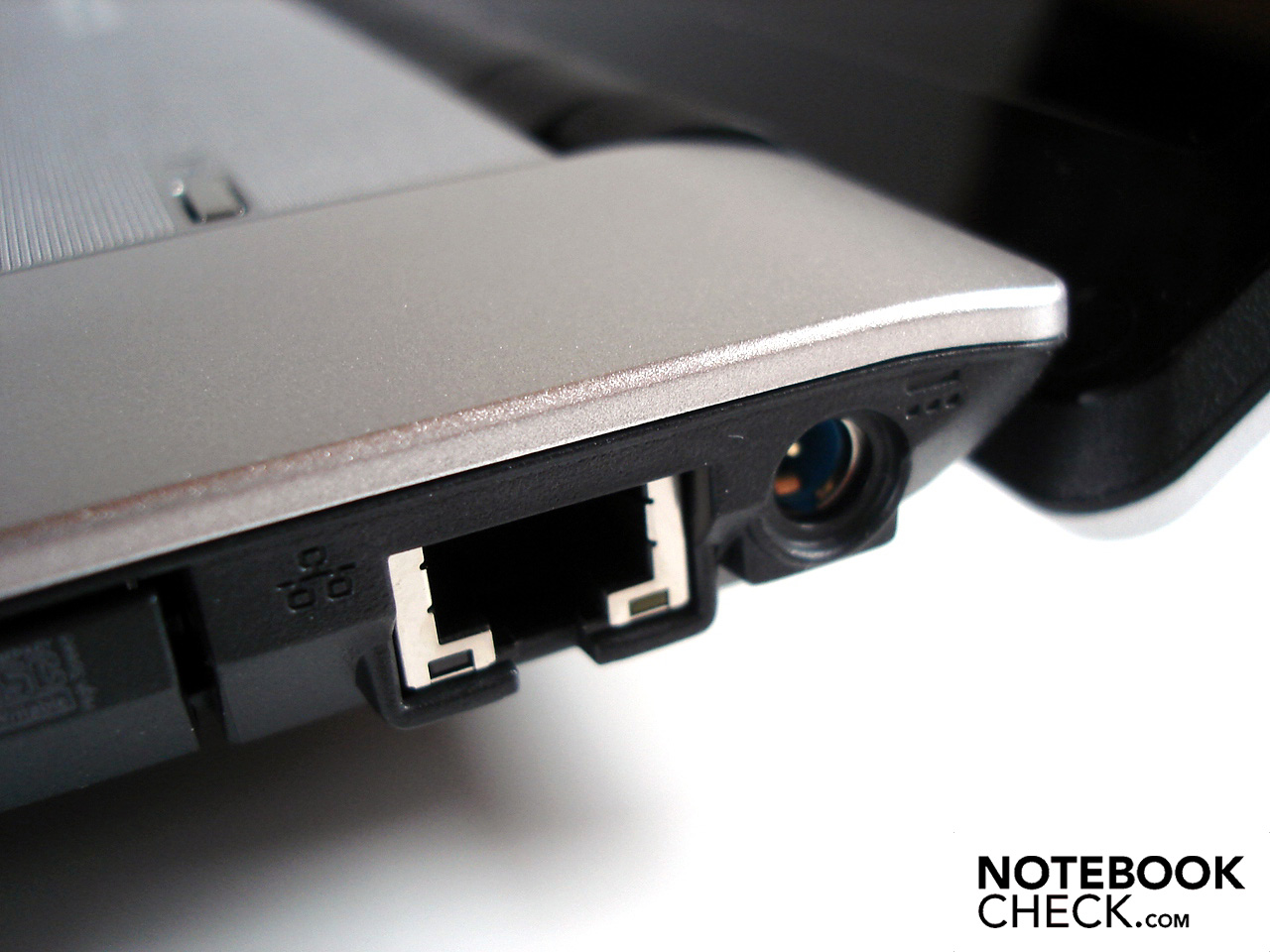

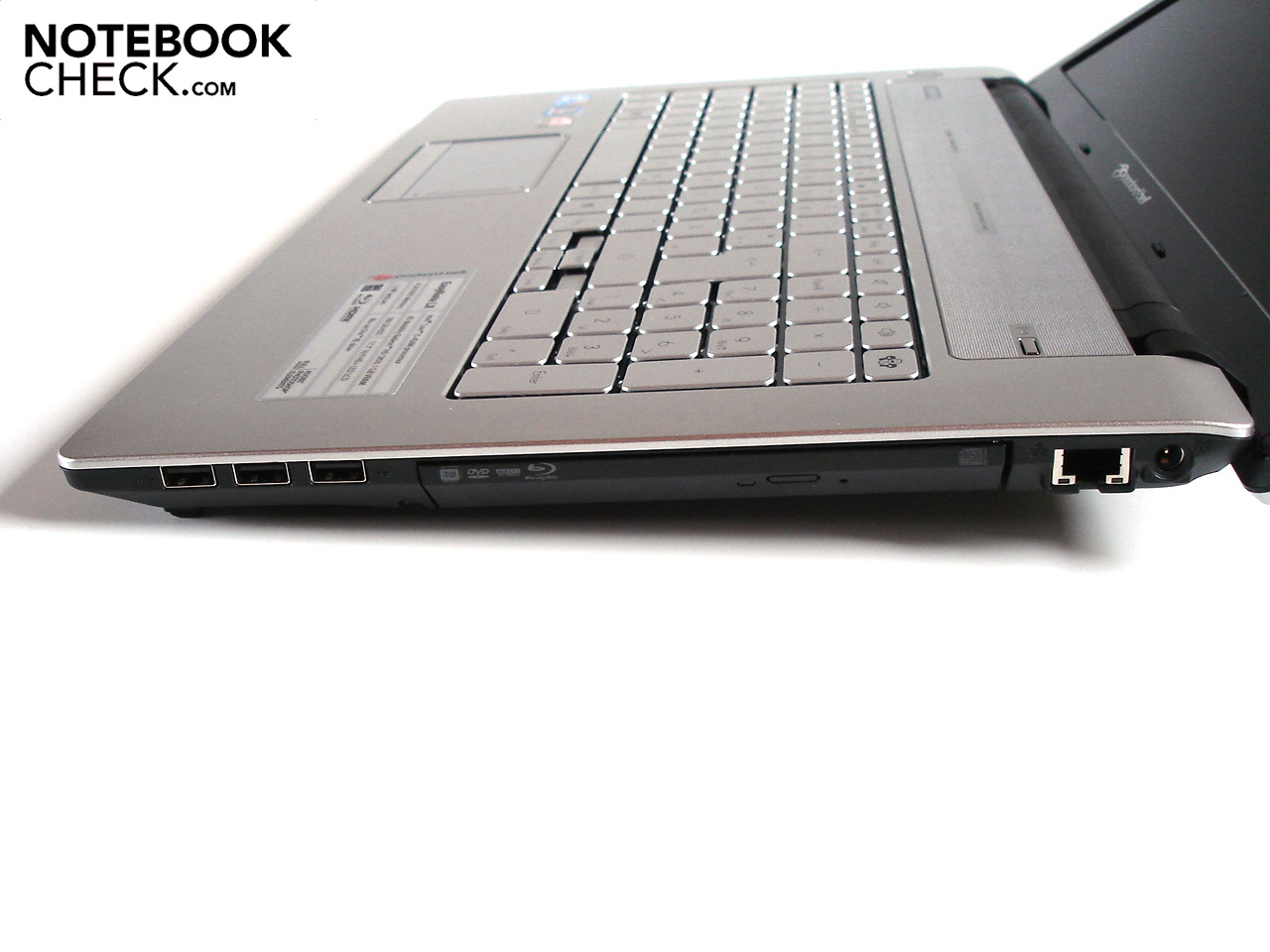

Right: 3x USB 2.0, RJ-45 Gigabit-Lan, power input
Right: 3x USB 2.0, RJ-45 Gigabit-Lan, power input

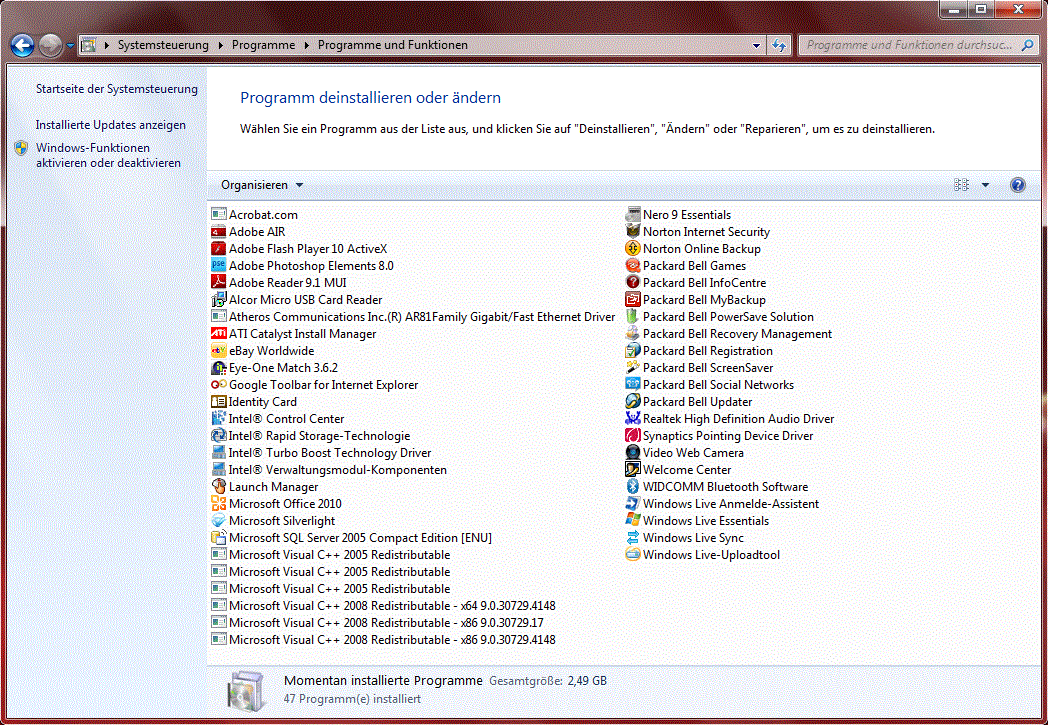

Installed software
Installed software Packard Bell EasyNote LX86

Software Features

Like most of the large manufacturers (Sony, Asus, Acer, Toshiba etc.), Packard Bell didn't exactly hold back on the software installations.  Therefore in addition to numerous company programs, the deinstallation process also entails getting rid of a diverse mass of bloatware.  Due to the annoying pop-up messages, a reduced operating speed and delayed booting routine, it is advisable to carry out a deinstallation of the associated software directly after start-up.

Delivery Contents

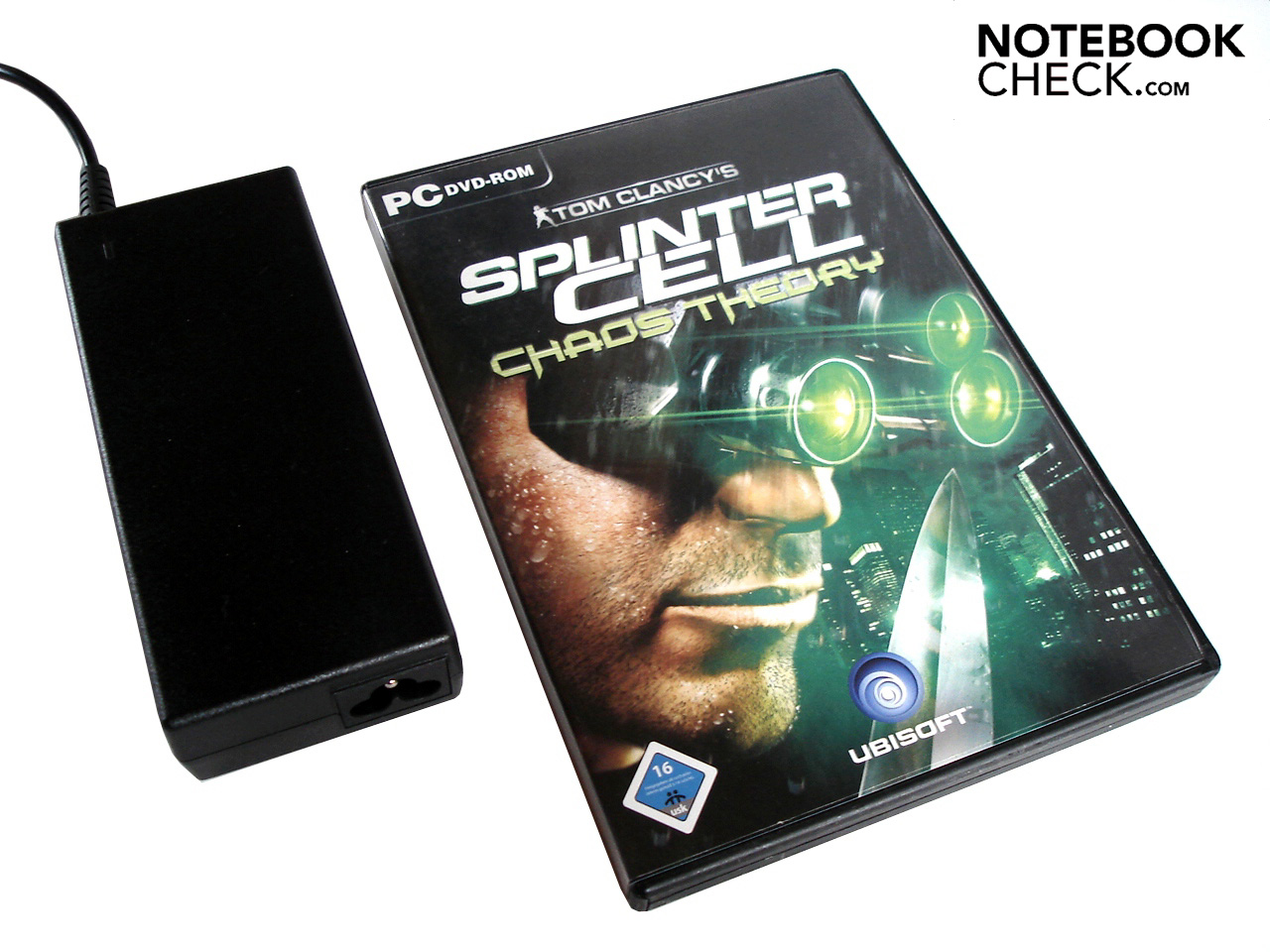

Packard Bell makes up some ground in terms of the the delivery contents.  Though the manufacturer (as is typical by now) doesn't include any original data medium with the operating system (Windows 7 Home Premium 64bit), three blank DVDs do help in creating a recovery medium.  A cleaning cloth and a Blu-Ray-disk with its own trailers also aren't typically a given.  In order to enjoy Blu-Ray-films without additional at-cost software, the EasyNote LX86 also gets PowerDVD 9 from CyberLink.

Guarantee

Packard Bell grants its customers  a 24 month guarantee, and the Collect & Return service simplifies this process.

Input Devices

Keyboard

Those who write a great deal may not be too happy with the keyboard on the EasyNote LX86. The typing feel turns out to be relatively spongy.  Pressure points and stroke are not defined enough.  Furthermore, the space between the keys (~2mm) could be larger, as we were often catching multiple keys in the practice test.  This is compounded by  poorly-contrasted marking as well as a slightly cheap-sounding typing noise, all of which further emphasizes the negative impression.

Yet some aspects do in fact save the keyboard from a worse rating. The layout for instance is thoroughly successful and the dedicated numeric keypad helps when quickly putting in numbers.  The size of the keys (16 x 16 mm), apart from the very thin arrow keys, is also decent.

Touchpad

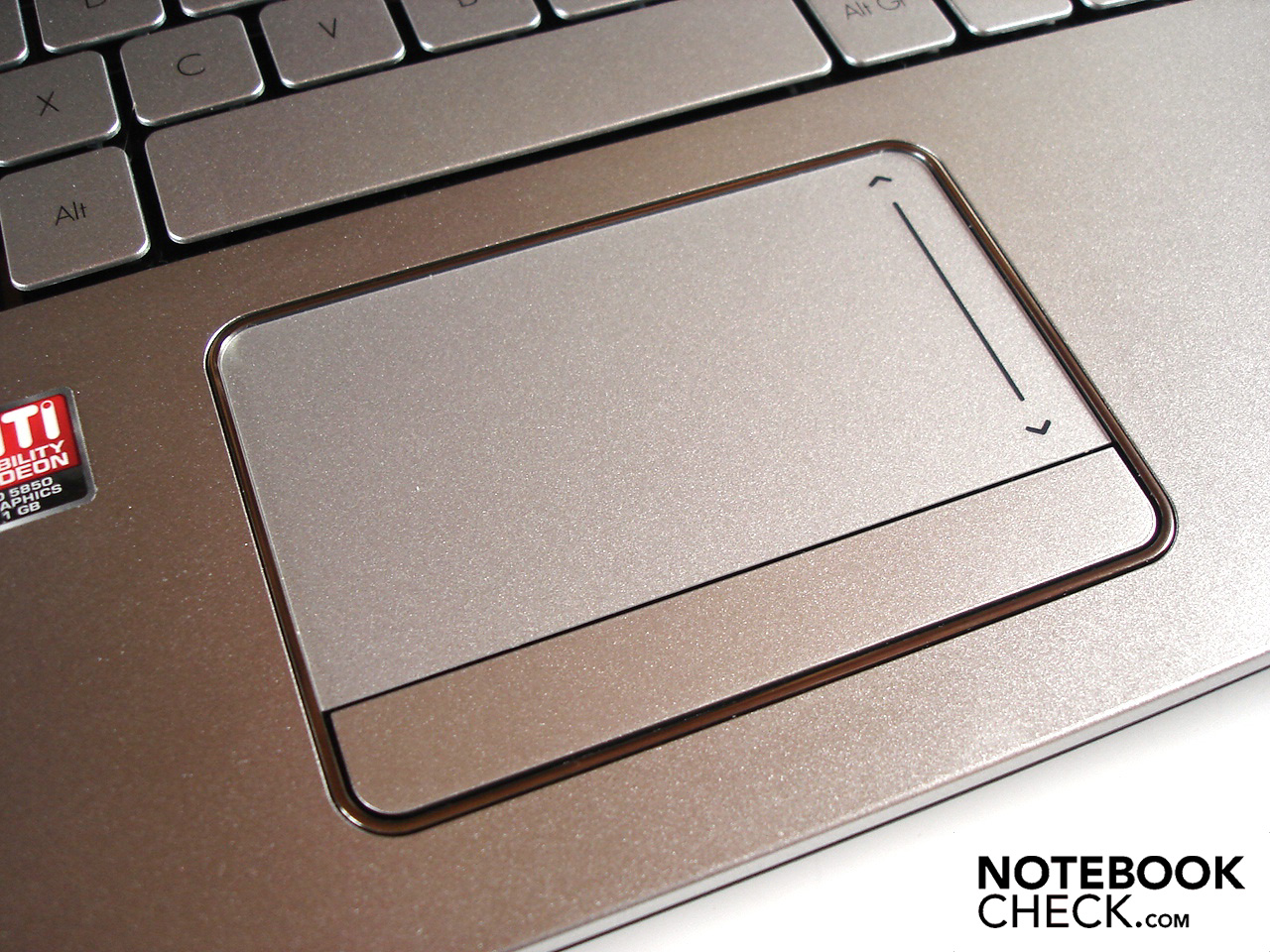

As compensation for the mediocre keyboard, the user is offered an outstanding touchpad which just about sets new standards.  For one thing, the deactivatable  and exceptionally precise touchpad is perfectly dimensioned at 90 x 50 mm.  For another, the pleasantly smooth surface provides it with good gliding characteristics, while its slight depression also guarantees a modicum of orientation.

The rest of the touchpad's characteristics are also impressive: The scrolling function performs just as well as the multi-gesture-control. The crisply triggering keys, which are combined into a single bar, are the icing on the cake. The positioning is the only thing which may perhaps dissatisfy gamers, as there is always the risk of key errors.

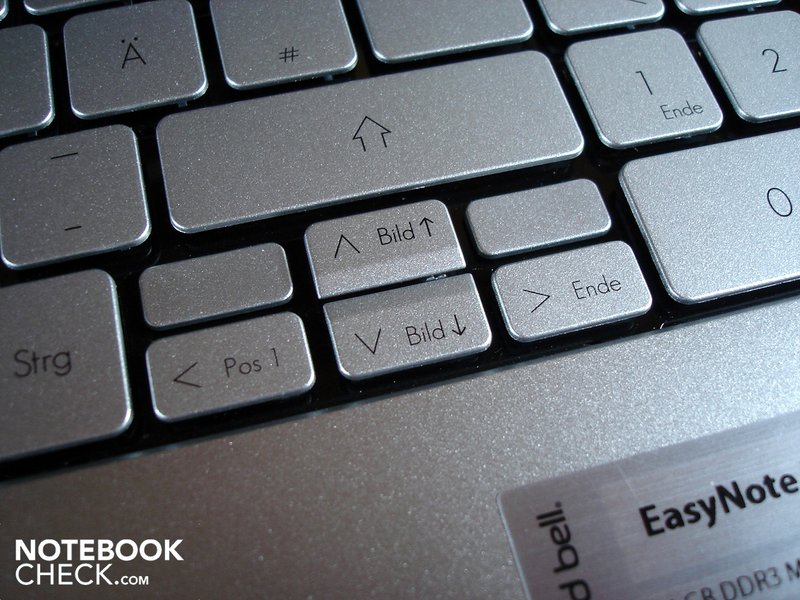

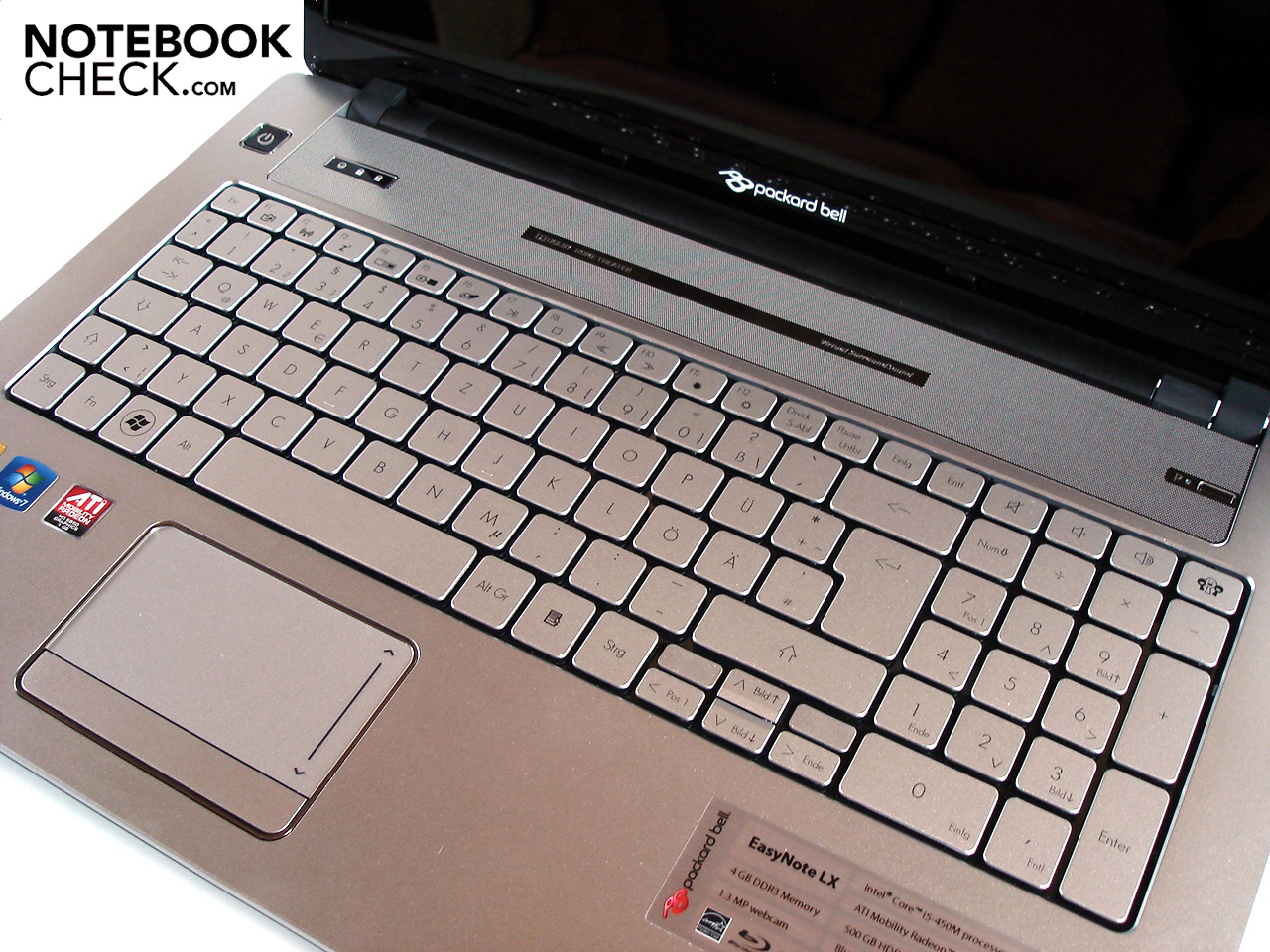

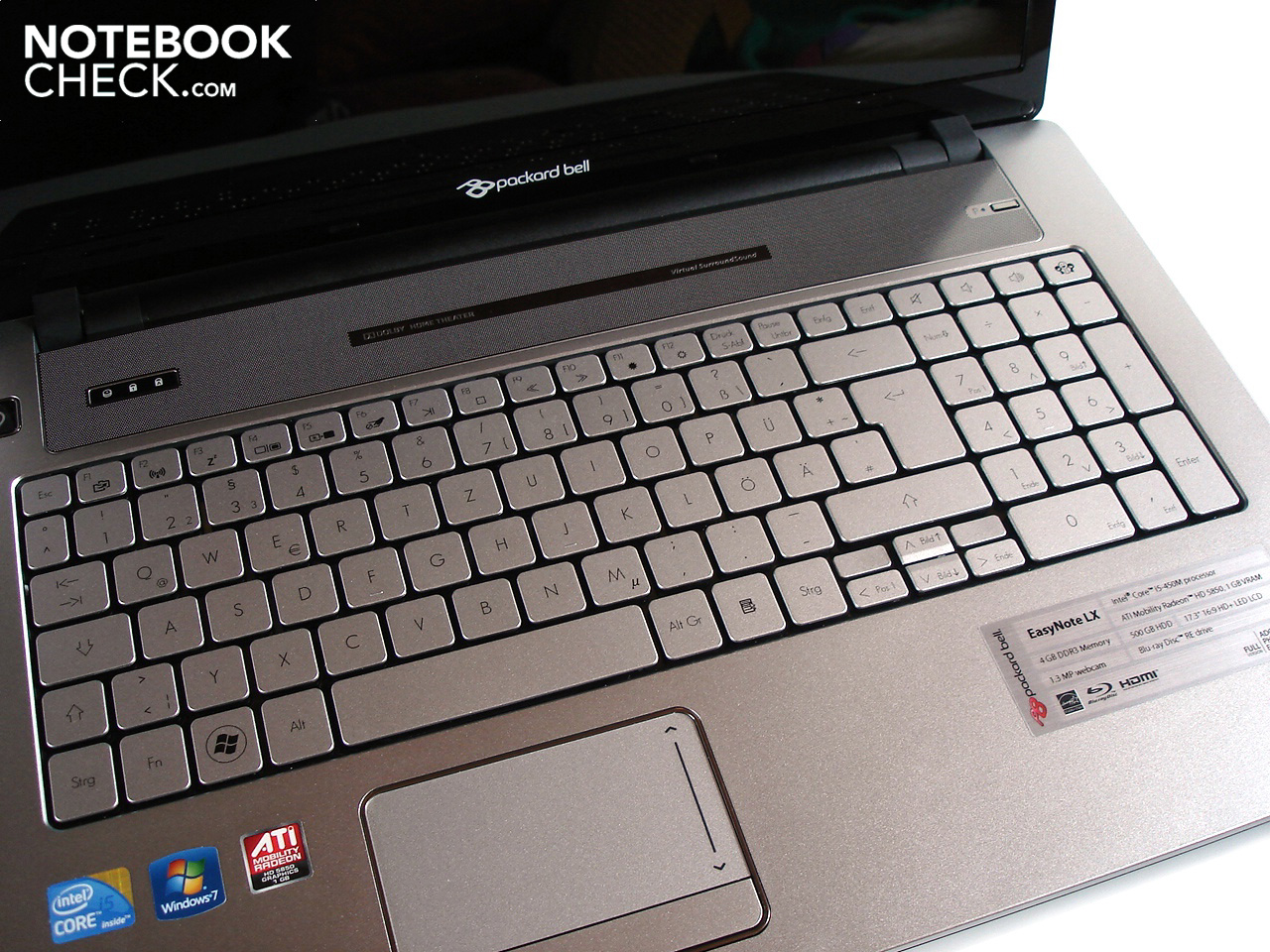

Keyboard
Keyboard Packard Bell EasyNote LX86
Touchpad
Touchpad Packard Bell EasyNote LX86

Display

The 17.3" display deserves to be described as standard-fare.  A resolution of 1600x900 pixel offers a good compromise between resource demands and picture surface, meaning that working with two open windows side-by-side isn't a problem.  Furthermore, an aspect ratio of 16:9 ensures that the typical film-bars are reduced; the EasyNote LX86 is a multimedia notebook after all.

203
cd/m²
205
cd/m²
204
cd/m²
211
cd/m²
217
cd/m²
214
cd/m²
210
cd/m²
225
cd/m²
220
cd/m²
Distribution of brightness
Information
Gossen Mavo-Monitor
Maximum: 225 cd/m²
Average: 212.1 cd/m²
Brightness Distribution: 90 %
Center on Battery: 217 cd/m²
Black: 1.0 cd/m²
Contrast: 217:1

But, the picture quality of the Chi Mei N1703o6-L02 panel is far removed from that of front-runners like the Hannstar HSD173PUW1 (see for ex. Asus G73JW). Though the colors do make a powerful impression subjectively, the values we got in fact reveal several deficits. The high level of black of 1.0 cd/m²  make darker areas seem grayish rather than deep black.  While that is hardly noticeable in office use, it makes itself known in a negative way in films or games.  The contrast is also  anything but outstanding; a scant 217:1 is only partially masked by the high-gloss surface. The luminosity is on a good level thanks in no small part to the LED backlighting. With an average of 212.1 cd/m², the display's projection is adequately bright.

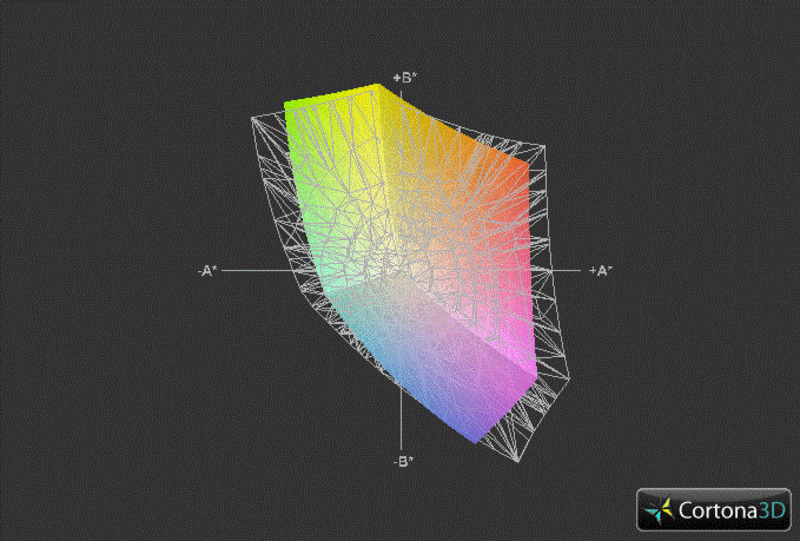

Packard Bell EasyNote LX86 vs. sRGB (wire frame)
Packard Bell EasyNote LX86 vs. sRGB (wire frame)
Packard Bell EasyNote LX86 vs. AdobeRGB (wire frame)
Packard Bell EasyNote LX86 vs. AdobeRGB (wire frame)

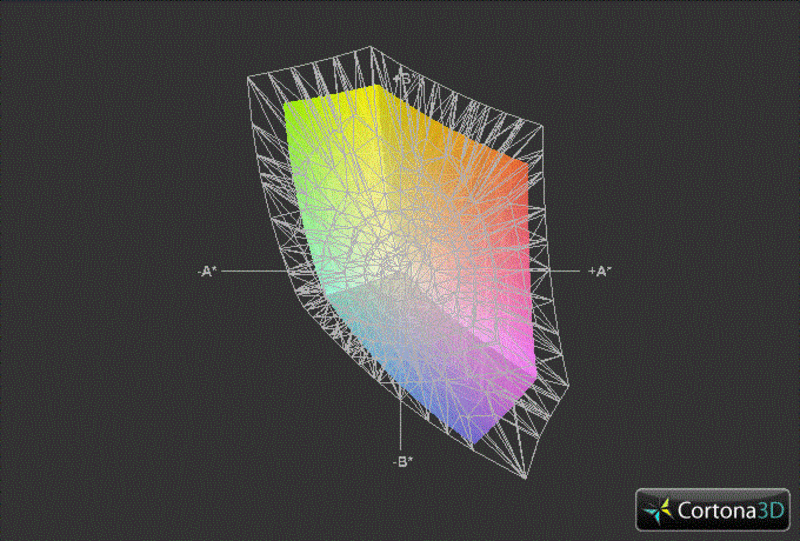

Packard Bell EasyNote LX86 vs. MacBook Pro 17 (wire frame)
Packard Bell EasyNote LX86 vs. MacBook Pro 17 (wire frame)

A big disadvantage of the glossy display surface is its high suscesptibility to reflections.  Especially outdoors, annoying reflections appear under direct or indirect rays of light.  Though reflections come up much less often and with less intensity when indoors, one should still make sure they find the optimal positioning (not across or under windows).

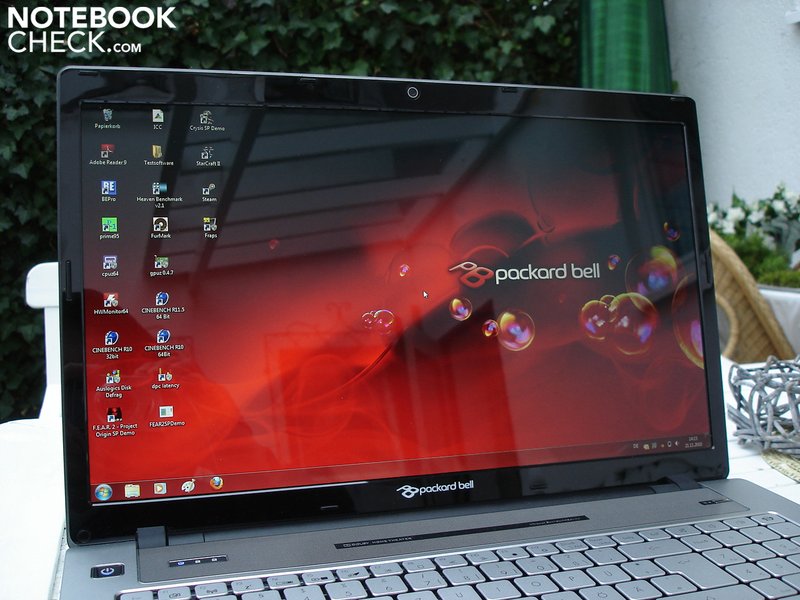

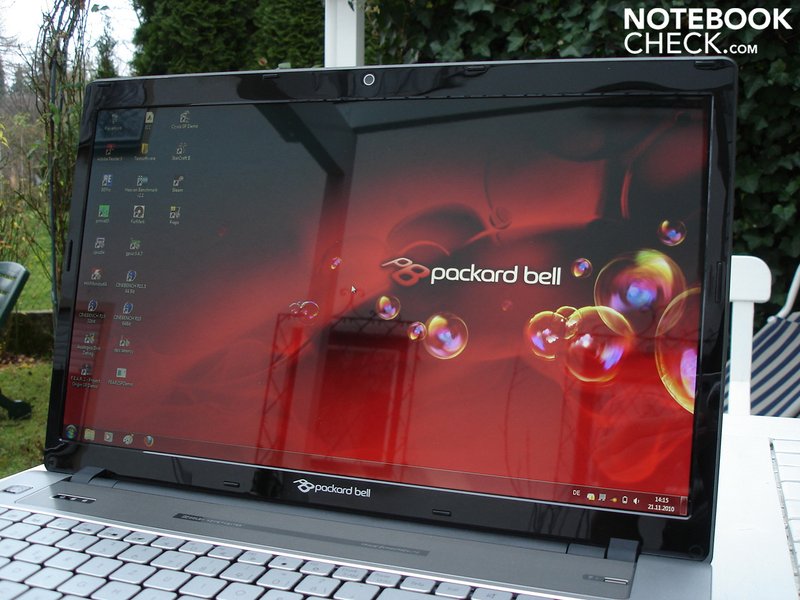

Outdoor use Packard Bell EasyNote LX86
Outdoor use Packard Bell EasyNote LX86

The greatly limited viewing angles are an additional shortcoming of the display.  Both horizontally and vertically, even minimal changes are enough to produce image distortions.  Continual adjustments are a daily affair with the EasyNote LX86.

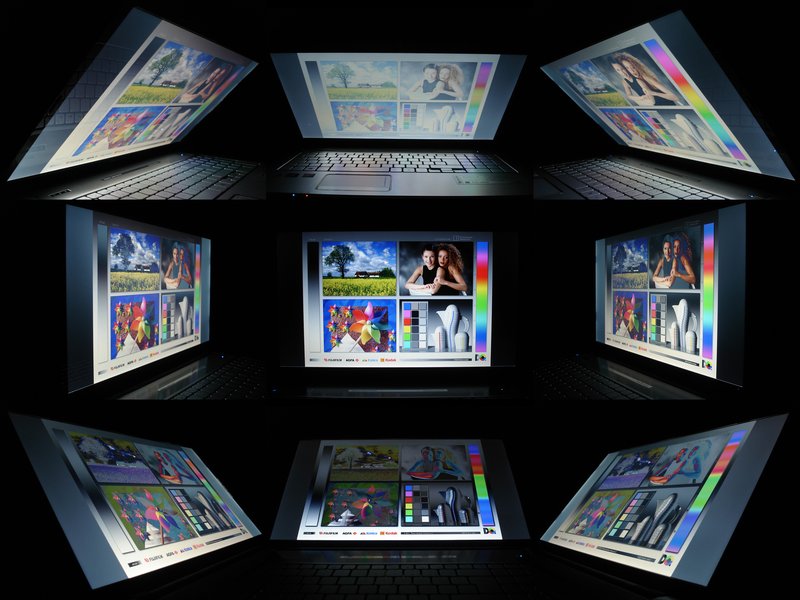

Viewing angles Packard Bell EasyNote LX86-JO-022GE
Viewing angles Packard Bell EasyNote LX86-JO-022GE

Performance

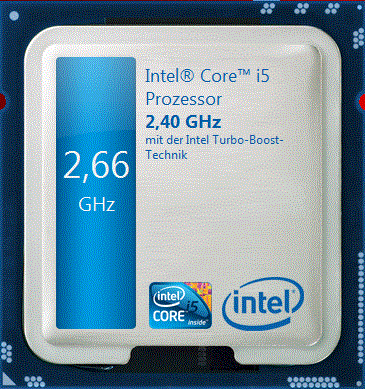

Turbo-Boost
Turbo-Boost

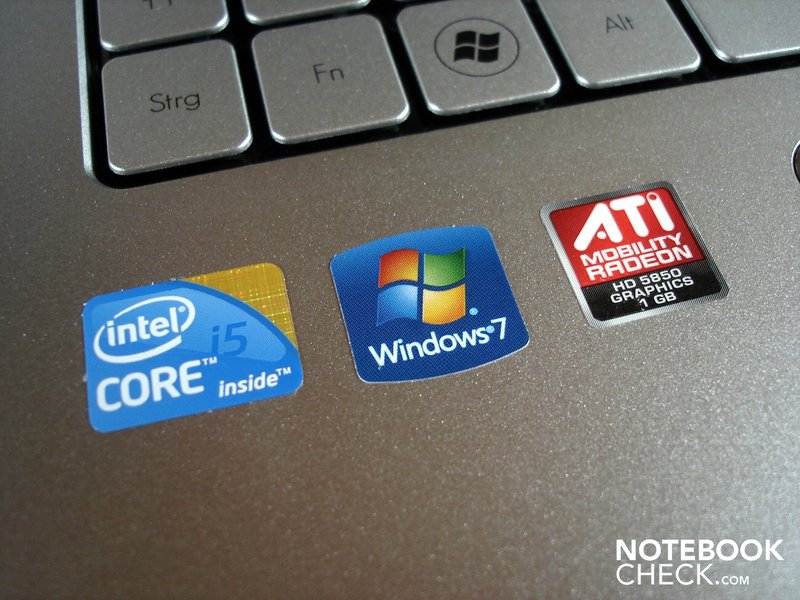

Processor: Intel Core i5-450M

The JO-022GE model before us equipped with a Core i5-450M from Intel.  The dual-core processor for the current 1156 socket is executed in the modern 32nm process and has a standard clocking speed of 2.40 GHz.  As long as the cooling system is up to it and the cores aren't all worked to full capacity, the clocking can even be raised to up to 2.66 GHz through Turbo-Boost technology.  The Hyperthreading technology on the other hand is responsible for the simulation of two virtual cores, thereby allowing the Core i5-450M to run four threads simultaneously.  While this currently offers no notable advantages for gaming, it has some significant effects in optimized application.

Three MB of L3-cache can be considered as a further guarantor for good performance. A special feature of Intel's dual-core CPUs of the Core i3, i5- and i7 series is the presence of a (relatively low-performing) graphics chip called GMA HD.  The current consumption of the Core i5-450M is not exactly low at 35 watts, but in addition to the graphics unit, the memory control is also integrated into the processor.

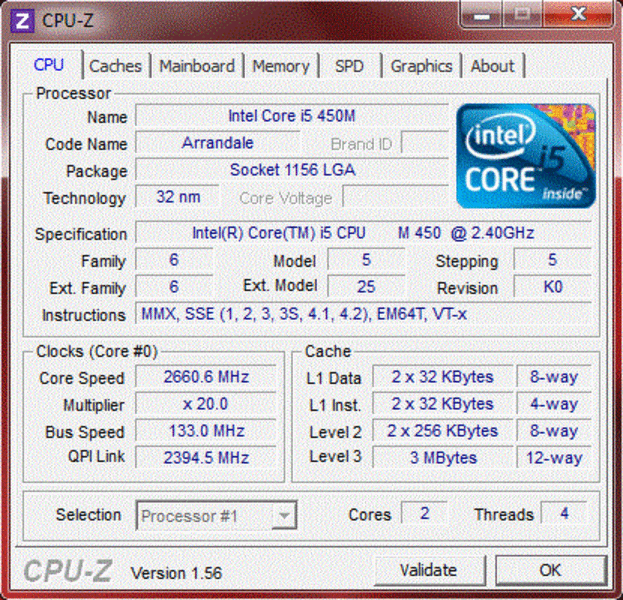

Systeminfo CPUZ CPU
Systeminfo HDTune

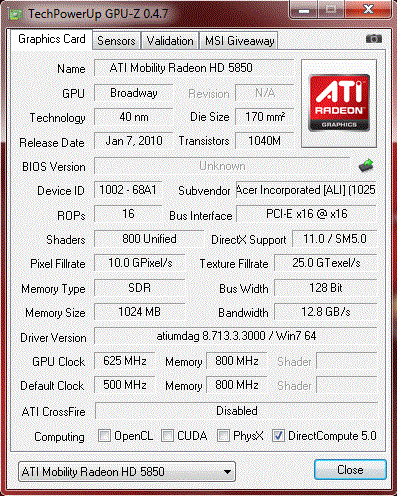

Systeminfo GPUZ
Systeminfo GPUZ

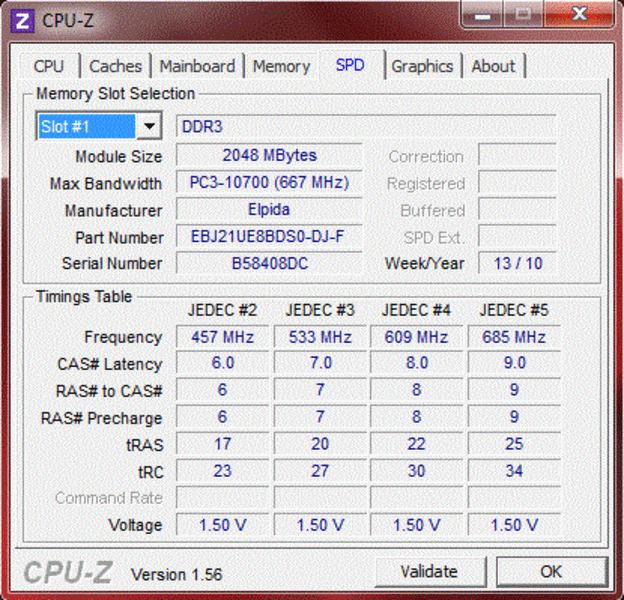

Systeminfo CPUZ RAM SPD
Systeminfo CPUZ RAM SPD

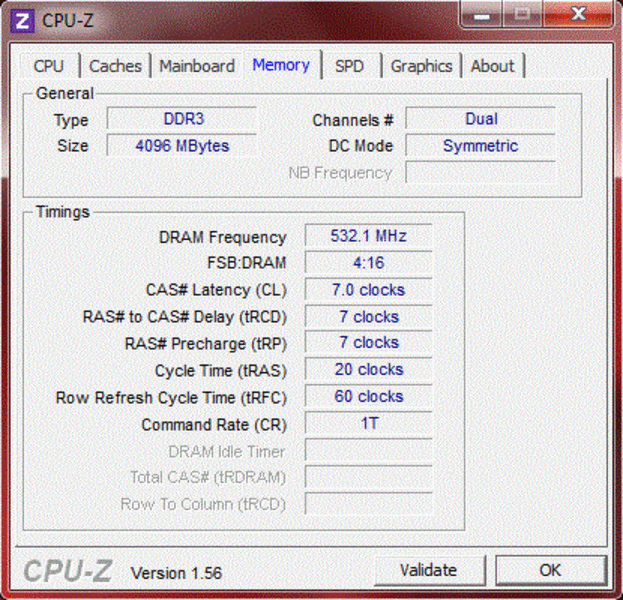

Systeminfo CPUZ RAM

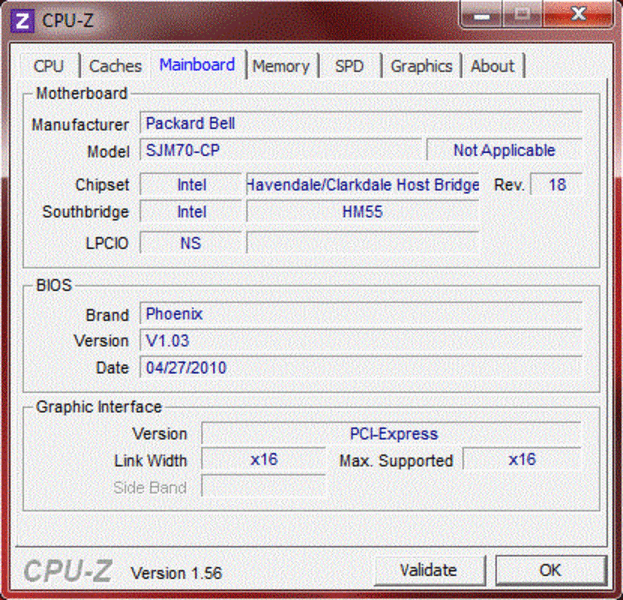

Systeminfo CPUZ Mainboard

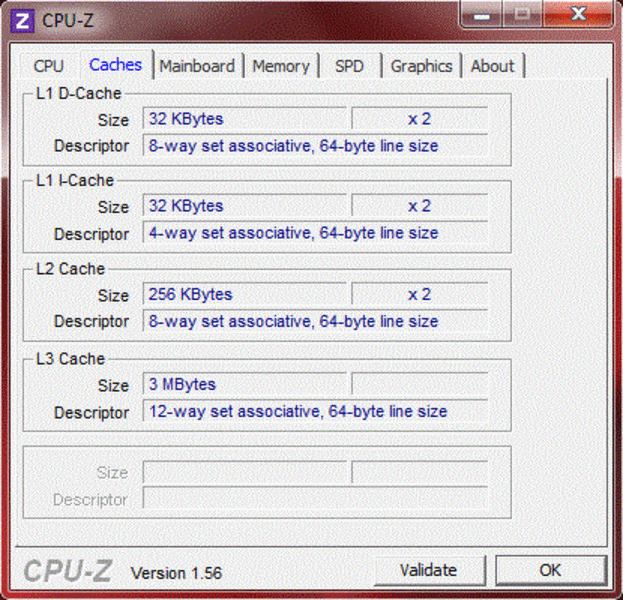

Systeminfo CPUZ Cache

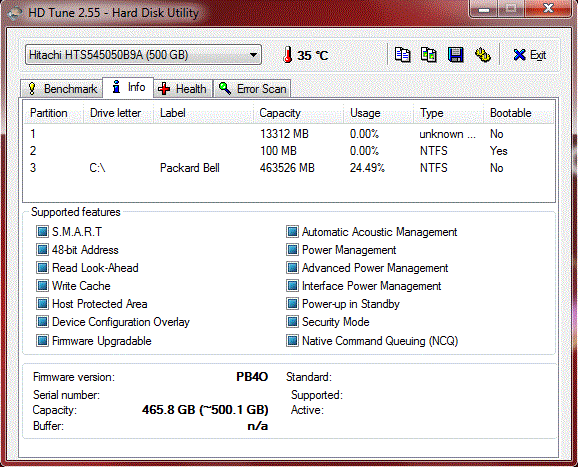

Systeminfo HDTune
System information Packard Bell EasyNote LX86-JO-022GE

Performance CPU

We checked the performance of the CPU with the Cinebench benchmark program.  As a means of comparison, the Core i5-450M not only had to go up against the popular quad-core Core i7-720QM, but also against the Core i7-620M, which is currently the fastest dual-core going. While the Core i5-450M positioned itself just behind the Core i7-720QM with 3662 vs. 3691 points in the Cinebench R10 (64bit), the Core i7-620M pulled away by around 14% (4181 points).  In the Mutlicore-Rendering test (64bit), the Core i7-720QM's greater number of cores allowed it to clearly set itself apart from the dual-cores . With 10000 to 8081 points, the Core i5-420M was outflanked by around 24% (Core i7-620M: 8827 points).

Cinebench R10 Rendering Single 32Bit
2957
Cinebench R10 Rendering Multiple CPUs 32Bit
6729
Cinebench R10 Shading 32Bit
5142
Cinebench R10 Rendering Multiple CPUs 64Bit
8081 Points
Cinebench R10 Shading 64Bit
5068 Points
Cinebench R10 Rendering Single CPUs 64Bit
3662 Points
Cinebench R11.5 CPU Multi 64Bit
2.16 Points
Cinebench R11.5 OpenGL 64Bit
21.11 fps
Help
PC Mark
PCMark Vantage5288 points
Help

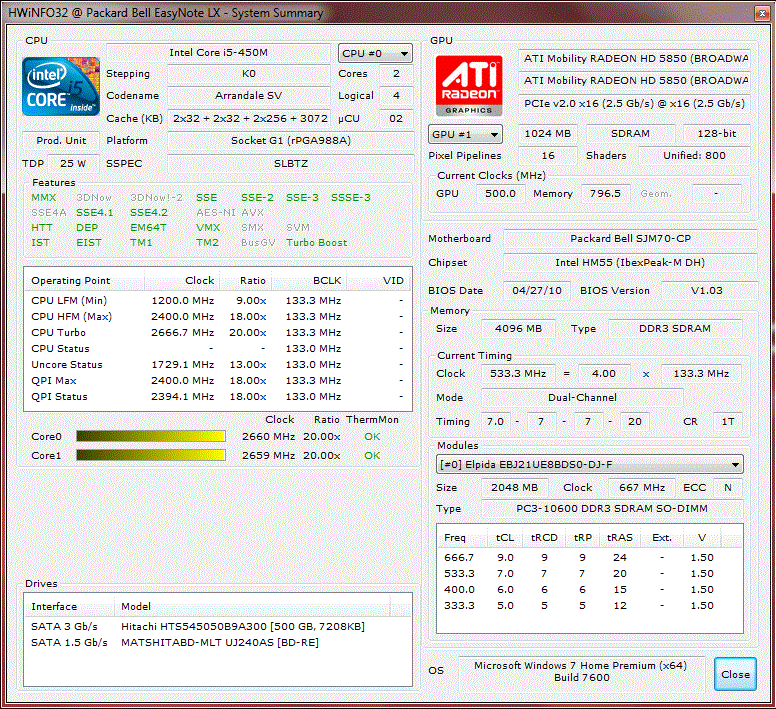

HWiNFO
HWiNFO Packard Bell EasyNote LX86

Graphics Card: ATI Mobility Radeon HD 5850

For the graphics card, Packard Bell went with the rather seldom Mobility Radeon HD 5850 from ATI.  The graphics card, which is capable of supporting DirectX 11 and produced  in 40nm, represents a link of sorts between the mid-range (Radeon HD 5650) and the higher level (Radeon HD 5870).  With an ample 1040 million transistors (HD 5650: 627 million) and 800 unified shaders (HD 5650: 400 shader), the Radeon HD 5850 contains in principle a great deal of performance potential.

But the crux of the matter is the type of memory used.  As the memory interface is thinly scrimped at 128bit, the graphics card should have been equipped with a good memory bandwidth with a fast GDDR5-VRAM. Unfortunately like most manufacturers (see for ex. Acer Aspire 7745G, 5943G & 8943G), Packard Bell uses only a DDR3-VRAM, which shows its weakness primarily in higher resolutions and when applying quality improvements. That said, Packard Bell didn't dare to experiment; 625 MHz for the core and 800 MHz for the memory meet the standards.

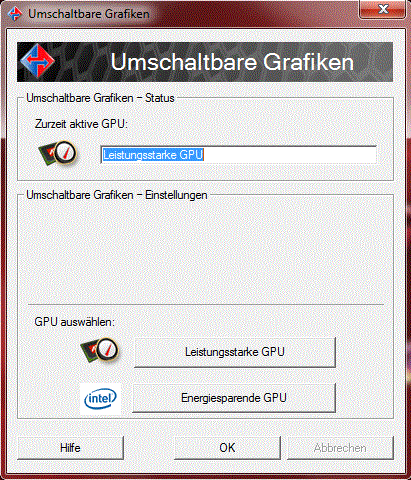

Switchable Graphics
Switchable Graphics

Switchable Graphics

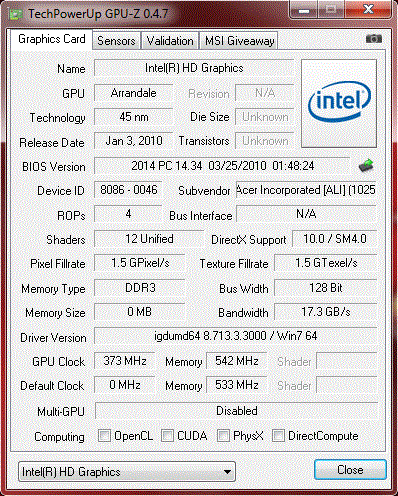

Packard Bell is worthy of praise for using the opportunity at hand and providing the EasyNote LX86 with an option for switching the graphics card ("Switchable Graphics").  Depending on the level of demands, the user can change between the integrated (GMA HD) and the dedicated (Radeon HD 5850) graphics units depending on whether the focus is on battery life, or primarily on performance.  In contrast to Nvida's Optimus, Switchable Graphics doesn't work dynamically, but rather through a manual input from the user.

The process of switching is conceivably quite simple: Right click on the desktop and choose "configure Switchable Graphics".  The process takes only a few seconds. However, changing the GPU is only possible if no applications are open.  If for instance one notices that the wrong graphics unit is active only after beginning a PC game, the program must be closed first - inconvenient.  The advantage lies in the low dependency on the driver; with the manual functionality, errors are very rare.

5.8
Windows 7 Experience Index
Processor
Calculations per second
6.8
Memory (RAM)
Memory operations per second
5.9
Graphics
Desktop performance for Windows Aero
6.8
Gaming graphics
3D business and gaming graphics
6.8
Primary hard disk
Disk data transfer rate
5.8

Performance GPU

With the graphics benchmarks we were primarily interested in how the Radeon HD 5850 performs against its mid-range and high-end siblings from in-house.  The Radeon HD 5850 cuts a good figure in the 3DMark Vantage, and with 5038 vs. 2737 points (GPU score), the Radeon HD 5650 is left behind by a considerable 84%.  The Radeon HD 5870 can't distance itself so significantly from the Radeon HD 5850.  With 7584 points, it has a performance advantage of 51%.

3D Mark
3DMark 0326308 points
3DMark 0515479 points
3DMark 06
 1280x1024
8451 points
3DMark Vantage5492 points
Help

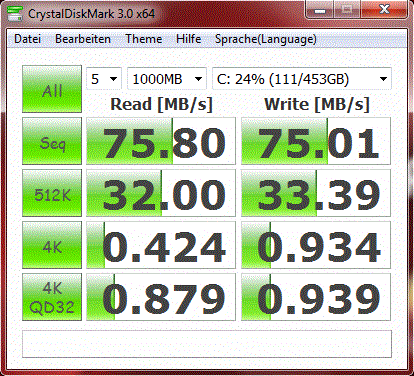

CrystalDiskMark
CrystalDiskMark Packard Bell EasyNote LX86

Performance HDD

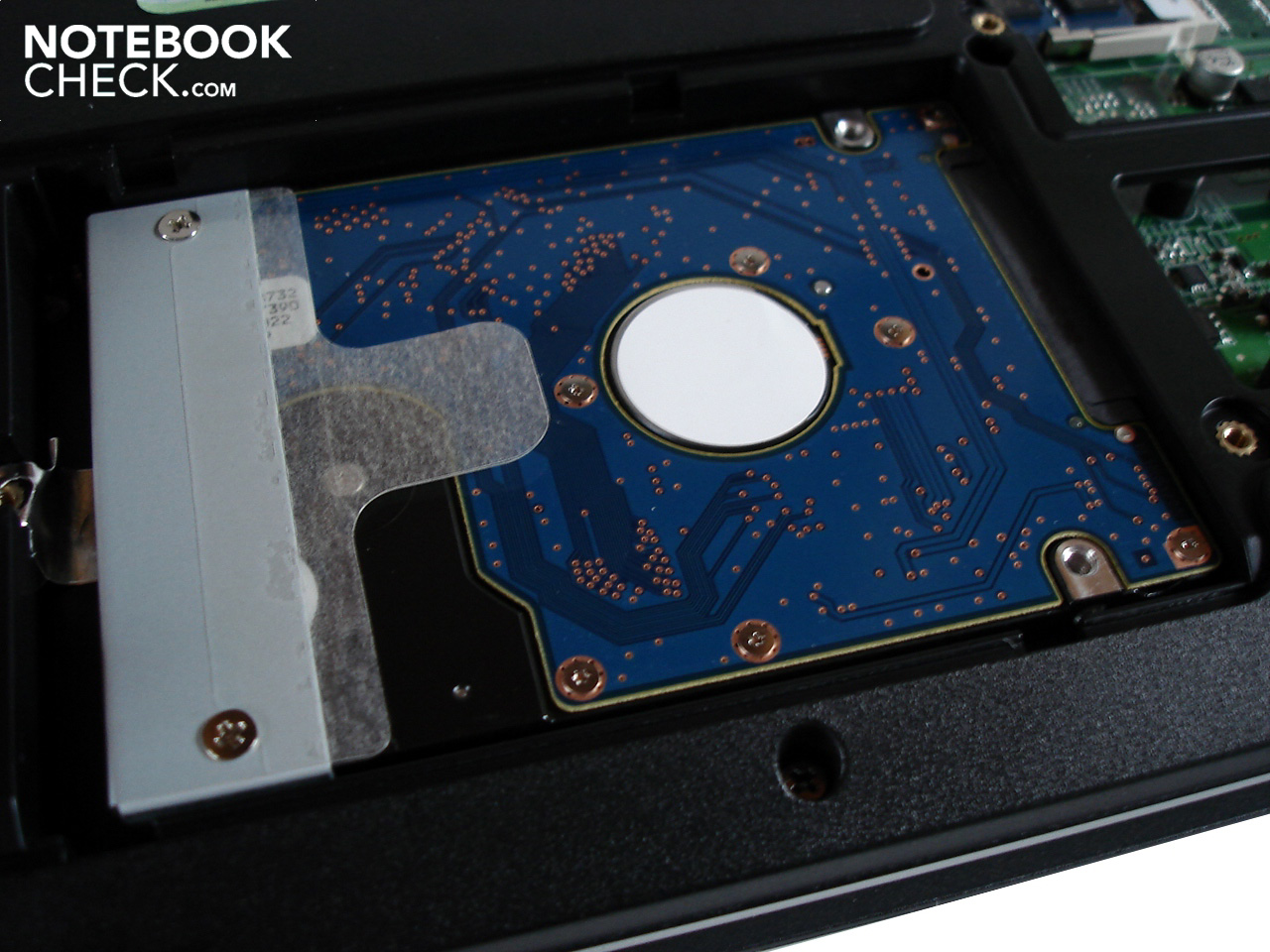

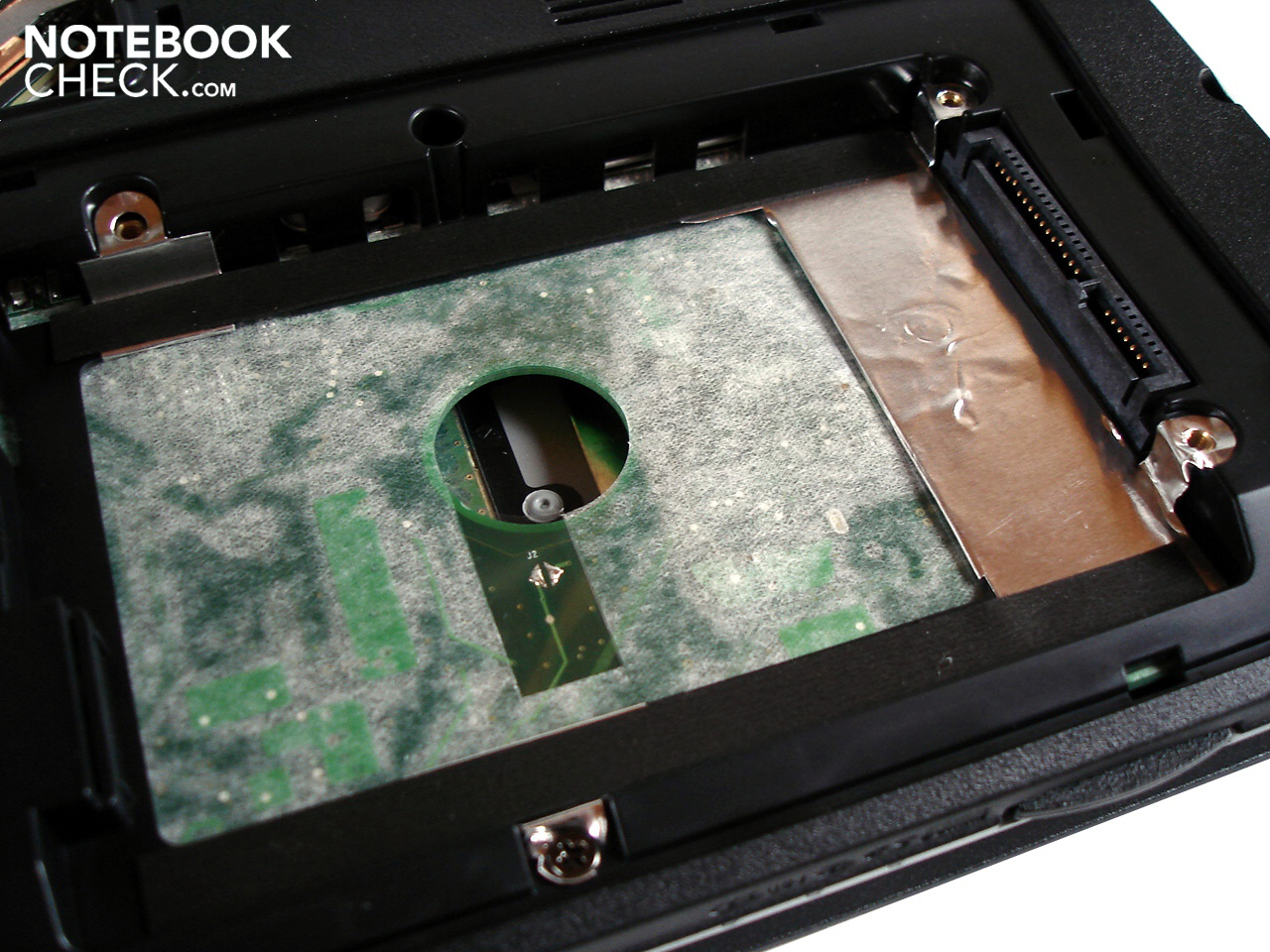

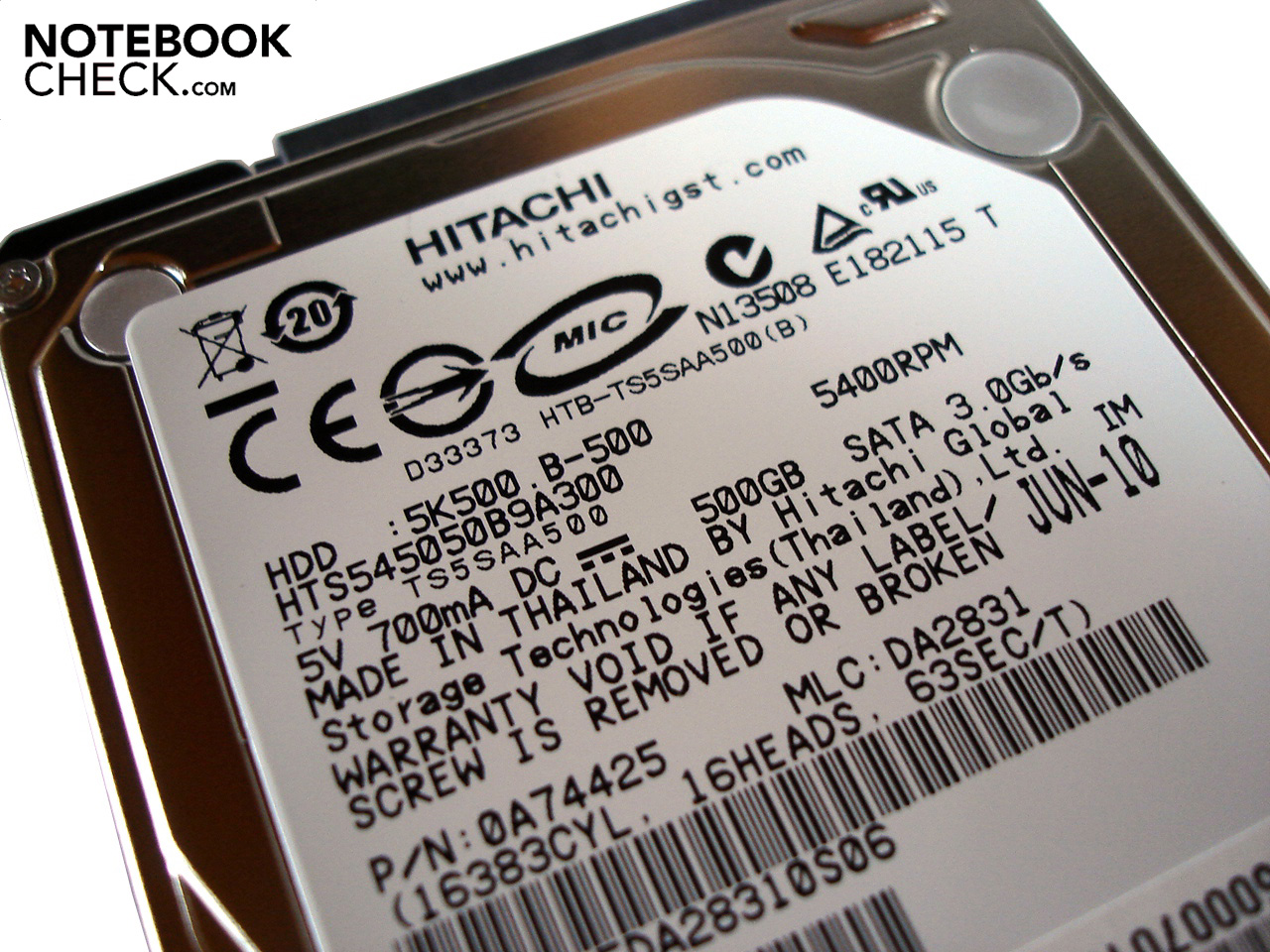

The harddrive in the EasyNote LX86 is a 500 GB HDD from Hitachi.  The model marked HTS545050B9A300 was able to show reasonable performance in testing.  Due to a rotational speed of 5400 rpm, the average transfer rate of 63.9 MB/sec somewhere in mid-field (HD Tune). A sequental read rate of 75.90 MB/sec. and a sequential write rate of 75.01 MB/sec. can also be described as decent.

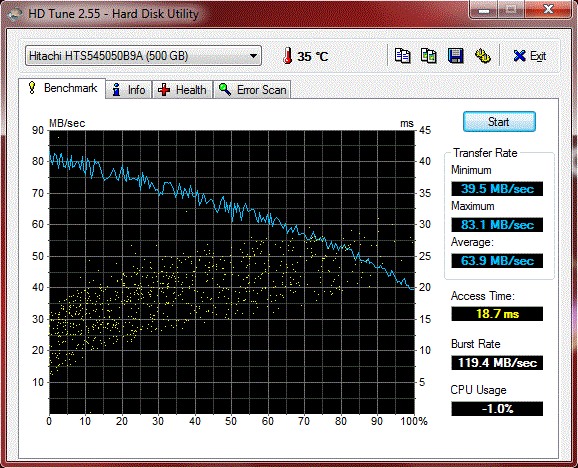

Hitachi Travelstar 5K500.B HTS545050B9A300
Transfer Rate Minimum: 39.5 MB/s
Transfer Rate Maximum: 83.1 MB/s
Transfer Rate Average: 63.9 MB/s
Access Time: 18.7 ms
Burst Rate: 119.4 MB/s

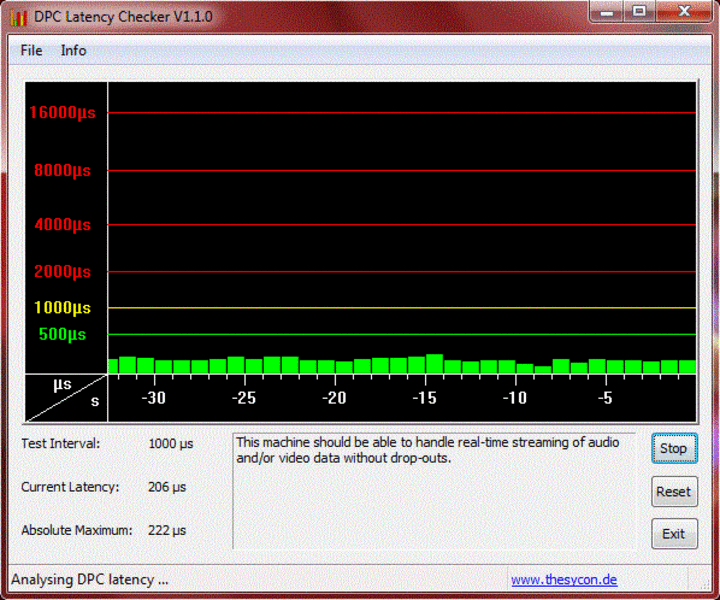

DPC Latency Checker
DPC Latency Checker Packard Bell EasyNote LX86

Verdict Performance

Intel's Core i5-450M, in combination with ATI's Mobility Radeon HD 5850, ensures gratifyingly-good application performance.  The system works nice and quick, even with more demanding applications.  Performance bottlenecks are rather seldom.  With this package, the user is well equipped for the next few years.  Safeguarding the future isn't a foreign concept for the EasyNote LX86.

Gaming Performane

The gaming benchmarks basically entailed a graphics comparison between the Radeon HD 5850 and HD 5650. The Acer TravelMate 7740G and the Acer Aspire 4820TG serve as the basis for this comparison.  Our indicate of whether the performance difference justifies reaching for the Radeon HD 5850.

Mafia 2

The gangster-myth Mafia 2 doesn't cause any fuss for the Radeon HD 5850, even in higher resolutions and quality settings.  With high details and 16x AF, we could measure a decent 29.3 fps in the 1920 x 1080 resolution.  That is a full 31% better than with the Radeon HD 5650, which had to be content with 22.4 fps.

Mafia 2
 ResolutionSettingsValue
 1920x1080high, 0xAA, 16xAF29.3 fps
 1360x768high, 0xAA, 16xAF46.4 fps
 1024x768medium, 0xAA, 8xAF53.8 fps

Starcraft 2

With very high details and a resolution of 1920 x 1080, one is asking a bit too much from the EasyNote LX86.  The 19.3 fps which we measured in the intro of the challenge "For the Swarm" indicates that later missions involving even more enemies won't run consistently smooth.  Still, compared to the Radeon HD 5650 (16.5), the HD 5850 was still better by 17%.  Those who want to play Starcraft 2 in the native resolution of 1600 x 900 without any juttering should in the meantime go for a higher level of details.

StarCraft 2
 ResolutionSettingsValue
 1920x1080ultra19.3 fps
 1360x768high30.4 fps
 1360x768medium49.3 fps

Fifa 11

Low hardware demands are a key feature of the current Fifa offshoot.  This has the positive effect of allowing you to try out all the options on the EasyNote LX86. High details and 4x AA in a 1920 x 1080 resolution deliver a butter-smooth 54.9 fps across the display.  The Radeon HD 5650 with the same settings also has no problems, as its 45.3 fps guarantee a fluid image refresh rate.

Fifa 11
 ResolutionSettingsValue
 1920x1080high, 4xAA, 0xAF54.9 fps
 1360x768high, 2xAA, 0xAF90.8 fps
 1024x768medium, 0xAA, 0xAF150.8 fps

Metro 2033

The ego-shooter Metro 2033 is the exact opposite of Fifa 11: Due to the extreme demands on the hardware, full-HD resolutions as well as very high details or DirectX 11 mode are taboo.  Even with high details and the DirectX 10 mode, Metro 2033 runs far from fluidly in the 1600 x 900 resolution; 17.7 fps speak for themselves. With 14.1 fps, the ego-shooter jerks even more on the Radeon HD 5650, meaning that the Radeon HD 5850 pulls ahead by 26%.

Metro 2033
 ResolutionSettingsValue
 1920x1080Very High DX11, AAA, 4xAF5.5 fps
 1600x900High DX10, AAA, 4xAF17.7 fps
 1360x768Normal DX10, AAA, 4xAF32 fps

Shift

While high details and 4x AA appear pleasantly fluidly in the 1366 x 768 resolution (36.9 fps), the EasyNote LX86 is somewhat overextended in the 1920 x 1080 resolution with matching settings: 23.6 fps aren't enough to achieve top times.  Here the Radeon HD 5850 outdoes its smaller brother, the HD 5650, by 24%; with 19.0 fps, Shift jerks even more.  Those who do without antialiasing can still try their luck in the native resolution of 1600 x 900 on high details.

Need for Speed Shift
 ResolutionSettingsValue
 1920x1080all on/high, 4xAA, triliniarAF23.6 fps
 1366x768all on/high, 4xAA, triliniarAF36.9 fps
 1024x768all on/med, 2xAA, triliniarAF47.6 fps

Bad Company 2

With higher quality settings, the EasyNote LX86 is pushed to its limits by the most popular multi-player shooter. When high details and 4x AA and 8x AF are applied, Bad Company 2 jerks a great deal in the 1920 x 1080 resolution; 17.5 fps are not even close to playable. With a meager 14.9 fps, the Radeon HD 5650 also has nothing to show for itself.  Neither GPUs have a chance against high-end graphics cards like the GeForce GTX 460M (~30 fps).  You can't really avoid using middle details in the native resolution.

Battlefield: Bad Company 2
 ResolutionSettingsValue
 1920x1080high, HBAO on, 4xAA, 8xAF17.5 fps
 1366x768high, HBAO on, 1xAA, 4xAF36.5 fps
 1366x768medium, HBAO off, 1xAA, 1xAF50.9 fps

Risen

In contrast to ego-shooters, roll-playing games are perceived as fluid from the third-person perspective already at 25 pictures per second.  While high details and 4x AF in the 1366 x 768 resolution come in just above this value (27.6 fps), one can no longer speak of acceptable game play in a 1920 x 1080 resolution (20.2 fps).  With 16.7 fps, Risen jerks even more on the Radeon HD 5650.  That means the Radeon HD 5850 has an edge of 21%.  For the native resolution, middle details are once again advisable.

Risen
 ResolutionSettingsValue
 1920x1080high/all on, 0xAA, 4xAF20.2 fps
 1366x768all on/high, 4xAF27.6 fps
 1024x768all on/med, 2xAF37.8 fps

Modern Warfare 2

The engine of Modern Warefare 2 doesn't really belong the freshest out there any longer. With this in mind, its not all that surprising that the EasyNote LX86 in the 1920 x 1080 resolution still gets along reasonably enough even with very high details and 4x AA, though 26.9 fps still is a bit too slow for gaming.  The margin of difference to the Radeon HD 5650 is rather small at 26.9 to 23.4 fps (15%). Just as was the case in Shift: As long as one does without antialiasing, high details in the 1600 x 900 ensure decent game play.

CoD Modern Warfare 2
 ResolutionSettingsValue
 1920x1080all on/max vsync off, textures extra, 4xAA26.9 fps
 1366x768all on/high vsync off, high textures, 4xAA42.5 fps
 1024x768all on/med vsync off, normal textures, 2xAA51.9 fps

Dirt 2

The EasyNote LX86 makes quite a showing in the integrated benchmark test of the hugely chic racing game Dirt 2. When played with high details, 2x AA and a resolution of 1366 x 768, the Radeon HD 5850 gets for instance to 33.3 fps.  The ATI graphics card is too weak however for very high details, 4x AA and a resolution of 1920 x 1080.  With 18.3 fps, it's sometimes too difficult to stay on track.  The difference between the Radeon HD 5650 is 27% this time, the mid-level GPU gets 14.4 fps.

Colin McRae: DIRT 2
 ResolutionSettingsValue
 1920x1080Ultra Preset, 4xAA18.3 fps
 1360x768High Preset, 2xAA33.3 fps
 1024x768Medium Preset, 0xAA67.2 fps

Crysis

Despite its age of now three years, the ego-shooter Crysis is still a graphic treat.  However, in order to run high details fluidly, the resolution must be massively reduced (37.4 fps in 1024 x 768). With very high details and a resolution of 1920 x 1080, the performance of both the Radeon HD 5650 (7.7 fps) and the Radeon HD 5850 (10.2 fps) clearly break down, though the latter still registers a respectable advantage of 32%. For the native resolution, middle details are the right choice.

Crysis - GPU Benchmark
 ResolutionSettingsValue
 1920x1080Very High, 0xAA, 0xAF10.2 fps
 1024x768High37.4 fps
 1024x768Medium, 0xAA, 0xAF57.6 fps

Verdict Gaming Performance

On the whole, the EasyNote LX86 puts up good gaming performance.  In the native resolution of 1600 x 900, most middle or high details are possible on current titles, whereby there is still some leeway for quality improvements such as antialiasing.  But the Radeon HD 5850 is less suited for higher resolutions in the full-HD realm; the combination of a 128bit memory interface and DDR3-VRAM makes its presence felt too clearly.

Depending on the game, the HD 5850 could distance itself - sometimes more, sometimes less - from the Radeon HD 5650. On average, the Radeon HD 5850  was ahead by around 22%.  The concluding verdict is as follows: Multimedia enthusiasts with high gaming demands should be thoroughly pleased with the performance of the EasyNote LX86.  But, for performance enthusiasts, there's no avoiding true-blue gaming notebooks with high-end graphics cards on the level of the Radeon HD 5870 or the GeForce GTX 460M.

low med.high ultra
Crysis - GPU Benchmark (2007) 57.637.410.2fps
Crysis - CPU Benchmark (2007) 56.730.59.1fps
F.E.A.R. 2 (2009) 80.758.931.2fps
Anno 1404 (2009) 37fps
Colin McRae: DIRT 2 (2009) 67.233.318.3fps
Need for Speed Shift (2009) 47.636.923.6fps
Resident Evil 5 (2009) 83.353.331.1fps
Risen (2009) 37.827.620.2fps
CoD Modern Warfare 2 (2009) 51.942.526.9fps
Battlefield: Bad Company 2 (2010) 50.936.517.5fps
Metro 2033 (2010) 3217.75.5fps
StarCraft 2 (2010) 49.330.419.3fps
Mafia 2 (2010) 53.846.429.3fps
Fifa 11 (2010) 150.890.854.9fps

Emissions

System Noise

One of the biggest strengths of the EasyNote LX86 is its surprisingly low noise development.  Under low load (Office, Internet etc.), only a light rustle can be perceived and the harddrive behaves relatively quietly, apart from some isolated, though in no way annoying, clattering. As the film backdrop is not drowned out by driver noise, nothing stands in the way of a pleasant DVD or Blu-Ray evening.  Even under load (3D applications, gaming etc.), the noise development is fine; the fan always lingers in acceptable ranges.  The notebook is only clearly audible under full load, though much of the competition is lenient in this respect.

Noise Level

Idle 31.3 / 31.9 / 32.1 dB(A)
HDD 32.1 dB(A)
DVD 36.5 / dB(A)
Load 35.9 / 38.7 dB(A)

    30 dB
silent
40 dB
audible
50 dB
loud

min: , med: , max:    Voltcraft SL-320 (15 cm distance)

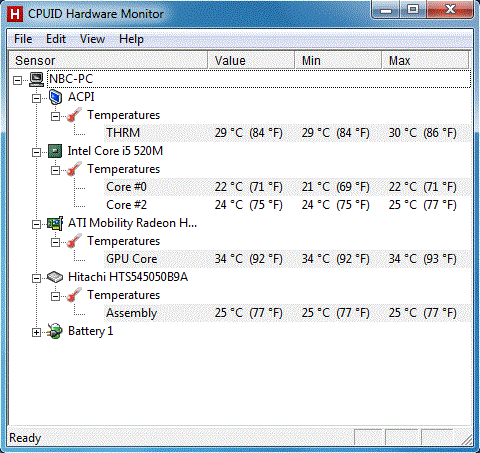

Temps idle
Temps idle Packard Bell EasyNote LX86
Temps load
Temps full load Packard Bell EasyNote LX86

Temperature

The temperature development impressed us, at least at idle.  The upper side as well as the underside of the notebook remain under 30°C, which allows one to work very comfortably with the machine. But the notebook gets relatively warm under load, the case's surfaces reach up to 40°C.  Though the palm rests prove to be somewhat cooler with a maximum of 35.5°C, a slight warming of the hands could be considered rather unpleasant to those with sensitive natures.

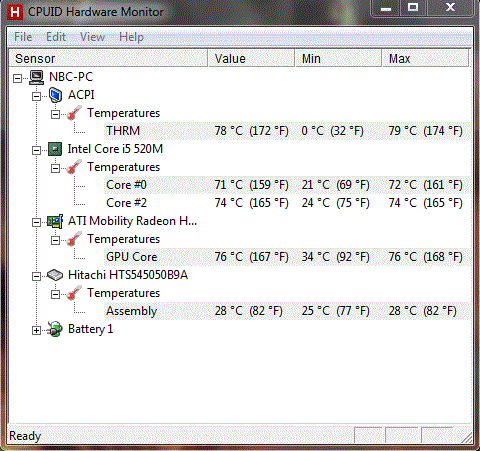

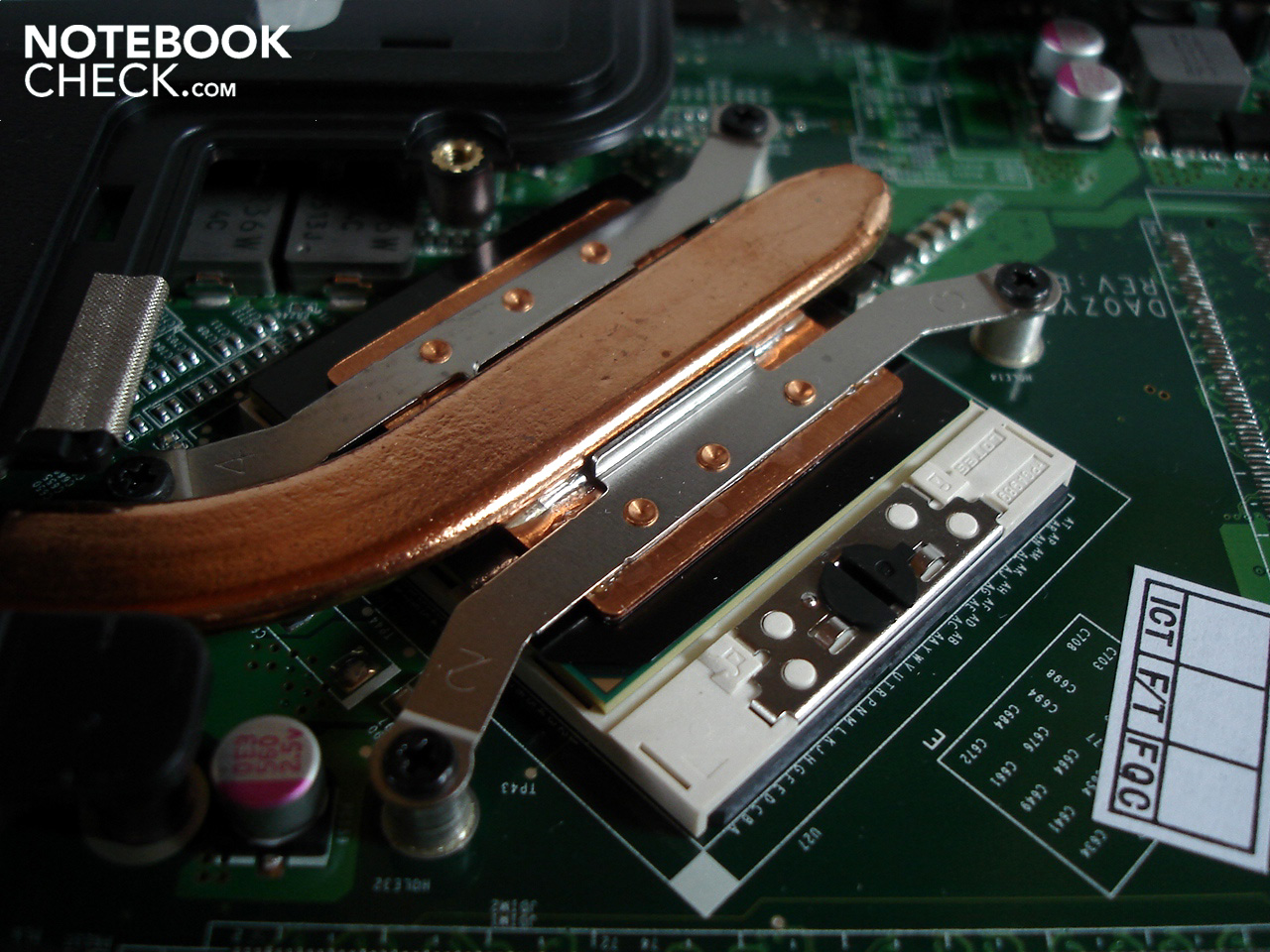

But there is no reason to worry about the temperature of the components.  While the Core i5-540M and Radeon HD 5850 at idle are very well cooled at 24 and 34°C respectively, there is only a moderate rise in temperature under load of up to 74 and 76°C respectively.

Max. Load
 38.1 °C37.1 °C28.7 °C
 37.9 °C38.7 °C30.1 °C
 30.1 °C35.5 °C26.2 °C
Maximum: 38.7 °C
Average: 33.6 °C
30.4 °C27.0 °C39.8 °C
28.2 °C32.5 °C34.2 °C
26.6 °C32.1 °C32.7 °C
Maximum: 39.8 °C
Average: 31.5 °C
Power Supply (max.)  53.1 °C | Room Temperature 20.0 °C | Voltcraft IR-360

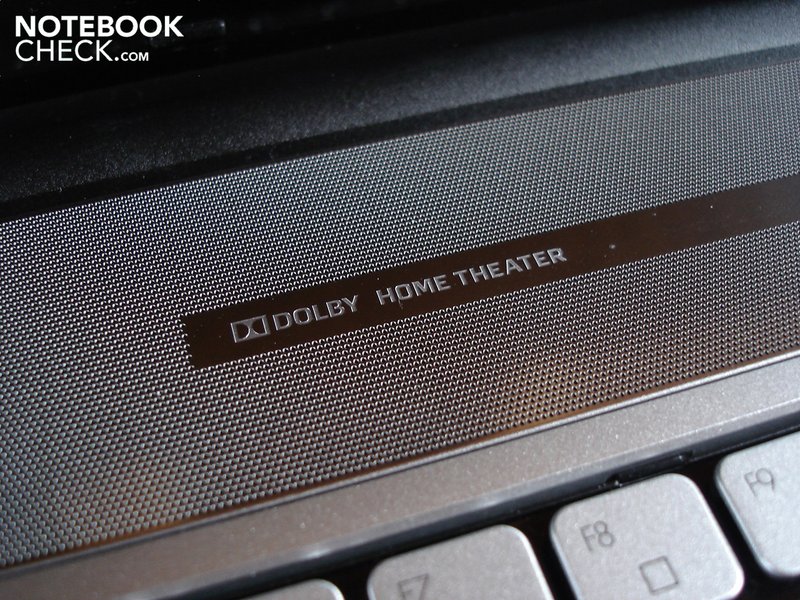

Dolby Home Theater
Dolby Home Theater

Loudspeakers

The sound quality of most notebooks is, to put it politely, rather meager.  Luckily, the EasyNote LX86 doesn't belong to this group. The built-in loudspeakers offer an above-average sound. All tone areas seem relatively balanced and precise, and there is hardly any distortion even at higher volumes. While the base could certainly afford more push and presence, it is at least there to some extent.

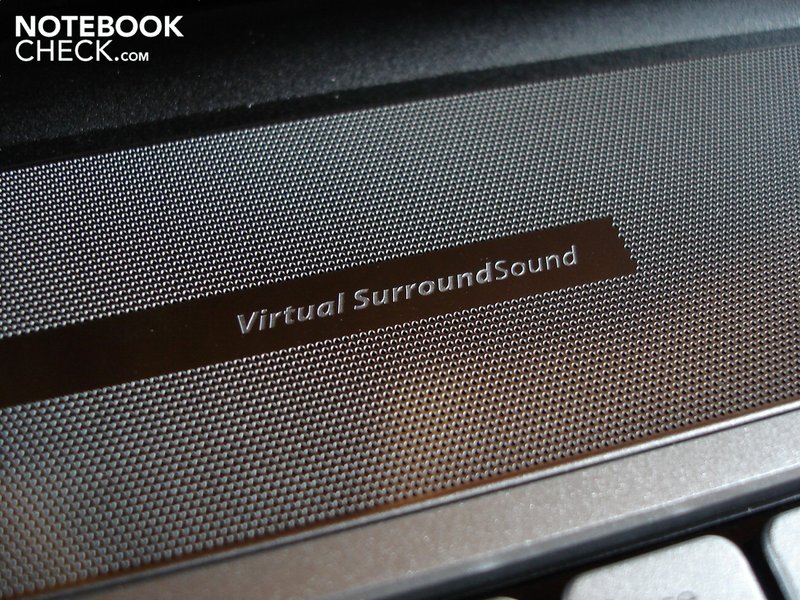

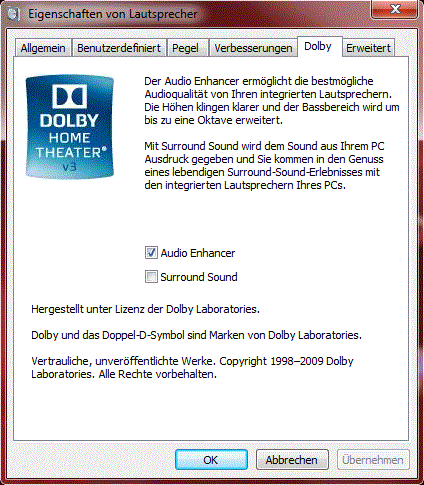

The support of Dolby Home Theater and Virtual Surround Sound represent additional plus points.  For the best-possible sound, the "Audio Enhancer" function should definitely be activated in the loudspeaker settings under "Dolby".  Overall, an external sound system is not a must, though the somewhat dull sound picture may not be enough for all users.

Battery Life

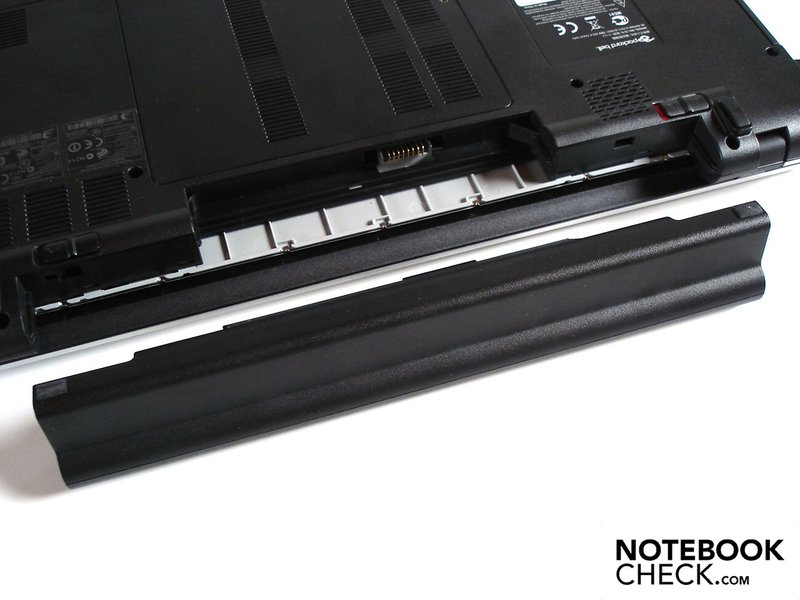

Packard Bell deliveres the EasyNote LX86 with a high-powered nine-cell battery with 99 Wh, which not only raises the rear of the case by around two centimeters, but together with the Switchable-Graphics-Option also guarantees very high levels of mobility.  Most outstanding is the runtime at idle: When using the maximum energy-savings option and the minimal brightness level, the notebook ran out of steam only after 13 hours - a TOP value.

Those who like to surf the Internet in wireless operation are perfectly served as well; with moderate energy-savings options and maximum brightness, the EasyNote LX86 held out a whole seven hours and 46 minutes.  The 17-incher shows no sign of weakness even when playing a DVD; 5.5 hours of film enjoyment remains only a dream for most notebooks.  The runtimes are only significantly curtailed under heavy load and with the dedicated graphics card switched on.  With maximum brightness and energy-savings mechanisms turned off, we measured 1.5 hours.

Battery Runtime
Idle (without WLAN, min brightness)
13h 04min
WiFi Surfing
7h 46min
DVD
5h 28min
Load (maximum brightness)
1h 31min

The current consumption is more than respectable considering the performance available.  9.2 - 16.3 watts at idle and 63.7 - 84.9 watts under load are under that of some 17-inchers which have to make do with weaker graphics cards (see for ex. Dell Studio 1749).  There are no real surprises when comparing it to the cogeneric Acer Aspire 7745G as both notebooks allow themselves (up to standby mode) similar amounts of energy.

Power Consumption

Off / Standby 0.4 / 1.3 Watt
Idle 9.2 / 12.4 / 16.3 Watt
Load 63.7 / 84.9 Watt

Key: min: , med: , max:         Voltcraft VC-940

Verdict

Packard Bell EasyNote LX86
Packard Bell EasyNote LX86

If one considers all the individual aspects together, it can be said that Packard Bell has offered an exceptionally interesting and thoroughly successful multimedia notebook with the EasyNote LX86. Not least thanks to the matte-silver surfaces, the 17-incher impresses with a chic look. The high-quality impression is underlined by its fine finish. The performance has nothing to hide at a price of just under 1000 Euro; Core i5-540M and Radeon HD 5850 are also up to demanding tasks.

Adding to that is an astoundingly high battery life, which is realized with help from a potent battery and the option of switching between the integrated and the dedicated graphics units (Switchable Graphics). The moderate noise development was also a pleasant surprise. Even under load, the notebook doesn't get too loud.  A unique characteristic is also the thoroughly solid touchpad as there is hardly any product from the competition which allows for such pleasant gliding across its surface.

Foremost among the negative points is  the mediocre display quality.  Be it the level of black, contrast or viewing angles, just about every area is dearly in need of improvement.  We were also disapointed with the connection equipment. Packard Bell went without numerous connection options such as eSATA and Firewire.  The somewhat lacking stability of the case as well as the fairly spongy keyboard are further points of critique for the multimedia notebook.

All in all, the EasyNote LX86 earned a bonafide rating of 84%.  The individual weaknesses are more than made up by the dozens of strengths.  Those looking for a 17" multimedia platform with a high level mobility at cost-effective price, and whose demands in terms of the display or connection equipment aren't all too high can promptly reach for the EasyNote LX86.

In Review: Packard Bell EasyNote LX86-JO-022GE
In Review:  Packard Bell EasyNote LX86-JO-022GE

Specifications

Packard Bell EasyNote LX86-JO-022GE

:: Processor
:: Mainboard
Intel HM55
:: Memory
4096 MB, 2x 2048 MByte DDR3 (1333 MHz @ 1066 MHz), max. 16 GByte
:: Graphics adapter
ATI Mobility Radeon HD 5850 - 1024 MB, Core: 625 MHz, Memory: 800 MHz, DDR3, 8.713.3.3000
:: Display
17.3 inch 16:9, 1600x900 pixel, LED-Backlight, Chi Mei N173O6-L02, glossy: yes
:: Harddisk
Hitachi Travelstar 5K500.B HTS545050B9A300, 500 GB 5400 rpm
:: Soundcard
Realtek ALC670 @ Intel Ibex Peak PCH - High Definition Audio Controller
:: Connections
4 USB 2.0, 1 VGA, 1 HDMI, 1 Kensington Lock, Audio Connections: Mikrofon. Kopfhörer (inkl. SPDIF), Line-in, Card Reader: MMC, MS, MS Pro, SD, XD,
:: Networking
Atheros AR8151 PCI-E Gigabit Ethernet Controller (10/100/1000MBit), Broadcom 802.11n (a b g n ), 3.0 Bluetooth
:: Optical drive
Matshita BD-MLT UJ240AS
:: Size
height x width x depth (in mm): 56 x 410 x 278
:: Weight
3.1 kg Power Supply: 0.49 kg
:: Battery
99 Wh Lithium-Ion, 9000 mAh, AS10E7E
:: Price
999 Euro
:: Operating System
Microsoft Windows 7 Home Premium 64 Bit
:: Additional features
Webcam: 1.3 Megapixel, Power pack: 90 watt, quick guide, guarantee guide, cleaning cloth, Blu-Ray-disc with trailers, three blank DVDs, CyberLink PowerDVD 9, Nero 9 Essentials, Adobe Photoshop Elements 8.0, 24 Months Warranty



A 90 watt power pack is enough for the potent hardware.
Other manufacturers should take cues from the outstanding touchpad.

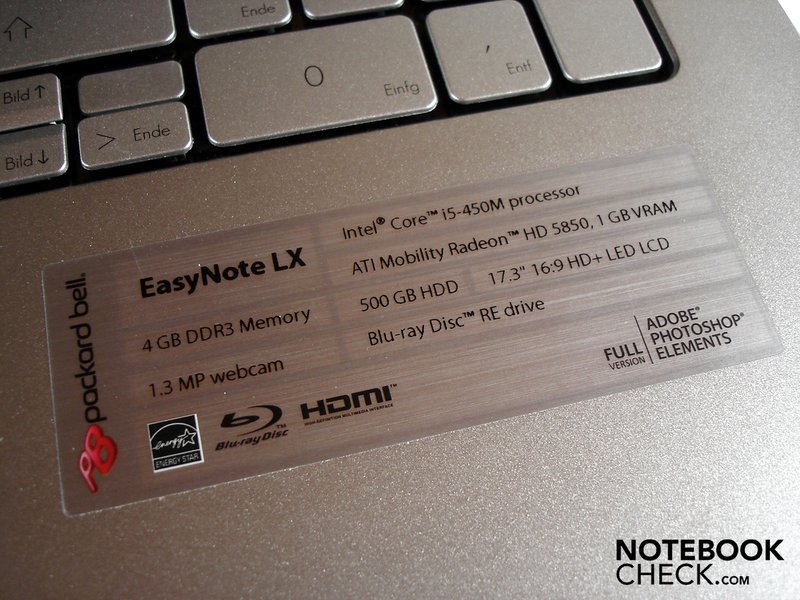

A sticker reveals diverse specifications.
ATI's Mobility Radeon HD 5850 is an upper mid-level graphics card.

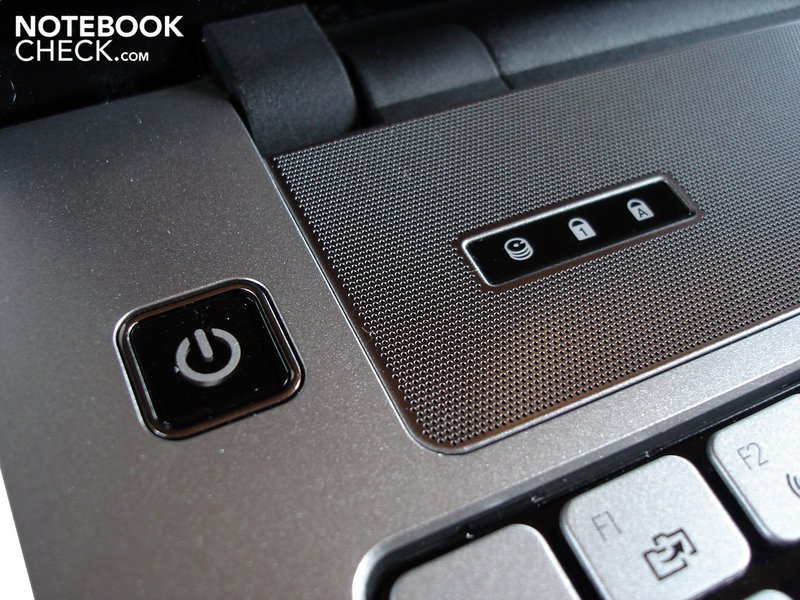

Numerous details provide nice accents.

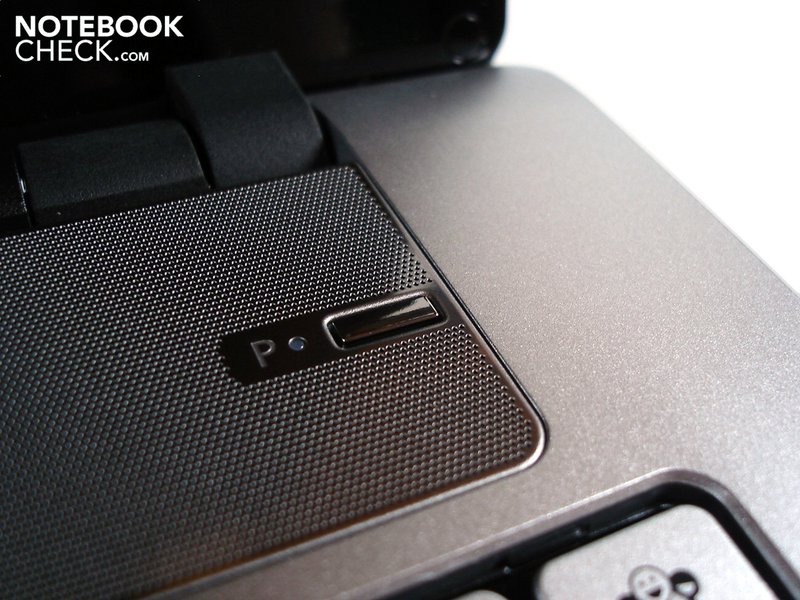

The P-key activates the PowerSave-mode.
The notebook supports Dolby Home Theater and Virtual Surround Sound.
With the exception of the arrow keys, the size of the keys is absolutely fine.
The sound quality offered is above-average good.
The typing feel of the keyboard is somewhat spongy.

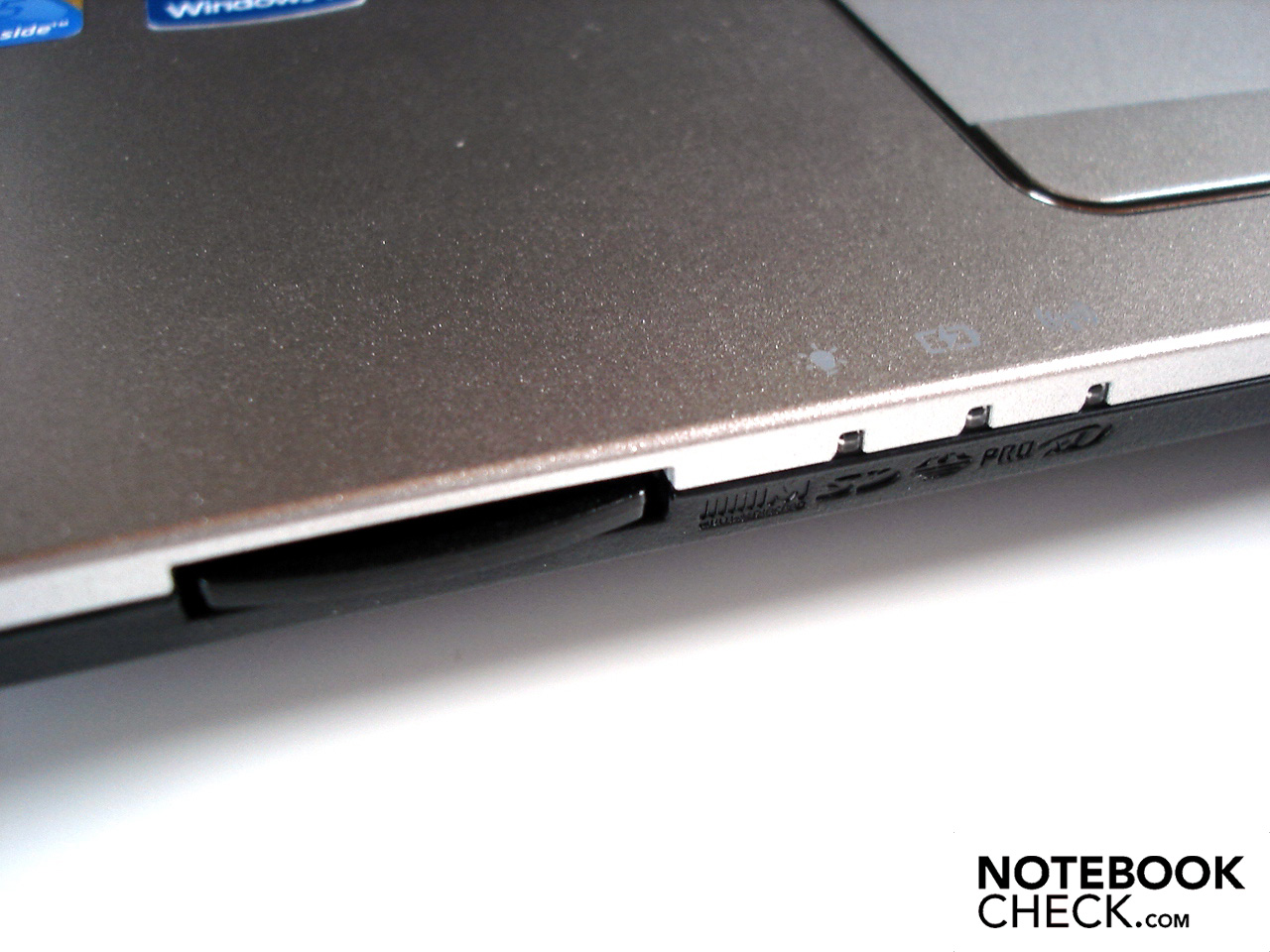

On the front side is a Multi-in-1-cardreader.
Packard Bell did without USB 3.0 ports.
Packard Bell is generous with the accessories.
The package is right at home underneath the Christmas tree.
The harddrive can be changed out without any problem.
The sound connection round off the left side.
External monitors can be hooked up with help of VGA- and HDMI ports.
Just about every notebook has a Kensington Lock.
Gigabit-LAN ensures fast data transfer.
Film enthusiasts will be happy about the integrated Blu-Ray driver.
There is little room for critique in terms of its finish.

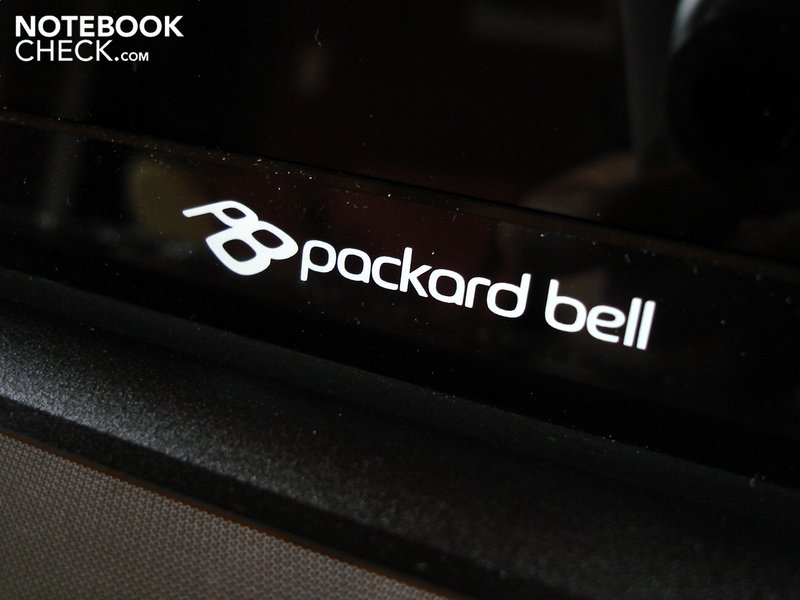

It of course shouldn't be without a company logo.

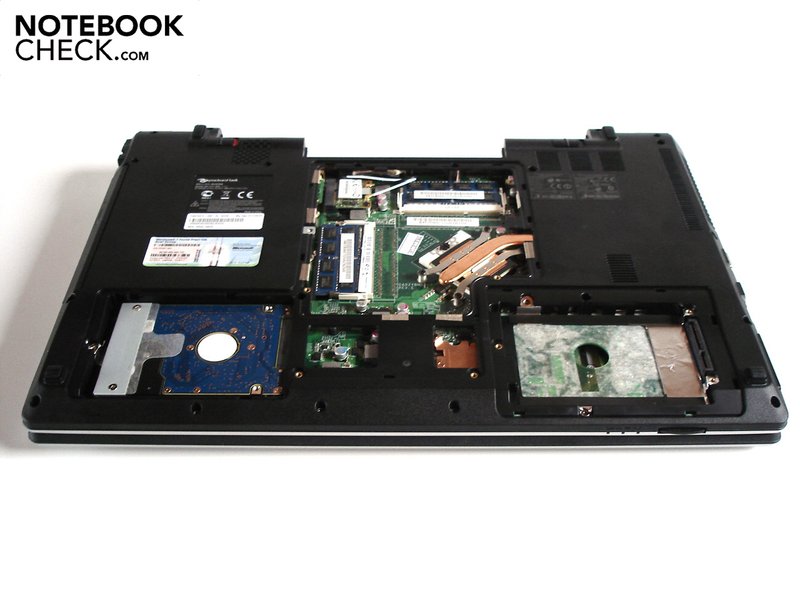

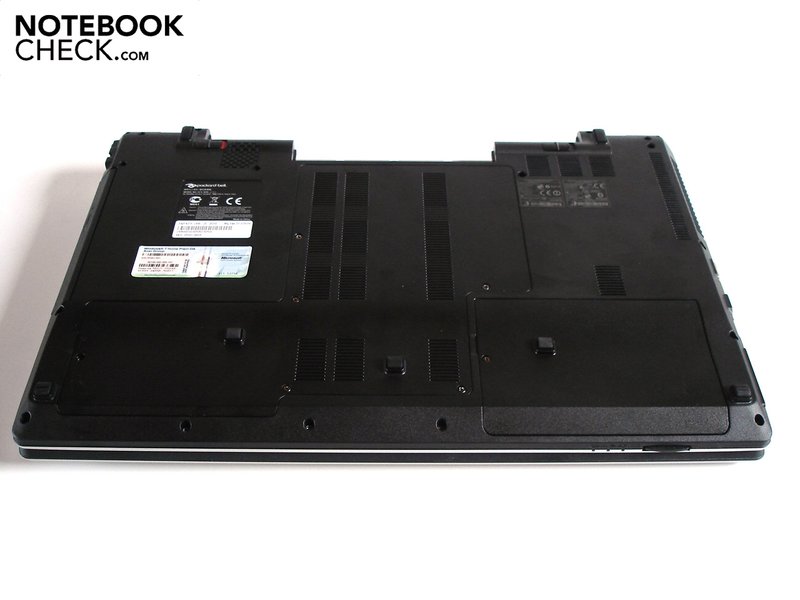

Two access covers can be removed from the underside.
Two access covers can be removed from the underside.
The chassis is for the most part like that of the Acer Aspire 7745G.
The chassis is for the most part like that of the Acer Aspire 7745G.
Many connections sit quite far forward.
Many connections sit quite far forward.
At around 3.1 kg, the EasyNote LX86 is still reasonably transportable.
At around 3.1 kg, the EasyNote LX86 is still reasonably transportable.
The connection equipment is rather meager for a multimedia notebook.
The connection equipment is rather meager for a multimedia notebook.
The design can be described as successful.
The design can be described as successful.
The maximum opening angle is impressive.
The maximum opening angle is impressive.
The matte-silver surfaces are relatively hard-wearing.
The matte-silver surfaces are relatively hard-wearing.

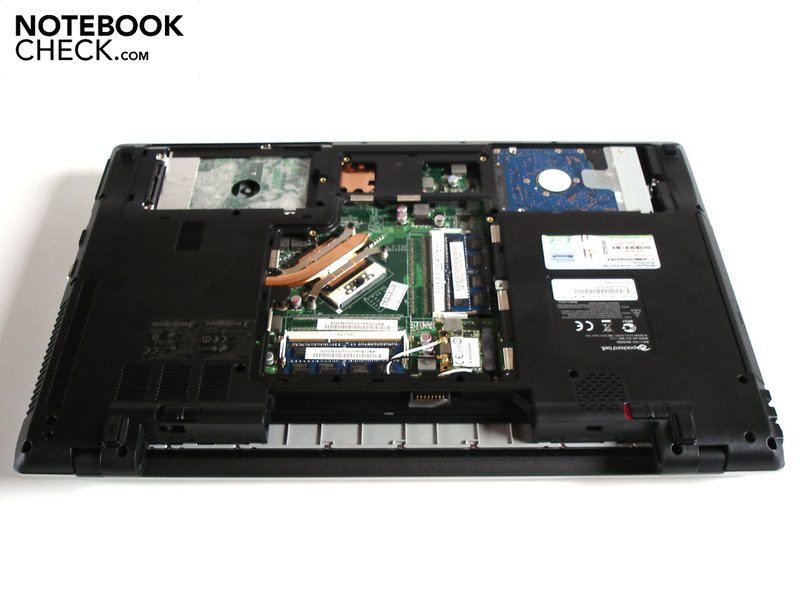

Apart from the graphics card, all important components are accessible.
Apart from the graphics card, all important components are accessible.

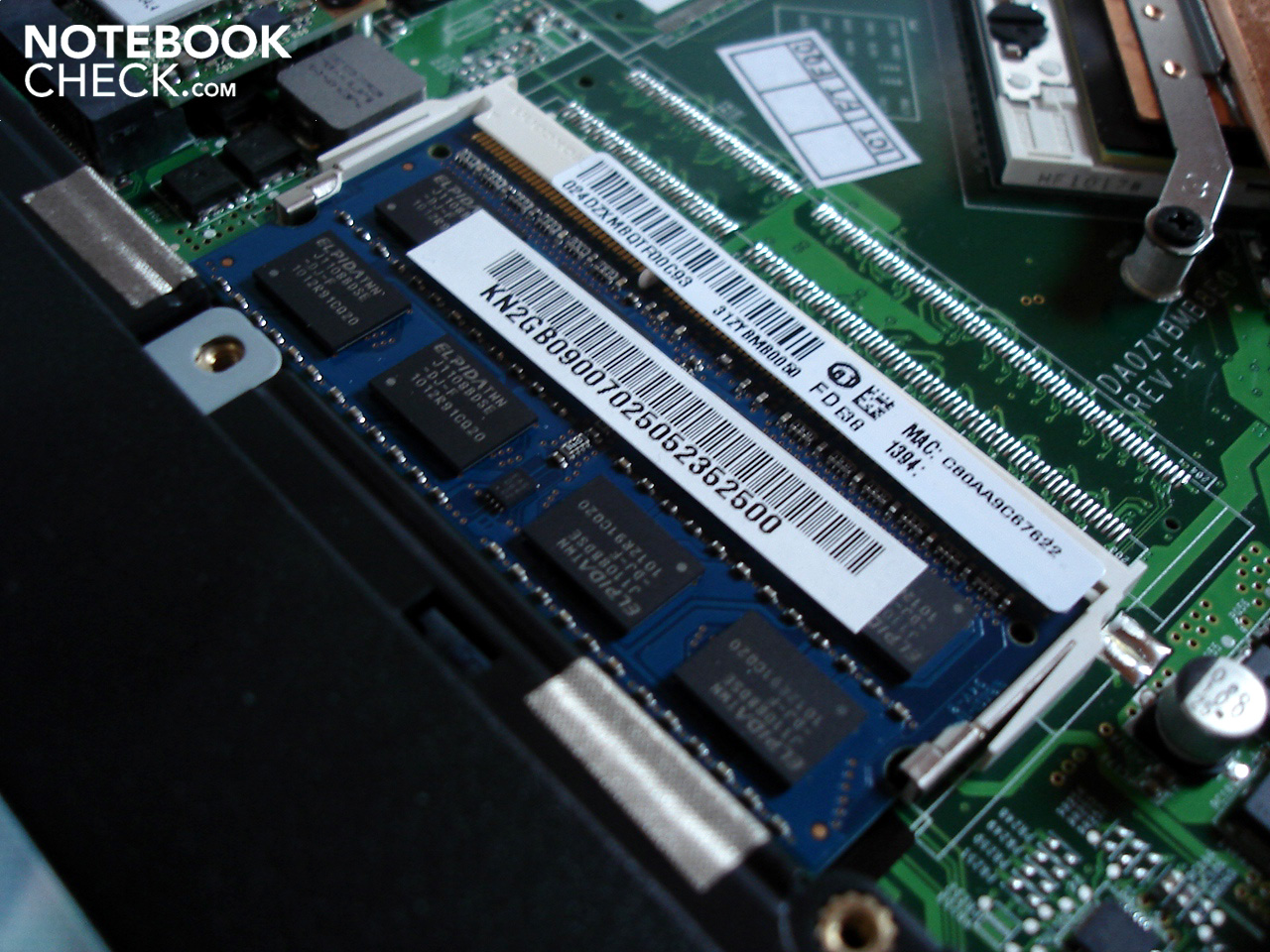

A fast DDR3-RAM serves as the main memory.
A fast DDR3-RAM serves as the main memory.

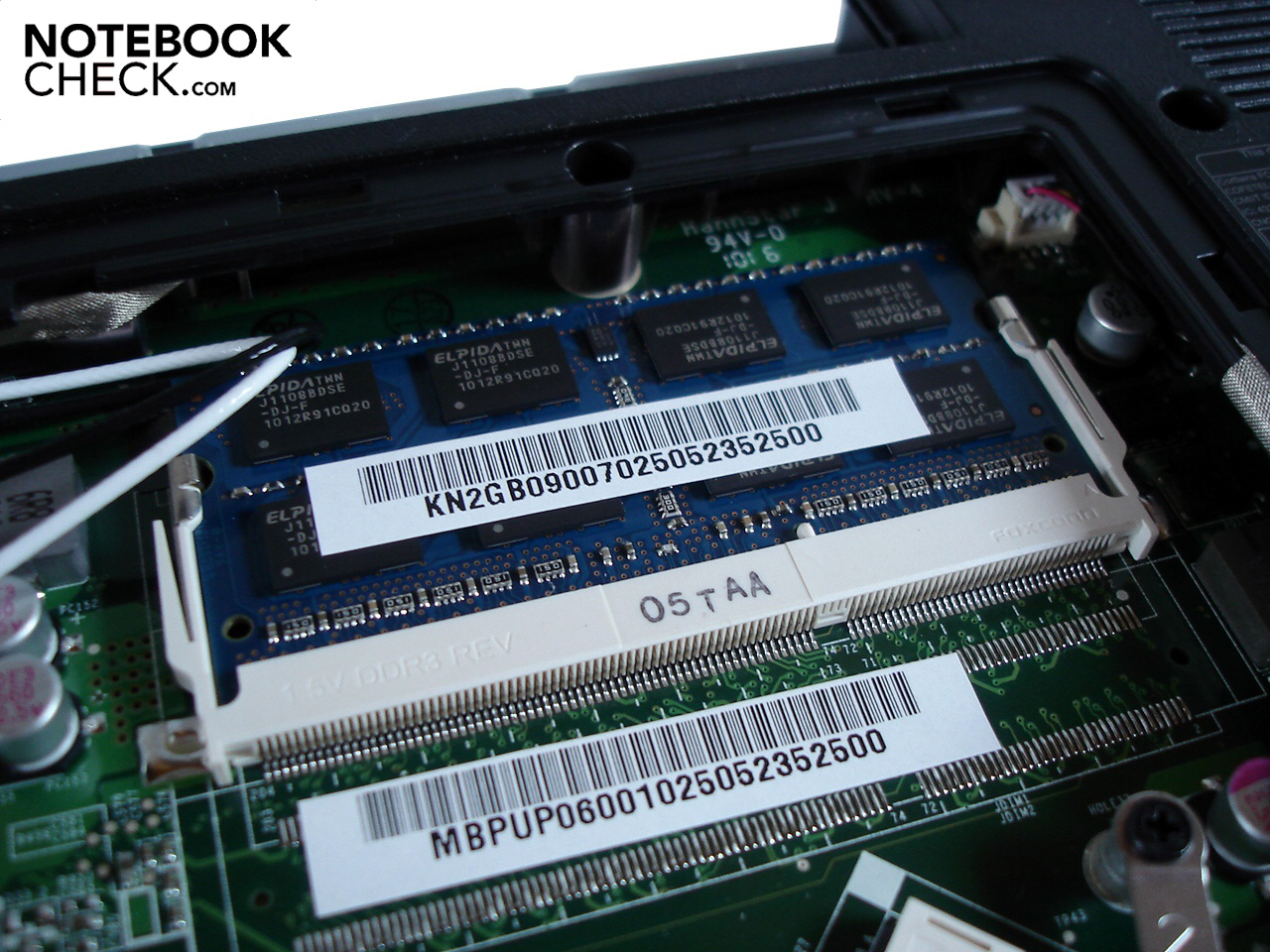

Four GB RAM (2x 2048 MB) are already built-in.
Four GB RAM (2x 2048 MB) are already built-in.
The integrated webcam has a resolution of 1.3 megapixels.
The case's stability leaves a bit to be desired.

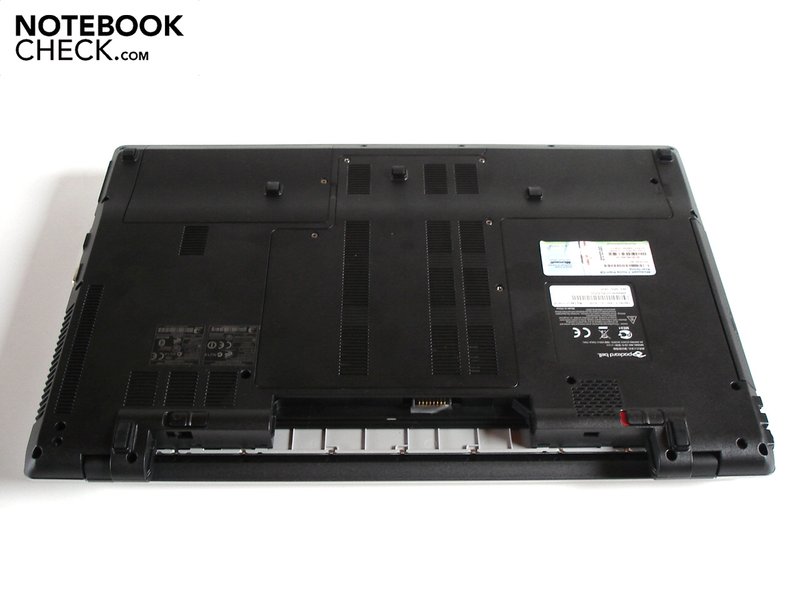

The notebook becomes much lighter without the battery.
The notebook becomes much lighter without the battery.
The high-powered 9-cell battery ensures extremely good runtimes.
The high-powered 9-cell battery ensures extremely good runtimes.
Theoretically, the case has a second harddrive slot.
Theoretically, the case has a second harddrive slot.
The 320 GB HDD offers decent performance.
The 320 GB HDD offers decent performance.

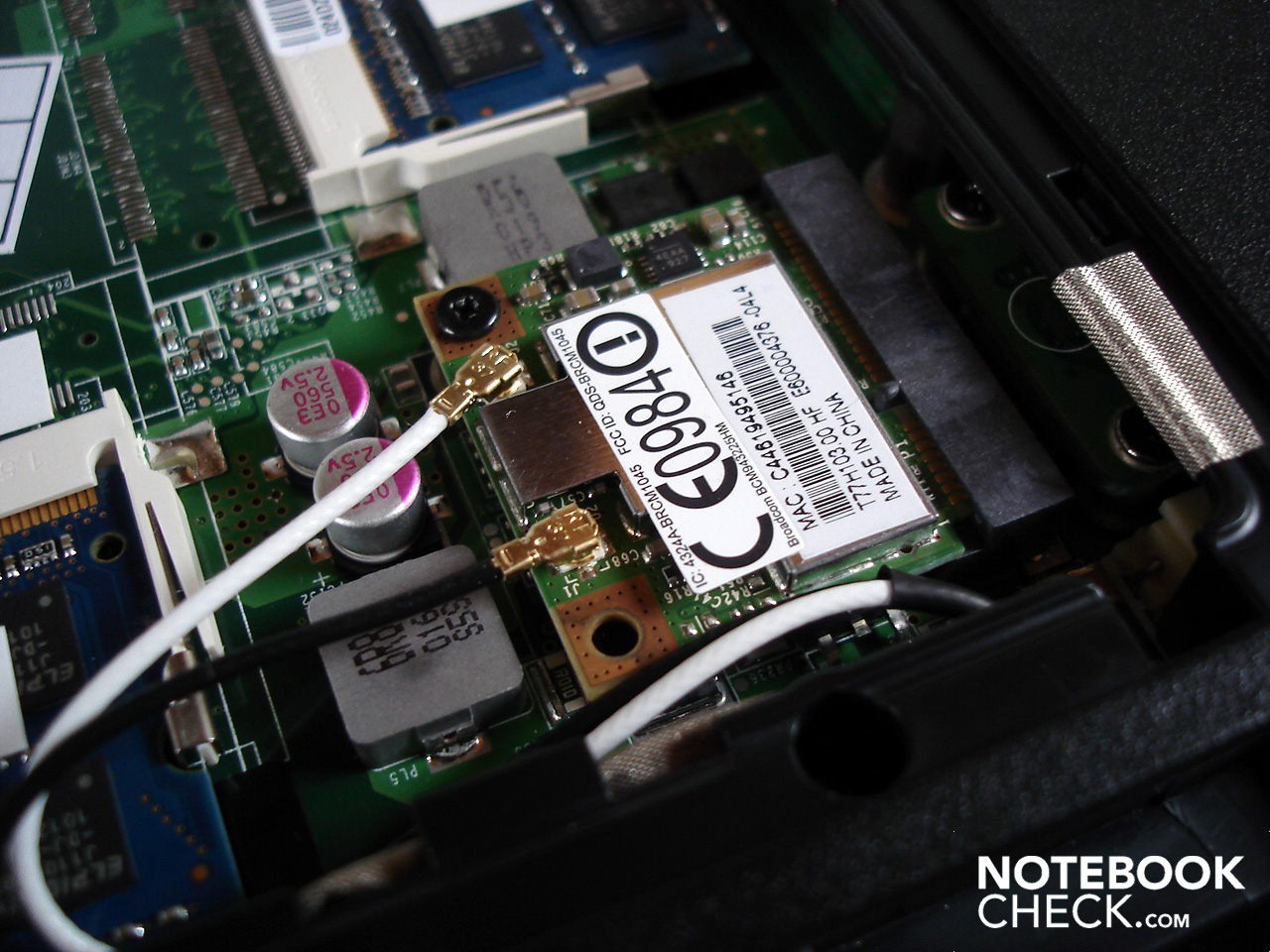

WLAN and Bluetooth enable wireless communication.
WLAN and Bluetooth enable wireless communication.
Intel's Core i5-450M processor works nice and quick.
Intel's Core i5-450M processor works nice and quick.
The EasyNote LX86 is kept in the aluminum look.
The EasyNote LX86 is kept in the aluminum look.

Similar Notebooks

Notebooks from a different Manufacturer and/or with a different CPU

Notebooks with the same GPU

» Review HP Envy 17-1190eg Notebook
Core i7 720QM, 17,3", 3.41 kg
» Review Acer Aspire 5943G Notebook
Core i7 720QM, 15.6", 3 kg
» Review Acer Aspire 8943G Notebook
Core i7 720QM, 18.4", 3.93 kg
» Review MSI GX640-i5447LW7P Notebook
Core i5 430M, 15.4", 2.7 kg

Laptops with Same Screen Size and/or Weight

» Asus N750JK-T4042H Notebook Review
GeForce GTX 850M, Core i7 4700HQ
» iBuyPower Battalion 101 W670SJQ Notebook Review
GeForce GTX 850M, Core i7 4900MQ

Links

Price Comparison

Pro

+Moderate noise development
+Outstanding touchpad
+Very long battery life
+Switchable graphics
+Blu-ray burner
+Chic design
+Good performance


Cons

-Weakly contrasted display with poor viewing angles
-Inconvenient interface arrangement
-Limited connection equipment
-Modest case stability
-Spongy keyboard

Shortcut

What we liked

The noise development is never too high, even under load.  Further positives are the integrated Blu-Ray burner and the outstanding touchpad.

What we missed

Above all a better-contrasting display with better viewing angles. More generous connection equipment and a more stable keyboard also wouldn't be bad.

What surprised us

Thanks to the potent battery and switchable graphics card, the battery runtimes are extremely high. Under optimum conditions, far more than 10 hours are possible.

The competition

17" notebooks with decent power under the hood such as the Acer Aspire 7745G, the Acer TravelMate 7740G or the Dell Studio 1749.

Rating

Packard Bell EasyNote LX86-JO-022GE
12/05/2010 v2
Florian Glaser

Chassis
84%
Keyboard
76%
Pointing Device
88%
Connectivity
70%
Weight
71%
Battery
90%
Display
68%
Games Performance
86%
Application Performance
88%
Temperature
84%
Noise
88%
Add Points
84%
Average
81%
82%
Multimedia *
Weighted Average

> Notebook / Laptop Reviews and News > Reviews > Archive of our own reviews > Review Packard Bell EasyNote LX86 Notebook
Author: Florian Glaser, 2010-12- 6 (Update: 2013-06- 6)
