Review Lenovo ThinkPad L430 Notebook

Karl Stiefel (translated by Vinay Pradhan), 10/11/2012

Worker of the Month. The Lenovo ThinkPad L430 is a true office notebook. Lenovo has paid special attention to making this model practical and giving it clever extras. So do these make everyday office work easier, or is a coffee machine the better investment of the 840 Euros (~$1089)? Find out in the following review.

A mountain of work ahead? The Lenovo ThinkPad L430 may be the right companion for the road. Nowadays, special features like fingerprint readers or the touchpad alternative, the TrackPoint (a red button in the middle of the keyboard), are standard features of the ThinkPad series. As such, it is no surprise that the L430 has a very similar design and functionality as its predecessor, the Lenovo L420. The competition is fierce: the Dell Vostro 3460, the Lenovo ThinkPad Edge S430, the Acer TravelMate P643 and more. Can our test model keep up or even surpass the others? Find out in the following review.

Case

Simple looks ...
Simple looks ...
... with attention to the details.
... with attention to the details.

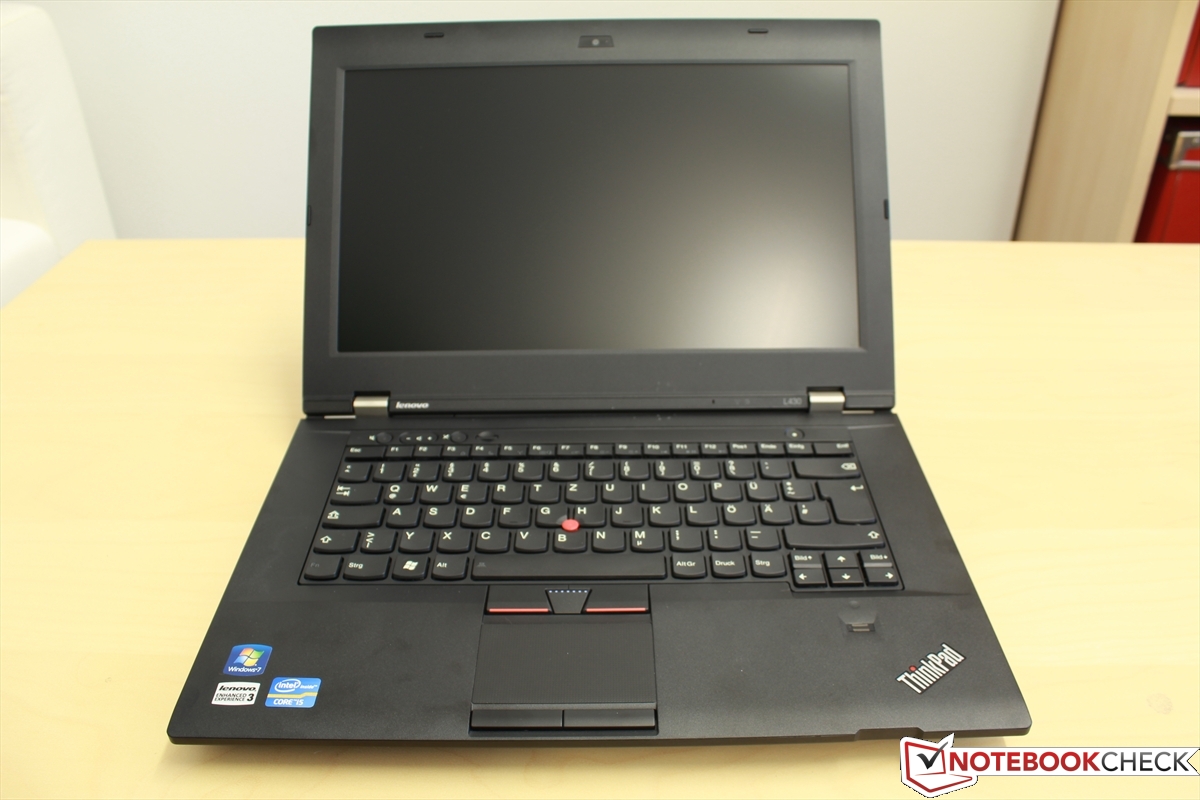

The L430 sports a "classic" look. That would be the opinion of those who favor this model. Critics would describe its looks as "outdated", which is understandable. The thick border around the monitor, the dark plastic and unadorned design could have all been taken from a 10-year-old laptop.

In contrast, the build quality is impressive: no gaps and the display is stiff. It does not wobble when adjusted and the laptop even closes elegantly. A groove at the front makes opening the notebook easy.

The battery is secured with a latch mechanism, and the insides of the laptop are two screws away. The bottom boasts a docking interface.

Imperfectly, the dark plastic is a magnet for fingerprints. These find their way onto the laptop quite easily, yet are hard to remove. The device makes one thing clear: it wants to be reliable, not cute. Overall, the laptop has great workmanship.

Connectivity

The interfaces of this laptop are well-positioned. USB ports are distributed on the left and right side, and one of them is even a powered USB 2.0. If the buyer, like us, chose not to add on an Express Card, s/he will find a piece of solid plastic in its place. The notebook has no HDMI but a mini DisplayPort, like Apple devices. An adapter is required to use the DisplayPort or HDMI.

The use of the 4-in-1 card reader is a bit tricky. The memory cards have to be pushed quite far into the slot. Most users will require a lot of force to get the card into place.

The Gigabit Ethernet LAN and power-in are placed at hard-to-reach spots. Both can be found on the rear of the laptop. Lenovo probably had desktop and docking station users in mind.

Left side: VGA, Mini DisplayPort, 1 x USB 3.0 and 2 x USB 2.0
Left side: VGA, Mini DisplayPort, 1 x USB 3.0 and 2 x USB 2.0

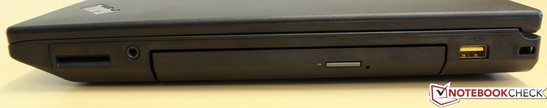

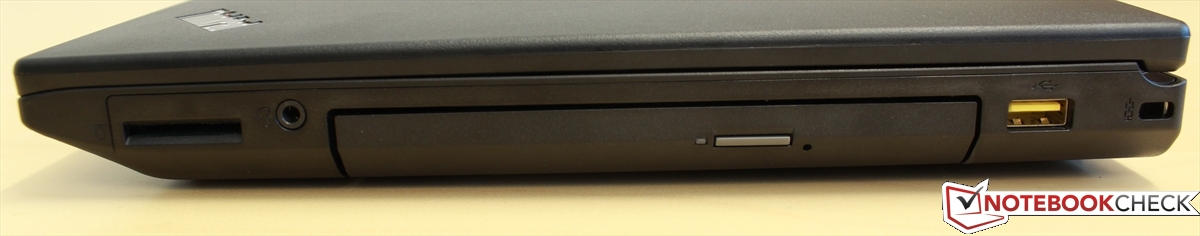

Right side: 4-in-1 card reader, headphone jack, DVD drive, powered USB 2.0 and Kensington Lock
Right side: 4-in-1 card reader, headphone jack, DVD drive, powered USB 2.0 and Kensington Lock
Rear: Ethernet and power in
Rear: Ethernet and power in

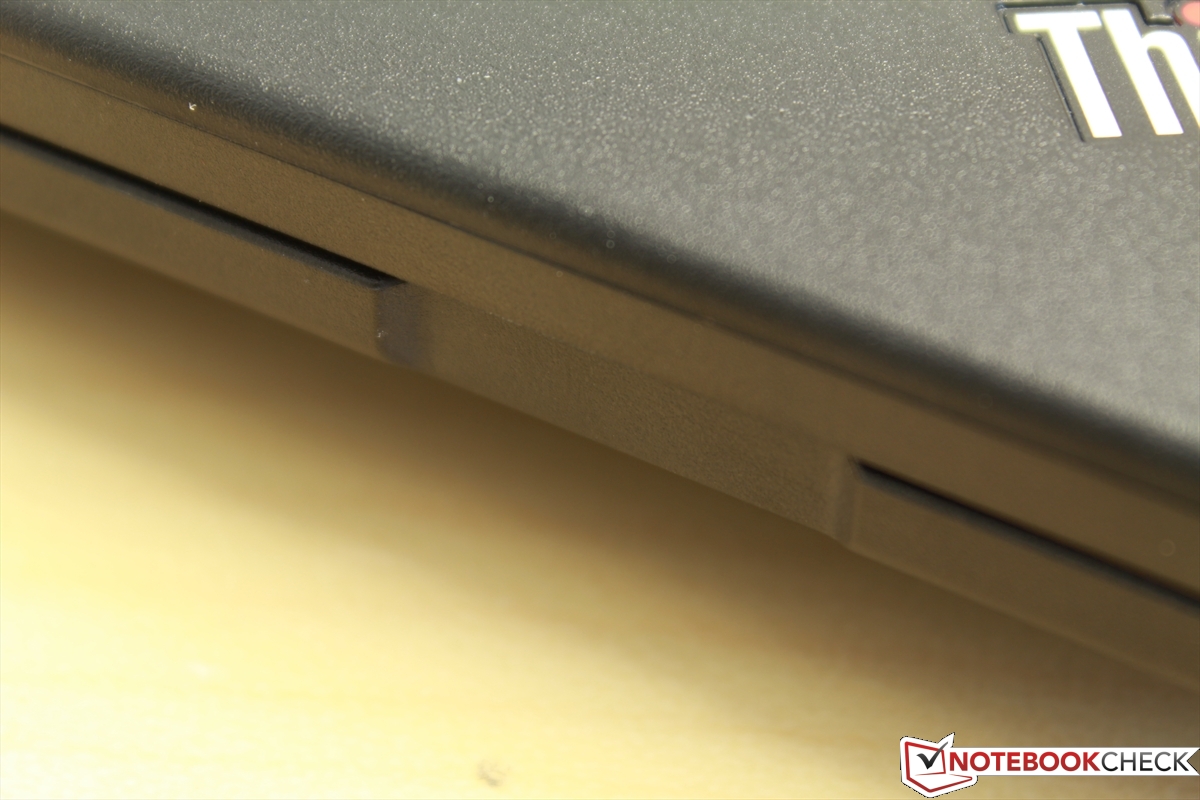

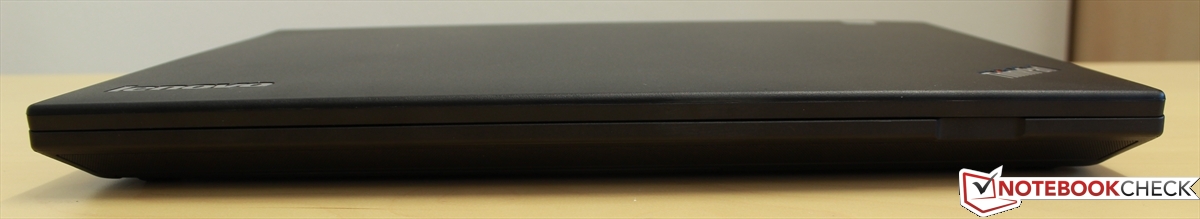

Front: Speakers below and a groove for easy opening (no closing mechanism)
Front: Speakers below and a groove for easy opening (no closing mechanism)

Communication

The ThinkVantage Virtual Camera (5 megapixels) is placed above the screen. Videos can be recorded at 720p. Thanks to the face tracking feature, the camera delivers a stable picture.

The microphone records sound well, even from afar. However, the automatic volume control will have a hard time keeping up if the user keeps changing his/her position.

A 1x1 WLAN adapter (wireless speeds up to 72 MB/s) and a Realtek Ethernet Controller (placed on the back) promise stable Internet use.

Security

The laptop offers a Kensington Lock for physical security. The connection for the chain can be found near the back on the right side. To secure files on the L430, Lenovo has provided a fingerprint scanner.

Accessories

Lenovo packs a quick-start guide alongside the laptop and charger. Lenovo has chosen to be environment-friendly by not including a printed manual.

Multiple Lenovo docks (price: 77 to 208 Euros/~$100 to 270 [EU docks]) are compatible with the L430.

The manufacturer has installed the ThinkVantage packet on the laptop. This includes a desktop replacement, which looks similar to Windows 8, a program for power options and connections and a recovery partition on the hard disk.

Maintenance

After removing two screws and getting past the clamps, the hardware of the laptop lies exposed. The user can access the hard disk and an empty slot for additional RAM. The fan is hidden in a corner and is not so easily accessible.

Warranty

The basic warranty runs for 12 months, which, depending on the exact model, can be extended up to 5 years. 221 Euros (~$286) is the premium required for the full support packet (on-site repair; the hard disk stays with the user). Buyers who are satisfied with less, can get an extension for the same time for 178 Euros (~$231).

Input Devices

Keyboard

The L430 is a work laptop, which makes user-friendly input devices a must. The user will not be let down: 19 x 19 mm keys with a slight curve inwards offer the ideal pressure point. There are gaps between the keys, which would not be found in the L420. It seems Lenovo has accepted this design trend. The blue Enter key has also vanished.

The new ThinkPad features may require some getting used to: the control and function keys have swapped places. On the bottom left, we have the Fn key and to the right we have the CTRL key.

The controls for the volume and the microphone are placed far left of the power button, above the keyboard.

Touchpad

Twice the mouse control: the ThinkPad series is famous for offering a touchpad and a "TrackPoint stick" - this would be the red button between G and H on the keyboard.

The surface of the touchpad is covered with multiple points. This makes the surface slightly rough to the touch and gives haptic feedback when the finger is moved over it. The touchpad is small: 76 x 45 millimeters (87 mm diagonally/3.4 inches). Thankfully, it supports multi-touch gestures. The mouse keys are a little rounded and offer little resistance. The clicking noise is very quiet and should prove suited to the office environment.

The touchpad is limited in size due to the three keys placed directly above it. These belong to the TrackPoint. The small red point in the middle of the keyboard is made of rubber and enables accurate navigation. The respective mouse keys are quite large and placed right below the keyboard for quick access. In contrast to the predecessor, the design of the buttons has changed a little but the overall concept has stayed the same.

Keyboard
Keyboard
Touchpad
Touchpad
Trackpoint
Trackpoint

Display

The 16:9 display is 14 inches and has a thick border. A resolution of 1600x900 pixels translates to a pixel density of 131 dpi. This is the same resolution as the T430 and is higher than most of the competition.

If the text size is too small for you at this pixel density, Lenovo offers a lower-quality 14-inch display (1366x768 pixels). Note: the screen can be opened up to 180 degrees.

1) Gossen Mavo-Monitor 2) X-Rite i1 Pro2
263
cd/m²
262
cd/m²
264
cd/m²
286
cd/m²
301
cd/m²
272
cd/m²
269
cd/m²
291
cd/m²
249
cd/m²
Distribution of brightness
Information
Gossen Mavo-Monitor
Maximum: 301 cd/m²
Average: 273 cd/m²
Brightness Distribution: 83 %
Black: 2.28 cd/m²
Contrast: 132:1
261
cd/m²
257
cd/m²
255
cd/m²
295
cd/m²
303
cd/m²
261
cd/m²
281
cd/m²
279
cd/m²
241
cd/m²
Distribution of brightness
Information
X-Rite i1 Pro2
Maximum: 303 cd/m²
Average: 270.3 cd/m²
Brightness Distribution: 80 %
Black: 1.64 cd/m²
Contrast: 185:1

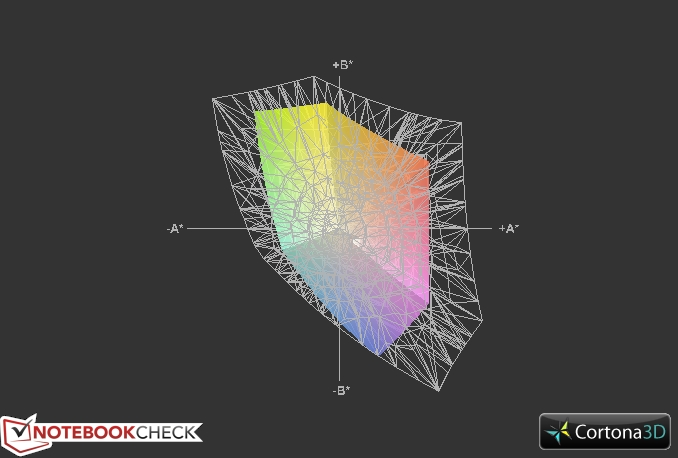

L430 vs. sRGB (t)
L430 vs. sRGB (t)

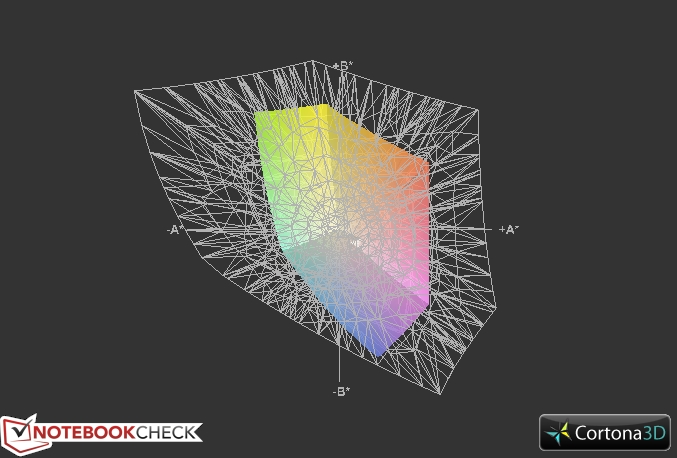

L430 vs. AdobeRGB (t)
L430 vs. AdobeRGB (t)

The manufacturer says the panel has a brightness of 250 cd/m2 - our measurements go up to 300 cd/m2. This is an excellent value, especially compared to the other laptops (such as the Dell Vostro 3460 or the Acer TravelMate P643). The expensive Lenovo ThinkPad T430 is also surpassed.

The black value and illumination (83%) are not as impressive, but both are at least decent values.

The contrast of this test model surpasses its big brother. As such, we can say that the two screens are of similar quality.

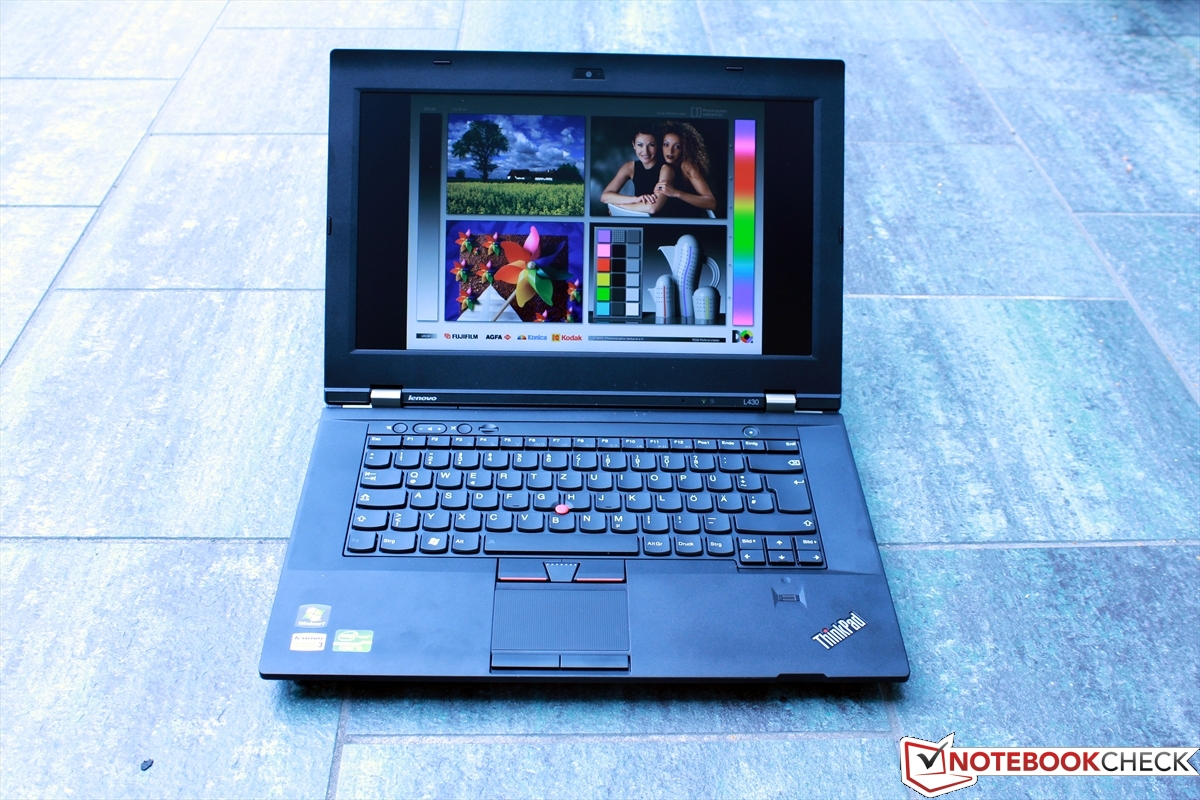

The matte display and high brightness ensure good legibility outdoors. The colors remain clear even in the sunshine. Additionally, the thick border of dark plastic creates a contrast between the picture and the laptop. Thus, the ThinkPad performs quite well outside of the office as well.

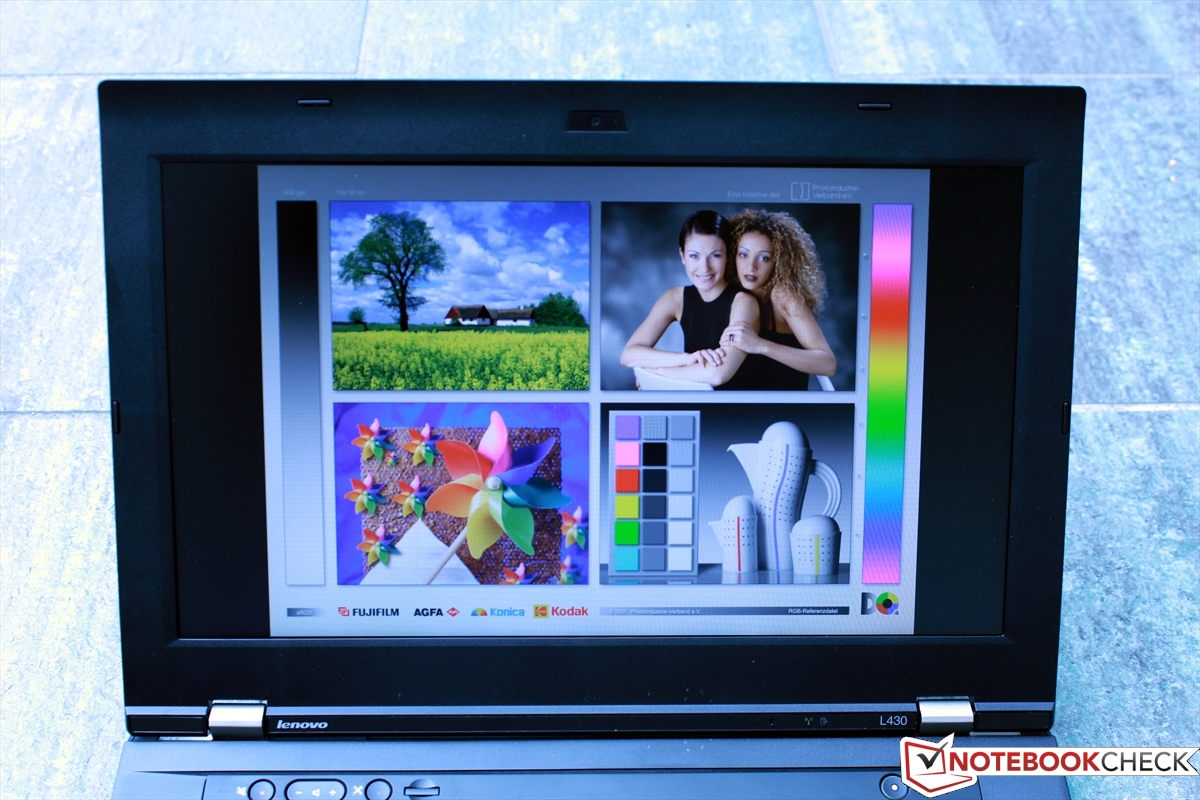

The L430 is good outdoors.
The L430 is good outdoors.

We expected a lot of the display after seeing such great results. That is why we were really disappointed to see how poor the viewing angle stability is: the picture quickly distorts and the colors reverse. This should not be a problem while working at a desk or with the docking station. However, if the user moves the laptop around, the poor stability will become apparent. This flaw is primarily limited to the vertical viewing angles since sideways the picture remains stable over a wider angle. The picture is not ideal, as can be seen from the pale borders.

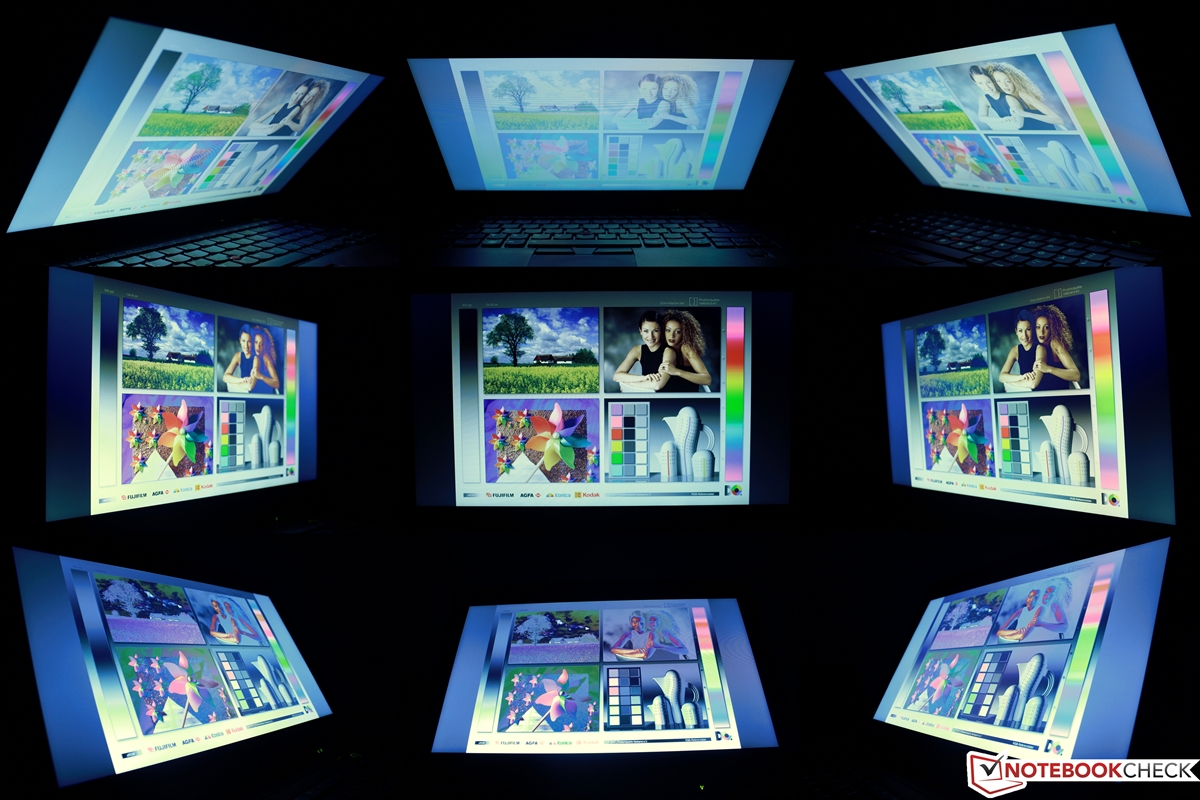

Viewing angles - Lenovo ThinkPad L430
Viewing angles - Lenovo ThinkPad L430

Performance

It is clear what the L430 is made for: a work laptop which offers all the performance needed for the office. An Intel Core i5-3210M and Intel HD Graphics 4000 are installed in this test model. Although it is clear that this laptop was intended for work, we will experiment a little and see how well it does with games. Let us first take a peek at the insides of the laptop.

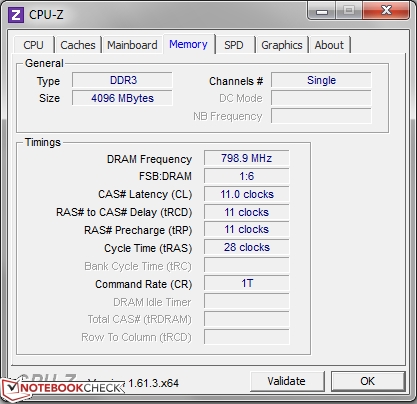

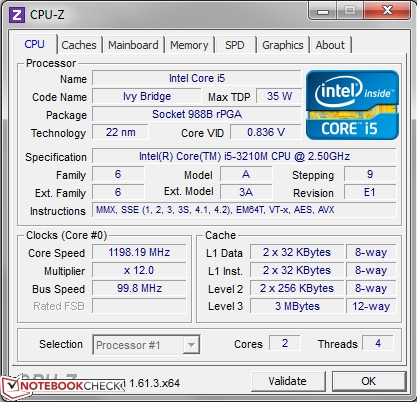

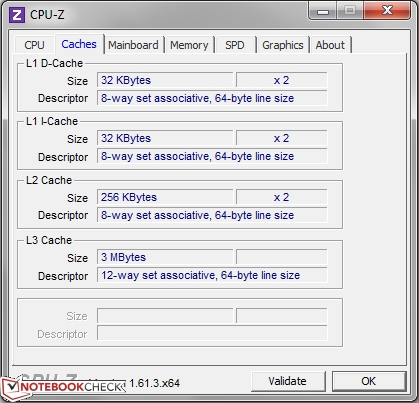

Systeminfo CPUZ
Systeminfo CPUZ
Systeminfo CPUZ
Systeminfo CPUZ
Systeminfo CPUZ

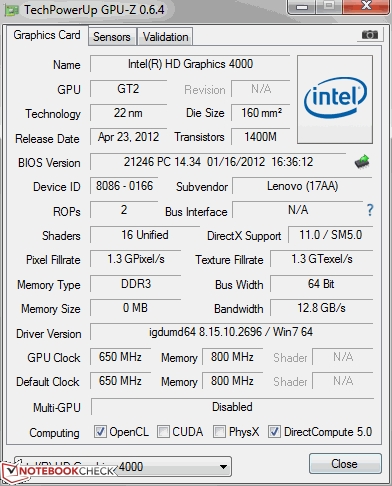

Systeminfo GPUZ
Systeminfo HDTune

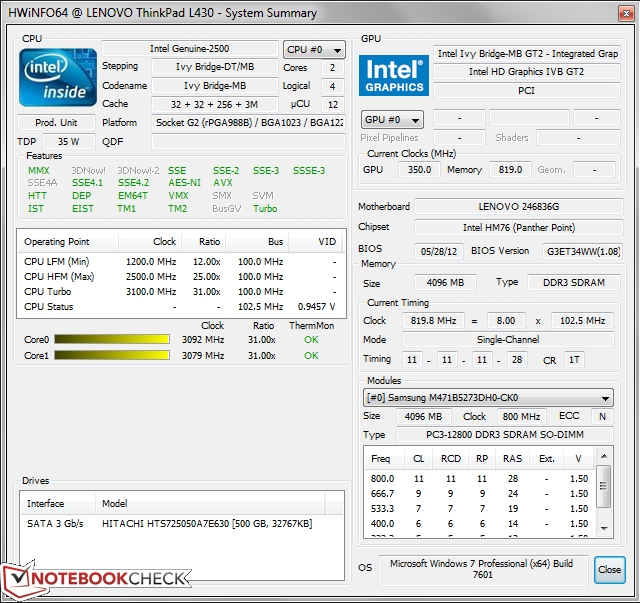

System information - Lenovo ThinkPad L430

Processor

This case houses the Intel Core i5-3210M which is based on Ivy Bridge architecture. This dual-core runs at a standard 2.5 GHz, but can be pushed up to 3.1 GHz thanks to Intel Turbo Boost. In our stress test (Prime 95 and FurMark run simultaneously), the processor reached 2.9 GHz.

In Cinebench, the L430 can keep up with most of its competition (for example, the Dell Vostro 3640 with an Intel Core 2 Duo T9400). However, its predecessor, the L420 (Intel Core i5-2520M) is stronger in the rendering test. In the single-CPU benchmark, the full power of the 3.1 GHz could be seen from time to time, but not consistently.

Cinebench R10 Rendering Single 32Bit
3988
Cinebench R10 Rendering Multiple CPUs 32Bit
8945
Cinebench R10 Shading 32Bit
5098
Cinebench R10 Rendering Single CPUs 64Bit
5249 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
11011 Points
Cinebench R10 Shading 64Bit
4944 Points
Cinebench R11.5 CPU Multi 64Bit
2.88 Points
Cinebench R11.5 OpenGL 64Bit
13.43 fps
Help

System Performance

PCMark Vantage shows that although our test model is in the same league as the competition, it can only clearly surpass the Acer TravelMate P643. As expected, the predecessor, L420, is also beaten. However, our test model cannot even come close to the "ideal competitor", the T430. This is due to the storage device of that model. The buyer will have to decide if a 20% higher score is worth twice the money.

From a practical point of view, the L430 can take you quite far. It runs out of gas when programs which require high graphics performance are run.

5
Windows 7 Experience Index
Processor
Calculations per second
7.1
Memory (RAM)
Memory operations per second
5.9
Graphics
Desktop performance for Windows Aero
5
Gaming graphics
3D business and gaming graphics
6.3
Primary hard disk
Disk data transfer rate
5.9
PC Mark
PCMark Vantage7082 points
PCMark 72881 points
Help

Storage Device

HD Tune benchmark
HD Tune benchmark

This test model holds the Hitachi Travelstar Z7K500 HDD (500 GB). This hard disk runs at 7,200 rpm. In the HD Tune benchmark, the device reached an average transfer rate of 97.1 MB/s.
The installed HDD is one of the faster models. An increase in performance would be possible if an SSD were installed. This would significantly reduce boot and load times.

Hitachi Travelstar Z7K500 HTS725050A7E630
Transfer Rate Minimum: 4.9 MB/s
Transfer Rate Maximum: 140.7 MB/s
Transfer Rate Average: 97.1 MB/s
Access Time: 18.4 ms
Burst Rate: 177.6 MB/s
CPU Usage: 5.3 %

Graphics Card

The Intel Core i5 offers the Intel HD Graphics 4000 IGP (Integrated Graphics Processor). This chip runs at 650 MHz and supports DirectX 11.

In 3DMark 06, the IGP placed in the lower middle-class. It scored twice as much as the ThinkPad L420, which used an Intel HD Graphics 3000 IGP and not the 4000. In our benchmark table, many of the similarly equipped laptops place in the same area as our test model.

The Dell Vostro 3460 and the Acer TravelMate P643 can score about twice as much with their dedicated graphics cards (Nvidia GeForce GT 630M and Nvidia GeForce GT 640M respectively). As was clear from the start, the ThinkPad L430 cannot keep up in this area.

3D Mark
3DMark 06
 1280x1024
4715 points
3DMark 11585 points
Help

Gaming Performance

Work is half of life - the other half can be spent on games. This is possible with the ThinkPad L430, but the user should not expect amazing gaming performance from this CPU/GPU combination.

In our test, Diablo 3 and Anno 2070 ran at acceptable frame rates with low graphic settings. If the resolution and graphics are raised to medium, the games are merely "playable". Heavy stutters kick in at high or extreme settings (tested at the highest resolution possible) and this is no surprise as the laptop is not designed to take on such graphics-intensive programs.

We also noticed that as soon as the screen gets filled with a lot of action, the frames drop radically. This is especially clear in Anno 2070, where, at medium settings, the frames even dropped to single digits.

In short: the test model has enough power for the occasional game.

low med.high ultra
Anno 2070 (2011) 3320128fps
Diablo III (2012) 50252016fps

Emissions

Noise Emissions

The L430 is comfortably quiet - while idle, the emissions stayed at 30.5 dB(A). The hard disk emits 31.2 dB(A) - slightly louder. At load, the laptop can reach up to 35.2 dB(A). The loudest part of the test model would be the DVD drive which emits 35.7 dB(A).

Overall, a good result - especially for the office.

Noise Level

Idle 30.5 / 30.5 / 30.5 dB(A)
HDD 31.2 dB(A)
DVD 35.7 / dB(A)
Load 31.2 / 35.3 dB(A)

    30 dB
silent
40 dB
audible
50 dB
loud

min: , med: , max:    Voltcraft sl-300 Plus (15 cm distance)

Temperature

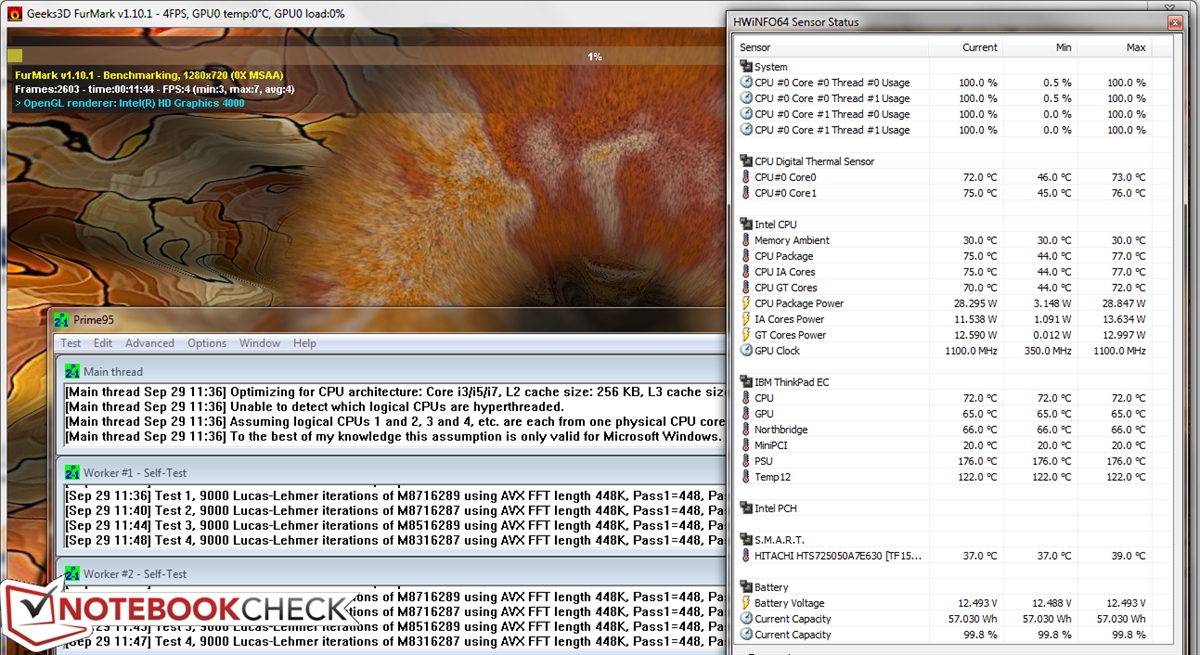

Stress test
Stress test

While idle, the only area of the surface which goes above 30 degrees Celsius is the touchpad. Interesting fact: the front of the laptop gets cooler at load, when the cooling system is operating at maximum speed. Diagnosis - heat congestion due to low fan speed while laptop is idle.

During the stress test, and while the laptop is idle, certain points on the case get quite warm. This indicates that the touchpad is not alone. While idle, the temperatures remain within one degree Celsius of each other, but at load, the gap increases to 7 degrees Celsius (Comparison: bottom top right and middle).

All-in-all, the test model can get warm on the lap, but the temperatures on the top remain at comfortable levels. The charger of the test model can hit up to 53.2 degrees Celsius, which is similar to the predecessor.

On the inside, the CPU can reach up to 77 degrees Celsius while running the FurMark and Prime95 stress test.

Max. Load
 34.8 °C34.0 °C30.7 °C
 33.9 °C34.0 °C31.6 °C
 27.3 °C29.9 °C28.3 °C
Maximum: 34.8 °C
Average: 31.6 °C
33.6 °C39.2 °C49.2 °C
33.9 °C41.8 °C41.3 °C
32.7 °C38.5 °C36.0 °C
Maximum: 49.2 °C
Average: 38.5 °C
Power Supply (max.)  53.2 °C | Room Temperature 23.5 °C | Raytek Raynger ST

Speakers

Along the front we have the stereo speakers. The volume is as good as the looks. It is appropriate and not too loud. Due to the slightly tilted placement, a lot of the potential is lost. This is noticeable once the laptop is lifted. The sound output has solid highs but weak bass.

Battery Life

Power Consumption

The ThinkPad L430 is conservative and consistent with its power consumption. While idle, it consumes 6.8 W - no other competitor can perform this well. The maximum consumption while idle (12.6 W) is higher than a few of the competitors, but that only means that the average power usage of 11.3 W lies in mid-field.

The second attempt for the low power crown is at load. The L430 succeeds by using less power than other similarly equipped laptops - a nice development.

Power Consumption

Off / Standby 0 / 0.2 Watt
Idle 6.8 / 11.3 / 12.6 Watt
Load 36.1 / 48.1 Watt

Key: min: , med: , max:         Voltcraft VC 940 Plus

Battery Life

The Lithium-Ion battery, which complements the shape of the laptop and does not stick out at any spot, is a 6-cell battery. It delivers 57 Wh.

In the Battery Eater Pro test, the idle run time was a impressive 7 hours and 11 minutes. This run time is reached thanks to the extensive power options of the Lenovo Energy Manager. This manager offers a variety of profiles for all possible situations. Each profile regulates the performance, system temperature, fan level and the power consumption. Thanks to the manager, the laptop will only deliver power to the DVD drive when it is in use. This makes the switching of profiles quite useful.

Surfing on the Internet with standard settings, the laptop can run three and a half hours. While playing a DVD, the laptop lasts 2 hours and 10 minutes. At load, the notebook expires after slightly more than 90 minutes. Once depleted, the battery requires 127 minutes to recharge completely while the laptop is on.

Users who want a higher run time for their laptop can pick up the 9-cell battery. A few configurations of the ThinkPad T430 are delivered with this battery. Unfortunately, the three additional cells require more space and thus make the 9-cell battery much bigger.

Readers Test
Maximum Battery Life (Readers test)
Classic Test
Minimum Run Time (Classic test)

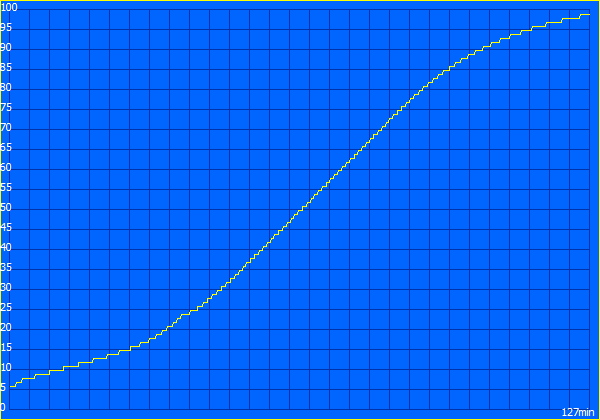

Charging
Charging
Battery Runtime
Idle (without WLAN, min brightness)
7h 11min
WiFi Surfing
3h 30min
DVD
2h 12min

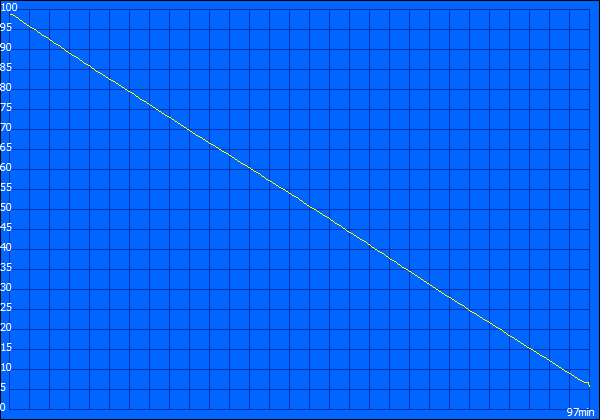

Load (maximum brightness)
1h 37min

Verdict

The Lenovo ThinkPad L430 stays true to its fan base. It is a true business notebook and is sure to be a delight for business users. In this review, we dealt with a laptop stripped to the essentials: gone are the playful mouse keys, the blue Enter key and the majority of the media keys.

Lenovo decided to invest in clever details and unique features, instead of an awe-inspiring interior. However, that does not mean that the CPU, GPU and RAM are outdated.

The solid, yet slightly old-looking case has great build quality. The keyboard, touchpad and TrackPoint have been designed intelligently and have a lot to offer. The small details make the L430 a truly attractive laptop.

In the wild, by which we mean the office jungle, the low noise emissions and power consumption are a blessing. Sadly, these are countered by high heat emissions.

In short, this test model represents the next level. Lenovo has learnt from the predecessor and presents us with the ThinkPad L430: a laptop which does not need to hide from the ThinkPad giants of the past.

Provided by ...

Comment this article:

In Review: Lenovo ThinkPad L430, provided by:
In Review: Lenovo ThinkPad L430

Specifications

Lenovo ThinkPad L430

:: Processor
:: Mainboard
Intel HM76 (Panther Point)
:: Memory
4096 MB, DDR3
:: Graphics adapter
Intel HD Graphics 4000 - 1024 MB, Core: 350 MHz, Memory: 798 MHz, Nvidia Optimus
:: Display
14.0 inch 16:9, 1600x900 pixel, LTN140KT03401, glossy: no
:: Harddisk
Hitachi Travelstar Z7K500 HTS725050A7E630, 500 GB 7200 rpm
:: Soundcard
Intel Panther Point PCH - High Definition Audio Controller
:: Connections
3 USB 2.0, 1 USB 3.0, 1 VGA, 1 DisplayPort, 1 Kensington Lock, 1 Docking Station Port, Audio Connections: Headset port (3.5 mm jack), Card Reader: 4-in-1 card reader (SD, SDHC, SDXC, MMC), 1 Fingerprint Reader,
:: Networking
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit), Thinkpad 1x1 11b/g/n Wireless LAN PCI Express Half Mini Card Adapter (b g n ), 4.0 Bluetooth, Ericsson HSPA
:: Optical drive
HL-DT-ST DVDRAM GT50N
:: Size
height x width x depth (in mm): 35 x 354 x 243
:: Weight
2.255 kg Power Supply: 0.37 kg
:: Battery
57 Wh Lithium-Ion
:: Price
840 Euro
:: Operating System
Microsoft Windows 7 Professional 64 Bit
:: Additional features
Webcam: ThinkVantage Virtual Camera, Speakers: Stereo, Keyboard: Chiclet, Keyboard Light: no, Short manual, ThinkVantage Tools, 12 Months Warranty



[+] compare
Classical design, regardless whether it is closed ...
Classical design, regardless whether it is closed ...
Intel inside!
Intel inside!

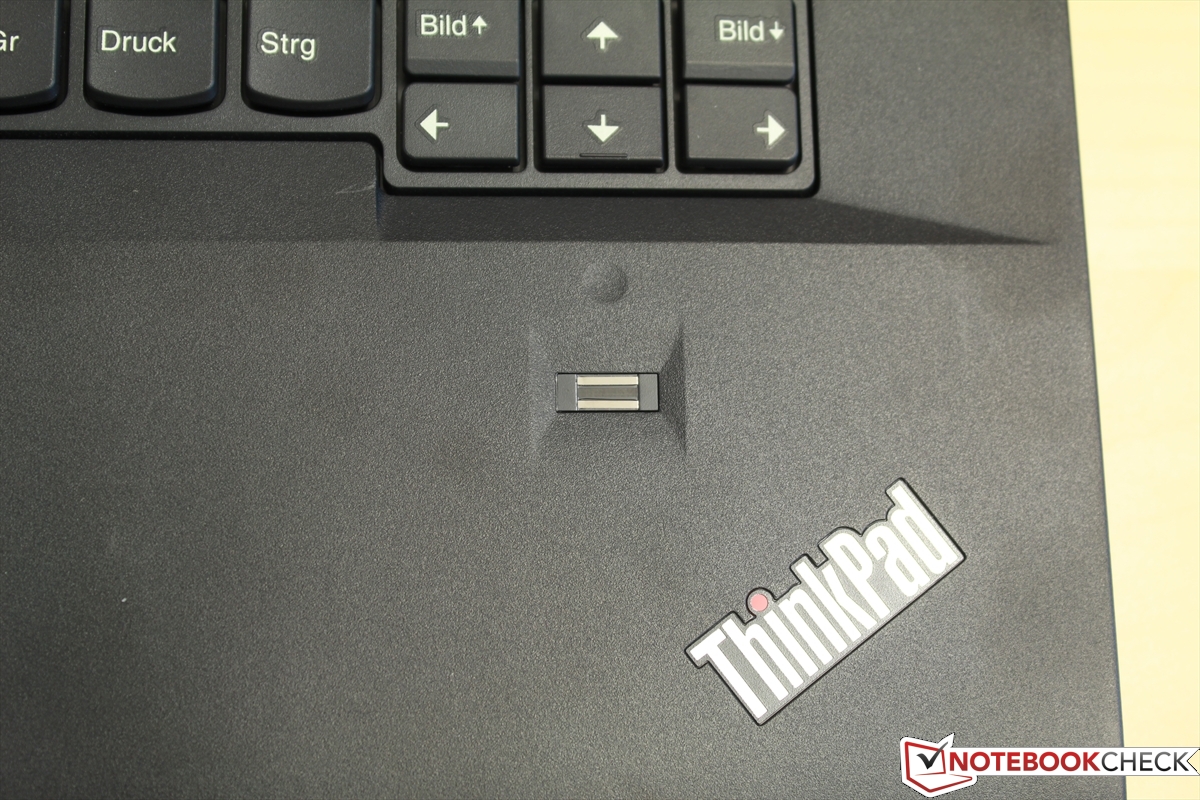

The fingerprint scanner.
The fingerprint scanner.
Exterior details.
Exterior details.

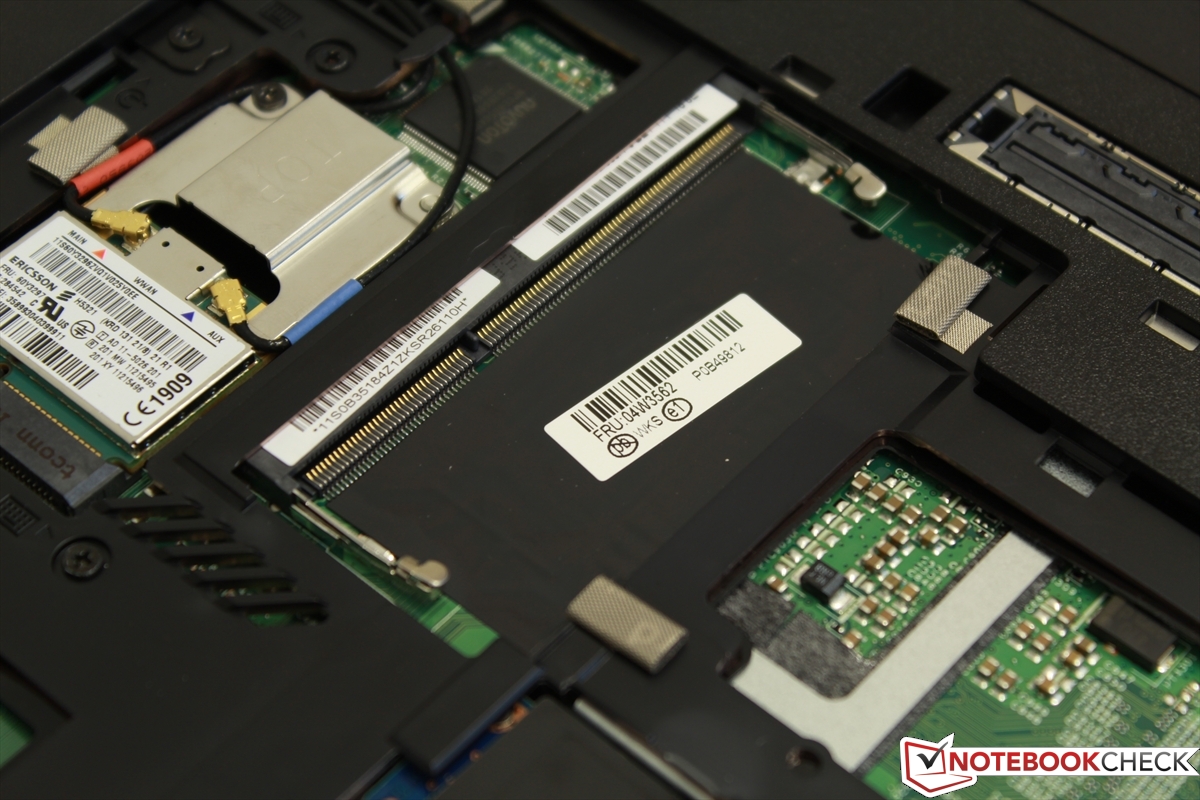

Additional room for RAM.
Additional room for RAM.

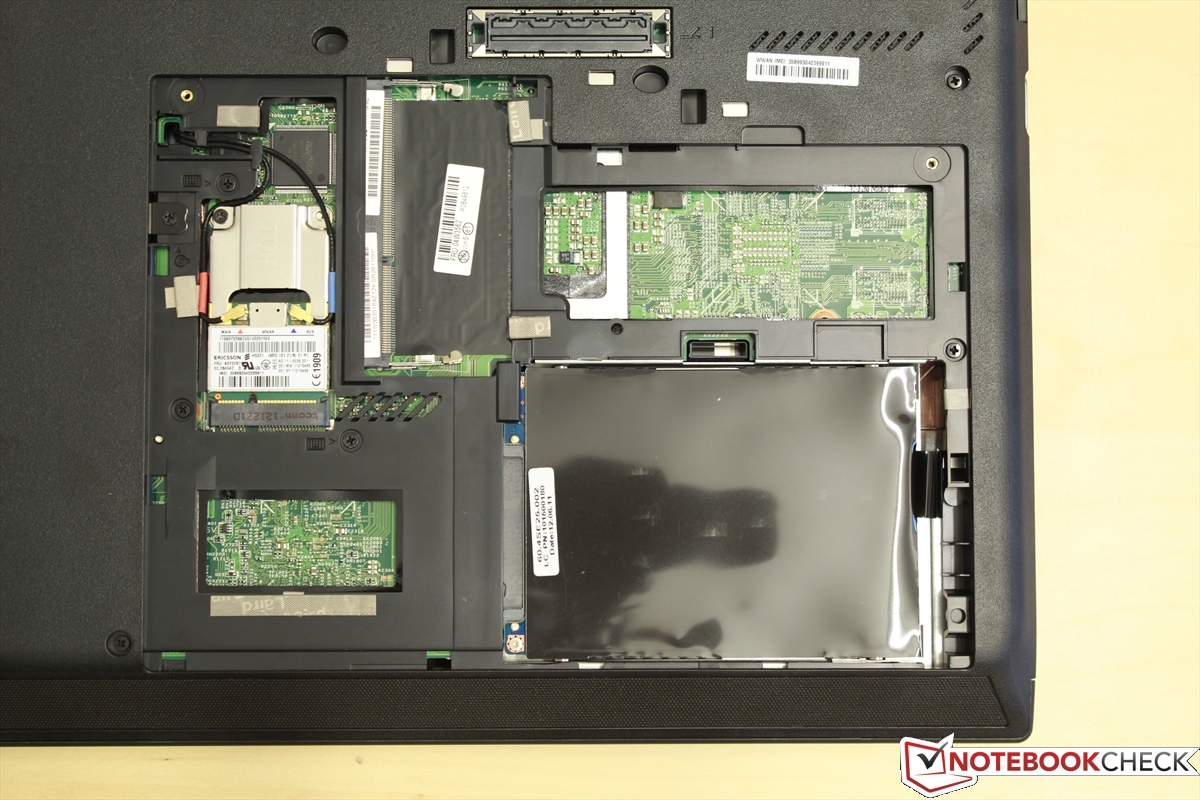

The insides.
The insides.

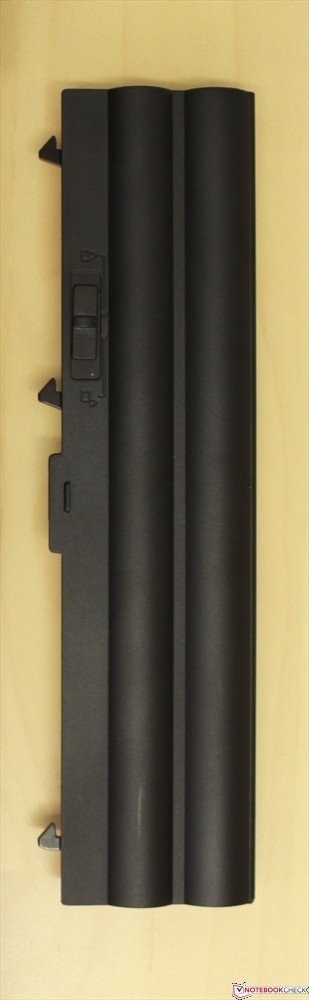

The battery has a latch.
The battery has a latch.
... with a Dock interface.
... with a Dock interface.

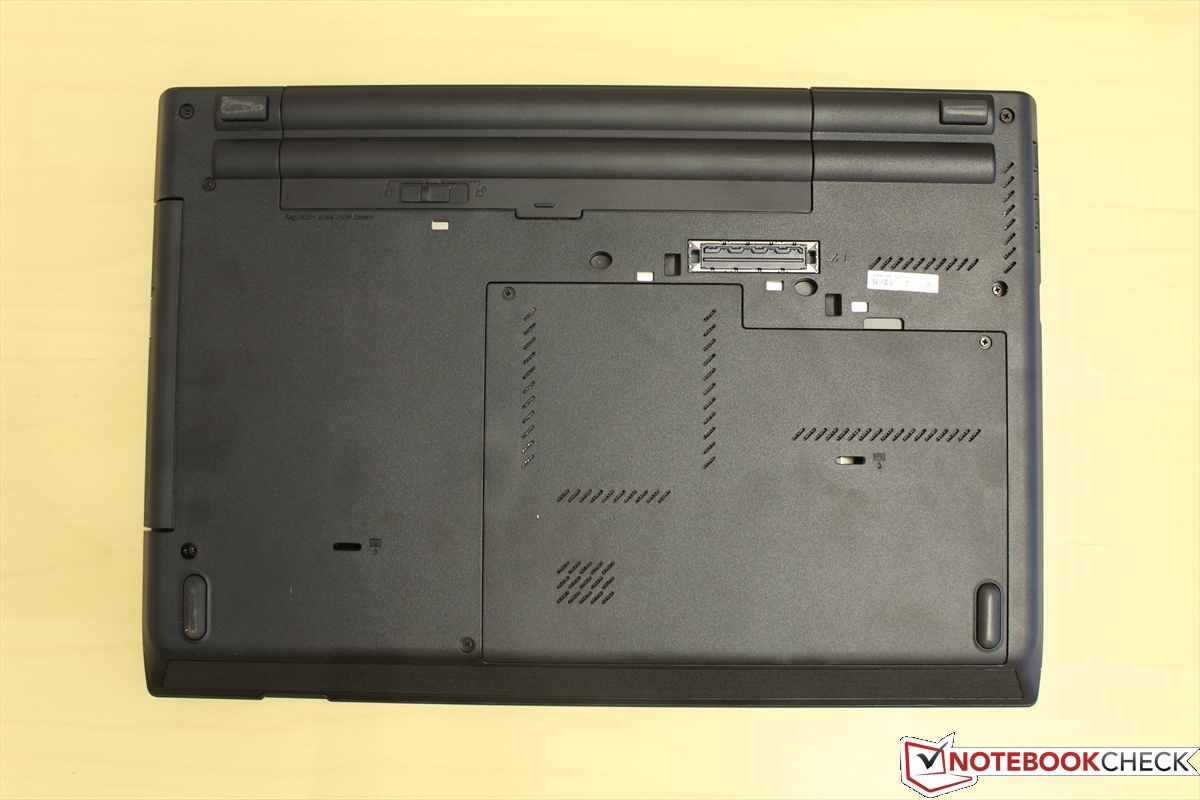

Bottom ...
Bottom ...

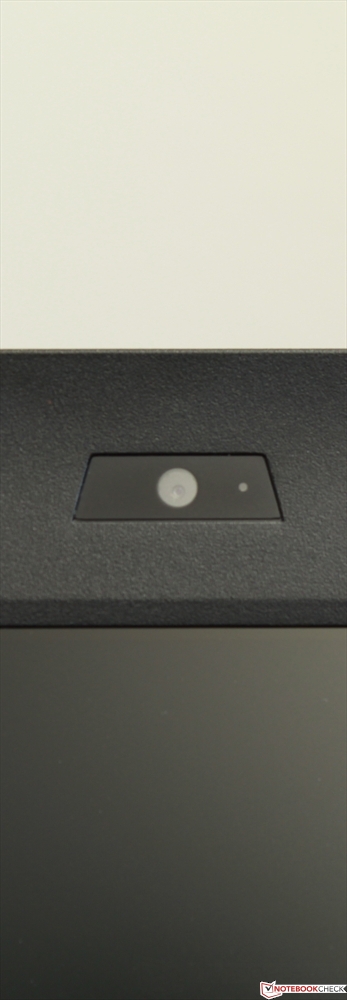

Camera with face tracking functionality.
Camera with face tracking functionality.
The power button - a loner.
The power button - a loner.

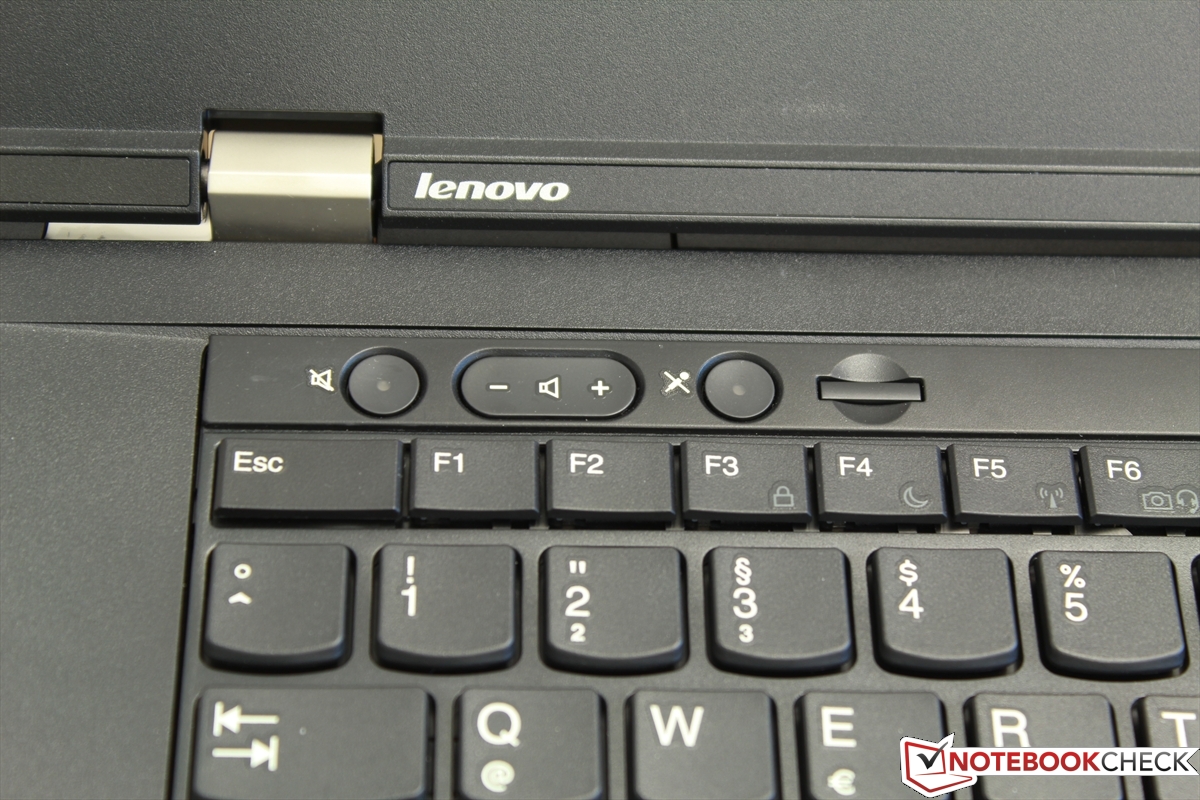

Controls for the speaker and microphone.
Controls for the speaker and microphone.

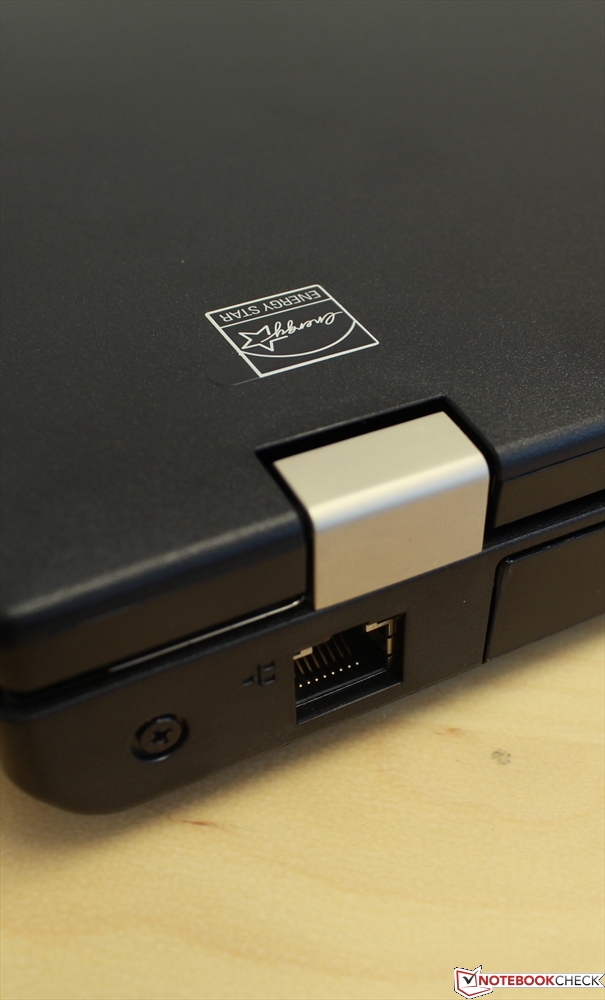

Silver hinges to black plastic.
Silver hinges to black plastic.

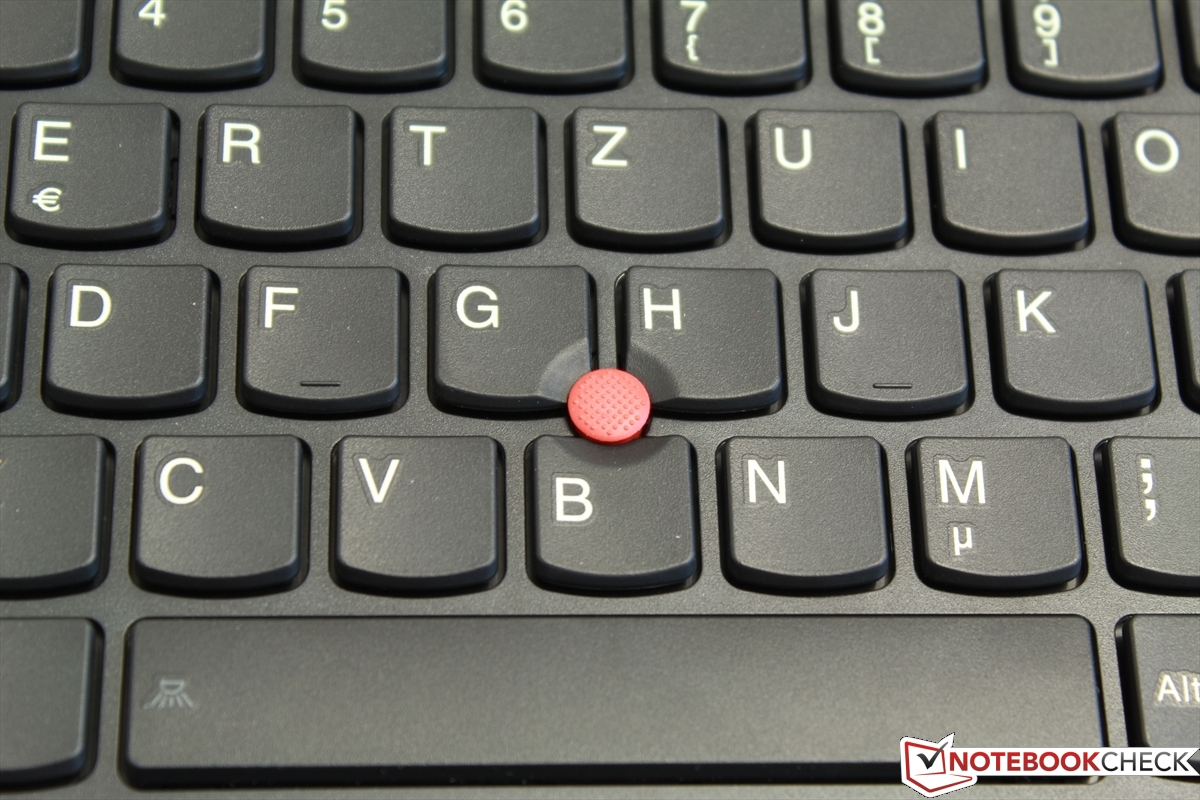

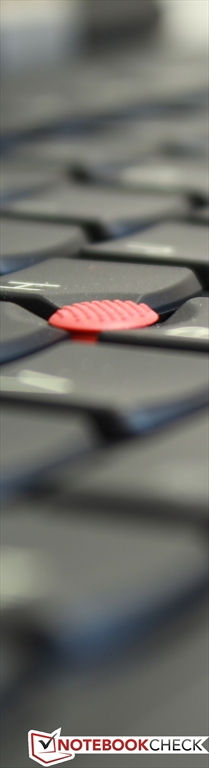

TrackPoint: alternative to touchpad.
TrackPoint: alternative to touchpad.

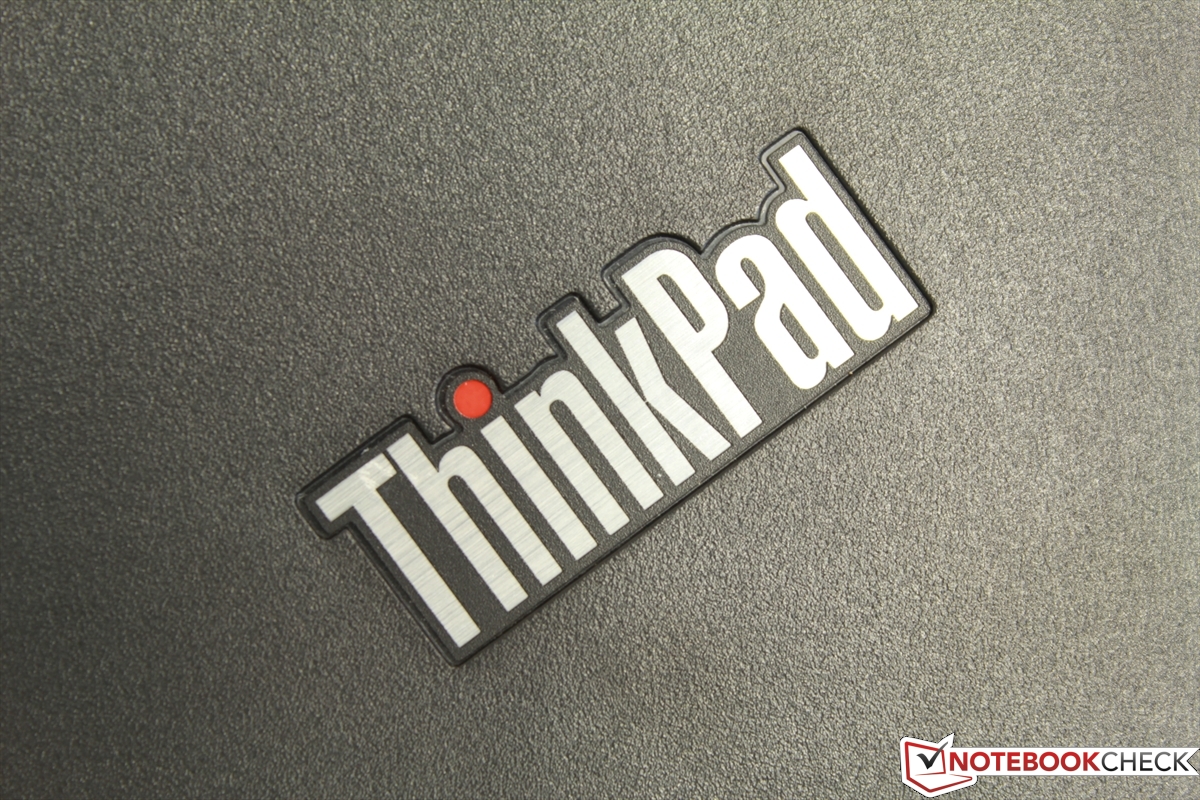

A ThinkPad through and through.
A ThinkPad through and through.
... or open.
... or open.

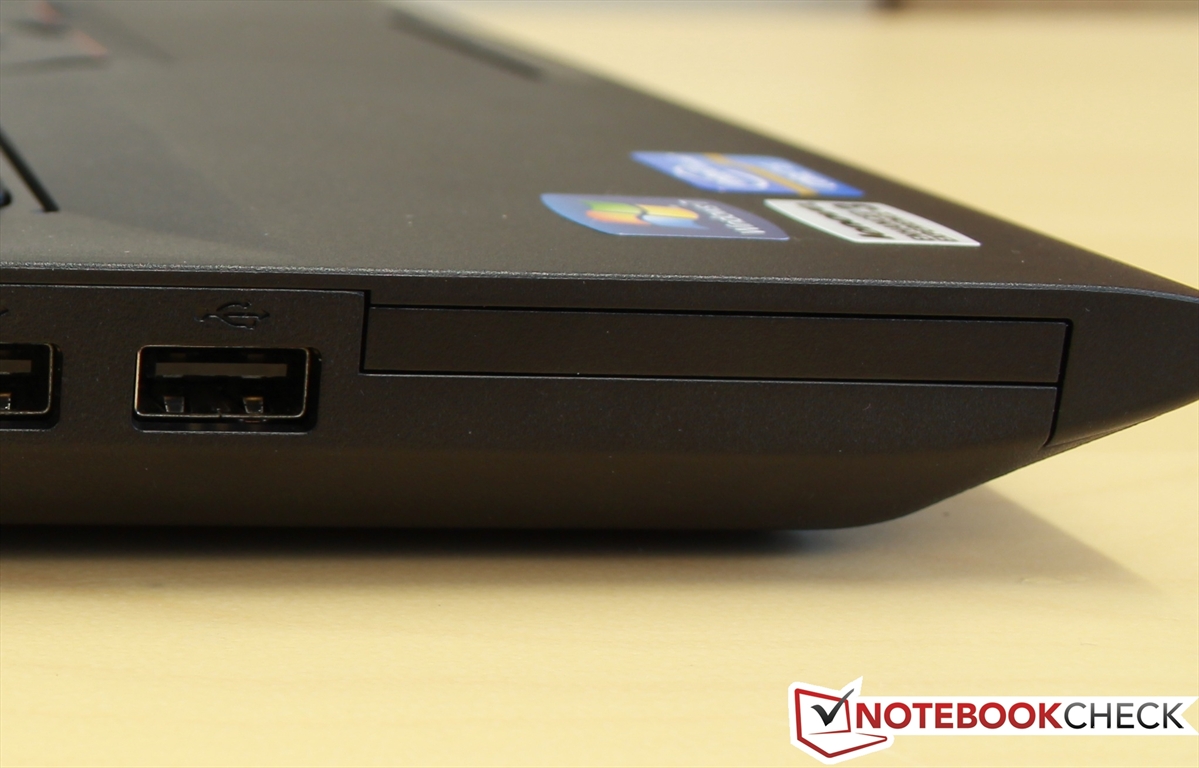

Slot for a PC card? Wrong!
Slot for a PC card? Wrong!

Similar Devices

Links

Price Comparison

Pro

+Very good input devices
+Docking port
+Quiet
+Low power consumption


Cons

-Weak viewing angles
-A few hot spots
-HDMI provided by an adapter

Shortcut

What we like

Keyboard, touchpad and Trackpoint have a clever design and are easy-to-use. The low noise emissions are a delight as is the low power consumption.

What we miss

Despite having a mini DisplayPort, we would have liked to see a HDMI output as well.

What surprises us

The display shines due to the high brightness.

The competition

Dell Vostro 3460, Lenovo ThinkPad Edge s430, Acer Travelmate p643, HP Probook 6470b,...

Rating

Lenovo ThinkPad L430
10/02/2012 v3
Karl Stiefel

Chassis
84%
Keyboard
89%

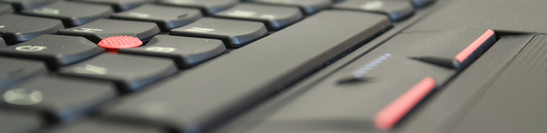

Pointing Device
88%
Connectivity
80%
Weight
84%
Battery
81%
Display
73%
Games Performance
66%
Application Performance
91%
Temperature
84%
Noise
93%
Add Points
85%
Average
83%
85%
Office *
Weighted Average

> Notebook / Laptop Reviews and News > Reviews > Archive of our own reviews > Review Lenovo ThinkPad L430 Notebook
Author: Karl Stiefel, 2012-10-11 (Update: 2013-06- 6)
