Review Asus G2SG Gaming Notebook

G2 gaming update.

Since the launch of the Asus G2 after the Cebit 2007, it has been offered in various configurations to keep it competitive. The current version of the gaming notebook in 17" format, called G2SG, comes with a new Penryn processor and a Geforce 8700M GT graphics card made by nVIDIA with 512MB GDDR3 video memory.

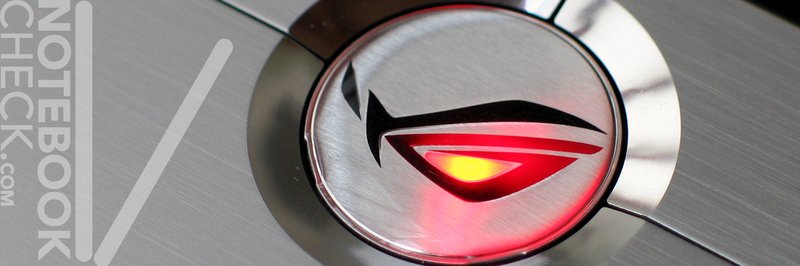

Asus G2SG Gaming Notebook Logo

The Asus G2SG's case, input devices and display (WXGA+) are identical with the already reviewed Asus G2K notebook. Please consult the test of that model for additional information. The picture of the following review, apart from the display shots, are from the review of the Asus G2K as well.

Case

The case of the Asus G2SG mostly stands out because of it's rather unique design that might not be everyone's taste.  Asus achieved this by combining a variety of different materials with outstanding colour design. Almost all materials that can be found in other models can be found here as well: plastic in matt finish, plastic in glossy finish, plastic in carbon and aluminum look, as well as actual metal below the keyboard, and the perforated iron sheet on the left and right of the keyboard. Those who like such a collection of different materials will be very pleased with the Asus G2. But it might not be the best choice for people who prefer italian minimal design.

However, the colourful case with all the blinking lights impresses with stability and robustness. The Asus G2SG  weights about 4kg and promises a long life, due to it's relatively pressure resistant and flexural rigid case. Especially the display hinges need to be mentioned in this regard: They not only look massive, but actually keep the 17" display so strongly in position, that it needs some power to move the display into the desired position.

Interface equipment

As a mobile gaming device the Asus G2SG offers a variety of high value interface options. The G2SG, like the model G2K, has Firewire, VGA and S-video output, a digital HDMI port, as well as a total of five USB 2.0 ports (one of them is also used as eSATA interface to external hard disks).

This is not all. The notebook's audio ports include a Line-In port, microphone input, and earphone exit respectively a S/PDIF port. Due to the hybrid TV-tuner (analog and DVB-T), which was integrated in our test sample, the notebook also had an antenna connection for the indoor antenna that is included in the shipment. Further included is a composite port, which offers together with the also included adapter further connection options (audio and video input).

Whether the alignment of the ports is good or bad depends mainly on the requirements of the user. The connections are mostly on the back or left of the laptop. Not really optimal is the separated position of the LAN port (left side on the back) and the power supply (right side back). Furthermore, most of the USB ports are on the back, which makes them more suitable for stationary devices that are left plugged in.

The Asus G2SG communicates over a Gigabit Ethernet interface by Atheros (10/100/1000 Base-T controller) and an Intel wireless 4965AGN module. The G2SG further has Bluetooth and an integrated 56k modem.

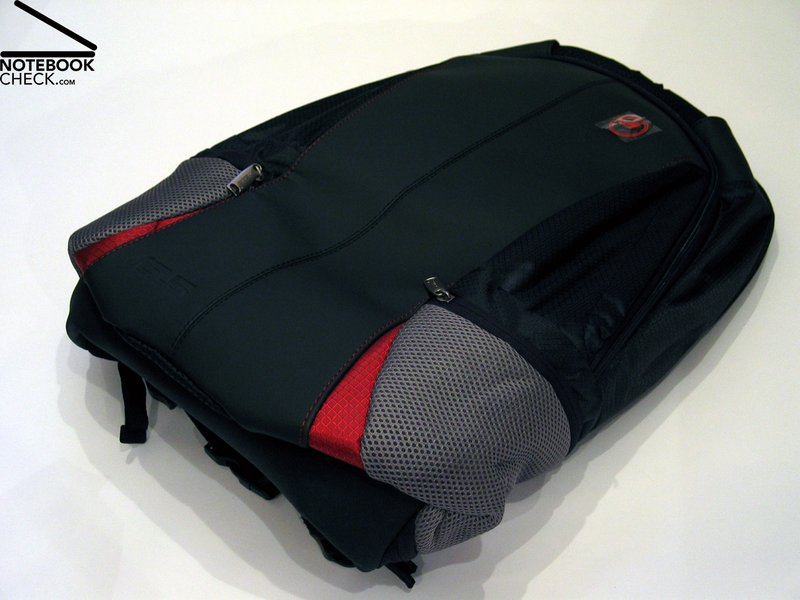

Impressive is also the accessories that come with the Asus G2SG. Apart from the familiar backpack in Asus G2 gaming style and the fitting Logitech MX 518 optical mouse, the shipment also includes a variety of adapter cables, a DVB-T antenna, and a remote control with the IR controller to connect it to the notebook via USB.

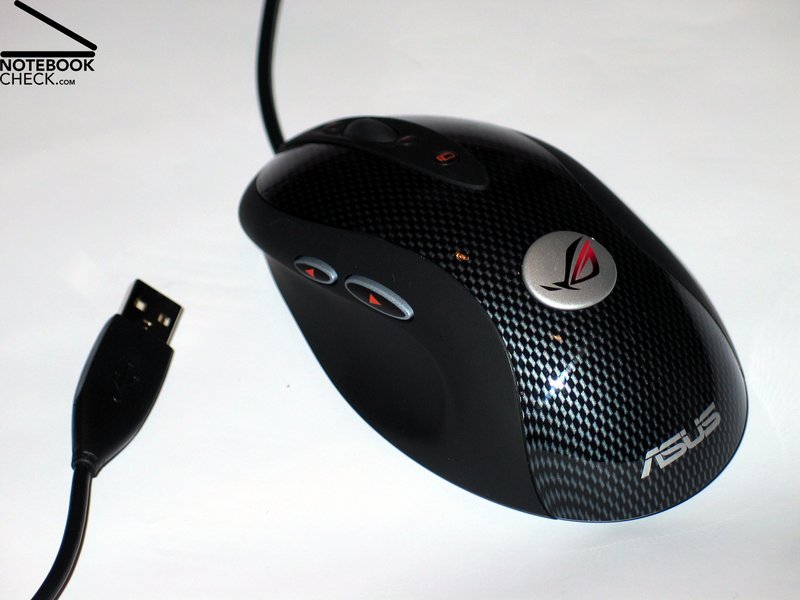

Asus G2SG accessories
Asus G2SG accessories

Input devices

The coloured A-W-S-D keys of the keyboard, which are  used to move characters in games through virtual worlds, leave no doubt that the Asus G2SG is indeed a gaming notebook.  An additional number pad is not included in order to keep the size of the standard keys comfortable large.

Typing feeling is good with clear feedback. The keys leave a generally robust impression, but can be pressed trough a bit too much around the enter key and tend to rattle when typing forcefully. Missing hot keys to change the volume was sometimes negatively noticeable while playing games. One has to use the key combination FN+F11/F12. You can find more information about the keyboard and touch pad here.

Touch pad
Asus G2SG Touch pad
Keyboard
Asus G2SG Keyboard

Display

The Asus G2SG (7R014J), like the model G2K which we've already tested, has a 17 inch WXGA+ display with a maximum resolution of 1440x900 pixel. Although this limits the amount of things visible on the screen, it makes it possible to play at least older games at native resolution. More about this later in the performance tests.

The picture quality is mostly influenced by the subjectively noticeable high display brightness. Colours and contrast make a good impression as well. In the display brightness test the panel achieved a maximum of very good 338cd/m2 in the central area of the display. The drop in brightness to 275cd/m2 in the upper corners results in a display illumination of 81.4%.

275
cd/m²
310
cd/m²
287
cd/m²
302
cd/m²
338
cd/m²
304
cd/m²
314
cd/m²
335
cd/m²
314
cd/m²
Distribution of brightness
Information
Maximum: 338 cd/m²
Average: 308.8 cd/m²
Brightness Distribution: 81 %
Black: 0.48 cd/m²
Contrast: 704:1

The very good impression of the image quality is also supported by the contrast ratio. A very low black value of 0.48cd/m2 and the very good brightness are responsible for an excellent contrast of maximal 704:1.

Even though the display uses a panel with glossy surface (color shine glare type), it only causes minor reflections (especially if the screen content is dark) indoors, due to it's excellent brightness. It can't really be recommended for outdoor usage however, because of sun reflections on the display.

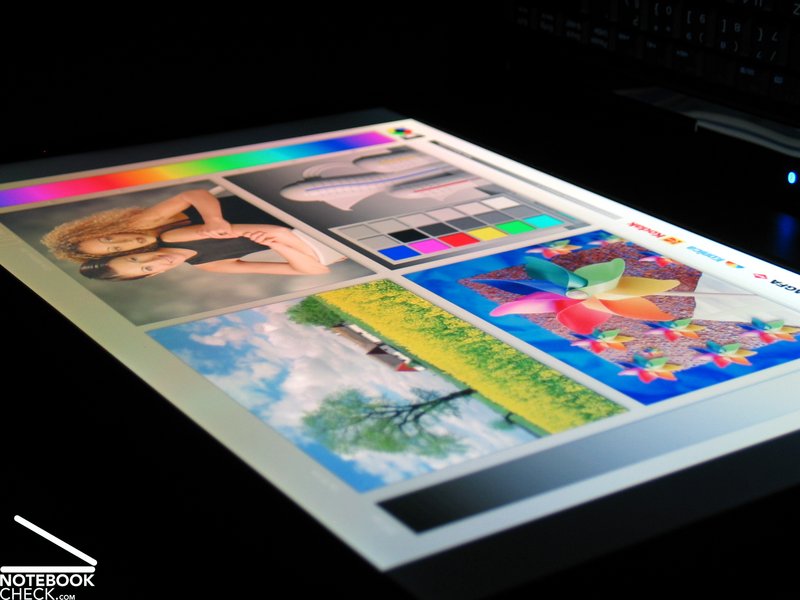

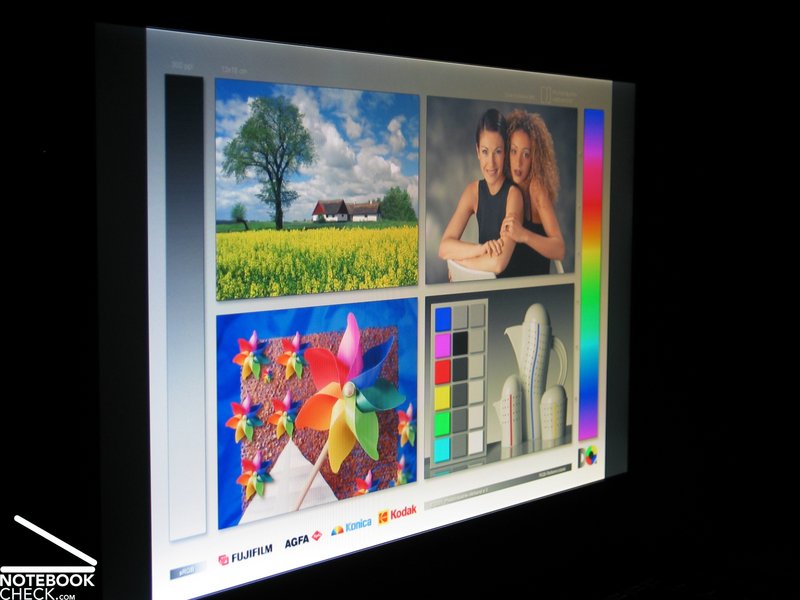

Although the Asus G2SG offers a wide enough possible viewing angle to provide a sufficient large working area while the notebook is used stationary, the image will change the more one moves away from the optimal viewing angle. This becomes apparent with a darkening of the screen when moving in vertical direction and a change in colour, as well as more reflections when moving in horizontal direction.

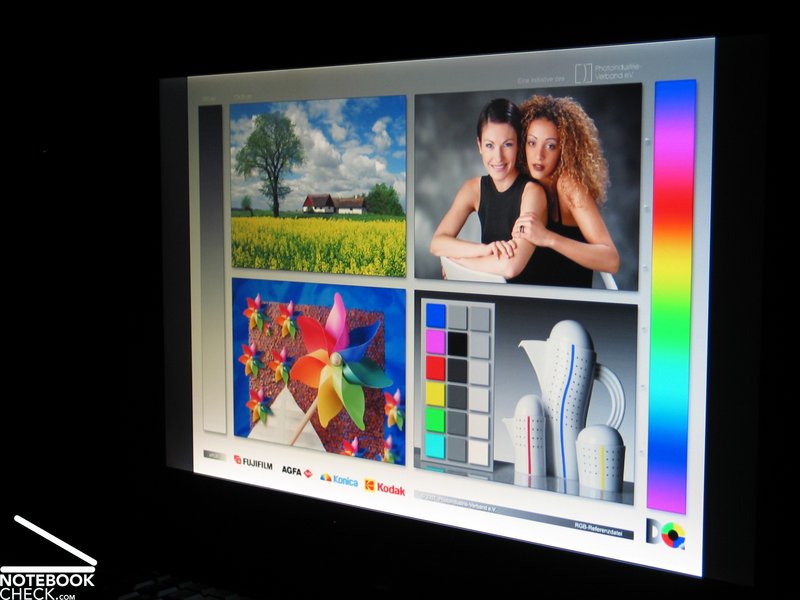

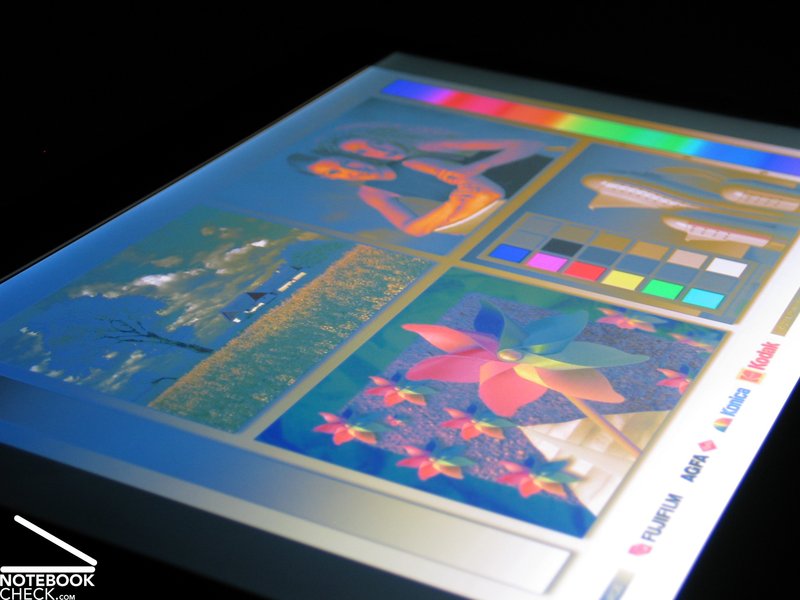

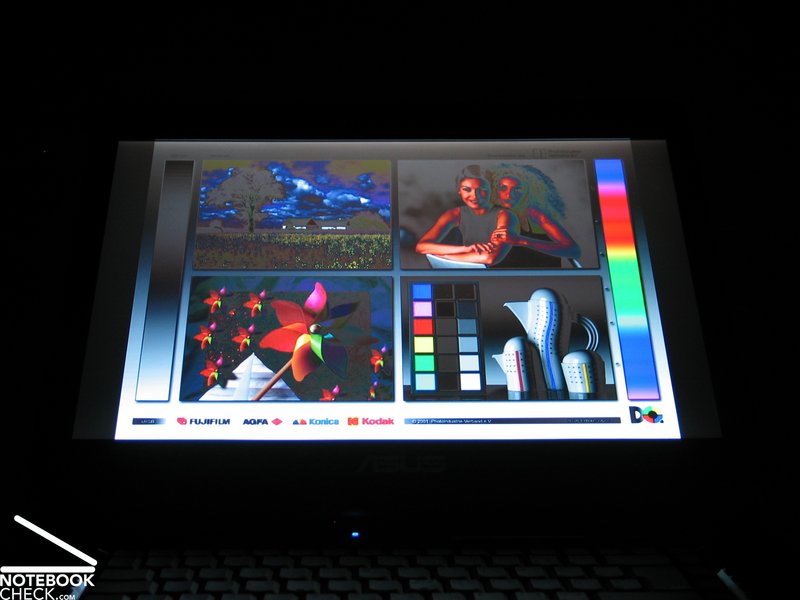

Asus G2SG viewing angle stability
Asus G2SG viewing angle stability
Asus G2SG viewing angle stability
Asus G2SG viewing angle stability
Asus G2SG viewing angle stability
Asus G2SG viewing angle stability
Asus G2SG viewing angle stability
Asus G2SG viewing angle stability

Performance

The Asus G2 type G2SG-7R014J has a modern Penryn processor made by Intel, a powerful T9300 chip with a clock rate of 2.5GHz and 6MB L2-cache. This  gives the G2 the advantages of the new Penryn processors, which can offer significantly better performance in certain applications compared with Merom processors running at the same clock rate. More about this in our special report about the current Penryn processors.

The G2SG also got a new graphics chip, the Geforce 8700M GT with 512MB GDDR3 video memory. The 8700M GT is trailing the 8800 GTX and various SLI combinations, but still belongs to performance class 1 in our comparison of mobile graphics cards, which indicates good performance for this graphics card. As a result, the G2SG is clearly ahead of the G2K with Turion processor and ATI graphics, and also stays ahead of the new middle class graphics card, the Geforce 9500M GS in the Asus M51S. As mentioned before, some SLI combinations (8600M GT and 8700M GT), as well as the currently most powerful notebook graphics card, the 8800M GTX, are still ahead.

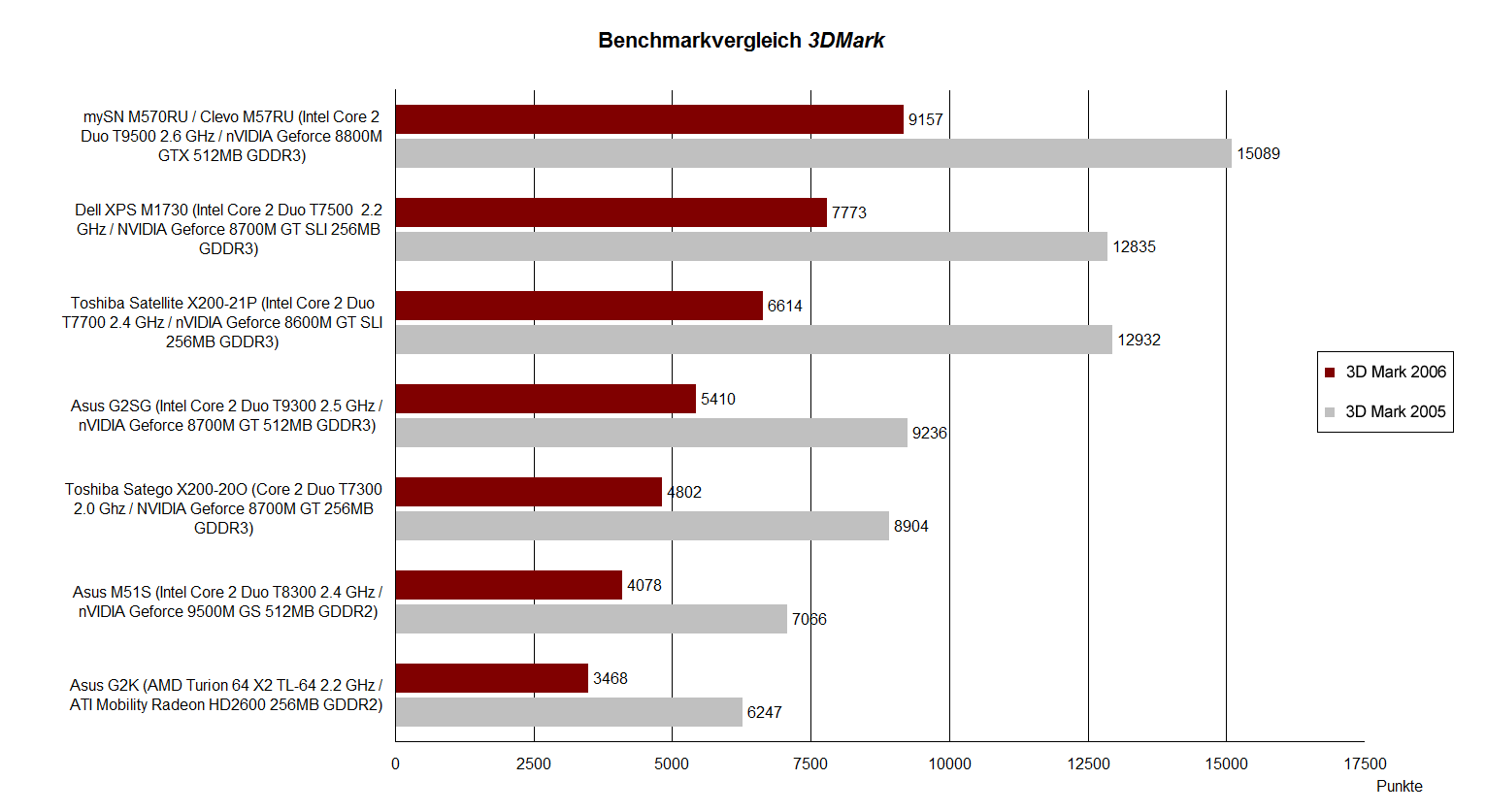

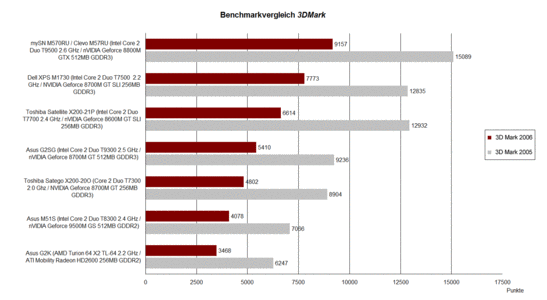

Benchmark comparison 3DMark
Benchmark comparison 3DMark

The good performance of the Asus G2SG comes not only from the processor and graphics card, but also from other high quality hardware components. The G2SG is equipped with a total of 4096MB (DDR2, PC5300, 667MHz) system memory, divided into two 2GB memory sticks. Windows Vista Ultimate 64-bit is installed in order to make use of this memory capacity. According to a comparison between Vista 32-bit vs. Vista 64-bit in the review of the Nexoc Osiris E705III gaming notebook, there were no noticeable performance differences that could be attributed to the 64-bit system however.

Furthermore, the Asus G2SG contains the much advertised and hotly discussed Intel turbo memory module, also known as Robson, which stores frequently used data and is supposed to offer faster access than the hard disk. Opinions vary widely whether and how much of a performance difference it makes, but we couldn't notice any difference in various tests.

There was no doubt about the very good performance of the hard disk however, a 320GB hard disk made by Western Digital type WD3200BEVT-22ZCTO. With an average transfer rate of 51.4MB/sec and an access rate of 17.2ms in the HDTune benchmark test, this hard disk with a speed of 5400r/min presents itself as well performing data storage.

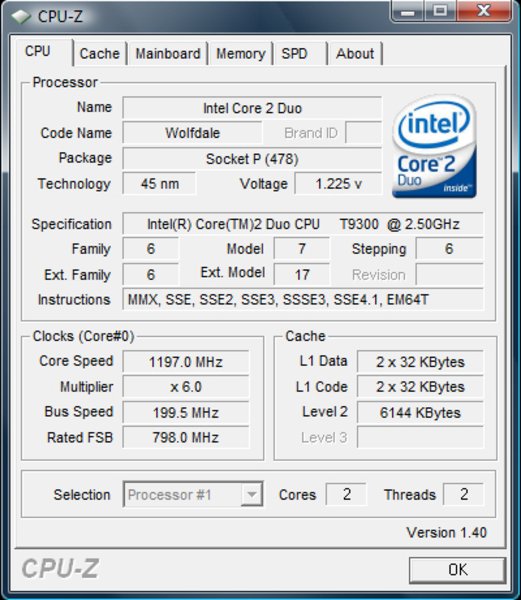

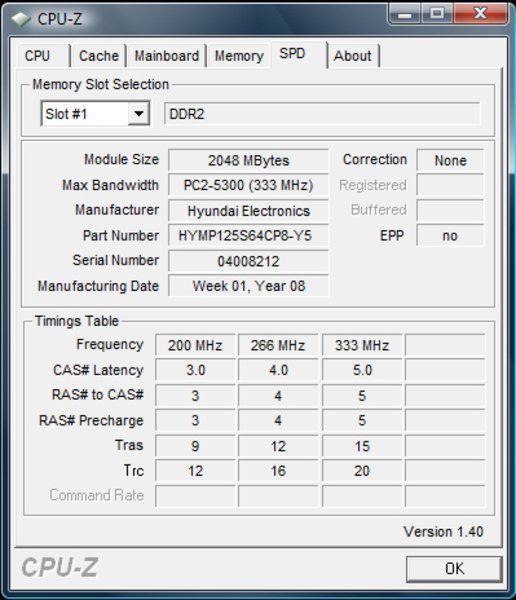

System info CPU
System info CPU
System info CPU
System info CPU

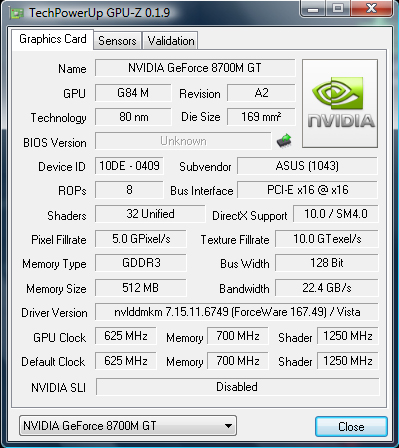

System info GPU
System info HDD

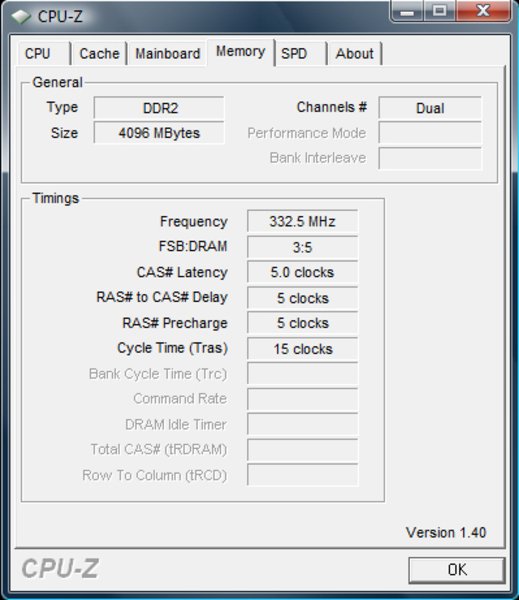

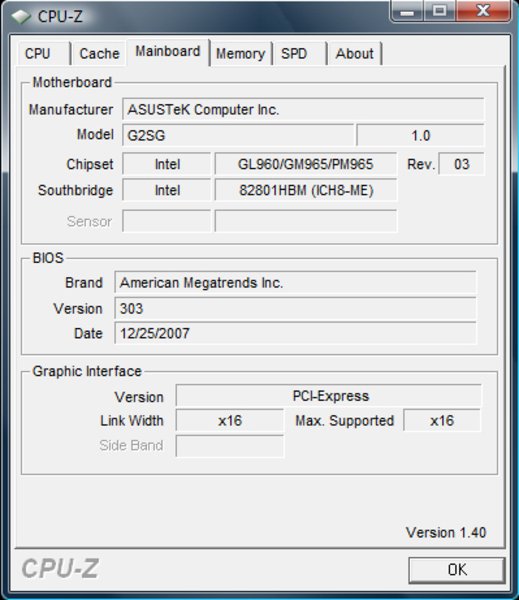

System information Asus G2SG

The hardware equipment offers not only good performance in 3D benchmarks, but can also convince in applications. The test system achieved excellent 6174 points in the PCMark 2005 benchmark test, and moved with this result clearly ahead of numerous comparable notebooks. The same can be said about the Cinebench R10 benchmark test, where the Asus G2SG did also well. However, while it managed very good results in rendering (single and multi processor), it showed some noticeable weaknesses  in the shading test, where notebooks with the optimised Quadro FX graphics card do clearly better. But this isn't much of a problem since the Asus G2SG target audience is probably more interested in gaming performance.

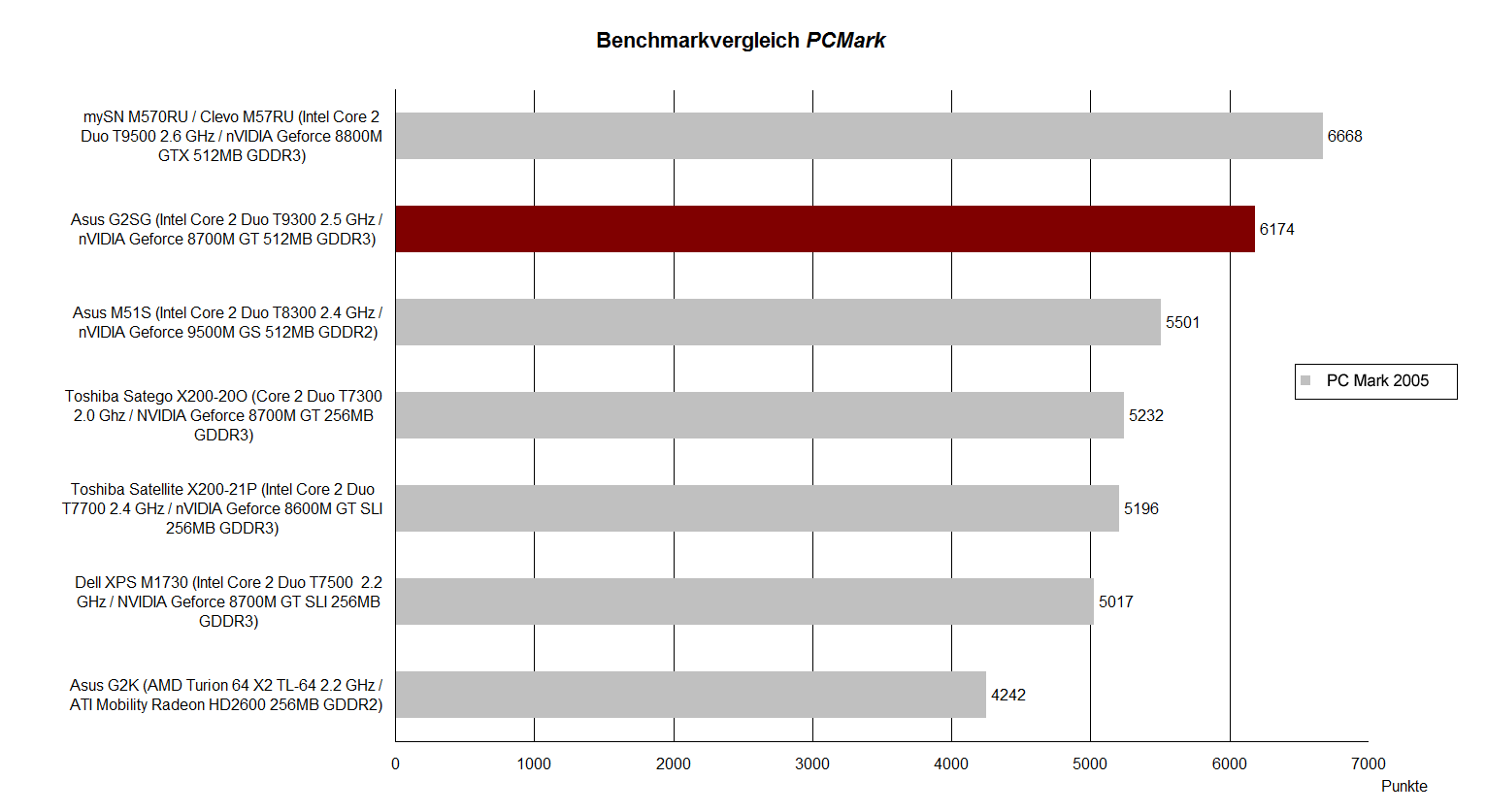

Benchmark comparison PC Mark
Benchmark comparison PC Mark

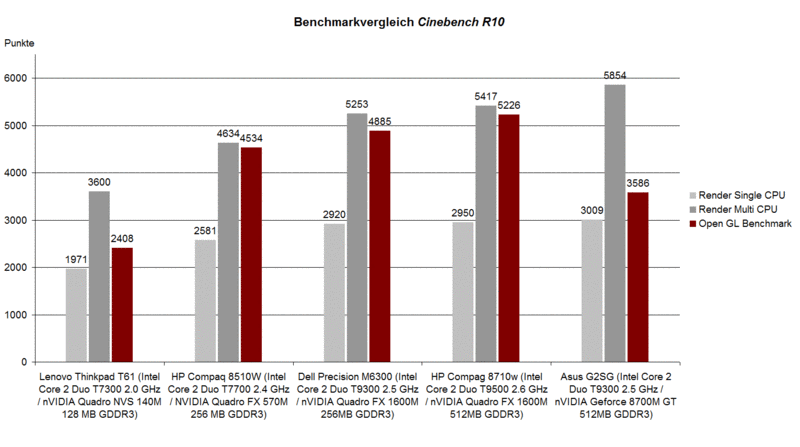

Benchmark comparison Cinebench R10
Benchmark comparison Cinebench R10
3D Mark
3DMark 2001SE30359 points
3DMark 0315747 points
3DMark 059236 points
3DMark 06
 1280x1024
5410 points
Help
PC Mark
PCMark 056174 points
Help
Cinebench R10
 SettingsValue
 Rendering Single 32Bit3009 Points
 Rendering Multiple CPUs 32Bit5854 Points
 Shading 32Bit3586 Points

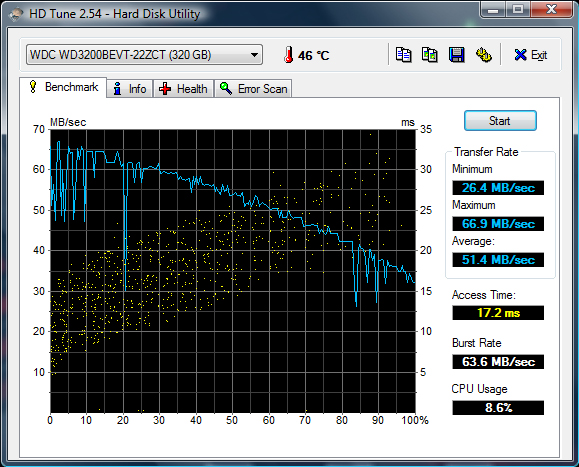

320 GB - 5400 rpm
Transfer Rate Minimum: 26.4 MB/s
Transfer Rate Maximum: 66.9 MB/s
Transfer Rate Average: 51.4 MB/s
Access Time: 17.2 ms
Burst Rate: 63.6 MB/s
CPU Usage: 8.6 %

Gaming performance

A notebook that titles itself as "the ultimate gaming notebook" obviously pushes expectations up. It did pretty well in the 3D Mark benchmark test, but how is the situation when playing real games? We want to explore the practical performance of the G2SG using a variety of current games.

We start with the currently most discussed game made by Crytek and published by Electronics Arts. The first person shooter Crysis is well known for bringing even high end gaming computers to their knees, and forcing players to sacrifice resolution, detail level or both.  The fact that the Asus G2GS isn't a high end gaming machine became already apparent from the 3D Mark results. But Crysis' benchmark result is still rather disappointing. Even with medium details and a reduced resolution of 1024x768 pixel, it only manages 27.5 frames per second (fps) in the graphics cards benchmark test. The game itself shows a similar result when playing the Crysis demo level with the same settings the frame rate was between 15 and 35, so an average of 25 fps. The game was playable, but effects would frequently cause frame drops.

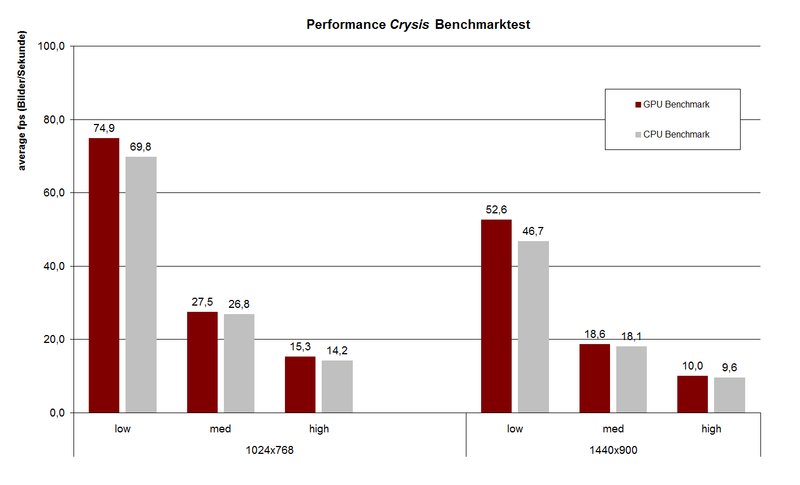

Benchmarks Crysis
Benchmarks Crysis

The Asus G2SG notebook also achieved only modest results in the real time strategy game World in Conflict. The average benchmark frame rate with medium details (DirectX9) and 1024x768 pixel resolution was 31 and dropped to 24 with the native resolution of 1440x900. With high details (DirectX10) it went even lower and stayed around 15-20 fps. The notebook achieved in the practical test on the map Seaside in a 3 vs. 3 multiplayer game with the settings 1440x900 and medium details 30-40 fps. This is enough to play the game properly.

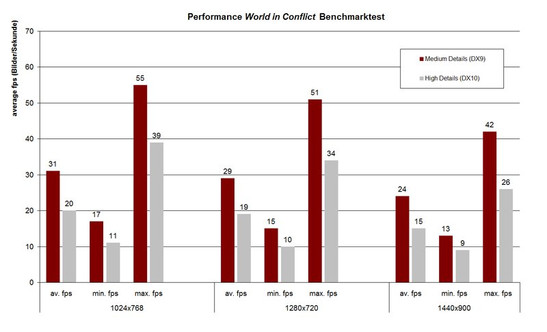

Benchmarks World in Conflict
Benchmarks World in Conflict

Also included in the test was one of the currently most popular games, Call of Duty 4 - Modern Warfare. The practical test in single player modus first level, with the settings 1280x768, anti aliasing deactivated, and the other settings on default, resulted in a smooth gameplay with 50-60 fps. Even with the native resolution of 1440x900 pixel the game was still well playable with 40-50 fps .

Unreal Tournament 3 is another first person shooter in our test selection. The test of the demo on the map Heat Ray, with a resolution of 1024x768 and detail levels on default (texture level 3, world detail level 3, VSync off) ran with smooth 55-63 fps. However, increasing the resolution to the maximum of 1440x900 reduced the frame rate to 38-55. The frame rate dropped further,  to 30-42 fps, when maximum details were selected.

The last game in our test is the current version of the real time strategy game Supreme Commander - Forged Alliance. The G2SG scored 15645 points in the benchmark with the following settings: 1440x900, medium details.  A practical 2 vs. 2 game with the same settings resulted in 15-20 frames per second. A reduction of the resolution to 1024x768 improved the frame rate to 20 fps. The game was in both cases playable.

Generally we attest the Asus G2SG sufficient gaming performance, but we wouldn't really call it "the ultimate gaming notebook". For that it needed proper DirectX10 support with acceptable frame rates, which the Asus G2SG couldn't provide in the tests. The G2SG is thus an average gaming notebook, which can run current games, but only with reduced detail levels.

Emissions

Noise level

One of the distinctive features of the Asus G2K was it's quietness, which can't be said about the current model, the G2SG, which is significantly noisier. This is not surprising, given the relatively powerful hardware components.
Fortunately, the Asus G2SG stays at least in idle and low demand office mode with applications that don't need much performance, like e-mail or internet, very quiet. With only 32.2dB(A) there is no reason to complain.

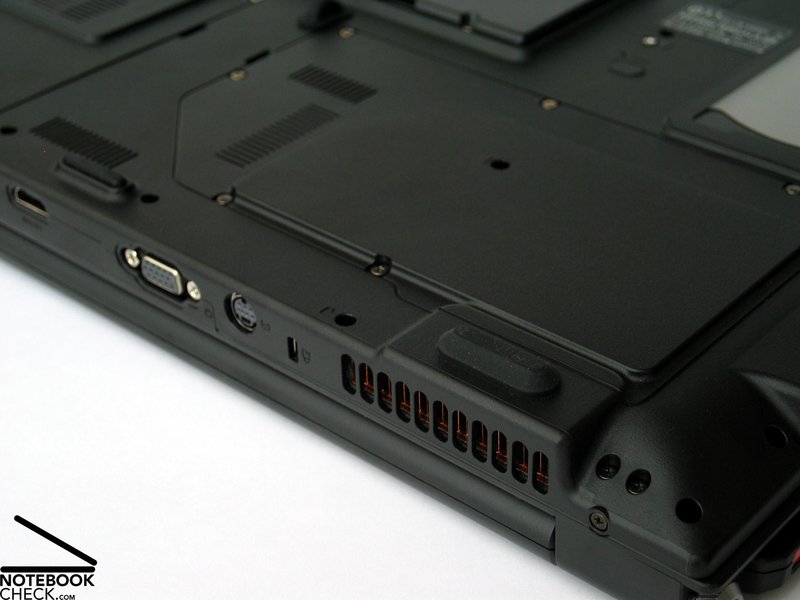

If the Asus G2SG is under load, for example while playing games, the fan starts to turn faster. Depending on the game and load, the noise level can go from 40.6dB(A) up to maximal 45.4dB(A). The maximum noise level can be described as annoying, and requires either very exciting gameplay or loud sound to push it in the background. There is of course also the possibility of earphones for very sensitive ears, which should prevent the user from  hearing the fan altogether.

Noise Level

Idle 32.2 / 32.2 / 32.2 dB(A)
HDD 33.1 dB(A)
DVD 37.8 / dB(A)
Load 40.6 / 45.4 dB(A)

    30 dB
silent
40 dB
audible
50 dB
loud

min: , med: , max:     (15 cm distance)

Temperature

The Asus G2K stood already out with very high surface temperatures. But while the temperatures of the Model G2SG are slightly higher, the distribution of the surface temperature stays similar. With 48.9°C under load the Asus G2SG achieves an impressive maximal temperature, which suggests a stationary use of the notebook.

Max. Load
 43.5 °C44.2 °C39.6 °C
 36.7 °C39.8 °C36.7 °C
 29.9 °C33.1 °C28.9 °C
Maximum: 44.2 °C
Average: 36.9 °C
44.4 °C48.9 °C48.8 °C
44.3 °C44.9 °C40.1 °C
37.1 °C39.1 °C36.4 °C
Maximum: 48.9 °C
Average: 42.7 °C
Room Temperature 21.5 °C

Loud speakers

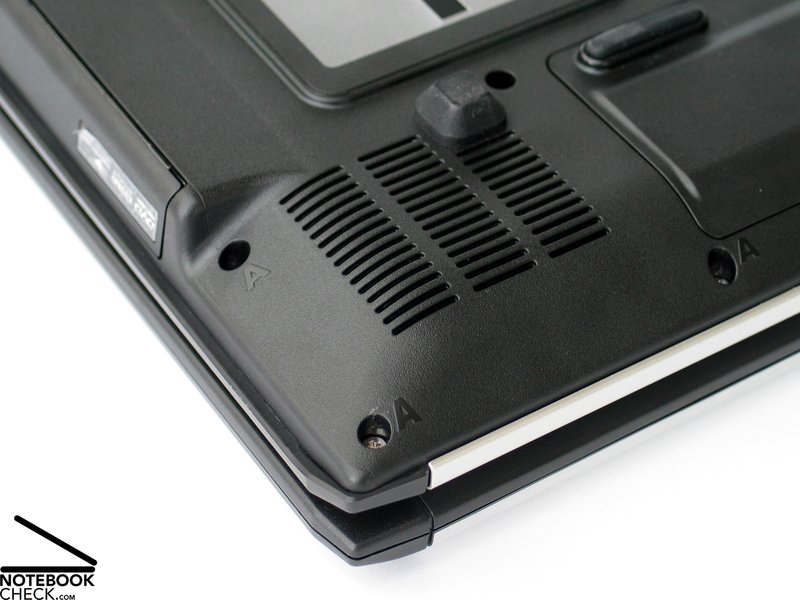

Although the two holes, which are covered with red painted and perforated metal sheets, on the left and right of the keyboard look at first glance like the positions of the loud speakers, it becomes clear after a short sound sample that the actual speakers are below the front edge of the notebook.
The sound output of the built-in speakers is quite good, with proper sonority and maximum volume.

Battery life

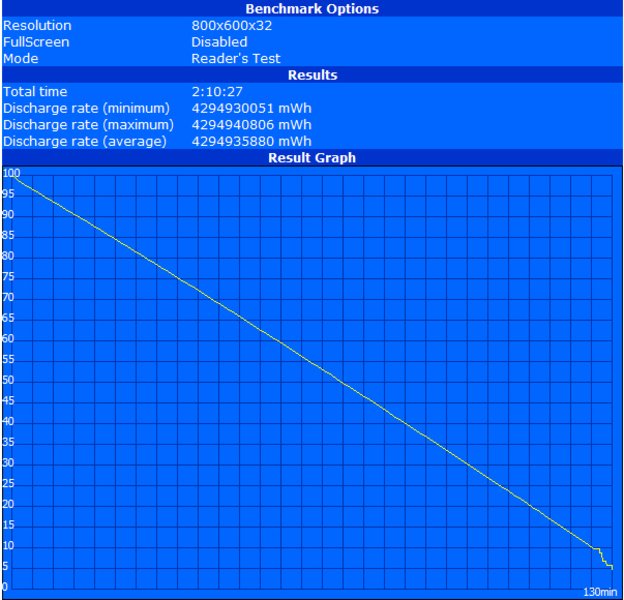

Readers Test
Maximum battery life BatteryEater Readers Test

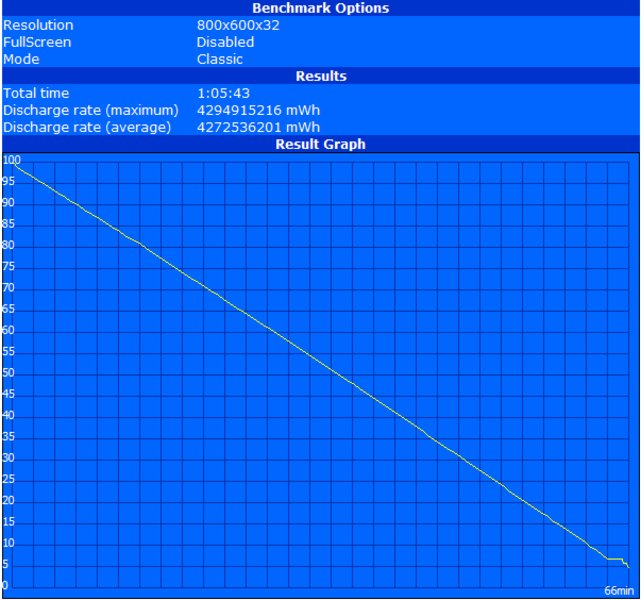

Classic Test
Minimum battery life BatteryEater Classic Test

The Asus G2SG is equipped with a 4800mAh battery (71Wh), which provides mobile and power jack independent, but rather short use of the G2. The maximum battery life test with the BatteryEater readers resulted in 130 minutes life time. Under load (BatteryEater Classic test) the battery depleted in maximal 66 minutes. A bit disappointing is the battery life while playing a DVD: 88 minutes with a full battery is not even enough to watch an average movie.



Power Consumption

Idle 33 / 44 / 54 Watt
Load 97 / 103 Watt

Key: min: , med: , max:
Battery Runtime
Idle (without WLAN, min brightness)
2h 10min
DVD
1h 28min
Load (maximum brightness)
1h 06min

Verdict

The Asus G2, in the model variant G2SG-7R014J, has generally the same strengths and weaknesses as it's predecessor models, but improved significantly regarding accessories (DVB-T tuner, turbo memory, RAM) and performance. But especially the extensive accessories make the G2 still an attractive gaming notebook.

The outstanding case, with various colours and shapes, is probably not to everyones liking, but the fact that it is very stable and robust can't be disputed. The same can be said about the alignment of the interface connections. Whether they are located practically or not depends a lot on the habits of the individual user. The HDMI port and the eSATA interface on the other hand should impress everybody.

The input devices, especially the keyboard, are well suited for office work and gaming. In particular the coloured A-W-S-D keys might help short sighted gamers who usually have troubles finding them...

The display is another strength of the Asus G2SG. Like the predecessor models it offers excellent brightness of more than 300cd/m2 on average, and a very good contrast ratio. The resolution of up to 1440x900 pixel should be sufficient for gaming as well.

Performance made a big step forward in the G2SG, due to the Intel Penryn processor and Geforce 8700M GT by nVIDIA. The Asus G2 offers thus good application and gaming performance. This is supported by the 4096MB system memory, the fast 320GB hard disk made by Western Digital and an integrated Intel turbo memory module.

The notebook stays pleasantly silent in office mode, despite the performance gains. The fans only turn on under load and become rather noisy. This is not a big problem for a gaming notebook however, since exciting games let the user quickly forget the fan noise. No changes were made regarding the heating up of the case. Especially the bottom side of the Asus G2SG becomes pretty hot with up to 50°C. This isn't such a problem, as long as the notebook isn't put on the lap.

Asus G2SG
Asus G2SG
Reviewed: Asus G2SG-7R014J
Asus G2SG-7R014J

Specifications

Asus G2SG

:: Processor
:: Mainboard
Intel PM965
:: Memory
4096 MB, DDR2 PC5300 667 MHz, 2x 1024MB
:: Graphics adapter
NVIDIA GeForce 8700M GT - 512 MB, Core: 625 MHz, Memory: 700 MHz, GDDR3 VRAM, ForceWare 167.49, 7.15.11.6749
:: Display
17.1 inch 16:10, 1440x900 pixel, WXGA+ Color Shine Glare Type, glossy: yes
:: Harddisk
320 GB - 5400 rpm, 320 GB 5400 rpm WD3200BEVT-22ZCT0
:: Soundcard
Realtek ALC888
:: Connections
1 Express Card 54mm, 5 USB 2.0, 1 Firewire, 1 VGA, 1 HDMI, 1 S-Video, 56k Modem, 1 Infrared, 1 Kensington Lock, 1 eSata, Audio Connections: Line In, microphone, earphones (S/PDIF), audio and video input through included adapter, Card Reader: SD Cardreader, TV Card: Hybrid TV Tuner (analog, DVB-T), eSATA
:: Networking
Atheros L1 Gigabit Ethernet 10/100/1000Base-T (10/100/1000MBit), Intel Wireless WiFi Link 4965AGN (a b g n ), 2.0+EDR Bluetooth
:: Optical drive
HL-DT-ST DVDRAM GSA-T20L
:: Size
height x width x depth (in mm): 52 x 311 x 416
:: Weight
4.06 kg Power Supply: 0.66 kg
:: Battery
71 Wh Lithium-Ion, 14.4V 4800mAh
:: Price
1500 Euro
:: Operating System
Microsoft Windows Vista Ultimate 64 Bit
:: Additional features
Backpack, optical mouse, remote control, IR-receiver, DVB-T antenna, various adapters, Nero OEM Suite, driver DVD, recovery DVD, 24 Months Warranty, 1.3 megapixel web cam, Intel turbo memory

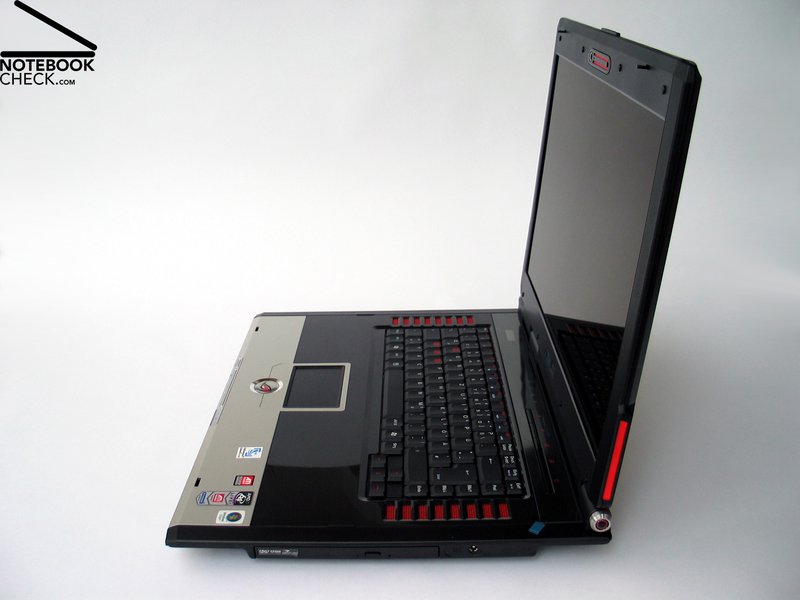

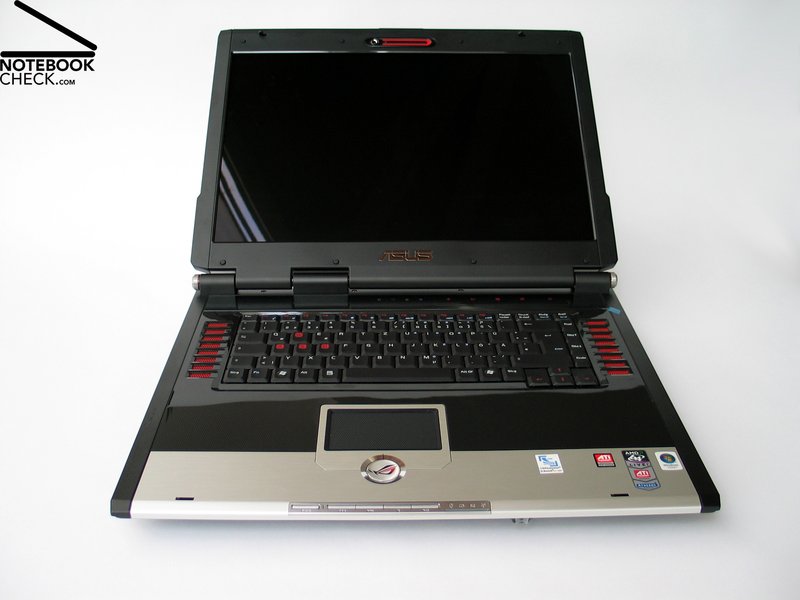

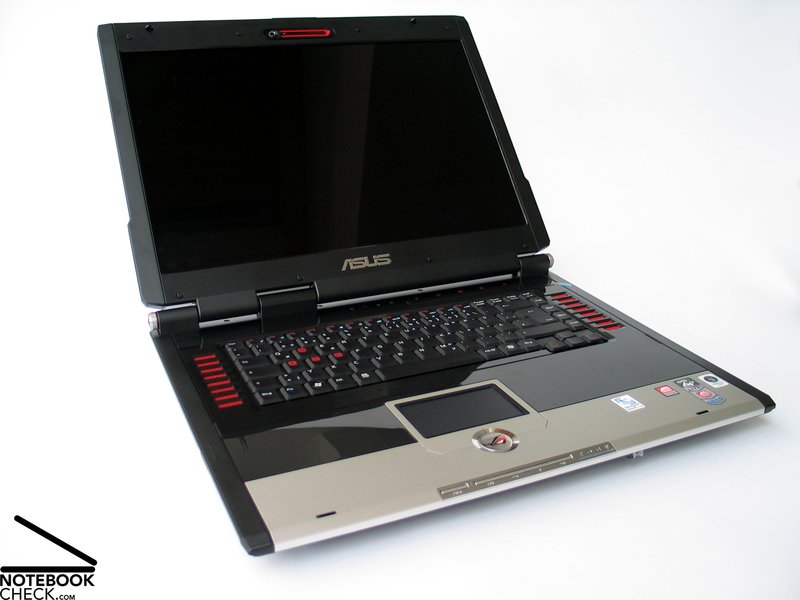

The G2SG is another model of the Asus G2 17 inch gaming series.
Asus G2SG Image

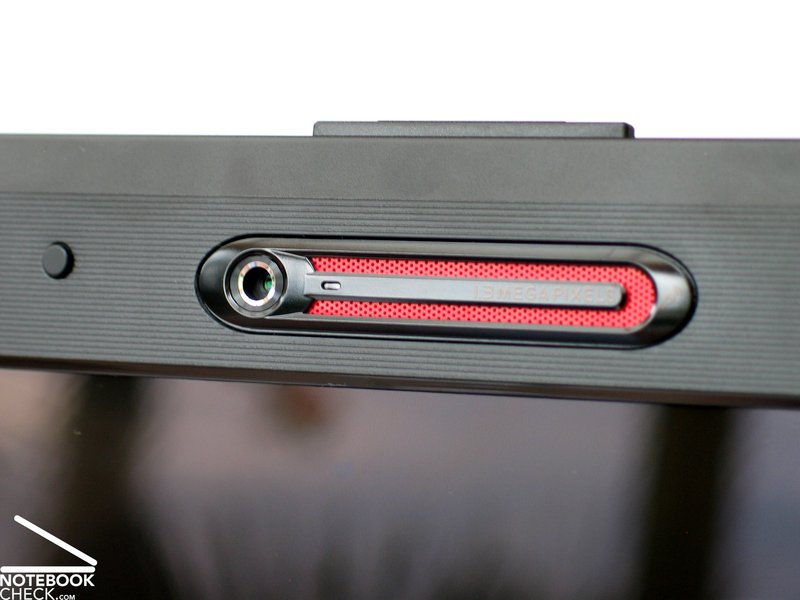

A 1.3 mega pixel web cam comes with the Asus G2 as well.
Asus G2SG Image

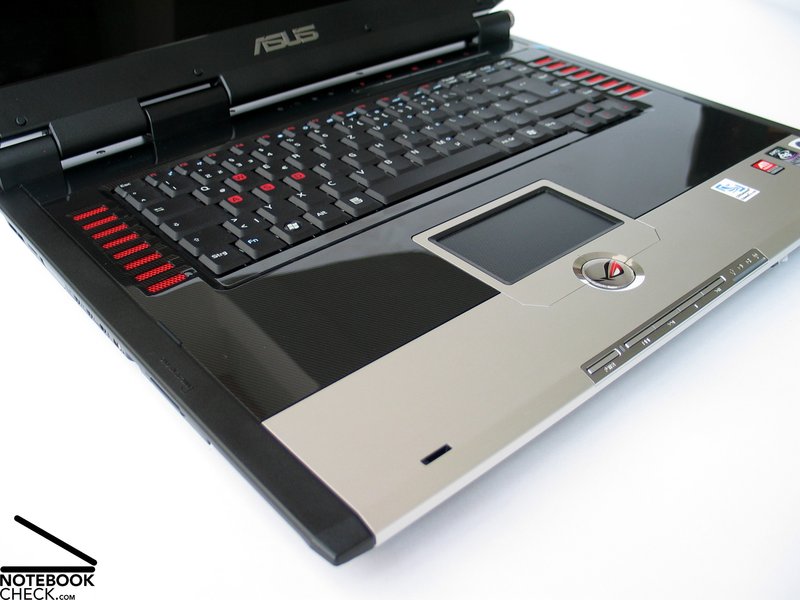

The gaming keyboard is pleasant to use.
Asus G2SG Image

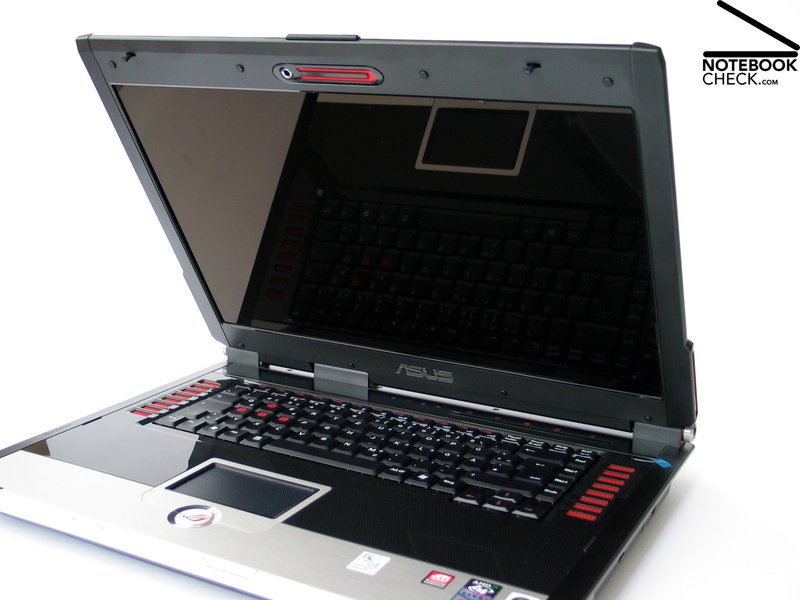

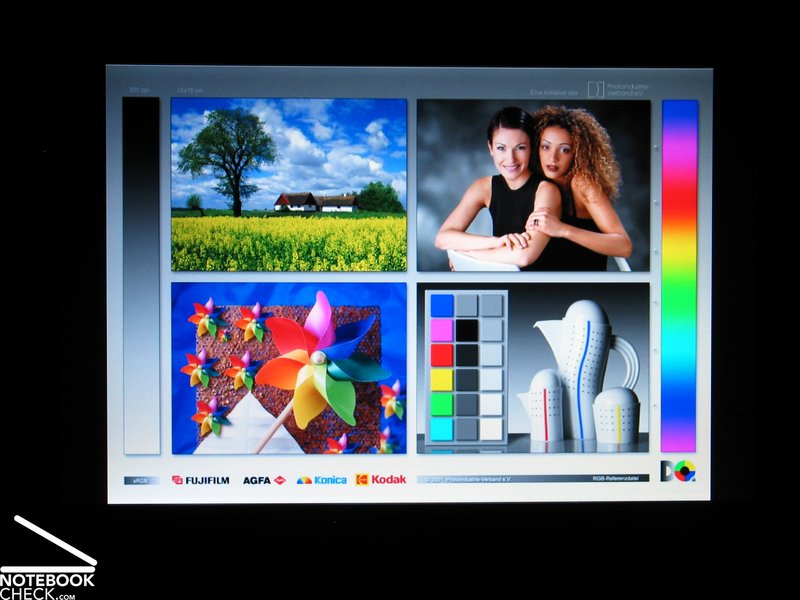

The 17 inch WXGA+ display with glossy surface...
Asus G2SG Image
...is very bright and has a good contrast ratio.
Asus G2SG Image

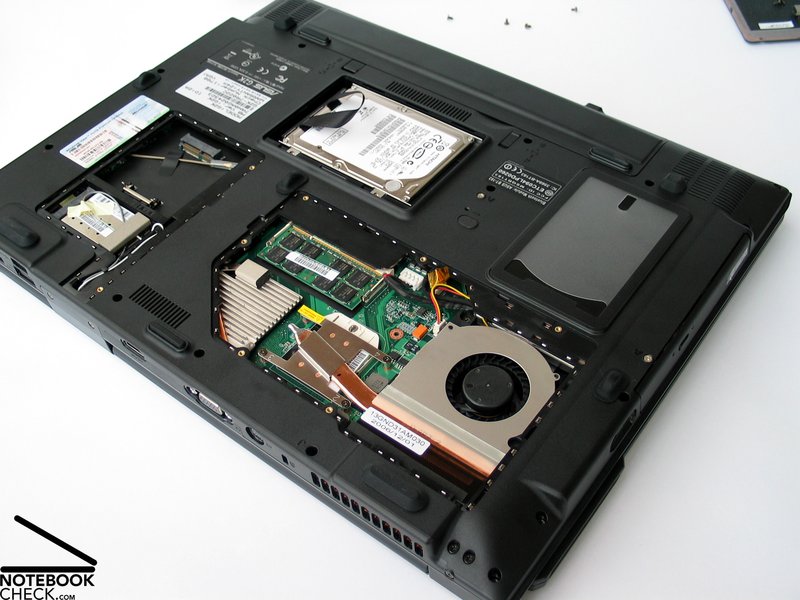

The G2SG uses popular Intel and nVIDIA hardware components.
Asus G2SG Image
The Penryn T9300 processor and the Geforce 8700M GT achieve acceptable results in our test.
Asus G2SG Image

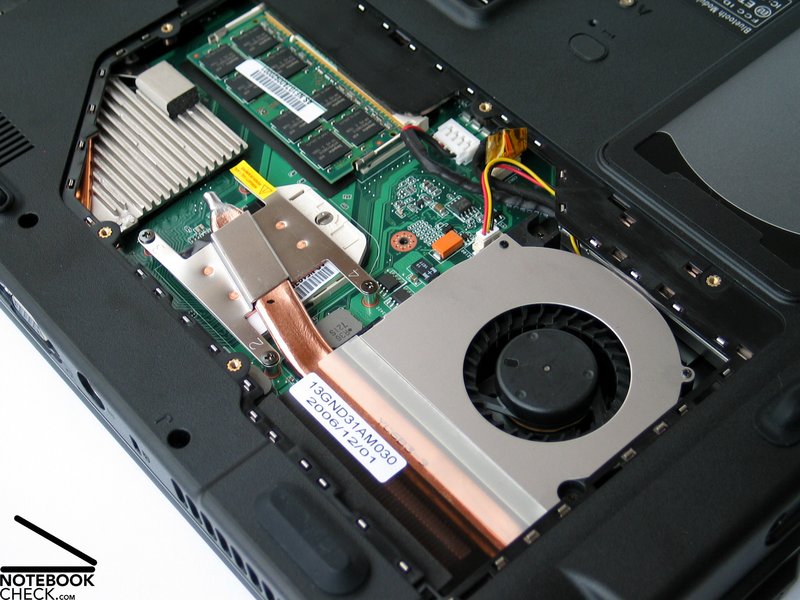

The fan stays quietly in the background, most of the time.
Asus G2SG Image
As a result, the case surface temperature rises to a maximum of 49°C.
Asus G2SG Image
The built-in speakers offer good sound quality.
Asus G2SG Image

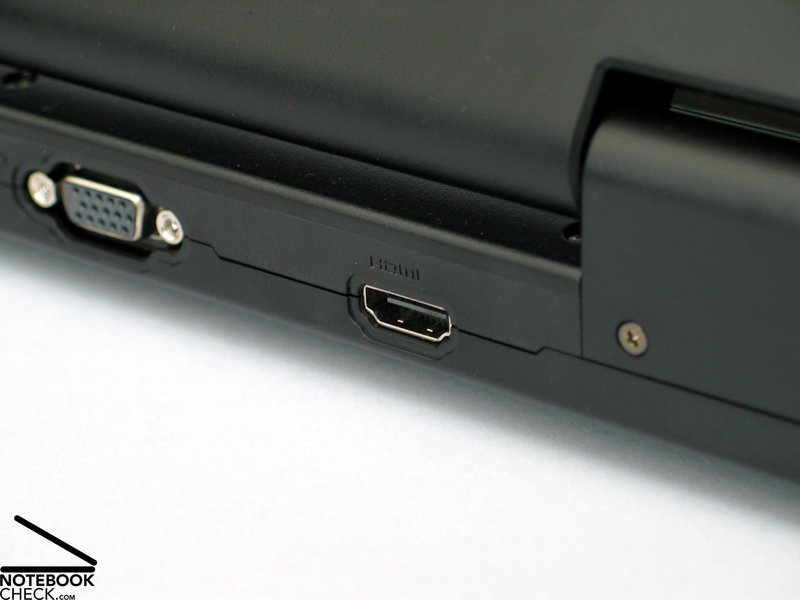

Here one finds a HDMI and an E-SATA port among others.
Asus G2SG Image

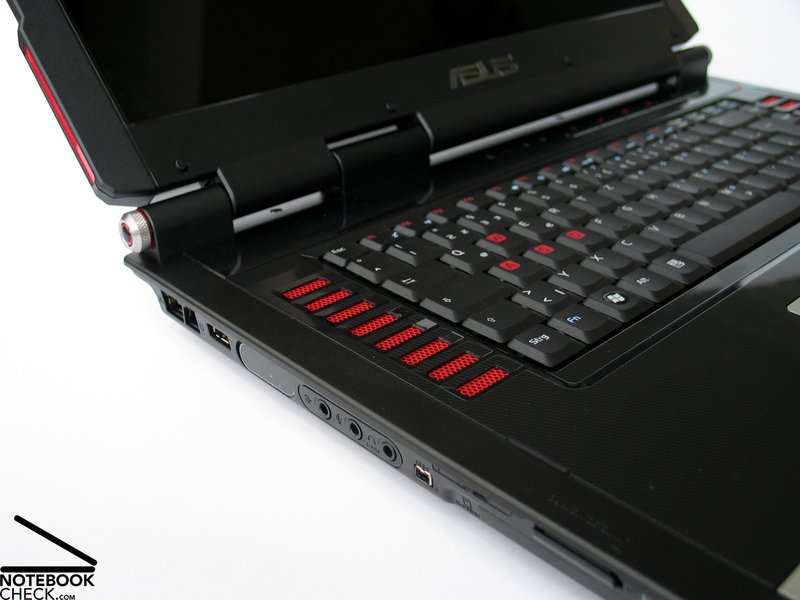

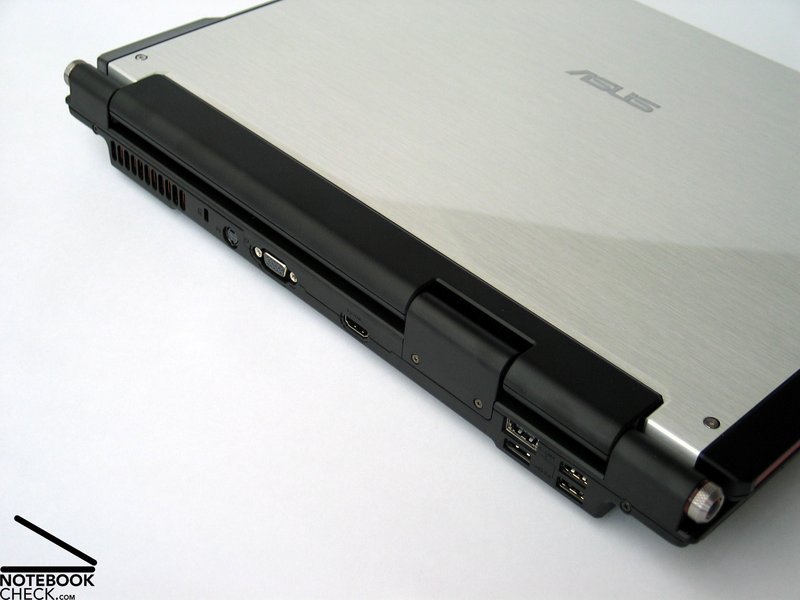

...with the connections mainly at the back respectively left side.
Asus G2SG Image
The notebook offers extensive interface equipment,...
Asus G2SG Image
The same case is used as in the known models (G2P, G2K) and it shows the same distinctive design features.
Asus G2SG Image
One of them being the illuminated G2 logo near the touch pad,...
Asus G2SG Image
...or the red light on the display edges.
Asus G2SG Image
The case of the Asus G2 shows a variety of different materials and surfaces,...
Asus G2SG Image

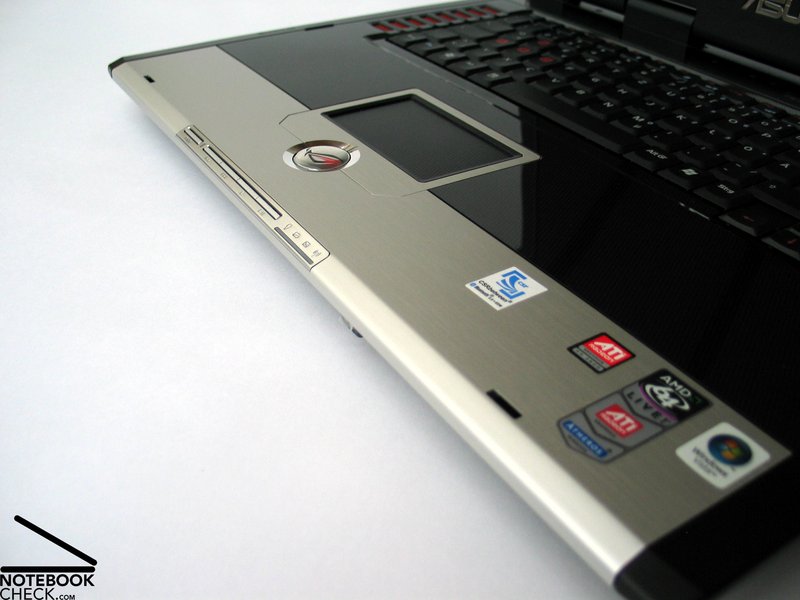

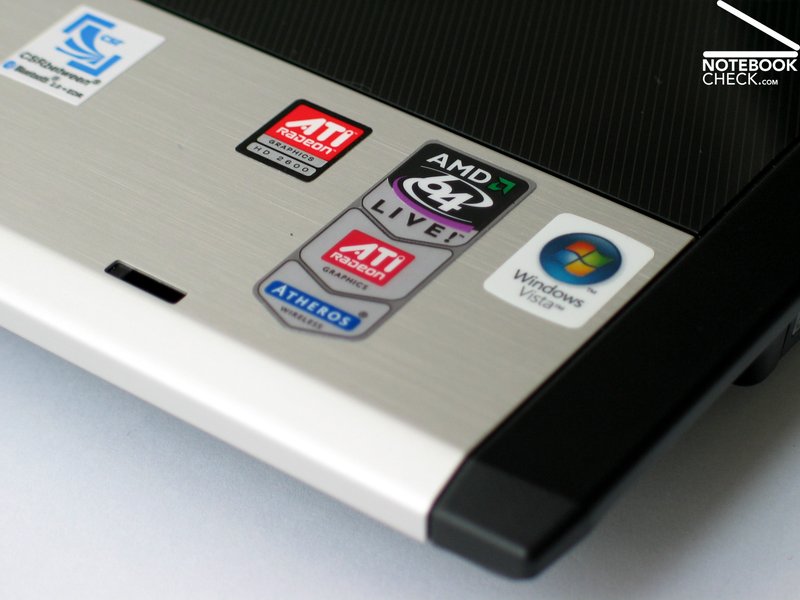

...like for example the aluminum panel at the front edge of the notebook.
Asus G2SG Image
Regarding workmanship and stability, the desktop replacement notebook...
Asus G2SG Image
...with a weight of about 4kg is well crafted.
Asus G2SG Image
The hinges with their peculiar design...
Asus G2SG Image
...do their job as well.
Asus G2SG Image

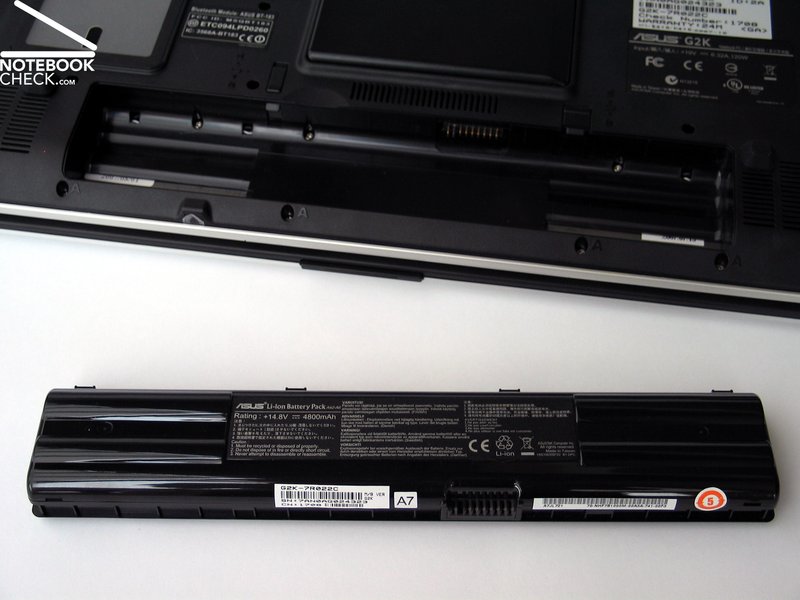

Although the battery life was not very long, it is acceptable for a desktop replacement notebook.
Asus G2SG Image

Similar devices

Devices from a different Manufacturer and/or with a different CPU

Devices with Same Screen Size and/or Weight

» Review Asus M70V Notebook
GeForce 9650M GT, Core 2 Duo P8600
» Review Alienware M17 Gaming Notebook
Mobility Radeon HD 3870 X2, Core 2 Extreme QX9300
» Update Review Dell Precision M6300 (FX 3600M) Notebook
Quadro FX 3600M, Core 2 Duo T9500
» Review Asus M70S Notebook
Mobility Radeon HD 3650, Core 2 Duo T9300
» Review Dell Precision M6300 Notebook
Quadro FX 1600M, Core 2 Duo T9300
» Review HP Pavilion dv9580eg Notebook
GeForce 8600M GS, Core 2 Duo T7300
» Review Sony Vaio VGN-AR51M Notebook
GeForce 8400M GT, Core 2 Duo T7250

Price comparison

Asus G2SG on Ciao

Pro

+Robust case and good workmanship
+Extensive interface (eSATA, HDMI)
+Bright display with excellent contrast
+Acceptable noise level
+Good sound replay
+Extensive accessories
+Integrated hybrid TV (analog, DVB-T) tuner


Cons

-Outstanding, fancy design
-Partially high surface temperature under load

Rating

Asus G2SG
04/04/2008
J. Simon Leitner

Chassis
86%
Keyboard
86%
Pointing Device
84%
Connectivity
92%
Weight
56%
Battery
63%
Display
89%
Games Performance
90%
Application Performance
92%
Temperature
71%
Noise
86%
Add Points
86%
Average
82%
86%
Gaming *
Weighted Average
