Review Apple MacBook Pro 15 Early 2011 (2.2 GHz quad-core, glare-type screen)

J. Simon Leitner & Klaus Hinum (translated by Daniel Rechitsky), 04/05/2011

More Power! As the final version of the Apple MacBook Pro 15, we've chosen to test out the most powerful hardware configuration. The Intel i7-2720QM CPU coupled with the AMD Radeon HD 6750M should ensure outstanding performance. But, what are these powerful components housed within a sleek aluminum case truly capable of?

After it became apparent that there was some undesirable downsampling of the CPU in Apple MacBook Pro notebooks at times when the highest level of performance was needed, we decided to take a closer look at the various configurations of the new generation of MacBook Pros.  To supplement the review of the starter model with an Intel 2635QM CPU and an AMD HD 6490M graphics card, we now dive into a thorough inspection of an otherwise identical model, however this time with a more powerful hardware configuration consisting of an Intel i7-2720QM Sandy Bridge CPU and an AMD Radeon HD 6750M graphics card. At a price of 2,149 Euro, this version costs a handsome 400 Euro more than the entry-level model we've already reviewed.  Given an upgrade to a higher-resolution WSXGA+ display, the price climbs another 100 Euro for the glossy-screened version and 150 Euro for the matte display (review here).  If money isn't too much of an issue, upgrading the CPU to a 2820QM (+100 Euro), the memory (8GB for +200 Euro) or—if you're really feeling adventurous—the hard drive (512MB SSD +1,100 Euro) is fully within your range of options.

For a discussion of the sections "Case", "Connectivity", and "Input Devices", please refer to our review of the identically built MacBook Pro 15 Early 2011 with a 2635QM CPU and an AMD HD 6490M graphics card.  The following review is dedicated first and foremost to the laptop's performance, system noise/heat as well as battery life—that is, an analysis of what effect the more powerful hardware in place here will have.

Display

Wie wir testen - Display

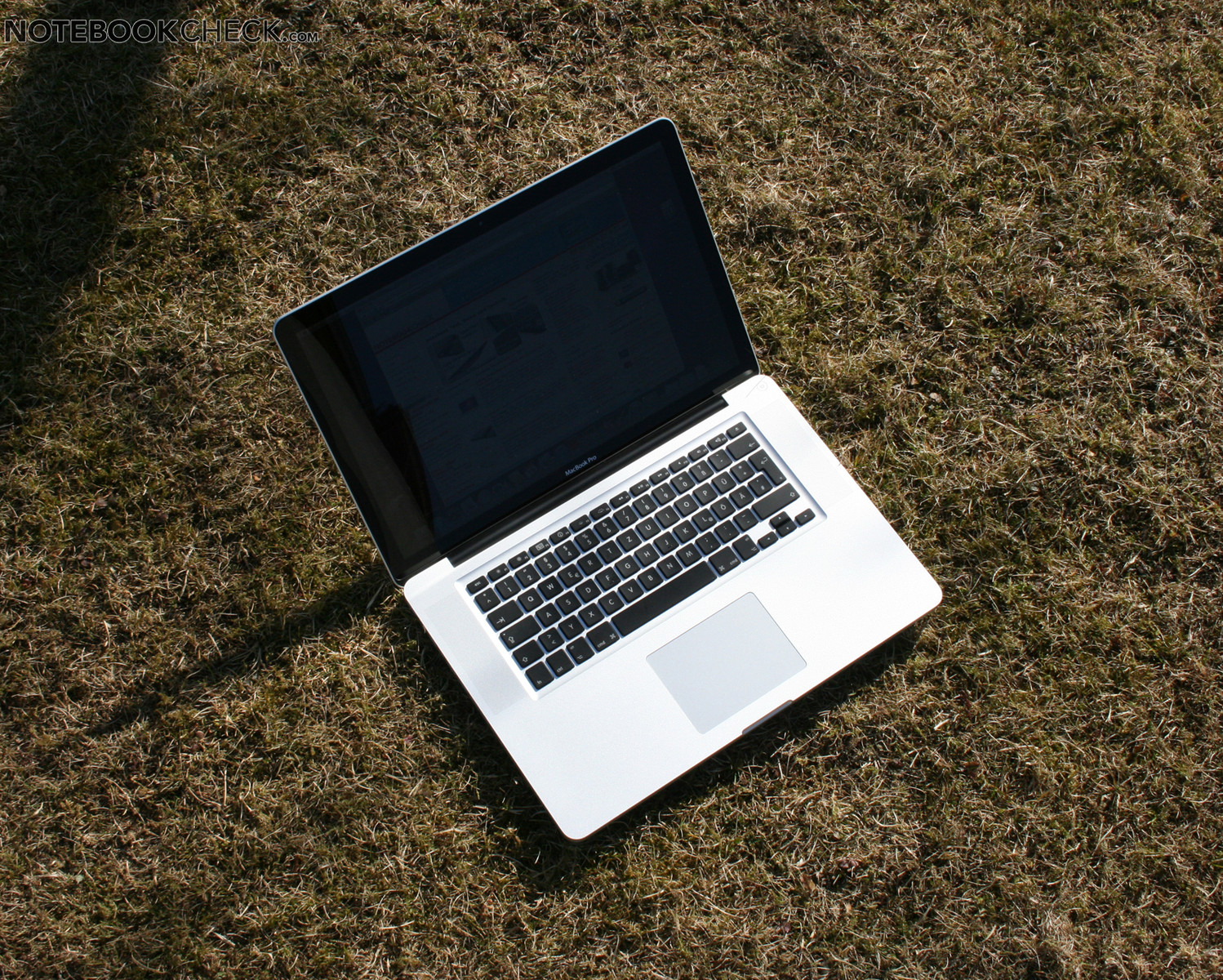

We first take a quick look at the display.  At a resolution of 1440x900 pixels (16:10), the display that comes standard here gives you a bit more work space on the screen than the typical HD format (1366x768).  Still, the MacBook Pro doesn't stand too proud compared to sharper full-HD displays.  Apple does offer the option of upgrading to a high-quality WSXGA+ display (1680x1050), but for the extra cost it still doesn't reach the pixel count of true full HD, which might come as a disappointment particularly to film buffs and professional photo/video editors.

Nevertheless, the standard display here shines with a good average screen brightness of 227 cd/m² and an appealing contrast ratio of 619:1.  Once again, Apple shoots for the sRGB color space, which it covers fairly well.  Upgrading to the higher-resolution screen has no benefit as far as the color space goes.


You can find details about the glossy WXGA+ display in this review.  For info about the the MacBook Pro 15 Early 2011 with a higher-resolution matte WSXGA+ display, check out this comprehensive review.

Performance

The 2.2 GHz MacBook Pro 15 (MC723LL/A) has inherited the inner workings of the large MacBook Pro 17.  The more powerful Radeon HD 6750M in place here really stands out compared to the small entry-level 6490M graphics card found in the 2 GHz MacBook Pro (MC721LL/A).  There's a great deal of characteristics that separate the model in review here from the standard model: 480 shaders instead of 160, a 128-bit memory bus instead of 64-bit one and 1GB of GDDR5 RAM as opposed to the 256MB of the starter model.  On top of that, the Core i7-2720QM in place here runs at a  10% higher base clock rate and 14% higher maximum turbo clock rate.  Even the on-board graphics card in this laptop can reach a slightly higher turbo clock rate of 1.3 GHz than the one mounted on the 2 GHz i7-2635M CPU of the standard model.  Finally, the CPU in place here has two more Sandy-Bridge-core features not available in the standard model: VT-d virtualization and AES functions.  Since Mac OS X does not currently support AES, this becomes a moot point. The final distinguishing factor between the two MBP15 versions is the hard drive: In the case of the 2.2 GHz model at hand here, a larger 750 GB HDD takes care of all your storage needs.

In our Windows benchmarks (Windows run via BootCamp), the Core i7-2720QM got to flex its muscles and impress us quite a bit. Compared to the  entry-level 15" MacBook Pro with a 2635QM quad-core CPU, our laptop here runs 4-16% faster in  processor-focused benchmarks.  Compared to other Windows notebooks, the sleek aluminum MacBook Pro manages to rank in among the best of them.  Only in the 3DMark06 CPU test did our model end up in the lower half of notebooks equipped with a 2720QM (but above 2630QM-based notebooks).  Compared to the MacBook Pro 17 with practically identical hardware, the results are virtually the same.

The difference between these processors is considerable, but the Radeon HD 6750M graphics card here gains an even bigger lead over the 6490M in the standard MBP15.  According to the overall score achieved in the 3DMark benchmark, the standard model runs about half as fast.  Even when playing demanding modern games like Call of Duty: Black Ops or Battlefield: Bad Company 2, the 6490M is still about half as fast as its speedier cousin.  Even the GeForce GT 330M of the previous generation  puts the AMD graphics card of the entry-level 15" MBP to shame.  The difference in performance of these two GPUs  came to 30%-50% in our benchmarks.

Using PCMark Vantage, we measured overall system performance in Windows.  The laptop in review here surprisingly managed to even trump the MacBook Pro 17 by 8%.  The 15" entry-level model earned only about  76% as many points in this benchmark.  Compared to Windows notebooks, the 2.2 GHz MBP15 is on par with the Asus N53SV, having the same CPU and a GeForce GT 540M graphics card.  The Eurocom Racer equipped with the same CPU as well as GPU jumps 20% ahead thanks to its hybrid HDD.

Cinebench R10 Shading 64Bit
8268 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
17048 Points
Cinebench R10 Rendering Single CPUs 64Bit
5150 Points
Cinebench R10 Rendering Single 32Bit
4114
Cinebench R10 Rendering Multiple CPUs 32Bit
14014
Cinebench R10 Shading 32Bit
8004
Cinebench R11.5 CPU Multi 64Bit
5.16 Points
Cinebench R11.5 OpenGL 64Bit
43.44 fps
Help
3D Mark
3DMark 0517519 points
3DMark 06
 1280x1024
9381 points
3DMark Vantage5575 points
3DMark 111319 points
Help
PC Mark
PCMark Vantage8064 points
Help

Performance in Mac OS X

The new quad-core MacBook Pro notebooks pull of a better performance in some areas according to the XBench benchmark than the dual core MBP13  notebooks and CPUs of the previous generation (MacBook Pro 17 2010).  In the memory, system and stream subtests, the new Sandy Bridge CPUs performed brilliantly in general, a great deal better than the older Core 2 Duo processors.

The overall score in XBench seemed to erratically change depending on the trial, giving very unreliable results, (sometimes a trial gave an overall score twice as high as the one measured several seconds earlier and with very similar sub-scores at that).  Analyzing these results further would therefore make little sense.

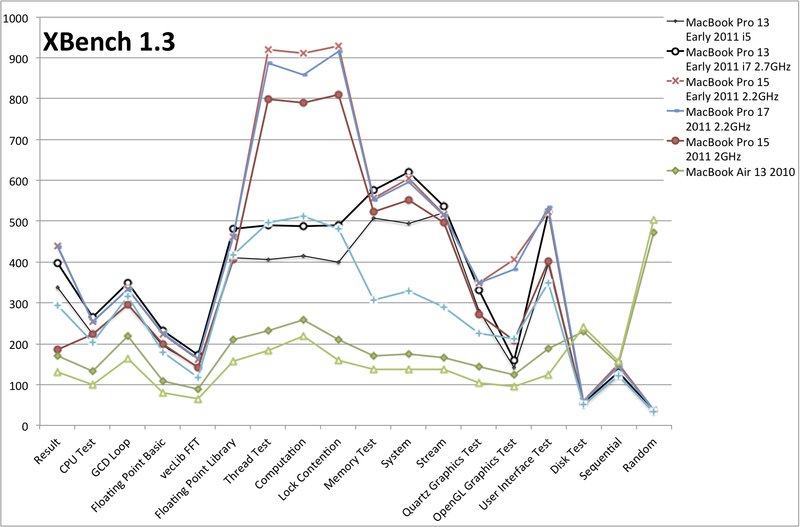

Best XBench trials on new MacBooks
Best XBench trials on new MacBooks
DPC Latency Checker
DPC Latency Checker Apple Macbook Pro 15 inch 2011-02 (MC723LL/A)

Like in the previously reviewed MacBook Pro 17, we once again have a Toshiba hard drive here (model number MK7559GSXF) with a storage capacity of 750GB, spinning at 5400 RPM. The HDD score achieved in the HD Tune benchmark was very good, albeit a slightly lower score than the hard drive in the 17" MBP managed to get.

The DPC latency values (measured in Windows) of MacBook Pro laptops of the new generation that have an AMD graphics card are all similar, remaining below the critical red area (DPC Latency Checker Tool).

Toshiba MK7559GSXF
Transfer Rate Minimum: 5.5 MB/s
Transfer Rate Maximum: 98.5 MB/s
Transfer Rate Average: 71.8 MB/s
Access Time: 18.3 ms
Burst Rate: 86.8 MB/s

Gaming: Verdict

The results of the 17" MBP are actually a perfect 1:1 match with those of the 2.2 GHz 15" MBP in review here.  Thanks to its speedy GDDR5 memory, the HD 6750M ranks in above average among mobile graphics cards and allows for a smooth-flowing picture in current Windows games.

For a breakdown of all Windows games tested on the Radeon HD 6750M, check out its GPU breakdown page.

low med.high ultra
Doom 3 (2004) 201.4fps
World of Warcraft (2005) 35fps
World in Conflict - Benchmark (2007) 5218fps
Supreme Commander - FA Bench (2007) 34.125.3fps
Trackmania Nations Forever (2008) 80.533.1fps
Far Cry 2 (2008) 1525725.5fps
Left 4 Dead (2008) 143fps
GTA IV - Grand Theft Auto (2008) 65.162.432fps
Sims 3 (2009) 51fps
Resident Evil 5 (2009) 140.660.635.3fps
Risen (2009) 78473223fps
CoD Modern Warfare 2 (2009) 33fps
Battlefield: Bad Company 2 (2010) 80623922fps
Metro 2033 (2010) 482212fps
Mafia 2 (2010) 65.753.846.429.2fps
Fifa 11 (2010) 45827513070fps
Call of Duty: Black Ops (2010) 5733fps
Crysis 2 (2011) 79533812fps

Emissions

System Noise

The nearly silent cooling system under light use is something that both versions of the new MacBook Pro 15 have in common.  In Windows 7 as well as Mac OS X, only the gentle hum of the hard drive can be heard.  In order to hear the fans at all, you have to place your ear within centimeters of the cooling vents as the two fans spin at a minimum of 2000 RPM (28.8 dB(A), 1.22 Sones).  When doing simple office work like browsing the internet, both fans rotate at a constant 2000 rpm.  Running xBench or the OpenGL test from Cinebench in MacOS shows the laptop remains more than sufficiently cool when idle: both fans remain at a constant 2000 RPM despite some hardware stress.

In the stress test in Windows 7 (Furmark+Prime95) we measured a maximum noise level of 46.1 dB(A), that is, 4.75 sones (6200 RPM).  This result here is the same as that for the standard model of the MacBook Pro 15.  The subjective noise level can be described quite well using the sone scale: the MacBook Pro 15 is just about 4 times as loud during the stress test as when it's idle (1.22 sones vs. 4.75 sones).

Subjecting the MacBook Pro 15 to a low level of stress in MacOS, in this case the StarCraft 2 main menu, the laptop remains quiet for a remarkably long time.  Only once the CPU temperature reaches 86°C do the fans spring to action and shoot up to 4000 RPM for a short while (34.4 dB/1.9 sones), soon dropping back down to 2000 RPM. After prolonged CPU and GPU stress, like when gaming, the noise level fluctuates between 34.4 dB (1.9 sones) and 40.5 dB (3.1 sones).

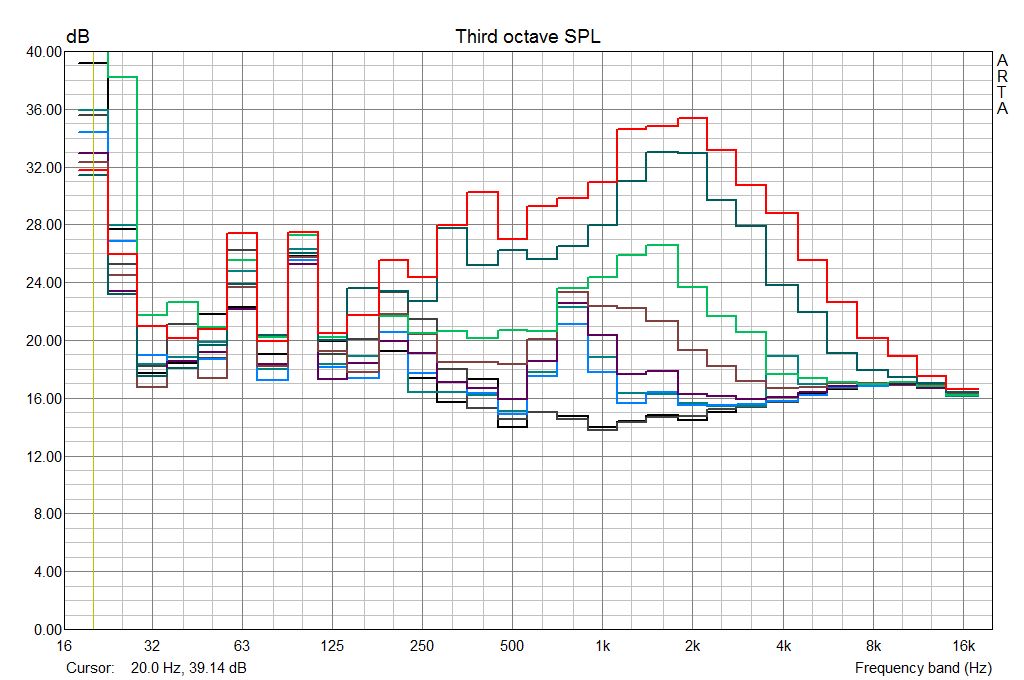

Graph of Noise produced by the Fans in the MacBook Pro 15 at varying rotational speeds (up to 6200rpm).
Graph of Noise produced by the Fans in the MacBook Pro 15 at varying rotational speeds (up to 6200rpm).

Noise Level

Idle 28.8 / 28.8 / 28.8 dB(A)
HDD 29.5 dB(A)
Load 38 / 46.1 dB(A)

    30 dB
silent
40 dB
audible
50 dB
loud

min: , med: , max:    Behringer ECM8000 + Terratec DMX 6Fire + Arta (15 cm distance)

Temperature

While the entry-level MBP 15" shows a case temperature below 24ºC while idle, the temperature we observed in the more powerful model at hand was a good deal higher.  Under light use, the case heated up to 31 °C, which isn't bad at all, feeling only slightly warm to the touch.
The temperatures we observed under light use before and directly after the several-hour-long stress test (100% CPU+GPU load) in Windows were nearly identical.  The case surface reaches a maximum of 41°C, nearly the same as the MacBook Pro 15 model with weaker hardware.  Only the average temperature is higher for the more powerful model.

In MacOS, a few isolated measurements indicated a slightly higher case temperature than during the above-mentioned stress test in Windows (Bootcamp). The reason for this is the fan controller that's finely tuned for the lowest possible noise level, the fans sometimes kicking in or shooting up to higher speeds only after a longer while than in Windows.  This means, you should expect temporarily higher case temperatures in MacOS than in Windows.  The palm rest, however, always remains remarkably cool.  Nevertheless, keeping the notebook on your lap (especially in the summer) might prove itself to be a bit uncomfortable under pronounced heavy use.

Max. Load
 40 °C38 °C28 °C
 36 °C34 °C25 °C
 28 °C26 °C25 °C
Maximum: 40 °C
Average: 31.1 °C
36 °C41 °C41 °C
31 °C37 °C37 °C
27 °C29 °C29 °C
Maximum: 41 °C
Average: 34.2 °C
Power Supply (max.)  47 °C | Room Temperature 18 °C | Fluke 62 Mini

The temperature inside remains well within the normal limits under light use with fans spinning slowly.  The temperature sensors of the CPU and graphics card indicate 50 - 60°C.  The motherboard, northbridge and hard drive remain a good deal cooler.

Under extreme stress in Windows, we observed some downsampling of the CPU. This was, however, only the case during the stress test with Furmark and Prime95 running simultaneously, which subjects the system to a very high level of stress that can hardly ever be replicated during real-world use.  Even when playing the extremely resource-demanding Battlefield Bad Company 2, we did not experience any CPU throttling.  The Turbo Boost functioned flawlessly according to HWInfo32, the CPU temperature, however, reached a very high 90°C.

In Mac OS X as well, the Turbo Boost worked according to the MSR tool and since the Update to Mac OS X 10.6.7, the system no longer freezes up when confronted with very high stress on the CPU and GPU.

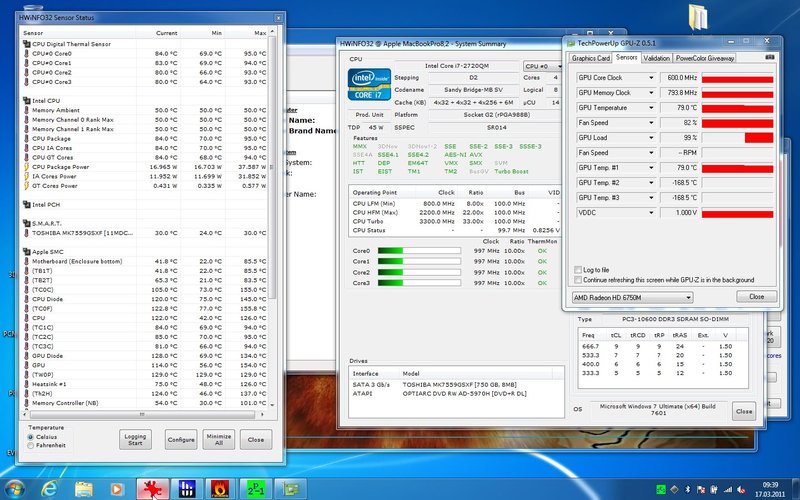

Furmark + Prime95 = Throttling

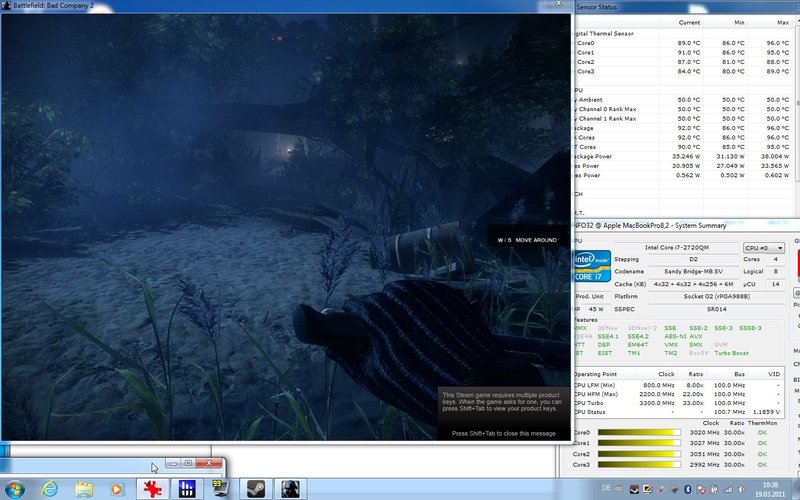

Battlefield Bad Company 2, Turbo Boost
Idle Temperature Windows

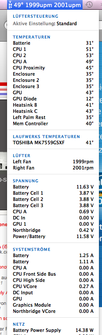

Idle Temperature Mac OS X

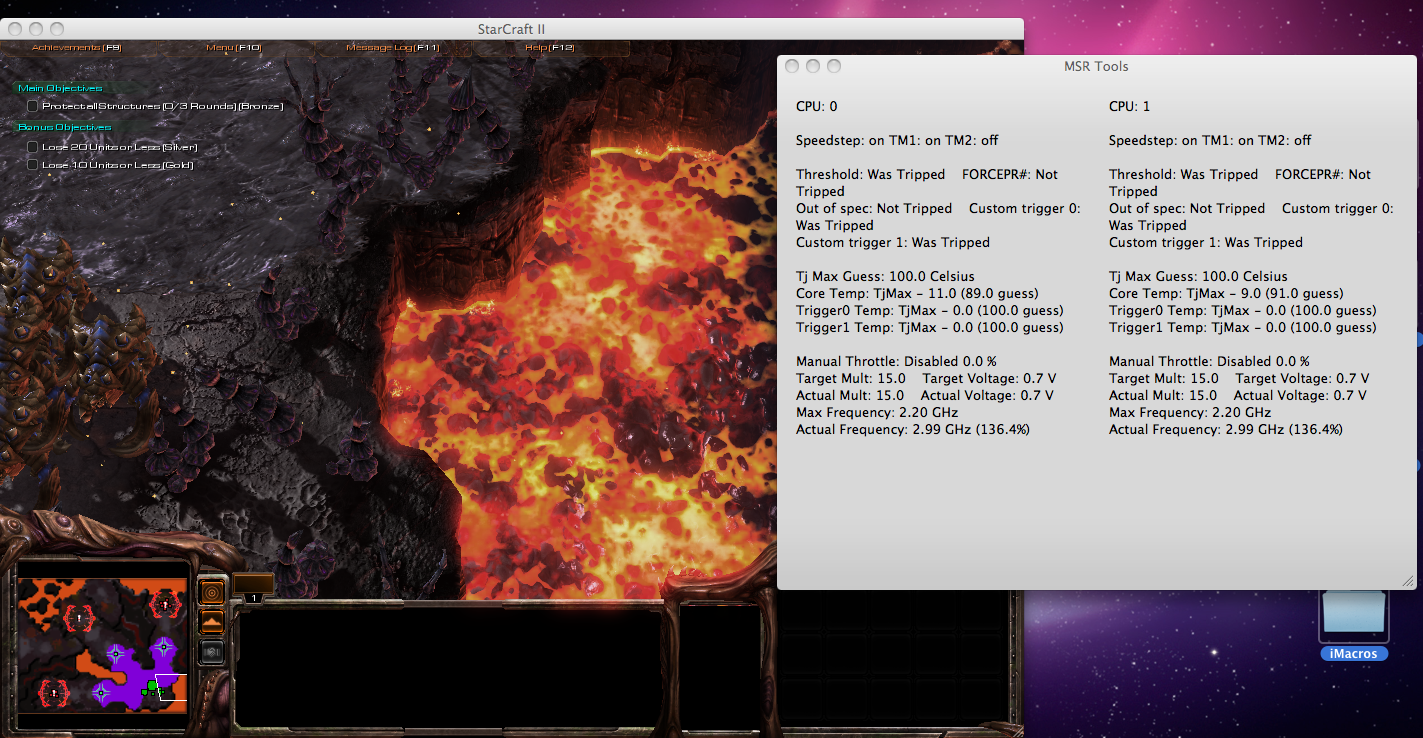

Mac StarCraft 2 Turbo Boost

The battery life—measured under various conditions—comes to just a bit under that of the 2-GHz version of the MacBook Pro 15.  The only exception is the BatteryEater Classic Test (min. battery life), in which the battery held out significantly longer during the second trial, yielding a longer battery life than the weaker MBP 15".  During the first trial, the laptop ran on battery power for 46 minutes—on par with the 2GHz version (53 minutes).

Battery Runtime
Idle (without WLAN, min brightness)
10h 27min
DVD
5h 15min
Load (maximum brightness)
1h 26min

Verdict

The more powerful version of the 15" MacBook Pro brings quite a bit to the table. Besides the speedier CPU, most notable is the considerably faster graphics card. The GPU here can run current games with high graphics settings and thanks to its 1GB of graphics memory it's better suited for using multiple monitors at once.  The larger hard drive is the third and final difference in hardware between the 2.2 GHz MBP 15 and the standard model.

You, of course, have to pay for this higher level of performance with a shorter battery life and a bit more noise and heat.

The biggest downside of the more powerful version is the excessively high increase in price.  For the better hardware configuration, Apple is currently charging 400 Euro on top of the already very high starting price of 1,749 Euro.  Mac users with high demands regarding performance, nevertheless, have no other way to go here except for the  MacBook Pro 17 with the same hardware but costing 300 Euro more than the 2.2 GHz MacBook Pro 15.

Apple Macbook Pro 15 inch 2011-02 (MC723LL/A)

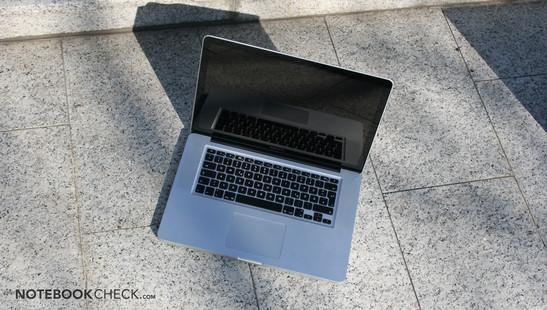

In Review: Apple Macbook Pro 15-inch 2011-02 (MC723LL/A)
In Review: Apple Macbook Pro 15-inch 2011-02 (MC723LL/A)

Specifications

Apple Macbook Pro 15 inch 2011-02 MC723LL/A
Graphics adapter
AMD Radeon HD 6750M - 1024 MB, Core: 600 MHz, Memory: 794 MHz, GDDR5, 8.812.0.0
Memory
4096 MB
Display
15.4 inch 3:2, 1440x900 pixel, glossy: yes
Mainboard
Intel HM65
Harddisk
Toshiba MK7559GSXF, 750 GB
5400 rpm
Soundcard
Cirrus Logic CS4206A
Networking
Broadcom NetXtreme Gigabit Ethernet (10/100/1000MBit), Broadcom BCM4331 (b g n )
Optical drive
Optiarc DVD RW AD-5970H
Weight
2.6 kg ( = 91.71 oz) ( = 0 oz)
Price
1800 Euro
Operating System
Apple Mac OS X 10.6 Snow Leopard



[+] compare

Similar Notebooks

Devices with the same GPU

» Review Samsung Series 7 700Z5A Notebook
Core i5 2430M, 15.6", 2.4 kg

Devices with Same Screen Size and/or Weight

» Review Sony Vaio VPC-B11V9EB Notebook
Graphics Media Accelerator (GMA) HD Graphics, Core i5 520M
» Review MSI GX640-i5447LW7P Notebook
Mobility Radeon HD 5850, Core i5 430M

Links

Compare Prices

Amazon.com

Show results on Amazon.com

Pricerunner n.a.

Pro

+Excellent Design and Craftsmanship
+Outstandingly Sturdy Case with Nice Feel
+Decent Trackpad
+Thunderbolt Port Ensures Future Compatibility
+Good Weight for its Class
+Office and Multimedia Performance
+Battery Life and Power Consumption


Cons

-High Starting Price
-Reflective Screen Restricts On-The-Go Use
-Short 12-Month Warranty
-Few Accessories
-Non-Removable Battery

Ratings

Apple Macbook Pro 15 inch 2011-02 MC723LL/A
03/22/2011 v2
J. Simon Leitner & Klaus Hinum

Chassis
98%
Keyboard
90%
Pointing Device
99%
Connectivity
70%
Weight
82%
Battery
85%
Display
80%
Games Performance
89%
Application Performance
90%
Temperature
83%
Noise
92%
Add Points
87%
Average
87%
87%
Multimedia *
Weighted Average
