Review Apple MacBook Pro 13 Early 2011 (2.3 GHz dual-core, glare-type screen)

Tobias Winkler (translated by Daniel Rechitsky), 04/17/2011

The Little Guy. The smallest MacBook Pro with a 2.3 GHz Core i5 is the least expensive of Apple's MacBook Pro series. Not much has changed on the outside, but a whole new world awaits within. Will these novelties help or hinder the featherweight contender?

Apple fans have anxiously been awaiting the current revision of the small MacBook Pro, having to make due with the antiquated Core 2 Duo series processors until now. Choosing to replace the graphics card instead, Apple chose to house the Nvidia GeForce 320M in the MBP 13 in mid 2010 rather than switching to Core i5 processors (since the included Intel HD on-board graphics card didn't jive with Apple's preferences)—our review of that model was aptly tagged graphics update.  Now, Apple has finally made the leap to a new set of processors, since on the one hand the Intel HD Graphics 3000 comes much closer to satisfying Apple's high standards and—on the other hand—it would truly be astounding if Apple still stayed with an older generation of processors.  The basic configuration of the MBP 13 reviewed here is equipped with an Intel Core i5-2415 CPU, Intel HD Graphics 3000, 4 GB RAM, 320 GB hard drive and the brand new Thunderbolt port. In the Apple Store, its priced starting at 1150 Euro, but other retailers are offering it starting at under 1100 Euro.

Case

Not a single complaint do we have about the case in the MacBook Pro 13 at hand. Poor craftsmanship, unequal spacing or faulty materials won't be found here.  The case is wonderfully sturdy and the display hinges are a shining example for other manufacturers.  As is true with other models, the case corners are bit sharp here, but this really doesn't present much of a problem.

Connectivity

The variety and placement of ports is the same as for the MBP 13 with a 2.7 GHz CPU. In addition to the details found here, it's worth noting that memory cards can't fully be pushed into the card reader, rather they stick out about 1 cm.

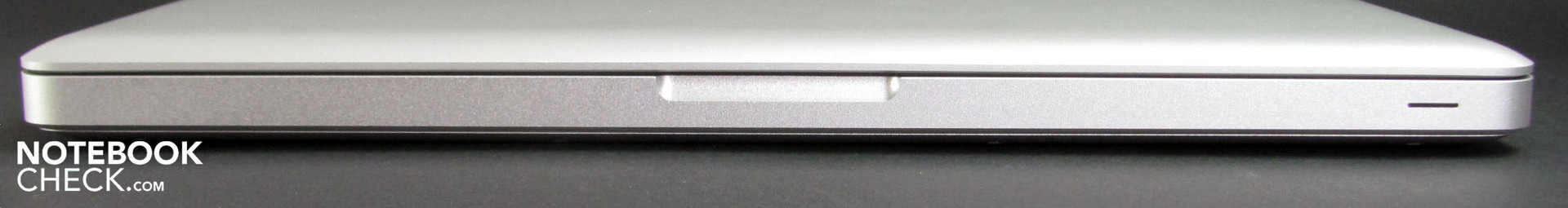

Front: No Ports
Front: No Ports

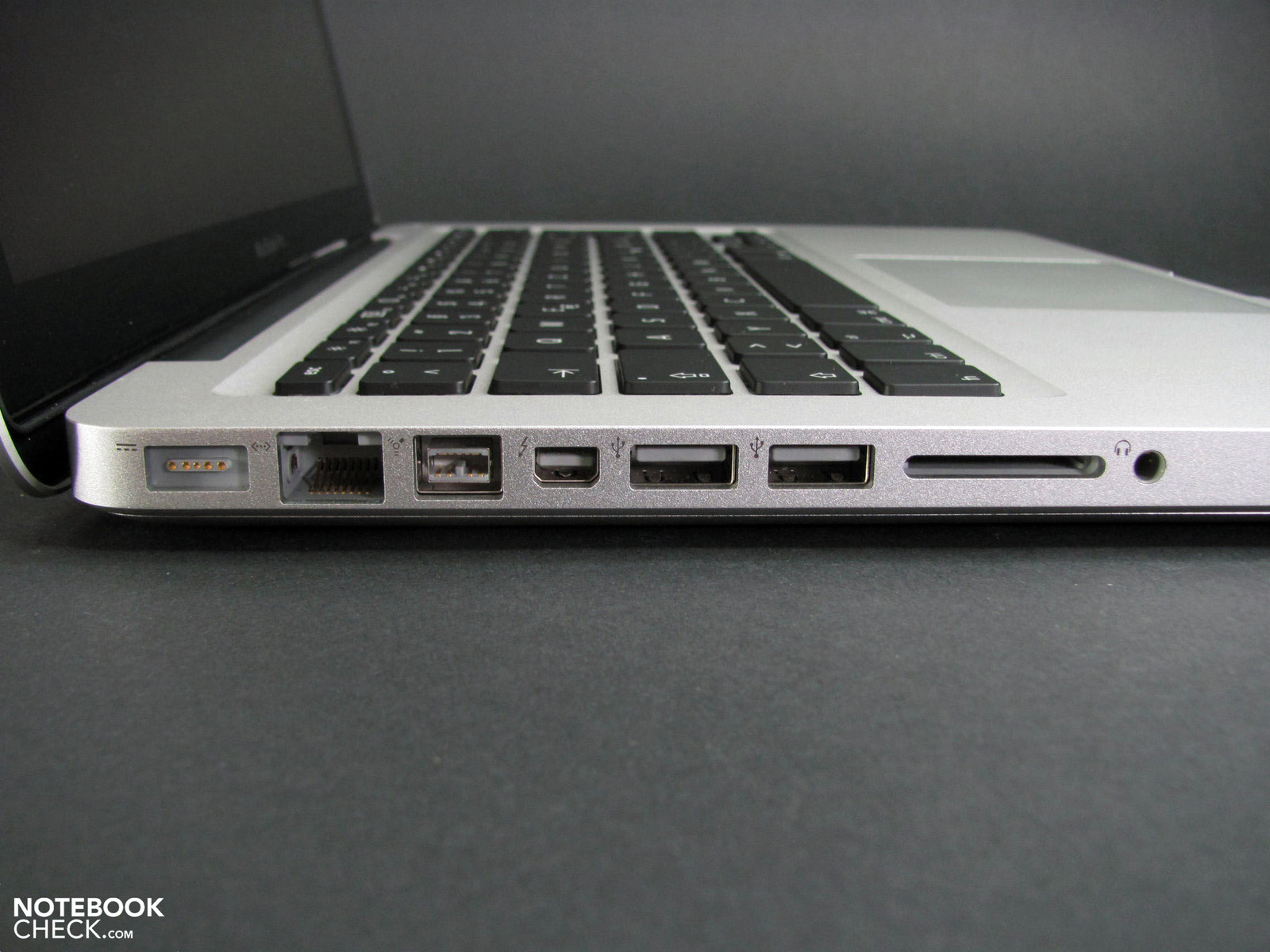

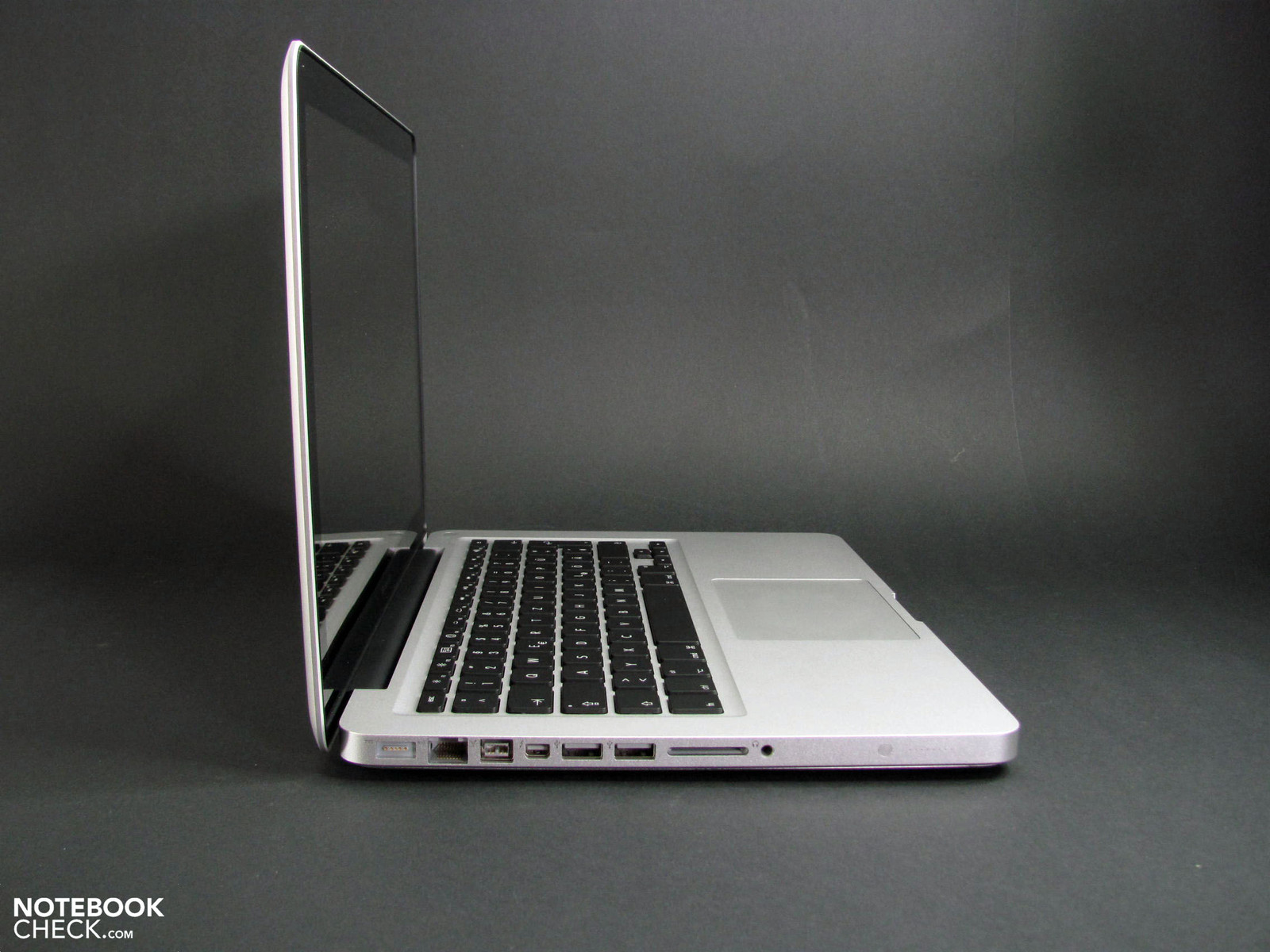

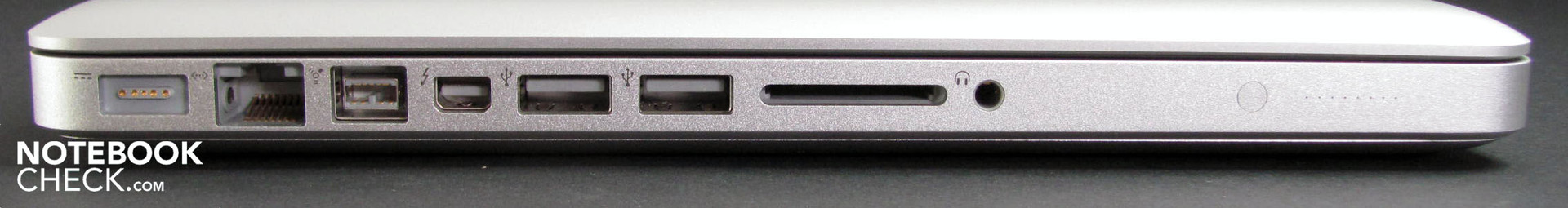

Left: MagSafe Power, LAN, FW800, Thunderbolt/DP, 2x USB 2.0, CardReader, Combo Headphones/Mic
Left: MagSafe Power, LAN, FW800, Thunderbolt/DP, 2x USB 2.0, CardReader, Combo Headphones/Mic

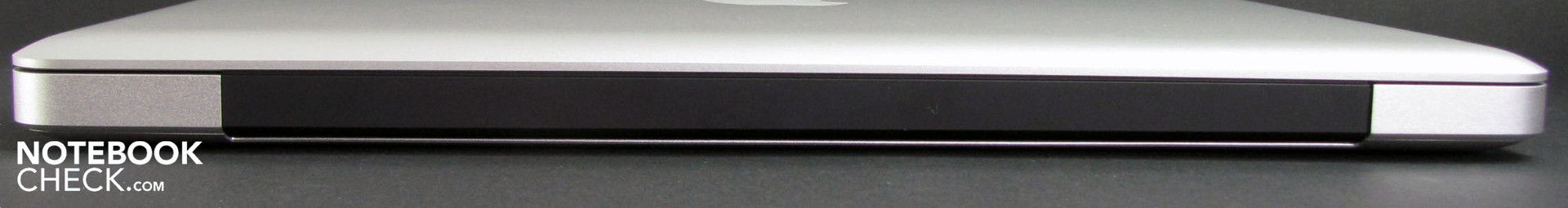

Rear: No Ports
Rear: No Ports

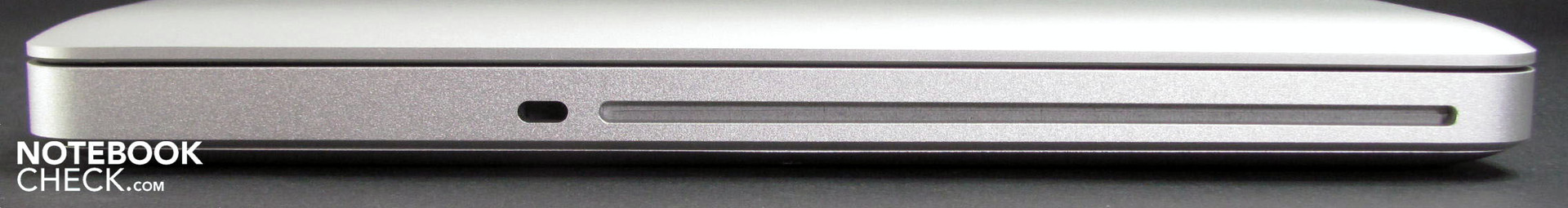

Right: Kensington Lock, Superdrive (DVD-R)
Right: Kensington Lock, Superdrive (DVD-R)

We also checked the transfer rates of the ports.  Here, the performance in Mac OS X is considerably better in some areas than in Windows 7.  This difference is espeicially pronounced with Firewire 800, which sends and receives data at 80 MB/s in Mac OS X compared to 60 MB/s in Windows 7.  The chart below shows a side-by-side comparison of all transfer rates (this also applies to the faster version of the MBP 13).

Port Transfer Rate Mac OS X (read) Transfer Rate Windows 7 (read)
Card Reader (SD Card) 21.4 MB/s 18.8 MB/s
USB 2.0 34.6 MB/s 27.9 MB/s
FW 400 36.9 MB/s 35.6 MB/s
FW 800 80.2 MB/s 57.8 MB/s

Input Devices

The keyboard and touchpad remain the same as in the other new MacBook Pro models we've reviewed.  As usual, both the keyboard and trackpad are of very good quality.  Only Windows users will have to take some time to get used to the slightly different layout, the most important differences of which are the keyboard shortcuts—most "ctrl" shortcuts in Windows use the "⌘http://en.wikipedia.org/wiki/Saint_John%27s_Arms" key in Mac OS X.  An in-depth appraisal of the keyboard and touchpad can be found here: MBP 13 (2.7 GHz).

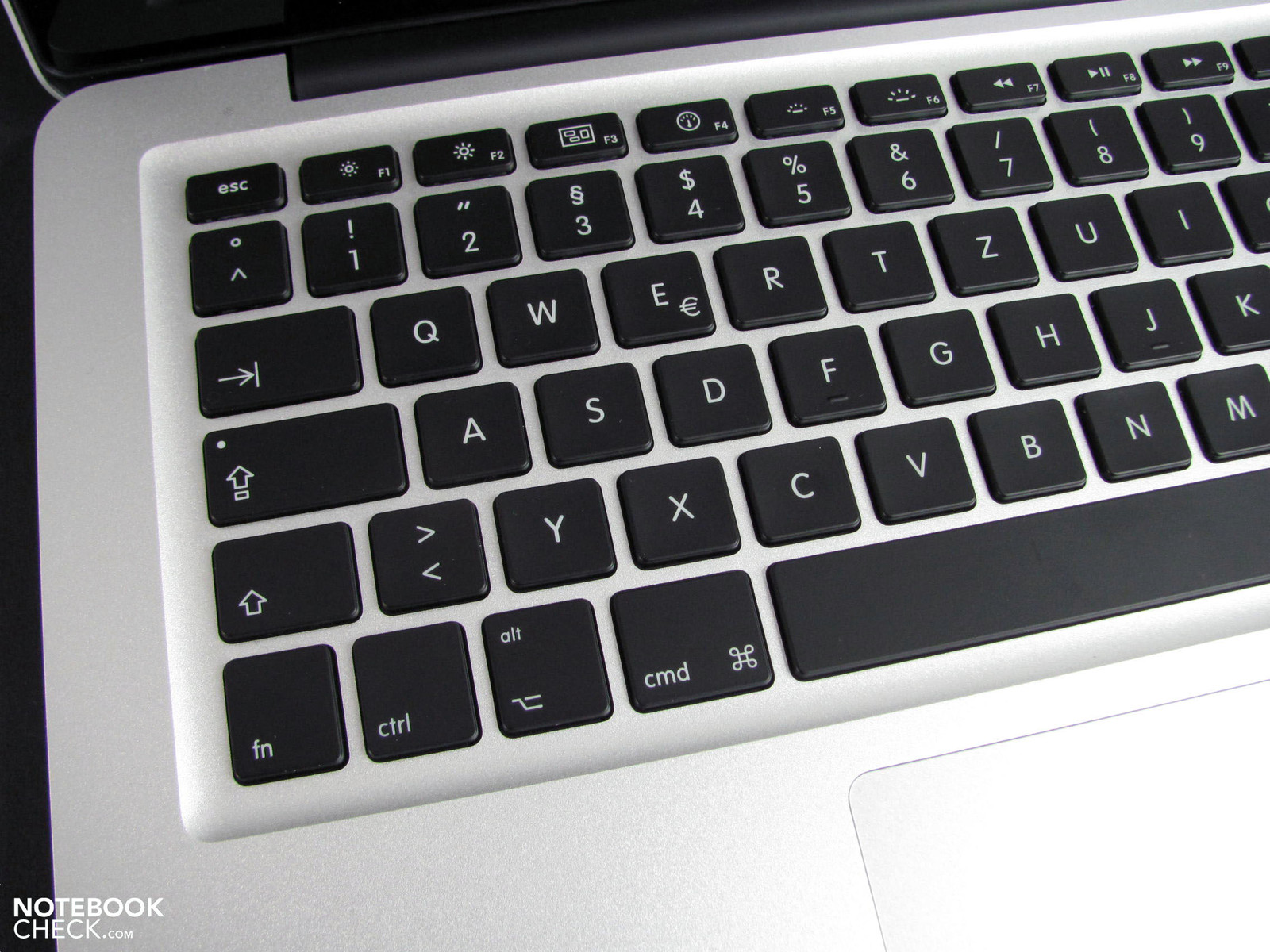

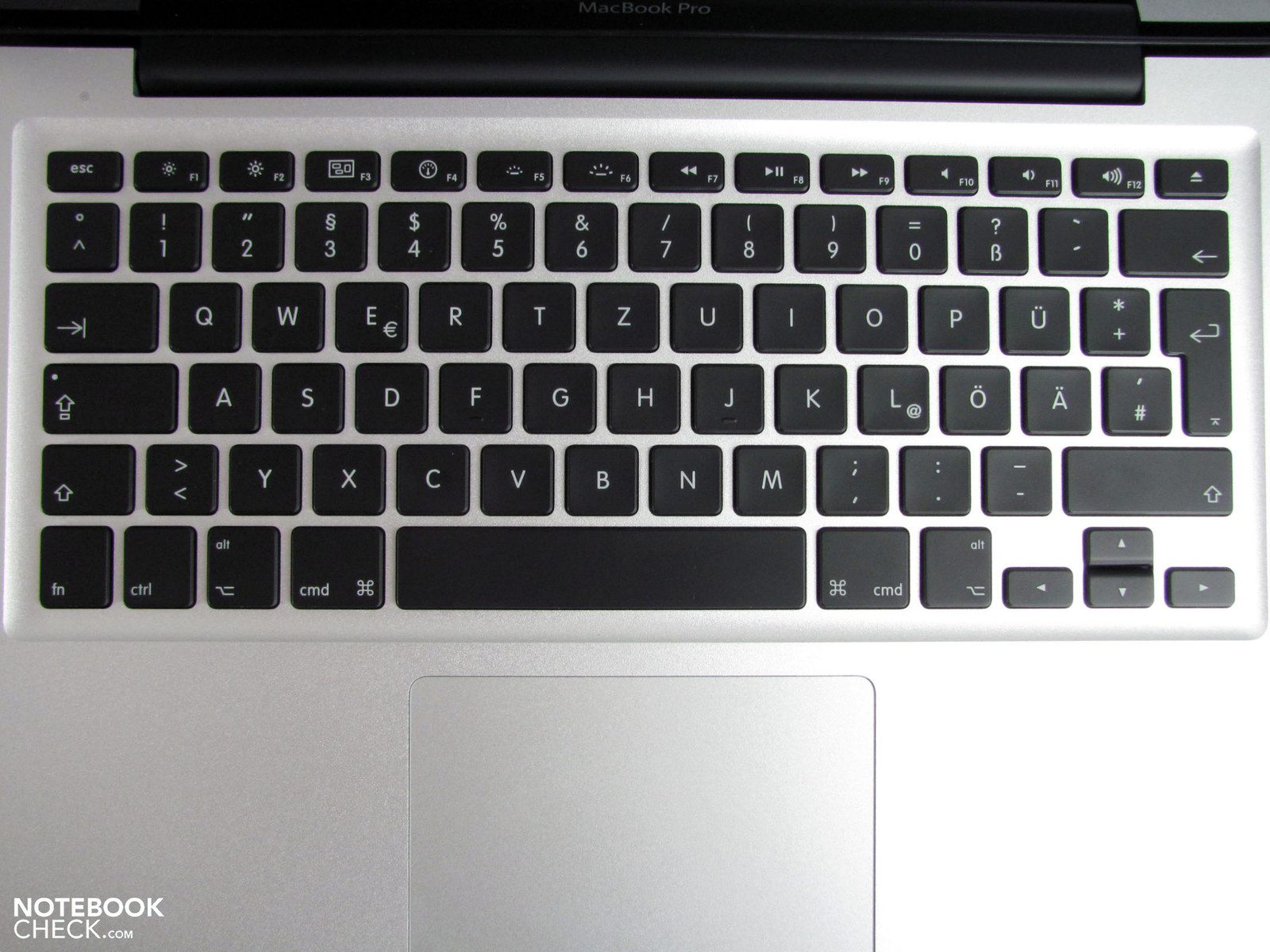

Very Good Keyboard
Very Good Keyboard

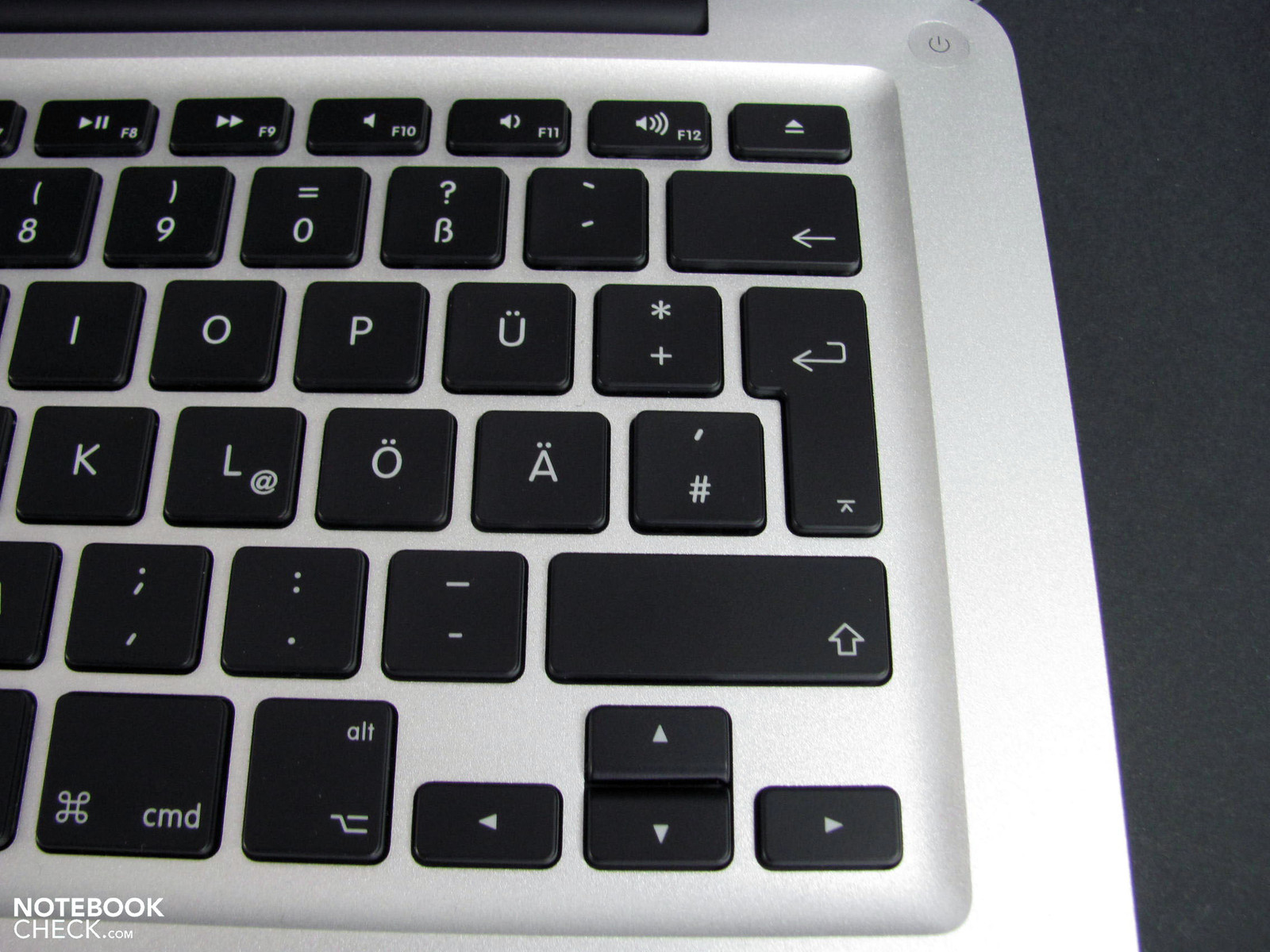

"Enter" Key is Small
"Enter" Key is Small
Fn, Ctrl, alt-shortcuts mixed up compared to Windows
Fn, Ctrl, alt-shortcuts mixed up compared to Windows

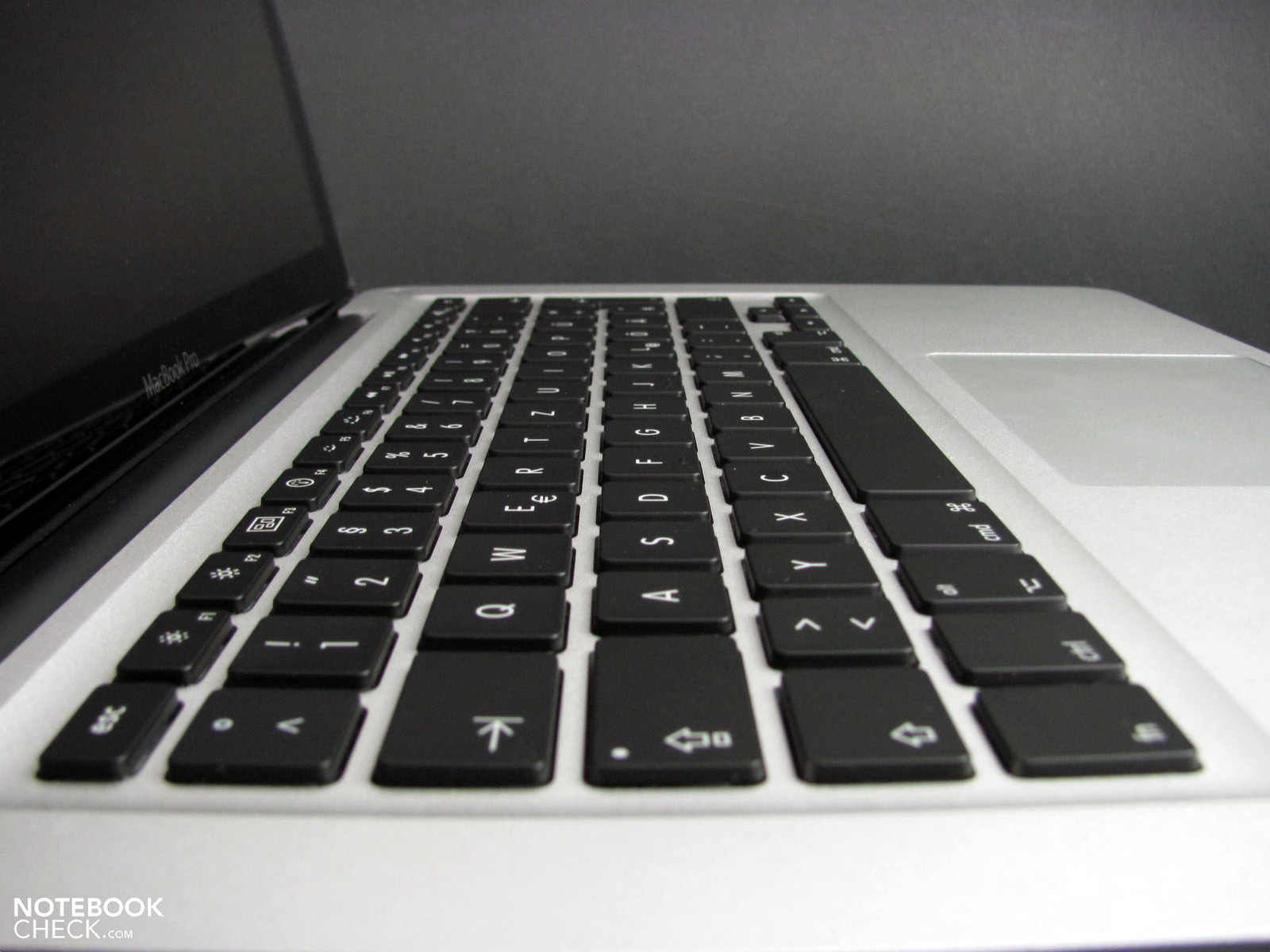

Soft Keystrokes, Firm Keybed
Soft Keystrokes, Firm Keybed

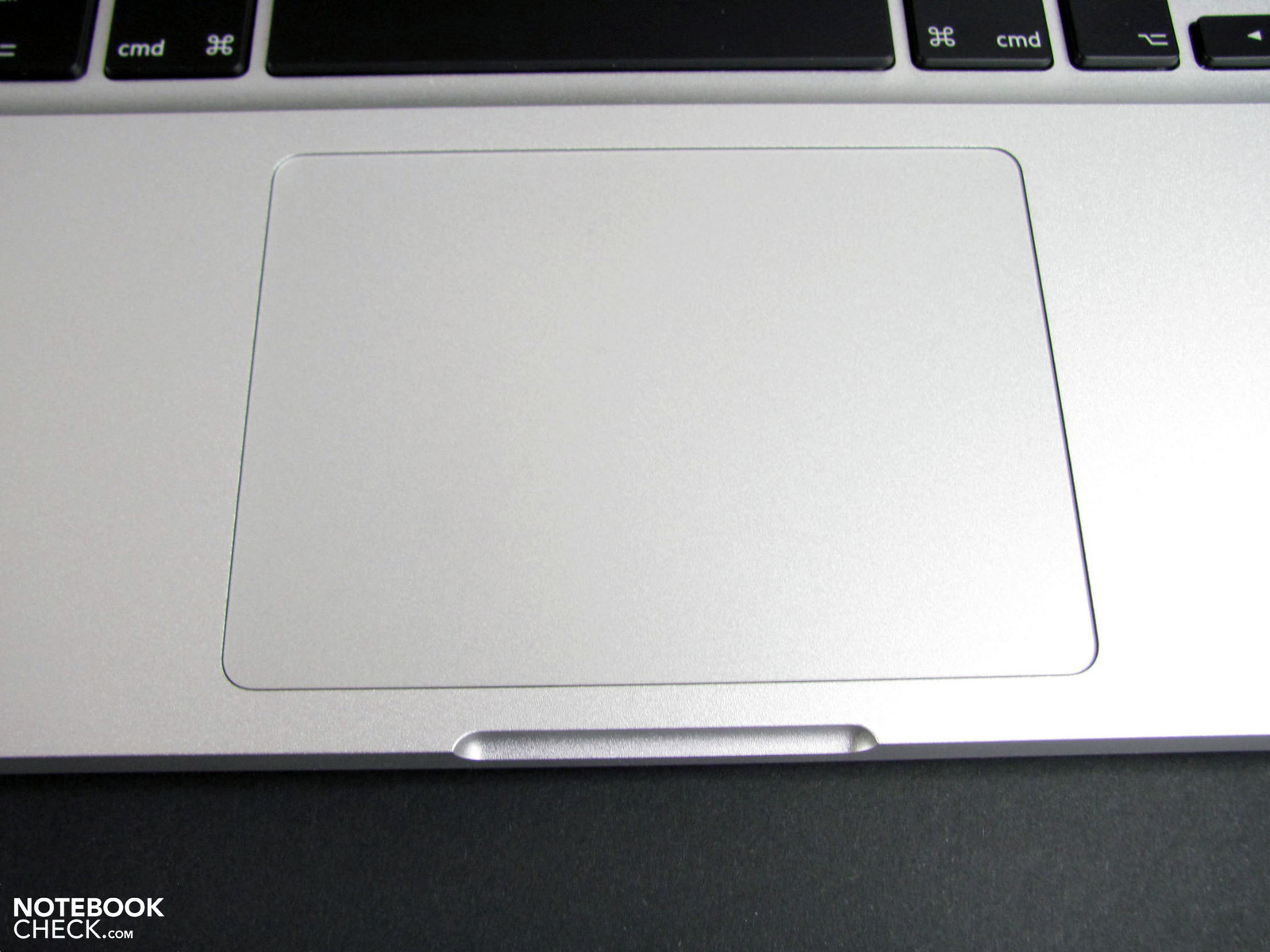

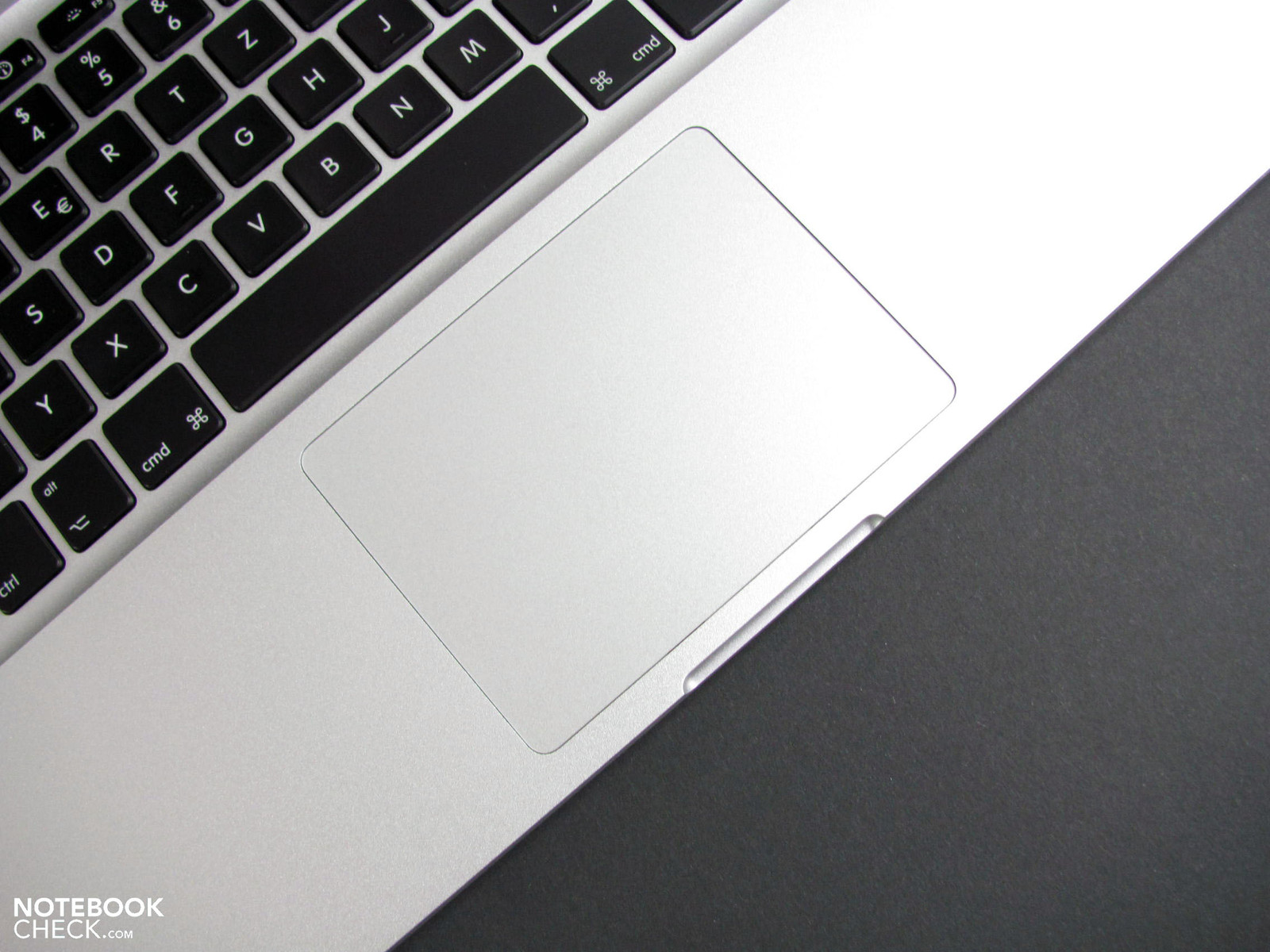

Enormous Touchpad
Enormous Touchpad
with Very Good Multitouch Gestures
with Very Good Multitouch Gestures

Display

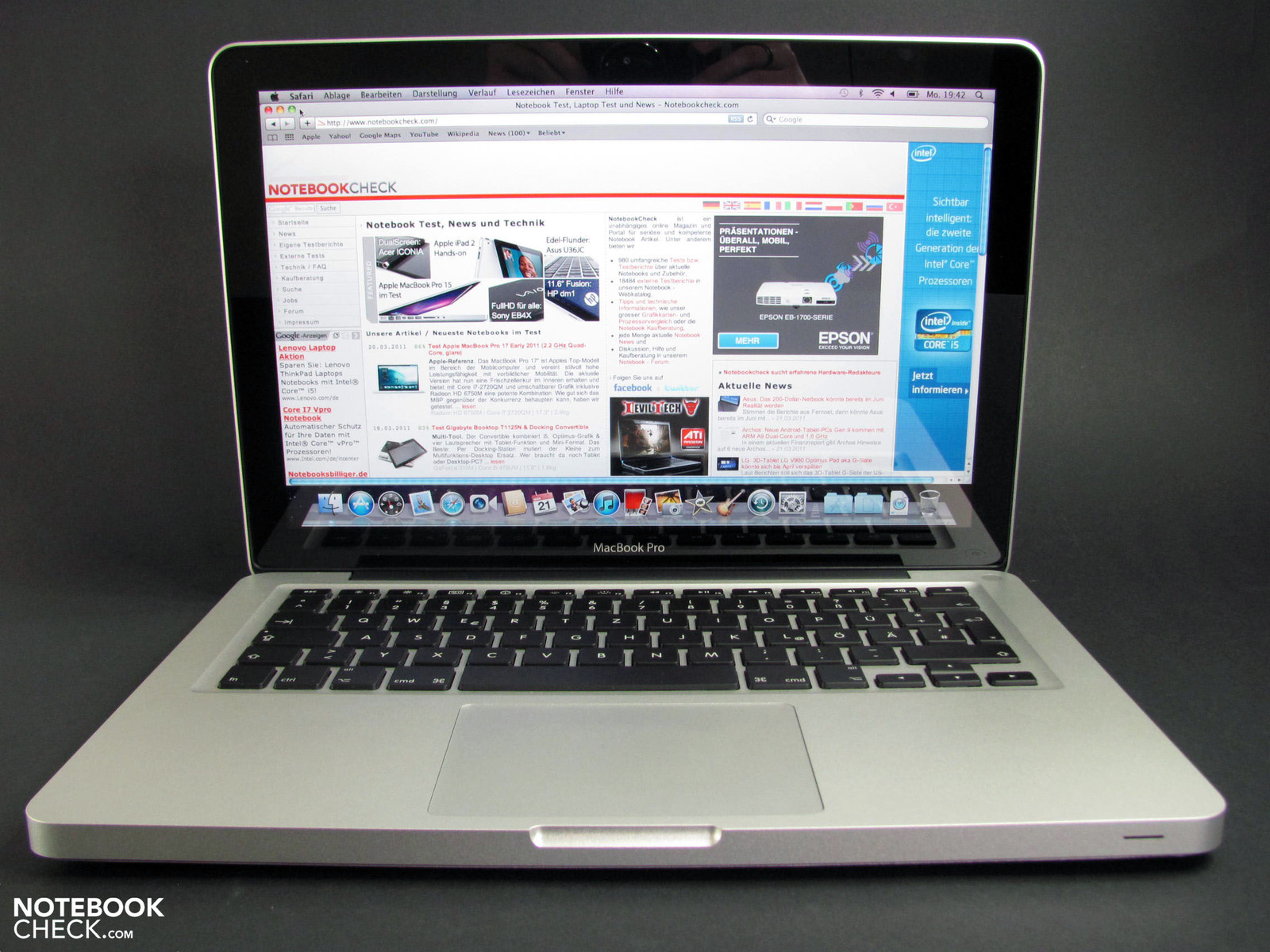

The glossy display in place in the test model at hand is the same one as in other, more powerful models of the MBP 13 we've reviewed.  The broad strokes are outlined in the images below, for the nitty gritty check out the in-depth review.

Reflection depend on viewing angle and displayed content
Reflection depend on viewing angle and displayed content
314
cd/m²
321
cd/m²
305
cd/m²
304
cd/m²
310
cd/m²
296
cd/m²
279
cd/m²
282
cd/m²
279
cd/m²
Information
Gossen Mavo-Monitor
Maximum: 321 cd/m²
Average: 298.9 cd/m²
Brightness Distribution: 87 %
Center on Battery: 310 cd/m²
Black: 0.49 cd/m²
Contrast: 633:1
Distribution of brightness
Adobe RGB is not covered
Adobe RGB is not covered
More colors than sRGB
More colors than sRGB
MBP 17 has nearly the same color space
MBP 17 has nearly the same color space

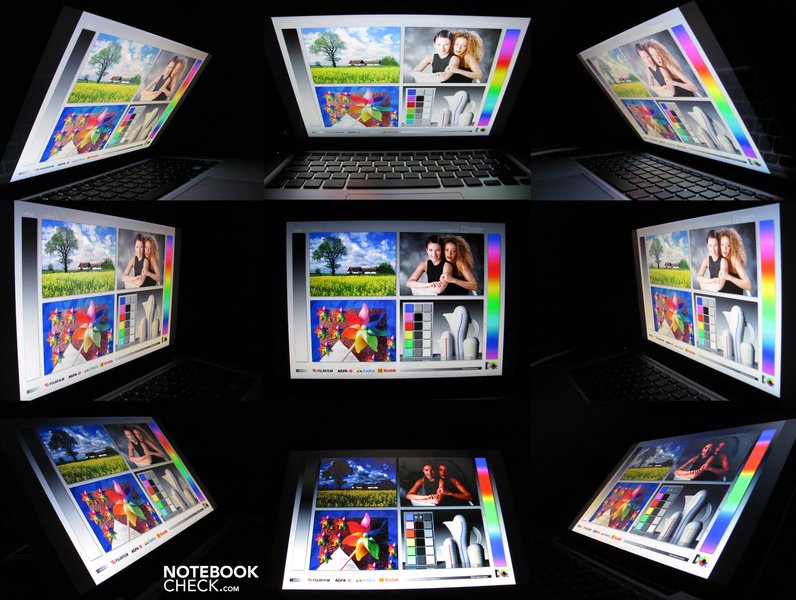

Viewing Angles Apple Macbook Pro 13 inch 2011-02 MC700D/A
Viewing Angles Apple Macbook Pro 13 inch 2011-02 MC700D/A

Performance

Like all the models of the new generation MacBook Pro's, The 13" model also comes with a current Intel Sandy Bridge chipset.  For the CPU, we have here the Intel Core i5-2415, which is essentially identical to the Core i5-2410 but has a smaller casing, making it easier to fit into compact notebooks.  Among the features included is Hyper-Threading (a maximum of 4 threads can be simultaneously processed), Turbo Boost 2.0 (overclocking each CPU core to a maximum of 2.9 GHz) and the on-board graphics card: Intel HD Graphics 3000.  Within the CPU casing you'll also find the memory controller, which can address up to 8 GB DDR3-1333 RAM.  The particular model we're reviewing here comes with 4 GB DDR3 RAM, spread across two slots, each equipped with a 2 GB chip—but these can be replaced with 4 GB chips to reach the full potential.

Systeminfo CPUZ CPU

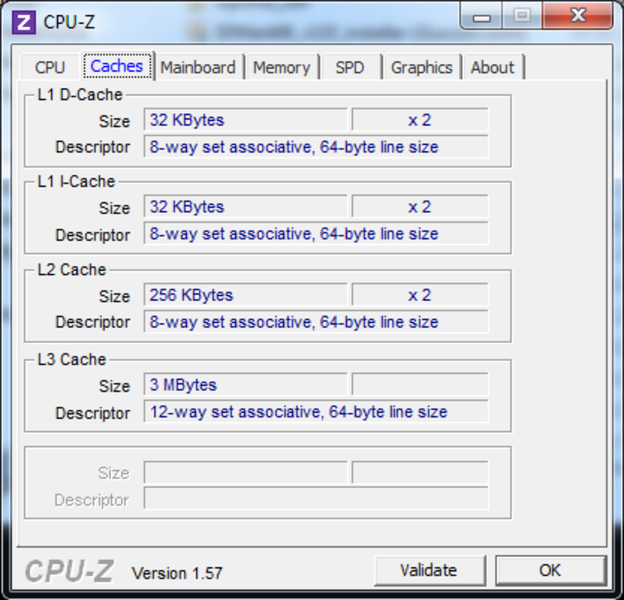

Systeminfo CPUZ Cache

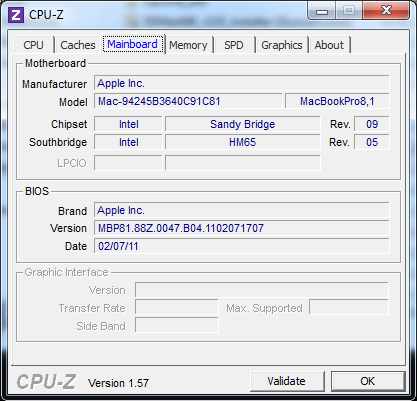

Systeminfo CPUZ Motherboard

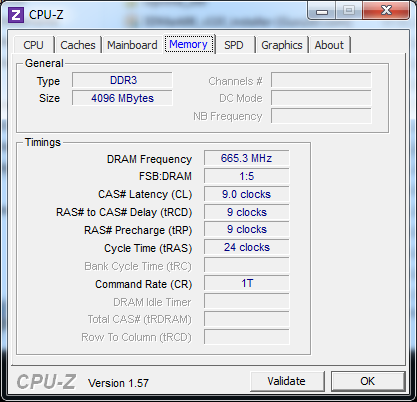

Systeminfo CPUZ RAM

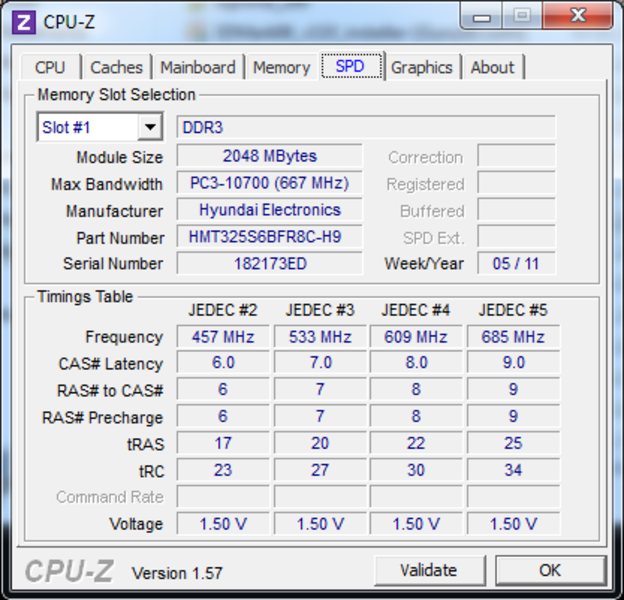

Systeminfo CPUZ RAM SPD

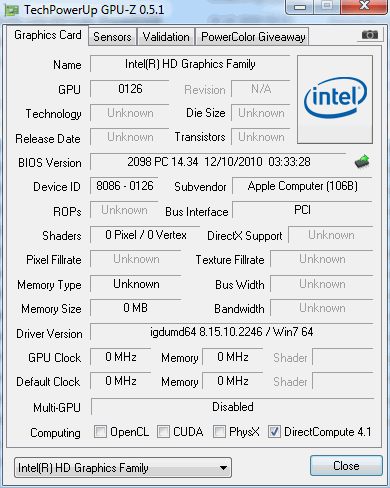

Systeminfo GPUZ
Systeminfo HDTune

System Properties Apple Macbook Pro 13 inch 2011-02 MC700D/A

The level of CPU performance has clearly risen compared to the 2010 MBP 13 with a Core 2 Duo processor.  This fact is demonstrated by benchmarks we performed in Mac OS X as well as those in Windows 7.  The SuperPi 32m computation only took 735 seconds compared to 1160 seconds with the older Core 2 Duo P8600 CPUs.  wPrime 1024 runs at a faster 632s, compared to the old score of 1100s.  The Cinebench R11.5 CPU score in Mac OS X jumped from 1.36 points to 2.59 points, and in Xbench 1.3 the CPU sub-score rose from 169 to 231 points.  This translates to a leap in performance of 36% - 72% depending on the particular benchmark.  The Turbo Boost worked fine in the CineBench R10 Single-Core test, shooting up to 2.7 GHz and up to 2.9 GHz in the SuperPi computation benchmark for a short while.

Cinebench for Mac and PC
Cinebench for Mac and PC

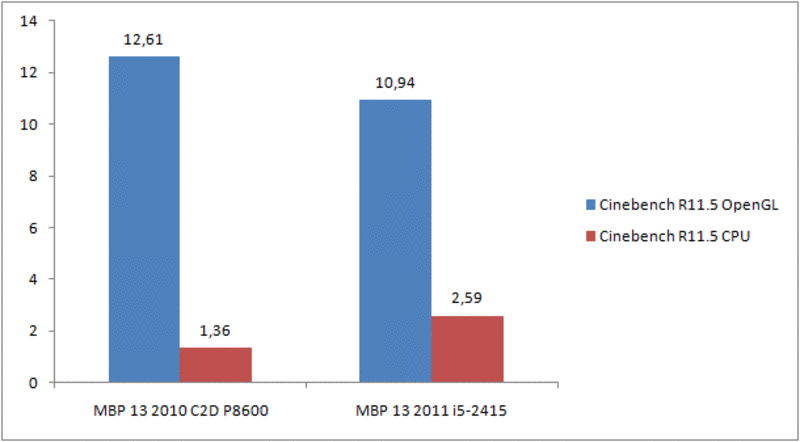

Compared to 2010 MBP 13 2.4 GHz
Compared to 2010 MBP 13 2.4 GHz

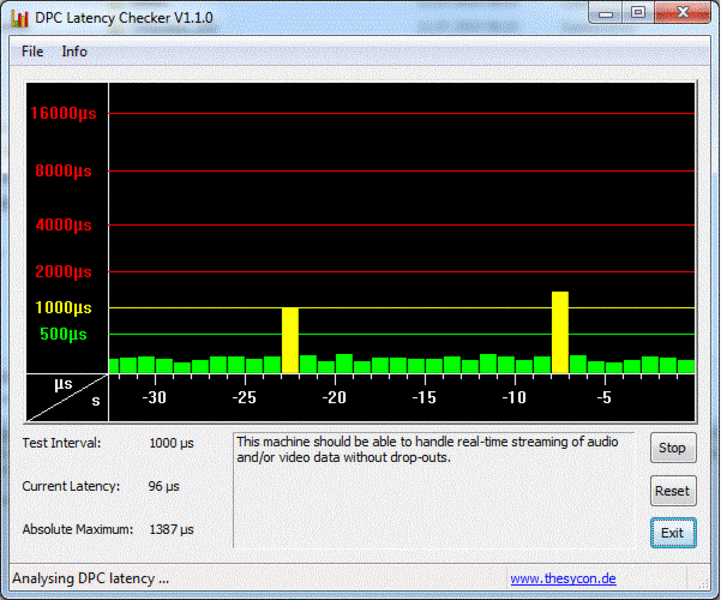

DPC Latency Checker
DPC Latency Checker Apple Macbook Pro 13 inch 2011-02 MC700D/A

With the DPC Latency Checker we saw a very similar picture to that of the MBP 17. Only isolated cases of the latencies "in the yellow" were observed, which could lead to small errors in synchronization with peripheral devices.

5.6
Windows 7 Experience Index
Processor
Calculations per second
6.9
Memory (RAM)
Memory operations per second
5.9
Graphics
Desktop performance for Windows Aero
5.6
Gaming graphics
3D business and gaming graphics
6.2
Primary hard disk
Disk data transfer rate
5.8
Cinebench R10 Rendering Single CPUs 64Bit
4607 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
9156 Points
Cinebench R10 Shading 64Bit
5462 Points
Cinebench R10 Rendering Single 32Bit
3666
Cinebench R10 Rendering Multiple CPUs 32Bit
7444
Cinebench R10 Shading 32Bit
3524
Cinebench R11.5 CPU Multi 64Bit
2.42 Points
Cinebench R11.5 OpenGL 64Bit
9.38 fps
Help
PC Mark
PCMark Vantage5478 points
Help

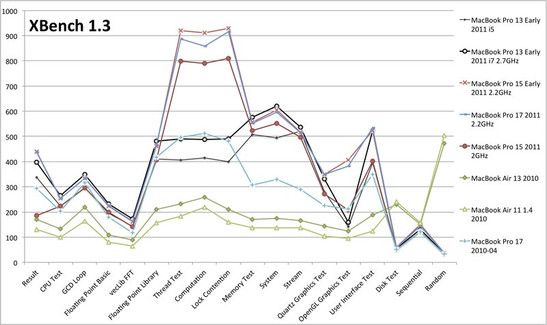

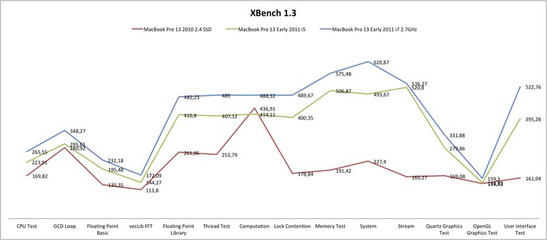

xBench 1.3 results for various MBP models
xBench 1.3 results for various MBP models

The level of graphics card performance isn't quite as exciting. The Nvidia GeForce 320M from last year's MBP 13 managed 12.61 Bps in the Cinebench R11.5 OpenGL test.  The Intel HD Graphics 3000 in the new MBP 13 isn't quite up to muster, working at a slower 10.94 Bps.  The difference becomes still more pronounced in the 3D Mark '06 Benchmark, where the new on-board GPU is behind at a mere 2550 points, compared to the 4707 points of the GeForce at a resolution of 1280x800 pixels.  This translates to a decrease in performance of 13 – 46% depending on the benchmark at hand.

To sum things up, buying the new MacBook Pro 13 means better CPU performance at the expense of graphics rendering power.  The previously built-in Nvidia Geforce 320M was definitely more powerful.  How the reduced 3D-rendering performance actually affects overall quality of use really depends on your individual needs.  The Geforce 320M was hardly fit for resource-demanding 3D tasks like animation.  And on the other hand, the Intel GPU can easily manage playing back full-HD videos smoothly.

Benchmark Mac OS X 10.6 Snow Leopard Windows 7 HP 64bit
Geekbench 5964 5254
iTunes MP3 to AAC 44.8x 39.2x
Cinebench R10 OpenGL 5457 5462 (64bit)/ 3524 (32bit)
Cinebench R10 Single 4081 4607 (64bit)/ 3666 (32bit)
Cinebench R10 Multi 8678 9156 (64bit)/ 7444 (32bit)
Cinebench R11.5 CPU 2.59 2.42
Cinebench R11.5 GL 10.94 9.38

Throttling

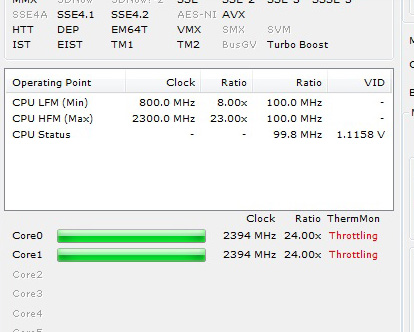

When running Furmark, Cinebench R10 OpenGL and SuperPi simultaneously, we observed a significant throttling of the CPU, the clock rate dropping considerably.  After several minutes of these benchmarks running in tandem, the CPU speed fluctuates, dropping to 800 MHz, then up to 2.2 GHz and then all the way up to 2.4 GHz.  When just running the Cinebench R10 OpenGL Shading Test, the power consumption peaked at 61.4 watts for a brief period of time. The downsampling of the CPU clock can, therefore, possibly be associated with a level of power consumption too high for the power adapter to handle, the consequence being reduced performance.  In Mac OS X, we did not observe such behavior, the energy consumption staying a good deal below the levels measured in Windows 7.

3D Mark
3DMark 057136 points
3DMark 06
 1280x800
2550 points
Help

Hard Drive

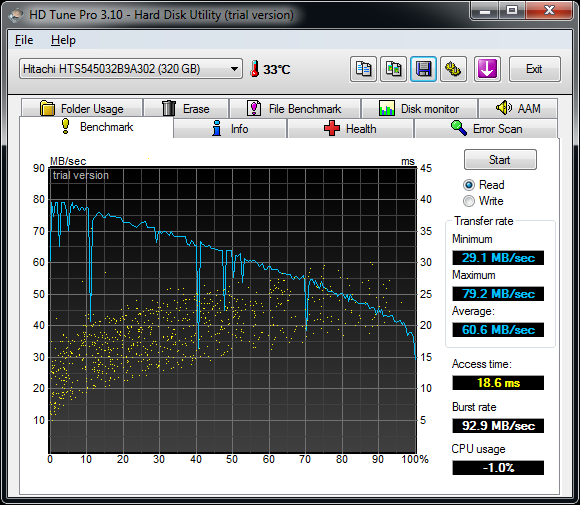

The hard drive in our test model is a conventional HDD from Hitachi.  It has a rotational speed of 5400 RPM and a storage capacity of 320 GB.  One of the great benefits of this particular HDD is how quietly it works.  It only becomes audible when you place your ear very close to the case.  In terms of its data transfer speed, it can be called average at best with a maximum of 80 MB/s and an average transfer rate of 60 MB/s.  Choosing a newfangled solid state drive (SSD) instead can greatly increase transfer speeds, but they tend to be a good deal more expensive and have much less storage space than traditional HDDs.

Hitachi Travelstar 5K500.B HTS545032B9A302
Transfer Rate Minimum: 29.1 MB/s
Transfer Rate Maximum: 79.2 MB/s
Transfer Rate Average: 60.6 MB/s
Access Time: 18.6 ms
Burst Rate: 92.9 MB/s
CPU Usage: 1 %

Gaming: Verdict

In terms of gaming potential, the MacBook Pro 13 with the Intel HD graphics card doesn't bring much to the table.  Only running undemanding titles at low resolutions with low detail settings results in a smooth, playable frame rate.  In this case, the Nvidia 320M truly would perform better but still doesn't have what it takes to render resource-demanding 3D games.  The following gaming tests were performed in Windows 7 (via Bootcamp).

low med.high ultra
World of Warcraft (2005) 6132fps
Sims 3 (2009) 9338fps
StarCraft 2 (2010) 44fps

Emissions

System Noise

Under light use, the system remains very quiet. With the hard drive normally humming at 30.3 dB(A) and 30.6 dB(A) when retrieving data, the overall noise level is very low.  This remains the situation for good while and only rises to 44 dB(A) with moderate and heavy use.  Differences in system noise between Windows and Mac OS X are mainly attributable to the DVD drive, which hums in Mac OS X at a lower 31.4 dB(A) than the 33,1 dB(A) measured in Windows.

Noise Level

Idle 30.3 / 30.3 / 30.3 dB(A)
HDD 30.7 dB(A)
DVD 31.4 / dB(A)
Load 44.1 / 44.6 dB(A)

    30 dB
silent
40 dB
audible
50 dB
loud

min: , med: , max:    Voltcraft sl-320 (15 cm distance)

The case surfaces reach a maximum of 44.9°C during the stress test (Windows) and 38.4°C (Mac OS), staying below critical levels even in the worst case scenario.  During prolonged light use, the temperature remains about 10°C lower.

Inside the case, the CPU heats up to 92°C after an hour of Prime95 and Furmark running simultaneously.  During this stress test, we did not observe any CPU throttling, the clock remaining at a fairly constant 2.3 GHz with little fluctuation.

Max. Load
 37.6 °C39.6 °C31.1 °C
 35.1 °C39.2 °C28.5 °C
 31.1 °C29.1 °C30.5 °C

34.6 °C44.9 °C39.5 °C
32.8 °C40.3 °C38.1 °C
31.1 °C42.4 °C32.1 °C
Maximum: 39.6 °C
Average: 33.5 °C
 Maximum: 44.9 °C
Average: 37.3 °C
Power Supply (max.)  43 °C | Room Temperature 18 °C | Voltcraft IR-360

Speakers

The speakers of the MBP 13 are pretty good for some background music or the occasional film.  As is typical in many notebooks, the mids and bass are lacking, the highs emphasized instead.  The maximum volume is not very high but should suffice for everyday activities.

Battery Life

The MacBook Pro is equipped with a non-removable (at the risk of voiding the warranty) 63.5 Wh battery that profits from the low power consumption in Mac OS X.  This ranges from 6.6 to 56.4 watts depending on intensity of use.  Those using Windows 7 via Bootcamp should expect considerably higher power consumption even under light use.  Here the minimum is 16.1 watts, rising as high as 61.4 watts during the Cinebench R10 OpenGL Shading Test.  This elevated level of power consumption is particularly disadvantageous when it comes to everyday activities like browising the internet via wifi, doing office work, watching films, and so forth.  In Mac OS X the power consumption level stays—on average—about 10 watts lower than in Windows.

Power consumption

Off / Standby 0.1 / 0.6 Watt
Idle 6.6 / / 11.3 Watt
Load 54.5 / 61.4 Watt

Key: min: , med: , max:         Voltcraft VC 960
  Power Consumption Mac OS X Power Consumption Windows 7 HP 64 bit
Cinebench R10 OpenGL Shading 43.4 Watt 61.4 Watt
Cinebench R10 Single CPU 31.8 Watt 43.8 Watt
Cinebench R10 Multi CPU 46.3 Watt 54.5 Watt
Cinebench R11.5 OpenGL Shading 55.9 Watt 57.3 Watt
Cinebench R11.5 CPU 49.5 Watt 54.7 Watt
HD Video 720p mp4 17.8 Watt 25.1 Watt
Star Craft 2 1024x768 low 56.4 Watt 58.2 Watt
Geekbench 2.1 45.9 Watt 57.8 Watt
Readers Test

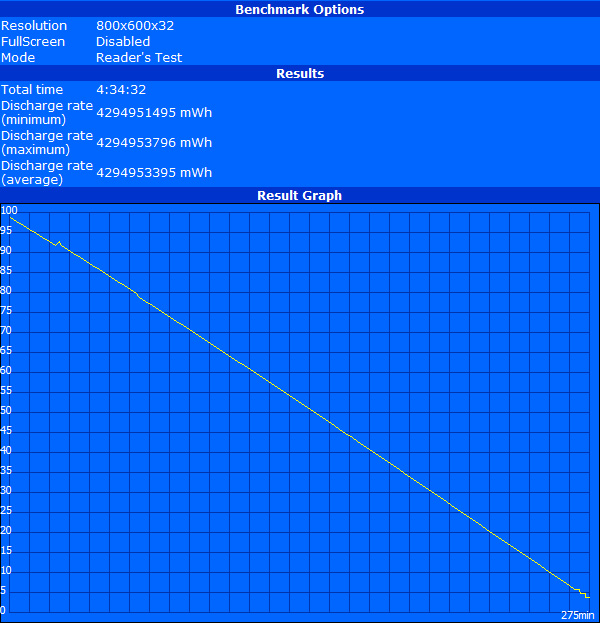

Longest Battery Life (Readers Test)
Classic Test

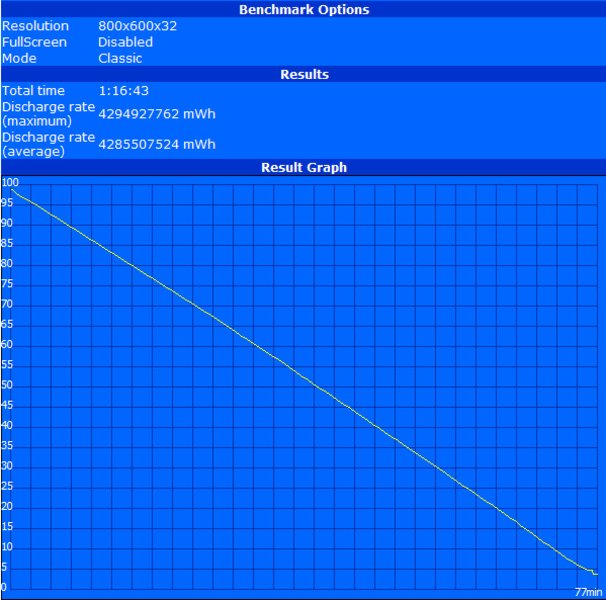

Shortest Battery Life  (Classic Test)

The battery life measured under various conditions likewise tends to vary between the two operating systems.  In Windows, the laptop can keep huffing and puffing away on battery power anywhere from 77 minutes to 275 minutes, considerably less time than is possible in Mac OS X: 84 minutes to 619 minutes.  Still, the longest battery life measured under each operating system is not very realistic because the screen brightness has to be at the lowest setting and the wifi/bluetooth turned off in order to achieve such a long battery life.  With realistic conditions like when browsing the internet via wifi with decent screen brightness, we measured a battery life of over 6 hours in Mac OS X, a more than decent battery life.    Windows falls short in this test, managing a mere 2.5 hours.  In the battery life test under heavy use, the disparity between the two operating systems nearly disappears—since the hardware is being pushed to the max.

The model we're reviewing here trumps the more powerful version of the MBP13 with an 11-16% longer battery life in all test scenarios (note: wifi test results not comparable).

Battery runtime
Idle (without WLAN, min brightness)
10h 19min
WiFi Surfing
6h 12min
DVD
5h 34min
Load (maximum brightness)
1h 24min

Verdict

The high-quality case and price have not changed. While the quality of the case serves as an example, the high price to pay for this premium quality should come as no surprise.  Among other highlights are the comfortable and conviently backlit keyboard as well as the high-quality screen, which does however reflect bright surroundings and for which the choice does not exist be replaced with a matte screen.

Despite its status as an entry-level laptop, the new MacBook Pro 13 impresses with its performance, coming equipped with a powerful CPU—especially when compared to the Core 2 Duo CPU of the previous generation.  In return, you have to take a hit in the area of 3D graphics, which stems from the switch from the more powerful Nvidia GeForce 320M to the CPU-integrated Intel HD Graphics 3000.  Nevertheless, most tasks can be handled just fine, only current games and 3D-intensive programs don't run too well.

Some crucial differences come to light when running Windows 7 via Bootcamp. More heat is produced (although not to critical levels), the battery life is considerably shorter, the transfer rates of ports are reduced and the various benchmark scores are lower when compared performance in Mac OS X.  Keeping that in mind, the MBP 13 is really only good when using its own operating system.

Apple Macbook Pro 13 inch 2011-02 MC700D/A
Apple Macbook Pro 13 inch 2011-02 MC700D/A
In Review: Apple Macbook Pro 13 inch 2011-02 MC700D/A
In Review: Apple Macbook Pro 13 inch 2011-02 MC700D/A

Specifications

Apple Macbook Pro 13 inch 2011-02 MC700D/A

:: Processor
:: Mainboard
Intel HM65
:: Memory
4096 MB, 2 x 2GB DDR3-10700, in 2 slots
:: Graphics adapter
Intel HD Graphics 3000 - 384 MB, shared Memory, igdumd64 8.15.10.2246 / Win7 64
:: Display
13.3 inch 16:10, 1280x800 pixel, LP133WX3-TLA3, glossy: yes
:: Harddisk
Hitachi Travelstar 5K500.B HTS545032B9A302, 320 GB 5400 rpm
:: Soundcard
Cirrus Logic CS4206A
:: Connections
2 USB 2.0, 1 Firewire, 1 DisplayPort, 1 Kensington Lock, Audio Connections: combination mic/headphone jack, Card Reader: SDXC, Thunderbolt
:: Networking
Broadcom NetXtreme Gigabit Ethernet (10/100/1000MBit), Broadcom 802.11n (a b g n ), Apple Broadcom 2.1+EDR Bluetooth
:: Optical drive
Matshita DVD-R UJ-898
:: Size
height x width x depth (in mm): 24.1 x 325 x 227
:: Weight
2.04 kg Power Supply: 0.38 kg
:: Battery
63.5 Wh Lithium-Polymer
:: Price
1149 Euro
:: Operating System
Apple Mac OS X 10.6 Snow Leopard
:: Additional features
Webcam: FaceTime HD, iLife, 12 Months Warranty

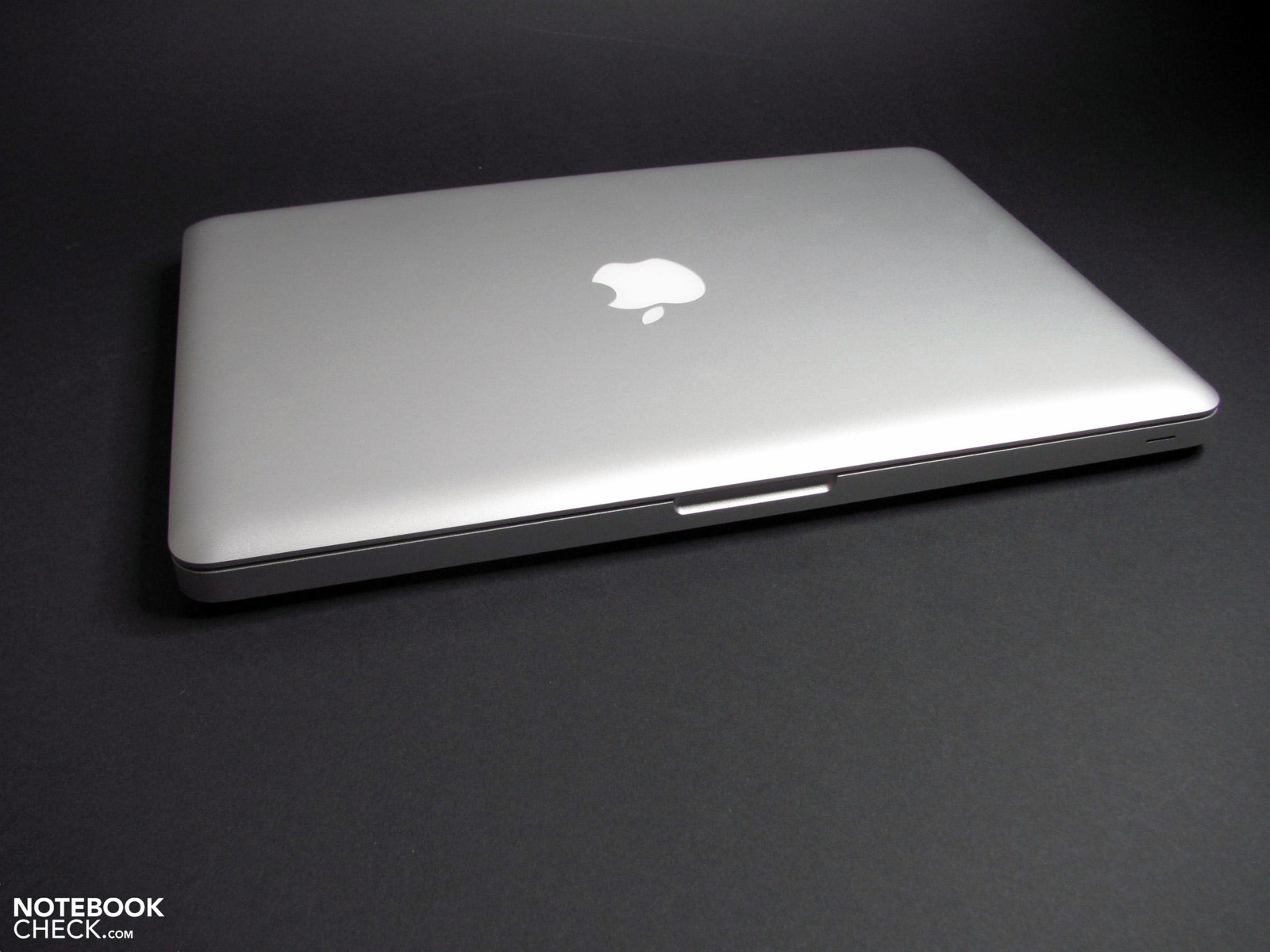

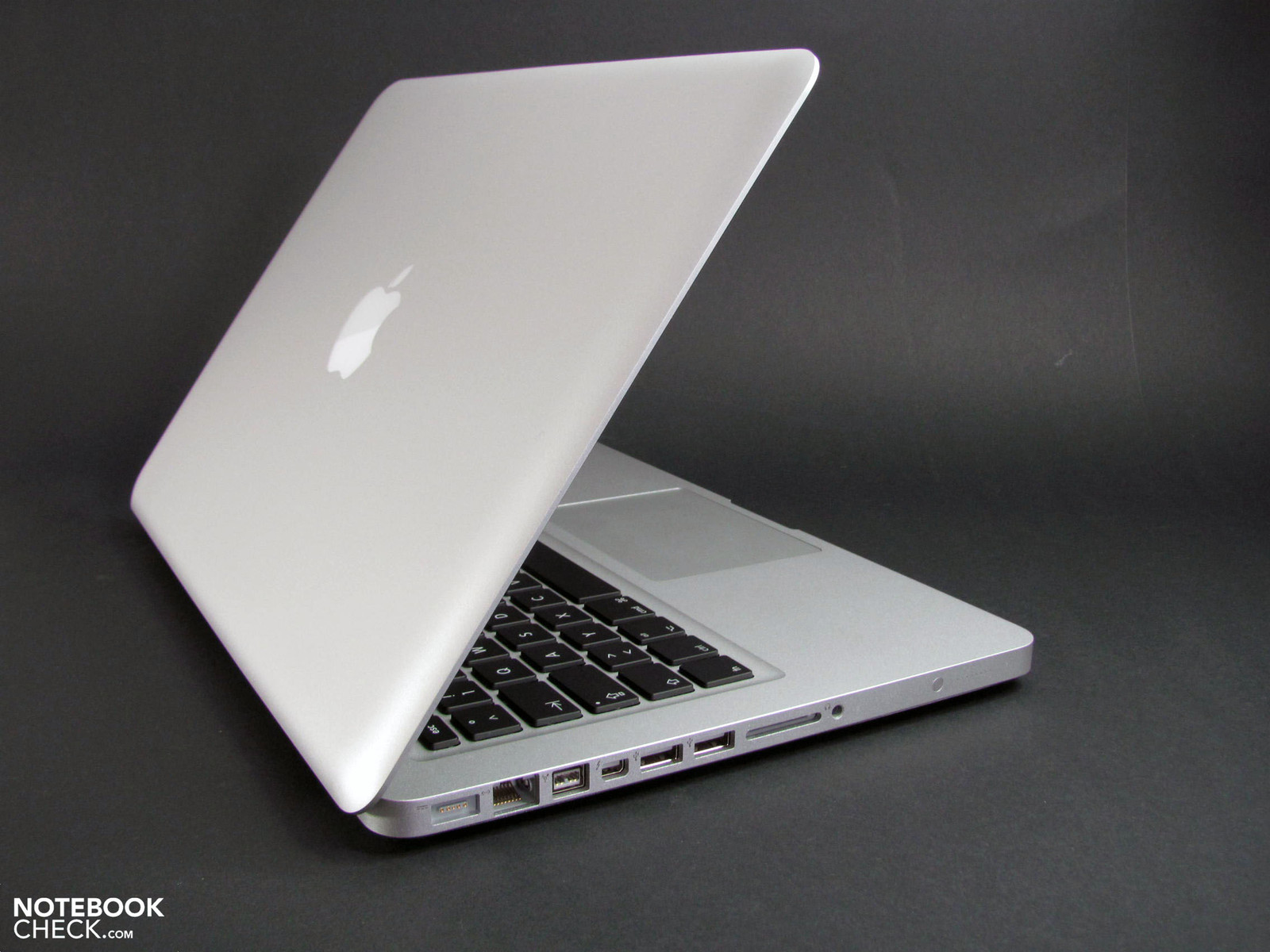

The MBP 13 has waited a long time for an overhaul of its hardware
The MBP 13 has waited a long time for an overhaul of its hardware

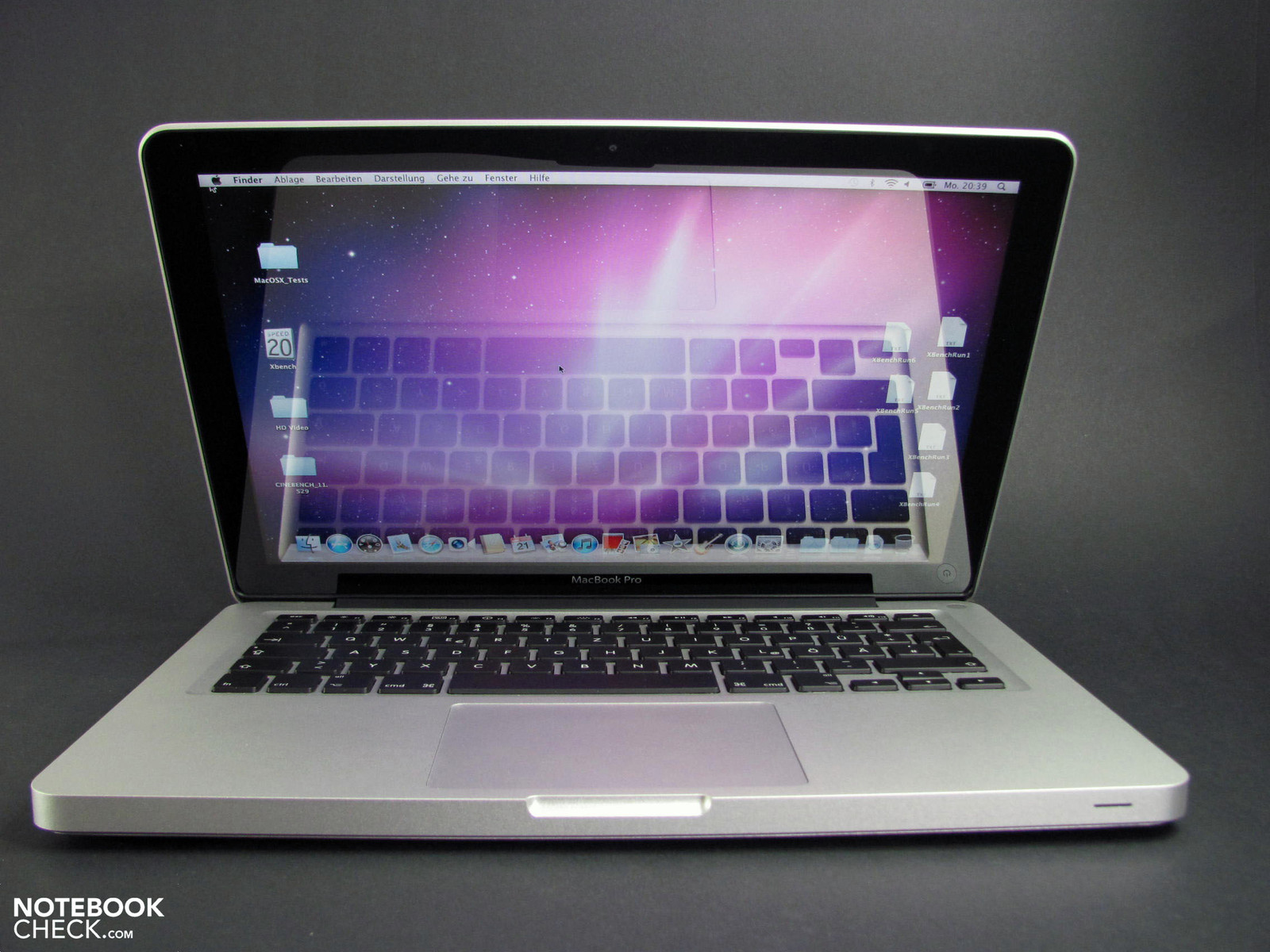

Unfortunately only a glossy screen is available
Unfortunately only a glossy screen is available

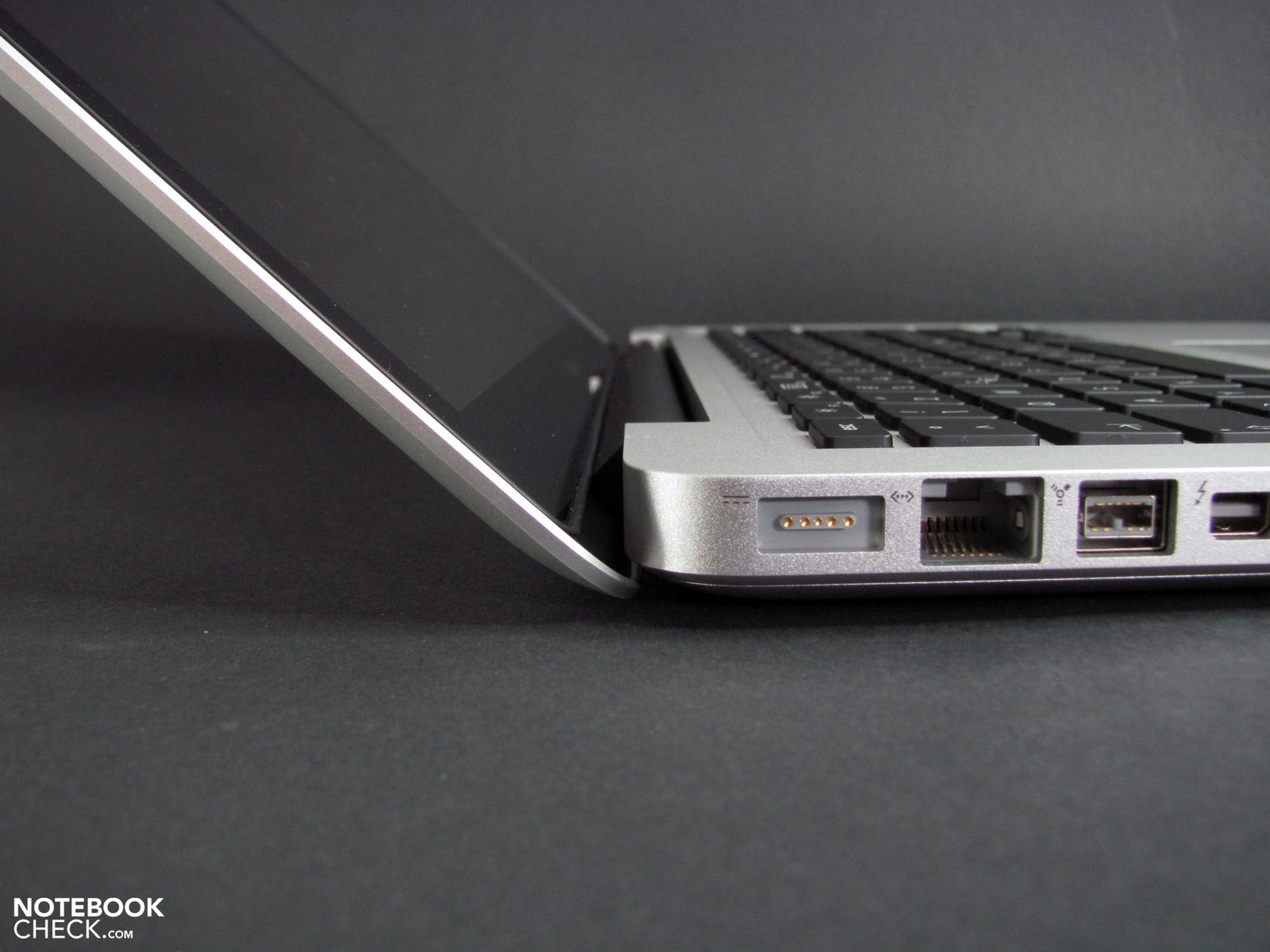

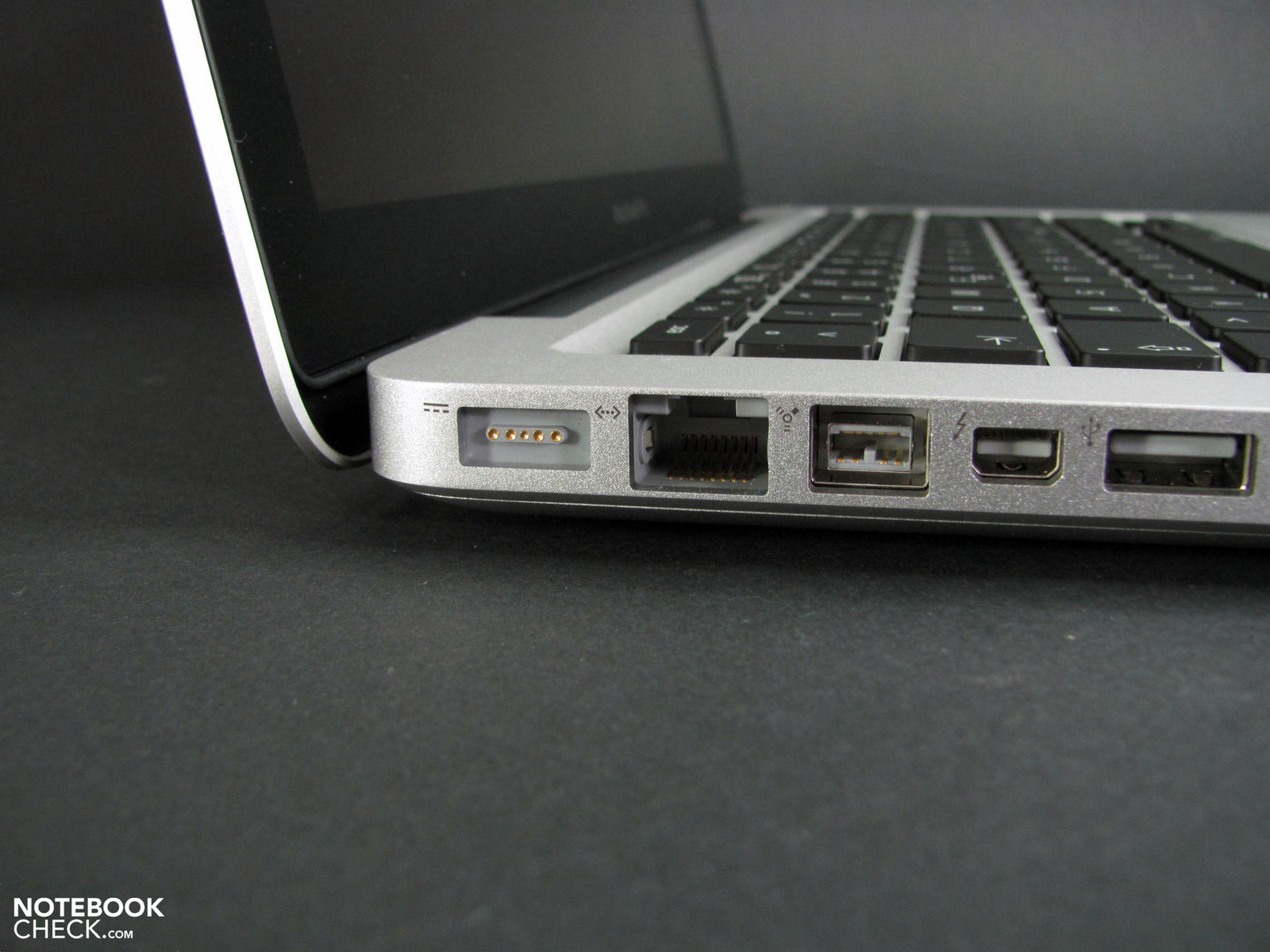

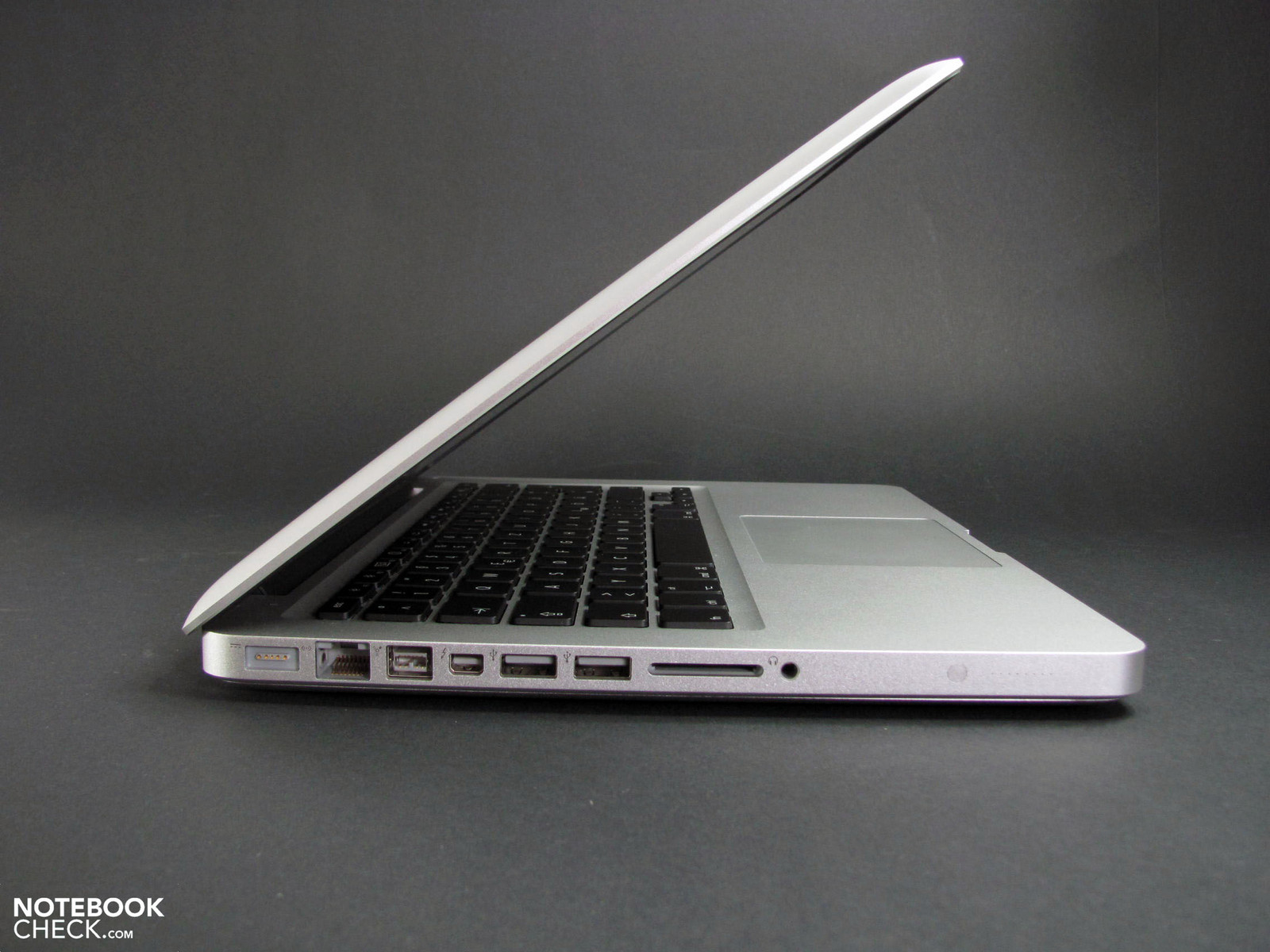

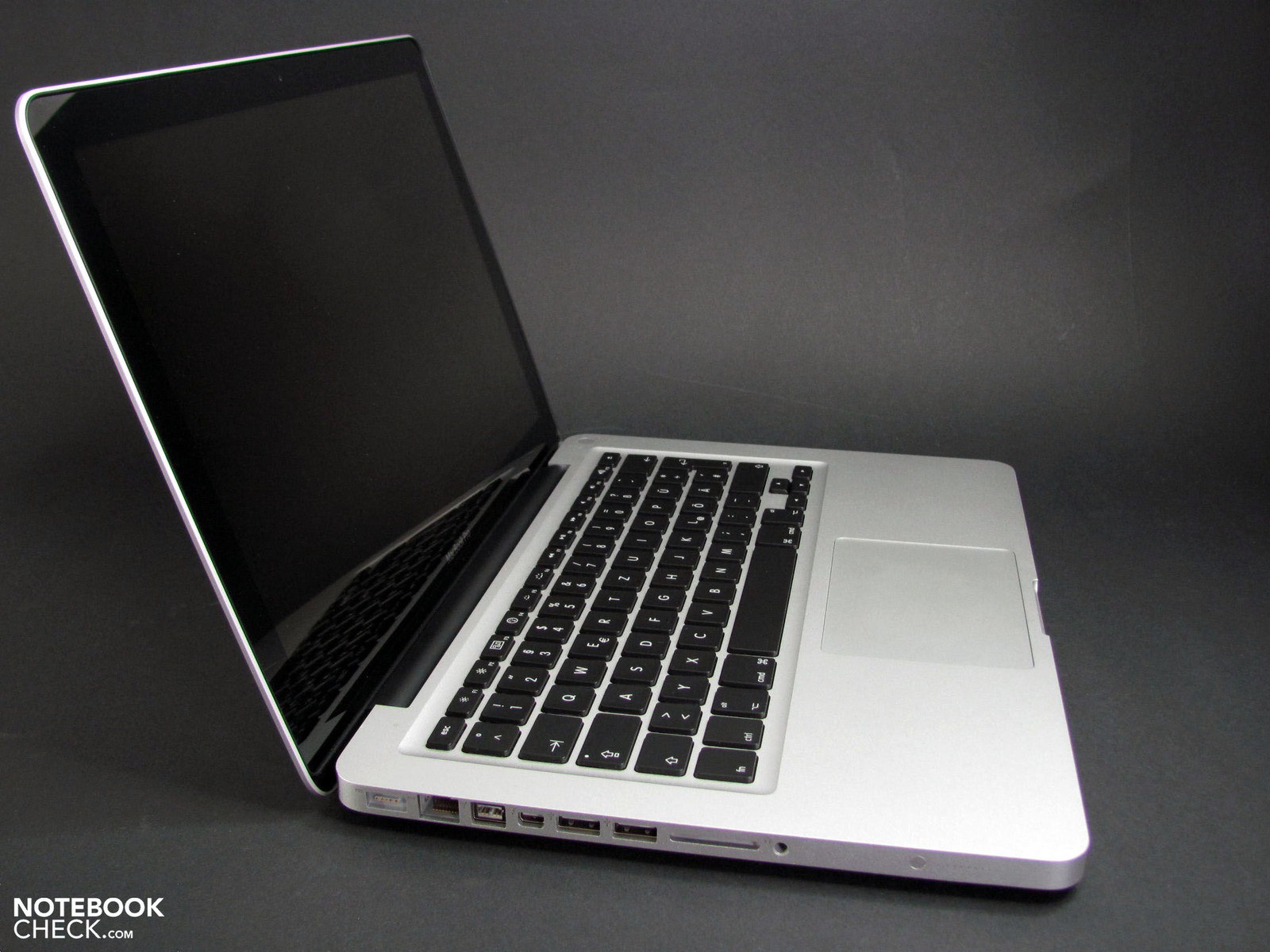

All the ports are found on the left side
All the ports are found on the left side
Among them is the Thunderbolt
Among them is the Thunderbolt

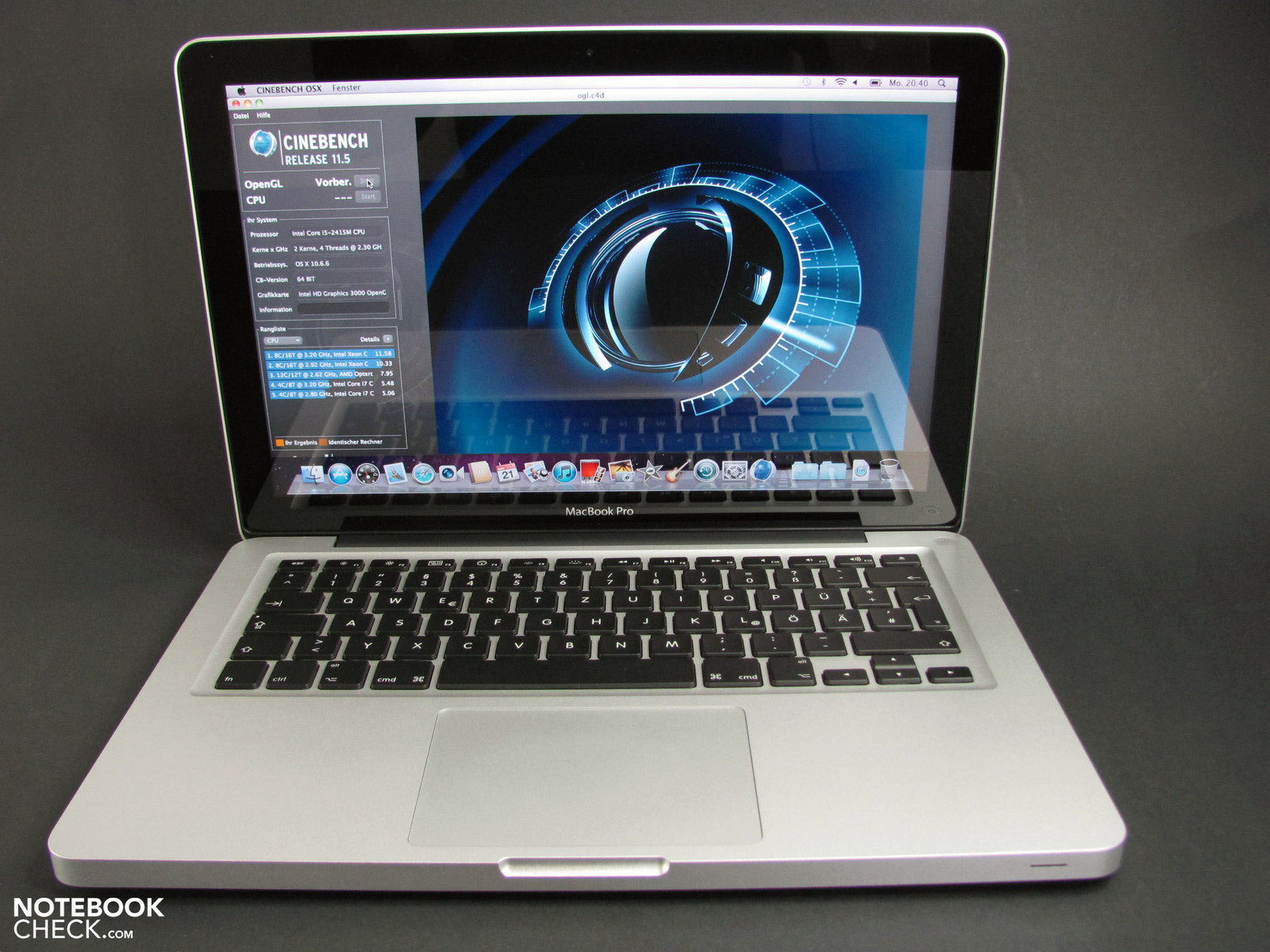

Mac OS X runs better than Windows
Mac OS X runs better than Windows

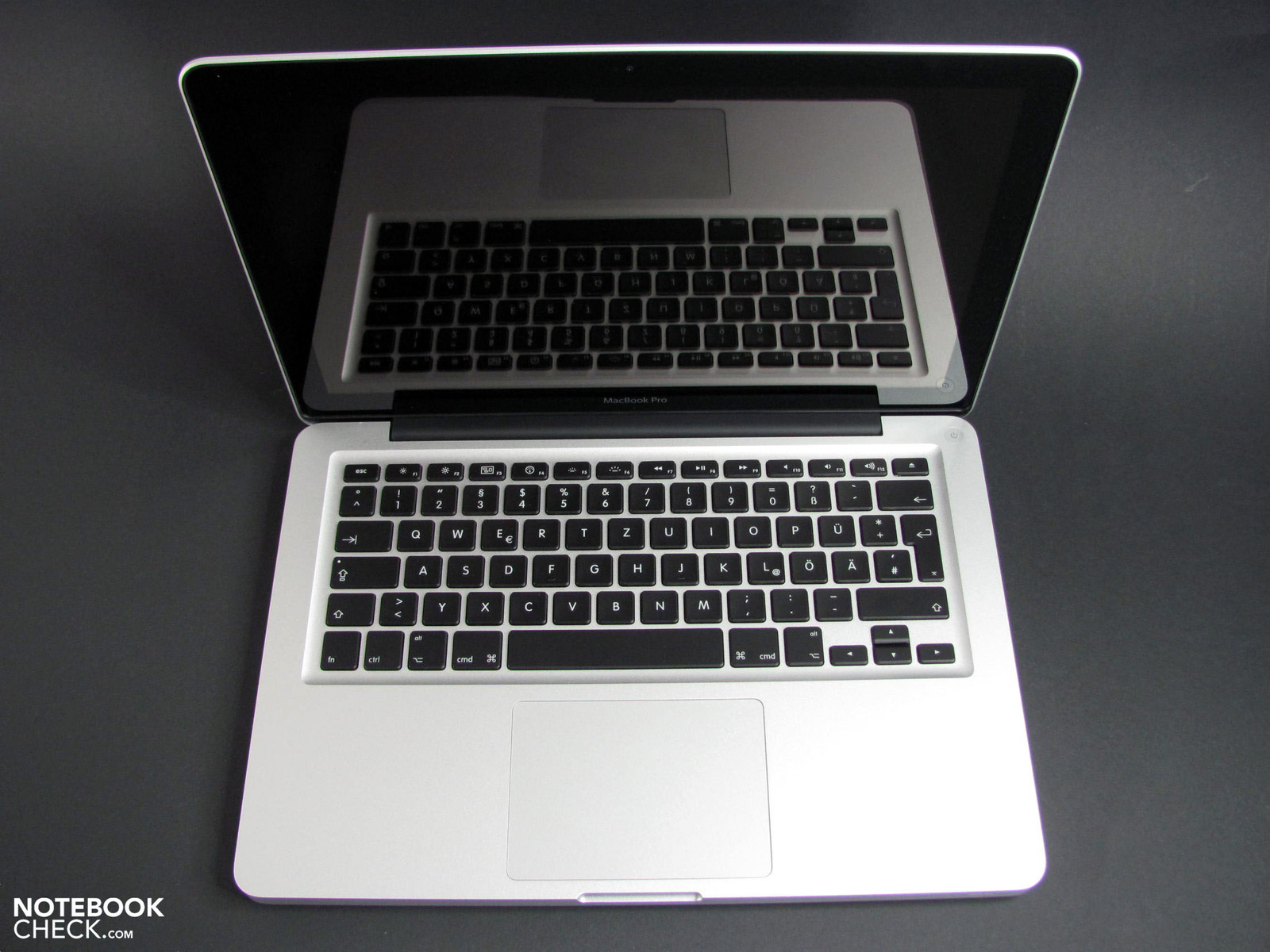

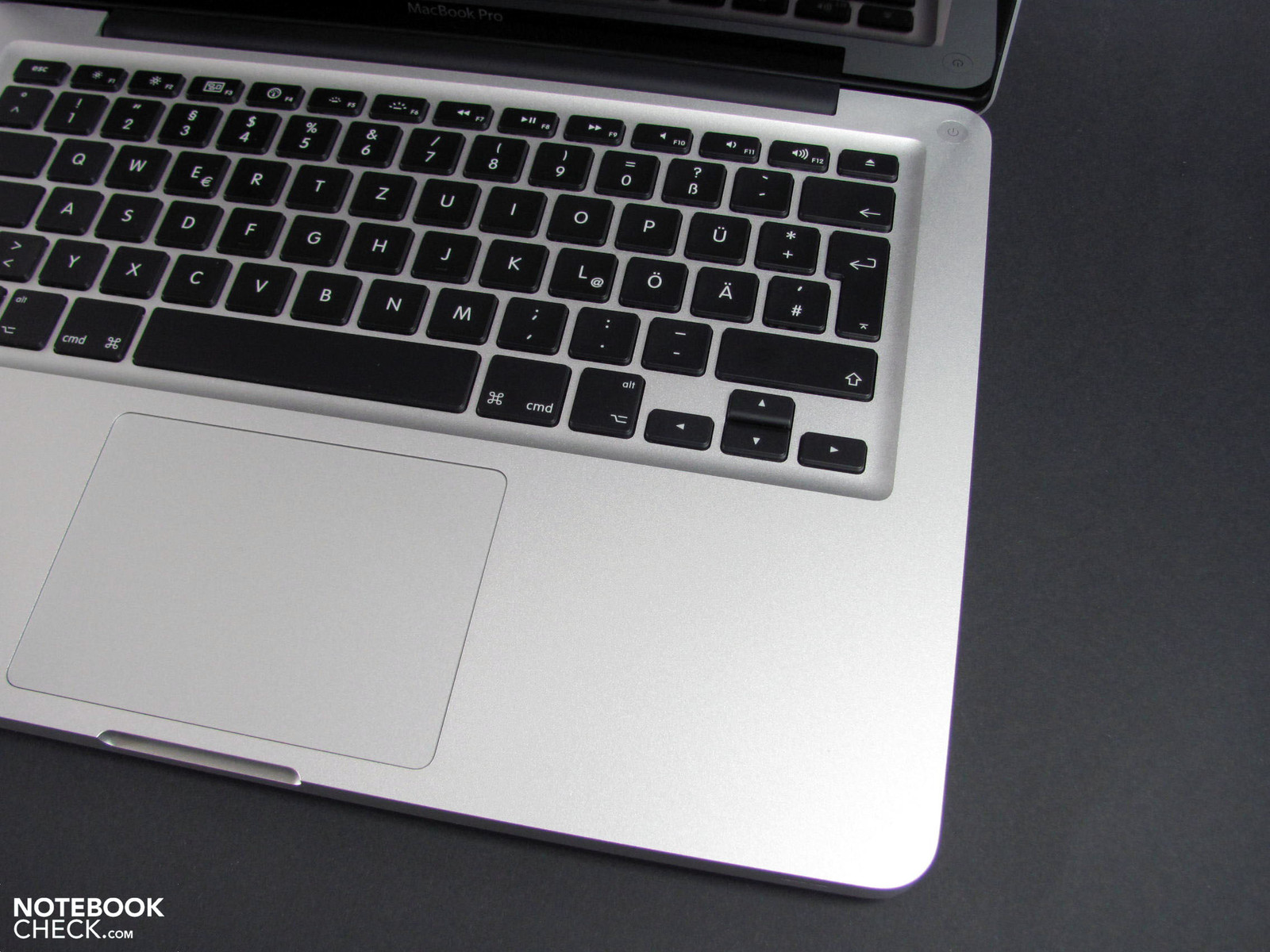

Typing on the keyboard is very comfortable
Typing on the keyboard is very comfortable

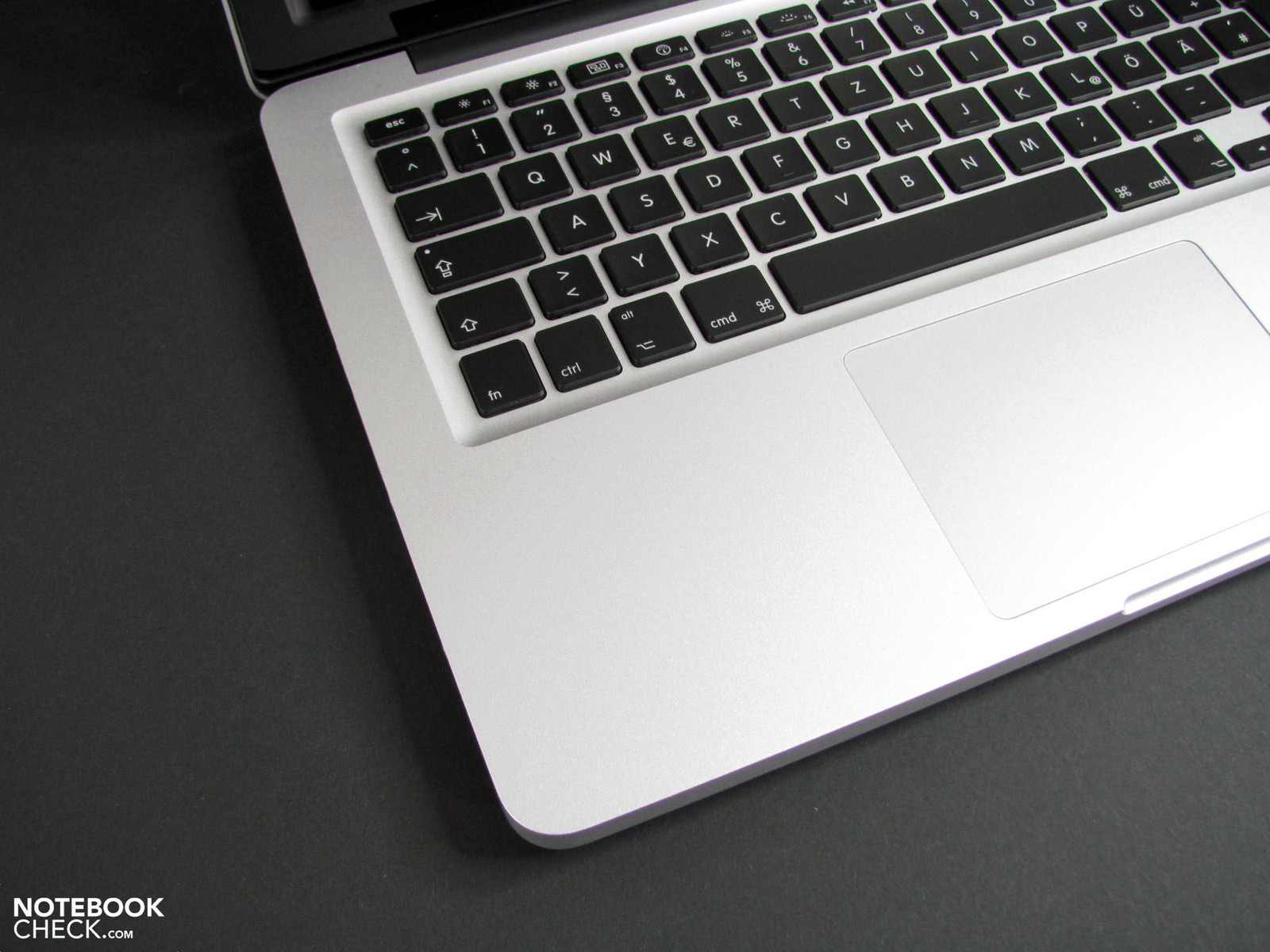

Windows users will have to get used to some of the differences
Windows users will have to get used to some of the differences

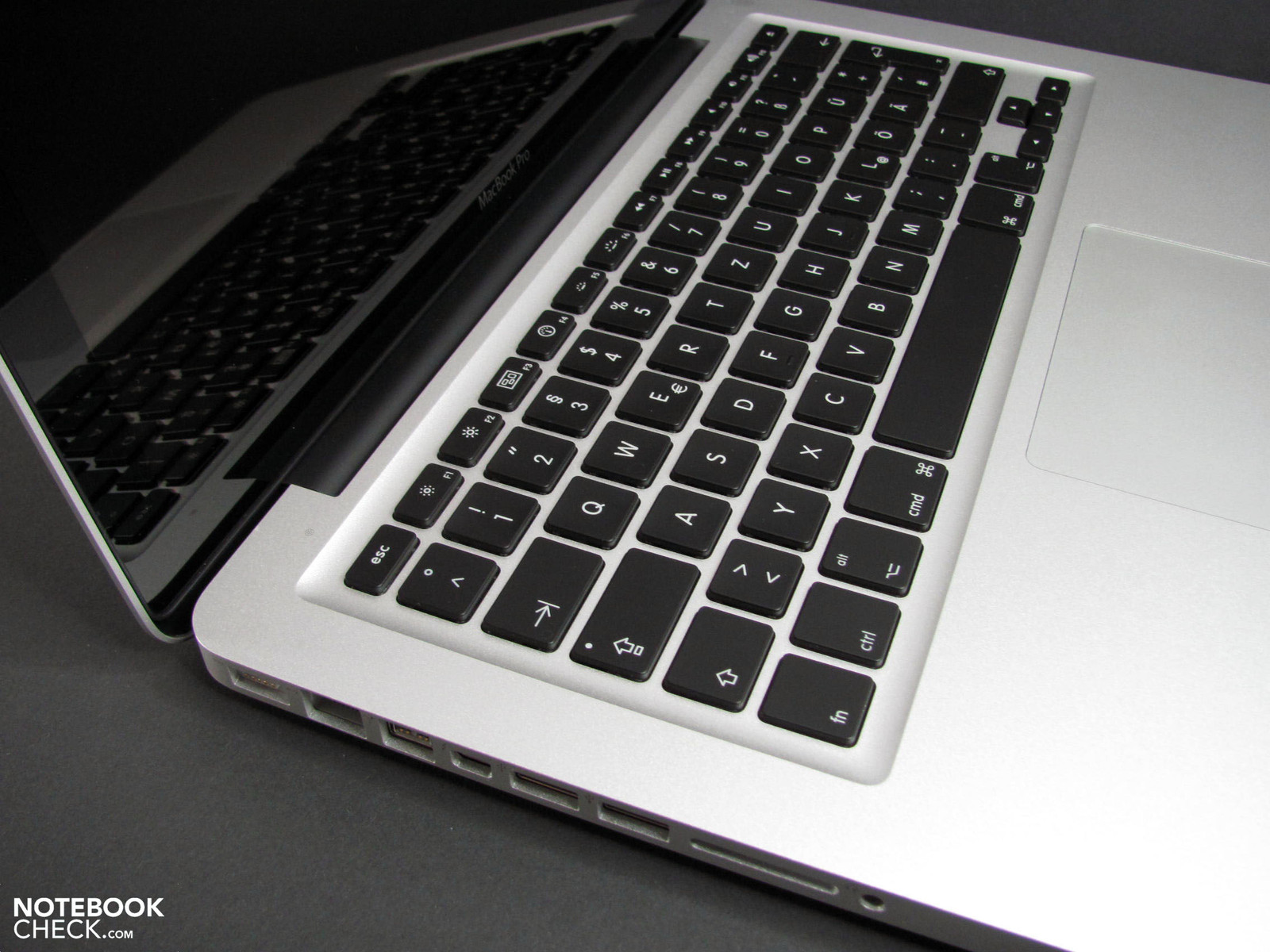

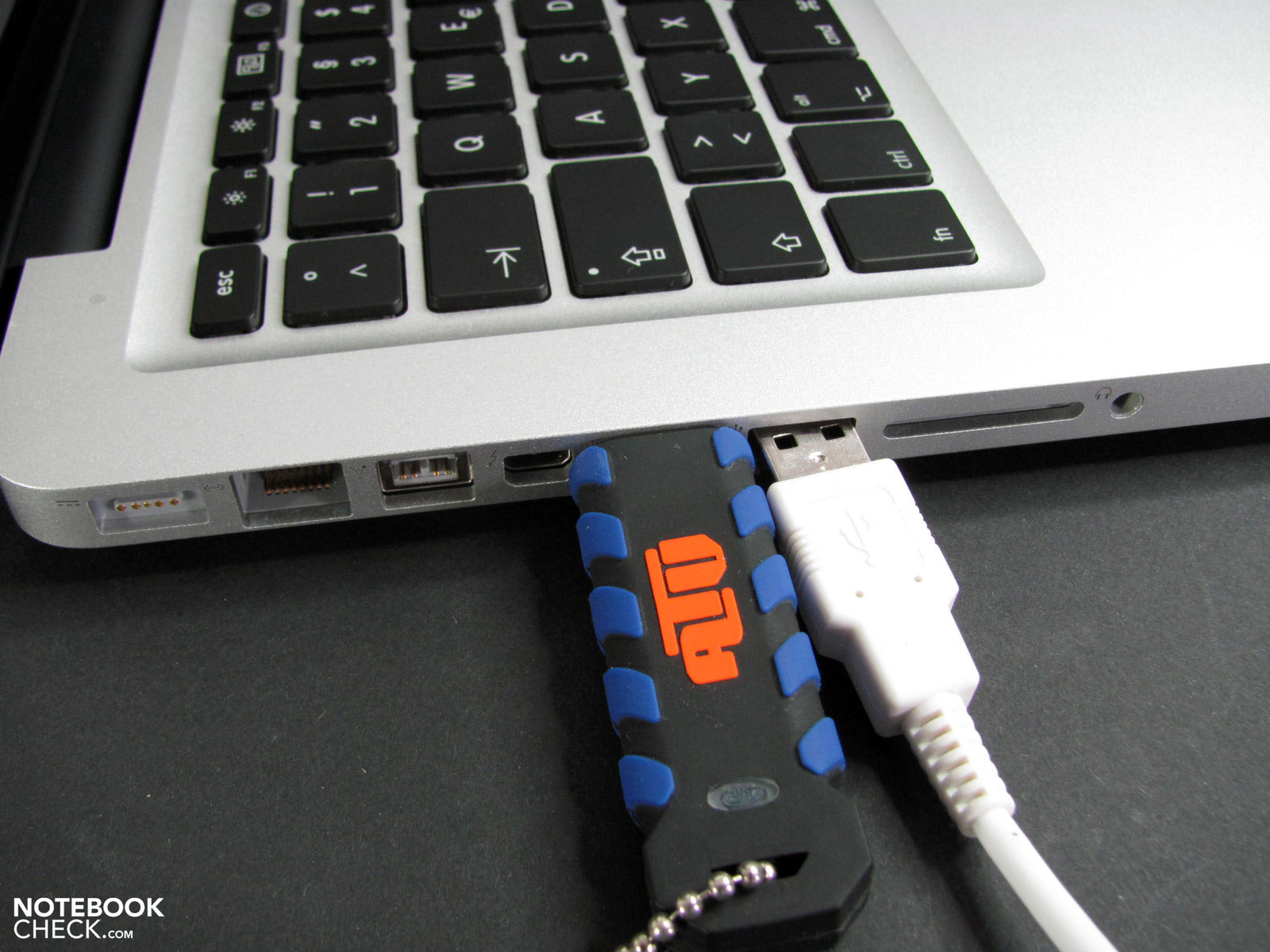

The ports are really bunched together and connectors plugged into them could get in each other's way
The ports are really bunched together and connectors plugged into them could get in each other's way
No devices are compatible with the Thunderbolt so far
No devices are compatible with the Thunderbolt so far
The aluminum case stays very cool
The aluminum case stays very cool

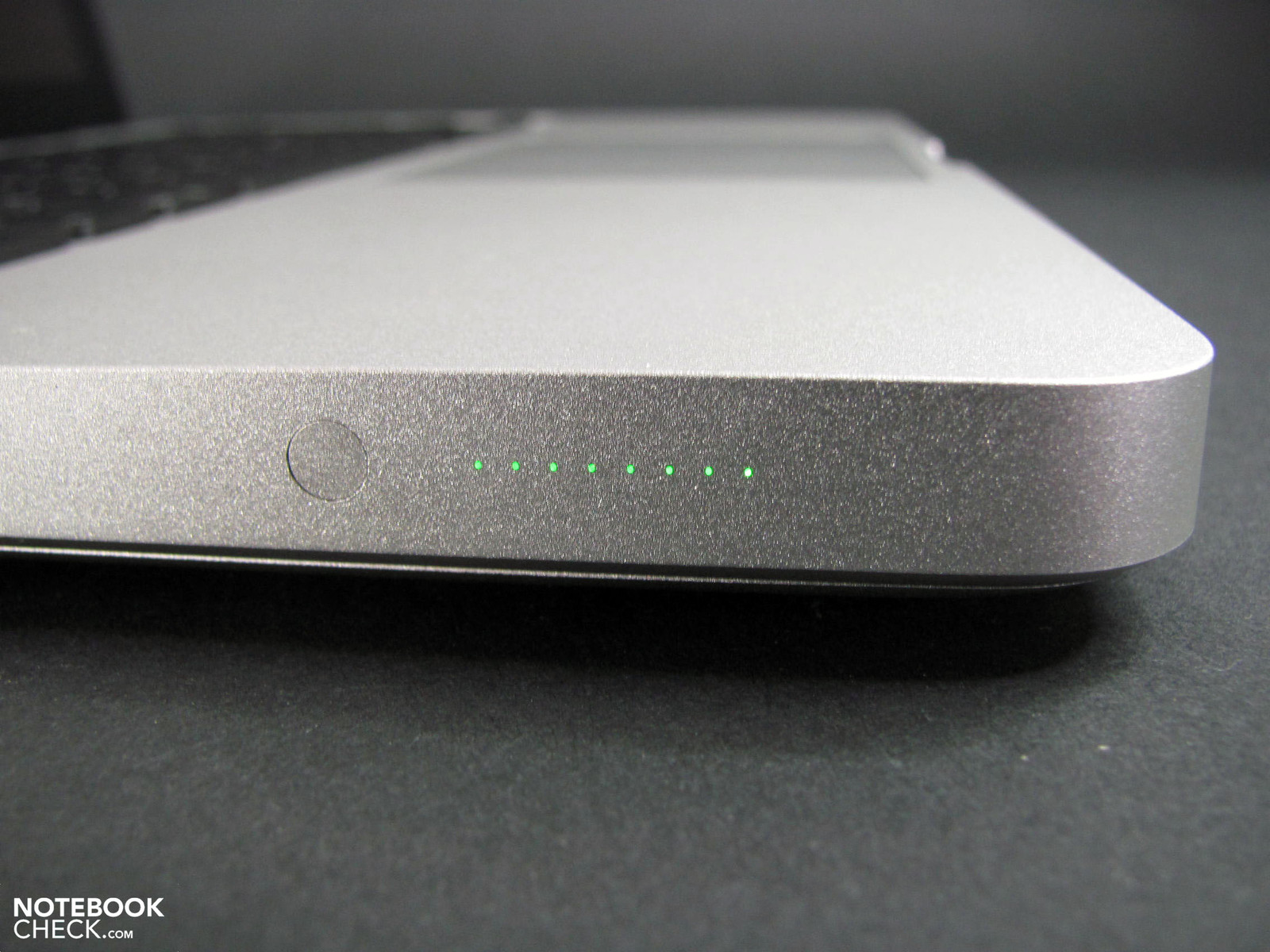

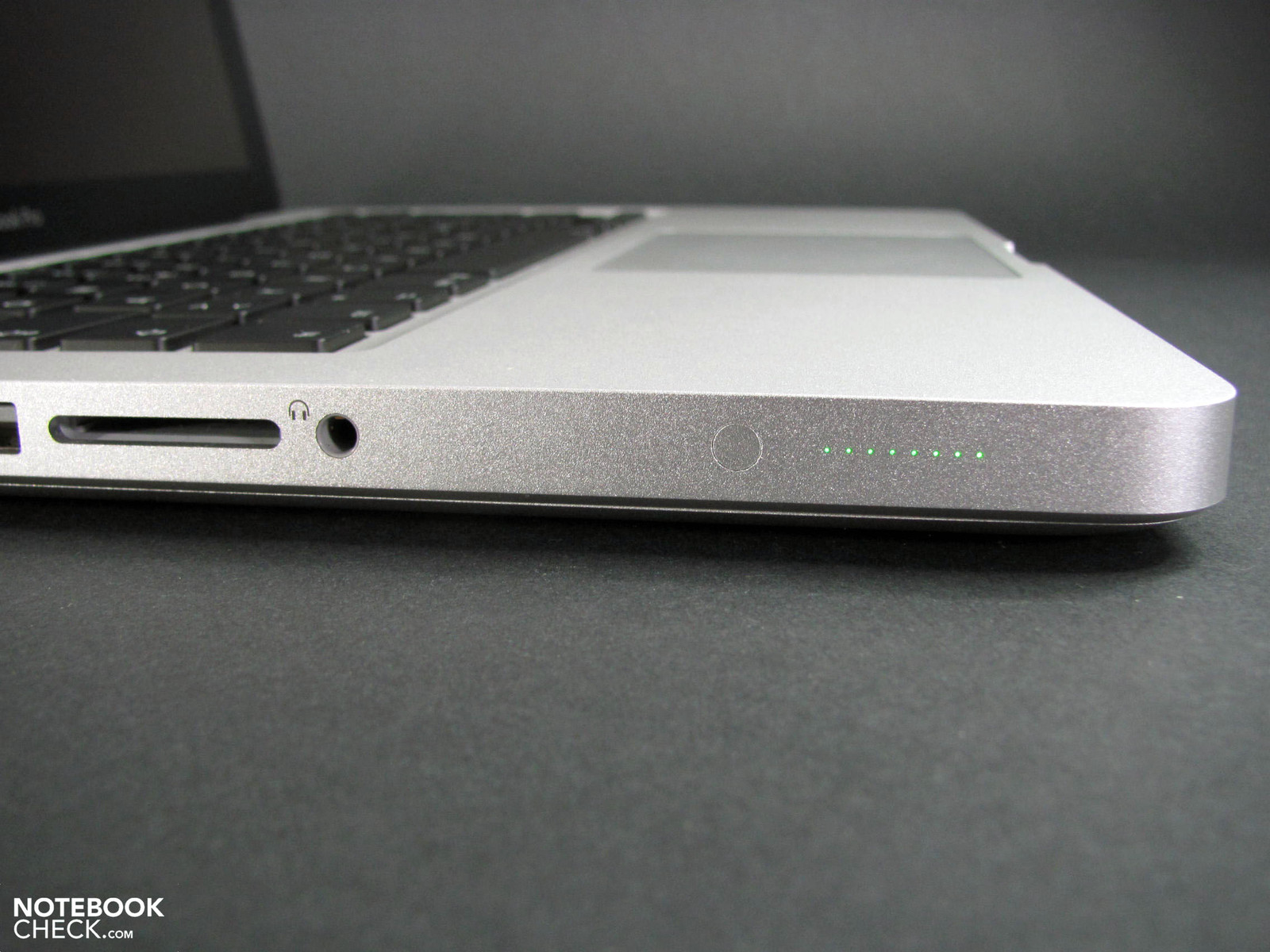

The level of battery charge is displayed on the case
The level of battery charge is displayed on the case
The display lid doesn't tilt back too far
The display lid doesn't tilt back too far
The display lid hinges hold it well in place
The display lid hinges hold it well in place

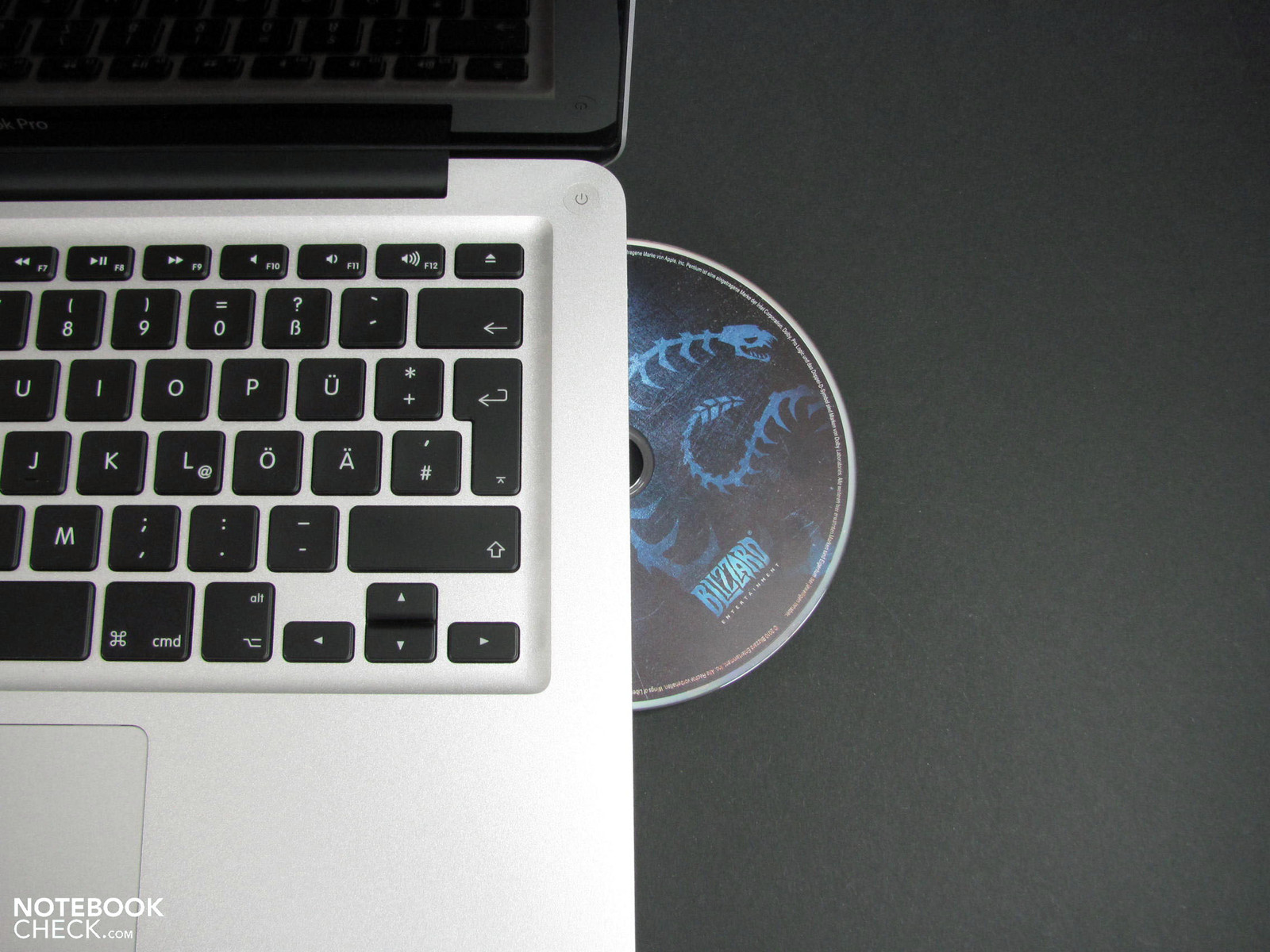

The slot-in DVD drive is convenient and quiet
The slot-in DVD drive is convenient and quiet
It gets crowded
It gets crowded

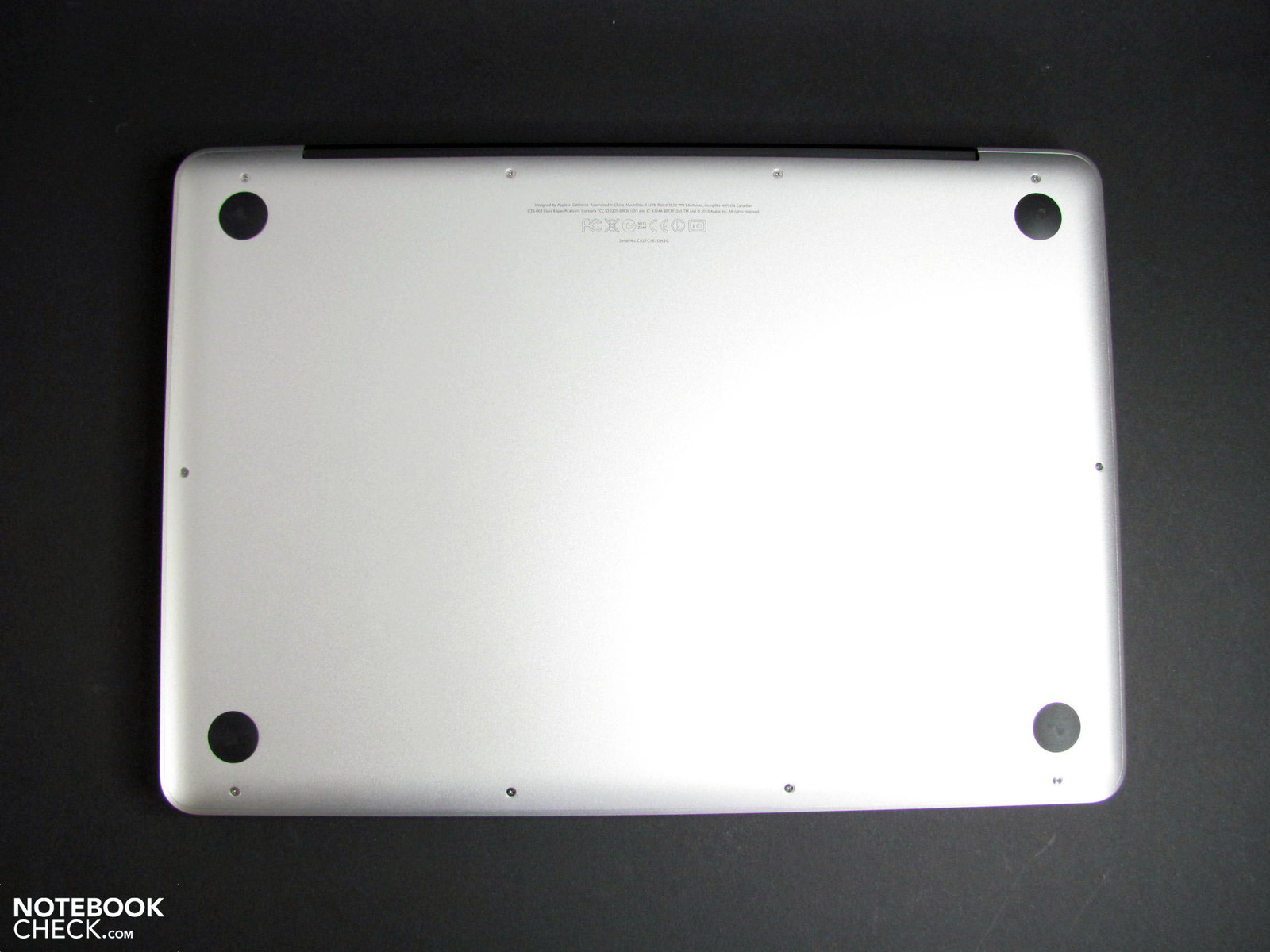

Non-slip rubber feet
Non-slip rubber feet

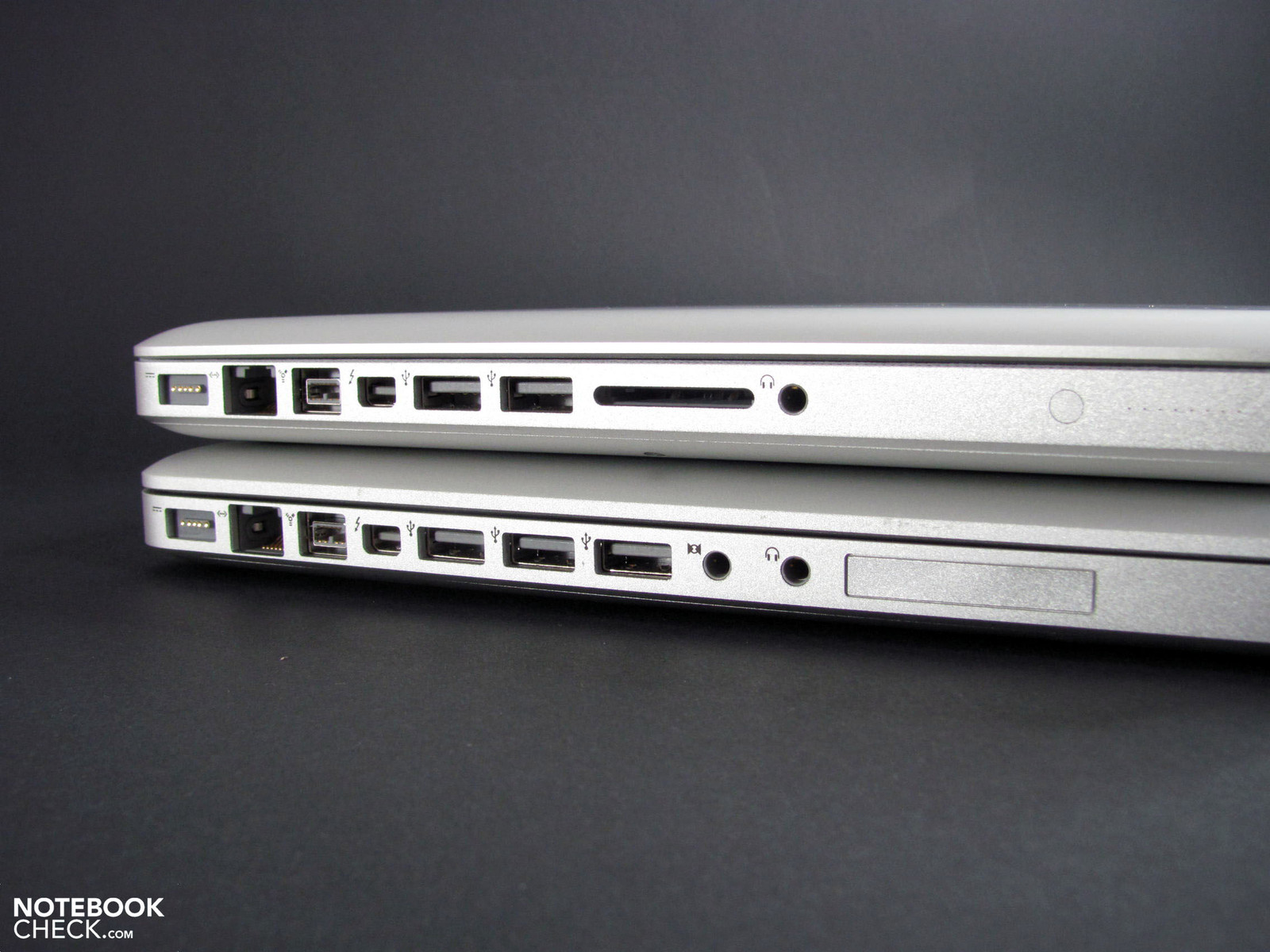

ExpressCard slot only available on the MBP 17
ExpressCard slot only available on the MBP 17

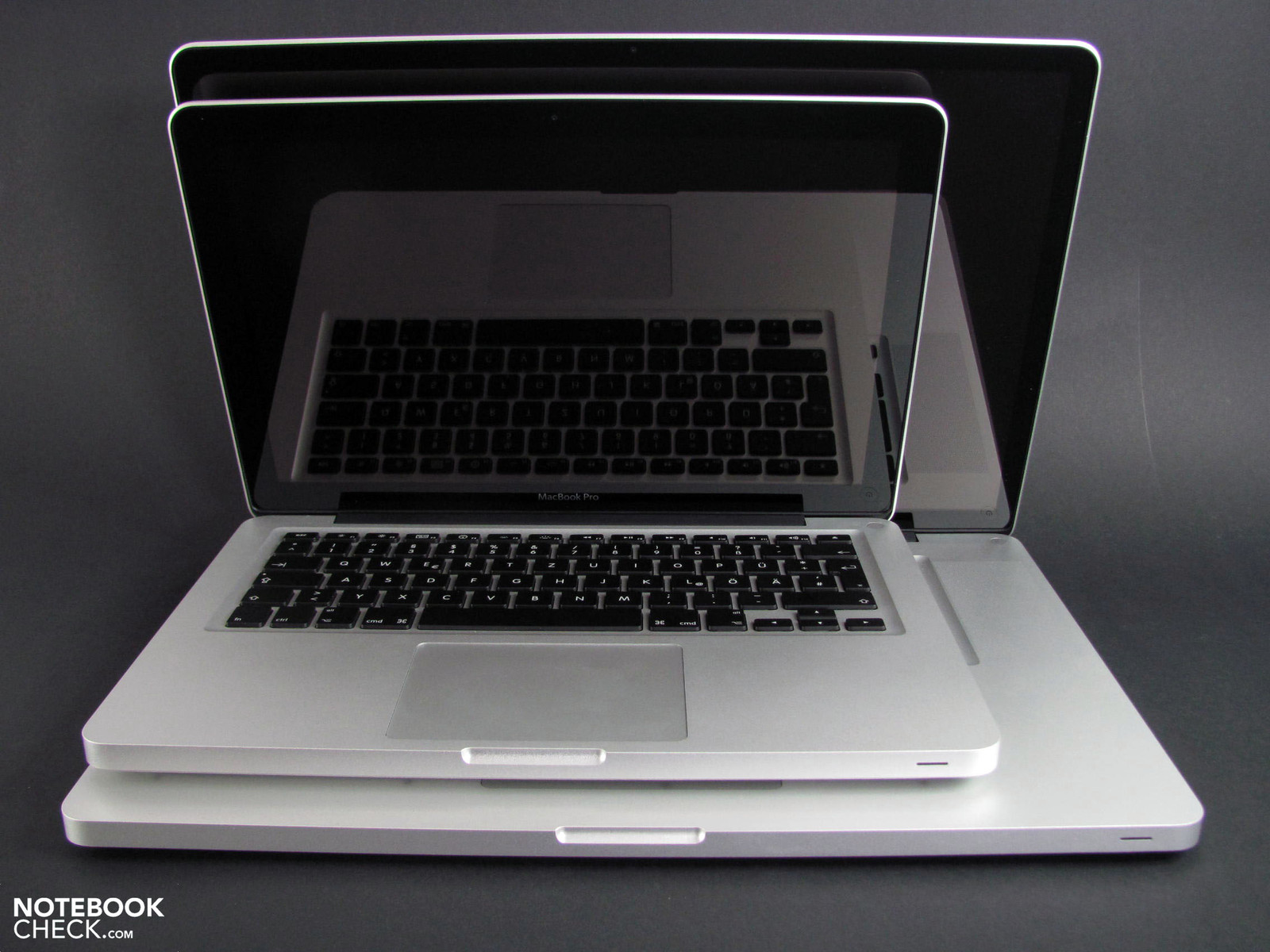

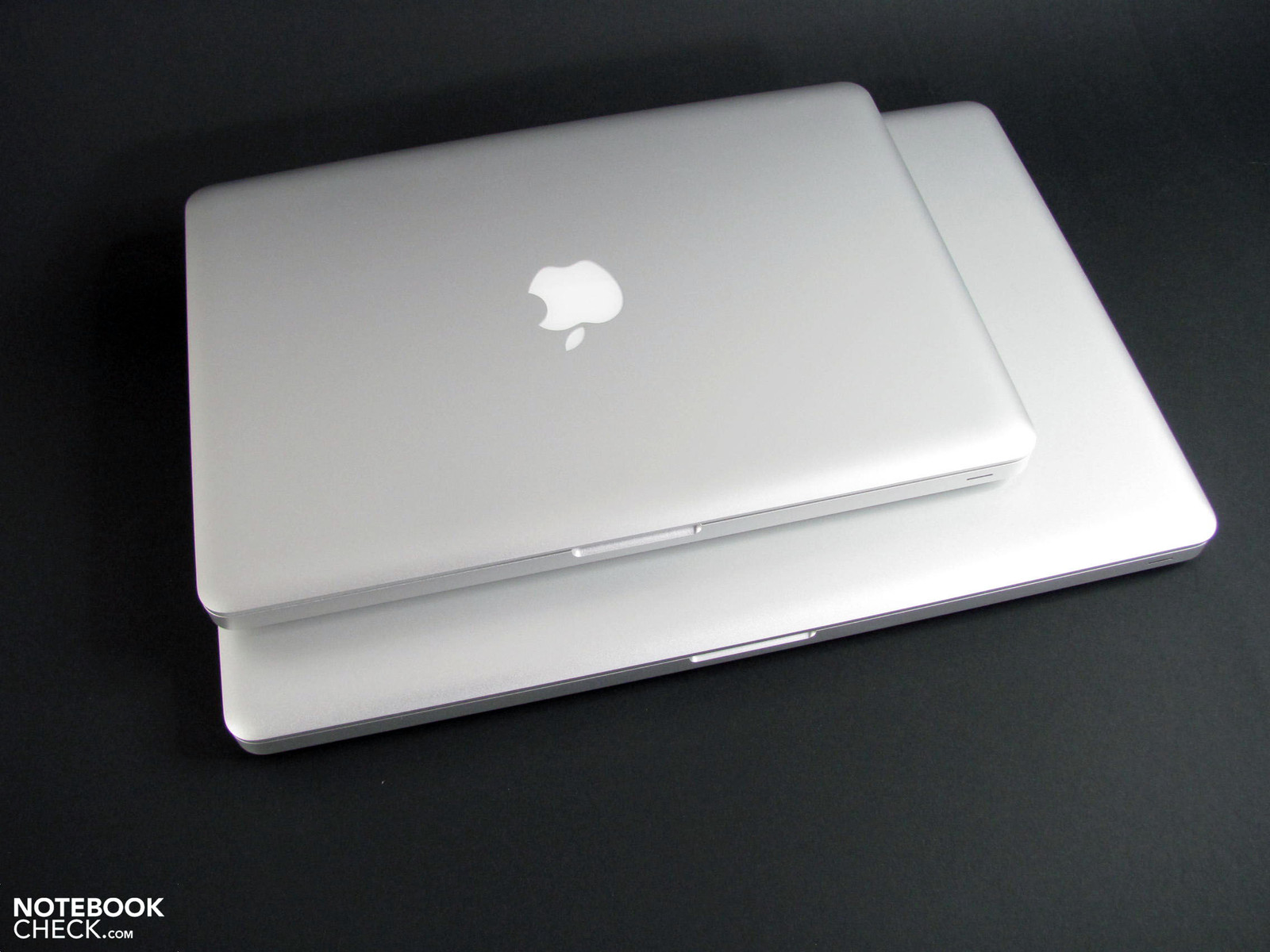

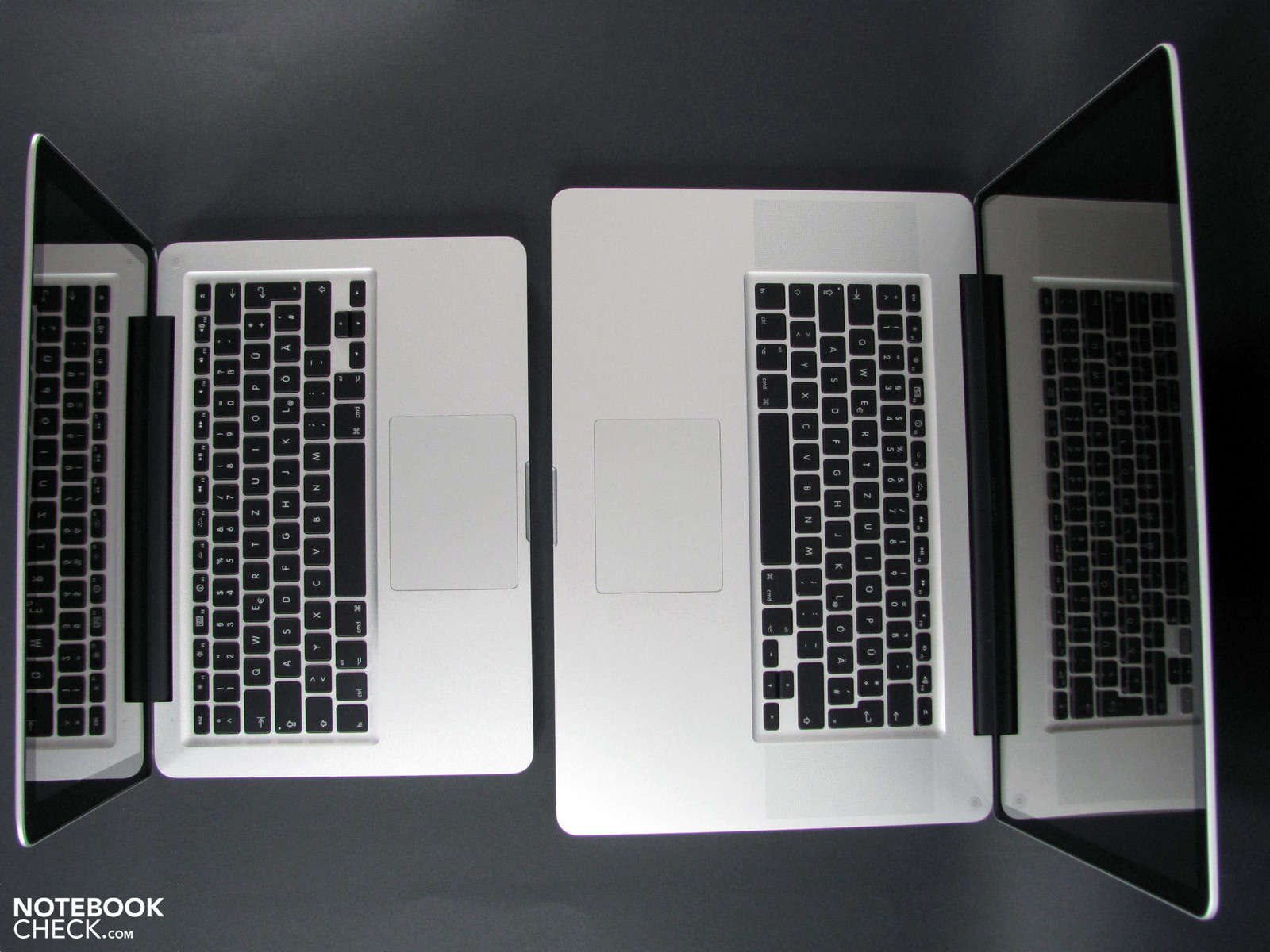

MBP13 on the inside, MBP 17 eating it
MBP13 on the inside, MBP 17 eating it

Similar Notebooks

Links

Compare Prices

Amazon.com

Show results on Amazon.com

Pricerunner n.a.

Pro

+Low System Noise Under Light Use
+Unibody Case
+Keyboard
+Bright, High-Contrast Display
+Color Space
+Performance
+Battery Life Under Light Use


Contra

-Few Ports
-Few Options
-Relatively Heavy
-Small Enter Button
-Loud Under Heavy Use
-CPU Clock Downsampled Under Very Heavy Use
-Reflective Screen
-Short Warranty

Shortcut

What we like

An overall well-rounded laptop with very high-quality case and excellent display

What we'd like to see

More ports and the option of a matte screen

What surprises us

How performance wildly differs under Windows and Mac OS

The competition

13" subnotebooks are available in various configurations.  Especially worth some consideration are the Samsungs 900X3A and the Asus U36JC
