Lenovo IdeaPad 710S Plus (Core i7) Subnotebook Review

Sven Kloevekorn (translated by Liala Stieglitz), 02/09/2017

Mobile multimedia. Stylish, compact, light, and versatile. Sounds good, doesn't it? While most subnotebooks live the life of an office machine, the multimedia-suitable 710S refresh allows playing an occasional game. Our test clarifies if the newcomer can tread in the big footsteps of its predecessor.

Working For Notebookcheck

Are you a loyal reader of notebookcheck? Are you a techie who knows how to write? Then join our Team!

Especially wanted:
German-English-Translator -
Details here
Review Editor -
Details here
News Editor - Details here





For the original German review, see here.

Lenovo's new IdeaPad 710S Plus-13IKB with a 13.3-inch screen diagonal is the Kaby Lake successor of the IdeaPad 710S tested in June 2016. It has to compete with the highly mobile office and multimedia laptops that are summarized in our subnotebook section. The compact, light and slim newcomer looks a lot like the Skylake-based predecessor. A fast Intel Core i7-7500U, supported by 8 GB of working memory is under the hood of the tested version. Data can be stored on a 512 GB SSD by Samsung. An IPS panel with Full HD resolution is again installed. However, the one here has a reflective surface. The IdeaPad 710S Plus primarily stands out from the masses with its dedicated Nvidia GeForce 940MX graphics card and its 2 GB of dedicated VRAM that promises conditional gaming suitability.

In addition to our 13IKB (80W30048GE) version, priced at 1299 Euros (~$1383, RRP), Lenovo's product website also lists the cheaper 80W30049GE model for 999 Euros (~$1063). It sports an i5-7200U and a 256-GB SSD but not a dedicated graphics card. Differences are not seen otherwise. Attentive readers will perhaps have noticed that Lenovo speaks of an anti-glare panel. This, however, does not match to what we are seeing here. Both versions were 100 Euros (~$106) cheaper in a major Berlin-based price comparison at test time.

We primarily focused on price and size while selecting comparison laptops for this test. The following subnotebooks will participate:

Acer's new Swift comes with a special feature: According to Acer, its height of not even 10 millimeters (~0.4 inches) makes it the presently thinnest laptop in the world.

Lenovo IdeaPad 710S Plus-13IKB (IdeaPad 710S Series)
Processor
Graphics adapter
NVIDIA GeForce 940MX - 2048 MB, Core: 1122 - 1242 MHz, Memory: 5000 MHz, GDDR5, ForceWare 369.15, Nvidia Optimus
Memory
8192 MB
, DDR4, 2134 MHz, single-channel, soldered, all memory banks filled
Display
13.3 inch 16:9, 1920x1080 pixel 166 PPI, LG Philips LP133WF4-SPB1 (LGD04EF), IPS, glossy: yes
Mainboard
Intel Kaby Lake-U Premium PCH
Storage
Samsung PM961 NVMe MZVLW512, 512 GB
Soundcard
Intel Kaby Lake-U/Y PCH - High Definition Audio
Connections
1 USB 2.0, 2 USB 3.0 / 3.1 Gen1, 1 DisplayPort, Audio Connections: combo audio in/out, 3.5-mm jack, Card Reader: SD/SDHC/SDXC, 1 Fingerprint Reader, Brightness Sensor
Networking
Atheros/Qualcomm QCA6174 (a/b/g/n/ac), Bluetooth 4.1
Size
height x width x depth (in mm): 14 x 307 x 214 ( = 0.55 x 12.09 x 8.43 in)
Battery
46 Wh Lithium-Polymer, 4 cells
Operating System
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: HD 720p (0.9 MP)
Additional features
Speakers: lower front, JBLStereo speakers with DolbyDAX2 certificate, Keyboard: chiclet, Keyboard Light: yes, 24 Months Warranty
Weight
1.1 kg ( = 38.8 oz / 2.43 pounds), Power Supply: 212 g ( = 7.48 oz / 0.47 pounds)
Price
1299 EUR



Case

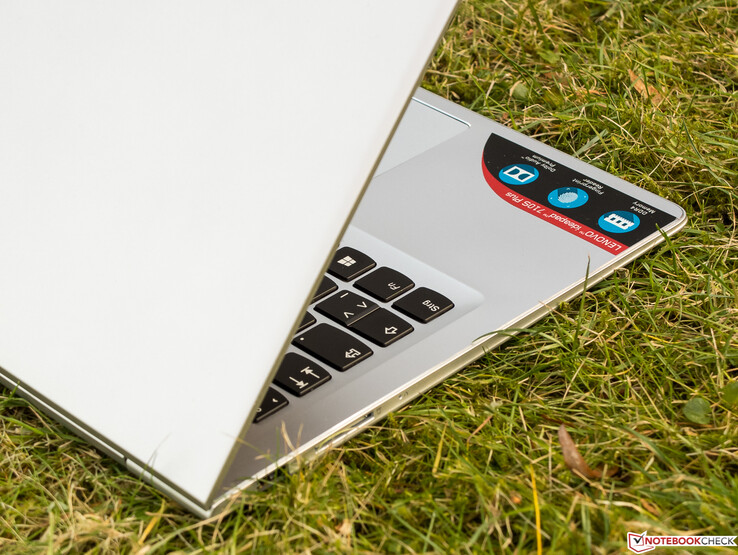

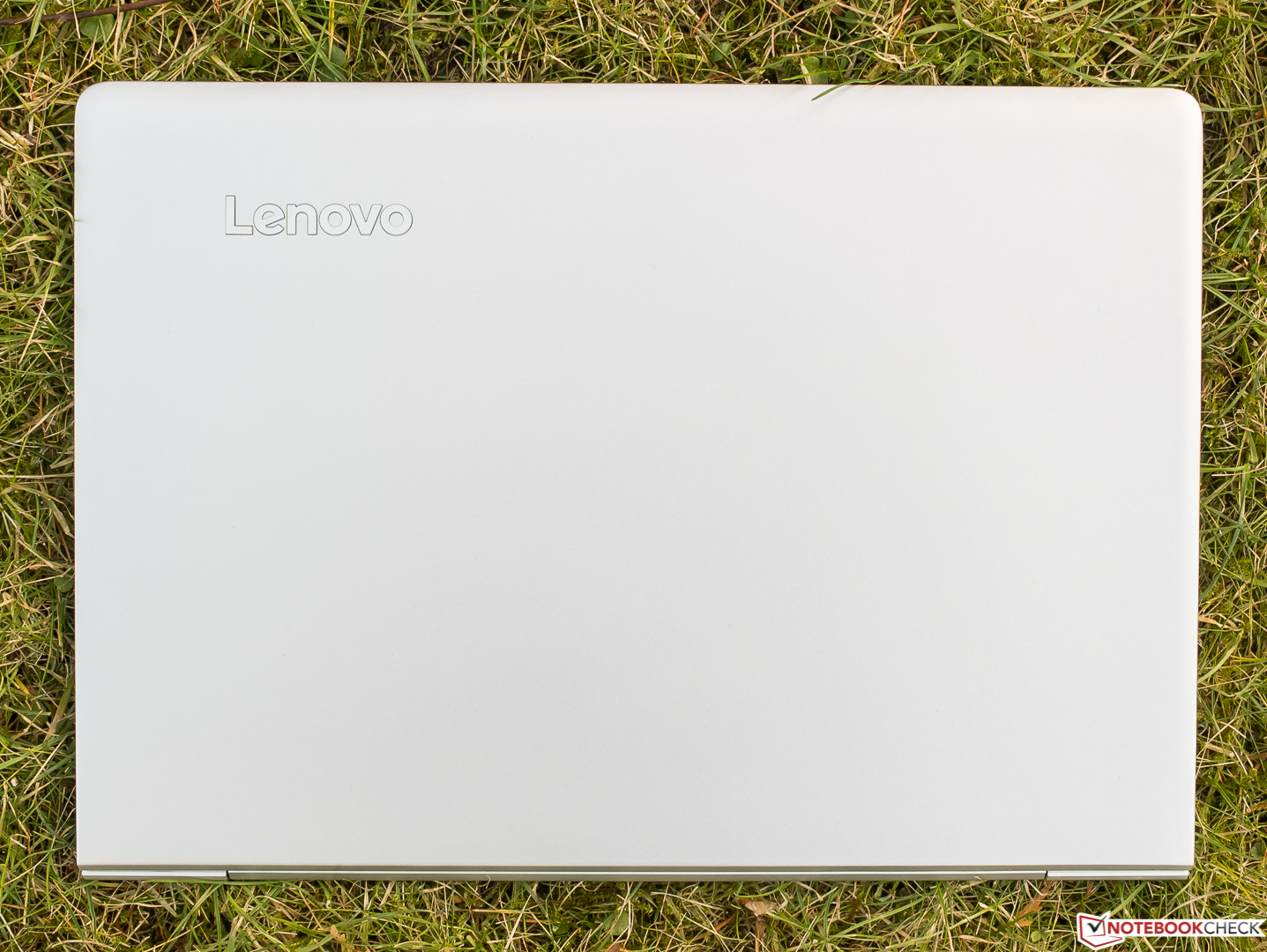

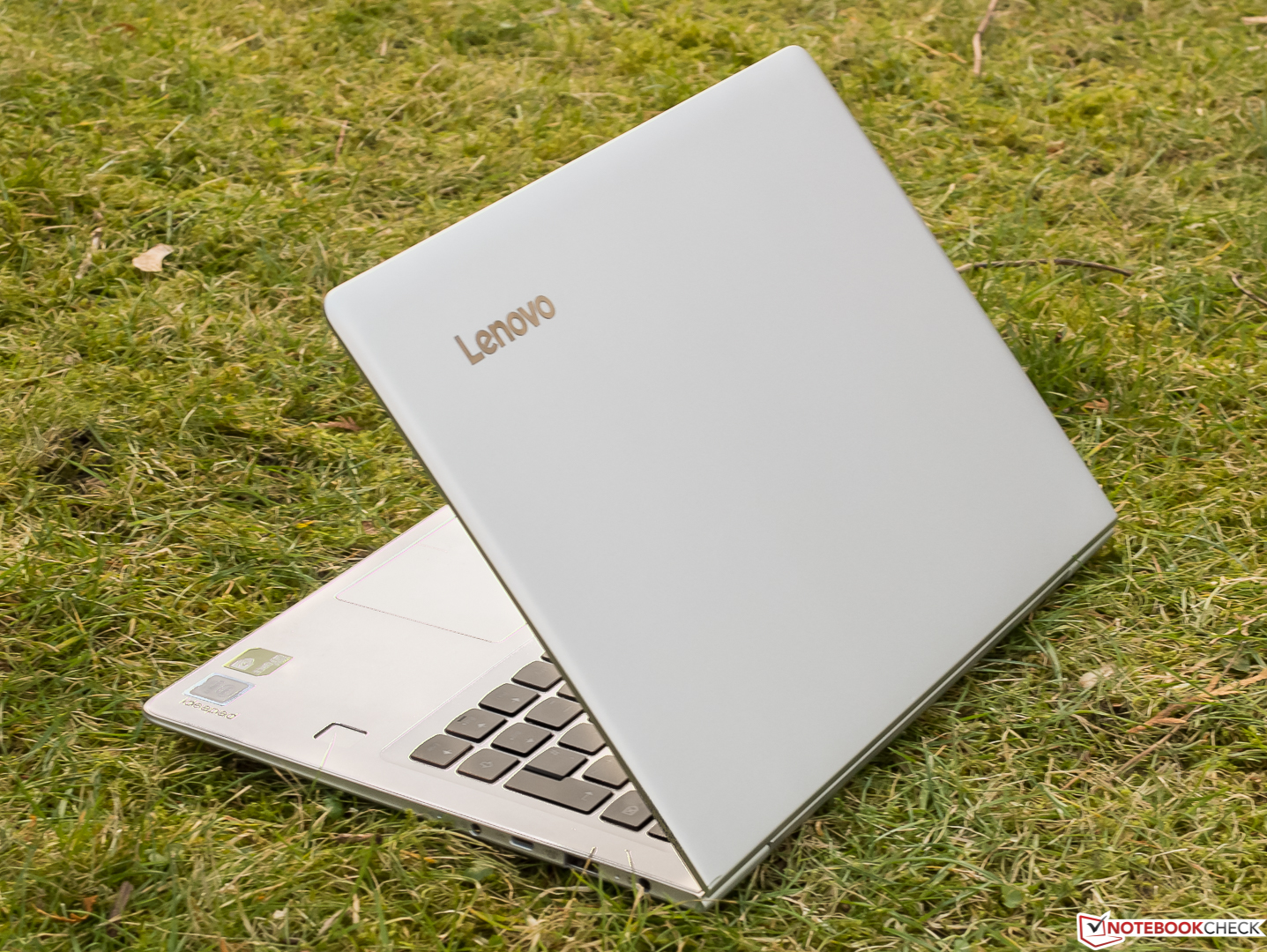

Apart from a few details, such as a fingerprint scanner and ports, Lenovo apparently has not changed much of anything at all compared with the very convincing predecessor - which is good news. Thus, it may be assumed that an aluminum-magnesium mix is again used as materials although Lenovo does not explicitly advertise this, which is somewhat unusual.

Since we have already pointed out that the design and surfaces follow those of the MacBook Air in the review of the 710S, we will directly jump to build and stability. We believe that the predecessor was a bit stiffer. It is nevertheless enough for a good subscore since twisting is only possible to a very limited degree, and it is then accompanied by only subtle noises. Lenovo has again done a good job with the build; only the gaps of the removable base plate exhibit marginal irregularities. Unfortunately, while slightly less stiff, the lid still requires two hands to open, which is the price paid to restrain annoying rocking.

We, of course, again give full points for the design in total, but some subscores of the other aspects will be reduced slightly.

Lenovo Ideapad 710S Plus
Lenovo Ideapad 710S Plus
Lenovo Ideapad 710S Plus
Lenovo Ideapad 710S Plus
Lenovo Ideapad 710S Plus
Lenovo Ideapad 710S Plus
Lenovo Ideapad 710S Plus
Lenovo Ideapad 710S Plus
Lenovo Ideapad 710S Plus

HP provides the most compact and lightest laptop in the test with its EliteBook Folio G1 (1.1 kg/~2.4 lb). Our Dell XPS 13 (1.2 kg/~2.6 lb) is not quite as deep but a bit wider. The width and depth of the approximately 1.1 kg review sample, which also has the biggest surface area following the especially slim Acer Swift 7, surpasses both laptops. Dell is the thickest, followed by Lenovo's IdeaPad, then HP's EliteBook, and finally Acer's Swift with a much bigger surface area than the other participants, which is likely the price for the extremely slim build.

Size Comparison

Connectivity

As is common for compact subnotebooks, not many interfaces are present. At least USB 3.1 Gen 1 Type-C has been installed. This port is also the only possibility for connecting external monitors providing a corresponding DisplayPort adapter is purchased. Thunderbolt 3 is absent.

Of the other two USB ports, it is the left-sided port that still operates in the 2.0 standard. Since the majority of users are right-handed, and the port is predestined for connecting an external mouse, the cable has to be routed around the laptop. Otherwise, the port positioning does not give reason for complaint; everything has been installed ergonomically into the back areas of the sides. The spacing between the ports is more than sufficient.

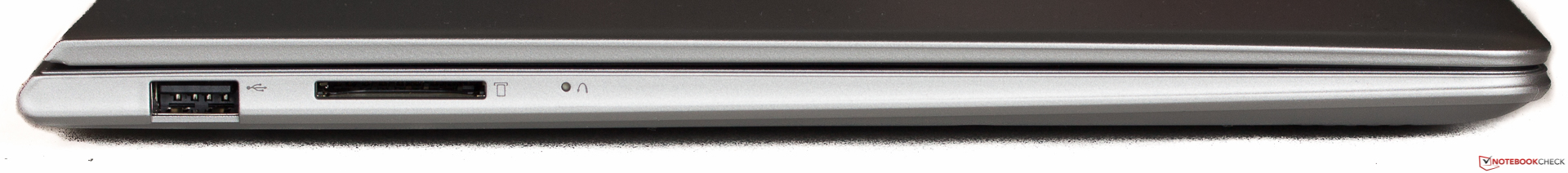

Left: USB 2.0 (always-on charging), SD card
Left: USB 2.0 (always-on charging), SD card

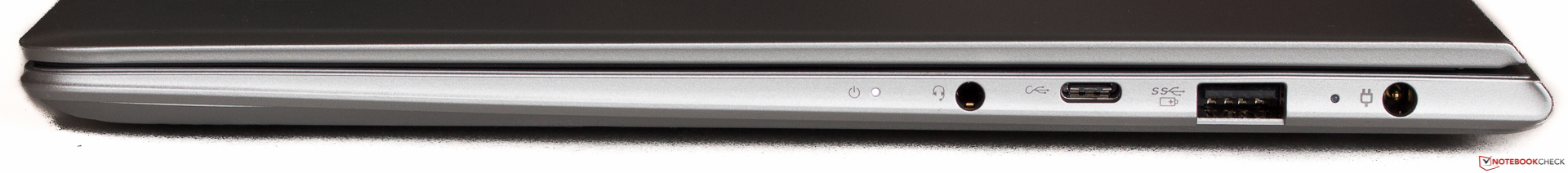

Right: Audio in/out, USB 3.1 Gen 1 Type-C, USB 3.0, power
Right: Audio in/out, USB 3.1 Gen 1 Type-C, USB 3.0, power

SD Card Reader

When just looking at laptops with card readers that are not slowed down by USB 2.0, Lenovo's IdeaPad 710 Plus achieves mediocre write and read speeds with our Toshiba Exceria Pro SDXC 64 GB UHS-II reference card. Dell, for example, proves that more is possible. The speed will hardly upset users who do not have to copy a 16-GB card to Lenovo's laptop every day.

SDCardreader Transfer Speed
average JPG Copy Test (av. of 3 runs)
Dell XPS 13 9360 FHD i5
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
107.8 MB/s ∼100% +58%
Lenovo IdeaPad 710S Plus-13IKB
68.1 MB/s ∼63%
maximum AS SSD Seq Read Test (1GB)
Dell XPS 13 9360 FHD i5
(Toshiba Exceria Pro SDXC 64 GB UHS-II)
250.6 MB/s ∼100% +185%
Lenovo IdeaPad 710S Plus-13IKB
88 MB/s ∼35%

Communication

Matching the mobility claim and the lack of cabled Ethernet, Lenovo relies on a MIMO 2x2 module named Qualcomm/Atheros QCA6174 (802.11 a/b/g/n/ac). It theoretically achieves a gross transmission rate of 867 MBit/s in the less frequented 5-GHz band and implements Bluetooth version 4.1. We are curious about how it will fare after the predecessor was a bit weak here.

Considering the unpreventable overhead, the transmit and receive rates of 600 MBit/s using the Linksys EA 8500 are very good. The Killer 1535 module (2x2) in Dell's laptop surpasses them slightly. Lenovo apparently does not have mobile wireless versions in its lineup.

Networking
iperf3 Client (receive) TCP 1 m 4M x10
Lenovo IdeaPad 710S Plus-13IKB
Atheros/Qualcomm QCA6174 (I210-T1)
608 MBit/s ∼100%
Dell XPS 13 9360 FHD i5
Killer Wireless-n/a/ac 1535 Wireless Network Adapter
525 MBit/s ∼86% -14%
iperf3 Client (transmit) TCP 1 m 4M x10
Lenovo IdeaPad 710S Plus-13IKB
Atheros/Qualcomm QCA6174 (I210-T1)
614 MBit/s ∼100%
Dell XPS 13 9360 FHD i5
Killer Wireless-n/a/ac 1535 Wireless Network Adapter
575 MBit/s ∼94% -6%

Security

The IdeaPad 710S Plus offers a TPM 2.0 chip, and a fast and reliable fingerprint scanner for security-conscious and mobile users.

Discussion

Accessories

A USB Type-C-to-DisplayPort adapter would only cost a few cents, but Lenovo does not include one. Thus, only the minimum in the form of the power supply and compulsory setup and safety instructions are in the box. We did not discover any special accessories for the 710S Plus on Lenovo's website.

Maintenance

The base plate fastened by ten Torx screws should be easy to remove and allow accessing most components. Since the review sample is a shop device, we did not remove the plate, which could lead to the loss of warranty and guaranty.

Warranty

Lenovo offers a 24-month bring-in manufacturer warranty with only twelve months on the battery. The warranty can be upgraded for a charge. Details can be found here for warranty conditions and statement of warranty. Of course, the two-year legal retailer warranty also applies.

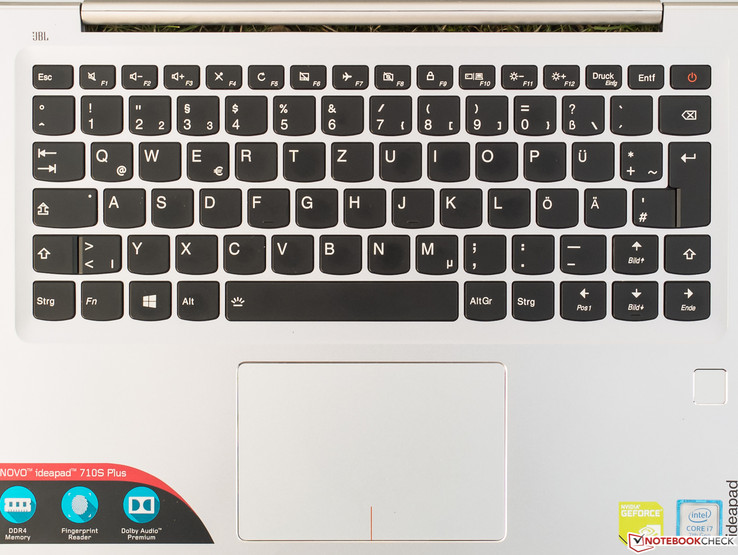

Input Devices

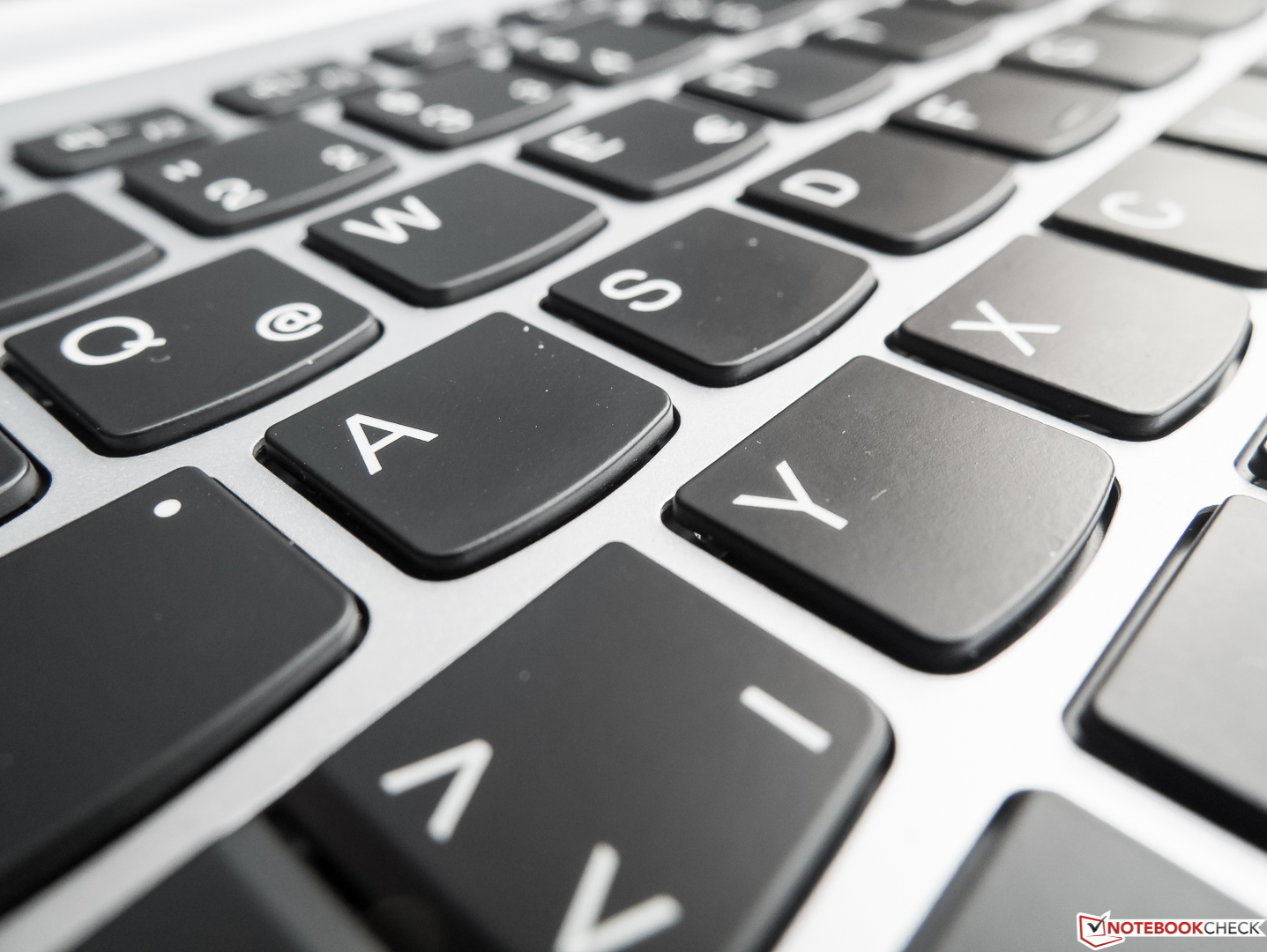

Keyboard

The slightly lowered keyboard has not been changed compared with the predecessor. Both the layout and its feel are the same. The black, flat, and slip-proof keys with well-legible lettering have a short drop, well-defined pressure point, and for the tester somewhat too spongy stroke. Besides some keys that are smaller than in standard desktop keyboards, such as CRTL or Enter, the layout does not present many oddities, such as the unusual positions of the keys INS or POS1, and the power button integrated into the keyboard's upper right. Although the key field is perhaps five millimeters narrower than that of a desktop keyboard, the size and spacing do not thwart touch typing.

Again, the build does not give reason for complaint. Like almost the entire upper side of the base, the keyboard can be dented slightly, but the force needed for this will not be applied in practice. The two-stage backlight has to be reproached a little as we would have appreciated a bit more homogeneity. Like the predecessor, the stroke noises of the Enter and especially the Space Bar in the IdeaPad 710S Plus is not suitable for noise-sensitive environments.

Touchpad

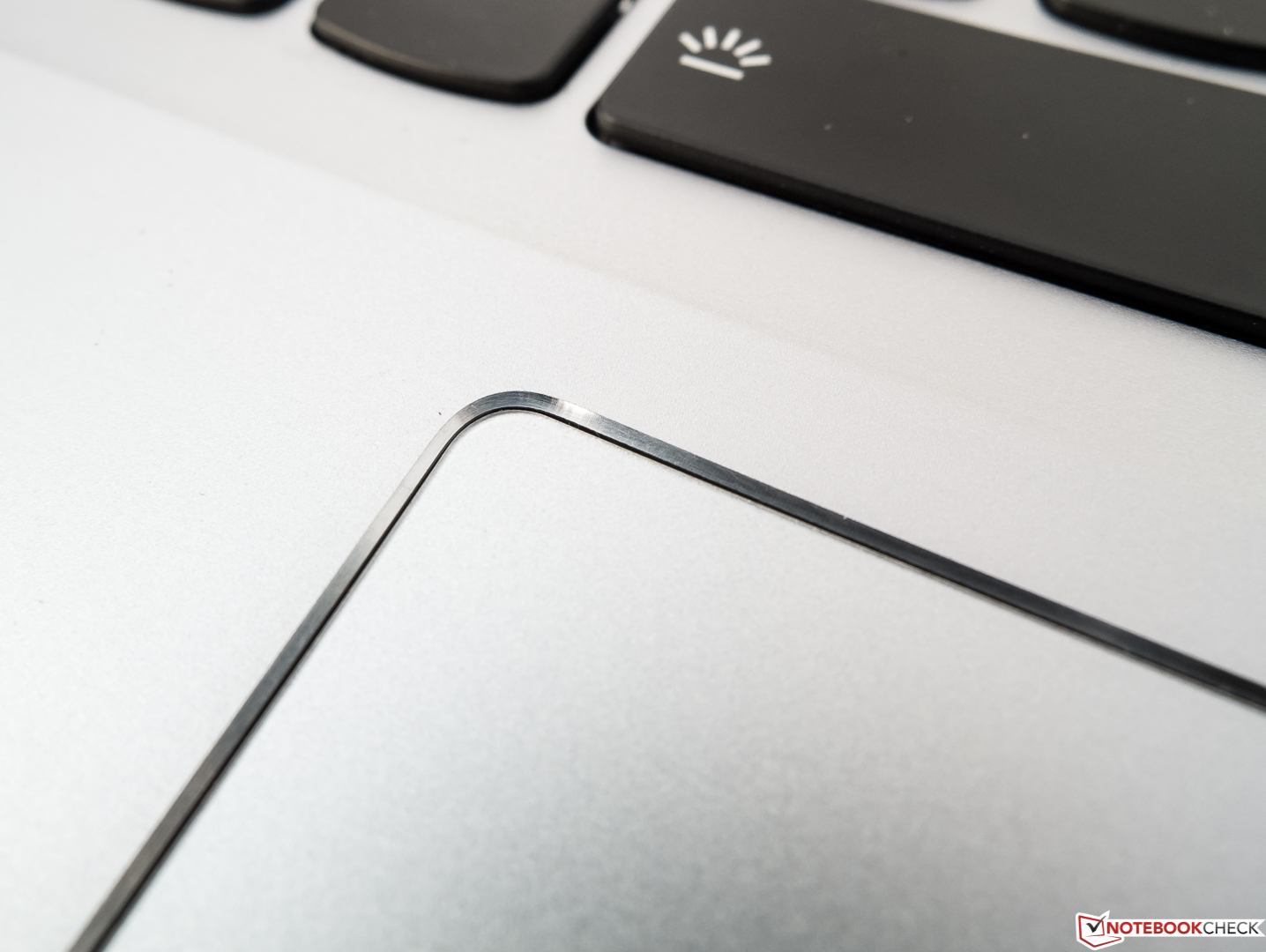

Lenovo has made a minor production error with the "key-less" ClickPad that at least looks identical with that of the predecessor. The pleasantly large surface is not inserted quite evenly everywhere, which could produce a clattering noise when touched (point deduction). Dry fingers glide smoothly over the sleek surface while moist ones sometimes encounter a bit too much resistance. In any case, the gliding properties make a better impression on the tester than the one in the predecessor, which we also considered in the rating.

The crisp replacement mouse keys with a short drop are beyond reproach thanks to pixel-accurate precision, impeccable responsiveness, and smooth implementation of drag & drop via double tapping.

Input devices
Input devices

Display

Subpixel grid
Subpixel grid

A glossy IPS panel with a resolution of 1920x1080 pixels (Full HD; 16:9) is installed. In view of the 13.3-inch screen size, a higher pixel density than 166 PPI would not have made sense. The image sharpness is impeccable. With its equally very good maximum brightness of 306 cd/m², the review sample only manages second place in the field, but the leading Acer Swift 7 is not much brighter. The determined illumination of 81% is below average. When looking at a relatively rich black image in a dark room, the surface makes a mostly homogeneous impression. However, visible backlight bleeding that is noticed in practical use can be seen especially in the lower left corner. Lenovo does not offer any alternative screens.

314
cd/m²
315
cd/m²
302
cd/m²
316
cd/m²
343
cd/m²
306
cd/m²
278
cd/m²
289
cd/m²
290
cd/m²
Distribution of brightness
X-Rite i1Pro 2
Maximum: 343 cd/m² Average: 305.9 cd/m² Minimum: 6.4 cd/m²
Brightness Distribution: 81 %
Center on Battery: 343 cd/m²
Contrast: 1143:1 (Black: 0.3 cd/m²)
ΔE Color 4.73 | - Ø
ΔE Greyscale 3.29 | - Ø
83% sRGB (Argyll) 54% AdobeRGB 1998 (Argyll)
Gamma: 2.36
Lenovo IdeaPad 710S Plus-13IKB
LG Philips LP133WF4-SPB1 (LGD04EF), , 1920x1080, 13.3
Acer Swift 7 SF713-51
Chimei Innolux, N133HCE-GP1, , 1920x1080, 13.3
HP EliteBook Folio G1 V1C37EA
AUO226D, , 1920x1080, 12.5
Dell XPS 13 9360 FHD i5
Sharp SHP1449 LQ133M1, , 1920x1080, 13.3
Response Times
19%
23%
7%
Response Time Grey 50% / Grey 80% *
45
31
31%
32
29%
32.8
27%
Response Time Black / White *
29
27
7%
24
17%
33.2
-14%
PWM Frequency
Screen
4%
-7%
-9%
Brightness
306
344
12%
298
-3%
325
6%
Brightness Distribution
81
92
14%
87
7%
89
10%
Black Level *
0.3
0.25
17%
0.27
10%
0.195
35%
Contrast
1143
1436
26%
1070
-6%
1801
58%
Colorchecker DeltaE2000 *
4.73
4.57
3%
4.82
-2%
7.4
-56%
Greyscale DeltaE2000 *
3.29
5.2
-58%
3.84
-17%
6.71
-104%
Gamma
2.36 102%
2.47 97%
2.41 100%
2.74 88%
CCT
6437 101%
6887 94%
6492 100%
7222 90%
Color Space (Percent of AdobeRGB 1998)
54
58
7%
42.03
-22%
50.48
-7%
Color Space (Percent of sRGB)
83
89
7%
64.8
-22%
73.31
-12%
Total Average (Program / Settings)
12% / 7%
8% / -1%
-1% / -6%

* ... smaller is better

The black level of 0.3 cd/m² is very satisfactory and, alongside the brightness, it results in a very good contrast ratio of 1143:1. Since the other screens in the test provide similar key specs, the contrast differences are kept within limits. Only Dell's XPS 13 can set itself apart clearly from the review sample thanks to its especially low black level and excellent contrast of 1801:1.

With feasibly low color shifts of DeltaE 5 (ColorChecker) and DeltaE 3 (Grayscale) in delivery state the IdeaPad just misses the threshold of serious image editing due to only 54% coverage in the large AdobeRGB color space (sRGB: 83%). This does not permit even halfway serious image editing. Then again, the low shift from the CCT value of 6500 K is good, and a color tint is absent. We very much liked the vivid yet not exaggerated colors of LG Philips's panel.

An ICC profile that we developed for perhaps slightly improving the color shifts and other things is linked in the box.

CalMAN Grayscale
CalMAN Grayscale
CalMAN ColorChecker
CalMAN ColorChecker
CalMAN Saturation Sweeps
CalMAN Saturation Sweeps

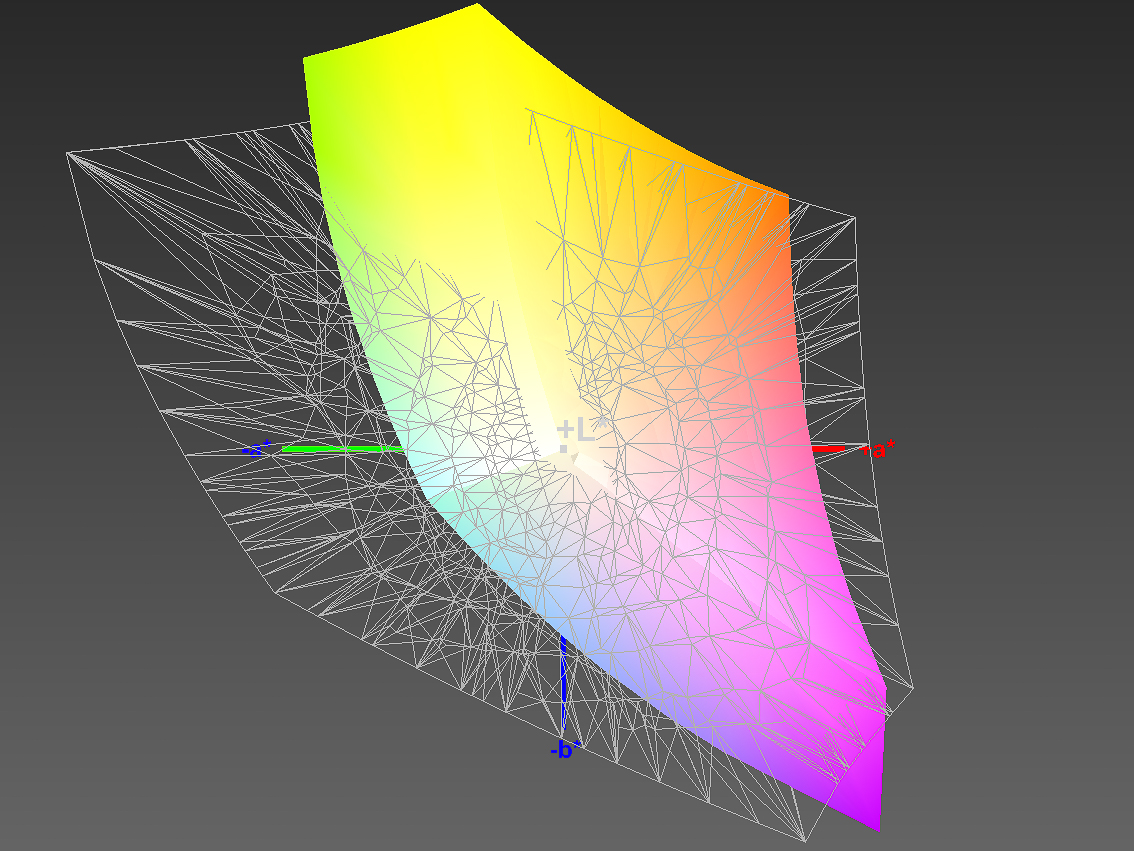

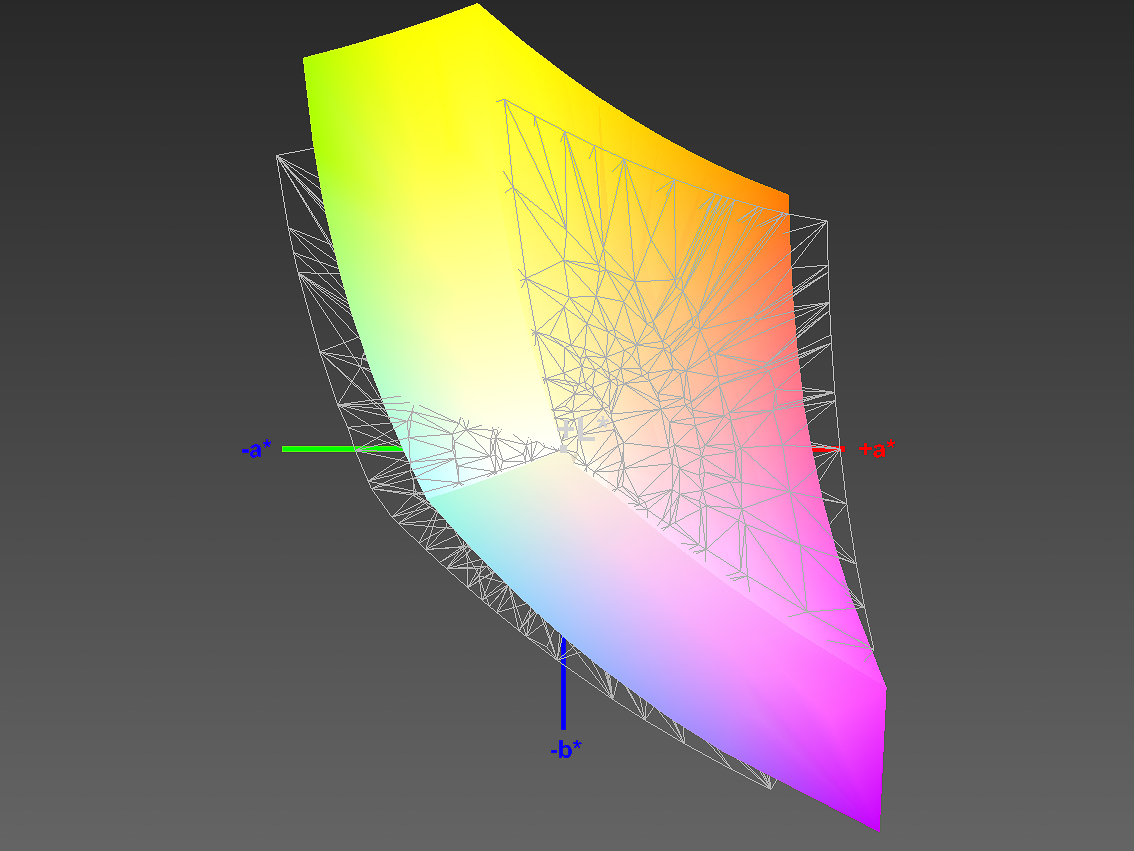

Lenovo Ideapad 710S Plus vs. AdobeRGB
Lenovo IdeaPad 710S Plus vs. AdobeRGB
Lenovo Ideapad 710S Plus vs. sRGB
Lenovo IdeaPad 710S Plus vs. sRGB

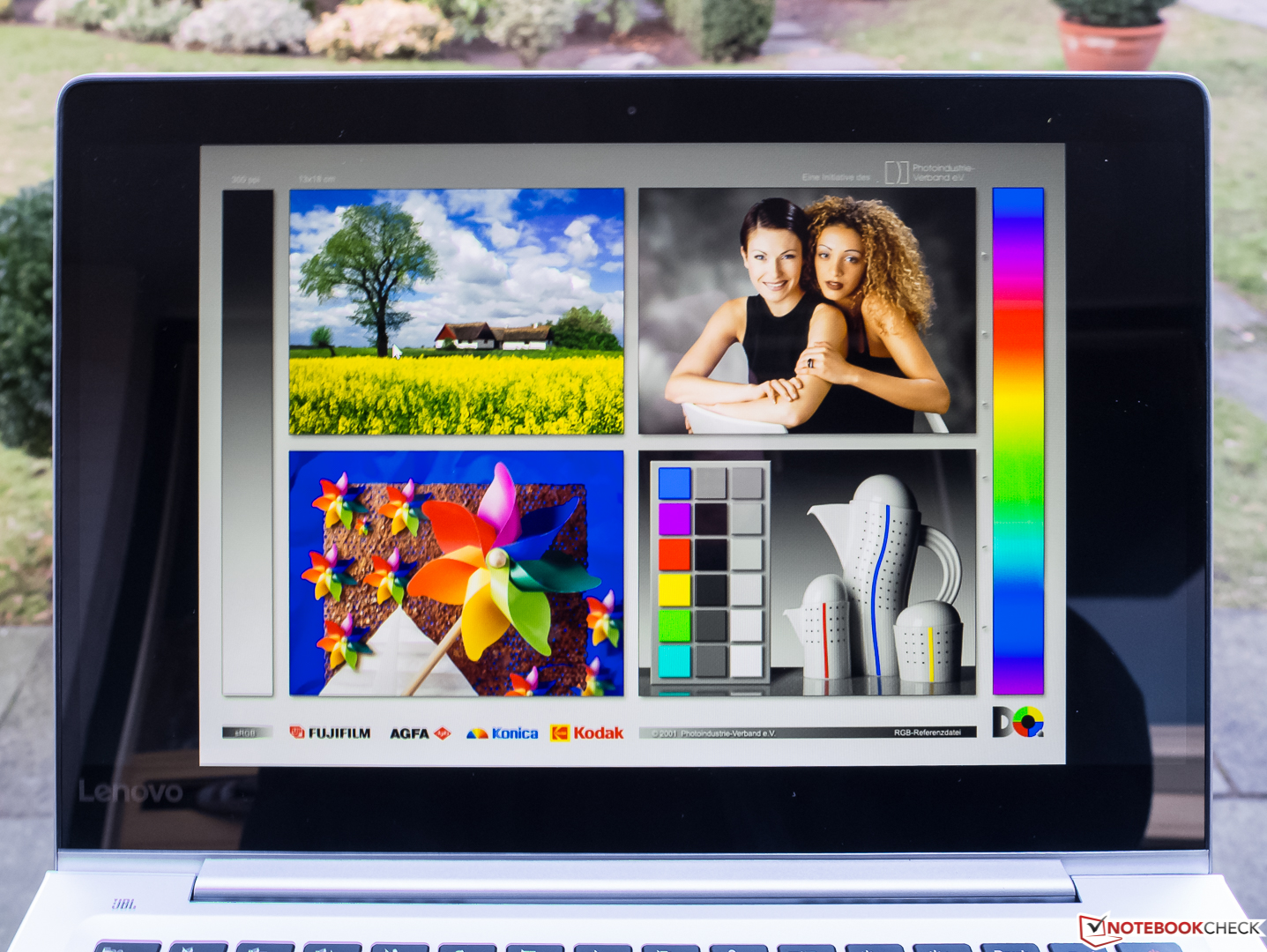

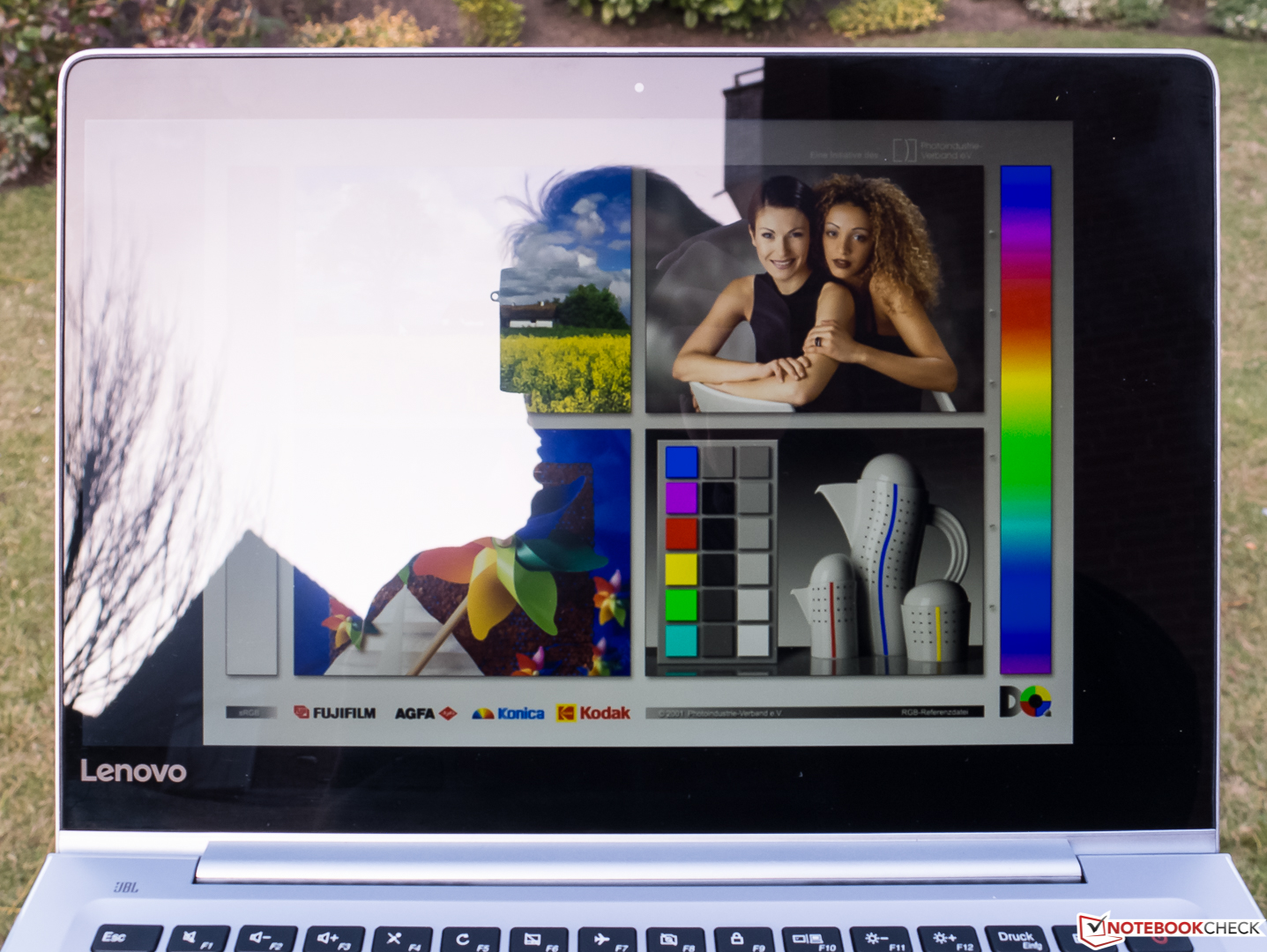

Outdoors
Outdoors
Outdoors
Outdoors

Anti-glare (as according to Lenovo's website) is not installed. The left screenshot shows that the user will have to make sure that no bright areas, such as the sky, will be reflected in the screen since nothing will be recognizable despite the very good brightness. Even keeping the door in the back (right screenshot) cannot completely prevent the omnipresent reflections, which will likely be even more prominent in the summer.

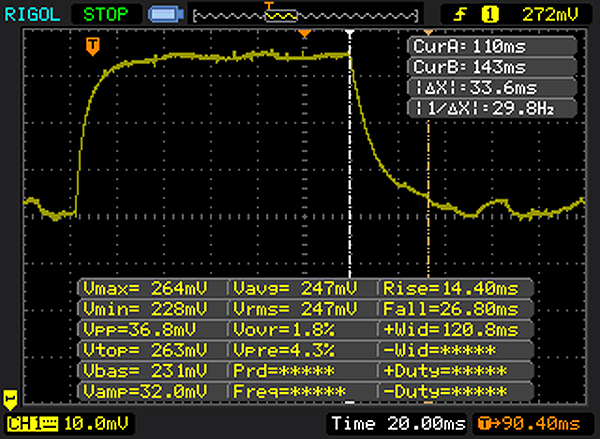

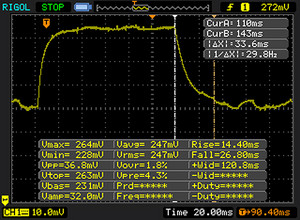

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

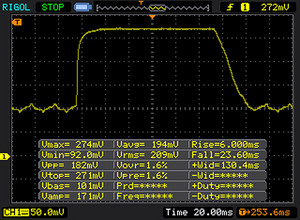

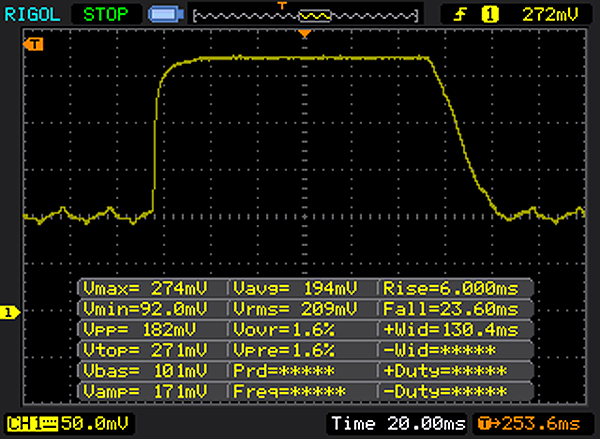

       Response Time Black to White
29 ms ... rise ↗ and fall ↘ combined↗ 6 ms rise
↘ 23 ms fall
The screen shows relatively slow response rates in our tests and may be too slow for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 66 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (27.3 ms).
       Response Time 50% Grey to 80% Grey
45 ms ... rise ↗ and fall ↘ combined↗ 12 ms rise
↘ 33 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.9 (minimum) to 636 (maximum) ms. » 64 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (44.3 ms).

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 60 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 965 (minimum: 43 - maximum: 30860) Hz was measured.

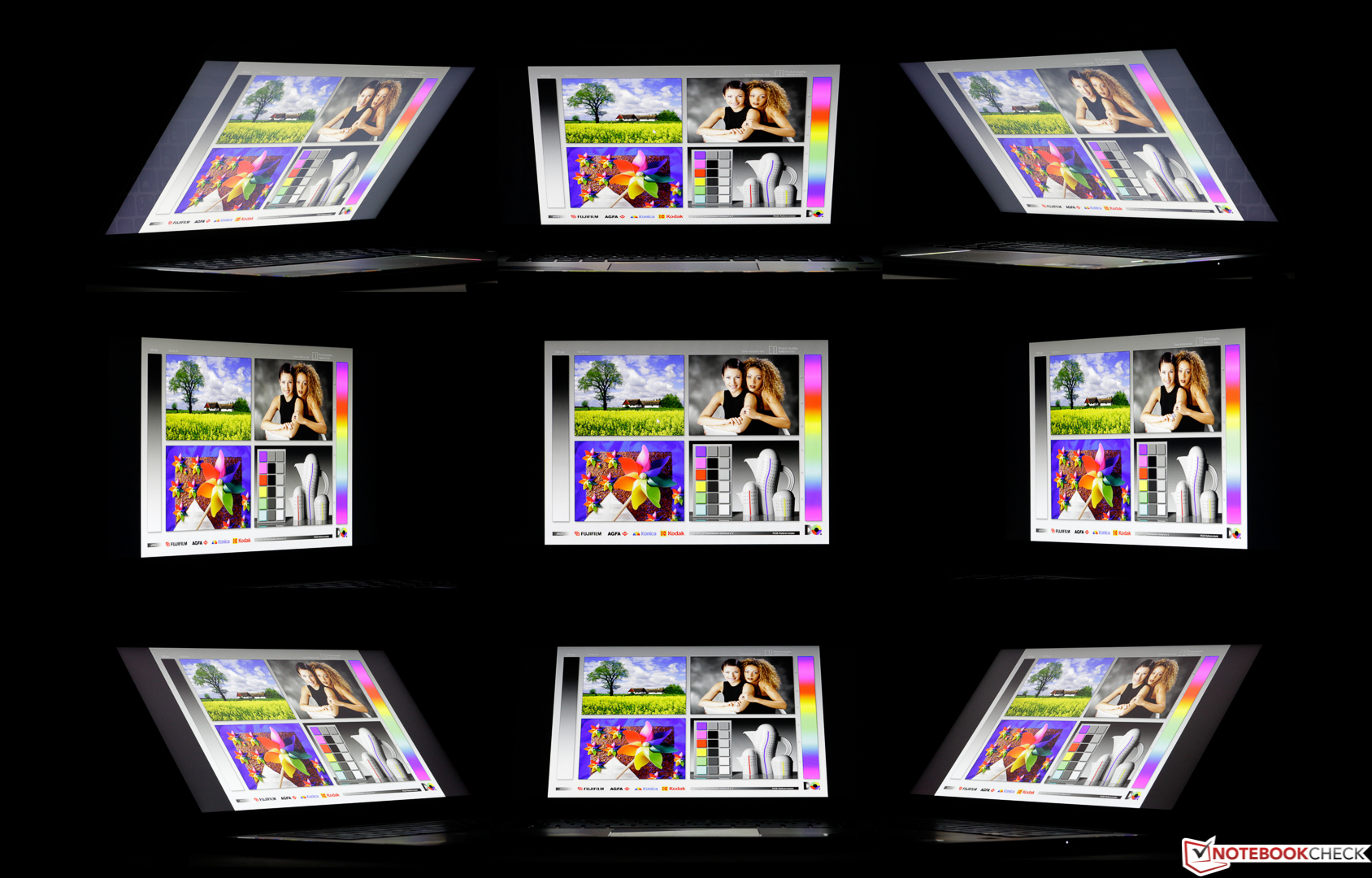

Every IPS panel is superior to any TN screen in terms of viewing angles. However, the quality differs within the technology. The screen in the review sample does a good job, but it does not stand out from the masses of IPS competitors. Thus, a moderate brightness and contrast loss are especially noticed from the sides in very flat angles of 45° and more. Colors do not shift. This did not annoy the tester at all.

Viewing angles
Viewing angles

Performance

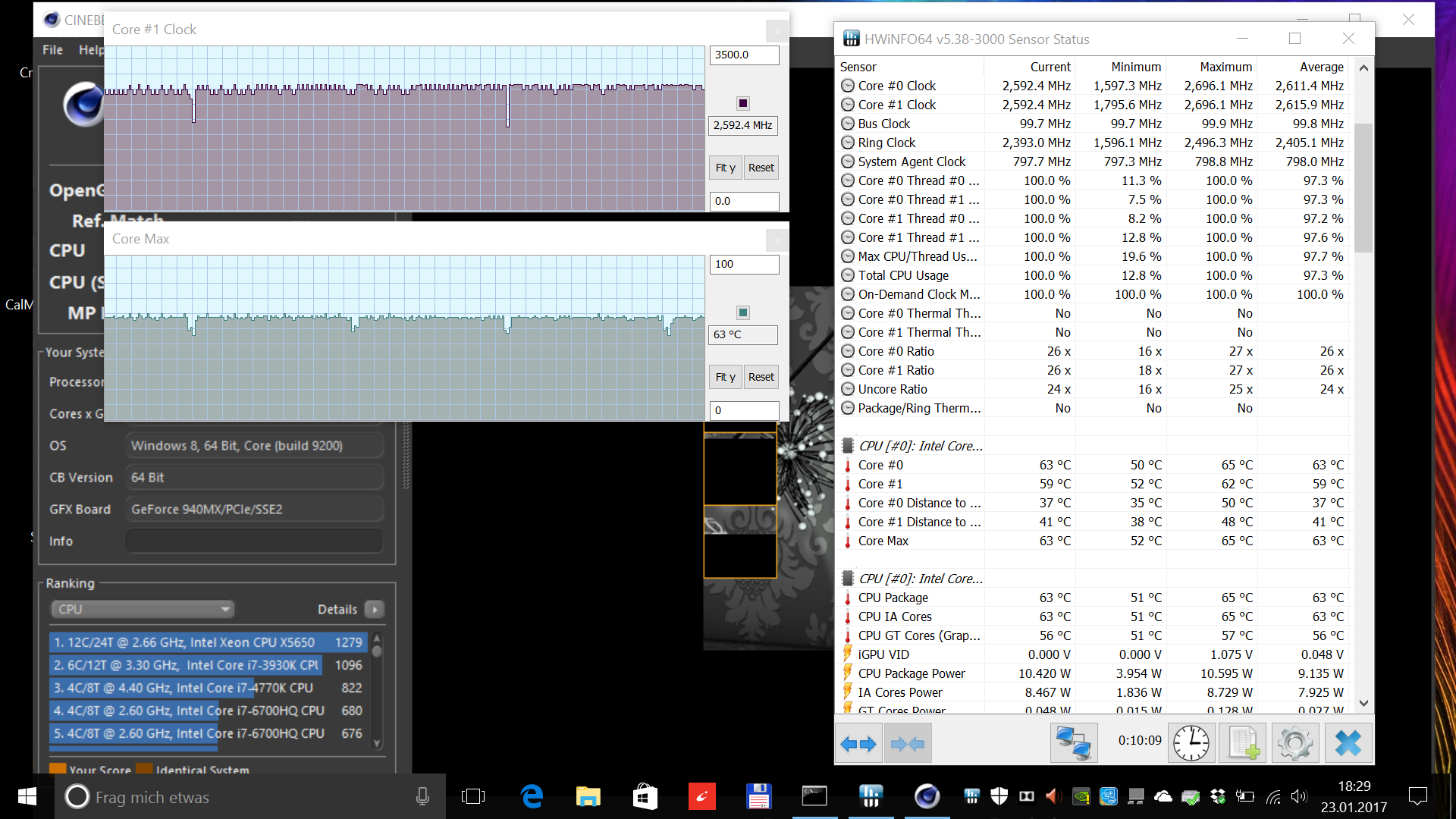

Clock rates: Cinebench loop
Clock rates: Cinebench loop

Processor

Kaby Lake everywhere we look - even Lenovo furnishes its new laptops with Intel's new processor generation, and has opted for the fast Intel Core i7-7500U ULV dual-core CPU (2x 2.7-3.5 GHz, Hyperthreading, TDP: 15 W), which still cost almost 400 US Dollars last summer. We mention this because the card in the review sample did not surpass the level of an approximately 100 Euros cheaper i5-7200U in the Cinebench R15 and 3DMark CPU tests. We have dedicated an article to the i7-7500U that calculates much faster in other laptops, and thus we will not go in-depth about it here.

As the right screenshot illustrates, the CPU's Turbo utilization does not look ideal in our Cinebench loop. Despite uncritical core temperatures of 65 °C (149 °F) and lower, the clock rates remain at around 2.6 GHz; the average was below the specified base rate after 10 minutes (including breaks). The clock rates fulfill the expectations we have on the i5-7200U with similar architecture, which also fits well to the benchmark outcomes. We generally, and independent of this, recommend the cheaper 710 Plus model when the dedicated graphics card that is only offered with the Core i7 is not needed. The Cinebench multi-score does not change in battery mode.


Cinebench R15
CPU Single 64Bit
Acer Swift 5 SF514-51-59AV
Intel Core i5-7200U
128 Points ∼66% +16%
Dell XPS 13 9360 FHD i5
Intel Core i5-7200U
124 Points ∼64% +13%
HP EliteBook Folio G1 V1C37EA
Intel Core m5-6Y54
111 Points ∼57% +1%
Acer Swift 7 SF713-51
Intel Core i5-7Y54
111 Points ∼57% +1%
Lenovo IdeaPad 710S Plus-13IKB
Intel Core i7-7500U
110 Points ∼57%
CPU Multi 64Bit
Acer Swift 5 SF514-51-59AV
Intel Core i5-7200U
320 Points ∼17% +9%
Dell XPS 13 9360 FHD i5
Intel Core i5-7200U
318 Points ∼17% +9%
Lenovo IdeaPad 710S Plus-13IKB
Intel Core i7-7500U
293 Points ∼16%
HP EliteBook Folio G1 V1C37EA
Intel Core m5-6Y54
250 Points ∼13% -15%
Acer Swift 7 SF713-51
Intel Core i5-7Y54
207 Points ∼11% -29%
Cinebench R15 CPU Single 64Bit
110 Points
Cinebench R15 CPU Multi 64Bit
293 Points
Help

System Performance

Extreme multitasking and using heavy-duty software, such as Adobe Lightroom, are no challenge for Lenovo's IdeaPad 710S. The dual-core furnished with 8 GB of DDR4 single-channel RAM, of course, finds its limits in highly parallelized software used in many up-to-date games that clearly benefit from four or more physical cores. The tester was pleased with the smoothly running system and, thanks to the SSD, fast launching of the OS and programs.

Although Dell's XPS 13 only sports an integrated graphics processor, the nominally slower i5-7200U, an overall weaker SSD, and a lower clocked RAM, it has a slight edge on the review sample in PCMark 8. The fact that Dell's device operates with two memory channels is not enough reason for this phenomenon. In total, all four laptops are very close on a high level, and the subjective differences should be kept within tight limits.

PCMark 8
Work Score Accelerated v2
Dell XPS 13 9360 FHD i5
HD Graphics 620, 7200U, Toshiba NVMe THNSN5256GPUK
4568 Points ∼70% +9%
Lenovo IdeaPad 710S Plus-13IKB
GeForce 940MX, 7500U, Samsung PM961 NVMe MZVLW512
4184 Points ∼64%
HP EliteBook Folio G1 V1C37EA
HD Graphics 515, 6Y54, Samsung SM951 MZVPV256 m.2
4146 Points ∼64% -1%
Home Score Accelerated v2
Dell XPS 13 9360 FHD i5
HD Graphics 620, 7200U, Toshiba NVMe THNSN5256GPUK
3535 Points ∼59% +12%
Lenovo IdeaPad 710S Plus-13IKB
GeForce 940MX, 7500U, Samsung PM961 NVMe MZVLW512
3147 Points ∼53%
Acer Swift 7 SF713-51
HD Graphics 615, 7Y54, Kingston RBU-SNS4180S3256GG
3064 Points ∼51% -3%
HP EliteBook Folio G1 V1C37EA
HD Graphics 515, 6Y54, Samsung SM951 MZVPV256 m.2
3037 Points ∼51% -3%
PCMark 8 Home Score Accelerated v2
3147 points
PCMark 8 Work Score Accelerated v2
4184 points
Help

Storage Device

Although we now have some even faster SSDs in our database, we can keep things short here: The PM961 NVMe SSD with a capacity of 512 GB by Samsung achieves superb outcomes in all important single tests. 54.8 MB/s is an excellent rate in the 4K read performance, which is particularly important for launching the operating system and programs, and only few SSDs surpass this.

The AS SSD benchmark is not listed due to compatibility issues. Of the other SSDs in the test, HP's EliteBook Folio G1 can keep up to the 710S Plus the best. However, as always in practice: the main thing is having an SSD.

Lenovo IdeaPad 710S Plus-13IKB
Samsung PM961 NVMe MZVLW512
Acer Swift 7 SF713-51
Kingston RBU-SNS4180S3256GG
HP EliteBook Folio G1 V1C37EA
Samsung SM951 MZVPV256 m.2
Dell XPS 13 9360 FHD i5
Toshiba NVMe THNSN5256GPUK
CrystalDiskMark 3.0
-48%
-6%
-27%
Write 4k QD32
321.4
325.6
1%
292.1
-9%
218.3
-32%
Read 4k QD32
407.5
329.4
-19%
464
14%
479.2
18%
Write 4k
121.5
76.07
-37%
100.7
-17%
116.9
-4%
Read 4k
54.75
36.62
-33%
46.96
-14%
29.31
-46%
Write 512
1244
313.6
-75%
1220
-2%
439.9
-65%
Read 512
1165
283.7
-76%
1191
2%
1036
-11%
Write Seq
1472
401
-73%
1232
-16%
732.6
-50%
Read Seq
1577
431.2
-73%
1482
-6%
1233
-22%
Samsung PM961 NVMe MZVLW512
Sequential Read: 1577 MB/s
Sequential Write: 1472 MB/s
512K Read: 1165 MB/s
512K Write: 1244 MB/s
4K Read: 54.75 MB/s
4K Write: 121.5 MB/s
4K QD32 Read: 407.5 MB/s
4K QD32 Write: 321.4 MB/s

Graphics Card

Like its direct Nvidia GeForce 840M and 940M predecessors, the installed GeForce 940MX graphics card is developing to be a basic card used in many laptop models. The mid-range graphics card relies on 2 GB of dedicated GDDR5 VRAM, which is connected via a narrow 64-bit memory interface. The 940MX is often accompanied by the slower DDR3 RAM. To make things even more complicated, Nvidia apparently also offers the GDDR5 model with 512 (GM107 chip) instead of 384 (GM108) Shaders and a lower clock rate. This is normally 1083-1189 MHz (Turbo), but the manufacturer limits it to 954-993 MHz in the review sample. More information about the GeForce 940MX can be found following the corresponding links.

Compared with other 940MX cards (all versions) in other laptops, the performance is midfield in 3DMark 11 and 2013. An exception is the Cloud Gate benchmark where the 940MX in the 710S Plus takes second place. Rerunning 3DMark 11 in battery mode lead to a marginally lower total score that is within the mean variation.

3DMark 11 - 1280x720 Performance GPU
Lenovo IdeaPad 710S Plus-13IKB
NVIDIA GeForce 940MX, Intel Core i7-7500U
2447 Points ∼5%
Dell XPS 13 9360 FHD i5
Intel HD Graphics 620, Intel Core i5-7200U
1545 Points ∼3% -37%
HP EliteBook Folio G1 V1C37EA
Intel HD Graphics 515, Intel Core m5-6Y54
1254 Points ∼2% -49%
Acer Swift 7 SF713-51
Intel HD Graphics 615, Intel Core i5-7Y54
1039 Points ∼2% -58%
3DMark
1920x1080 Fire Strike Graphics
Lenovo IdeaPad 710S Plus-13IKB
NVIDIA GeForce 940MX, Intel Core i7-7500U
1940 Points ∼5%
Dell XPS 13 9360 FHD i5
Intel HD Graphics 620, Intel Core i5-7200U
963 Points ∼2% -50%
HP EliteBook Folio G1 V1C37EA
Intel HD Graphics 515, Intel Core m5-6Y54
844 Points ∼2% -56%
Acer Swift 7 SF713-51
Intel HD Graphics 615, Intel Core i5-7Y54
647 Points ∼2% -67%
1280x720 Cloud Gate Standard Graphics
Lenovo IdeaPad 710S Plus-13IKB
NVIDIA GeForce 940MX, Intel Core i7-7500U
13075 Points ∼8%
Dell XPS 13 9360 FHD i5
Intel HD Graphics 620, Intel Core i5-7200U
8177 Points ∼5% -37%
HP EliteBook Folio G1 V1C37EA
Intel HD Graphics 515, Intel Core m5-6Y54
7035 Points ∼4% -46%
Acer Swift 7 SF713-51
Intel HD Graphics 615, Intel Core i5-7Y54
5541 Points ∼3% -58%
3DMark 11 Performance
2589 points
3DMark Cloud Gate Standard Score
7123 points
3DMark Fire Strike Score
1794 points
Help

Gaming Performance

Some up-to-date games, such as "Titanfall 2" can still be played smoothly on Nvidia's GeForce 940MX using medium presets and 1366x768 pixels. Other games like "Dishonored 2" do not come close to playability. For newer and graphically demanding games, it is possible to play most of them when using the often unsightly minimum settings and 1024x768 or 1280x720 pixels. Less demanding games, such as the new "Farming Simulator 17" or games with an isometric reproduction (exception: "Anno 2205") even allow high if not maximum ("FIFA 17") presets at 1920x1080 pixels. The card is not suitable for resolutions higher than Full HD.

low med. high ultra
The Witcher 3 (2015) 38.622.4fps
Far Cry Primal (2016) 3616fps
Farming Simulator 17 (2016) 94.14026.8fps

Emissions

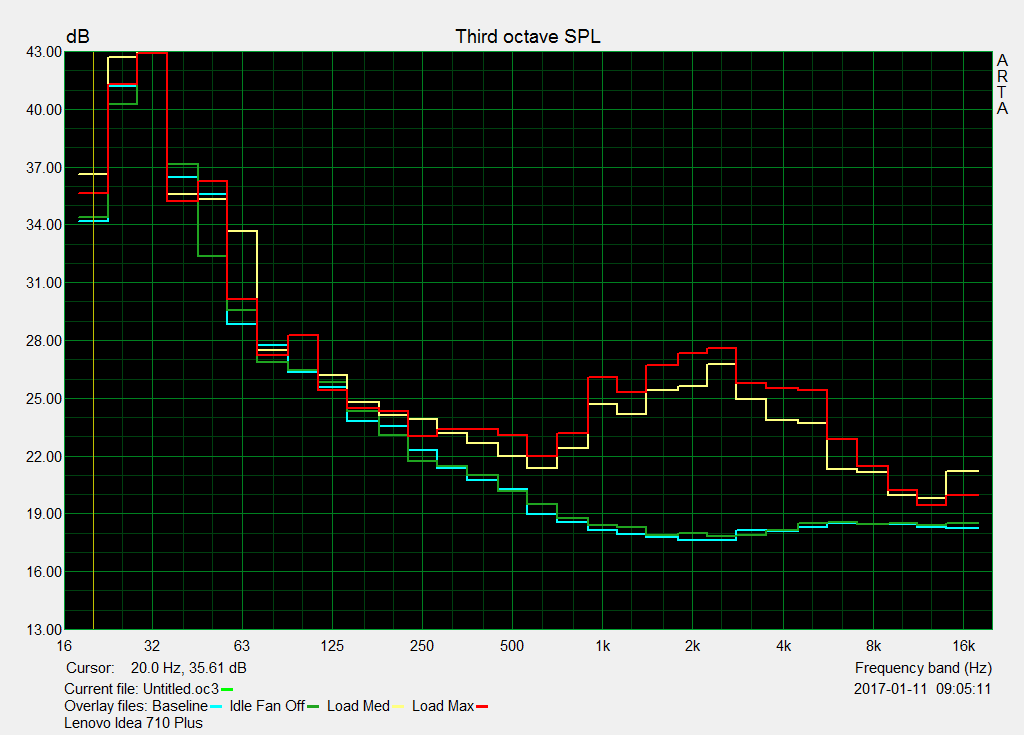

Noise curve idle-load
Noise curve idle-load

System Noise

Our measurements confirm that Lenovo's new laptop produces a restrained soundscape. However, this is not true subjectively. The fan is inactive in idle mode, and occasional load (browsing, office) usually does not change that. The fan speeds up abruptly a few seconds after initiating the stress test (Prime95 + FurMark), and it produces a subtle noise a few speed levels later. Unfortunately, a high-pitched, annoying whistling sound that starts at medium speeds actually covers it. Of course, this phenomenon does not have to be the case in every 710S Plus.

Noise Level

Idle
30.6 / 30.6 / 30.6 dB(A)
Load
36.2 / 37.2 dB(A)



30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Audix TM1, Arta (15 cm distance)   environment noise: 30.6 dB(A)
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2035.636.634.434.235.62541.342.740.241.241.33142.944.346.743.342.94035.235.637.236.535.25036.335.332.435.636.36330.133.729.628.830.18027.227.526.827.827.210028.228.326.526.428.212525.426.225.825.625.416024.524.824.323.824.520024.324.123.123.624.32502323.921.722.32331523.423.221.521.423.440023.422.72120.723.4500232220.120.3236302221.319.5192280023.222.418.718.623.2100026.124.718.418.126.1125025.324.218.317.925.3160026.725.417.917.826.7200027.325.61817.627.3250027.626.817.817.627.6315025.82517.918.125.8400025.523.918.218.125.5500025.423.718.518.325.4630022.921.318.518.522.9800021.521.218.518.421.51000020.219.918.518.520.21250019.519.818.418.319.5160002021.218.518.320SPL37.336.230.830.637.3N2.72.41.51.52.7median 24.3Lenovo IdeaPad 710S Plus-13IKBmedian 23.9median 18.5median 18.5median 24.3Delta1.51.61.61.91.533.533.934.633.54139.539.64141.941.939.941.933.73735.233.729.732.232.329.728.929.928.228.926.830.92626.826.226.92626.225.125.525.425.124.624.923.324.623.523.423.823.522.422.622.722.420.621.421.620.620.320.120.220.319.820.119.619.81919.118.61918.418.418.618.418.217.91818.21817.817.41817.817.717.917.817.817.717.517.817.717.817.817.717.917.817.917.918.117.91818.118.118.318.318.118.318.218.418.318.418.418.418.418.418.418.418.418.218.218.218.218.219.718.418.230.530.630.530.51.41.51.41.4median 18.4Acer Swift 7 SF713-51median 18.4median 18.4median 18.41.92.121.9hearing rangehide median Fan Noise

Temperature

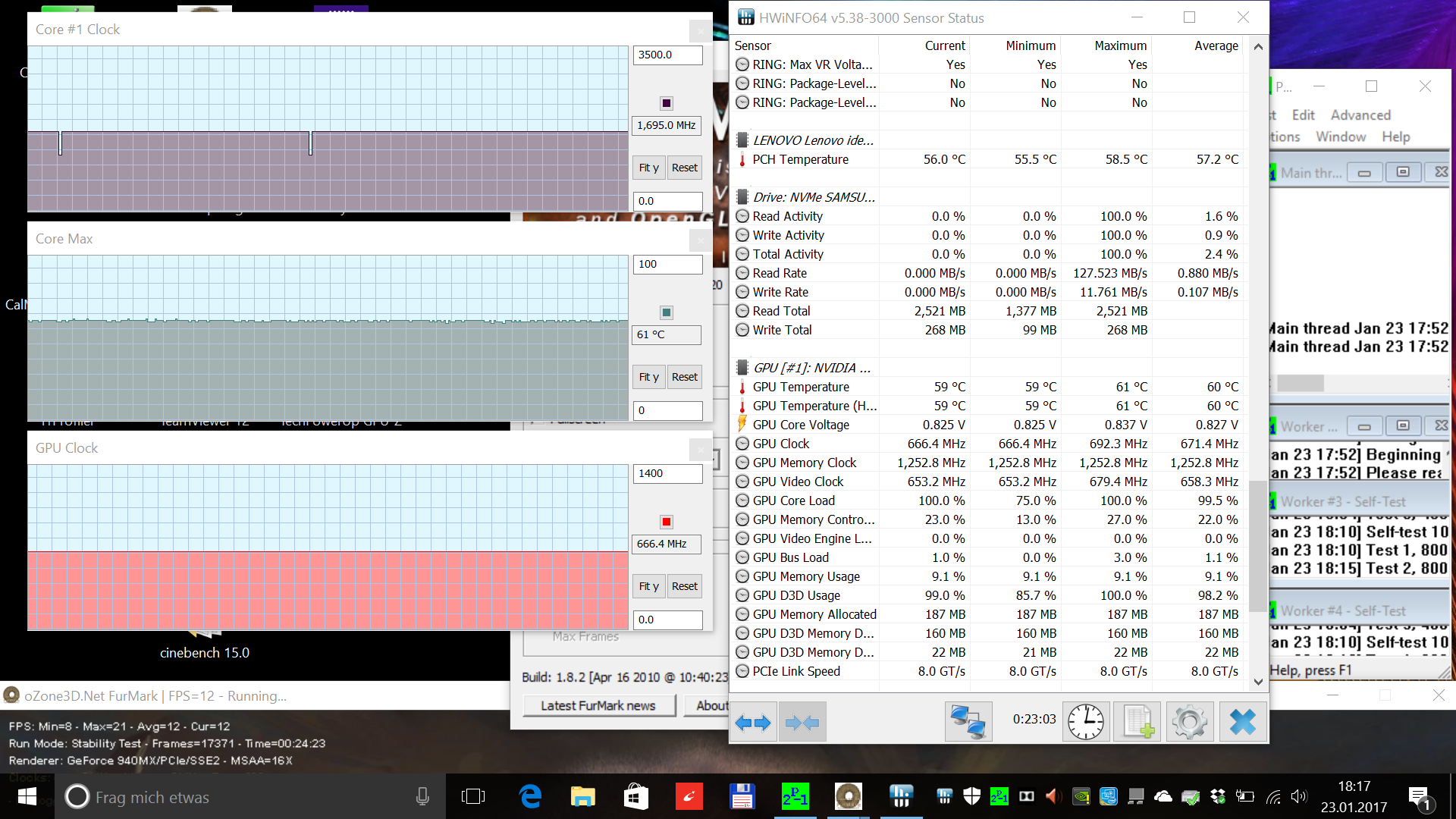

Clock rates: Prime95 + FurMark
Clock rates: Prime95 + FurMark

Users who use the IdeaPad 710S Plus on their lap will have to expect a maximum average of 45 °C (113 °F). The wrist rests only reach 31 °C (87.8 °F) then. The surface temperatures are not an issue during idle mode or sporadic load.

Considering the minor throttling just in Cinebench, we expected even further throttling when performing our unrealistic stress test and we were, unfortunately, not disappointed. Prime95 + FurMark reduce the CPU clock rate to a stable 1.7 GHz and the GPU clock rate to just 666 MHz. However, not even hardware-driven games produce such high and, above all, permanent load, as the anticipated outcomes of the gaming benchmarks proved.

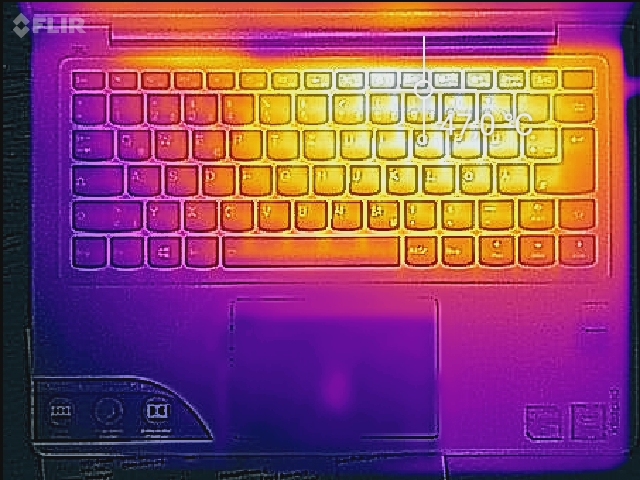

Temperature development upper side (load)
Temperature development upper side (load)

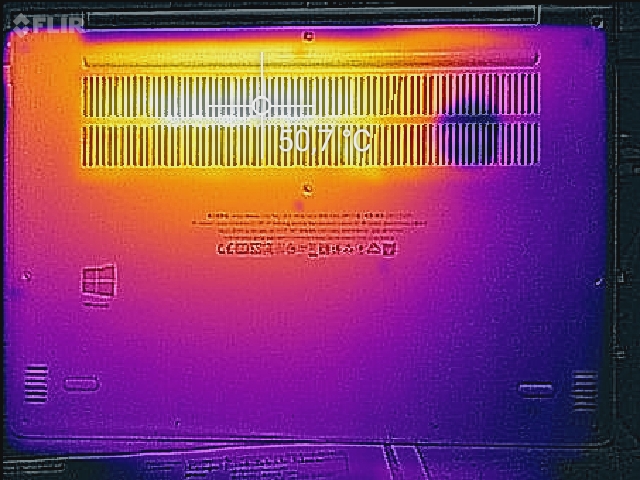

Temperature development underside (load)
Temperature development underside (load)

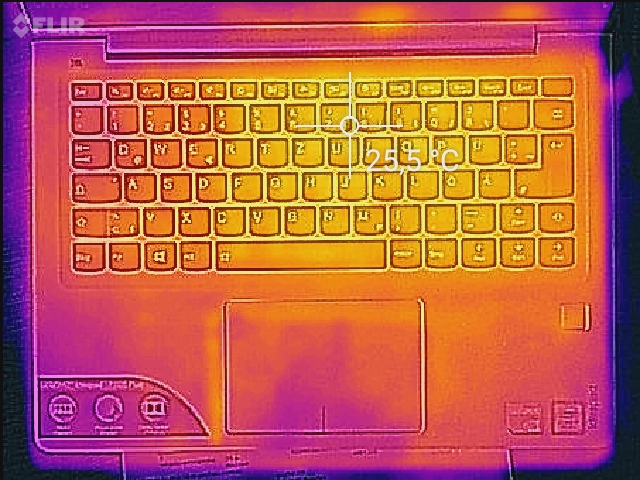

Temperature development upper side (idle)
Temperature development upper side (idle)

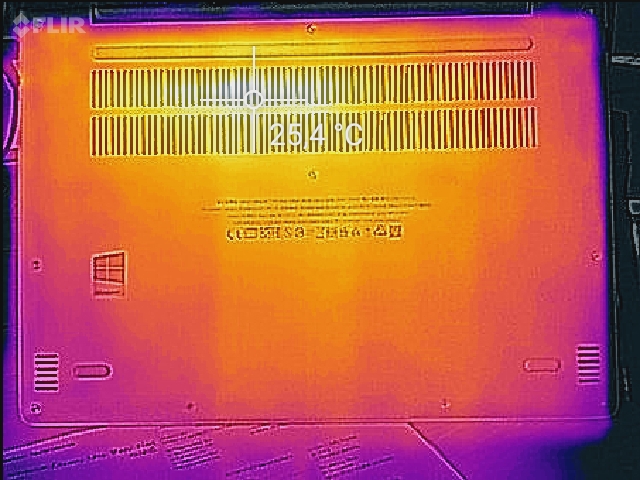

Temperature development underside (idle)
Temperature development underside (idle)
Max. Load
 31.9 °C42.6 °C43.2 °C
 29.7 °C37.6 °C29.2 °C
 27.6 °C27.6 °C30.4 °C
Maximum: 43.2 °C
Average: 33.3 °C
40.9 °C45.3 °C33.6 °C
35.1 °C36.4 °C30.8 °C
30.5 °C30.9 °C28.9 °C
Maximum: 45.3 °C
Average: 34.7 °C
Power Supply (max.)  43 °C | Room Temperature 22.6 °C | FIRT 550-Pocket

Speakers

While we were quite happy with the sound of the IdeaPad 710S, we cannot say this about the successor. The main reason for this is primarily distortions and the tendency to blend instruments together in high volumes besides the maximum volume that is only sufficient for filling smaller rooms with sound. In total, the mid-heavy and low-dynamics sound is more or less unclear depending on the music. Reducing high volumes is not completely possible without fluctuations. This is too bad since some songs (sometimes) sounded considerably more natural and less compressed than in many other laptops.

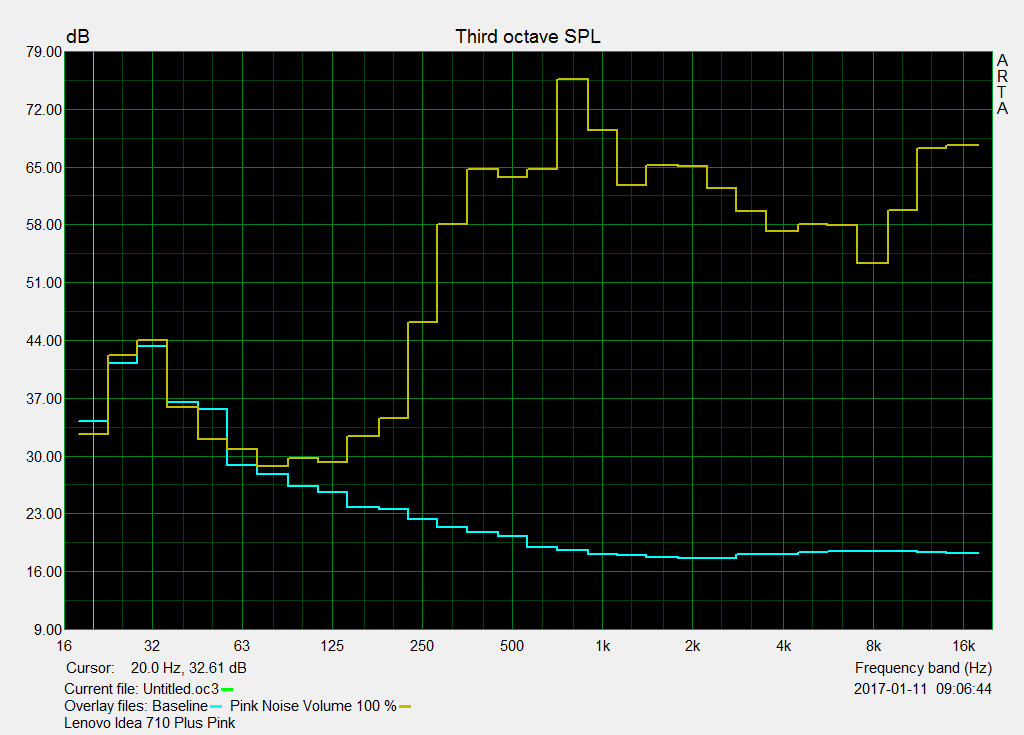

Frequency response
Frequency response

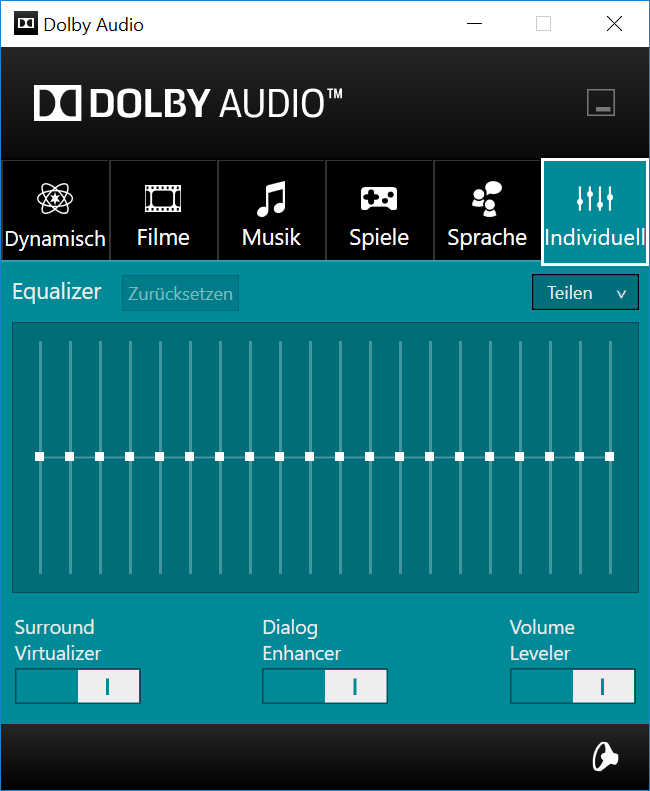

Dolby sound
Dolby sound
dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2032.634.232.62542.241.242.2314443.3444035.836.535.8503235.6326330.828.830.88028.727.828.710029.726.429.712529.225.629.216032.323.832.320034.523.634.525046.122.346.131558.121.458.140064.720.764.750063.820.363.863064.71964.780075.718.675.7100069.518.169.5125062.717.962.7160065.217.865.2200065.117.665.1250062.517.662.5315059.618.159.6400057.218.157.250005818.358630057.918.557.9800053.418.453.41000059.718.559.71250067.218.367.21600067.618.367.6SPL7830.678N38.71.538.7median 59.7Lenovo IdeaPad 710S Plus-13IKBmedian 18.5median 59.7Delta7.71.97.734.834.634.843.239.643.242.939.942.934.735.234.734.432.334.430.628.230.636.12636.139.92639.94425.44445.423.345.441.223.841.250.622.750.657.921.657.963.420.263.463.419.663.463.318.663.368.118.668.165.41865.461.317.461.363.217.963.262.317.562.358.417.858.459.817.959.862.11862.157.918.357.961.418.461.455.218.455.253.618.453.65418.25448.618.448.674.230.574.234.61.434.6median 58.4Acer Swift 7 SF713-51median 18.4median 58.46.226.234.636.335.434.634.433.133.134.435.534.233.935.535.735.835.735.734.436.634.234.434.434.53434.433.334.53533.336.436.73836.439.138.437.839.14435.330.64453.743.529.953.759.249.329.859.264.554.329.264.56554.2286566.956.526.866.967.15625.567.170.360.225.270.373.963.724.673.975.26524.275.273.162.823.573.175.164.123.675.174.964.423.474.97465.523.57473.664.123.473.66961.123.46966.560.223.566.56056.822.96060.650.924.460.658.148.825.758.161.348.123.561.3median 66.5HP EliteBook Folio G1 V1C37EAmedian 56.5median 24.6median 66.56.36.93.46.336.336.236.336.137.436.134.832.734.834.431.434.432.433.132.433.232.433.236.331.936.336.729.536.742.230.142.252.527.652.552.527.752.556.726.856.756.82756.856.725.756.755.224.955.26124.36160.523.960.561.423.761.461.423.361.459.723.259.759.822.759.855.922.755.950.722.750.757.722.757.758.422.758.454.222.854.255.122.855.153.622.753.649.722.749.741.122.941.170.435.570.4282.528median 55.9Dell XPS 13 9360 FHD i5median 23.3median 55.93.72.23.7hearing rangehide median Pink Noise
Lenovo IdeaPad 710S Plus-13IKB audio analysis

(±) | speaker loudness is average but good (73 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 21.4% lower than median
(±) | linearity of bass is average (12.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 6.7% higher than median
(±) | linearity of mids is average (10.6% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.2% away from median
(+) | highs are linear (6.9% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (22.4% difference to median)
Compared to same class
» 77% of all tested devices in this class were better, 7% similar, 16% worse
» The best had a delta of 9%, average was 18%, worst was 41%
Compared to all devices tested
» 51% of all tested devices were better, 8% similar, 41% worse
» The best had a delta of 3%, average was 22%, worst was 48%

Acer Swift 7 SF713-51 audio analysis

(-) | not very loud speakers (68 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 11.9% lower than median
(±) | linearity of bass is average (12.6% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 5.4% higher than median
(+) | mids are linear (6.3% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.4% away from median
(±) | linearity of highs is average (8.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (15.8% difference to median)
Compared to same class
» 28% of all tested devices in this class were better, 14% similar, 58% worse
» The best had a delta of 9%, average was 18%, worst was 41%
Compared to all devices tested
» 18% of all tested devices were better, 4% similar, 78% worse
» The best had a delta of 3%, average was 22%, worst was 48%

HP EliteBook Folio G1 V1C37EA audio analysis

(+) | speakers can play relatively loud (83.1 dB)
Bass 100 - 315 Hz
(-) | nearly no bass - on average 17% lower than median
(±) | linearity of bass is average (12.4% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 4.7% away from median
(+) | mids are linear (4.4% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | higher highs - on average 5.4% higher than median
(+) | highs are linear (5.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (19.8% difference to median)
Compared to same class
» 63% of all tested devices in this class were better, 7% similar, 30% worse
» The best had a delta of 9%, average was 18%, worst was 41%
Compared to all devices tested
» 38% of all tested devices were better, 6% similar, 56% worse
» The best had a delta of 3%, average was 22%, worst was 48%

Dell XPS 13 9360 FHD i5 audio analysis

(-) | not very loud speakers (70.35 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 6.9% lower than median
(±) | linearity of bass is average (10.5% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.7% away from median
(+) | mids are linear (4% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2% away from median
(±) | linearity of highs is average (10.3% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (14.2% difference to median)
Compared to same class
» 16% of all tested devices in this class were better, 7% similar, 77% worse
» The best had a delta of 9%, average was 18%, worst was 41%
Compared to all devices tested
» 12% of all tested devices were better, 3% similar, 85% worse
» The best had a delta of 3%, average was 22%, worst was 48%

Frequency diagram in comparison (checkboxes above can be turned on/off!)

Energy Management

Power Consumption

As our IdeaPad is the only device in the test with a dedicated graphics card, the load outcomes are not comparable. As expected, Acer's Swift and HP's EliteBook Folio based on 4.5-watt CPUs consume less than the review sample in the operating states idle average and idle maximum, but still more than the 15-watt i5-7200U chip in Dell's XPS 13. The review sample scores with the lowest consumption when it is idling (idle min) although the differences are marginal. The 65-watt power supply is far from being exhausted.

Power Consumption
Off / Standbydarklight 0.34 / 0.4 Watt
Idledarkmidlight 3.6 / 7.4 / 8.7 Watt
Load midlight 43 / 42 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy
Lenovo IdeaPad 710S Plus-13IKB
7500U, GeForce 940MX, Samsung PM961 NVMe MZVLW512, IPS, 1920x1080, 13.3
Acer Swift 7 SF713-51
7Y54, HD Graphics 615, Kingston RBU-SNS4180S3256GG, IPS, WLED, 1920x1080, 13.3
HP EliteBook Folio G1 V1C37EA
6Y54, HD Graphics 515, Samsung SM951 MZVPV256 m.2, IPS, 1920x1080, 12.5
Dell XPS 13 9360 FHD i5
7200U, HD Graphics 620, Toshiba NVMe THNSN5256GPUK, IPS, 1920x1080, 13.3
Power Consumption
28%
20%
30%
Idle Minimum *
3.6
4.1
-14%
4.3
-19%
4.1
-14%
Idle Average *
7.4
6.4
14%
6
19%
4.2
43%
Idle Maximum *
8.7
6.8
22%
6.4
26%
5.1
41%
Load Average *
43
16
63%
22.7
47%
22.1
49%
Load Maximum *
42
18.7
55%
31.2
26%
29.4
30%

* ... smaller is better

Battery Runtime

Like in the predecessor, a 46-Wh battery is installed. The runtime in the practical Wi-Fi browsing test (Our test criteria) using medium brightness is, however, over an hour shorter. Nevertheless, almost six hours should still be enough to bring most users through a day on one battery charge.

Our Acer Swift with its 4.5-watt CPU and no dedicated graphics card sports a slightly smaller battery (42 Wh) and proves to be especially enduring with 19 to 104% longer runtimes. HP's EliteBook Folio also has an overall lead on the review sample despite its 38-Wh battery. Of course, Dell's XPS 13 60-Wh battery laptop achieves the longest battery life.

Battery Runtime
Idle (without WLAN, min brightness)
7h 48min
WiFi Surfing v1.3
5h 38min
Load (maximum brightness)
1h 29min
Lenovo IdeaPad 710S Plus-13IKB
7500U, GeForce 940MX, 46 Wh
Acer Swift 7 SF713-51
7Y54, HD Graphics 615, 41.58 Wh
HP EliteBook Folio G1 V1C37EA
6Y54, HD Graphics 515, 38 Wh
Dell XPS 13 9360 FHD i5
7200U, HD Graphics 620, 60 Wh
Battery Runtime
68%
29%
118%
Reader / Idle
468
792
69%
526
12%
1295
177%
Load
89
182
104%
152
71%
157
76%
WiFi
WiFi v1.3
338
438
30%
355
5%
677
100%
H.264
410
413

Pro

+ light and slim
+ solid, very well-built casing
+ stylish-looking surfaces
+ fingerprint resistant
+ good input devices
+ TPM, fingerprint scanner
+ bright and high-contrast screen with lots of elbowroom
+ no PWM
+ GeForce 940MX with GDDR5
+ good WiFi performance
+ good webcam
+ fast SSD
+ quiet and cool

Cons

- counterforce needed to open lid
- few interfaces
- external screen only via USB Type-C
- reflective screen
- not suitable for image editing
- gaming-unsuitable response times
- GeForce 940MX with reduced clock rates
- fan starts to whistle at medium speeds
- throttling in both Cinebench and stress test
- battery life could be longer

Verdict

In review: Lenovo Ideapad 710S Plus. Review sample courtesy of Campuspoint.de
In review: Lenovo Ideapad 710S Plus. Review sample courtesy of Campuspoint.de

Unlike its almost perfect predecessor, we discovered some minor manufacturing flaws in Lenovo's new IdeaPad 710S Plus. However, only the poorly installed touchpad will be significant here. The overall superb screen would have been even better with a matte surface and a larger color space. Even if few interfaces are standard in subnotebooks, there would have been room for a scaled down dedicated video out, such as HDMI or DP. The battery life does not quite fulfill the mobility claim, either. The only drawback that could endanger a purchase recommendation is the fan's occasionally annoying whistling, although it should be kept in mind that this will not be the case during slow fan speeds which will likely be the commonest case, and that this could also be an individual case (!) related only to our review sample.

Mobility and versatility are the most important properties of the overall very convincing Lenovo IdeaPad 710S Plus. However, potential buyers should watch out for possible fan whistling.

Of course, the light yet rigid and very attractive casing has to be listed on the pro side. The input devices should fulfill the needs of most users. TPM and the fingerprint scanner will satisfy security-oriented users, and the slightly clock-rate reduced GeForce 940MX with GDDR5 memory will please casual gamers. In contrast to the predecessor, PWM is not used, the big SSD is lightning fast, and no one will complain about the Wi-Fi performance. In total, we do not want to deny the 710S refresh a purchase recommendation, but we recommend sample listening during load. Users who do not want to play games will probably be better advised with the cheaper version based on an i5-7200U.

Lenovo IdeaPad 710S Plus-13IKB - 02/01/2017 v6
Sven Kloevekorn

Chassis
87 /  98 → 89%
Keyboard
85%
Pointing Device
84%
Connectivity
51 / 80 → 64%
Weight
74 / 78 → 90%
Battery
86%
Display
84%
Games Performance
66 / 68 → 97%
Application Performance
82 / 87 → 94%
Temperature
92 / 91 → 100%
Noise
85%
Audio
50 / 91 → 55%
Camera
71 / 85 → 83%
Average
77%
86%
Subnotebook - Weighted Average

Pricecompare

Read all 2 comments / answer
static version load dynamic
Loading Comments
Comment this article:
> Notebook / Laptop Reviews and News > Reviews > Lenovo IdeaPad 710S Plus (Core i7) Subnotebook Review
Sven Kloevekorn, 2017-02- 9 (Update: 2017-02-14)
