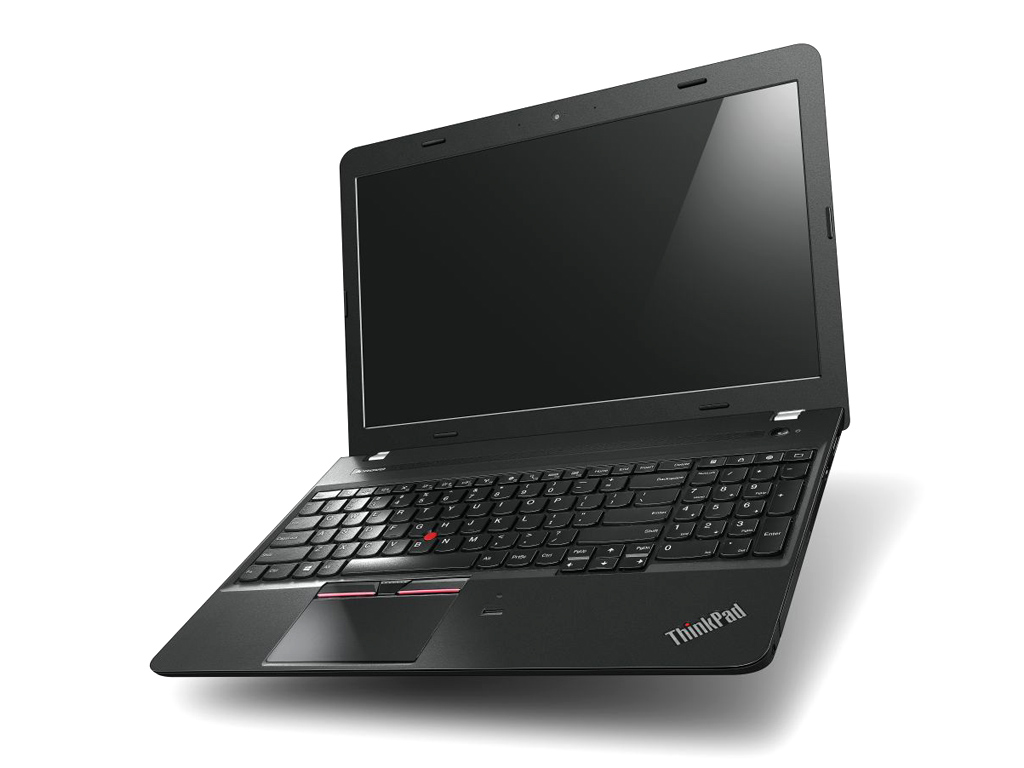

Lenovo ThinkPad E550-20DF00CNGE

Specifications

Lenovo ThinkPad E550-20DF00CNGE
Lenovo ThinkPad E550-20DF00CNGE
Processor
Graphics adapter
AMD Radeon R7 M265 - 2048 MB VRAM, Core: 825 MHz, Memory: 1000 MHz, DDR3, 9.14.10.01061, Enduro
Memory
8 GB
, 1x 8 GB DDR3L-1600, 1 of 2 slots open
Display
15.60 inch 16:9, 1920 x 1080 pixel, Innolux N156HGE-EAB, TN-Panel, LED backlight, glossy: no
Mainboard
Intel Broadwell-U PCH-LP (Premium)
Storage
WDC Slim WD10SPCX-22HWST0, 1000 GB
, 5400 rpm
Soundcard
Intel Broadwell PCH-LP - High Definition Audio Controller
Connections
1 USB 2.0, 2 USB 3.0 / 3.1 Gen1, 1 VGA, 1 HDMI, 1 Kensington Lock, 1 Docking Station Port, Audio Connections: Headphone jack 3.5 mm, Card Reader: 4-in-1 (MMC, SD, SDHC, SDXC), 1 Fingerprint Reader
Networking
Intel Ethernet Connection I218-V (10/100/1000MBit/s), Intel Dual Band Wireless-AC 3160 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0
Optical drive
PLDS DVD-RW DA8A6SH
Size
height x width x depth (in mm): 27 x 377 x 256 ( = 1.06 x 14.84 x 10.08 in)
Battery
48 Wh Lithium-Ion, removeable, 6 cells, swappable
Operating System
Microsoft Windows 7 Professional 64 Bit
Camera
Webcam: 720p
Additional features
Speakers: Stereo, Keyboard: Chiclet, Keyboard Light: no, 65 watt power adapter, 12 Months Warranty
Weight
2.35 kg ( = 82.89 oz / 5.18 pounds), Power Supply: 220 g ( = 7.76 oz / 0.49 pounds)
Price
950 Euro



Pricecompare

Average Score: 81.7% - good
Average of 1 scores (from 1 reviews)
price: - %, performance: 64%, features: 48%, display: 76% mobility: 71%, workmanship: 80%, ergonomy: 85%, emissions: 91%

Reviews for the Lenovo ThinkPad E550-20DF00CNGE

81.7% Lenovo ThinkPad E550 (Core i7, Radeon R7 M265) Notebook Review | Notebookcheck
Expensive performance boost. For their top-of-the-line model in the E550-series, Lenovo not only integrated a speedy Core i7 CPU, but also a dedicated Radeon GPU. The resulting notebook costs almost 1000 Euro (~$1100). Is that too much money for an entry-level ThinkPad?
Lenovo ThinkPad E550 – надеждното бизнес решение
Source: PC Store BU→EN Archive.org version
Positive: Good dеѕіgn; cоmfоrtаblе kеуbоаrd аnd tоuсhраd; good cooling system; vеrу gооd bаttеrу. Negative: Меdіосrе ѕсrееn соlоrѕ аnd lоw соntrаѕt.
Single Review, online available, Short, Date: 10/07/2015

Comment

AMD Radeon R7 M265: Mid-range graphics card based on the GCN architecture.

Modern games should be playable with these graphics cards at low settings and resolutions. Casual gamers may be happy with these cards.

» Further information can be found in our Comparison of Mobile Graphics Cards and the corresponding Benchmark List.


Intel Core i7: The Intel Core i7 for laptops is based on the LG1156 Core i5/i7 CPU for desktops. The base clock speed of the CPUs is relatively low, but because of a huge Turbo mode, the cores can dynamically overclock to up to 3.2 GHz (920XM). Therefore, the CPU can be as fast as high clocked dual-core CPUs (using single threaded applications) but still offer the advantage of 4 cores. Because of the large TDP of 45 W / 55 W, the CPU is only intended for large laptops.


5500U: Broadwell-based ULV (ultra low voltage) dual-core processor for notebooks and ultrabooks. Offers an integrated HD Graphics 5500 GPU and is manufactured in 14 nm.» Further information can be found in our Comparison of Mobile Processsors.


15.60":

15-inch display variants are the standard and are used for more than half of all laptops.

The reason for the popularity of mid-sized displays is that this size is reasonably easy on the eyes, often allows high resolutions and thus offers rich details on the screen, yet does not consume too much power and the devices can still be reasonably compact - simply the standard compromise.

» To find out how fine a display is, see our DPI List.


Lenovo: Lenovo ("Le" from English legend, novo (Latin) for new) was founded in 1984 as a Chinese computer trading company. As of 2004, the company was the largest laptop manufacturer in China and, after acquiring IBM's PC division in 2005, the fourth largest in the world. In addition to desktops and notebooks, the company manufactures monitors, projectors, servers, etc, and specializes in developing, manufacturing and marketing consumer electronics, personal computers, software, enterprise solutions and related services.

In 2016, the company ranked first in the world in computer sales. It still held it in 2023 with about 23% global market share. Important product lines are Thinkpad, Legion and Ideapad.

In 2011, it acquired a majority stake in Medion AG, a European computer hardware manufacturer. In 2014, Motorola Mobility was purchased, which gave Lenovo a boost in the smartphone market.


81.7%: This rating is slightly above average, there are somewhat more devices with worse ratings. However, clear purchase recommendations look different.


» Further information can be found in our Notebook Purchase Guide.
