FriendlyELEC NanoPi NEO3: A tiny Raspberry Pi competitor that packs plenty of features

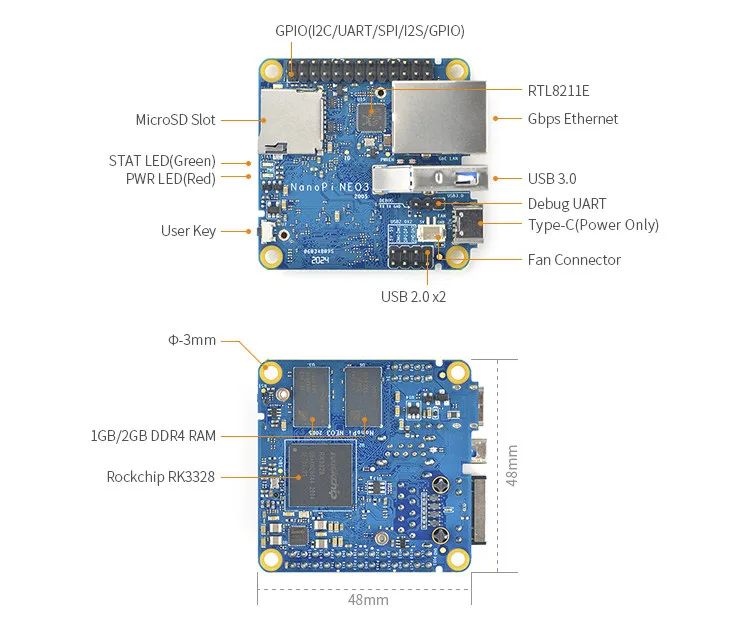

The NanoPi NEO3 measures just 48 x 48 mm. (Image source: FriendlyELEC)
The NanoPi NEO3 measures just 48 x 48 mm. (Image source: FriendlyELEC)
The NanoPi NEO3 is another small single-board computer (SBC) produced by FriendlyELEC. The NEO3 includes a quad-core ARM processor, up to 2 GB of RAM, Gigabit Ethernet and a microSD card reader.
Alex Alderson, 🇪🇸

FriendlyELEC may have already released the NanoPi NEO4, but it now plans to release the NEO3. Brought to our attention by CNX Software via Liliputing, the SBC measures 48 x 48 mm, making it slightly smaller than the NanoPi R2S. The NEO3 is based on a Rockchip RK3328 SoC, which integrates four ARM Cortex-A53 cores and an ARM Mali-450 MP2 GPU. The board will be offered with 1 GB or 2 GB of DDR4 RAM.

There is no onboard storage, but FriendlyELEC has included a microSD card reader for use as a boot drive. There is also a 26-pin header that supports GPIO, I2C, I2S, UART and SPI, along with a 3-pin header for a serial console. The NEO3 runs off 5V/1A over USB Type-C or a GPIO pin and has a 2-pin header for a 5V fan. FriendlyELEC has included power and system LEDs too.

Additionally, the NEO3 has Gigabit Ethernet, a USB 3.0 Type-A port and two USB 2.0 8-pin headers that have a 2.54 mm pitch. FriendlyELEC has published a wiki for the SBC, but the company is yet to announce pricing or availability. CNX Software posits that the unit will cost around US$18-US$19 for the 1 GB model and an additional US$4 for the 2 GB model. The website also expects the NEO3 to support Debian 10 Buster with Linux 5.4.xx, FriendlyWrt (OpenWrt), FriendlyCore (Ubuntu 18.04 Core) and Armbian-built Ubuntu 20.04 Focal.

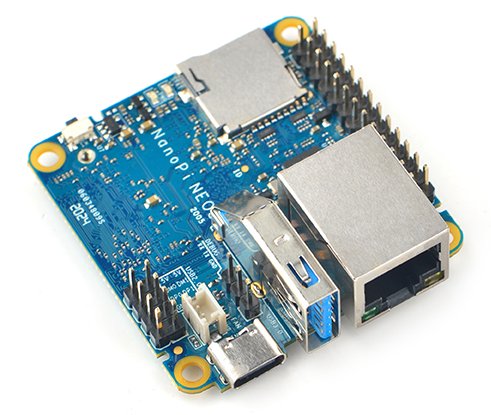

(Image source: FriendlyELEC via CNX Software)
