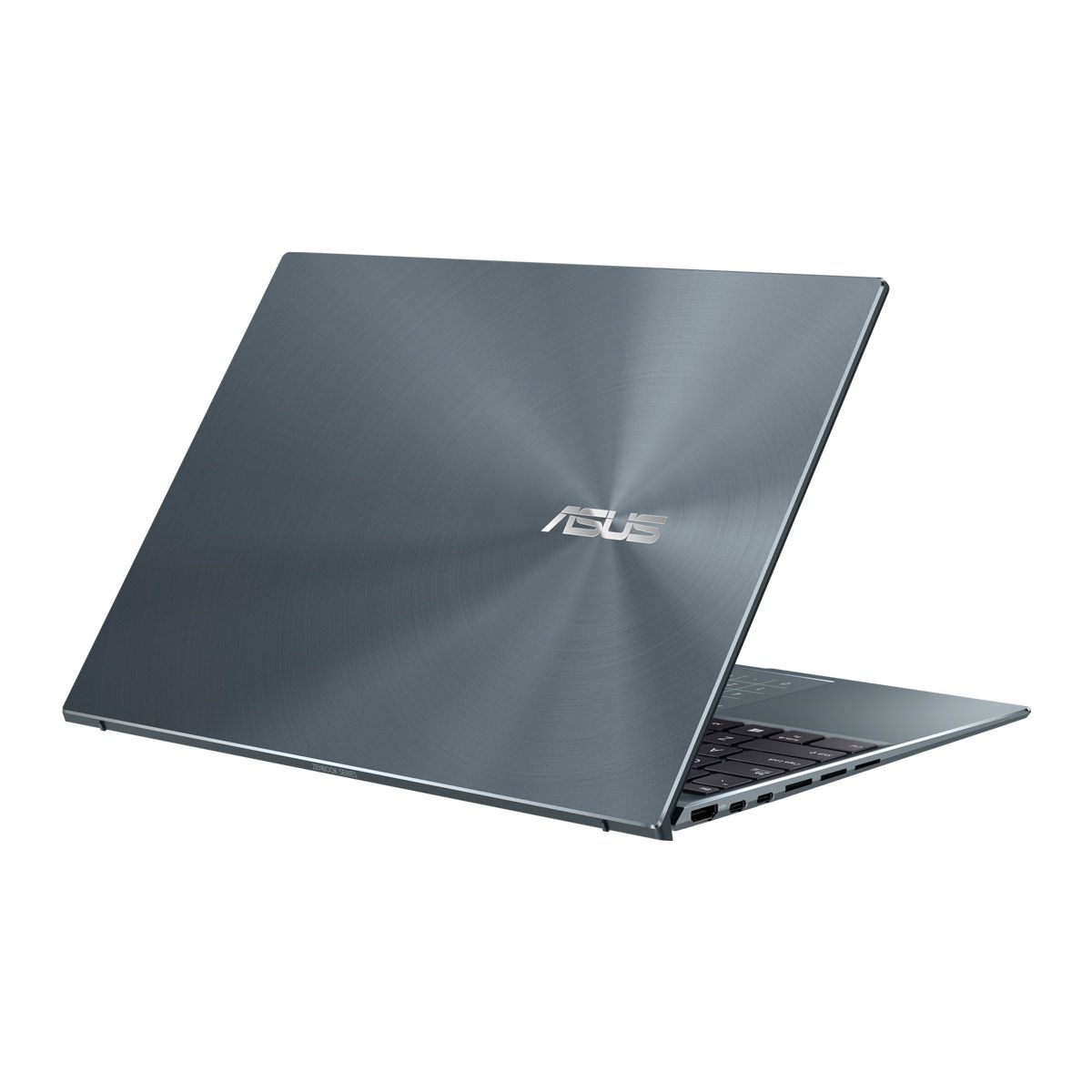

Asus ZenBook 14X UM5401, 5600H

Specifications

Asus ZenBook 14X UM5401, 5600H
Asus ZenBook 14X UM5401, 5600H (Zenbook 14X Series)
Processor
AMD Ryzen 5 5600H 6 x 3.3 - 4.2 GHz, Cezanne H (Zen 3)
Memory
16384 MB
, DDR4
Display
14.00 inch 16:9, 2880 x 1800 pixel 243 PPI, OLED, glossy: yes
Storage
512GB SSD
Connections
3 USB 3.1 Gen2, USB-C Power Delivery (PD), Audio Connections: 3.5mm
Networking
802.11 a/b/g/n/ac/ax (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6), Bluetooth 5
Size
height x width x depth (in mm): 15.9 x 311.2 x 221.1 ( = 0.63 x 12.25 x 8.7 in)
Battery
63 Wh Lithium-Ion, 3-cell
Operating System
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: HD 720p
Additional features
Speakers: Stereo, Keyboard: Chiclet, Keyboard Light: yes
Weight
1.4 kg ( = 49.38 oz / 3.09 pounds) ( = 0 oz / 0 pounds)



Pricecompare

Reviews for the Asus ZenBook 14X UM5401, 5600H

ASUS ZenBook 14X OLED UM5401 Review Philippines: A Display To Die For
Source: Unbox English
The ASUS ZenBook 14X OLED did really well in our review, giving pros in the Philippines a fantastic choice if they’re looking for a laptop that has excellent color accuracy that doesn’t cost an arm and a leg. The laptop’s utility as a video-editing platform is hampered a little bit by a lack of a discrete GPU. It’s not impossible to do, but your rendering times will be a little longer.
Single Review, online available, Long, Date: 02/24/2022
Asus ZenBook 14X OLED – pre-review, UM5401 model with AMD Ryzen
Source: Ultrabook Review English
Having used this updated Asus ZenBook 14X for the last weeks, I must say I’m impressed. Asus pretty much addressed all my major complaints of the standard ZenBook 14 models of the past: the 14X feels sturdier made, offers stiffer hinges that allow the screen to go flat 180 degrees, offers a much improved thermal design that blows the hot air to the sides, and not into the screen, offers faster hardware, and excellent 16:10 screen options, both matte or touch. Plus a camera, finger-sensor, 3.5 mm jack, etc.
Single Review, online available, Medium, Date: 10/09/2021

Comment

AMD Vega 6: Integrated graphics adapter of the Ryzen APUs based on the Vega architecture with 6 CUs (= 384 shaders) and a clock of up to 1,500 MHz.

Modern games should be playable with these graphics cards at low settings and resolutions. Casual gamers may be happy with these cards.

» Further information can be found in our Comparison of Mobile Graphics Cards and the corresponding Benchmark List.


R5 5600H: A mobile Hexa-Core APU with six Zen 3 cores clocked at 3.3 GHz to 4.2 GHz and a Vega iGPU with 7 CUs clocked at up to 1800 MHz.» Further information can be found in our Comparison of Mobile Processsors.


14.00":

Above all, this display size is used for subnotebooks, ultrabooks and convertibles. For all three types, this size is quite large. The biggest variety of subnotebooks is represented with this size.

Large display-sizes allow higher resolutions. So, details like letters are bigger. On the other hand, the power consumption is lower with small screen diagonals and the devices are smaller, more lightweight and cheaper.

» To find out how fine a display is, see our DPI List.


1.4 kg:

This weight is typical for big tablets, small subnotebooks, ultrabooks and convertibles with a 10-11 inch display-diagonal.


Asus: ASUSTeK Computer Incorporated, a Taiwanese multinational company, produces motherboards, graphics cards, optical drives, PDAs, computer monitors, notebook computers, servers, networking products, mobile phones, computer cases, computer components, and computer cooling systems. The company's 2007 revenues reached US$6.9 billion. ASUS also produces components for other manufacturers. The Eee PC initiated the netbook boom in 2008.

In the notebook sector, Asus had a global market share of about 11% from 2014-2016, making it the fourth largest laptop manufacturer. In the smartphone sector, Asus is not among the Top 5 and has only a small market share (as of 2016).


» Further information can be found in our Notebook Purchase Guide.
