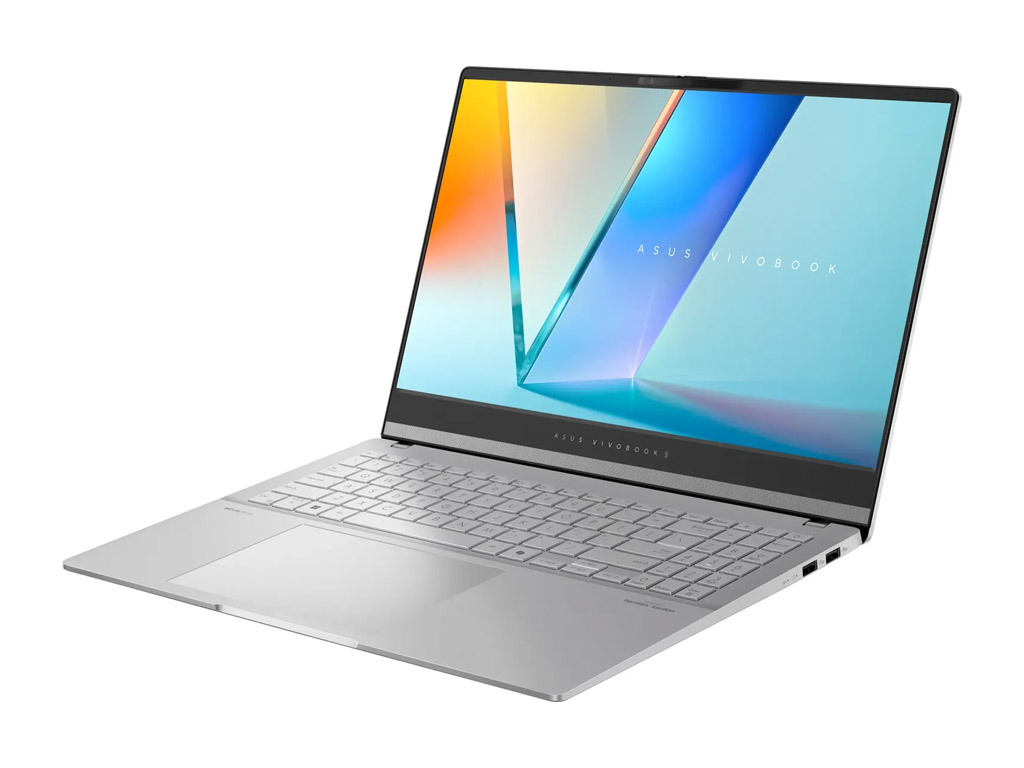

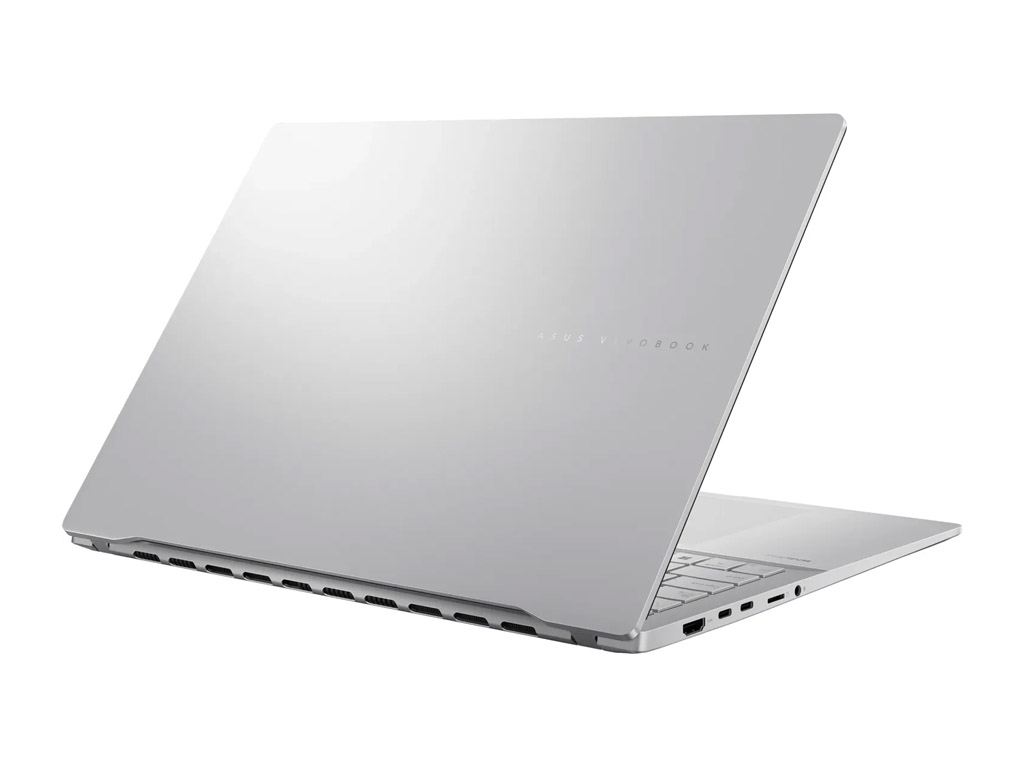

Asus Vivobook S 15 OLED M5506UA

Specifications

Asus Vivobook S 15 OLED M5506UA
Asus Vivobook S 15 OLED M5506UA (Vivobook S 15 OLED S5000 Series)
Processor
AMD Ryzen 7 8845HS 8c/16t, 8 x 5.1 GHz AMD Zen 4, Hawk Point-HS (Zen 4)
Graphics adapter
Memory
16 GB
, DDR5-7500
Display
15.60 inch 16:9, 2880 x 1620 pixel 212 PPI, Capacitive, OLED, glossy: yes, 120 Hz
Storage
M.2 PCIe
Connections
3 USB 3.0 / 3.1 Gen1, 1 USB4 40 Gbps, USB-C Power Delivery (PD), 1 HDMI, Audio Connections: 3.5mm
Networking
802.11 a/b/g/n/ac/ax (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.3
Size
height x width x depth (in mm): 15.9 x 353.6 x 246.9 ( = 0.63 x 13.92 x 9.72 in)
Battery
75 Wh Lithium-Ion, 4-cell
Operating System
Microsoft Windows 11 Pro
Camera
Webcam: IR
Primary Camera: 2 MPix
Additional features
Speakers: Stereo, Keyboard: Chiclet, Keyboard Light: yes
Weight
1.5 kg ( = 52.91 oz / 3.31 pounds) ( = 0 oz / 0 pounds)



Price comparison

Average Score: 100% - very good
Average of 1 scores (from 1 reviews)

Reviews for the Asus Vivobook S 15 OLED M5506UA

100% ASUS VivoBook S 15 OLED M5506UA-MA067W Review
Source: Tweakers Dutch NL→EN
User Review, online available, Very Short, Date: 02/04/2025
Rating: Total score: 100%

Comment

AMD Radeon 780M: Integrated graphics card in the Ryzen 7040 mobile series APUs based on the RDNA3 architecture with 12 CUs (= 768 shaders) and a clock speed of up to 3 GHz.

Modern games should be playable with these graphics cards at low settings and resolutions. Casual gamers may be happy with these cards.

» Further information can be found in our Comparison of Mobile Graphics Cards and the corresponding Benchmark List.


R7 8845HS: A powerful Hawk Point family chip that saw the light of day in H2 2023. We believe the 8845HS to be an R7 7840HS in disguise but with higher clock speeds on the Ryzen AI NPU. The 8845HS features 8 cores (16 threads thanks to SMT support) running at up to 5.1 GHz. Last but not the least, the Radeon 780M serves as the integrated GPU.» Further information can be found in our Comparison of Mobile Processsors.
