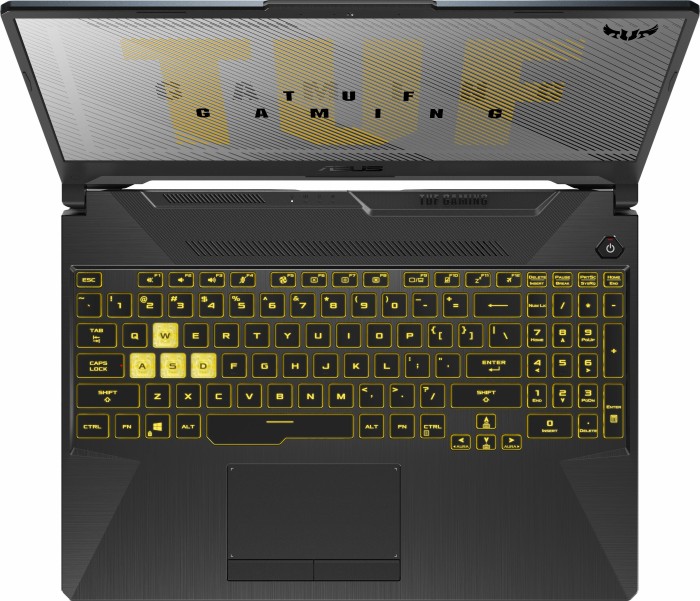

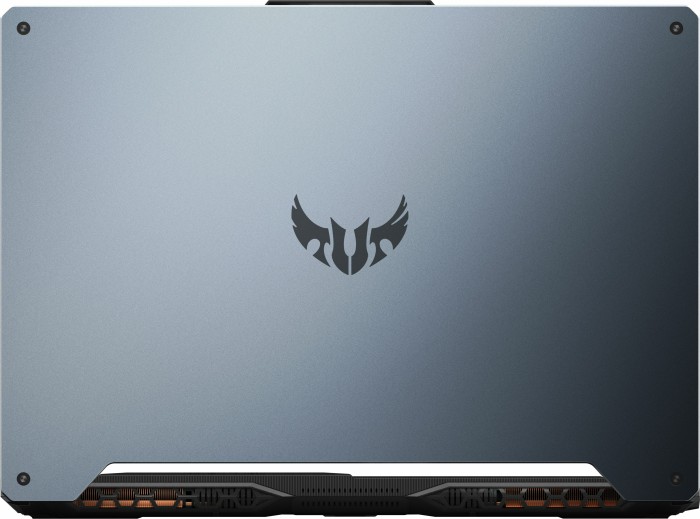

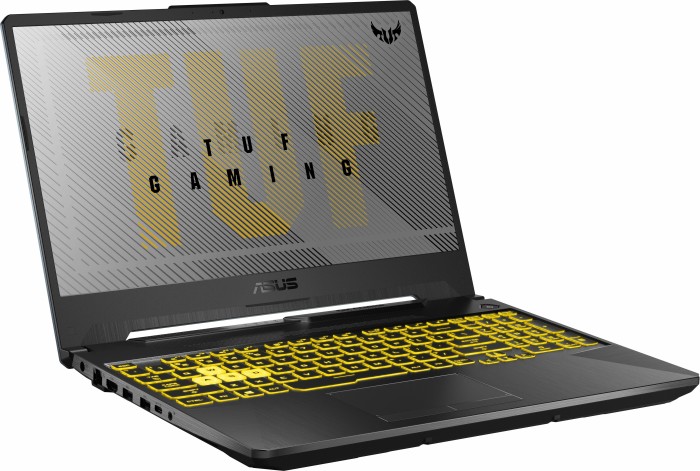

Asus TUF Gaming F15 FX506LH-BQ030

Specifications

Asus TUF Gaming F15 FX506LH-BQ030
Asus TUF Gaming F15 FX506LH-BQ030 (TUF Gaming F15 FX506 Series)
Processor
Intel Core i7-10750H 6 x 2.6 - 5 GHz, Comet Lake-H
Memory
16384 MB
Display
15.60 inch 16:9, 1920 x 1080 pixel 141 PPI
Storage
1 TB SSD
Connections
1 USB 2.0, 2 USB 3.2 Gen 2x2 20Gbps, 1 HDMI, 1 DisplayPort
Networking
802.11 a/b/g/n/ac/ax (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6), Bluetooth 5.1
Size
height x width x depth (in mm): 25 x 359 x 256 ( = 0.98 x 14.13 x 10.08 in)
Operating System
FreeDos
Additional features
Keyboard Light: yes
Weight
2.3 kg ( = 81.13 oz / 5.07 pounds) ( = 0 oz / 0 pounds)



Pricecompare

Reviews for the Asus TUF Gaming F15 FX506LH-BQ030

ASUS TUF Gaming F15 FX506LH-BQ030: ¿Vale la pena?
Source: Mi Mundo Gadget Spanish ES→EN
Positive: Elegant design; nice display; good processor; decent connectivity. Negative: No SD card slot.
Single Review, online available, Medium, Date: 10/04/2020

Comment

NVIDIA GeForce GTX 1650 Mobile: Mid range dedicated graphics card for laptops based on the desktop GTX 1650 and therefore the Turing architecture (TU117 chip in 12nm FFN) without raytracing and Tensor cores. Available with 896 and 1024 shaders.

With these GPUs you are able to play modern and demanding games fluently at medium detail settings and HD resolution.

» Further information can be found in our Comparison of Mobile Graphics Cards and the corresponding Benchmark List.


i7-10750H: A high-performance hexa-core processor designed for thicker laptops with room for better thermals. The Comet Lake-H processor is manufactured on the third-gen 14 nm Intel process and features a 24 EU UHD Graphics 630 iGPU clocked at 350 MHz to 1,150 MHz. The CPU cores run at 2.6 GHz (base clock speed) Boosting up to 5.0 GHz and the likely all-core Boost frequency is 4.3 GHz. Hyper-Threading is enabled, allowing two threads to run simultaneously on each core.» Further information can be found in our Comparison of Mobile Processsors.


15.60":

15-16 inch is a standard display size for laptops and offers the biggest variety of products.

» To find out how fine a display is, see our DPI List.


2.3 kg:

Usually subnotebooks, ultrabooks and quite lightweight laptops with 12-16 inch display-diagonal weigh as much.


Asus: ASUSTeK Computer Incorporated, a Taiwanese multinational company, produces motherboards, graphics cards, optical drives, PDAs, computer monitors, notebook computers, servers, networking products, mobile phones, computer cases, computer components, and computer cooling systems. The company's 2007 revenues reached US$6.9 billion. ASUS also produces components for other manufacturers. The Eee PC initiated the netbook boom in 2008.

In the notebook sector, Asus had a global market share of about 11% from 2014-2016, making it the fourth largest laptop manufacturer. In the smartphone sector, Asus is not among the Top 5 and has only a small market share (as of 2016).


» Further information can be found in our Notebook Purchase Guide.
