Acer TravelMate Spin B3 review: Robust 2-in-1 laptop with pen input

Versatile. Acer's 2-in-1 device offers silent operation, a good battery life, and an NVMe SSD. The touchscreen can be operated either with your fingers or with the included input pen. Windows 10 Pro serves as the operating system, and it can be updated to Windows 11. The price is about 330 € (~$375).

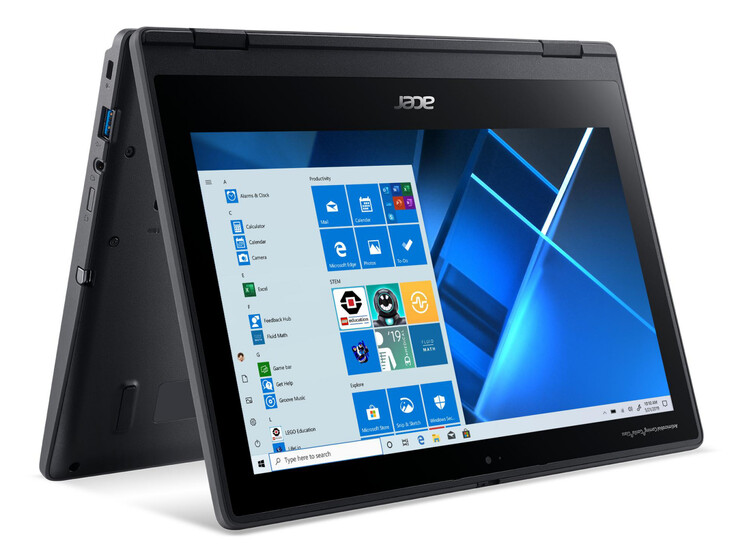

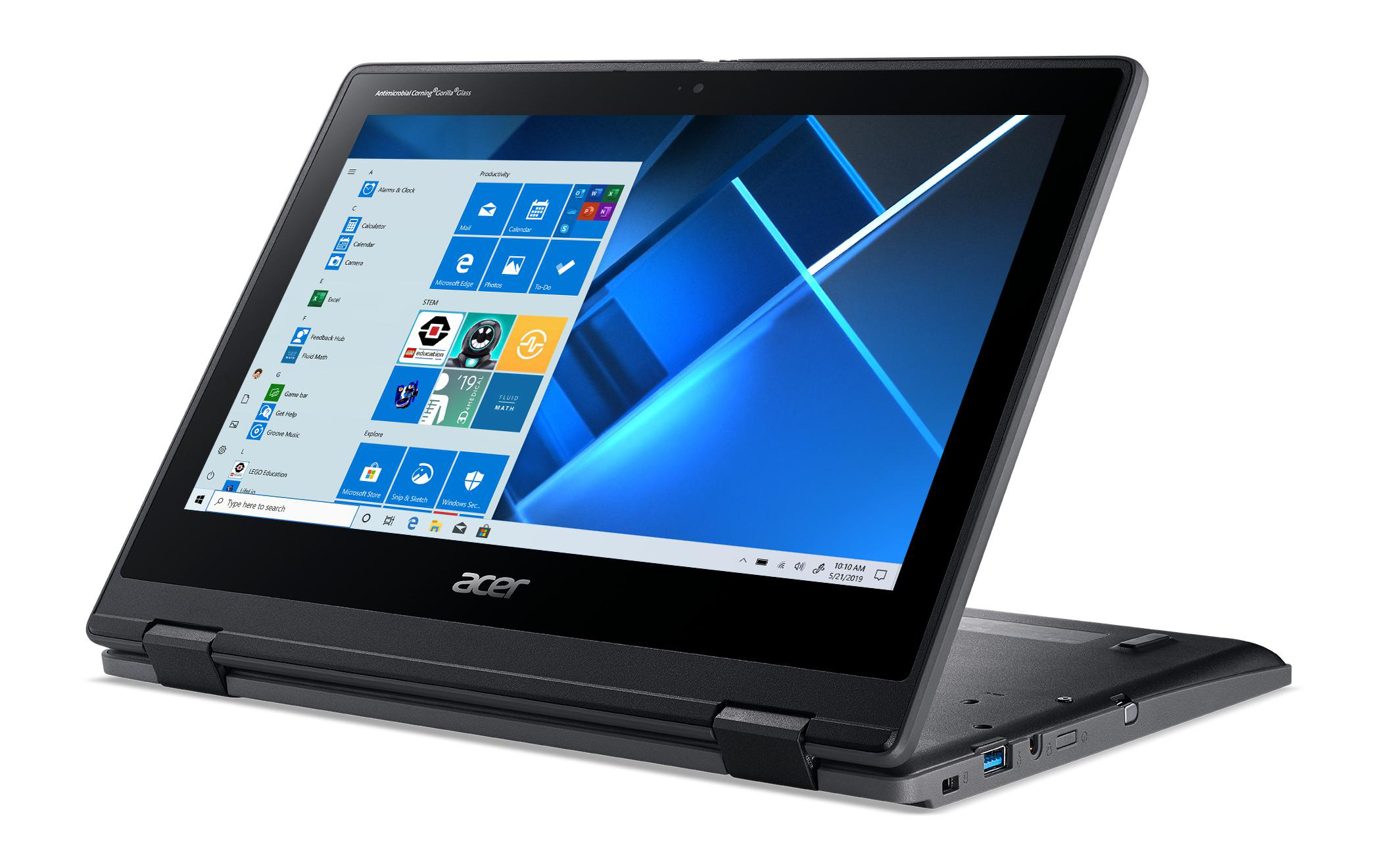

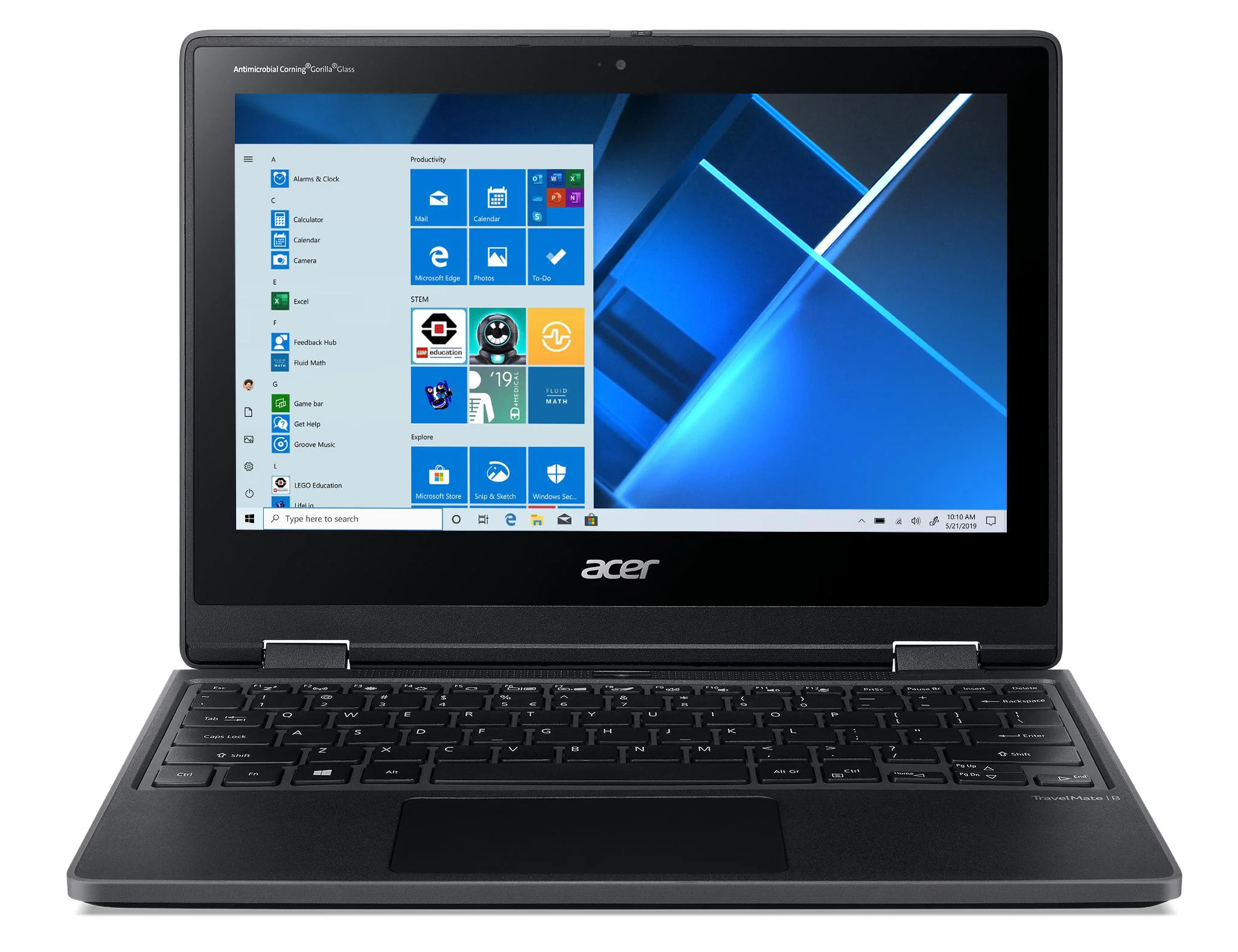

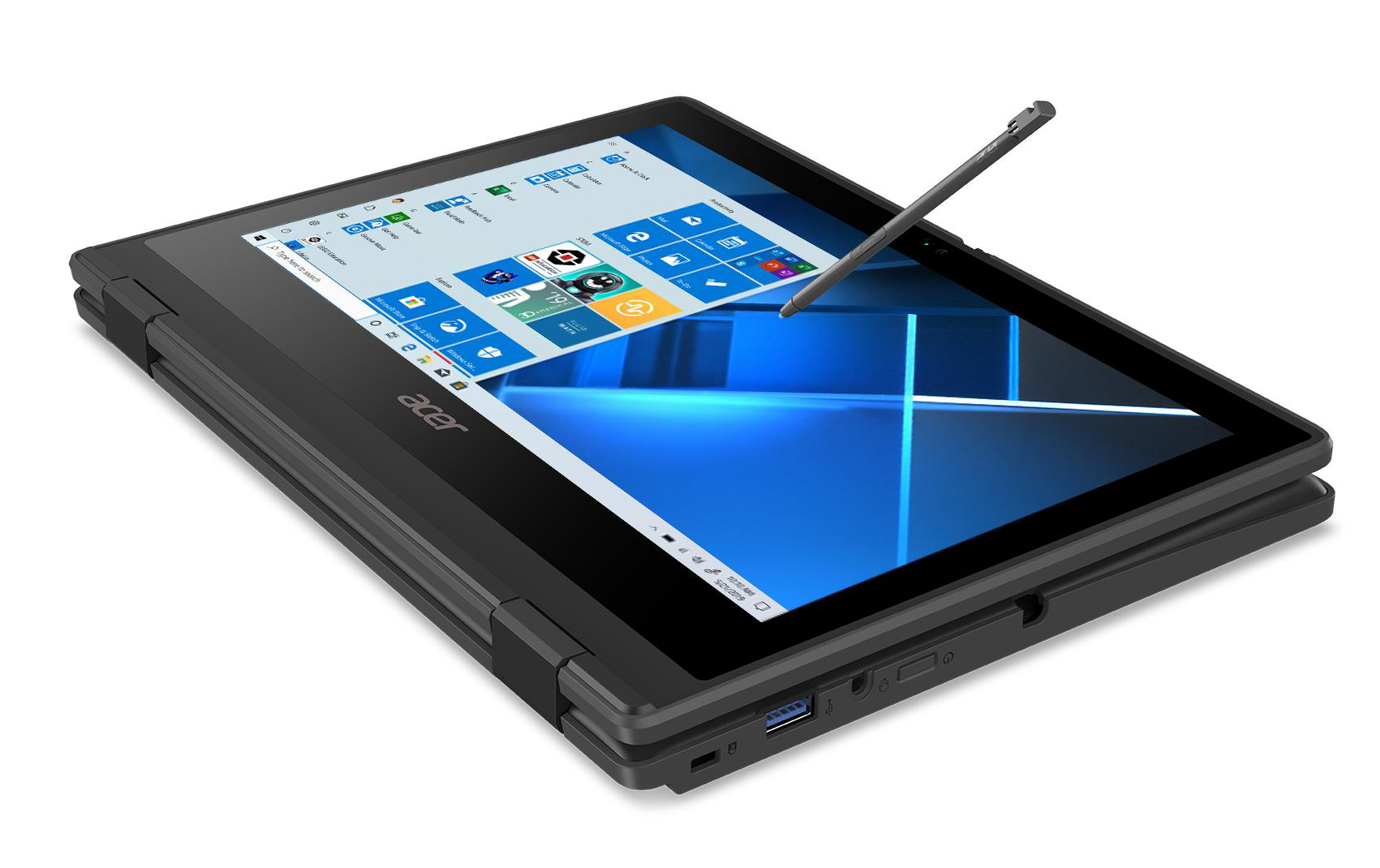

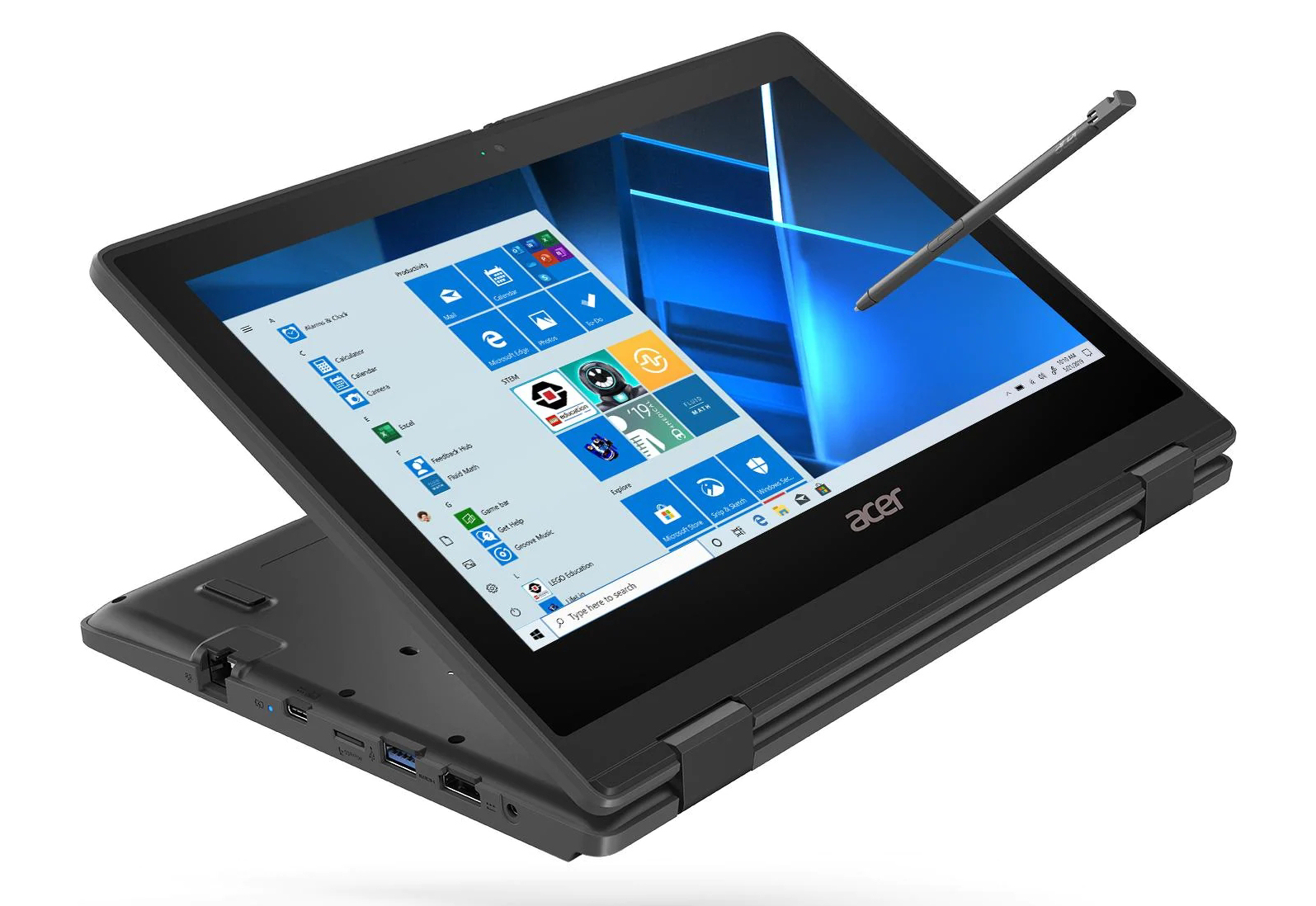

With the TravelMate Spin B3, Acer offers a robust 2-in-1 laptop that is mainly targeted for usage in schools. The 11.6-inch device is run by a Pentium Silver N5030 processor. The competitors include devices such as the Lenovo Flex 3 Chrome, the Acer Chromebook Spin 511 R752T, and the Asus BR1100FKA.

Acer TravelMate Spin B3 TMB311RN-31-P5KK
Processor
Intel Pentium Silver N5030 4 x 2 - 3.1 GHz, 15 W PL2 / Short Burst, 7.5 W PL1 / Sustained, Gemini Lake Refresh
Graphics adapter
Intel UHD Graphics 605, Core: 750 MHz, single-channel, 30.0.101.1069
Memory
4 GB
, DDR4-2400, single-channel mode, onboard, no memory slot
Display
11.60 inch 16:9, 1920 x 1080 pixel 190 PPI, capacitve, 10 touchpoints, native pen support, AU Optronics B116HAN05.2, IPS, glossy: yes, 60 Hz
Storage

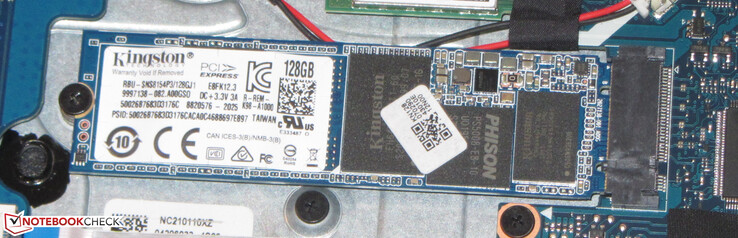

Kingston RBUSNS8154P3128GJ, 128 GB
, M.2-2280, NVMe, 93.2 GB free
Soundcard
Realtek ALC256 @ Intel Gemini Lake SoC - High Definition Audio Controller
Connections
3 USB 3.1 Gen2, USB-C Power Delivery (PD), 1 HDMI, 1 DisplayPort, 1 Kensington Lock, Audio Connections: combined audio port, Card Reader: microSD, Sensors: accelerometer, TPM 2.0
Networking
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Intel Wireless-AC 9560 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 5
Size
height x width x depth (in mm): 20.95 x 295 x 212 ( = 0.82 x 11.61 x 8.35 in)
Battery
50.3 Wh, 4471 mAh Lithium-Ion
Operating System
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: HD
Primary Camera: 0.9 MPix
Secondary Camera: 5 MPix HDR
Additional features
Speakers: stereo, Keyboard: chiclet, Keyboard Light: no, MS Office Professional 2019 (trial), 36 Months Warranty, fanless
Weight
1.49 kg ( = 52.56 oz / 3.28 pounds), Power Supply: 210 g ( = 7.41 oz / 0.46 pounds)
Price
399 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Possible Competitors in Comparison

Rating
Date
Model
Weight
Height
Size
Resolution
Best Price
81 %
01/2022
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Pentium N5030, UHD Graphics 605
1.5 kg20.95 mm11.60"1920x1080
79.9 %
12/2021
Lenovo Flex 3 Chrome 11M836
MT8183, Mali-G72 MP3
1.2 kg17.5 mm11.60"1366x768
80.3 %
11/2021
Acer Chromebook Spin 511 R752T-C26N
Celeron N4120, UHD Graphics 600
1.2 kg20 mm11.60"1366x768
74.9 %
07/2021
Asus BR1100FKA-BP0109RA
Celeron N4500, UHD Graphics (Jasper Lake 16 EU)
1.4 kg19.9 mm11.60"1366x768

Case and Equipment - The TravelMate B3 supports Power Delivery

The robust, black plastic case has a rough surface that offers a good grip to the fingers and is not prone to fingerprints. The short edges of the B3 are protected from bumps by rubber slats. The computer does not show any faulty workmanship. Even though the base unit and lid can be warped slightly, this remains within limits. The battery is built-in. After the bottom has been removed, the insides are easily accessible.

There are three USB connections (2x Type-A, 1x Type-C) that support the USB 3.2 Gen1 standard. The USB-C port supports Power Delivery and DisplayPort via USB-C. So together with the HDMI connection, the Spin B3 has two video output ports. Something that is found rarely in devices such as the TravelMate is the Gigabit Ethernet port. The microSD storage card reader is a slower representative of its kind (measured using our AV PRO SD 128 GB V60 reference storage card).

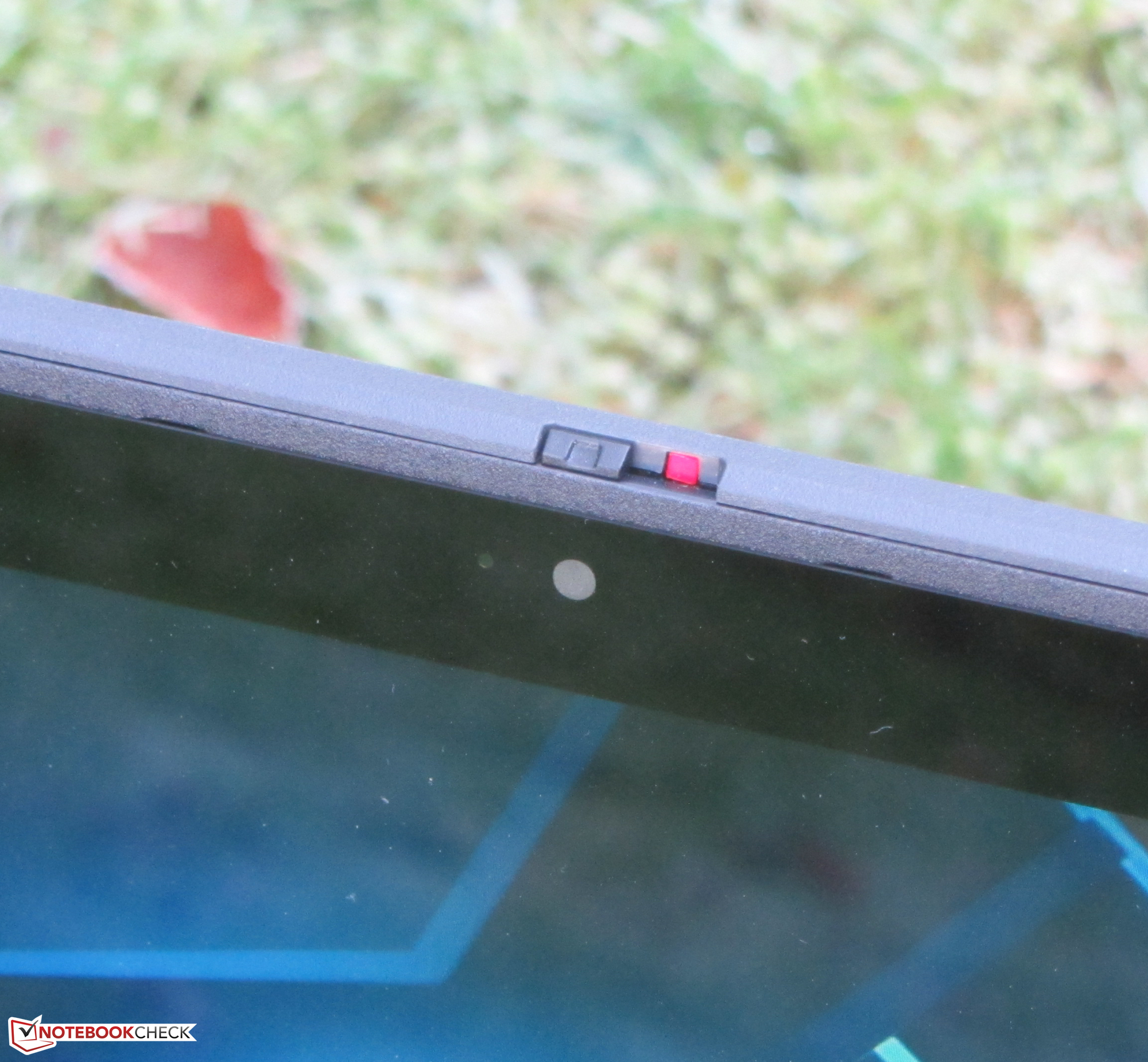

The 2-in-1 device has two cameras: a webcam (0.9 MP) for video conferencing and a camera (5 MP, HDR, max. 2560 x 1920 pixels) for photos. The latter is located above the keyboard and can be used in tablet mode. While the webcam only offers standard fare, the 5-MP camera produces fairly decent results.

The WLAN transfer rates that we measured under optimal conditions (with no other WLAN devices in close proximity and a short distance between the laptop and the server PC) are basically okay, but they remain behind the capabilities of the WLAN chip used here (Intel Wireless-AC 9560).

Size Comparison

296 mm / 11.7 inch 205 mm / 8.07 inch 20 mm / 0.787 inch 1.2 kg2.6 lbs295 mm / 11.6 inch 212 mm / 8.35 inch 20.95 mm / 0.825 inch 1.5 kg3.28 lbs295 mm / 11.6 inch 205 mm / 8.07 inch 19.9 mm / 0.783 inch 1.4 kg3.09 lbs285 mm / 11.2 inch 202.7 mm / 7.98 inch 17.5 mm / 0.689 inch 1.2 kg2.73 lbs297 mm / 11.7 inch 210 mm / 8.27 inch 1 mm / 0.03937 inch 5.7 g0.01257 lbs

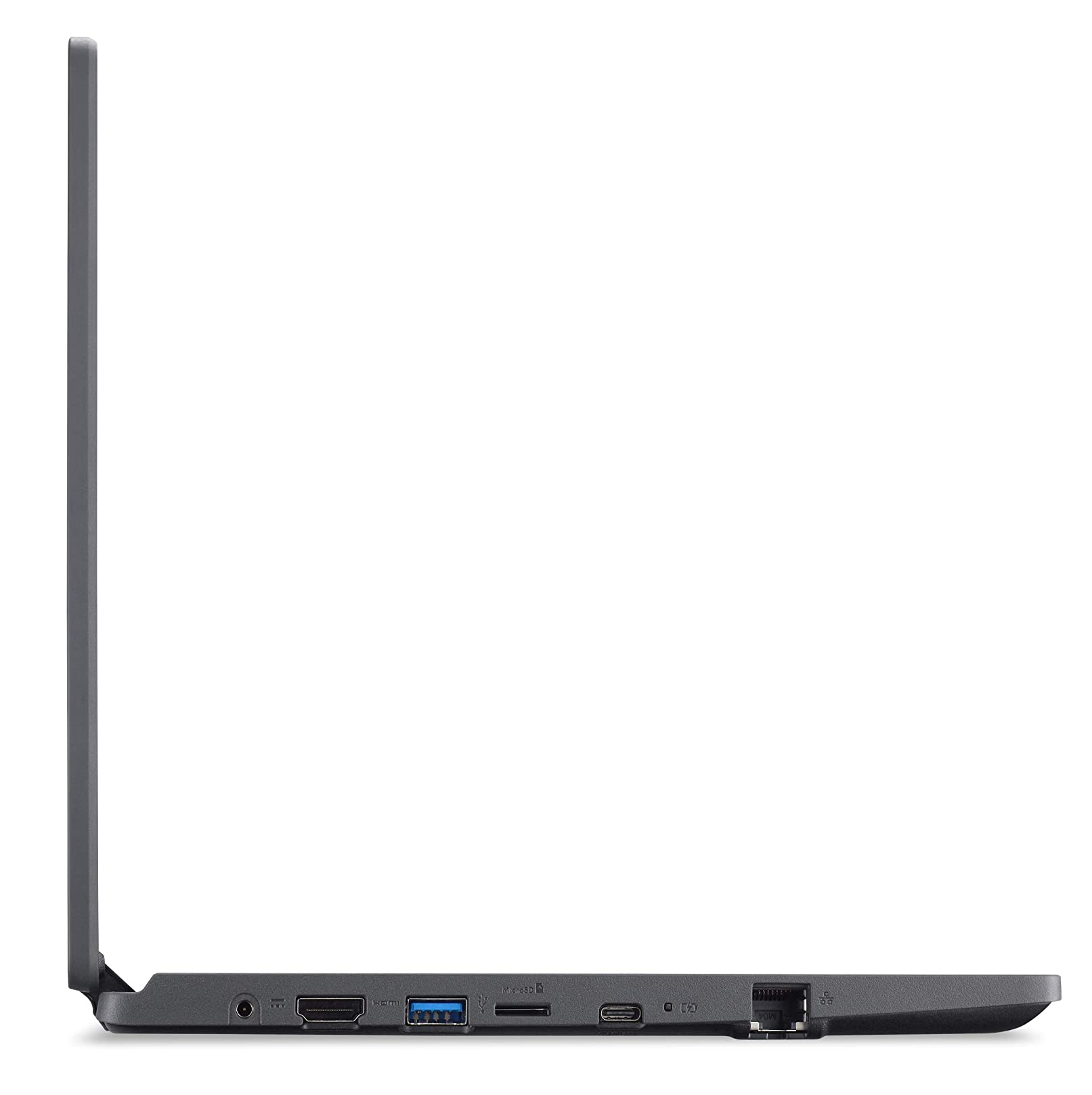

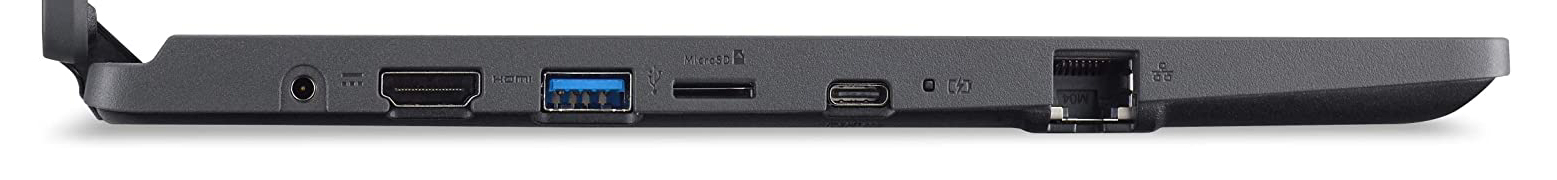

Left side: power connection, HDMI, USB 3.2 Gen 1 (Type A), storage card reader (microSD), USB 3.2 Gen 1 (Type C; DisplayPort, Power Delivery), Gigabit Ethernet
Left side: power connection, HDMI, USB 3.2 Gen 1 (Type A), storage card reader (microSD), USB 3.2 Gen 1 (Type C; DisplayPort, Power Delivery), Gigabit Ethernet

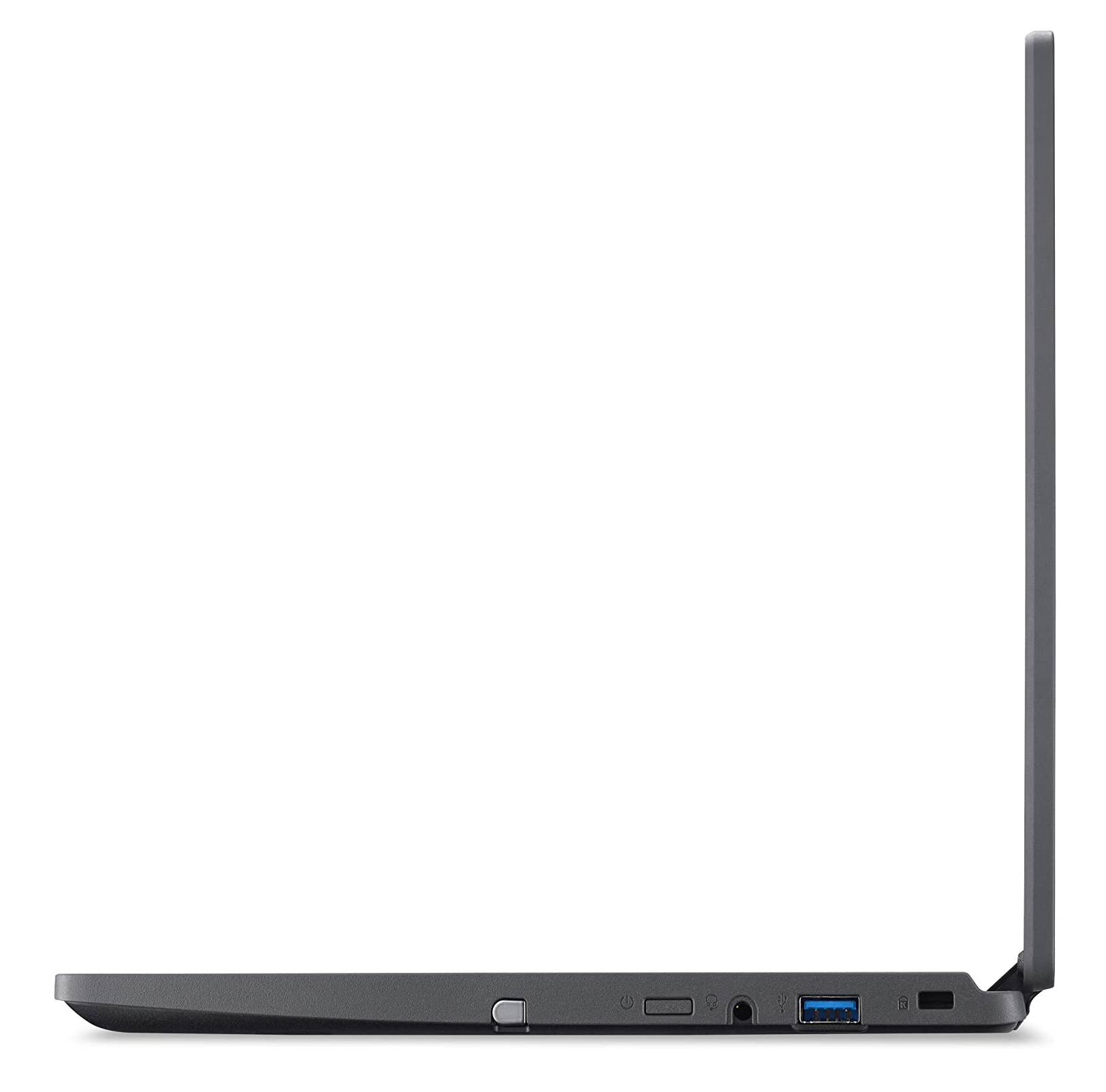

Right side: input pen, power button, audio combo port, USB 3.2 Gen 1 (Type A), cable lock slot
Right side: input pen, power button, audio combo port, USB 3.2 Gen 1 (Type A), cable lock slot
SD Card Reader
average JPG Copy Test (av. of 3 runs)
Average of class Convertible
  (14.5 - 201, n=54, last 2 years)
71.1 MB/s ∼100% +179%
Acer Chromebook Spin 511 R752T-C26N
Intel Celeron N4120 (AV Pro SD microSD 128 GB V60)
33 MB/s ∼46% +29%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030 (AV Pro SD microSD 128 GB V60)
25.5 MB/s ∼36%
Lenovo Flex 3 Chrome 11M836
Mediatek MT8183 (AV Pro SD microSD 128 GB V60)
18.5 MB/s ∼26% -27%
maximum AS SSD Seq Read Test (1GB)
Average of class Convertible
  (22.6 - 253, n=49, last 2 years)
88.6 MB/s ∼100% +221%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030 (AV Pro SD microSD 128 GB V60)
27.6 MB/s ∼31%
Networking
iperf3 transmit AX12
Average of class Convertible
  (138 - 1690, n=53, last 2 years)
1016 MBit/s ∼100% +52%
Average Intel Wireless-AC 9560
  (309 - 1350, n=182)
686 MBit/s ∼68% +2%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Wireless-AC 9560
670 (627min - 705max) MBit/s ∼66%
Asus BR1100FKA-BP0109RA
Intel Wi-Fi 6 AX201
216 (72min - 309max) MBit/s ∼21% -68%
Lenovo Flex 3 Chrome 11M836
802.11 a/b/g/n/ac
138 MBit/s ∼14% -79%
iperf3 receive AX12
Average of class Convertible
  (136 - 1585, n=53, last 2 years)
1085 MBit/s ∼100% +71%
Average Intel Wireless-AC 9560
  (288 - 1390, n=183)
698 MBit/s ∼64% +10%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Wireless-AC 9560
636 (611min - 645max) MBit/s ∼59%
Lenovo Flex 3 Chrome 11M836
802.11 a/b/g/n/ac
263 MBit/s ∼24% -59%
Asus BR1100FKA-BP0109RA
Intel Wi-Fi 6 AX201
136 (19min - 275max) MBit/s ∼13% -79%
050100150200250300350400450500550600650700Tooltip
Acer TravelMate Spin B3 TMB311RN-31-P5KK Intel Wireless-AC 9560; iperf3 receive AX12; iperf 3.1.3: Ø636 (611-645)
Asus BR1100FKA-BP0109RA Intel Wi-Fi 6 AX201; iperf3 receive AX12; iperf 3.1.3: Ø136.1 (19-275)
Acer TravelMate Spin B3 TMB311RN-31-P5KK Intel Wireless-AC 9560; iperf3 transmit AX12; iperf 3.1.3: Ø670 (627-705)
Asus BR1100FKA-BP0109RA Intel Wi-Fi 6 AX201; iperf3 transmit AX12; iperf 3.1.3: Ø216 (72-309)
ColorChecker
7.4 ∆E
10.4 ∆E
15 ∆E
9 ∆E
16.4 ∆E
15.4 ∆E
6.8 ∆E
18.3 ∆E
14.6 ∆E
8.9 ∆E
9.7 ∆E
7.2 ∆E
10.6 ∆E
7.8 ∆E
19.7 ∆E
5 ∆E
16.7 ∆E
17.9 ∆E
3.3 ∆E
13.5 ∆E
13.3 ∆E
10.2 ∆E
8.2 ∆E
5.9 ∆E
ColorChecker Acer TravelMate Spin B3 TMB311RN-31-P5KK: 11.29 ∆E min: 3.31 - max: 19.68 ∆E

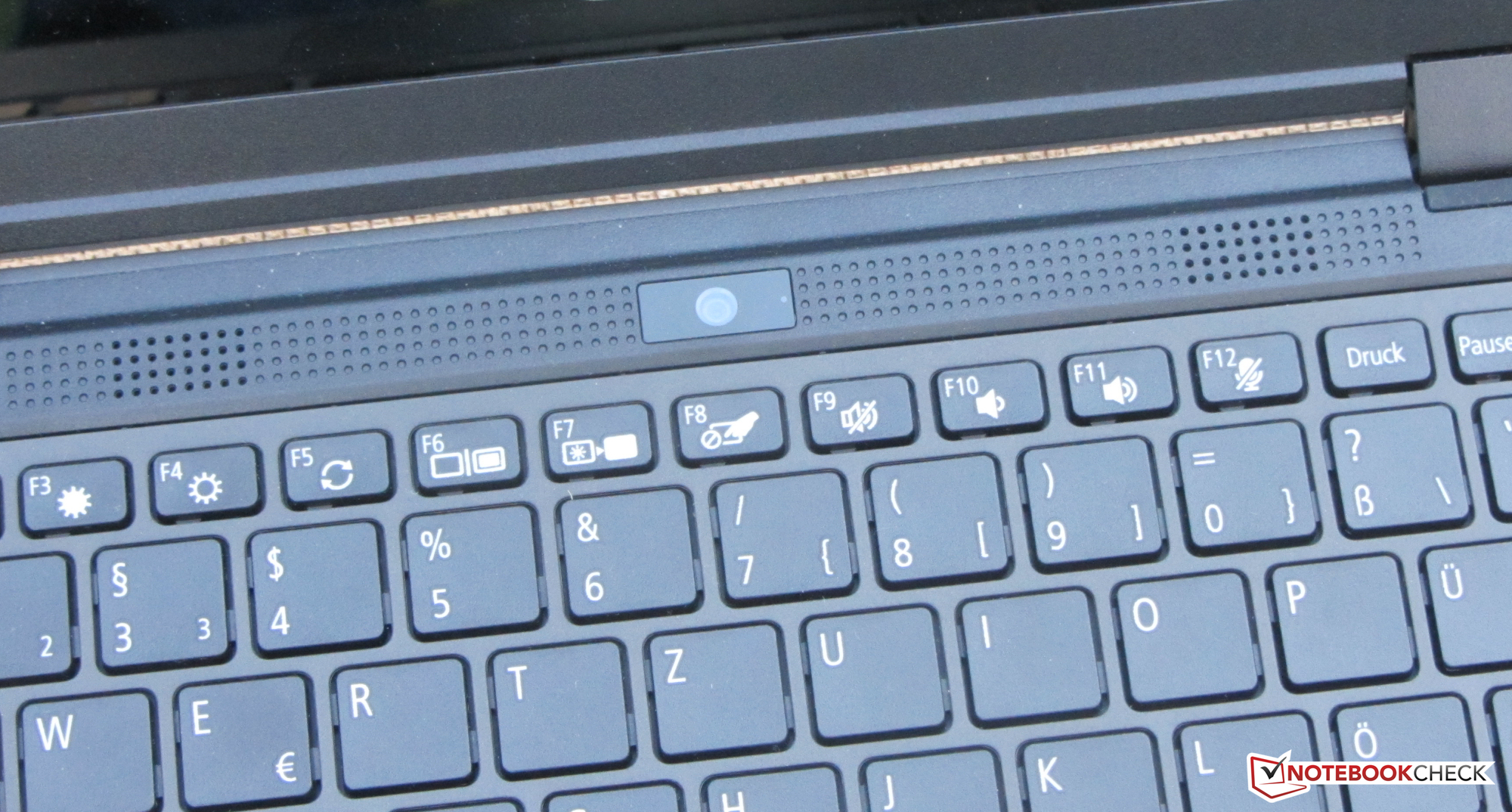

Input Devices - The Acer Spin doesn't offer a keyboard illumination

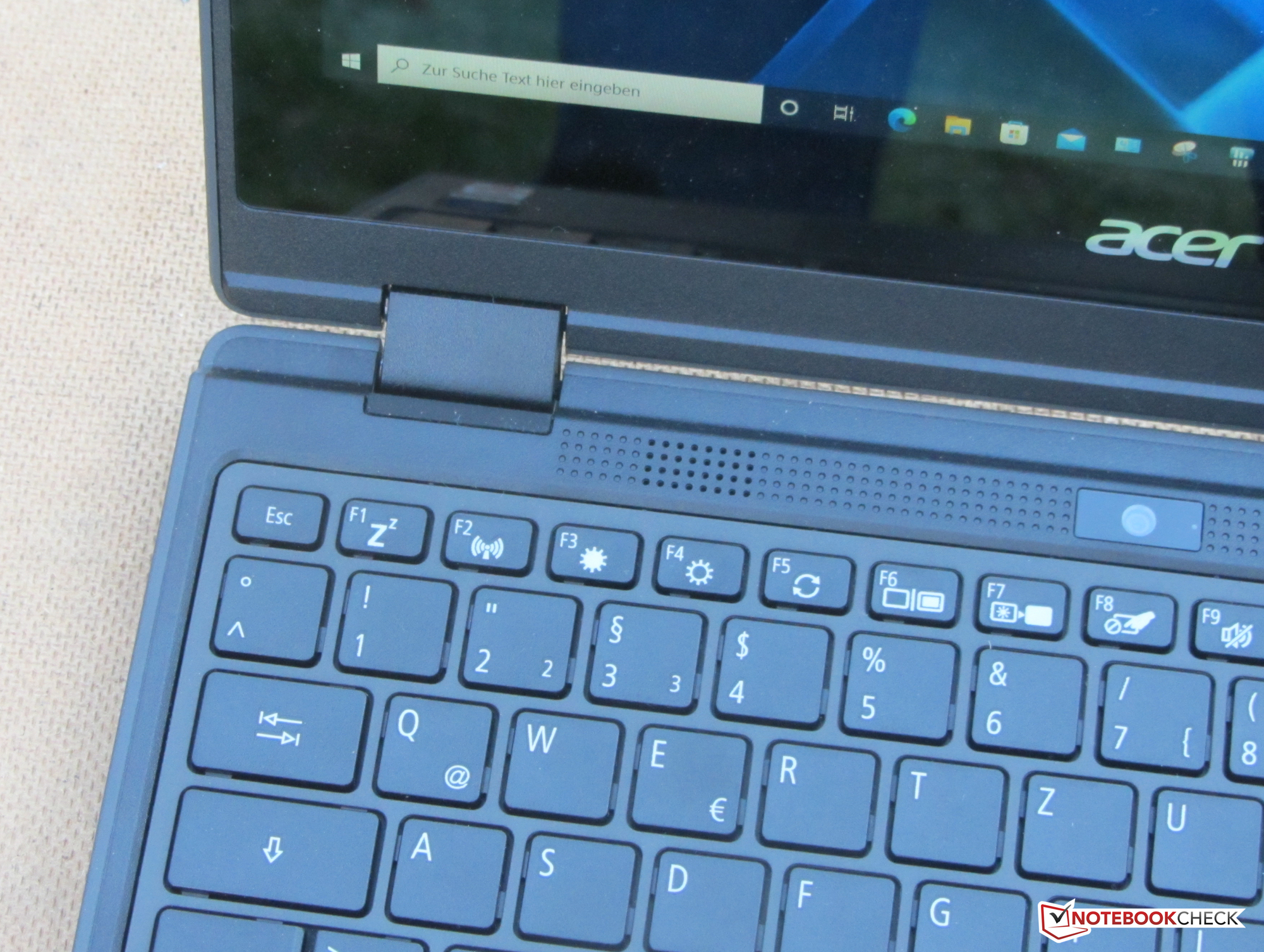

The slightly concave and roughened keys of the unlit chicklet keyboard offer a short stroke and clear pressure point. The key resistance is okay. While typing, the keyboard has a minimal give, but this did not turn out to be any hindrance. Overall, Acer delivers a keyboard here that is suitable for everyday tasks.

The smooth surface of the multi-touch capable ClickPad (~10.5 x 6 cm; ~4.1 x 2.4 in) makes sliding your fingers easy. It also responds to inputs in the corners. The pad has a short stroke and clear pressure point.

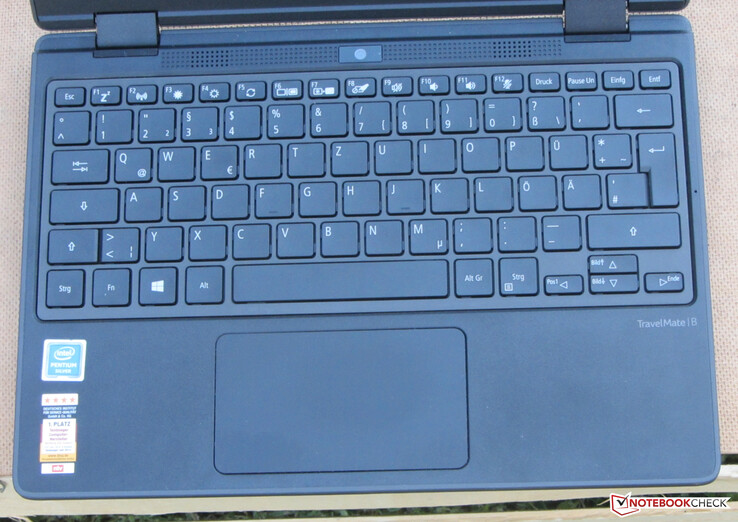

Spin B3 input devices
Spin B3 input devices

Display - IPS onboard

Pixel grid
Pixel grid

The brightness (266.8 cd/m²) and contrast (907:1) of the reflective 11.6-inch touchscreen display (1920 x 1080 pixels) turn out too low. In battery operation, the maximum brightness drops to 238 cd/m². We consider values larger than 300 cd/m² and 1.000:1 as good. We did not notice any PWM flickering.

277
cd/m²
261
cd/m²
278
cd/m²
274
cd/m²
272
cd/m²
268
cd/m²
261
cd/m²
268
cd/m²
242
cd/m²
Distribution of brightness
AU Optronics B116HAN05.2
X-Rite i1Pro 2
Maximum: 278 cd/m² (Nits) Average: 266.8 cd/m² Minimum: 17 cd/m²
Brightness Distribution: 87 %
Center on Battery: 238 cd/m²
Contrast: 907:1 (Black: 0.3 cd/m²)
ΔE Color 4.1 | 0.59-29.43 Ø5.2
ΔE Greyscale 4.03 | 0.57-98 Ø5.5
51.3% AdobeRGB 1998 (Argyll 2.2.0 3D)
72.9% sRGB (Argyll 2.2.0 3D)
49.6% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.23
Acer TravelMate Spin B3 TMB311RN-31-P5KK
AU Optronics B116HAN05.2, IPS, 1920x1080, 11.60
Lenovo Flex 3 Chrome 11M836
IPS, 1366x768, 11.60
Acer Chromebook Spin 511 R752T-C26N
IPS-Grade, 1366x768, 11.60
Asus BR1100FKA-BP0109RA
IPS, 1366x768, 11.60
Display
-7%
Display P3 Coverage
49.6
46
-7%
sRGB Coverage
72.9
68
-7%
AdobeRGB 1998 Coverage
51.3
47
-8%
Response Times
24%
-13%
-10%
Response Time Grey 50% / Grey 80% *
34 ?(16, 18)
26 ?(12.4, 13.6)
24%
33 ?(15, 18)
3%
34 ?(15, 19)
-0%
Response Time Black / White *
21 ?(11, 10)
16 ?(15.2, 10.8)
24%
27 ?(14, 13)
-29%
25 ?(14, 11)
-19%
PWM Frequency
1000 ?(90)
2500
Screen
-12%
-0%
0%
Brightness middle
272
302.1
11%
291
7%
242
-11%
Brightness
267
290
9%
271
1%
230
-14%
Brightness Distribution
87
86
-1%
85
-2%
87
0%
Black Level *
0.3
0.26
13%
0.11
63%
0.195
35%
Contrast
907
1162
28%
2645
192%
1241
37%
Colorchecker dE 2000 *
4.1
6.66
-62%
8.14
-99%
5.35
-30%
Colorchecker dE 2000 max. *
9.08
17.01
-87%
19.9
-119%
8.74
4%
Greyscale dE 2000 *
4.03
4.2
-4%
5.84
-45%
4.79
-19%
Gamma
2.23 99%
1.92 115%
2.5 88%
2.22 99%
CCT
6557 99%
6122 106%
6761 96%
6148 106%
Color Space (Percent of AdobeRGB 1998)
43
Color Space (Percent of sRGB)
68
Total Average (Program / Settings)
6% / -5%
-7% / -3%
-6% / -3%

* ... smaller is better

In the state of delivery, the display offers a decent color reproduction, but the colors deviate slightly from the target. However, this isn't really noticeable. The display is unable to reproduce the AdobeRGB (51%), sRGB (73%), and DCI-P3 (50%) color spaces.

CalMAN - ColorChecker
CalMAN - ColorChecker
CalMAN - Grayscale
CalMAN - Grayscale
CalMAN - Saturation
CalMAN - Saturation

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

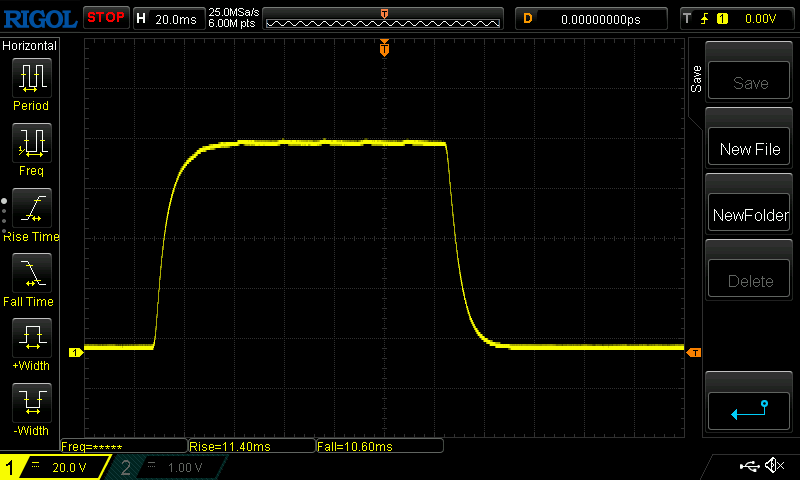

       Response Time Black to White
21 ms ... rise ↗ and fall ↘ combined↗ 11 ms rise
↘ 10 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers.
In comparison, all tested devices range from 0.4 (minimum) to 240 (maximum) ms. » 35 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (22.6 ms).

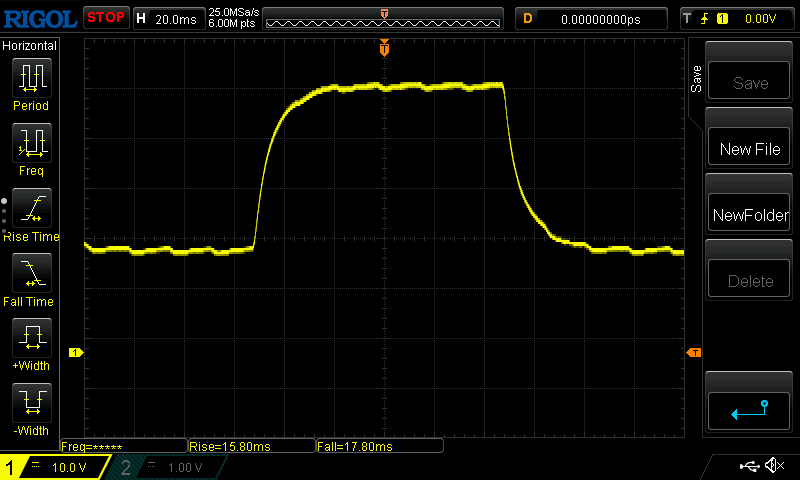

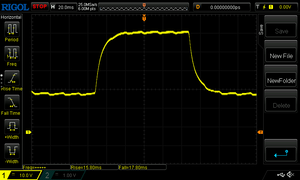

       Response Time 50% Grey to 80% Grey
34 ms ... rise ↗ and fall ↘ combined↗ 16 ms rise
↘ 18 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.25 (minimum) to 636 (maximum) ms. » 35 % of all devices are better.
This means that the measured response time is similar to the average of all tested devices (35.7 ms).

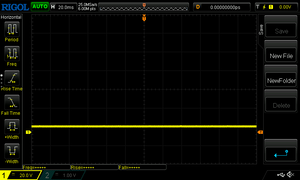

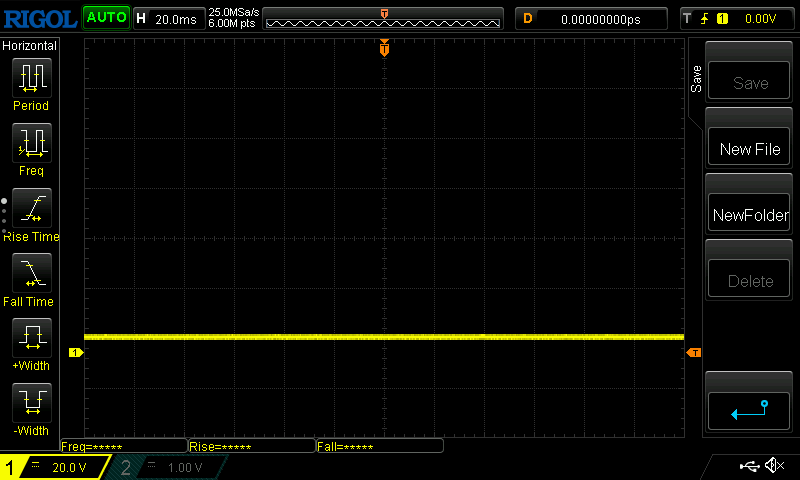

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 19409 (minimum: 5 - maximum: 3846000) Hz was measured.

The IPS panel offers stable viewing angles and can be read from any position. However, you can hardly - and sometimes not at all - read the display outdoors, since the low display brightness and reflective display surfaces make that very difficult.

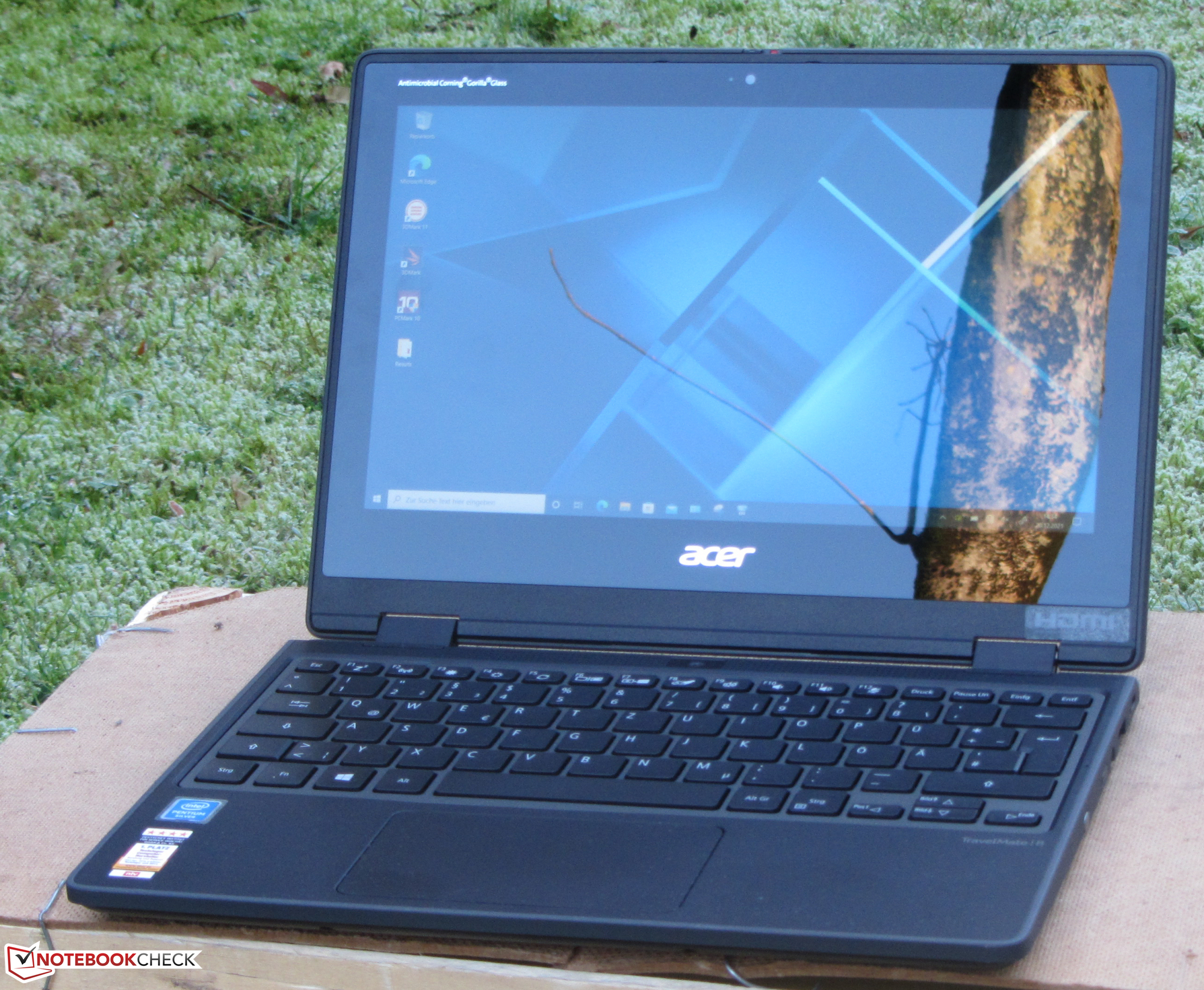

The TravelMate outdoors
The TravelMate outdoors

Performance - Acer uses Gemini Lake in the 2-in-1 laptop

With the TravelMate Spin 3, Acer offers a 2-in-1 device that can handle simple applications from the Internet and office areas.

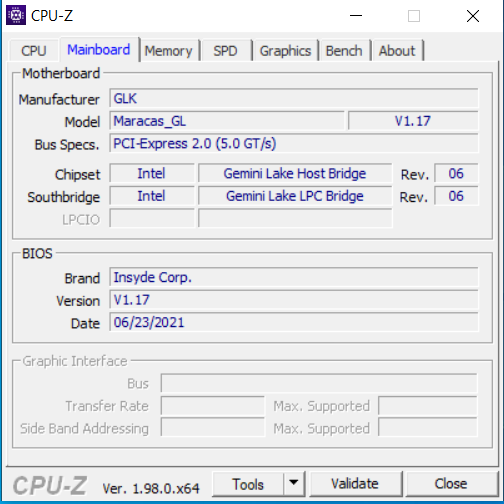

CPU-Z
CPU-Z
CPU-Z
GPU-Z

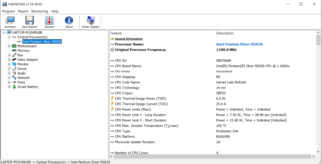

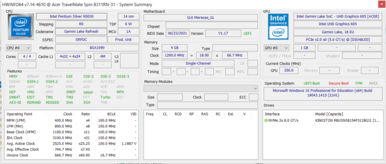

HWInfo
HWInfo



Test Conditions

The TravelMate does not offer any manufacturer specific power profiles. We use the "Highest Performance" Windows profile for the benchmarks and "Balanced" for the Akkutest battery test.

Processor

A TDP of 6 watts allows passive cooling of the Pentium Silver N5030 CPU (Gemini Lake) used here, which runs at a basic clock speed of 1.1 GHz. Via Turbo, the speed can be increased up to 2.6 GHz (4 cores) and 3.2 GHz (single core).

While it briefly runs through the multi-thread test of the Cinebench R15 benchmark at 2.6 to 2.7 GHz, the clock speed then drops to 1.8 - 1.9 GHz. The single-thread test runs at 2.8 GHz. The speed is the same in mains and battery operation.

We evaluate whether the CPU Turbo is also used constantly by running the multi-thread test of Cinebench R15 in a constant loop for at least 30 minutes. The Turbo speed can only be kept at a high level for a few seconds. After that, it drops to values below 2 GHz.

Overall, the benchmark results are a bit disappointing. The performance of the N5030 remains below its capabilities, as the comparison with the Lenovo IdeaPad 1-14IGL05, which is also cooled passively, shows.

Cinebench R15 Multi Constant Load Test

0153045607590105120135150165180195210225240Tooltip
Acer TravelMate Spin B3 TMB311RN-31-P5KK Intel Pentium Silver N5030: Ø165.5 (117.01-202.8)
Asus BR1100FKA-BP0109RA Intel Celeron N4500: Ø125.2 (117.75-170.9)
Lenovo IdeaPad 1-14IGL05 Intel Pentium Silver N5030: Ø195.1 (155.55-248.94)

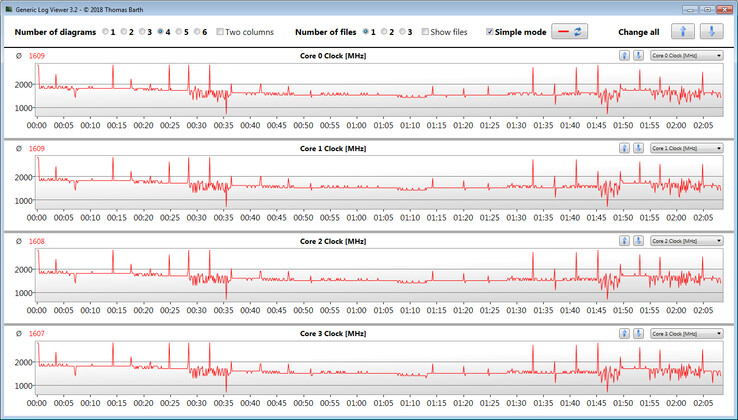

CPU clock speeds while running the CB15 loop
CPU clock speeds while running the CB15 loop
Cinebench R15 CPU Single 64Bit
86 Points
Cinebench R15 CPU Multi 64Bit
203 Points
Cinebench R15 OpenGL 64Bit
14.3 fps
Cinebench R15 Ref. Match 64Bit
97.8 %
Help
CPU Performance Rating - Percent
Average of class Convertible

91.9 pt ∼92%
Acer Chromebook Spin 511 R752T-C26N -13!
Intel Celeron N4120
36.2 pt ∼36%
Lenovo IdeaPad 1-14IGL05 -7!
Intel Pentium Silver N5030
32.3 pt ∼32%
Average Intel Pentium Silver N5030

30.4 pt ∼30%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
29.3 pt ∼29%
Asus BR1100FKA-BP0109RA -5!
Intel Celeron N4500
20.6 pt ∼21%
Lenovo Flex 3 Chrome 11M836 -13!
Mediatek MT8183
17.2 pt ∼17%
Cinebench R23
Multi Core
Average of class Convertible
  (616 - 14812, n=90, last 2 years)
5993 Points ∼100% +558%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
911 Points ∼15%
Average Intel Pentium Silver N5030

911 Points ∼15% 0%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500
709 Points ∼12% -22%
Single Core
Average of class Convertible
  (307 - 1877, n=90, last 2 years)
1346 Points ∼100% +213%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500
452 Points ∼34% +5%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
430 Points ∼32%
Average Intel Pentium Silver N5030

430 Points ∼32% 0%
Cinebench R20
CPU (Multi Core)
Average of class Convertible
  (242 - 5680, n=90, last 2 years)
2277 Points ∼100% +533%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030
491 Points ∼22% +36%
Average Intel Pentium Silver N5030
  (360 - 491, n=2)
426 Points ∼19% +18%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
360 Points ∼16%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500
332 Points ∼15% -8%
CPU (Single Core)
Average of class Convertible
  (116.8 - 727, n=90, last 2 years)
518 Points ∼100% +203%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030
194 Points ∼37% +13%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500
188 Points ∼36% +10%
Average Intel Pentium Silver N5030
  (171 - 194, n=2)
182.5 Points ∼35% +7%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
171 Points ∼33%
Cinebench R15
CPU Multi 64Bit
Average of class Convertible
  (110.1 - 2332, n=94, last 2 years)
1013 Points ∼100% +399%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030
248.9 (155.55min - 248.94max) Points ∼25% +23%
Average Intel Pentium Silver N5030
  (203 - 249, n=2)
226 Points ∼22% +11%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
203 Points ∼20%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500
171 (60.18min - 170.9max) Points ∼17% -16%
CPU Single 64Bit
Average of class Convertible
  (68.6 - 271, n=90, last 2 years)
197.3 Points ∼100% +129%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
86 Points ∼44%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500
82 Points ∼42% -5%
Average Intel Pentium Silver N5030
  (75.8 - 86, n=2)
80.9 Points ∼41% -6%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030
75.8 Points ∼38% -12%
Blender - v2.79 BMW27 CPU
Asus BR1100FKA-BP0109RA
Intel Celeron N4500
4249 Seconds * ∼100% -19%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
3580 Seconds * ∼84%
Average Intel Pentium Silver N5030
  (3319 - 3580, n=2)
3450 Seconds * ∼81% +4%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030
3319 Seconds * ∼78% +7%
Average of class Convertible
  (218 - 4249, n=88, last 2 years)
758 Seconds * ∼18% +79%
7-Zip 18.03
7z b 4
Average of class Convertible
  (5394 - 61169, n=90, last 2 years)
27296 MIPS ∼100% +314%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030
7878 MIPS ∼29% +19%
Average Intel Pentium Silver N5030
  (6598 - 7878, n=2)
7238 MIPS ∼27% +10%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
6598 MIPS ∼24%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500
5394 MIPS ∼20% -18%
7z b 4 -mmt1
Average of class Convertible
  (2046 - 5897, n=89, last 2 years)
4746 MIPS ∼100% +74%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500
2853 MIPS ∼60% +4%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
2735 MIPS ∼58%
Average Intel Pentium Silver N5030
  (2555 - 2735, n=2)
2645 MIPS ∼56% -3%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030
2555 MIPS ∼54% -7%
Geekbench 5.4
Multi-Core
Average of class Convertible
  (663 - 12374, n=92, last 2 years)
5533 Points ∼100% +353%
Acer Chromebook Spin 511 R752T-C26N
Intel Celeron N4120
1561 Points ∼28% +28%
Average Intel Pentium Silver N5030
  (1039 - 1529, n=3)
1263 Points ∼23% +3%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
1221 Points ∼22%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030
1039 Points ∼19% -15%
Lenovo Flex 3 Chrome 11M836
Mediatek MT8183
909 Points ∼16% -26%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500
707 Points ∼13% -42%
Single-Core
Average of class Convertible
  (260 - 1790, n=92, last 2 years)
1352 Points ∼100% +164%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
512 Points ∼38%
Average Intel Pentium Silver N5030
  (431 - 532, n=3)
492 Points ∼36% -4%
Acer Chromebook Spin 511 R752T-C26N
Intel Celeron N4120
449 Points ∼33% -12%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030
431 Points ∼32% -16%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500
401 Points ∼30% -22%
Lenovo Flex 3 Chrome 11M836
Mediatek MT8183
260 Points ∼19% -49%
HWBOT x265 Benchmark v2.2 - 4k Preset
Average of class Convertible
  (0.61 - 17.2, n=90, last 2 years)
7.01 fps ∼100% +887%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500
0.74 fps ∼11% +4%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
0.71 fps ∼10%
Average Intel Pentium Silver N5030

0.71 fps ∼10% 0%
LibreOffice - 20 Documents To PDF
Asus BR1100FKA-BP0109RA
Intel Celeron N4500
175 s * ∼100% -28%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
137 s * ∼78%
Average Intel Pentium Silver N5030
  (130 - 137, n=2)
133.5 s * ∼76% +3%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030
130 s * ∼74% +5%
Average of class Convertible
  (35.3 - 223, n=90, last 2 years)
59.4 s * ∼34% +57%
R Benchmark 2.5 - Overall mean
Asus BR1100FKA-BP0109RA
Intel Celeron N4500
2.12 sec * ∼100% -51%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030
1.473 sec * ∼69% -5%
Average Intel Pentium Silver N5030
  (1.402 - 1.473, n=2)
1.438 sec * ∼68% -3%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
1.402 sec * ∼66%
Average of class Convertible
  (0.4592 - 2.12, n=89, last 2 years)
0.656 sec * ∼31% +53%
Sunspider - 1.0 Total Score
Average Intel Pentium Silver N5030

356 ms * ∼100% -0%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
355.8 ms * ∼100%
Average of class Convertible
  (112.9 - 408, n=10, last 2 years)
232 ms * ∼65% +35%
Mozilla Kraken 1.1 - Total Score
Lenovo Flex 3 Chrome 11M836
Mediatek MT8183
3986 ms * ∼100% -27%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500
3160 ms * ∼79% -0%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
3145 ms * ∼79%
Average Intel Pentium Silver N5030
  (1914 - 3145, n=3)
2410 ms * ∼60% +23%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030
2170 ms * ∼54% +31%
Acer Chromebook Spin 511 R752T-C26N
Intel Celeron N4120
2125 ms * ∼53% +32%
Average of class Convertible
  (501 - 3989, n=96, last 2 years)
913 ms * ∼23% +71%
Octane V2 - Total Score
Average of class Convertible
  (9822 - 92146, n=38, last 2 years)
54950 Points ∼100% +151%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
21904 Points ∼40%
Average Intel Pentium Silver N5030
  (21894 - 21904, n=2)
21899 Points ∼40% 0%
Acer Chromebook Spin 511 R752T-C26N
Intel Celeron N4120
18537 Points ∼34% -15%
Lenovo Flex 3 Chrome 11M836
Mediatek MT8183
9822 Points ∼18% -55%
Speedometer 2.0 - Result
Average of class Convertible
  (24.8 - 279, n=30, last 2 years)
158.2 runs/min ∼100% +170%
Average Intel Pentium Silver N5030
  (58.7 - 59.9, n=2)
59.3 runs/min ∼37% +1%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
58.7 runs/min ∼37%
Acer Chromebook Spin 511 R752T-C26N
Intel Celeron N4120
49.1 runs/min ∼31% -16%
Lenovo Flex 3 Chrome 11M836
Mediatek MT8183
24.8 runs/min ∼16% -58%
WebXPRT 3 - ---
Average of class Convertible
  (48.2 - 314, n=93, last 2 years)
230 Points ∼100% +141%
Acer Chromebook Spin 511 R752T-C26N
Intel Celeron N4120
106 Points ∼46% +11%
Average Intel Pentium Silver N5030
  (91.3 - 116, n=3)
100.9 Points ∼44% +6%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
95.4 Points ∼41%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030
91.3 Points ∼40% -4%
Lenovo Flex 3 Chrome 11M836
Mediatek MT8183
60 Points ∼26% -37%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500
48.2 Points ∼21% -49%
JetStream 1.1 - Total Score
Average of class Convertible
  (51.9 - 443, n=15, last 2 years)
235 Points ∼100% +100%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
117.6 Points ∼50%
Average Intel Pentium Silver N5030
  (110.3 - 117.6, n=2)
114 Points ∼49% -3%
Acer Chromebook Spin 511 R752T-C26N
Intel Celeron N4120
84.7 Points ∼36% -28%
Lenovo Flex 3 Chrome 11M836
Mediatek MT8183
51.9 Points ∼22% -56%
Jetstream 2 - Total Score
Average of class Convertible
  (34.5 - 282, n=58, last 2 years)
171.8 Points ∼100% +139%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030
72 Points ∼42%
Average Intel Pentium Silver N5030
  (58.2 - 72, n=2)
65.1 Points ∼38% -10%
Acer Chromebook Spin 511 R752T-C26N
Intel Celeron N4120
58.8 Points ∼34% -18%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030
58.2 Points ∼34% -19%
Lenovo Flex 3 Chrome 11M836
Mediatek MT8183
34.53 Points ∼20% -52%

* ... smaller is better

Performance Rating
Average of class Convertible

100 pt ∼100%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030, UHD Graphics 605
23.6 pt ∼24%
Lenovo IdeaPad 1 11ADA05
AMD Athlon Silver 3050e, Vega 3
23.4 pt ∼23%
Average Intel Pentium Silver N5030

19.8 pt ∼20%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030, UHD Graphics 605
16 pt ∼16%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500, UHD Graphics (Jasper Lake 16 EU)
2.7 pt ∼3%
AIDA64 / FP32 Ray-Trace
Average of class Convertible
  (109 - 13068, n=86, last 2 years)
6348 KRay/s ∼100% +942%
Lenovo IdeaPad 1 11ADA05
AMD Athlon Silver 3050e, Vega 3
1053 KRay/s ∼17% +73%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030, UHD Graphics 605
1025 KRay/s ∼16% +68%
Average Intel Pentium Silver N5030
  (609 - 1025, n=2)
817 KRay/s ∼13% +34%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030, UHD Graphics 605
609 KRay/s ∼10%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500, UHD Graphics (Jasper Lake 16 EU)
152 KRay/s ∼2% -75%
AIDA64 / FPU Julia
Average of class Convertible
  (569 - 84031, n=86, last 2 years)
31453 Points ∼100% +703%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030, UHD Graphics 605
6476 Points ∼21% +65%
Lenovo IdeaPad 1 11ADA05
AMD Athlon Silver 3050e, Vega 3
6069 Points ∼19% +55%
Average Intel Pentium Silver N5030
  (3917 - 6476, n=2)
5197 Points ∼17% +33%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030, UHD Graphics 605
3917 Points ∼12%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500, UHD Graphics (Jasper Lake 16 EU)
569 Points ∼2% -85%
AIDA64 / CPU SHA3
Average of class Convertible
  (66 - 2992, n=86, last 2 years)
1698 MB/s ∼100% +593%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030, UHD Graphics 605
418 MB/s ∼25% +71%
Average Intel Pentium Silver N5030
  (245 - 418, n=2)
332 MB/s ∼20% +36%
Lenovo IdeaPad 1 11ADA05
AMD Athlon Silver 3050e, Vega 3
326 MB/s ∼19% +33%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030, UHD Graphics 605
245 MB/s ∼14%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500, UHD Graphics (Jasper Lake 16 EU)
66 MB/s ∼4% -73%
AIDA64 / CPU Queen
Average of class Convertible
  (2104 - 100358, n=86, last 2 years)
56931 Points ∼100% +172%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030, UHD Graphics 605
21644 Points ∼38% +4%
Average Intel Pentium Silver N5030
  (20893 - 21644, n=2)
21269 Points ∼37% +2%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030, UHD Graphics 605
20893 Points ∼37%
Lenovo IdeaPad 1 11ADA05
AMD Athlon Silver 3050e, Vega 3
16935 Points ∼30% -19%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500, UHD Graphics (Jasper Lake 16 EU)
2104 Points ∼4% -90%
AIDA64 / FPU SinJulia
Average of class Convertible
  (121 - 13847, n=86, last 2 years)
5234 Points ∼100% +605%
Lenovo IdeaPad 1 11ADA05
AMD Athlon Silver 3050e, Vega 3
2318 Points ∼44% +212%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030, UHD Graphics 605
1251 Points ∼24% +69%
Average Intel Pentium Silver N5030
  (742 - 1251, n=2)
997 Points ∼19% +34%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030, UHD Graphics 605
742 Points ∼14%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500, UHD Graphics (Jasper Lake 16 EU)
121 Points ∼2% -84%
AIDA64 / FPU Mandel
Average of class Convertible
  (291 - 45748, n=86, last 2 years)
17384 Points ∼100% +706%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030, UHD Graphics 605
3517 Points ∼20% +63%
Lenovo IdeaPad 1 11ADA05
AMD Athlon Silver 3050e, Vega 3
3047 Points ∼18% +41%
Average Intel Pentium Silver N5030
  (2158 - 3517, n=2)
2838 Points ∼16% +32%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030, UHD Graphics 605
2158 Points ∼12%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500, UHD Graphics (Jasper Lake 16 EU)
291 Points ∼2% -87%
AIDA64 / CPU AES
Average of class Convertible
  (104 - 111921, n=86, last 2 years)
48600 MB/s ∼100% +682%
Lenovo IdeaPad 1 11ADA05
AMD Athlon Silver 3050e, Vega 3
10902 MB/s ∼22% +75%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030, UHD Graphics 605
10585 MB/s ∼22% +70%
Average Intel Pentium Silver N5030
  (6215 - 10585, n=2)
8400 MB/s ∼17% +35%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030, UHD Graphics 605
6215 MB/s ∼13%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500, UHD Graphics (Jasper Lake 16 EU)
104 MB/s ∼0% -98%
AIDA64 / CPU ZLib
Average of class Convertible
  (61.4 - 938, n=87, last 2 years)
423 MB/s ∼100% +420%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030, UHD Graphics 605
135 MB/s ∼32% +66%
Lenovo IdeaPad 1 11ADA05
AMD Athlon Silver 3050e, Vega 3
111 MB/s ∼26% +36%
Average Intel Pentium Silver N5030
  (81.4 - 135, n=2)
108.2 MB/s ∼26% +33%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030, UHD Graphics 605
81.4 MB/s ∼19%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500, UHD Graphics (Jasper Lake 16 EU)
25.5 MB/s ∼6% -69%
AIDA64 / FP64 Ray-Trace
Average of class Convertible
  (59 - 7184, n=86, last 2 years)
3427 KRay/s ∼100% +948%
Lenovo IdeaPad 1 11ADA05
AMD Athlon Silver 3050e, Vega 3
575 KRay/s ∼17% +76%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030, UHD Graphics 605
567 KRay/s ∼17% +73%
Average Intel Pentium Silver N5030
  (327 - 567, n=2)
447 KRay/s ∼13% +37%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030, UHD Graphics 605
327 KRay/s ∼10%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500, UHD Graphics (Jasper Lake 16 EU)
84 KRay/s ∼2% -74%
AIDA64 / CPU PhotoWorxx
Average of class Convertible
  (680 - 52923, n=86, last 2 years)
28016 MPixel/s ∼100% +438%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030, UHD Graphics 605
6268 MPixel/s ∼22% +20%
Lenovo IdeaPad 1 11ADA05
AMD Athlon Silver 3050e, Vega 3
6183 MPixel/s ∼22% +19%
Average Intel Pentium Silver N5030
  (5209 - 6268, n=2)
5739 MPixel/s ∼20% +10%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030, UHD Graphics 605
5209 MPixel/s ∼19%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500, UHD Graphics (Jasper Lake 16 EU)
680 MPixel/s ∼2% -87%

System Performance

The combination of a Pentium Silver and 4 GB of working memory is able to handle simple applications from the office and Internet areas. While the system usually runs smoothly, you should only expect to run few applications and browser windows concurrently, since otherwise things become more sluggish. A part of the computing performance remains unused, because the working memory (DDR4-2400, onboard) only runs in single-channel mode. It is not possible to activate dual-channel mode at a later point. The PCMark results range at the expected level.

PCMark 10 Score
1838 points
Help
PCMark 10 / Score
Average of class Convertible
  (1429 - 6469, n=78, last 2 years)
4818 Points ∼100% +162%
Average Intel Pentium Silver N5030, Intel UHD Graphics 605
  (1838 - 1900, n=2)
1869 Points ∼39% +2%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
UHD Graphics 605, Pentium N5030, Kingston RBUSNS8154P3128GJ
1838 Points ∼38%
Asus BR1100FKA-BP0109RA
UHD Graphics (Jasper Lake 16 EU), Celeron N4500, 64 GB eMMC Flash
1429 Points ∼30% -22%
PCMark 10 / Essentials
Average of class Convertible
  (3602 - 11654, n=78, last 2 years)
9565 Points ∼100% +107%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
UHD Graphics 605, Pentium N5030, Kingston RBUSNS8154P3128GJ
4614 Points ∼48%
Average Intel Pentium Silver N5030, Intel UHD Graphics 605
  (4469 - 4614, n=2)
4542 Points ∼47% -2%
Asus BR1100FKA-BP0109RA
UHD Graphics (Jasper Lake 16 EU), Celeron N4500, 64 GB eMMC Flash
3602 Points ∼38% -22%
PCMark 10 / Productivity
Average of class Convertible
  (2411 - 9459, n=78, last 2 years)
6604 Points ∼100% +118%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
UHD Graphics 605, Pentium N5030, Kingston RBUSNS8154P3128GJ
3036 Points ∼46%
Average Intel Pentium Silver N5030, Intel UHD Graphics 605
  (2994 - 3036, n=2)
3015 Points ∼46% -1%
Asus BR1100FKA-BP0109RA
UHD Graphics (Jasper Lake 16 EU), Celeron N4500, 64 GB eMMC Flash
2411 Points ∼37% -21%
PCMark 10 / Digital Content Creation
Average of class Convertible
  (811 - 8679, n=78, last 2 years)
4885 Points ∼100% +306%
Average Intel Pentium Silver N5030, Intel UHD Graphics 605
  (1204 - 1391, n=2)
1298 Points ∼27% +8%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
UHD Graphics 605, Pentium N5030, Kingston RBUSNS8154P3128GJ
1204 Points ∼25%
Asus BR1100FKA-BP0109RA
UHD Graphics (Jasper Lake 16 EU), Celeron N4500, 64 GB eMMC Flash
913 Points ∼19% -24%
AIDA64 / Memory Copy
Average of class Convertible
  (4939 - 98967, n=85, last 2 years)
47589 MB/s ∼100% +321%
Lenovo IdeaPad 1 11ADA05
AMD Athlon Silver 3050e, Vega 3
15107 MB/s ∼32% +34%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030, UHD Graphics 605
12743 MB/s ∼27% +13%
Average Intel Pentium Silver N5030
  (11294 - 12743, n=2)
12019 MB/s ∼25% +6%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030, UHD Graphics 605
11294 MB/s ∼24%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500, UHD Graphics (Jasper Lake 16 EU)
4939 MB/s ∼10% -56%
AIDA64 / Memory Read
Average of class Convertible
  (4031 - 72572, n=85, last 2 years)
48112 MB/s ∼100% +381%
Lenovo IdeaPad 1 11ADA05
AMD Athlon Silver 3050e, Vega 3
18030 MB/s ∼37% +80%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030, UHD Graphics 605
10011 MB/s ∼21%
Average Intel Pentium Silver N5030

10011 MB/s ∼21% 0%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500, UHD Graphics (Jasper Lake 16 EU)
4031 MB/s ∼8% -60%
AIDA64 / Memory Write
Average of class Convertible
  (5782 - 117946, n=85, last 2 years)
49860 MB/s ∼100% +383%
Lenovo IdeaPad 1 11ADA05
AMD Athlon Silver 3050e, Vega 3
17322 MB/s ∼35% +68%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030, UHD Graphics 605
10482 MB/s ∼21% +2%
Average Intel Pentium Silver N5030
  (10325 - 10482, n=2)
10404 MB/s ∼21% +1%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030, UHD Graphics 605
10325 MB/s ∼21%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500, UHD Graphics (Jasper Lake 16 EU)
5782 MB/s ∼12% -44%
AIDA64 / Memory Latency
Asus BR1100FKA-BP0109RA
Intel Celeron N4500, UHD Graphics (Jasper Lake 16 EU)
169 ns * ∼100% -133%
Lenovo IdeaPad 1 11ADA05
AMD Athlon Silver 3050e, Vega 3
110 ns * ∼65% -52%
Average of class Convertible
  (77.8 - 260, n=83, last 2 years)
89.6 ns * ∼53% -24%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030, UHD Graphics 605
72.5 ns * ∼43%
Average Intel Pentium Silver N5030
  (71.3 - 72.5, n=2)
71.9 ns * ∼43% +1%
Lenovo IdeaPad 1-14IGL05
Intel Pentium Silver N5030, UHD Graphics 605
71.3 ns * ∼42% +2%

* ... smaller is better

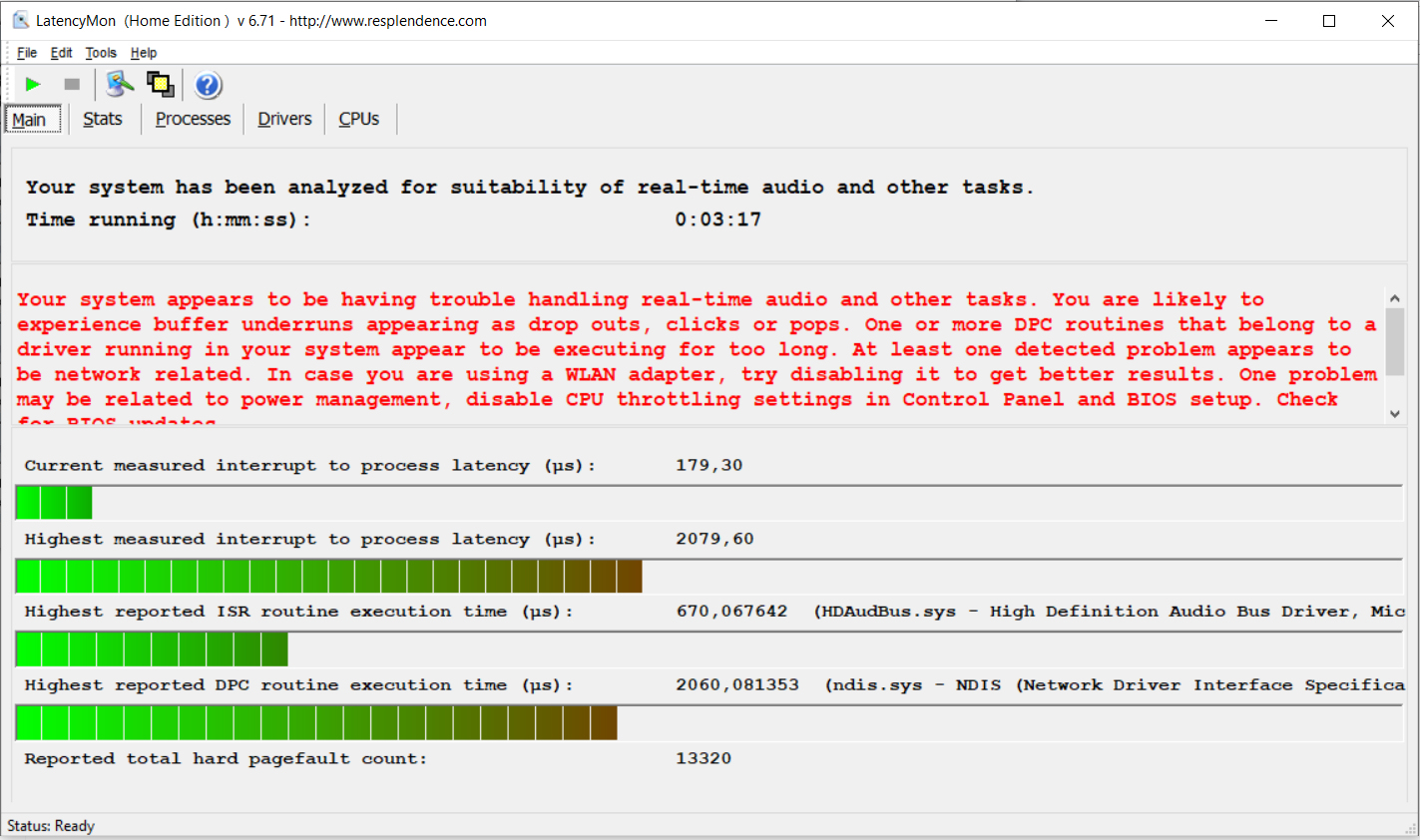

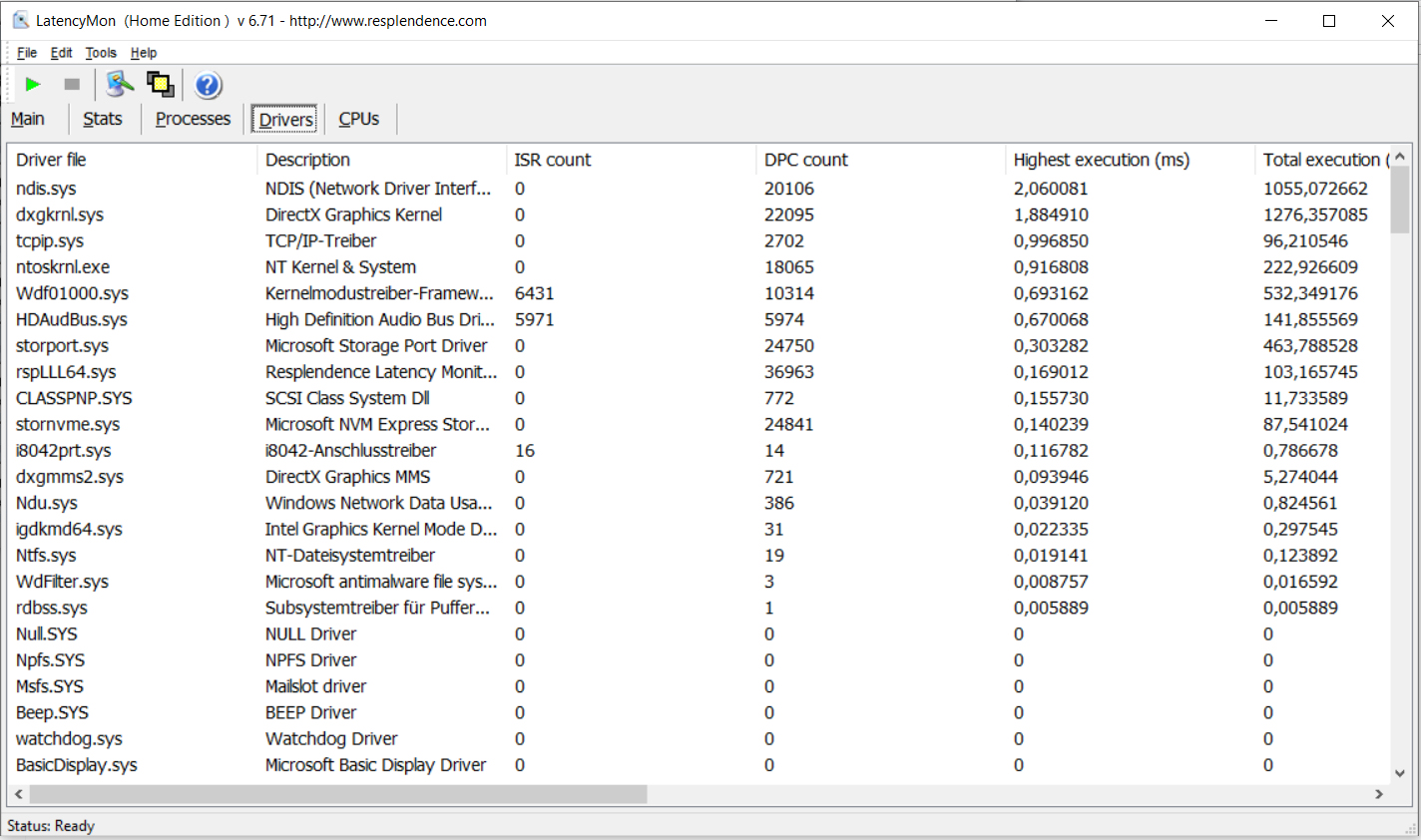

DPC Latencies

Latency Monitor
Latency Monitor
Latency Monitor
Latency Monitor
DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Lenovo IdeaPad 1 11ADA05
Vega 3, Athlon 3050e, 64 GB eMMC Flash
6183 μs * ∼100% -197%
Asus BR1100FKA-BP0109RA
UHD Graphics (Jasper Lake 16 EU), Celeron N4500, 64 GB eMMC Flash
3041 μs * ∼49% -46%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
UHD Graphics 605, Pentium N5030, Kingston RBUSNS8154P3128GJ
2080 μs * ∼34%
Lenovo IdeaPad 1-14IGL05
UHD Graphics 605, Pentium N5030, SanDisk DA4064
1873 μs * ∼30% +10%

* ... smaller is better

Storage Solution

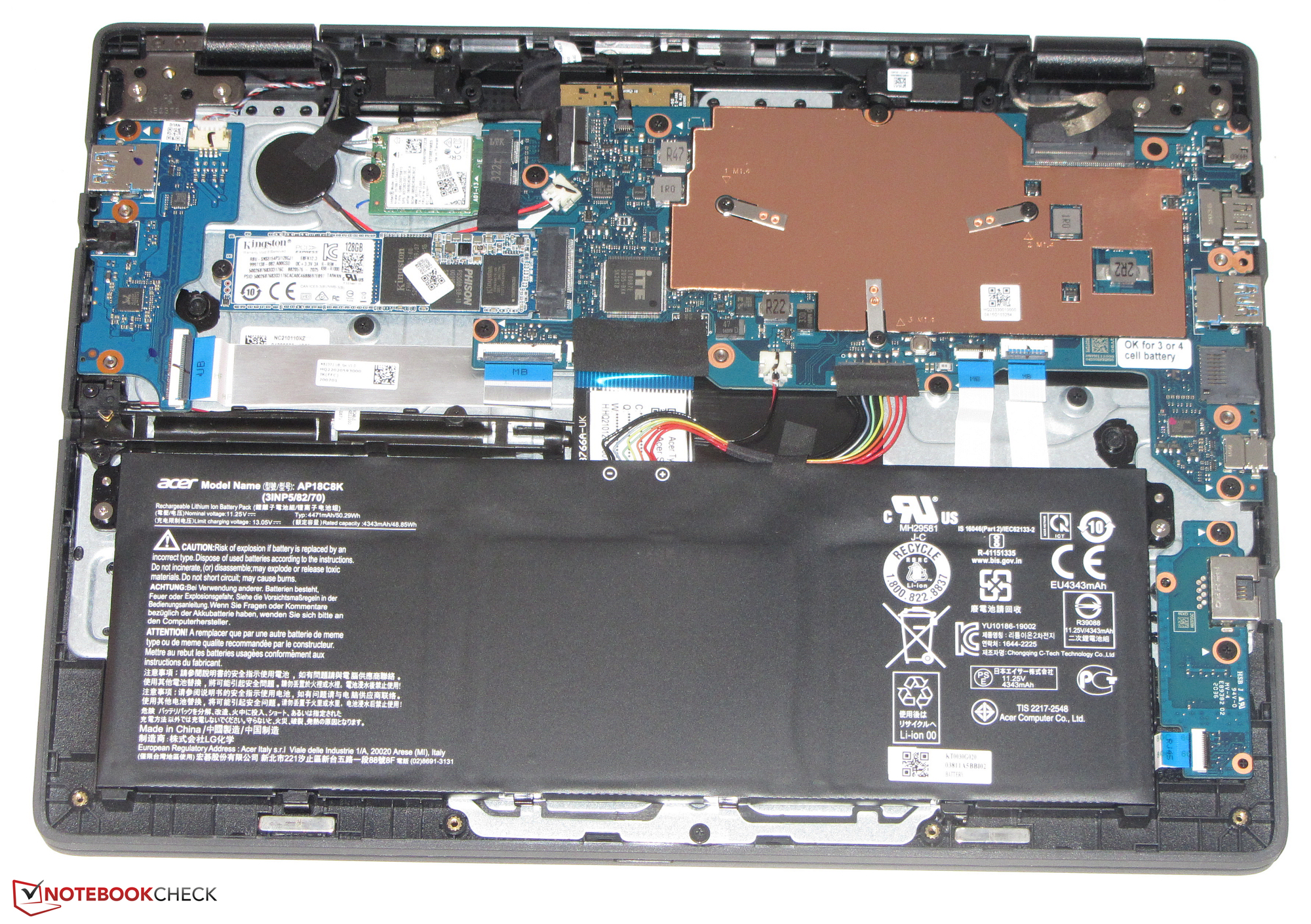

An NVMe SSD (M.2-2280) from Kingston serves as the system drive. It offers 128 GB of storage and delivers good transfer rates.

The B3 offers an NVMe SSD.
The B3 offers an NVMe SSD.
Kingston RBUSNS8154P3128GJ
CDM 5/6 Read Seq Q32T1: 823 MB/s
CDM 5/6 Write Seq Q32T1: 404 MB/s
CDM 5/6 Read 4K Q32T1: 190.1 MB/s
CDM 5/6 Write 4K Q32T1: 111.6 MB/s
CDM 5 Read Seq: 488 MB/s
CDM 5 Write Seq: 432.1 MB/s
CDM 5/6 Read 4K: 27.82 MB/s
CDM 5/6 Write 4K: 70.8 MB/s
Drive Performance Rating - Percent
Average of class Convertible

95.7 pt ∼96%
Average Kingston RBUSNS8154P3128GJ

37.3 pt ∼37%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Kingston RBUSNS8154P3128GJ
32.9 pt ∼33%
Asus BR1100FKA-BP0109RA
64 GB eMMC Flash
4.4 pt ∼4%
DiskSpd
seq read
Average of class Convertible
  (251 - 4494, n=80, last 2 years)
1986 MB/s ∼100% +292%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Kingston RBUSNS8154P3128GJ
507 (503.57min - 506.5max) MB/s ∼26%
Average Kingston RBUSNS8154P3128GJ

507 MB/s ∼26% 0%
Asus BR1100FKA-BP0109RA
64 GB eMMC Flash
0 MB/s ∼0% -100%
seq write
Average of class Convertible
  (202 - 4440, n=80, last 2 years)
1737 MB/s ∼100% +366%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Kingston RBUSNS8154P3128GJ
373 (260.16min - 373.18max) MB/s ∼21%
Average Kingston RBUSNS8154P3128GJ

373 MB/s ∼21% 0%
Asus BR1100FKA-BP0109RA
64 GB eMMC Flash
0 MB/s ∼0% -100%
seq q8 t1 read
Average of class Convertible
  (272 - 7005, n=80, last 2 years)
3023 MB/s ∼100% +266%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Kingston RBUSNS8154P3128GJ
825 (723.33min - 825.23max) MB/s ∼27%
Average Kingston RBUSNS8154P3128GJ

825 MB/s ∼27% 0%
Asus BR1100FKA-BP0109RA
64 GB eMMC Flash
0 MB/s ∼0% -100%
seq q8 t1 write
Average of class Convertible
  (215 - 5160, n=80, last 2 years)
2155 MB/s ∼100% +343%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Kingston RBUSNS8154P3128GJ
486 (349.94min - 485.99max) MB/s ∼23%
Average Kingston RBUSNS8154P3128GJ

486 MB/s ∼23% 0%
Asus BR1100FKA-BP0109RA
64 GB eMMC Flash
0 MB/s ∼0% -100%
4k q1 t1 read
Average of class Convertible
  (9.13 - 135, n=80, last 2 years)
53.5 MB/s ∼100% +91%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Kingston RBUSNS8154P3128GJ
28 (20.74min - 27.95max) MB/s ∼52%
Average Kingston RBUSNS8154P3128GJ

28 MB/s ∼52% 0%
Asus BR1100FKA-BP0109RA
64 GB eMMC Flash
0 MB/s ∼0% -100%
4k q1 t1 write
Average of class Convertible
  (18.7 - 330, n=80, last 2 years)
150 MB/s ∼100% +153%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Kingston RBUSNS8154P3128GJ
59.2 (50.68min - 59.16max) MB/s ∼39%
Average Kingston RBUSNS8154P3128GJ

59.2 MB/s ∼39% 0%
Asus BR1100FKA-BP0109RA
64 GB eMMC Flash
0 MB/s ∼0% -100%
4k q32 t16 read
Average of class Convertible
  (48.8 - 3523, n=80, last 2 years)
959 MB/s ∼100% +154%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Kingston RBUSNS8154P3128GJ
378 (316.72min - 377.74max) MB/s ∼39%
Average Kingston RBUSNS8154P3128GJ

378 MB/s ∼39% 0%
Asus BR1100FKA-BP0109RA
64 GB eMMC Flash
0 MB/s ∼0% -100%
4k q32 t16 write
Average of class Convertible
  (17.4 - 2551, n=80, last 2 years)
710 MB/s ∼100% +129%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Kingston RBUSNS8154P3128GJ
310 (178.62min - 309.52max) MB/s ∼44%
Average Kingston RBUSNS8154P3128GJ

310 MB/s ∼44% 0%
Asus BR1100FKA-BP0109RA
64 GB eMMC Flash
0 MB/s ∼0% -100%
AS SSD
Score Total
Average of class Convertible
  (2 - 8167, n=80, last 2 years)
2952 Points ∼100% +281%
Average Kingston RBUSNS8154P3128GJ
  (634 - 1386, n=7)
1014 Points ∼34% +31%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Kingston RBUSNS8154P3128GJ
774 Points ∼26%
Asus BR1100FKA-BP0109RA
64 GB eMMC Flash
145 Points ∼5% -81%
Score Read
Average of class Convertible
  (2 - 3400, n=80, last 2 years)
1139 Points ∼100% +276%
Average Kingston RBUSNS8154P3128GJ
  (303 - 586, n=7)
443 Points ∼39% +46%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Kingston RBUSNS8154P3128GJ
303 Points ∼27%
Asus BR1100FKA-BP0109RA
64 GB eMMC Flash
55 Points ∼5% -82%
Score Write
Average of class Convertible
  (2 - 3626, n=80, last 2 years)
1271 Points ∼100% +297%
Average Kingston RBUSNS8154P3128GJ
  (196 - 524, n=7)
365 Points ∼29% +14%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Kingston RBUSNS8154P3128GJ
320 Points ∼25%
Asus BR1100FKA-BP0109RA
64 GB eMMC Flash
60 Points ∼5% -81%
Seq Read
Average of class Convertible
  (2 - 5478, n=80, last 2 years)
2438 MB/s ∼100% +247%
Average Kingston RBUSNS8154P3128GJ
  (702 - 1201, n=7)
973 MB/s ∼40% +39%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Kingston RBUSNS8154P3128GJ
702 MB/s ∼29%
Asus BR1100FKA-BP0109RA
64 GB eMMC Flash
274.7 MB/s ∼11% -61%
Seq Write
Average of class Convertible
  (2 - 4335, n=80, last 2 years)
1432 MB/s ∼100% +221%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Kingston RBUSNS8154P3128GJ
446.1 MB/s ∼31%
Average Kingston RBUSNS8154P3128GJ
  (213 - 460, n=7)
404 MB/s ∼28% -9%
Asus BR1100FKA-BP0109RA
64 GB eMMC Flash
176.2 MB/s ∼12% -61%
4K Read
Average of class Convertible
  (2 - 85.1, n=80, last 2 years)
50.2 MB/s ∼100% +99%
Average Kingston RBUSNS8154P3128GJ
  (18.9 - 45.2, n=7)
28.2 MB/s ∼56% +12%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Kingston RBUSNS8154P3128GJ
25.23 MB/s ∼50%
Asus BR1100FKA-BP0109RA
64 GB eMMC Flash
14.15 MB/s ∼28% -44%
4K Write
Average of class Convertible
  (2 - 239, n=80, last 2 years)
143.9 MB/s ∼100% +209%
Average Kingston RBUSNS8154P3128GJ
  (46.5 - 90, n=7)
65.5 MB/s ∼46% +41%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Kingston RBUSNS8154P3128GJ
46.51 MB/s ∼32%
Asus BR1100FKA-BP0109RA
64 GB eMMC Flash
19.1 MB/s ∼13% -59%
4K-64 Read
Average of class Convertible
  (2 - 2827, n=80, last 2 years)
844 MB/s ∼100% +307%
Average Kingston RBUSNS8154P3128GJ
  (193.1 - 426, n=7)
317 MB/s ∼38% +53%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Kingston RBUSNS8154P3128GJ
207.6 MB/s ∼25%
Asus BR1100FKA-BP0109RA
64 GB eMMC Flash
13.17 MB/s ∼2% -94%
4K-64 Write
Average of class Convertible
  (2 - 3050, n=80, last 2 years)
983 MB/s ∼100% +330%
Average Kingston RBUSNS8154P3128GJ
  (116 - 391, n=7)
259 MB/s ∼26% +13%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Kingston RBUSNS8154P3128GJ
228.5 MB/s ∼23%
Asus BR1100FKA-BP0109RA
64 GB eMMC Flash
23.63 MB/s ∼2% -90%
Access Time Read
Asus BR1100FKA-BP0109RA
64 GB eMMC Flash
0.287 ms * ∼100% -8%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Kingston RBUSNS8154P3128GJ
0.266 ms * ∼93%
Average Kingston RBUSNS8154P3128GJ
  (0.152 - 0.278, n=7)
0.2317 ms * ∼81% +13%
Average of class Convertible
  (0.022 - 2, n=79, last 2 years)
0.1174 ms * ∼41% +56%
Access Time Write
Asus BR1100FKA-BP0109RA
64 GB eMMC Flash
0.39 ms * ∼100% -343%
Average of class Convertible
  (0.017 - 2, n=80, last 2 years)
0.1609 ms * ∼41% -83%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Kingston RBUSNS8154P3128GJ
0.088 ms * ∼23%
Average Kingston RBUSNS8154P3128GJ
  (0.048 - 0.09, n=7)
0.06829 ms * ∼18% +22%

* ... smaller is better

Constant Performance Reading: DiskSpd Read Loop, Queue Depth 8

04590135180225270315360405450495540585630675720765810Tooltip
Acer TravelMate Spin B3 TMB311RN-31-P5KK Kingston RBUSNS8154P3128GJ: Ø718 (355.8-825.26)
Acer Aspire 1 A114-61-S58J 64 GB eMMC Flash: Ø229 (141.07-248.51)
Acer Swift 1 SF114-34-P6U1 128 GB eMMC Flash: Ø252 (128.77-269.18)

Graphics Card

Intel's UHD Graphics 605 GPU represents the lower end of the performance scale. The 3DMark results of the graphics core turn out below average and are some of the worst results that we have measured using this GPU until now. Gaming is not one of the qualities of the hardware used, but simple, casual games and browser games should still run. The integrated decoder takes some load off the processor when reproducing videos, so using streaming services should not present any problems.

3DMark 11 Performance
655 points
3DMark Ice Storm Standard Score
21430 points
3DMark Cloud Gate Standard Score
2861 points
3DMark Fire Strike Score
376 points
3DMark Time Spy Score
129 points
Help
3DMark Performance Rating - Percent
Average of class Convertible

100 pt ∼100%
Average Intel UHD Graphics 605

12.1 pt ∼12%
Asus BR1100FKA-BP0109RA
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N4500
11.9 pt ∼12%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel UHD Graphics 605, Intel Pentium Silver N5030
10.8 pt ∼11%
3DMark 11 - 1280x720 Performance GPU
Average of class Convertible
  (471 - 18102, n=86, last 2 years)
5418 Points ∼100% +821%
Average Intel UHD Graphics 605
  (588 - 902, n=13)
701 Points ∼13% +19%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel UHD Graphics 605, Intel Pentium Silver N5030
588 Points ∼11%
Asus BR1100FKA-BP0109RA
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N4500
554 Points ∼10% -6%
3DMark
1280x720 Cloud Gate Standard Graphics
Average of class Convertible
  (2965 - 74205, n=79, last 2 years)
23450 Points ∼100% +643%
Asus BR1100FKA-BP0109RA
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N4500
4210 Points ∼18% +33%
Average Intel UHD Graphics 605
  (2874 - 4485, n=10)
3518 Points ∼15% +11%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel UHD Graphics 605, Intel Pentium Silver N5030
3158 Points ∼13%
1920x1080 Fire Strike Graphics
Average of class Convertible
  (365 - 13081, n=88, last 2 years)
4048 Points ∼100% +885%
Average Intel UHD Graphics 605
  (411 - 576, n=10)
473 Points ∼12% +15%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel UHD Graphics 605, Intel Pentium Silver N5030
411 Points ∼10%
Asus BR1100FKA-BP0109RA
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N4500
392 Points ∼10% -5%
2560x1440 Time Spy Graphics
Average of class Convertible
  (94 - 5081, n=83, last 2 years)
1304 Points ∼100% +1054%
Asus BR1100FKA-BP0109RA
Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N4500
129 Points ∼10% +14%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel UHD Graphics 605, Intel Pentium Silver N5030
113 Points ∼9%
Average Intel UHD Graphics 605

113 Points ∼9% 0%
Dota 2 Reborn - 1280x720 min (0/3) fastest
Average of class Convertible
  (15.5 - 134.8, n=90, last 2 years)
88.7 fps ∼100% +153%
Average Intel UHD Graphics 605
  (32.5 - 49.5, n=6)
37.2 fps ∼42% +6%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030, Intel UHD Graphics 605
35 (30.6min) fps ∼39%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500, Intel UHD Graphics (Jasper Lake 16 EU)
18.9 (13.1min) fps ∼21% -46%
Final Fantasy XV Benchmark - 1280x720 Lite Quality
Average of class Convertible
  (2.2 - 104.9, n=71, last 2 years)
34.4 fps ∼100% +729%
Average Intel UHD Graphics 605
  (3.4 - 7.46, n=5)
4.91 fps ∼14% +18%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030, Intel UHD Graphics 605
4.15 fps ∼12%
Asus BR1100FKA-BP0109RA
Intel Celeron N4500, Intel UHD Graphics (Jasper Lake 16 EU)
2.2 fps ∼6% -47%
X-Plane 11.11 - 1280x720 low (fps_test=1)
Average of class Convertible
  (5.01 - 125.7, n=85, last 2 years)
36.1 fps ∼100% +621%
Average Intel UHD Graphics 605
  (5.01 - 9.1, n=5)
7.25 fps ∼20% +45%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030, Intel UHD Graphics 605
5.01 fps ∼14%
GTA V - 1024x768 Lowest Settings possible
Average of class Convertible
  (11.6 - 179.7, n=64, last 2 years)
86.9 fps ∼100% +649%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030, Intel UHD Graphics 605
11.6 (0.2759min, 2.71P1) fps ∼13%
Average Intel UHD Graphics 605
  (9.5 - 11.7, n=3)
10.9 fps ∼13% -6%
Strange Brigade - 1280x720 lowest AF:1
Average of class Convertible
  (8.5 - 270, n=67, last 2 years)
81.4 fps ∼100% +858%
Acer TravelMate Spin B3 TMB311RN-31-P5KK
Intel Pentium Silver N5030, Intel UHD Graphics 605
8.5 (5min, 5P1) fps ∼10%
Average Intel UHD Graphics 605

8.5 fps ∼10% 0%
low med. high ultra
GTA V (2015) 11.6
The Witcher 3 (2015) 1.2
Dota 2 Reborn (2015) 35 11.5 5.9 5.9
Final Fantasy XV Benchmark (2018) 4.15
X-Plane 11.11 (2018) 5.01 3.46 3.09
Strange Brigade (2018) 8.5

Emissions and Power Management - The Acer convertible stays silent and cool

Noise Emissions

Since the TravelMate has neither a fan nor a mechanical drive, it runs silently.

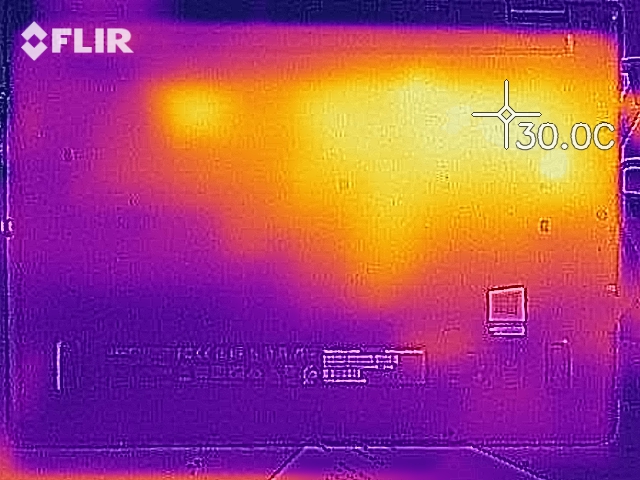

Temperatures

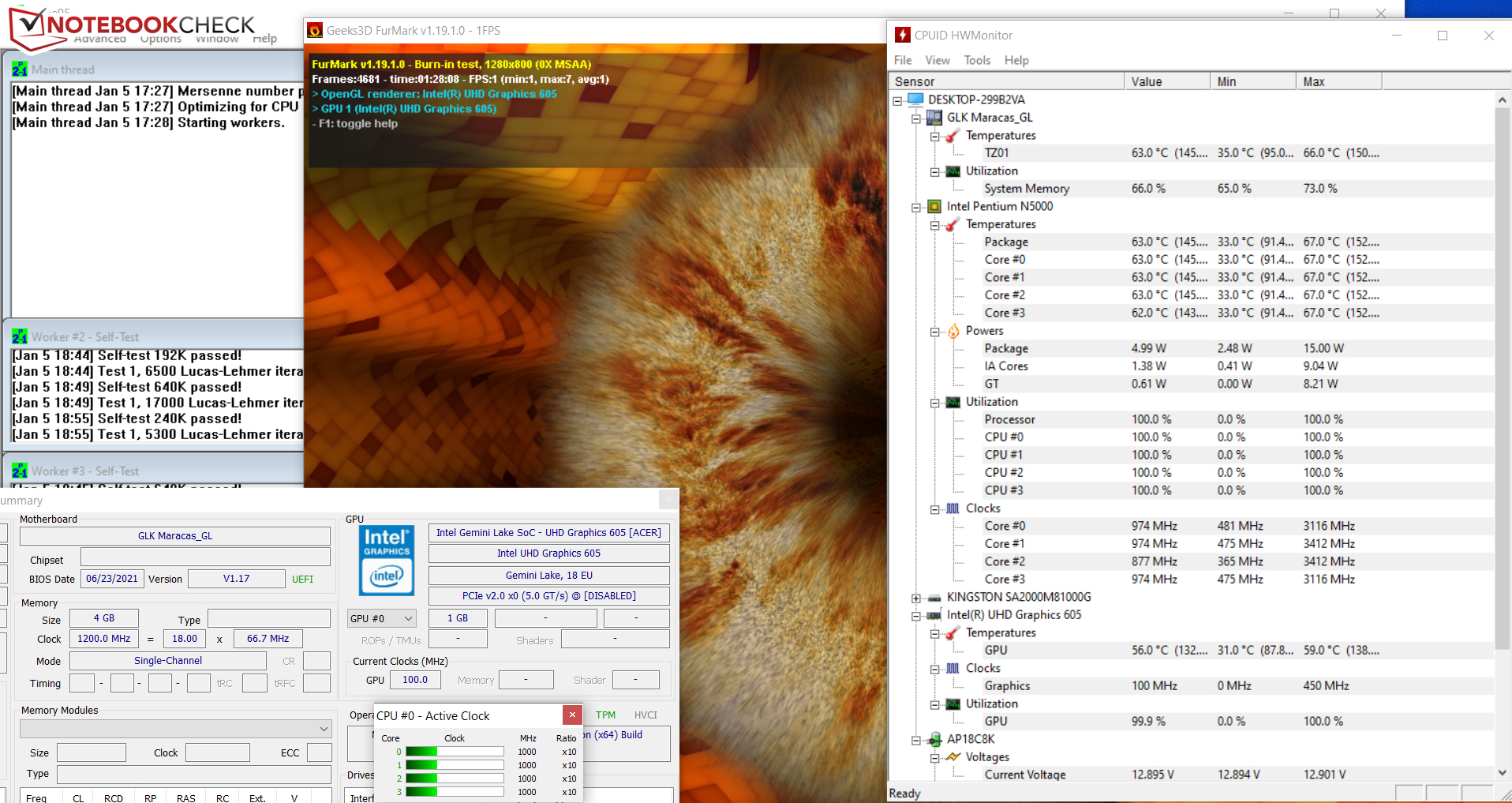

The TravelMate during the stress test
The TravelMate during the stress test

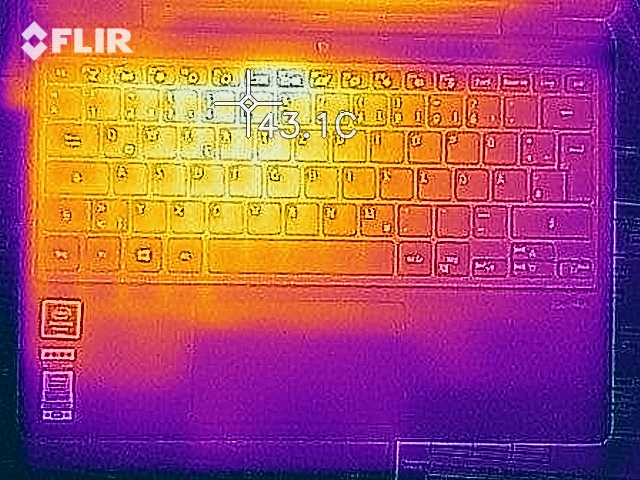

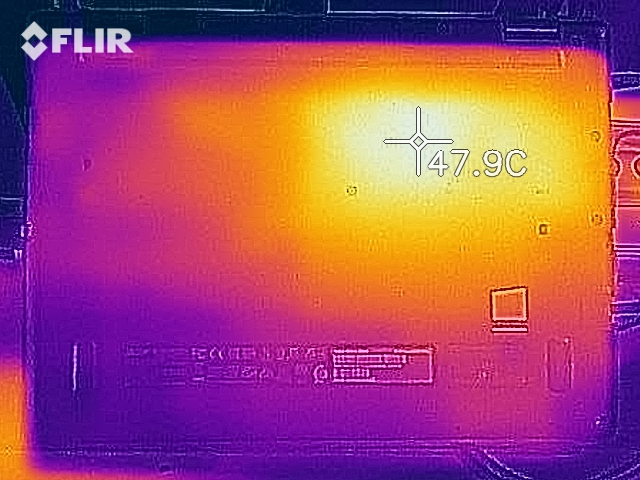

The B3 only heats up to a limited extent overall. Under heavy hardware load during the stress test, we measure higher temperatures in some spots, but in total, the device only gets hand warm. The CPU temperatures give no reason for concern.

In the beginning of the stress test (with Prime95 and Furmark running for at least one hour), the CPU runs at higher speeds. Continuing the test, the speed drops to 1 GHz. The stress test represents an extreme scenario. We use this test to evaluate whether the system remains stable under full load.

Max. Load
 36.8 °C
98 F
36 °C
97 F
28.7 °C
84 F

 33.8 °C
93 F
32.7 °C
91 F
25.9 °C
79 F

 26.2 °C
79 F
24.4 °C
76 F
23.6 °C
74 F

Maximum: 36.8 °C = 98 F
Average: 29.8 °C = 86 F
26.2 °C
79 F
39.2 °C
103 F
46 °C
115 F
24.8 °C
77 F
34.6 °C
94 F
34 °C
93 F
22.5 °C
73 F
24.7 °C
76 F
25 °C
77 F
Maximum: 46 °C = 115 F
Average: 30.8 °C = 87 F
Power Supply (max.)  31.7 °C = 89 F | Room Temperature 22.3 °C = 72 F | FIRT 550-Pocket
