Toshiba WT8-B-102‏ Tablet Review

Steve Chippy Paine, 08/30/2014

Slimmer is better. With 1GB of RAM and 16GB of storage the Toshiba Encore 2 WT8 cutting a fine line between tablet and Windows PC. It's targeted as a very low-cost solution for the consumer space and from the outside it looks good. But does it perform well enough for the price?

The Toshiba Encore 2 WT8-B-102 is the second 8-inch Windows tablet that Toshiba has produced and it takes the product down to a price level that's a lot cheaper than the previous WT8. It's thinner and lighter and has a very similar processor platform inside. The Intel Z3735G SoC is a refresh of the original Z3740 that has helped designers build around a smaller package with less components at a lower price but it still offers quad-core operation at a base 1.33 Ghz frequency with Turbo Boost (theoretically) up to 1.8 Ghz. The major internal change is the reduction of internal RAM from 2 GB to 1 GB which is something we're paying close attention to in this review. 32 GB of storage is included inside and there's a 1280x800 IPS screen.

The Toshiba Encore 2 WT8 It's still aimed at consumer-style usage and because of a slightly more mature Windows 8.1 operating system offers some operating system improvements over the original release.

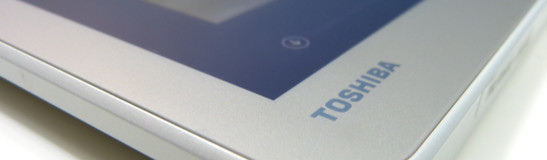

Case

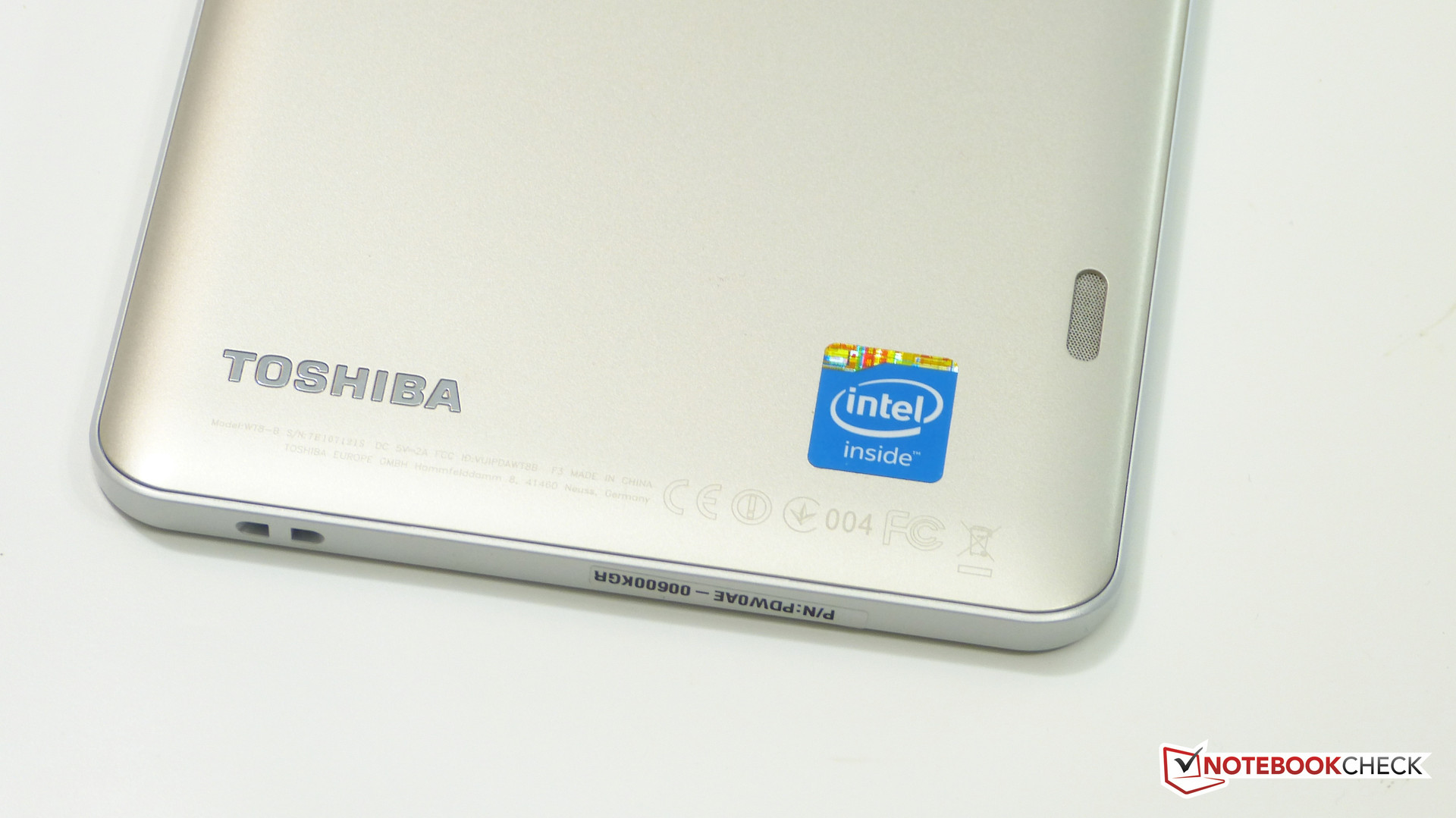

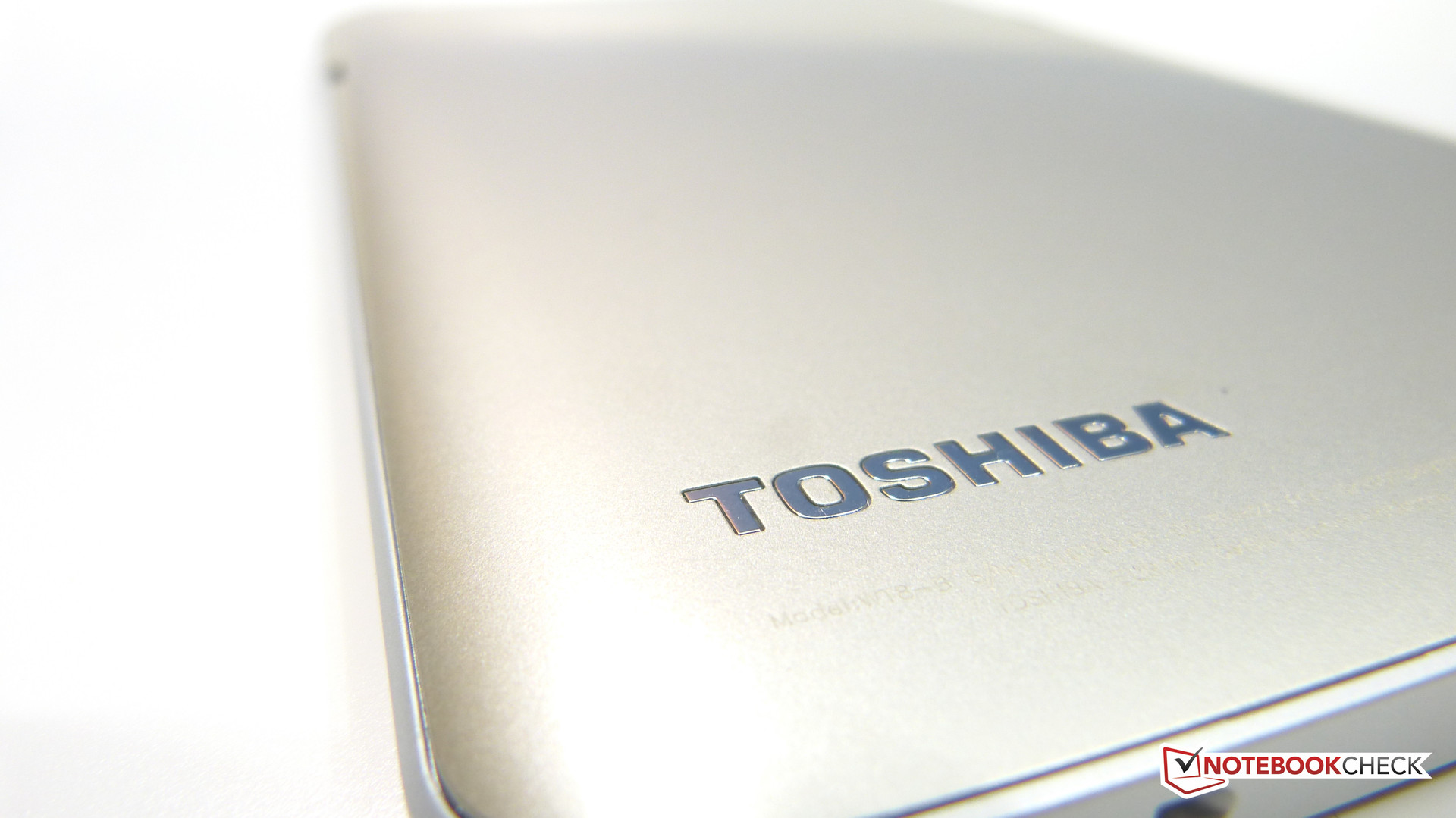

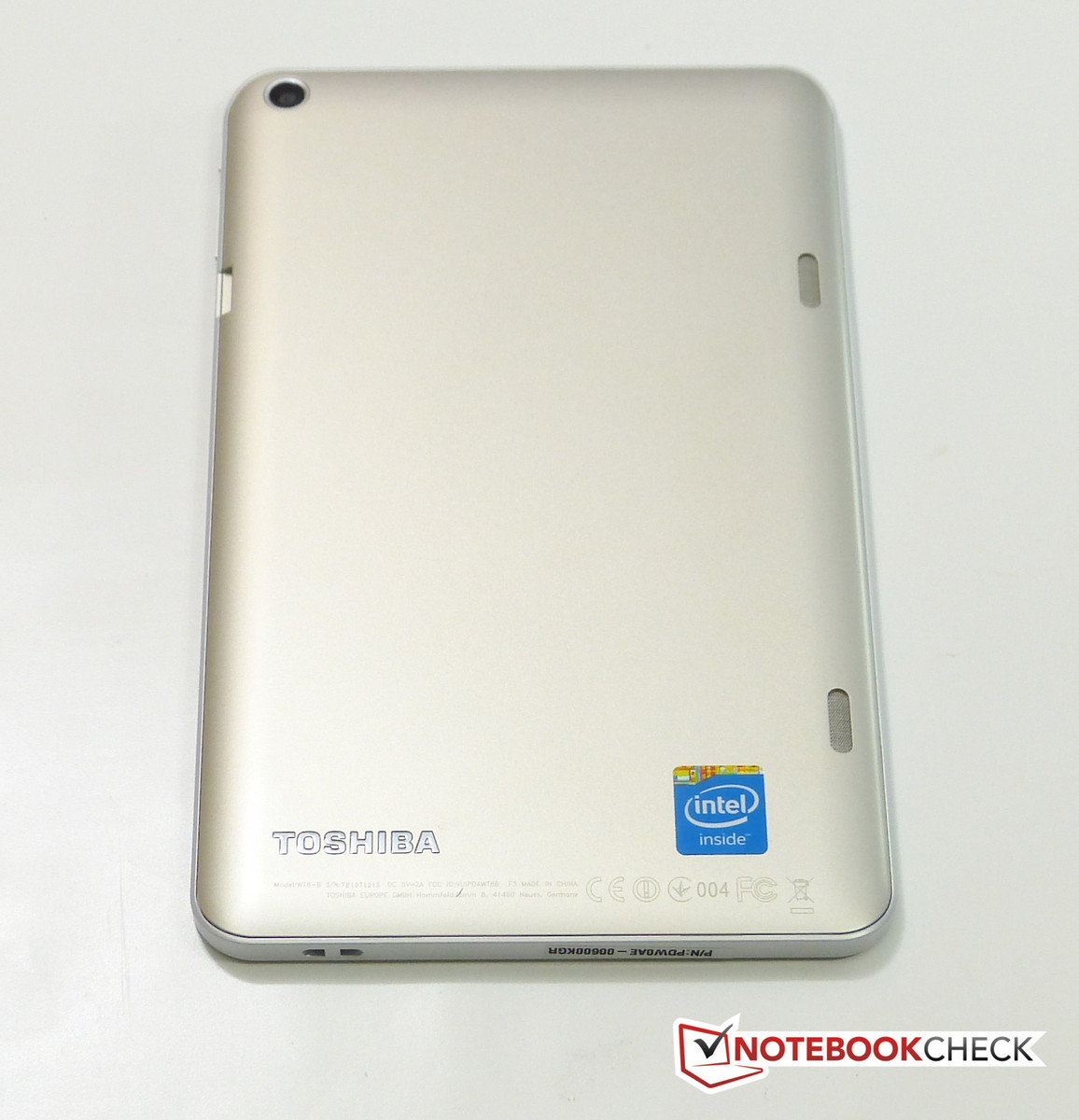

Toshiba Encore WT8 Case Rear
Toshiba Encore WT8 Case Rear

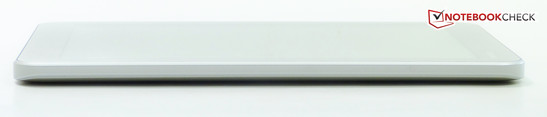

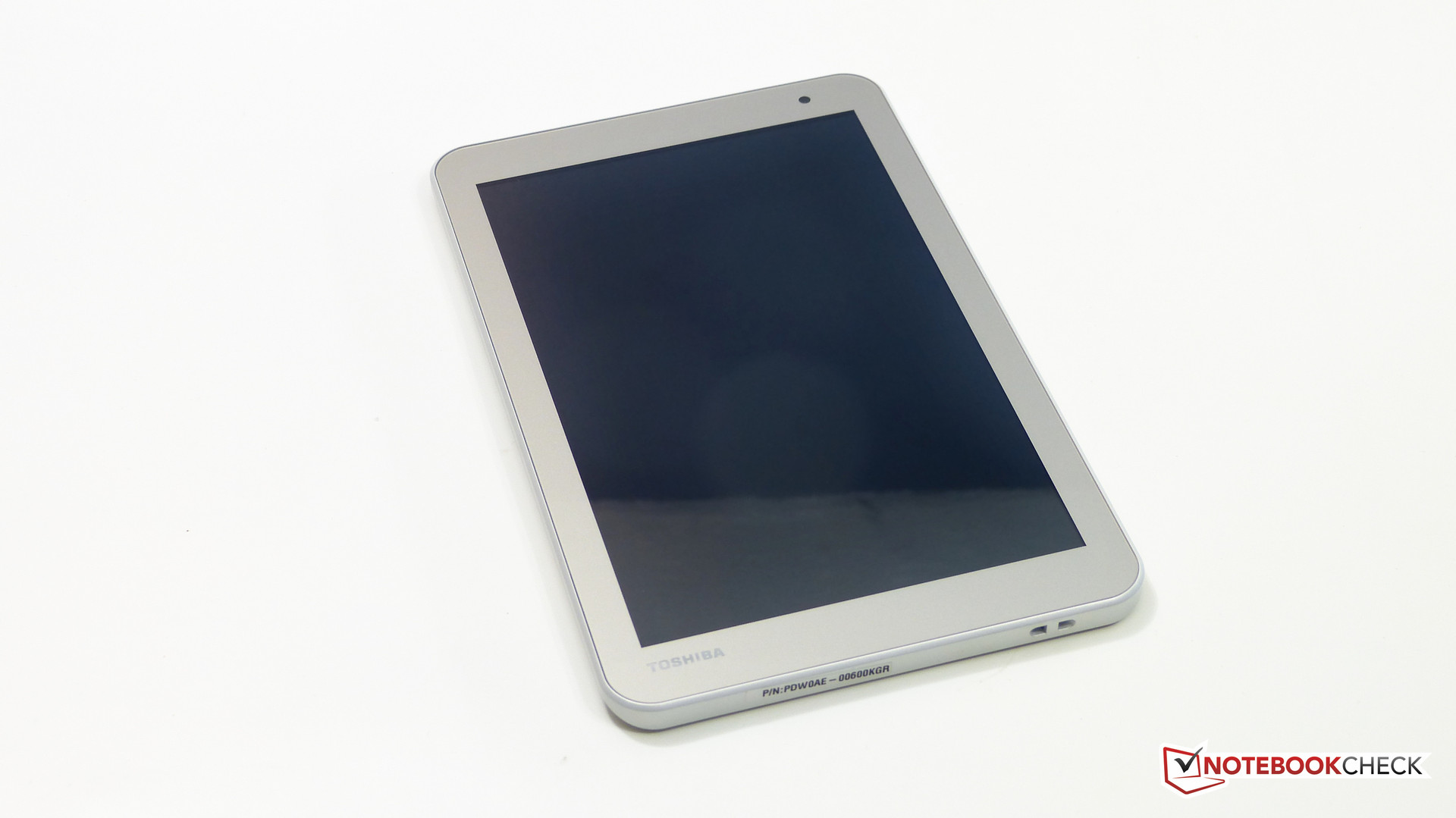

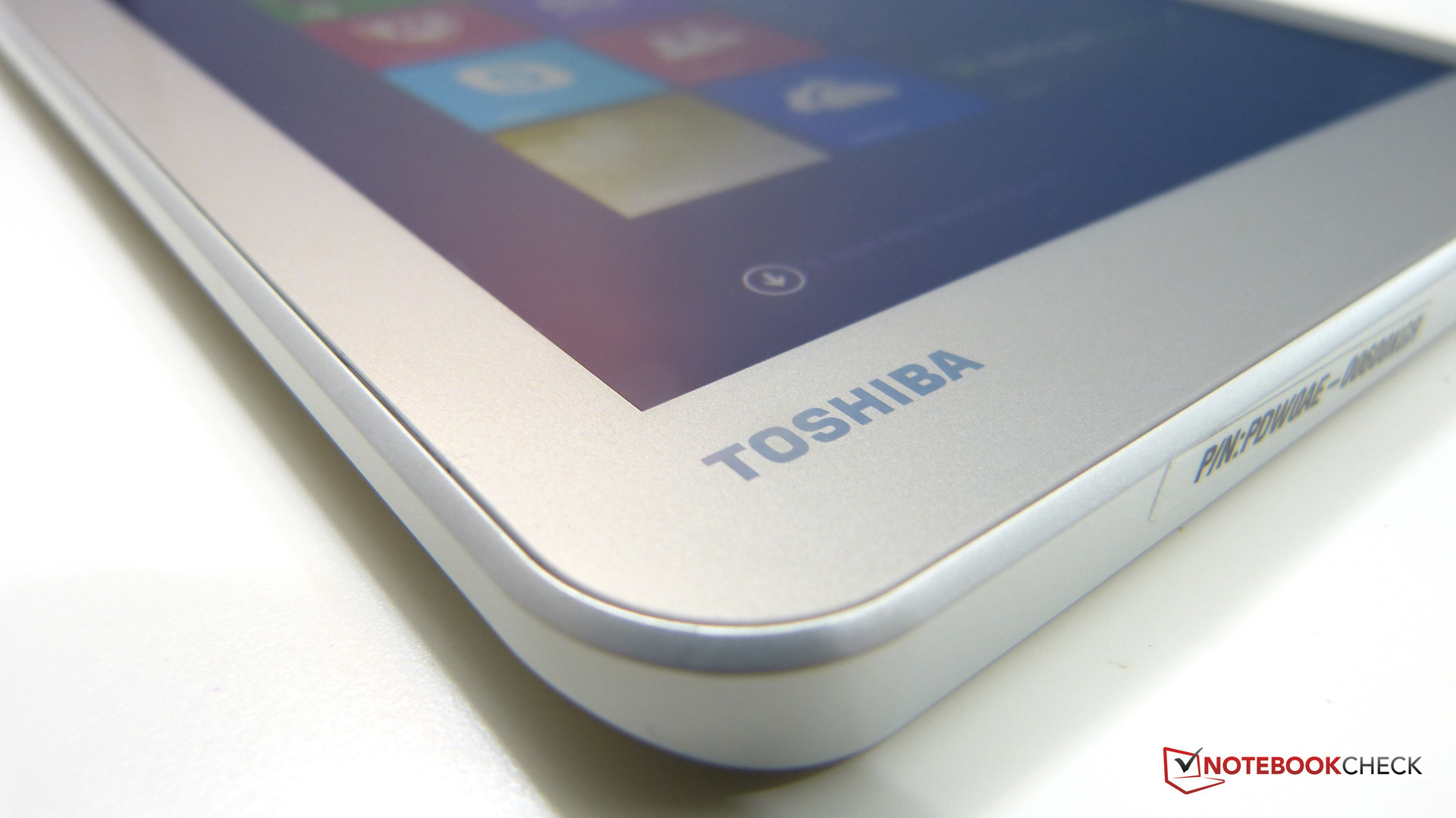

The Toshiba Encore 2 is noticeably thinner than the previous model which brings it much more in line with Android-based tablets. A champagne color finish gives it a stylish look and the buttons appear to be solid and well-fitted, as does the casing. The MicroSD slot is exposed and there's no micro-HDMI port as there was on the previous model. On the rear a 5MP auto-focus camera is tucked-away into the corner and 2MP camera is available on the front. In terms of weight it's again an improvement. The official weight is 390 grams but we measured slightly less than that.  Only the Lenovo Miix 2 is slightly lighter than this in the 8-inch Windows tablet category. For comparison, an Apple iPad Air is 479 grams but it's a noticeably bigger tablet.

Update: After two weeks of testing we were disappointed to see a number of small scratches on the rear of the tablet. It appears that although the case is well constructed it is not scratch resistant.

Connectivity

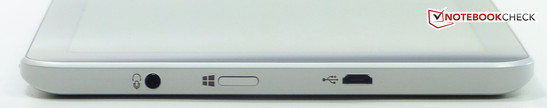

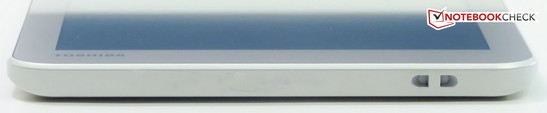

With just a MicroUSB charge/data port, MicroSD card slot and the headphone jack there's not much to talk about in terms of physical connectivity. The USB port is USB 2.0 and an 'OTG' adaptor cable is not supplied. There's no charging indicator lamp which is surprisingly awkward if you're used to seeing one.

We had no problems using a Sandisk 64 GB MicroSDXC card and measured a max read speeds of 23 MB/s with CrystalDiskMark. Connecting a very fast USB 3.0 SSD disk to the USB port gave us a maximum read speed of 38 MB/s (272 Mb/s) and a write speed of 43 MB/s. (MyDigititalSSD USB3.0 OTG 256GB.)

Encore 2 WT8 LHS
Encore 2 WT8 LHS
Encore 2 WT8 top
Encore 2 WT8 top
Encore 2 WT8 RHS
Encore 2 WT8 RHS
Encore 2 WT8 bottom
Encore 2 WT8 bottom

Communication

With no ethernet port available on the Toshiba Encore 2 WT8 Internet connectivity is left to a Realtek RTL8723BS 802.11n WiFi adaptor. B and G networks are supported but there's only 2.4Ghz support for up to 150Mbps throughput. Bluetooth 4.0 is available.

In a subjective test, 2 walls and 10 meters away from a 2.4Ghz 802.11 N hotspot the Toshiba Encore 2 WT8 showed a 100% (150Mbps) connection signal and in practice transfer speeds across a local network were better than average. (2Mbps from a NAS in this test configuration is above average.)

Camera

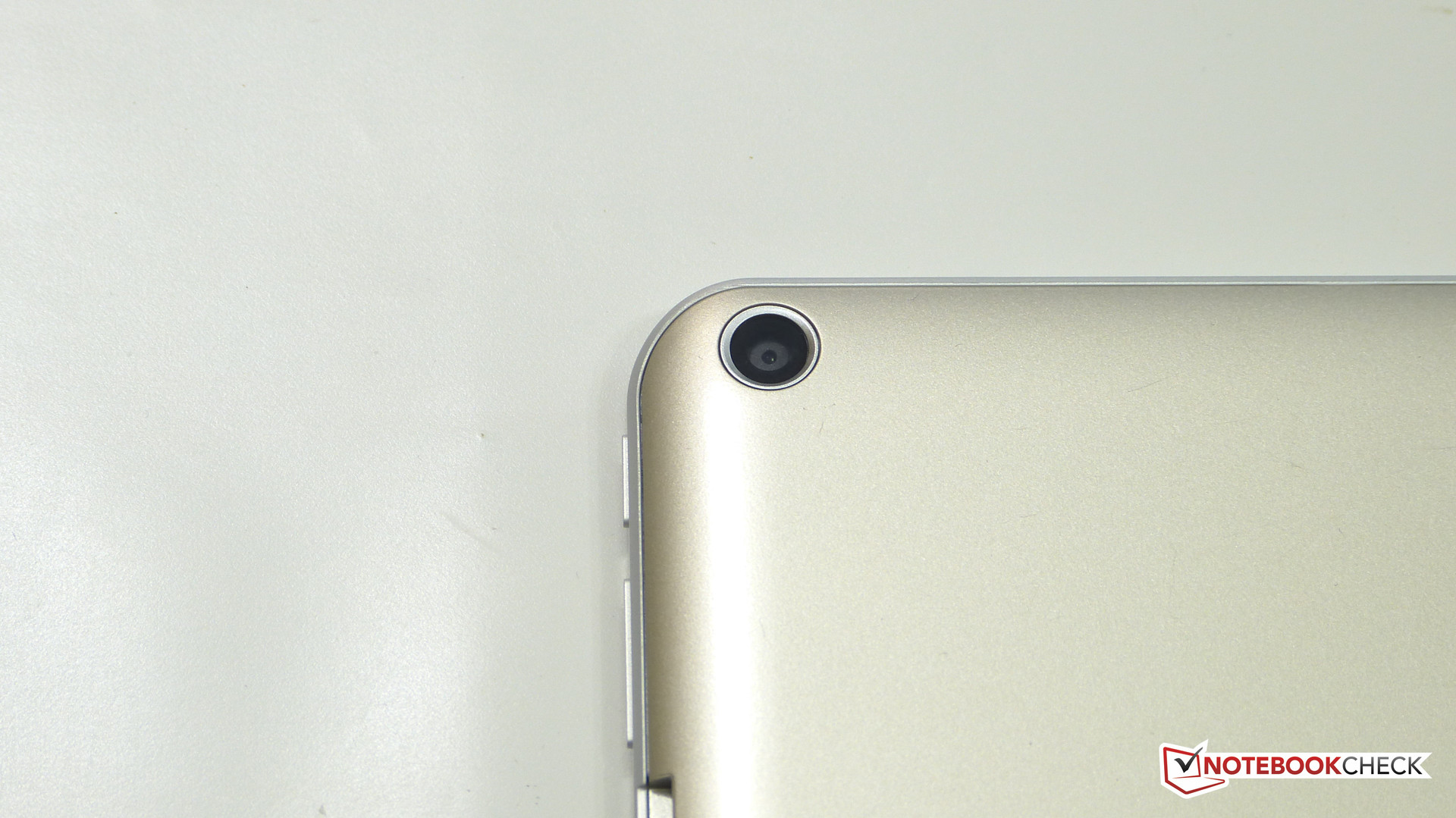

A 5.0MP auto-focus rear camera is included but results aren't good enough for anything more than scanning a business card or basic record-taking. Color representation is poor, there's a lot of noise and high levels of light-bleed. Sample images are shown.

Security

A TPM 2.0 module included and disk encryption is available if the user logs in via a Microsoft Live account. The 'Modern' environment in Windows 8 includes additional security features over apps running in the desktop.

Input Devices

Touchscreen

The capacitive touchscreen has 10-point touch support. Responsiveness was as expected with the Windows RT Drums application being very quick to react. There were no issues with dragging icons around on the desktop although potential customers need to be aware of the generally difficult nature of using finger touch on the desktop. A 125% size configuration is available and this helps to improve desktop touch but reduces the effective space and can cause issues with some applications.

The on-screen keyboard was no better or worse than any other 8-inch Windows tablet that we've tested. The split and full modes allow users to access everything they would normally expect on a keyboard including CTRL-C, CTRL-V copy paste functions, function keys and other Windows-specific features. Auto-correct, word predition and multiple langauge and layout support is provided as standard.

We tested the Toshiba Encore 2 WT8 with a Microsoft Wedge Bluetooth keyboard without any issues.

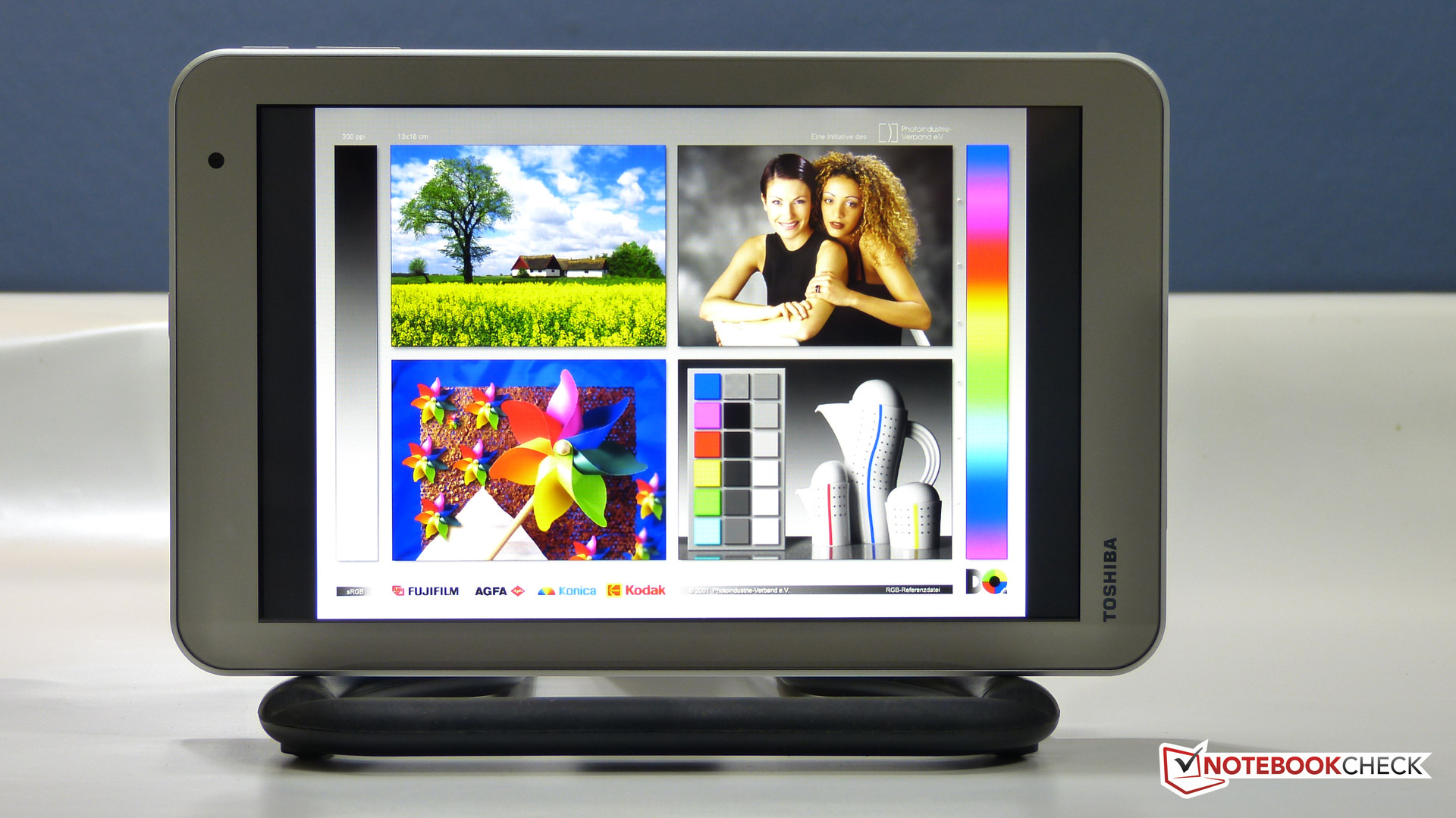

Display

The Toshiba Encore 2 WT8 includes a glossy 1280x800 IPS display. (Aspect 16:10.) Pixel density isn't as high as with some competing tablets but we didn't have any problem with 'jaggies.' Microsoft ClearType is helping here.

We measured an average brightness of around 280 nits which isn't class-leading and slightly lower than the max brightness on the original WT8. Contrast is improved though with our measurements showing 776:1 compared to the 670:1 of the previous WT8.

Toshiba Encore 2 Display
Toshiba Encore 2 Display
301
cd/m²
285
cd/m²
252
cd/m²
286
cd/m²
295
cd/m²
273
cd/m²
268
cd/m²
279
cd/m²
265
cd/m²
Distribution of brightness
X-Rite i1Pro 2
Maximum: 301 cd/m² Average: 278.2 cd/m²
Brightness Distribution: 84 %
Center on Battery: 152 cd/m²
Contrast: 776:1 (Black: 0.38 cd/m²)
ΔE Color 8.01 | - Ø
ΔE Greyscale 6.58 | - Ø
46.68% AdobeRGB 1998 (Argyll)
Gamma: 1.72

The screen provides acceptable color accuracy and has a good black level and contrast for the price and target market. Color space coverage is fairly low at 46.68% of the Adobe RGB space which is slightly less than the screen on the previous Toshiba Encore WT8.

Calman saturation test results
Calman saturation test results
Calman color test results
Calman color test results

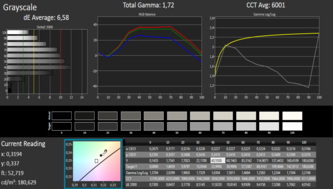

Calman grayscale test results
Calman grayscale test results

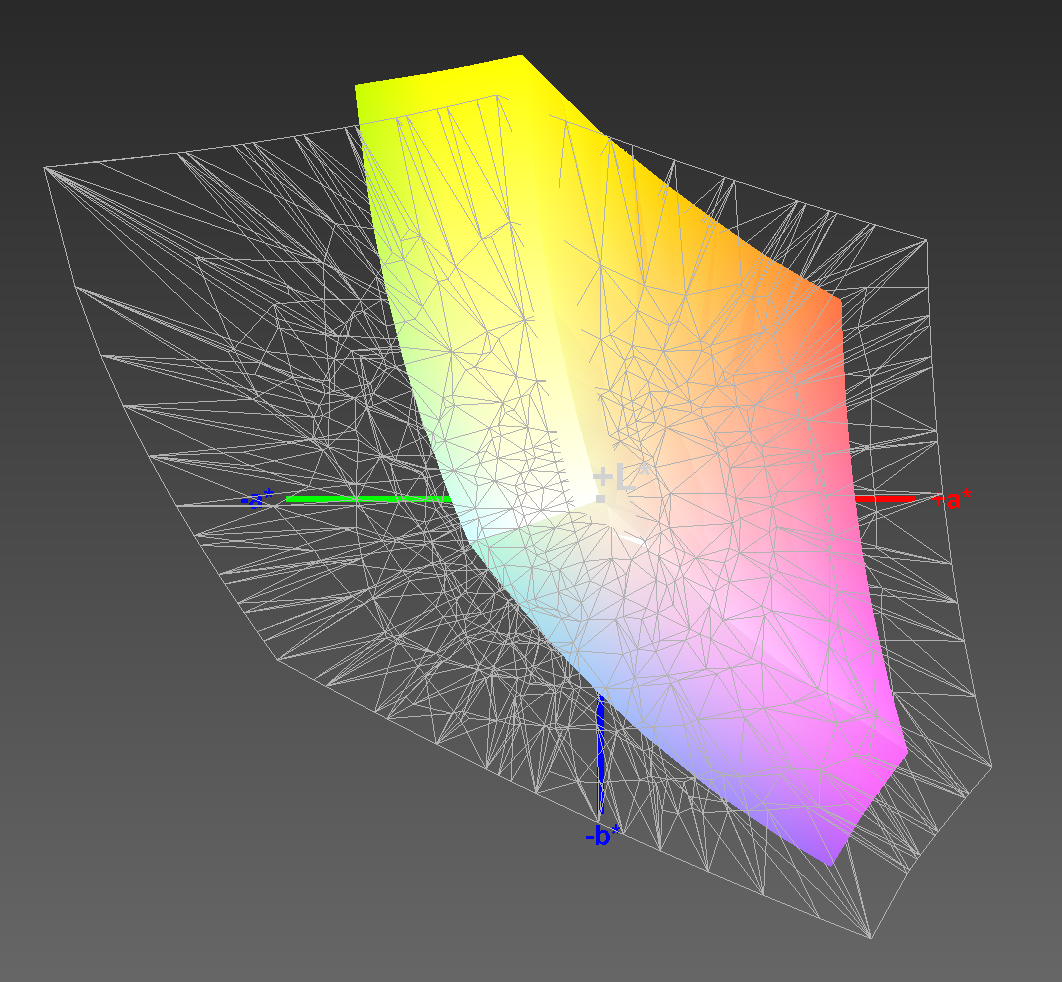

46.68% of AdobeRGB color space is covered.
46.68% of AdobeRGB color space is covered.

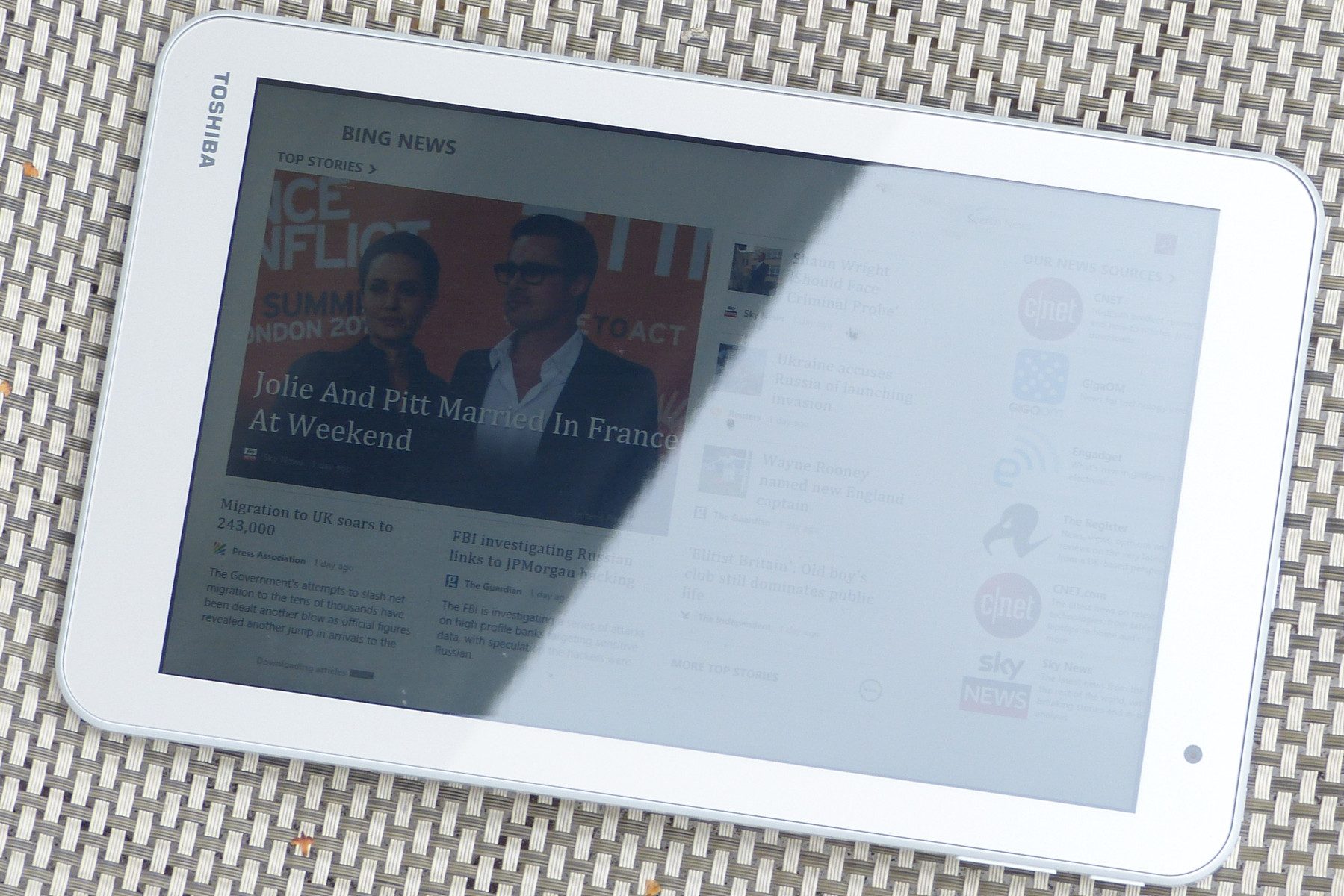

Toshiba Encore 2 WT8 outdoors.
Toshiba Encore 2 WT8 outdoors.

With a maximum of 300 nits brightness the Encore 2 WT8 isn't ideally suited for outdoor use. The glossy screen also works against the user in these conditions. The image below was taken on a bright cloudy day.

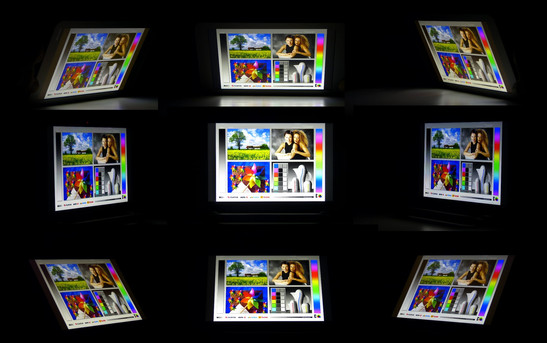

Viewing angles on the Toshibe Encore 2 WT8 are as you'd expect for a modern tablet. Wide angles are covered well enough for most scenarios.

Toshiba Encore 2 WT8 viewing angles
Toshiba Encore 2 WT8 viewing angles

Performance

Using the Baytrail-T dual-core SoC platform means there aren't many options for performance differentiators but in the Toshiba Encore 2 we have to consider the 1 GB memory, the speed of the eMMC the memory bus speeds and the overall performance of the CPU and GPU including Turbo Boost.

CPUZ CPU Infromation
CPUZ CPU Infromation
CPUZ Memory Infromation
CPUZ Memory Infromation
CPUZ CPU Cache
CPUZ CPU Cache
CPUZ Mainboard information
CPUZ Mainboard information
GPUZ information
GPUZ information
HWinfo Overview
HWinfo Overview
Plaftform details from Powercfg
Plaftform details from Powercfg
Battery details from powercfg
Battery details from powercfg
System information Toshiba WT8-B-102‏

Processor

The Intel Atom Z3735G is, in comparison with mainstream PCs, a very low-end SoC but the architecture has already proved itself as capable enough for consumer computing in other devices based on the same series of SoCs. A base clockrate of 1.33 Ghz is the same as the Z3740 seen on previous Windows 8 tablets but there appears to be a slight change in Turbo Boost algorithm with only single-core operations going to the full 1.8 Ghz clockrate. Dual-core operations are capped at 1.5Ghz according to our tests. [See image below.]

The platform does not include the capability to create power profiles that can provide 'battery saving' or 'performance' scenarios and there's no noticable difference between battery power and mains (USB) power unless the battery level is at or below 10% at which point the CPU is throttled to 800Mhz.

The Intel Gen 7 GPU is integrated into the SoC along with video decoding hardware (Intel Quick Sync support is not included on this platform as it was on the Z3740) and audio hardware.

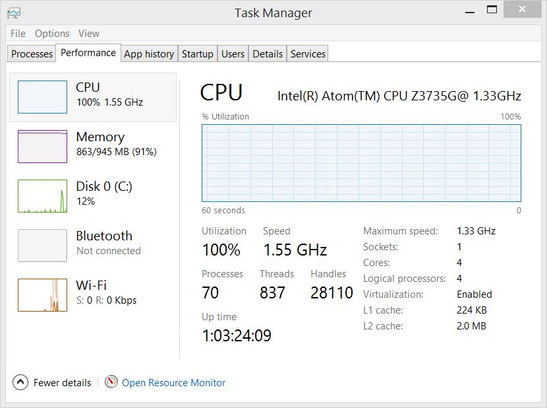

Long-term CPU dual-core Turbo Boost
Long-term CPU dual-core Turbo Boost


Cinebench R10 Rendering Single 32Bit
946
Cinebench R10 Rendering Multiple CPUs 32Bit
2899
Cinebench R10 Shading 32Bit
1368
Help

Cinebench R10 performance using the single core test shows results that match those on other Z3000-series SoCs. Multi-core performance is lower than on other devices in the same category. [See graphs below.] Despite the base clockrate being similar, Turbo Boost differences (which could be attributable to CPU configurations, Toshiba configurations and thermal profile) are producing different results.

Cinebench R10
Rendering Single 32Bit (sort by value)
Toshiba WT8-B-102‏
946 Points ∼13%
Lenovo Miix 2 10
968 Points ∼14% +2%
Toshiba Encore WT8-A-102
963 Points ∼14% +2%
Toshiba Satellite NB10t-A-101
993 Points ∼14% +5%
Rendering Multiple CPUs 32Bit (sort by value)
Toshiba WT8-B-102‏
2899 Points ∼8%
Lenovo Miix 2 10
3226 Points ∼9% +11%
Toshiba Encore WT8-A-102
3390 Points ∼10% +17%
Toshiba Satellite NB10t-A-101
1474 Points ∼4% -49%

System Performance

PCMark 7 is an all-round test used to measure disk, CPU, graphics and other performance charachteristics which are then presented in a single results. As you'll see below the disk speeds are (relative to spinning hard drives that were in use at the time PCMark7 was developed) very good so this is having a positive impact on the overall PCMark 7 score.

Peacekeeper is a similar test but confined to the browser, It shows slightly disappointing results as storage speed is not part of the test.

The test results here point to the CPU on the Z3735G having lower performance than some other 8-inch Windows 8 tablets.

PCMark 7 Score
2168 points
Help
PCMark 7
System Storage (sort by value)
Toshiba WT8-B-102‏
3994 Points ∼56%
Toshiba Encore WT8-A-102
3806 Points ∼53% -5%
HP Pavilion 11-n070eg x360
1532 Points ∼21% -62%
Acer Aspire V5-122P-61454G50NSS
1440 Points ∼20% -64%
Microsoft Surface Pro 2
5114 Points ∼72% +28%
Score (sort by value)
Toshiba WT8-B-102‏
2168 Points ∼27%
Asus VivoTab Note 8 (M80TA)
2458 Points ∼31% +13%
Toshiba Encore WT8-A-102
2497 Points ∼31% +15%
HP Pavilion 11-n070eg x360
1462 Points ∼18% -33%
Acer Aspire V5-122P-61454G50NSS
1232 Points ∼16% -43%
Microsoft Surface Pro 2
4808 Points ∼61% +122%
Peacekeeper - --- (sort by value)
Toshiba WT8-B-102‏ (Chrome 36.0)
837 Points ∼14%
Asus Transformer Pad TF303CL-1D050A
890 Points ∼14% +6%
LG G3
1097 Points ∼18% +31%
Lenovo IdeaPad Yoga 2 11
868 Points ∼14% +4%

Storage Devices

Using CrystalDiskMark we tested the performance of the main 32GB eMMC-based storage. The results are very good for a Windows 8 tablet using eMMC solid state storage and will help to offset the lower CPU performance and to improve the performance of the on-disk Pagefile.

CrystalDiskMark 3.0
Write 4k (sort by value)
Toshiba WT8-B-102‏ (no encryption)
17.43 MB/s ∼7%
Toshiba WT8-B-102‏
12.86 MB/s ∼5% -26%
Read 4k (sort by value)
Toshiba WT8-B-102‏ (no encryption)
19.04 MB/s ∼32%
Toshiba WT8-B-102‏
16.32 MB/s ∼27% -14%
Write Seq (sort by value)
Toshiba WT8-B-102‏ (no encryption)
75.74 MB/s ∼3%
Toshiba WT8-B-102‏
48.56 MB/s ∼2% -36%
Read Seq (sort by value)
Toshiba WT8-B-102‏ (no encryption)
166 MB/s ∼5%
Toshiba WT8-B-102‏
116 MB/s ∼4% -30%

The Impact of 1 GB RAM

While benchmarks provides single-application and single-component performance figures there's a question that can't be answered by looking at those results. 1 GB of physical memory is a small amount for a modern PC/Windows-based product and we can confirm that it impacts performance on the Encore 2 WT8. By observing memory use and Pagefile use we were able to determine that system performance does drop when too many applications are loaded at the same time. During a session where multiple applications were loaded we saw committed memory (total memory in active use across physical and virtual memory) rise to nearly 3 GB. During that time the Pagefile was continually in use and disk activity rose as a result. Application switching becomes slow, web pages can hang and performance drops to unacceptable levels. We removed the Google Chrome background application (which appears to keep a lot of memory tied-up.) and Toshiba's Service Station application which we also saw active in the background but even after a fresh boot, committed memory rises to nearly 1GB with a proportion of that residing on disk.

The results of our observations leads us to conclude that the Toshiba Encore 2 WT8 is not suitable for desktop multitasking, desktop gaming or heavy, multi-tab web browser usage. While the relatively fast (compared to spinning hard disk) SSD R/W speeds and access times help to improve pagefile performance there are still obvious limits.

Windows RT (Modern) applications are generally less memory intensive and often run full-screen so limitations are less apparent, if at all noticable in this application environment. We ran 10 windows RT applications and saw committed memory rise to 1.6 GB - a level where most of the memory usage is still on physical RAM.

Also note that the system pagefile takes up valuable disk space. On our system, after completing our testing, we saw a pagefile size of 2.7GB which is 10% of the available disk space.

Notes: We did not run any third-party anti-virus solution. Windows Defender was active for all testing. There were a minimum of 59 Windows processes running at all times. Pagefile activity was monitored through Windows Resource Monitor.

2GB RAM and 22GB storage required for WoW
2GB RAM and 22GB storage required for WoW

Graphics Solution

The Intel Gen 7 graphics solution uses a similar architecture to that seen on HD3000-series GPUs and is able to drive a low-level of desktop gaming but due to the limited RAM and disk space it's not something that the Toshiba Encore 2 WT8 is designed for. In the RT / Modern application environment things are different and we were able to enjoy all the games we downloaded. Due to the number of applications we install during our tests we experienced a number of low-disk space problems.

Video Encoding (Intel Quick Sync)

We tested Intel Quick Sync with Cyberlink Power Director 12 (desktop application) and the performance was poor compared to some other Z3000-series platforms. This is in line with the Z3735G specifications which indicate that there's no Intel Quick Sync support on the platform.

Gaming Performance

Although The Toshiba Encore 2 WT8 is capable of running Windows 8 desktop applications, gaming is not something that should be attempted. With just 300-400MB of physical RAM available after boot and tight disk space limits there's little possibility to install and run games without major issues. For example even World of Warcraft requires 2GB of RAM.

We saw no graphical issues when using F18 Carrier Landing Lite although the vertical axis of the gyro sensor did seem very unstable. In Drift Street Mania Outlaws we had to reduce the steering sensitivity but the performance was perfect. Pinball FX2 in portrait mode was again perfect from a graphics performance and responsiveness perspective.  A video demo is provided below.

The 3DMark score shown was completed with errors (uknown CPU and unsupported GPU driver) and at a resolution of 1280x800 (We usually perform this test at 1280x720 resolution.) The results are lower than we've seen on other tablets in this category. In a side-by side comparison with the Lenovo Miix 2 8 we saw much better 3DMarkk 06 scores.

Toshiba Encore 2 WT8 - 1296

Lenovo Miix 2 8 - 2088

3DMark 06 Standard
1296 points
Help

Emissions

System Noise

The Toshiba Encore 2 is fanless and uses flash storage is is therefore silent.

Temperature

The Toshibe Encore 2 WT8 stays cool under casual-usage scenarios although under load there's an area just under the rear camera that gets warm. We measured 48 degress Celsius which isn't enough to cause an worry here. Note that the Toshiba Encore 2 WT8 is fanless.

Max. Load
 44.9 °C37.5 °C29.8 °C
 45 °C33.7 °C34 °C
 42.8 °C32 °C32.5 °C
Maximum: 45 °C
Average: 36.9 °C
30.2 °C32 °C47 °C
30.4 °C31.5 °C48.1 °C
29.7 °C30.2 °C44.4 °C
Maximum: 48.1 °C
Average: 35.9 °C
Power Supply (max.)  30 °C | Room Temperature 24.1 °C | Voltcraft IR-360

Speakers

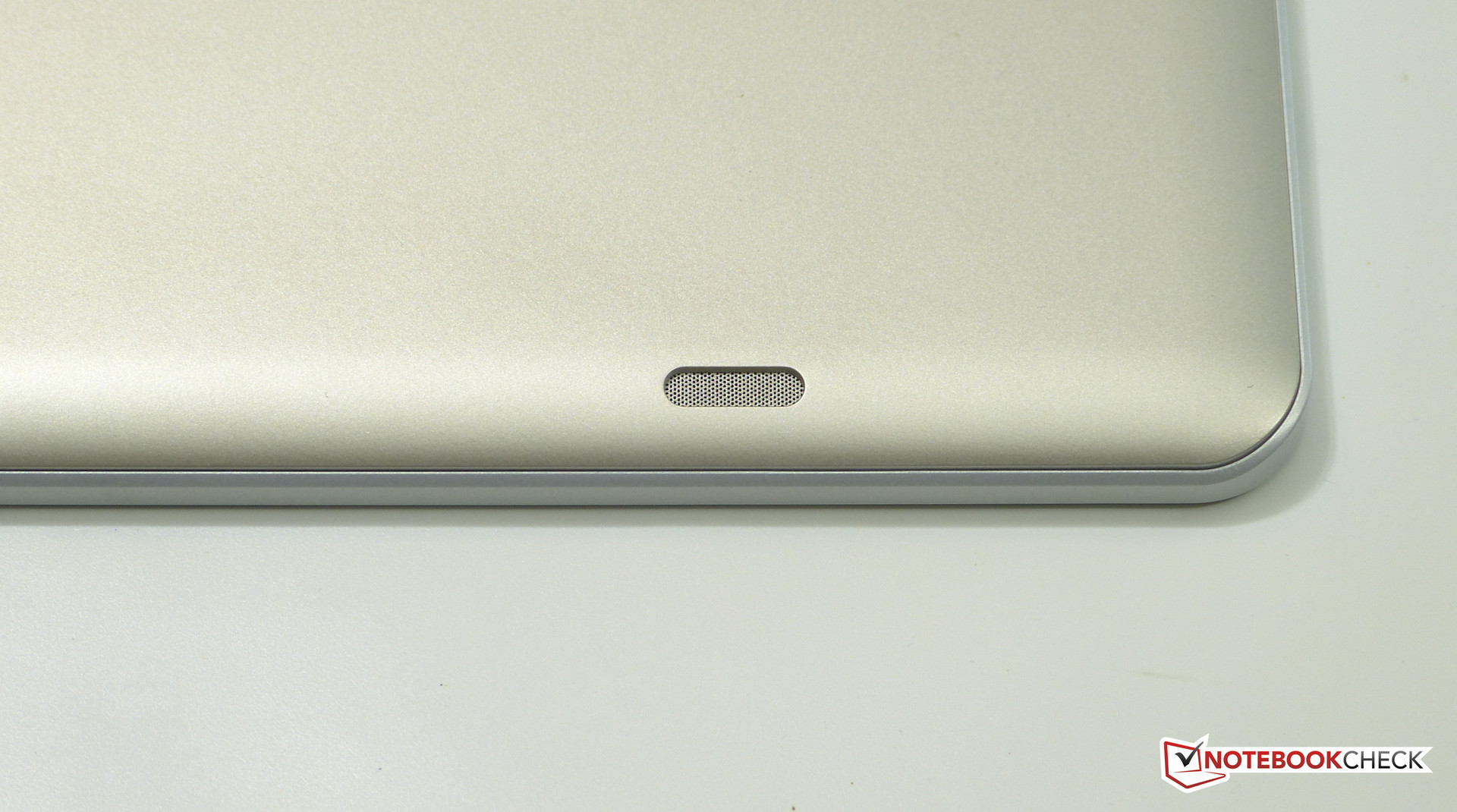

The rear-facing / landscape-oriented Dolby enhanced stereo speakers are certainly good enough for personal listening in the kitchen. A side-by-side comparison with the Lenovo Miix 2 10 showed the Wt8 to have a much more rounded sound with what some might even call bass being transmitted. [Tip: Lean the tablet against a solid surface to reflect as much of the audio forward to the listener as possible.] In reality that's not the case but it's a nice radio-like experience. Some distortion is experienced at very high levels. The included Dolby software allows control of equalisation, volume levelling and virtualization.

External audio can be connected via the analogue headphone socket, Bluetooth (A2DP profile) and via USB adaptors. Native digital output is not available due to the lack of an HDMI port although a CD-quality digital stream can be achieved vi Miracast. DLNA is supported natively in Windows 8 and DLNA-capable amplifiers or TVs could take an uncompressed digital stream.

Toshiba Encore 2 WT8 has good stereo speakers
Toshiba Encore 2 WT8 has good stereo speakers

Energy Management

Power Consumption

Power is provided via microUSB and the charger is rated at 2A. We managed to slowly charge the WT8 using a 1A adaptor but don' t recommend this. Concurrent charging and data-usage was not tested but there may be cable configurations that enable this.

Battery Life

With just a 15Wh battery available the Toshiba Encore 2 WT8 has one of the smallest sized batteries of a Windows 8 tablet and indeed any Windows PC. Given that there are no major improvements to efficiency in the Z3735G over the Z3740 used in other 8-inch Windows tablets it's not surprising that battery life is not class-leading. In our tests we saw an impressive idle power usage of just 900mW and web browsing at about 2.3W. A 1020p video played in the 'Modern' video player using about 2.8W (150 nits screen brightness, WiFi off) which will bring you over 5 hours of viewing on one battery charge.

In Windows 8 'powercfg' we saw reports ranging from 4.5hrs to 7hrs 40 minutes. These figures are calculated by the system at the end of a days usage. Our usage scenarios obviously range from very light to very heavy.

Battery Runtime
Idle (without WLAN, min brightness)
15h 00min
WiFi Surfing
6h 30min
Big Buck Bunny H.264 1080p
5h 20min

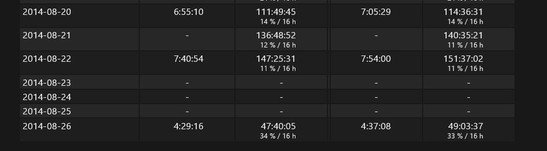

Powercfg battery life report
Powercfg battery life report

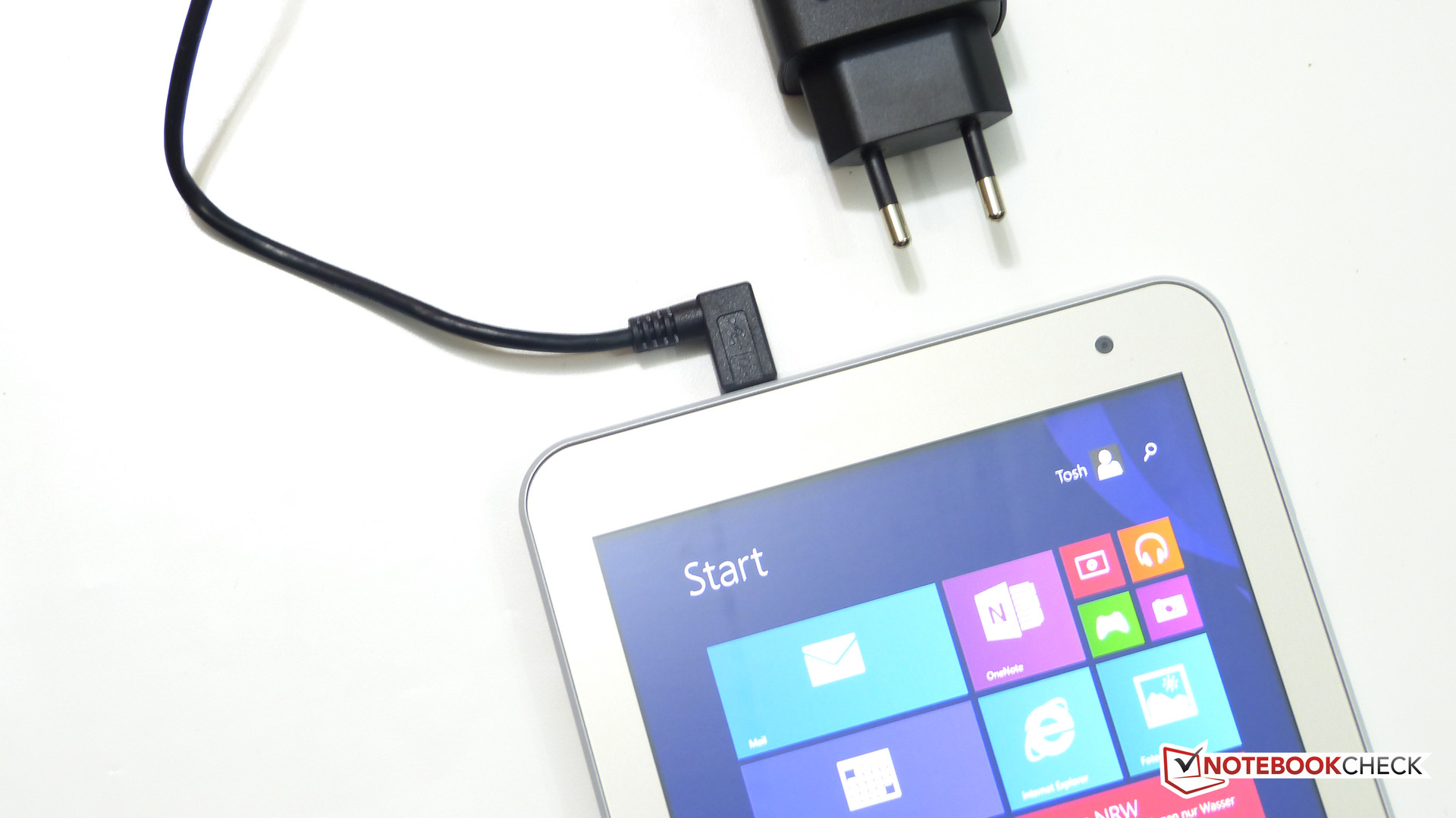

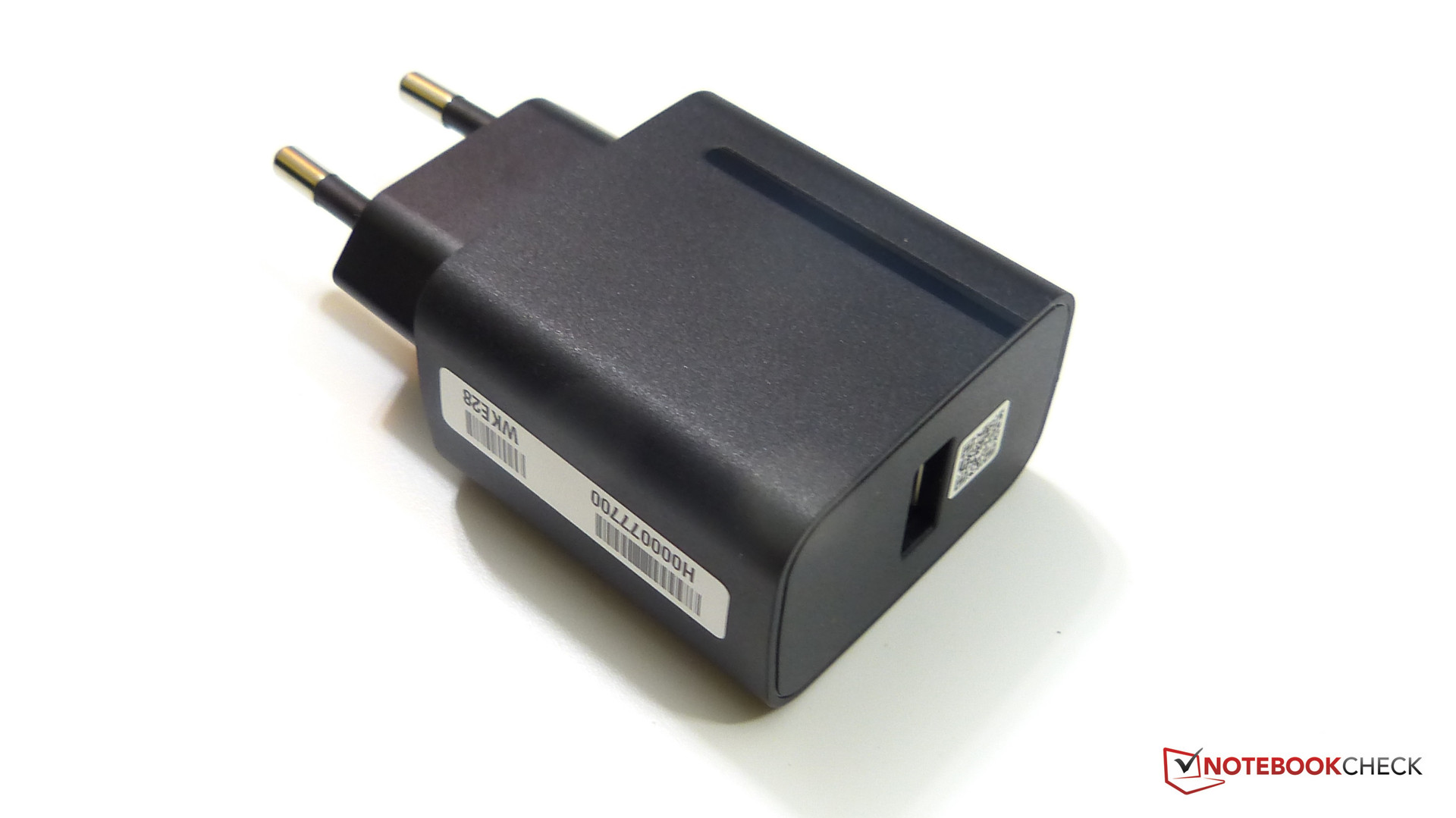

Toshiba Encore 2 WT8 power adaptor
Toshiba Encore 2 WT8 power adaptor


Power Consumption
Off / Standbydarklight 0 / 1.7 Watt
Idledarkmidlight 1 / 2.3 / 2.3 Watt
Load midlight 7.7 / 9.4 Watt
 color bar
Key: min: dark, med: mid, max: light        Voltcraft VC 940

Other Notes

  • Windows with Bing appears to be a complete build of Windows 8.1 and we didn't find any artificial limits or removed features during our testing.
  • No concurrently logged-in users. (Multiple accounts are allowed but only one can be logged in at a time.)
  • No light sensor
  • Screen backlight minimum setting is very low. (Relevant for dark room reading.)
  • No compass / GPS.
  • To change the default search engine from Bing to something else use "Manage Add-ons" from the desktop Internet Explorer settings menu.

Verdict

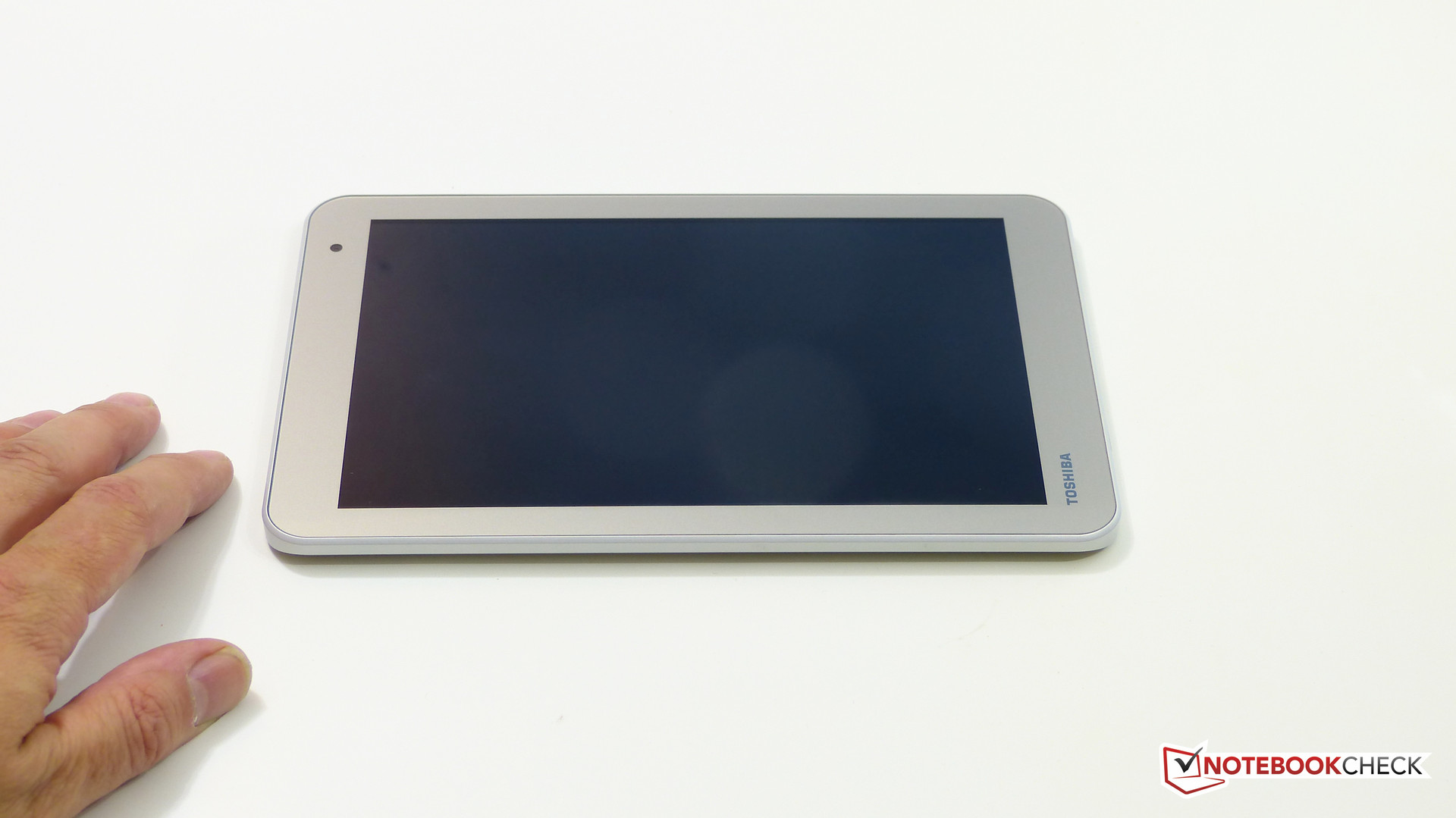

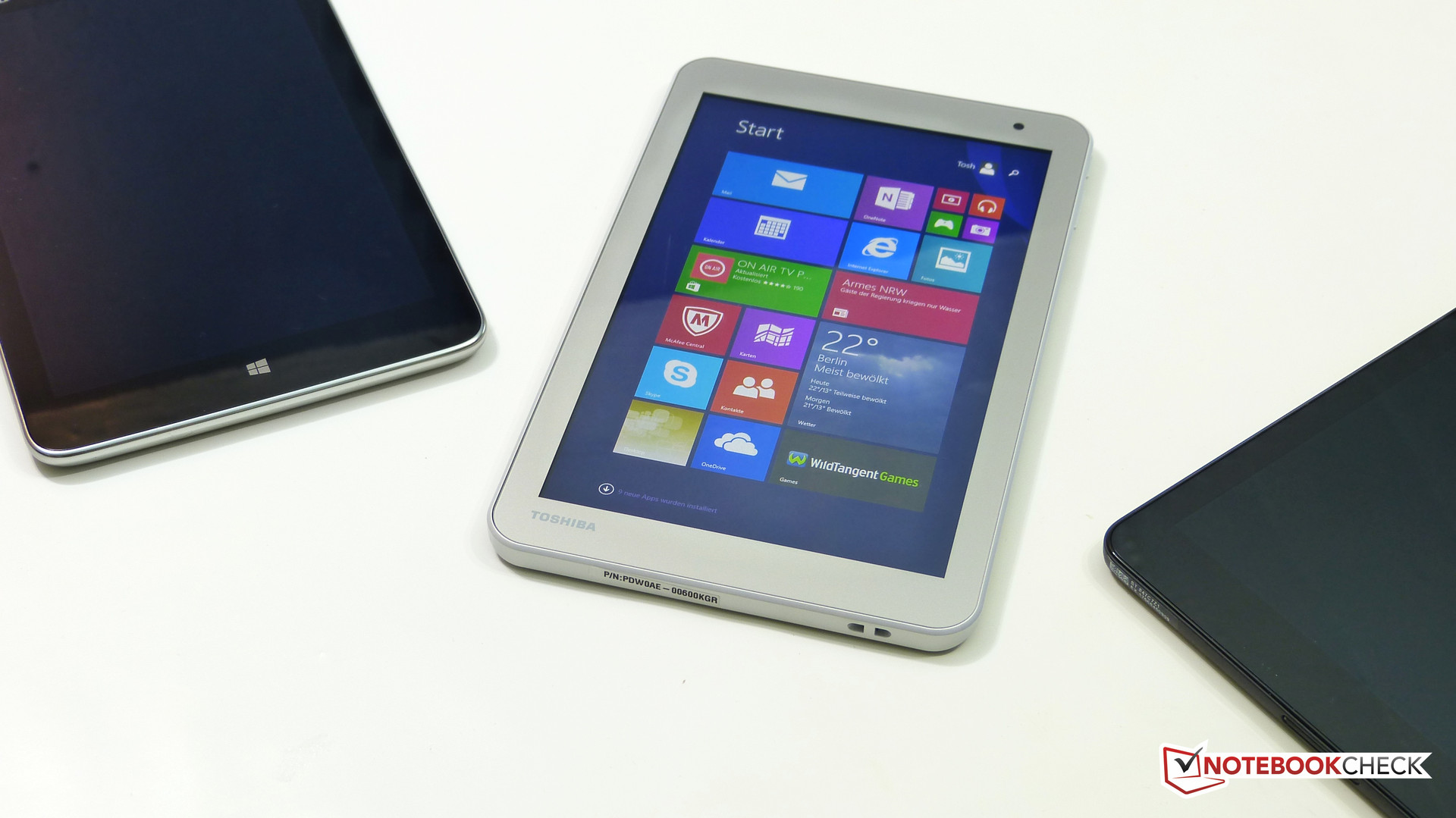

Toshiba Encore 2 WT8
Toshiba Encore 2 WT8

Although the specifications of the Z3735G processor don't appear to have changed much over the previous, early 2014 iteration the Toshiba Encore 2 WT8 shows us a product based on that SoC that is not as capable as Windows 8 tablets based on the earlier generation. We found differences in Turbo Boost that can affect CPU performance, elements of the GPU (mainly for video processing) that have been removed and with just 1GB of RAM we quickly saw limitations that affect multi-tasking. Given that the price of the Encore 2 WT8 is (at time of writing) not significantly cheaper than more performant Windows 8 tablets it's difficult to make a recommendation.

The main competition to the Toshiba Encore 2 WT8 is the Lenovo Miix 2 8 which we have had the chance to directly compare during this review. The Lenovo Miix 2 has a similar look and feel, a similar sized battery and the same ports. The performance results are, however much better and you've got 2GB of RAM which removes at least some of the worry of virtual memory usage. The speakers aren't nearly as good on the Miix 2 8 compared to WT8. The other competitor is the Dell Venue 9 Pro which has a better screen and battery life.

Toshiba have build a tidy, lightweight Windows 8 tablet with fast storage, a bright screen and good speakers that provides a smooth and enjoyable Windows RT experience and this might be enough for some but ultimately the price needs to drop for the WT8 to compete and if it gets to below $150 then it can be regarded as a reasonable Windows RT-style tablet.

Read all 3 comments / answer
static version load dynamic
Loading Comments
Comment this article:
In Review: Toshibe Encore 2 WT8. Test model courtesy of Toshiba.
In Review: Toshibe Encore 2 WT8. Test model courtesy of Toshiba.

Specifications

Toshiba WT8-B-102‏
Processor
Intel Atom Z3735G 1.33 GHz
Graphics adapter
Intel HD Graphics (Bay Trail), Core: 620 MHz, shared memory, 10.18.10.3630
Memory
1024 MB
, DDR3
Display
8.0 inch 16:10, 1280x800 pixel, Capacitive 10-point, Chi Mei, IPS, CMN0802, glossy: yes
Storage
32 GB eMMC Flash, 32 GB
, 12.1 GB free
Connections
1 USB 2.0, Audio Connections: Headset, Card Reader: MicroSD (SDXC), Sensors: Invensense Sensor Collection
Networking
Realtek RTL8723BS (b/g/n)
Size
height x width x depth (in mm): 9.5 x 210 x 132 ( = 0.37 x 8.27 x 5.2 in)
Battery
15 Wh, Intel SR 1
Operating System
Microsoft Windows 8 32 Bit
Weight
372 g ( = 13.12 oz / 0.82 pounds), Power Supply: 80 g ( = 2.82 oz / 0.18 pounds)
Price
199 Euro



2A Power adaptor
2A Power adaptor

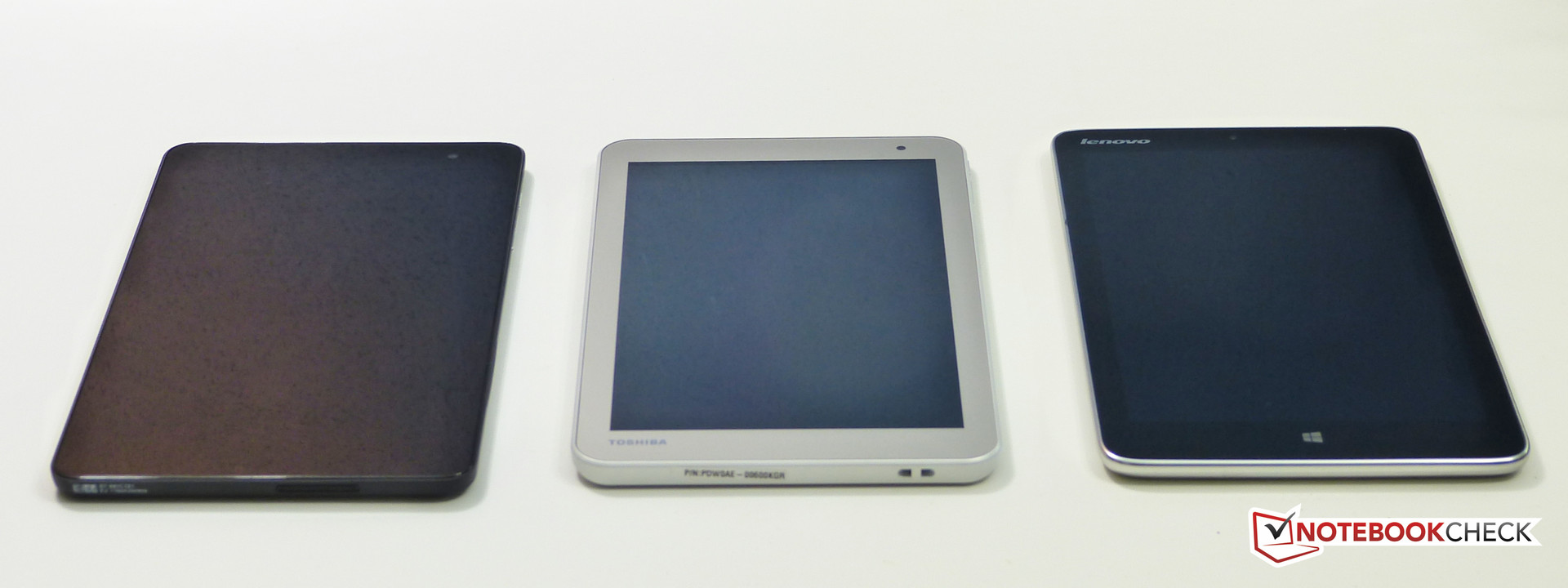

Venue 8 Pro, Encore 2, Miix 2 8
Venue 8 Pro, Encore 2, Miix 2 8

Similar Laptops

Similar devices from a different Manufacturer

i.onik TW Series 1 Tablet Review
HD Graphics (Bay Trail)
HP Stream 8 5900ng Tablet Review
HD Graphics (Bay Trail)
Acer Iconia One 8 Tablet Review
HD Graphics (Bay Trail)

Devices from a different Manufacturer and/or with a different CPU

HP Pro Tablet 408 G1 Tablet Review
HD Graphics (Bay Trail), Atom Z3736F

Links

  • Manufacturer's information

Compare Prices

Pro

+Cost
+Good speakers


Cons

-1GB RAM is a limit when multitasking
-Small storage space
-No digital A/V output (HDMI)

Shortcut

What we like

The price and styling.

What we'd like to see

2GB of RAM

What surprises us

Slower performance than the previous generation.

The competition

Dell Venue 8 Pro

Lenovo Miix 2 8

Rating

Toshiba WT8-B-102‏ - 08/29/2014 v4(old)
Steve Chippy Paine

Chassis
79%
Keyboard
69 / 80 → 86%
Pointing Device
89%
Connectivity
28 / 66 → 42%
Weight
85 / 88 → 94%
Battery
90%
Display
78%
Games Performance
15 / 68 → 22%
Application Performance
30 / 76 → 39%
Temperature
83%
Noise
100%
Audio
50 / 91 → 55%
Camera
45 / 85 → 53%
Add Points
-5%
Average
60%
74%
Tablet - Weighted Average
> Notebook / Laptop Reviews and News > Reviews > Archive of our own reviews > Toshiba WT8-B-102‏ Tablet Review
Steve Chippy Paine, 2014-08-30 (Update: 2014-09- 9)
