Review Toshiba Portege M400

The current review of the Toshiba M400 Tablet PC represents a special event for us. Thereby, this is our 100 review. You will experience like always, what the reviewed notebook really is worth - so also with the Toshiba Portege M400.

Case

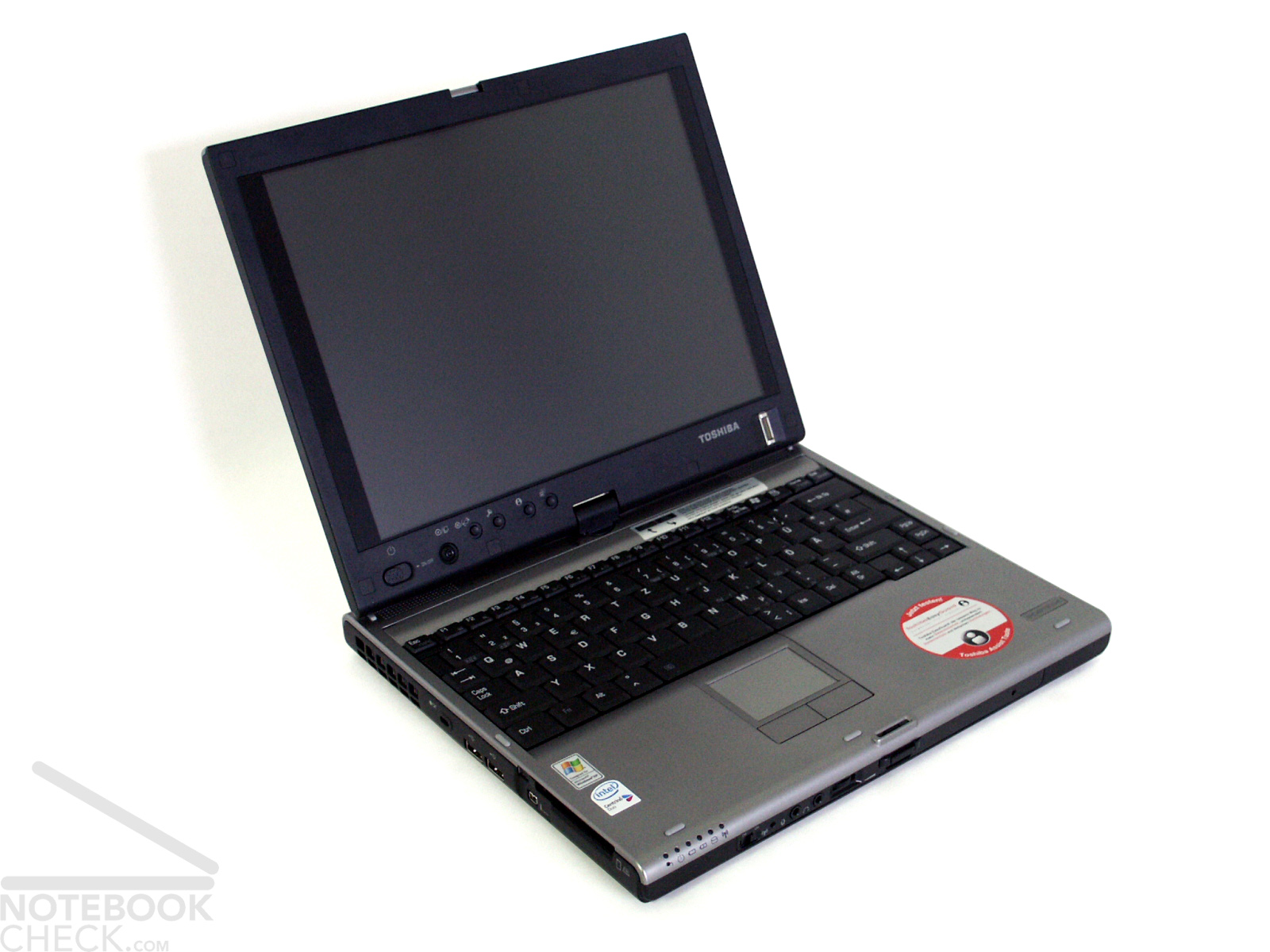

The Toshiba Portege M400 pleases due to the color choice. The base unit and the display edge are coloured in a strong black. The display cover and the top side of the base unit are finished in a kind steel silver metallic colour. Altogether, as a result of it, a high-quality impression arises. Due to the typical Toshiba alignment with straight edges and rounded off corner passages, the M400 also would be recognizable easily as a Toshiba equipment without label.

The surfaces of the notebook feel well, but are disappointing after more precise investigations. Particularly within the range of the right hand surface (battery) the case can be incised easily and crunches quietly. Also the strip above the keyboard sits not absolutely firmly in the chassis and can be moved somewhat.

Except the battery, which is inserted into the case somewhat wobbly, the notebook is very compact and durable and also is very rigid against torsions. This applies also to the display.

The display, which is held by a centrically arranged turning tilting mechanism, can be adjusted with pleasant force expenditure, but whips clearly. However, the turning folding mechanics actually makes a solid impression. The display can be turned by this mechanism in a conventional position or be folded up as Tablet PC. Of course, the use of the mobile computer is also possible in all intermediate stages.

Thereby particularly interesting is the bolting device mechanism. This can be locked by a stowable hook at the upper edge of the display both in the regular position and in the function as Tablet PC. Since the display can be fixed securely and firmly, this closing function is to be rated very good.

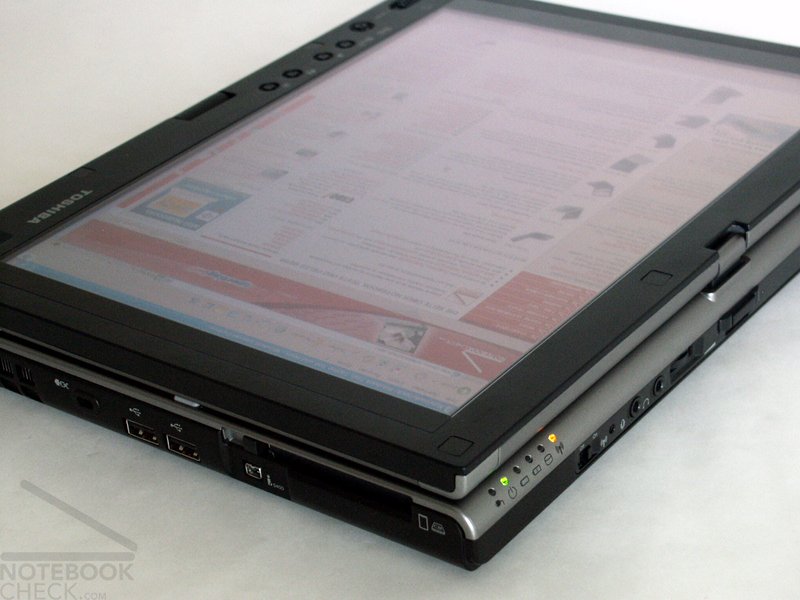

Without any exaggeration, the connections are distributed around the whole case: At the front edge there are headphones and microphone connection and also a WLan switch. At the right side of the case the DVD drive assembly and a SDCard reader is accommodated. In addition, the provided Tablet PC Pen can be stowed away here in an opening.
At the back the power connection, modem and LAN port, a USB 2.0 port and a VGA exit for the connection of an external monitor are positioned. At the left side there are two further USB 2.0 ports, a Firewire connection, Kensington lock and a PCCard slot. Beyond that the Toshiba Portege M400 offers a docking port at the lower surface of the chassis.

As already mentioned, the connections are apparently arbitrarily distributed around the sub-notebook. Notetheless, after further examinations it is noticeable, that some ports become unnecessary and the audio connections are positioned optimally, particularly with the handling as Tablet PC .

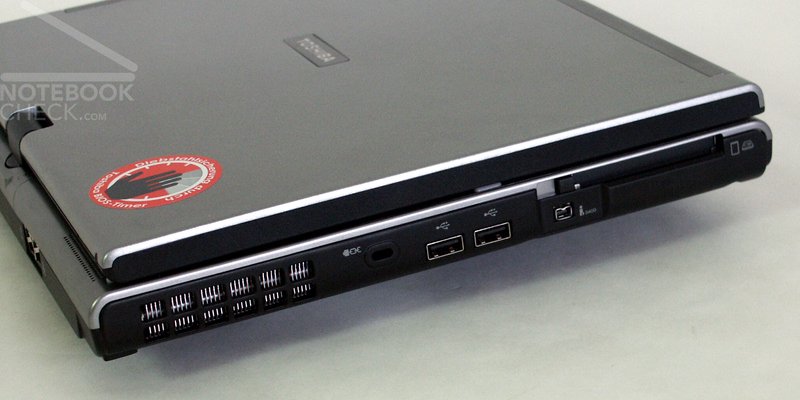

connections at the left side
connections

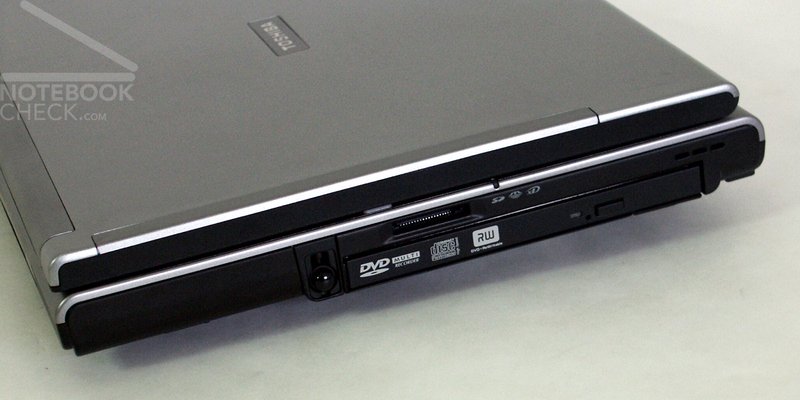

connections at the right side

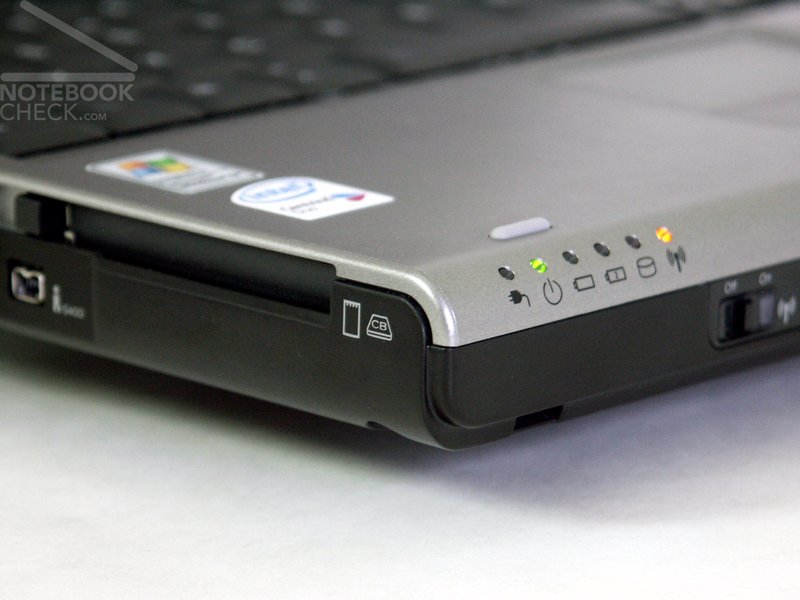

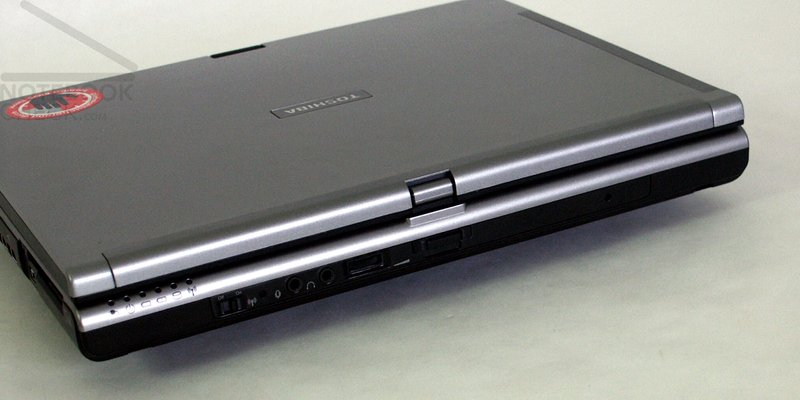

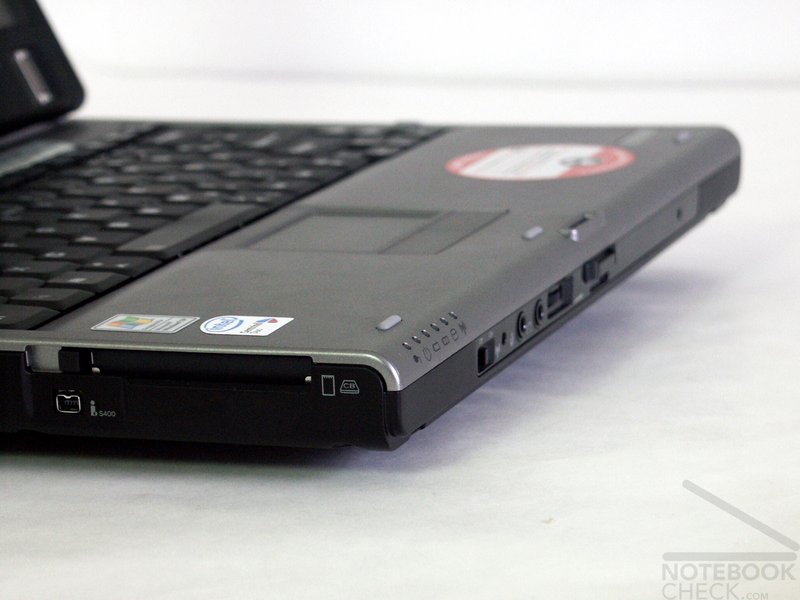

connections at the front
connections at the back

Input Devices

Remarkable with the keyboard is, that the available space was not used completely. On the one hand this improves the clarity, but on the other hand brings partly smaller finished keys, in order to be able to accommodate all functions. This concernes especially the space, enter and the cursor keys.
Further it is to be marked, that the keyboard unit can be flexed particularly in the area at the right side. The pressure feeling of the keys features a slight resistance, an imminent pressure point as well as an easily fitting with springs stop due to the partial torsioning of the keyboard.

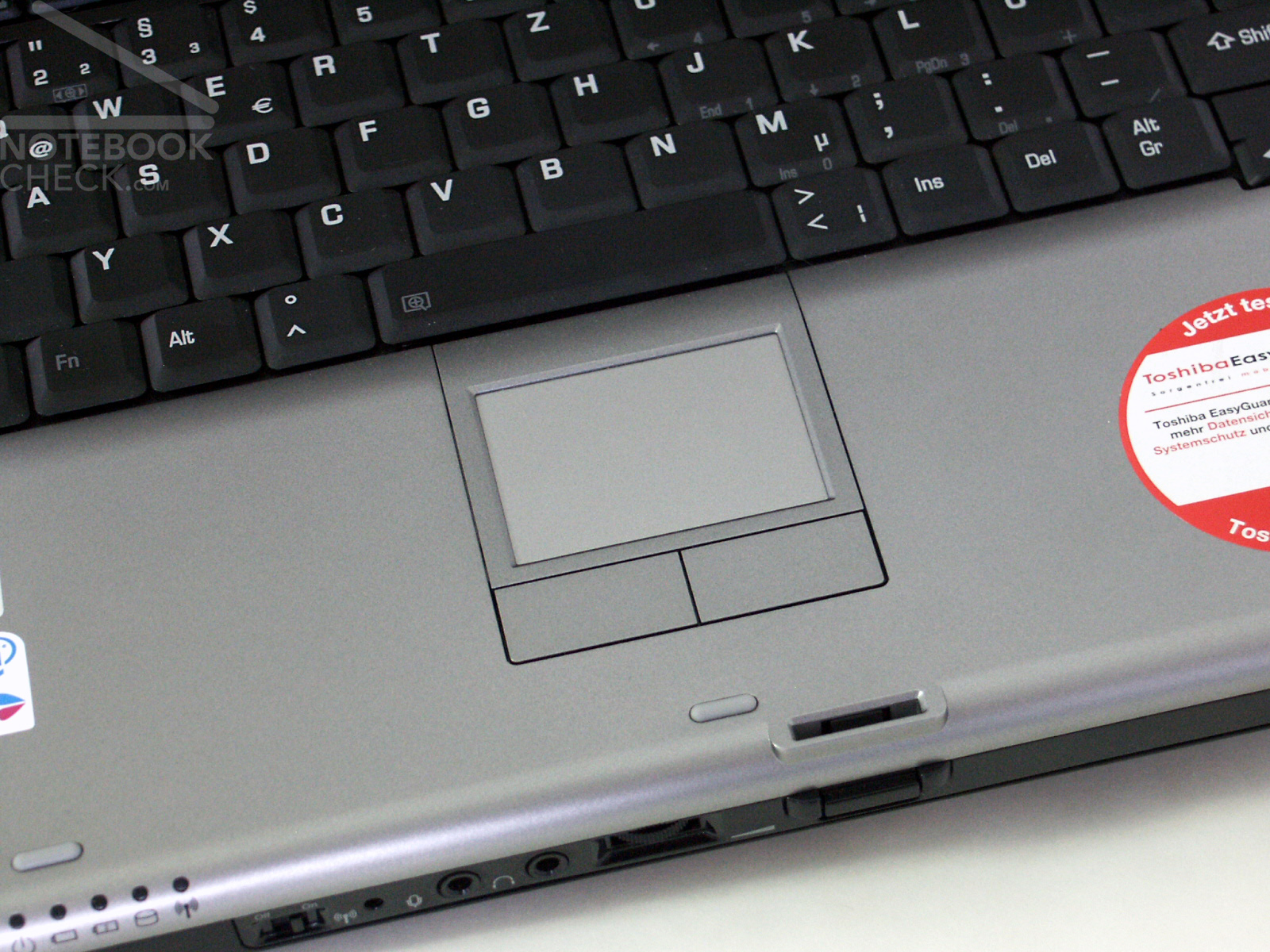

The touchpad is somewhat small and was inserted 1-2mm into the chassis. Therefore, often a re-placing with the finger is necessary and one often knocks at the border. Apart from it, the pad responds well and also the surface convinces by good sliding qualities. The two keys below the Touchpad are characterised by very good responding over the entire key surface, but create a rattling noise.

At the beginning, the control by means of the Tablet PC pen turns out to be somewhat uncomfortable, but as  time goes by, you will find out the trick. Then even the input of a small quantity of text is no more problem and can with the Tablet PC input area either with the help of a display screen keyboard, or in addition, can take place by means of a write field with coupled letter recognition. The Tablet PC pen actually lies well in the hand. The push button directly at the pin is inserted somewhat deeply and not particularly user friendly. Nevertheless, the display responds very well to the Tablet PC pen and reacts already with a distance of 1-2 cm above the display surface.

Touchpad
Tastatur

Display

colour diagram

The 12.1 inch display with a maximum resolution of 1400x1050 pixel has a moderately reflecting surface. With maximum brightness the display seems to be almost a bit over-radiated. If one reduces the display brightness by some levels, the image contrast suffers from it very fast. As maximum brightness a value of 148.4 cd/m² was measured, with a good illuminating of 83.8%. The maximally achieved contrast results in 247.3:1.

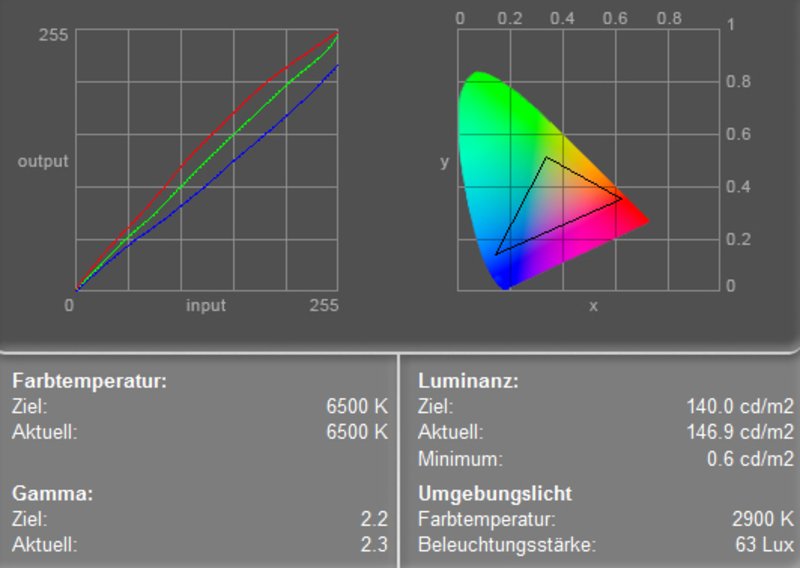

The measuring diagram of the color representation shows, that one can recognize that both the red one and the blue color curve deviate clearly from the ideal line. However, the slightly falsified color reproduction was not visible with the naked eye.

The reaction rate of the display is slightly below average with achieved level 5 in the Pixperan readability test.

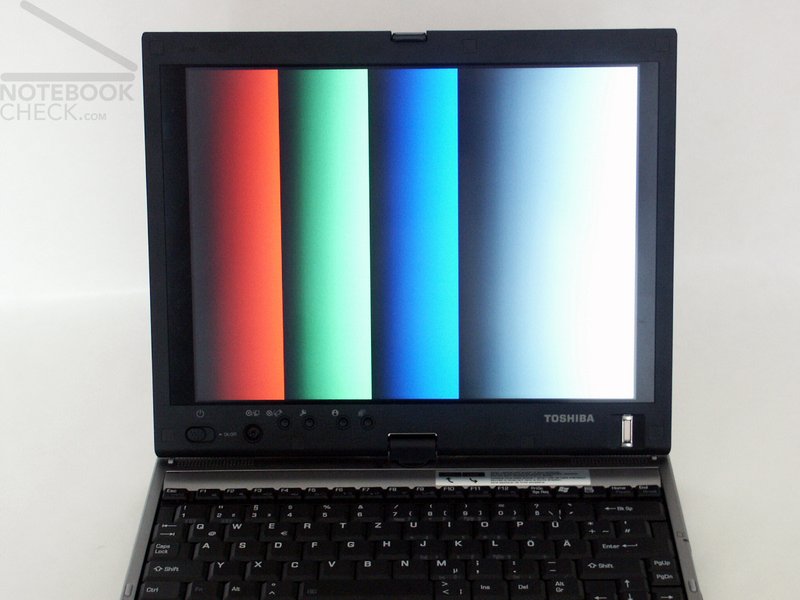

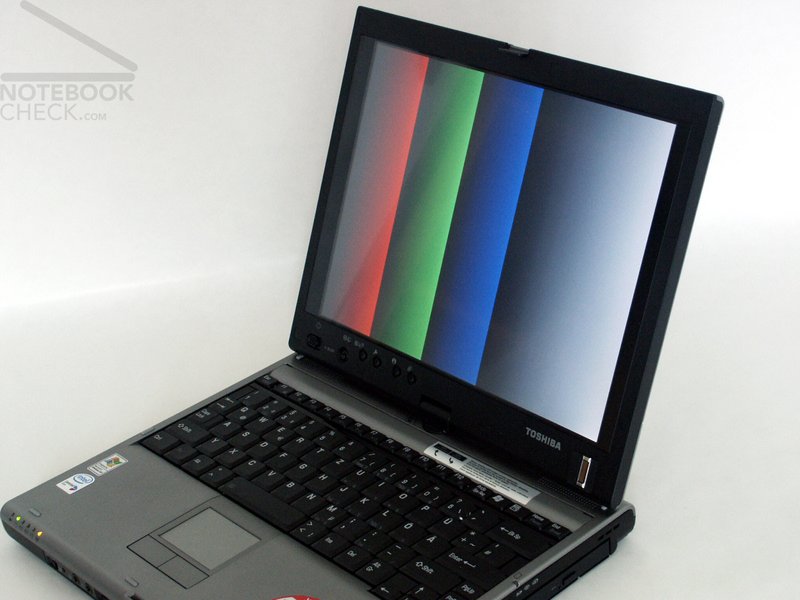

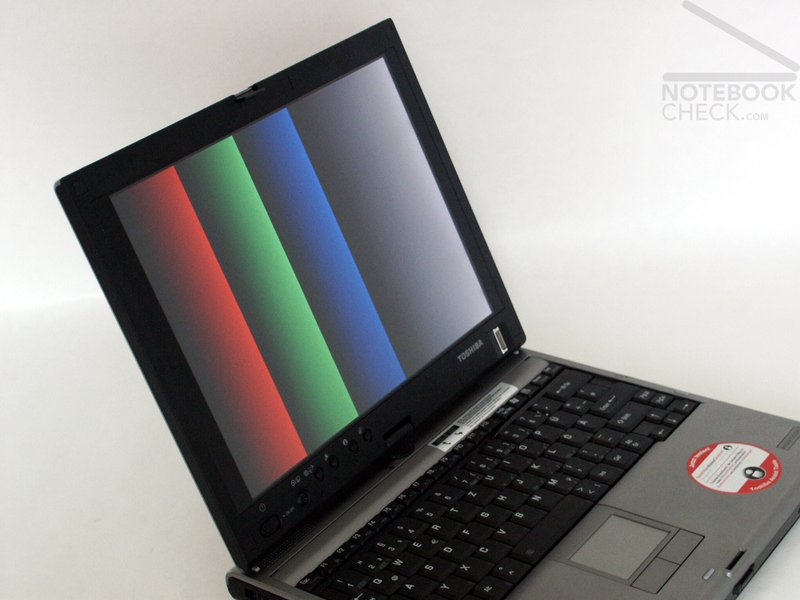

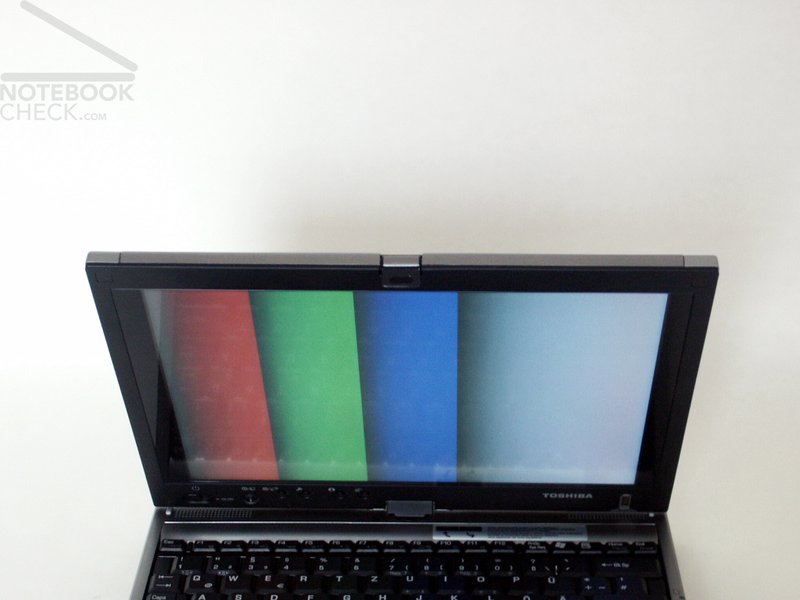

Despite the designation "Wide Viewing Angle" only a moderate stability with viewing angles is noticeable within the vertical range. Besides a general clarification also a coarse representation of text can be observed when viewing from above downto the display. Within the horizontal range the 1400x1050 pixel display shows a good stability of viewing angles.

In addition, apart from the picture-specific factors, it was noticeable, that the touch display can be handled exclusively with the provided Tablet PC pen. With the already tested Flybook A33i this was possible also with other items. If the Tablet PC pen should be lost, Toshiba took precautions and added a second pen to the package.

The outdoor handling with very bright environment light became extremely troublesome. Due to the reflecting surface impairing reflections arised. Also the rather moderate brightness in the border regions contributed to bad legibility.

126.5
cd/m²
132.6
cd/m²
127.1
cd/m²
135.1
cd/m²
148.4
cd/m²
135.7
cd/m²
129.3
cd/m²
129.9
cd/m²
124.3
cd/m²
Distribution of brightness
Information
Maximum: 148.4 cd/m²
Average: 132.1 cd/m²
Brightness Distribution: 84 %
Black: 0.6 cd/m²
Contrast: 247:1
stability of viewing angles

Performance

If it makes sense to judge sub-notebooks with integrated graphics solution according the 3D-performance, the Toshiba Portege M400 is rather at the lower edge of comparable configurations. Concerning the application performance the notebook is better than BenQ Joybook S61 (identical CPU/video unit) and only scarcely behind class colleagues with the stronger T2400 Core Duo CPU with 1.8 Ghz. Thus, the Portege M400 supplies sufficient performance for all office applications, and can be compared with class competitors.

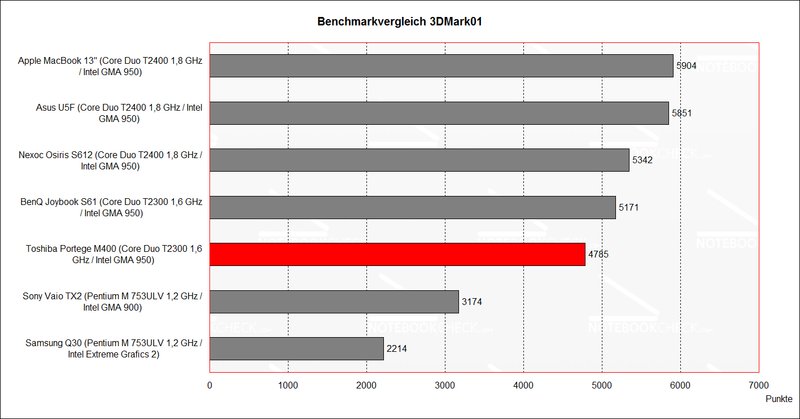

benchmark comparison 3DMark
benchmark comparison

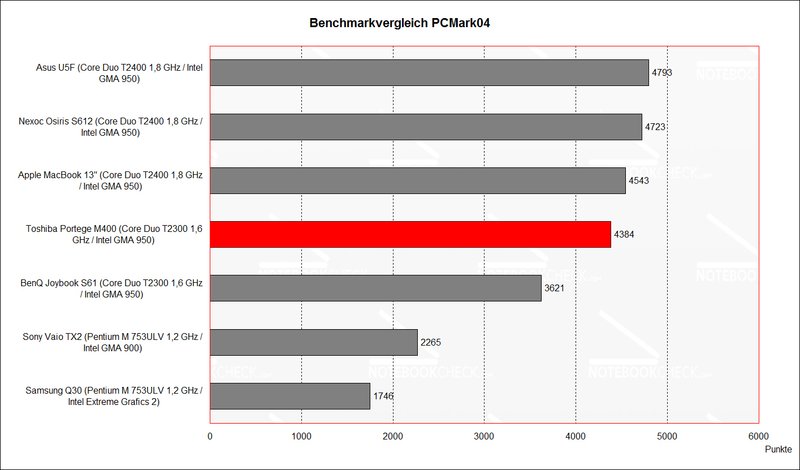

benchmark comparison PCMark
3D Mark
3DMark 2001SE4785 points
Help
3DMark 2001SE in comparison
Toshiba R400 (min)
 U2400, Graphics Media Accelerator (GMA) 950
653
   ...
HP EliteBook 2530p
 SL9400, Graphics Media Accelerator (GMA) 4500MHD
4680
HP Compaq 6730b
 P8600, Graphics Media Accelerator (GMA) 4500MHD
4780
Toshiba Portégé M400
 T2300, Graphics Media Accelerator (GMA) 950
4785
HP ProBook 4310s
 T6670, Graphics Media Accelerator (GMA) 4500MHD
4796
Dell Vostro 1000
 TK-53, Radeon Xpress 1150
4833
   ...
Alienware M18x (GTX 580M SLI, 2920XM) (max)
 2920XM, GeForce GTX 580M SLI
52849
PC Mark
PCMark 044384 points
Help
PCMark 04 in comparison
Dialogue Flybook A33i (min)
 TM-5800, Mobility Radeon M6
963
   ...
Dell Vostro 1000
 TK-53, Radeon Xpress 1150
4333
Lenovo X60s
 L2400, Graphics Media Accelerator (GMA) 950
4344
Toshiba Portégé M400
 T2300, Graphics Media Accelerator (GMA) 950
4384
Packard Bell MX65-100
 T2050, GeForce Go 7300
4388
Apple MacBook
 T2400, Graphics Media Accelerator (GMA) 950
4543
   ...
Samsung X60 Pro Boxxer (max)
 T7400, Mobility Radeon X1700
7376
80 GB - 5400 rpm
Transfer Rate Minimum: 13 MB/s
Transfer Rate Maximum: 31.7 MB/s
Transfer Rate Average: 25.8 MB/s
Access Time: 17.3 ms
Burst Rate: 52.7 MB/s
CPU Usage: 7.3 %

Emissions

Volume

The hope for a whisper-quiet Core Duo 12 inch notebook vanish fast. Already after short time the fan starts in the Portege M400 and then runs almost continuously. Interesting is, that also without considerable load the exhaust air stream is hardly recognizable hot. With longer time under load then a noticeable exhaust air warmth is to be determined, the fan nevertheless always keeps the same number of revolutions.

Temperature

The Toshiba Portege M400 hardly warms up during operation. As maximum surface temperature 32.9°C were measured. This is dubious, because of the constantly running fan, since a slightly higher temperature is less bad than a few decibels more noise emissions...

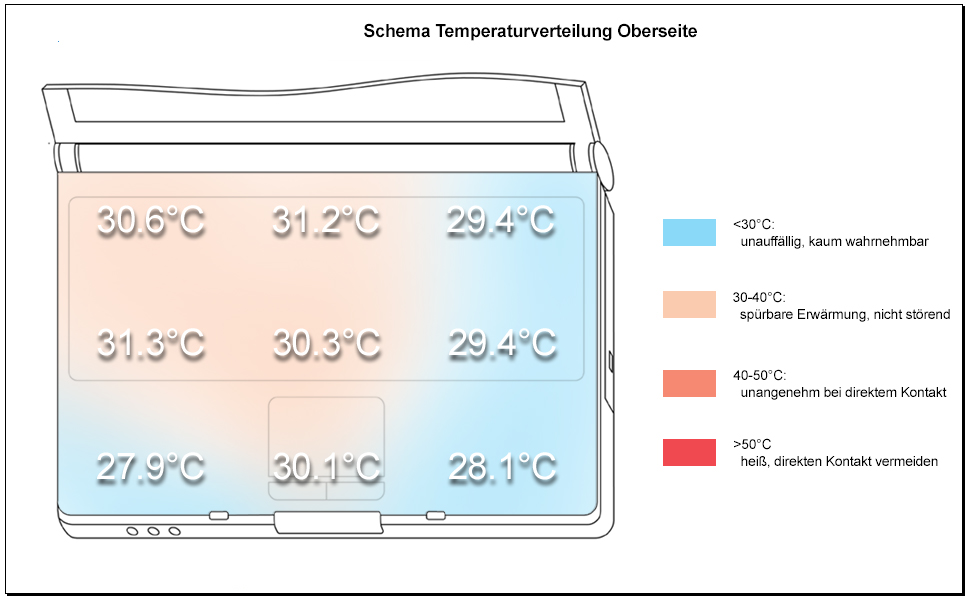

Upper side

palmwrist: 28.1°C max: 31.3°C avg: 29.8°C

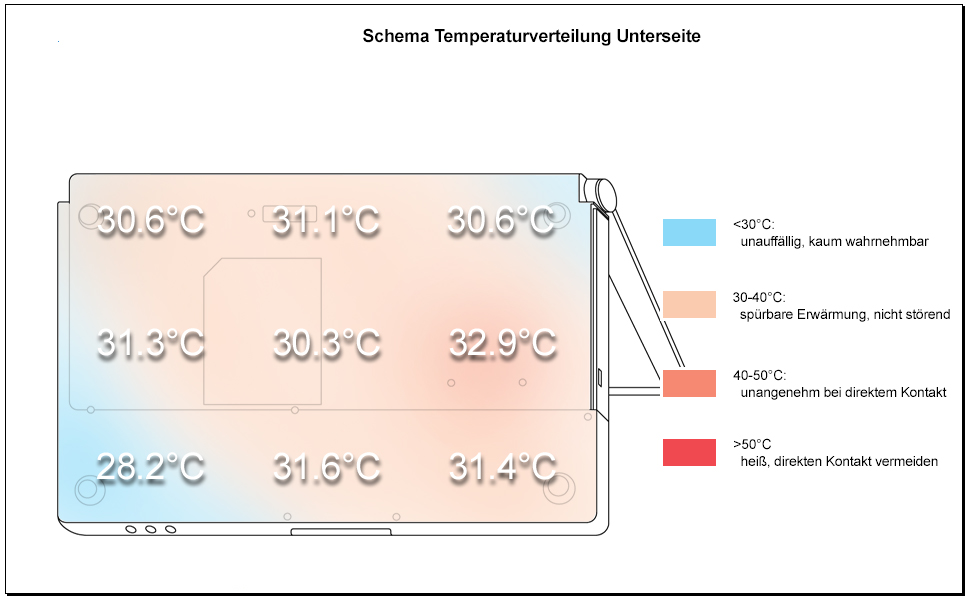

Bottom side

max: 32.9°C avg: 30.9°C

Loudspeakers

The sound emissions of M400 are rather poor. The represented sounds are thin and the maximum volume is not convincing. Headphones urgently recommended!

Battery Runtime

Toshiba Portege M400 achieved average, but acceptable battery runtimes in the test. 2.5 hours of DVD playback, over 3 hours Wlan operation and maximally clearly over 4 hours network-independent handling should be sufficient to some extent. Nevertheless, with somewhat more than one hour the running time under load was quite low.

BatteryEater Classic Test 2400 mAh battery (load):  1h 28min
BatteryEater Readers Test 2400 mAh battery (max. runtime): 4h 40min
DVD playback: 2h 30min
WLan operation: 3h 5min

Current Consumption

without load (idle), min. brightness, without WLAN: 13.3 Watts
+ max. brightness: 20.9 Watts
+ WLAN: 22.9 Watts
full load (+WLAN, max brightness): max. 44.3 Watts

Verdict

For us, the Toshiba Portege M400 remains as a interesting notebook in memory, rich in variants. Nonetheless, it has its faults, too. The display solution with turning folding hinge and direct input mode expands the possibilities for applications, compared with a conventional sub-notebook. According to my opinion, the Portege has the potential for a "revolution" in notebook design.

The display results good values in measurements concerning brightness, illumination and contrast. However, the stability with viewing angles could be better, particularly in the vertical range. This would make the Portege M400 more user-friendly in particular the use as Tablet PC.

Concerning the workmanship the M400 can't divert with the good surface quality cannot divert from smaller lacks. In addition, there are a somewhat pressure-sensitive case and an absolutely unnecessarily wobbly battery.

Most disappointing is the noise ambience of the Toshiba Portege M400. Straight with a Tablet PC it should be possible to study documents almost loudlessly and enjoy easy office aplications. A constantly on the same level running fan, independentl from the performance is hardly understood by us.

Toshiba Portege M400
reviewed: Toshiba Portege M400

Specifications

Toshiba Portégé M400

:: Processor
Intel Core Duo T2300 1.66 GHz (Intel Core Duo)
:: Mainboard
Intel 945GM
:: Memory
512 MB, DDR2 SDRAM, max. 4096MB, 1x512MB
:: Graphics adapter
:: Display
12.1 inch , 1400x1050 pixel, SXGA Wide Viewing Angle TFT Display, glossy: yes
:: Harddisk
80 GB - 5400 rpm, 80 GB 5400 rpm Toshiba MK8032GSX: 80GB, 5400rpm
:: Connections
PCCard, IEEE1394 Firewire, Mic-In, Kopfhörer, 3x USB 2.0, VGA out, Kensington Lock, LAN, Modem, Docking Port
:: Size
height x width x depth (in mm): 39 x 295 x 249
:: Weight
2.18 kg
:: Battery
, 4700 mAh Lithium Ionen Akku
:: Price
2300 Euro
:: Additional features
HDD: 80GB, 5400rpm, Toshiba MK8032GSX, SigmaTel HD Audio, DVD Super Multi (DL) Matshita UJ-842S,

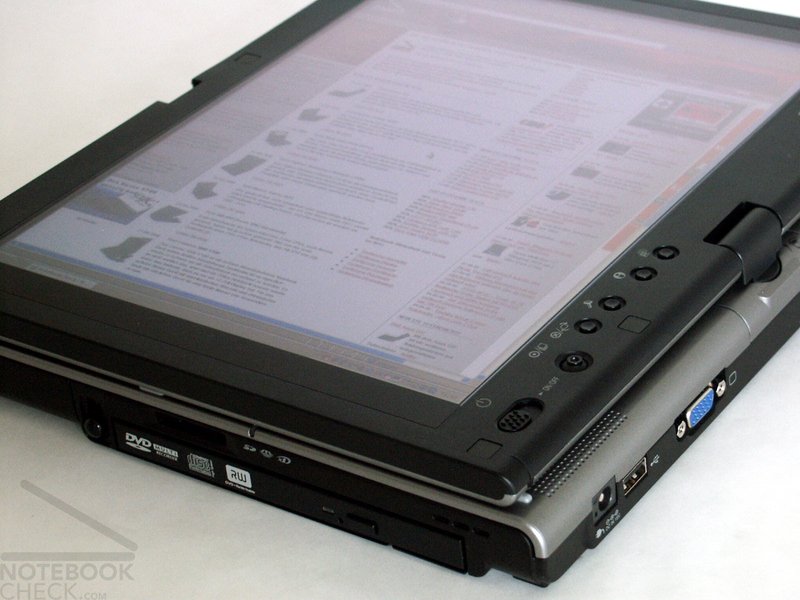

Either conservatively unconspicuous...

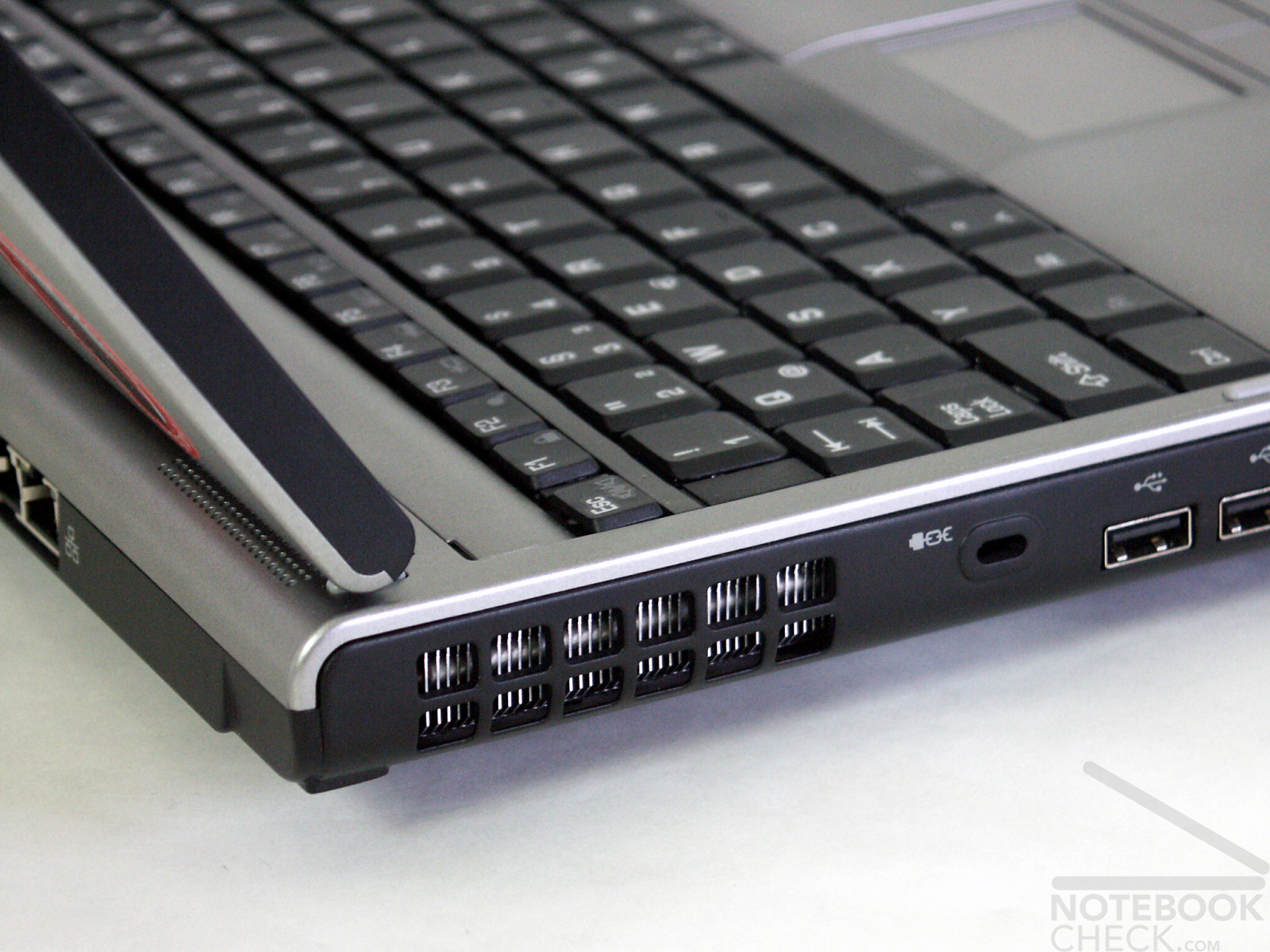

Unweary: The fan of the Portege M400 runs permanently, even without load.

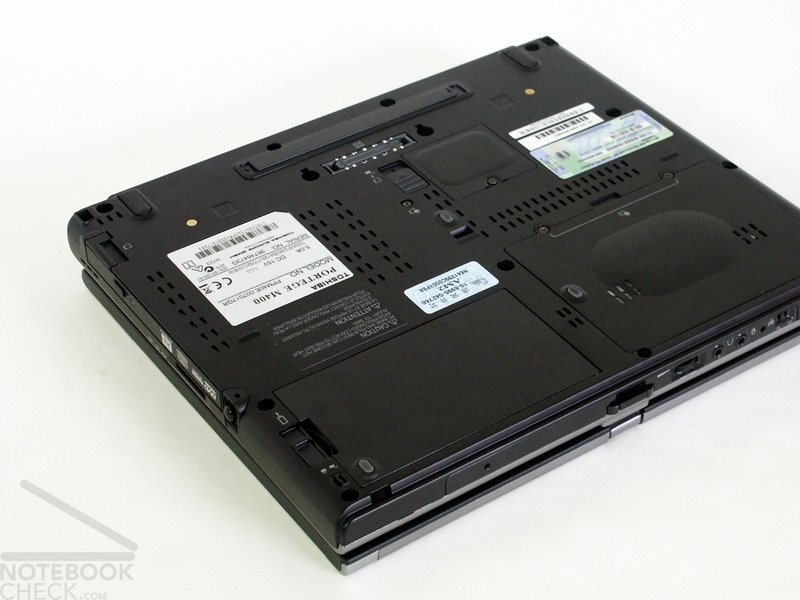

Even at the bottom of the notebook no remarkable heating can be observed.

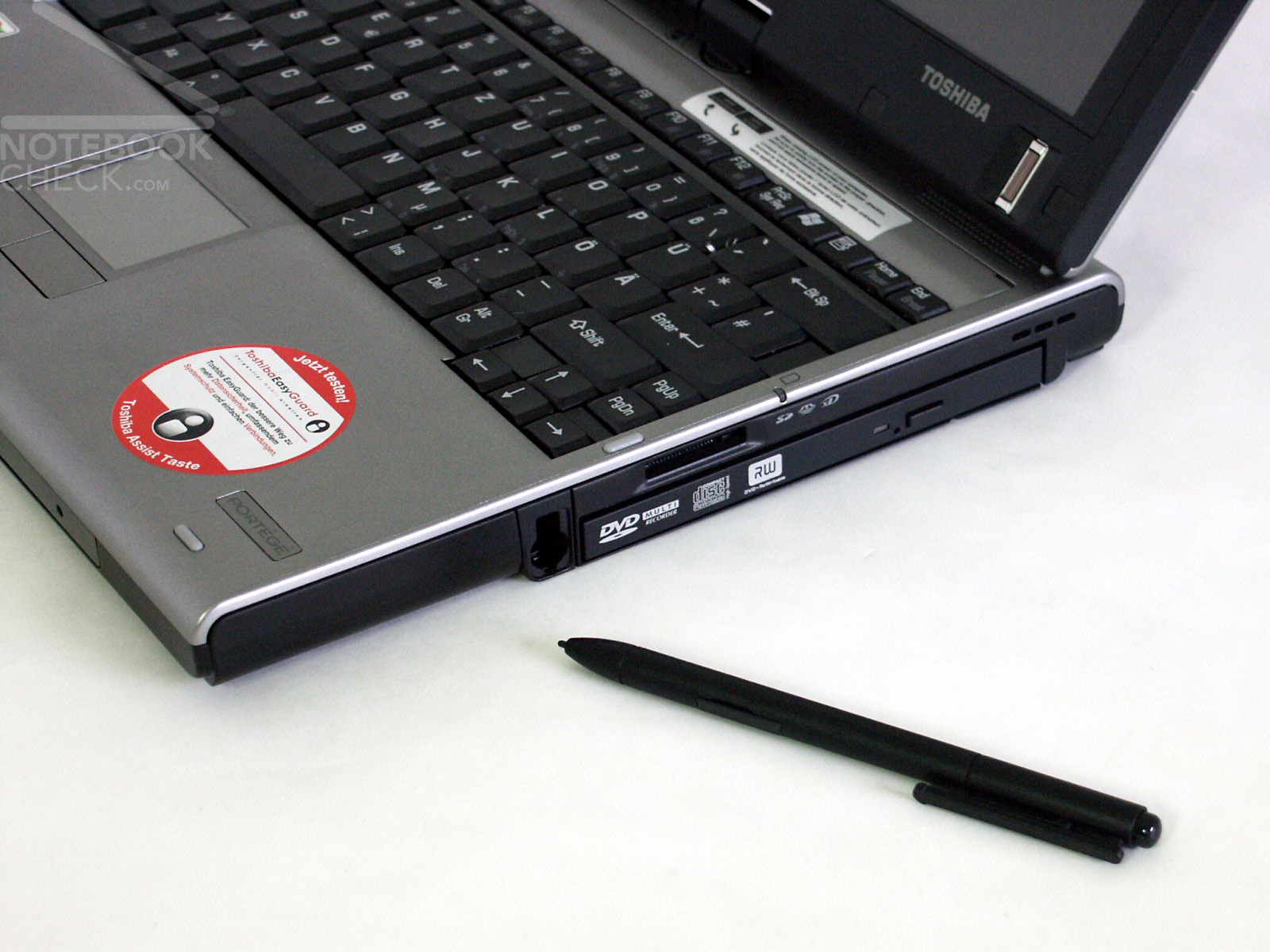

The Tablet PC pen can be stored in an opening at the right side of the case and so is available everytime.

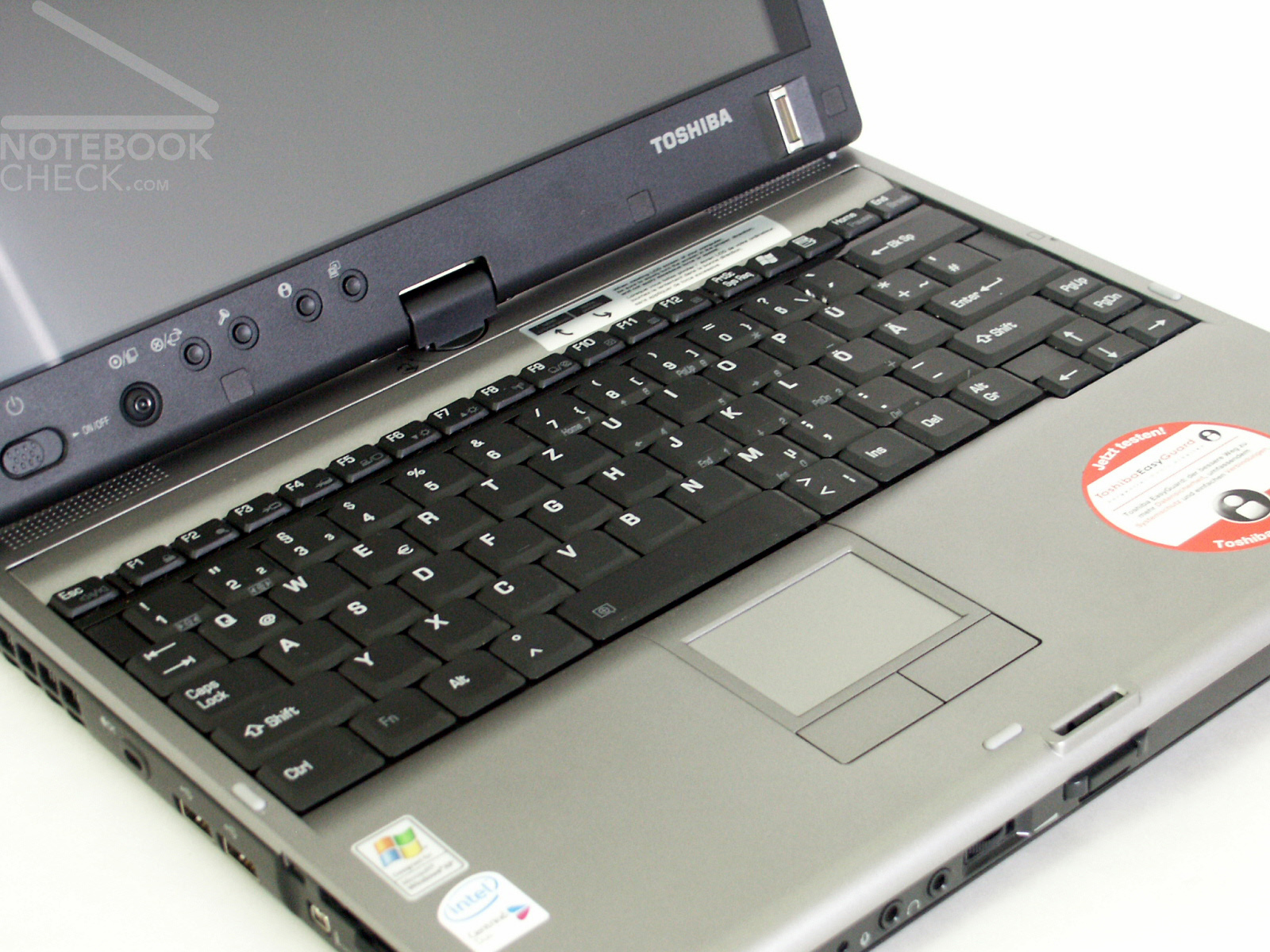

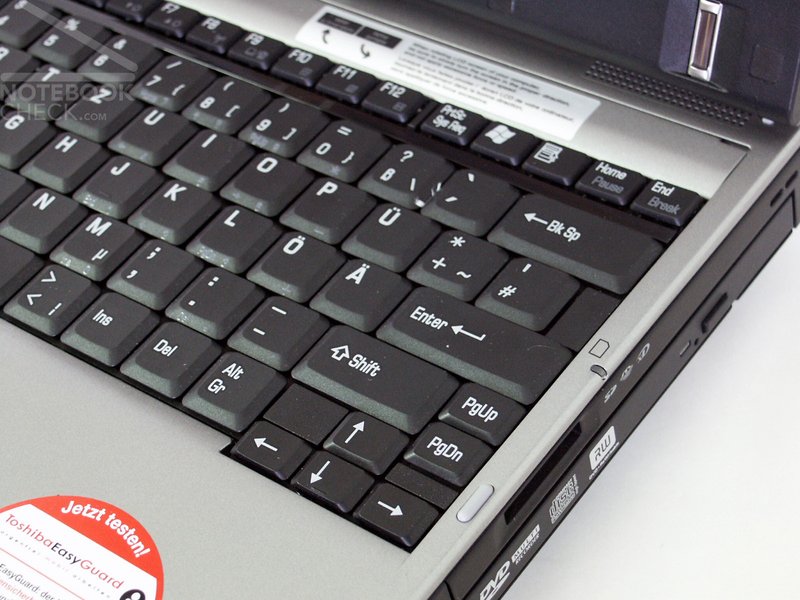

The keyboard has too small keys and is not positioned firmly.

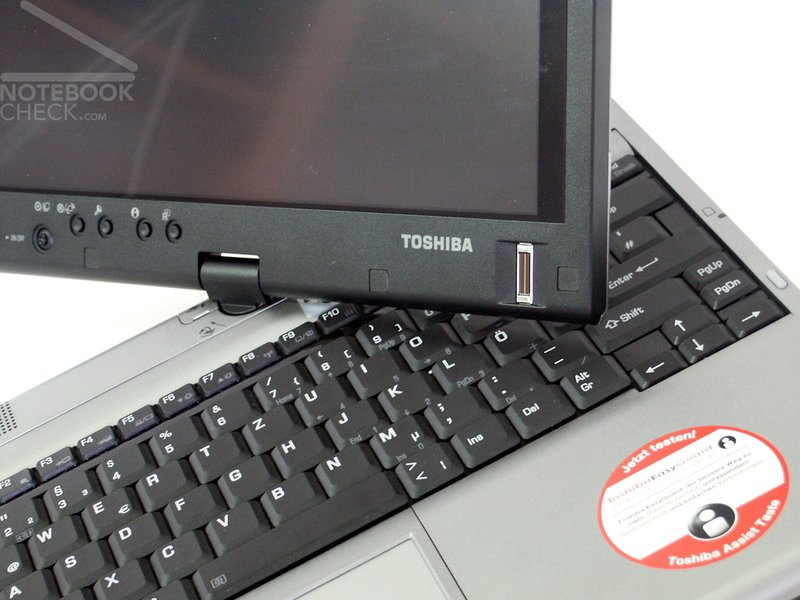

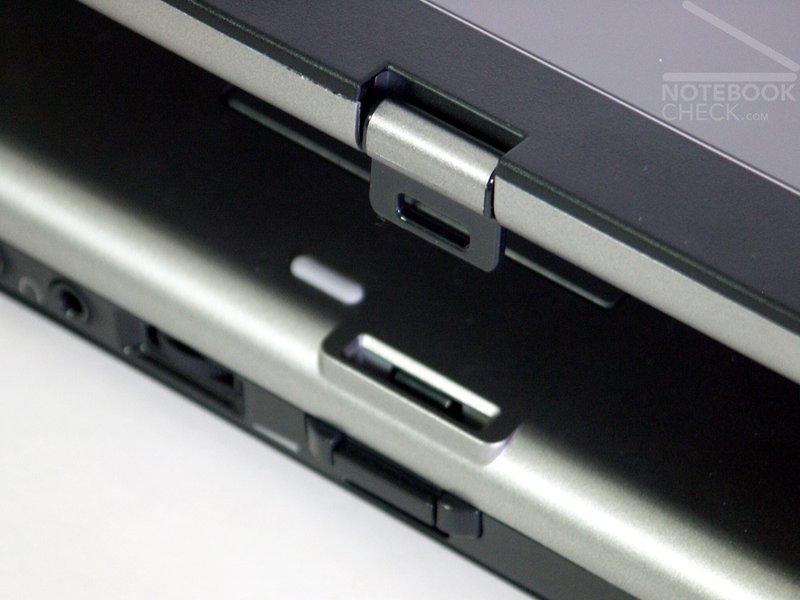

Positively: The display can be locked normally, but also in Tablet PC mode.
Nevertheless, the case is compact and solidly manufactured.
can not divert from minor lacks of workmanship.

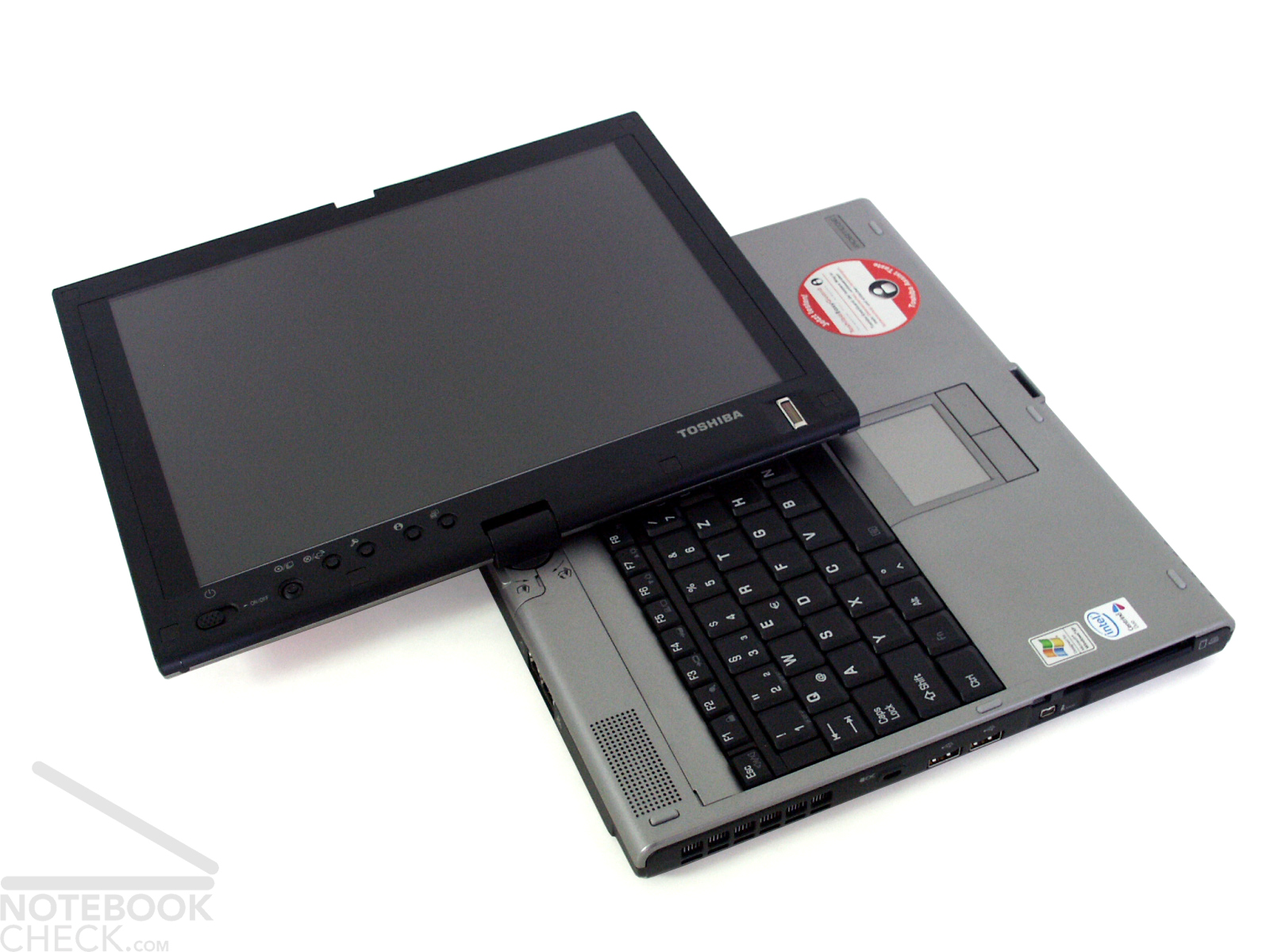

The attractive design and colour...

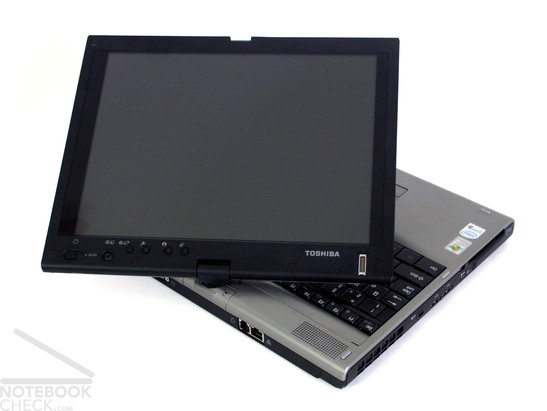

...or completely alternative - the Toshiba Portege M400 offers all.

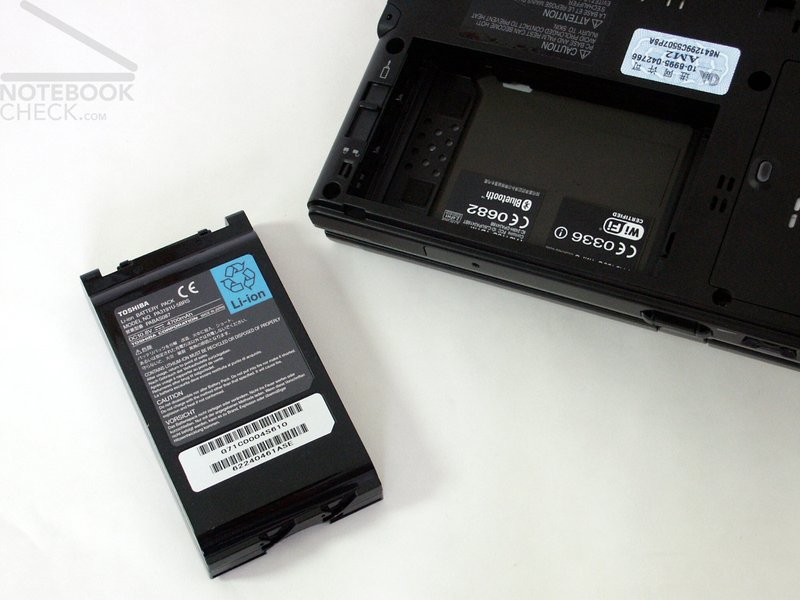

Good battery runtimes due to the 4700 mAh lithium-ion battery.

Pro

  • attractive design
  • a construction, solid and rigid against torsions
  • intelligent display mechanics and catch hook system
  • good values of brightness and illumination measurements
  • low temperature emissions
  • acceptable battery runtime
  • Contra

  • partially too low resistance against pressure upon the case
  • wobbly battery
  • too small keys
  • permanently running fan, even without load
  • Similar Notebooks

    Bewertung

    Toshiba Portégé M400
    08/31/2007
    J. Simon Leitner

    Chassis
    86%
    Keyboard
    76%
    Pointing Device
    77%
    Connectivity
    86%
    Weight
    85%
    Battery
    76%
    Display
    82%
    Games Performance
    53%
    Application Performance
    88%
    Temperature
    90%
    Noise
    65%
    Add Points
    88%
    Average
    79%
    81%
    Subnotebook *
    Weighted Average
