Lenovo Miix 2 10 Tablet Review

Bernhard Pechlaner, 05/24/2014

Trail Miix. Lenovo completely revamps last year's Miix 10 and outfits the new tablet, aptly named Miix 2 10, with a Bay Trail Atom processor, a high-res 1920 x 1200 display, and a magnetic keyboard dock for a seamless conversion to a subnotebook PC. How the Windows 8.1 tablet handles various daily duties is the subject of our review.

The first generation Lenovo IdeaTab Miix 10 was a decent, albeit not overly impressive Windows tablet, which mainly stood out because of the included keyboard folio. The new Miix 2 10 is not just a subtle update of the predecessor: in addition to a current-generation Bay Trail Atom processor and a significantly higher-resolution display, the Miix 2 10 makes use of a magnetic latch system to secure the tablet portion to the included keyboard dock in a fixed position - a quite interesting take on the more traditional hybrid tablet-concept with a detachable keyboard like the Asus Transformer Book T100TA-C1-GR Convertible. Of course, there are also hybrids which have the keyboards attached at all times, like Lenovo's own IdeaPad Yoga 2 11 Convertible. The Yoga is more powerful, features a slightly larger display, but is also heavier and bulkier.

At the time of writing, Lenovo offers a version of the Miix 2 10 with 64 GB of eMMC storage for $500; our review model costs $100 more and ships with 128 GB flash instead.

Case

Even without its dock, the design of Miix 2 10 differs from most competitors. Lenovo decided to forgo the smoothly rounded corners of tablets like the Asus Transformer Book T100TA-C1-GR in favor of sleek, angular lines reminiscent of an Ultrabook. The top and bottom edge of the wedge-shaped slate, which is designed to be primarily operated in landscape mode, are beveled; the rear panel and the sides are different types of silver-colored plastic. The tablet portion of the Miix 2 10 weighs in at 620g; the keyboard dock adds another 440g.

The tablet attaches via hidden magnets to the keyboard dock, which is made from silver plastic as well. The keyboard dock features a full-sized USB 2.0 port on each end and a backwards-facing subwoofer. An additional dock battery is unfortunately not included, nor an option. The build quality is decent, although we noticed that when the tablet is inserted in the dock, the two components don't quite line up perfectly. The tablet is reasonably rigid, but emits creaking sounds when twisted; the dock flexes very easily and bends when pressure is applied.

The magnets allow the Miix 2 10 to be set up in three different positions. When closed, the tablet snaps in facing the keyboard and the assembly looks much like a closed clamshell subnotebook. We were a little skeptical at first, but the two sections attach to each other fairly securely, so even when tossing the Miix 2 10 into a bag or handling it somewhat roughly, the two halves did not come apart. We would still recommend to exercise caution when handling the assembly, however.

In the open position, which Lenovo calls Laptop mode, the Miix 2 10 again looks much like subnotebook - so much so that we sometimes inadvertently tried to adjust the display angle while working on it, which of course is not possible. The angle of the tablet (115 degrees) is actually less than ideal in our opinion, but probably a necessary design choice to prevent the assembly from tipping over.

A different slot in the dock allows the keyboard to act as a stand. In this case, the subwoofer now faces the user for an enhanced multimedia experience.

When working with the tablet on its own, we found the angular design to be somewhat of a drawback. The tablet is easy to hold in landscape mode, but in portrait mode, the sharp edges dig into the hand holding it, which makes longer hand-held sessions quite uncomfortable.

Connectivity

Unlike the Transformer Book T100TA-C1-GR and most smaller 8-inch tablets, the Miix 2 10 includes a dedicated power adapter. This means that the Micro-USB port is available for other devices even when the tablet is charging. Although not advertised, the tabled can be charged through the Micro-USB port as well. The tablet also features a MicroHDMI port for output to an external monitor or TV, while the dock is home to a full-sized USB ports on each end. A MicroSD card slot allows the user to expand the storage easily. According to Lenovo's specs, only cards up to 32 GB war supported, although we expect 64 GB cards to work as well (not tested).

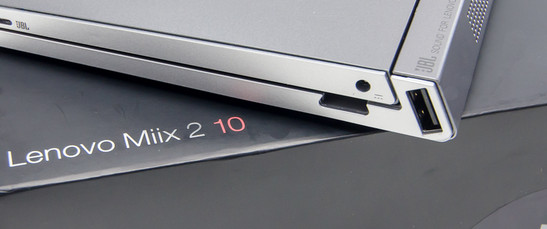

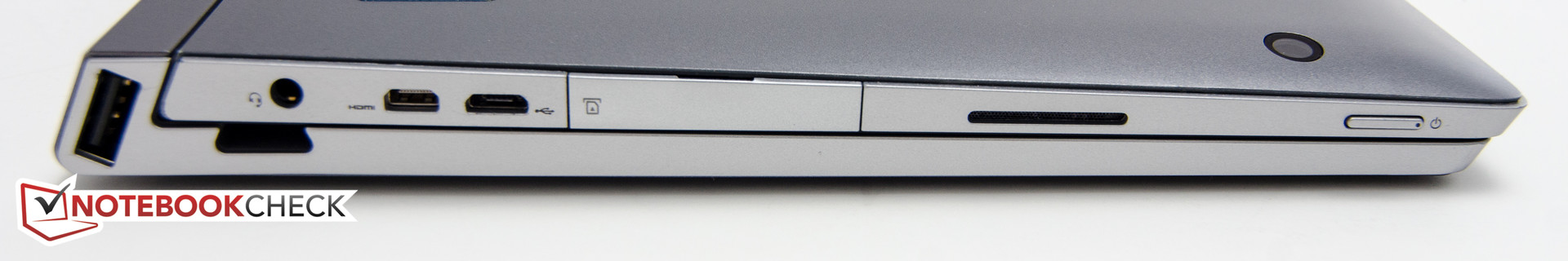

Left: USB 2.0 (dock), headphone jack, MicroHDMI, Micro-USB, Micro-SD card slot (SIM in some markets - not US), power button
Left: USB 2.0 (dock), headphone jack, MicroHDMI, Micro-USB,  Micro-SD card slot (SIM in some markets - not US), power button

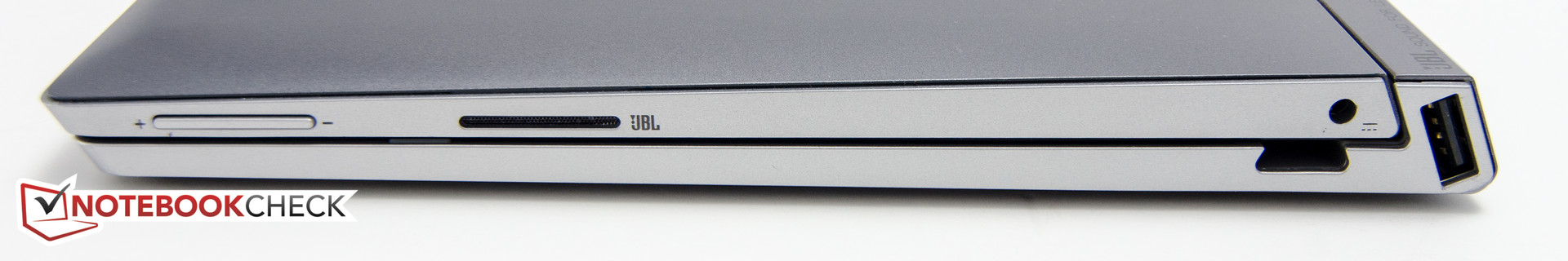

Right: volume rocker switch, power jack, USB 2.0 (dock)
Right: volume rocker switch, power jack, USB 2.0 (dock)
Rear: subwoofer (dock)
Rear: subwoofer (dock)

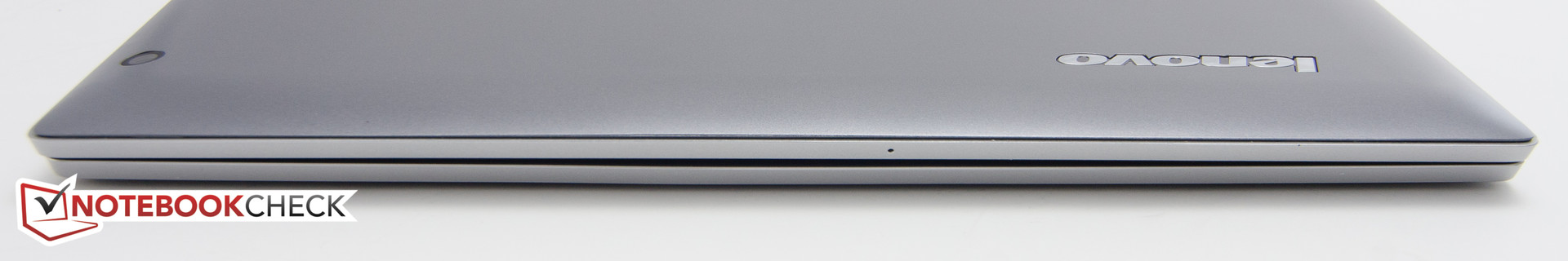

Front: no connectivity
Front: no connectivity

Communication

The WLAN module (802.11a/b/g/n) is courtesy of Broadcom. During our time with the Miix 2 10, we didn't have any issues with establishing connectivity or unusual dropouts, although the signal strength seems to drop off fairly quickly farther away from the router. Bluetooth 4.0 is also on board for connectivity to external mice and other devices.

Software

In addition to the OS (Windows 8.1 32-bit), Lenovo ships the tablet with a full version of Office Home & Student 2013 as well as Lenovo Cloud Storage, Evernote, VeriFace face recognition, and a 30 day trial of McAfee Internet Security.

Accessories

Included are the power adapter, the keyboard dock, and various pamphlets. Online, Lenovo also sells a Folio Case for the tablet and the dock as well as a screen protector.

Warranty

The Miix 2 10 carries a standard 12-month warranty against manufacturer's defects. Lenovo offers warranties up to 36 months with Accidental Damage Protection (+ $199).

Cameras

The front-facing camera is designed for video conferencing and features a resolution of 2 megapixel (1920 x 1080 pixels). The quality is OK for the intended purpose, although low-light conditions resulted in a pretty grainy picture. The rear-facing camera has 5 megapixel and captures images at a resolution of 2560 x 1920 pixels. Color accuracy and overall quality are a bit better, but the camera also doesn't deal that well with low-light conditions.

Front-facing camera outside
Front-facing camera outside
Front-facing camera inside
Front-facing camera inside
Rear-facing camera outside
Rear-facing camera outside
Rear-facing camera inside
Rear-facing camera inside

Input Devices

Touchscreen

Unlike the business-oriented Dell Venue 11 Pro and some of Lenovo's own Thinkpad tablets, the 10-finger touchscreen does not come with an active digitizer, so input is only possible using the fingers or a capacitive stylus (not included). A stylus could potentially make the operation of the high-resolution screen (1920 x 1200 pixels) easier, since icons and buttons are very small indeed, despite the default scaling of 125 %. Another potential drawback of the high resolution: some older apps do not scale well under Windows 8.1. Inputs and various swipes are recognized reliably and translated quickly, however.

Keyboard

Instead of focusing on the well-know Windows 8.1 virtual keyboard, which does its job as expected, we'll take a closer look at the included keyboard dock. Since the keyboard is the same size as the tablet, it shouldn't come as a surprise that it feels a bit cramped. Some of the key placements definitely require getting used to: the Delete and Backspace keys are right next to each other and the same size as the other keys; the ~ is located above the letter Q in the same spot the number 1 would normally occupy, Since the keyboard tray is quite flexible and the key travel is short, the feedback is not quite as crisp as we would like it to be. Still, this input method is far superior to using the virtual keyboard and after some practice time, we were able to type reasonably fast.

Touchpad

The clickpad is quite tiny (8 x 4.5 cm), but generally works well. Clicks are only recognized in the lower section of the pad and gestures are unfortunately not supported, so pinch-to-zoom or two-finger scrolling are out of the question.

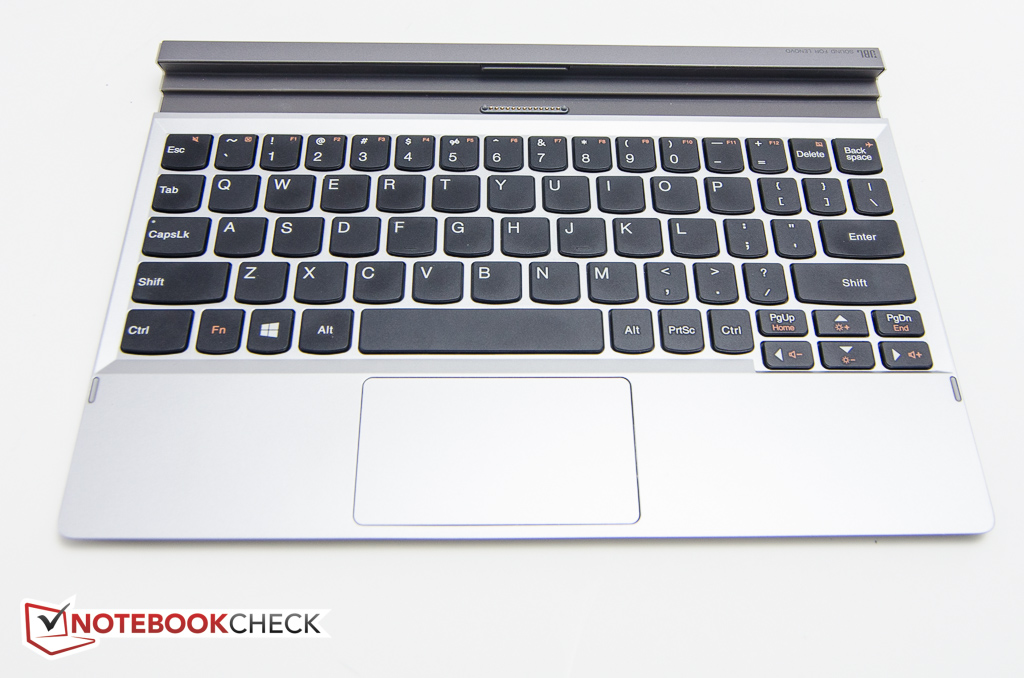

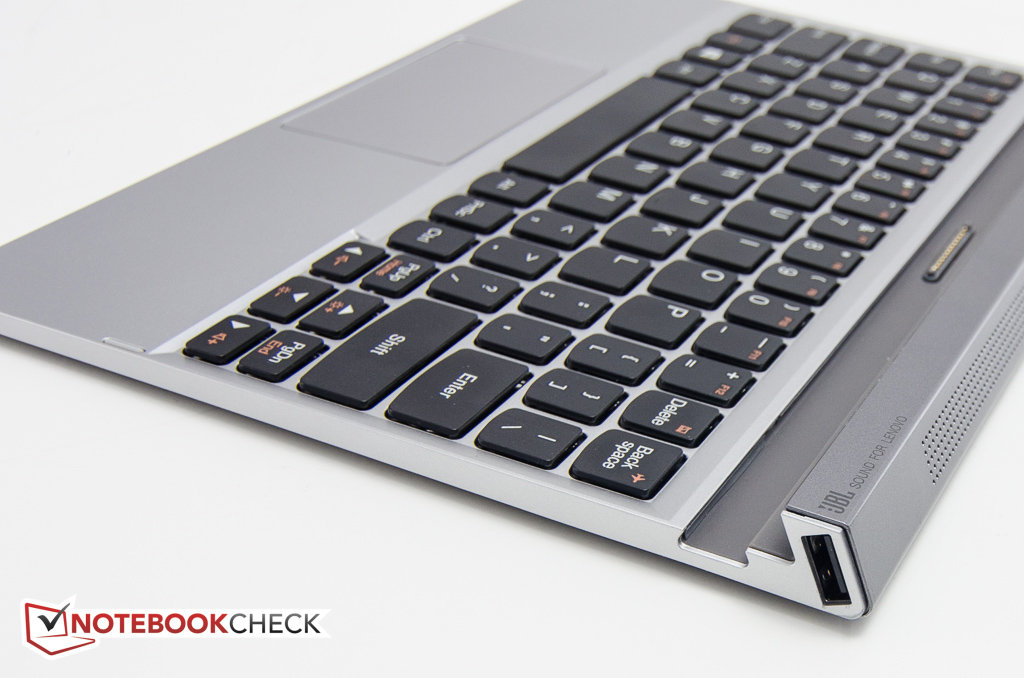

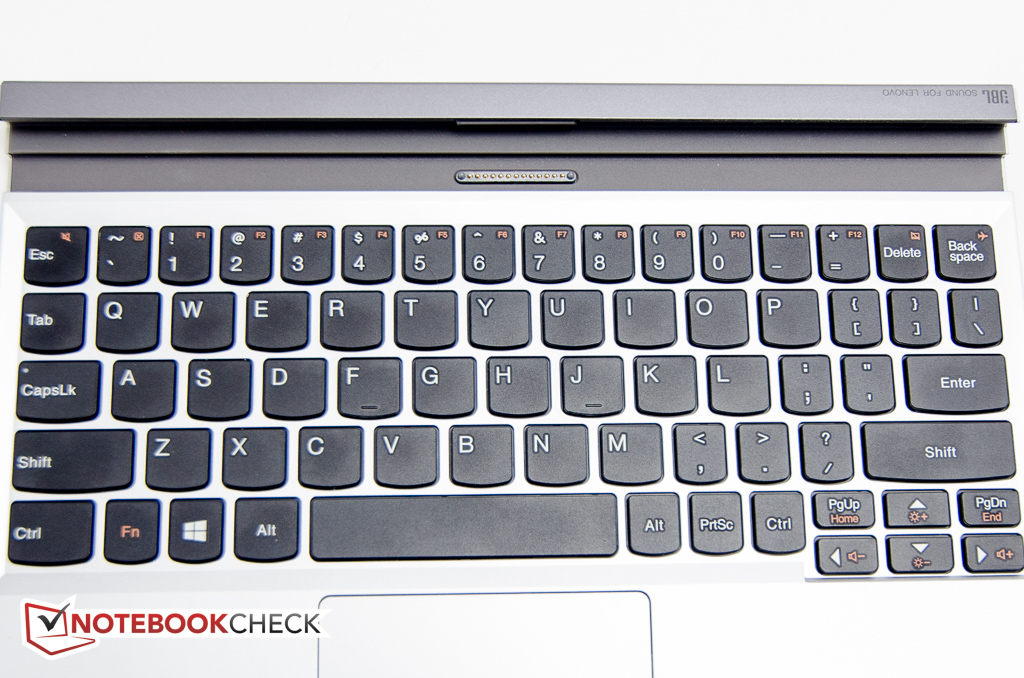

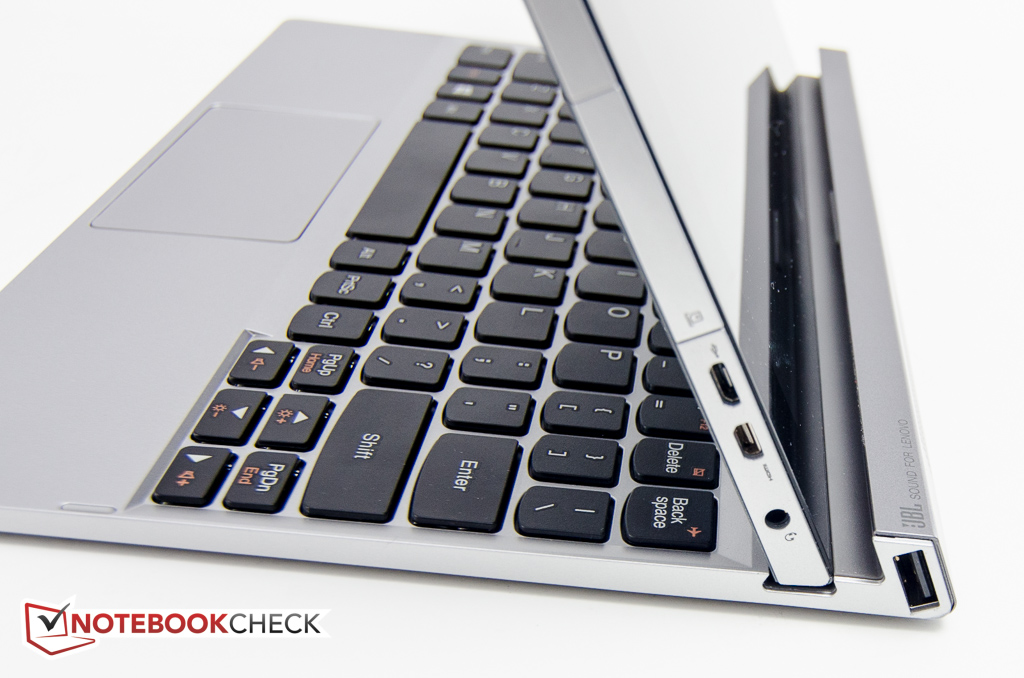

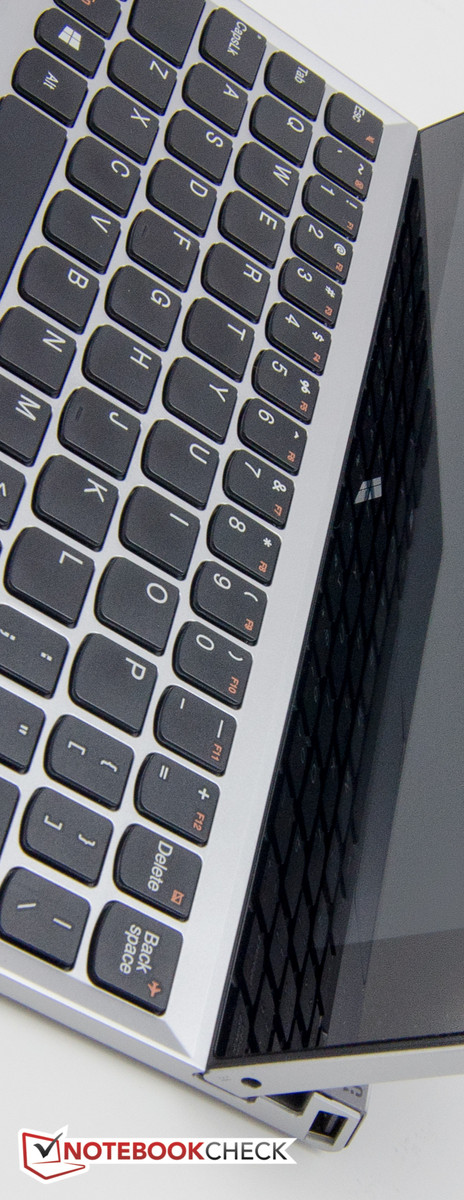

The keyboard with its somewhat unusual layout
The keyboard with its somewhat unusual layout

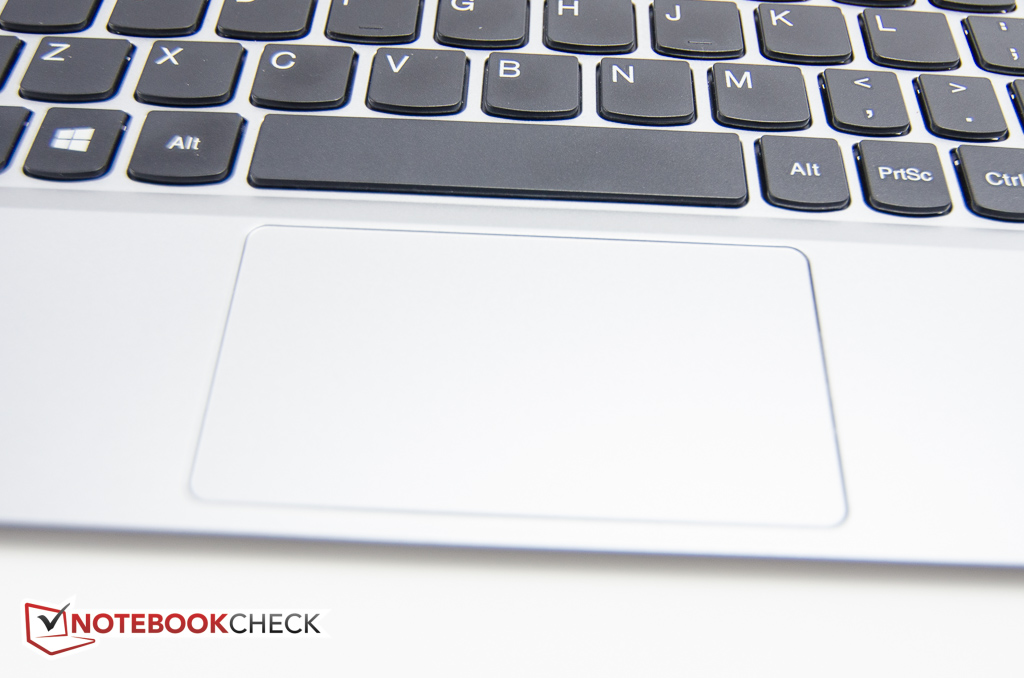

The clickpad
The clickpad

Display

The glossy 10.1-inch display from AOU (B101UAN01.7) has a resolution of 1920 x 1200 pixels (16:10 aspect ratio) and uses IPS technology. The screen is protected by a glass panel and features a pretty wide black bezel, which makes it look slightly smaller than it is.

While the resolution is impressive, the black value of 0.749 cd/m² and the contrast ratio of 515:1 are less so. The Asus Transformer Book T100TA-C1-GR has twice the contrast; the Dell Venue 11 Pro also achieves a significantly higher ratio of 900:1.

With an average brightness of about 370 nits measured across 9 quadrants, the Miix 2 10 is significantly brighter than the Transformer Book (240 nits) and on par with the Venue 11 Pro. Asus' own Android-based Transformer Pad Infinity TF700T, which has the same size screen and the same resolution, outshines the competition with 540 nits. Unfortunately, the brightness decreases to 325 nits when the tablet is running on battery power.

382.1
cd/m²
389.8
cd/m²
348.3
cd/m²
370.5
cd/m²
385.8
cd/m²
343.3
cd/m²
392.2
cd/m²
386.4
cd/m²
342.7
cd/m²
Distribution of brightness
Information
X-Rite i1Pro 2
Maximum: 392.2 cd/m²
Average: 371.2 cd/m²
Brightness Distribution: 87 %
Center on Battery: 324.5 cd/m²
Black: 0.749 cd/m²
Contrast: 515:1

The professional color spaces sRGB and AdobeRGB are only covered to about 59 % and 43 %, respectively. This is not really a problem, since the Miix 2 10 is not at all suited for professional photo and video editing due to its size and performance.

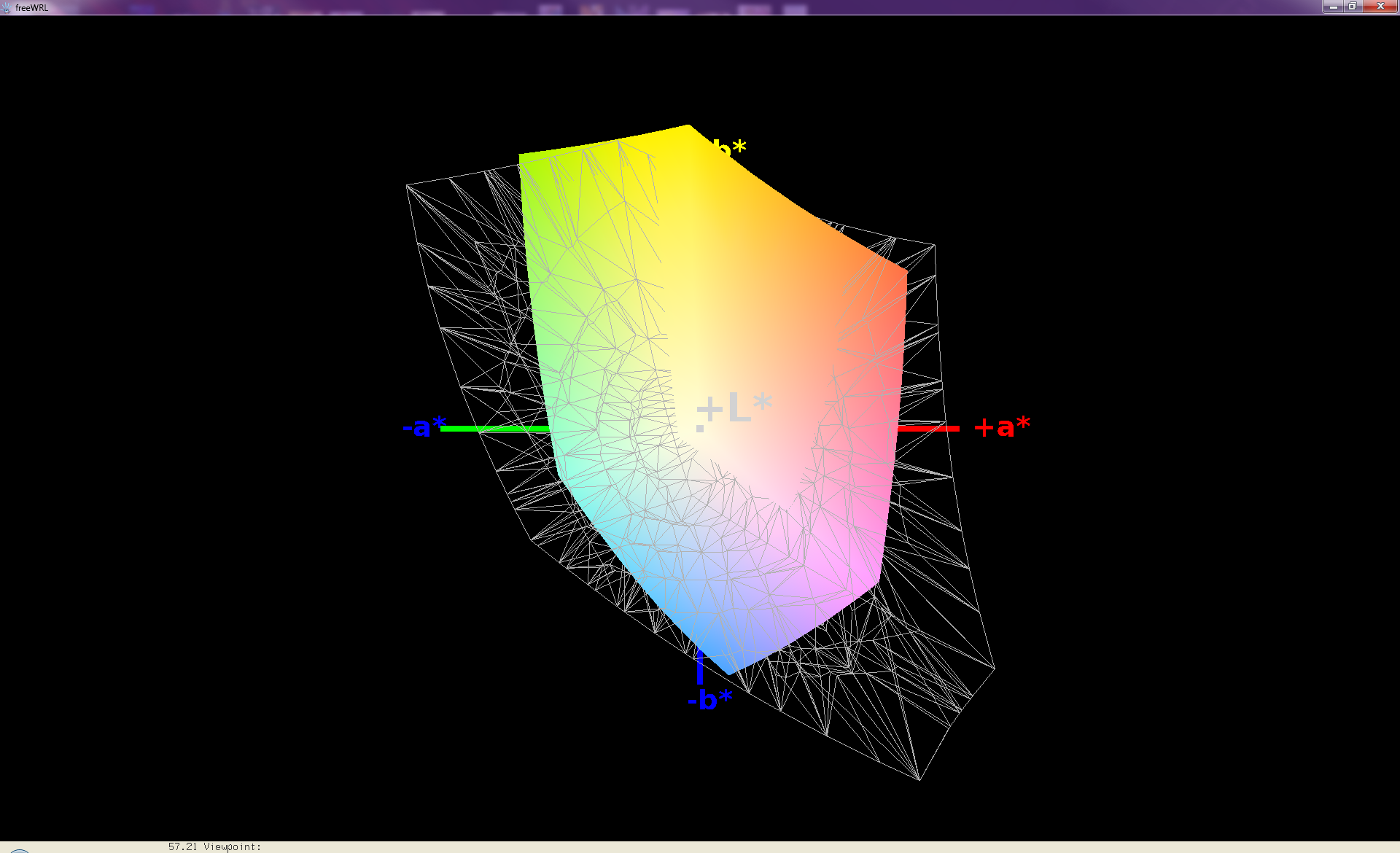

Miix 2 10 vs. sRGB
Miix 2 10 vs. sRGB
Miix 2 10 vs. AdobeRGB
Miix 2 10 vs. AdobeRGB

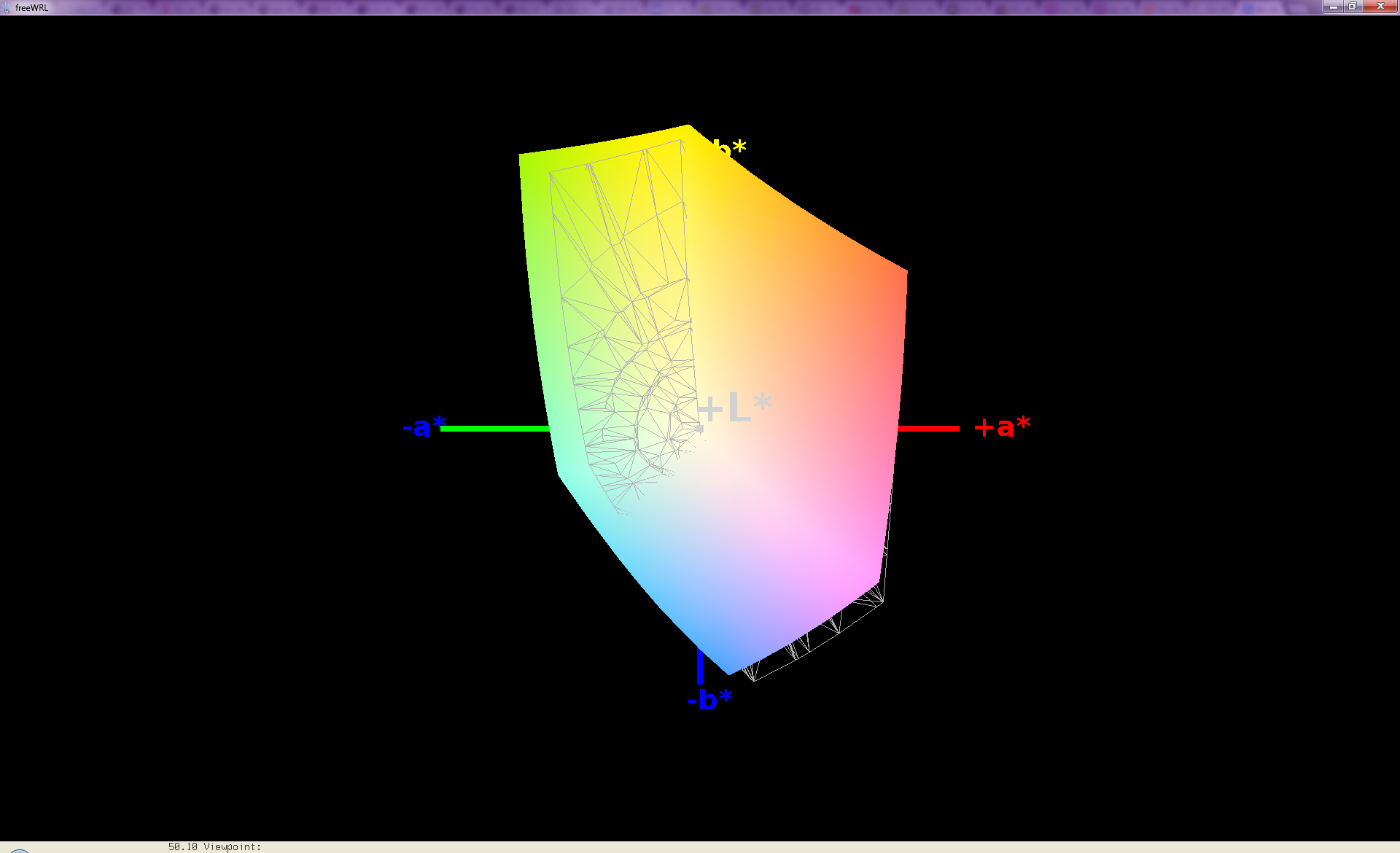

Miix 2 10 vs. Transformer Book T100TA-C1-GR
Miix 2 10 vs. Transformer Book T100TA-C1-GR
Miix 2 10 vs. Dell Venue 11 Pro
Miix 2 10 vs. Dell Venue 11 Pro

Our analysis with the X-rite i1 Pro Basic 2 spectrophotometer and the software CalMAN 5 shows average DeltaE deviations of 5.2 and 4.7 for color and grayscale, respectively - a very good result for this class. The color temperature of around 6700 is also close enough to the ideal of 6500 K. The bluish cast we so frequently encounter is more or less absent, although both magenta and especially blue show high DeltaE values at higher saturation levels.

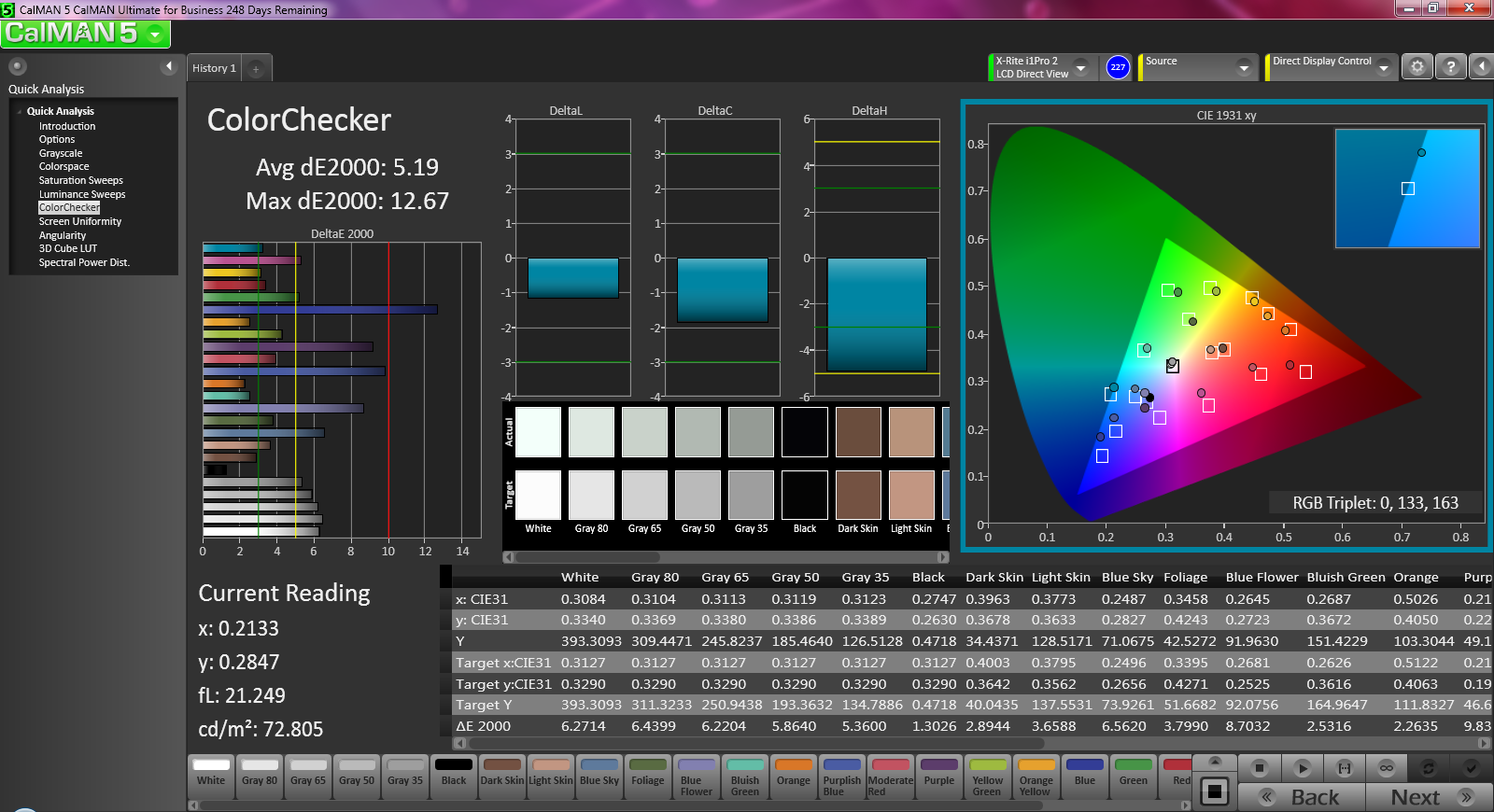

ColorChecker pre-calibration
ColorChecker pre-calibration

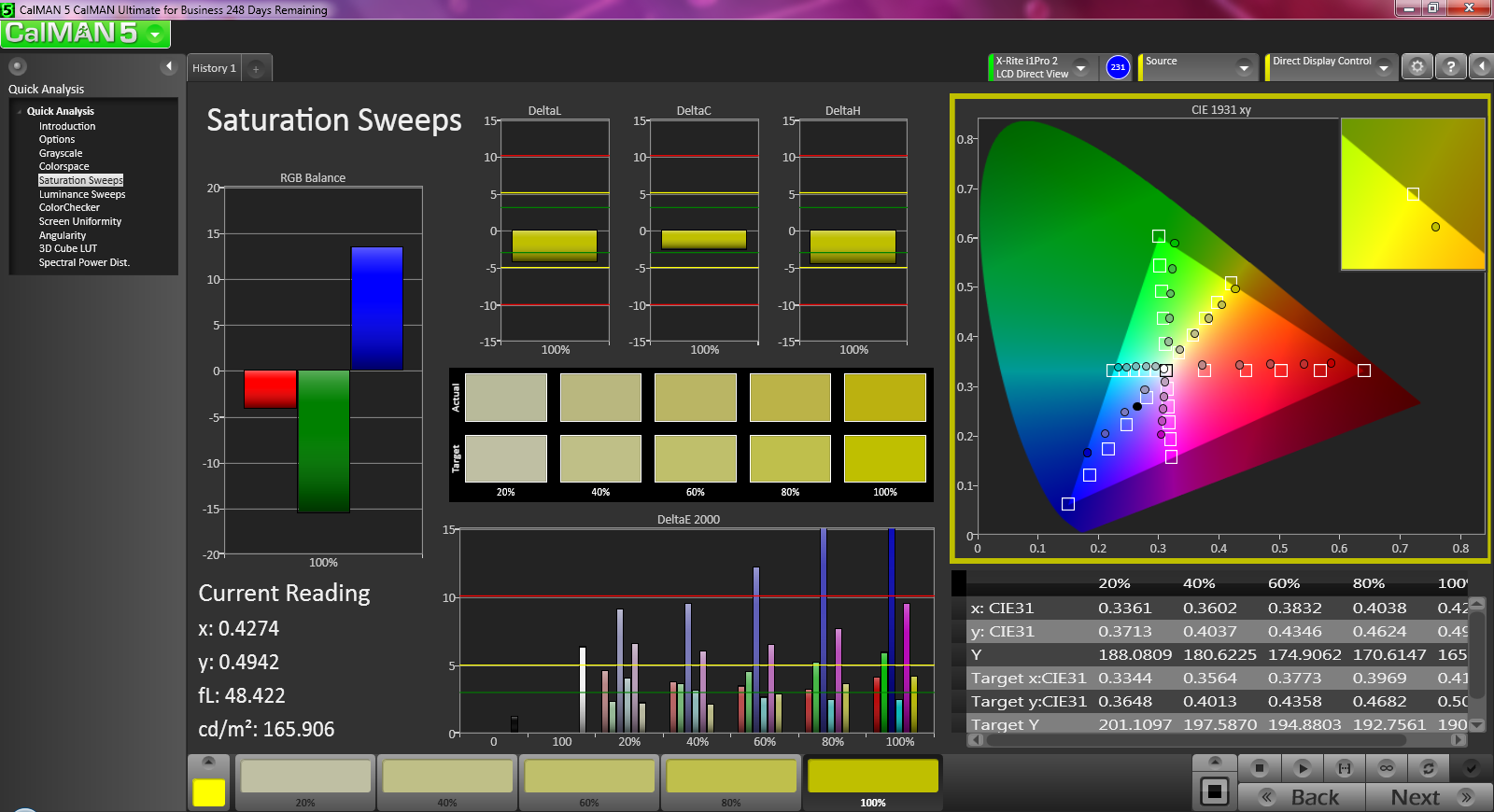

Saturation pre-calibration
Saturation pre-calibration

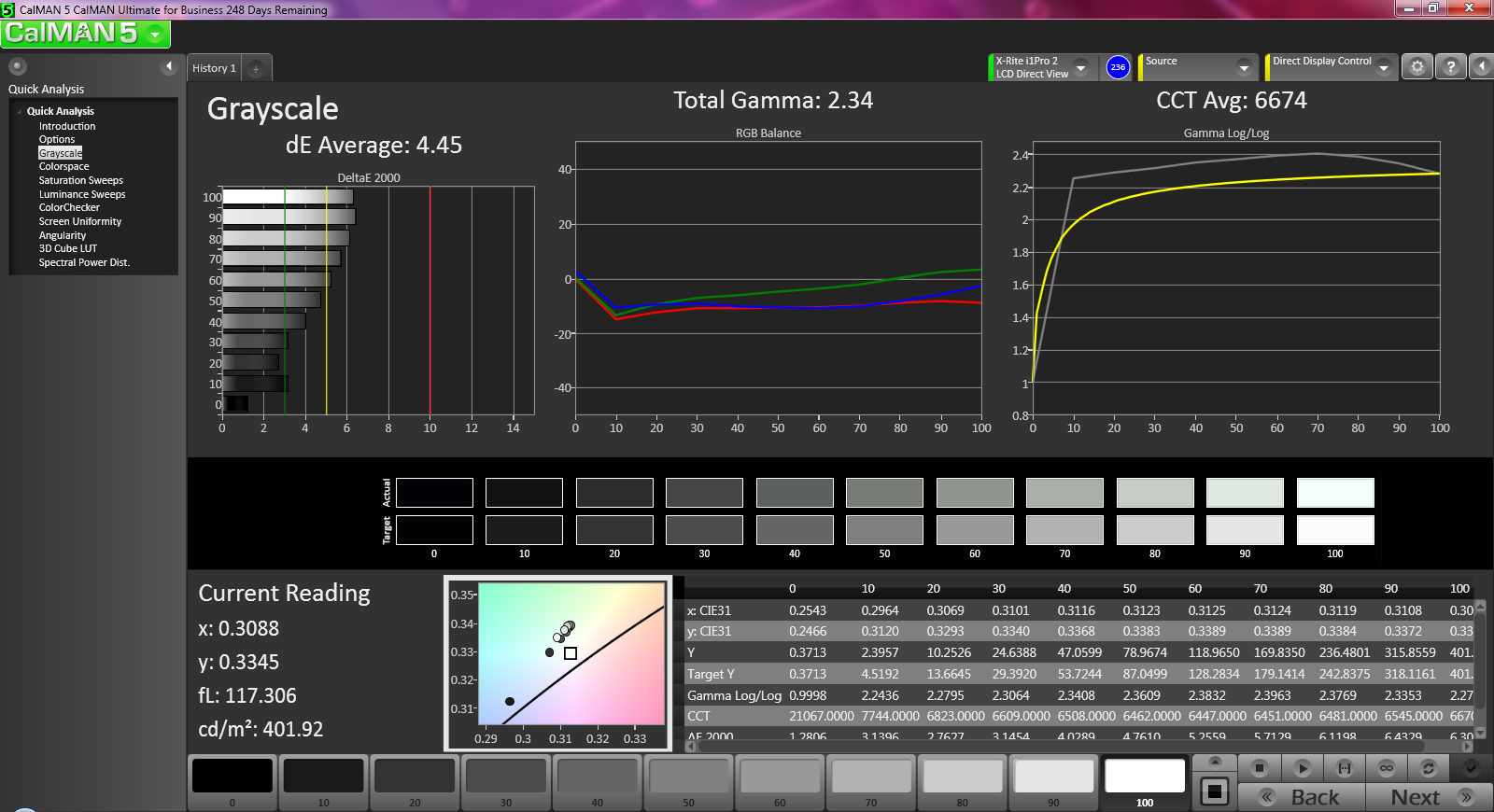

Grayscale pre-calibration
Grayscale pre-calibration
ColorChecker post-calibration
ColorChecker post-calibration
Saturation post-calibration
Saturation post-calibration

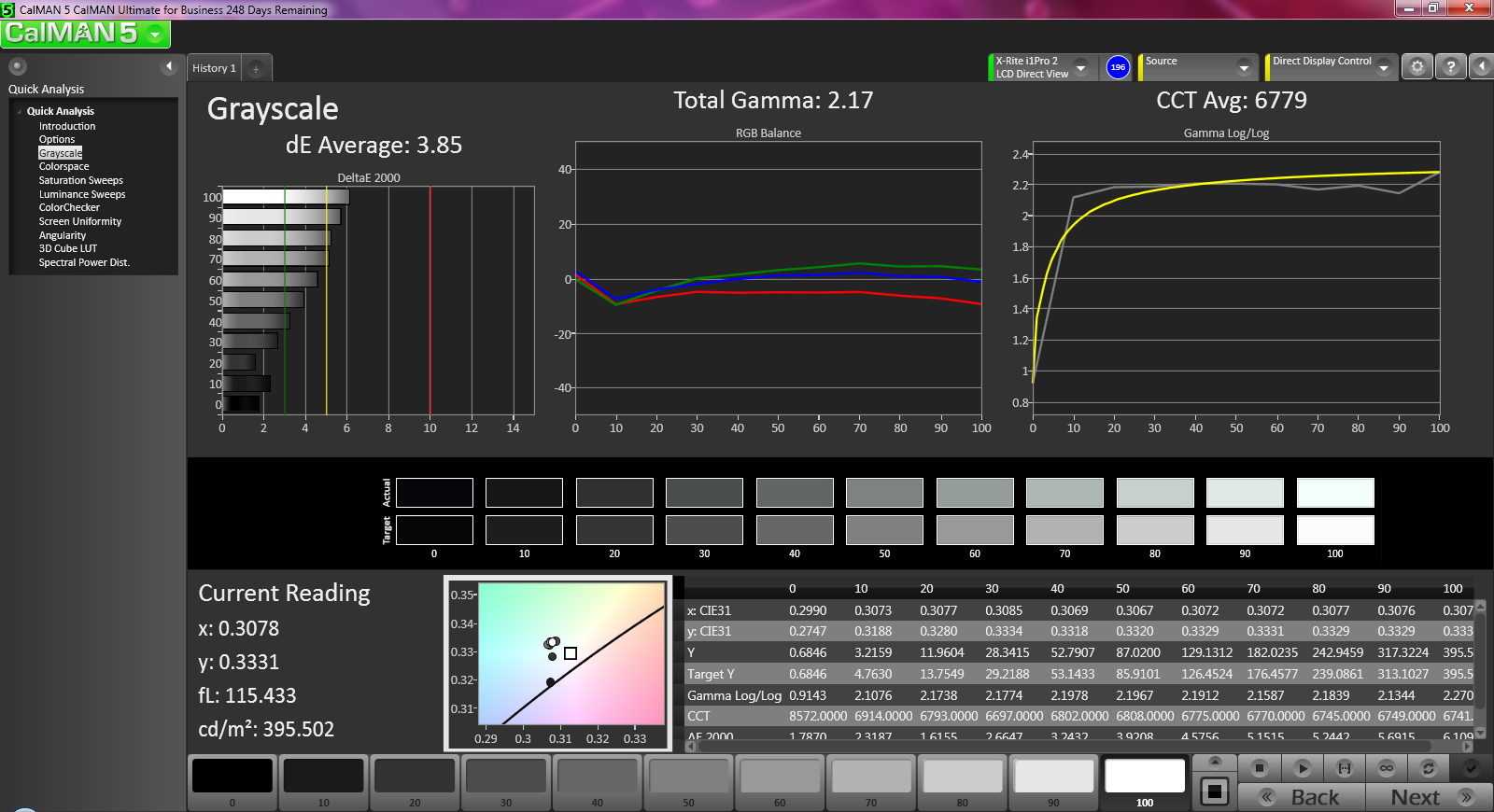

Grayscale post-calibration
Grayscale post-calibration
The tablet in the shade
The tablet in the shade

Outdoor usability is just OK due to the decent brightness of the highly glossy display panel. Working with the Miix 2 10 in direct sunlight is difficult at best, although working in the shade is possible. The fixed angle of the display when the Miix is propped up in the keyboard dock is once again an issue, as we were frequently tempted to tilt the screen to reduce the glare.

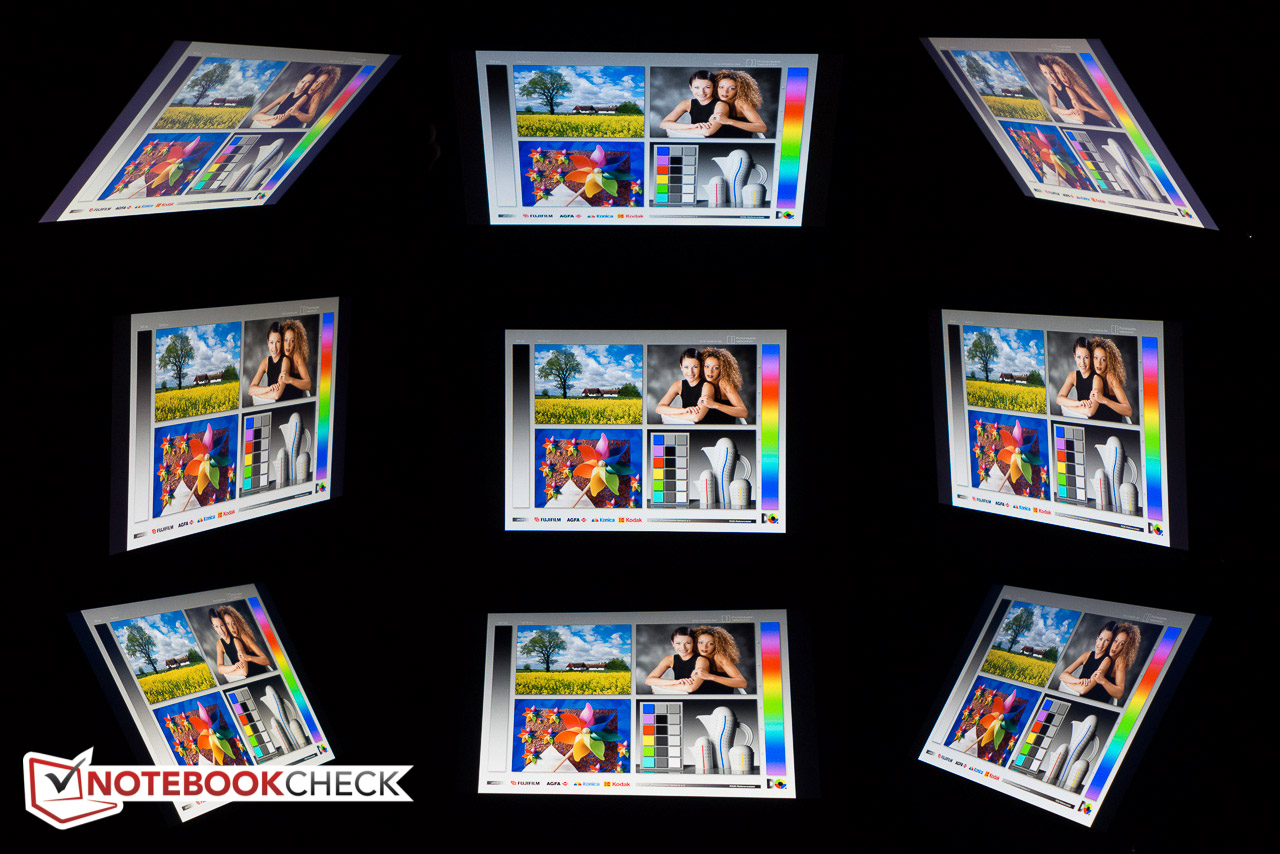

The viewing angle stability of the IPS panel is very good. Lenovo promises "nearly 180-degree viewing angles" - and the screen content indeed does look good from just about any angle - better than the attached image would indicate. This is particularly important since the fixed-angle design of the Miix 2 10 in Laptop Mode prevents tilting the display back for a head-on view of the screen. A TN panel would probably suffer from pictured degradation in this case.

Performance

At the time of writing, Lenovo only offers two versions of the Miix 2 10. The only difference is the amount of eMMC flash storage: our review model features 128 GB and sells for $600; the version with 64 GB sells for $500. We would only recommend the 64 GB version to users who do not plan on installing a lot of programs.

System information Lenovo Miix 2 10

Processor

The Intel Atom Z3740D is a quad-core SoC with a base clock speed of 1.33 and a Turbo-maximum of 1.83 GHz. The most noteworthy feature of the Bay Trail-T-series processor is the extremely low power consumption of less than 4 watts. Performance per MHz has increased significantly compared to the previous generation: with scores of 968 and 3326 points for the Cinebench R10 Single and Multi benchmark test, the Z3740D easily outperforms the Atom Z2760 installed in the predecessor Miix 10 (609 / 1711 points).

The scores of the 8-inch Toshiba Encore WT8-A-102 and the Asus Transformer Book T100TA-C1-GR - both equipped with almost identical Intel Atom Z3740 (the Z3740 features a dual-channel memory controller, the Z3740D does not) - are within a few percentage points of our review tablet. The Dell Venue 11 Pro with its much more powerful, but also less frugal dual-core Intel Core i3-4020Y scores significantly higher (CB10 Single: + 170 %, CB10 Multi: + 41 %).

Cinebench R10 Rendering Single 32Bit
968
Cinebench R10 Rendering Multiple CPUs 32Bit
3226
Cinebench R10 Shading 32Bit
1875
Help

System Performance

We use the PCMark 7 benchmark test to gauge overall system performance. The Miix 2 10 received 2342 points, trailing the Toshiba Encore WT8-A-102 (2497 points; +7 % ) slightly. The score of the Asus Transformer Book T100TA-C1-GR (2339 points) is almost identical to our review tablet. A test with the Miix running on battery power yielded a score within a percentage point of the original one, so full power is also available away from the outlet.

Subjectively, the Miix 2 10 offers decent performance and the tablet handles many daily tasks without significant delays. Coming from a system with a true 2.5-inch or mSATA SSD will require an adjustment period, as opening programs might require an extra second or two.

PC Mark
PCMark 72342 points
Help

Storage Devices

With an average transfer rate of 66 MB/s according to HD Tune, the eMMC flash drive is slower than even 5400 RPM platter-based hard drives. CrystalDiskMark confirms the result with sequential read and write speeds of about 75 and 32 MB/s, respectively. The tiny 32 GB flash drive installed in the Asus Transformer Book T100TA-C1-GR is quite a bit faster with sequential read and write speeds of 109 and 43 MB/s. A true SSD like the 128 GB mSATA drive in the Dell Venue 11 Pro is capable of average transfer rates of 325 MB/s. At least the - for the actual performance very important - 4K results as well as the access time of 0.38 ms beat out any conventional hard drive.

GPU Performance

The integrated Intel HD Graphics (Bay Trail) tops out at a clock speed of 667 MHz. Demanding 3D software is out of the question, but for most tasks, including the playback of Full-HD videos, the GPU offers enough performance. Intel's Quick Sync Video is supported as well. The result of 1692 points for the 3DMark 06 benchmark test quadruples that of the PowerVR SGX545 GPU in the predecessor Lenovo IdeaTab Miix 100 (421 points). The HD Graphics integrated in the Atom Z3740 in both the Asus Transformer Book T100TA-C1-GR and the Toshiba Encore WT8-A-102 is about 10 % faster. The Intel HD Graphics 4200 in the Dell Venue 11 Pro offers more than double the performance (3DMark 11 score of 509 points vs. 215 points for the Miix 2 10).

3D Mark
3DMark 06
 1280x1024
1692 points
3DMark 11215 points
Help

Gaming Performance

While the tablet will have no issues with various online games, current games are more or less out of the question. Even Fifa 14, which is known to have very low resource requirements, is only playable at the lowest setting. At a resolution of 1366 x 768 pixels and the medium preset, the frame rate already dropped to about 19 fps.

low med.high ultra
Fifa 14 (2013) 33.619.512.8fps

Emissions

Temperature

Stress Test with Prime95 and Furmark
Stress Test with Prime95 and Furmark

The Miix 2 10 does get quite warm. Even during idle, we recorded temperatures of up to 36 degrees C on the back, which is quite a bit warmer than the Transformer Pad, which topped out at 30 degrees C. The predecessor Miix 10 reached 34 degrees C. Under load, the tablet reached 43 degrees C right in the area where the left hand rests when holding the tablet in landscape mode. This is about 1 degree C warmer than the predecessor, but remains below the maximum of the Transformer Pad (45 degrees C).

During the stress test, we try to identify temperature related problems such as throttling. With just Prime95 running, the CPU initially started out at 1.86 GHz but dropped to between 1.3 and 1.6 GHz after 5 minutes. After a total of 10 minutes, the CPU cores remained at 1.3 GHz, while the temperature stabilized at 78 degrees C. With just Furmark active, the GPU reached 533 MHz at a temperature of just under 80 degrees C. Under maximum load (Prime95 and FurMark running in parallel for several hours), we saw a drop of the CPU speed to 300 MHz with occasional jumps of one or the other core to 1.3 GHz. The GPU reached a maximum of 311 MHz. The temperature was once again just under 80 degrees. It appears that the tablet does have some heat-related issues: a subsequent test with PCMark 11 revealed a noticeable drop in performance of around 18 %. Under normal conditions such drops are going to be highly unlikely, however.

Max. Load
 38.6 °C32.6 °C29.6 °C
 43.4 °C33.8 °C30.4 °C
 42.4 °C40 °C40.8 °C
Maximum: 43.4 °C
Average: 36.8 °C
28.6 °C31.2 °C37 °C
28.8 °C32.6 °C42.4 °C
30.6 °C32.8 °C41.2 °C
Maximum: 42.4 °C
Average: 33.9 °C
Power Supply (max.)  36.4 °C | Room Temperature 23 °C | Fluke 62 Mini IR Thermometer

Speakers

The JBL-branded stereo speakers, which are housed on the left and right side of the tablet, are supplemented by the subwoofer when the Miix is inserted in the keyboard dock. The sound is extremely tinny when the tablet is used on its own; even with the subwoofer in action, the sound is still lacking in our opinion, although noticeably improved. We definitely recommend an external speaker solution or headphones for those wanting better quality. For watching movies and the YouTube-videos, the sound quality is sufficient.

Battery Life

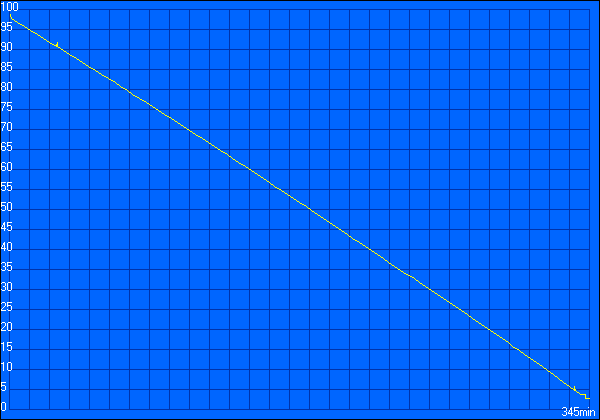

WLAN Test
WLAN Test

With the screen brightness turned to the lowest setting and wireless off, we established a maximum run time of 7 hours and 41 minutes with the tablet attached to the keyboard dock. On its own, the tablet lasted about 8 hours and 30 minutes. To simulate a more real-world scenario, we use our WLAN test with the brightness set to about 150 nits, while a script browses various websites every 40 seconds. The Miix 2 10 quit after 5 hours and 45 minutes, which is a 5 full hours shorter than the Asus Transformer Book T100TA-C1-GR. Even though the Transformer Book has the larger battery (31 Wh vs. 25 Wh), we are still a bit bewildered that the Miix 2 10 shut down that much sooner. The 8-inch Toshiba Encore WT8-A-102 (19.5 Wh battery) lasted a little over 7 hours. Under maximum load, the tablet lasted for about 3 hours and 45 minutes. The battery run time results are not exceptional, but probably sufficient for most users.

Battery Runtime
Idle (without WLAN, min brightness)
7h 41min
WiFi Surfing
5h 45min
Load (maximum brightness)
3h 44min

Verdict

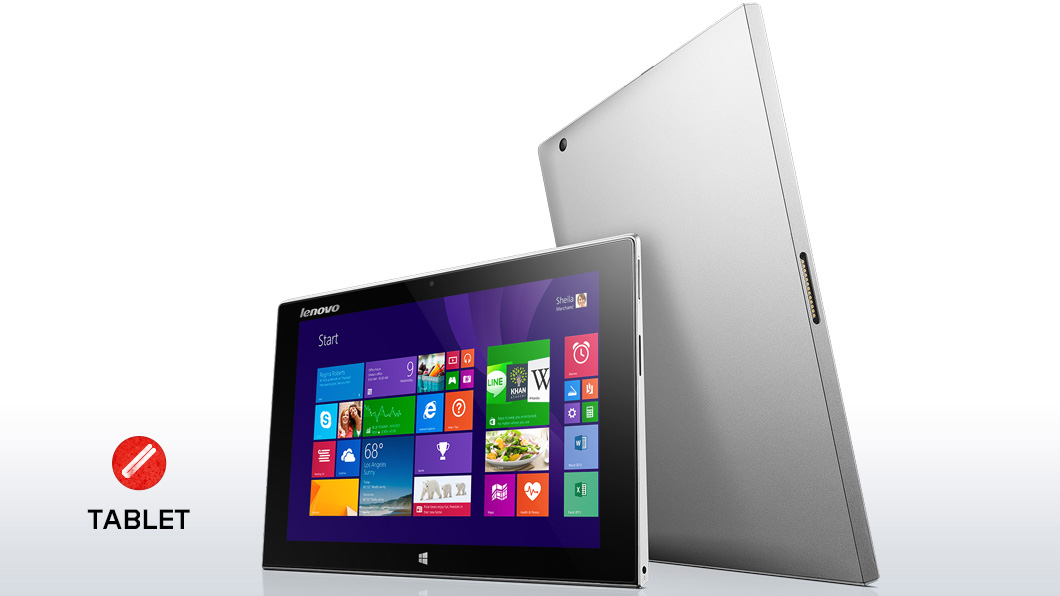

Lenovo Miix 2 10 Tablet
Lenovo Miix 2 10 Tablet

What makes the Lenovo Miix 2 10 an interesting choice among Windows 8 tablets is without a doubt the included magnetic keyboard dock, which makes switching between the Laptop and the Stand mode a cinch, and the high-resolution IPS display. For transport, the tablet attaches to the keyboard with the display facing down and can be carried much like a subnotebook.

The wedge-shaped design looks good, but is unfortunately not that comfortable to hold for extended periods of time The keyboard dock flexes too much and suffers from an unusual layout, although typing is possible at reasonably fast speeds. Inserting the tablet into its dock is very easy and we do appreciate the two full-sized USB 2.0 ports as well, although it would be nice to have at least one USB 3.0 port.

The Asus Transformer Book T100TA-C1-GR has a much lower-resolution screen (1366 x 768), offers about the same performance, but lasts much longer on a charge. It is also substantially less expensive (we found the 64 GB version online for about $370). The Dell Venue 11 Pro offers a larger screen with similar resolution and more robust performance, but also costs more. Users not needing x86 support might want to consider the Android-based Transformer Pad Infinity TF700T, which has the same size screen and the same resolution, but a significantly brighter display. Many manufacturers also offer hybrid tablet devices with keyboards that are permanently attached like Lenovo's IdeaPad Yoga 2 11 Convertible. For the utmost in portability, there is always the option of choosing one of the many 8-inch tablets - for example the Toshiba Encore WT8-A-102 - and connecting a small, foldable Bluetooth keyboard to it.

Read all 1 comments / answer
static version load dynamic
Loading comments

Comment this article:

In Review: Lenovo Miix 2 10 Tablet
In Review: Lenovo Miix 2 10 Tablet

Specifications

Lenovo Miix 2 10

:: Processor
:: Memory
2048 MB, LPDDR3 1066 MHz
:: Graphics adapter
Intel HD Graphics (Bay Trail), Core: 667 MHz, igdumdim32 10.18.10.3348
:: Display
10 inch 16:10, 1920x1200 pixel, 10-finger multitouch , AUO17D8, IPS, B101UAN01.7, glossy: yes
:: Harddisk
SanDisk U100 128 GB, 128 GB
:: Connections
1 + 2 USB 2.0, 1 HDMI, Audio Connections: Audio combo jack , Card Reader: MicroSD, MicroSDHC,MicroSDXC,
:: Networking
Broadcom 802.11a/b/g/n (a b g n ), 4.0 Bluetooth
:: Size
height x width x depth (in mm): 10 x 262 x 173
:: Weight
1.06 kg Power Supply: 0.114 kg
:: Battery
25 Wh Lithium-Ion
Battery runtime (according to manufacturer): 8 h
:: Price
$600 USD, 440 Euro
:: Operating System
Microsoft Windows 8.1 32 Bit
:: Additional features
Webcam: 2.0 MP + 5.0 MP, Speakers: stereo , Keyboard: Virtual + AccuType, 12 Months Warranty



[+] compare

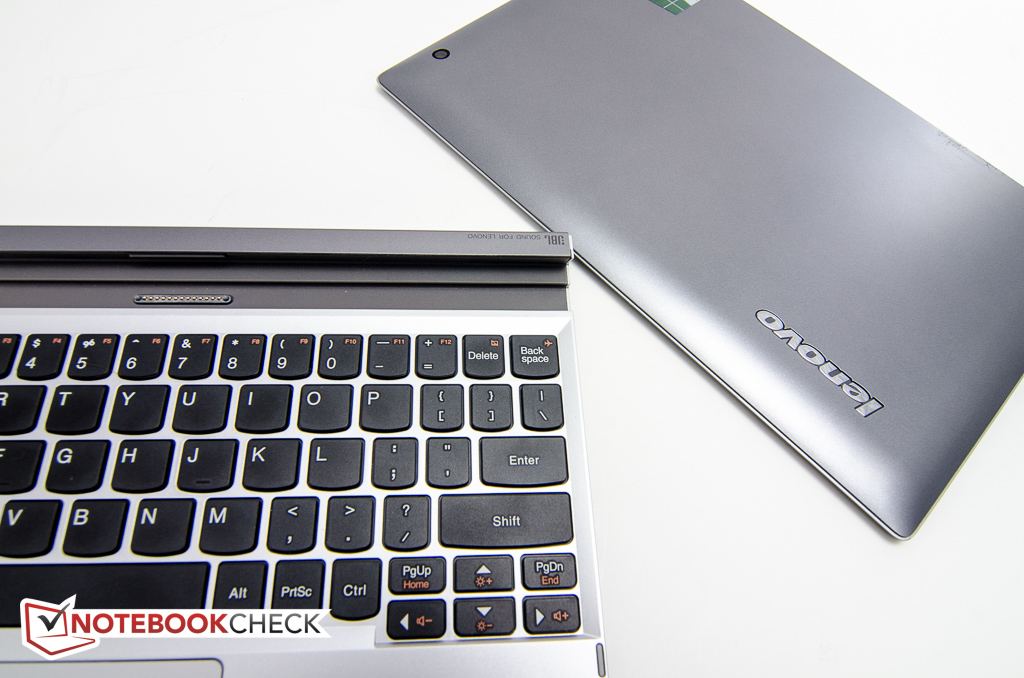

The Lenovo Miix 2 10 consist of two components:
The Lenovo Miix 2 10 consist of two components:
The tablet and a keyboard dock.
The tablet and a keyboard dock.

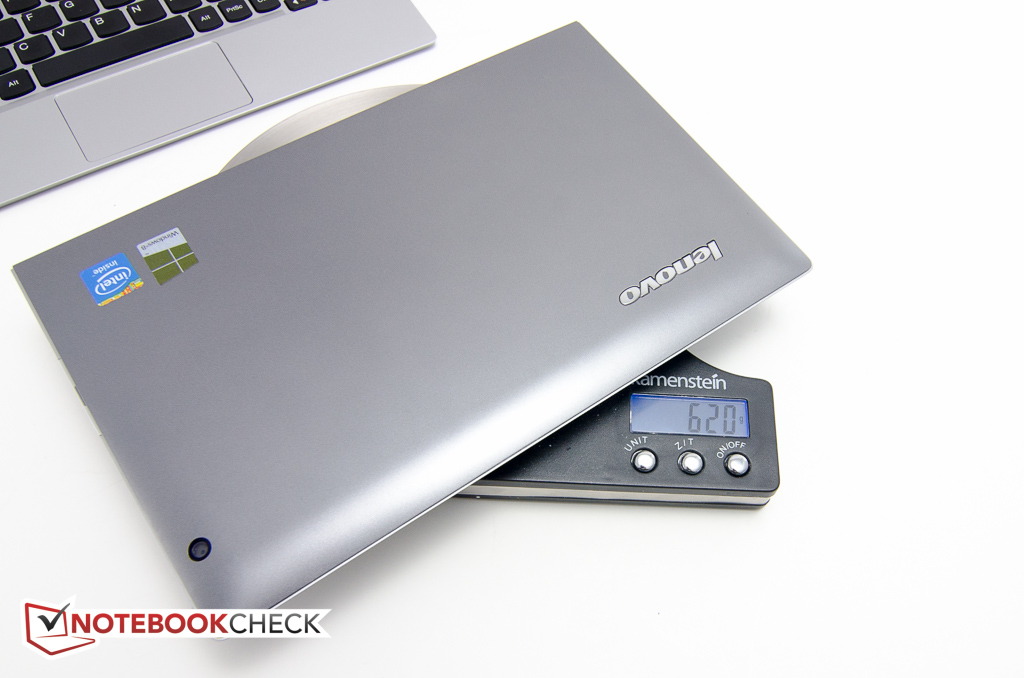

The tablet weighs 620 grams...
The tablet weighs 620 grams...

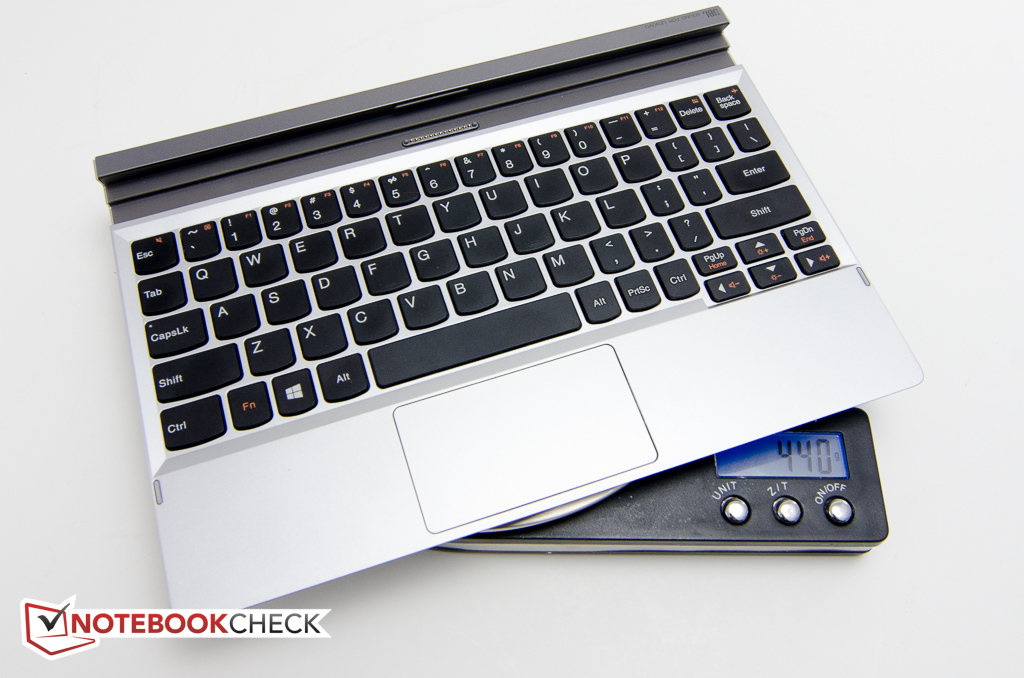

the dock 440 grams.
the dock 440 grams.

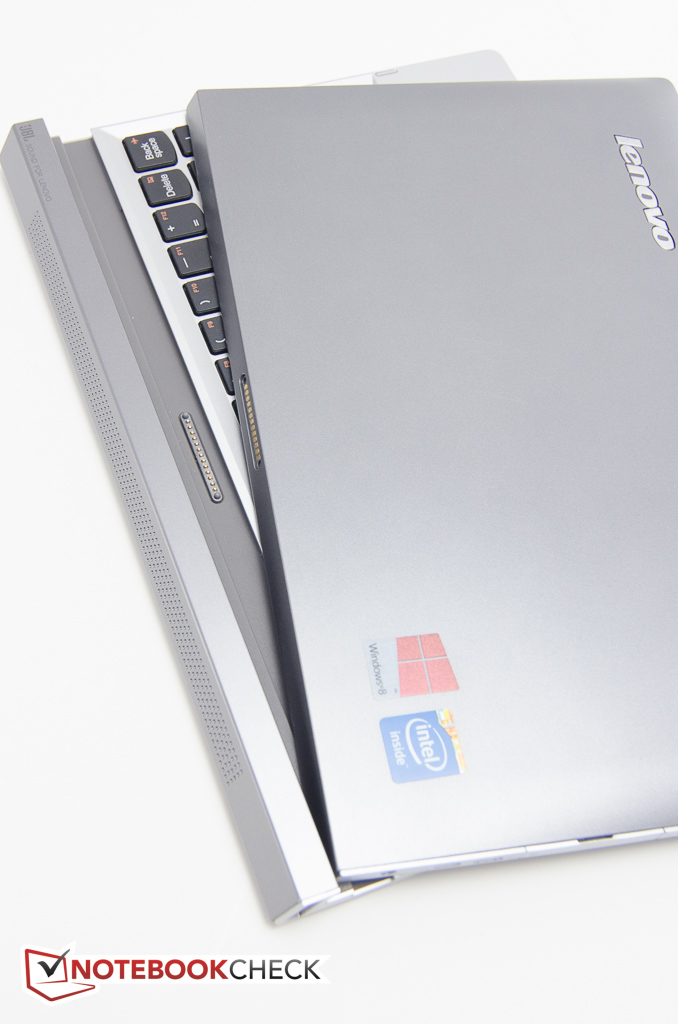

Magnets keep the components together.
Magnets keep the components together.

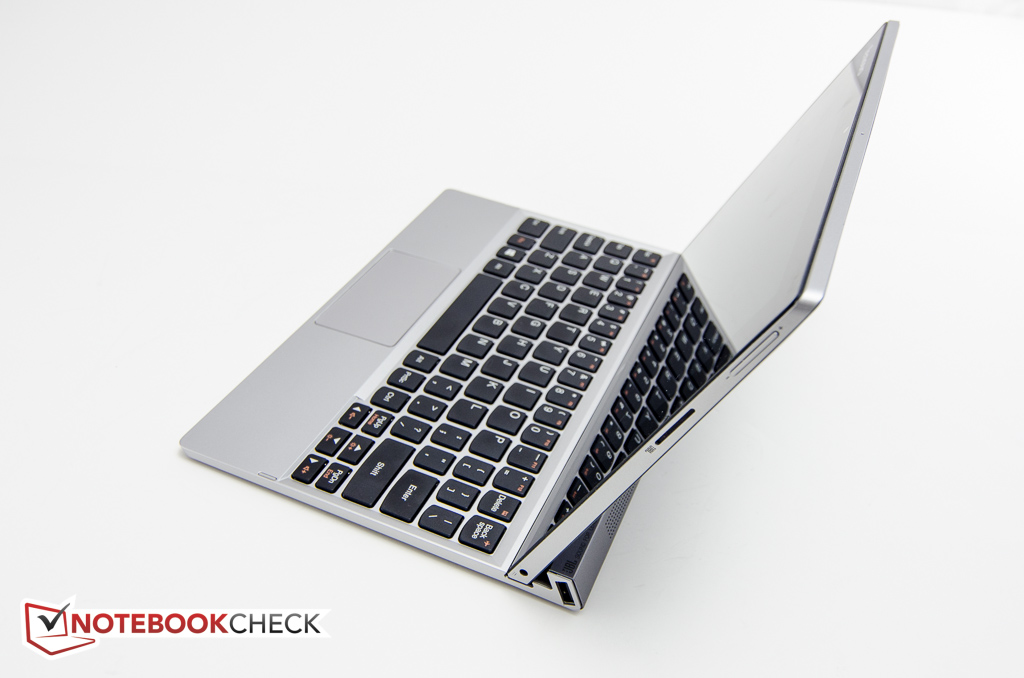

It's easy to switch from Laptop Mode...
It's easy to switch from Laptop Mode...
...to Stand Mode.
...to Stand Mode.

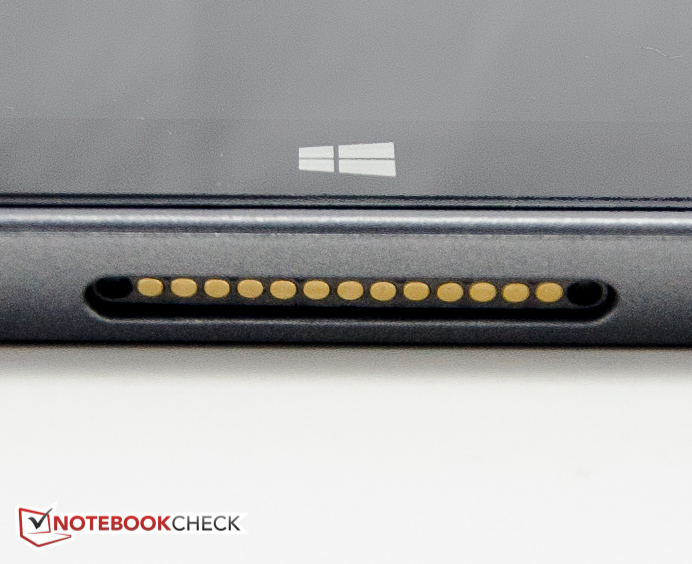

Just below the Windows button: the docking port on the tablet...
Just below the Windows button: the docking port on the tablet...

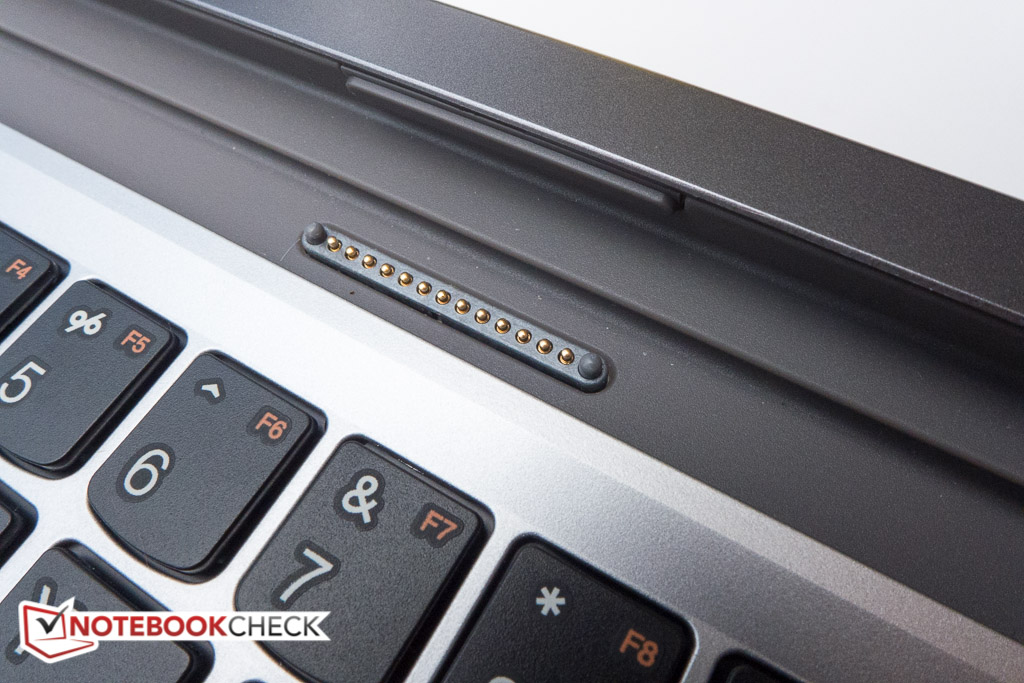

...and the connector on the dock itself
...and the connector on the dock itself
The dock is unfortunately not very rigid.
The dock is unfortunately not very rigid.

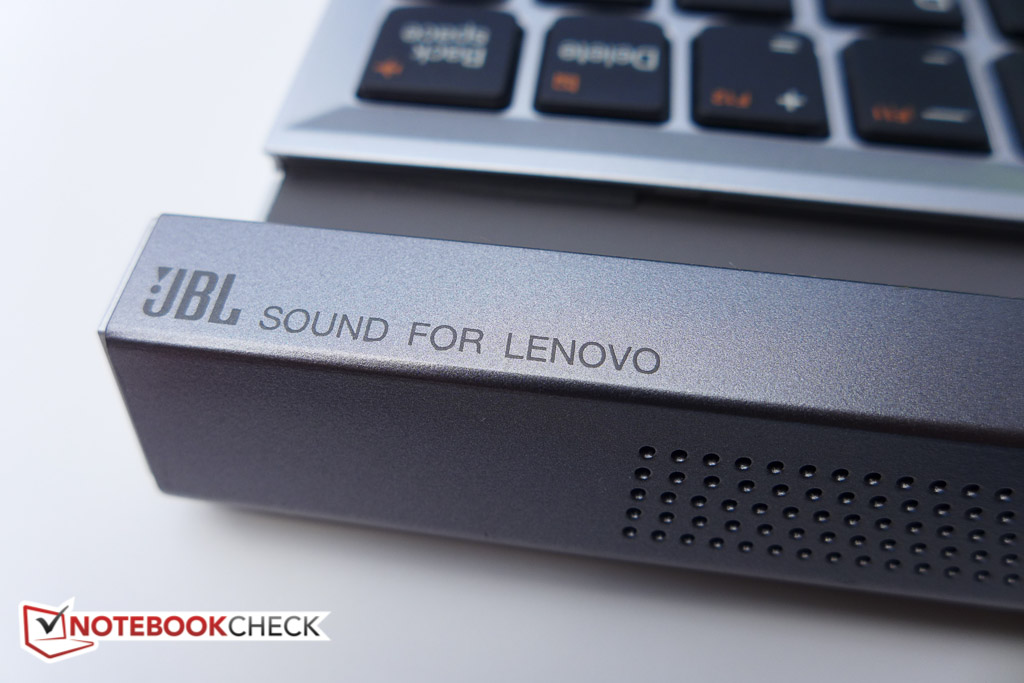

Speakers by JBL.
Speakers by JBL.

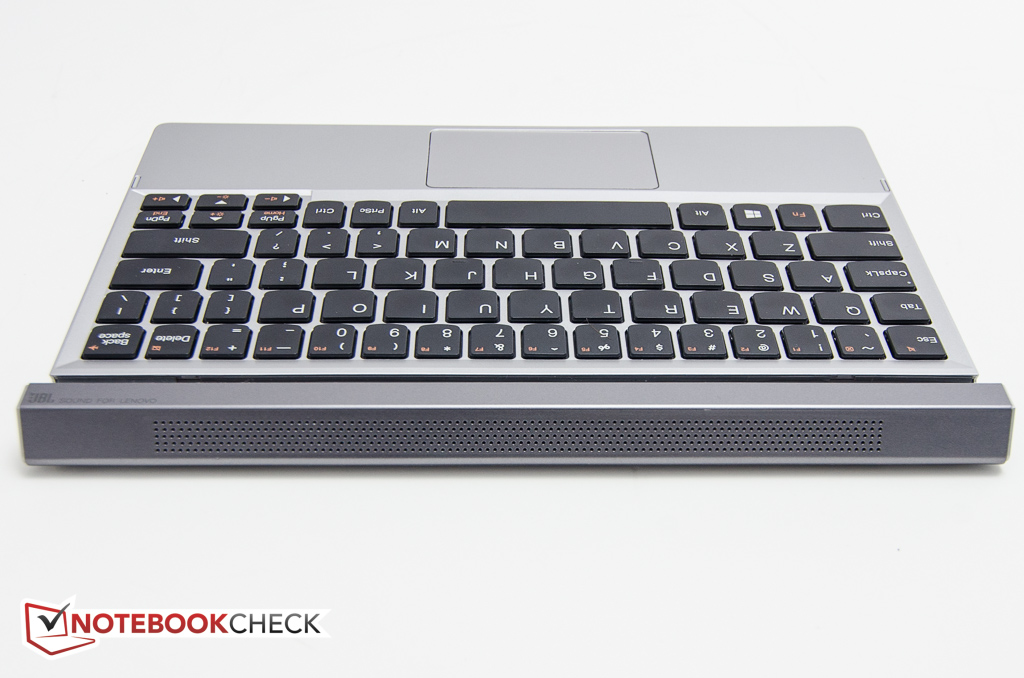

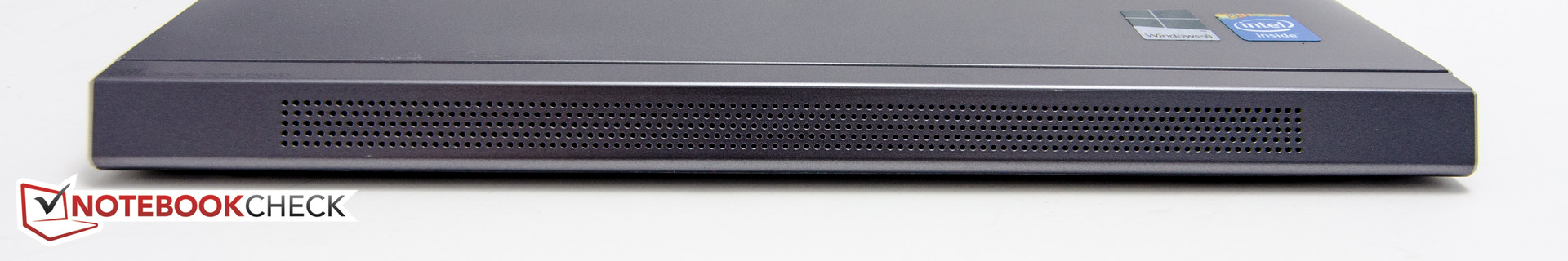

The front of the dock houses the subwoofer.
The front of the dock houses the subwoofer.

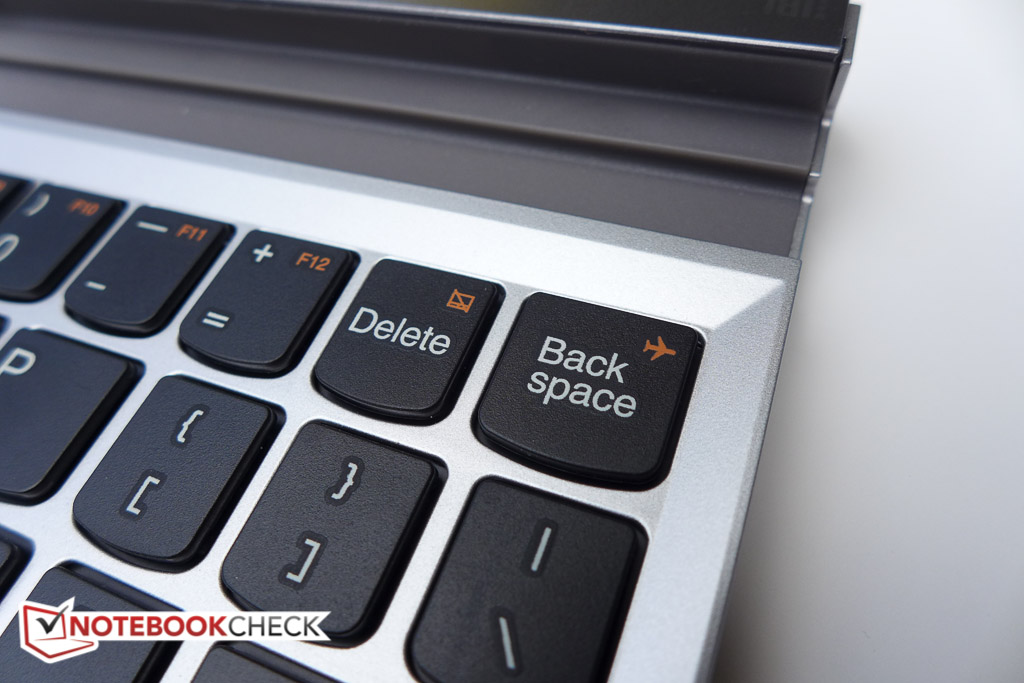

The layout takes getting used to: the Delete and the Backspace key are next to each other and quite small.
The layout takes getting used to: the Delete and the Backspace key are next to each other and quite small.

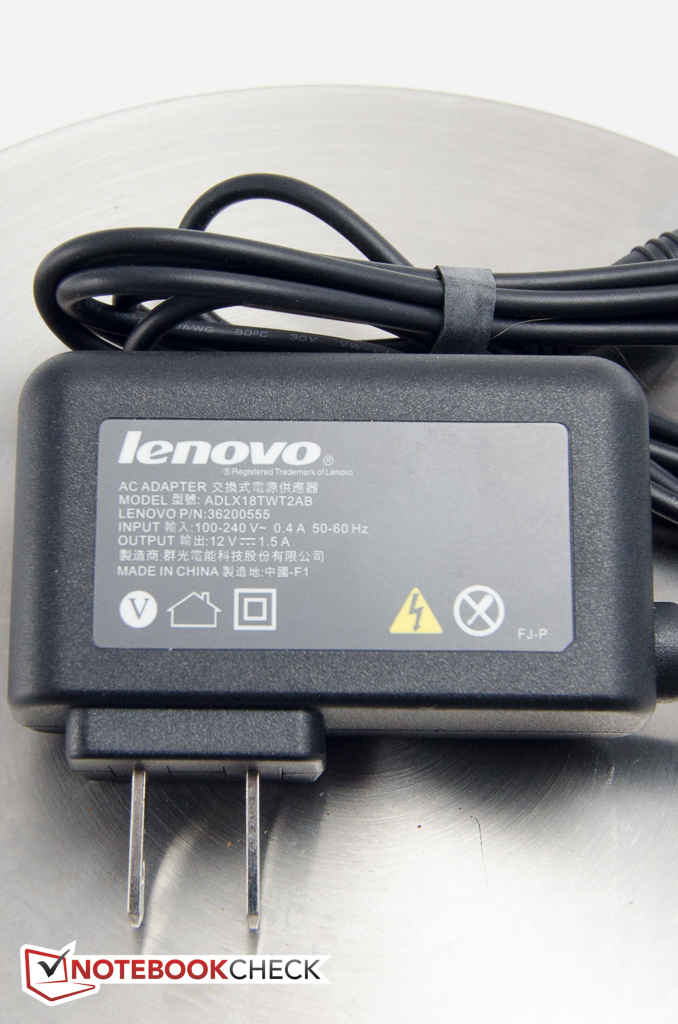

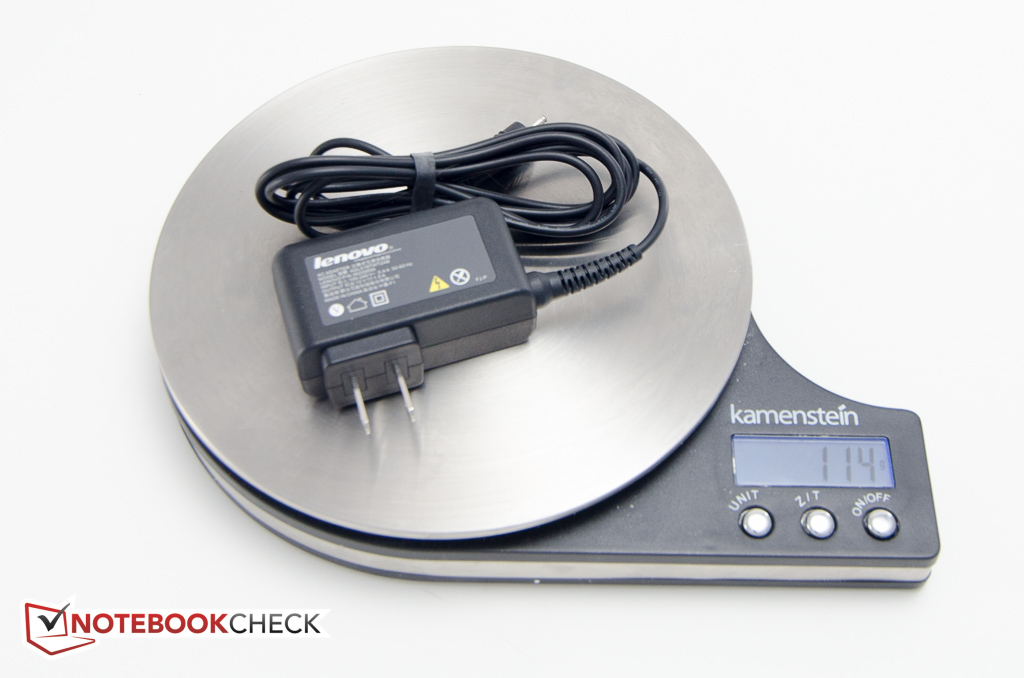

The power adapter weighs 114 grams...
The power adapter weighs 114 grams...
...and supplies 18 watts.
...and supplies 18 watts.

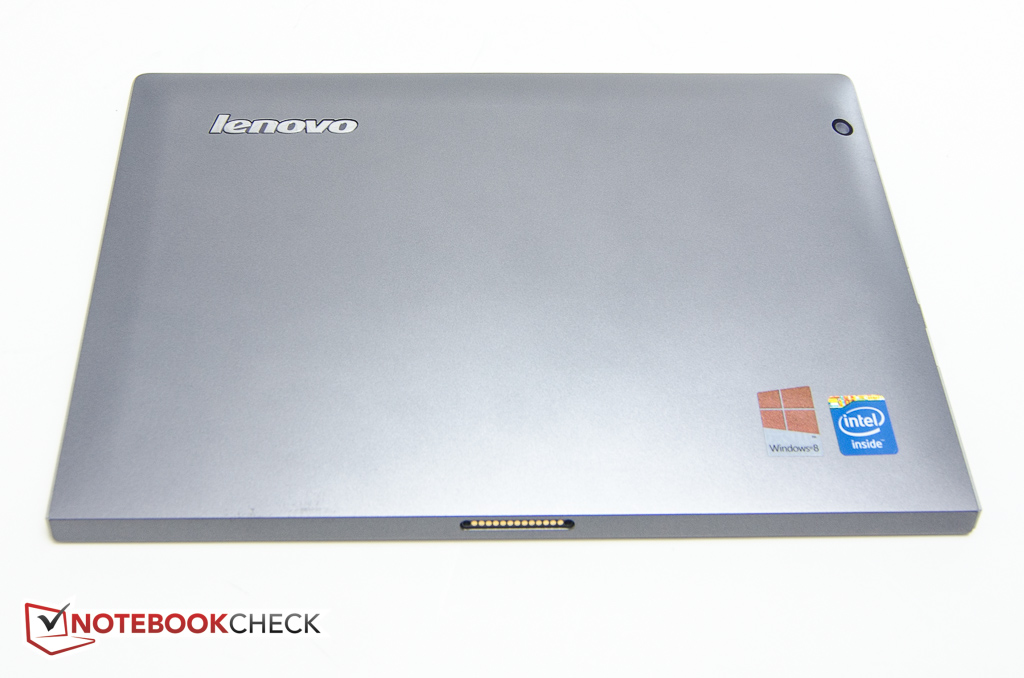

The back is silver-gray plastic
The back is silver-gray plastic

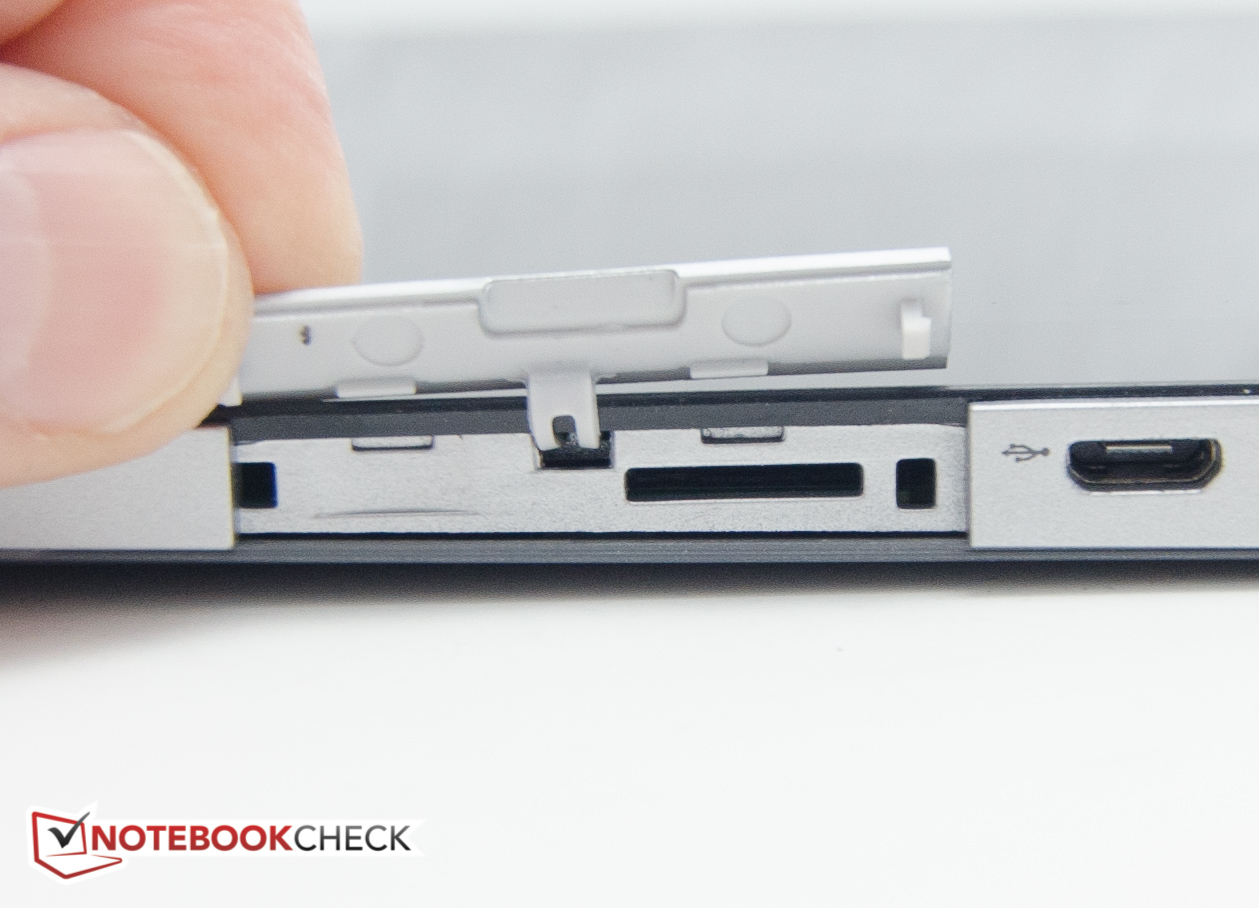

The Micro-SD card slot is hidden under a flap. Unfortunately there's no SIM card option in the US.
The Micro-SD card slot is hidden under a flap. Unfortunately there's no SIM card option in the US.

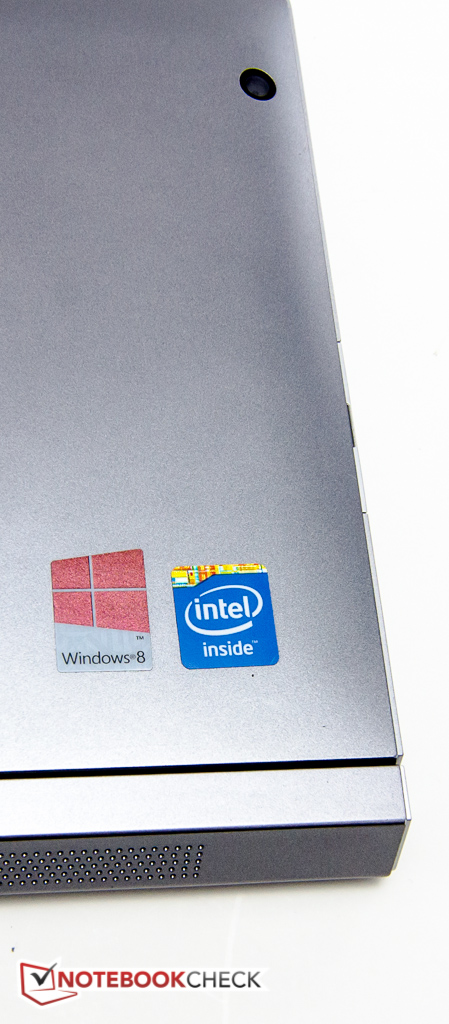

The rear-facing camera.
The rear-facing camera.
Older programs sometimes have issues with the high resolution
Older programs sometimes have issues with the high resolution

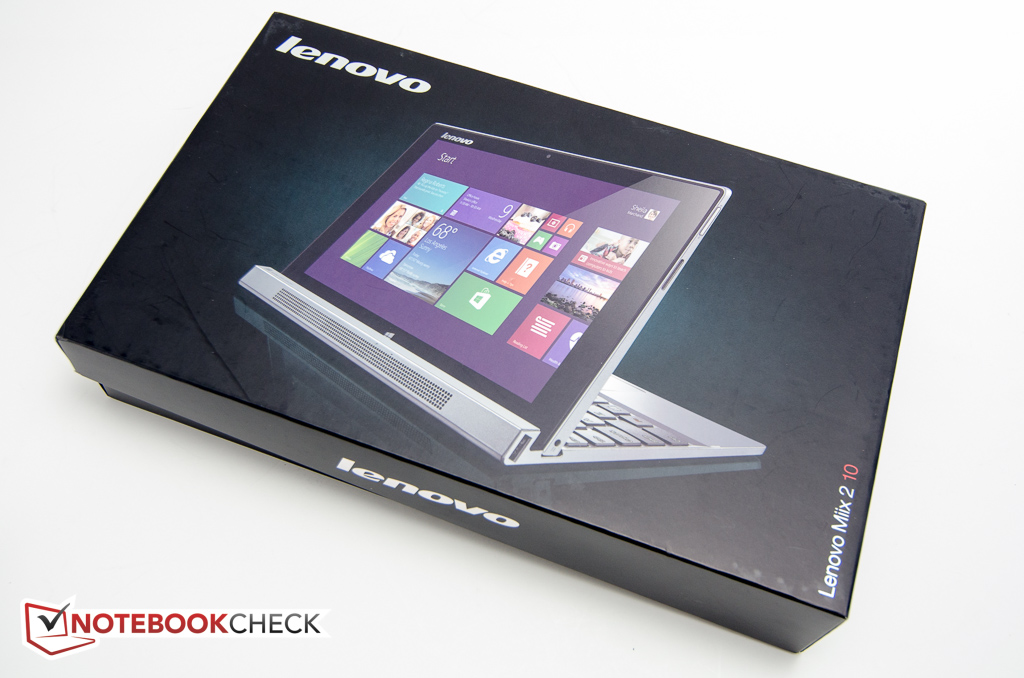

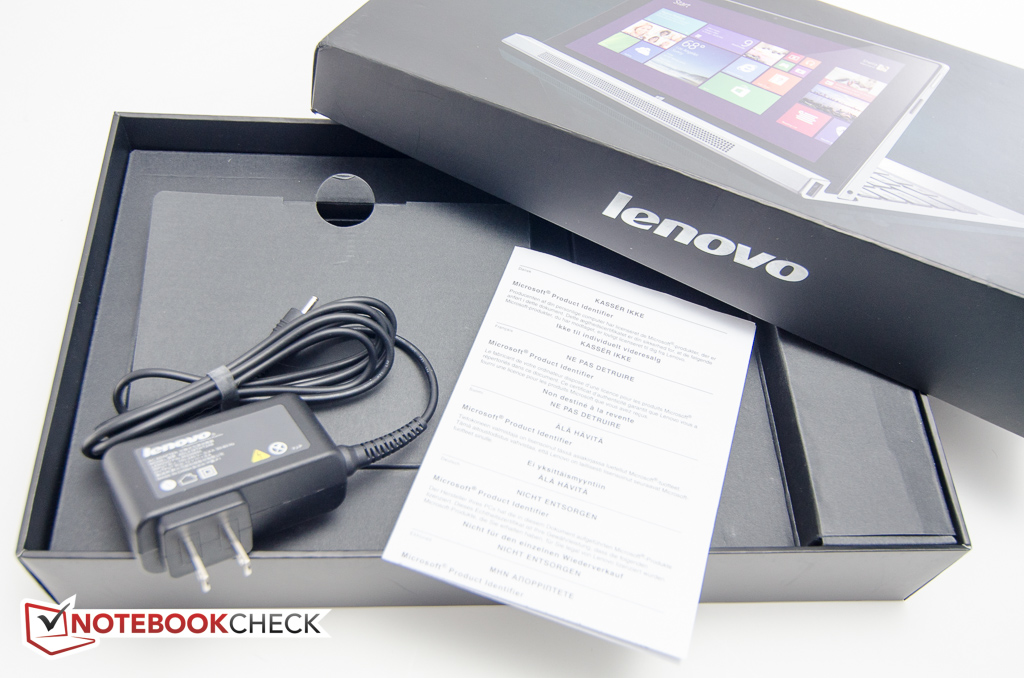

Not much in the way of accessories.
Not much in the way of accessories.

Similar Tablets

Devices with the same GPU and/or Screen Size

Devices with the same GPU

Links

  • Manufacturer's information

Compare Prices

Pro

+High resolution IPS panel
+Decent performance
+Magnetic keyboard dock is included
+Micro-USB and Micro-HDMI port
+2x full-sized USB 2.0 ports (dock)


Cons

-Reduced brightness on battery
-Flash drive is fairly slow
-Keyboard dock flexes
-In clamshell mode, display angle not ideal
-Build quality could be better

Shortcut

What we like

The magnetic keyboard dock and the high-resolution IPS panel.

What we'd like to see

A better battery life and faster flash storage.

What surprises us

Lenovo keeps on churning out innovative hybrid concepts.

The competition

Asus Transformer Book T100TA-C1-GR

Dell Venue 11 Pro

Convertibles with permanently attached keyboards like the HP Pavilion 11-n070eg x360 Convertible  or the Lenovo IdeaPad Yoga 2 11 Convertible.

Android-based: Transformer Pad Infinity TF700T

Rating

Lenovo Miix 2 10
05/23/2014 v4
Bernhard Pechlaner

Chassis
64 / 98 → 65%
Keyboard
69%
Pointing Device
78%
Connectivity
42 / 95 → 44%
Weight
81 / 78 → 100%
Battery
89%
Display
80%
Games Performance
21.5 / 85 → 25%
Application Performance
58.4%
Temperature
78%
Noise
Audio
40%
Camera
61 / 85 → 72%
Add Points
+1%
Average
59%
