Asus F751LB Notebook Review
For the original German review, see here.
The Asus F751LB-T4030H is a 17.3-inch allrounder with strong hardware. The notebook offers sufficient performance for any use case (including gaming). The Asus F751LDV and the Asus X751MA are sibling models we have previously tested. Both of these laptops offer similar hardware, but our test model should surpass them (in theory). We will find out if our assumption holds water in the following in-depth review.
The competition of the F751LB is varied and includes notebooks like the Acer Aspire E5-771G, the HP Pavilion 17 and the Toshiba Satellite L70.
We will skip a few areas as the F751LB has the same build as its siblings. These topics include the case, the connectivity, the input devices and the speakers. We suggest taking a peek at the Asus F751LDV review for information on these topics.
Display
The matte 17.3-inch panel of our test model has a native resolution of 1920x1080 pixels. Brightness (335.6 cd/m²) and contrast (1,217:1) are very good and leave no room for complaint.
|
Brightness Distribution: 85 %
Center on Battery: 282 cd/m²
Contrast: 1217:1 (Black: 0.29 cd/m²)
ΔE Color 7.03 | 0.5-29.43 Ø5

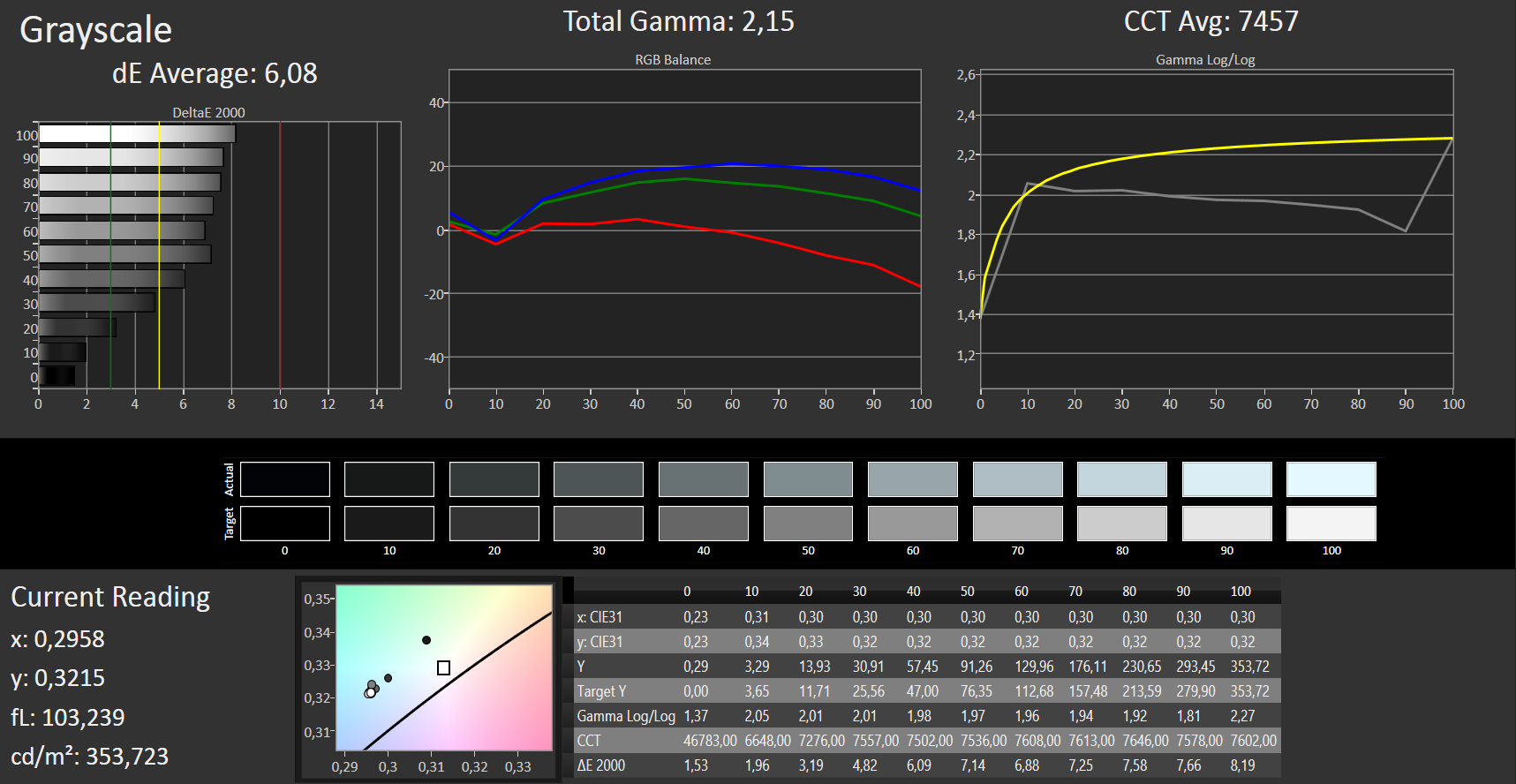

ΔE Greyscale 6.08 | 0.57-98 Ø5.3
99% sRGB (Argyll 1.6.3 3D)
65% AdobeRGB 1998 (Argyll 1.6.3 3D)
99.2% sRGB (Argyll 2.2.0 3D)
74.2% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.15

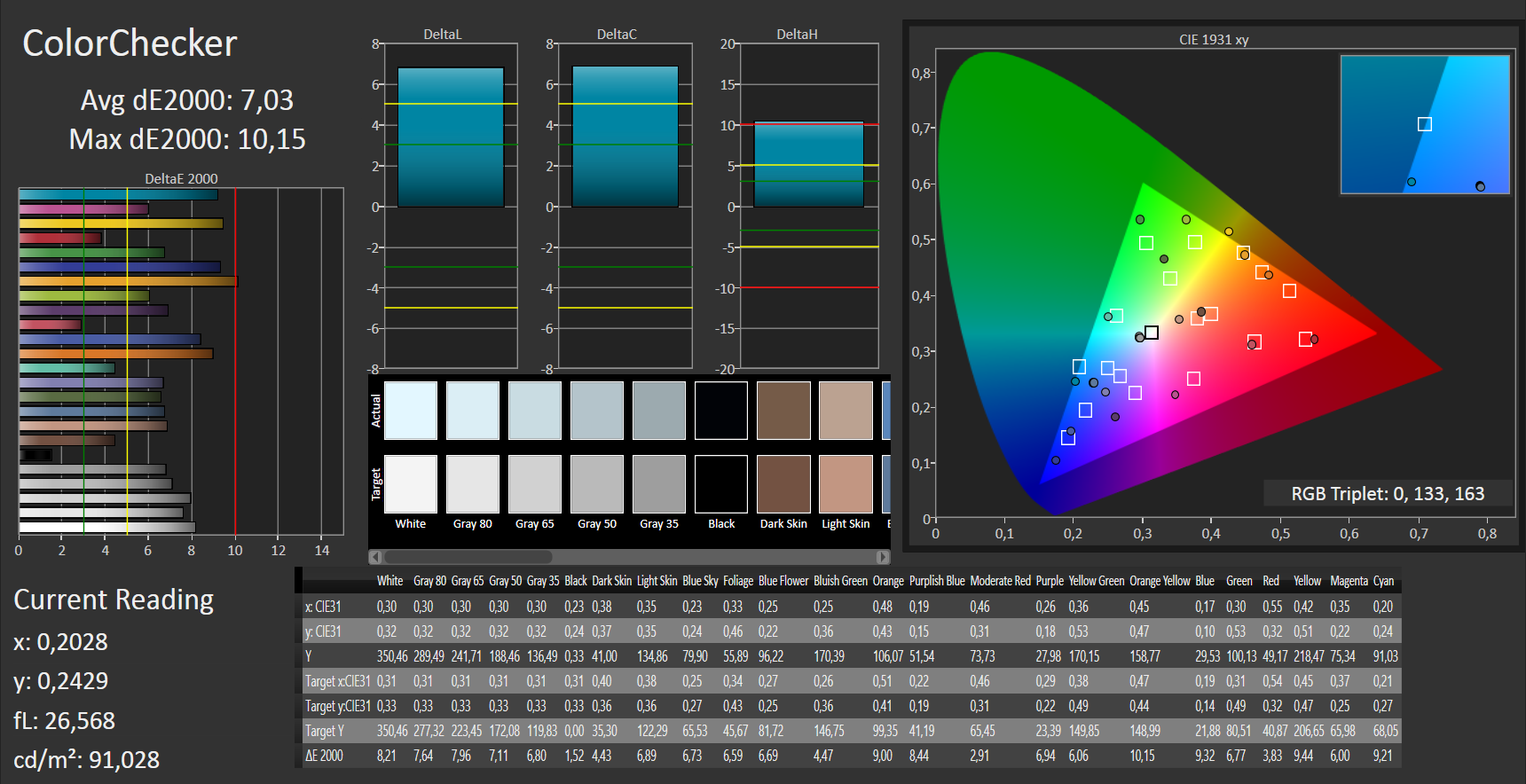

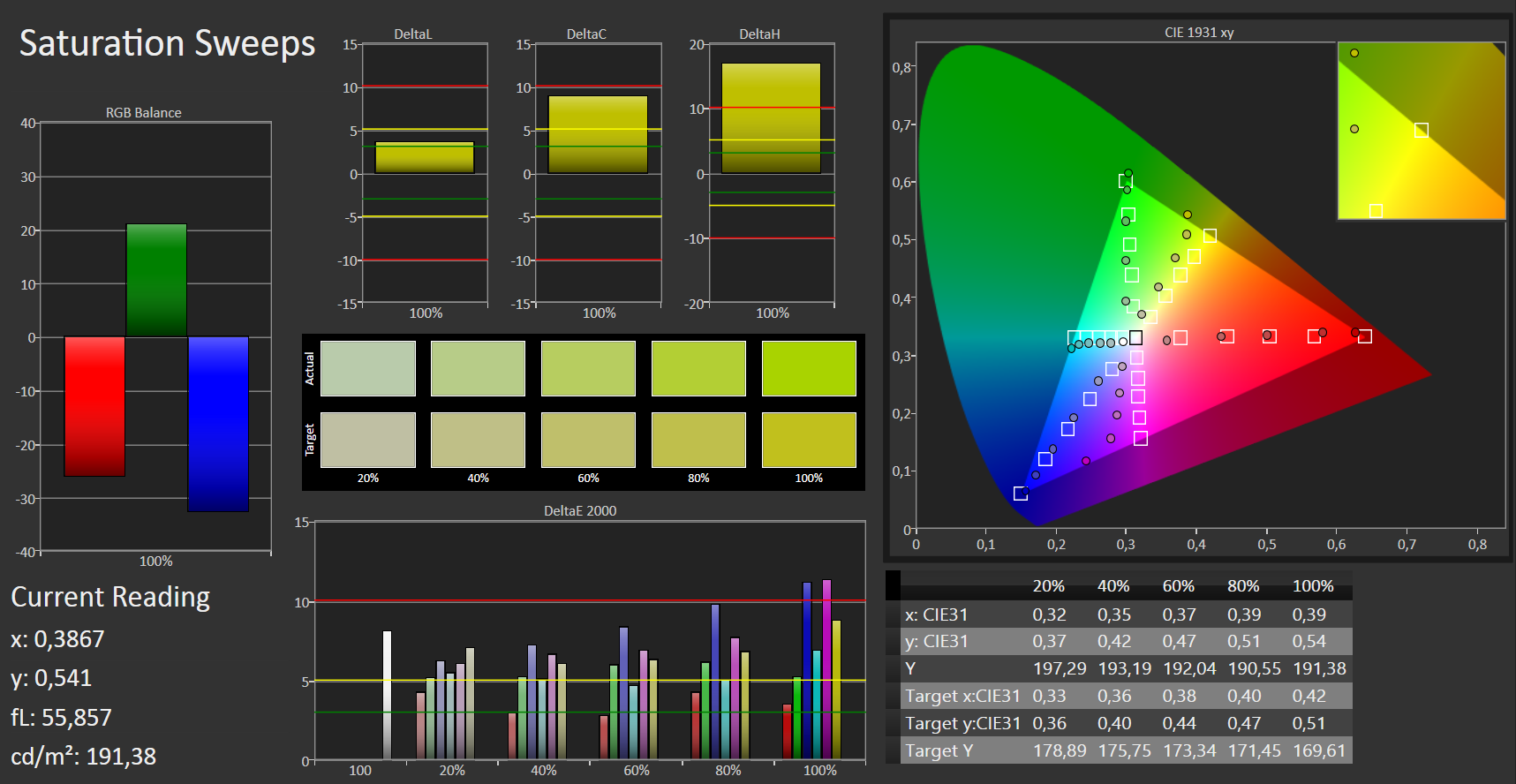

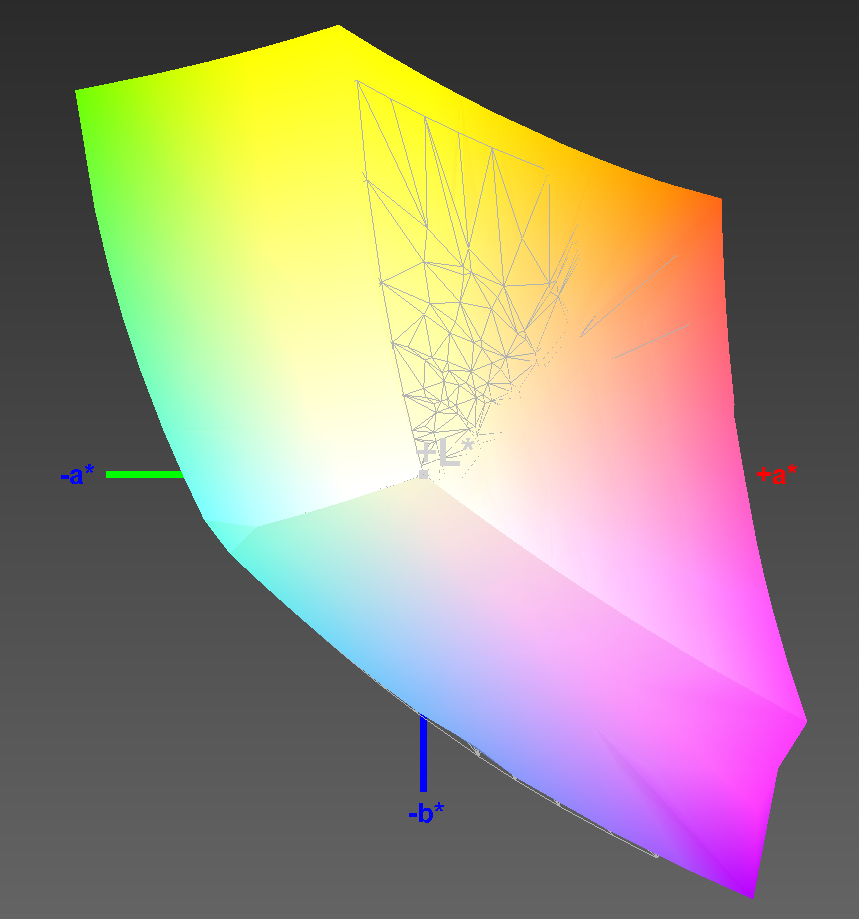

The panel has great coverage of the color spectrums: 65% of AdobeRGB and 99% of sRGB. Out of the box the DeltaE 2000 deviation is 7 (optimal would be below 3). The panel has a slight blue tinge.

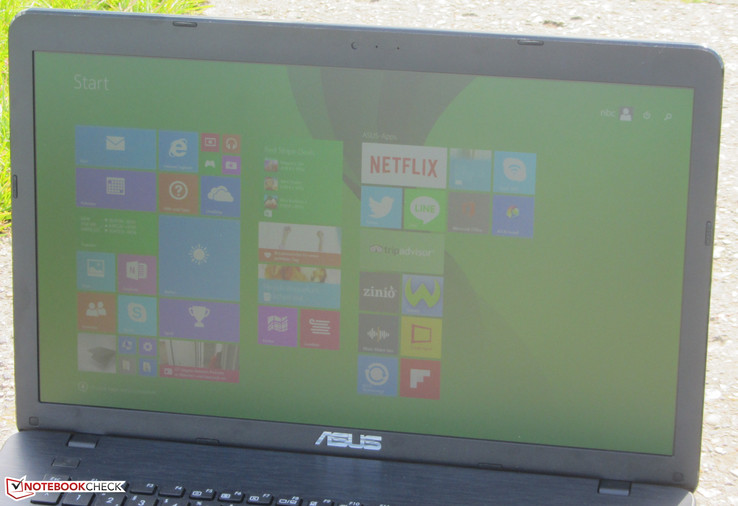

Asus F751LB has a TN panel with decent viewing angles. Sadly, the panel is not legible from angles, but the laptop can be used outdoors.
Performance
Our 17.3-inch all-rounder offers sufficient performance for everyday use and gaming. Our test model is available for 850 Euros (~$957) and offers various different configurations.
Processor
The test model does not lack in performance thanks to an Intel Core i7-5500U dual-core processor (Broadwell). The CPU operates at a base clock speed of 2.4 GHz, which can be raised to 2.9 GHz (both cores) or 3 GHz (single core) using Turbo. This boost is available while plugged in and while running on battery.
The Core i7-5500U CPU is a ULV processor with a TDP value of 15 W. The single-thread performance of our processor is similar to that of quad-core processors (TDP: 47 W). A laptop with a ULV processor is optimal for home use, as it requires less power for identical single-thread performance. Quad-core CPUs can really show off their power when running multithread programs.
Peacekeeper - --- (sort by value) | |
Asus F751LB-T4030H | |
Acer Aspire V17 Nitro VN7-791G-50MV | |
Acer Aspire E5-771G-71PT | |
HP Pavilion 17-f217ng | |
HP Pavilion 17-f130ng | |
Toshiba Satellite P70-B-10T | |
HP Envy 17-k203ng |
* ... smaller is better
System Performance
The system performance is nice, which translates into a fluid and reliable OS. The PCMark benchmark results are very good for our test model and the Acer Aspire E5-771G can match this score thanks to its similar hardware. The quad-core notebooks, listed in our comparison diagram below, outpace our test model by a small margin due to their stronger graphic chips. The Toshiba Satellite P70-B creates an exceptionally large lead thanks to its AMD GPU, which the PCMark 8 benchmark heavily favors. It is possible to raise the system performance by replacing the hard drive with an SSD.
PCMark 8 Home Score Accelerated v2 | 3215 points | |
PCMark 8 Creative Score Accelerated v2 | 3656 points | |
PCMark 8 Work Score Accelerated v2 | 4079 points | |
Help |
Storage Device
The owner of the F751LB will not lack storage space thanks to the 1 TB HDD in our test model. Asus formats its notebooks with a standard OS partition of 372 GB and a data partition of 542 GB. The device operates at 5,400 rpm and offers transfer speeds typical for its class.
Graphics Card
The F751LB is equipped with a GeForce 940M GPU, which is the successor of the GeForce 840M. Although the two GPUs are essentially the same, the 940M offers a 0.5% higher max clock speed (1,124 MHz to 1,179 MHz). There are no other differences. The results of the 3DMark benchmark confirm that our test model offers equivalent graphics performance to an 840M notebook with the same Core i7-5500 processor (see Acer Aspire E5-771G).
The HD Graphics 5500 is the IGP of the laptop which allows the manufacturer to use Optimus. This technology allows the laptop to dynamically switch between the IGP and dedicated GPU depending on how much graphics performance is required. The IGP is in charge when handling everyday tasks, like surfing the web and using office programs. The dedicated GPU is activated when more performance is necessary, like when playing games. The switch is automatic but the user can also manually choose one of the two.
3DMark 11 Performance | 2487 points | |
3DMark Ice Storm Standard Score | 43489 points | |
3DMark Cloud Gate Standard Score | 6543 points | |
3DMark Fire Strike Score | 1409 points | |
Help |
Gaming Performance
The Asus laptop can run most games fluidly at the HD resolution (1366x768 pixels) with medium or high settings. However, more demanding games, like Evolve, Assassin's Creed Unity or The Witcher 3, will necessitate lower settings to run smoothly. Sadly, most games do not run well at the native FHD resolution of the laptop. The Asus F751LB offers almost the exact same performance the Acer Aspire E5-771G does with its 840M GPU. This further supports our assertion: there is little to no performance difference between the GeForce 840M and the GeForce 940M.
In a case like this, the CPU often has a large impact: the Acer Aspire VN7-791G-50MV with its 840M GPU and a typical mobile processor (ULV: 47 W) offers better frames than the F751LB. This difference in performance grows the more a game benefits from a strong CPU. We assume that the 840M notebooks will be sold off in the coming weeks. As such, it might be possible to get a laptop with similar performance to a 940M notebook for a discount.
low | med. | high | ultra | |
The Elder Scrolls V: Skyrim (2011) | 71.5 | 47.1 | 34.5 | 18 |
Anno 2070 (2011) | 119.4 | 61.3 | 38.2 | 21 |
Alan Wake (2012) | 40.6 | 24.4 | 13.8 | |
Hitman: Absolution (2012) | 53.7 | 35.2 | 15.9 | 6.3 |
Tomb Raider (2013) | 126 | 62.5 | 33.8 | 16.7 |
StarCraft II: Heart of the Swarm (2013) | 199.4 | 88.6 | 45 | 17.6 |
Batman: Arkham Origins (2013) | 92 | 62 | 26 | 12 |
Wolfenstein: The New Order (2014) | 38.4 | 32.3 | 16.1 | |
Watch Dogs (2014) | 42 | 29.9 | 9.2 | 5.7 |
Risen 3: Titan Lords (2014) | 45.6 | 33.2 | 14.1 | 12.5 |
The Evil Within (2014) | 35.2 | 24.3 | 14.2 | |
Dragon Age: Inquisition (2014) | 42.3 | 36.5 | 20.8 | 14.3 |
The Crew (2014) | 38.1 | 31.3 | 15.3 | 8.2 |
Battlefield Hardline (2015) | 59.3 | 41.8 | 19.1 | 10.3 |
Dirt Rally (2015) | 135.5 | 45.1 | 23 | 12.5 |
The Witcher 3 (2015) | 29.2 | 17.7 | 9.7 | 5.6 |
Emissions
System Noise
Despite its powerful hardware, the test model is relatively quiet. While idle, the fan may turn off at times. Typically, the fan operates at low speeds and even during the stress test, the emissions are in an acceptable region: 41.2 dB.
Noise Level
Idle |
| 31.4 / 33.2 / 33.2 dB(A) |
HDD |
| 33.4 dB(A) |
DVD |
| 36.4 / 41.2 dB(A) |
Load |
| 36.4 / 33.4 dB(A) |
| ||
30 dB silent 40 dB(A) audible 50 dB(A) loud |
||
min: , med: , max: Voltcraft sl-320 (15 cm distance) |
Temperature

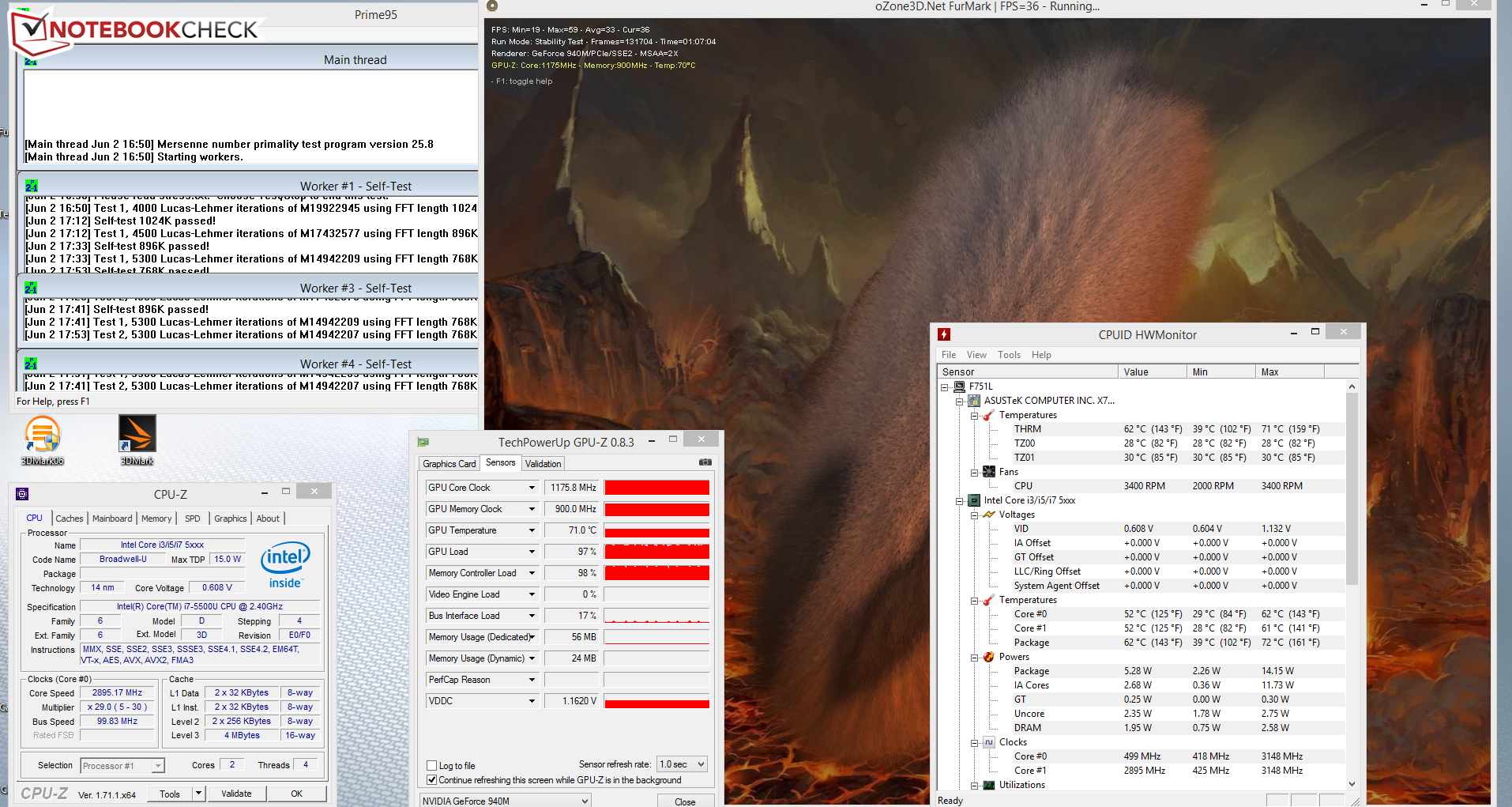

The GPU runs at its full speed of 1,176 MHz in the stress test (Prime95 and Furmark run for at least an hour together), regardless whether the laptop is plugged in or running on battery. The CPU speed fluctuates between 500 to 2.9 GHz while the laptop is plugged in. If the laptop runs the stress test on battery, the CPU operates at a constant 500 MHz. The test model does not heat up significantly: all points on our case were below 40 °C.
(+) The maximum temperature on the upper side is 34.3 °C / 94 F, compared to the average of 36.9 °C / 98 F, ranging from 21.1 to 71 °C for the class Multimedia.
(+) The bottom heats up to a maximum of 37.9 °C / 100 F, compared to the average of 39.1 °C / 102 F
(+) In idle usage, the average temperature for the upper side is 23.8 °C / 75 F, compared to the device average of 31.2 °C / 88 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 29.7 °C / 85.5 F and are therefore cool to the touch.
(±) The average temperature of the palmrest area of similar devices was 28.8 °C / 83.8 F (-0.9 °C / -1.7 F).
Energy Management
Power Consumption
The F751LB has typical power consumption levels. While idle, we measure a power consumption of max 12.2 W. During the stress test, the consumption can rise up to 55.1 W. However, the stress test scenario is unlikely to occur, even when playing games. As such, the user should expect about 41.3 W when gaming. A similar notebook, like the Acer Aspire E5-771G, has very close consumption levels.
Off / Standby | 0.1 / 0.2 Watt |
Idle | 3.9 / 11.6 / 12.2 Watt |
Load |
41.3 / 55.6 Watt |
Battery Life
In the practical WLAN test, our script loads a website every 40 seconds. The "Balanced" power profile is active and the brightness is set to about 150 cd/m². The F751LB achieves a runtime of 3:54 h, which is typical for a 17.3-inch notebook.
Pros
Cons
Verdict
Asus delivers a well-rounded 17.3-inch notebook, which has nothing special to offer, but it performs all its tasks well.
The CPU-GPU combo of our test model offers sufficient performance for everyday tasks and for playing most games. The laptop is relatively quiet and barely heats up. The 1 TB HDD offers plenty of space for data and the display is quite good. Asus has picked a matte panel which offers a nice brightness and contrast. One flaw of this notebook would be that the panel is a TN model that has relatively worse viewing angles than an IPS screen, which would have been feasible in this price range. We especially dislike the keyboard, as it is only good for home use. The laptop does not have a maintenance flap, so the entire case has to be removed if you wish to swap out the hard drive.
