Toshiba Satellite Radius 12 P20W-C-106 Notebook Review

Nino Ricchizzi (translated by Liala Stieglitz), 02/11/2016

Little jack-of-all-trades. Toshiba's new Satellite Radius 12 can be used as both a tablet and a laptop. High-performance hardware meets high-quality casing materials, and a 4K screen rounds off the bundle. However, we would have expected more in some aspects in view of the high price.

For the original German review, see here.

Flexibility, mobility and performance are Toshiba's basic concepts for its Satellite Radius 12. The manufacturer installs high-performance components into the slim and light convertible to achieve this lofty goal. Among them we find an Intel Core i7 processor from the latest Skylake generation, an 8 GB working memory and a highly responsive 256 GB SSD. The icing is, however, the high-resolution 4K screen. Buyers who want to call the new Satellite their own will have to dig deep into their pockets at a current price of 1600 Euros (~$1800 USD).

We recently tested Lenovo's ThinkPad Yoga 260 in the same form factor with good results. The Yoga is on par with our review sample in both configuration and price.

Toshiba Satellite Radius 12 P20W-C-106 (Satellite Radius 12 Series)
Graphics adapter
Memory
8192 MB
, LP-DDR3L RAM (1600 MHz)
Display
12.5 inch 16:9, 3840 x 2160 pixel 352 PPI, capacitive touchscreen, Sharp LQ125D1JW33, IPS, Corning Gorilla Glass NBT, glossy: yes
Mainboard
Intel Skylake-U Premium PCH
Storage
Samsung SSD PM871 MZNLN256HCHP, 256 GB
Soundcard
Intel Skylake-U/Y PCH - High Definition Audio
Connections
2 USB 3.0 / 3.1 Gen1, 1 USB 3.1 Gen2, 1 HDMI, Audio Connections: combo audio, Card Reader: SD, Brightness Sensor
Networking
Intel Dual Band Wireless-AC 7265 (a/b/g/h/n/ac), Bluetooth 4.0
Size
height x width x depth (in mm): 15.4 x 299.5 x 209 ( = 0.61 x 11.79 x 8.23 in)
Battery
42 Wh Lithium-Ion, 3 cells
Operating System
Microsoft Windows 10 Home 64 Bit
Camera
Webcam: HD webcam
Additional features
Speakers: stereo speakers, Keyboard: chiclet, Keyboard Light: yes, 24 Months Warranty
Weight
1.32 kg ( = 46.56 oz / 2.91 pounds) ( = 0 oz / 0 pounds)
Price
1600 Euro



Case & Connectivity

The slim height of just 1.5 cm (~0.6 in) strikes us at first glance. That alongside a low weight of 1.3 kg (~2.9 lb) makes the Satellite Radius 12 to the perfect companion. The choice of materials also makes a high-quality impression - at least at first. Toshiba uses brushed aluminum components that look elegant. Unfortunately, the display's back yields easily. The transitions to the plastic elements are also not impeccable; an inaccurate build is particularly seen in the display bezel. The 360-degree hinge operates quite smoothly though it rocks a bit.

No maintenance hatches are found on the underside. Toshiba, however, provides detailed service instructions on the corresponding support page. The Satellite Radius 12 was not listed at the time of our publication.

As with some Apple MacBooks, or other laptops with metal parts, the surface's conductivity can produce a contact voltage that causes a light prickling sensation.

We cannot list any special features in terms of interface diversity. The only highlight is the fast 10 Gbit USB 3.1 port. Regrettably, a Kensington lock for securing the device is not installed. The SD card reader accomplishes a sequential read speed of 86.5 MB/s in CrystalDiskMark, which is very fast. Slow card readers only achieve around 25 MB/s. We use a Toshiba Exceria Pro SDXC 64 GB UHS-II reference SD card for testing. We record a copy speed of 66.6 MB/s while copying JPG images (5 MB each).

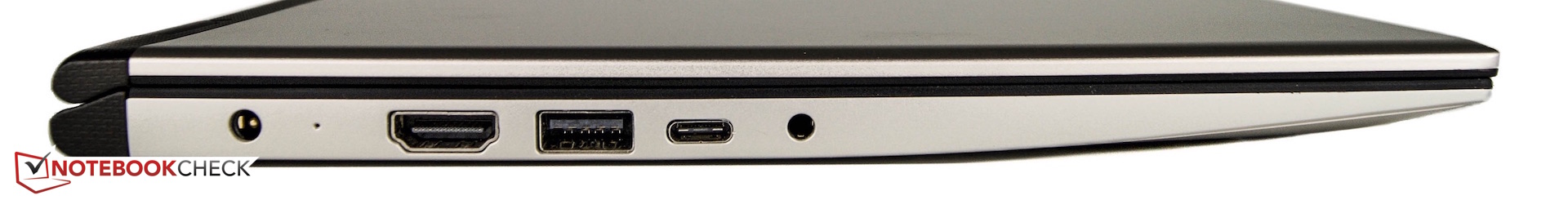

Left: Power socket, HDMI-out, 1 x USB 3.0, 1 x USB 3.1, combo audio
Left: Power socket, HDMI-out, 1 x USB 3.0, 1 x USB 3.1, combo audio

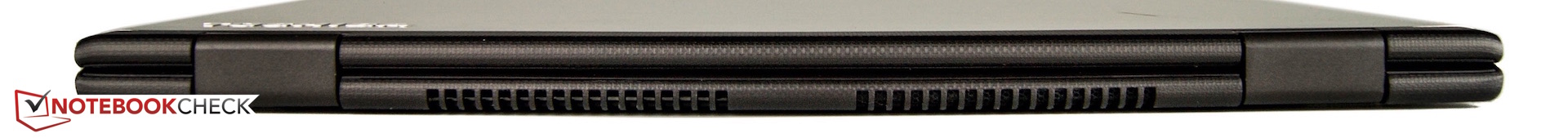

Rear
Rear

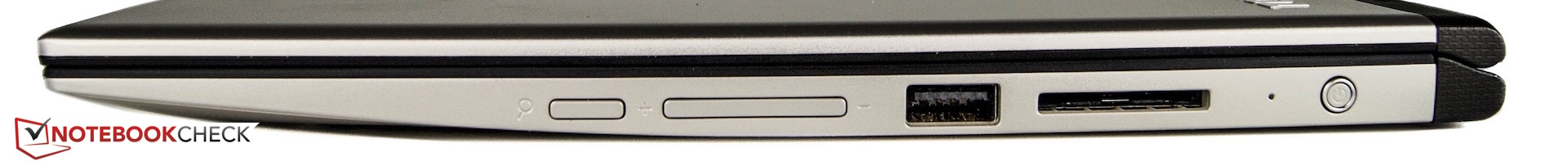

Right: 1 x USB 3.0, SD card reader
Right: 1 x USB 3.0, SD card reader

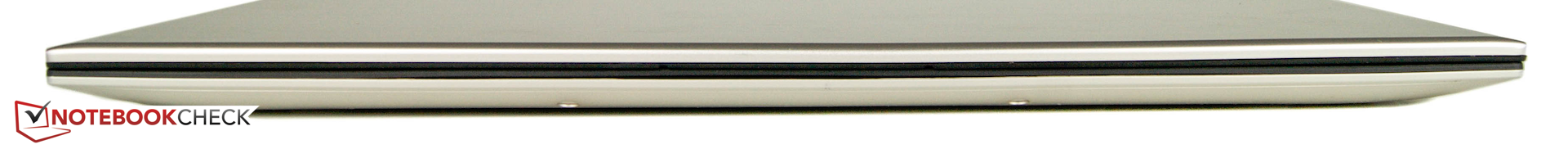

Front
Front

Input Devices

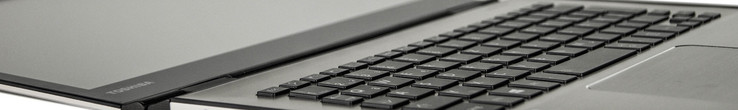

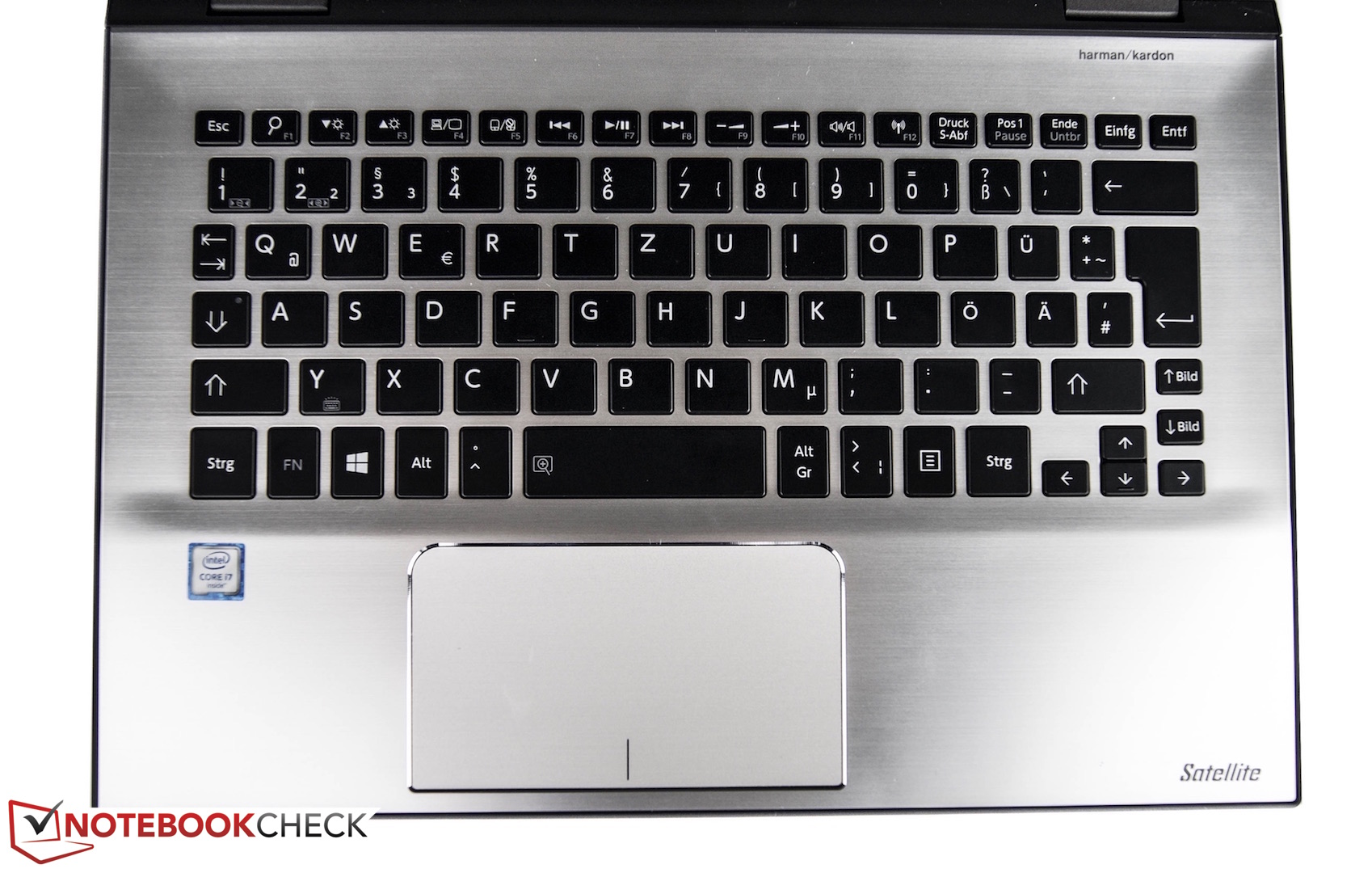

Input devices of Toshiba's new convertible
Input devices of Toshiba's new convertible

The installed keyboard makes a rather mixed impression. The surface structure is relatively sleek and some keys are too small. The arrow keys look especially tiny.

The backlight does not shine homogeneously, and some areas remain dark. The drop is also too short. On the other hand, all keys are fitted firmly, do not rock at the edges, and convey a crisp stroke feel. However, an external USB unit should be used for prolonged office work.

Contrary to that, the 10.5 x 5.9 cm (~4.1 x 2.3 in) touchpad is compelling. Inputs are identified very accurately and quickly. The input device even detects movements performed in the corners. The mouse keys are situated in the touch surface's lower area. The right click behavior differs from the left.

Display

Subpixel grid
Subpixel grid

Small yet awesome. The small 12.5-inch panel has a resolution of 3840x2160 pixels. Thus, our review sample clearly outshines Lenovo's Full HD comparison device. Besides its 4K resolution, the screen also scores with its very good average brightness of 350 cd/m². However, the brightness difference of 60 cd/m² between the center and lower right corner has to be criticized. The glossy surface is composed of Corning Gorilla Glass NBT, which makes the screen more resistant to outside influences.

The screen's other qualities are also pleasing. The contrast of 1213:1 and black level of 0.32 cd/m² lead to a relatively decent black tone.

A conventional Full HD panel is also available. The price point for the lower-priced version is approximately 1200 Euros (~$1357). However, some other cutbacks in the components also have to be accepted beside the screen.

354
cd/m²
355
cd/m²
345
cd/m²
356
cd/m²
388
cd/m²
348
cd/m²
337
cd/m²
347
cd/m²
329
cd/m²
Distribution of brightness
X-Rite i1Pro 2
Maximum: 388 cd/m² Average: 351 cd/m²
Brightness Distribution: 85 %
Center on Battery: 388 cd/m²
Contrast: 1213:1 (Black: 0.32 cd/m²)
ΔE Color 1.83 | 0.4-29.43 Ø6.3
ΔE Greyscale 2.17 | 0.64-98 Ø6.5
95% sRGB (Argyll 3D) 60% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.43
Toshiba Satellite Radius 12 P20W-C-106
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
Lenovo ThinkPad Yoga 260 20FD001XGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
HP Elitebook Revolve 810 G3
HD Graphics 5500, 5600U, Samsung SSD PM851 256 GB MZNTE256HMHP
Lenovo Yoga 3 Pro
HD Graphics 5300, 5Y70, Samsung SSD PM851 256 GB MZNTE256HMHP
Toshiba Portege Z20t-B-10C
HD Graphics 5300, 5Y71, Toshiba HG6 THNSNJ256GVNU
Response Times
19%
Response Time Grey 50% / Grey 80% *
68 (27, 41)
64 (30, 34)
6%
Response Time Black / White *
44 (13, 31)
30 (5, 25, Nano Seconds ns)
32%
PWM Frequency
Screen
-84%
-44%
-55%
-110%
Brightness middle
388
371
-4%
322
-17%
287
-26%
342
-12%
Brightness
351
335
-5%
312
-11%
280
-20%
301
-14%
Brightness Distribution
85
84
-1%
87
2%
88
4%
76
-11%
Black Level *
0.32
0.29
9%
0.32
-0%
0.792
-148%
0.393
-23%
Contrast
1213
1279
5%
1006
-17%
362
-70%
870
-28%
Colorchecker DeltaE2000 *
1.83
8.51
-365%
5.19
-184%
3.08
-68%
9.69
-430%
Greyscale DeltaE2000 *
2.17
9.23
-325%
4.36
-101%
3.36
-55%
9.27
-327%
Gamma
2.43 99%
2.24 107%
2.26 106%
2.5 96%
2.95 81%
CCT
6703 97%
6759 96%
5985 109%
6087 107%
6010 108%
Color Space (Percent of AdobeRGB 1998)
60
41
-32%
44.3
-26%
40.4
-33%
Color Space (Percent of sRGB)
95
62
-35%
Colorchecker DeltaE2000 max. *
20.43
Total Average (Program / Settings)
-33% / -65%
-44% / -44%
-55% / -55%
-110% / -110%

* ... smaller is better

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

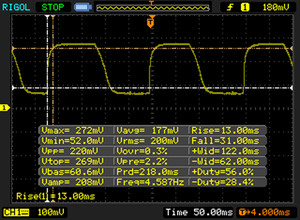

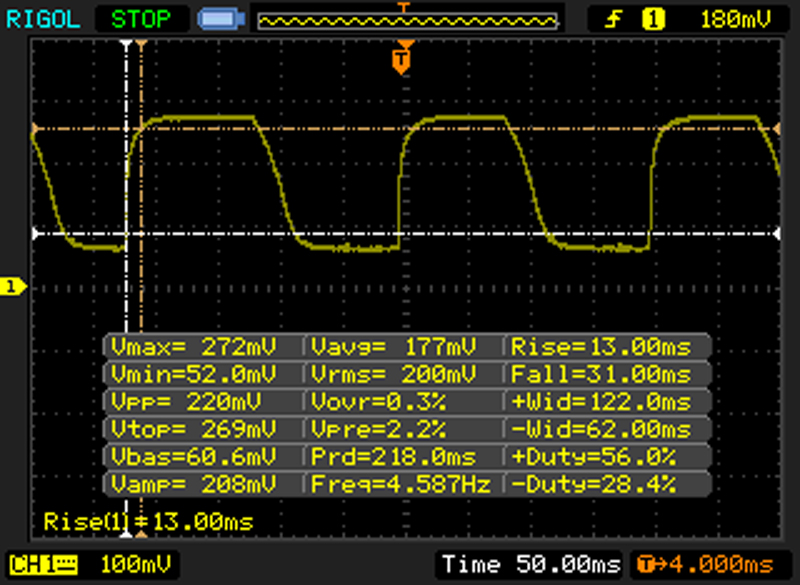

       Response Time Black to White
44 ms ... rise ↗ and fall ↘ combined↗ 13 ms rise
↘ 31 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 97 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (25.8 ms).

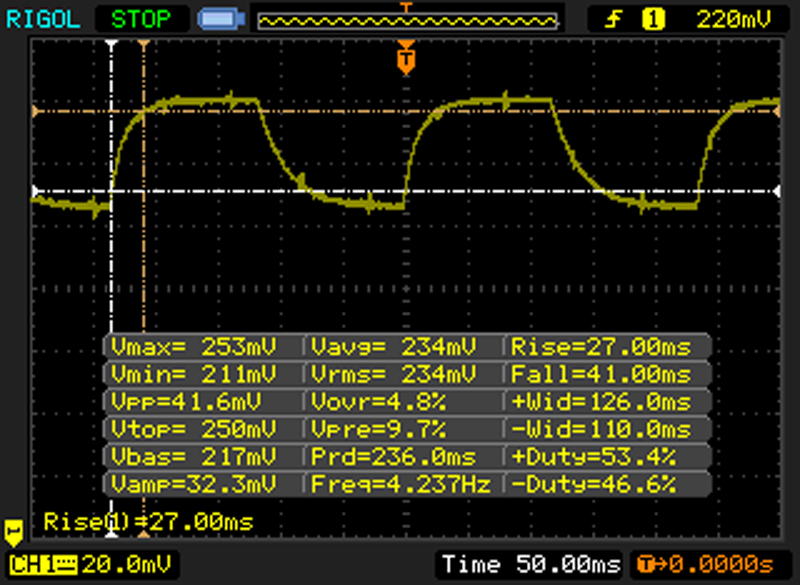

       Response Time 50% Grey to 80% Grey
68 ms ... rise ↗ and fall ↘ combined↗ 27 ms rise
↘ 41 ms fall
The screen shows slow response rates in our tests and will be unsatisfactory for gamers.
In comparison, all tested devices range from 0.9 (minimum) to 636 (maximum) ms. » 97 % of all devices are better.
This means that the measured response time is worse than the average of all tested devices (41.3 ms).

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM not detected

In comparison: 53 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 8813 (minimum: 43 - maximum: 142900) Hz was measured.

In the next step, we take a look at the CalMAN analysis. Subjectively, a bluish tint is not noticeable.

The DeltaE shift in the grayscale levels is 2.17. The colors look even better with 1.83. Both outcomes are extremely positive.

The sRGB color space is covered almost completely with 95%. The AdobeRGB coverage is 60%.

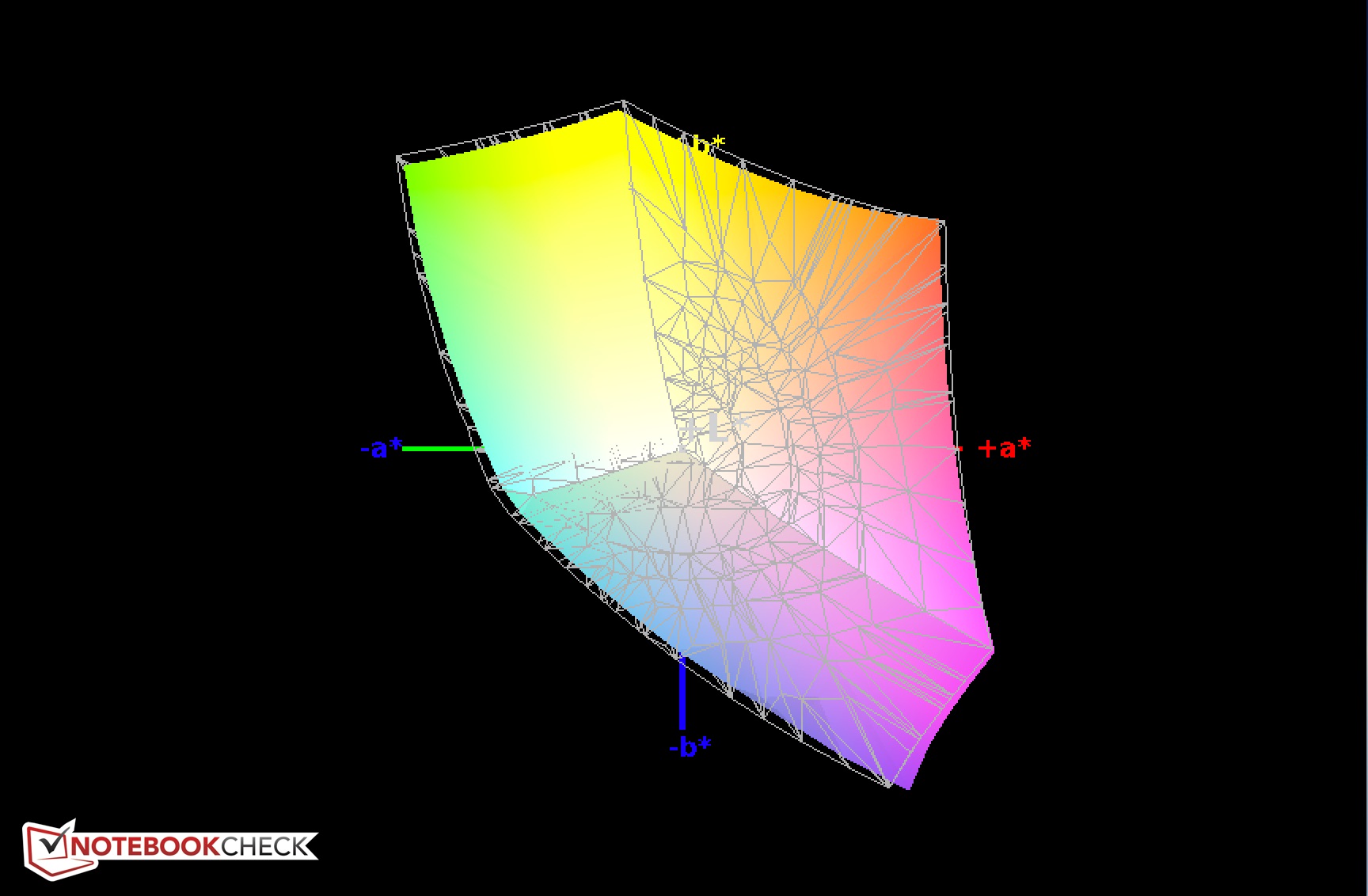

sRGB color space coverage
sRGB color space coverage

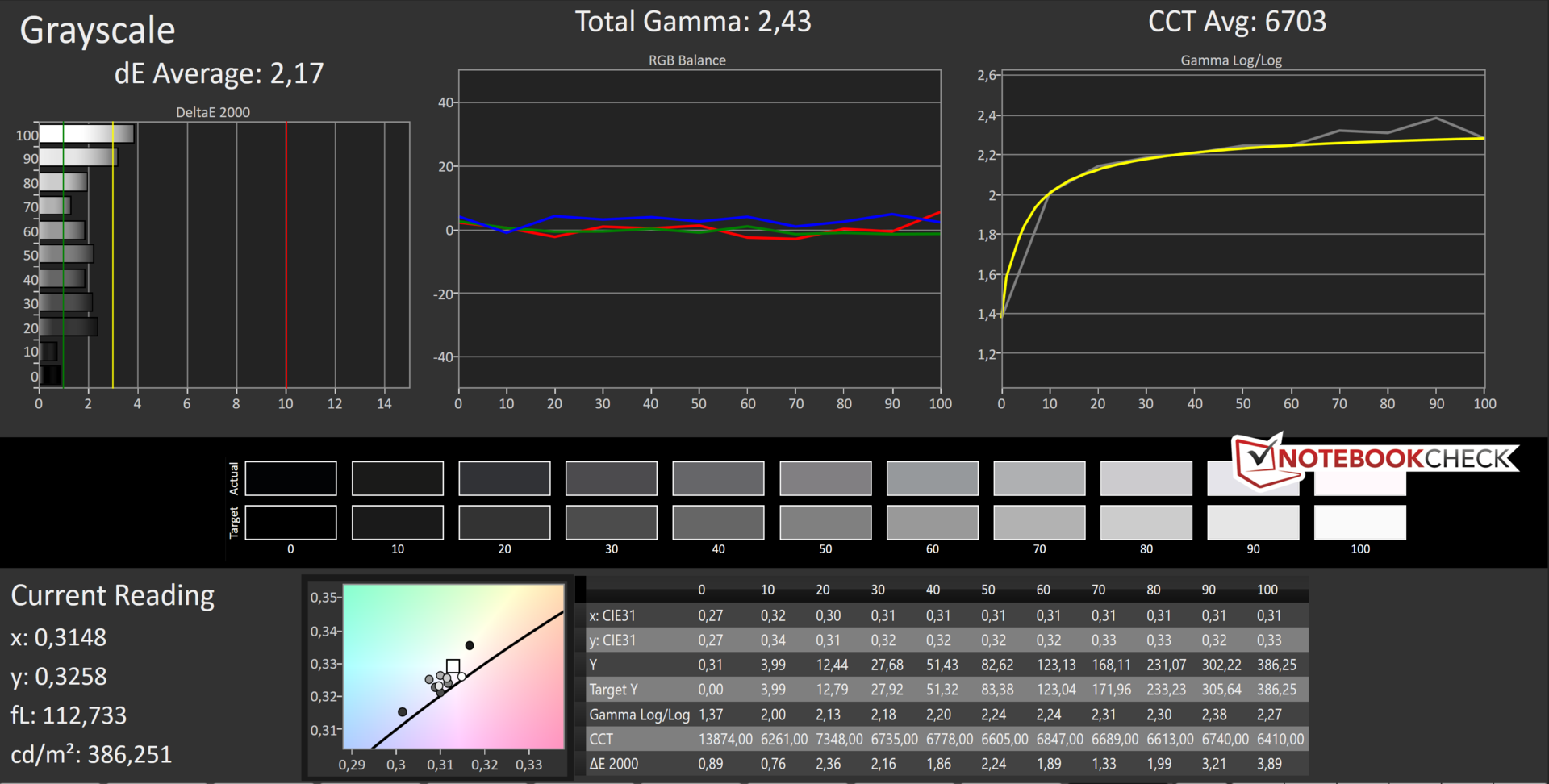

CalMAN Grayscale
CalMAN Grayscale

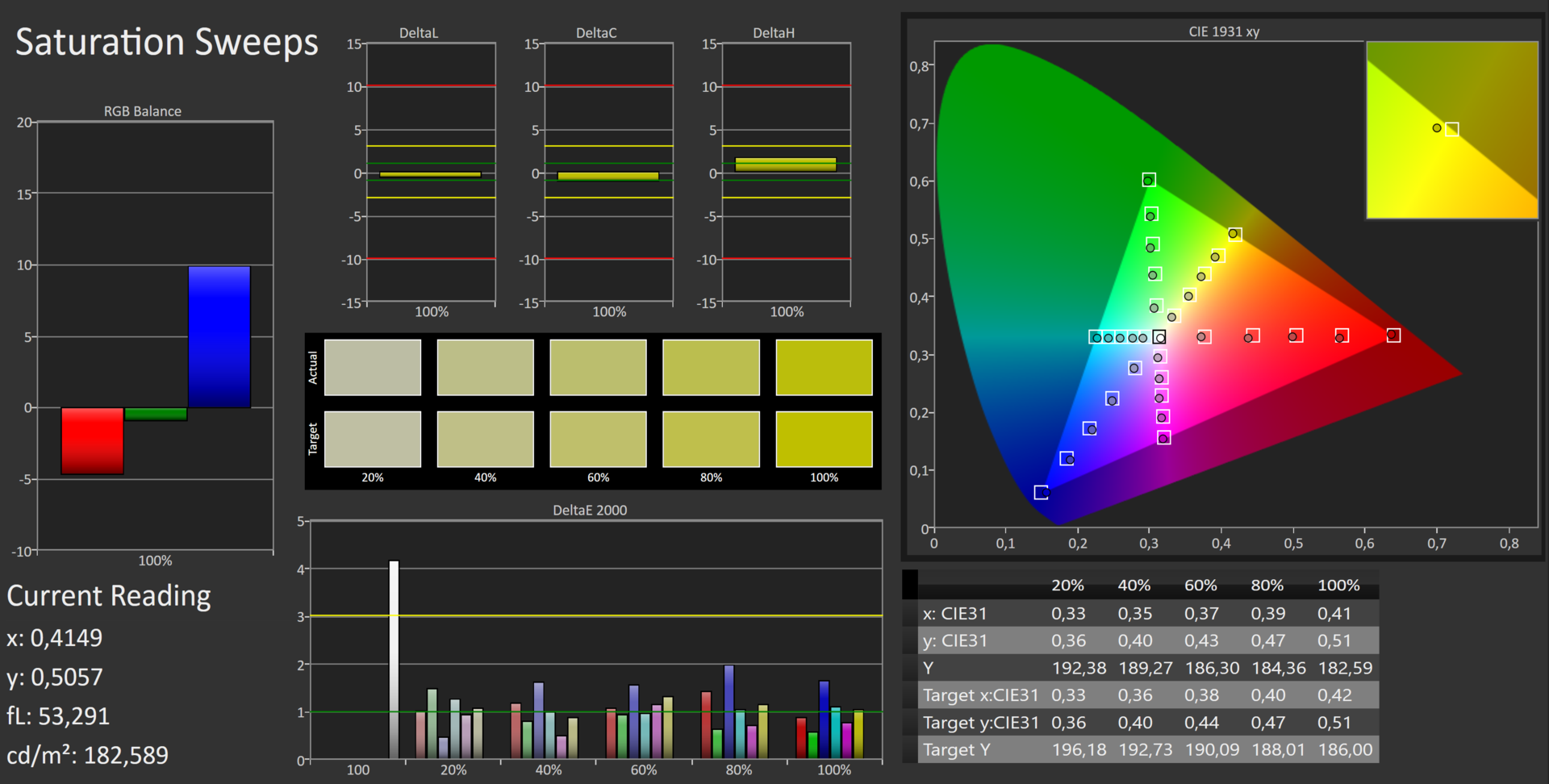

CalMAN Saturation Sweeps
CalMAN Saturation Sweeps

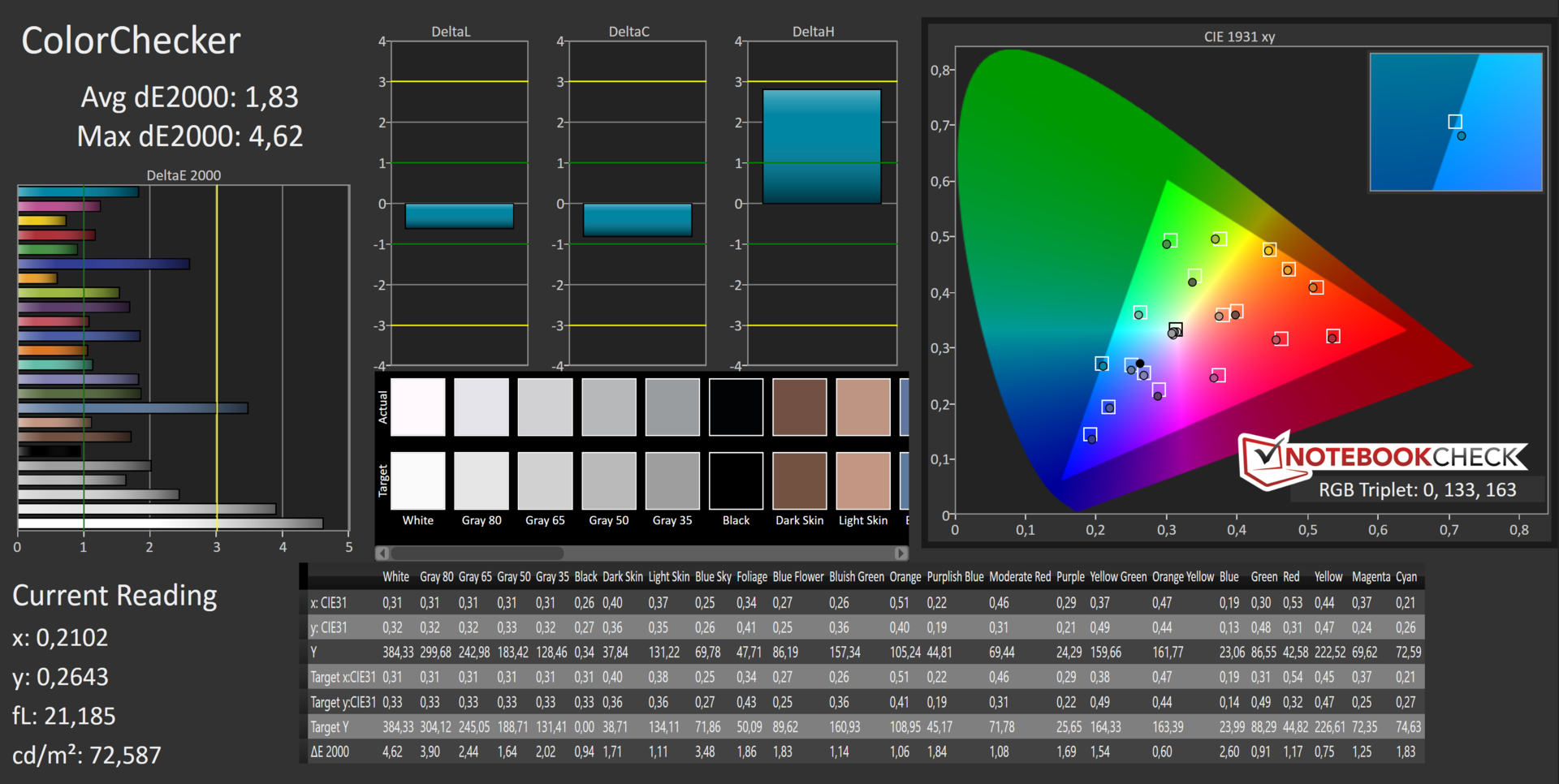

CalMAN ColorChecker
CalMAN ColorChecker

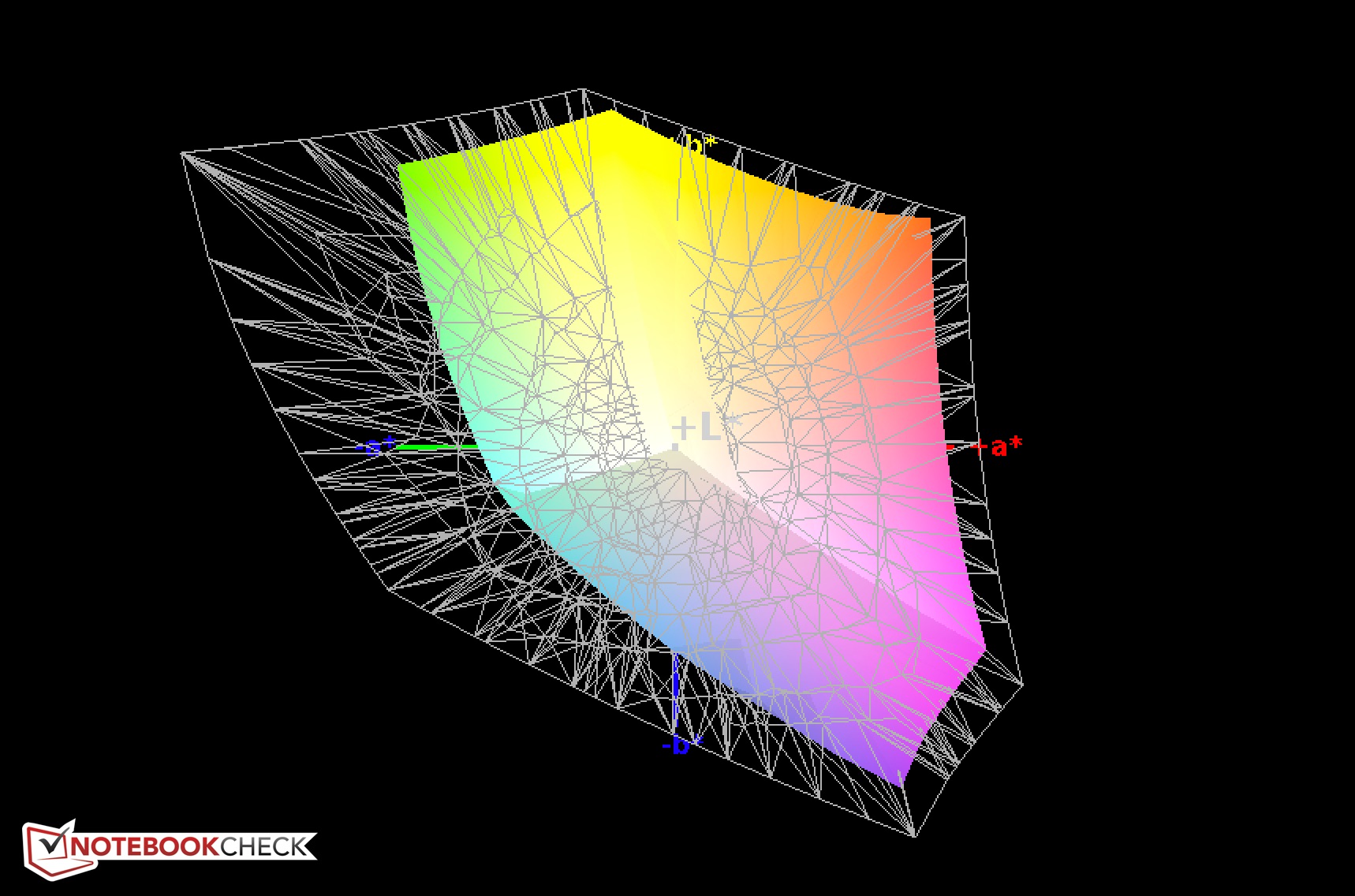

CalMAN AdobeRGB
CalMAN AdobeRGB

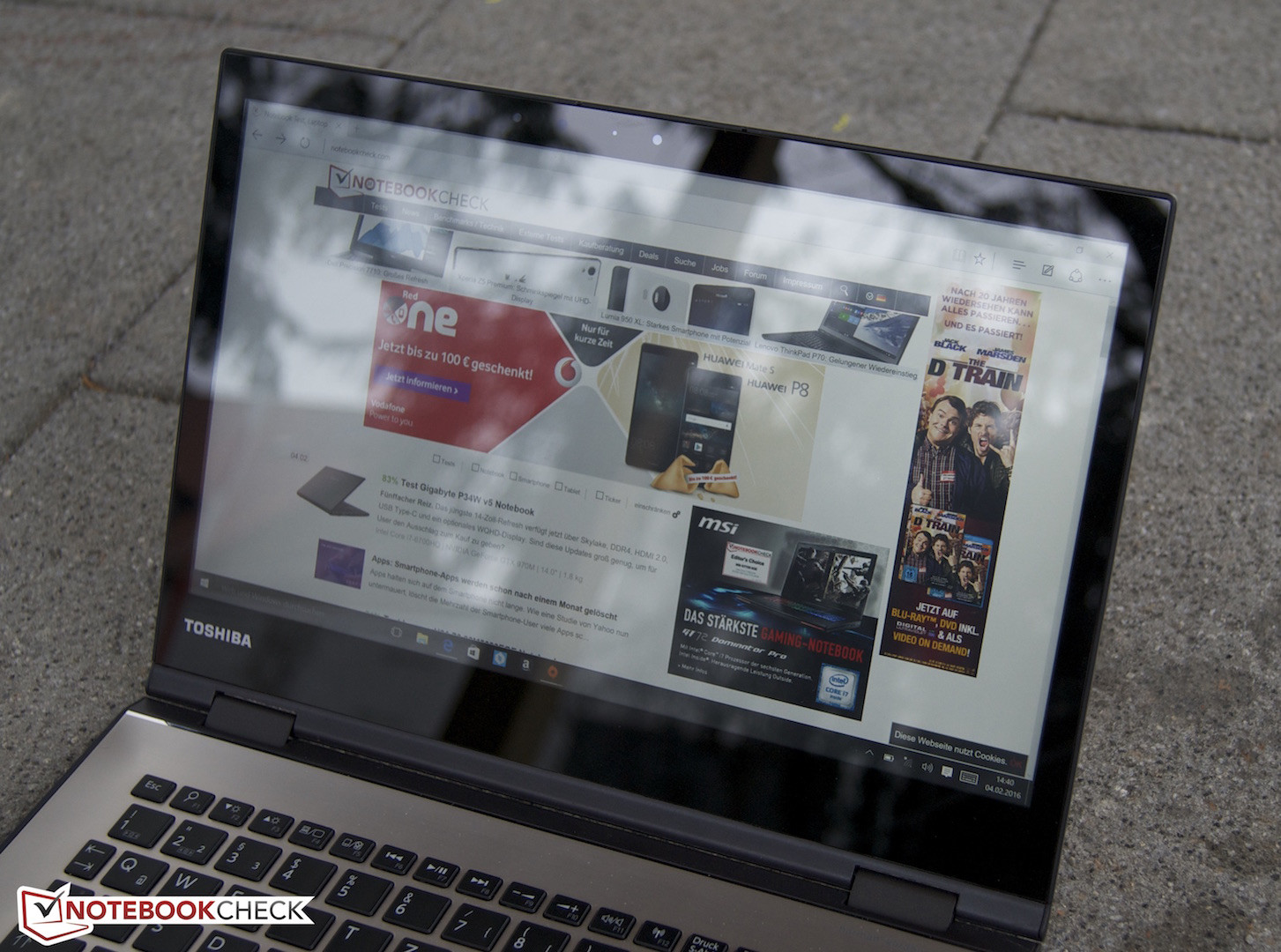

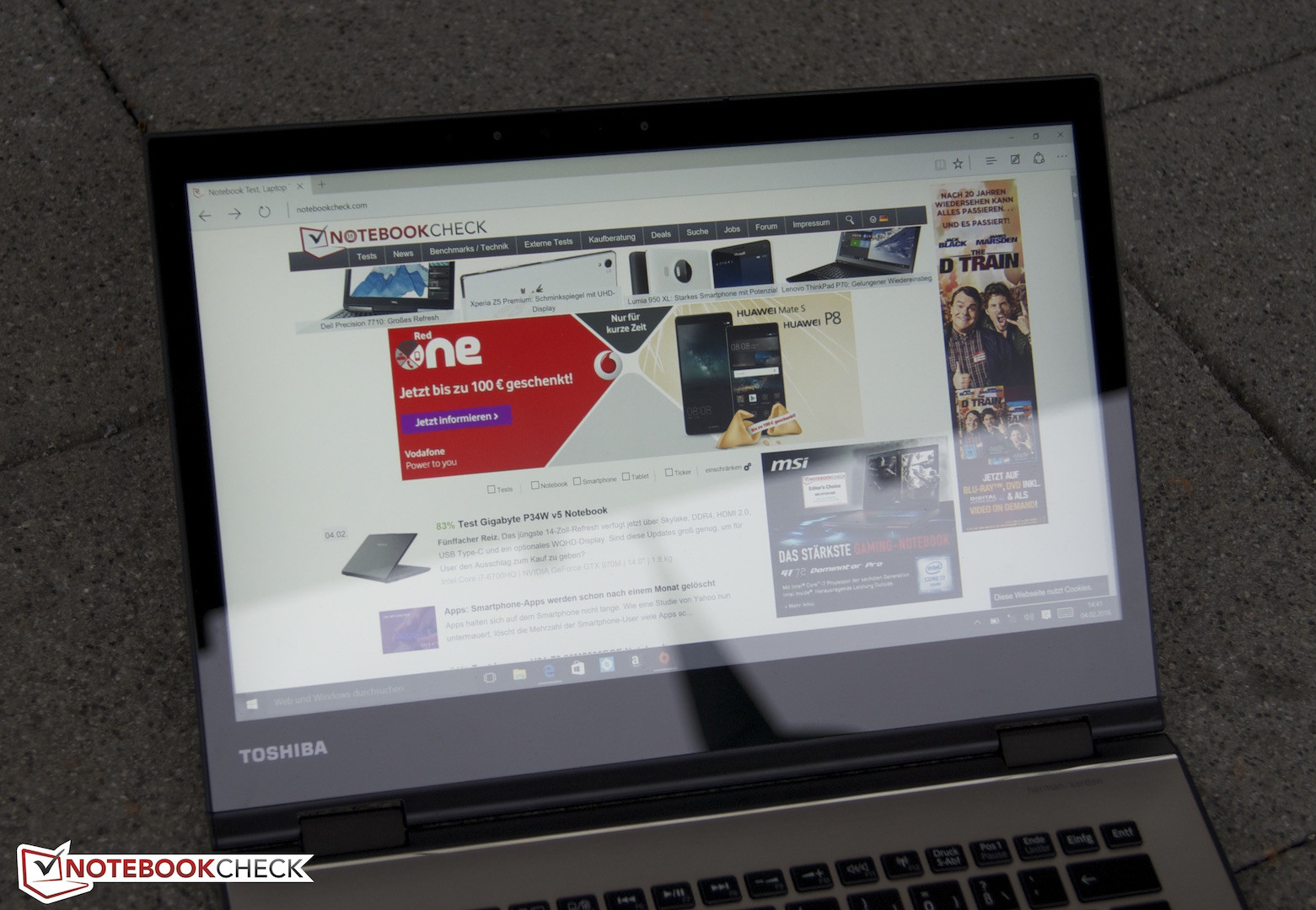

Toshiba's Satellite 12 can ...
Toshiba's Satellite 12 can ...
... prove itself outdoors.
... prove itself outdoors.

Performance

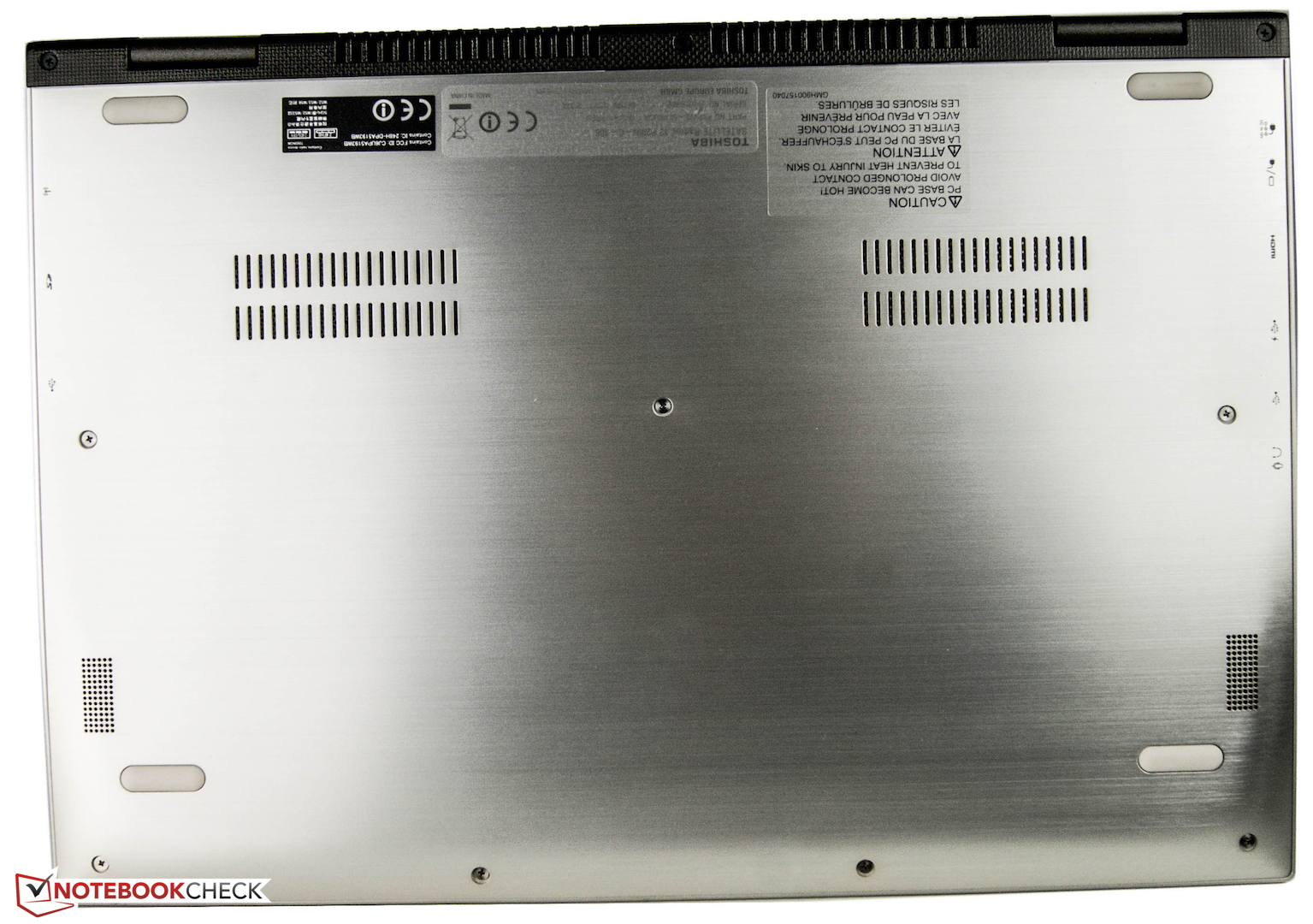

No maintenance hatches
No maintenance hatches

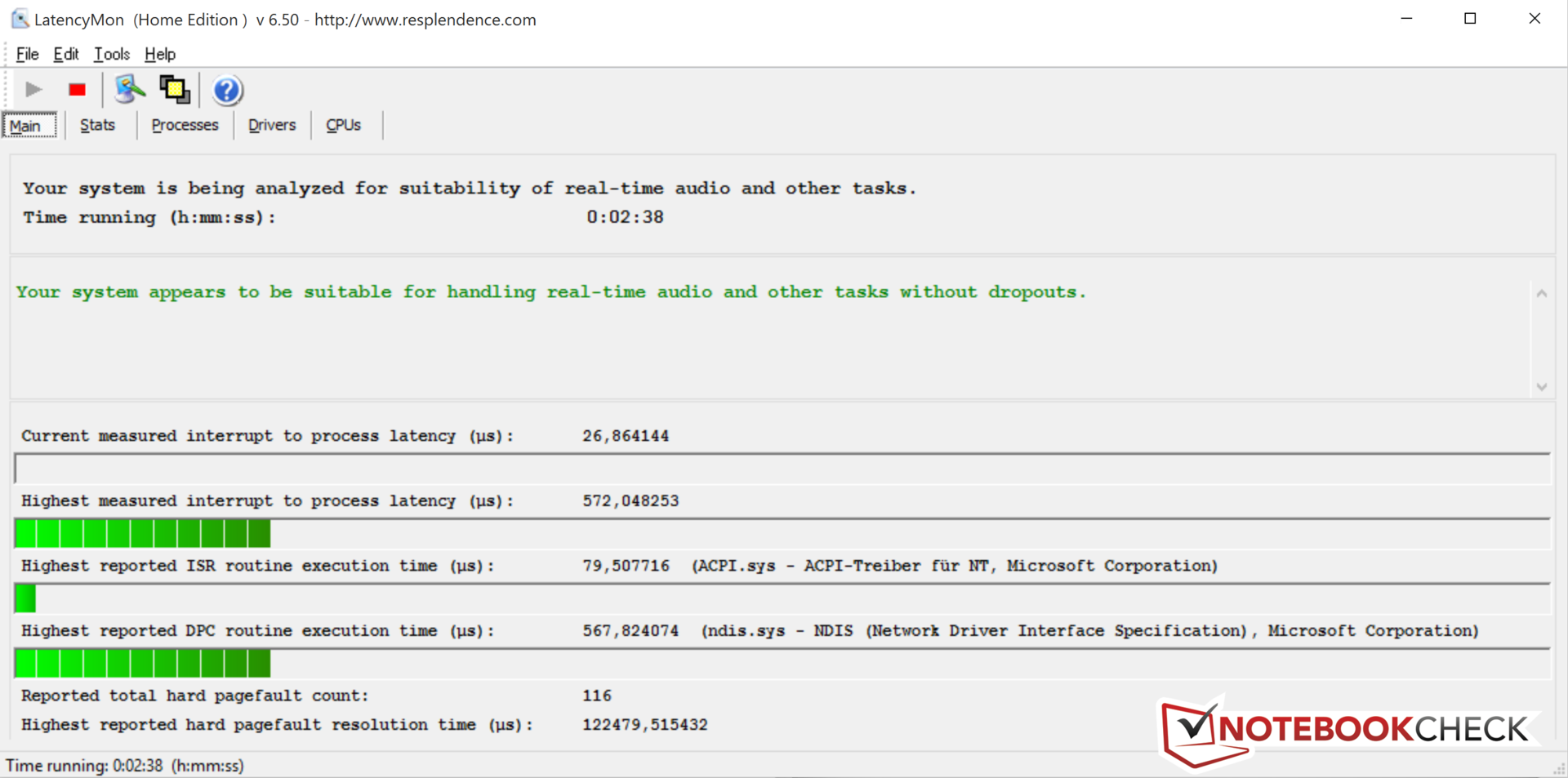

LatencyMon
LatencyMon

Convertibles aim to bridge the gap between laptop and tablet. Consequently, they not only have to provide enough power for routine multimedia use, but also respond as quickly as a tablet. Toshiba therefore installs a fast 256 GB SSD, 8 GB of working memory (dual-channel) and a quick Intel Core i7 CPU. Buyers not prepared to invest quite as much money and are not dependent on the full performance can risk taking a look at the 300 Euro (~$339) cheaper version. The alternative model is powered by a somewhat weaker Intel Core i5-6200U, and it does not feature a 4K panel. According to a press release by Toshiba, a 512 GB SSD model is in the making; it is not yet listed in Toshiba's shop.

Processor

Intel's Core i7-6500U computing unit is installed. Both cores (four threads) clock at a base clock of 2500 MHz. They can reach a clock rate of up to 3 GHz via Boost. The "U" in the Skylake processor's name points to an energy-saving design. Intel states a TDP of 15 watts. We ascertain the CPU's performance in Cinebench R15. The CPU clocks stably at its base rate and achieves 317 points. That places the Satellite 12 exactly midfield of previously tested laptops with this processor. Lenovo's comparison device scores much worse with 264 points, but only in the multi-core tests. The Yoga 260 takes the lead in single-core thread performance. Our review sample also achieves the same score in battery mode. More comparisons and test outcomes can be found in our article: "Comparison of Mobile Processors".

Cinebench R15
CPU Single 64Bit (sort by value)
Toshiba Satellite Radius 12 P20W-C-106
125 Points ∼96%
Lenovo ThinkPad Yoga 260 20FD001XGE
128 Points ∼98% +2%
HP Elitebook Revolve 810 G3
130 Points ∼100% +4%
Dell XPS 13 2016 i7 256GB QHD
125 Points ∼96% 0%
CPU Multi 64Bit (sort by value)
Toshiba Satellite Radius 12 P20W-C-106
317 Points ∼100%
Lenovo ThinkPad Yoga 260 20FD001XGE
264 Points ∼83% -17%
HP Elitebook Revolve 810 G3
289 Points ∼91% -9%
Dell XPS 13 2016 i7 256GB QHD
303 Points ∼96% -4%
Cinebench R11.5
CPU Single 64Bit (sort by value)
Toshiba Satellite Radius 12 P20W-C-106
1.34 Points ∼89%
Lenovo ThinkPad Yoga 260 20FD001XGE
1.46 Points ∼97% +9%
HP Elitebook Revolve 810 G3
1.51 Points ∼100% +13%
Dell XPS 13 2016 i7 256GB QHD
1.46 Points ∼97% +9%
CPU Multi 64Bit (sort by value)
Toshiba Satellite Radius 12 P20W-C-106
3.54 Points ∼100%
Lenovo ThinkPad Yoga 260 20FD001XGE
2.94 Points ∼83% -17%
HP Elitebook Revolve 810 G3
3.16 Points ∼89% -11%
Dell XPS 13 2016 i7 256GB QHD
3.52 Points ∼99% -1%

Legend


Toshiba Satellite Radius 12 P20W-C-106 Intel Core i7-6500U, Intel HD Graphics 520, Samsung SSD PM871 MZNLN256HCHP

Lenovo ThinkPad Yoga 260 20FD001XGE Intel Core i7-6500U, Intel HD Graphics 520, Samsung SSD PM871 MZNLN256HCHP

HP Elitebook Revolve 810 G3 Intel Core i7-5600U, Intel HD Graphics 5500, Samsung SSD PM851 256 GB MZNTE256HMHP

Dell XPS 13 2016 i7 256GB QHD Intel Core i7-6500U, Intel HD Graphics 520, Samsung PM951 NVMe MZ-VLV256D
Cinebench R10 Shading 32Bit
8203
Cinebench R10 Rendering Multiple CPUs 32Bit
8842
Cinebench R10 Rendering Single 32Bit
4835
Cinebench R11.5 OpenGL 64Bit
30.69 fps
Cinebench R11.5 CPU Multi 64Bit
3.54 Points
Cinebench R11.5 CPU Single 64Bit
1.34 Points
Cinebench R15 Ref. Match 64Bit
97.9 %
Cinebench R15 OpenGL 64Bit
36.87 fps
Cinebench R15 CPU Multi 64Bit
317 Points
Cinebench R15 CPU Single 64Bit
125 Points
Help

Quality journalism is made possible by advertising. We show the least amount of ads whenever possible. We intentionally show more ads when an adblocker is used. Please, switch off ad blockers.

System Performance

The combination of a fast CPU, highly responsive storage device and DDR3 working memory are well harmonized in Toshiba's new convertible. The 12.5-inch device never really stutters in routine use. PCMark 7 also rewards that with 5204 points.

PCMark 7 - Score (sort by value)
Toshiba Satellite Radius 12 P20W-C-106
5204 Points ∼98%
Lenovo ThinkPad Yoga 260 20FD001XGE
5043 Points ∼95% -3%
HP Elitebook Revolve 810 G3
5322 Points ∼100% +2%
Toshiba Portege Z20t-B-10C
4421 Points ∼83% -15%

Legend


Toshiba Satellite Radius 12 P20W-C-106 Intel Core i7-6500U, Intel HD Graphics 520, Samsung SSD PM871 MZNLN256HCHP

Lenovo ThinkPad Yoga 260 20FD001XGE Intel Core i7-6500U, Intel HD Graphics 520, Samsung SSD PM871 MZNLN256HCHP

HP Elitebook Revolve 810 G3 Intel Core i7-5600U, Intel HD Graphics 5500, Samsung SSD PM851 256 GB MZNTE256HMHP

Toshiba Portege Z20t-B-10C Intel Core M-5Y71, Intel HD Graphics 5300, Toshiba HG6 THNSNJ256GVNU
PCMark 7 Score
5204 points
Help

Storage Device

Collected data is stored on a fast 256 GB SSD. The storage device with the model name MZNLN256HVHP comes from Samsung. The CrystalDiskMark scores are on a normal level for SSDs.

Samsung SSD PM871 MZNLN256HCHP
Sequential Read: 492.6 MB/s
Sequential Write: 306.5 MB/s
512K Read: 408.9 MB/s
512K Write: 307.1 MB/s
4K Read: 33.48 MB/s
4K Write: 89.71 MB/s
4K QD32 Read: 323.9 MB/s
4K QD32 Write: 249 MB/s

Graphics Card

Intel's HD Graphics 520 is responsible for reproducing graphics. The processor-integrated graphics card clocks at a core rate ranging from 300 - 1050 MHz. The video recorder for H.265 / HEVC videos and the possibility of connecting up to three monitors at the same time are its most important features. The integrated graphics card's performance is even enough for some newer games when the quality setting is reduced to minimum. Toshiba's Satellite 12 earns 1573 points in 3DMark 11, which is 200 points more than the ThinkPad Yoga 260.

The same graphics power can be retrieved in mobile battery mode, according to 3DMark 11.

3DMark 11 - 1280x720 Performance (sort by value)
Toshiba Satellite Radius 12 P20W-C-106
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
1573 Points ∼100%
Lenovo ThinkPad Yoga 260 20FD001XGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
1333 Points ∼85% -15%
Dell XPS 13 2016 i7 256GB QHD
HD Graphics 520, 6500U, Samsung PM951 NVMe MZ-VLV256D
1556 Points ∼99% -1%
Acer Aspire R14 R3-471TG-552E
GeForce 820M, 4210U, WDC Slim WD10SPCX-21KHST0
1396 Points ∼89% -11%
3DMark 11 Performance
1573 points
3DMark Ice Storm Standard Score
49579 points
3DMark Cloud Gate Standard Score
5589 points
3DMark Fire Strike Score
785 points
Help

Gaming Performance

As briefly mentioned, newer games from the past few years can achieve smooth frame rates only using minimum settings. Last year's "Battlefield Hardline" still runs smoothly even in medium quality settings. More comparisons can be found in our article: Computer Games on Laptop Graphic Cards.

low med. high ultra
Battlefield Hardline (2015) 50.133.410.35.4fps

Emissions & Energy Management

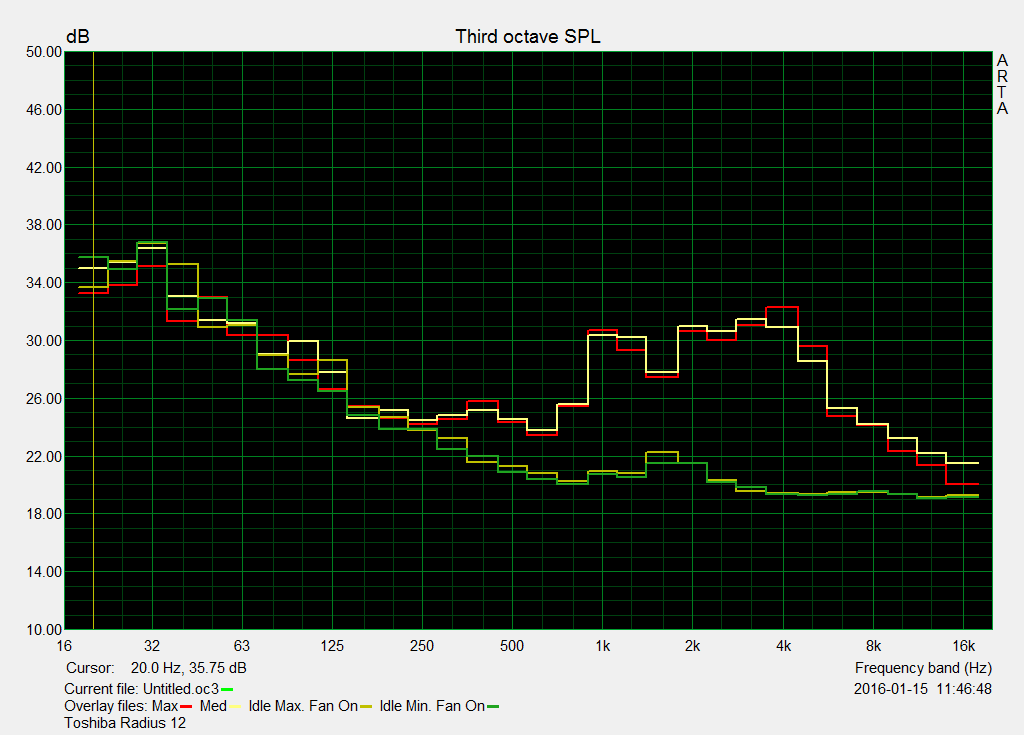

Noise 15 cm in front of device idle, load
Noise 15 cm in front of device idle, load

System Noise

The review sample is not noticeable in idle mode. The Satellite 12 even remains quiet during normal browsing and multimedia use. It becomes quite audible with 41 dB(A) under load, but that is not very distracting. Lenovo's ThinkPad Yoga 260 scores slightly better here with a maximum of 36.6 dB(A). Noiseless: Lenovo's Yoga 3 Pro convertible fuses a fan-less design with an Intel Core M.

Noise Level

Idle
32.5 / 32.6 / 32.6 dB(A)
Load
41 / 41 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Audix TM1 Arta (15 cm distance)   environment noise: 31.3 dB(A)

Temperature

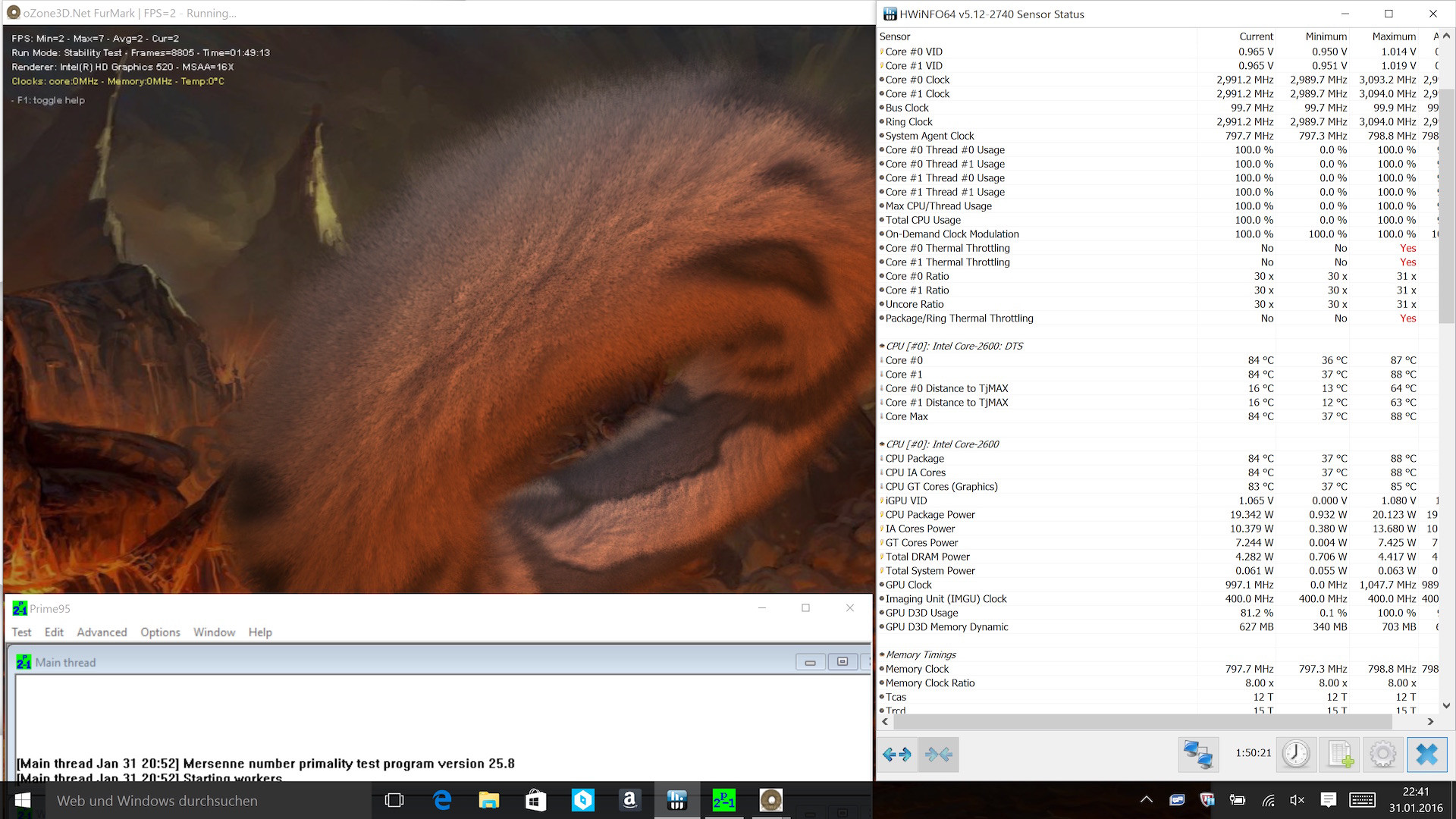

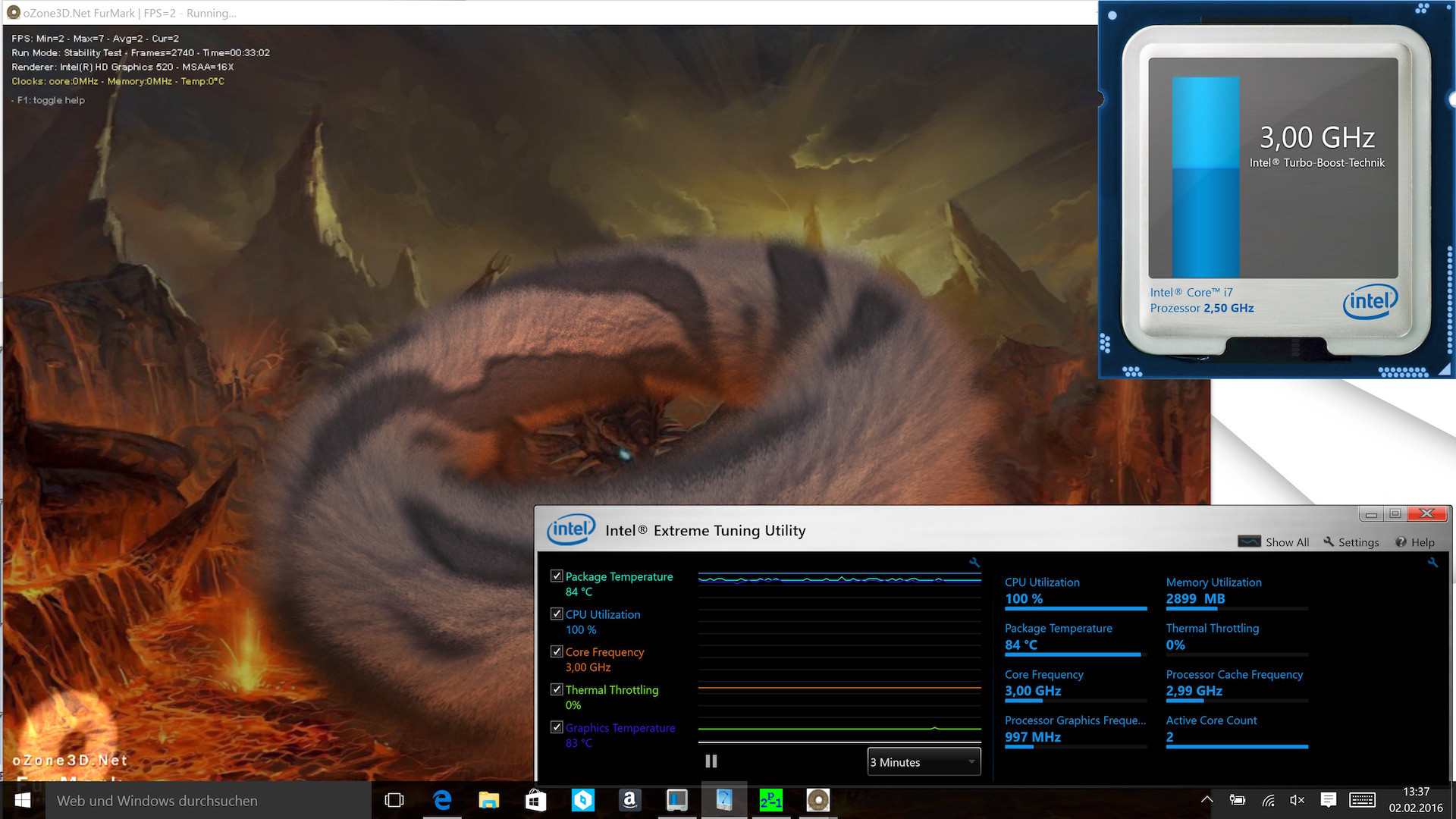

Stress test
Stress test

We first notice a clear increase in surface temperatures in load conditions. The metal area under the keyboard reaches up to 46.5 °C (115.7 °F). This state is not suitable for tablet mode, but it will not occur in routine use and only develop during performance-driven games in single areas.

The processor clocks almost stably at 3 GHz inside. It needs over half an hour until thermal throttling sets in, according to HWInfo and Intel Extreme Tuning Utility.

The fan quickly slows down to a pleasantly quiet noise level after stopping the stress situation. According to 3DMark 11, the full performance can then be retrieved again.

The power supply's temperature should be mentioned. We measure temperatures of up to 56 °C (132.8 °F) during load, and thus it should not be covered by blankets or pillows.

Max. Load
 44.1 °C
111 F
46.5 °C
116 F
34.9 °C
95 F

 39.3 °C
103 F
41.8 °C
107 F
28.2 °C
83 F

 31.4 °C
89 F
28.4 °C
83 F
27.1 °C
81 F

Maximum: 46.5 °C = 116 F
Average: 35.7 °C = 96 F
33.3 °C
92 F
43 °C
109 F
42.5 °C
109 F
29 °C
84 F
36.6 °C
98 F
36.8 °C
98 F
28.1 °C
83 F
31.1 °C
88 F
32.7 °C
91 F
Maximum: 43 °C = 109 F
Average: 34.8 °C = 95 F
Power Supply (max.)  56 °C = 133 F | Room Temperature 22.9 °C = 73 F | FIRT 550-Pocket

Speakers

Pink noise characteristics
Pink noise characteristics

The installed Harman/Kardon system produces a solid soundscape. Plenty of high mids ensure clear voice transmission. However, it lacks richness and full basses. The volume is high enough for the little convertible.

Power Consumption

The review sample already demands up to 13.7 watts while idling, which is much more than the ThinkPad Yoga 260 (3.6 W - 7.6 W). As much as 39 watts are drained from the 45-watt power supply during load.

Power Consumption
Off / Standbydarklight 0.3 / 0.4 Watt
Idledarkmidlight 8.8 / 12.8 / 13.7 Watt
Load midlight 38 / 39 Watt
 color bar
Key: min: dark, med: mid, max: light        Metrahit Energy

Battery Runtime

Toshiba treats its new convertible to a 41.4 Wh battery. We measure the battery runtime while browsing to simulate a real world scenario. The brightness is dimmed to approximately 150 cd/m². The little convertible goes idle after just 4 hours. Lenovo's ThinkPad Yoga 260 opponent lasts much longer with 5 hours and 46 minutes.

Battery Runtime - WiFi Websurfing 1.3 (sort by value)
Toshiba Satellite Radius 12 P20W-C-106
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
241 min ∼32%
Lenovo ThinkPad Yoga 260 20FD001XGE
HD Graphics 520, 6500U, Samsung SSD PM871 MZNLN256HCHP
346 min ∼46% +44%
Toshiba Portege Z20t-B-10C
HD Graphics 5300, 5Y71, Toshiba HG6 THNSNJ256GVNU
760 min ∼100% +215%
Battery Runtime
NBC WiFi Websurfing Battery Test 1.3
4h 01min

Pros

+ design and choice of materials
+ low height
+ performance readiness
+ screen

Cons

- no security features
- manufacturing flaws
- keyboard surface

Verdict

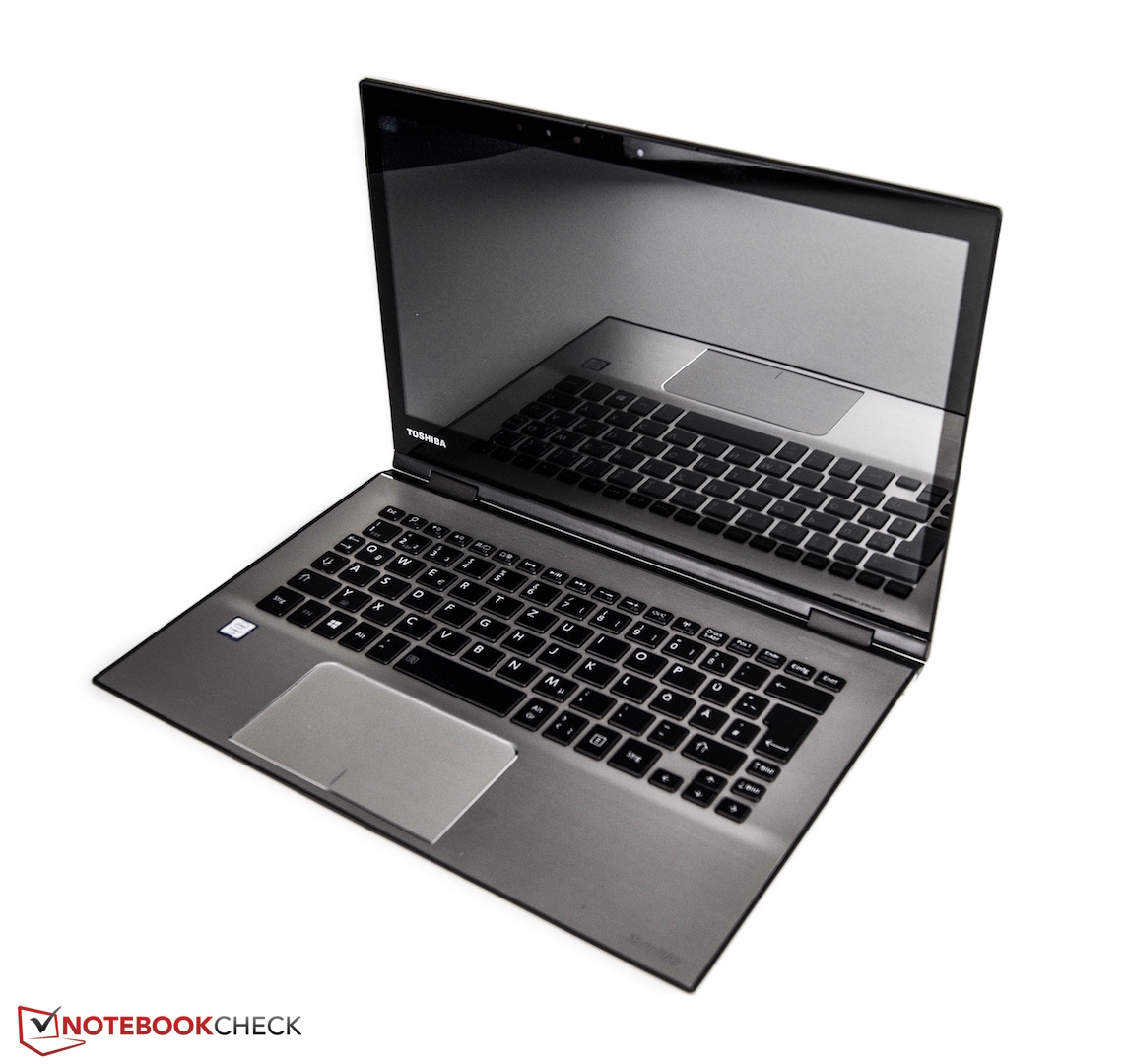

Toshiba Satellite 12, courtesy of Toshiba Germany
Toshiba Satellite 12, courtesy of Toshiba Germany

We had the pleasure of testing a stylish and strong convertible made by Toshiba. In addition to many good qualities, we oftentimes also find minor drawbacks. The casing is slim, light and elegant. Unfortunately, some carelessness is found in the build. We could name the high resolution and bright screen an eye-catcher - the total package is well balanced here. The Satellite 12's performance is also pleasing overall. However, we discovered some shortcomings in the emissions. The review sample could reach relatively high temperatures during load, and it is very power guzzling. The latter point leads to a middling battery life of four hours. There is some potential here.

Toshiba's Satellite 12 is a strong and stylish convertible in total. It, however, also demands a high price at 1600 Euros (~$1809).

Buyers looking for better battery life and would like to use a stylus for writing should consider Lenovo's ThinkPad Yoga 260.

Toshiba Satellite Radius 12 P20W-C-106 - 04/18/2016 v5.1
Nino Ricchizzi

Chassis
84 / 98 → 85%
Keyboard
77%
Pointing Device
92%
Connectivity
48 / 80 → 60%
Weight
71 / 35-78 → 84%
Battery
75%
Display
89%
Games Performance
58 / 68 → 86%
Application Performance
85 / 87 → 97%
Temperature
90%
Noise
84%
Audio
50 / 91 → 55%
Camera
55 / 85 → 65%
Average
74%
82%
Convertible - Weighted Average

Pricecompare

Read all 3 comments / answer
static version load dynamic
Loading Comments
Comment this article
Please share our article, every link counts!
> Notebook / Laptop Reviews and News > Reviews > Toshiba Satellite Radius 12 P20W-C-106 Notebook Review
Nino Ricchizzi, 2016-02-11 (Update: 2018-05-15)
