Sony unveils HXR-NX800 and PXW-Z200 professional camcorders with 4K 120fps, 24-480mm zoom, AI autofocus, live streaming, and auto-subject framing
Sony has unveiled the HXR-NX800 and PXW-Z200 professional camcorders with 4K 120fps, 24-480mm zoom, AI autofocus, live streaming, and auto-subject framing. The camcorders have similar features, with the PXW-Z200 adding 12G-SDI and timecode input and output for use primarily on television studio productions.
The camcorders use a one-inch Exmor RS CMOS sensor with an ISO range of 250 to 16000 and a resolution of 20.9 MP. The high sensor resolution enables the units to record oversampled 5K readout as high-quality 4K videos. The back-illuminated design captures more light than older sensor designs, allowing the camcorder to record dimly lit scenes down to 1.2 lux.
The HXR-NX800 and PXW-Z200 utilize an AI Processing Unit along with hundreds of contrast- and phase-detection AF points with 81% coverage of the image area to rapidly recognize humans and track them. With Auto Framing enabled, the cameras can automatically crop the image around a moving subject. Active Mode image stabilization minimizes camera shake even when the operator moves rapidly.
The 20x zoom lens has a focal length of 24-480 mm and a variable aperture of f/2.8 to f/4.5. The lens has a minimum focus distance of 10 mm and takes 72 mm filters. Internal ND filters can be adjusted from 1/4 ND to 1/128 ND on bright days to reduce the amount of incoming light. Videographers can monitor shoots on the 3.5-inch OLED monitor or 0.39-inch OLED viewfinder. They can also remotely monitor and control the cameras with an app for Android or Apple smartphones and tablets.

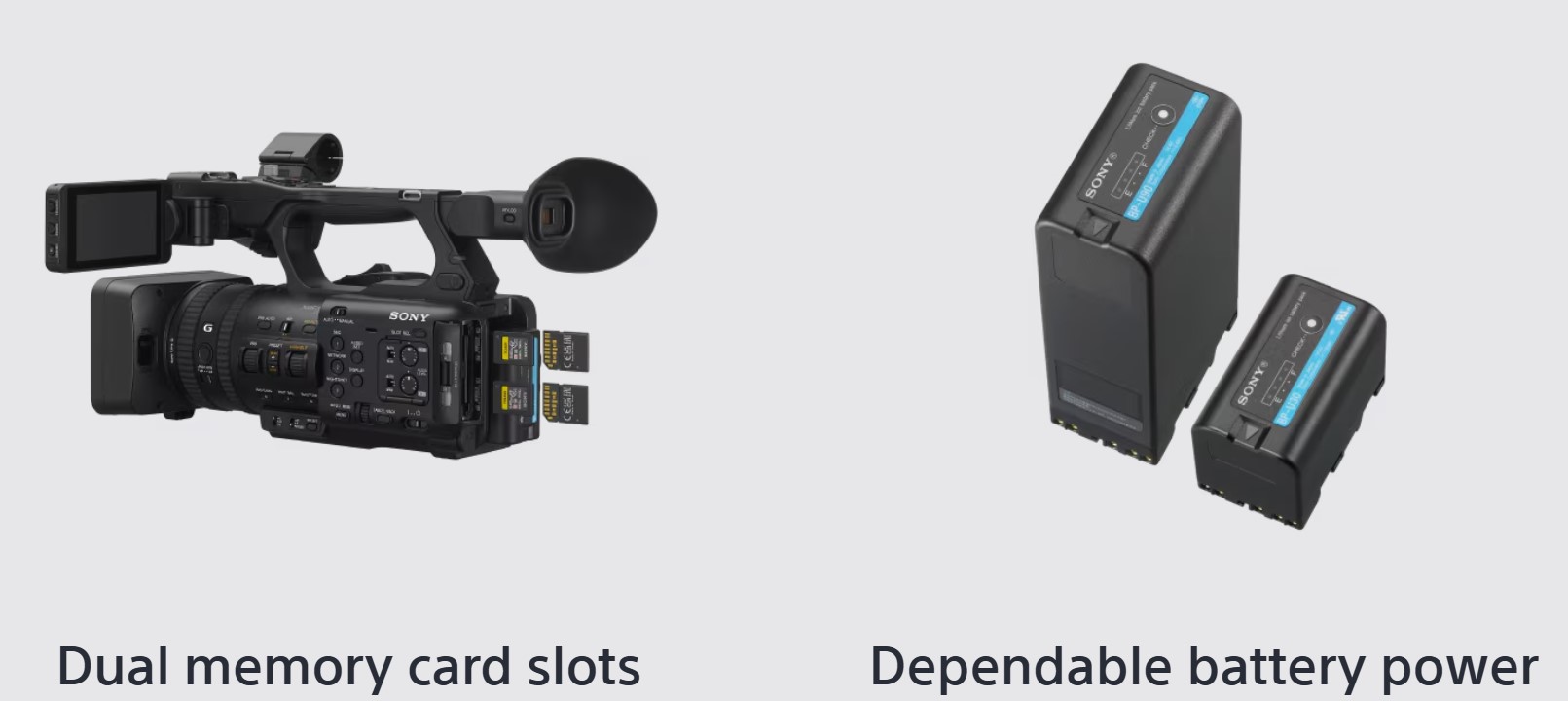

The camcorders can record continuously for up to 13 hours non-stop, perfect for ultra-long shoots like weddings. The maximum recording time is limited only by the memory card size and battery capacity. Two card slots support the CFexpress Type A and SDXC memory card types. Videos can be recorded in the XAVC (MXF), XAVC S-I (10-bit 4:2:2, intra-frame), and XAVC HS-L (H.265, 4:2:2 or 4:2:0, long-GOP), and XAVC S-L (H.264, 4:2:2 or 4:2:0, long-GOP) formats. Compatible batteries include the BP-U35 (~90 minute record time), BP-U70, and BP-U100 (over four hours of record time).
The two Sony camcorders measure 175.6 x 201.3 x 371.1 mm (7 x 8 x 14 5/8 inches). The HXR-NX800 weighs 1930 g (4 lbs. 4.1 oz.) while the PXW-Z200 weighs 1960 g (4 lbs. 5.1 oz.). The HXR-NX800 has an MSRP of $3,299.99, while the PXW-Z200 has an MSRP of $3,999.99. Both are expected to be available after September 19, 2024 (in the Sony Store on Amazon).
Source(s)
08/19/2024
Sony Electronics Adds Two 4K Handheld Professional Camcorders with AI-based Subject Recognition Autofocus, Tracking, and Auto Framing
HXR-NX800 NXCAMTM and PXW-Z200 XDCAMTM with 1.0-type CMOS Sensor and 20x Optical Zoom Lens Offer Recording and Streaming Capabilities Ideal for Broadcast, Corporate, Education, and Faith Content Creation
*This press release has been updated as of 09/06/24.
Sony Electronics is releasing two new 4K handheld camcorders, the NXCAM™ HXR-NX800, and XDCAM™ PXW-Z200 with SDI and MXF wrapper[1]. Both models feature artificial intelligence (AI) recognition capabilities, high-precision autofocus (AF), a 20x optical zoom lens, a variable neutral-density (ND) filter, and assignable lens ring[2]. The new models combine portability, functionality, interoperability, and network connectivity for a high-quality and inclusive capture and live streaming experience. The cameras are suited to individuals and small teams supporting applications within broadcast, corporate, faith, and education. The HXR-NX800 and PXW-Z200 are planned to be available September 2024 for a suggested retail price of $3,299.99 (USD) and $3,999.99 (USD), respectively.
“The new HXR-NX800 and PXW-Z200 build upon Sony’s rich legacy and expertise in broadcast and production and marries it with the latest transformative technology trends including AI and all in one streaming,” said Yang Cheng, Vice President, Imaging Solutions, Sony Electronics. “As we continue to strengthen our portfolio, we’re pleased to combine some of our most sought-after and beneficial features into a handheld form factor to accommodate professionals at all levels with the options and capabilities to make their work more impactful, visually appealing, and efficient.”
High-Quality Capture
AI subject recognition, auto focus (AF), and support for 4K 60p/120p recording facilitate high-quality capture with less manual input. The cameras feature a BIONZ XR™ image processing engine and a specialized AI-processing unit for highly accurate, real-time recognition, tracking, and framing of subjects. In addition, the HXR-NX800 and PXW-Z200’s 1.0-inch-type Exmor RS™ CMOS stacked sensor provides high-sensitivity and low-noise capability.

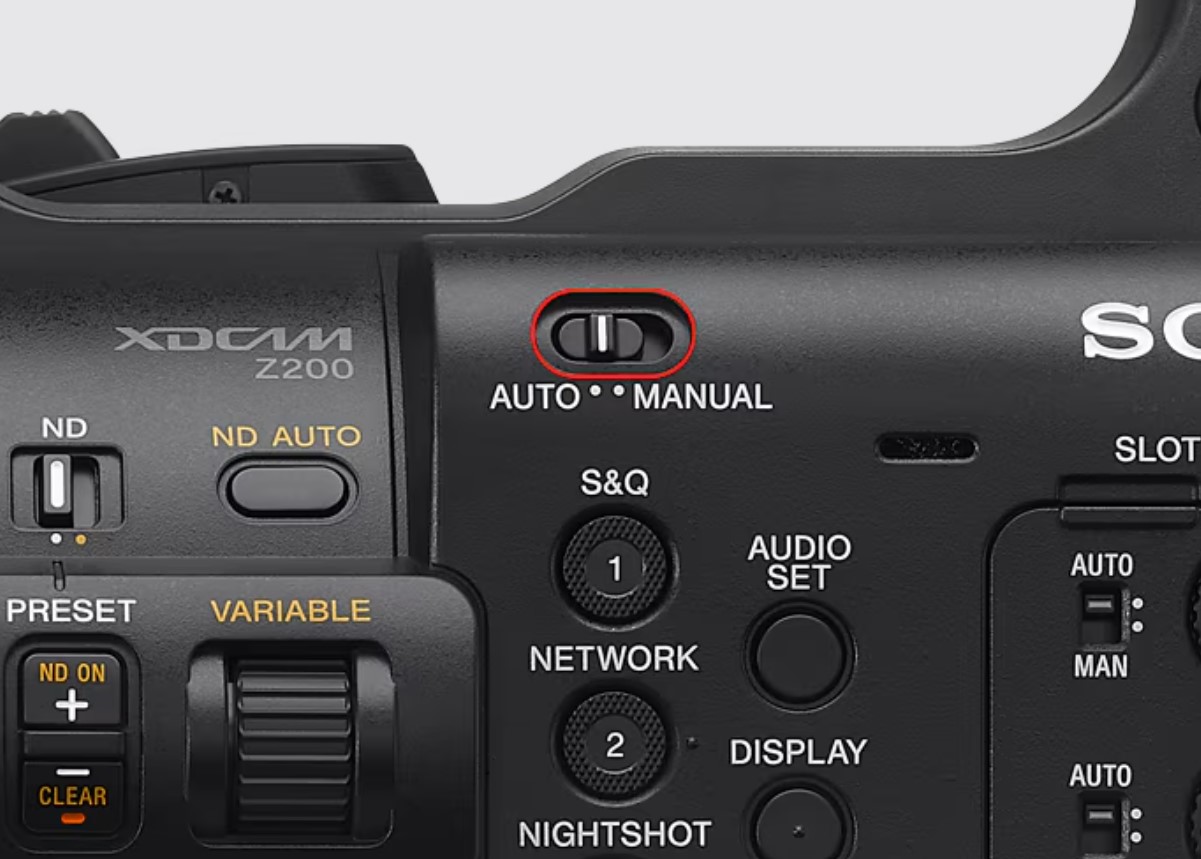

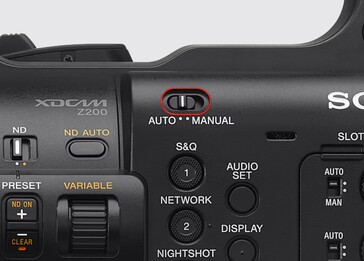

An Electronic Variable ND Filter enables users to toggle seamlessly between 1/4 to 1/128 density. Users also have the option to enable auto-ND, which allows the camera to maintain an optimized exposure without the user having to adjust settings – especially useful when moving quickly between indoor and outdoor environments. Two rings for focus and zoom[3] and two dials for IRIS/ND Variable are located side-by-side, for effortlessly adjusting exposure along with focus and zoom. Twelve assignable buttons provide further customization.
Powerful Zoom and Image Stability
The two new cameras are equipped with Sony’s G Lens™ with a 20x optical power zoom that covers 24mm wide angle to 480mm telephoto and a maximum aperture of F2.8-F4.5. The models can achieve 30x (4K) and 40x (HD) zoom using Sony’s Clear Image Zoom technology.
Active mode combines electronic correction with optical image stabilization to provide smoother imagery on the go[4].
Compact New Design
Both cameras feature a newly designed foldable viewfinder, a removable microphone holder, and a foldable 3.5-inch LCD monitor that allows users to check images and focus in bright environments. The new models are compact and have an exceptionally lightweight body (HXR-NX800: approximately 1.93 kg (4 lb 4.1 oz.), PXW-Z200: approximately 1.96 kg (4 lb 5.1 oz)) for their rich feature set. Additionally, either model can be folded up for further ease of storage and portability.
Interoperability and Integration
The HXR-NX800 and PXW-Z200 provide beneficial integration with Sony’s camera portfolio. Presets such as S-Cinetone™, ITU709, 709tone, HLG Live, HLG Mild and HLG Natural, can be easily adjusted to color match the footage captured on Sony’s other broadcast, Cinema Line, and AlphaTM cameras.
The new cameras support a wide variety of recording formats including XAVC HS, XAVC S, XAVC SI, and XAVC HS Proxy (up to 16 Mbps). They support proxy recording, which reduces the burden of data storage and management during post-production and TC/UB recording, which is necessary when operating multiple cameras. The PXW-Z200 will also support XAVC (MXF) recording through a future firmware update expected summer 2025.
Additionally, the HXR-NX800 and PXW-Z200 are equipped with various interfaces including HDMI Type A, USB Type-C™, LAN, and REMOTE terminals. The PXW-Z200 supports SDI (12G, 6G, 3G [Level A/B], HD) output, and TC input/output.
Professional Network Connectivity
The HXR-NX800 and PXW-Z200 offer an all-in-one recording and streaming solution that empowers a single operator or small team to easily manage both capture and distribution. Connecting the cameras to a network, such as Wi-Fi, enables live streaming of recorded footage to streaming services and video sites via RTMP/RTMPS or SRT.
Versatile file transfer options include HEVC (H.265) and AVC (H.264) codecs, automatic upload to the cloud or an FTP server, and the ability for proxy chunk for high-quality and secure file transfer.
Furthermore, by combining it with Sony’s new portable data transmitter, PDT-FP1, the two new camcorders can support higher quality streaming with the company’s proprietary QoS technology and Creators’ Cloud for enterprise services, including the camera linking cloud service, C3 Portal (paid service), XDCAM pocket, and the cloud broadcast system, M2 Live.
Mindful Accessibility and Sustainability

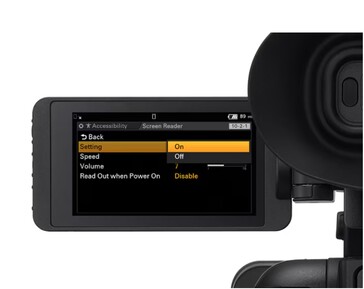

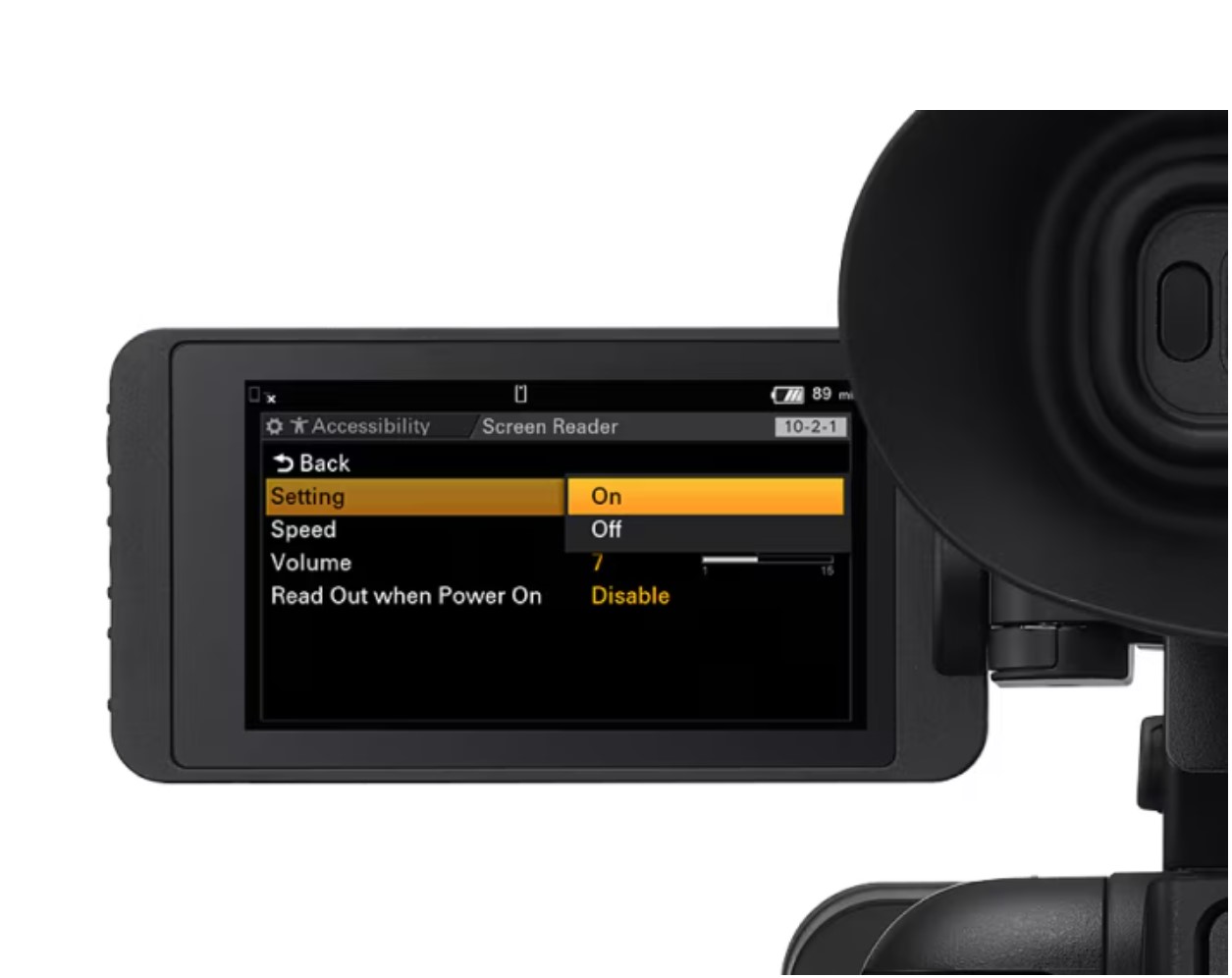

In keeping with Sony’s commitment to accessible and environmentally conscious technology, the HXR-NX800 and PXW-Z200’s menus can be operated using voice reading and feature a screen enlargement function for magnifying screens at the desired ratio. Text-to-speech can read on-screen copy and information, with adjustable volume and reading speed.
The new camera bodies feature resin which incorporates SORPLAS™, a flame-retardant recycled plastic that is made from up to 99% recycled material. Over the past 12 years, Sony has replaced approximately 426 tons of virgin plastic in digital cameras and camcorders with recycled plastic[5]. The packaging of the HXR-NX800 and PXW-Z200 further reflects Sony’s efforts to minimize the use of plastic.
For more information about Sony’s professional cameras, please visit pro.sony/ue_US/. For the latest news and updates from Sony Electronics, visit pro.sony/press or follow Sony Professional on social media: LinkedIn, Twitter, Facebook, Instagram, and YouTube.
[1] Through a future firmware update for the PXW-Z200 expected in or after summer 2025
[2] Feature will be available through a firmware update planned in or after summer 2025
[3] Iris control is planned to be assignable to a control ring in or after summer 2025
[4] Slight image crop in Active Mode. Active Mode is not available when recording at frame rates of 120p or higher, including S&Q.
[5] Researched by Sony. Recycled materials used in the product itself and accessories from April 2012 to March 2024.
