Schenker XMG P505

Specifications

Schenker XMG P505
Schenker XMG P505
Graphics adapter
NVIDIA GeForce GTX 970M - 3072 MB, Core: 924 MHz, Memory: 2500 MHz, GDDR5, ForceWare 344.00, Optimus
Memory
16384 MB
, 2x 8 GB SO-DIMM DDR3-RAM PC3-12800 (1600 MHz), 2 of 4 slots occupied, up to 32 GB
Display
15.6 inch 16:9, 3840 x 2160 pixel, Sharp LQ156D1JX01B (SHP142A), IPS, QFHD, glossy: yes
Mainboard
Intel HM87 (Lynx Point)
Storage
Samsung SSD XP941 MZHPU256HCGL, 256 GB
, M.2 PCI-Express x4 + HGST Travelstar 7K1000 (HTS721010A9E630), 1000 GB HDD, 7200 rpm. Bays: 2x M.2 2280 & 2x 2.5"
Soundcard
Realtek ALC892 @ Intel Lynx Point PCH - High Definition Audio Controller
Connections
4 USB 3.0 / 3.1 Gen1, 1 HDMI, 2 DisplayPort, 1 Kensington Lock, 1 eSata, Audio Connections: headphones, microphone, S/PDIF, Card Reader: MMC, RSMMC, SD, Mini SD, SDHC, SDXC, 1 Fingerprint Reader, SIM card slot
Networking
Realtek PCIe GBE Family Controller (10/100/1000/2500/5000MBit/s), Intel Dual Band Wireless-AC 7260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5), Bluetooth 4.0
Size
height x width x depth (in mm): 25 x 385 x 271 ( = 0.98 x 15.16 x 10.67 in)
Battery
60 Wh Lithium-Ion, 4 cells
Operating System
Microsoft Windows 8.1 64 Bit
Camera
Webcam: 2.0 Megapixels
Additional features
Speakers: Onkyo, Sound Blaster X-Fi MB3, Keyboard: Chiclet, Keyboard Light: yes, PSU: 150 Watt (180 watts for the GTX 980M), Cleaning cloth, Driver DVD, Nero 12 Essentials, Control Center, Microsoft Office 365 Trial, 24-48 Months Warranty
Weight
2.595 kg ( = 91.54 oz / 5.72 pounds), Power Supply: 590 g ( = 20.81 oz / 1.3 pounds)
Price
2410 Euro



Pricecompare

Average Score: 72.5% - average
Average of 2 scores (from 4 reviews)
price: - %, performance: 98%, features: 76%, display: 85% mobility: 64%, workmanship: 78%, ergonomy: 81%, emissions: 65%

Reviews for the Schenker XMG P505

85% Clevo P651SE (Schenker XMG P505) Barebones Notebook Review | Notebookcheck
Full speed ahead. After the top GPUs from the last Nvidia generation were still based on the Kepler architecture, both the GeForce GTX 980M and GTX 970 finally use the Maxwell architecture. We check the performance with the Clevo P651SE Barebone.
60% Schenker XMG P505 review
Source: Expert Reviews English
The Schenker XMG P505 is a powerful and nicely built laptop, perfect for gaming and multimedia tasks. Its main problem is the screen, which is worse than some significantly cheaper laptops. Considering how much choice you have in the market, with the likes of Aorus and MSI producing some stunning looking machines with better screens, it's hard to recommend. At this price, you should consider the slightly more expensive Aorus X7 v2 or the MSI GS70 2QE Stealth Pro, which is cheaper and only slightly less powerful. If none of those fit your needs then check out our regularly-updated Best Laptops and buying guide.
Single Review, online available, Very Short, Date: 03/04/2015
Rating: Total score: 60%
XMG P505
Source: Hardwareheaven English
Starting with the overall design of the P505 we have a laptop which is essentially pretty plain to look at, though that is no bad thing. It looks decent and there are no garish sections which often feature on gaming laptops. The build quality is decent, though there is plastic mixed in with the aluminium.
Comparison, online available, Long, Date: 11/25/2014

Foreign Reviews

Schenker XMG P505
Source: Hardbloxx German DE→EN
Single Review, online available, Very Long, Date: 01/19/2015
Schenker Technologies XMG P505 Pro
Source: HardwareLuxx German DE→EN
Single Review, online available, Long, Date: 10/09/2014

Comment

Model:

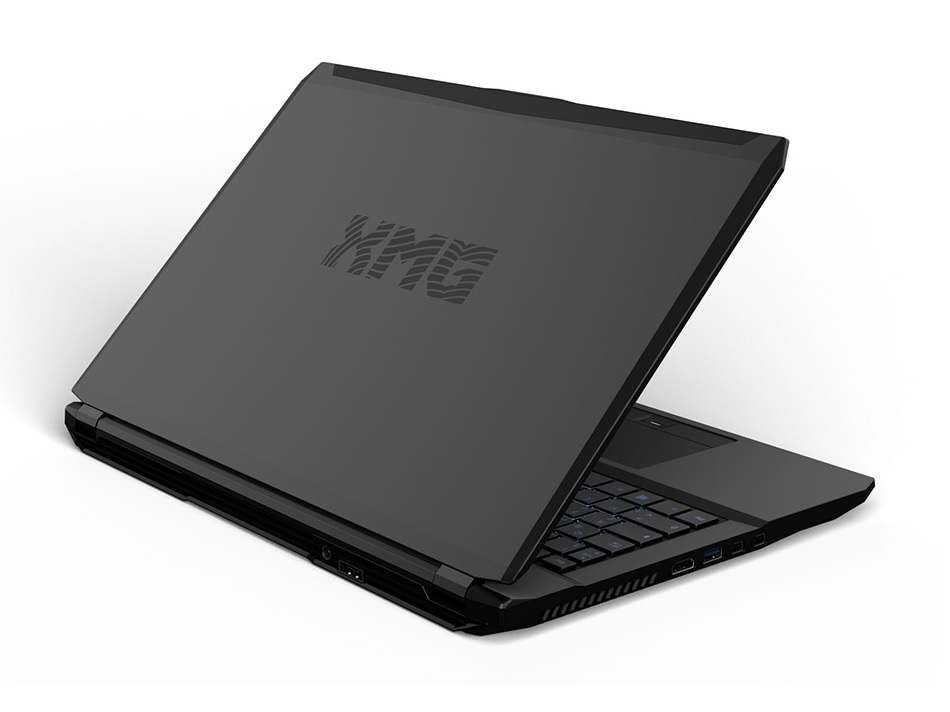

The fully customizable, pro-gaming Schenker XMG P505 laptop certainly comes with the needed performance. With its durable metal casing, in full black, with a modern edgy design is looks good. The low profile design hides impressive hardware and the island-style backlit keyboard accents the appearance with style. The non-glare 15.6 inch Full HD IPS display delivers crisps images and good colors.

There is an option for a QFHD 4K panel but at additional cost. At the heart of the laptop is an Intel Core i7-4870HQ quad-core processor clocked at 2.50 GHz with Iris Intel Pro 5200 as the highest possible upgrade option. The Schenker XMG P505 comes with a basic of 4 GB 1600 MHz DDR3 RAM and a plethora of upgrade options. The highest selectable graphics card is the Nvidia GeForce GTX 980M with 4 GB GDDR5 VRAM.

Internal storage can be selected from different hard disk and SSD sizes with the option to even combine multiple drives. Sound quality is good with a Sound Blaster X-FI MB3 driving the speakers. Other hardware includes a card reader, three USB 3.0 ports, a 2 MP webcam and an HDMI out. The Schenker XMG P505's 4-cell lithium ion battery lasts about 5 hours on low load.

NVIDIA GeForce GTX 970M:

Second fastest high-end graphics card based on the Maxwell GM204 chip from the GeForce GTX 900M series.

With these GPUs you are able to play modern and demanding games fluently at medium detail settings and HD resolution.

» Further information can be found in our Comparison of Mobile Graphics Cards and the corresponding Benchmark List.

Intel Core i7: The Intel Core i7 for laptops is based on the LG1156 Core i5/i7 CPU for desktops. The base clock speed of the CPUs is relatively low, but because of a huge Turbo mode, the cores can dynamically overclock to up to 3.2 GHz (920XM). Therefore, the CPU can be as fast as high clocked dual-core CPUs (using single threaded applications) but still offer the advantage of 4 cores. Because of the large TDP of 45 W / 55 W, the CPU is only intended for large laptops.

4870HQ: Haswell-based quad-core processor clocked at 2.5 GHz with Turbo Boost support up to 3.7 GHz. Offers an integrated Iris Pro Graphics 5200 GPU and a dual-channel DDR3 memory controller.» Further information can be found in our Comparison of Mobile Processsors.

15.6":

15-16 inch is a standard display size for laptops and offers the biggest variety of products.

» To find out how fine a display is, see our DPI List.

2.595 kg:

This weight is representative for typical laptops with a 14-16 inch display-diagonal.


72.5%: This rating is bad. Most notebooks are better rated. This is not a recommendation for purchase.

» Further information can be found in our Notebook Purchase Guide.
