Review Asus K75DE Notebook

Cheap giant. The Asus K75DE is a 17-inch multimedia contender equipped with an AMD-APU and CrossFire technology. Find out more about the device in the following review.

For the original German review, see here.

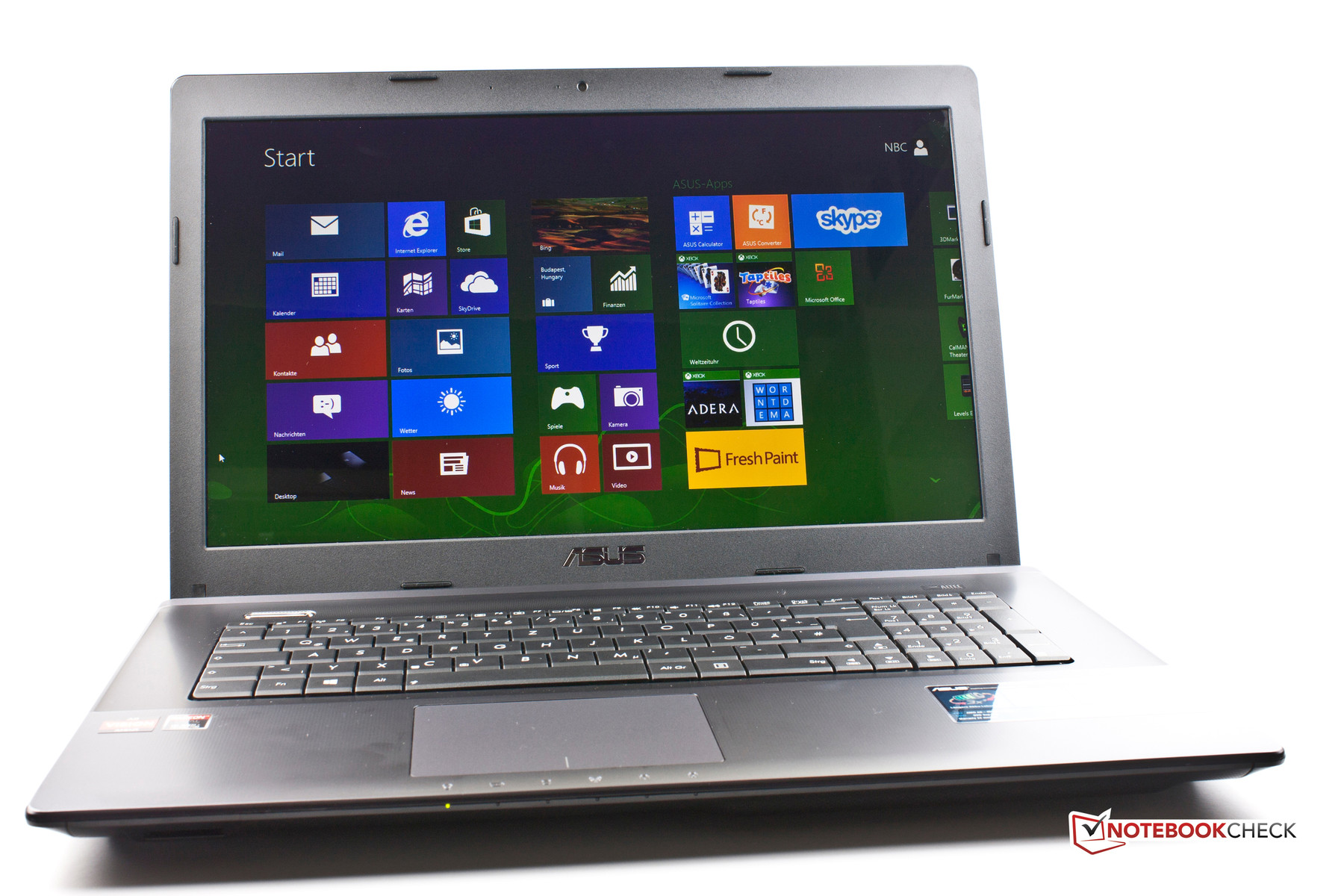

Asus presents a new 17.3-inch multimedia notebook in the form of the K75DE-TY068H. This category is already filled with multiple contenders, like the Samsung Series 3 355E7C-S05DE or the HP Pavilion g7-2051sg, which also use the AMD Trinity APUs. In addition to these two, we will also use the Sony Vaio SV-E1712F1EW, which runs on Intel hardware but has the same size and price class, for comparison.

The K75DE series offers various configurations. Our test model has an AMD APU A8-4500M, which can be ranked as the medium performance option (out of all the available configurations). The test model is equipped with a DVD burner, but an upgrade to Blu-ray drive or writer is also possible.

Our test model and its Intel-based sibling, the K75VJ, steal the spot of cheapest DTR for private users (Desktop Replacement). DTR models master everyday tasks and have sufficient power for media playback and gaming. In the following review, we will investigate in detail what the Asus K75DE-TY068H has to offer.

Case

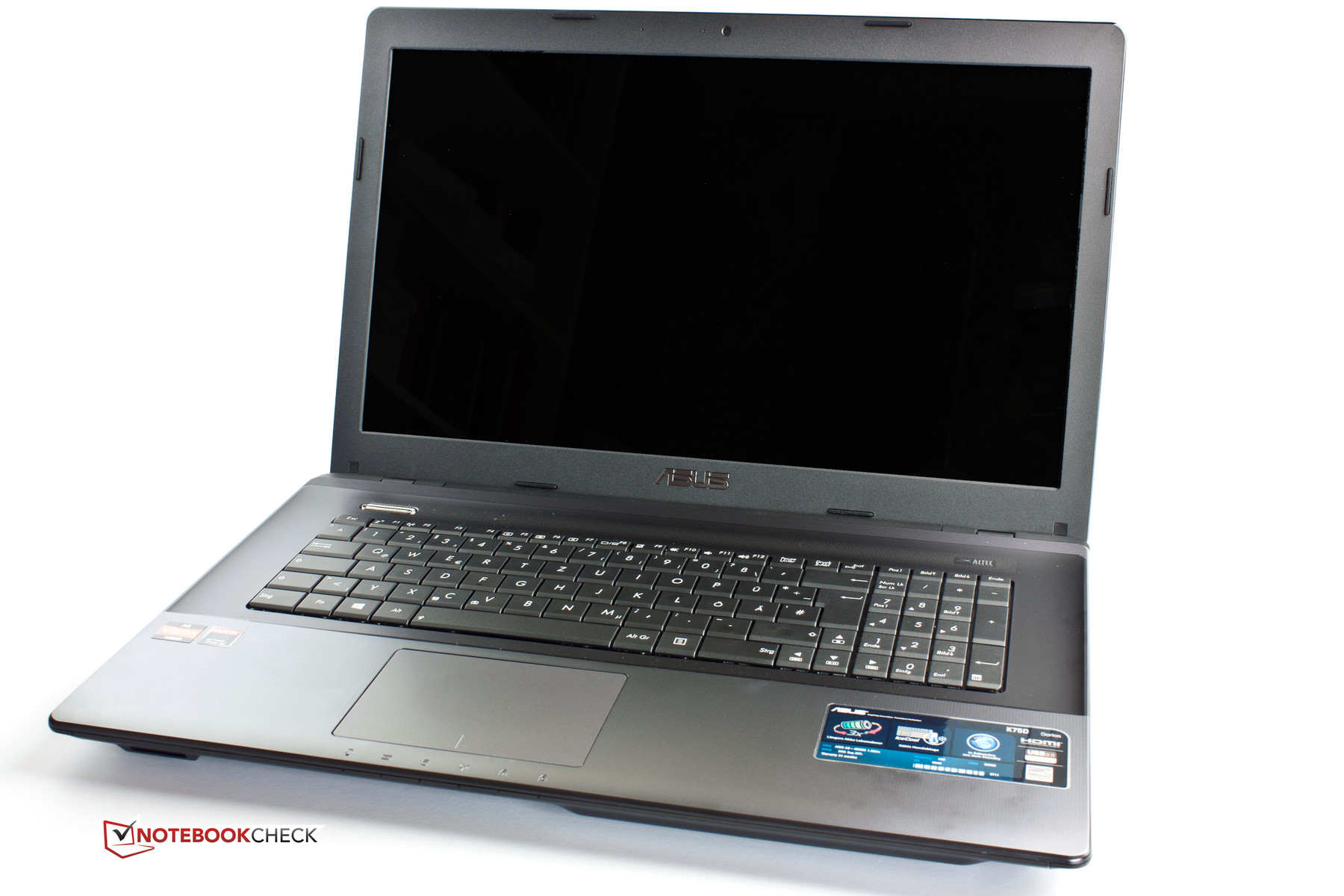

The notebook is made entirely of synthetic material and kept in black, which appears metallic due to its surface structure. This grants the laptop a certain visual appeal and the material is comfortable to touch. The synthetic material is covered with the aforementioned structure and is susceptible to fingerprints and smudges, which are quite visible.

The case and the display can be pushed inwards with little force and are prone to creaking. The display is especially sensitive and we recommend handling it near the middle. The two hinges are sturdy and hold the display well. Opening the notebook requires both hands.

The four rubber feet ensure good grip for the notebook. The corners of the case are rounded and the chassis has no gaps in the material. The battery can be swapped out and is secured with two hooks. The laptop can run without battery.

Connectivity

The connectivity of the Asus K75DE is acceptable and conforms to that of the competition. Only the Sony SV-E1712F1EW sticks out of the pack as it has one USB 3.0 port less (but makes up for it with an additional USB 2.0). The positioning is well-planned. The ports are far enough from each other so that they do not block each other when in use.

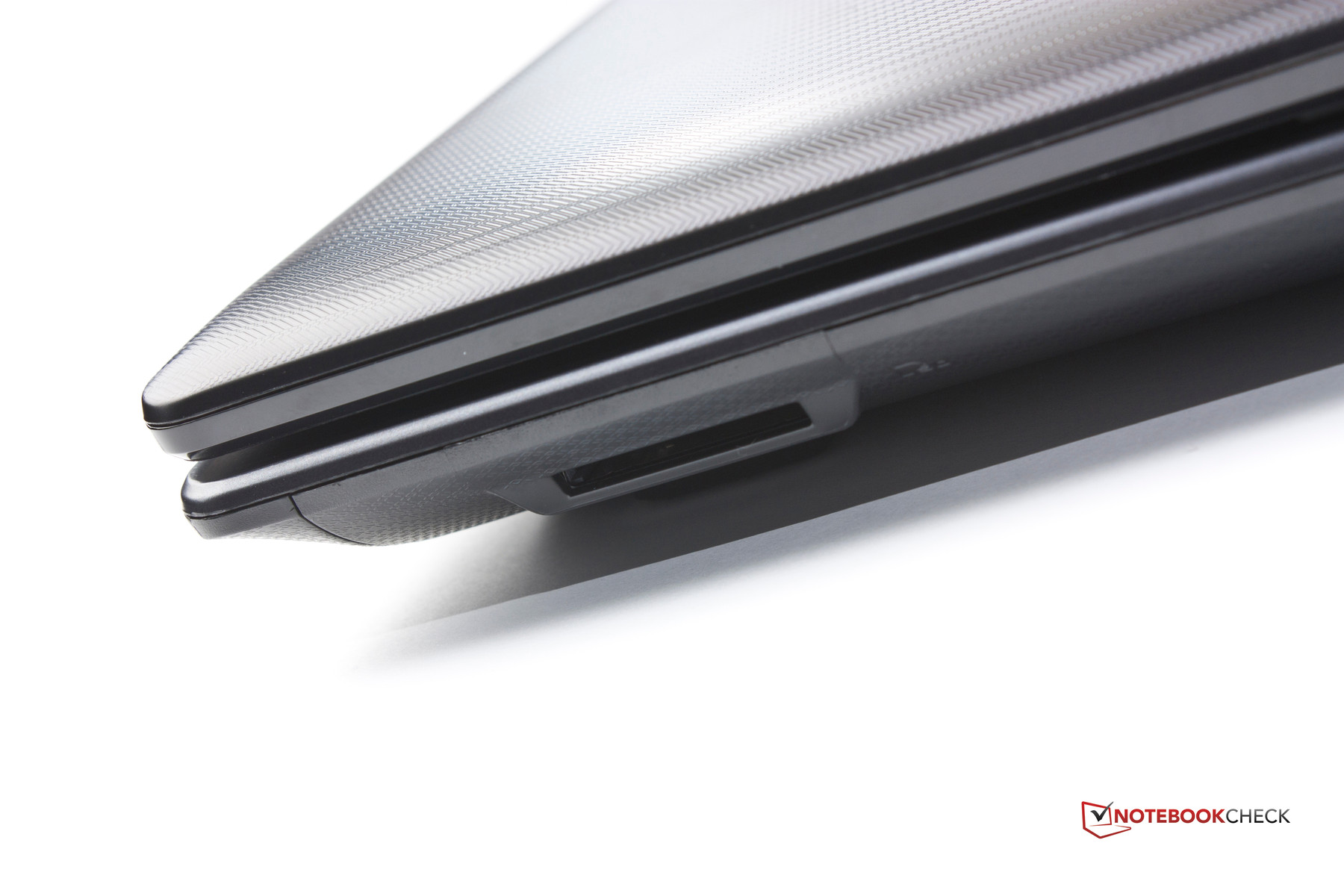

The SD card reader is worthy of mention. The cards stick out of it slightly which allows the user to easily remove them once done.

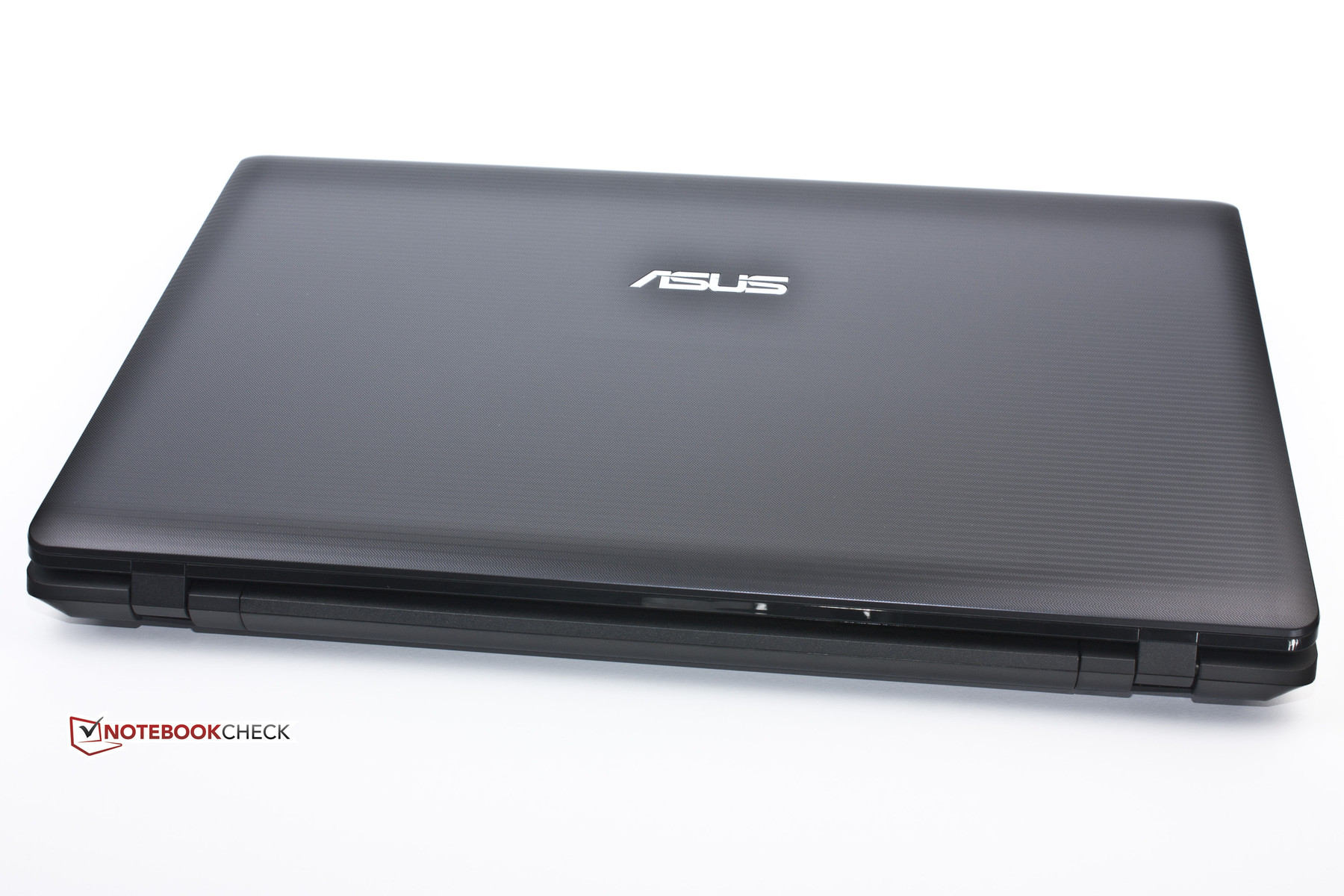

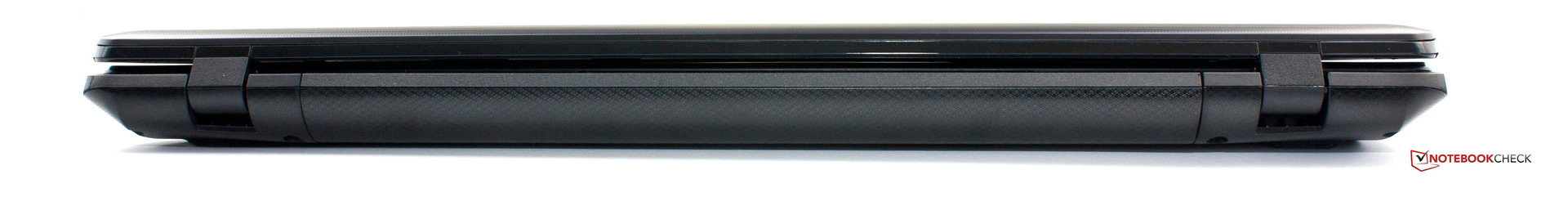

Back.

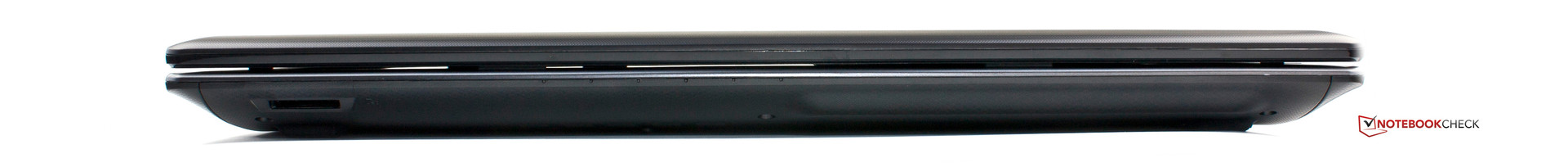

Front: card reader (SD, SDHC, SDXC).

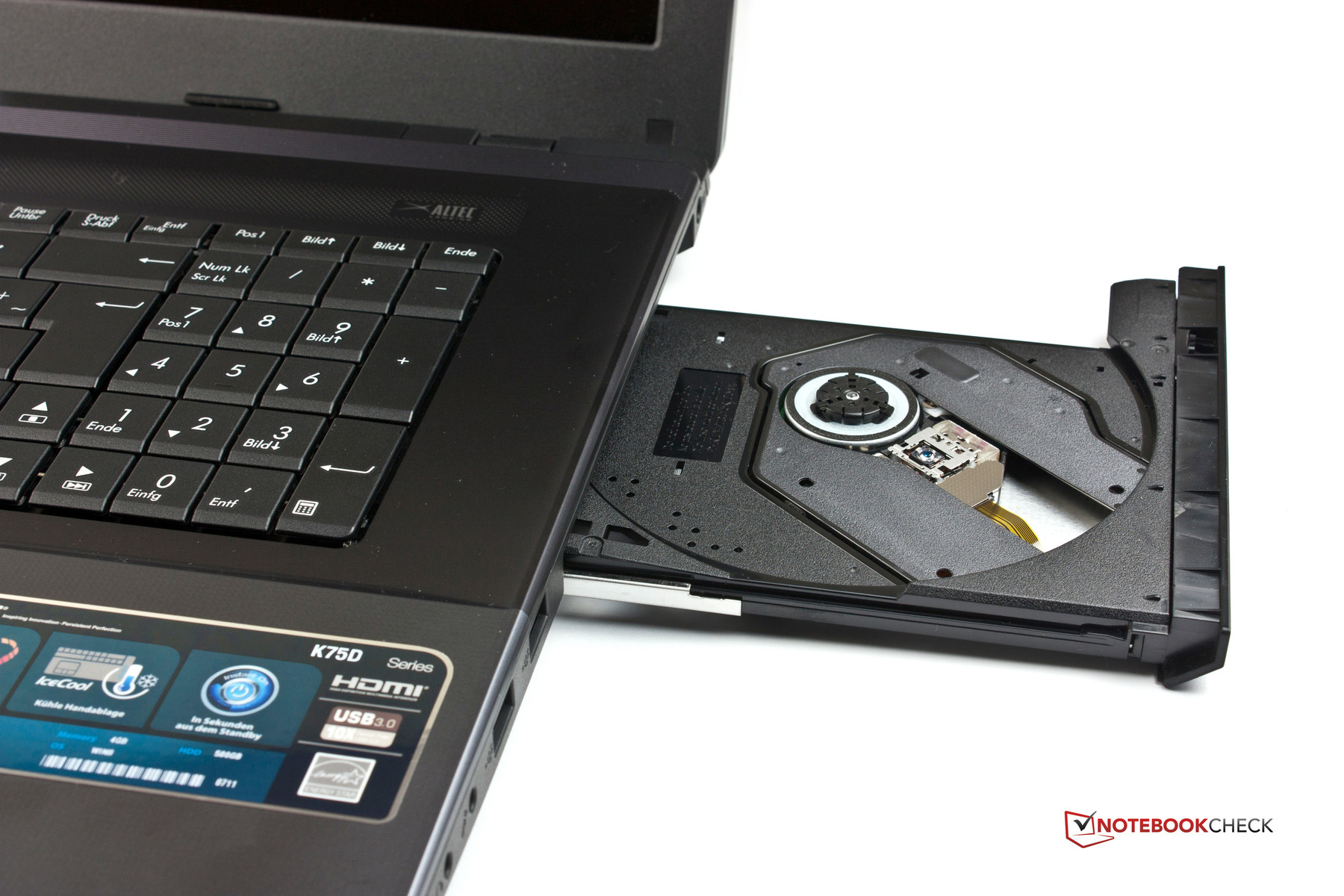

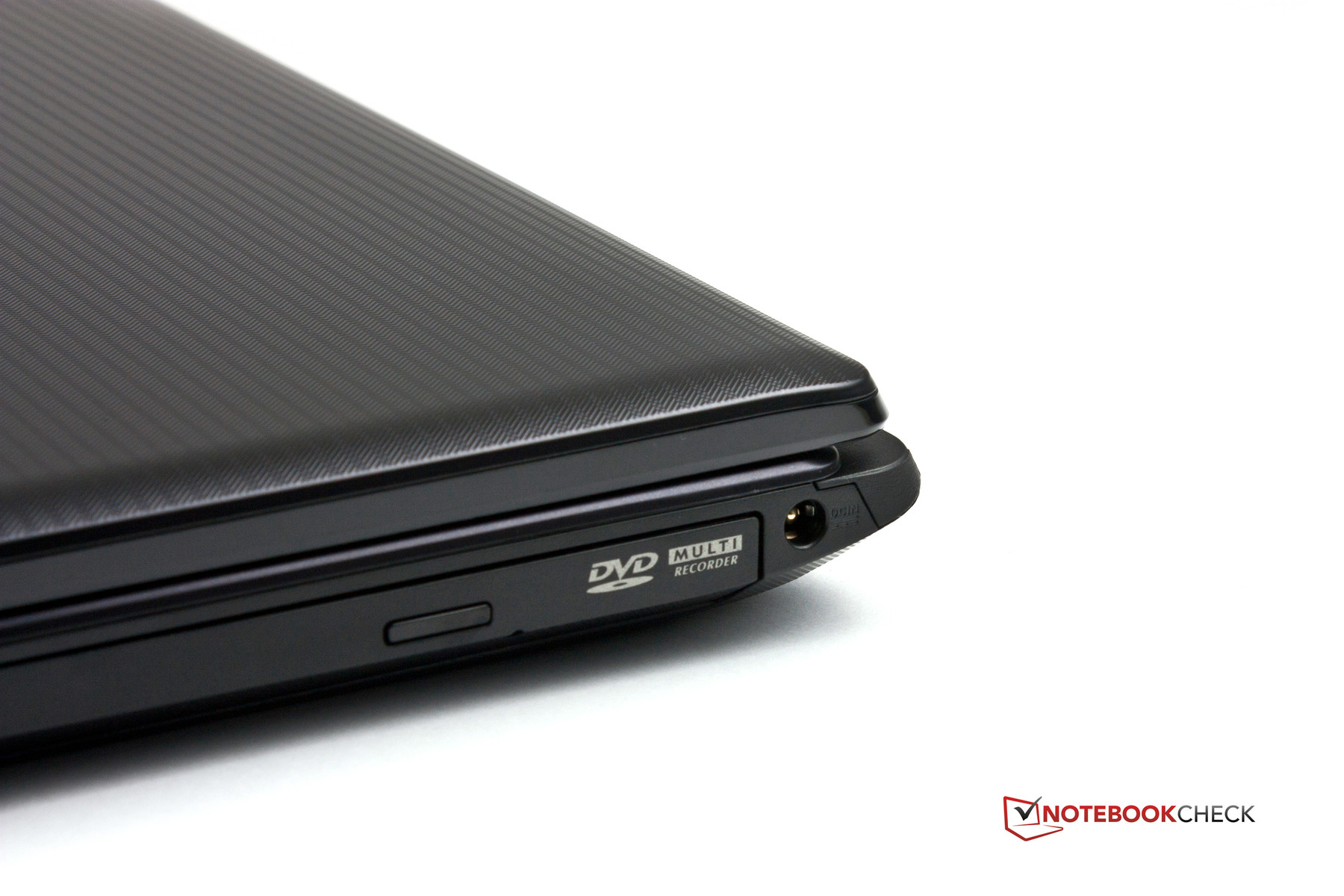

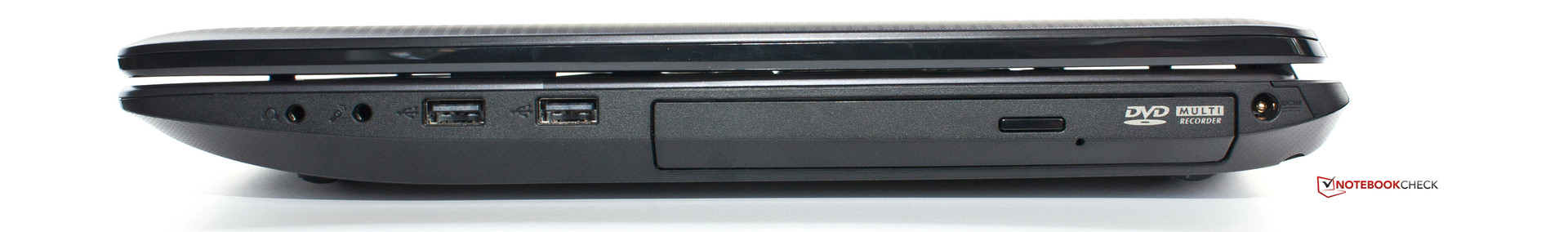

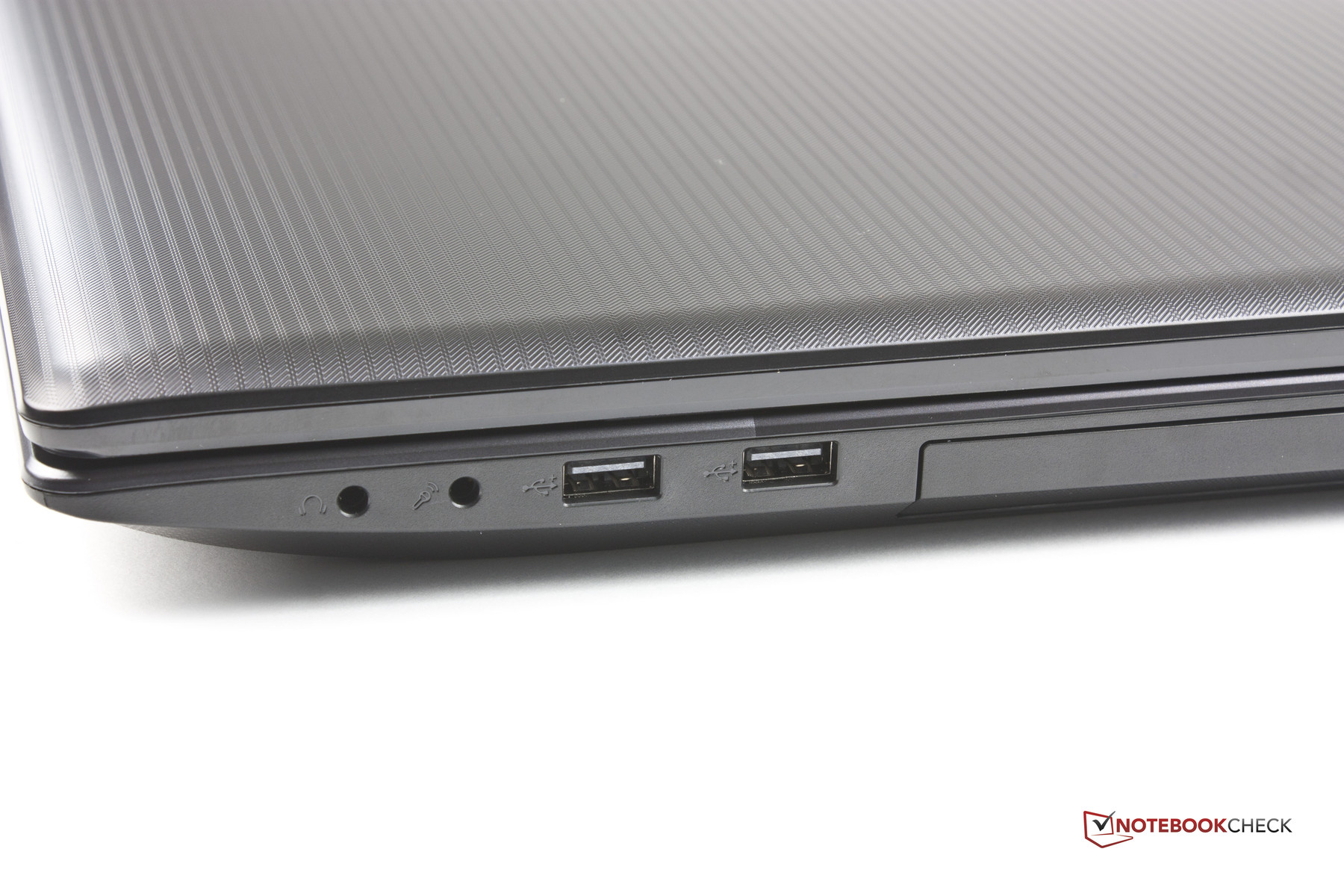

Right side: headphone jack, microphone jack, 2x USB 2.0, DVD drive and power outlet.

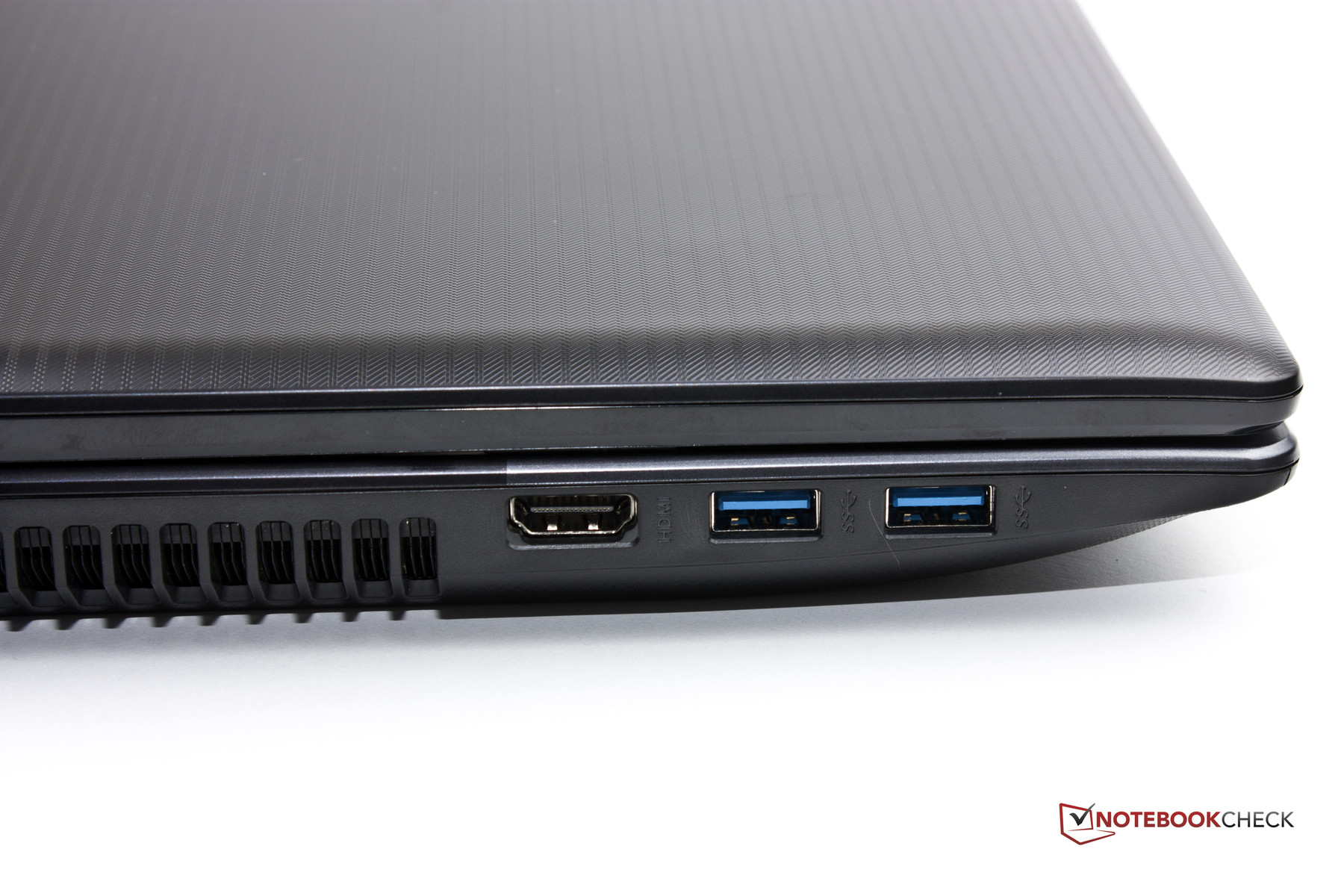

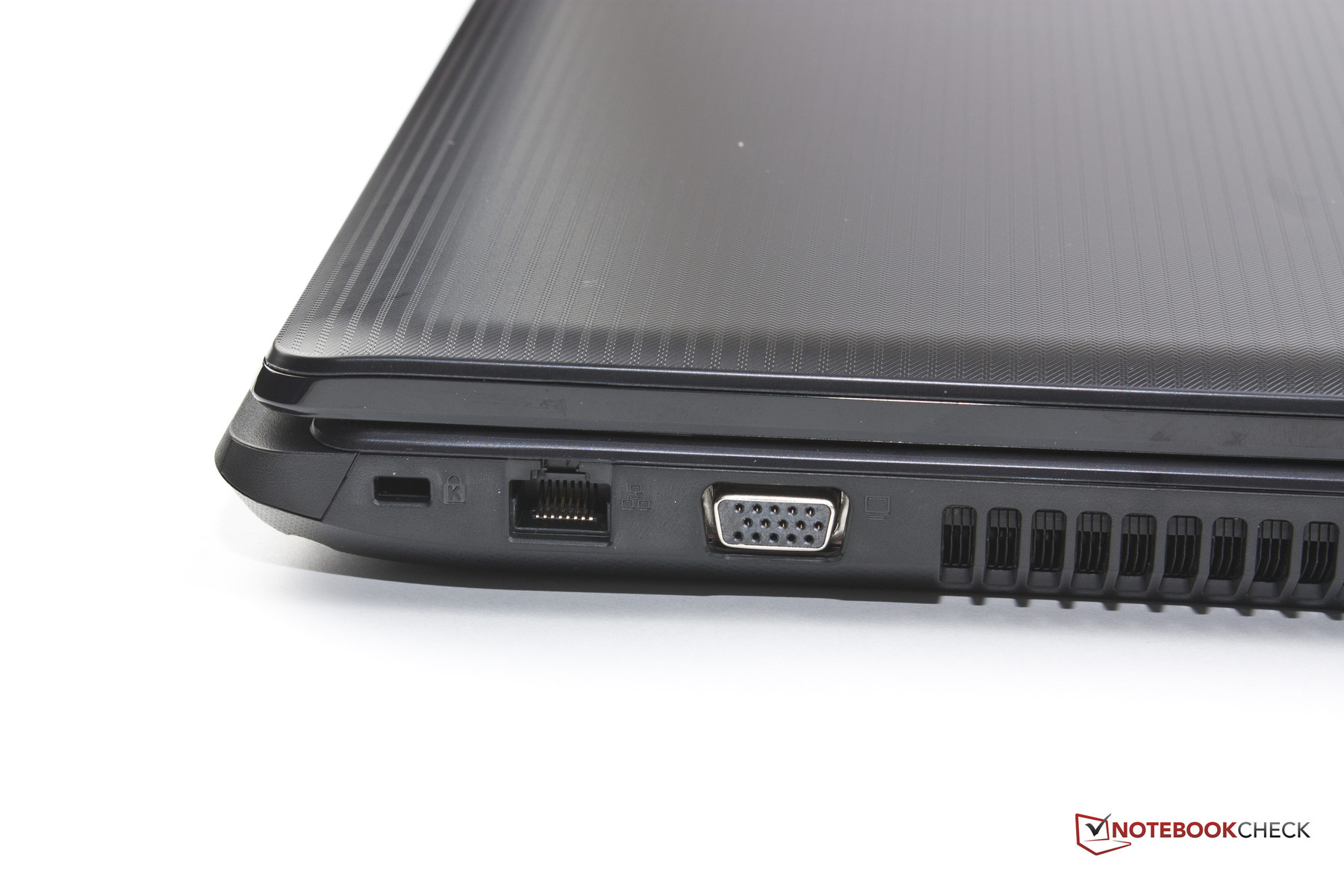

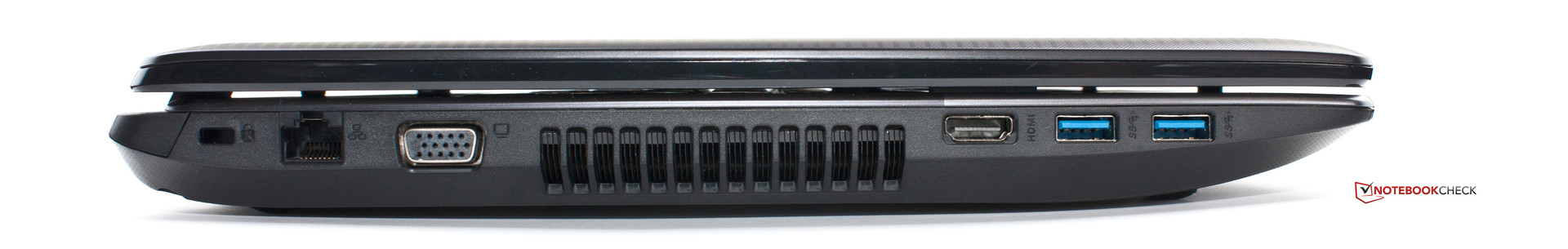

Left side: Kensington Lock, LAN, VGA, HDMI and 2x USB 3.0.

Communication

The Asus K75DE-TY068H uses a RealTek Gigabit-LAN interface which works quite well. The wireless networking is achieved using a Qualcomm Atheros WLAN module (AR9485), which supports the 802.11 b/g/n standards, and has a max transfer rate of 150 MB/s. It operates on the 2.4 GHz frequency and has good range. The connection was stable even up to 10-12 meters from the WLAN router (Fritz!Box 6360) and could deliver a transfer speed of up to 16.5 Mbit/s.

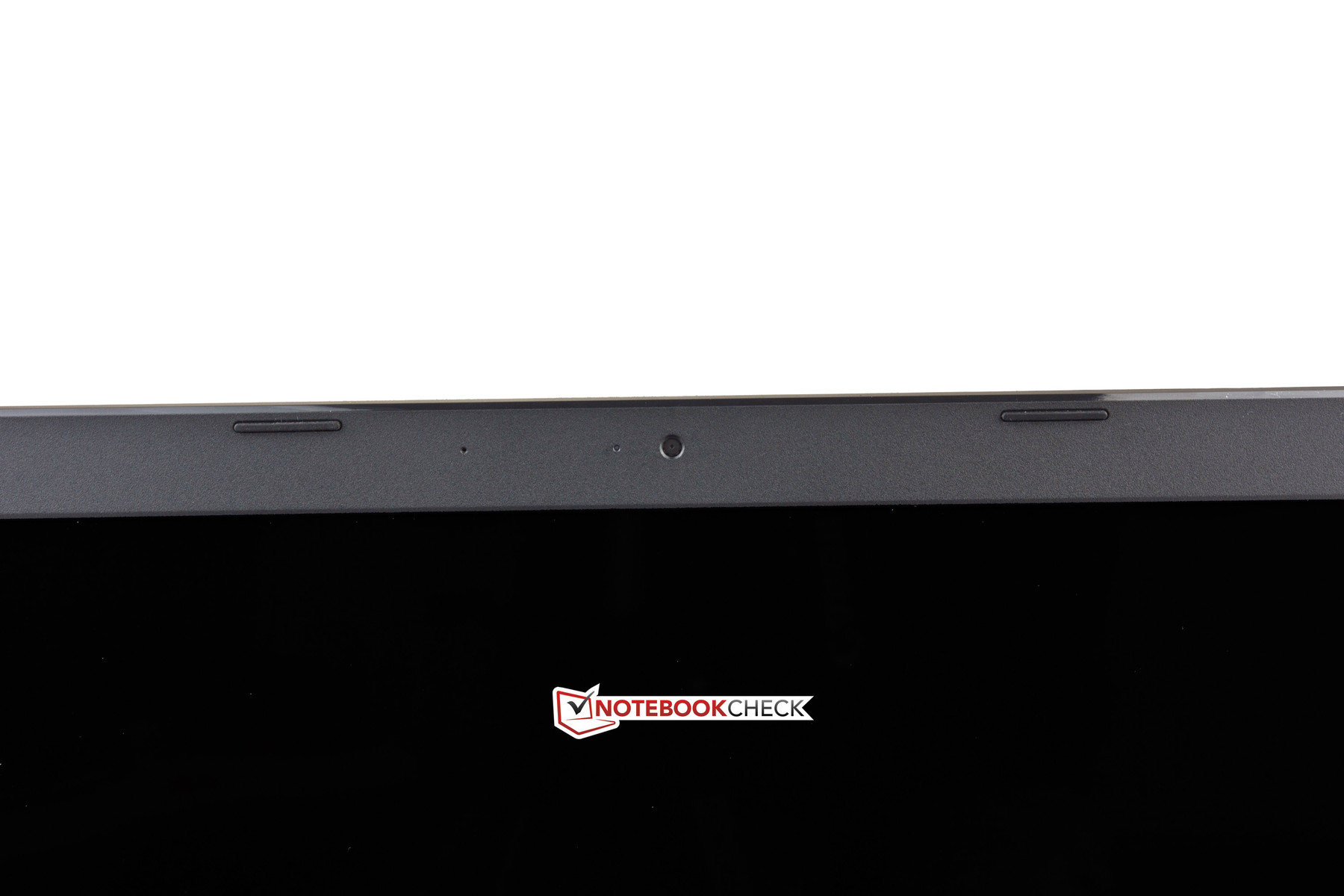

Bluetooth or WWAN are not to be found. The integrated VGA webcam has a resolution of 640x480 pixels and suffices for VoIP. The integrated microphone works well and the input is clear even 1.5 meters away from the notebook.

Accessories

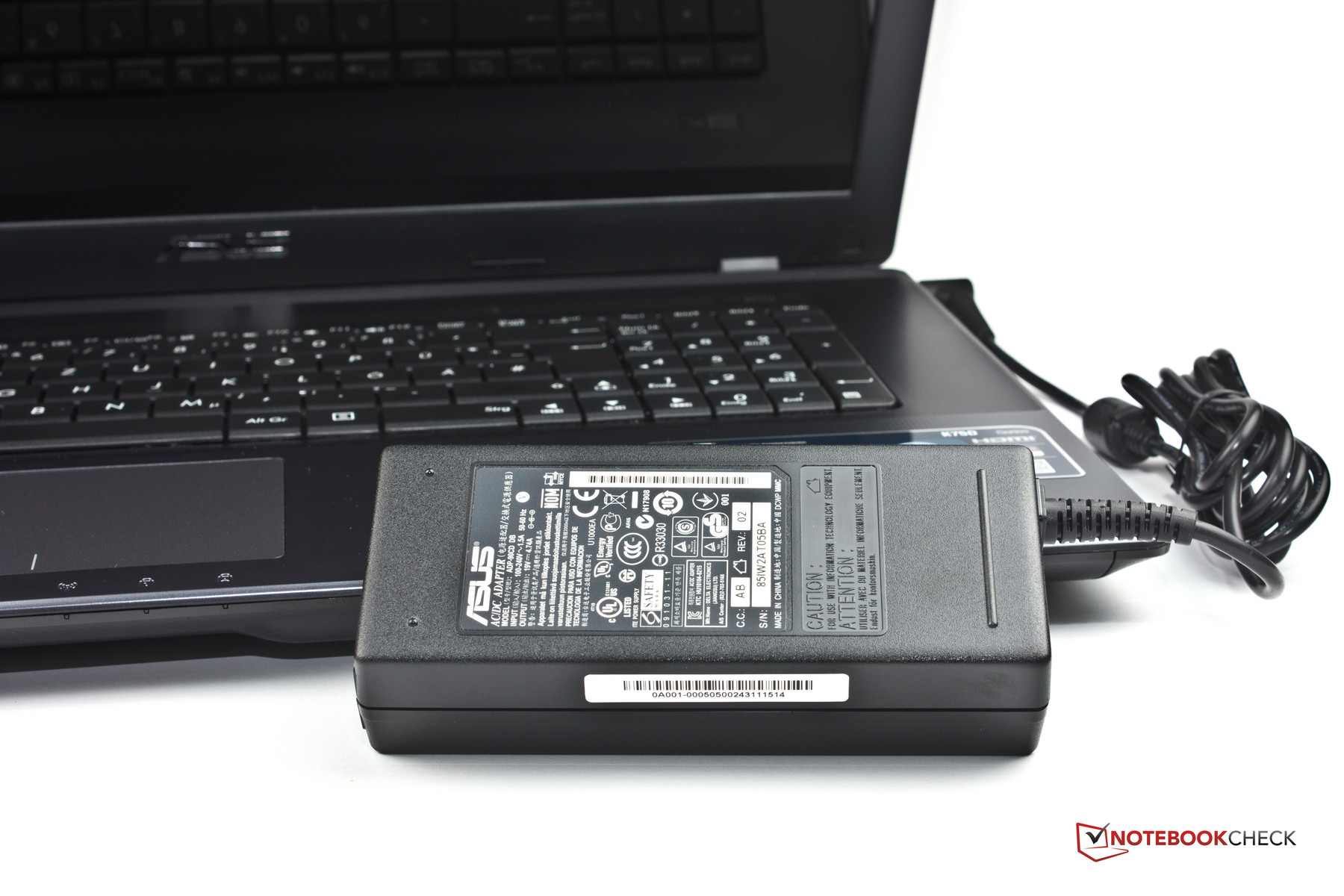

Besides the 90 W power adapter, the notebook delivery includes three manuals for warranty, Windows 8 and a "Hardware" book.

In addition to the various Asus programs and a few Windows 8 Apps, the test model also has test versions of McAfee Internet Security and Microsoft Office preinstalled. The ASUSDVD program on the laptop originates from Cyberlink and resembles PowerDVD 10.

Maintenance

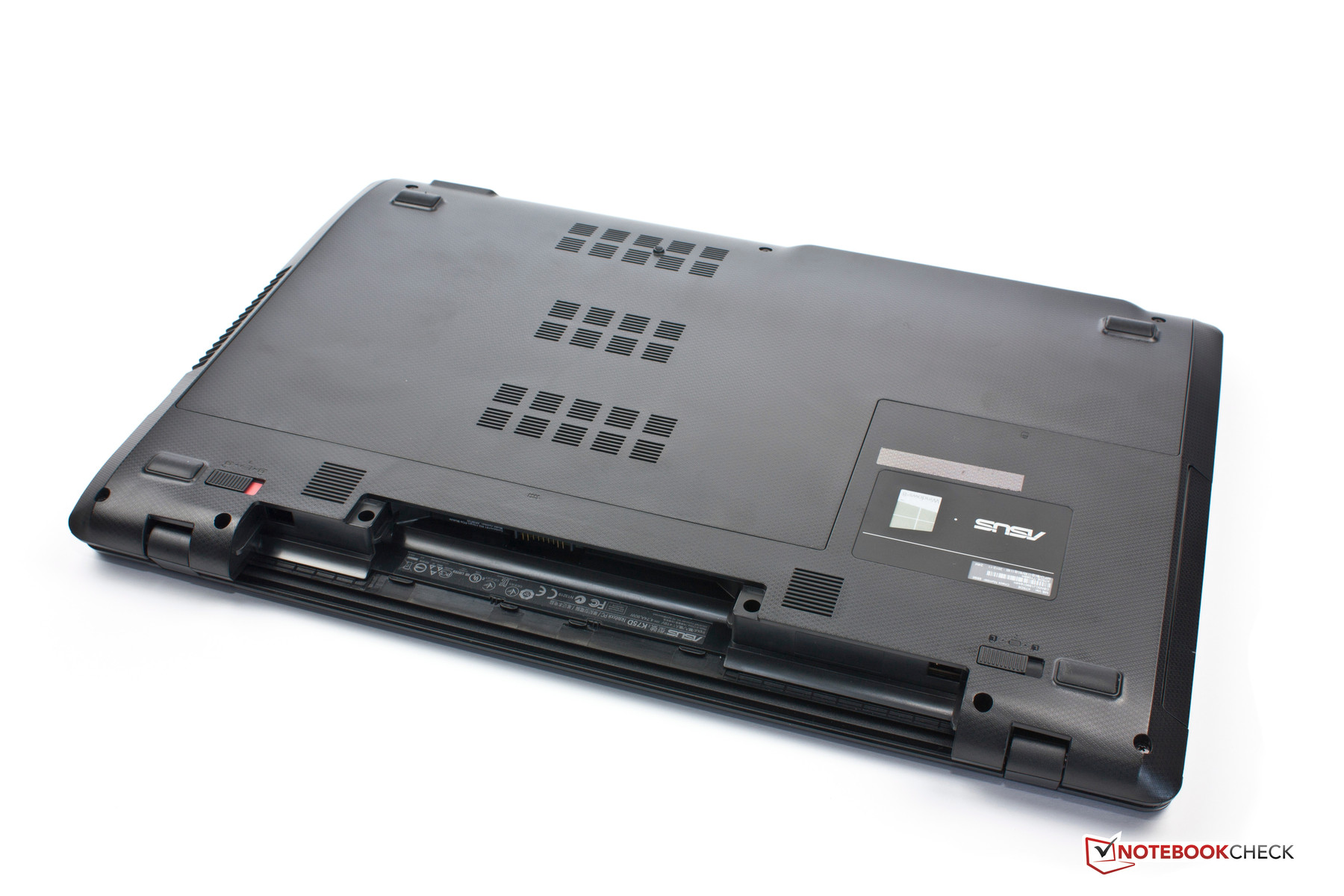

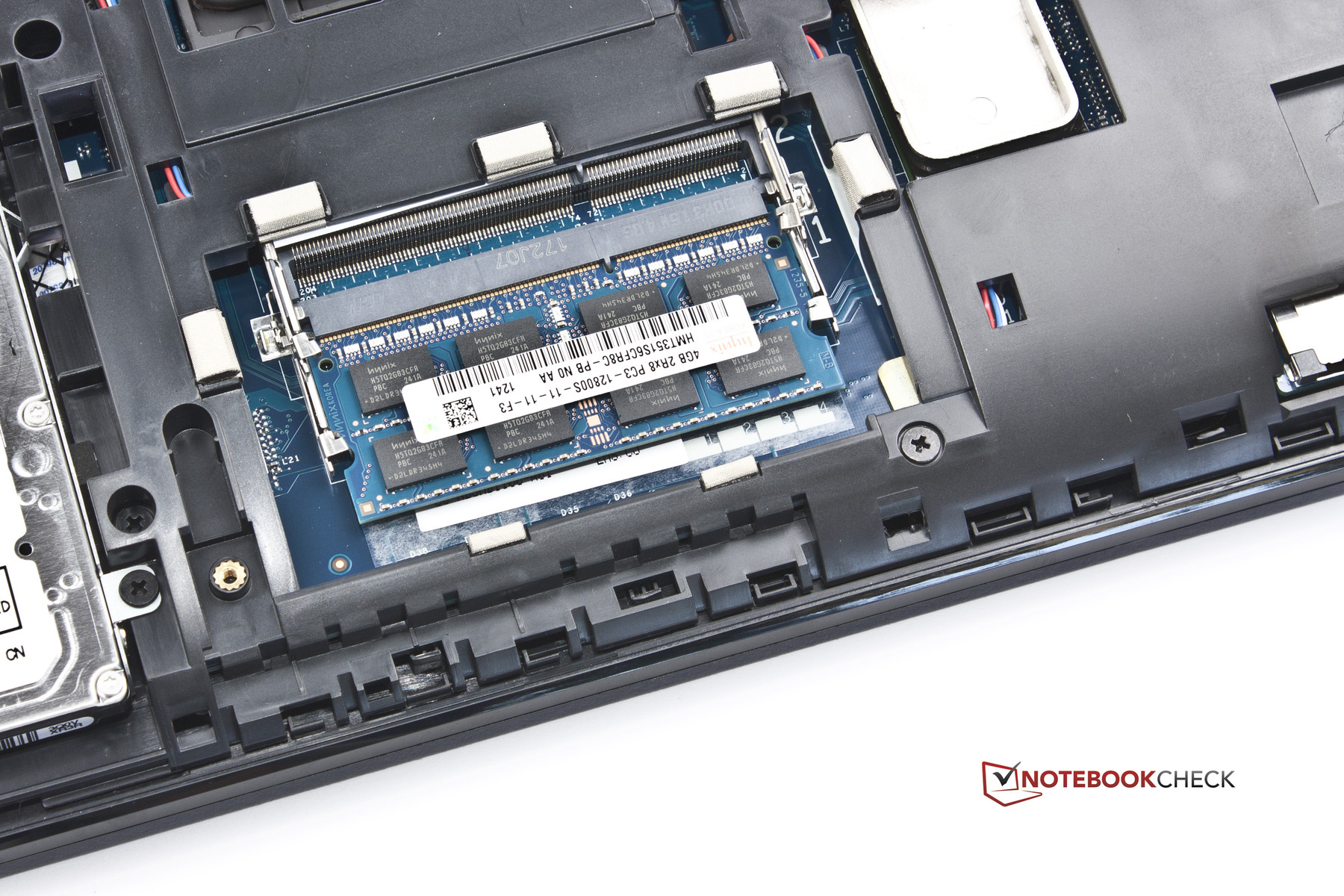

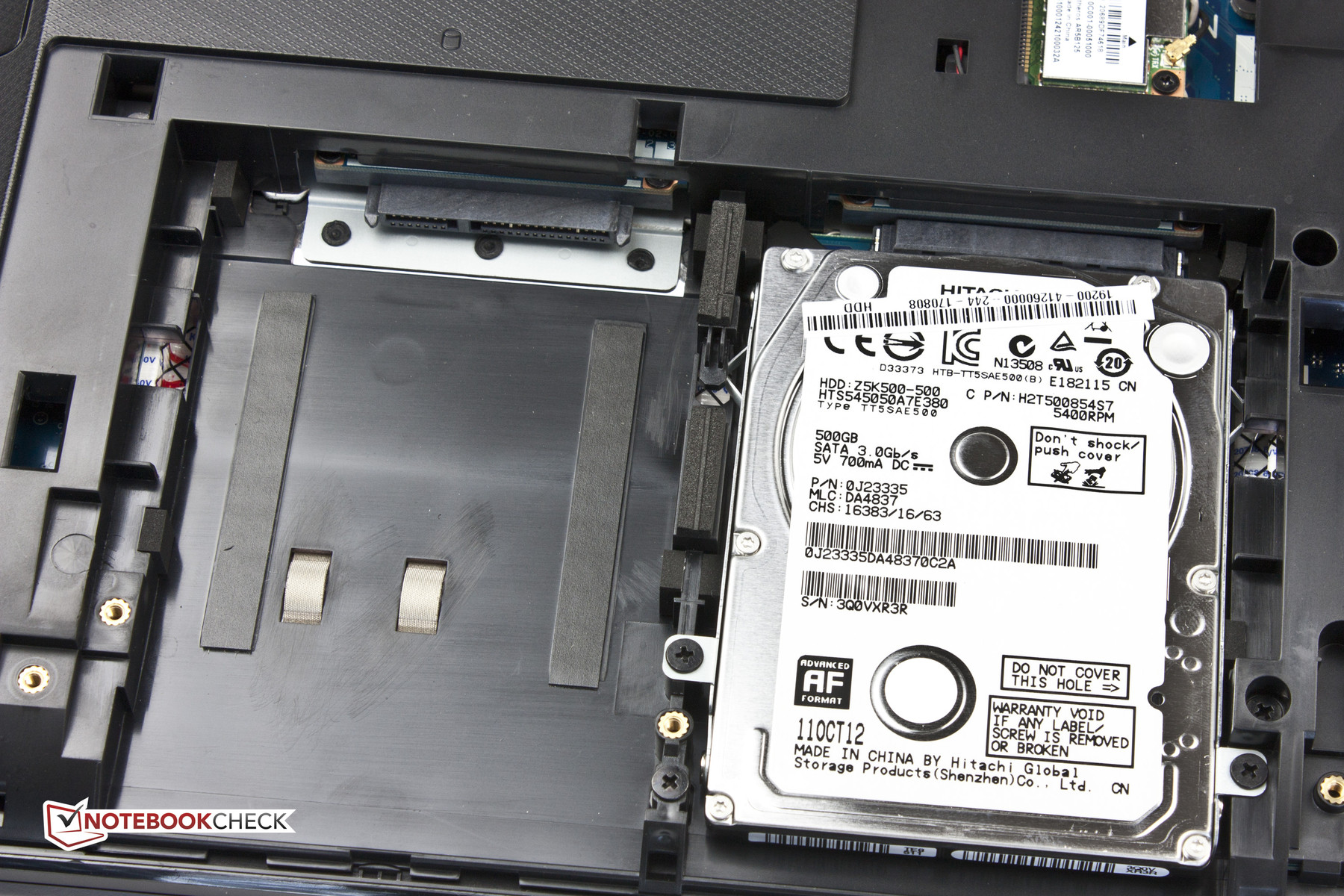

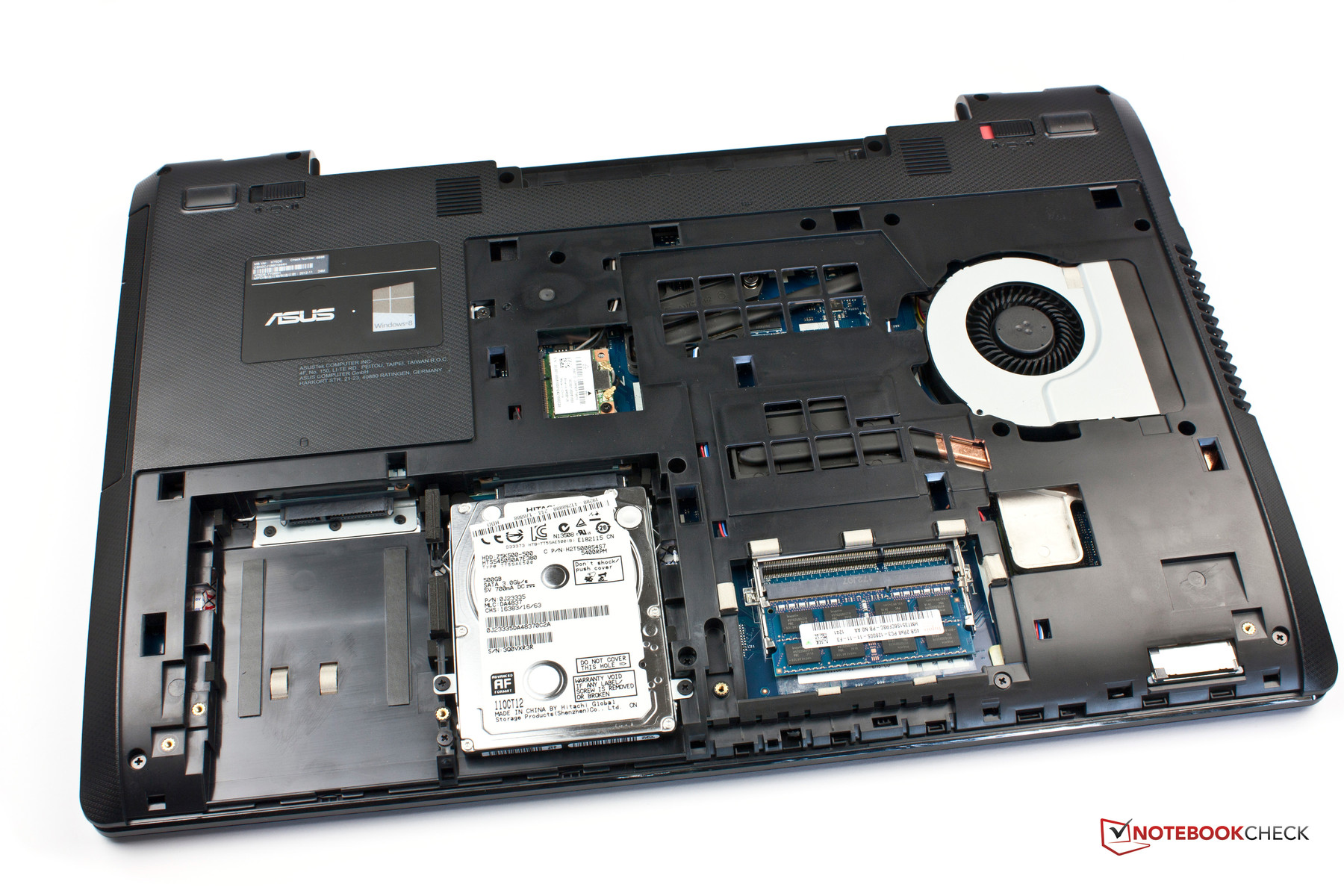

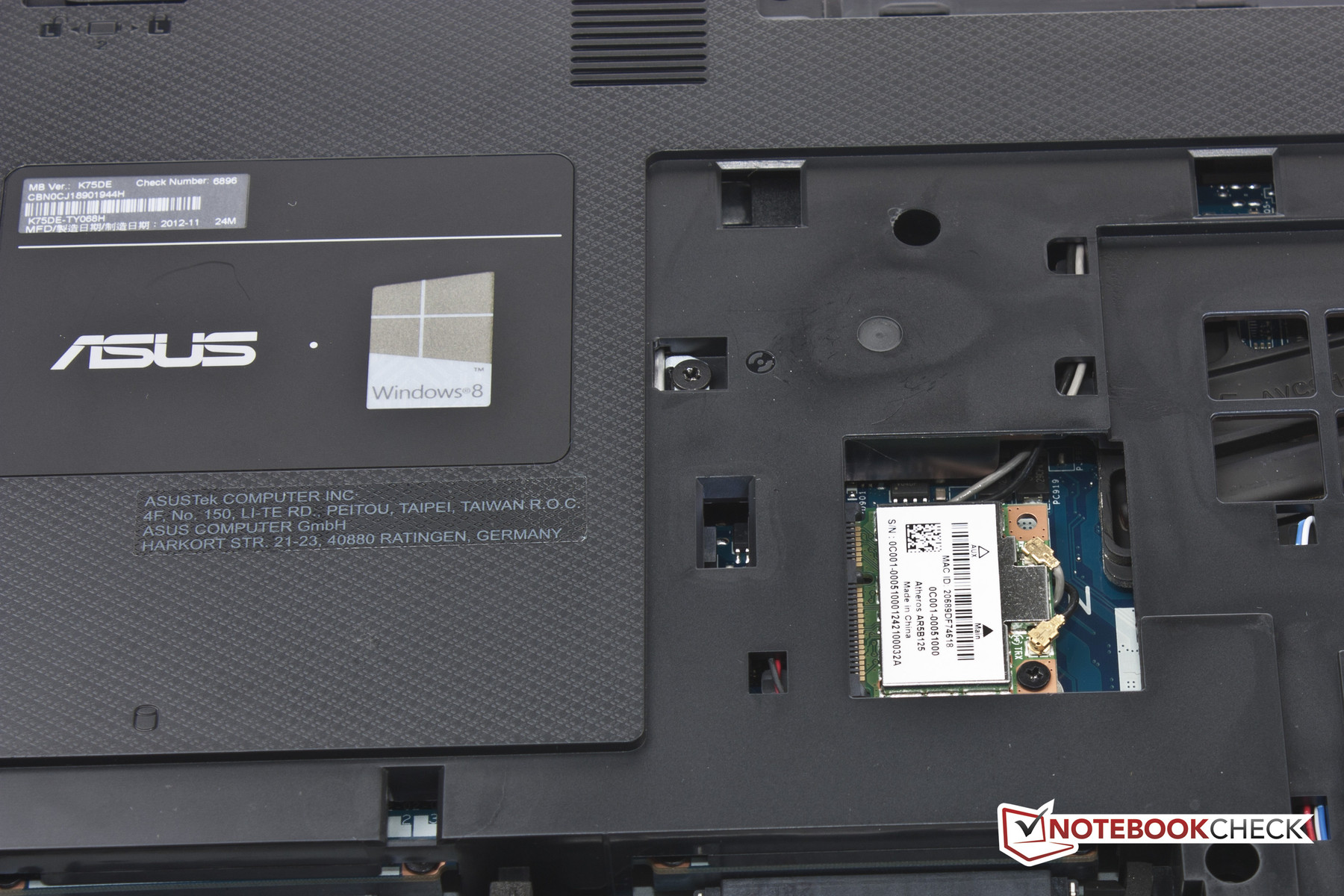

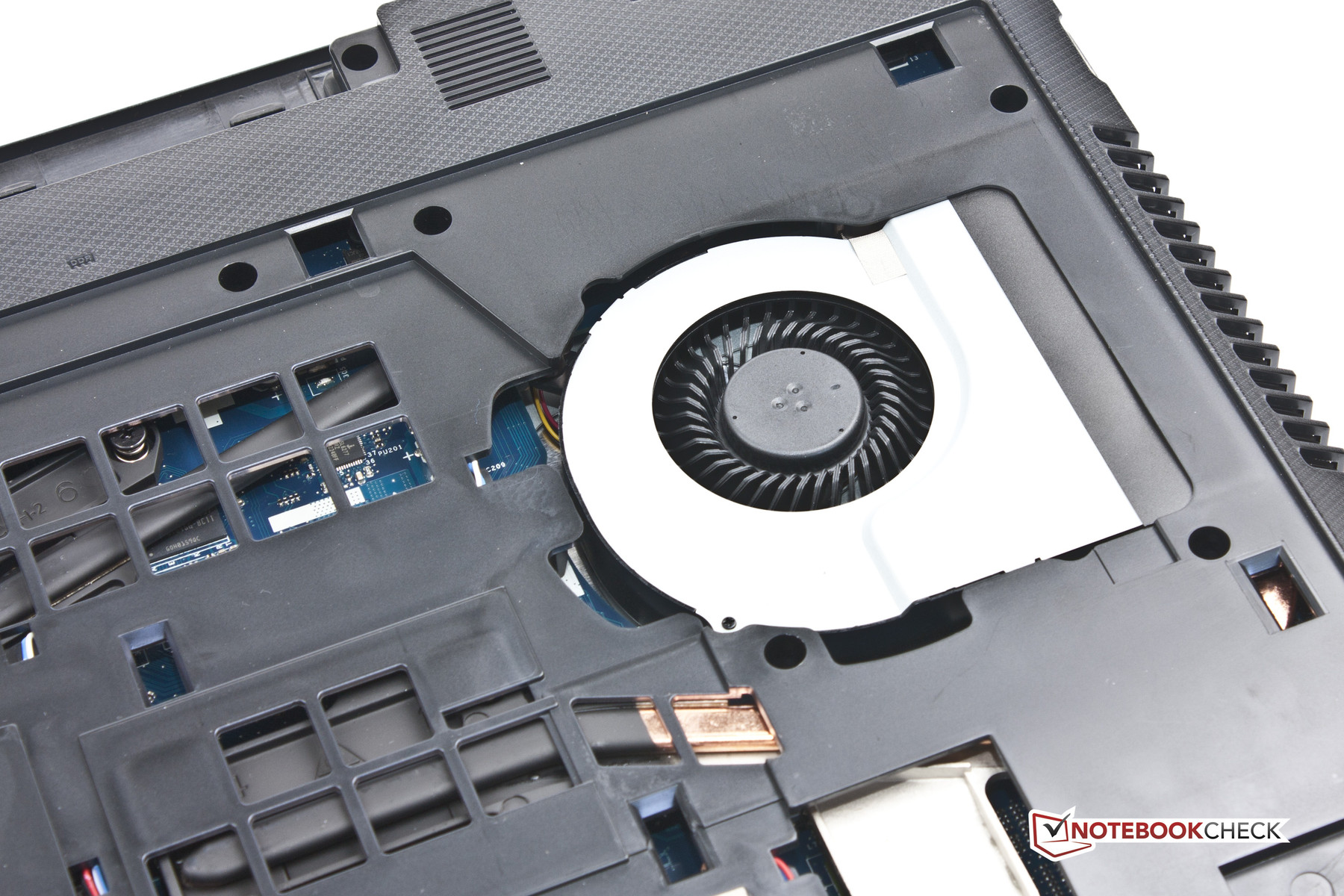

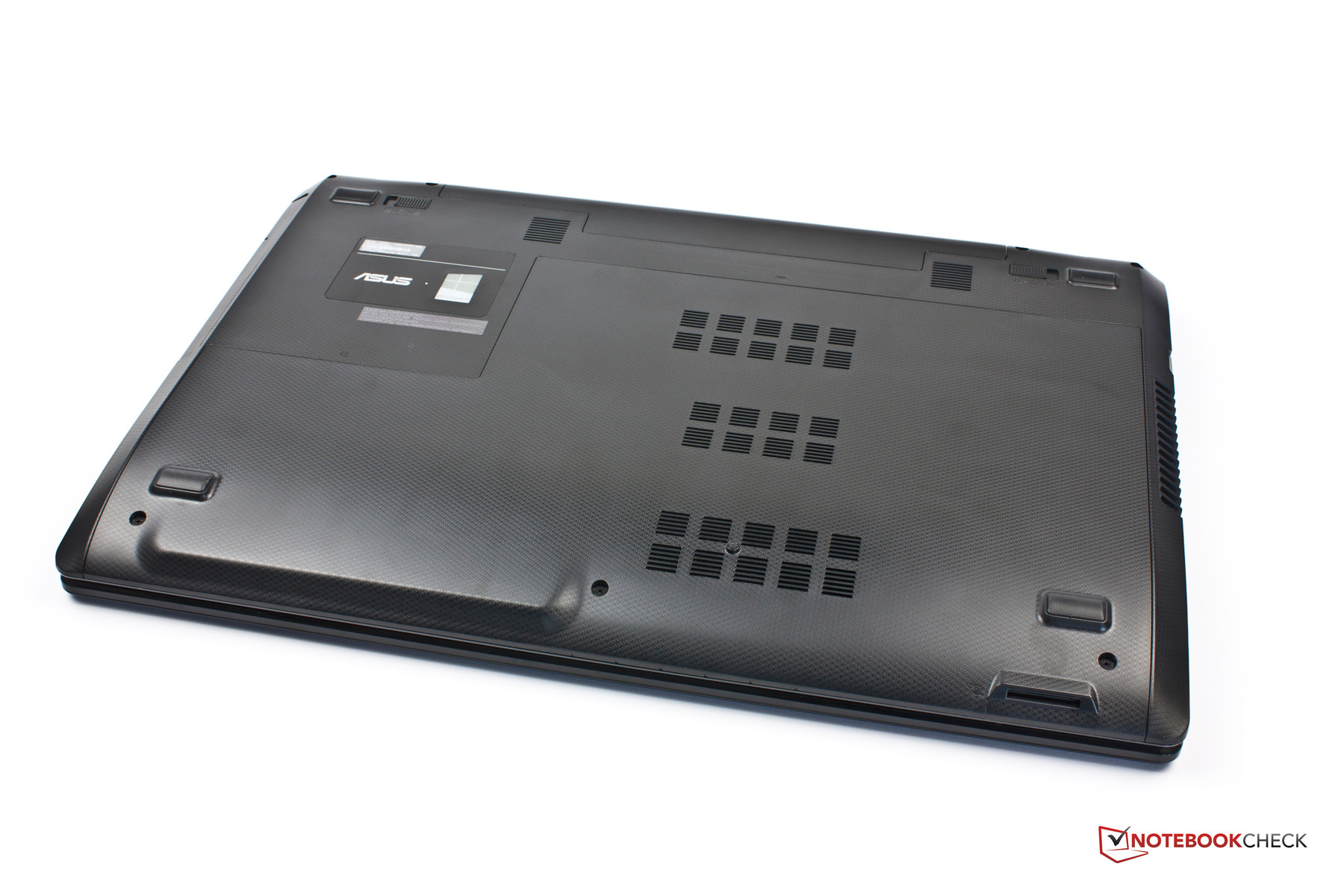

The bottom of the notebook includes a maintenance flap secured by three screws. Once removed, the CPU cooler fan can be cleaned. The flap also grants access to the RAM slots (only one is occupied) and the WLAN module. A free 2.5-inch slot offers space for an additional SATA hard drive. The Asus K75DE is easily accessible and offers upgrade possibilities.

Warranty

Asus grants 24 months warranty which can be extended for another year in the Asus Shop. This costs between 69 - 79 Euros (~$90 - $103), depending on whether the user chooses warranty for their country or international service.

Input Devices

Keyboard

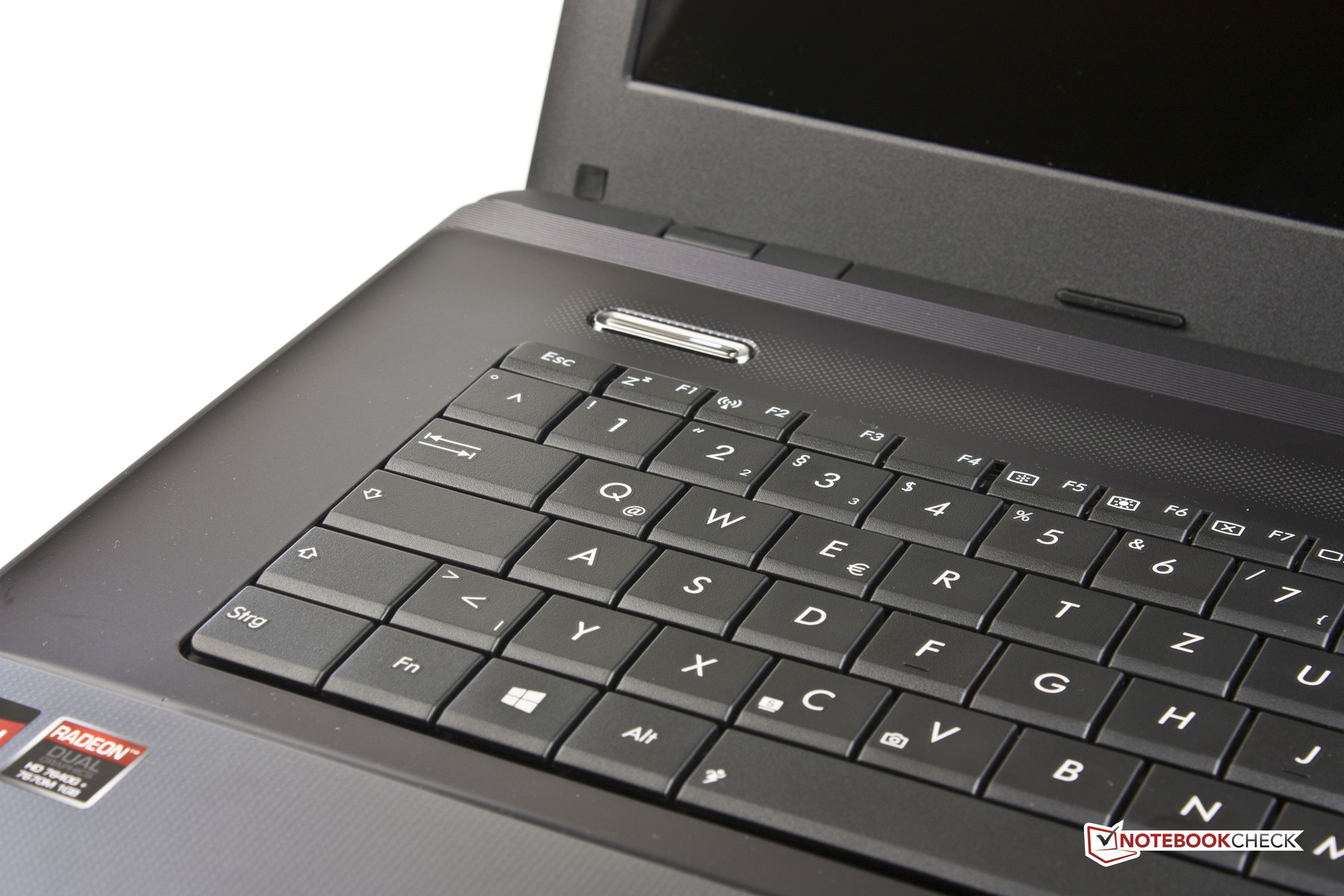

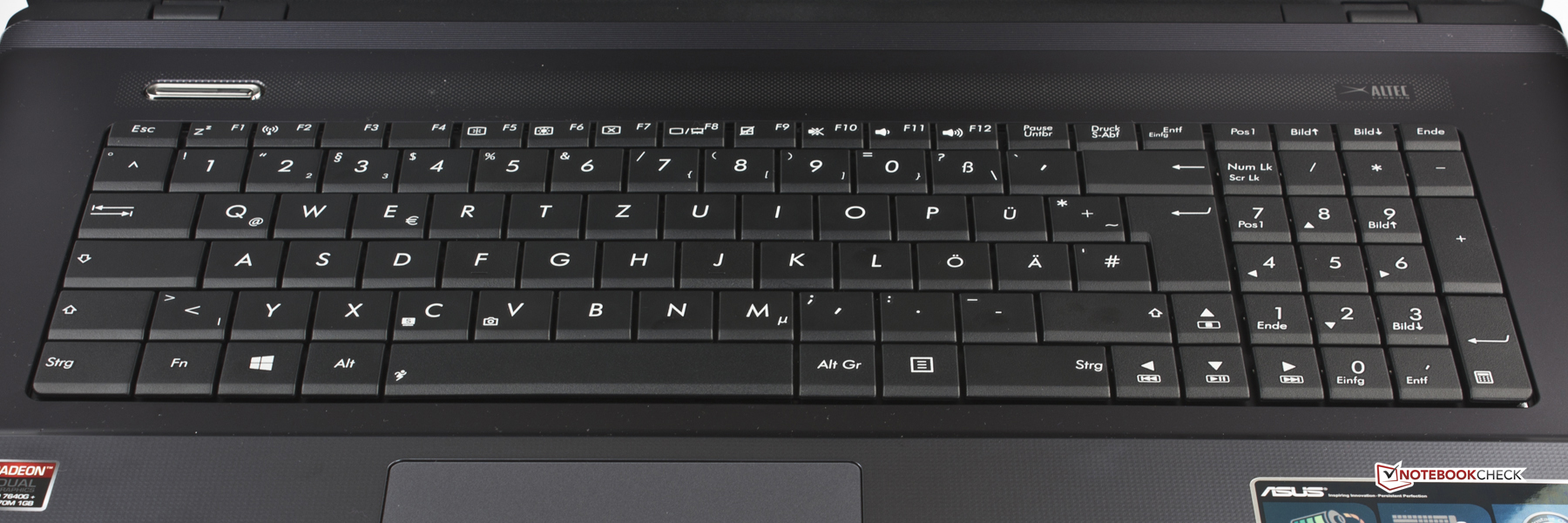

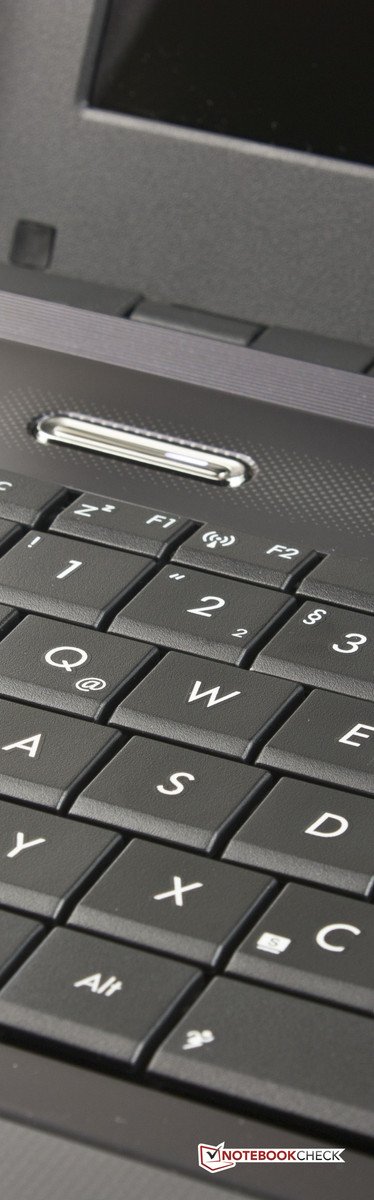

The QWERTY keys are 17x17 mm, flat and have a rough surface, which feels comfortable. The keys are quiet but the stroke distance could have been shorter. Also, the keyboard bends inwards slightly when the user presses hard.

The function key (Fn) allows the user to access a few additional functions, but Asus has completely left out special functions. Status LEDs for the numeric pad and other activities are included on the case.

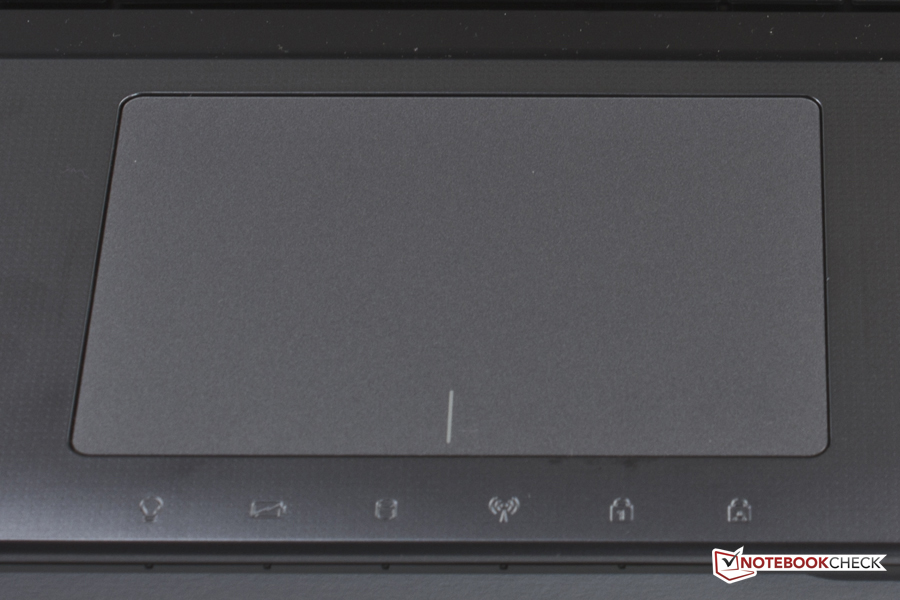

Touchpad

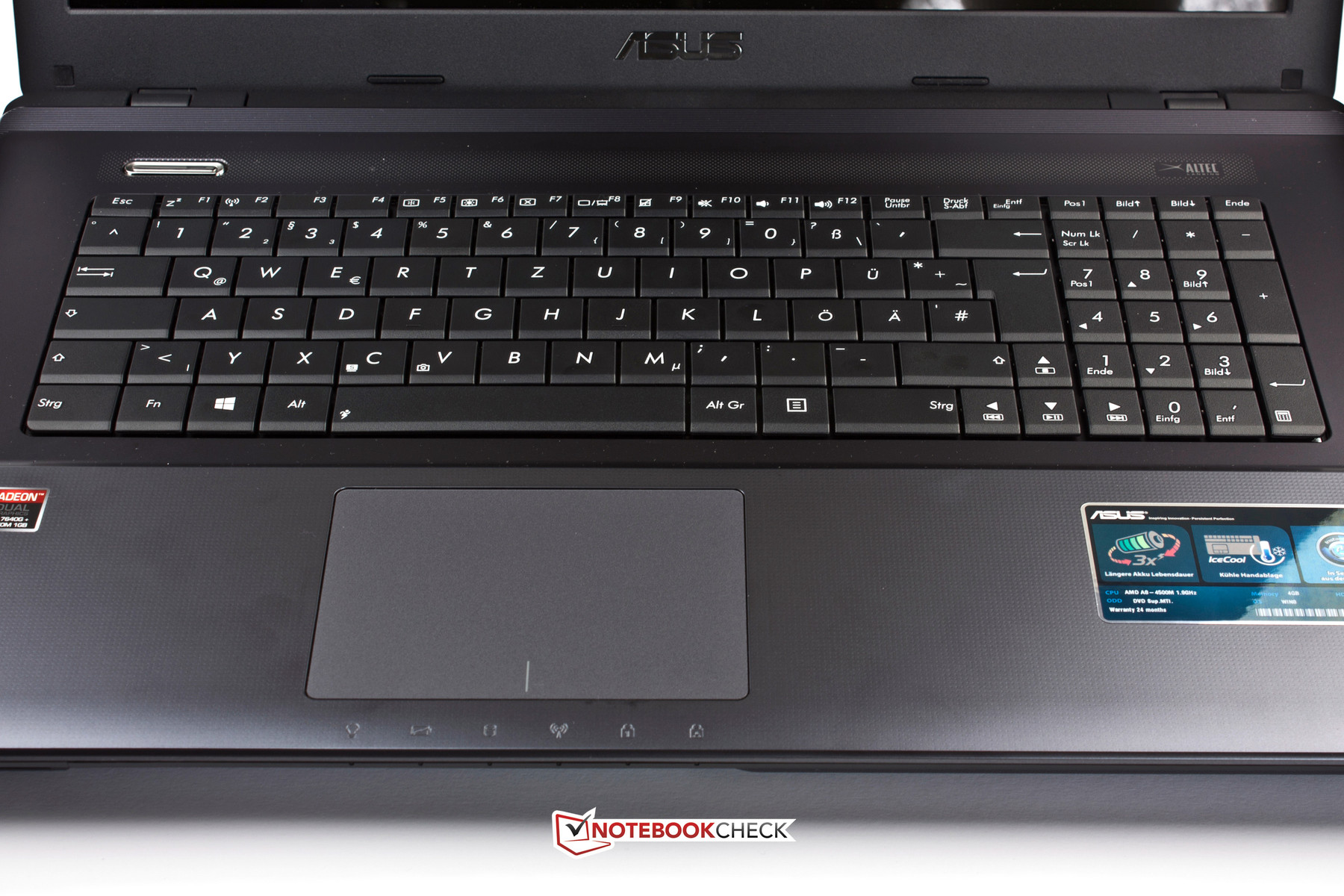

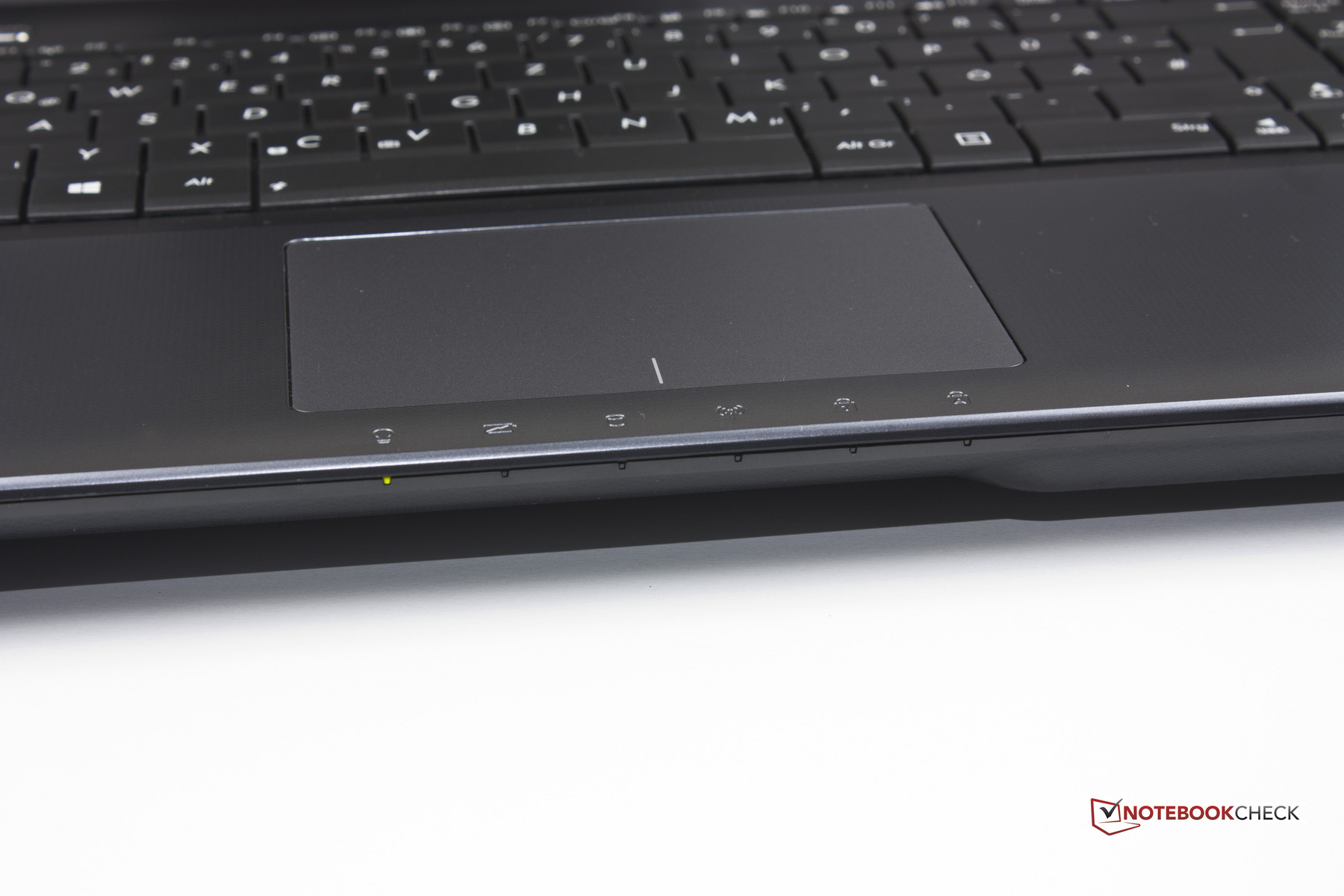

The touchpad of the K75DE measures 10.5 x 7.4 cm and is very well-dimensioned. The smooth surface has good sliding properties and is very precise. The bottom part of the touchpad includes two mouse keys which have good pressure points. The stroke distance is good and multi-touch gestures are supported.

Touchpad
Touchpad
Keyboard
Keyboard

Display

The glossy 17.3-inch HD+ display with LED backlight has a resolution of 1600x900 pixels. The low resolution (106 PPI) limits the work space available slightly, as can be seen when compared to an FHD panel. However, this resolution displays content sufficiently well and the 16:9 format is suited for movie playback.

The average brightness of 223 cd/m² is slightly lower than that of the Samsung 355E7C-S05DE (244.7 cd/m²) and the Sony Vaio SV-E1712F1EW (244.1 cd/m²). The illumination is balanced and there are no bright spots.

206
cd/m²
216
cd/m²
217
cd/m²
235
cd/m²
236
cd/m²
236
cd/m²
216
cd/m²
230
cd/m²
215
cd/m²
Distribution of brightness
HD+ LED Backlight tested with X-Rite i1 Basic Pro 2
Maximum: 236 cd/m² (Nits) Average: 223 cd/m²
Brightness Distribution: 87 %
Center on Battery: 236 cd/m²
Contrast: 257:1 (Black: 0.92 cd/m²)54.9% AdobeRGB 1998 (Argyll 2.2.0 3D)
75.1% sRGB (Argyll 2.2.0 3D)
53.3% Display P3 (Argyll 2.2.0 3D)

The black value of 0.92 cd/m² and contrast of 256:1 are not impressive, as both the Sony (0.92 cd/m²; 268:1) and the Samsung models (0.78 cd/m²; 314:1) offer (marginally) better values.

Photographers or other users, who want accurate color depiction, will not be happy with this panel as the color space coverage is too limited for professional use.

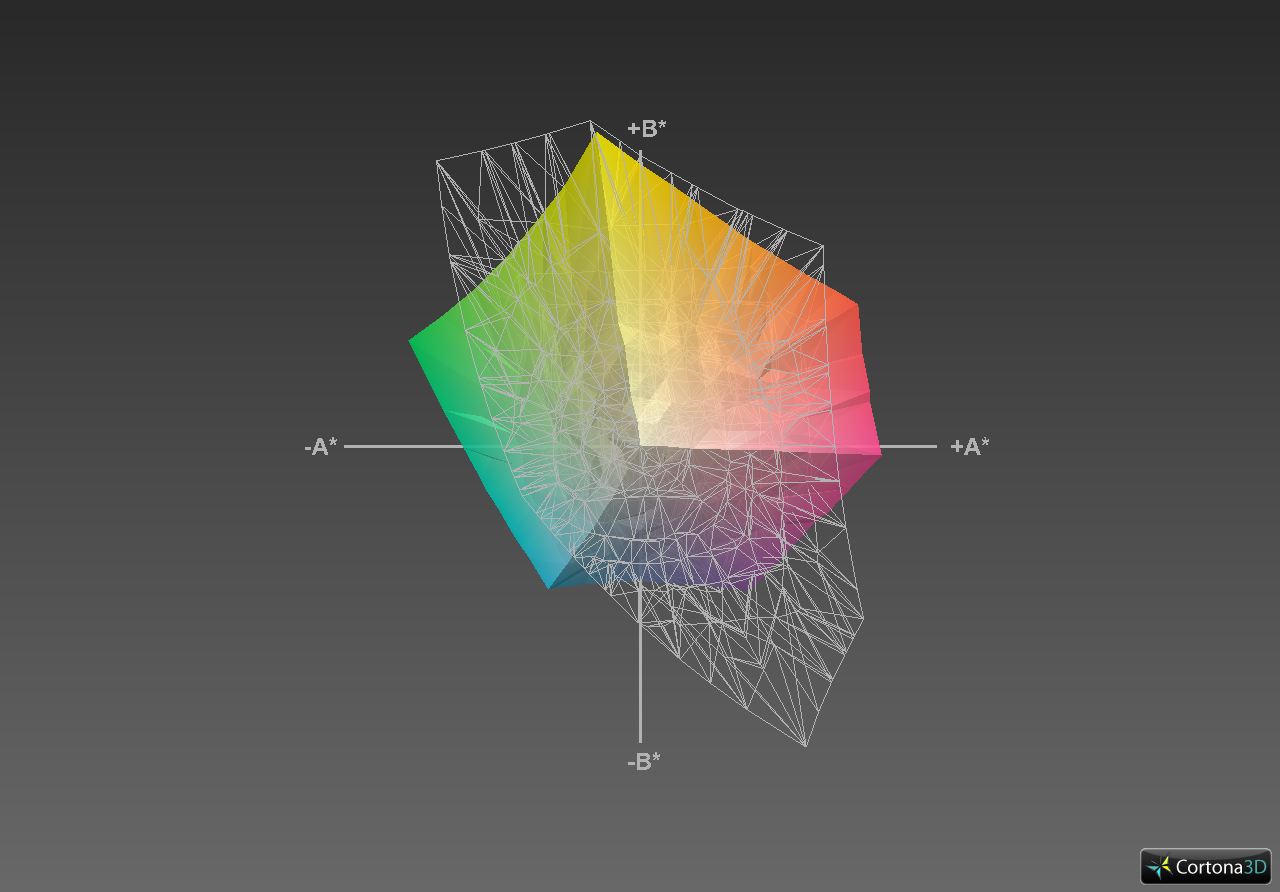

Photoshop5DefaultCMYK vs. Asus K75DE-TY068H
sRGB vs. Asus K75DE-TY068H

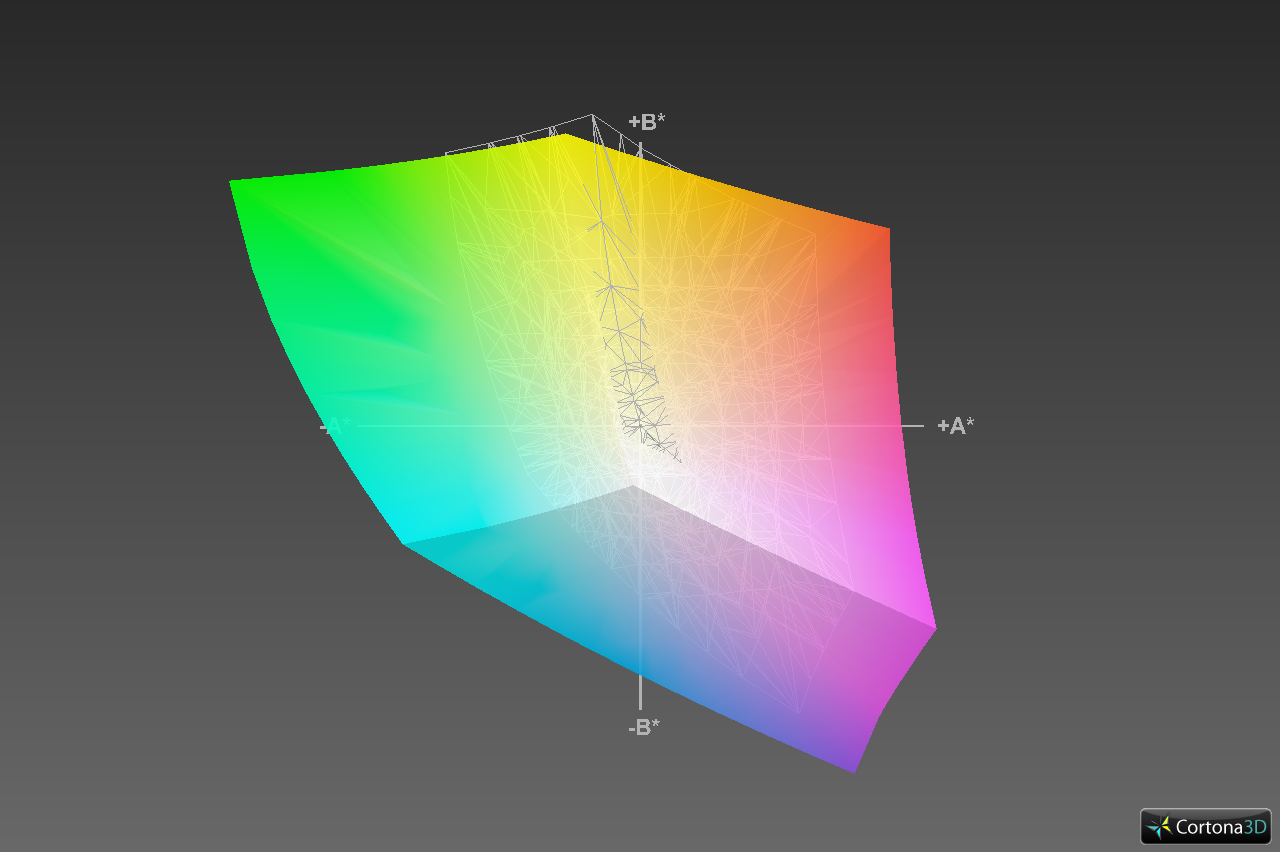

AdobRGB1998 vs. Asus K75DE-TY068H

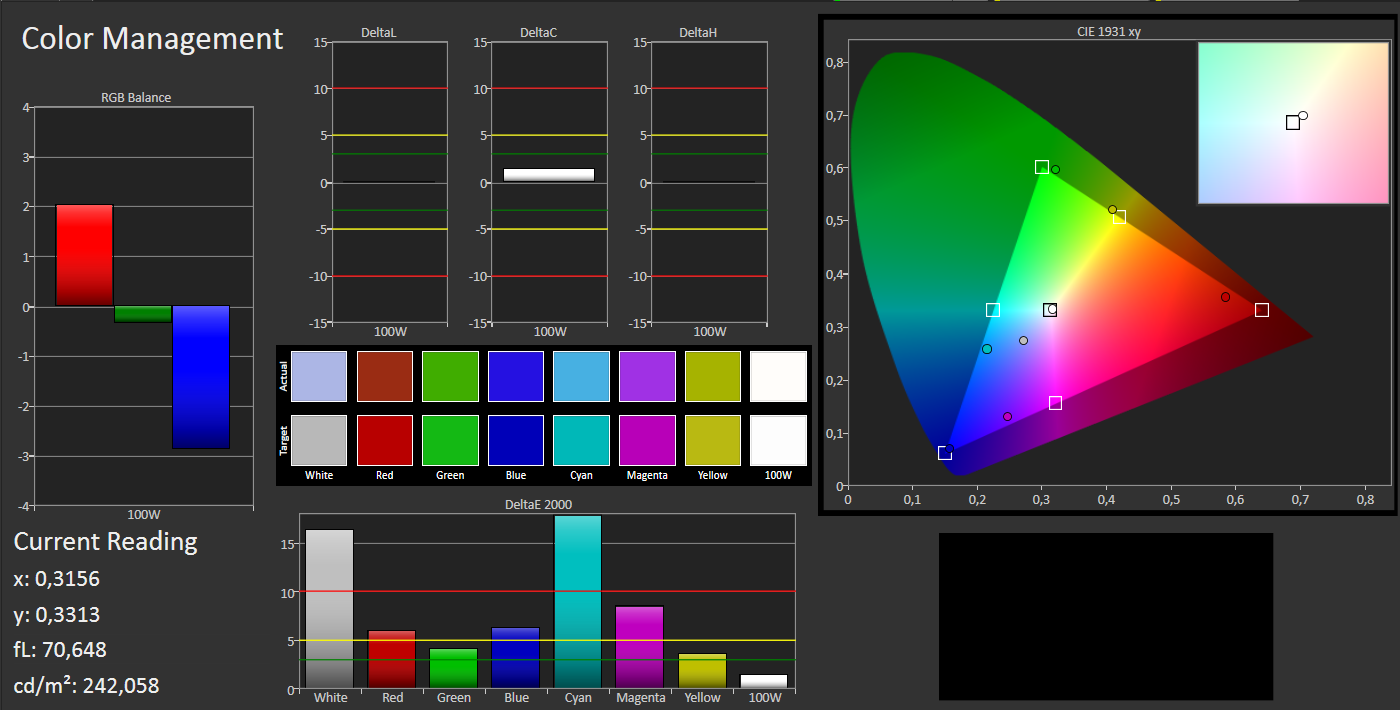

The uncalibrated display shows a deviation of 12 strong levels from the accepted gray levels in the DeltaE 2000 index. The saturation is not good either. Magenta and cyan drift heavily to blue, which grants the screen a visible blue tint. In the color accuracy, white and cyan show clear weaknesses and the DeltaE here is far above 15.

CalMAN 5 - Saturation
CalMAN 5 - Color Accuracy
CalMAN 5 - Gray Levels

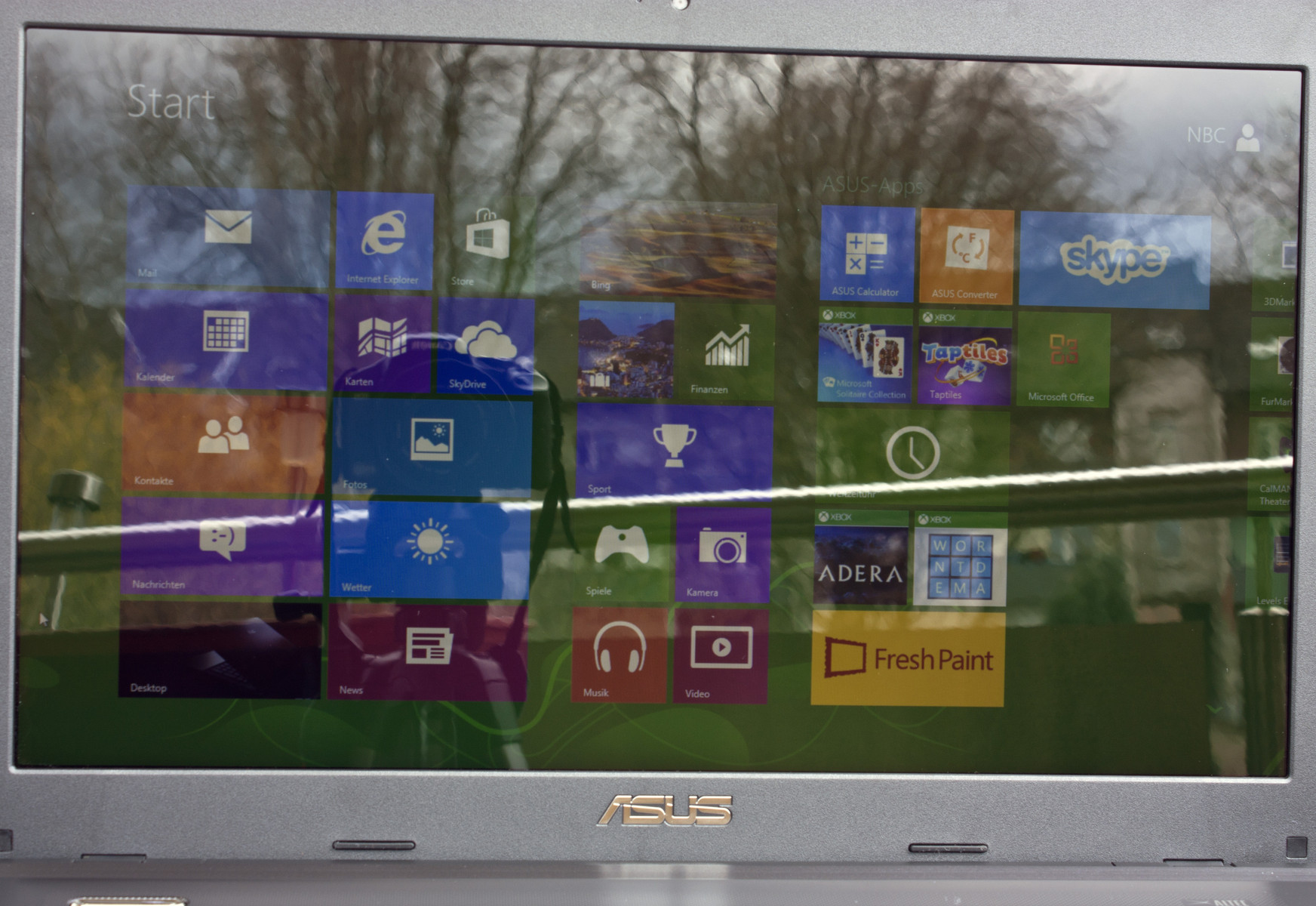

We recommend finding a shaded spot if you intend to bring the laptop outdoors. The reflective display and the low brightness make using it in direct sunlight difficult. The Samsung 355E7C with its matte display is better suited for that task.

Outdoors use
Outdoors use: direct view

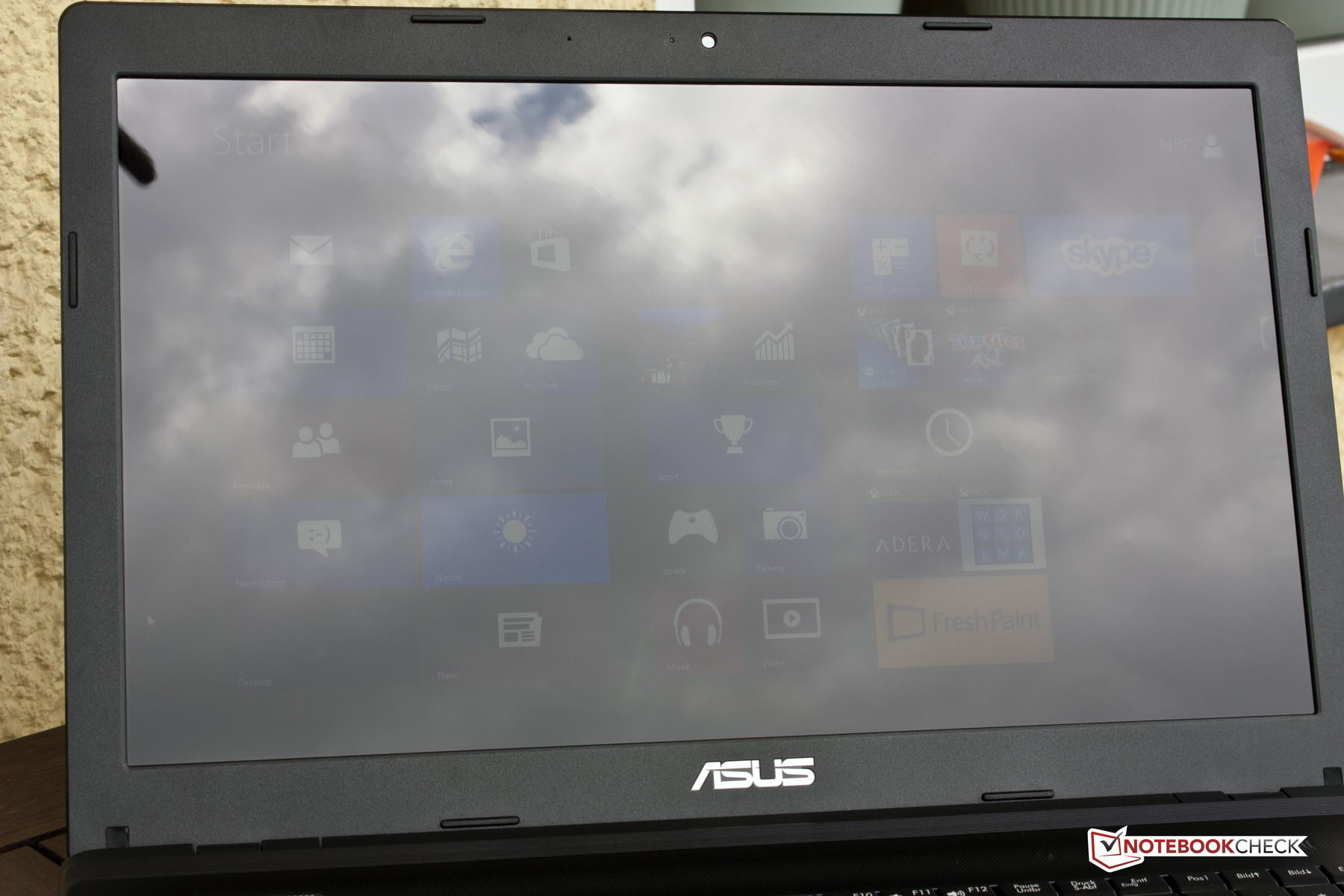

Outdoors use: side view while clouded

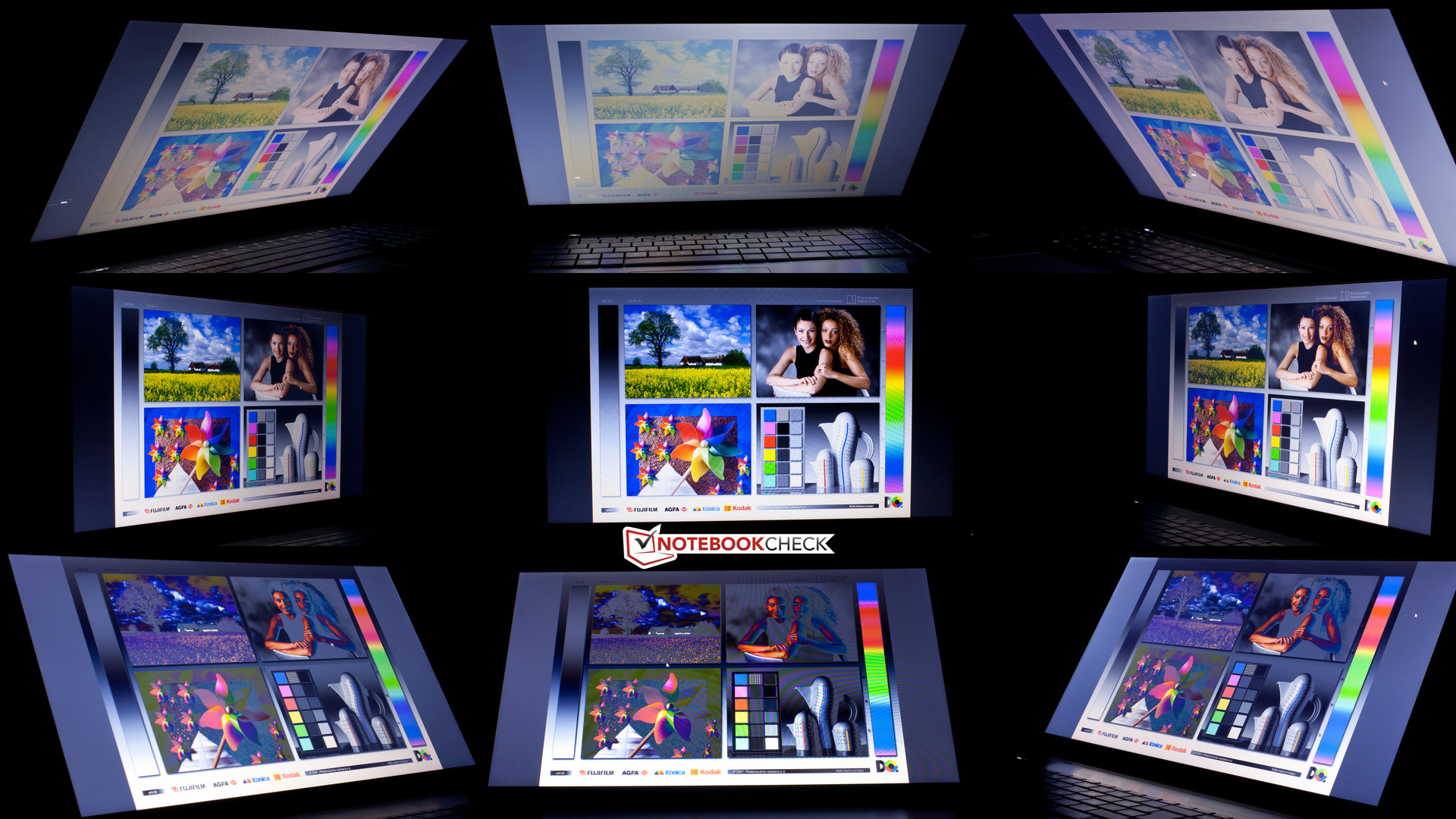

Viewing angles of the Asus K75DE-TY068H
Viewing angles of the Asus K75DE-TY068H
Viewing angles of the Asus K75DE-TY068H
Viewing angles of the Asus K75DE-TY068H

As is the standard in the industry, the viewing angles of the TN panel are not satisfying. The picture can drastically change with even small deviations in the vertical viewing angle. This makes the use of the device on the lap harder, but given its size, this would have been an inconvenient way to use the notebook anyway. The Sony and Samsung competition offer similar performances.

Performance

The Asus K75DE-TY068H uses an AMD A8-4500M APU, which is based on the AMD Trinity architecture. The platform is equipped with 4 GB of RAM and a 500 GB Hitachi hard drive - conventional hardware. The IGP (Integrated Graphics Processor) of the model is a Radeon HD 7640G. When more performance is required, a Radeon HD 7670M (CrossFire) kicks in. From the performance, it seems Asus is aiming for buyers who need a laptop powerful enough for everyday tasks and occasional gaming.

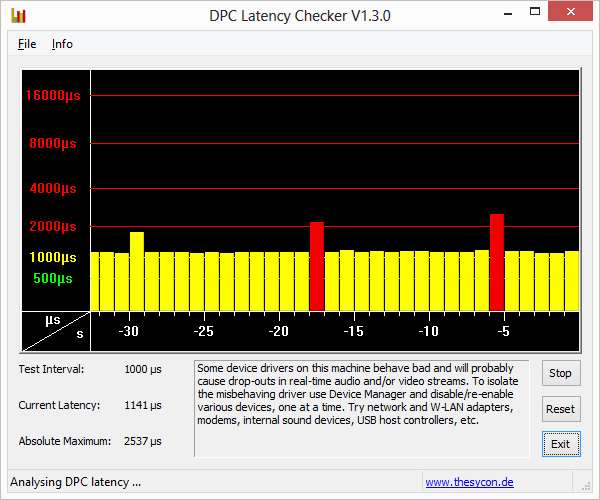

DPC Latency Times

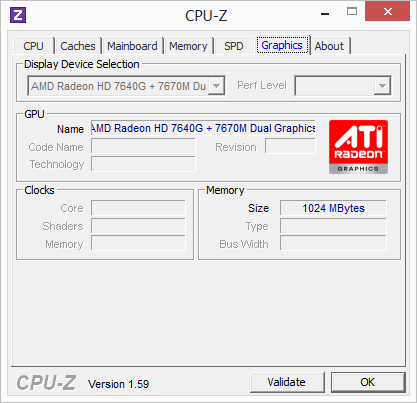

System info CPUZ Graphics
System info CPUZ RAM SPD

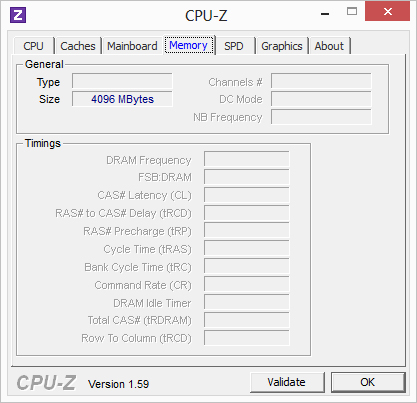

System info CPUZ RAM

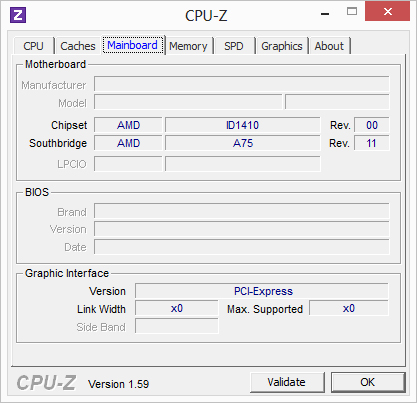

System info CPUZ Mainboard

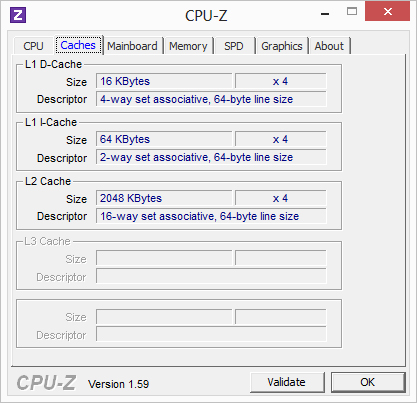

System info CPUZ Cache

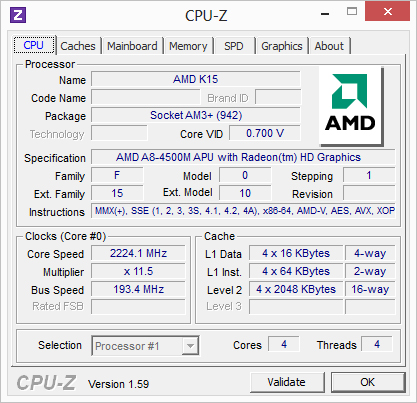

System info CPUZ CPU
System Information - Asus K75DE-TY068H

Processor

The Trinity APU chosen by Asus is a quad-core processor with a base clock speed of 1,900 MHz. This can be increased (using AMD Turbo Core) up to 2,800 MHz.

During the multi-core Cinebench R10 benchmark all cores worked at speeds between 1.9 - 2.3 GHz. The Turbo was never exhausted during the benchmark. On pure battery mode, the performance of each core was limited to 1,415 MHz and did not fluctuate. The single-core benchmark painted a similar picture.

Despite the same hardware platform, the Asus K75DE is slightly more powerful than the Samsung 355E7C. However, it cannot compete with the performance of the dual-core CPU of the Sony Vaio (Pentium B980/HD 7650M).

Cinebench R10 - Rendering Multiple CPUs 64Bit (sort by value)
Asus K75DE-TY068H
Radeon HD 7640G + HD 7670M Dual Graphics, A8-4500M, Hitachi Travelstar Z5K500 HTS545050A7E380
6799 Points
Samsung Serie 3 355E7C-S05DE
Radeon HD 7640G + HD 7670M Dual Graphics, A8-4500M, Hitachi Travelstar 5K750 HTS547575A9E384
6524 Points -4%
Sony Vaio SV-E1712F1EW
Radeon HD 7650M, B980, Hitachi Travelstar Z5K500 HTS545050A7E380
7337 Points +8%
Cinebench R10 Shading 32Bit
4566
Cinebench R10 Rendering Multiple CPUs 32Bit
4780
Cinebench R10 Rendering Single 32Bit
1831
Cinebench R10 Shading 64Bit
4434 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
6799 Points
Cinebench R10 Rendering Single CPUs 64Bit
2491 Points
Cinebench R11.5 OpenGL 64Bit
17.26 fps
Cinebench R11.5 CPU Multi 64Bit
1.7 Points
Cinebench R11.5 CPU Single 64Bit
0.7 Points
Help
Cinebench R11.5
CPU Multi 64Bit (sort by value)
Asus K75DE-TY068H
Radeon HD 7640G + HD 7670M Dual Graphics, A8-4500M, Hitachi Travelstar Z5K500 HTS545050A7E380
1.7 Points
Samsung Serie 3 355E7C-S05DE
Radeon HD 7640G + HD 7670M Dual Graphics, A8-4500M, Hitachi Travelstar 5K750 HTS547575A9E384
1.69 Points -1%
Sony Vaio SV-E1712F1EW
Radeon HD 7650M, B980, Hitachi Travelstar Z5K500 HTS545050A7E380
1.85 Points +9%
HP Pavilion g7-2051sg
Radeon HD 7660G + HD 7670M Dual Graphics, A10-4600M, Hitachi Travelstar 5K750 HTS547550A9E384
1.98 Points +16%
CPU Single 64Bit (sort by value)
Asus K75DE-TY068H
Radeon HD 7640G + HD 7670M Dual Graphics, A8-4500M, Hitachi Travelstar Z5K500 HTS545050A7E380
0.7 Points
Samsung Serie 3 355E7C-S05DE
Radeon HD 7640G + HD 7670M Dual Graphics, A8-4500M, Hitachi Travelstar 5K750 HTS547575A9E384
0.56 Points -20%
Sony Vaio SV-E1712F1EW
Radeon HD 7650M, B980, Hitachi Travelstar Z5K500 HTS545050A7E380
0.92 Points +31%

System Performance

Windows 8 runs (almost) fluidly on the Asus K75DE-TY068H. While starting apps small delays are noticeable now and then.

The PCMark 7 system benchmark offers almost identical results for all competitors. Only the Sony Vaio SV-E1712F1EW can beat the APU platforms by a small gap.

Adding an SSD would be a sensible decision as the model has a free HDD Slot. If the system partition is copied there, the overall performance will noticeably rise.

5.9
Windows 8 Experience Index
Processor
Calculations per second
6.7
Memory (RAM)
Memory operations per second
5.9
Graphics
Desktop performance for Windows Aero
6.6
Gaming graphics
3D business and gaming graphics
6.6
Primary hard disk
Disk data transfer rate
5.9
PCMark Vantage Result
3943 points
PCMark 7 Score
1730 points
Help
PCMark 7 - Score (sort by value)
Asus K75DE-TY068H
Radeon HD 7640G + HD 7670M Dual Graphics, A8-4500M, Hitachi Travelstar Z5K500 HTS545050A7E380
1730 Points
Samsung Serie 3 355E7C-S05DE
Radeon HD 7640G + HD 7670M Dual Graphics, A8-4500M, Hitachi Travelstar 5K750 HTS547575A9E384
1818 Points +5%
HP Pavilion g7-2051sg
Radeon HD 7660G + HD 7670M Dual Graphics, A10-4600M, Hitachi Travelstar 5K750 HTS547550A9E384
1844 Points +7%
Sony Vaio SV-E1712F1EW
Radeon HD 7650M, B980, Hitachi Travelstar Z5K500 HTS545050A7E380
1949 Points +13%

Storage Devices

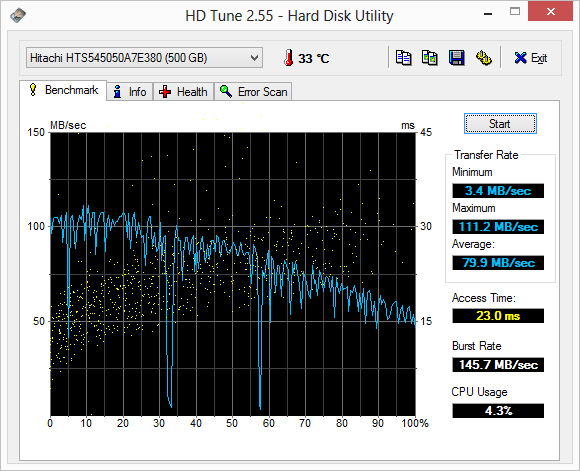

HD Tune

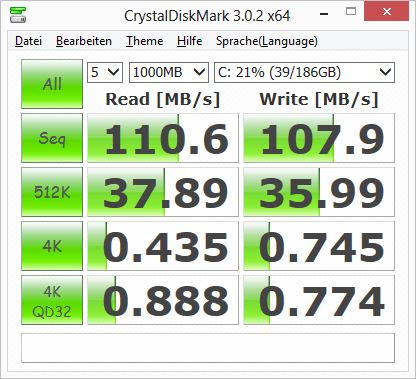

CrystalDiskMark

The hard drive is a 500 GB drive from Hitachi (HTS545050A7E380) and it operates at 5,400 rpm. The low rotation speed means that the user should not expect fast access times. Still, 23 ms is far more than we expected. The transfer speeds we measured with HD Tune are also good. Overall, the hard drive offers average performance for its class.

Hitachi Travelstar Z5K500 HTS545050A7E380
Transfer Rate Minimum: 3.4 MB/s
Transfer Rate Maximum: 111.2 MB/s
Transfer Rate Average: 79.9 MB/s
Access Time: 23 ms
Burst Rate: 145.7 MB/s
CPU Usage: 4.3 %

Graphics Card

In our test model, we have a CrossFire AMD GPU system: the Radeon HD 7640G and a 7670M. This dual GPU system essentially allows the GPUs to alternate in processing images (asymmetrical).

The AMD platform can showcase its strengths vs. the Sony Vaio (dedicated Radeon HD 7650M) in this section. The benchmark score in 3DMark 11 is a good 600 points higher than that of the competition. This places our Asus CrossFire team between the Nvidia GeForce GTX 560M and GeForce GT 640M (in terms of performance), but our test model could not perform as well in older 3DMark benchmarks. Next we will see what issues can crop up when the CrossFire system is used for gaming.

3DMark 06 Standard Score
8410 points
3DMark Vantage P Result
5085 points
3DMark 11 Performance
1664 points
3DMark Ice Storm Standard Score
31169 points
3DMark Cloud Gate Standard Score
3995 points
3DMark Fire Strike Score
654 points
3DMark Fire Strike Extreme Score
259 points
Help
3DMark 11 - 1280x720 Performance (sort by value)
Asus K75DE-TY068H
Radeon HD 7640G + HD 7670M Dual Graphics, A8-4500M, Hitachi Travelstar Z5K500 HTS545050A7E380
1664 Points
Samsung Serie 3 355E7C-S05DE
Radeon HD 7640G + HD 7670M Dual Graphics, A8-4500M, Hitachi Travelstar 5K750 HTS547575A9E384
1628 Points -2%
Samsung Serie 3 355E7C-S05DE
Radeon HD 7640G + HD 7670M Dual Graphics, A8-4500M, Hitachi Travelstar 5K750 HTS547575A9E384
1628 Points -2%
Sony Vaio SV-E1712F1EW
Radeon HD 7650M, B980, Hitachi Travelstar Z5K500 HTS545050A7E380
1061 Points -36%

Gaming Performance

The CrossFire system offers good results for many of the latest games. In fact, most of the new games can be run at medium or high resolutions fluidly, as long as the notebook is run with the power adapter connected. More demanding games, such as Crysis 3 or Hitman: Absolution, require dropping of graphic details for a fluid picture. This is probably due to the weak CPU, but may also be due to the throttling of the 7670M at load. During our stress test, the clock speed dropped to 454 MHz, which is 146 MHz below the base speed. This indicates that the CrossFire solution is weaker in games than it is in the benchmarks. Our comparison test with Anno 2070 serves to prove our point. The Toshiba Satellite Pro L870-16P, which uses a dedicated Radeon HD 7670M and a Core i5 CPU, is far superior to our test model. This places our CrossFire system at the level of a GT 635M

Thanks to Anno 2070 we ascertained a better understanding of how the hardware operates on battery and while connected to a power socket. The game was run at the native resolution of 1600x900 pixels with low details. While connected to a power outlet, the model achieves a frame rate of 61 fps, but on battery, the performance drops to a maximum of 49 fps. This is due to the fact that both the CPU and GPU are throttled.

The micro stutters typical to such a dual-graphics system were noticeable on our test model as well after 30 fps. On our Radeon HD 7640G + 7670M page, the reader will find various other benchmarks with new games using the CrossFire system. An overview of the latest games and their performance on mobile GPUs can be found here.

low med. high ultra
Anno 2070 (2011) 69 28 19
Diablo III (2012) 98 74 70 48
Fifa 13 (2012) 133 108 103 71
Anno 2070 - 1366x768 High Preset AA:on AF:2x (sort by value)
Asus K75DE-TY068H
19 fps
Toshiba Satellite Pro L870-16P
22.4 fps +18%
Samsung Serie 3 355E7C-S05DE
20.6 fps +8%

Legend


Asus K75DE-TY068H AMD A8-4500M, AMD Radeon HD 7640G + HD 7670M Dual Graphics, Hitachi Travelstar Z5K500 HTS545050A7E380

Toshiba Satellite Pro L870-16P Intel Core i5-3210M, AMD Radeon HD 7670M, Toshiba MK5061GSYN

Samsung Serie 3 355E7C-S05DE AMD A8-4500M, AMD Radeon HD 7640G + HD 7670M Dual Graphics, Hitachi Travelstar 5K750 HTS547575A9E384

Emissions

System Noise

The Asus K75DE-TY068H is a relatively quiet notebook. While idle, it does not get louder than 30.8 dB(A) and the cooler fan remains off for the majority of the time. The hard drive is also quiet at 30.4 dB(A). This makes Asus a better choice than the Samsung 355E7C, which has a higher noise emission.

The DVD playback test paints a similar picture. At extreme load, the Samsung model performs better than the K75DE, as it never gets higher than 39 dB(A). The Asus notebook can reach peaks of up to 44.1 dB(A) in the stress test (Prime95 and FurMark). This is a maximum emission and will rarely occur in everyday use.

Noise Level

Idle
30 / 30 / 30.8 dB(A)
HDD
30.4 dB(A)
DVD
35.1 / dB(A)
Load
38.4 / 44.1 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Voltcraft sl-320 (15 cm distance)

Temperature

Stress test on battery
Stress test on battery

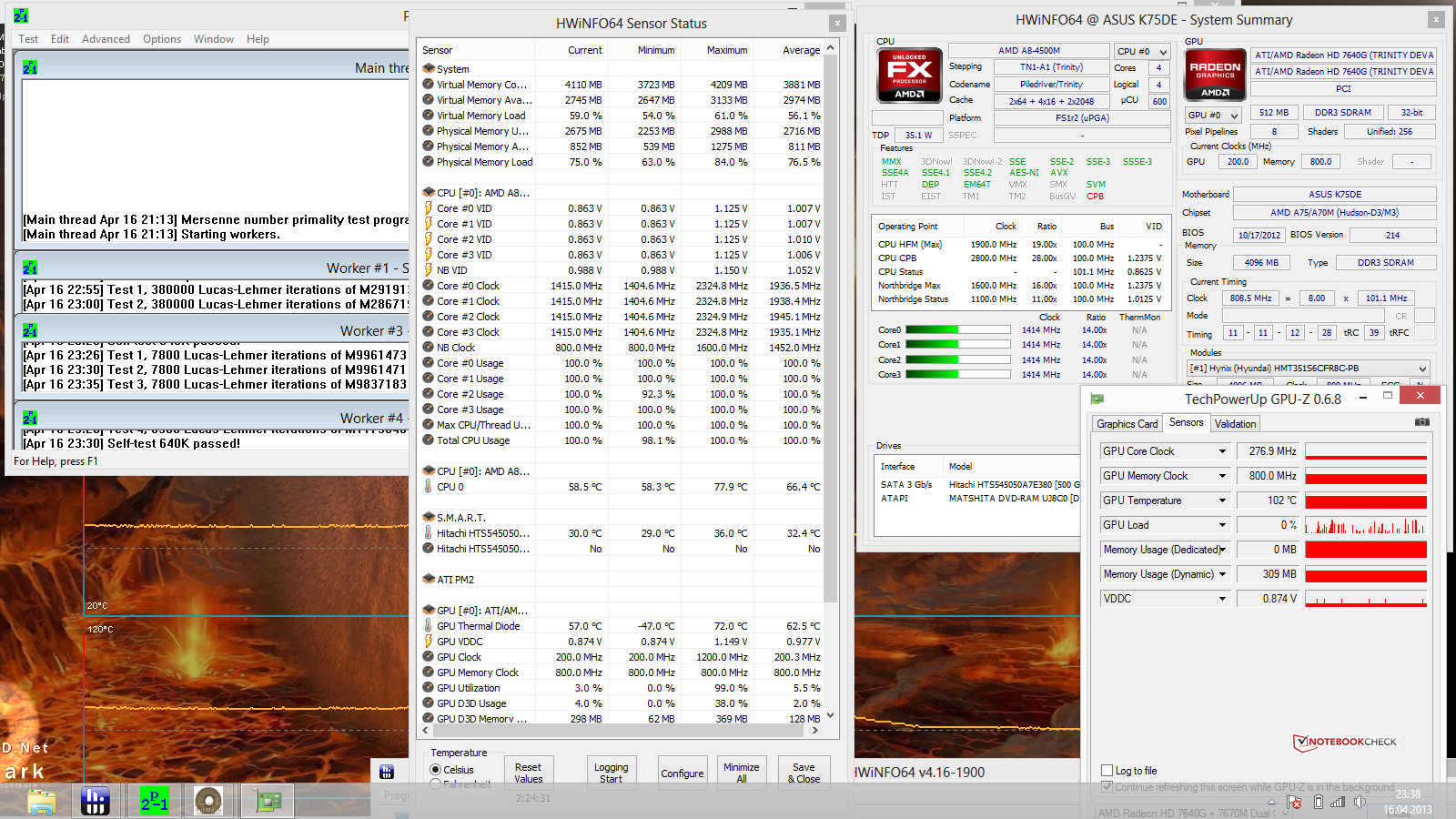

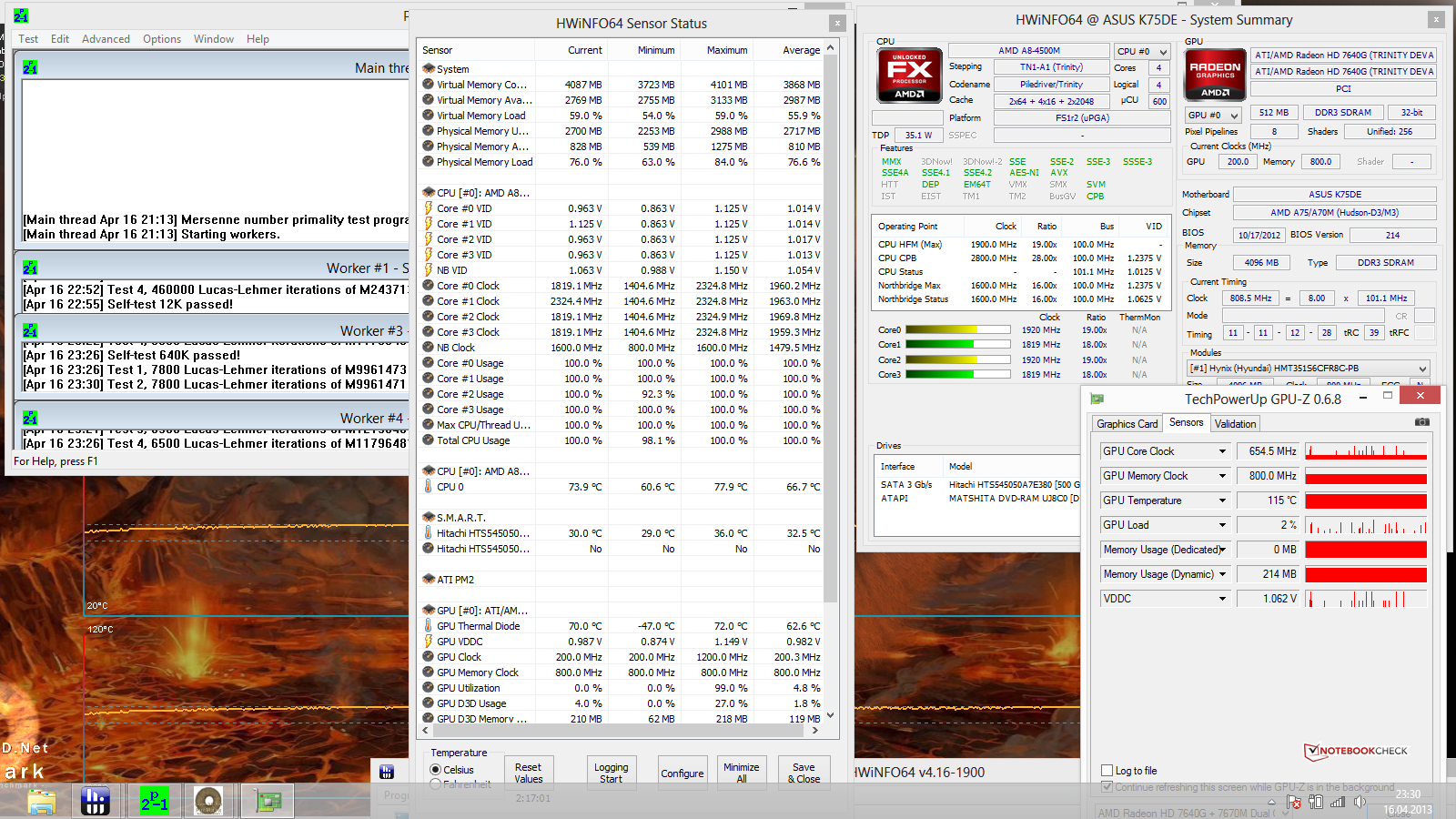

Stress test with power adapter
Stress test with power adapter

While idle, the surface temperatures of our test model never rose above 33 °C. Sony shows us that it is possible to do better with its 17-inch model which never got hotter than 28 °C. At load (stress test), the competitors swap positions and the Asus K75DE stays 4.6 °C cooler. Asus boasts of their cool hand-rest regions and have dubbed their clever positioning of the hardware: "IceCool". The notebook can live up to the claim and the hand-rest regions never get warm (even at full load).

During, the CPU stress test with Prime95, the CPU temperature never rises above the 66 °C mark. The clock speed fluctuates between 1.9 - 2.3 GHz at the start, and during long periods of high load, is known to drop momentarily to 1.4 GHz. This short-term throttling does not explain the poor benchmark results (in comparison to the Samsung 355E7C). The clock speed of the Samsung competitor drops to 900 MHz. In the combined stress test (Prime95 + FurMark), the CPU temperature rises to 78 °C. Right after the stress test, we ran the 3DMark 2006 benchmark, which recorded a lower score (-797 points) than in the "cold" state (before running the stress test). The throttling of the 7670M is responsible for this poor performance, as this chip falls short of its base clock speed of 600 MHz by about 146 MHz.

If the laptop is on battery mode, all cores process at a constant 1,414 MHz. The GPUs present similar behavior. With the power adapter, they operate at 334 and 655 MHz, but once the laptop is running on battery, the speed drops to 277 MHz.

 30.2 °C
86 F
28.3 °C
83 F
24.2 °C
76 F

 30.1 °C
86 F
28.2 °C
83 F
24.6 °C
76 F

 29 °C
84 F
29.1 °C
84 F
25.5 °C
78 F

Maximum: 30.2 °C = 86 F
Average: 27.7 °C = 82 F
24.8 °C
77 F
30.1 °C
86 F
30.1 °C
86 F
24.6 °C
76 F
32.7 °C
91 F
30.6 °C
87 F
23.8 °C
75 F
32.7 °C
91 F
33 °C
91 F
Maximum: 33 °C = 91 F
Average: 29.2 °C = 85 F
Power Supply (max.)  29.1 °C = 84 F | Room Temperature 23.5 °C = 74 F | Voltcraft IR-360
(±) The average temperature for the upper side under maximal load is 32.9 °C / 91 F, compared to the average of 31.2 °C / 88 F for the devices in the class Multimedia.
(±) The maximum temperature on the upper side is 40.3 °C / 105 F, compared to the average of 36.9 °C / 98 F, ranging from 21.1 to 71 °C for the class Multimedia.
(±) The bottom heats up to a maximum of 40.4 °C / 105 F, compared to the average of 39.1 °C / 102 F
(+) In idle usage, the average temperature for the upper side is 27.7 °C / 82 F, compared to the device average of 31.2 °C / 88 F.
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 31.4 °C / 88.5 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 28.8 °C / 83.8 F (-2.6 °C / -4.7 F).

Speakers

The SonicMaster technology touted by Asus does a decent job. Although the speakers are placed on the bottom, they offer good and clear sound output. Sadly the bass is very weak.

Skype calls are clear, making this laptop a great choice for VoIP.

Energy Management

The Asus K75DE-TY068H requires maximum 18.4 W while idle, which places it slightly higher than the Samsung 355E7C (17.1 W) and the Sony SV-E1712F1EW (17.0 W). All in all, the power consumption is still slightly too high.

At load, the trend continues: our test model consumes far more than the competitors. We generated full load using Prime95 and FurMark and measured between 72 - 85.1 W on the K75DE. The provided 90 W power adapter has enough juice. The similarly-equipped Samsung notebook consumes 54.5 W in the same conditions. It is worth noting that the 355E7C suffers from CPU throttling at full load. Still, even the Sony Vaio requires a max of 62 W.

We really like the consumption while turned off. The laptop required 0.0 - 0.1 W while off and 0.3 W in standby.

Power Consumption
Off / Standbydarklight 0.1 / 0.3 Watt
Idledarkmidlight 10 / 15.3 / 18.4 Watt
Load midlight 66 / 85.1 Watt
 color bar
Key: min: dark, med: mid, max: light        Voltcraft VC 940
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

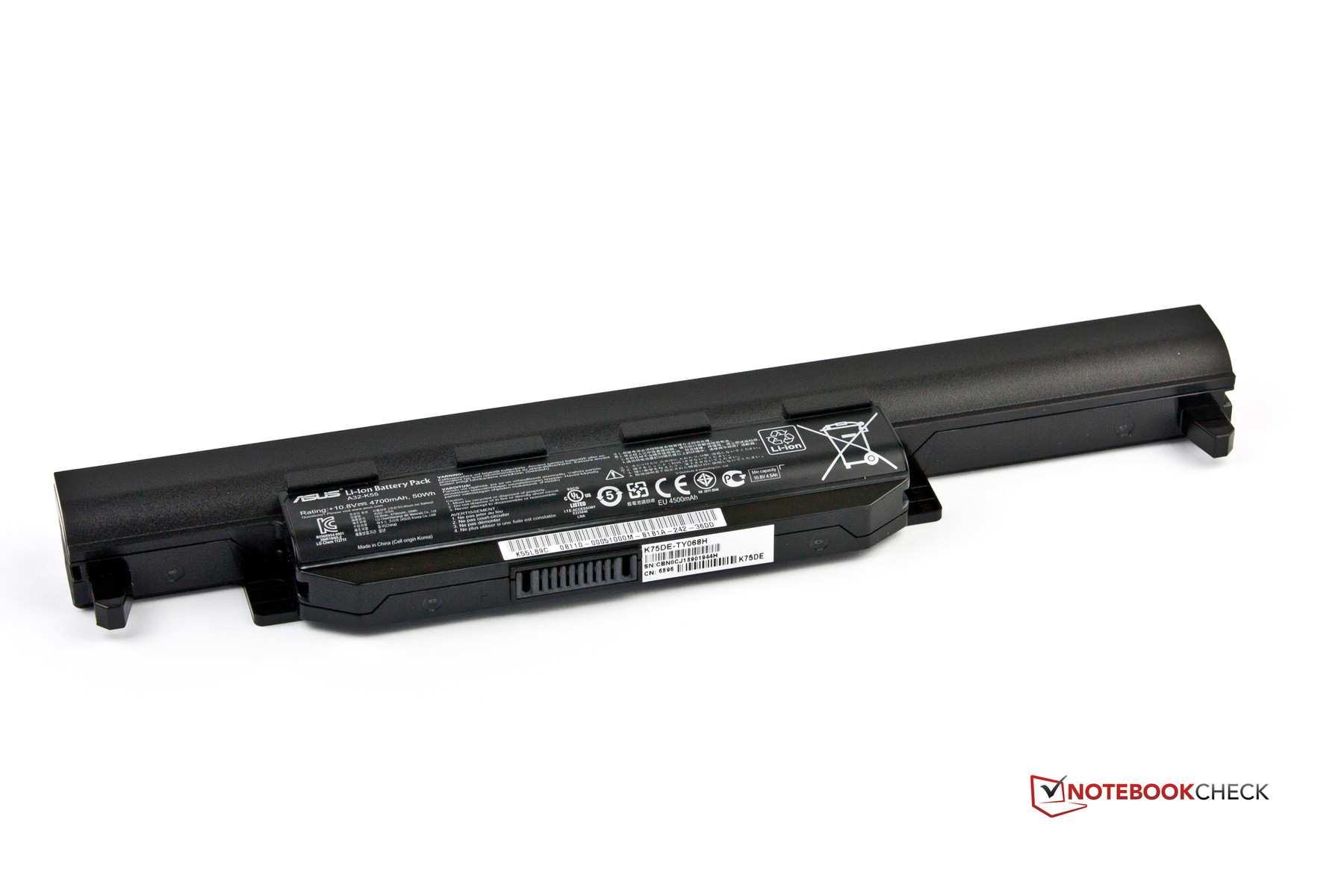

Battery Life

While idle, Asus K75DE trumps both the Samsung 355E7C-S05DE and the Sony Vaio SV-E1712F1EW in the Battery Eater Reader's test (minimum brightness and WLAN off). The Asus lasts a great 8:12 hours. In the WLAN surf test, the test model ran a good 4:08 hours, once again leaving the competitors behind. At load and during DVD playback, the gap decreased. The high power consumption values start playing a noticeable role. Taking into account the 50 Wh battery of the K75DE (largest amongst the models we have for comparison), the test model performs quite poorly (Samsung 48 Wh; Sony 44 Wh).

Battery Runtime
Idle (without WLAN, min brightness)
8h 12min
WiFi Surfing
4h 08min
DVD
2h 03min
Load (maximum brightness)
1h 23min

Verdict

Asus K75DE-TY068H

The Asus K75DE-TY068H offers sufficient performance for everyday tasks and has enough left over to sate the needs of the occasional gamer.

We like the many upgrade possibilities. Users, willing to invest in an SSD and another RAM module (around 100 Euros, ~$130), will tangibly increase the performance of this test model.

Photographers should avoid this device as the display does not live up to their needs. This Asus model is aimed at buyers who do not want a desktop PC and are looking for a cheap laptop with a large screen. Buyers looking for a similar notebook based on Intel hardware will want to take a peek at the K75VJ.

Provided by ...
static version load dynamic
Loading Comments
Comment on this article
Please share our article, every link counts!
In Review:  Asus K75DE-TY068H
In Review: Asus K75DE-TY068H, provided by:

Specifications

Asus K75DE-TY068H
Processor
AMD A8-4500M 4 x 1.9 - 2.8 GHz, Trinity
Graphics adapter
AMD Radeon HD 7640G + HD 7670M Dual Graphics - 512/1024 MB VRAM, Core: 200/600 MHz, Memory: 800/899 MHz, 4.2.11774, Crossfire
Memory
4 GB
, two slots, one module installed, Dual-channel ready
Display
17.30 inch 16:9, 1600 x 900 pixel, No, HD+ LED Backlight , TN LED, glossy: yes
Mainboard
AMD A70M
Storage
Hitachi Travelstar Z5K500 HTS545050A7E380, 500 GB
, 5400 rpm, 500 GB, 5,400 rpm
Soundcard
AMD Hudson-2 High Definition Audio Controller
Connections
2 USB 2.0, 2 USB 3.0 / 3.1 Gen1, 1 VGA, 1 HDMI, 1 Kensington Lock, Audio Connections: Separate microphone and headphone jacks, Card Reader: 3-in-1-Card-Reader (SD/SDHC/SDXC), Sensors: None
Networking
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Atheros AR9485 WiFi Adapter (b/g/n = Wi-Fi 4/)
Optical drive
Matshita DVD-RAM UJ8C0
Size
height x width x depth (in mm): 36 x 420 x 282 ( = 1.42 x 16.54 x 11.1 in)
Battery
51 Wh Lithium-Ion, Li-Ion, 4700mAh, 10.8V, 5 years warranty
Operating System
Microsoft Windows 8 64 Bit
Camera
Webcam: 0,3 Megapixel (640 x 480 Pixel)
Additional features
Speakers: Two on the bottom, Keyboard: QWERTY keyboard with numeric pad, Keyboard Light: no, Power adapter, manual, ASUS Instant Connect, ASUS InstantOn, ASUS LifeFrame3, ASUS Live Update, ASUS Power4Gear Hybrid, ASUS Smart Gesture, ASUS Splendid Video Enhancement Tech, ASUS Tutor, ASUS USB Charger Plus, ASUS WebStorage Sync Agent, ASUSDVD, AsusVibe 2.0, 24 Months Warranty
Weight
3.1 kg ( = 109.35 oz / 6.83 pounds), Power Supply: 470 g ( = 16.58 oz / 1.04 pounds)
Price
599 Euro



Environment-friendly packaging.
Environment-friendly packaging.
Meager accessories: three manuals ....
Meager accessories: three manuals ....
Windows 8 (64-bit) preinstalled.
Windows 8 (64-bit) preinstalled.
Open.
Open.
Closed.
Closed.
The card reader accepts SD, SDHC and SDXC cards.
The card reader accepts SD, SDHC and SDXC cards.
Ports: Kensington Lock, Gigabit LAN and VGA
Ports: Kensington Lock, Gigabit LAN and VGA
HDMI and two USB 3.0 ports.
HDMI and two USB 3.0 ports.
Two USB 2.0 ports and two 3.5 audio jacks, one for microphone and the other for headphones.
Two USB 2.0 ports and two 3.5 audio jacks, one for microphone and the other for headphones.
The power adapter is plugged in on the right side.
The power adapter is plugged in on the right side.
The battery...
The battery...
... and the power adapter.
... and the power adapter.
DVD burner.
DVD burner.
Prominent: the silver power button.
Prominent: the silver power button.
Keyboard without gimmicks and large touchpad.
Keyboard without gimmicks and large touchpad.
Status LEDs of the K75DE.
Status LEDs of the K75DE.
Bottom
Bottom
Bottom without battery.
Bottom without battery.
The device is easy to maintain.
The device is easy to maintain.
Easy-to-clean CPU fan.
Easy-to-clean CPU fan.
The second HDD slot can accomodate another storage device.
The second HDD slot can accomodate another storage device.
The RAM can be quickly upgraded, as one slot is already free.
The RAM can be quickly upgraded, as one slot is already free.
Accessible WLAN module.
Accessible WLAN module.
The webcam.
The webcam.

Similar Devices

Similar devices from a different Manufacturer

Review Samsung Series 3 355E7C-S05DE Notebook
Radeon HD 7640G + HD 7670M Dual Graphics

Devices with Same Screen Size and/or Weight

Asus Vivobook Pro 16X review: Creator notebook with an outstanding processor
NVIDIA GeForce RTX 4060 Laptop GPU, Raptor Lake-HX i9-13980HX, 16.00", 2.09 kg
Asus ProArt Studiobook 16 OLED review: Multimedia laptop with extreme CPU performance
NVIDIA GeForce RTX 4070 Laptop GPU, Raptor Lake-HX i9-13980HX, 16.00", 2.434 kg
Asus Zenbook 14 UM3402Y laptop review: New Ryzen 7 7730U name, old Zen 3 performance
Vega 8, Cezanne (Zen 3, Ryzen 5000) R7 7730U, 14.00", 1.402 kg

Links

Price Comparison

Pros

+Gaming-ready
+Free HDD slot
+Free RAM slot
+Good feel
+Nice sound
+Lovely microphone
+Works without battery
+Great program performance


Cons

-Poor display
-No Bluetooth
-Only VGA webcam
-Performance loss on battery use
-High power consumption

Shortcut

What we like

A lot of 3D performance for little money and the free HDD and RAM slots leave room for upgrades.

Was we miss

The installed display could be better.

What surprises us

Despite the high power consumption, the K75DE achieves great runtimes.

The competition

There are many competitors: for example, Samsung Series 3 355E7C-S05DE, Sony Vaio SV-E1712F1EW, HP Pavilion g7-2051sg and Asus K75VJ.

Rating

Asus K75DE-TY068H - 04/22/2013 v3(old)
Daniel Schmidt

Chassis
81%
Keyboard
77%
Pointing Device
86%
Connectivity
69%
Weight
71%
Battery
81%
Display
73%
Games Performance
82%
Application Performance
84%
Temperature
90%
Noise
87%
Add Points
82%
Average
80%
80%
Multimedia - Weighted Average
Daniel Schmidt, 2013-05- 5 (Update: 2013-06- 6)
