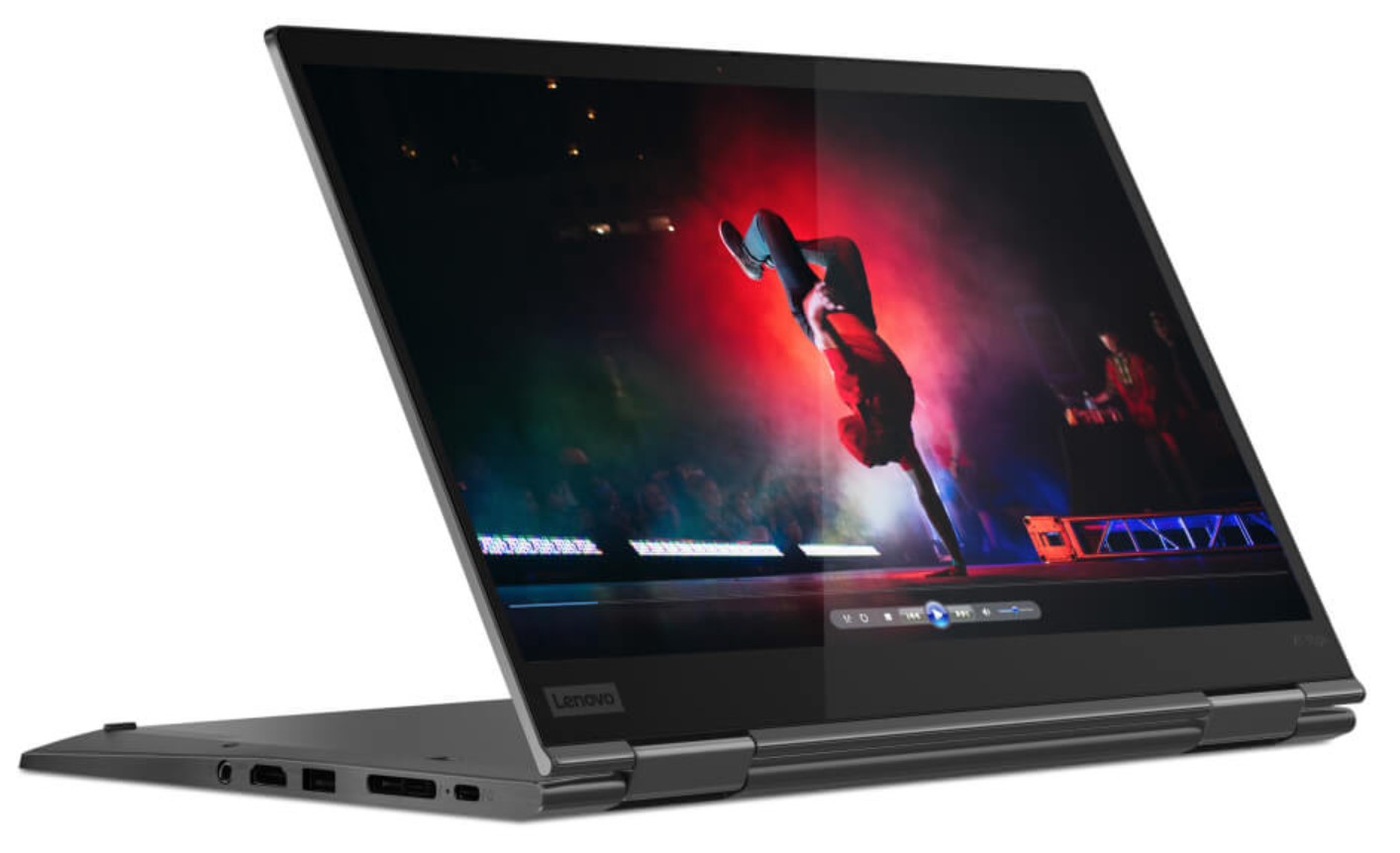

Lenovo ThinkPad X1 Yoga 2020-20UCS03S00

Specifications

Lenovo ThinkPad X1 Yoga 2020-20UCS03S00
Lenovo ThinkPad X1 Yoga 2020-20UCS03S00 (ThinkPad X1 Yoga 2020 Series)
Processor
Intel Core i7-10510U 4 x 1.8 - 4.8 GHz, Comet Lake-U
Graphics adapter
Memory
16384 MB
, LPDDR3-2133, dual-channel, soldered-in
Display
14 inch 16:9, 1920 x 1080 pixel 157 PPI, 10-point, LP140WF9-SPE1, IPS LED, low power, 60 Hz
Mainboard
Intel Comet Lake-U PCH-LP Premium
Storage
Samsung SSD PM981a MZVLB512HBJQ, 512 GB
, M.2 2280, PCIe NVMe, 442 GB free
Soundcard
Realtek Audio
Connections
2 USB 3.0 / 3.1 Gen1, 2 USB 3.1 Gen2, 2 Thunderbolt, 1 HDMI, 2 DisplayPort, 1 Kensington Lock, Audio Connections: combination headphone/microphone jack, 1 Fingerprint Reader, NFC, Sensors: 3D Gyroscope, 3D Accelerometer
Networking
Intel Ethernet Connection I219-V (10/100/1000/2500/5000MBit/s), Intel Wi-Fi 6 AX201 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6), Bluetooth 5.0
Size
height x width x depth (in mm): 15.5 x 323 x 218 ( = 0.61 x 12.72 x 8.58 in)
Battery
51 Wh, 3321 mAh Lithium-Ion
Camera
Webcam: 720p with ThinkShutter & Infrared
Additional features
Speakers: quad-speaker setup with Dolby Atmos, Keyboard: 6-row chiclet-style, Keyboard Light: yes, 65-W USB-C power adapter, ThinkPad Ethernet Extension Cable Gen 2, 36 Months Warranty
Weight
1.336 kg ( = 47.13 oz / 2.95 pounds), Power Supply: 321 g ( = 11.32 oz / 0.71 pounds)
Price
1670 Euro



Pricecompare

Average Score: 89.9% - very good
Average of 2 scores (from 1 reviews)
price: - %, performance: 65%, features: 67%, display: 88% mobility: 78%, workmanship: 88%, ergonomy: 93%, emissions: 93%

Reviews for the Lenovo ThinkPad X1 Yoga 2020-20UCS03S00

89.8% Lenovo ThinkPad X1 Yoga 2020 Laptop Review: Business convertible with small improvements | Notebookcheck
Lenovo’s latest convertible laptop in the ThinkPad series is clad in familiar clothing. A Comet Lake-based chip and Wi-Fi 6 are two headline features of the ThinkPad X1 Yoga 2020. Read our review to learn what this actually means and whether this negatively affects battery life.
90% Lenovo ThinkPad X1 Yoga Review – De ideale laptop combinatie
Source: XGN Dutch NL→EN
Single Review, online available, Medium, Date: 08/09/2020
Rating: Total score: 90%

Comment

Intel UHD Graphics 620: Integrated GPU (GT2, 24 EUs) found on some Kaby-Lake-Refresh CPU models (15 W ULV series). Technically identical to the previous Kaby-Lake GPU called HD Graphics 620.

Modern games should be playable with these graphics cards at low settings and resolutions. Casual gamers may be happy with these cards.

» Further information can be found in our Comparison of Mobile Graphics Cards and the corresponding Benchmark List.


i7-10510U: Comet Lake based low power quad-core processor (technically identical to Whiskey Lake and still produced in 14nm++). The CPU cores can clock between 1.8 and 4.9 GHz (all 4 cores 4.3 GHz max.) with HyperThreading (8 threads). The integrated memory controller supports DDR4-2666 and using cTDP up/down the performance can be adjusted by the OEM (10 - 25 Watt possible, 15W default).» Further information can be found in our Comparison of Mobile Processsors.


14":

Above all, this display size is used for subnotebooks, ultrabooks and convertibles. For all three types, this size is quite large. The biggest variety of subnotebooks is represented with this size.

Large display-sizes allow higher resolutions. So, details like letters are bigger. On the other hand, the power consumption is lower with small screen diagonals and the devices are smaller, more lightweight and cheaper.

» To find out how fine a display is, see our DPI List.


1.336 kg:

This weight is typical for big tablets, small subnotebooks, ultrabooks and convertibles with a 10-11 inch display-diagonal.


Lenovo: Lenovo ( "Le" as in the English word legend and "novo" (Latin) for new) was founded in 1984 as a Chinese computer trading company. From 2004, the company has been the largest laptop manufacturer in China and got the fourth largest manufacturer worldwide after the acquisition of IBM's PC division in 2005. In addition to desktops and notebooks, the company also produces monitors, projectors, servers, etc.

In 2011, Lenovo acquired the majority of Medion AG, a European computer hardware manufacturer. In 2014, Lenovo took over Motorola Mobility, which gave them a boost in the smartphone market.

From 2014 to 2016 Lenovo's market share in the global notebook market was 20-21%, ranking second behind HP. However, the distance decreased gradually. In the smartphone market, Lenovo did not belong to the Top 5 global manufacturers in 2016.


89.9%: There do not exist many models, which are rated better. The most ratings get ratings, which are a bit worse.


» Further information can be found in our Notebook Purchase Guide.
