Fujitsu Celsius H760

Specifications

Fujitsu Celsius H760
Fujitsu Celsius H760 (Celsius H Series)
Processor
Intel Xeon E3-1505M v5 4 x 2.8 - 3.7 GHz, Skylake
Graphics adapter
NVIDIA Quadro M2000M - 4096 MB, 10.18.13.5459 - nVIDIA ForceWare 354.59, Nvidia Optimus, Intel P530
Memory
16384 MB
, Samsung DDR4 2x 8 GB, SO DIMM 2133 MHz / PC4-17000 ECC (M474A1G43EB1-CPB), 2 Slots free
Display
15.60 inch 16:9, 1920 x 1080 pixel 141 PPI, LGD046F LP156WF6-SPP1, IPS LED, 88 % sRGB, glossy: no
Mainboard
Intel CM236 (Skylake PCH-H)
Storage
Samsung SM951 MZVPV512 m.2 PCI-e, 512 GB
, + 1 TB HDD Seagate ST1000LM 014-1EJ164
Soundcard
Realtek ALC255 @ Intel Skylake PCH - High Definition Audio Controller
Connections

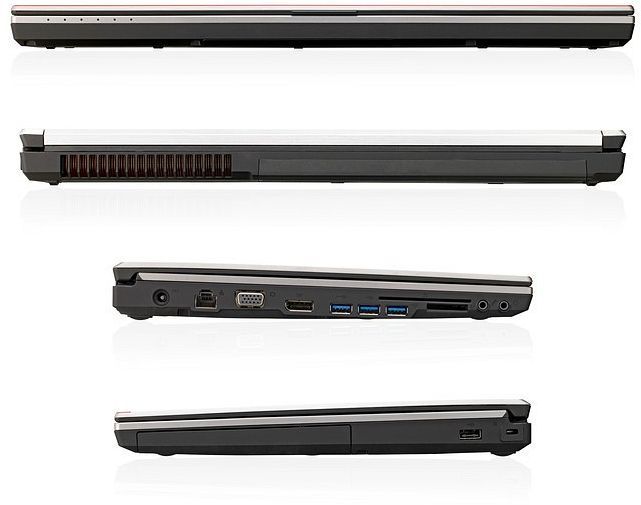

1 USB 2.0, 3 USB 3.0 / 3.1 Gen1, 1 USB 3.1 Gen2, 1 Thunderbolt, 1 VGA, 1 HDMI, 2 DisplayPort, 1 Kensington Lock, 1 Docking Station Port, Audio Connections: separate line-in (microphone) + line-out (both 3.5 mm stereo jack), Card Reader: Realtek PCIe-card reader SD, SDHC, SDXC, 1 SmartCard, 0 Fingerprint Reader, Brightness Sensor, Sensors: PalmSecure biometrische Venenmustererkennung, TPM 2.0
Networking
Intel Ethernet Connection I219-LM (10/100/1000MBit/s), Intel Dual Band Wireless-AC 8260 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5), Bluetooth 4.2, Sierra Wireless Airprime EM7305 (LTE/ HSPA+), GPS
Optical drive
HL-DT-ST DVDRAM GUD0N
Size
height x width x depth (in mm): 32 x 380 x 257 ( = 1.26 x 14.96 x 10.12 in)
Battery
72 Wh, 6400 mAh Lithium-Ion, removeable, 10.8V
Operating System
Microsoft Windows 7 Professional 64 Bit
Camera
Webcam: 2.0 MP
Additional features
Speakers: Stereo speakers, Keyboard: Chiclet, Keyboard Light: yes, 36 Months Warranty
Weight
2.98 kg ( = 105.12 oz / 6.57 pounds) ( = 0 oz / 0 pounds)
Price
3700 Euro



Pricecompare

Average Score: 88.53% - very good
Average of 3 scores (from 3 reviews)
price: 80%, performance: 89%, features: 76%, display: 87% mobility: 69%, workmanship: 98%, ergonomy: 98%, emissions: 86%

Reviews for the Fujitsu Celsius H760

85.6% Fujitsu Celsius H760 Workstation Review | Notebookcheck
Great success. The Fujitsu Celsius H760 is a successful example of a classic workstation. Performance, flexibility, quality and ergonomics are the most important characteristics. Our in-depth review shows what else you can expect from the test model.
90% Teszt: Fujitsu Celsius H760 – Az ideális munkaerő
Source: Technokrata HU→EN
Single Review, online available, Very Short, Date: 09/20/2016
Rating: Total score: 90% price: 80% workmanship: 100% ergonomy: 100%
90% Teszt: Fujitsu Celsius H760 – Az ideális munkaerő
Source: Technokrata HU→EN
Single Review, online available, Medium, Date: 09/20/2016
Rating: Total score: 90% price: 80% workmanship: 100% ergonomy: 100%
Fujitsu Celsius H760 mobil munkaállomás
Source: Prohardver.hu HU→EN
Positive: Solid workmanship; large display.
Single Review, online available, Long, Date: 09/15/2016

Comment

Model: The Fujitsu Celsius H760 is a workstation laptop suitable for power users such as designers, architects and engineers. It is especially suitable for a shared desk environment because it has port replicator which is compatible with seven Fujitsu Lifebook devices. "Workstation laptops provide flexibility to work on-the-go without compromise on security, connectivity or performance", claims the manufacturer. The Fujitsu Celsius H760 measures at 380.0 x 257.0 x 24.8-31.9 mm (14.96 x 10.12 x 0.98-1.26 inch) and weighs at 2.75 kg (6.1 lbs). It is a relatively light workstation to work on-the-go. Besides its slightly thick profile, there is nothing much to indicate that it is a workstation. It looks pretty much like any other laptop in the market. Its lid bottom tip is lined with a red stripe to give it a more "heavy-duty" look which is a shame since it isn't actually a heavy duty laptop. Although this laptop isn't an industrial grade laptop, it is very tough. The keyboard and palm rests are strong enough and do not flex under stronger typing pressure.

The Celsius H760 features maximum data security provided by the unique PalmSecure technology. It uses biometric technology for user authentication based on vein pattern recognition rather than iris scanners or fingerprint readers. Besides that, it also supports hard disk password, user and supervisor BIOS passwords and preboot Authentication with SystemLock 3 for additional security. The Fujitsu Celsius H760 features high-performance hardware specifications. It is powered by up to Intel Xeon processor, an integrated Intel HD P530 GPU and a discrete NVIDIA Quadro graphic card, 32 GB of DDR4 RAM and a 512 GB M.2 PCIe SSD. These specs are even high for a portable workstation. Its anti-glare 15.6-inch IPS display features a resolution of up to UHD/4K. The anti-glare coating reduces glare from light sources and reflect lesser than a glossy display. It balances between vibrant image display quality and screen reflection. However, in contrast to a matte display, there will still be some reflections.

The Fujitsu Celsius H760 supports Windows 10 and Windows 7 Professional 64-bit. The workstation usually comes with Windows 7 Professional to provide compatibility for older applications which is a requirement for some engineers. Additional software such as Fujitsu Display Manager, McAfee Multi-Access Security 60 days trial version, Fujitsu Application Button Utility, Fujitsu DeskUpdate, Fujitsu Plugfree Network and DTS Sound Enhancement Software is pre-installed. For input/output interfaces, it is packed with USB 2.0, USB 3.0 and USB 3.1 ports, Thunderbolt 3 port and virtually all ports necessary for a workstation. It doesn't force its users to use converters like on a typical laptop. All in all, the Fujitsu Celsius H760 is a reasonably priced, solid workstation. On the downside, Fujitsu could have included some kind of shockproof chassis for this laptop since workstations are normally used in the workplace or even industrial environments.

Hands-on article by Jagadisa Rajarathnam

NVIDIA Quadro M2000M: Mainstream workstation graphics card based on the GM107 Maxwell architecture with 640 shaders and a 128-bit wide memory bus. The GPU is similar to the consumer GTX 960M/950M.

Modern games should be playable with these graphics cards at low settings and resolutions. Casual gamers may be happy with these cards.

» Further information can be found in our Comparison of Mobile Graphics Cards and the corresponding Benchmark List.


E3-1505M v5: Skylake-based quad-core processor for workstation notebooks. Offers an integrated HD Graphics P530 GPU and is manufactured in 14 nm.» Further information can be found in our Comparison of Mobile Processsors.


15.60":

15-16 inch is a standard display size for laptops and offers the biggest variety of products.

» To find out how fine a display is, see our DPI List.


2.98 kg:

This weight is representative for typical laptops with a 14-16 inch display-diagonal.


Fujitsu: Fujitsu, founded 1935, is a Japanese company specializing in semiconductors, air conditioners, computers (supercomputers, personal computers, servers), telecommunications, and services, and is headquartered in Tokyo. Fujitsu employs around 160,000 people and has 500 subsidiary companies. The partnership with Siemens AG was established in 1999 in the form of Fujitsu Siemens Computers, one of Europe's largest IT hardware suppliers, and owned 50/50 by Fujitsu and Siemens. 2009, this cooperation was terminated. In future, no laptops will be sold with the brand "Fujitsu-Siemens" but only "Fujitsu".

Fujitsu is a medium-sized laptop manufacturer, which did not belong to the global Top 10 in the last years. In the smartphone sector, Fujitsu does hardly play any role. The ratings are above-average in the reviews (as of 2016).


88.53%: This is a good rating above average. Nevertheless you should not forget, that 10-15% of all notebook-models get a better rating.


» Further information can be found in our Notebook Purchase Guide.
