AMD A8-5545M

AMD A8-5545M

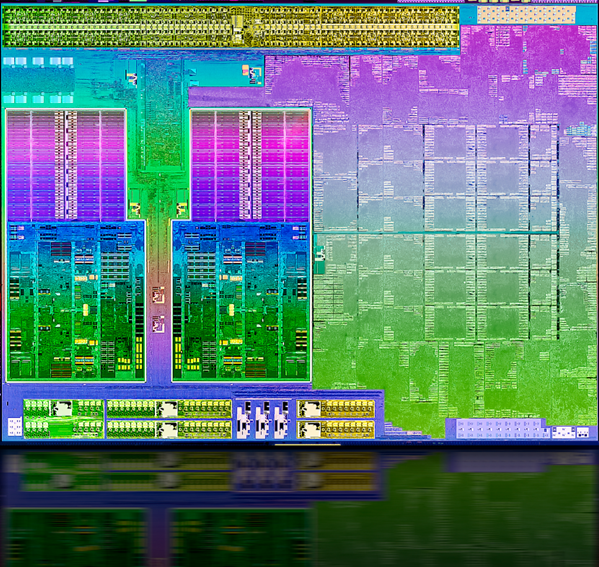

The AMD A8-5545M is a mobile low-voltage quad-core processor based on the Richland architecture. The APU integrates two modules with 1.7 to 2.7 GHz, a Radeon HD 8510G graphics card and a DDR3(L)-1333 memory controller.

Compared to Trinity, Richland has been modified just slightly. Therefore, changes at the feature set or the performance per clock are not expected. The design of the chip is still based on the Bulldozer architecture, which consists of so-called modules. Each of the two modules integrates 2 integer units, but only one FPU. Just like Trinity, Richland supports nearly all current techniques such as AVX (including FMA), AES or Turbo Core.

The CPU performance of the A8-5545M is expected to be roughly on par with a Pentium P6100. For most current applications and less demanding games, the APU has sufficient power.

The graphics unit called Radeon HD 8510G offers all 384 shader units (VLIW4) and is slightly faster than the HD 7640G. The core is clocked at 450-554 MHz (with turbo).

The power consumption of the entire APU is rated at 19 watts, which is slightly above normal ULV CPUs. Thus, the APU is best suited for 13 inch notebooks or bigger.

SeriesAMD A-Series
CodenameRichland
Clock Rate1700 - 2700 MHz
Level 2 Cache4096 KB
Number of Cores / Threads4 / 4
Max. Power Consumption (TDP = Thermal Design Power)19 Watt
Manufacturing Technology32 nm
FeaturesSSE (1, 2, 3, 3S, 4.1, 4.2, 4A), x86-64, AES, AVX, FMA, DDR3-1333 Controller
64 Bit64 Bit support
Hardware VirtualizationAMD-V
Announcement Date05/23/2013
