Scantech unveils wireless Simscan-E handheld laser scanner to rapidly create 3D models from real-world objects

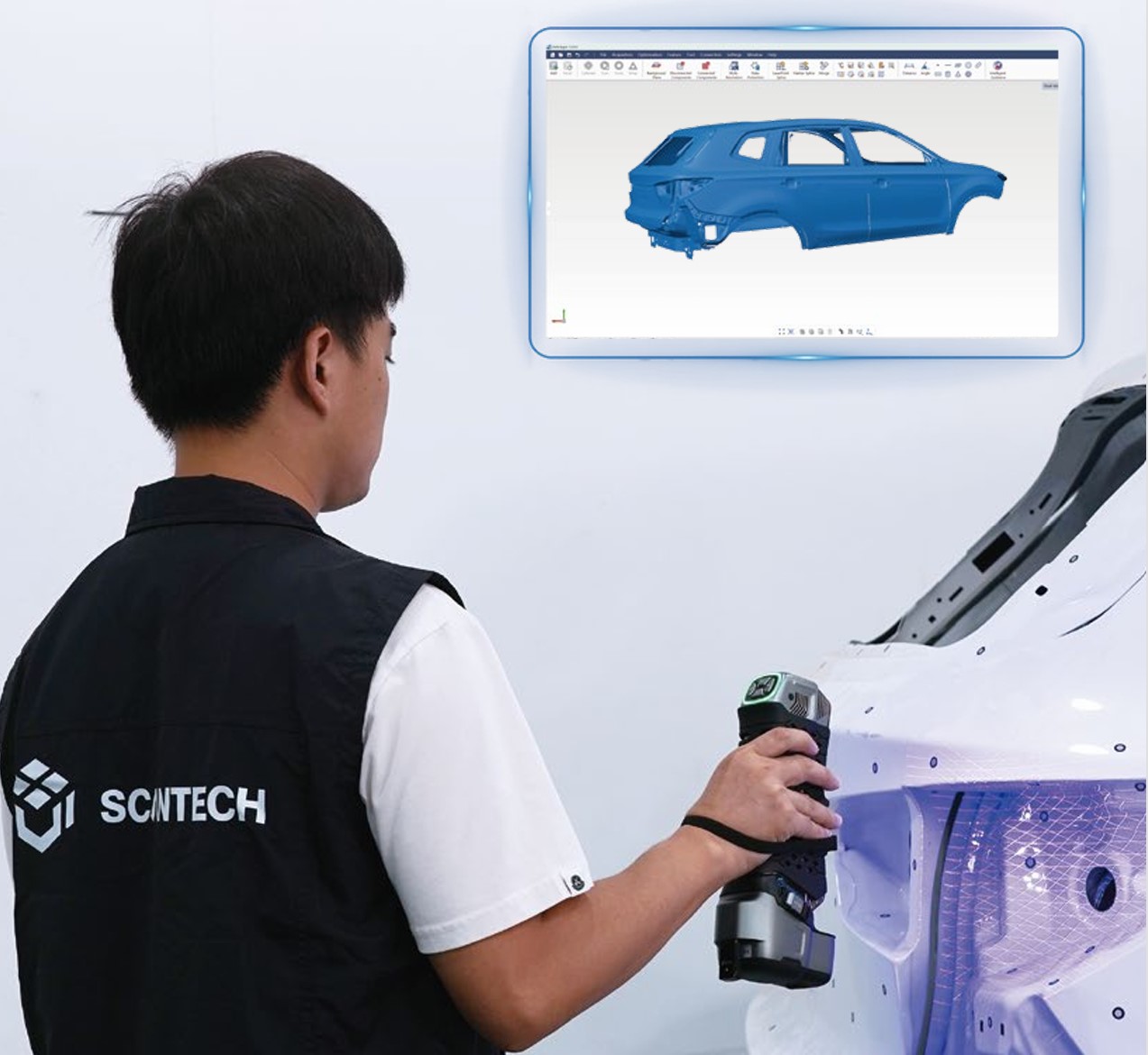

Scantech has unveiled the wireless Simscan-E handheld laser scanner to rapidly create 3D models from real-world objects. The 3D models can be used to verify production accuracies, create virtual models, and replicate parts.

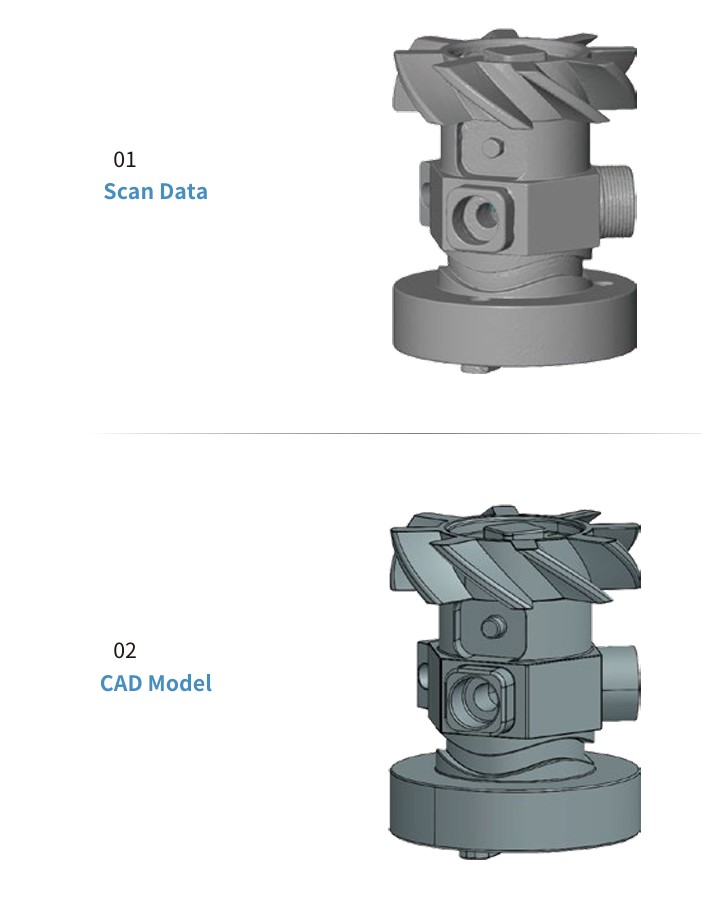

Normally, there are two ways to create 3D models for use by 3D printers to print parts or by software to verify production accuracy. One way is where a person uses a 3D modeling program like Solidworks or Maya to manually draw the model, and this can take hours for complex parts. Another way is where a person uses a 3D scanner on a real-world object to create a CG model in minutes, even seconds. The disadvantage of a scanner is that every point of the CG model is never perfectly placed, so the accuracy of the model depends on the accuracy of the scanner used.

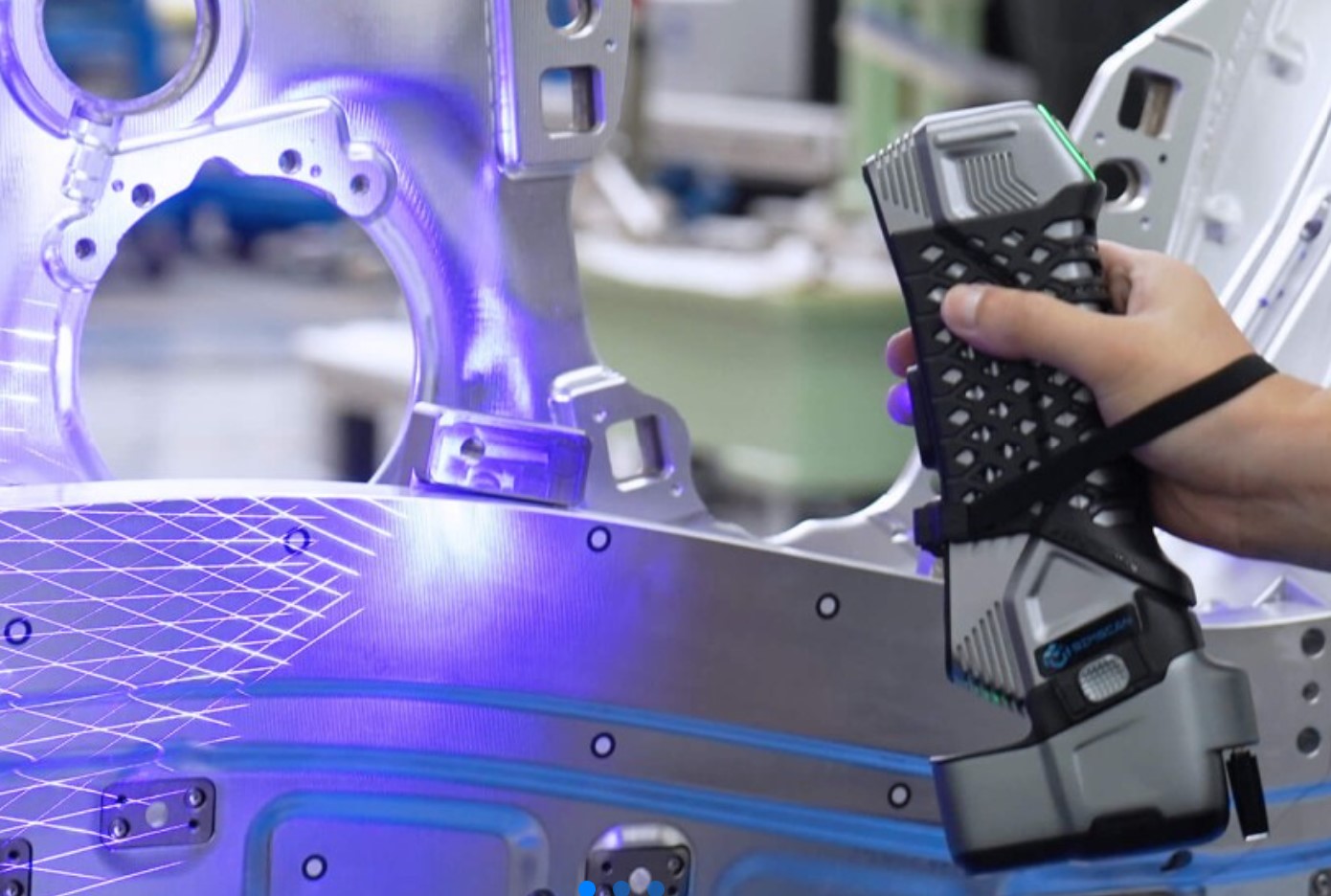

The Simscan-E has three scanning modes, ultra-fast, hyperfine, and deep hole, to handle a variety of complex objects from architectural details to automotive parts. In ultra-fast mode, 63 laser lines arranged along three angles enable the maximum scanning rate of 6,300,000 measurements per second. In hyperfine mode, 17 parallel laser lines enable a maximum object scan accuracy of 0.0078 inches (0.020 mm). In deep hole mode, the scanner can scan inside objects up to 21.4 inches (550 mm) distant.
The Simscan-E weighs 1.3 pounds (600 g) and measures 7.9 x 3.1 x 1.7 inches (203 x 80 x 44 mm). The scanner has a scanning area of 27.2 x 23.3 inches (700 x 600 mm) for each scan. When scanning large objects, the scanner has a volume accuracy of 0.015 mm + 0.035 mm/m. The scanner can be used wirelessly while powered by a swappable battery pack or tethered to a power source.
Readers who are just trying to scan their D&D figurines can try a cheaper, lower-resolution 3D scanner (like this one on Amazon) or a pricier, higher-resolution 3D scanner (like this one on Amazon).
Source(s)
Intelligent, Wireless and Palm-Sized 3D Scanner SIMSCAN-E
News provided by SCANTECH
27 Aug, 2024, 07:53 IST
HANGZHOU, China, Aug. 27, 2024 /PRNewswire/ -- The SIMSCAN-E is an intelligent, wireless, palm-sized 3D scanner that blends lightweight design with top-tier performance. With advanced wireless scanning technology, it sets a new standard for portable and wireless 3D scanning.
SIMSCAN-E: The intelligent, wireless, and palm-sized 3D scanner that's redefining portable 3D scanning. With its advanced edge computing and wireless data transfer, the wireless SIMSCAN-E offers unparalleled flexibility and freedom--no more being tied down by cables! Its compact design makes it perfect for on-the-go use, while its fast scanning and exceptional detail capture ensure that even the most intricate features are recorded with precision.
SIMSCAN-E: The intelligent, wireless, and palm-sized 3D scanner that's redefining portable 3D scanning. With its advanced edge computing and wireless data transfer, the wireless SIMSCAN-E offers unparalleled flexibility and freedom--no more being tied down by cables! Its compact design makes it perfect for on-the-go use, while its fast scanning and exceptional detail capture ensure that even the most intricate features are recorded with precision.
The SIMSCAN-E offers significant benefits by leveraging advanced edge computing and high-definition industrial cameras to deliver exceptional precision and efficiency in capturing 3D data. With the ability to measure up to 6.3 million measurements/s, it is ideal for industries that demand high-performance scanning solutions.
Compact and Wireless
Enjoy robust data processing and say goodbye to tangled cables. With SIMSCAN-E's sophisticated edge computing and wireless data transfer, users are assured of freedom and flexibility for every scan. Whether you're 3D scanning on the complex shopfloor or outdoors without access to electricity, nothing can hold you back.
SIMSCAN-E features large-capacity batteries that offer a long operating time. Its dual-power design lets users easily swap batteries without interrupting the scanning process. The intelligent battery level indicator keeps you informed throughout the scanning process. Its detachable charging base allows for seamless switching between wireless and wired modes, adapting to different scenarios and needs.
Fast, Smooth, and Efficient
Thanks to its advanced algorithm, SIMSCAN-E delivers a high measurement rate of 6.3 million measurements/s. Coupled with 81 blue laser lines and a 180-FPS frame rate, it ensures efficient and smooth scanning experiences.
Exceptional Detail Capture
Equipped with industrial cameras, image enhancement and sub-pixel feature extraction algorithms, it accurately captures every feature with high precision.
Powered by its innovative algorithm and aerospace-grade components, its measurement accuracy is up to 0.020 mm, meeting the demands of industrial-grade high-precision 3D measurement.
Excellent for Narrow Spaces
Flexible and lightweight, this portable 3D scanner supports instant scanning in various environments. Its short-distance camera design, with a steep view angle, greatly enhances the ability to scan hidden areas such as slots, deep holes, and channels. This significantly improves data integrity, providing more complete 3D data for further design, inspection and more.
About Scantech
SCANTECH is a global provider of comprehensive 3D solutions. We specialize in R&D, production, and sales of 3D scanners and 3D systems and boast a long history of developing hardware and software. We offer two main product categories: industrial high-precision 3D scanners and professional, cost-effective 3D scanners, including portable 3D scanners, tracking 3D scanners, industrial automated 3D systems, and professional color 3D scanners.
