Review Lenovo Thinkpad T61 14,1'' SXGA+

Solid Office Notebook. The ThinkPad T61 is a notebook which should especially attract business customers. Lenovo products are top regarding user-friendliness and data security. Here the Lenovo ThinkPad T61 scores points by many reasonable details. Furthermore Lenovo's customer support is excellent. Knowing the part number, it's pretty easy to quickly order most parts.

Review Lenovo Thinkpad T61 UI02BGE Logo

This is another review of a Lenovo ThinkPad T61 model, the UI02BGE (8889-2 BG) with T7300 CPU and a 14,1-inch SXGA+ display (1.400x1050 pixels). Further review of ThinkPad T61 models can be found here (14,1" WXGA+, T7700, Quadro NVS 140M) and here ( 14,1" WXGA+, T7300, Quadro NVS 140M).

Case

We review - Cases

The ThinkPad T61 looks typical Lenovo, black, edgy, and huge. However, according to its size of 31,2 x 25,5 x 2,4 to 2.7 cm³ and its weight of about 2.50 kg, it is actually not bigger or heavier than other 14,1-inch business notebooks.

Picking up this notebooks, its case proves to be really robust, because of its flexural rigid construction. Generally, the ThinkPad T61 is far robuster than average notebooks are. However, alike its predecessor, the T60, the plastic covers at the palm rest areas emit slightly creaking noises when trying to twist the case. The area next to the DVD drive (UltraBay slot) also considerably yields when applying force.

Very Robust Lid of the T61
Very Robust Lid of the T61

According to Lenovo a special honeycomb construction in the lid should protect the sensible display than standard constructions. We actually needed to apply a lot of force in order to provoke  interferences at the display. The lid is wrapped with in a soft material, which feels nice to the touch and is also less sensitive to scratches than the finish of competitor notebooks.

The other parts of the ThinkPad T61's case are also good. There lid closed exactly. The stable and uncovered steel hinges are able to support the adjusted opening angle without problems. There is hardly any see-saw of the display noticeable at shocks or vibrations.

Interfaces

The Lenovo ThinkPad T61 provides only the most necessary standard interfaces. The reviewed T61 came without a card reader for nowadays already omnipresent flash memory cards, without a DVI-D port for connecting an external high-quality screen, and without  Firewire (i.LINK, IEEE 1394), an alternative to USB 2.0.

Besides three USB ports for connecting a printer or other USB devices, the reviewed notebook provided a docking port, a modern ExpressCard slot and a PCMCIA slot for expansion cards such as TV or DSL modules. If want to connect an external wide-screen display and aren't satisfied with the analog VGA port, you'll need to additionally buy ThinkPad's docking solution, which provides a DVI-D port.

Regarding wired data communications, the Thinkpad T61 provides fast GigaBit-LAN and the usual integrated 56K modem.  Wireless communication is possible via Bluetooth and WLAN. Wireless Bluetooth headsets even make wireless Voice over IP possible. A switch at the front side allows to easily switch the wireless communication modules on respectively off.

By default the Lenovo T61 is shipped without any recovery media. However, a single touch recovery solution provides an easy way to restore the system as long as the pre-installed recovery partition stays untouched. Further security features provided are: an actively shock-protected hard disk, a biometric fingerprint reader, and a TPM (Trusted Platform Module).

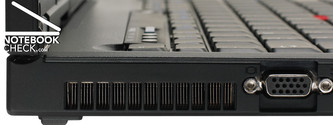

Lenovo ThinkPad T61 UI02BGE Interfaces - left side
Left Side: VGA,......
Lenovo ThinkPad T61 UI02BGE Interfaces - left side

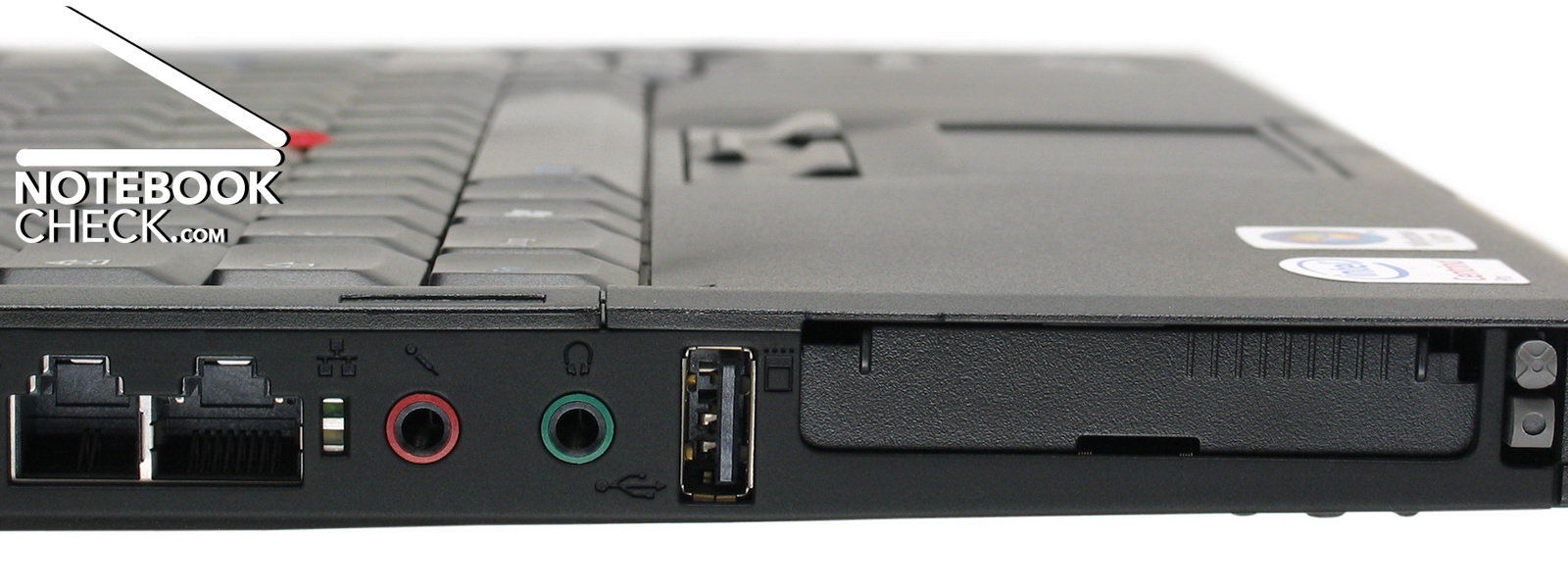

Modem, GigaBit LAN, microphone, headphone, 1 x USB, ExpressCard, PCCard
Lenovo ThinkPad T61 UI02BGE Interfaces - right side

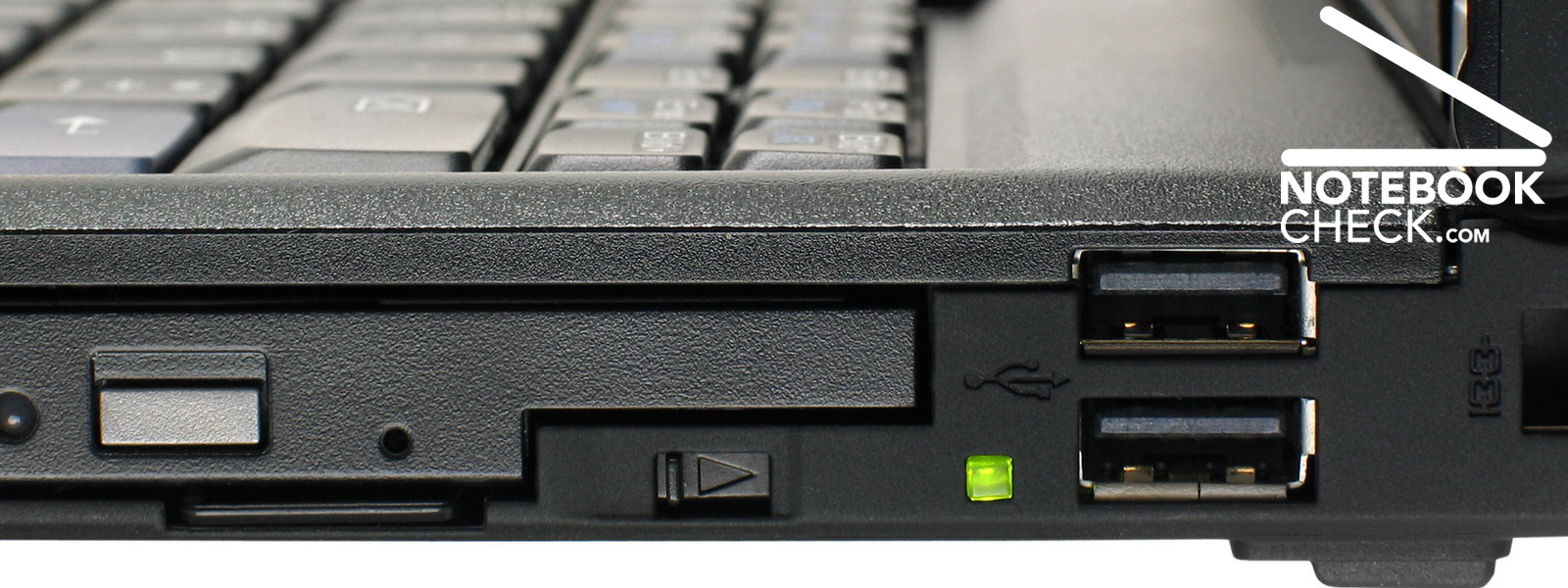

Right Side: Optical Drive (Ultrabay Slim), 2x USB, Kensington Lock
Lenovo ThinkPad T61 UI02BGE Interfaces - right side

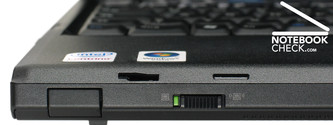

Front Side: Speakers (bottom side), Switch for Wireless Communication

Input Devices

We review - Input Devices

Providing 90 keys, the Lenovo ThinkPad T61's keyboard convinces by a clear feedback. Its clicking noise sounds good too. The effective size of the keycaps is  1,3 x 1,4 cm² and they are attached tightly to the keyswitches.

A user-friendly, blue enter key, which extends over two rows is provided. Because the keyboard layout of Lenovo keyboards differ from the standard by reverting the order of the left Ctrl and Fn key and by placing the Del and Ins key at the right top of the kryboard in a group of six keys. So, typing mistakes are likely at the beginning.

ThinkVantage, a key-feature of theT61, improves user-friendliness very much. Besides the so-called ThinkLight keyboard light there are three hot keys. One of them can be used to launch recovery from the hidden recovery partition by simply pressing a key.

The size of the touch pad is 5,6 x 3,8 cm², which is not extraordinary big. However, a track point and additional toggle buttons providing mouse button equivalents are also available. The track point's speed of reaction is low, but it is very precise. Overall, it provides a user-friendly way of moving the mouse pointer around.

Lenovo Thinkpad T61 UI02BGE Keyboard
Keyboard
Lenovo Thinkpad T61 UI02BGE Touch pad
Touch pad

Display

A number of different panels are available for the ThinkPad T61. Besides 14.1 inch displays, there are also 15.4 inch panels, whereas the available resolutions range from 1024x768 (XGA) to very fine 1680x1050 pixels (WSXGA+). The reviewed notebook came with a 14.1 inch SXGA+ display with a high resolution of 1400x1050 pixels. This LCD-panel is by Samsung and its type number is LTN141P4. The matte display surface contributes to the comfort and ergonomics, because it hardly reflects.

The average brightness of the display is 139.7 cd/m² during mains operation and 87.5 cd/m² in battery mode, because the display is automatically dimmed. However, automatic dimming in battery mode can be deactivated by a BIOS setting. A maximum brightness of 159.8 cd/m² and a black value of 1.1 cd/m² give a contrast ratio of moderate 145:1.

Hint: Although you can manually set the brightness to "full" in the BIOS or in the ThinkPad configuration, and, so, get a nearly equally bright display than in mains operation, the maximum brightness is still a little to low for trouble-free work in the sunshine.

Color Diagram in Mains Operation
Color Diagram in Mains Operation

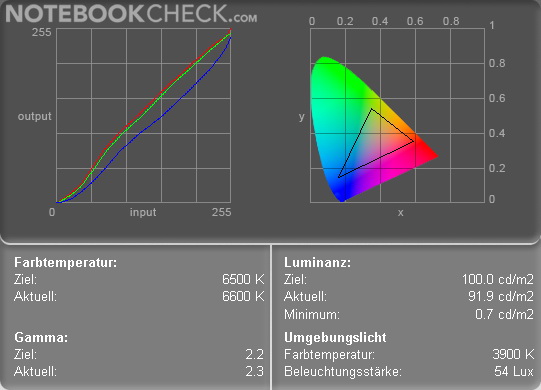

Color Diagram in Battery Operation
Color Diagram in Battery Operation
139.3
cd/m²
159.8
cd/m²
138.6
cd/m²
136.9
cd/m²
158.2
cd/m²
144.4
cd/m²
124.7
cd/m²
124.9
cd/m²
130.9
cd/m²
Distribution of brightness
Maximum: 159.8 cd/m² (Nits) Average: 139.7 cd/m²
Brightness Distribution: 78 %
Contrast: 144:1 (Black: 1.1 cd/m²)

The luminance distribution is not uniform. In mains operation there is a difference of nearly 22% between the brightest (159.8 cd/m², top center) and the darkest segment (124.7 cd/m², left bottom corner) of the display. In battery mode the difference is 23.6% - average of this notebook class.

When we tried different bright backgrounds, we detected that the image only marginally blurs, depending on the viewing angle. But, at the bottom of the screen there is an area of 1cm height, which is obviously brighter.

Directly compared to our reference display, the 20-inch MVA LCD Viewsonic VP2030b, the display of the ThinkPad T61 has a good color neutrality. However, its viewing angles are rather narrow. If you change the opening angle, you'll quickly face a loss of contrast, whereas important details of our reference images get unrecognizable. Horizontally, the viewing angles confirm to the average of this type of panels.

Performance

Core components are a Core 2 Duo T7300 by Intel with 2.00 GHz and Intel's chip set 965 PM Express. Furthermore, the reviewed notebook came with 2.048 MByte main memory (RAM), which is sufficient for running a 64 bit Windows version.

If you want to upgrade main memory, you can continue using the provided DDRII 667 module as a second slot is free. According to Lenovo, the reviewed T61 model can be equipped with up to four gigabytes of RAM.

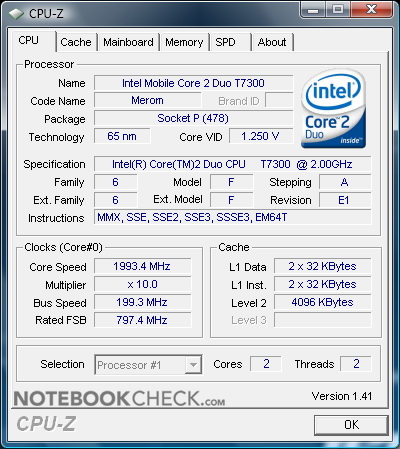

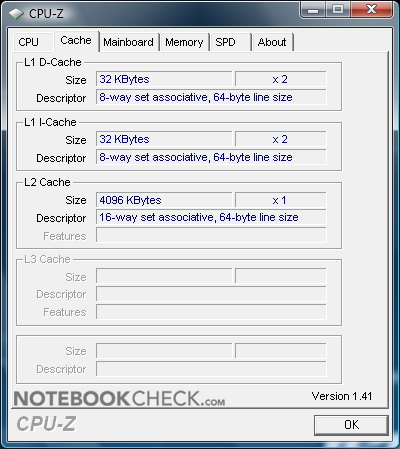

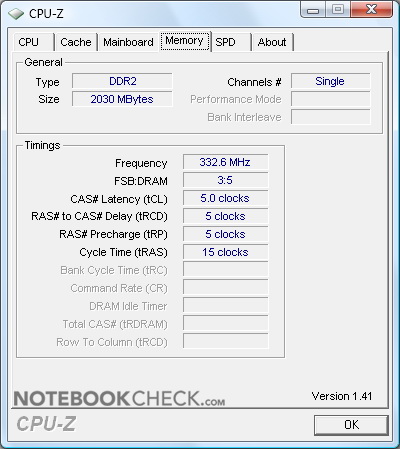

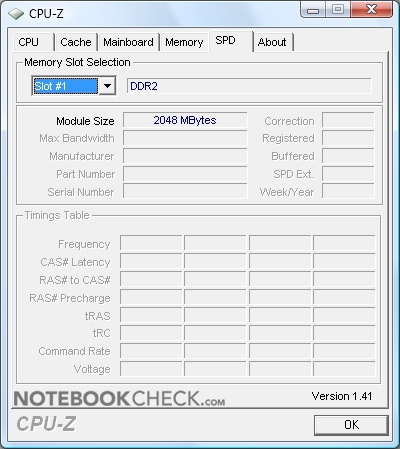

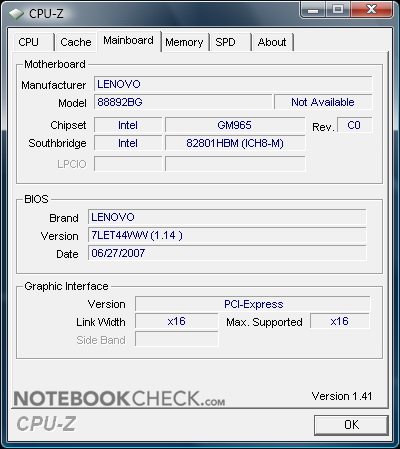

CPU-Z-Informations about Lenovo Thinkpad T61 UI02BGE
CPU-Z-Informations about Lenovo Thinkpad T61 UI02BGE
CPU-Z-Informations about Lenovo Thinkpad T61 UI02BGE
CPU-Z-Informations about Lenovo Thinkpad T61 UI02BGE
CPU-Z-Informations about Lenovo Thinkpad T61 UI02BGE

CPU-Z-Information about the Lenovo Thinkpad T61 UI02BGE

The reviewed ThinkPad T61 comes with a  Quadro NVS 140 M (G86GLM) Nvidia with 128 Megabytes of dedicated video memory. The  Quadro NVS 140M is a middle class video card for business, which provides optimized and certified drivers for finance and business applications. However, its performance is not sufficient for current games. E.g.,  F.E.A.R. runs only smoothly, if you decrease the resolution to 1.024 x 768 pixels, whereas number of details is "medium" and anti-aliasing (AA) and anisotropic filtering (AF) is off.

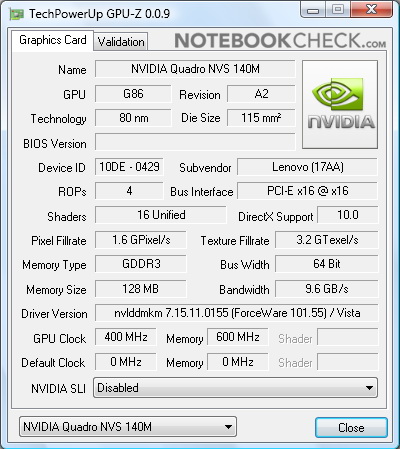

GPU-Z

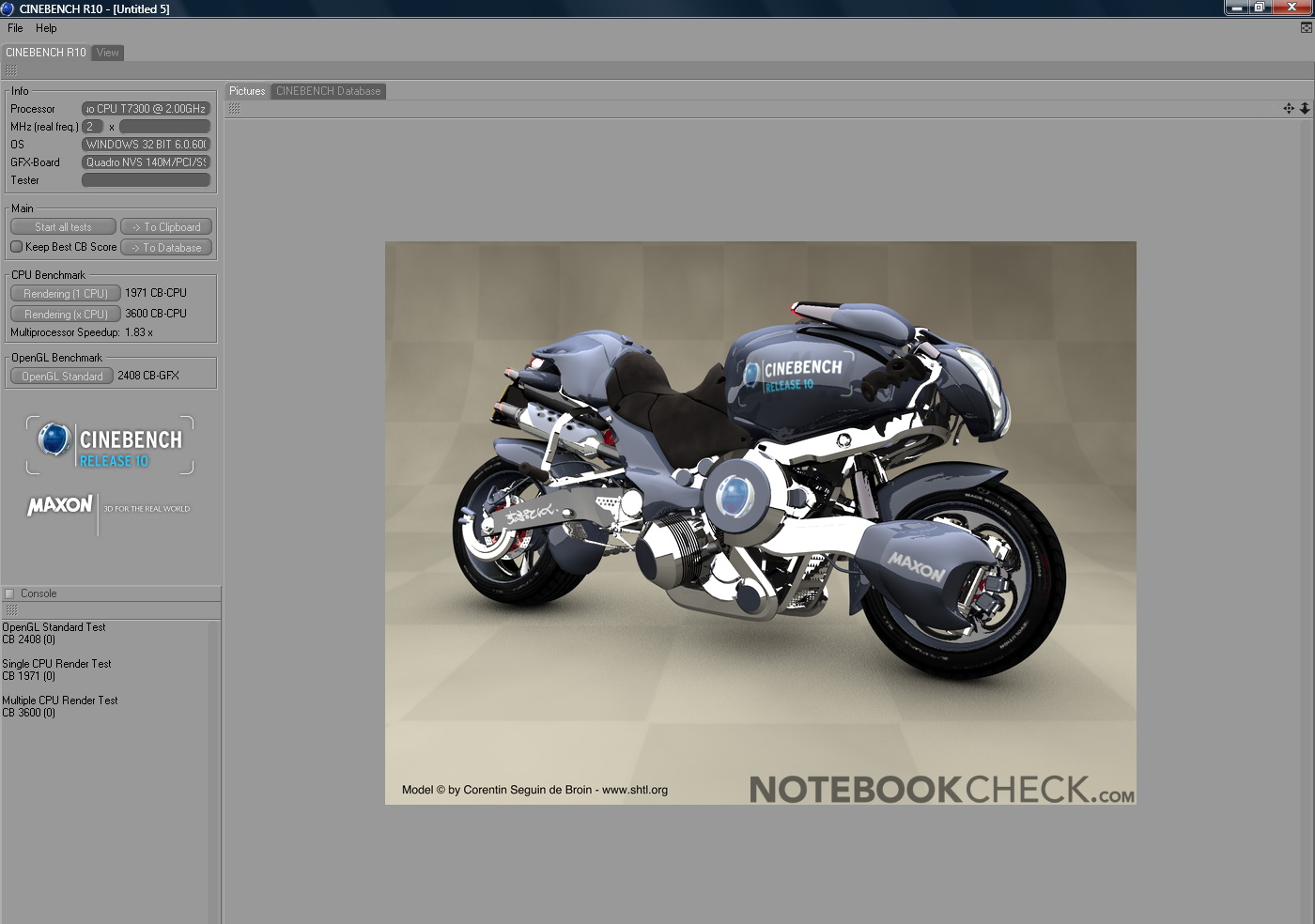

Cinebench R10

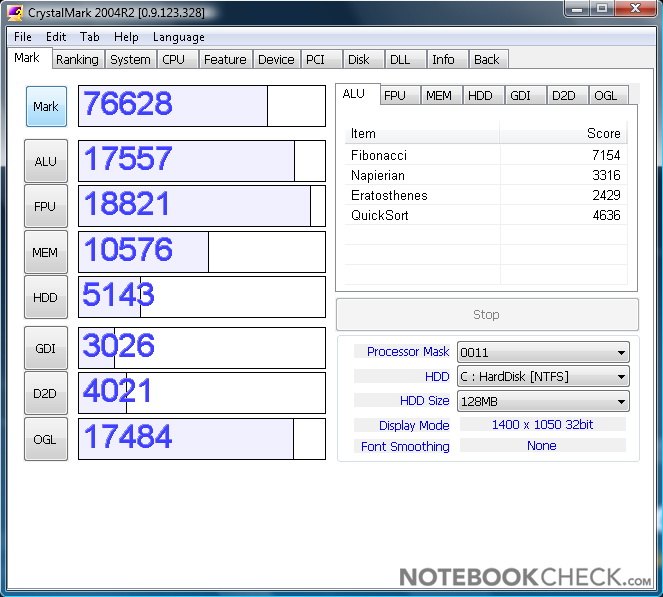

Crystalmark 2004

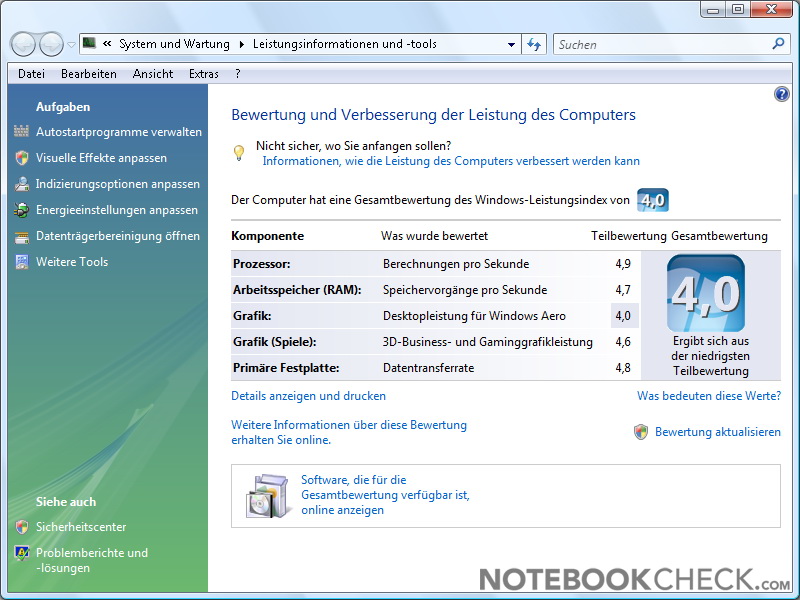

Vista LI

Benchmarks and GPU Information about the Lenovo ThinkPad T61 UI02BGE: GPU Z, Cinebench R10, Crystalmark 2004 and Vista Performance Index.

Cinebench R10
 SettingsValue
 Shading 32Bit2408 Points
 Rendering Multiple CPUs 32Bit3600 Points
 Rendering Single 32Bit1971 Points
Doom 3
 ResolutionSettingsValue
 1024x768Ultra, 0xAA, 0xAF25.4 fps

F.E.A.R. Benchmark

Computer max. | grafic max.:
1024x768 | 4xAA/16xAF | min. 09 fps | avg. 17 fps | max. 34 fps | less than 25 fps: 83 %
1024x768 | 0xAA/00xAF | min. 12 fps | avg. 21 fps | max. 37 fps | less than 25 fps: 79 %

Computer max. | grafic med.:
1024x768 | 0xAA/00xAF | min. 20 fps | avg. 38 fps | max. 64 fps | less than 25 fps: 03 %

The provided mass storage devices of the ThinkPad T61 is a 120 GByte serial ATA hard disk, in more detail a HTS 541612 J9SA00 by Hitachi. With a revolution speed of 5400 revs/min, the average data transfer rate measured with HDTune is 37.1 MB/s. This is alright, considering that the reference hard disk, a Seagate ST 910021 A with 7200 revs/min, has a an average data transfer rate fo 40 MB/s.

Furthermore, the T61 comes with a 8x DVD burner, a GSA-U10N by LG Electronics inserted in an UltraBay slot. If required, you can replace this slim-line drive by a supplement battery in order to increase the battery runtime.

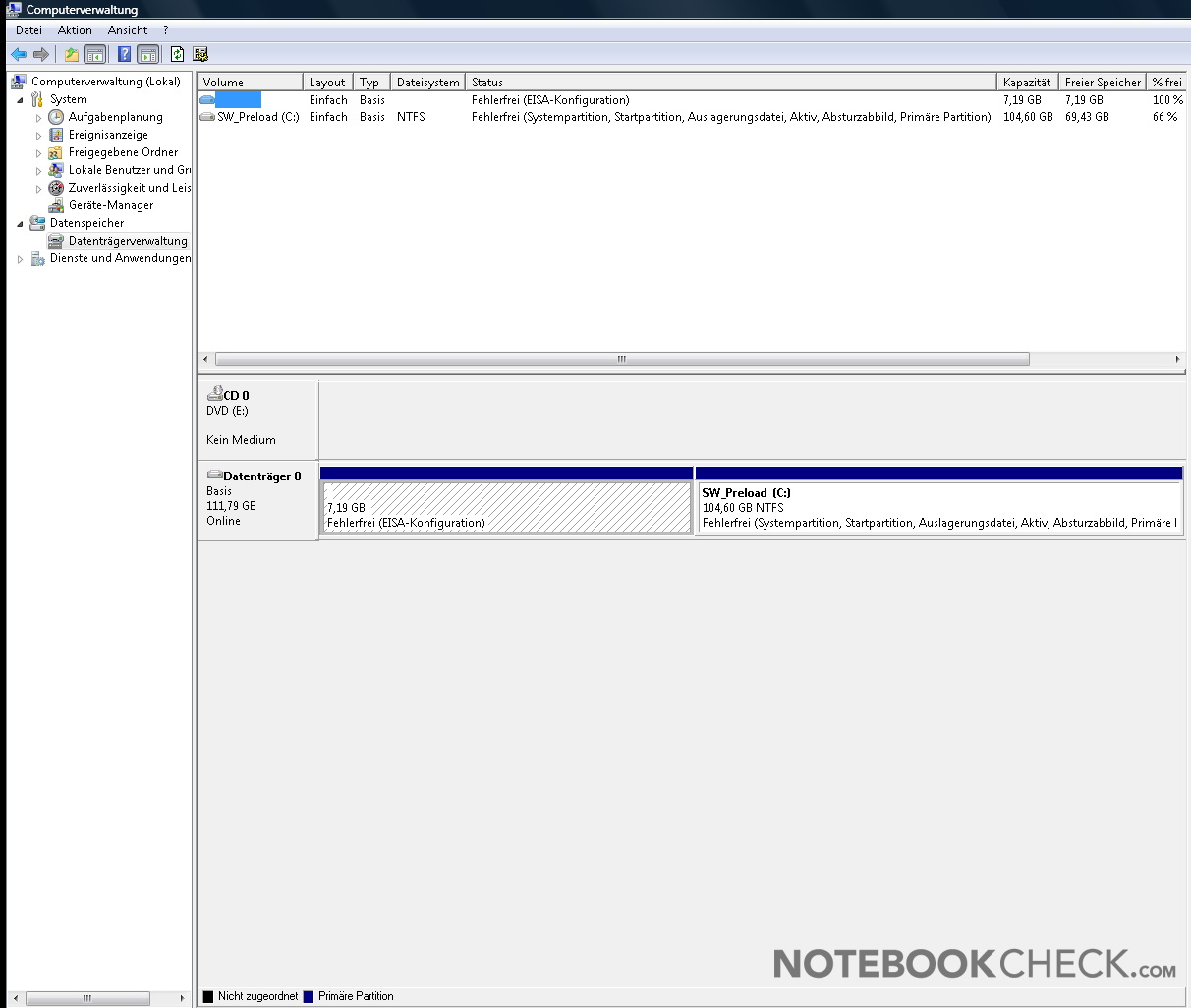

Storage Management
Storage Management
HDTune
HDTune

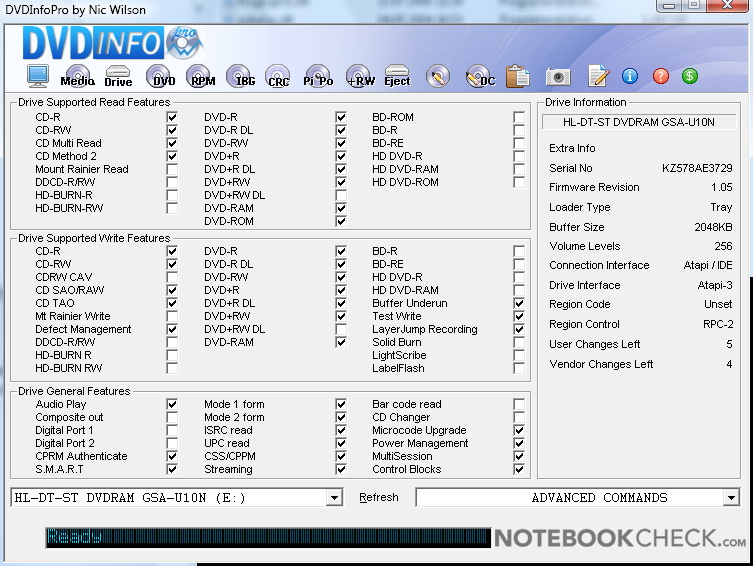

DVDInfo
DVDInfo
3DMark 2001SE Standard
13566 points
3DMark 03 Standard
5242 points
3DMark 05 Standard
3177 points
3DMark 06 1024x768 Score
1406 points
Help
PCMark 05 Standard
4724 points
Help
120 GB - 5400 rpm
Transfer Rate Minimum: 23.3 MB/s
Transfer Rate Maximum: 46.8 MB/s
Transfer Rate Average: 37.1 MB/s
Access Time: 17.7 ms
Burst Rate: 80.7 MB/s
CPU Usage: 2.9 %

Emissions

Volume

In the idle mode under Windows 64-bit and power save mode activated, the noise level is in average 34.5 dB, which is nicely quiet. You'll be able to still hear the T61 in quiet environments, but, it's low-frequency noise is far from being annoying.

Overall, you can consider the T61 a comparably quiet notebook, regardless of performance demand.

The noise level of its DVD drive is also alright. We measured a maximum of 39.3 dB(A). So, DVD drive access won't disturb office work.

Noise Level

Idle
34.5 / 35.2 / 36.5 dB(A)
HDD
36.5 dB(A)
DVD
39.3 / 39.9 dB(A)
Load
37.3 / 37.9 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light    (15 cm distance)

Temperature

Our infra-red sensor, which works contact-free, proved that the surface temperatures of the Lenovo ThinkPad T61 stay always alright. Despite of the compact 14 inch case and the silent fan, the maximum temperature of the top side measured in the center in front of the keyboard was only 35.5 degrees. The average temperature on the top side is 31.3°C, which is low.

Also the bottom side of the T61 stays alright. Although, the maximum measured left, below the cooling system of the CPU and the heat pipe of the video card is as high as 39.6°C, the average of 35.2°C is still alright.

Max. Load
 32 °C
90 F
35.5 °C
96 F
31.7 °C
89 F

 32.2 °C
90 F
32.2 °C
90 F
27.7 °C
82 F

 30 °C
86 F
31.4 °C
89 F
28.9 °C
84 F

Maximum: 35.5 °C = 96 F
Average: 31.3 °C = 88 F
28.6 °C
83 F
34.9 °C
95 F
35.5 °C
96 F
30.9 °C
88 F
38.6 °C
101 F
39.6 °C
103 F
30.4 °C
87 F
39.1 °C
102 F
39 °C
102 F
Maximum: 39.6 °C = 103 F
Average: 35.2 °C = 95 F
Room Temperature 19 °C = 66 F
(+) The average temperature for the upper side under maximal load is 31.3 °C / 88 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(+) The maximum temperature on the upper side is 35.5 °C / 96 F, compared to the average of 34.2 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(+) The bottom heats up to a maximum of 39.6 °C / 103 F, compared to the average of 36.7 °C / 98 F
(+) The palmrests and touchpad are cooler than skin temperature with a maximum of 31.4 °C / 88.5 F and are therefore cool to the touch.
(-) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (-3.7 °C / -6.6 F).

Speakers

The two speakers of the Lenovo ThinkPad T61 are located at the bottom side, central, immediately below the front edge. Their sound is by no means wonderful, the basses and high tones are weak, however, the middle tones are alright. They are sufficient for non-demanding background music - for nothing more.

Battery Runtime

In contrast to predecessor models the ThinkPad T61 comes with a 5.200 mAh battery, which does not exceed the case.  In idle mode and with dimmed display, the power demand of the notebook is 20.1 Watt only.

We measured a maximum runtime of about four hours for the 56 Wh 6 cell battery. However, under full load with brightest display setting, the runtime was just about 1 hour.

If you do not need the DVD drive, you can insert a 2700mAh supplement battery into the UltraBay slot in order to increase the runtime. Furthermore, there are also other more powerful battery solutions available.

Power Consumption
Off / Standbydarklight 0 / 0 Watt
Idledarkmidlight 20.1 / 24.6 / 26.3 Watt
Load midlight 44.6 / 58 Watt
 color bar
Key: min: dark, med: mid, max: light
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.
Battery Runtime
Idle (without WLAN, min brightness)
3h 55min
DVD
2h 00min
Load (maximum brightness)
1h 10min

Verdict

Overall, the T61 is an interesting notebook, whereas Lenovo focuses on business customers. Regarding user-friendliness and data security you'll hardly find any better. The Lenovo ThinkPad T61 scores points in these aspects by a lot of reasonable details. Furthermore, even Lenovo's service is top. Most of its parts and accessories can be easily ordered by their part number.

The Thinkpad T61 UI02BGE (8889-2 BG) offers good performance in solid case. With this equipment, office work really becomes child's play. The input devices are user-friendly, the noise and temperature emissions alright. Accessories, like docking station and supplement batteries ease the life of traveling customers.

Still, some details could yet be improved. E.g., the available ports do no longer confirm the current standard, and the LCD panel should be brighter. Although the recovery system can be launch by pressing a single button, we feel that recovery media should belong to the base equipment of business notebooks instead of shifting the responsibility of creating such to the customer.

Overall, the ThinkPad T61 is a scalable business solution, which comprehensive security features. Costing 2000,- EUR it's not really a bargain. However, it's really user-friendly and reliable.

Lenovo Thinkpad T61 UI02BGE
Lenovo Thinkpad T61 UI02BGE



Many thanks of the company "planet notebook computer", provided us with this test device. You can configure and also buy this notebook here.

Please share our article, every link counts!
Reviewed: Lenovo ThinkPad T61 UI02BGE notebook - provided by:
Reviewed: Lenovo ThinkPad T61 UI02BGE notebook - provided by:

Specifications

Lenovo ThinkPad T61 (Thinkpad T Series)
Graphics adapter
NVIDIA Quadro NVS 140M - 128 MB VRAM, Core: 432 MHz, Memory: 601 MHz, Nvidia Quadro NVS mobile business product family
Memory
2048 MB
, PC2-5300, max. 4 GByte, 1x 2048 MB verbaut, zweiter RAM-Slot frei
Display
14.10 inch 4:3, 1680 x 1050 pixel, Panel: Samsung LTN141P4, glossy: no
Mainboard
Intel PM965
Storage
120 GB - 5400 rpm, 120 GB
, 5400 rpm, Hitachi Travelstar 5K160 HTS541612J9SA00
Soundcard
HD Audio
Connections
1 PC-Card, 1 Express Card 54mm, 3 USB 2.0, 1 VGA, V.92 56K Modem Modem, 1 Kensington Lock, 1 Docking Station Port, Audio Connections: Kopfhörer, Mikrofon
Networking
Intel 82566MM Gigabit Network Connection (10/100/1000MBit/s), Intel Wireless WiFi Link 4965AGN (a/b/g/n = Wi-Fi 4/), Bluetooth 1
Optical drive
HL-DT-ST DVD +/-RW GSA-U10N
Size
height x width x depth (in mm): 27 x 312 x 255 ( = 1.06 x 12.28 x 10.04 in)
Battery
56 Wh Lithium-Ion, 5200 mAh, 10.8 Volt, 6-cell battery
Operating System
Microsoft Windows Vista Business 64 Bit
Additional features
36 Months Warranty
Weight
2.5 kg ( = 88.19 oz / 5.51 pounds), Power Supply: 366 g ( = 12.91 oz / 0.81 pounds)
Price
2448 Euro



Lenovo Thinkpad T61 UI02BGE Image

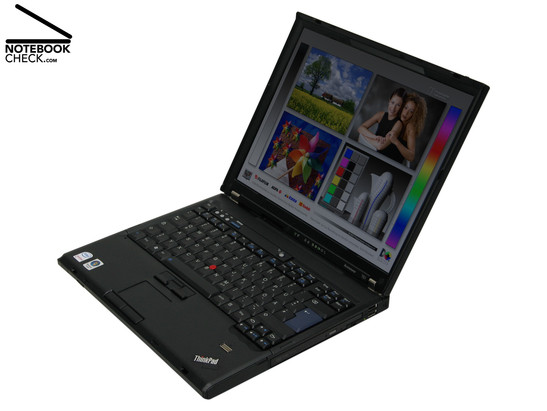

The model UI02BGE of the T61...
Lenovo Thinkpad T61 UI02BGE Image
Important configurations and tasks can be performed with the ThinkVantage button.
Lenovo Thinkpad T61 UI02BGE Image
The matte display is not very bright.
Lenovo Thinkpad T61 UI02BGE Image
Contrast, luminance, and viewing angles ...
Lenovo Thinkpad T61 UI02BGE Image
of the Samsung panel can also not really convince.
Lenovo Thinkpad T61 UI02BGE Image
Typical ThinkPad the bottom side is rather closed.
Lenovo Thinkpad T61 UI02BGE Image
Modules and memory slots can be accessed through the top side.
Lenovo Thinkpad T61 UI02BGE Image
A quick memory upgrade is possible as the second DDR2-667 slot is free.
Lenovo Thinkpad T61 UI02BGE Image
Often criticized in predecessor notebooks,
Lenovo Thinkpad T61 UI02BGE Image
the runtime of the provide 56Wh battery is passable.
Lenovo Thinkpad T61 UI02BGE Image
A genuine ThinkPad comes with a red track point.
Lenovo Thinkpad T61 UI02BGE Image
A fingerprint reader and a TPM chip are provided.
Lenovo Thinkpad T61 UI02BGE Image
is a solid and user-friendly notebook for business customers.
Lenovo Thinkpad T61 UI02BGE Image
There are no recovery media provided.
Lenovo Thinkpad T61 UI02BGE Image
There are lot of reasonable details,...
Lenovo Thinkpad T61 UI02BGE Image
but, the available ports do no longer confirm the current standard.
Lenovo Thinkpad T61 UI02BGE Image
There is a DVD burner in the UltraBay slot. However, it can also be used for a supplement battery.
Lenovo Thinkpad T61 UI02BGE Image
The soft surface feels nice to the touch.
Lenovo Thinkpad T61 UI02BGE Image
The steel hinges work flawlessly.
Lenovo Thinkpad T61 UI02BGE Image
The power connector is reasonable at the back side.
Lenovo Thinkpad T61 UI02BGE Image

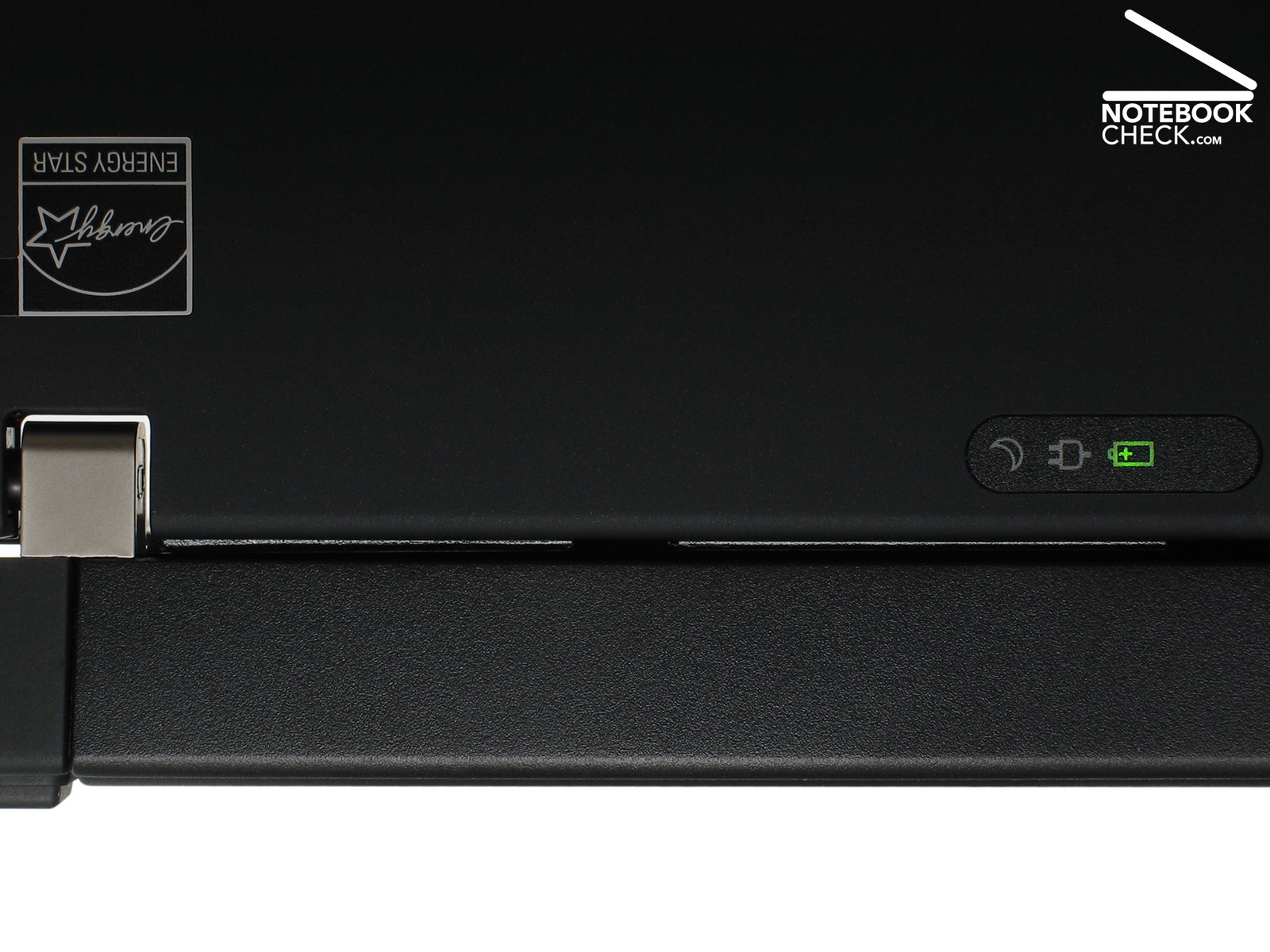

The small Indicator LEDs are also visible, if closed.
Lenovo Thinkpad T61 UI02BGE Image
The compact power adapter gets considerably warmer (51.1°C).

Similar devices

Similar devices with the Same Specs

Devices with the same GPU

Review Lenovo Thinkpad R61 Notebook
Quadro NVS 140M, Core 2 Duo T7100, 15.40", 2.97 kg

Devices with Same Screen Size and/or Weight

Lenovo ThinkPad X1 Carbon G12 laptop review: First major refresh in three years
Arc 8-Cores, Intel Meteor Lake-H Ultra 7 155H, 14.00", 1.097 kg
Lenovo ThinkPad T14 G4 AMD Laptop Review: Ryzen power in the compact ThinkPad
Radeon 780M, Phoenix (Zen 4, Ryzen 7040) R7 PRO 7840U, 14.00", 1.463 kg
Lenovo IdeaPad Slim 3 CB 14M868 review - The MediaTek Kompanio 520 introductory Chromebook
Mali-G52 MP2, MediaTek Kompanio 500 Kompanio 520, 14.00", 1.3 kg
Lenovo ThinkPad T14s G4 Core i7 laptop review: Uphill battle against AMD Ryzen 7
Iris Xe G7 96EUs, Raptor Lake-U i7-1365U, 14.00", 1.38 kg
Lenovo ThinkBook 16 G6 review - The inexpensive multimedia laptop with a Ryzen 7000
Vega 7, Cezanne (Zen 3, Ryzen 5000) R5 7530U, 16.00", 1.789 kg
Lenovo ThinkPad E16 G1 Intel review: Core i5 is neck-to-neck with AMD Ryzen 7
Iris Xe G7 80EUs, Raptor Lake-U i5-1335U, 16.00", 1.823 kg
Lenovo ThinkPad T14s G4 review: Business laptop is better with AMD Zen4
Radeon 780M, Phoenix (Zen 4, Ryzen 7040) R7 7840U, 14.00", 1.353 kg
Lenovo ThinkPad E14 G5 Intel laptop review: Core i7-1355U vs. Ryzen 7 7730U
Iris Xe G7 96EUs, Raptor Lake-U i7-1355U, 14.00", 1.497 kg
Lenovo ThinkPad L15 Gen 4 in review: A battery-efficient, silent Ryzen laptop
Vega 8, Cezanne (Zen 3, Ryzen 5000) R7 PRO 7730U, 15.60", 1.864 kg
Lenovo ThinkPad E16 G1 AMD Review - Large office laptop with AMD power and WQHD display
Vega 8, Cezanne (Zen 3, Ryzen 5000) R7 7730U, 16.00", 1.814 kg
Lenovo ThinkPad E14 G5 AMD review: Affordable office laptop with better display
Vega 8, Cezanne (Zen 3, Ryzen 5000) R7 7730U, 14.00", 1.448 kg
Lenovo ThinkPad T16 G2 in review: Quiet office laptop with long battery life
Iris Xe G7 96EUs, Raptor Lake-U i7-1355U, 16.00", 1.839 kg

Lenovo ThinkPad T61 on Ciao

Pros

+User-friendliness
+Data security
+Moderate weight
+Accessories, and service
+Solid case
+Quiet
+Low temperature emissions
+Track point
+Matte display


Cons

-Available Interfaces
-No recovery media
-No DVI-/ HDMI port
-Moderate brightness of the screen
-Low contrast

Lenovo ThinkPad T61 - 12/03/2007
Ronald Tiefenthäler

Chassis
92%
Keyboard
93%
Pointing Device
90%
Connectivity
80%
Weight
82%
Battery
75%
Display
80%
Games Performance
76%
Application Performance
95%
Temperature
85%
Noise
81%
Add Points
94%
Average
85%
87%
Office - Weighted Average
Ronald Tiefenthäler, 2007-12-11 (Update: 2019-04-30)
