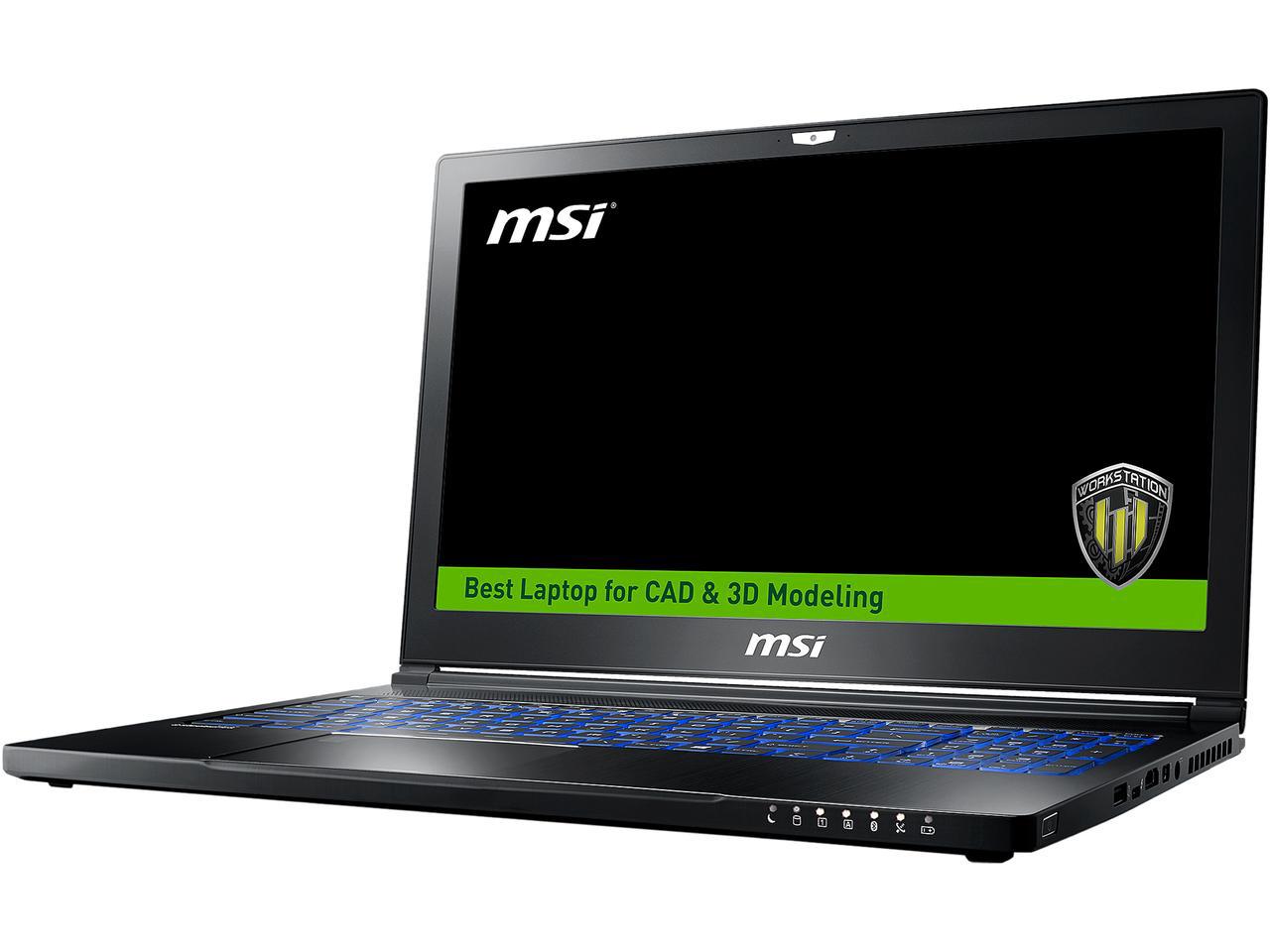

MSI WS63VR 7RL-023US

Specifications

MSI WS63VR 7RL-023US
MSI WS63VR 7RL-023US
Processor
Intel Core i7-7700HQ 4 x 2.8 - 3.8 GHz, Kaby Lake
Graphics adapter
NVIDIA Quadro P4000 Max-Q - 8192 MB, Core: 1114 MHz, Memory: 1502 MHz, Nvidia ODE R384 U3 (385.41), Nvidia Optimus
Memory
32768 MB
, Dual-channel, DDR4-2400 / PC4-19200
Display
15.60 inch 16:9, 3840 x 2160 pixel 282 PPI, No, SAMSUNG LƒFL156FL02-101 , IPS, glossy: no
Mainboard
Intel HM175 (Skylake PCH-H)
Storage
Toshiba NVMe THNSN5512GPU7, 512 GB
, 512 GB PCIe NVMe SSD + 2 TB 5400 RPM HDD (Seagate ST2000LM015-2E8174), 475 GB free
Soundcard
Realtek ALC899 @ Intel Skylake PCH-H - High Definition Audio Controller
Connections
1 USB 2.0, 3 USB 3.0 / 3.1 Gen1, 1 USB 3.1 Gen2, 1 Thunderbolt, 1 HDMI, 2 DisplayPort, 1 Kensington Lock, Audio Connections: HiFi Audio out + Microphone in, Card Reader: 4-in-1 SD / SDHC / SDXC Card Reader, 1 Fingerprint Reader, Brightness Sensor
Networking
Qualcomm Atheros AR8171/8175 PCI-E Gigabit Ethernet (10/100/1000/2500/5000MBit/s), Intel Dual Band Wireless-AC 8265 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5)
Size
height x width x depth (in mm): 18 x 380 x 249 ( = 0.71 x 14.96 x 9.8 in)
Battery
48 Wh Lithium-Ion
Operating System
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: HD
Additional features
Speakers: 2 x 2 Watt, Keyboard: Steelseries-branded chiclet, Keyboard Light: yes, 36 Months Warranty
Weight
1.92 kg ( = 67.73 oz / 4.23 pounds), Power Supply: 585 g ( = 20.64 oz / 1.29 pounds)
Price
3400 USD



Pricecompare

Average Score: 82.8% - good
Average of 2 scores (from 1 reviews)
price: - %, performance: 91%, features: 68%, display: 85% mobility: 66%, workmanship: 80%, ergonomy: 80%, emissions: 82%

Reviews for the MSI WS63VR 7RL-023US

85.6% MSI WS63VR (i7-7700HQ, 4K, Quadro P4000 Max-Q) Laptop Review | Notebookcheck
Max-Q goes to work. MSI's updated WS63VR 7RL brings Nvidia's new Max-Q design to the GPU giant's Quadro line. How well does the Max-Q philosophy benefit a powerful professional-grade graphics card, especially with regards to heat and power management?
80% MSI WS63VR 7RL Review
Source: Laptop Mag English
The MSI WS63VR is a powerful workstation in a body that's smaller than you would expect. It can handle any productivity task you throw at it, and it's even ready for some gaming and virtual reality on the side. Unfortunately, although it's sharp, the 15.6-inch, 4K display simply isn't as bright and colorful as competitors' screens, and its stiff touchpad may make you consider grabbing an external mouse.
Single Review, online available, Long, Date: 08/09/2017
Rating: Total score: 80%

Comment

NVIDIA Quadro P4000 Max-Q: High-end workstation graphics card based on the 16nm GP104 chip (similar to the Quadro P5000) from the Pascal architecture. The Max-Q version is a power efficient variant of the normal Quadro P4000 with lower clock rates (1113 - 1240 versus 1202 - ?) and a much reduced power consumption (80 versus 100 Watt TGP).

With these GPUs you are able to play modern and demanding games fluently at medium detail settings and HD resolution.

» Further information can be found in our Comparison of Mobile Graphics Cards and the corresponding Benchmark List.


i7-7700HQ: Quad-core notebook processor based on the Kaby Lake architecture. Besides four CPU cores (including Hyper Threading), the chips also integrates the HD Graphics 630 GPU and is manufactured in an improved 14 nm process.» Further information can be found in our Comparison of Mobile Processsors.


15.60":

15-16 inch is a standard display size for laptops and offers the biggest variety of products.

» To find out how fine a display is, see our DPI List.


1.92 kg:

This weight is typical for very big tablets, subnotebooks, ultrabooks and convertibles with a 11-13 inch display-diagonal.


MSI: Micro-Star International (MSI), is a Taiwan based computer hardware manufacturer since 1986 best known for desktop computer motherboards. MSI also designs and manufactures graphics cards, barebone PCs, notebook computers, networking products, servers, multimedia, consumer electronics, and storage devices. MSI, as most Taiwanese computer manufacturers, sells products on OEM/ODM basis. It also sells products worldwide based on its own brand name "MSI". The market share of laptops with the MSI brand is rather low.

MSI is not present in the smartphone market. As a laptop manufacturer, MSI has a medium market share and is not among the Top 10 global manufacturers. The ratings of MSI laptops are above average in the tests (as of 2016).


82.8%: This rating should be considered to be average. This is because the proportion of notebooks which have a higher rating is approximately equal to the proportion which have a lower rating.


» Further information can be found in our Notebook Purchase Guide.
