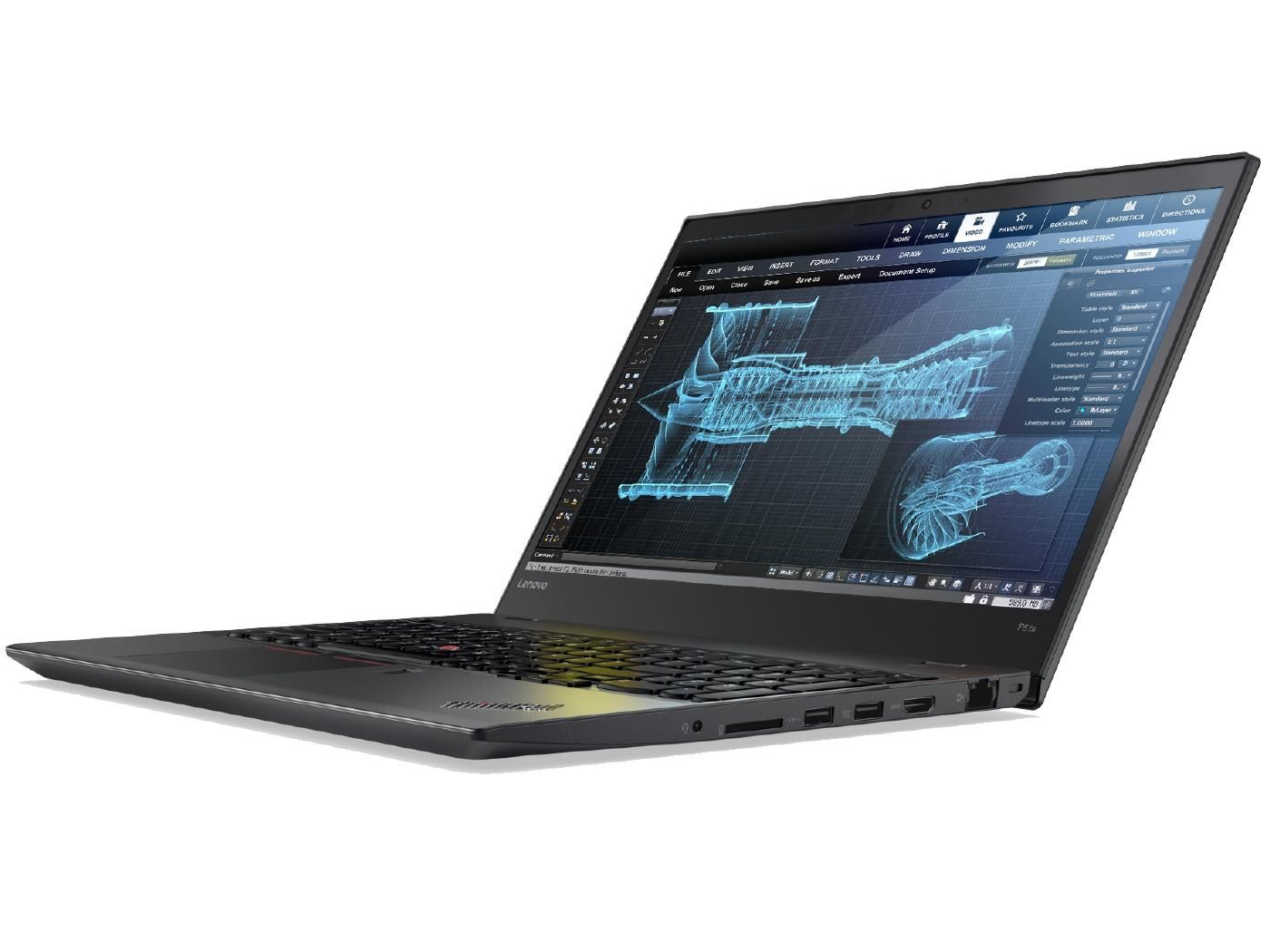

Lenovo ThinkPad P51s 20HB000SGE

Specifications

Lenovo ThinkPad P51s 20HB000SGE
Lenovo ThinkPad P51s 20HB000SGE
Processor
Intel Core i7-7600U 2 x 2.8 - 3.9 GHz, Kaby Lake
Graphics adapter
NVIDIA Quadro M520 - 2048 MB VRAM, Core: 1176 MHz, RAM: 1253 MHz, GDDR5, 64 bit interface, ForceWare 382.05, Optimus
Memory
16 GB
, DDR4-2400, single-channel, two memory banks (one bank filled)
Display
15.60 inch 16:9, 3840 x 2160 pixel 282 PPI, BOE NV156QUM-N44, IPS, glossy: no
Mainboard
Intel Kaby Lake-U iHDCP 2.2 Premium PCH
Storage
Samsung SSD PM961 1TB M.2 PCIe 3.0 x4 NVMe (MZVLW1T0), 1024 GB
, 924 GB free
Soundcard
Realtek ALC298 @ Intel Sunrise Point PCH - High Definition Audio Controller
Connections
3 USB 3.0 / 3.1 Gen1, 1 USB 3.1 Gen2, 1 Thunderbolt, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, 1 Docking Station Port, Audio Connections: combo audio, Card Reader: SD, 1 SmartCard, 1 Fingerprint Reader, TPM 2.0
Networking
Intel Ethernet Connection I219-LM (10/100/1000MBit/s), Intel Dual Band Wireless-AC 8265 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2
Size
height x width x depth (in mm): 22 x 357 x 253 ( = 0.87 x 14.06 x 9.96 in)
Battery
104 Wh Lithium-Ion, removeable
Operating System
Microsoft Windows 10 Pro 64 Bit
Camera
Webcam: HD, infrared camera
Additional features
Speakers: stereo, Keyboard: chiclet, Keyboard Light: yes, MS Office Home and Student 365, 36 Months Warranty
Weight
2.2 kg ( = 77.6 oz / 4.85 pounds), Power Supply: 351 g ( = 12.38 oz / 0.77 pounds)
Price
2300 Euro



Price comparison

Average Score: 82.6% - good
Average of 1 scores (from 1 reviews)
price: - %, performance: 77%, features: 72%, display: 91% mobility: 78%, workmanship: 88%, ergonomy: 91%, emissions: 88%

Reviews for the Lenovo ThinkPad P51s 20HB000SGE

82.6% Lenovo ThinkPad P51s (Core i7, 4K) Workstation Review | Notebookcheck
Enduring. Lenovo's mobile ThinkPad P51s workstation is slimmer and more compact than its predecessor. The device can now also offer a modern Thunderbolt 3 interface. Thanks to a high-capacity external battery, the laptop achieves an outstanding battery life.
The Lenovo ThinkPad P51s Preview, Specs & Price!
Source: Tech ARP English Archive.org version
Lenovo just introduced the Lenovo ThinkPad P51s mobile workstation. Powered by the latest Intel Kaby Lake processor with an NVIDIA Quadro GPU, the Lenovo ThinkPad P51s (lowest price on Amazon) remains incredibly svelte and light. Check out their tech briefing on the ThinkPad P51s, and our hands-on preview of this ultra-light mobile workstation!
Single Review, online available, Short, Date: 06/15/2017

Comment

NVIDIA Quadro M520: Mid-range workstation graphics card based on the 28nm GM108 chip with 384 shaders and a 64 Bit memory bus. Most likely based on the consumer Geforce 940MX with GDDR5 graphics memory.

Modern games should be playable with these graphics cards at low settings and resolutions. Casual gamers may be happy with these cards.

» Further information can be found in our Comparison of Mobile Graphics Cards and the corresponding Benchmark List.


i7-7600U: Kaby-Lake based SoC with two CPU cores clocked at 2.8 to 3.9 GHz, HyperThreading and manufactured with an improved 14nm process. Integrates a HD Graphics 620 clocked at 300 - 1150 MHz and is manufactured in an improved 14nm process.» Further information can be found in our Comparison of Mobile Processsors.
