MagyarColorful launches refreshed CVN B760I Frozen Wi-Fi D5 V20 mini ITX motherboard with support for Intel 14th gen Raptor Lake-S Refresh and DDR5-8000 memory
Colorful originally launched the CVN B760I Frozen Wi-Fi mini ITX motherboard back in January this year based on the Intel B760 chipt with support for Intel 13th gen CPUs and DDR4 RAM. Now, the OEM is introducing the CVN B760I Frozen Wi-Fi D5 V20 refresh that supports the latest Intel 14th gen Raptor Lake-S Refresh processors and up to 96 GB of DDR5-8000 memory.
The CVN B760I Frozen joins Colorful's other B760-based micro ATX offerings including the B760M-Plus Frozen Wi-Fi, B760M-Plus Pro Wi-Fi, B760M-Back Frozen, and the Battle-AX B760M-Plus.

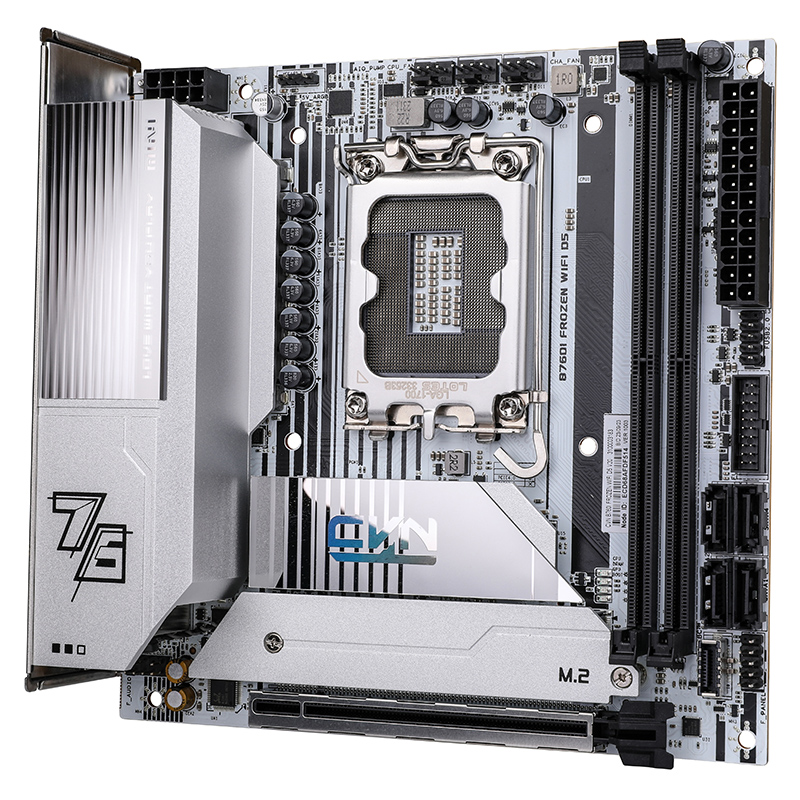

The motherboard features a frosted glass cover that helps keeps the 7+1+1 DrMOS 90A VRMs cool. There are also a few holographic elements, such as the CVN logo, that change colors depending on the angle of incident light.

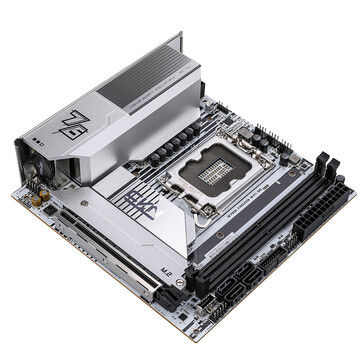

By virtue of the smaller 170 mm x 170 mm form factor, B760I Frozen can only accommodate two DDR5 memory slots, two M.2 2280 NVMe slots, and a lone PCIe Gen5 x16 slot. The rear I/O also foregoes a couple of USB 3.2 Gen1 Type-A ports compared to the B760M-Plus Frozen. However, Colorful offers enough internal headers to considerably expand USB connectivity.
Networking is facilitated by a Realtek RTL8125 2.5 GbE LAN card along with Intel AX200 Wi-Fi 6 with Bluetooth 5.2
Specifications of the CVN B760I Frozen Wi-Fi are as follows:
| CPU | Intel 14th / 13th /12th Generation Core Processors |
| Chipset | Intel B760 |
| Memory Support | 2x DDR5 DIMM Socket Dual-Channel*, Support XMP *Single memory supports up to 48GB capacity, total memory capacity supports up to 96GB DDR5-7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/ 5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800 MHz |
| Expansion Slot | 1x PCIe Gen 5 x16 |
| Storage | Support 4x SATA 6Gb/s Support 2x PCIe 4.0 x4 M.2 SSD* *2x M.2 SSD do not support SATA |
| Internal Connectors | 1x 24-pin ITX Power connector 1x 8-pin CPU Power connector 2x Front USB 3.2 Gen 1 Type-A 1x Front USB 3.2 Gen 1Type-C 2x Front USB 2.0 |

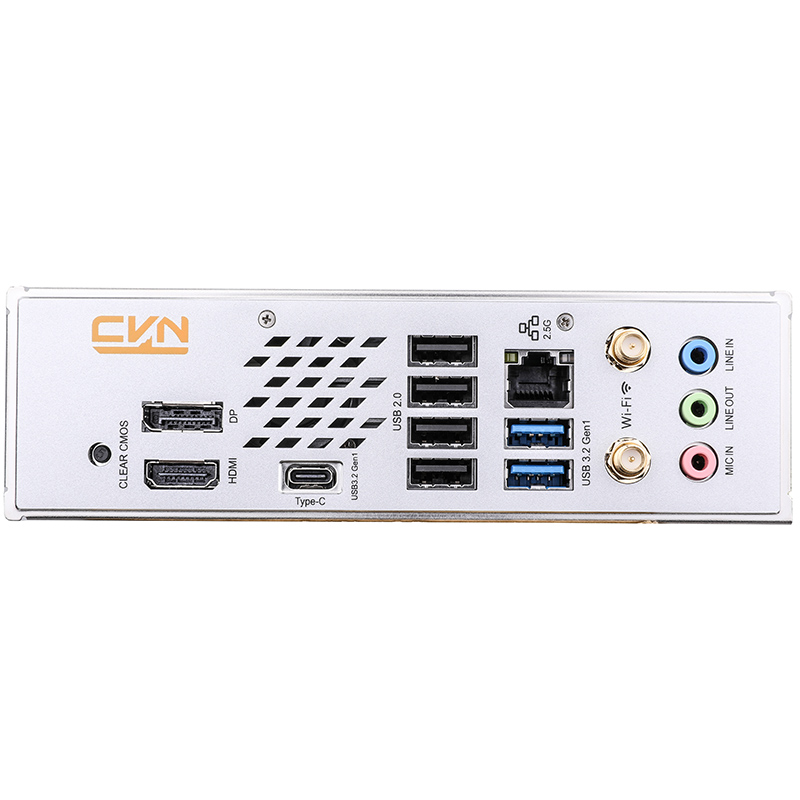

| Rear I/O | 4x USB2.0; 2x USB 3.2 Gen 1 Type-A; 1x USB 3.2 Gen 1 Type-C; 1x HDMI port; 1x DP port |
| LAN | Realtek 2.5G + Wi-Fi 6, Support Bluetooth 5.2 |
| Audio | 5.1-Channel High-Definition audio CODEC |
| Dimensions | 170 mm x 170 mm ITX |
The Colorful CVN B760I Frozen Wi-Fi D5 V20 is currently retailing for US$249 on AliExpress. Prices can vary depending on the local distributor.
