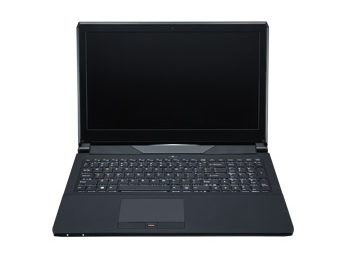

SCHENKER XMG A505

Specifications

SCHENKER XMG A505
SCHENKER XMG A505
Processor
Intel Core i7-4720HQ 4 x 2.6 - 3.6 GHz (Intel Core i7)
Graphics adapter
NVIDIA GeForce GTX 960M - 2048 MB VRAM, Core: 1097 MHz, Memory: 1250 MHz, GDDR5, ForceWare 345.05, Optimus
Memory
16 GB
, 2x 8 GB SO-DIMM DDR3-RAM PC3-12800 (1600 MHz), 2 of 2 slots occupied, up to 16 GB
Display
15.60 inch 16:9, 1920 x 1080 pixel, AU Optronics B156HAN01.2 (AUO12ED), IPS, Full HD, glossy: no
Mainboard
Intel HM87 (Lynx Point)
Storage
Micron M600 MTFDDAV256MBF M.2, 256 GB
, M.2 SSD (type 2280) + Samsung Spinpoint M9T ST1750LM000, 1750 GB HDD, 5400 rpm, slots: 1x M.2 & 1x 2.5-inch
Soundcard
Realtek ALC269 @ Intel Lynx Point PCH - High Definition Audio Controller
Connections
4 USB 3.0 / 3.1 Gen1, 1 VGA, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, Audio Connections: Headphones, Microphone, S/PDIF, Card Reader: MMC,RSMMC,SD,Mini SD,SDHC,SDXC, 1 Fingerprint Reader, SIM card slot
Networking
Realtek PCIe GBE Family Controller (10/100/1000MBit/s), Intel Dual Band Wireless-AC 7265 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.0, LTE
Optical drive
Matshita DVD-RAM UJ8E2
Size
height x width x depth (in mm): 29 x 385 x 268 ( = 1.14 x 15.16 x 10.55 in)
Battery
62 Wh Lithium-Ion, 11.1V, N150BAT-6, 6 cells, 322 grams
Operating System
Microsoft Windows 8.1 64 Bit
Camera
Webcam: 2 Megapixels (FHD)
Additional features
Speakers: 2.0 Onkyo (Sound Blaster Cinema 2), Keyboard: Chiclet, Keyboard Light: yes, Power adaptor: 120 Watts, cleaning cloth, driver DVD, keychain, XMG sticker, MS Office 365 Trial, 24-48 Months Warranty
Weight
2.53 kg ( = 89.24 oz / 5.58 pounds), Power Supply: 466 g ( = 16.44 oz / 1.03 pounds)
Price
1777 Euro



Pricecompare

Average Score: 80.67% - good
Average of 3 scores (from 7 reviews)
price: 70%, performance: 86%, features: 79%, display: 90% mobility: 71%, workmanship: 67%, ergonomy: 82%, emissions: 71%

Reviews for the SCHENKER XMG A505

86% Schenker XMG A505 (Clevo N150SD) Notebook Review | Notebookcheck
Fresh wind. A completely revised chassis and a new GPU: Schenker aims to achieve a lot with the successor of the XMG A504. Read on to find out how the GTX 960M performs compared to the GTX 860M and whether the 15-inch notebook is a good choice for gamers.
86% Nvidia GeForce GTX 960M Review | Notebookcheck
High-end or mainstream? While the GeForce GTX 980M and the GeForce GTX 970M are based on a completely new architecture compared to their predecessors, the GTX 960M is just a small update. Our review shows if the performance can still convince us.
70% Schenker XMG A505 review: Build your own gaming laptop with this barebones chassis from Schenker
Source: Tech Advisor English Archive.org version
The XMG A505 is a versatile choice if you wish to define your gaming laptop experience. Finish quality and style are conspicuously behind the leaders here, although display image is good and the Intel/Nvidia combination means the most challenging games play with ease. The second-fastest storage we’ve ever tested means one quick everyday laptop, even if storage performance counts for near nought when you’re actually playing Windows games.
Single Review, online available, Very Short, Date: 05/15/2015
Rating: Total score: 70% price: 70% performance: 70% features: 70% workmanship: 60%
XMG A505
Source: Hardwareheaven English Archive.org version
Starting with the build quality of the A505 we have a system which lacks the brushed metal effect of some competitors however we rather like the matt finish used here. It appears to be durable and the branding is discrete which is nice. The plastic base is an area which could be improved by applying the same matt finish used on the lid and hand rests. Elsewhere the components used are good quality.
Single Review, online available, Long, Date: 04/03/2015

Foreign Reviews

Schenker XMG A505
Source: HardwareLuxx German DE→EN Archive.org version
Single Review, online available, Long, Date: 07/20/2015
Schenker XMG A505
Source: Allround-PC.com German DE→EN Archive.org version
Single Review, online available, Long, Date: 06/03/2015
neue Mittelklasse mit GTX 960M *Update*
Source: HardwareLuxx German DE→EN Archive.org version
Single Review, online available, Long, Date: 03/25/2015
neue Mittelklasse mit GTX 960M
Source: HardwareLuxx German DE→EN Archive.org version
Single Review, online available, Long, Date: 03/12/2015
Portable XMG A505
Source: Cowcotland French FR→EN Archive.org version
Positive: Good performance; silent operation; good connectivity. Negative: High price.
Single Review, online available, Very Long, Date: 04/22/2015

Comment

NVIDIA GeForce GTX 960M: Upper mid-range graphics card of the GeForce GTX 900M series.

Modern games should be playable with these graphics cards at low settings and resolutions. Casual gamers may be happy with these cards.

» Further information can be found in our Comparison of Mobile Graphics Cards and the corresponding Benchmark List.


Intel Core i7: The Intel Core i7 for laptops is based on the LG1156 Core i5/i7 CPU for desktops. The base clock speed of the CPUs is relatively low, but because of a huge Turbo mode, the cores can dynamically overclock to up to 3.2 GHz (920XM). Therefore, the CPU can be as fast as high clocked dual-core CPUs (using single threaded applications) but still offer the advantage of 4 cores. Because of the large TDP of 45 W / 55 W, the CPU is only intended for large laptops.


4720HQ: Haswell-based quad-core processor clocked at 2.6 GHz with Turbo Boost support up to 3.6 GHz. Offers an integrated HD Graphics 4600 GPU and a dual channel DDR3 memory controller.» Further information can be found in our Comparison of Mobile Processsors.


15.60":

15-inch display variants are the standard and are used for more than half of all laptops.

The reason for the popularity of mid-sized displays is that this size is reasonably easy on the eyes, often allows high resolutions and thus offers rich details on the screen, yet does not consume too much power and the devices can still be reasonably compact - simply the standard compromise.

» To find out how fine a display is, see our DPI List.


2.53 kg:

With this weight, a laptop is rather heavier than average. Devices in this range shine more with screen size and performance than with mobility.


80.67%: This rating is slightly above average, there are somewhat more devices with worse ratings. However, clear purchase recommendations look different.


» Further information can be found in our Notebook Purchase Guide.
