Review HP ProBook 4710s

By Sylwester Cyba 10/27/09

Reasonable 17.3-incher for Professionals

HP primarily designed the ProBook 4710s to attract price-conscious businessmen of medium sized companies. Compared to its predecessors it was quite a bit redesigned. This especially applies to the absolutely new keyboard and the port arrangement. Read on to find out more about the pros and cons of our test sample, which we got straight from HP.

We would like to thank our Polish colleagues from notebookcheck.pl, who carried out the test and provided us with this review.

Case

Contrary to other notebooks from Hewlett Packard the Probook 4710 offers a simple functional design without textured high-gloss lids. This results in an elegant, but, plain look, which reminds on the HP Compaq nx family of earlier days. Nevertheless, the lid got a black (Noir) high-gloss finish.

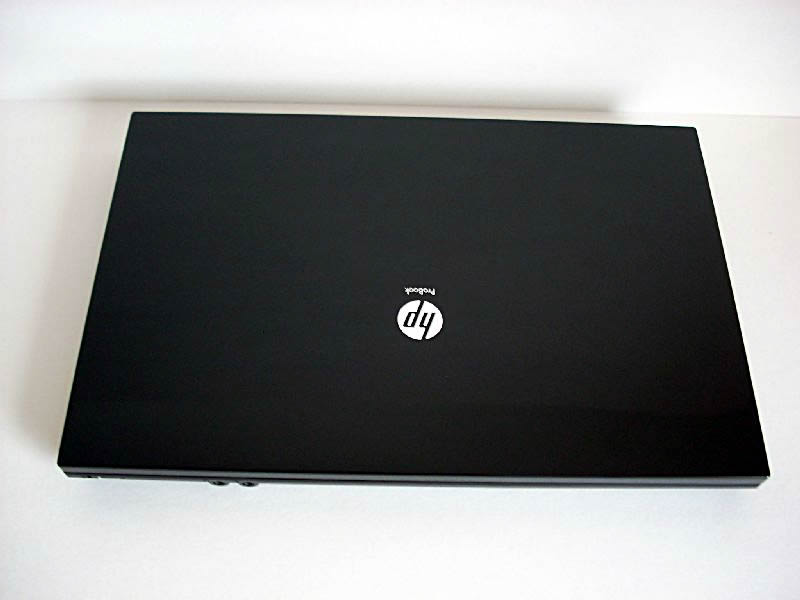

Although the dark colors and the square edges of the closed laptop are far from being eye-catching, this notebook appears to be robust and compact at the first glance. However, appearances are deceptive.

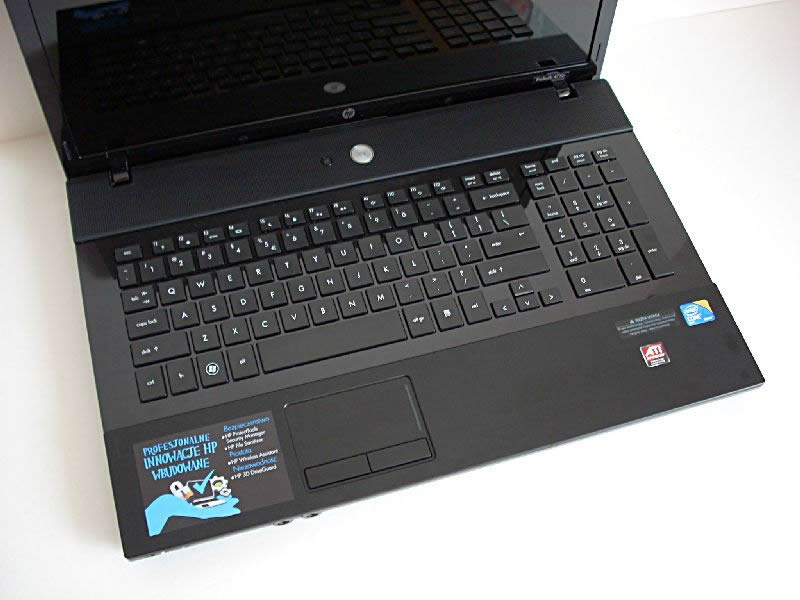

Once the laptop is open, you'll notice that the upper side is divided in three parts. First of all, the innovative keyboard attracts attention by its single key layout and the glossy surface of the keyboard area. In contrary, the part in front of the keyboard got a matte surface. Nevertheless, it is equally prone to fingerprints and smudge as the glossy parts. The third part, above the keyboard, houses the loudspeakers, the power switch, and the HP QuickLook (Instant-On operating system) button and is completely designed as speaker grill.

Besides the non-uniform design, also the quality of the case does not completely meet our expectations. Lifting the base unit at the right corner or applying medium force there, you'll hear an annoying noise. The same is true for the central area of the loudspeaker grill. At least, the keyboard does not give too much. Quite the contrary, the pressure is more or less evenly spread, whereas the area of the F-G-H-keys springs most.

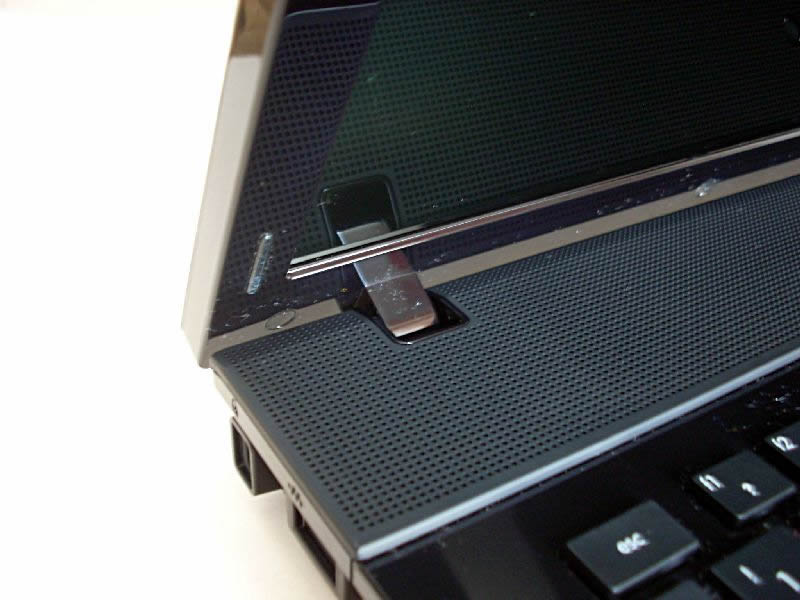

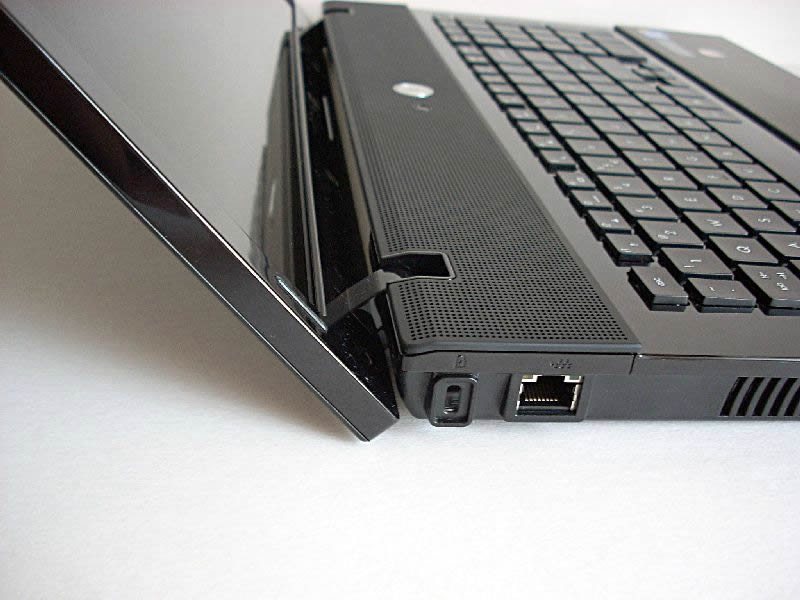

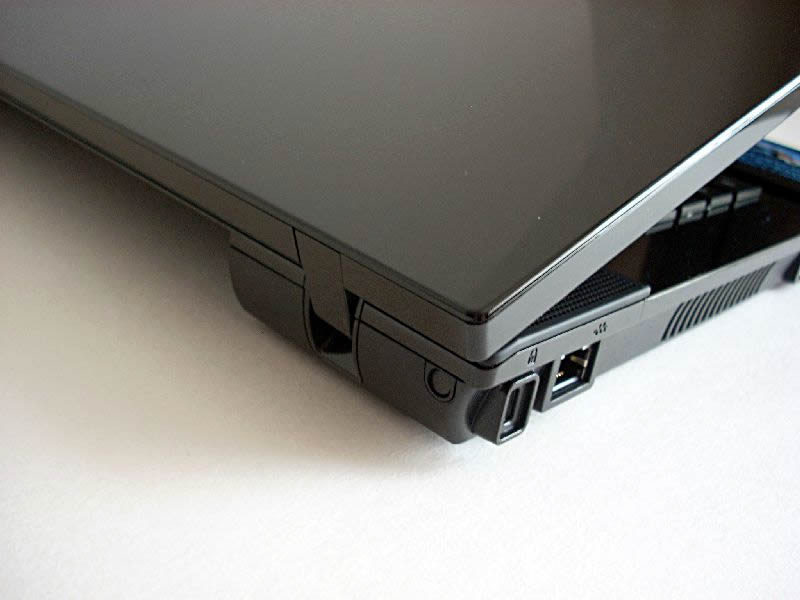

The display is adapted to the base unit by strong hinges, which are able to stably support the screen in any position. Even when typing energetically the screen does not luff. In return, the hinges are rather stiff. Nevertheless, they cannot completely prevent the notebook held upside down on the base unit from opening. Furthermore, you sometimes hear a frictional noise in the right hinge when changing the opening angle.

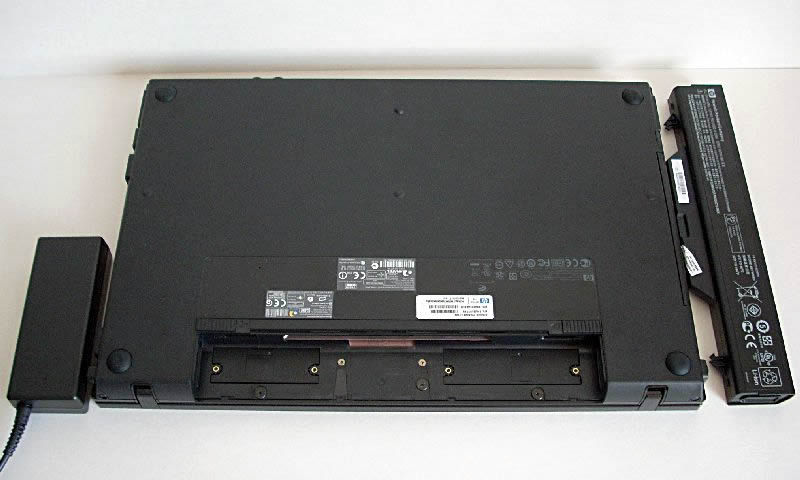

Unfortunately, HP did it without easily accessible maintenance openings. You won't even find a louver at the bottom side. It is only possible to insert and remove the battery there. Fortunately, this sits firmly and does not wobble.

Equipment

The HP Probook offers a base connectivity including all important interfaces. Among others it offers four USB-2.0 ports, a VGA-out, and an HDMI-interface for all-digital video and audio transmission.

In case you need further connectivity, HP also offers a USB docking station for the Probook 4710s. E.g., the compatible HP USB-2.0 docking station (FQ834ET) features a Kensington security slot, audio-in, audio-out, LAN (RJ45), a VGA-out and a DVI-D port for connecting an external screen. However, it does only support a single external display. Some users might miss sleep-and-charge support via USB. This would allow to charge mobile devices by connecting it to a USB-port of the turned-off laptop.

The port arrangement is a point of critique. Depending on the use, attached cables can restrict the available work space right as well as left of the notebook. The two USB-2.0 pairs are both in the front area of the edges. At the right the modem port follows, at the left the two video outs.

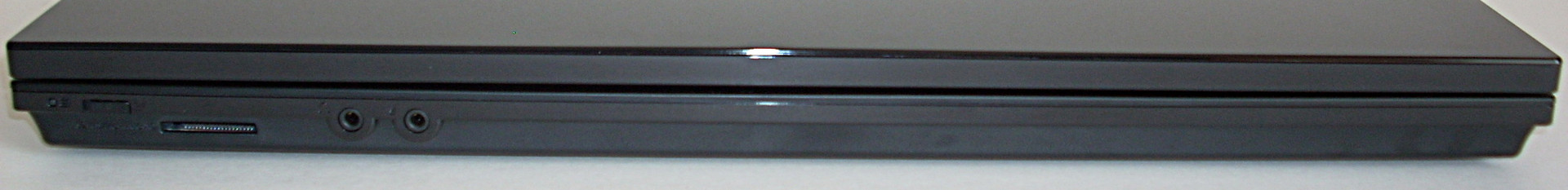

Front: WiFi switch, Multimedia Card Reader, Audio-out, Audio-in
Front: WiFi switch, Multimedia Card Reader, Audio-out, Audio-in

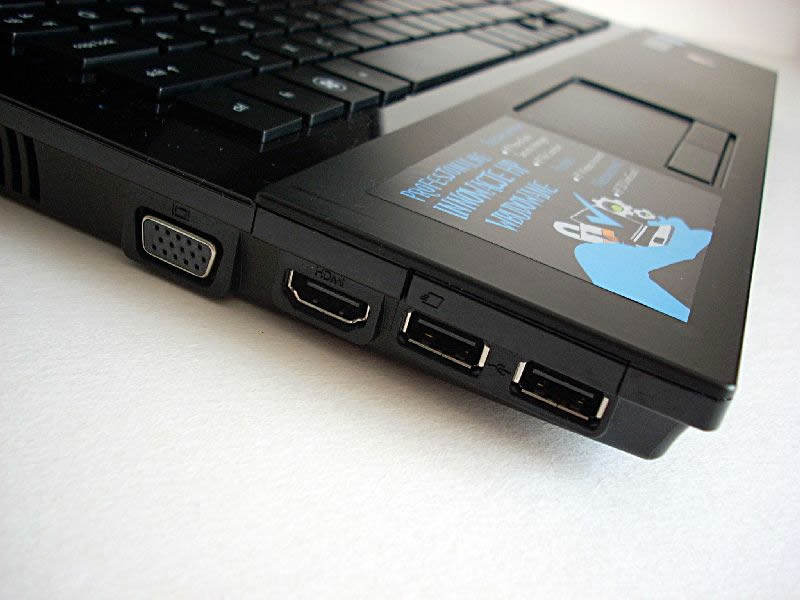

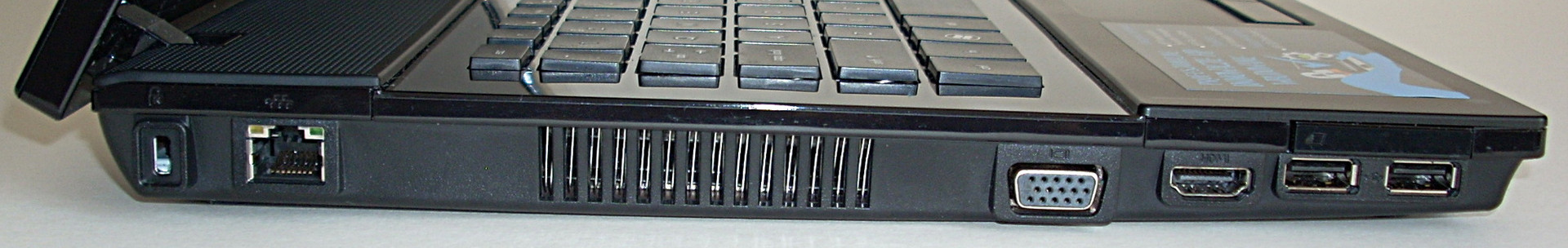

Left: Kensington Lock, LAN, louver, D-Sub/VGA, HDMI, ExpressCard/34, 2x USB
Left: Kensington Lock, LAN, louver, D-Sub/VGA, HDMI, ExpressCard/34, 2x USB

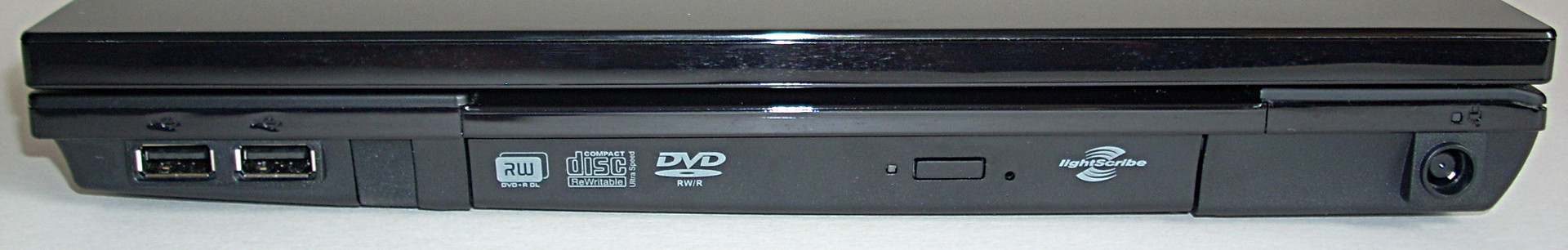

Right: 2x USB, modem, optical drive, power socket
Right: 2x USB, modem, optical drive, power socket

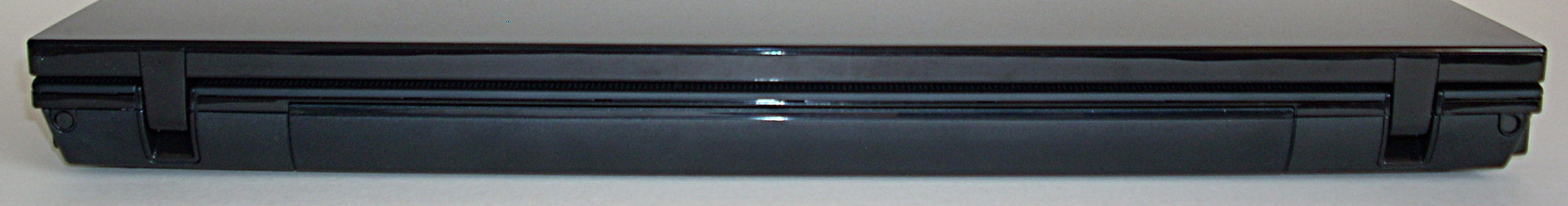

Rear: battery
Rear: battery

The Marvell Yukon 88E8072 PCI-E Gigabit Ethernet Controller provides for LAN-connections. The Intel WiFi Link 5100 AGN module, which also support draft-n, allows fast wireless communication. A modem port (RJ-11) is an option and can be quite useful in areas with poor infrastructure. However, its in vain to look for a built-in broadband modem. Still, you are, together with the 2MP web cam, quite well equipped for video conferencing via Internet.

Regarding operating systems the user is spoilt for choice. The test sample came with pre-installed FreeDos. By default, this notebook is offered with pre-installed Windows Vista Business 32-Bit and downgrade option to Windows XP. Furthermore, HP also lists Red Flag Linux, Windows Vista Business 64-Bit und SuSE Linux Enterprise Desktop 10 as compatible operating systems. We ran our tests under Windows Vista Home Premium 32-Bit.

One year pickup and return service including one year warranty for the main battery is the default warranty. Entitled HP Care Pack, HP also offers a number of warranty options. E.g., two years pickup and return service (HW-support) costs 106.- Euro.

Input devices

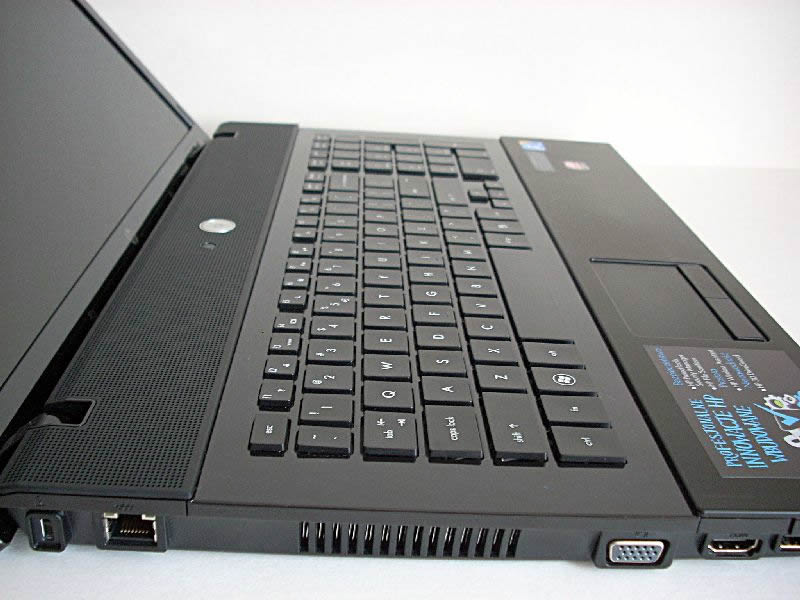

At once we liked the keyboard in single key layout with its rather flat keys. It does not only look good, this design also prevents dust and dirt from penetrating into the inside.

Because of the inter-key gaps the full-sized keyboard appears to be very spacious. Each key is 15 millimeter x 15 millimeter big. Due to the short key travel we needed some adaption time before we could touch type error-free. In order to match the design the arrow keys were highly shrunk. So, arrow up and arrow down have together the same depth than the space bar.

Otherwise the keyboard conforms  to a standard layout with well-arranged key groups. We especially appreciated the separate number field, which is also full-size without standard size number keys.
Furthermore, we were pleased by the quiet tapping. That is except of the backspace key, which was rather loud.

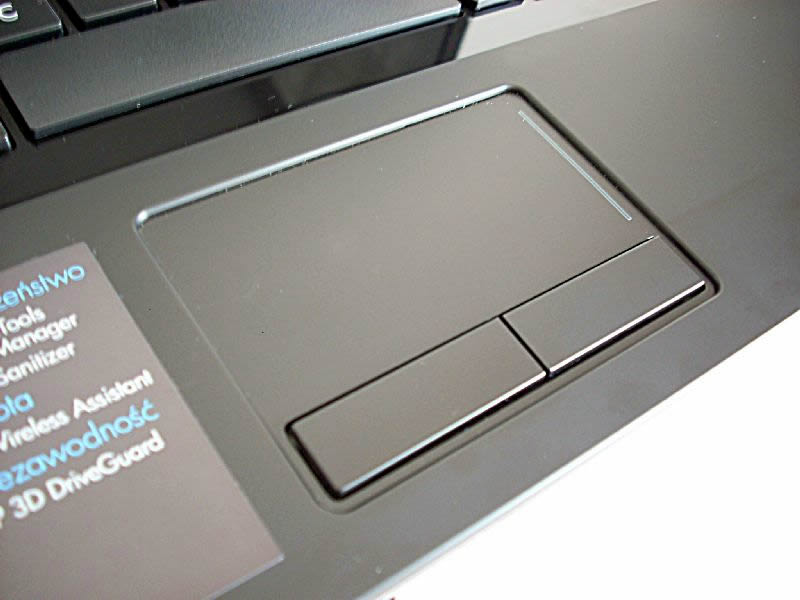

In addition, we were in general also satisfied with the traits of the touchpad. It perfectly matches the design. Furthermore, the matte surface of 80 millimeter width and 45 millimeter depth, feels nice to the touch and features good gliding traits. Moreover, its precision convinces and it offers an optically marked vertical scroll area.

However, the touchpad buttons could not convince, because of their unusual place of the pressure point, which is located in their front area rather than in their center. Besides, the left button is louder than the right. We also missed a simple way for deactivating the touchpad, e.g., by Fn-key combination or hotkey.

Keyboard
Keyboard
Touchpad
Touchpad

Display

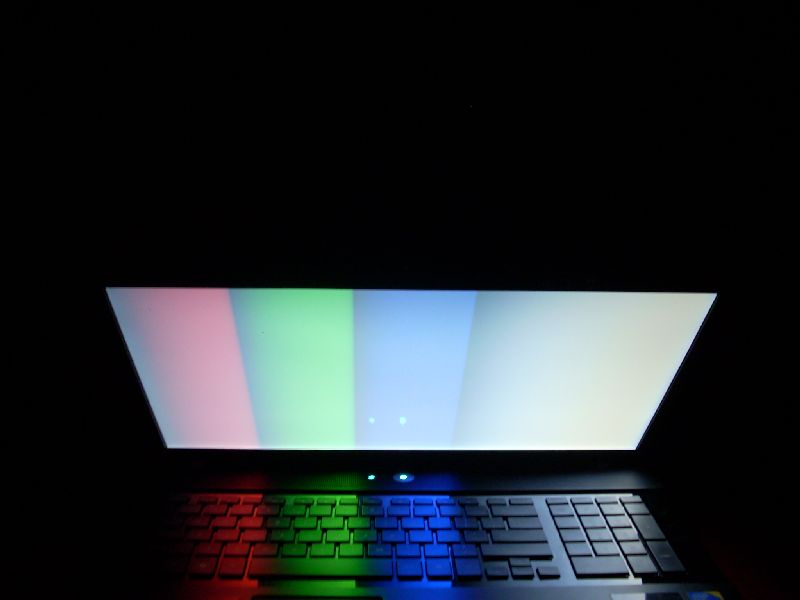

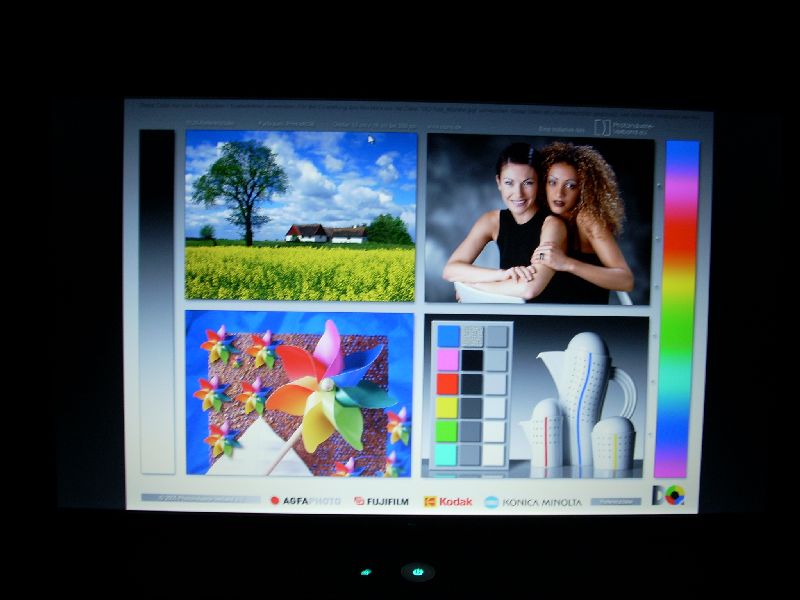

Equipped with a 17.3 inch glare-type screen the HP Probook 4710s offers a native resolution of 1600x900 pixel in cinema-friendly 16:9 aspect ratio. The LED back-lit display scores with its even and bright illumination. This somewhat alleviates the negative effects of the glossy surface, i.e. disruptive reflections. Nevertheless black appears saturated. Compared to the Asus N70SV (standard profile) the colors of the HP Probook 4710s appear more true-to-life, deeper, and sharper.

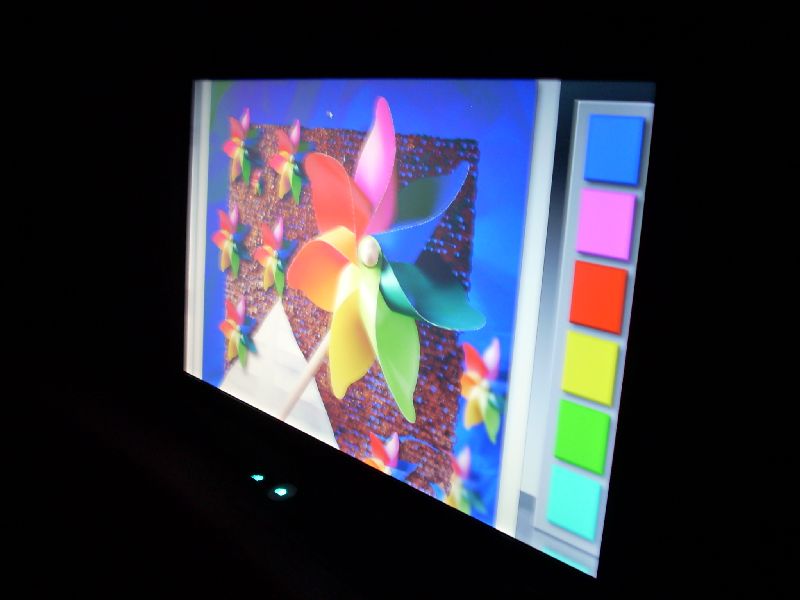

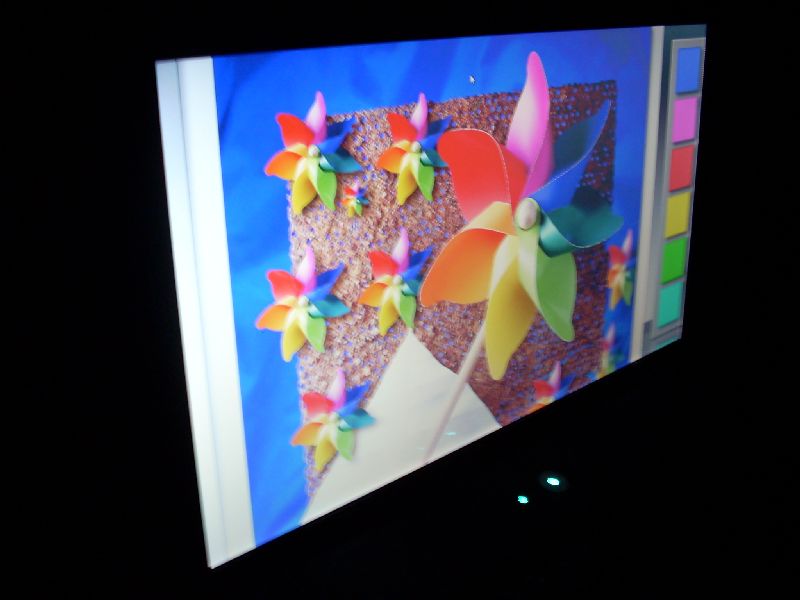

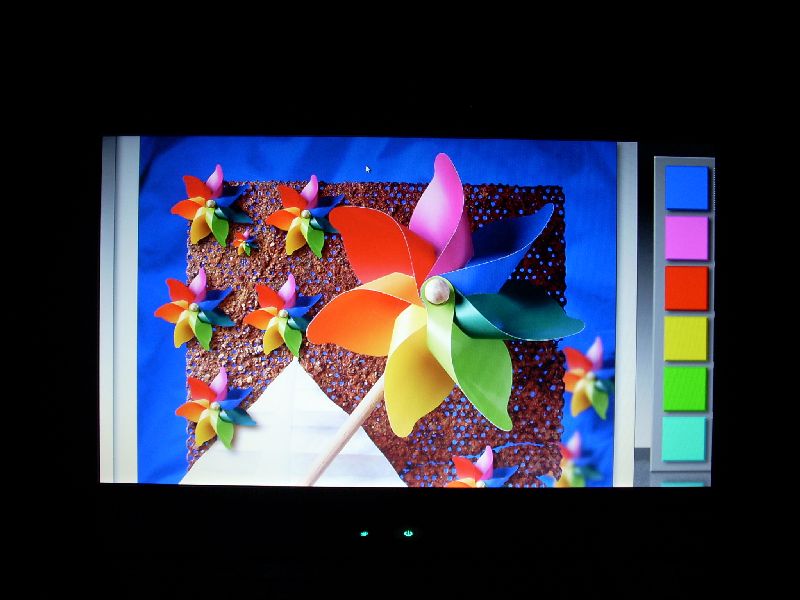

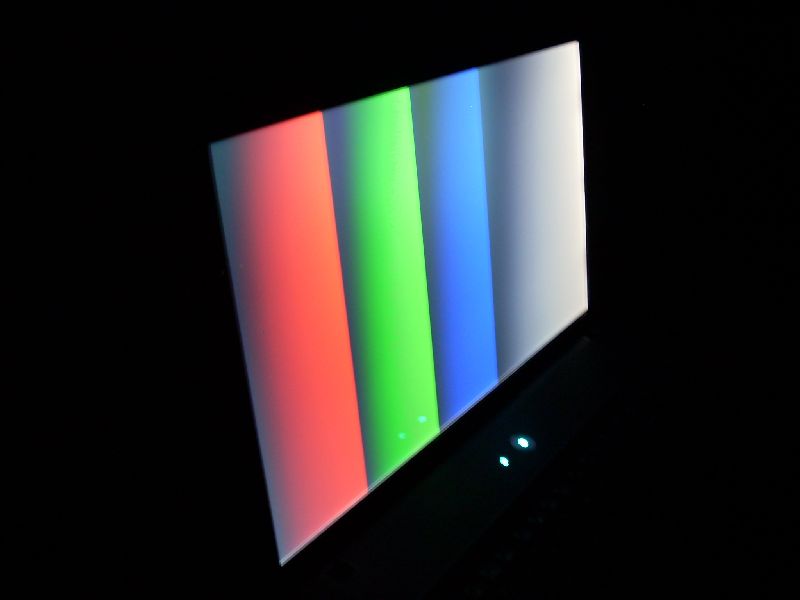

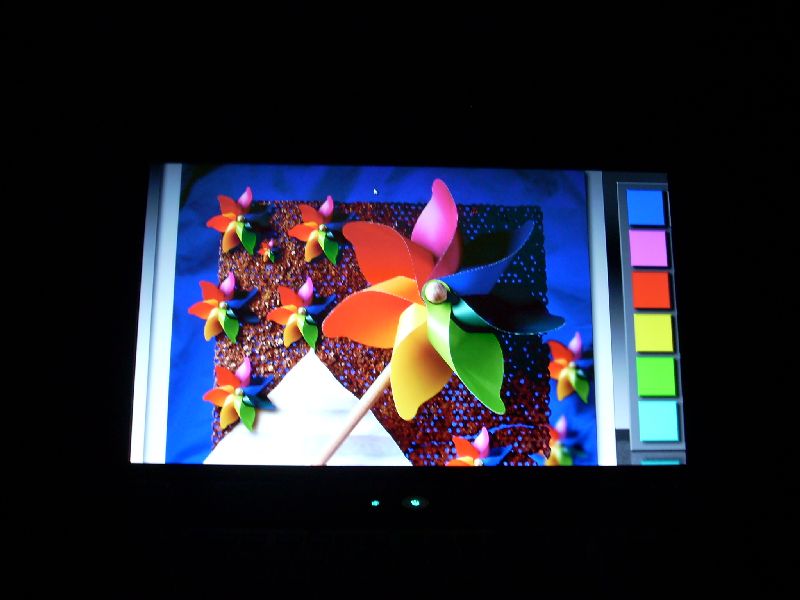

Due to the generous horizontal viewing angles, more persons can look at the screen at the same time without problem. Regarding vertical viewing angles, the Probook 4710s is on par with its competitors. Even a small vertical change to the optimal viewing angle alters the image, so, you'll need to frequently adjust the opening angle.

Performance

The ProBook 4710 utilizes a relatively new Penryn processor, which is also used in some budget notebook, i.e, an Intel Core 2 Duo T6570. With its 2 MB L2-Chache and 800 MHz frontside bus it can offer a good application performance.

An ATI Mobility Radeon HD4330 is responsible for the graphics. This is a discrete, entry-level graphics card, which can cope well with not too demanding 3D-tasks. However, there are better solutions available for 3D-intensive applications or even current computer games. The built-in HD 4330 is only equipped with DDR2 memory as video memory. So, you have to accept a slightly lower graphical performance in favor of the price. Further informations regarding graphical performance is available in our article "Computer Games on Laptop Graphic cards" and in or "Mobile Graphic Cards - Benchmark List".

Two Gigabyte DDR2-800 RAM and a WD Scorpio Blue hard drive from Western Digital with a gross capacity of 250 Gigabyte complete the list of performance-relevant components.

3D Mark
3DMark 037411 points
3DMark 055423 points
3DMark 06
 1280x800
2777 points
Help
3DMark 06 in comparison
Asus N10E (min)
 N270, Graphics Media Accelerator (GMA) 950
91
   ...
Apple Macbook Pro 13 inch 2011-02 MC700D/A
 2415M, HD Graphics 3000
2550
Acer Aspire 5530G
 RM-70, Mobility Radeon HD 3470 Hybrid X2
2641
HP ProBook 4710s
 T6570, Mobility Radeon HD 4330
2777
Sony Vaio VGN-FZ31Z.G4
 T8300, GeForce 8600M GS
2830
Fujitsu-Siemens Amilo Xi2428
 T7700, GeForce 8600M GS
2878
   ...
Samsung Serie 7 700Z3C-S01 (max)
 3210M, GeForce GT 630M
9346
PC Mark
PCMark 055134 points
Help
PCMark 05 in comparison
Acer Aspire One 751 (min)
 Z520, Graphics Media Accelerator (GMA) 500
692
   ...
Alienware S-4 m5550
 T7600, GeForce Go 7600
5127
Lenovo Thinkpad T61p
 T7500, Quadro FX 570M
5132
HP ProBook 4710s
 T6570, Mobility Radeon HD 4330
5134
Asus C90S
 E6600, GeForce 8600M GT
5173
Acer TravelMate 6592G-832G25N
 T8300, Mobility Radeon HD 2400 XT
5181
   ...
Fujitsu Celsius H710 WXP11DE (max)
 2820QM, Quadro 1000M
13842
Cinebench R10
 SettingsValue
 Rendering Single 32Bit2314 Points
 Rendering Multiple CPUs 32Bit4282 Points
 Shading 32Bit3152 Points
WDC Scorpio Blue WD2500BEVT-60ZCT1
Transfer Rate Minimum: 31.5 MB/s
Transfer Rate Maximum: 68.5 MB/s
Transfer Rate Average: 53.3 MB/s
Access Time: 16.8 ms
Burst Rate: 93.6 MB/s
CPU Usage: 2.5 %

Emissions

System noise

In mains operation and with active energy saving profile, you'll just here a silent humming of 39dB(A) under low load. Increasing load, the 4710s can sometimes also get loud: For three to four minutes it blows warm air trough the louver and gets quiet again afterwards. In this kind the notebook's noise level raises and falls again and again.

A BIOS option allows to change the fan control. However, actually, we could not observe clear differences.

Furthermore, you can hear a the power adapter squeaking in very quiet environments. However, this will hardly be audible in everyday life.

Noise Level

Idle 34.8 / 35.3 / 39.5 dB(A)
DVD 49.3 / 50.5 dB(A)
Load 43.8 / 46.7 dB(A)

    30 dB
silent
40 dB
audible
50 dB
loud

min: , med: , max:     (15 cm distance)

Temperature

The maximum temperature of 40°C at the top was measure in the front middle area, just next to the touch pad, where the right hand rests. Fortunately, the temperature stays with 34.5 degrees Celsius in the green.

Due to a maximum of about 39 degrees Celsius, a use at the top of the lap is not recommended. However,  also weight and size of the 17-incher militate in favor of desk top use.

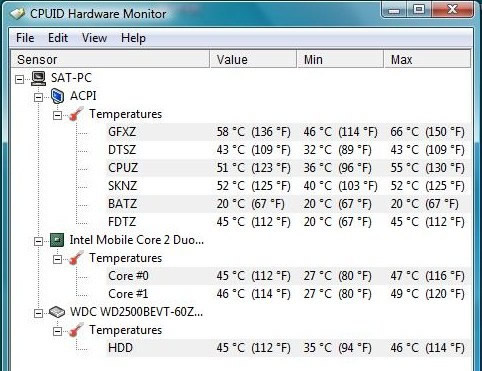

The CPU's temperature doesn't exceed 35°C in normal use. However, some really demanding games can force it to reach a maximum of 48-49°C. At the same time, the GPU gets a little bit hot at roughly 72 degrees Celsius. The HDD under load remains at about 48-49°C. Altogether these values explain the high surfaces temperatures pretty well.

Max. Load
 25.1 °C24.8 °C24.2 °C
 32.8 °C30.5 °C25.1 °C
 32.2 °C40.4 °C24.7 °C
Maximum: 40.4 °C
Average: 28.9 °C
24.6 °C25.5 °C27.7 °C
25.6 °C30 °C39 °C
25.4 °C45.8 °C39.2 °C
Maximum: 45.8 °C
Average: 31.4 °C
Room Temperature 22 °C

Speakers

In general a high-quality sound is not that important for a business laptop. And actually the 4710s is not equipped with high-quality loudspeakers from a well-known manufacturer. Because of there location above the keyboard at least the maximum volume is alright. Furthermore, despite lacking bass and depth, the sound scape meets the requirements of business use. You are well-served with the built-in loudspeakers for playing movies or undemanding background music. Furthermore, they are also sufficient for presentations in a medium-sized room.

Battery life

Equipped with a 8-cell battery with 63 Wh (4200 mAh) this laptop achieves a decent battery life. At least you can intensively browse the Internet via WLAN for about three and a half hours with energy profile and about half the maximum brightness.

In the DVD test with about 80% of the maximum brightness and deactivated WLAN, the battery runtime decreases by about one hour. Indeed, two and a half hours are still sufficient for watching most Hollywood films.

If you run the notebook under full load and at maximum brightness with all wireless modules enabled, you will empty the battery after one and a half hours.

To summarize, the battery runtime is quite good for a notebook of its size with 35 Watt Core 2 Duo CPU and discrete graphics adapter.

Battery Runtime
WiFi Surfing
3h 20min
DVD
2h 30min
Load (maximum brightness)
1h 35min

Power Consumption

Idle 14.9 / 26.6 / 45.6 Watt
Load 31.1 / 53.6 Watt

Key: min: , med: , max:

Verdict

HP ProBook 4710s
HP ProBook 4710s

Basically HP wants to attract price-conscious business customers who appreciate reliability and functional design with the Probook 4710s. Its pros are an excellent keyboard and a very bright and evenly illuminated LED screen. Unfortunately the reviewed notebook was equipped with a glare-type (glossy) display. For many users this might be an important criterion against a permanent professional use. Fortunately HP also offers models with matte display.

Anyway, size and weight of this 17.3-incher hint on being designed for desk top usage. Furthermore, the temperature emissions advise against a use on the lap and the system noise is probably striking in quiet environments.

Its Core 2 Duo T6570 CPU and the ATI Mobility Rateaon HD 4330 graphics card provide a good performance for office applications and undemanding 3D tasks. Likewise you can be satisfied with the battery life.

Overall, the Probook 4710s proves to be an interesting bundle for not much money. However, because of the reflecting display, the test sample is rather an entry-level multimedia device. Performance and connectivity (HDMI) would also fit.

In Review: HP ProBook 4710s
HP ProBook 4710s

Specifications

HP ProBook 4710s

:: Processor
:: Mainboard
Intel PM45
:: Memory
2048 MB, DDR2-800 (Ramaxel Technology9
:: Graphics adapter
:: Display
17.3 inch , 1600x900 pixel, Chi Mei Optoelectronics N173O6-L02, LED, glossy: yes
:: Harddisk
WDC Scorpio Blue WD2500BEVT-60ZCT1, 250 GB 5400 rpm
:: Soundcard
Analog Devices AD1984A @ Intel 82801IB ICH9
:: Connections
1 Express Card 34mm, 4 USB 2.0, 1 VGA, 1 HDMI, 1 Kensington Lock, Audio Connections: Stereomikrofoneingang, Stereokopfhörer/Line Out, Card Reader: Media Card Reader,
:: Networking
Marvell Yukon 88E8072 PCI-E Gigabit Ethernet Controller (10/100/1000MBit), Intel Wireless WiFi Link 5100 AGN (a b g n ), 2.0 Bluetooth
:: Optical drive
TSSTcorp CDDVDW TS-L633M
:: Size
height x width x depth (in mm): 3.08 x 410.6 x 270
:: Weight
3.08 kg
:: Battery
63 Wh Lithium-Ion
:: Price
750 Euro
:: Operating System
FreeDos
:: Additional features
Webcam: 2 MP, 12 Months Warranty



ProBook 4710s is designed for business use...
ProBook 4710s is designed for business use...
We liked the long battery life.
We liked the long battery life.

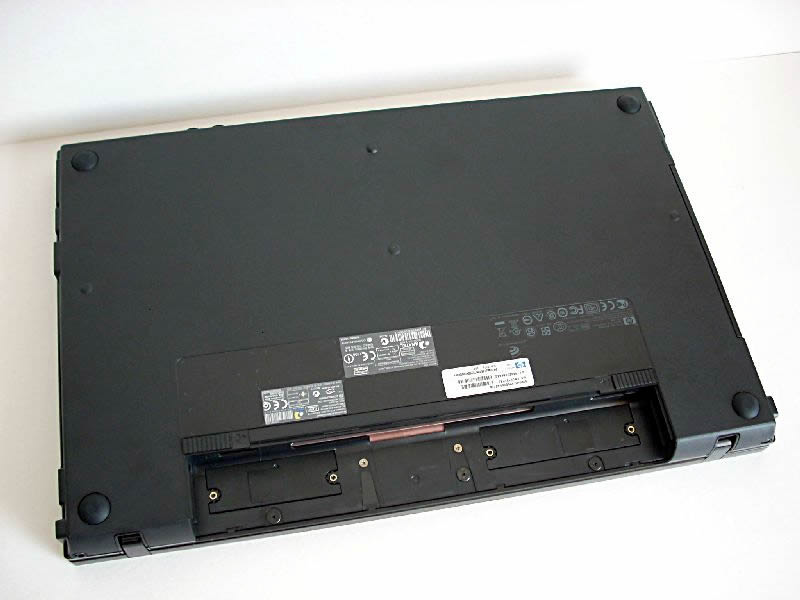

No louver or maintenance openings at the bottom side.
No louver or maintenance openings at the bottom side.
The unsteady system noise is definitely a con.
The unsteady system noise is definitely a con.
Good sound scape for a business notebook.
Good sound scape for a business notebook.
... is not ideal.
... is not ideal.
The interface arrangement...
The interface arrangement...

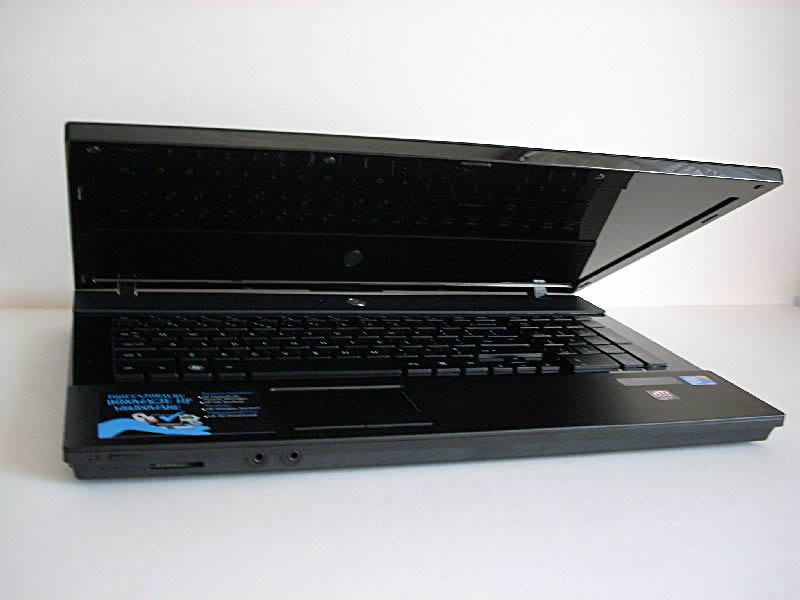

The opening angle is limited.
The opening angle is limited.
Touch typing is great once you adapted to the mechanical properties of the keyboard.
Touch typing is great once you adapted to the mechanical properties of the keyboard.
Also the keyboard area has a high-gloss finish
Also the keyboard area has a high-gloss finish
The glossy lid is not very business-like.
The glossy lid is not very business-like.
... but, because of its size and weight rather not for mobile use.
... but, because of its size and weight rather not for mobile use.
During browsing the Internet via WLAN you won't need to recharge before more than three hours.
During browsing the Internet via WLAN you won't need to recharge before more than three hours.

Similar notebooks

Devices with the same GPU

» Review Dell Inspiron 15z Notebook
Core 2 Duo SU7300, 15.6", 2.52 kg
» Review HP Pavilion dm3-1010eg laptop
Athlon Neo X2 L335, 13.3", 1.9 kg

Devices with Same Screen Size and/or Weight

» Acer Aspire V3-772G-747a8G1.12TWakk Notebook Review
GeForce GTX 850M, Core i7 4702MQ
» Toshiba Satellite Pro C70-B-111 Notebook Review
Radeon R7 M260, Core i5 4200U
» Gigabyte P27G v2 Notebook Review
GeForce GTX 860M, Core i7 4710MQ
» HP Pavilion 17z Notebook Review
Radeon R5 (Beema), A-Series A8-6410
» Dell Inspiron 17-5748 Notebook Review
HD Graphics 4400, Core i7 4510U

Pro

+Comfortable keyboard
+General build simplicity
+Long battery runtime


Cons

-Produces lots of noise
-Poor workmanship
-No keys combination for touchpad
-High heat development at the bottom of the chassis
