Review HP Compaq 6730b Notebook

Compaq notebooks designed for business use (indicated by 'b') are valued around the world and particularly in Central Europe. Users especially appreciate their battery life and the durability of their case. Thereby models with Intel CPU are traditionally more expensive than their AMD-based counterparts (in this case – the similar HP 6735b). It's now time to check the capabilities of the Centrino 2 model, the HP 6730b. For our test we got a model with a matte WSXGA+ screen, which is ideal for business professionals.

This test was done by our Polish colleagues from notebookcheck.pl.

Case

HP Compaq 6730b

Current Compaq business laptops only slightly differ from their predecessor, the 6710b. One of these small details is that the design is more vivid, which is not really apparent at once if look at the closed notebook with its formal silver lid. In addition the screen is protected by a thick layer of plastic and magnesium alloy. Nevertheless, the lid flexes a little bit, and pressing against the lid causes effects on the screen.

Lifting the lid you'll get to see the more casual base unit. The a bit uncommon design includes decent stripes on the palm rest areas. These are acceptable, but the colourful indicator LEDs do not really go well with a business notebook.

The chassis looks rather slim, because the edges are except of the areas covering interfaces bevelled. This design seems rather fragile and not very convenient. The case is very sturdy, and allows picking the laptop up on a single corner without problems. You'll like how handling this laptop feels and how this notebooks copes with gravity, because it does not give or creak at all. Unfortunately the battery is somewhat loose, but it really wobbles only slightly.

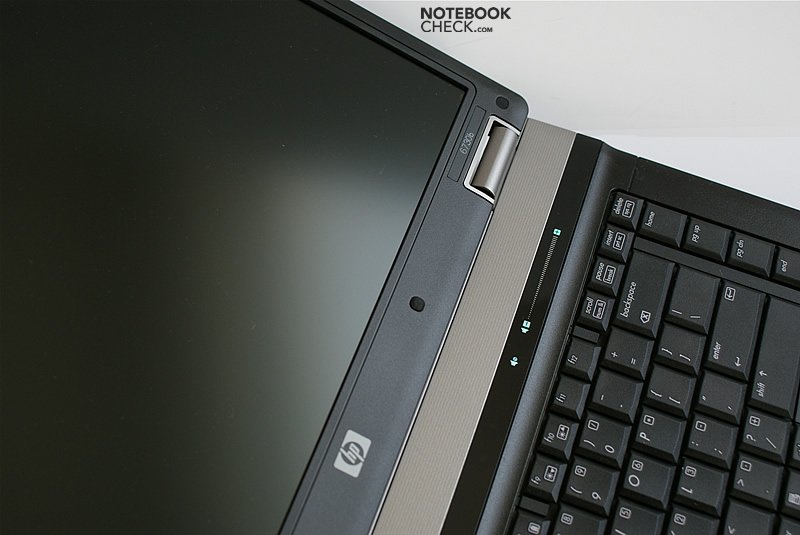

However, we finally found a creaking part, the hinges, if you adjust the lid. But, they are very steady, and, so, the screen does not wobble if you change the opening angle - in the worst it just trembles a little bit.

The quality of the used materials does not seem to be top notch. Considering the laptop category you would really expect a better quality, especially if the intended use is in fields of business. We did not feel that the palm rests areas are very comfortable, but this is a matter of taste.

Due to its shape this notebook looks rather slender, giving the impression that it is also light. This is confirmed by putting it on scales – the total weight including battery amounts to 2.7kg.

The interfaces are arranged very similar as in the HP 6710b (the predecessor).

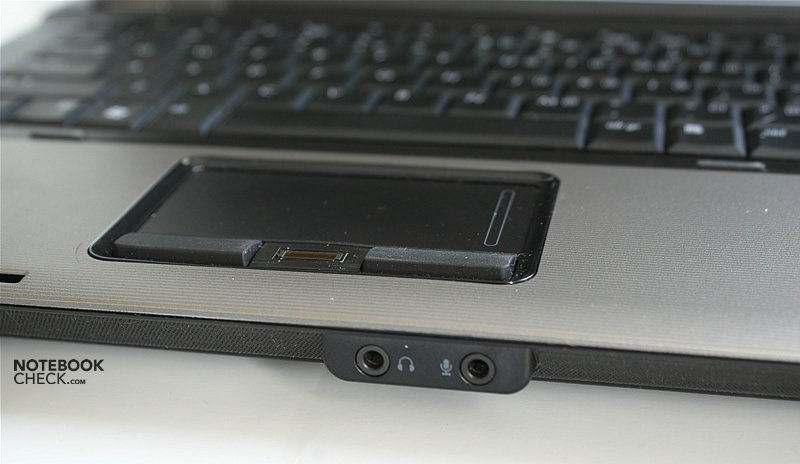

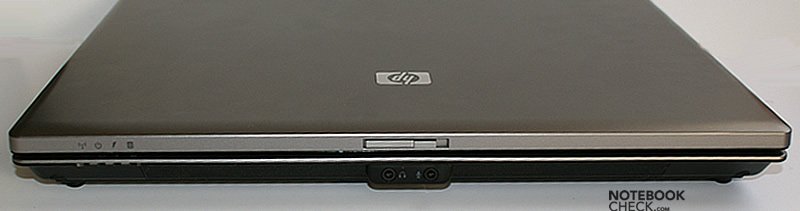

Front side: Audio-out, Audio-in
Front side: Audio-out, Audio-in

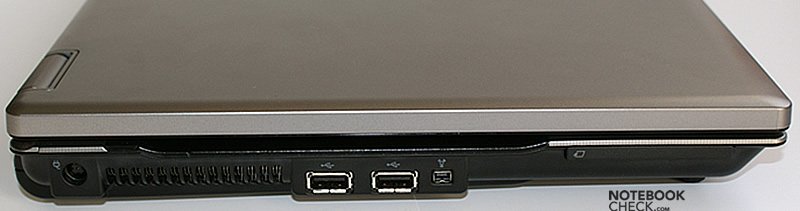

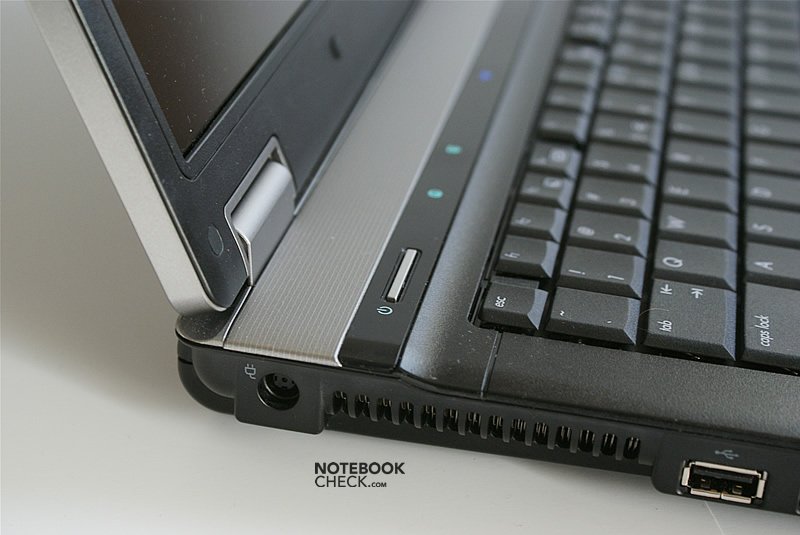

Left side: Power Socket, Vent holes, 2x USB, FireWire, ExpressCard
Left side: Power Socket, Vent holes, 2x USB, FireWire, ExpressCard

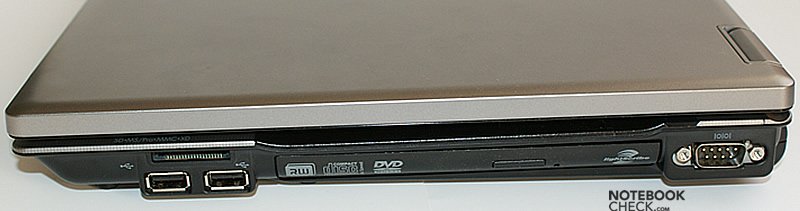

Right side: CardReader, 2x USB, optical drive, COM
Right side: CardReader, 2x USB, optical drive, COM

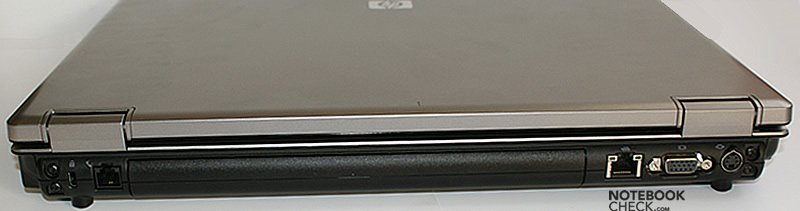

Back side: Kensington Lock, Modem, LAN, VGA, S-Video
Back side: Kensington Lock, Modem, LAN, VGA, S-Video

Input Devices

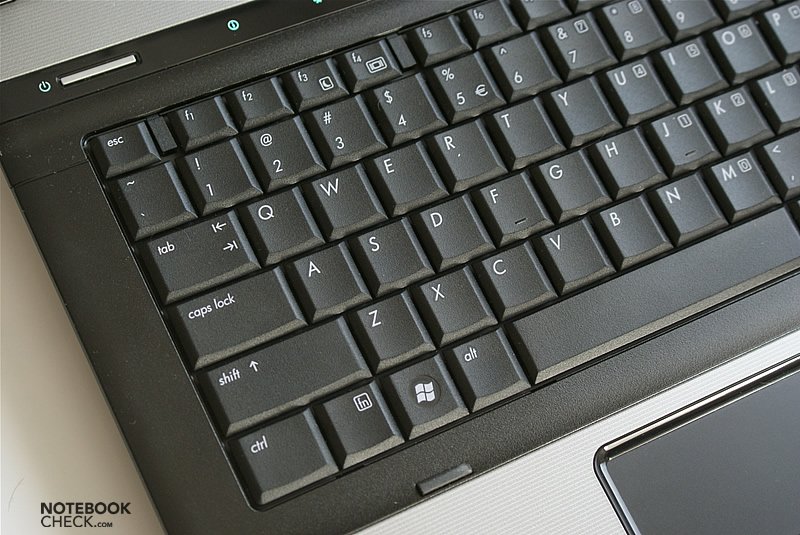

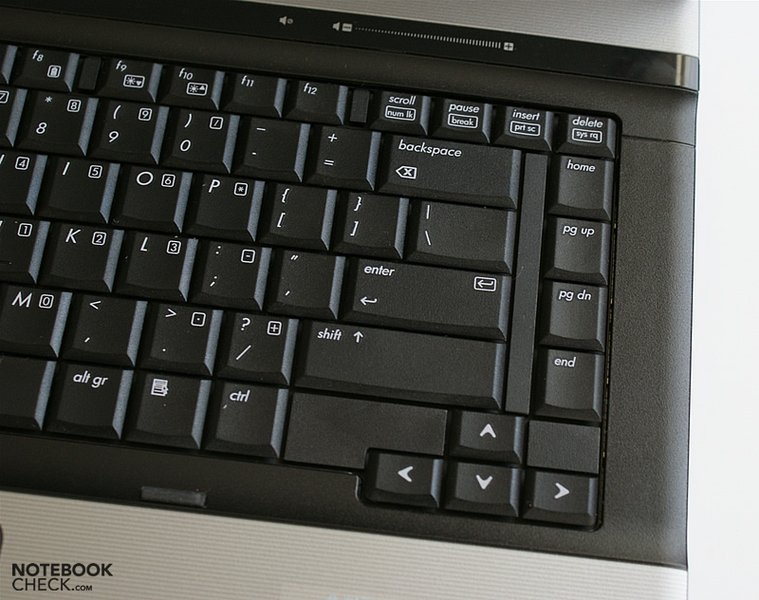

It's nice to notice that the keyboard is almost the same as in the HP 6710b. Basically, the blue labels on the keys are missing now. So, the turned off computer looks more decent than its predecessor. The keyboard layout also has to be favourably mentioned. Only the function keys in the rearmost row are considerably smaller. But, a positive aspect is that the arrow keys and the other cursor keys are separated on the right.

The characteristics of the keyboard are convincing. The resistance  is as light as  one would like it, and the travel is not too long (if not ideal). Furthermore, the feedback is clearly stronger than the resistance. Consequently, this keyboard allows a quick and fluent typing, which feels absolutely good - only a whiner would complain about the synthetic material the keys are made of. Altogether this keyboard gives a considerable pro for the HP 6730b, which will be appreciated among others by programmers.

The touchpad of the former series is considerably different. In the 6730b it got broader. It is now 80x38 millimetres, which is definitely big enough for a user-friendly control of the mouse pointer.

The according buttons were redesigned. They are now smaller, because a fingerprint reader was placed in between them. They are harder in use, but, nevertheless, not at all a point of critique.

Quite annoyingly you have to wait about a second for the first sign of booting after pushing the power button.

HP Compaq 6730b
Keyboard
HP Compaq 6730b
Touchpad

Display

The test sample was equipped with a matte 15.4” WSXGA+ screen, which is available for a surcharge. As it is more expensive than the low resolution screen, the WXGA screen might be more popular. On the other hand the advantages of the WSXGA+ screen are an enhanced overview and a bigger desktop size.

Overall the reviewed screen, which was produced by Samsung, was very satisfying. It's qualities include a high brightness (nearly 180 cd/m² in average), a good illumination, and a very good contrast (478:1).

167.6
cd/m²
181.4
cd/m²
170.9
cd/m²
175.4
cd/m²
191.1
cd/m²
182.4
cd/m²
173.7
cd/m²
188.4
cd/m²
180.2
cd/m²
Distribution of brightness
Maximum: 191.1 cd/m² (Nits) Average: 179 cd/m²
Brightness Distribution: 88 %
Contrast: 478:1 (Black: 0.4 cd/m²)
HP Compaq 6730b
HP Compaq 6730b Outdoor

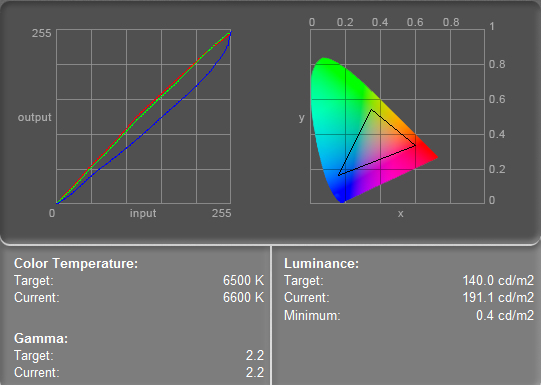

We liked the colour representation much until we compared this HP laptop to the Dell A860, which is also equipped with a matte screen, but in 16:9 aspect ratio and with a resolution of 1366x768 pixels. It turned out that the screen of the cheaper Vostro is actually better than the one of the 6730b. Compared to the A860, white looks a little dirty (grayish or bluish), and other colours kind of washed out, which gets especially apparent with warm colors like yellow or red. Although this HP laptop rated good in the quality of black and gray tones (and also better in contrast), the picture seemed less lively or even a little bit dull.

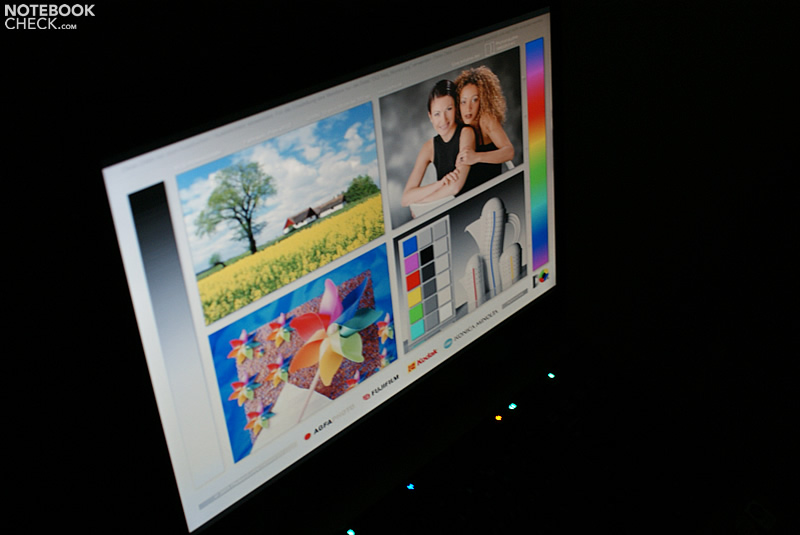

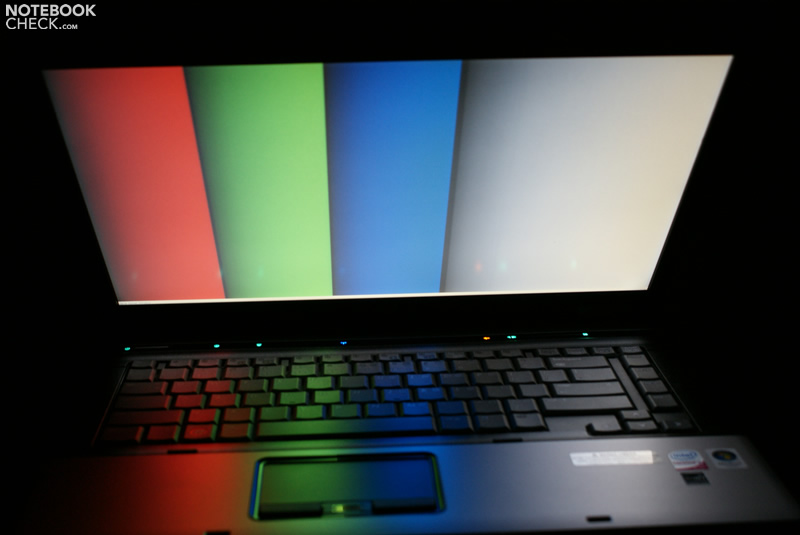

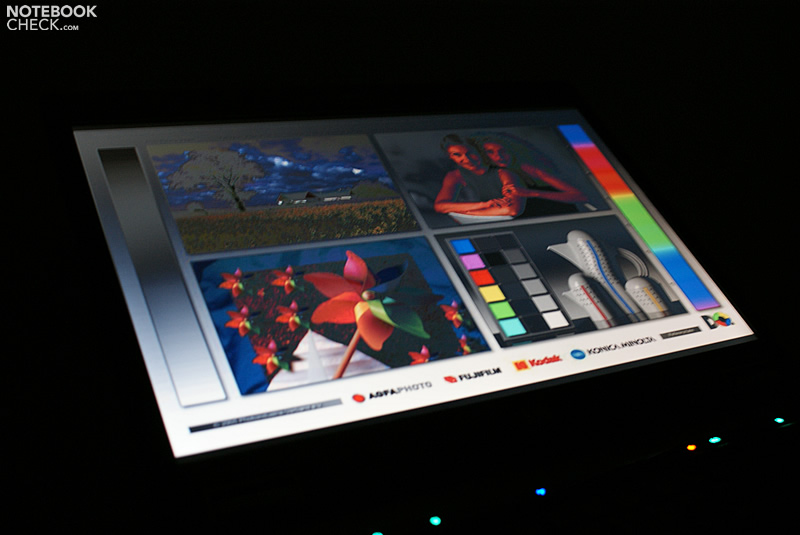

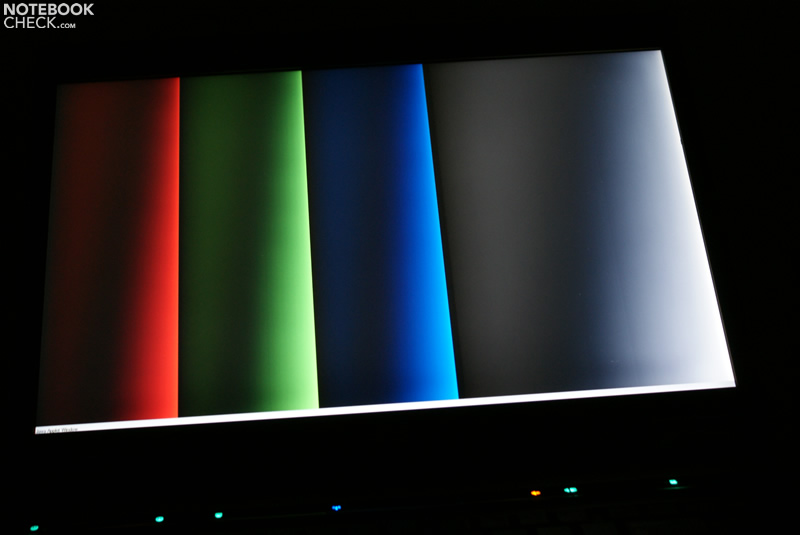

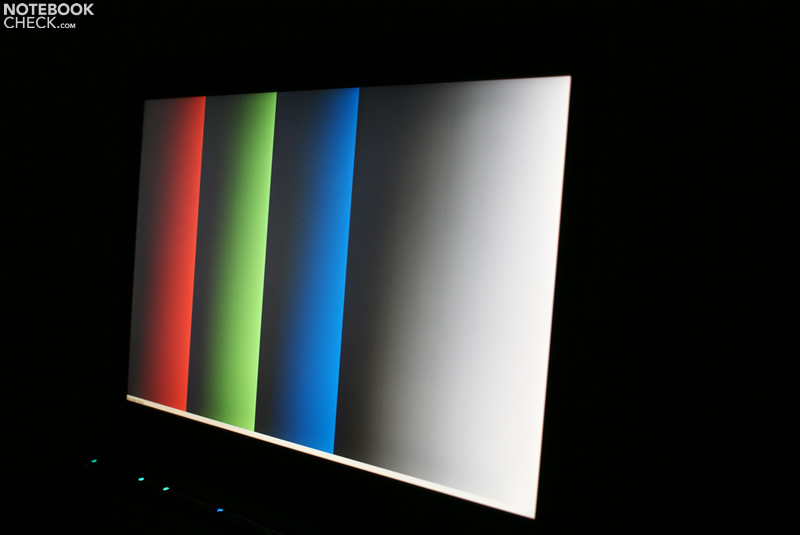

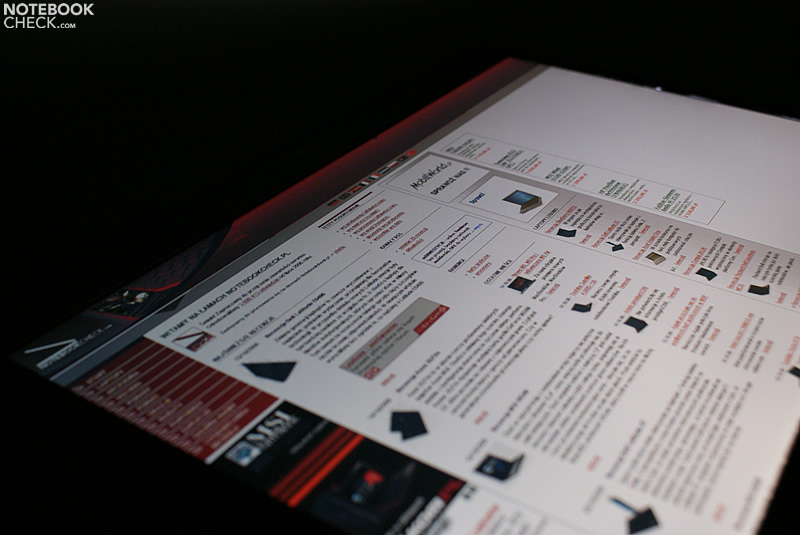

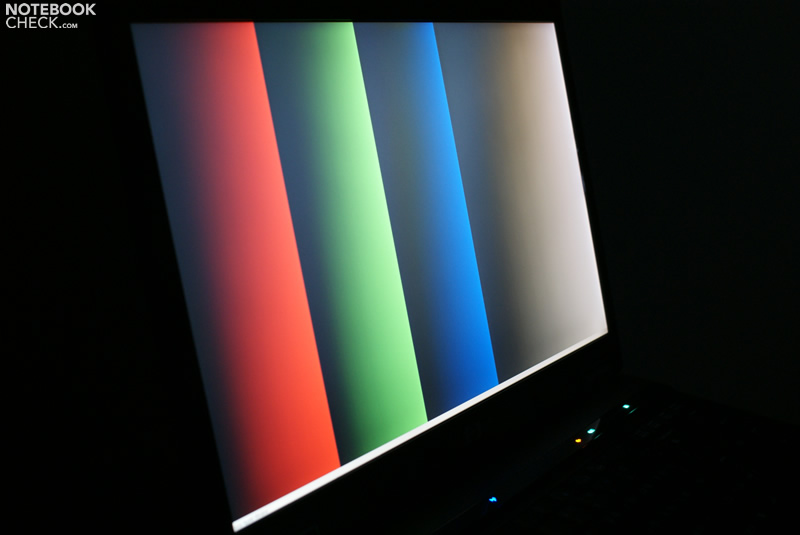

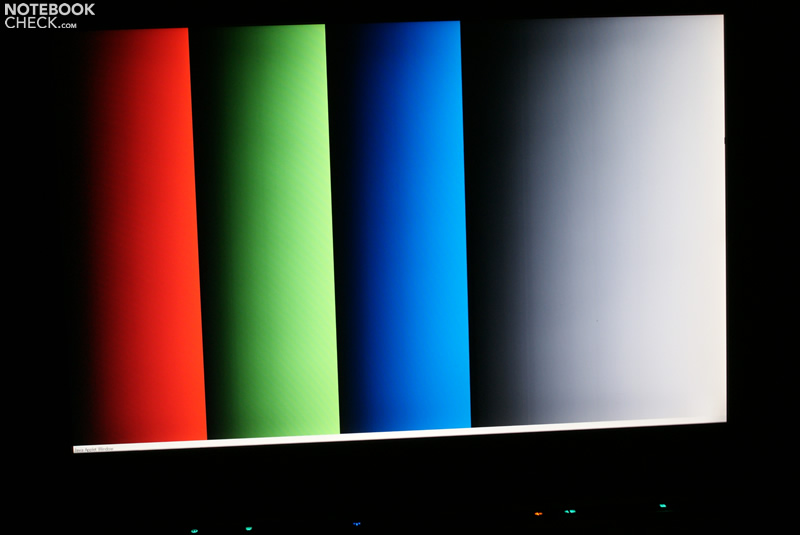

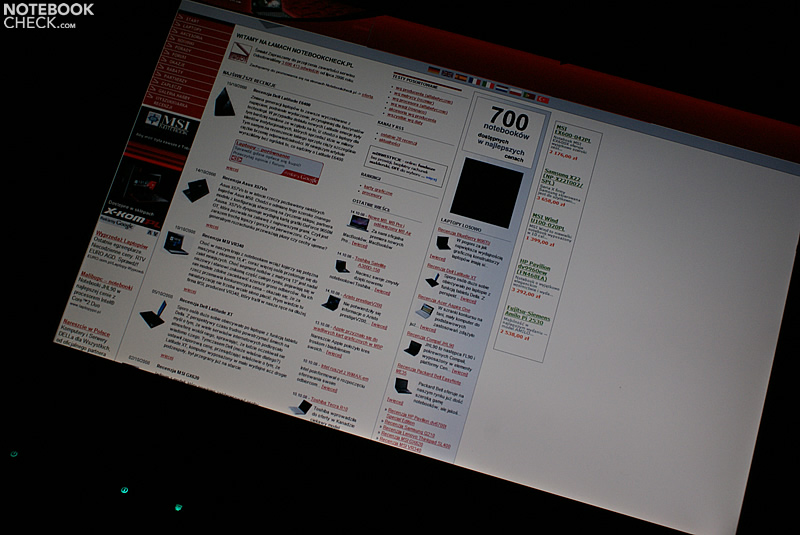

Viewing Angles HP Compaq 6730b
Viewing Angles HP Compaq 6730b
Viewing Angles HP Compaq 6730b
Viewing Angles HP Compaq 6730b
Viewing Angles HP Compaq 6730b
Viewing Angles HP Compaq 6730b
Viewing Angles HP Compaq 6730b
Viewing Angles HP Compaq 6730b
Viewing Angles HP Compaq 6730b

Performance

The Intel Core 2 Duo P8600 CPU (2.4GHz, 1066MHz FSB, 3MB L2C) is a good choice, because the laptop does not get very expensive and it also works very energy-efficient. The later is especially important, because many potential buyers might be looking for a laptop with a long battery life. Futhermore, the screen resolution and the IGP (Integrated Graphics Processor) solution on port hint on this laptop being designed for business professionals (mainly 2D). These might prefer a more powerful CPU, possibly one of the T9xxx series.

The HP 6730b is based on Intel’s latest development, the Centrino 2 platform, so the integrated graphic solution is GMA X4500M HD. This IGP performs better than a GMA X3100, but is easily outperformed by an ATI Radeon HD 3200, which is part of the AMD's Puma platform used e.g. in the HP 6735b notebooks).

3DMark 2001SE Standard
4780 points
3DMark 03 Standard
1811 points
3DMark 05 Standard
1311 points
3DMark 06 Standard Score
679 points
Help
PCMark 05 Standard
4580 points
Help
Cinebench R10
 SettingsValue
 Shading 32Bit1020 Points
 Rendering Multiple CPUs 32Bit4734 Points
 Rendering Single 32Bit2580 Points
Quake 3 Arena - Timedemo
 ResolutionSettingsValue
 1024x768highest, 0xAA, 0xAF75.4 fps
F.E.A.R.
 ResolutionSettingsValue
 1024x768GPU: max, CPU: max, 0xAA, 0xAF5 fps
 800x600GPU medium, CPU medium, 0xAA, 0xAF14 fps
 640x480GPU min, CPU min, 0xAA, 0xAF69 fps
250 GB - 5400 rpm
Transfer Rate Minimum: 28.7 MB/s
Transfer Rate Maximum: 63.8 MB/s
Transfer Rate Average: 47.9 MB/s
Access Time: 17.6 ms
Burst Rate: 93 MB/s
CPU Usage: 4 %

Emissions

System Noise

HP Compaqs were often criticized for their high noise emissions. As the 6730b is a high-quality business notebook, we hoped that this is not necessary here.

And indeed, this laptop is due to Intel's Centrino 2 technology very quiet. As soon as the "Fan Always On" option is deactivated in the BIOS, the fan is nearly  completely absent. Only after a few minutes under load, it gets a little more evident, but only for a short time.

Nevertheless, switching the "Fan Always On" option on, does still not mean that the fan is always running. In fact, you'll just hear it more often, but, its whirring is only recognizable in a quiet room and so, the HP 6730b can nonetheless be considered a quiet notebook.

Noise Level

Idle
32.7 / 32.7 / 32.7 dB(A)
HDD
32.8 dB(A)
DVD
36.7 / 48.6 dB(A)
Load
34 / 35 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light    (15 cm distance)

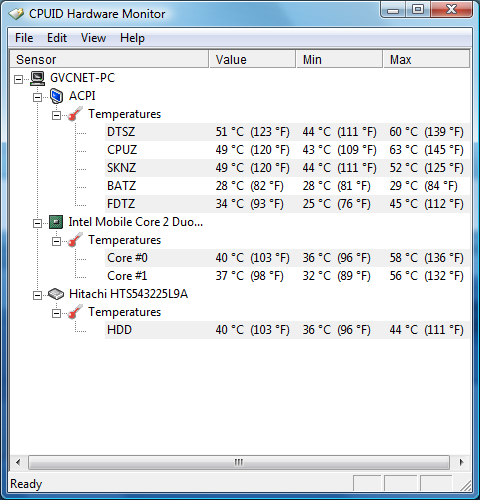

Temperature

Because of its low operation noise, this HP laptop gets especially on the bottom side clearly warmer. Especially if you work on battery on the laps this can get a little bit inconvenient. Nevertheless, the temperature does not get utterly high, but stays within an acceptable range.

The same is true under load, just the heating is bigger. We measured nearly 44 degrees Celsius in a moderately warm room. Considering this notebook comes with an integrated graphics chip this is quite high.

Max. Load
 35.3 °C
96 F
31.4 °C
89 F
27.9 °C
82 F

 31.8 °C
89 F
32.1 °C
90 F
27.4 °C
81 F

 30.7 °C
87 F
32.1 °C
90 F
28.2 °C
83 F

Maximum: 35.3 °C = 96 F
Average: 30.8 °C = 87 F
27.6 °C
82 F
35.2 °C
95 F
40 °C
104 F
28.5 °C
83 F
42.2 °C
108 F
36.7 °C
98 F
31 °C
88 F
43.7 °C
111 F
38.1 °C
101 F
Maximum: 43.7 °C = 111 F
Average: 35.9 °C = 97 F
Room Temperature 22.5 °C = 73 F
(+) The average temperature for the upper side under maximal load is 30.8 °C / 87 F, compared to the average of 29.5 °C / 85 F for the devices in the class Office.
(+) The maximum temperature on the upper side is 35.3 °C / 96 F, compared to the average of 34.2 °C / 94 F, ranging from 21.2 to 62.5 °C for the class Office.
(±) The bottom heats up to a maximum of 43.7 °C / 111 F, compared to the average of 36.7 °C / 98 F
(+) The palmrests and touchpad are reaching skin temperature as a maximum (32.1 °C / 89.8 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 27.7 °C / 81.9 F (-4.4 °C / -7.9 F).

Loudspeakers

The sound of the speakers is quite good especially considering it is a business notebook. On top of that, the sound is deep. However, on maximum volume there are some distortions.

Battery Runtime

The 6 cell battery with 55 Wh the HP Compaq 6730b is equipped with, provides a maximum runtime of up to 5 hours. With usual load, e.g., when using WLAN, it is likely empty after about 3 hours. This is a rather good result, although you won't be able to work unplugged for a whole working day.

Battery Runtime
Idle (without WLAN, min brightness)
4h 56min
WiFi Surfing
2h 46min
DVD
2h 04min
Load (maximum brightness)
1h 23min
Power Consumption
Off / Standbydarklight 0 / 0 Watt
Idledarkmidlight 13 / 30 / 48 Watt
Load midlight 48 / 50 Watt
 color bar
Key: min: dark, med: mid, max: light
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

In practice

Before finally judging, we will now describe some weaknesses we came across during our test. Unfortunately the HP 6730b does not always allow a smooth operation.

First of all, the graphics interface of the BIOS, behaved like an early Beta version. Windows Vista Business and HP's application add-ons do apparently not harmonize well, which resulted in a number of conflicts. This got most obvious in benchmarks, which sometimes did not give complete and evaluable results.
The recovery tool does only provide a single option, that is restoring the default system. It is not allowed to select any other option.

If you accidentially and only slightly touch the fingerprint reader, the HP Protect Tool is launched immediately. This is very annoying and we feel that this device should be really less sensitive.

Verdict

Although consumer laptops from HP, the leading manufacturer of portable computers, are more popular than its business laptops, the later are still an important part of HP's success and better than those designed for end-users.

The case of the HP 6730b is slim and light, but, the choice of materials could be better. For sure, the user-friendly keyboard is one of this notebook's advantages. Compared to other laptops we reviewed so far it is one of the better keyboards.

Another essential pro is the matte WSXGA+ screen, which is bright and has a rich contrast. Nevertheless, the colour representation is somewhat mediocre, especially compared to the cheaper Dell A860.

The performance is sufficient for office applications. Should you look for a notebook with better graphic performance, you might possibly consider the HP 675b, which comes with the better ATI solution.

The HP 6730b proved to be a very quiet notebook in our test, but, the chassis can get quite hot.

HP's business laptops are well-known for their long battery life. The test sample could run independent of an external power supply for up to 5 hours. About three hours, with energy saving profile possibly a little longer, are likely.

To summarize, the HP 6730b has a number of desireable advantages. Unfortunately HP disregarded the software side. So, this laptop might sometimes tax the user's patience if something fails, does not run as expected or contrary to the expectations.

HP Compaq 6730b Notebook
HP Compaq 6730b Notebook

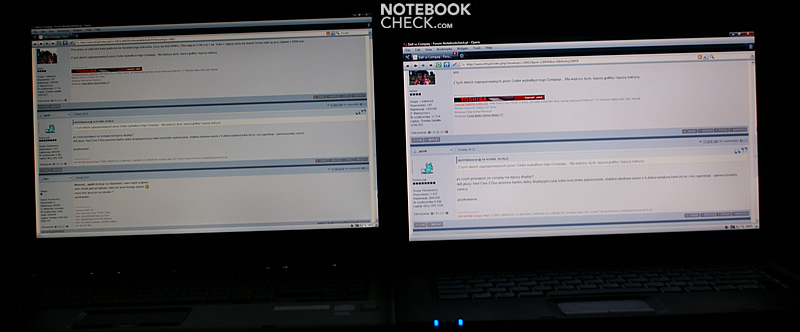

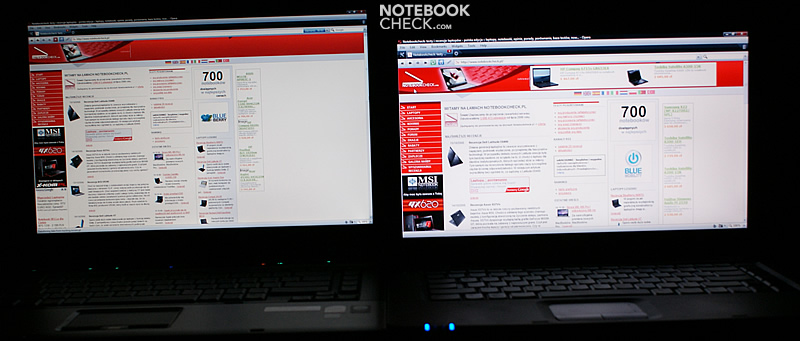

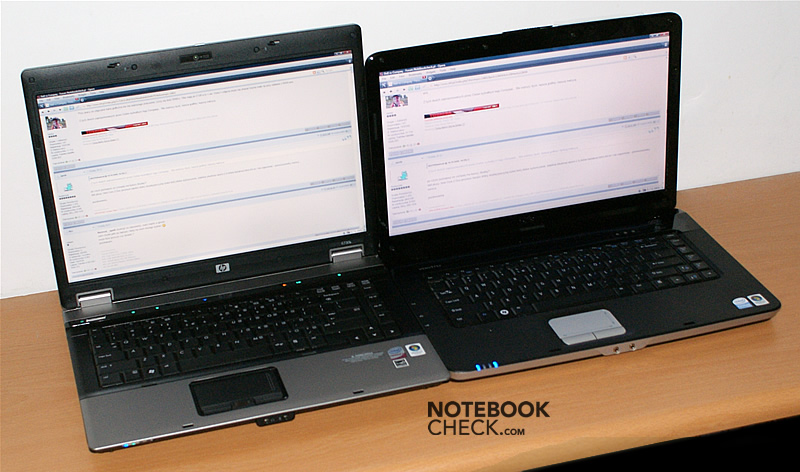

Screen Comparison

HP Compaq 6730b & Dell Vostro A860

Please share our article, every link counts!
HP Compaq 6730b
In Review: HP Compaq 6730b

Specifications

HP Compaq 6730b
Graphics adapter
Intel Graphics Media Accelerator (GMA) 4500MHD - 300 MB VRAM, Memory: 533 MHz, 7.15.10.1488
Memory
2048 MB
, DDR2-800, 1x 2GB, max. 8GB
Display
15.00 inch 16:10, 1680 x 1050 pixel, Samsung SEC3846, glossy: no
Mainboard
Intel GM45
Storage
250 GB - 5400 rpm, 250 GB
, 5400 rpm, Hitachi HTS543225L9A300
Soundcard
Analog Devices AD1981 HD Audio
Connections
1 Express Card 54mm, 4 USB 2.0, 1 Firewire, 1 VGA, 1 S-Video, 56K V.92 Modem, 1 Kensington Lock, 1 Serial Port, 1 Docking Station Port, Audio Connections: audio-in, audio-out, Card Reader: 6-in-1
Networking
Broadcom NetLink Gigabit Ethernet (10/100/1000MBit/s), Intel Wireless WiFi Link 5100 (a/b/g/n = Wi-Fi 4/), Bluetooth jest
Optical drive
TSSTcorp CDDVDW TS-L633L
Size
height x width x depth (in mm): 34 x 356 x 266 ( = 1.34 x 14.02 x 10.47 in)
Battery
55 Wh Lithium-Ion, 6 cell
Operating System
Microsoft Windows Vista Business 32 Bit
Additional features
HP 3D DriveGuard, TPM, webcam
Weight
2.735 kg ( = 96.47 oz / 6.03 pounds), Power Supply: 524 g ( = 18.48 oz / 1.16 pounds)
Price
1248 Euro

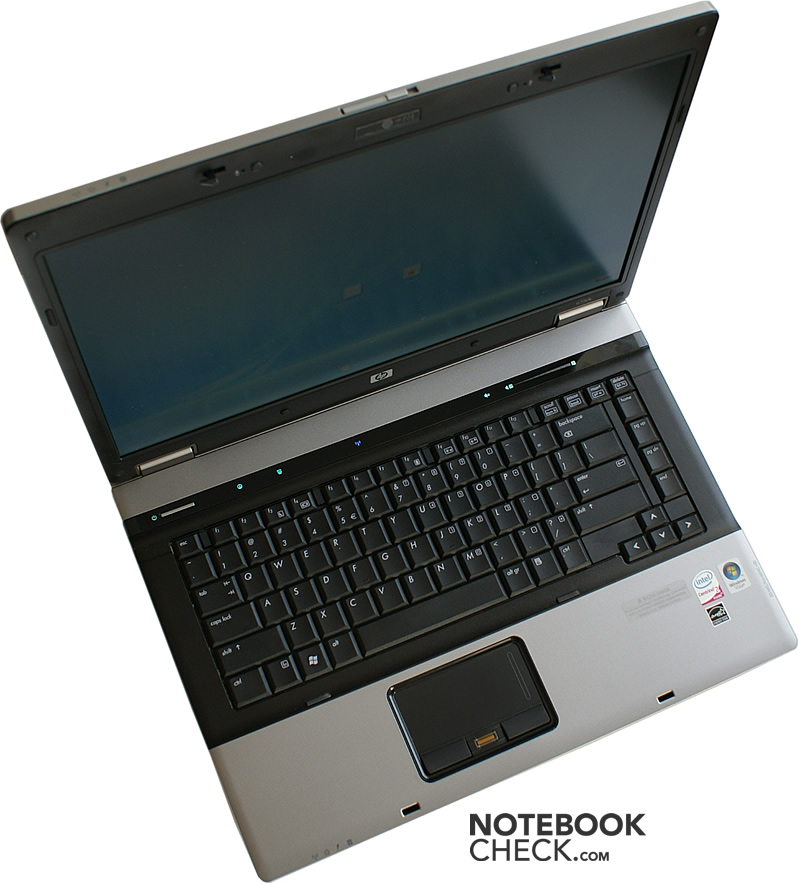

The 6730b is a new HP business series.
The 6730b is a new HP business series.

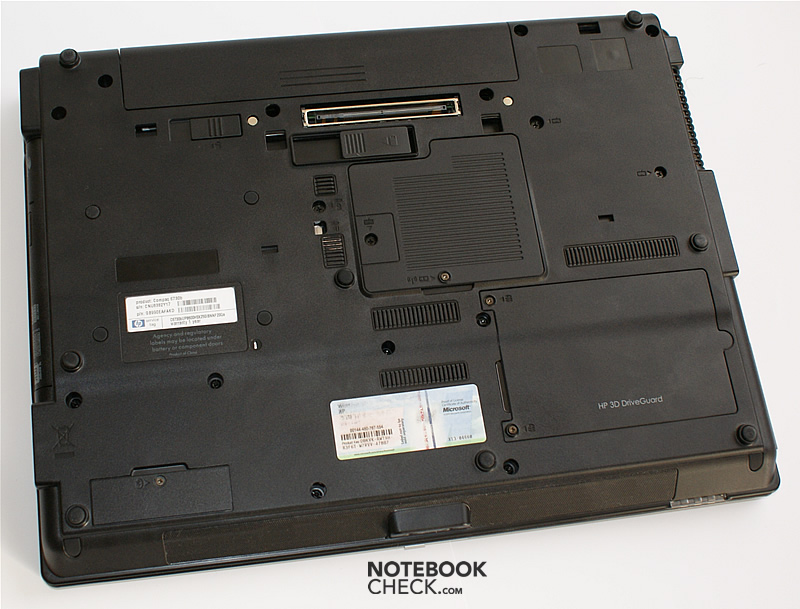

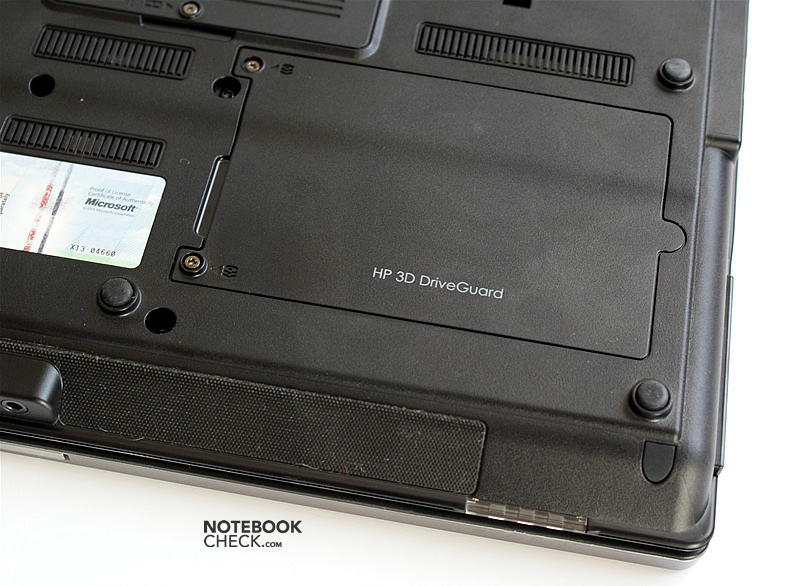

The HDD has a shock-protection sensor.
The HDD has a shock-protection sensor.

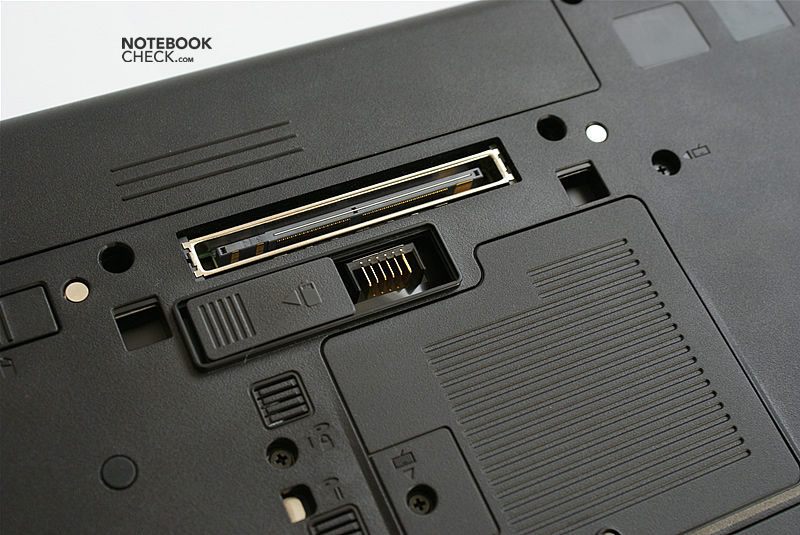

The docking port allows for a user-friendly integration in an existing office environment and enhances the connectivity
The docking port allows for a user-friendly integration in an existing office environment and enhances the connectivity
There is not too much heat on the bottom side too.
There is not too much heat on the bottom side too.
Therefore, the HP 6730b is a quiet notebook.
Therefore, the HP 6730b is a quiet notebook.
Above all the Centrino 2 platform is energy efficient.
Above all the Centrino 2 platform is energy efficient.

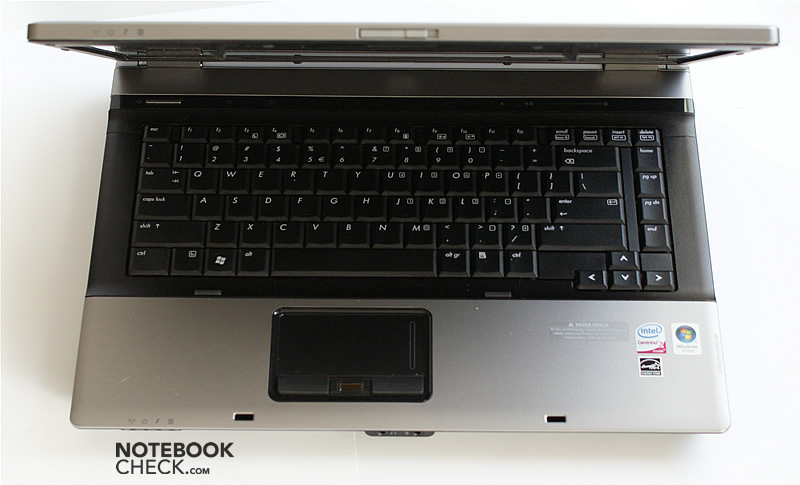

And the keyboard layout is quite reasonable.
And the keyboard layout is quite reasonable.
The keyboard is user-friendly.
The keyboard is user-friendly.
The touchpad has a black border.
The touchpad has a black border.

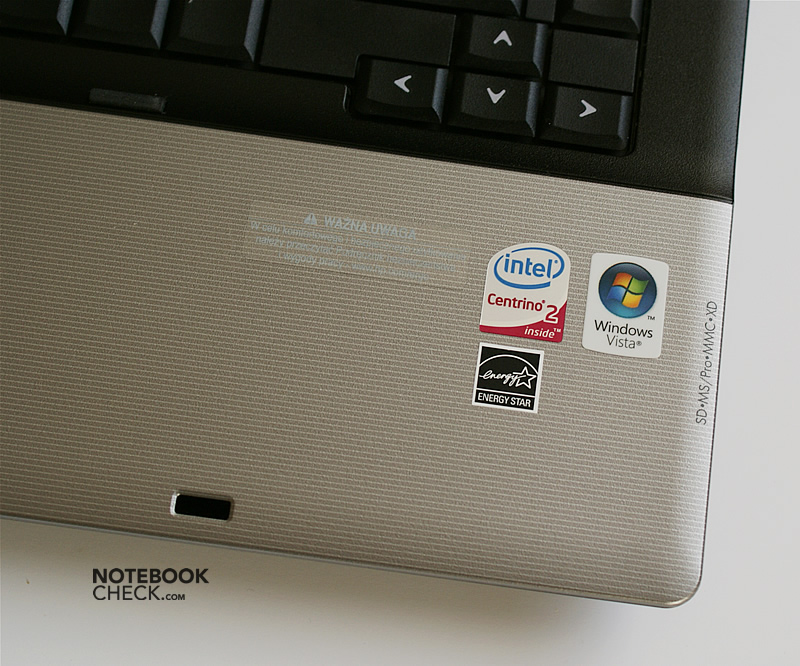

The stripes on the palm rests look uncommon.
The stripes on the palm rest areas look uncommon.

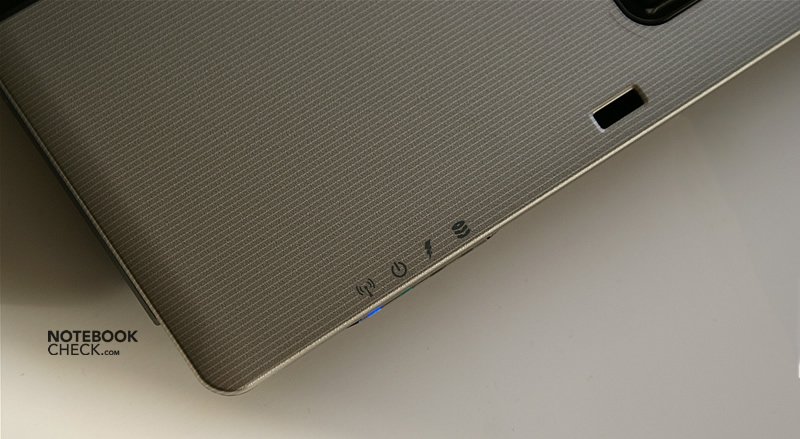

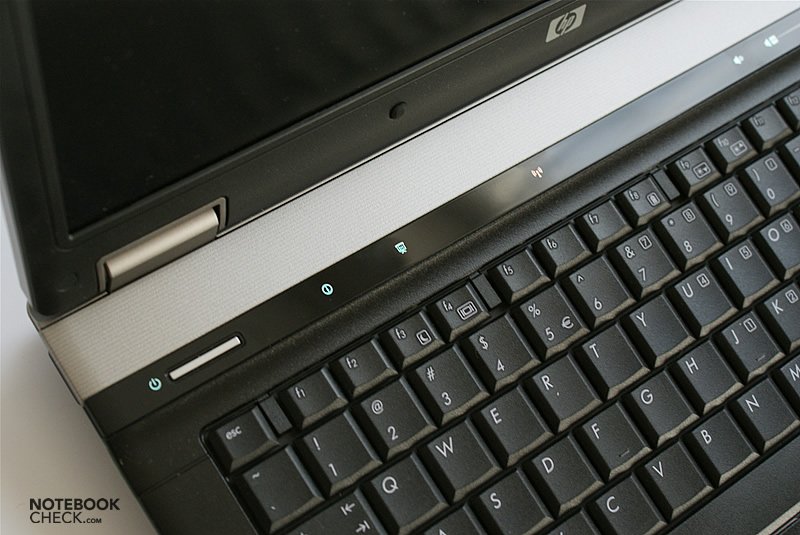

...and colourful indicator lights are not really appropriate for a business notebook.
...and the colourful indicator lights are not really appropriate for a business notebook.
The touch panel
The touch panel
...and a matte screen it.
...and a matte screen.

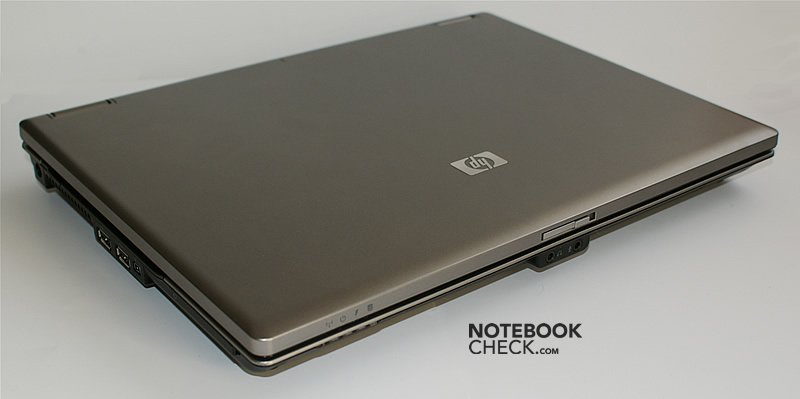

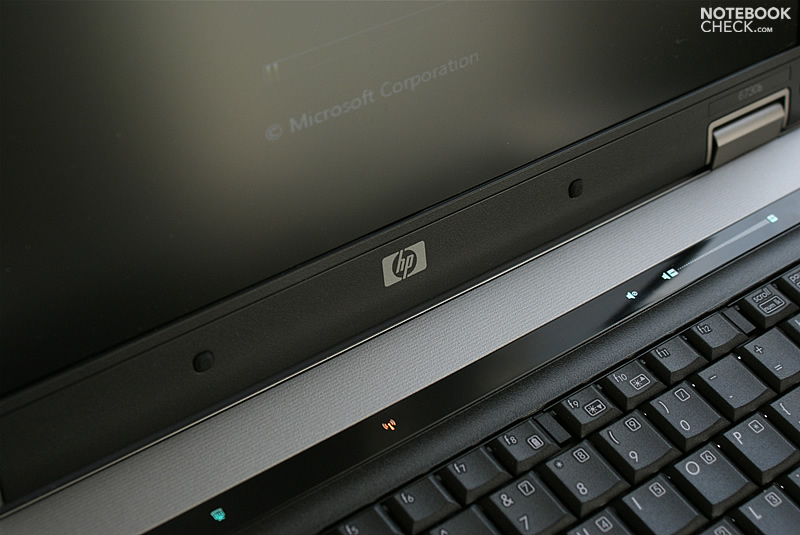

It has a solid, thick lid...
It has a solid, thick lid...

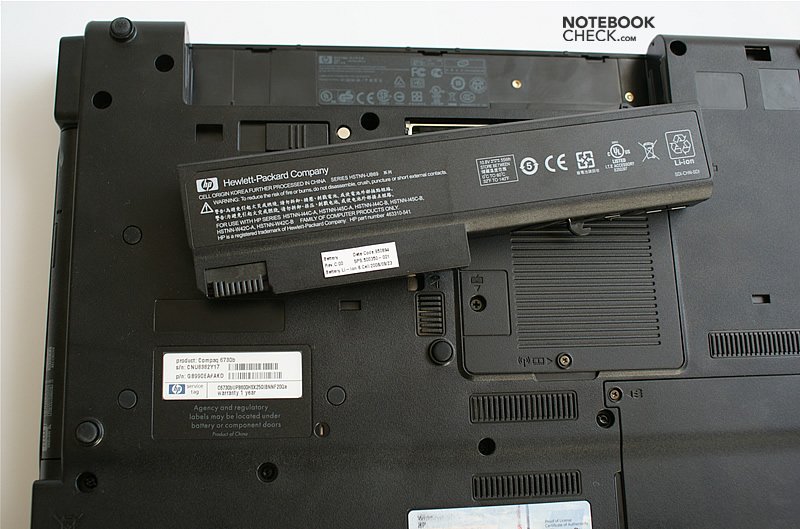

The battery allows for up to 5 hours work on-the-move.
The battery allows for up to 5 hours work on-the-move.

Similar Notebooks

Similar devices from a different Manufacturer

Review Toshiba Satellite Pro S300 Notebook
Graphics Media Accelerator (GMA) 4500MHD

Devices from a different Manufacturer and/or with a different CPU

Review Dell Inspiron 1545 Notebook
Graphics Media Accelerator (GMA) 4500MHD, Pentium Dual Core T4200
Review Sony Vaio VGN-BZ26M Notebook
Graphics Media Accelerator (GMA) 4500MHD, Core 2 Duo T7250
Review Dell Vostro 1520 Notebook
Graphics Media Accelerator (GMA) 4500MHD, Core 2 Duo T6570
Review Asus B50A Notebook
Graphics Media Accelerator (GMA) 4500MHD, Core 2 Duo P7350
Review Dell Latitude E5500 Notebook
Graphics Media Accelerator (GMA) 4500MHD, Core 2 Duo T7250

Devices with the same GPU

Review Samsung R530 Notebook
Graphics Media Accelerator (GMA) 4500MHD, Pentium Dual Core T4500, 15.60", 2.346 kg
Review HP 620 Notebook
Graphics Media Accelerator (GMA) 4500MHD, Pentium Dual Core T4500, 15.60", 2.498 kg
Review Samsung E251 T4200 Esilo Notebook
Graphics Media Accelerator (GMA) 4500MHD, Pentium Dual Core T4200, 15.60", 2.4 kg

Compare Prices

HP Compaq 6730b on Ciao

Pricerunner.de

Pros

+Solid Case
+User-friendly keyboard
+Matte WSXGA+ screen
+Quiet operation
+Pretty good battery runtime
+Relatively light


Cons

-The software part of the laptop is at least not perfect
-Quality of materials could be better
-Chassis gets hot
Sylwester Cyba, 2008-12- 4 (Update: 2013-06- 6)
