OnePlus 3 Smartphone Review

Daniel Schmidt, Stefanie Voigt (translated by Liala Stieglitz), 07/13/2016

Power player. All good things come in threes. Probably this is just what the Chinese smartphone manufacturer was thinking when it launched the third generation of the flagship killer: The OnePlus 3. But it is not all roses.

For the original German review, see here.

Three follows two, and thus the name of the new flagship killer is not surprising. The OnePlus 3 is the successor of the OnePlus 2. The looks have not changed much. OnePlus has cast off the sanded rear side and now uses an aluminum unibody case. Inside, the current Snapdragon 820 ensures fast performance. 6 GB of RAM is an enormous capacity, but the future will show if this is really necessary. The internal storage of 64 GB cannot be expanded. On the other hand, a dual SIM slot is present. A 16 MP rear camera and an 8 MP front camera are suitable for this category - at least on paper.

The screen has similar specifications as its predecessor: A diagonal of 5.5 inches and a resolution of 1920x1080 pixels. As the OnePlus 3 also is designed for using VR content, we would have wished for a QHD panel. OnePlus no longer uses the IPS technology, but incorporates an AMOLED screen. Finally, the OnePlus 3 now comes with NFC.

All devices of distinction can be used for comparison. Although the opponents are considerably more expensive, OnePlus aims to challenge just this sector. Thus, smartphones such as Samsung's Galaxy S7 EdgeApple's iPhone 6s PlusHuawei's P9P9's PlusGoogle's Nexus 6PSony's Xperia Z5 Premium, the Moto X ForceHTC's 10LG G5, ZTE's Axon 7, Xiaomi's Mi 5, and Microsoft's Lumia 950 XL count as rivals.

OnePlus 3 (3 Series)
Graphics adapter
Qualcomm Adreno 530, Core: 624 MHz
Memory
6144 MB
, LPDDR4
Display
5.5 inch 16:9, 1920 x 1080 pixel 401 PPI, capacitive touchscreen, 10-point multi-touch, Corning Gorilla Glass 4, optic-AMOLED, glossy: yes
Storage
64 GB UFS 2.0 Flash, 64 GB
, 52.49 GB free
Connections
1 USB 2.0, Audio Connections: headphone + microphone combo (3.5 mm), 1 Fingerprint Reader, NFC, Brightness Sensor, Sensors: proximity, hall, acceleration, position, G-sensor, digital compass, BeiDou
Networking
802.11 a/b/g/n/ac (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5), Bluetooth 4.2, GSM/GPRS/EDGE (850, 900, 1800, and 1900 MHz), UMTS/HSPA+ (Band 1, 2, 5, and 8), LTE Cat. 6 (Band 1, 3, 5, 7, 8, 20, 38, 40, 41), Dual SIM, LTE, GPS
Size
height x width x depth (in mm): 7.35 x 152.7 x 74.7 ( = 0.29 x 6.01 x 2.94 in)
Battery
3000 mAh Lithium-Ion
Operating System
Android 6.0 Marshmallow
Camera
Primary Camera: 16 MPix (Sony IMX 298, 1.12 µm, OIS, phase detection autofocus (PDAF), f/2.0, UHD video, RAW support, Auto-HDR)
Secondary Camera: 8 MPix (Sony IMX179, 1.4 µm, EIS, fixed focus, f/2.0, 1080p video)
Additional features
Speakers: mono speaker, Keyboard: virtual, power adapter, data cable, SIM tool, quick guide, OxygenOS 3.1, 12 Months Warranty, Head SAR: 0.394 W/kg, Body SAR: 0.323 W/kg, USB Type-C, dual-nano SIM, fanless
Weight
161 g ( = 5.68 oz / 0.35 pounds), Power Supply: 100 g ( = 3.53 oz / 0.22 pounds)
Price
399 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Case

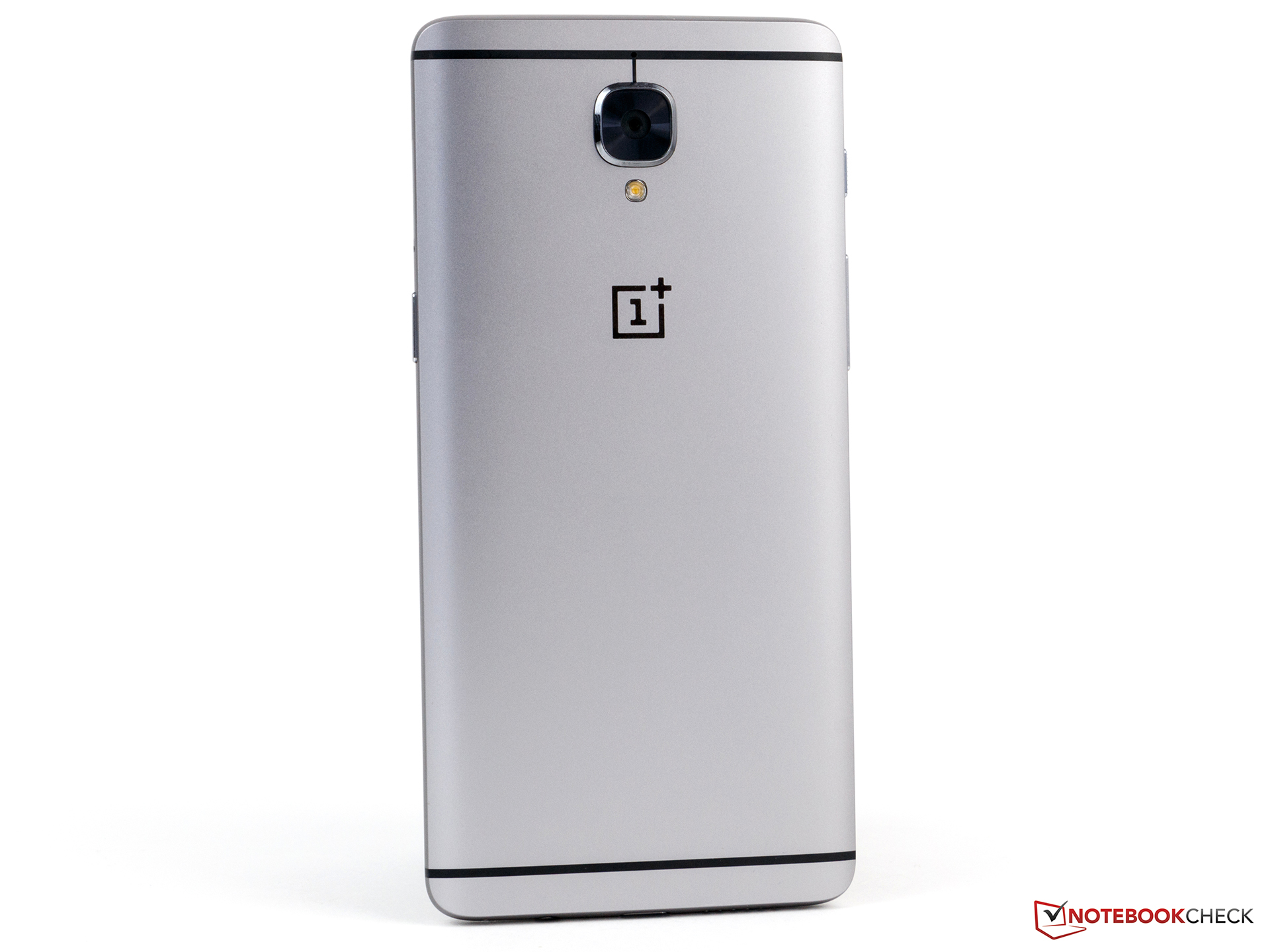

Compared with the predecessor, the casing of the OnePlus 3 has been revamped. The manufacturer now relies on an aluminum unibody that looks like that of HTC's 10 or Huawei's Mate S. With just 7.35 millimeters (~0.3 in) in height, the smartphone is noticeably slimmer. We measured 6.8 to 7.8 millimeters (~0.27 to 0.31 in) depending on the position. The camera juts out by approximately one millimeter (~0.04 in).

At 178 grams (~6.3 oz), the newer model has gained some weight. This is not a problem in everyday use, and conveys a certain degree of quality. It is a shame that OnePlus has discarded the sandstone-like back. However, it is possible to refit it with an optionally available cover.

The build is of a high standard. The manufacturer does not slip up anywhere here. The gaps are completely even and the SIM tray also closes flush with the rest of the casing. The body is quite twist-resistant and does not make a noise despite several warping attempts. Generally, wave formations do not appear on the screen thanks to the underlying OLED technology.

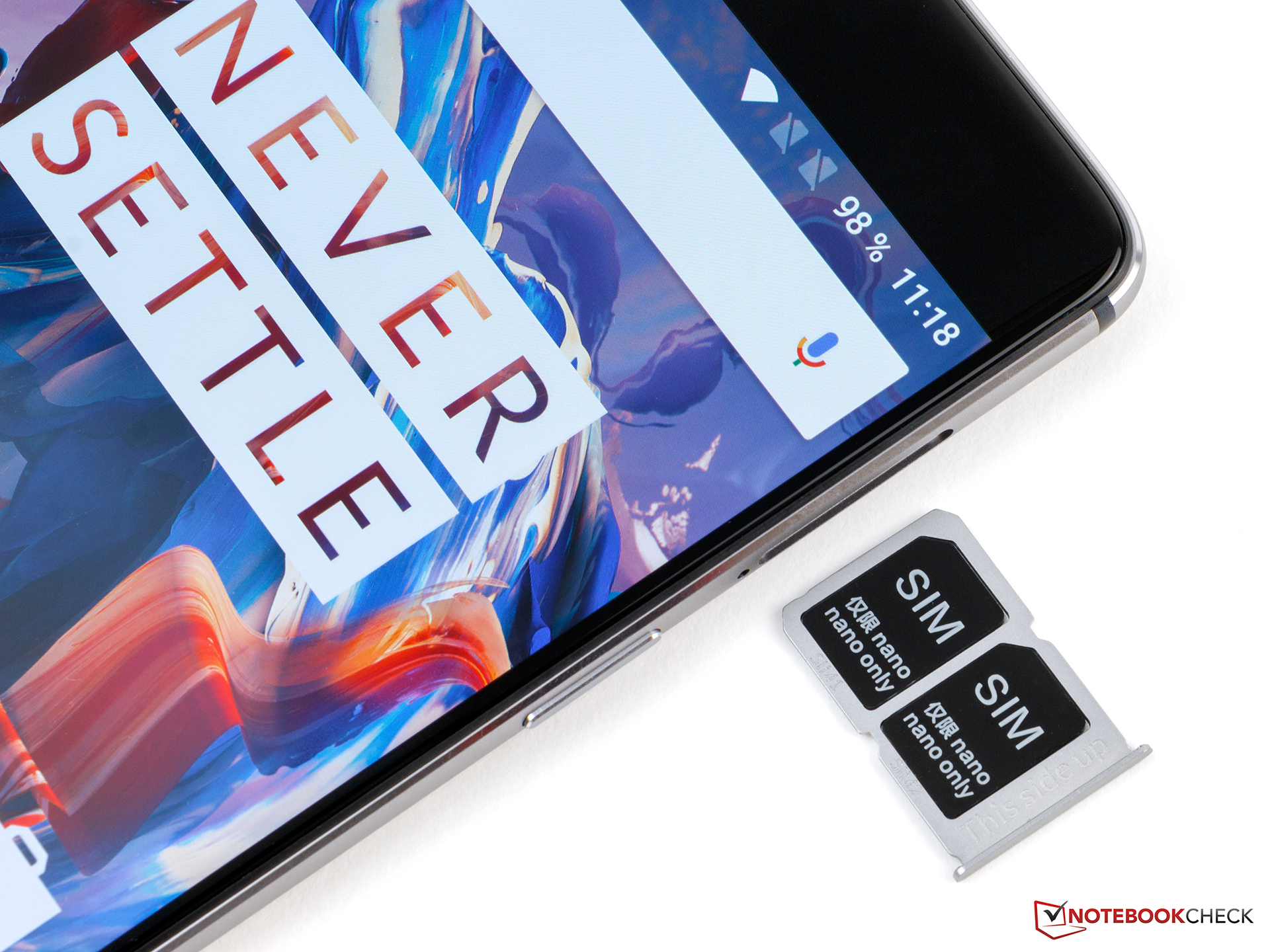

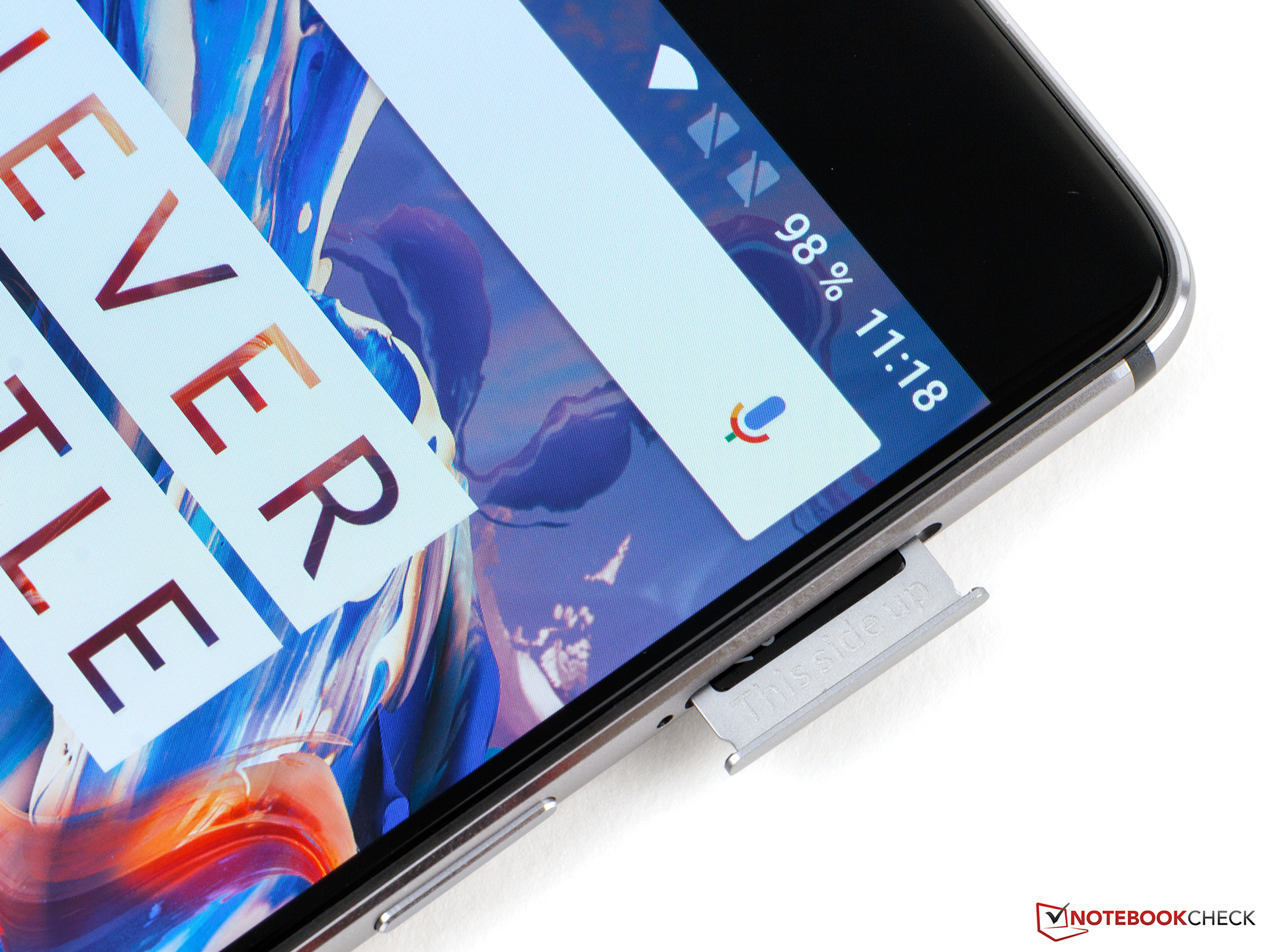

Up to two nano-SIM cards can be inserted in the card tray. Once again, expanding the storage of the OnePlus 3 via a micro-SD card is not possible. The battery is non-removable, making it impossible for the user to replace it.

158.2 mm / 6.23 inch 77.9 mm / 3.07 inch 7.3 mm / 0.2874 inch 192 g0.4233 lbs154.4 mm / 6.08 inch 76 mm / 2.99 inch 7.8 mm / 0.3071 inch 181 g0.399 lbs151.8 mm / 5.98 inch 74.9 mm / 2.95 inch 9.85 mm / 0.3878 inch 178 g0.3924 lbs151.9 mm / 5.98 inch 78.4 mm / 3.09 inch 8.3 mm / 0.3268 inch 165 g0.3638 lbs152.7 mm / 6.01 inch 74.7 mm / 2.94 inch 7.35 mm / 0.2894 inch 161 g0.3549 lbs152.3 mm / 6 inch 75.3 mm / 2.96 inch 6.98 mm / 0.2748 inch 162 g0.3571 lbs149.8 mm / 5.9 inch 78 mm / 3.07 inch 9.2 mm / 0.3622 inch 169 g0.3726 lbs150.9 mm / 5.94 inch 72.6 mm / 2.86 inch 7.7 mm / 0.3031 inch 157 g0.3461 lbs149.4 mm / 5.88 inch 73.9 mm / 2.91 inch 7.7 mm / 0.3031 inch 159 g0.3505 lbs145.9 mm / 5.74 inch 71.9 mm / 2.83 inch 9 mm / 0.3543 inch 161 g0.3549 lbs

Connectivity

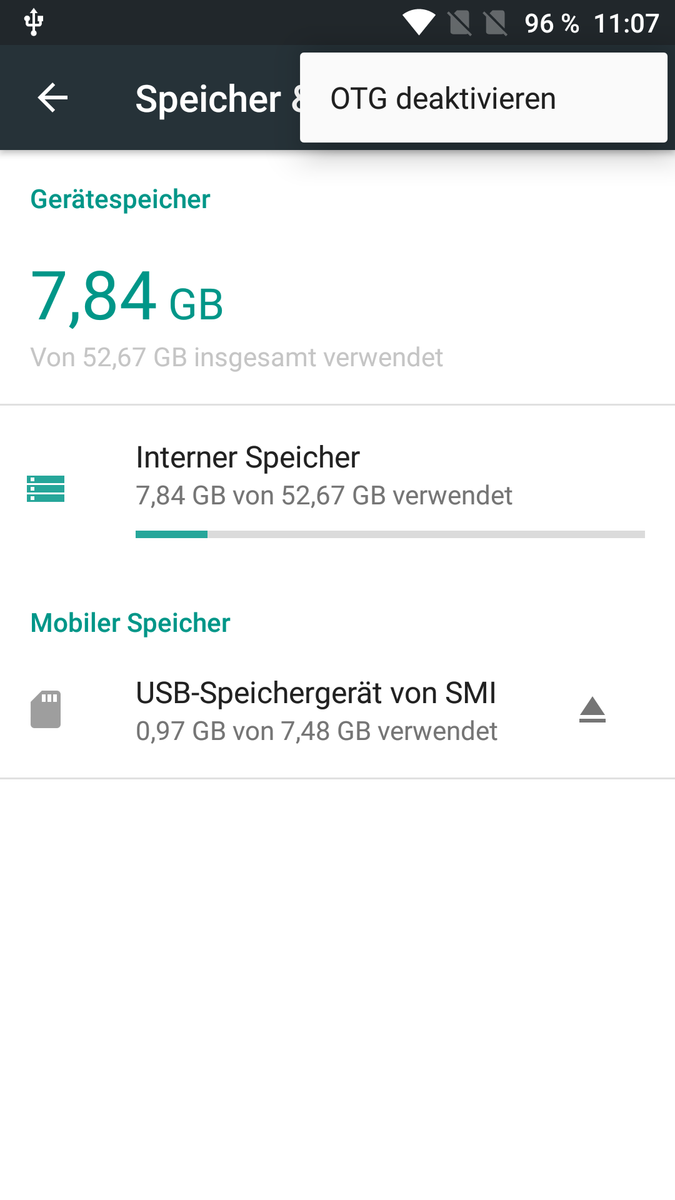

The connectivity of the OnePlus 3 is up-to-date. Although it offers only one USB 2.0 port, at least it is the current Type-C format. OTG is also supported, making it possible to connect external storage devices and peripherals. However, this feature has to be enabled first in the settings.

Wireless mirroring of video contents on external monitors is possible via Miracast. This functioned very well in conjunction with a Fire TV stick. Only while rendering a Full HD video did we experience occasional micro-stutters.

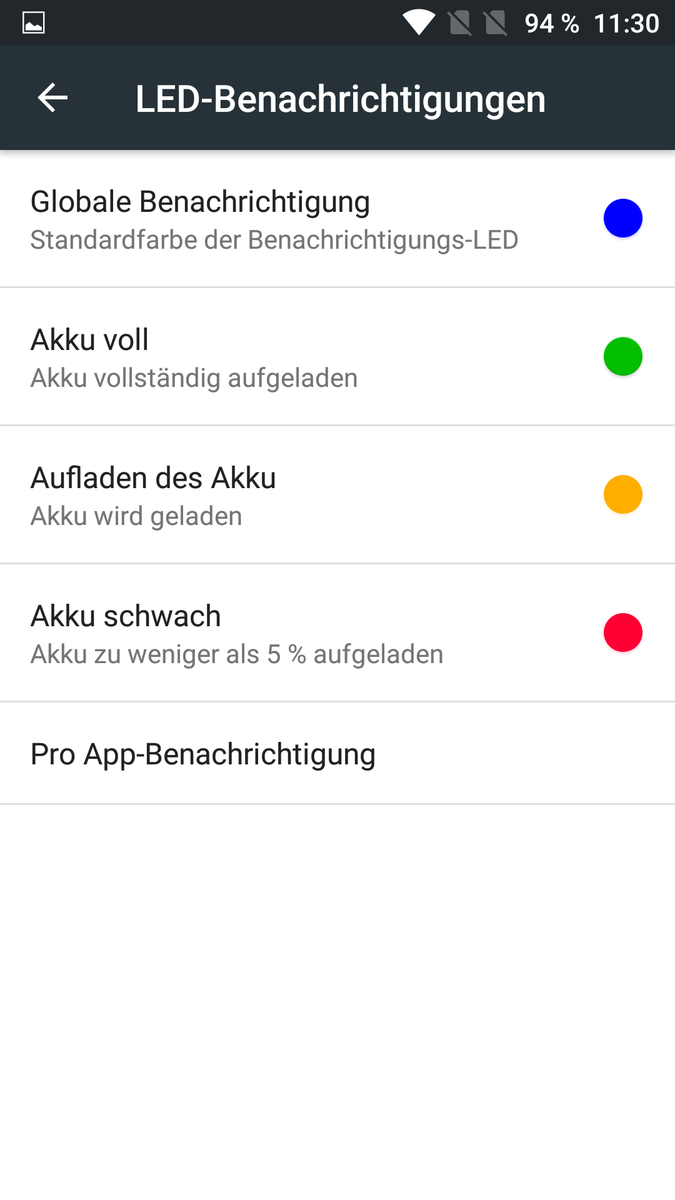

Once again, a multi-colored notification LED is present. It can be configured extensively. For example, the battery states and various apps can be given different colors. Alternatively, the screen can be awakened from standby for notifications.

In addition to the latest Bluetooth 4.2 standard, OnePlus has finally incorporated NFC into its flagship. The notification slider familiar from the OnePlus 2 is also installed. However, the user will not find an infrared transmitter or a radio receiver.

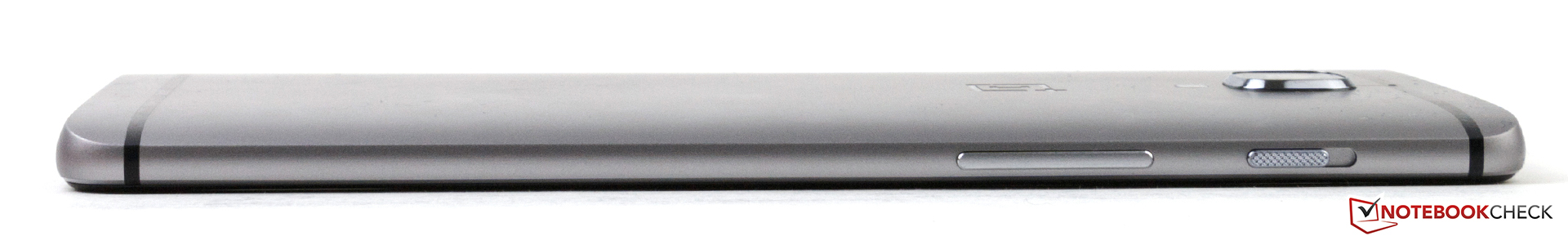

Left: Volume control, notification slider
Left: Volume control, notification slider

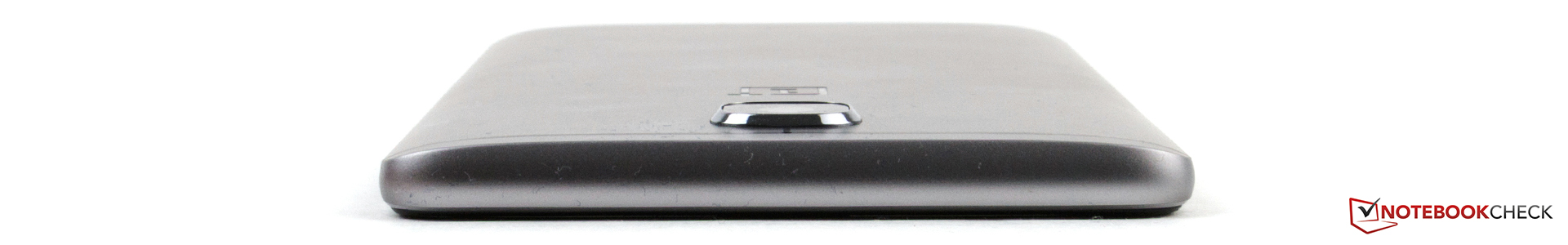

Upper edge
Upper edge

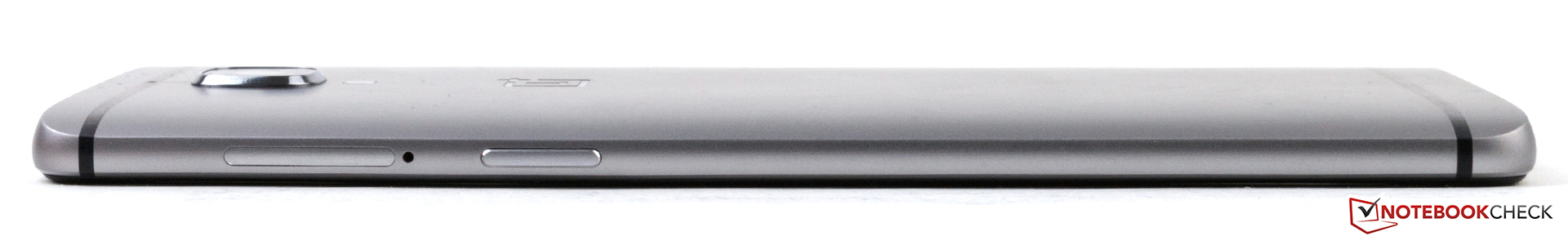

Right: SIM lot, power
Right: SIM lot, power

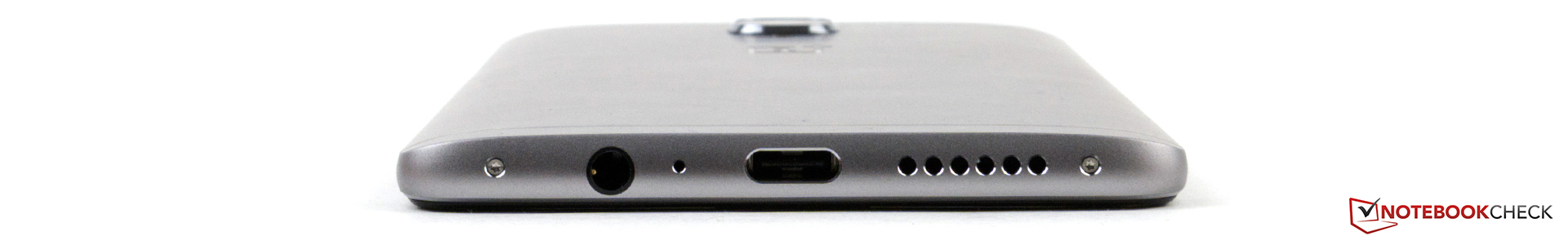

Lower edge: Audio, microphone, USB, speaker
Lower edge: Audio, microphone, USB, speaker

Software

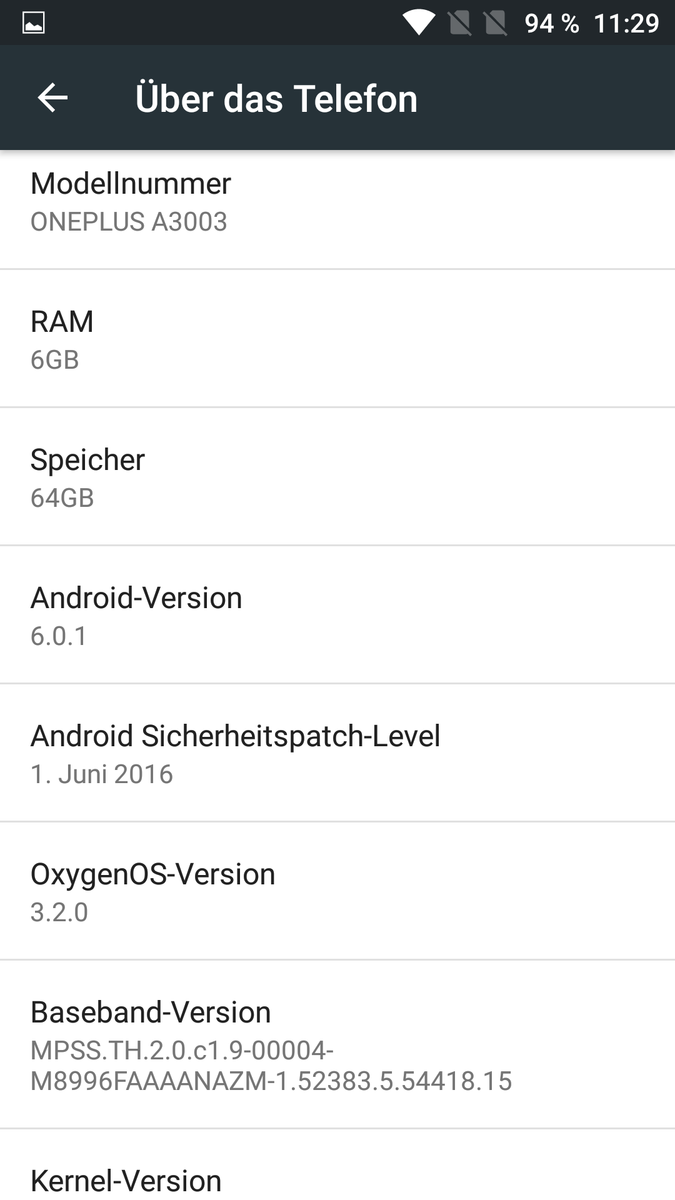

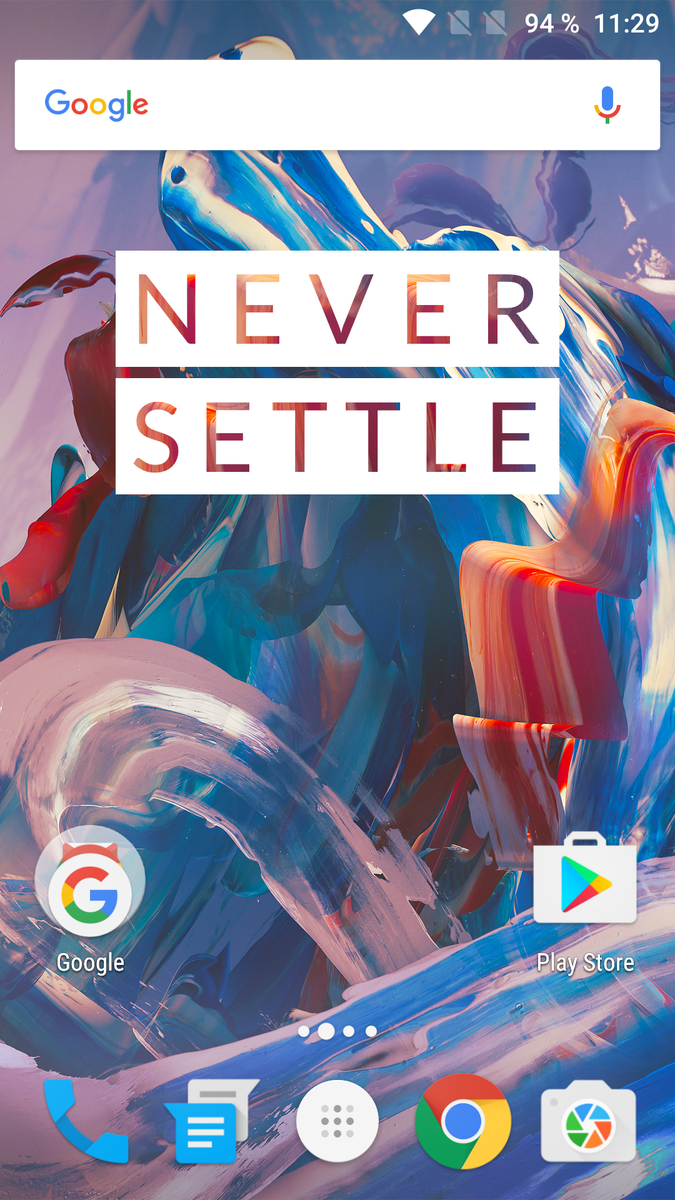

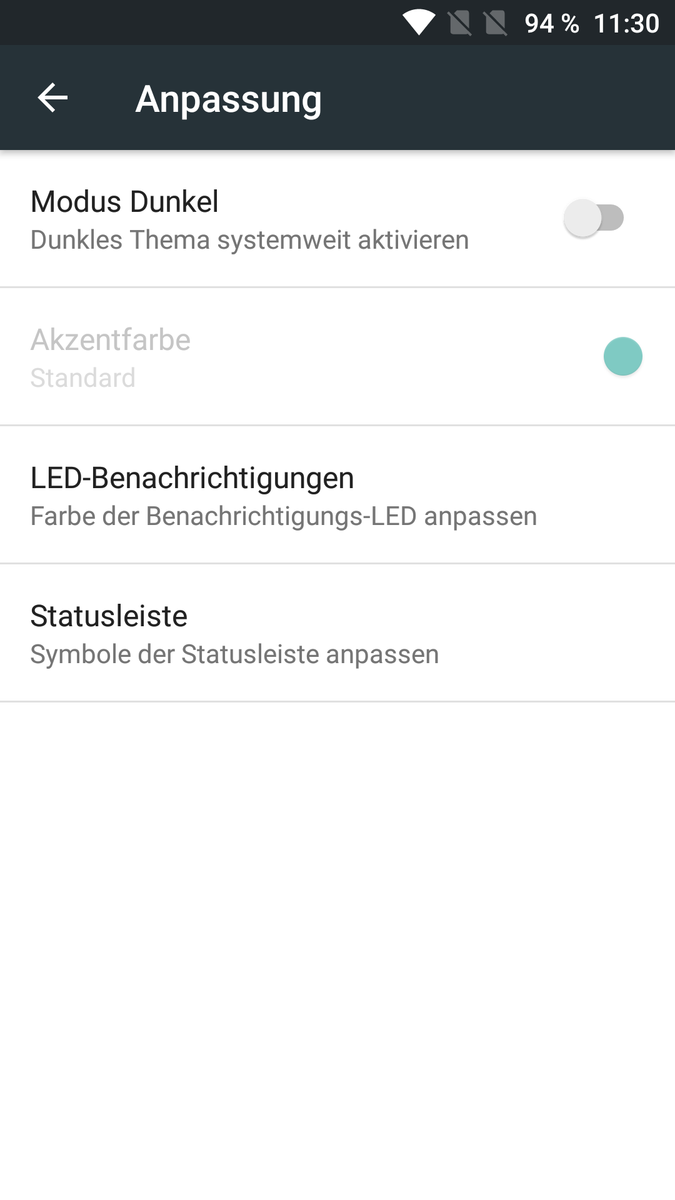

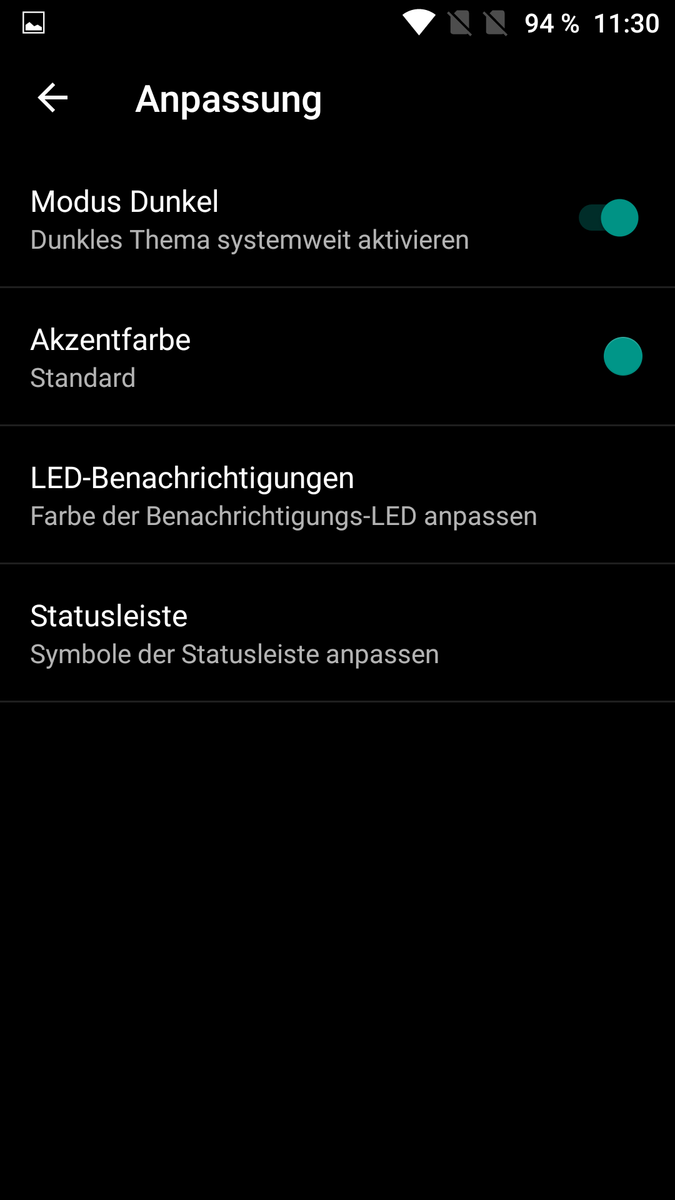

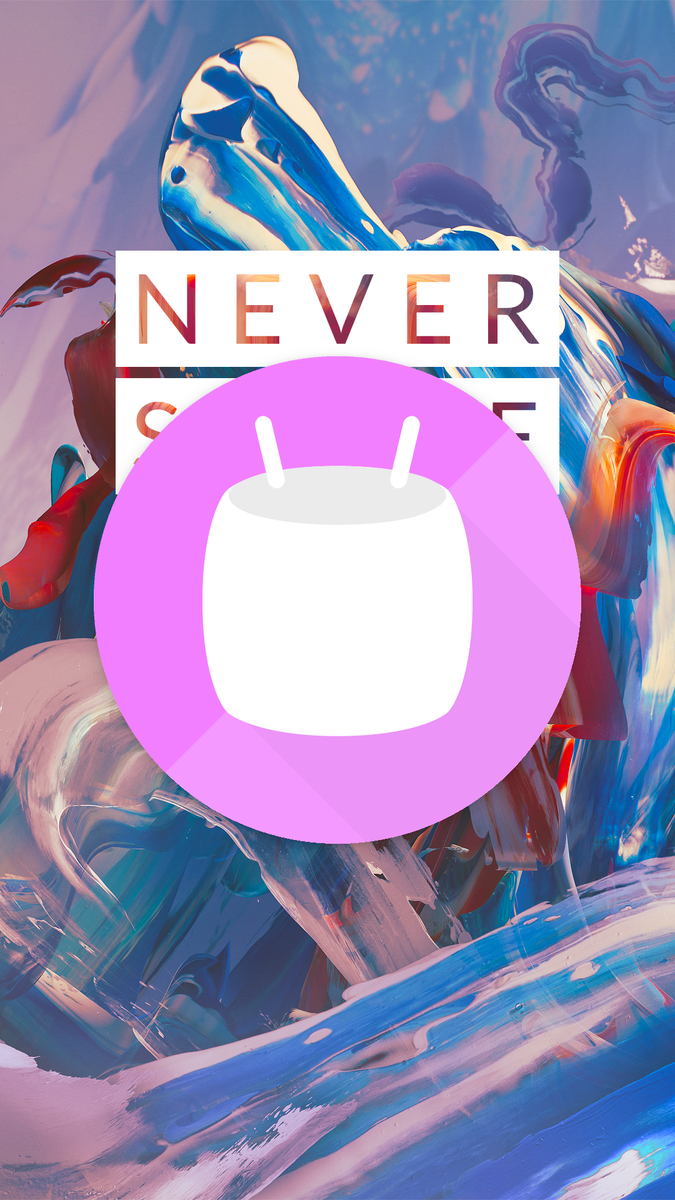

The review sample was still based on OxygenOS 3.1.2 when we started our tests. It was updated to version 3.2.0 in the course of the test. OnePlus' operating system is based on Android 6.0.1 Marshmallow and looks like the normal stock standard Android. The manufacturer has not made any major feature updates compared with to the OnePlus' 2.

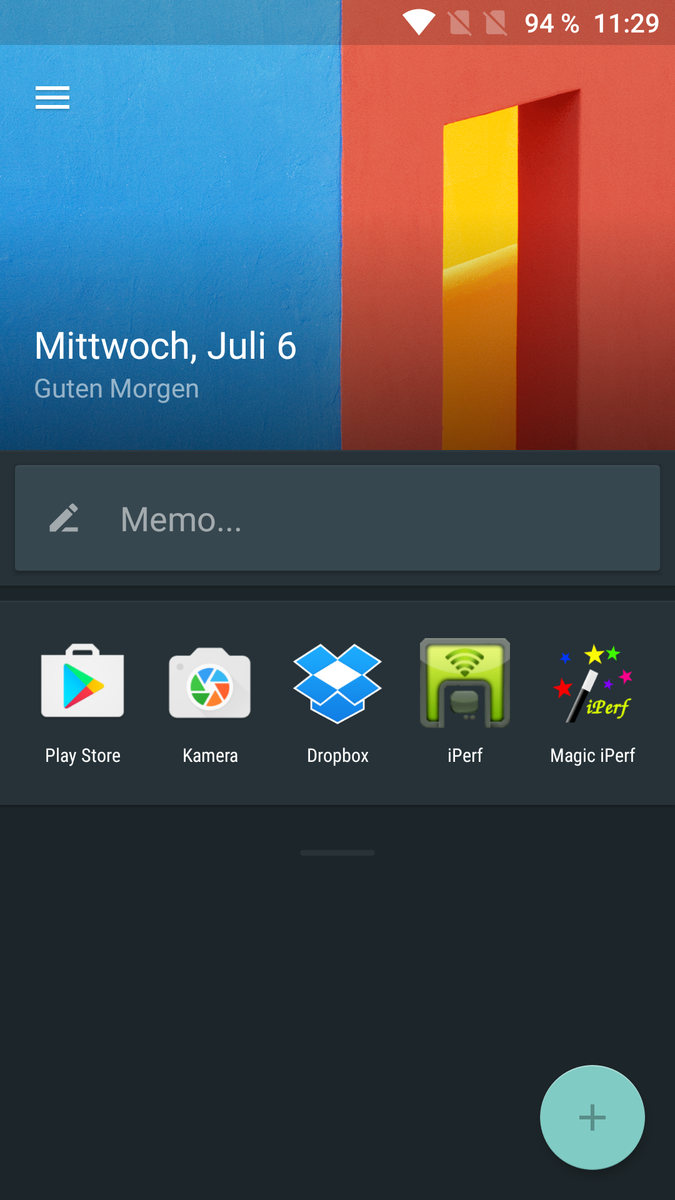

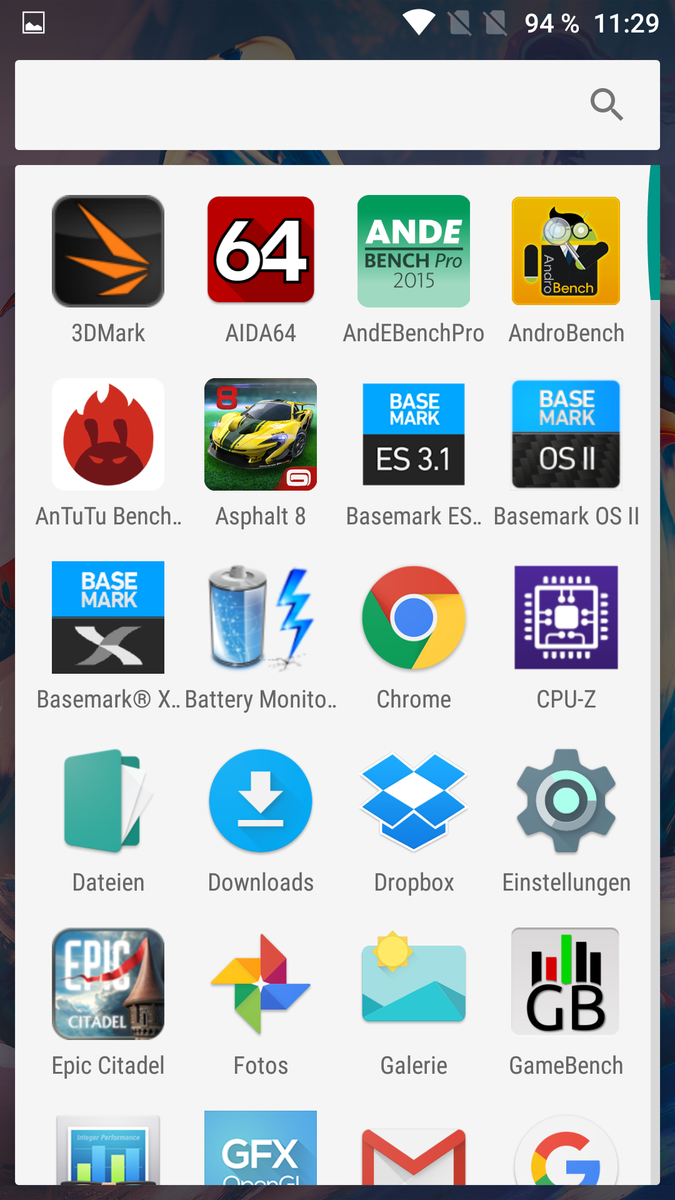

Once again, Shelf again adds an additional page on the start screen, and displays weather, favorite contacts and recently used apps. The known familiar features like such as a dark theme and extended app manager are also again present.

The focus of the latest version is to resolve the initially observed storage management issues. We did not notice any problems during the test.

Communication & GPS

The OnePlus 3 is suitably equipped in terms of communication. Mobile Internet is accessed via quad-band HSPA or LTE Cat.6. Unfortunately, it does not offer any of the newer standards, and there are now regional differences in the supported bands. For example, the European and Asian models support three TDD LTE bands. They are not available in the North American version that, however, supports bands 12 and 17, but not band 20 which is important in Europe. The OnePlus 3 is no longer a genuine Globetrotter.

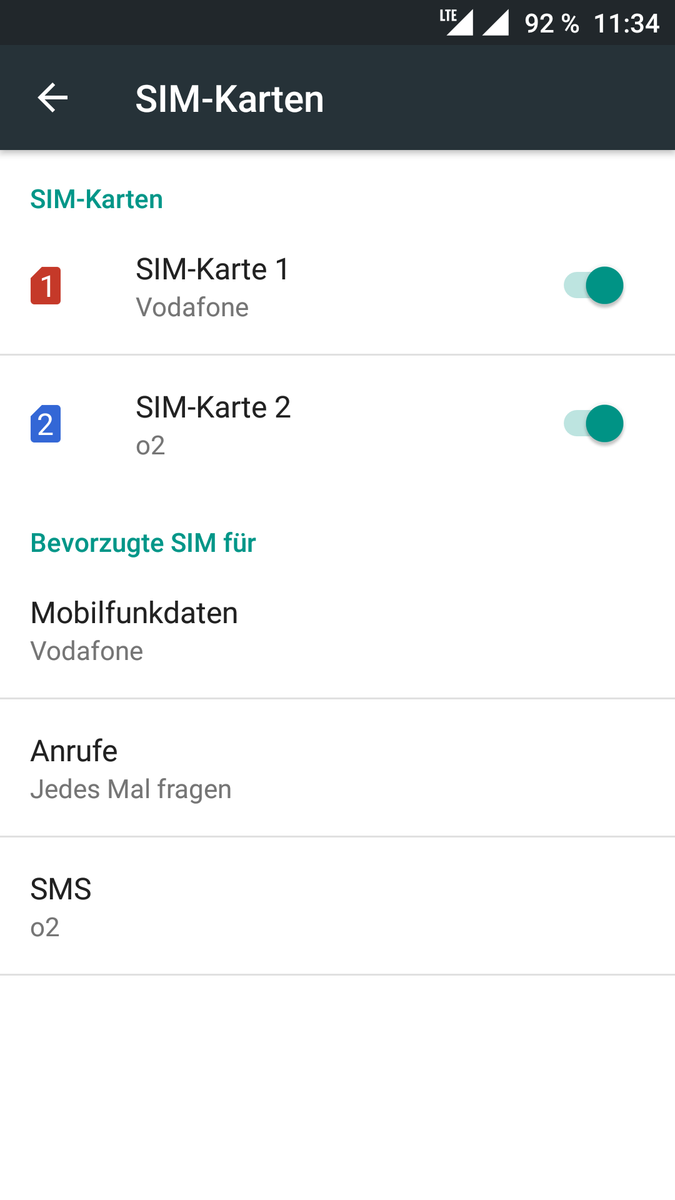

On the other hand, it is great that the smartphone is only available as a dual-SIM handset and both slots support the fast LTE standard. We did not experience any reception issues in an urban area with the OnePlus 3.

The smartphone's Wi-Fi module supports the latest IEEE 802.11 a/b/g/n and ac standards, which allows transmission in both the 2.4 and 5.0 GHz frequency ranges. We still had a good connection quality and low signal attenuation (-64 dBm) even approximately 10 meters (~33 ft) away from the router. Limitations while browsing or streaming videos were not observed. We also measured the Wi-Fi transmission speed between the smartphone and our Linksys EA 8500 reference router. The OnePlus 3 is only defeated by Samsung's Galaxy S7 Edge. The data rates during the test were stable and there were no significant fluctuations.

Networking
iperf Server (receive) TCP 1 m
Samsung Galaxy S7 Edge
Mali-T880 MP12, 8890 Octa, 32 GB UFS 2.0 Flash
303 MBit/s ∼100% +6%
OnePlus 3
Adreno 530, 820 MSM8996, 64 GB UFS 2.0 Flash
286 MBit/s ∼94%
Huawei P9
Mali-T880 MP4, Kirin 955, 32 GB eMMC Flash
249 MBit/s ∼82% -13%
iperf Client (transmit) TCP 1 m
Samsung Galaxy S7 Edge
Mali-T880 MP12, 8890 Octa, 32 GB UFS 2.0 Flash
290 MBit/s ∼100% +13%
OnePlus 3
Adreno 530, 820 MSM8996, 64 GB UFS 2.0 Flash
256 MBit/s ∼88%
Huawei P9
Mali-T880 MP4, Kirin 955, 32 GB eMMC Flash
205 MBit/s ∼71% -20%

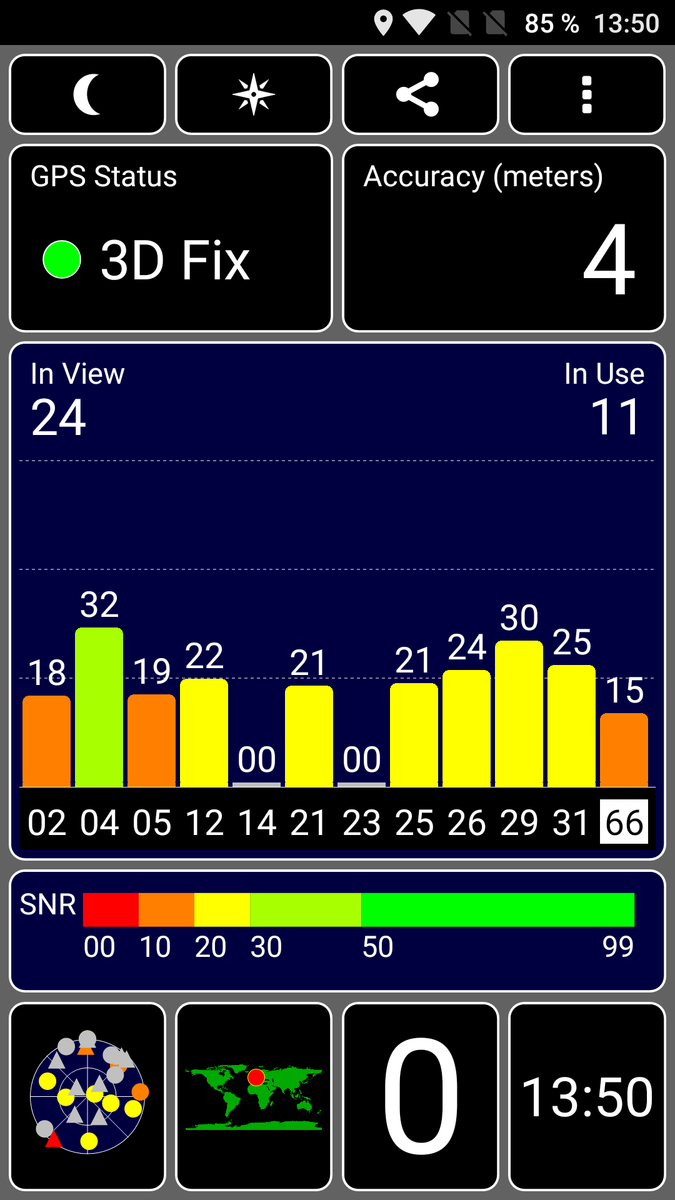

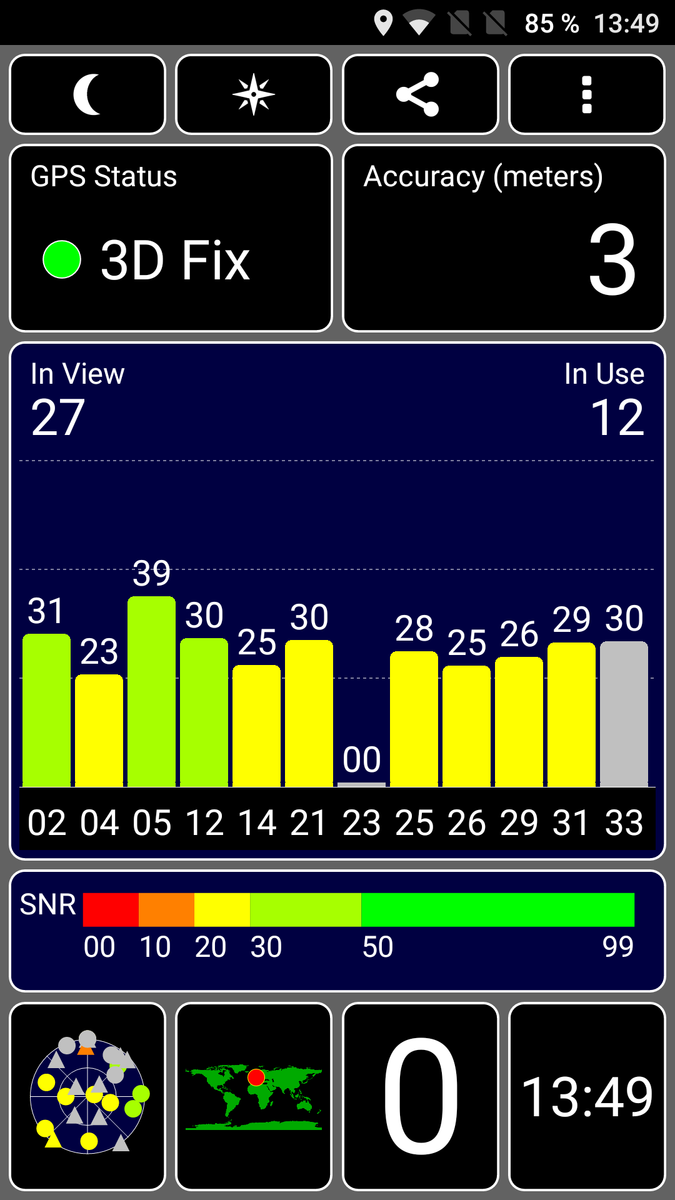

GPS test: Outdoors
GPS test: Outdoors
GPS test: Indoors
GPS test: Indoors

 The OnePlus 3 utilizes the GPS, GLONASS and BeiDou for localization. Tracking is accurate to 5 to 6 meters (~16 to 20 ft) indoors and improves to 3 to 4 meters (~10 to 13 ft) outdoors.

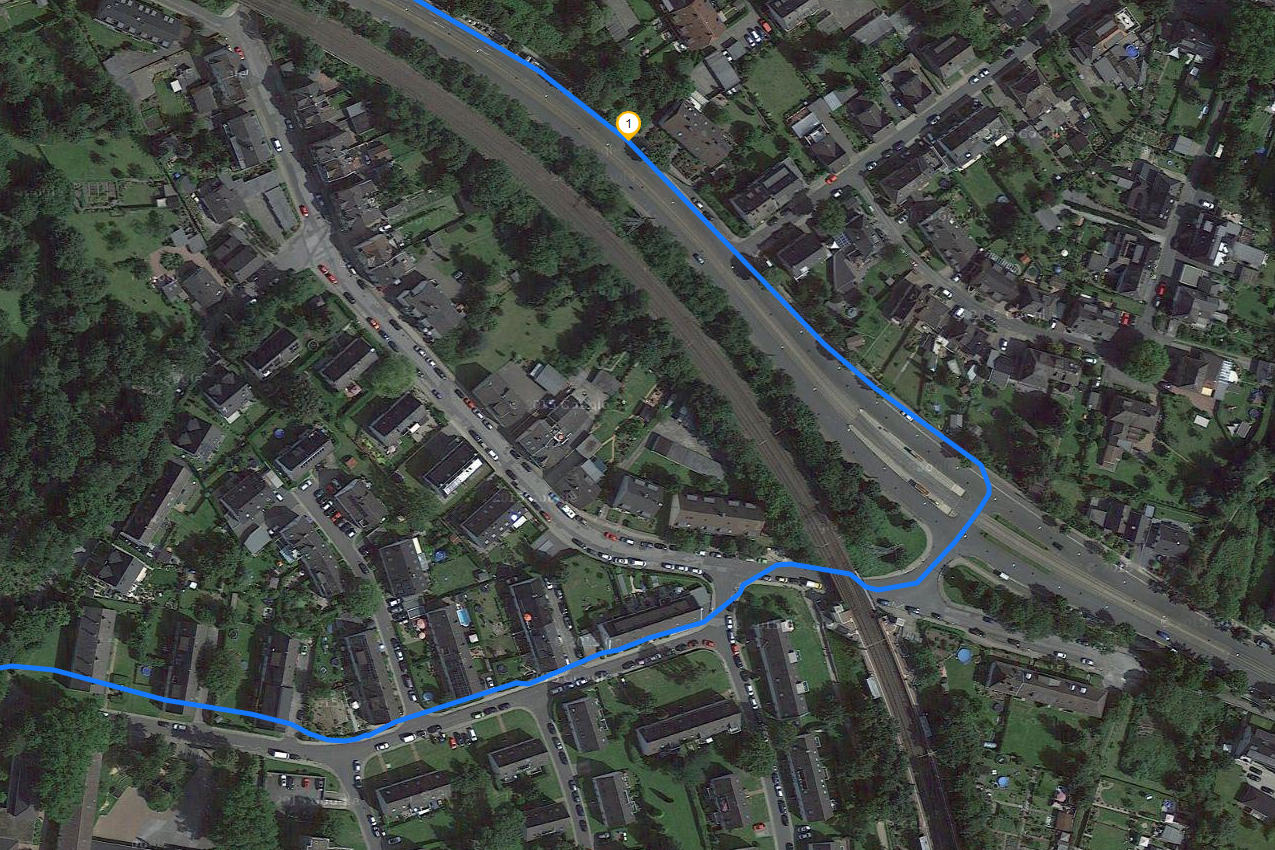

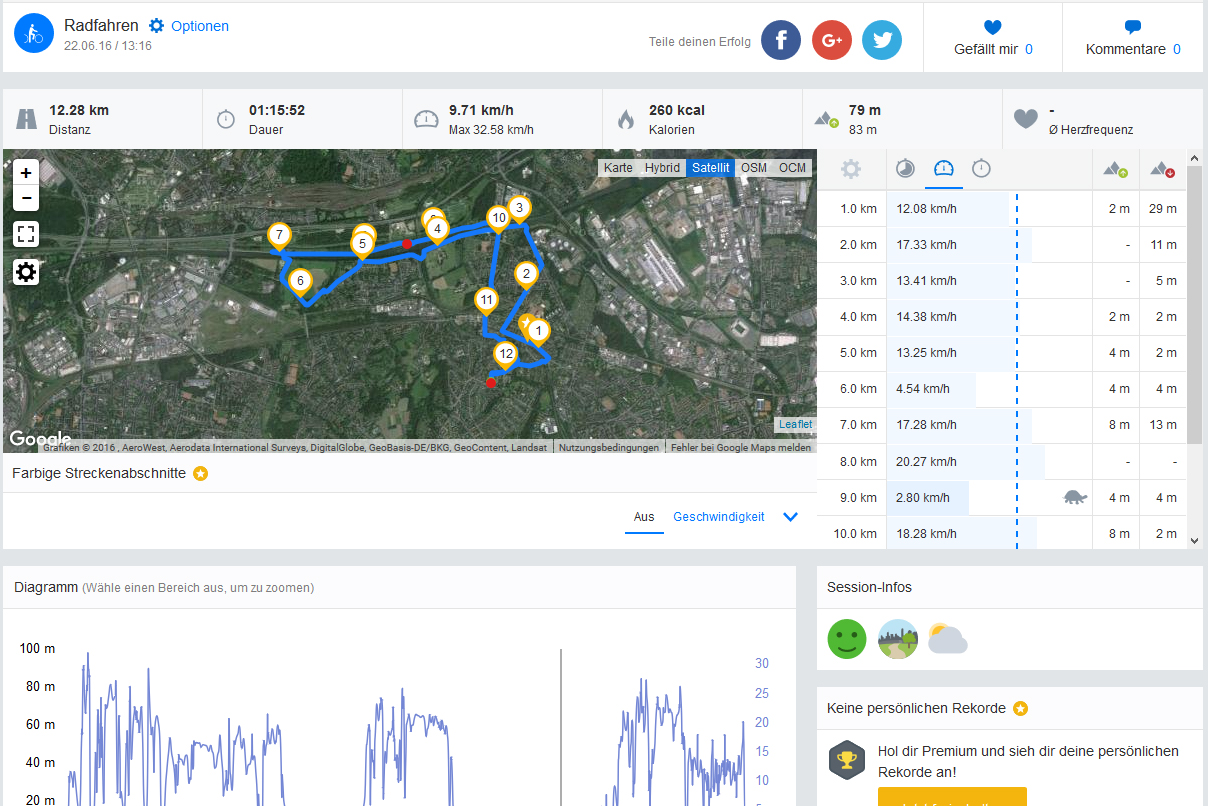

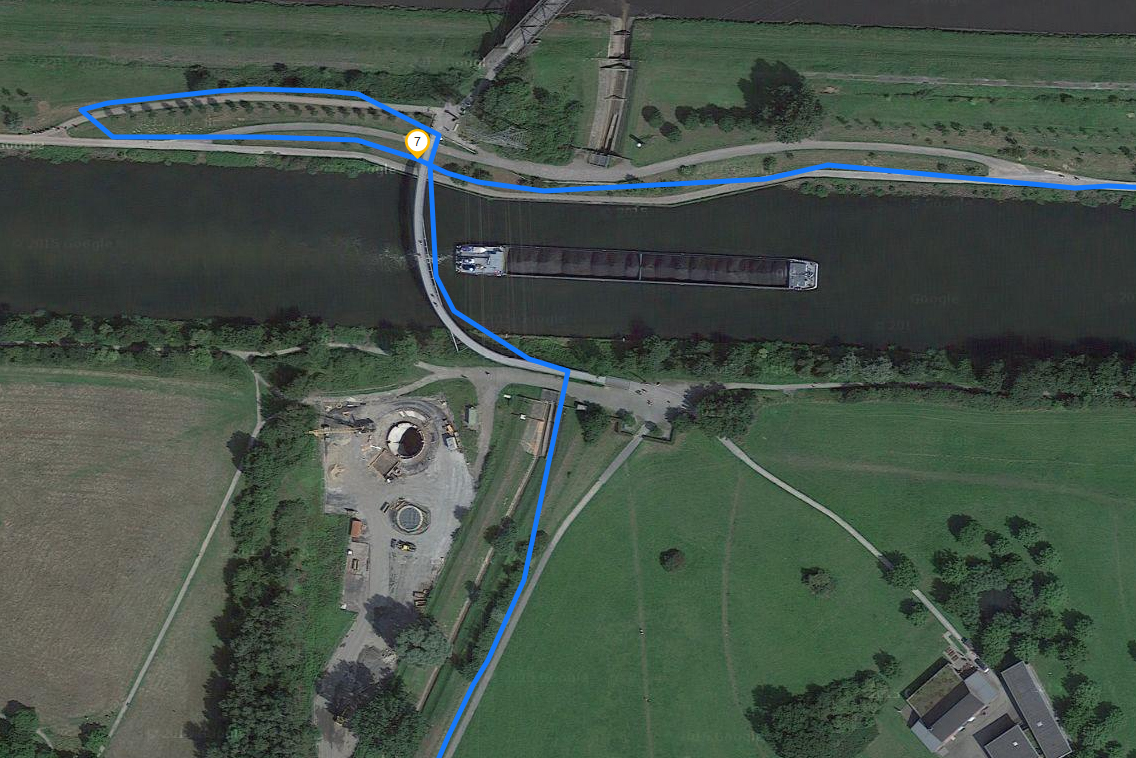

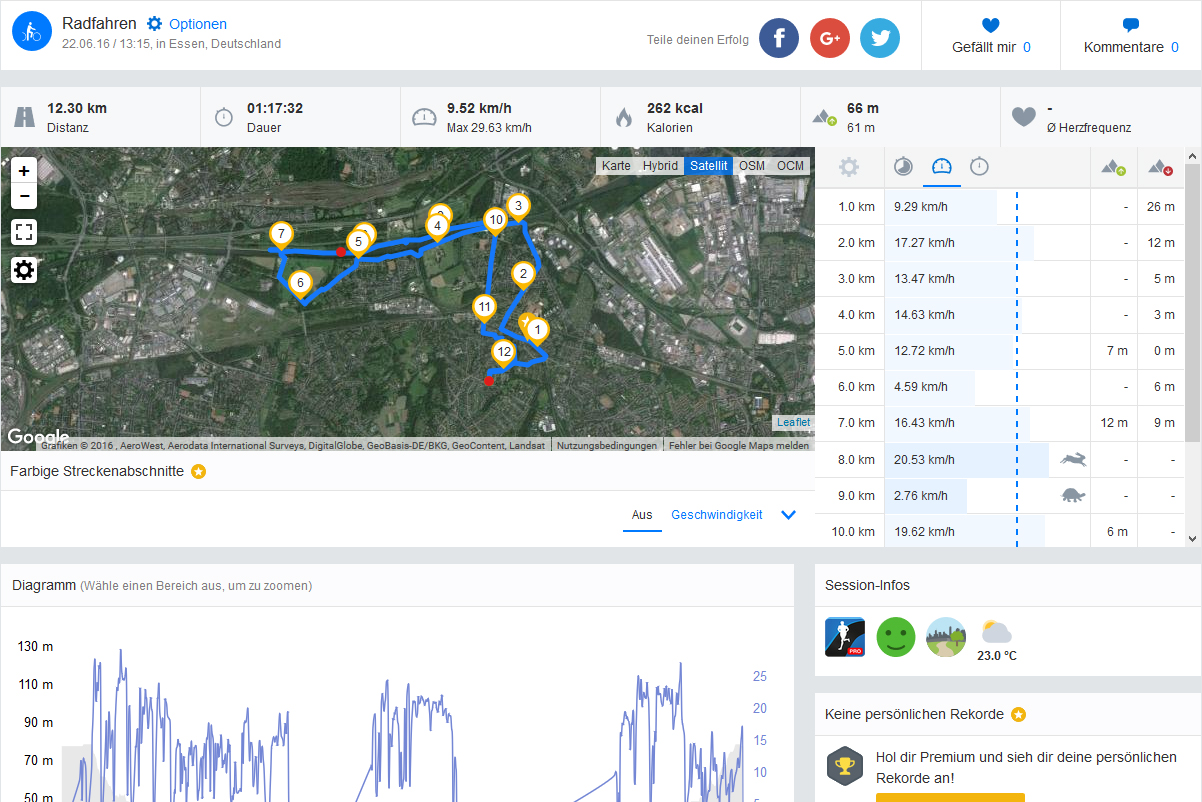

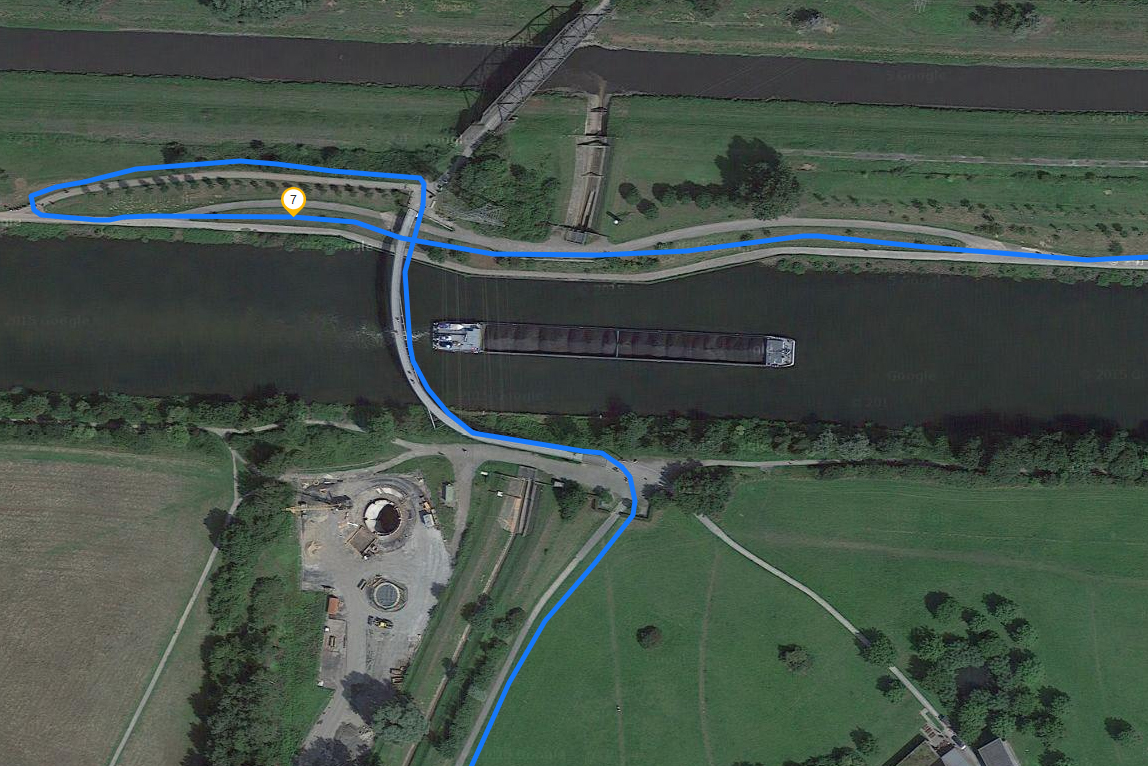

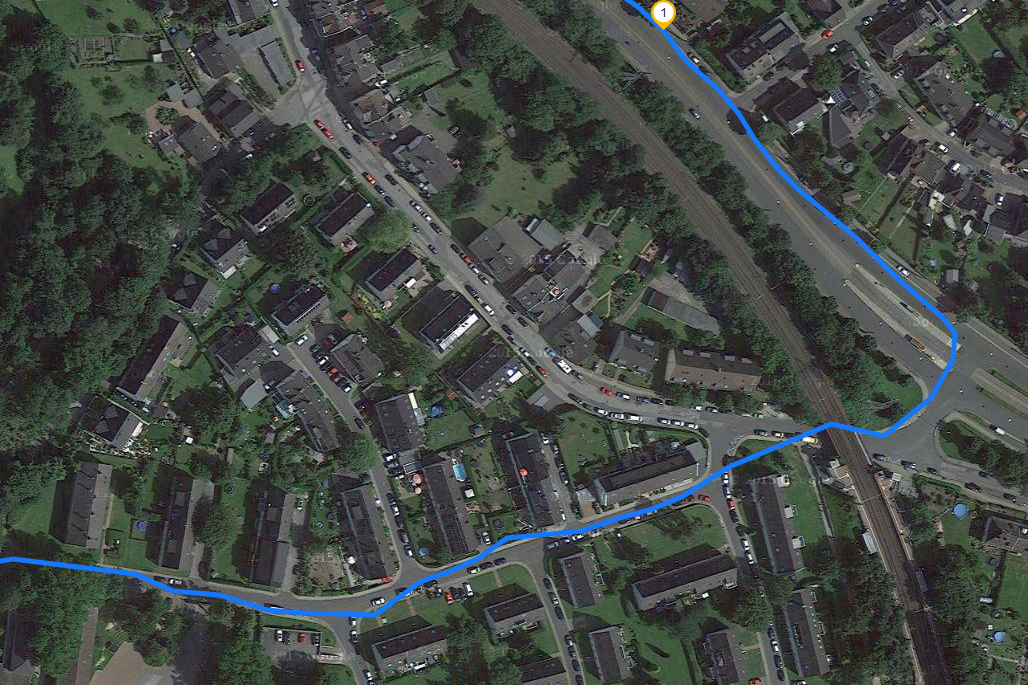

To test real-world suitability, we took the smartphone on a bike ride along with Garmin's Edge 500. The recorded distances are virtually identical. Only when looking at the detailed routing, it is seen that the OnePlus 3 does not refresh its location quite as frequently as the GPS computer, and thus inaccuracies appear primarily in difficult places such as in the area of the bridge. Nevertheless, its performance is more than sufficient for navigating.

Garmin Edge 500
Garmin Edge 500
Garmin Edge 500
Garmin Edge 500
Garmin Edge 500
Garmin Edge 500
OnePlus 3
OnePlus 3
OnePlus 3
OnePlus 3
OnePlus 3
OnePlus 3

Telephone & Call Quality

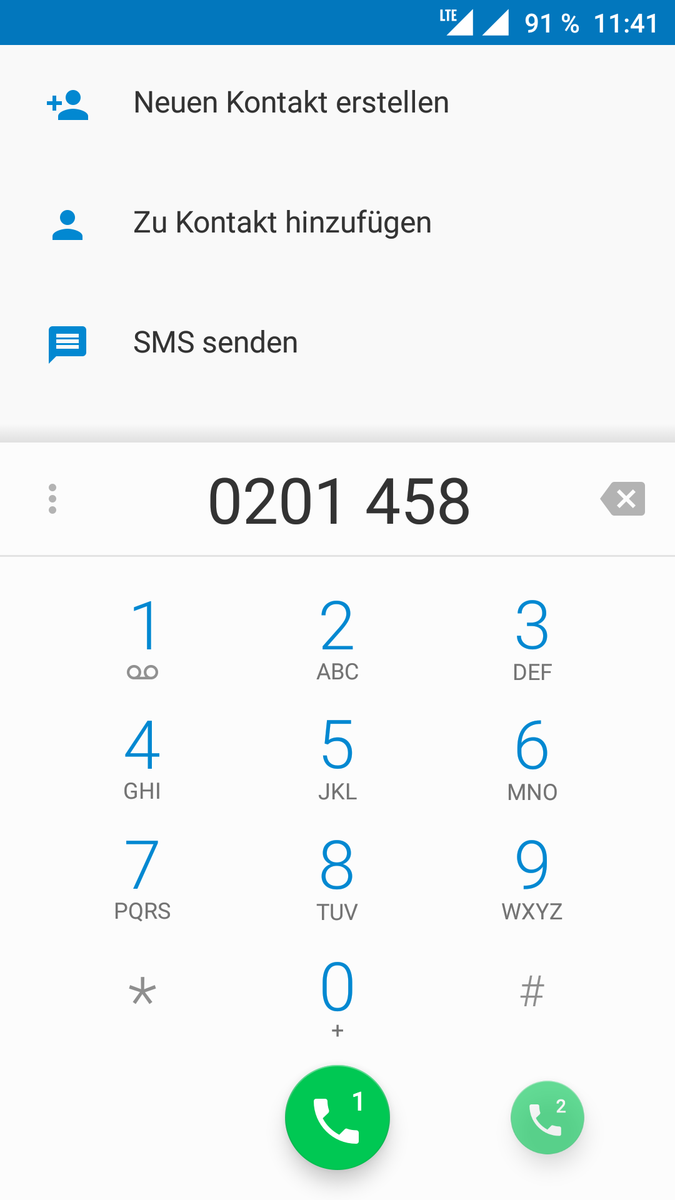

The phone app of the OnePlus 3 corresponds to the Android standard. Users who are familiar with the operating system from other smartphones will cope easily here.

The call quality of the OnePlus 3 is good when holding the handset to the ear. We always understood our contact very clearly and without any static. We sounded rather tinny at the other end, and some minor noise accompanied our voice. Oddly, it disappears when noise cancellation is enabled. This functioned very reliably and filtered out loud background music almost completely during the test.

Phoning via the speaker did not appeal to us as much. The contact's voice echoes slightly, and the voice of the OnePlus 3 user is transmitted with recurrent, brief interruptions.

Cameras

Front camera photo
Front camera photo

The cameras on both sides of the OnePlus 3 have been upgraded. An 8 MP lens with only a fixed focus is now installed on the front. The photos are quite good, but they could be slightly brighter. A Beauty mode helps to boost selfies. Although soft-focus is relatively subtle, it also brightens up the skin when its setting is increased.

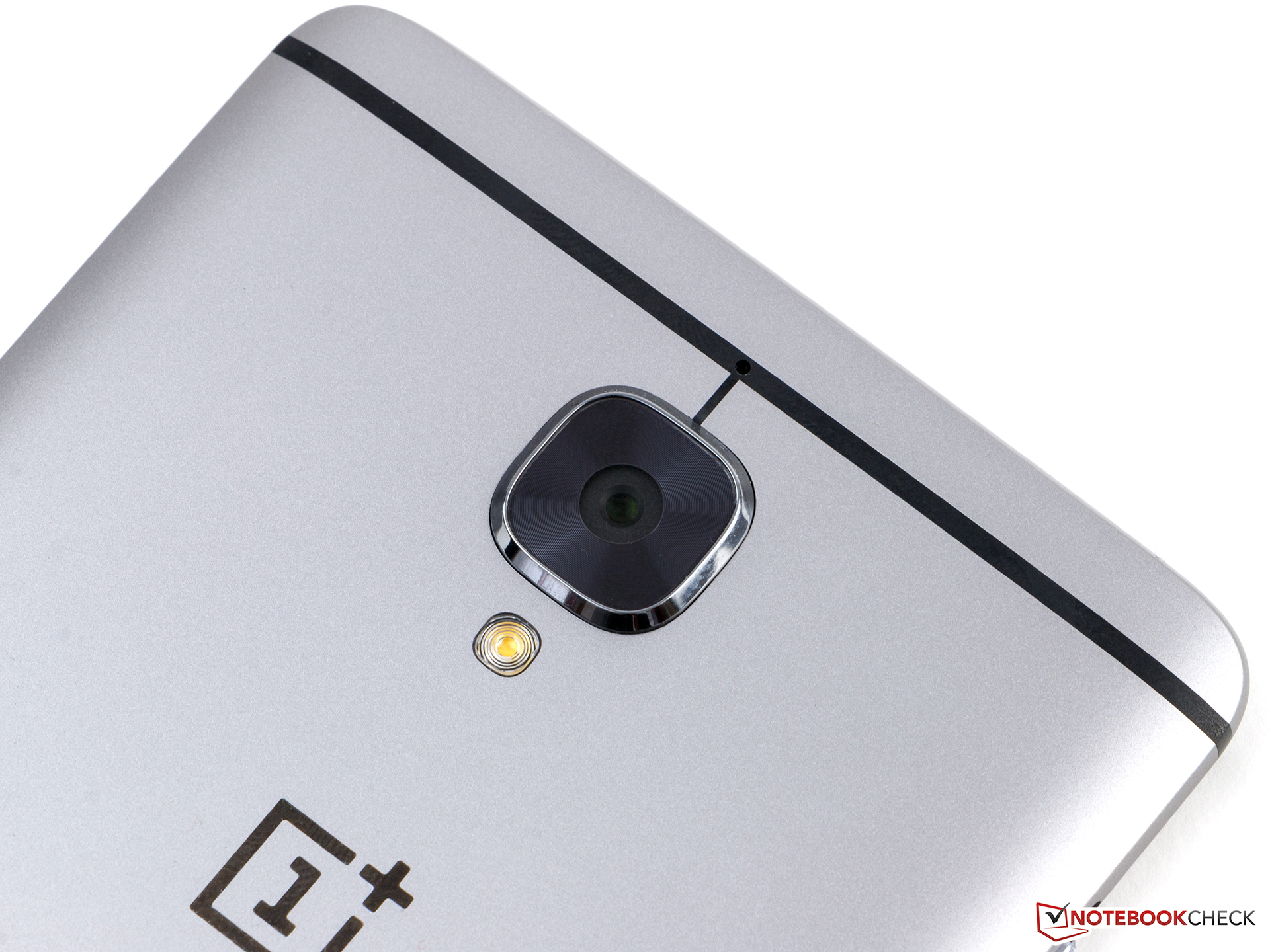

Three megapixels have been added to the rear-facing camera, and it now shoots photos with up to 16 MP (4.3; 4640x3480 pixels). The aperture has not been modified, but the specified f/2.0 also promises good light sensitivity. The laser auto focus has had to make way for a phase detection auto focus, which is to be more reliable, especially at greater distances to the object. The focus system proved to be fast and reliable in everyday use.

The photo quality varies to quite some degree. It lacks a bit of dynamic and the leaves in the front look rather faded in ambient photos (scene 1). The Galaxy S7 Edge in particular does a much better job here. However, the OnePlus 3 delivers a better image in the woods scene; the strongly lit outlines of the trees do not fray as much as in photos taken with the rivals. The review sample is on par with the iPhone 6s Plus in night shots, but it cannot compete with the S7.

The OnePlus 3 records videos in Ultra HD (42 MBit/s) at up to 30 frames per second. Thus, it has an edge on rivals such as Huawei's P9 Plus that does not support the modern standard. The frames are recorded impeccably, and the auto focus adapts well to the image. Unfortunately, UHD recordings are limited to 10 minutes, and the sound could also be better.

Image Comparison

Choose a scene and navigate within the first image. One click changes the position on touchscreens. One click on the zoomed-in image opens the original in a new window. The first image shows the scaled photograph of the test device.

Scene 1Scene 2Scene 3
click to load images
ColorChecker: Target colors are displayed in the lower half of each patch.
ColorChecker: Target colors are displayed in the lower half of each patch.

We photographed both ColorChecker Passport and our test chart as full-frame as possible in controlled light conditions. Looking at ColorChecker it is evident that the photos are slightly too warm and more saturated. Although this is not natural, it looks good. Users who do not like this can select from among four color temperature settings in manual mode, and also let the image look cooler. However, generally manual mode offers a few more settings.

The photo of our test chart reveals some minor weaknesses. For example, the lines are not completely straight, even in the center of the image. Dark letters on dark surfaces also fray a bit. The sharpness decreases slightly toward the outer edges, but not to an excessive degree. An overall good performance from the OnePlus 3.

Accessories & Warranty

The OnePlus 3 comes with a modular quick charging power supply that has a nominal output of 20 watts (5 volts, 4 ampere). Furthermore, a USB cable (Type-A to Type-C), a SIM tool and a quick start guide are also included.

OnePlus was considerate and provided us with further optional accessories. Among them, we found some protective cases (approx. 20 Euros/~$22), VR glasses and a car charger (approx. 30 Euros/~$33). The latter also supports quick charging and supplies up to 3.5 ampere. Its metal ring conveys a high-quality impression.

OnePlus includes a 12-month warranty on its smartphone; it is 24 months in the European Union.

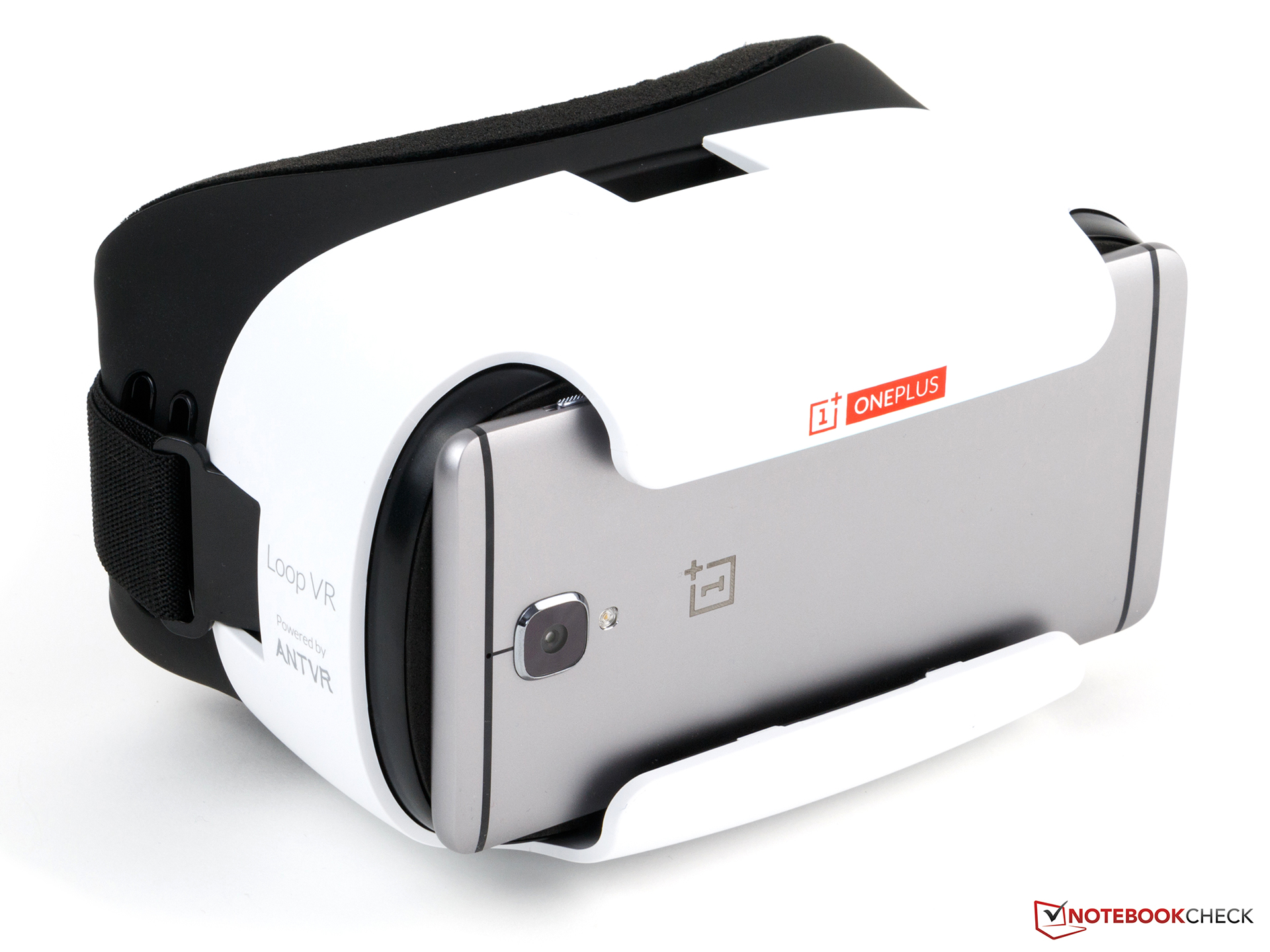

VR glasses
VR glasses

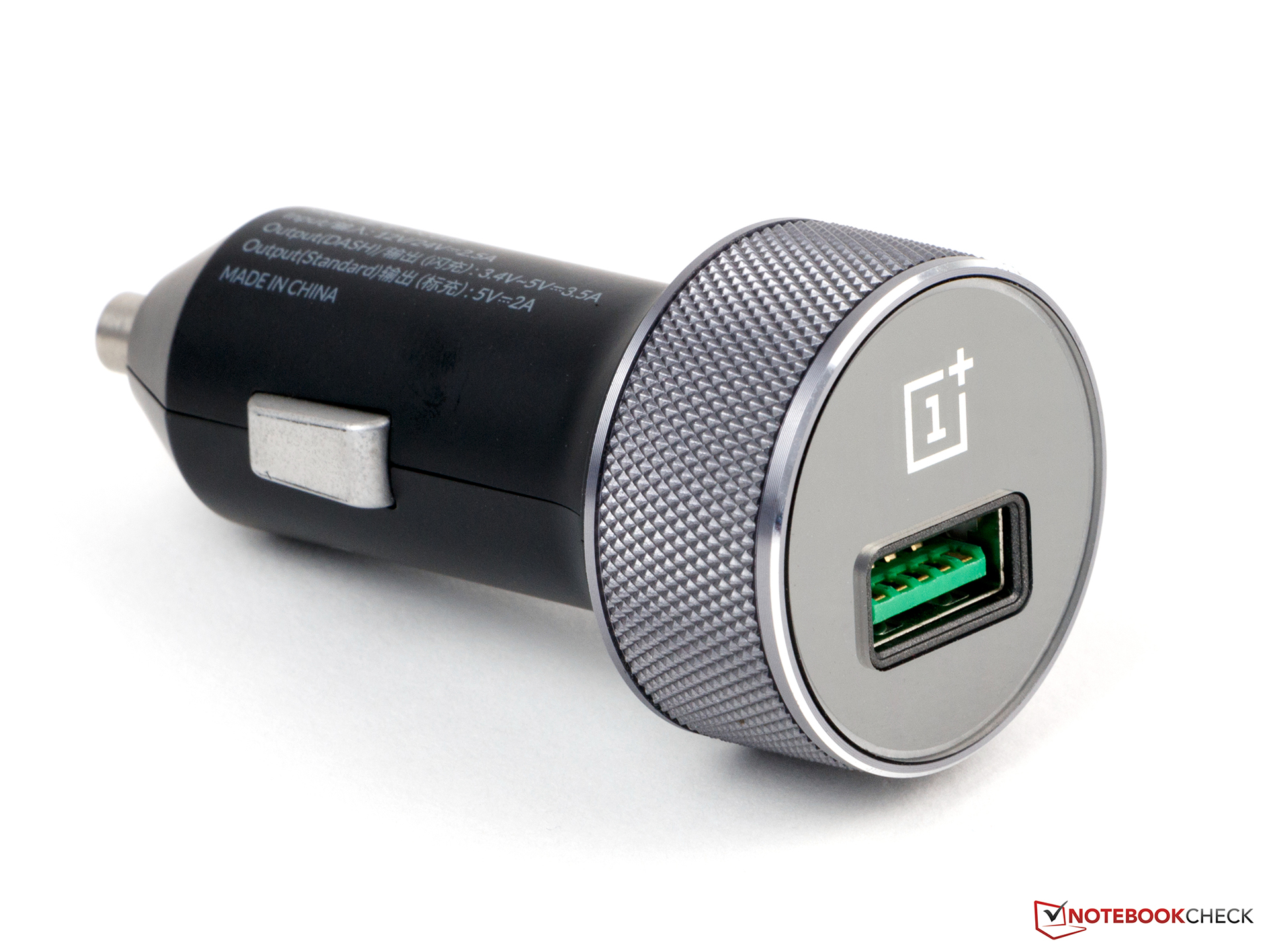

Car charger

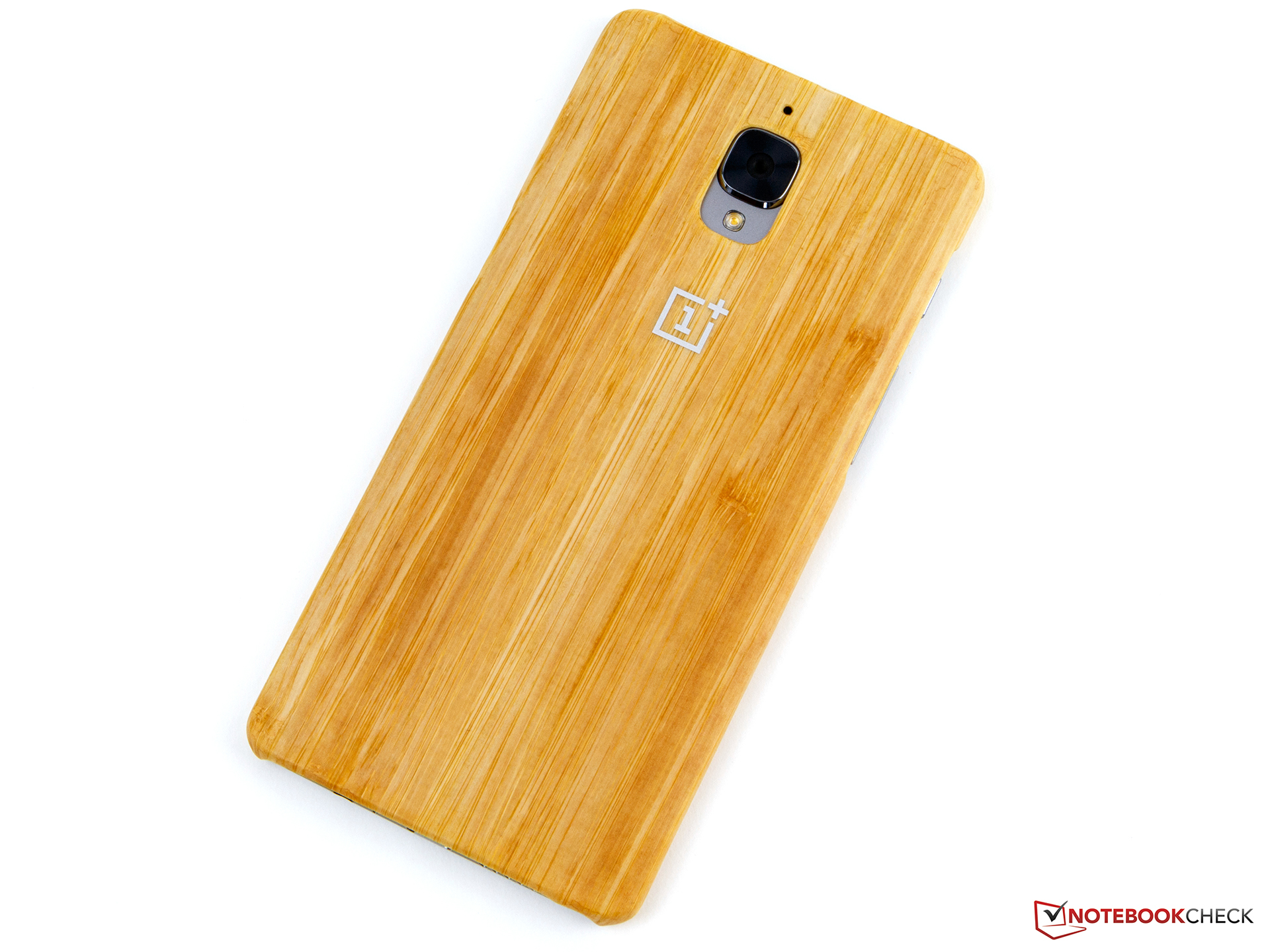

Bamboo case

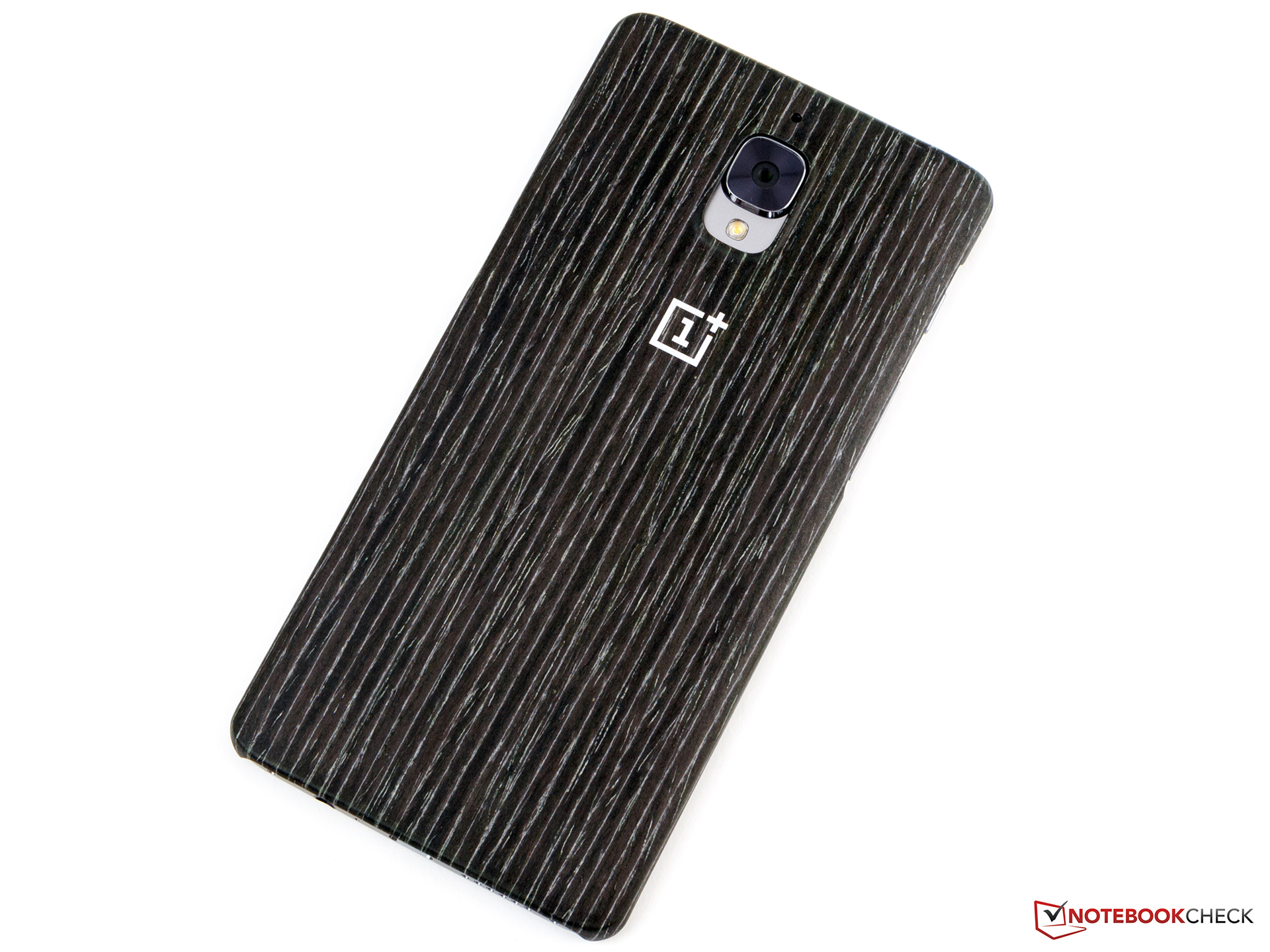

Black Apricot case

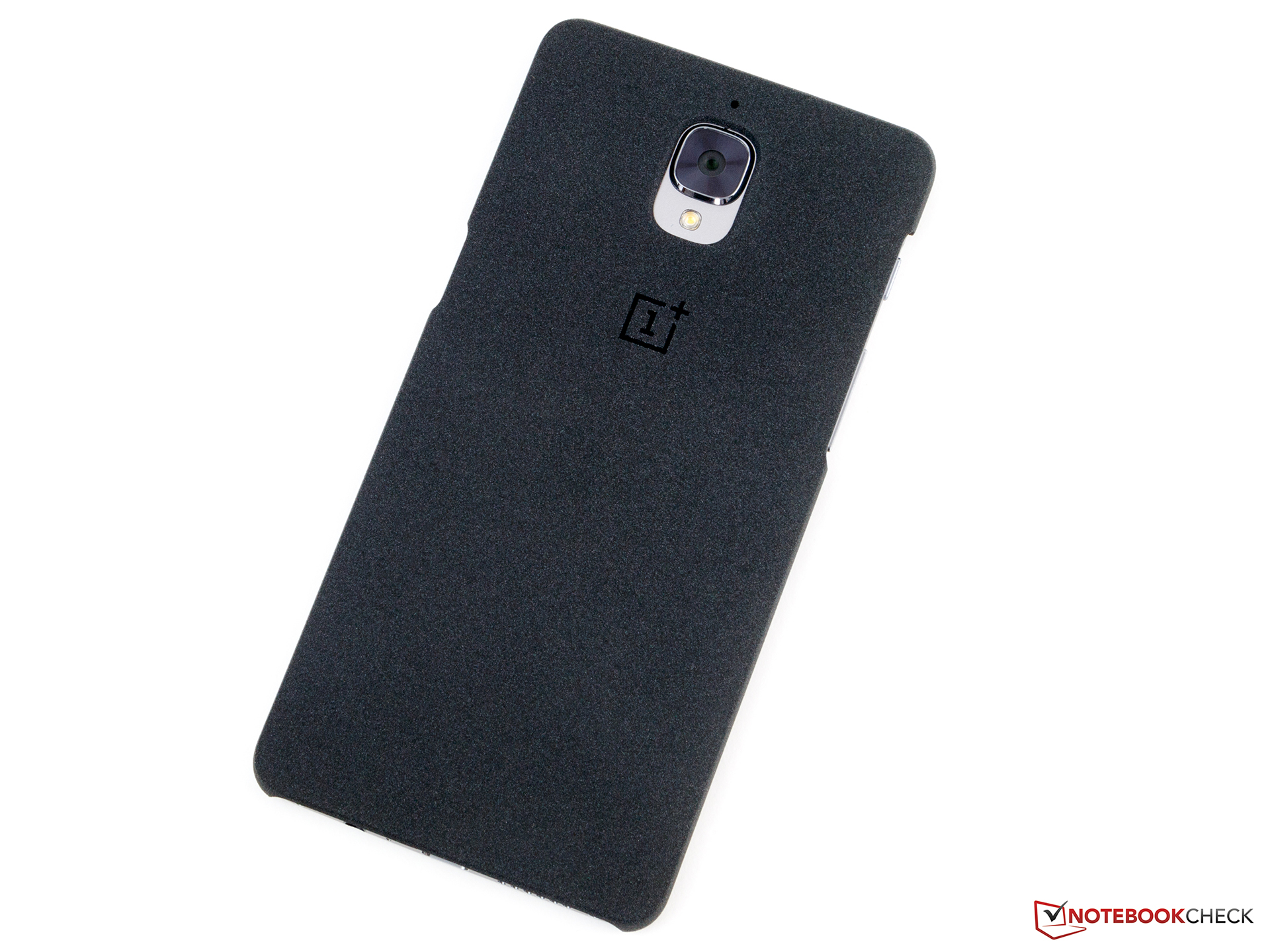

Sandstone case
Sandstone case

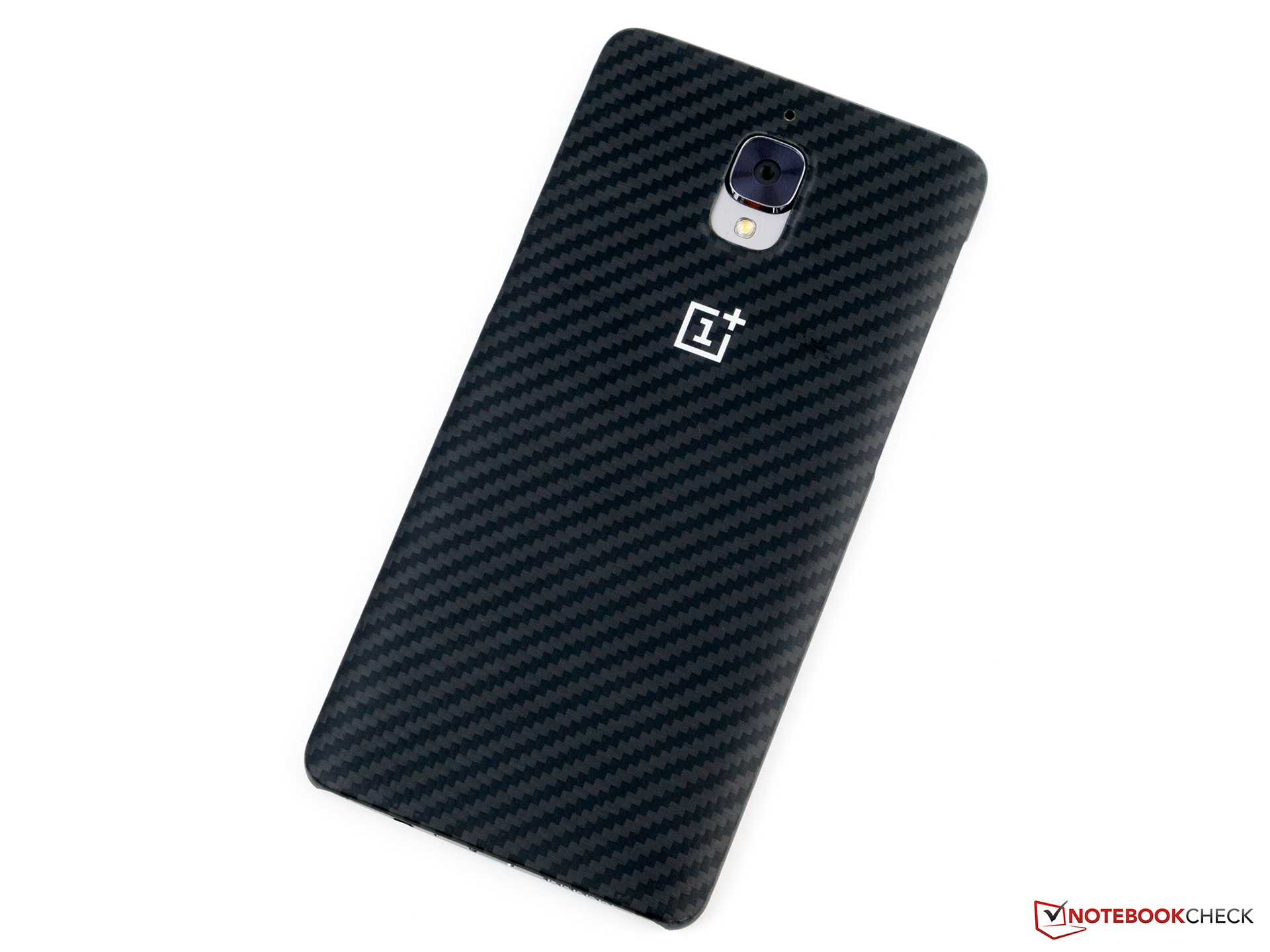

Carbon case

Input Devices & Handling

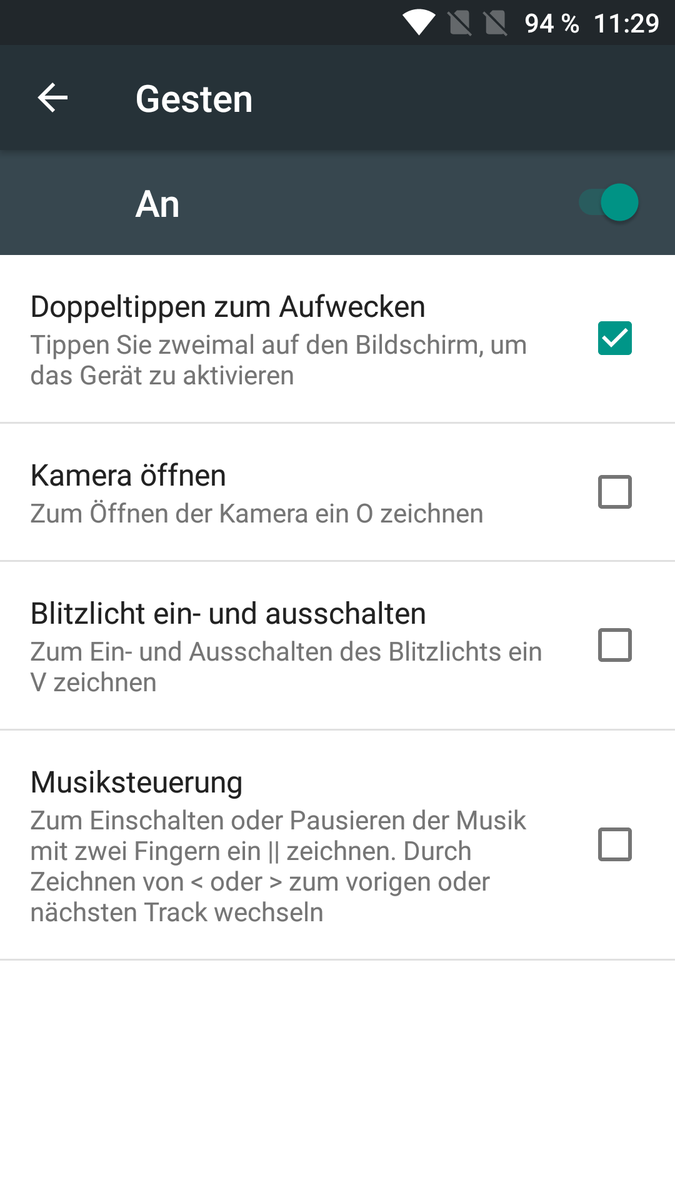

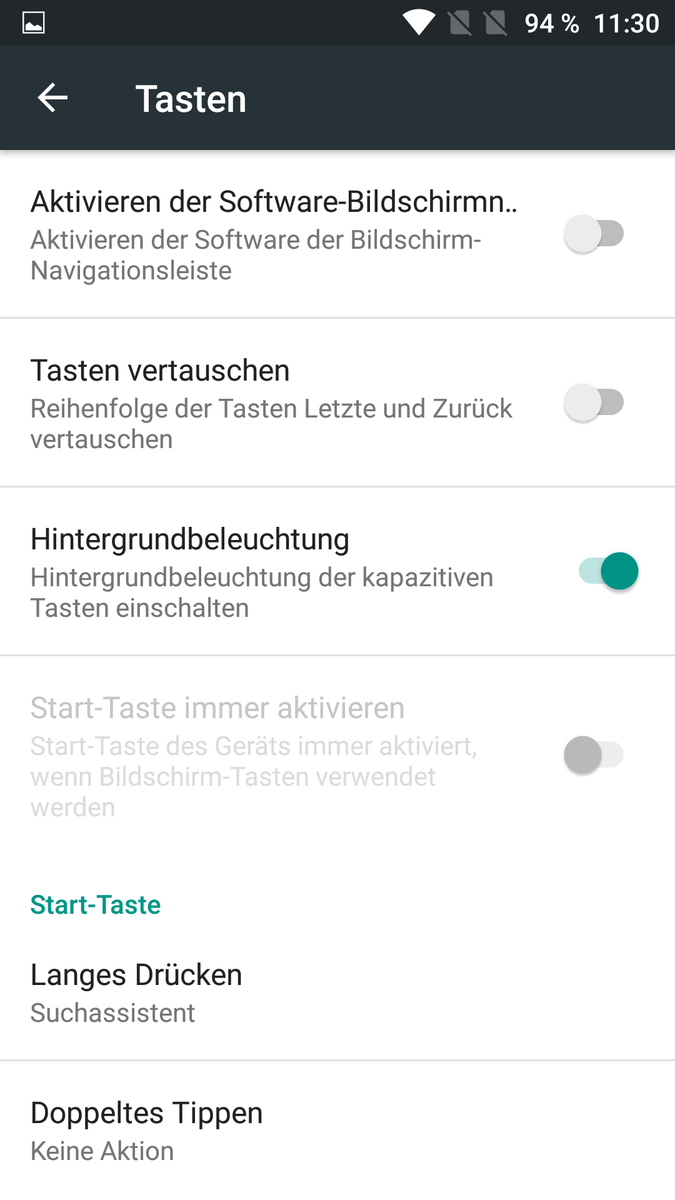

Corning Gorilla Glass 4 protects the capacitive touchscreen in the OnePlus 3 and has fantastic gliding qualities. Up to ten simultaneous touch points are detected and implemented instantaneously.

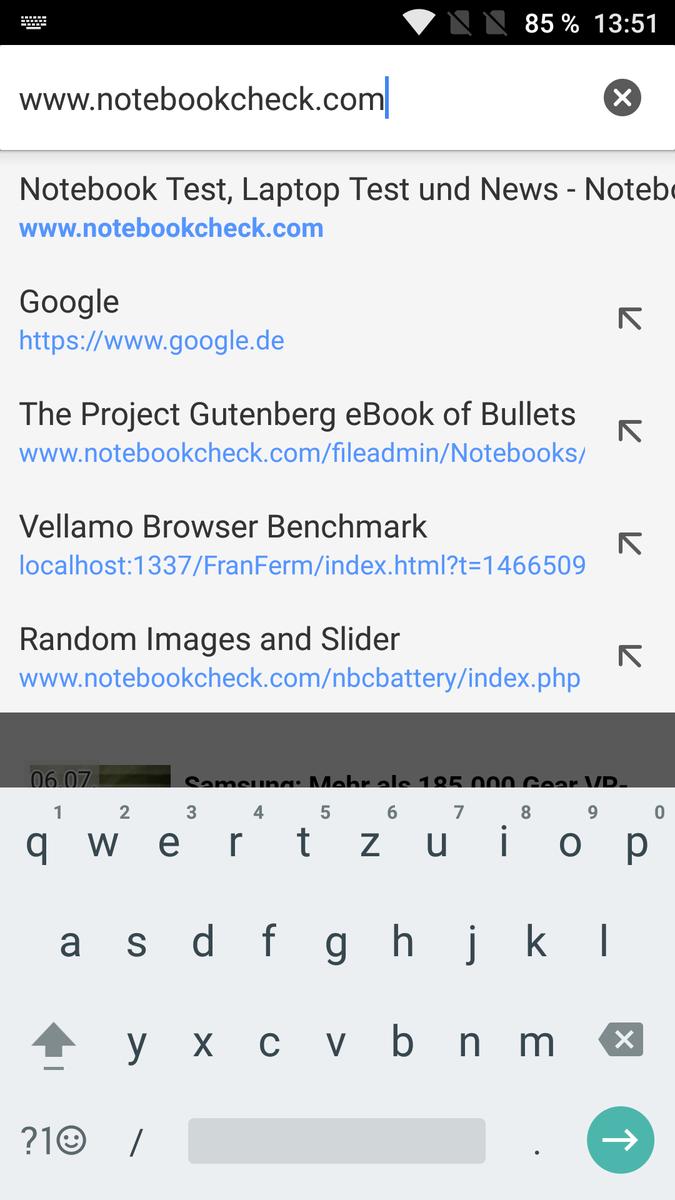

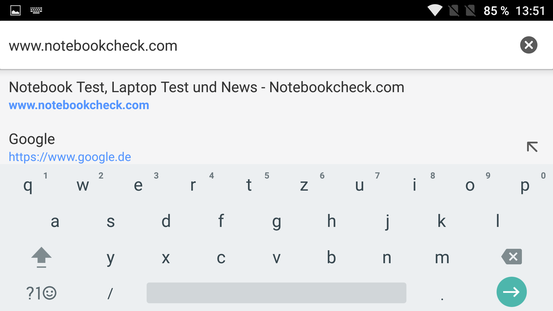

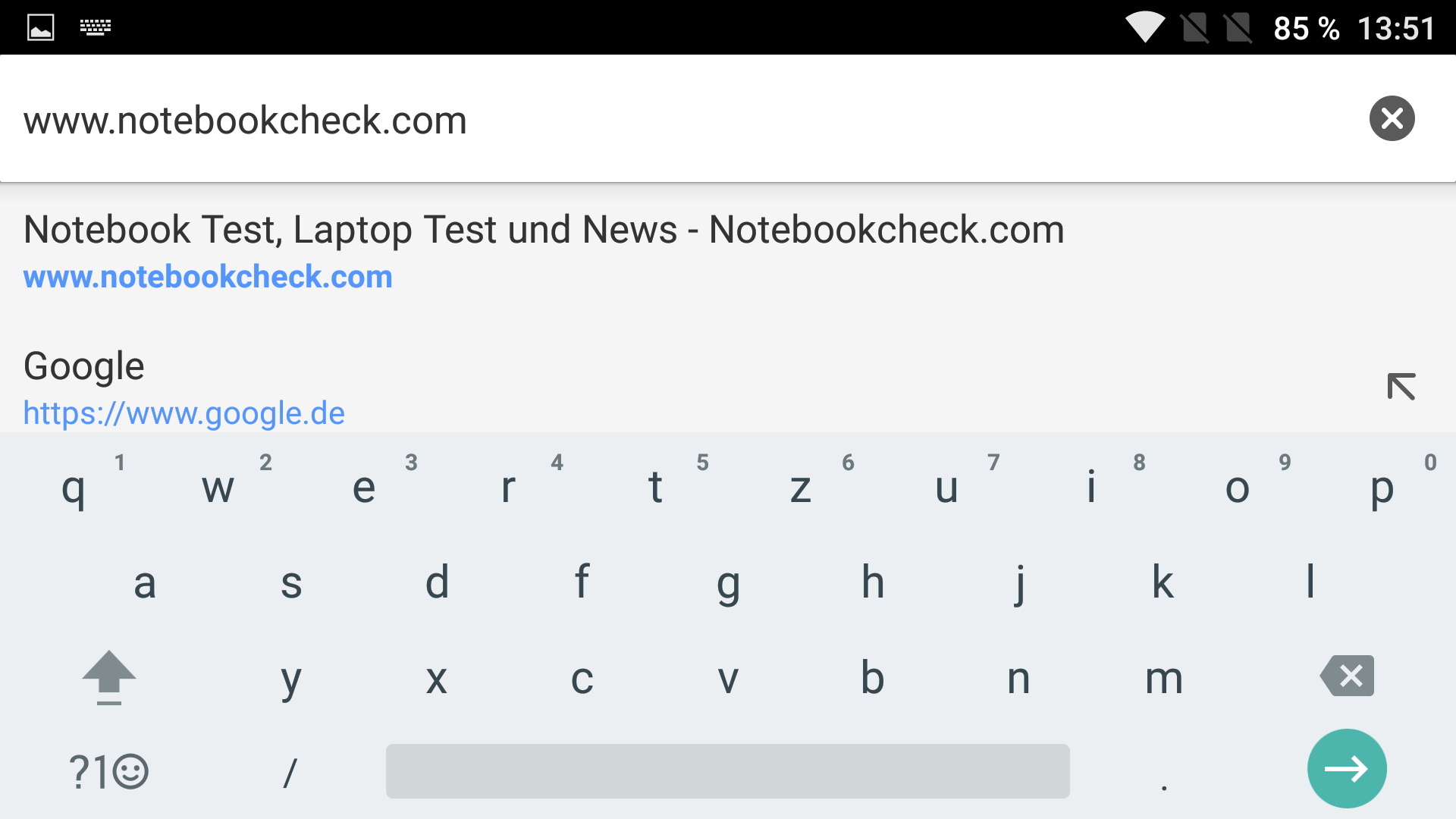

OnePlus has preloaded Google's keyboard layout, but the user can replace it with any other preferred layout. The physical buttons and the notification slider feature a good build. The volume control and power button both have a crisp pressure point and short drop. As with the predecessor, the user can decide between using the on-screen Android buttons or the sensor buttons in the casing. The fingerprint scanner cannot be used as the home button when the former is selected.

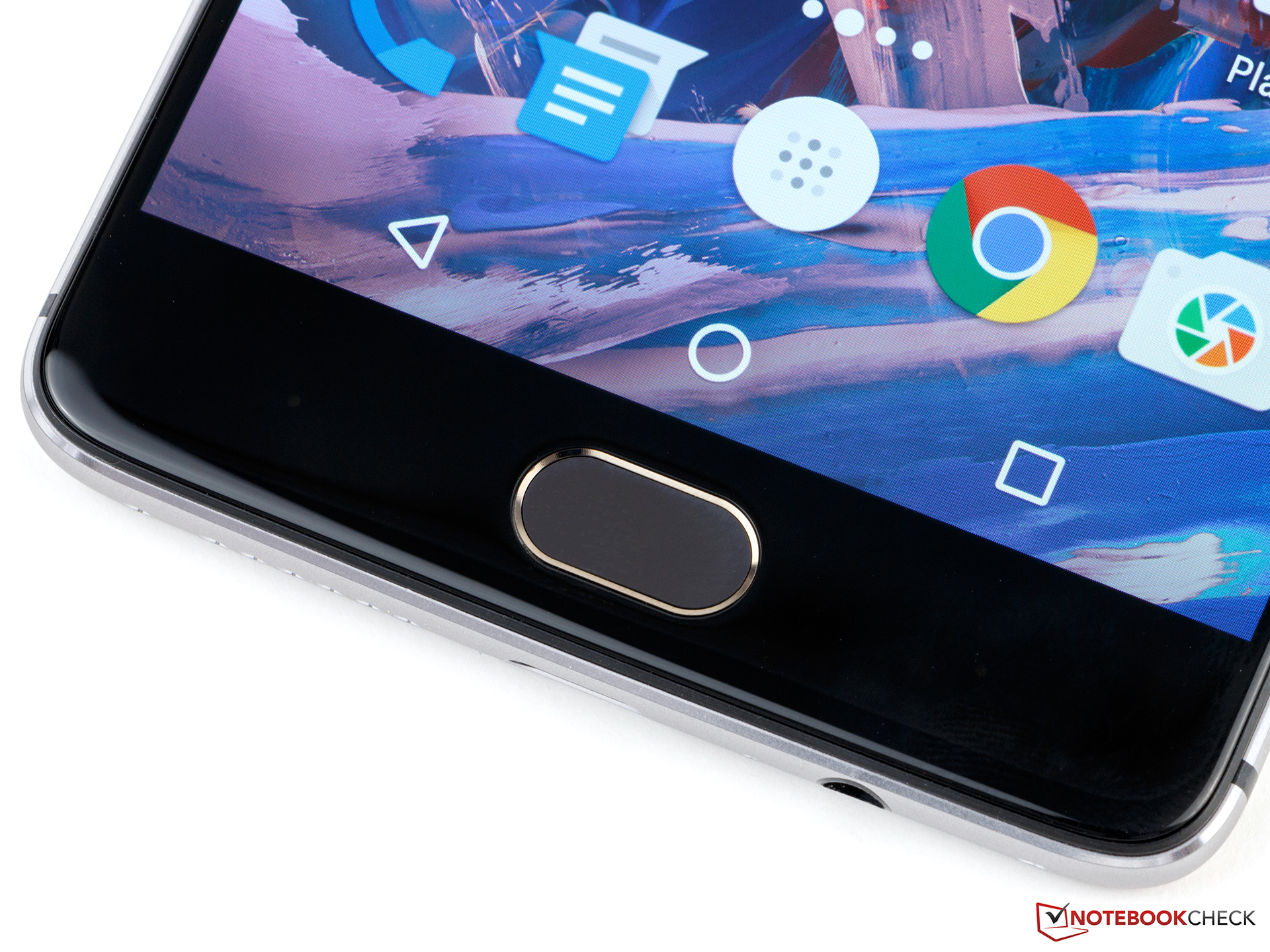

The fingerprint scanner functions impeccably and is very fast. The identification rate is beyond reproach. Face recognition can be used either in place of it or to supplement it. However, OnePlus advises caution here since similar-looking persons can also unlock the phone.

The smartphone's handling is generally very comfortable and smooth.

Display

Subpixel structure: OnePlus 3
Subpixel structure: OnePlus 3

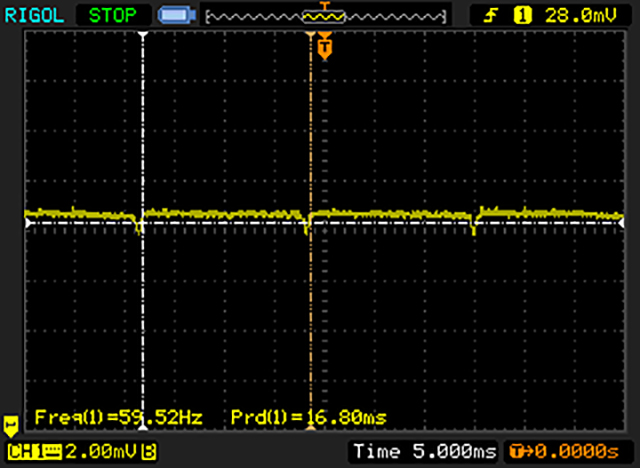

PWM flickering at full brightness
PWM flickering at full brightness

As with the predecessor, a 5.5-inch Full HD (1920x1080 pixels, 401 PPI) is installed in the OnePlus 3. However, it is not an IPS panel this time, but rather an Optic-AMOLED that promises particularly natural colors. We would have wished for a higher resolution screen here since OnePlus also utilizes virtual reality.

The brightness measured on a pure-white background is marginally lower than that of the OnePlus 2, but it is still comparatively high for an OLED panel. Only the Galaxy S7 Edge is even brighter when its light sensor is enabled. The brightness is slightly lower when the light sensor is active in the OnePlus 3. The review sample even achieves 532 cd/m² in the screen's center in the more practical measurement of evenly distributed bright and dark areas (APL 50). Black is really black thanks to the screen's underlying technology, and this leads to an unbeatable contrast ratio.

PWM flickering is almost inevitable in OLED technology. This appears at approximately 240 Hz when the screen's brightness is set to 10%. PWM at 60 Hz can also be detected when the screen is set to maximum brightness. Seen purely subjectively, this low frequency will not be noticed unfavorably in everyday use. However, users who like to use their smartphone in minimum brightness at night in bed will definitely notice flickering. The night mode does not have an impact on PWM behavior and only reduces the blue light fraction in the image. It can be customized in the settings.

471
cd/m²
421
cd/m²
398
cd/m²
468
cd/m²
419
cd/m²
399
cd/m²
475
cd/m²
429
cd/m²
399
cd/m²
Distribution of brightness
X-Rite i1Pro 2
Maximum: 475 cd/m² Average: 431 cd/m² Minimum: 2.24 cd/m²
Brightness Distribution: 84 %
Center on Battery: 419 cd/m²
Contrast: ∞:1 (Black: 0 cd/m²)
ΔE Color 4.1 | 0.6-29.43 Ø6.1
ΔE Greyscale 3.3 | 0.64-98 Ø6.3
100% sRGB (Argyll 3D) 89.38% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.1
OnePlus 3
Optic-AMOLED, 1920x1080, 5.5
OnePlus 2
IPS, 1920x1080, 5.5
Samsung Galaxy S7 Edge
Super AMOLED, 2560x1440, 5.5
LG G5
IPS Quantum, 2560x1440, 5.3
HTC 10
Super LCD 5, 2560x1440, 5.2
Huawei P9
IPS-NEO, JDI, 1920x1080, 5.2
Microsoft Lumia 950 XL
AMOLED, 2560x1440, 5.7
Apple iPhone 6S Plus
IPS, 1920x1080, 5.5
Screen
-6%
31%
-6%
15%
6%
5%
4%
Brightness middle
419
451
8%
554
32%
784
87%
445
6%
582
39%
297
-29%
583
39%
Brightness
431
446
3%
552
28%
774
80%
434
1%
563
31%
297
-31%
560
30%
Brightness Distribution
84
90
7%
96
14%
91
8%
93
11%
91
8%
93
11%
91
8%
Black Level *
0.3
0.43
0.36
0.38
0.46
Colorchecker DeltaE2000 *
4.1
3.84
6%
1.59
61%
6.5
-59%
2.8
32%
4.4
-7%
2.67
35%
3.55
13%
Colorchecker DeltaE2000 max. *
12
2.56
79%
11.7
2%
5.8
52%
7.4
38%
3.98
67%
Greyscale DeltaE2000 *
3.3
3.97
-20%
2.01
39%
8
-142%
3.7
-12%
4.8
-45%
2.81
15%
3.88
-18%
Gamma
2.1 105%
2.46 89%
2.01 109%
2.22 99%
2.31 95%
2.2 100%
2.08 106%
2.2 100%
CCT
6550 99%
7283 89%
6321 103%
8699 75%
7164 91%
6175 105%
6379 102%
7280 89%
Color Space (Percent of AdobeRGB 1998)
89.38
58.07
-35%
82.12
-8%
68.08
-24%
77.78
-13%
66.31
-26%
59.05
-34%
Color Space (Percent of sRGB)
100
90.14
-10%
99.98
0%
97.46
-3%
99.44
-1%
99.79
0%
92.8
-7%
Contrast
1503
1823
1236
1532
1267

* ... smaller is better

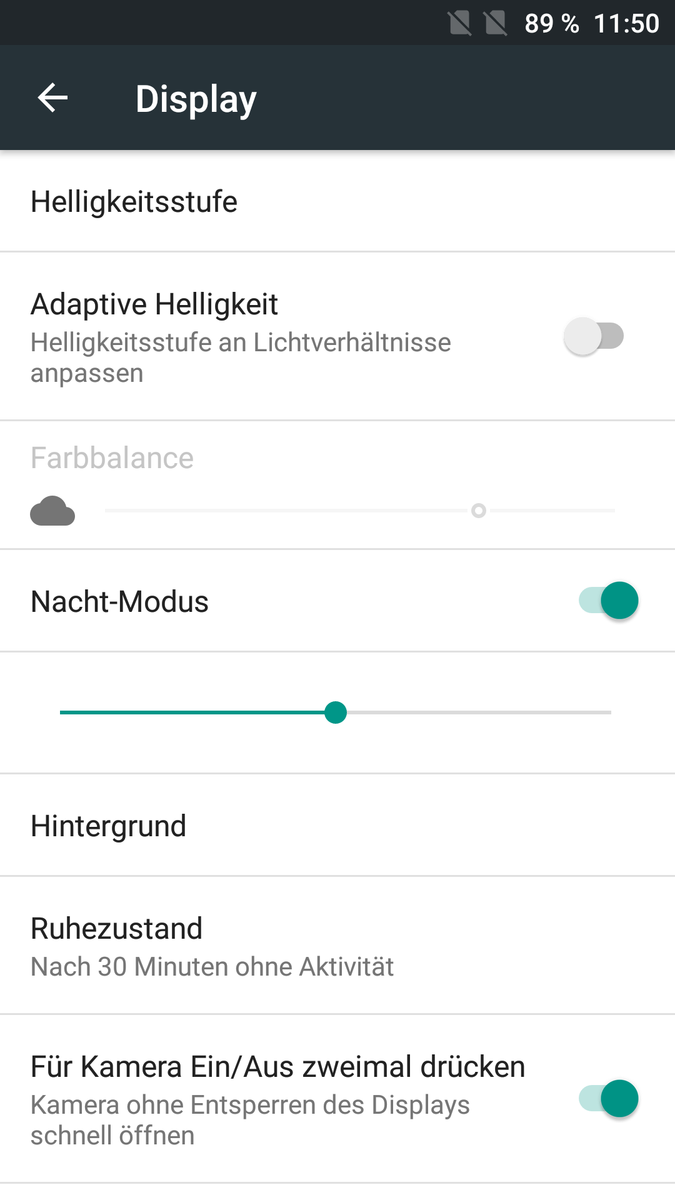

Unlike Samsung's smartphones, the OnePlus 3 does not have color profiles. Instead, only the color balance can be adjusted. It has a light bluish tint ex-factory, which leads to a cool image reproduction. Users who want colors to look as natural as possible should set the slider to maximum. Although a light purplish mist covers bright areas of the displayed content, it is not noticed in everyday use.

The OnePlus 3 tends to overdo it in red tones, and displays these much too saturated. This leads to a DeltaE deviation of up to 17. Overall, the OnePlus 3 is impressive, but cannot compete with the panel-leader Galaxy S7 or even the Lumia 950 XL. The sRGB mode that comes with the OxygenOS 3.2 update can be enabled in the developer options. However, we would not recommend doing this. As the measurements using maximum screen brightness show, the color reproduction is then very good, but the image looks very warm in dimmed screen brightness. Furthermore, it is no longer possible to counter this via the color balance slider since it is then disabled. The reduction of the reproducible color space is the worst thing: Up to 100% is still covered ex-factory, but paradoxically only about 70% is covered in sRGB mode. The AdobeRGB color space coverage even drops from 89 to almost 45%. The way things are now, the sRGB mode is just a sham. However, the factory calibration is quite acceptable and well-implemented.

Grayscale (factory setting, target color space: sRGB)
Grayscale (factory setting, target color space: sRGB)

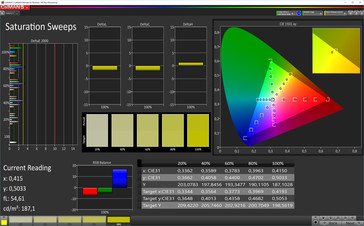

Saturation Sweeps (factory setting, target color space: sRGB)
Saturation Sweeps (factory setting, target color space: sRGB)
ColorChecker (factory setting, target color space: sRGB)
ColorChecker (factory setting, target color space: sRGB)
ColorChecker (factory setting, target color space: AdobeRGB)
ColorChecker (factory setting, target color space: AdobeRGB)
Grayscale (max. color balance, target color space: sRGB)
Grayscale (max. color balance, target color space: sRGB)
Saturation Sweeps (max. color balance, target color space: sRGB)
Saturation Sweeps (max. color balance, target color space: sRGB)
ColorChecker (max. color balance, target color space: sRGB)
ColorChecker (max. color balance, target color space: sRGB)
ColorChecker (max. color balance, target color space: AdobeRGB)
ColorChecker (max. color balance, target color space: AdobeRGB)

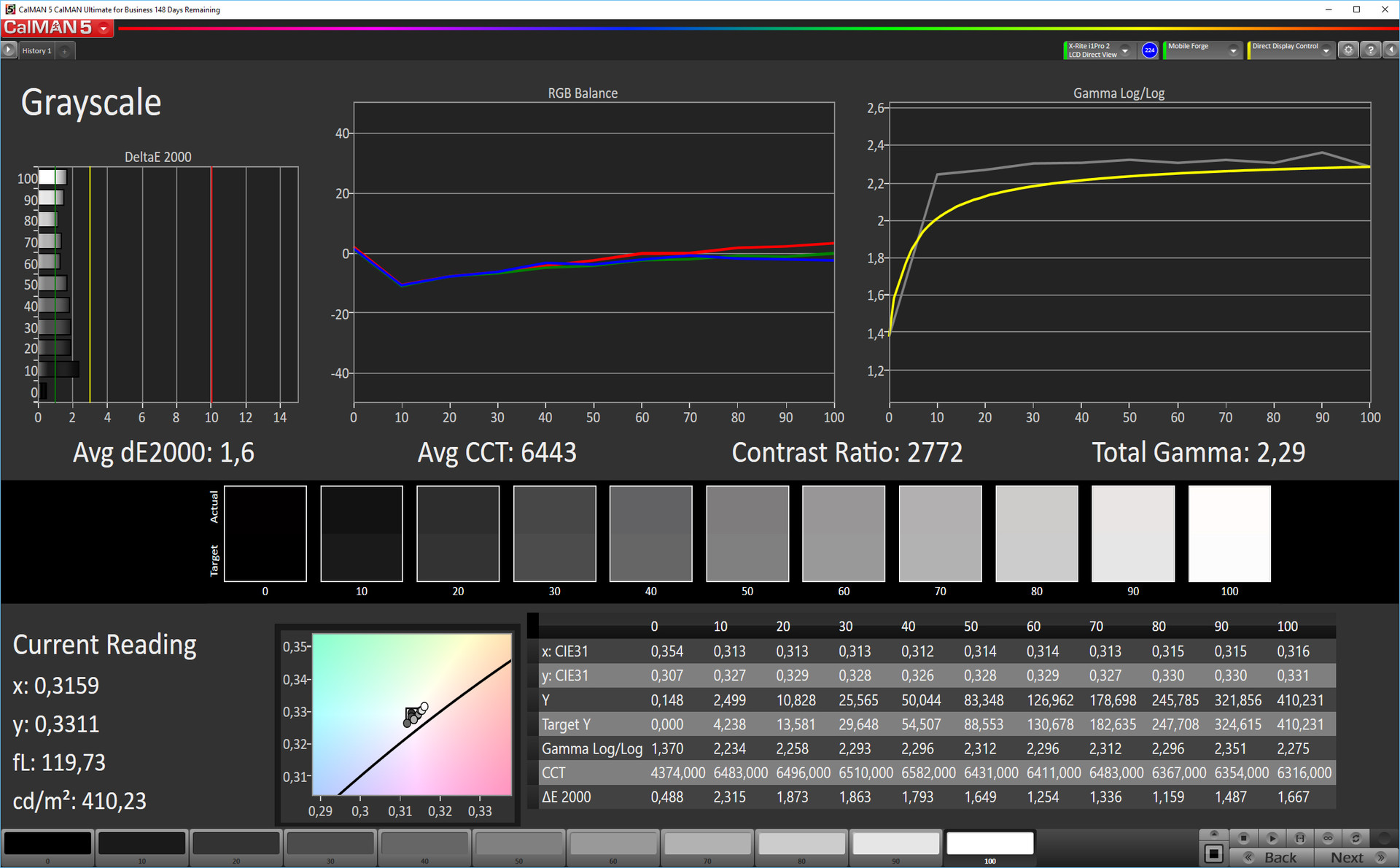

Grayscale (sRGB mode, target color space: sRGB)
Grayscale (sRGB mode, target color space: sRGB)

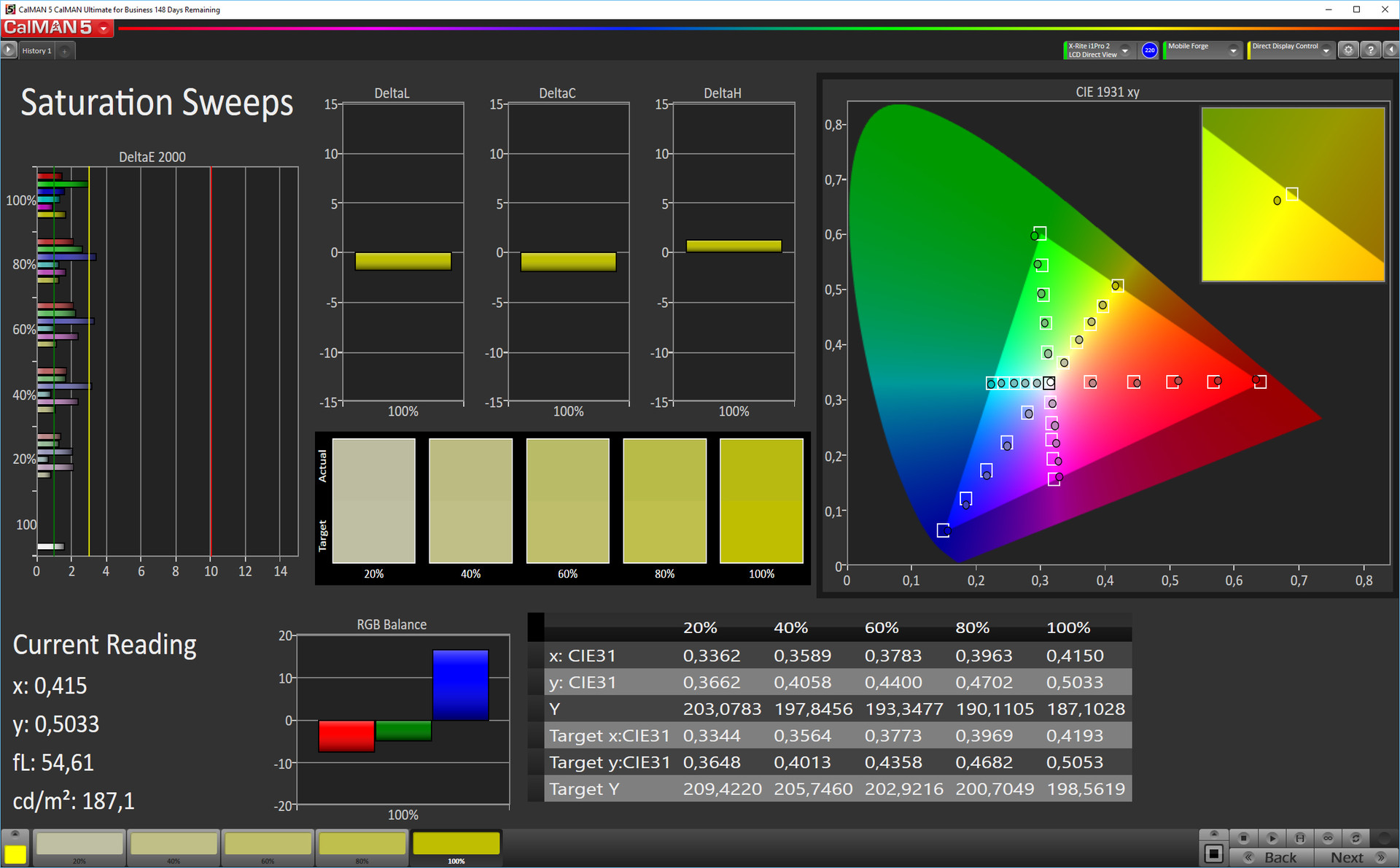

Saturation Sweeps (sRGB mode, target color space: sRGB)
Saturation Sweeps (sRGB mode, target color space: sRGB)

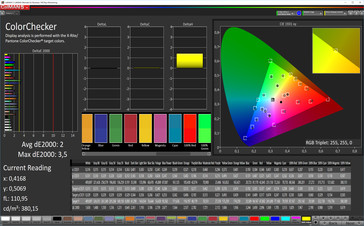

ColorChecker (sRGB mode, target color space: sRGB)
ColorChecker (sRGB mode, target color space: sRGB)

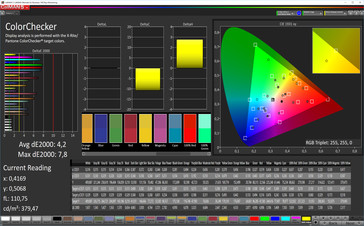

ColorChecker (sRGB mode, target color space: AdobeRGB)
ColorChecker (sRGB mode, target color space: AdobeRGB)

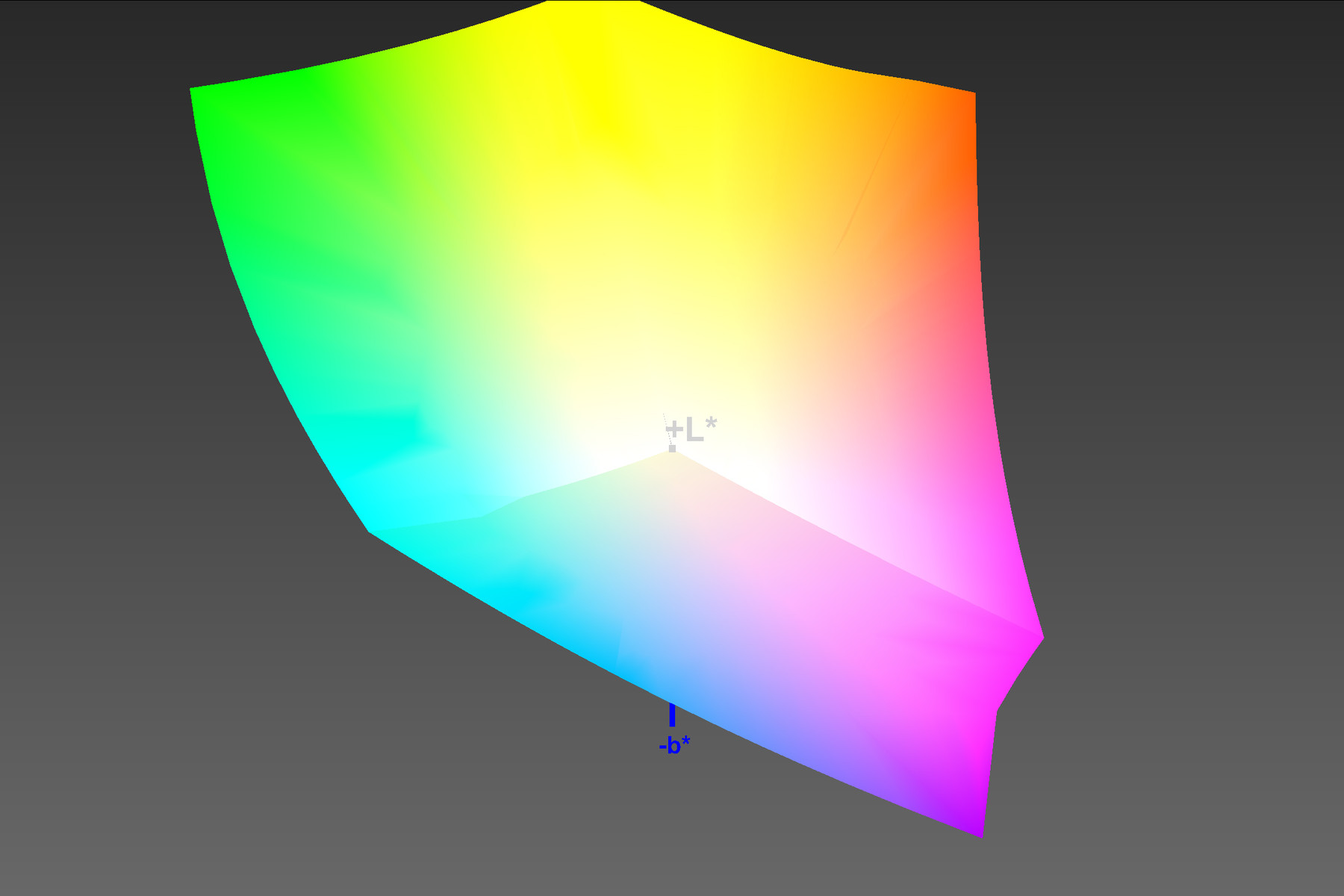

sRGB color space coverage: 100%
sRGB color space coverage: 100%

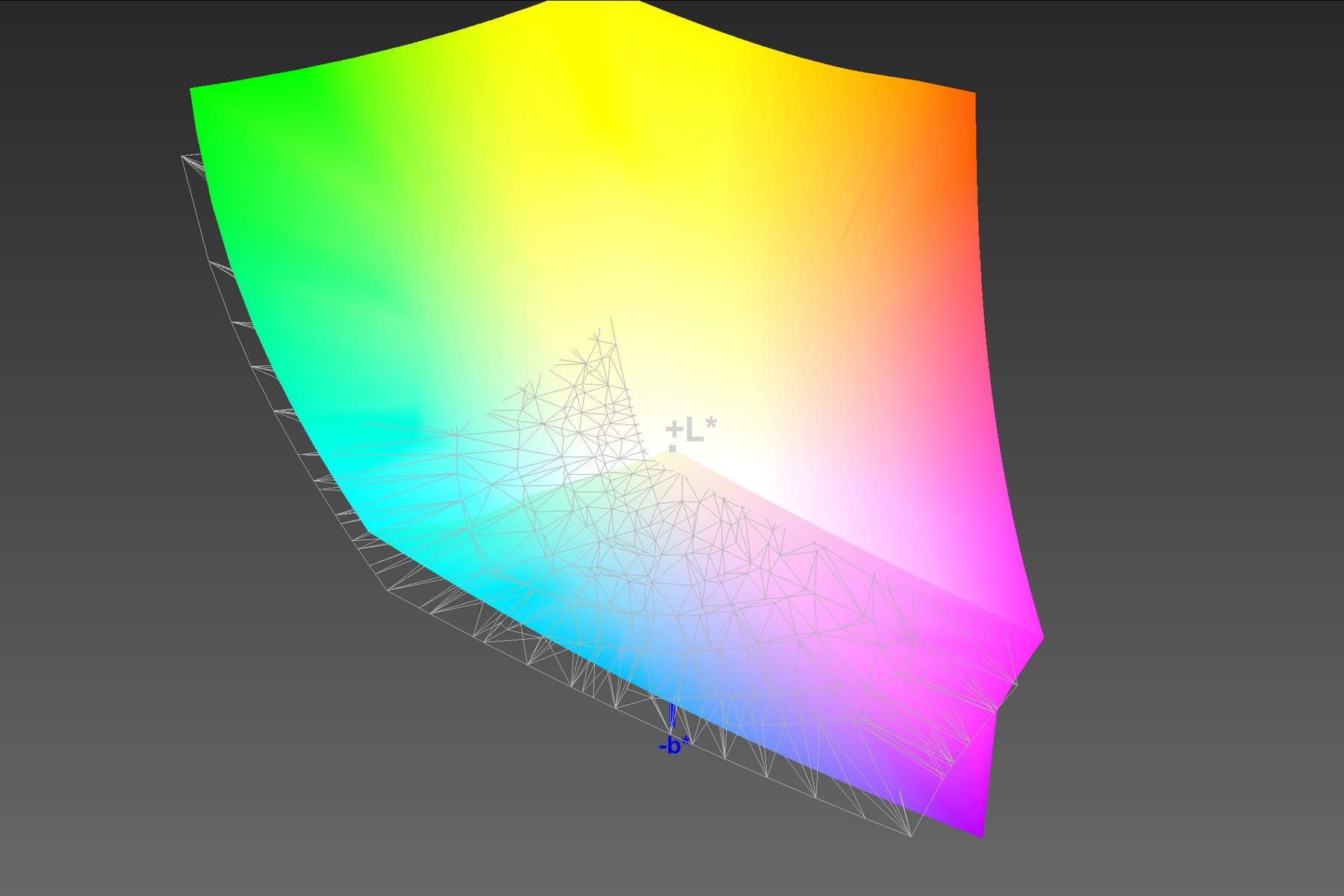

AdobeRGB color space coverage: 89.38%
AdobeRGB color space coverage: 89.38%

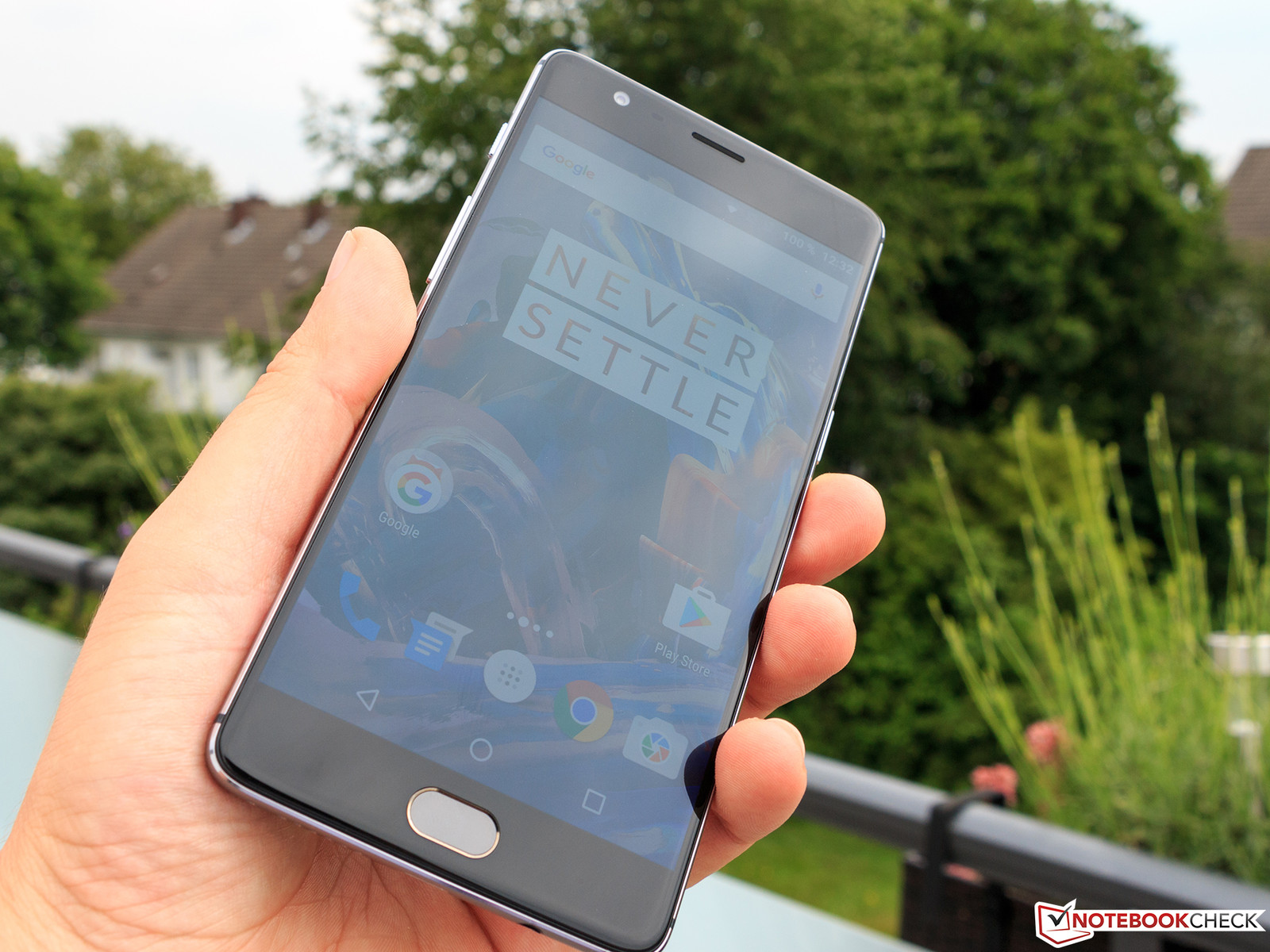

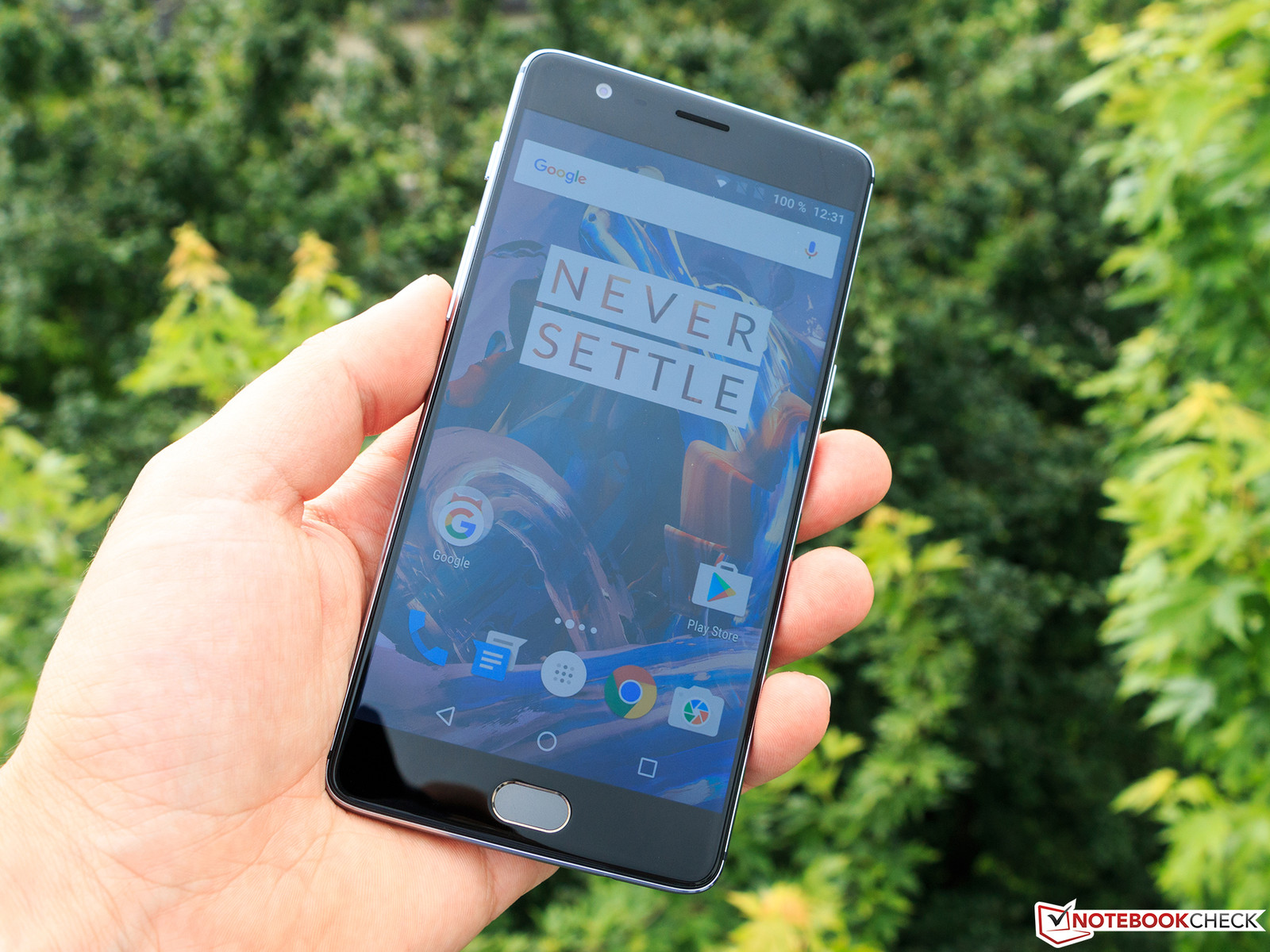

The OnePlus 3 does a good outdoor job. The OLED panel's strong contrast and high brightness provide good preconditions. In addition, the screen's glass has a polarized layer that helps to reduce reflections.

The OnePlus 3 is impressive in everyday outdoor use. Although reading the content is difficult in bright sunlight, otherwise it is beyond reproach.

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.
       Response Time Black to White
11 ms ... rise ↗ and fall ↘ combined↗ 6 ms rise
↘ 5 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 10 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (25.1 ms).
       Response Time 50% Grey to 80% Grey
11 ms ... rise ↗ and fall ↘ combined↗ 6 ms rise
↘ 5 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers.
In comparison, all tested devices range from 0.9 (minimum) to 636 (maximum) ms. » 7 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (40 ms).

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.
Screen flickering / PWM detected 243.9 Hz

The display backlight flickers at 243.9 Hz (Likely utilizing PWM) .

The frequency of 243.9 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below.

In comparison: 51 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 9418 (minimum: 43 - maximum: 142900) Hz was measured.

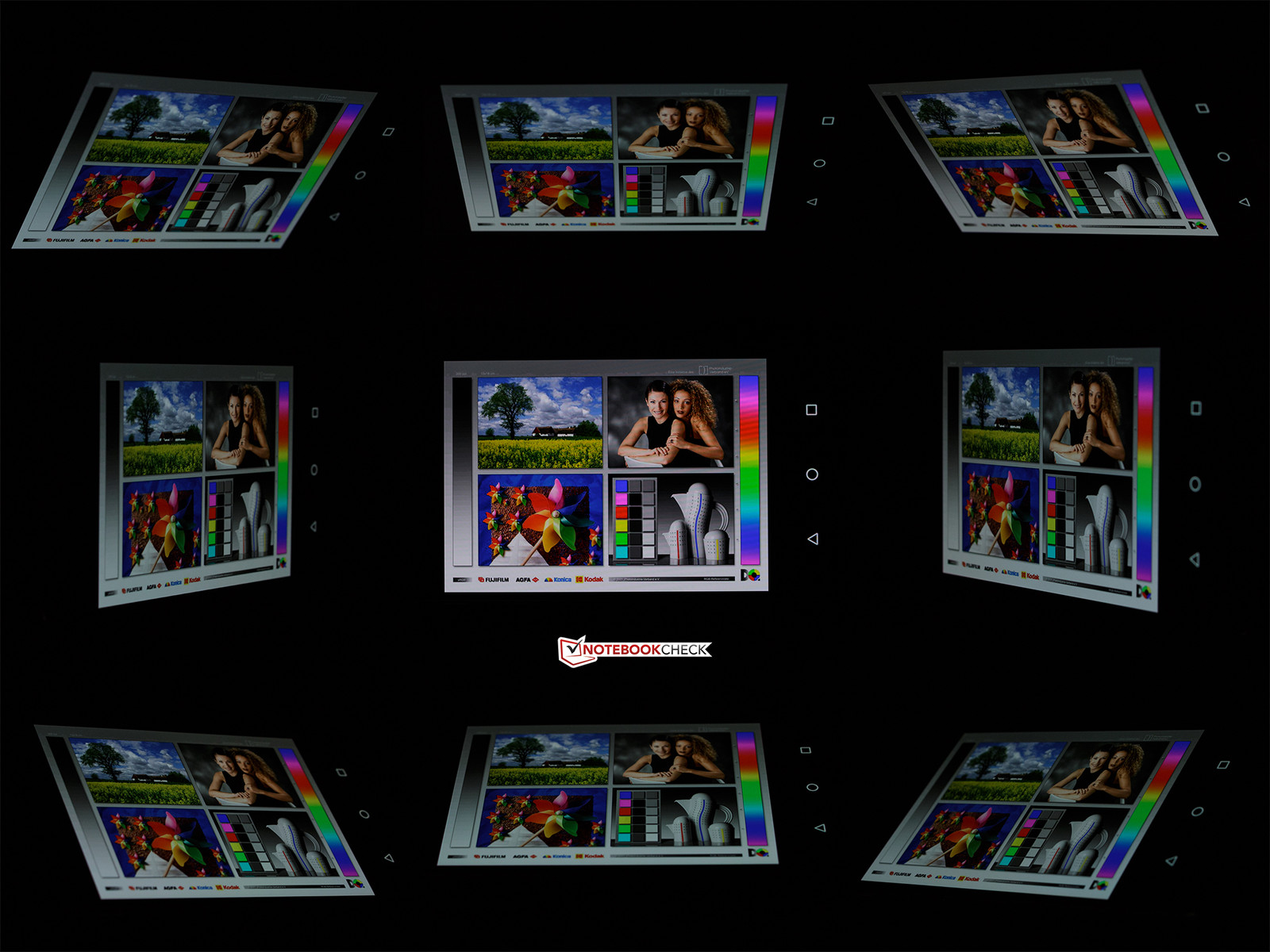

As expected, the viewing angle stability of the OnePlus 3 is very good. Colors do not invert and displayed content remains legible even from very flat viewing angles. The brightness only starts to decrease marginally at about 30 degrees, and a thin haze of green covers the reproduction.

Performance

The OnePlus 3 relies on the currently strongest SoC by Qualcomm - the Snapdragon 820 MSM8996. It offers two low-power and two performance cores. The first clock at 310 to 1600 MHz and the two stronger ones achieve up to 2150 MHz. The SoC is also found in HTC 10'sXiaomi's Mi 5 and LG's G5. It is supported by the integrated Adreno 530 graphics unit. OnePlus was not tight-fisted with working memory and has installed a generous 6 GB of LPDDR4 RAM. We doubt that this is really needed; however, the smartphone is setup perfectly for the future with that.

The OnePlus 3 scores outstandingly in the benchmarks, and even surpasses some rivals based on the same SoC. This is particularly evident in the graphics benchmarks. For example, it achieves an 18% higher result than HTC's in 3DMark Sling Shot, and even beats the Galaxy S7 Edge and the iPhone 6s Plus in some tests. Its CPU performance is within the expected range.

The OnePlus 3 stands head and shoulders above the rest in the system benchmarks. This confirms our subjective impression of a very smooth running OxygenOS. The review sample places itself at the front in the comparison field in both AnTuTu and PCMark, and even outperforms Huawei's P9. Only the iPhone is slightly faster in Basemark OS II.

AnTuTu v6 - Total Score (sort by value)
OnePlus 3
142090 Points ∼50%
OnePlus 2
65936 Points ∼23% -54%
Samsung Galaxy S7 Edge
128749 Points ∼45% -9%
LG G5
124244 Points ∼44% -13%
HTC 10
131866 Points ∼47% -7%
Huawei P9
95743 Points ∼34% -33%
Google Nexus 6P
79502 Points ∼28% -44%
Motorola Moto X Force
89911 Points ∼32% -37%
Sony Xperia Z5 Premium
78324 Points ∼28% -45%
Apple iPhone 6S Plus
133626 Points ∼47% -6%
Microsoft Lumia 950 XL
94122 Points ∼33% -34%
PCMark for Android - Work performance score (sort by value)
OnePlus 3
7101 Points ∼36%
OnePlus 2
4282 Points ∼22% -40%
Samsung Galaxy S7 Edge
4660 Points ∼24% -34%
LG G5
5581 Points ∼28% -21%
HTC 10
5809 Points ∼30% -18%
Huawei P9
7058 Points ∼36% -1%
Google Nexus 6P
4716 Points ∼24% -34%
Motorola Moto X Force
5365 Points ∼27% -24%
Sony Xperia Z5 Premium
5094 Points ∼26% -28%
BaseMark OS II
Web (sort by value)
OnePlus 3
1112 Points ∼55%
OnePlus 2
923 Points ∼45% -17%
Samsung Galaxy S7 Edge
994 Points ∼49% -11%
LG G5
900 Points ∼44% -19%
HTC 10
928 Points ∼46% -17%
Huawei P9
1029 Points ∼51% -7%
Google Nexus 6P
791 Points ∼39% -29%
Motorola Moto X Force
939 Points ∼46% -16%
Sony Xperia Z5 Premium
986 Points ∼48% -11%
Apple iPhone 6S Plus
1199 Points ∼59% +8%
Microsoft Lumia 950 XL
837 Points ∼41% -25%
Graphics (sort by value)
OnePlus 3
4813 Points ∼17%
OnePlus 2
2631 Points ∼9% -45%
Samsung Galaxy S7 Edge
2203 Points ∼8% -54%
LG G5
4807 Points ∼17% 0%
HTC 10
5009 Points ∼17% +4%
Huawei P9
1583 Points ∼5% -67%
Google Nexus 6P
2424 Points ∼8% -50%
Motorola Moto X Force
3376 Points ∼12% -30%
Sony Xperia Z5 Premium
3137 Points ∼11% -35%
Apple iPhone 6S Plus
4299 Points ∼15% -11%
Microsoft Lumia 950 XL
2040 Points ∼7% -58%
Memory (sort by value)
OnePlus 3
2052 Points ∼27%
OnePlus 2
1297 Points ∼17% -37%
Samsung Galaxy S7 Edge
2072 Points ∼28% +1%
LG G5
1478 Points ∼20% -28%
HTC 10
1772 Points ∼24% -14%
Huawei P9
2627 Points ∼35% +28%
Google Nexus 6P
1136 Points ∼15% -45%
Motorola Moto X Force
1085 Points ∼14% -47%
Sony Xperia Z5 Premium
876 Points ∼12% -57%
Apple iPhone 6S Plus
1124 Points ∼15% -45%
Microsoft Lumia 950 XL
1945 Points ∼26% -5%
System (sort by value)
OnePlus 3
3537 Points ∼21%
OnePlus 2
2536 Points ∼15% -28%
Samsung Galaxy S7 Edge
4080 Points ∼25% +15%
LG G5
2925 Points ∼18% -17%
HTC 10
2806 Points ∼17% -21%
Huawei P9
3930 Points ∼24% +11%
Google Nexus 6P
1798 Points ∼11% -49%
Motorola Moto X Force
2878 Points ∼17% -19%
Sony Xperia Z5 Premium
2737 Points ∼17% -23%
Apple iPhone 6S Plus
3925 Points ∼24% +11%
Microsoft Lumia 950 XL
1386 Points ∼8% -61%
Overall (sort by value)
OnePlus 3
2496 Points ∼30%
OnePlus 2
1681 Points ∼20% -33%
Samsung Galaxy S7 Edge
2074 Points ∼25% -17%
LG G5
2079 Points ∼25% -17%
HTC 10
2193 Points ∼26% -12%
Huawei P9
2025 Points ∼24% -19%
Google Nexus 6P
1405 Points ∼17% -44%
Motorola Moto X Force
1774 Points ∼21% -29%
Sony Xperia Z5 Premium
1649 Points ∼20% -34%
Apple iPhone 6S Plus
2206 Points ∼26% -12%
Microsoft Lumia 950 XL
1465 Points ∼17% -41%
Geekbench 3
64 Bit Multi-Core Score (sort by value)
OnePlus 3
5645 Points ∼15%
OnePlus 2
4804 Points ∼13% -15%
Samsung Galaxy S7 Edge
6480 (min: 6415) Points ∼17% +15%
LG G5
5507 Points ∼15% -2%
HTC 10
5117 Points ∼14% -9%
Huawei P9
6522 Points ∼17% +16%
Google Nexus 6P
4587 Points ∼12% -19%
Motorola Moto X Force
4791 Points ∼13% -15%
Sony Xperia Z5 Premium
4492 Points ∼12% -20%
Apple iPhone 6S Plus
4429 Points ∼12% -22%
64 Bit Single-Core Score (sort by value)
OnePlus 3
2398 Points ∼49%
OnePlus 2
1140 Points ∼23% -52%
Samsung Galaxy S7 Edge
2170 (min: 2120) Points ∼44% -10%
LG G5
2396 Points ∼49% 0%
HTC 10
2376 Points ∼48% -1%
Huawei P9
1767 Points ∼36% -26%
Google Nexus 6P
1335 Points ∼27% -44%
Motorola Moto X Force
1262 Points ∼26% -47%
Sony Xperia Z5 Premium
1335 Points ∼27% -44%
Apple iPhone 6S Plus
2538 Points ∼52% +6%
3DMark
2560x1440 Sling Shot OpenGL ES 3.0 Physics (sort by value)
OnePlus 3
1789 Points ∼40%
OnePlus 2
1414 Points ∼32% -21%
Samsung Galaxy S7 Edge
2002 (min: 1539) Points ∼45% +12%
LG G5
1695 Points ∼38% -5%
HTC 10
1512 Points ∼34% -15%
Huawei P9
2510 Points ∼56% +40%
Google Nexus 6P
1142 Points ∼26% -36%
Motorola Moto X Force
1282 Points ∼29% -28%
Sony Xperia Z5 Premium
1348 Points ∼30% -25%
Apple iPhone 6S Plus
1697 Points ∼38% -5%
2560x1440 Sling Shot OpenGL ES 3.0 Graphics (sort by value)
OnePlus 3
4633 Points ∼44%
OnePlus 2
1854 Points ∼17% -60%
Samsung Galaxy S7 Edge
3015 (min: 2895) Points ∼28% -35%
LG G5
4468 Points ∼42% -4%
HTC 10
4581 Points ∼43% -1%
Huawei P9
1080 Points ∼10% -77%
Google Nexus 6P
2302 Points ∼22% -50%
Motorola Moto X Force
3226 Points ∼30% -30%
Sony Xperia Z5 Premium
2336 Points ∼22% -50%
Apple iPhone 6S Plus
4557 Points ∼43% -2%
2560x1440 Sling Shot OpenGL ES 3.0 (sort by value)
OnePlus 3
3424 Points ∼44%
OnePlus 2
1734 Points ∼22% -49%
Samsung Galaxy S7 Edge
2710 (min: 2421) Points ∼35% -21%
LG G5
3277 Points ∼42% -4%
HTC 10
3157 Points ∼40% -8%
Huawei P9
1237 Points ∼16% -64%
Google Nexus 6P
1877 Points ∼24% -45%
Motorola Moto X Force
2413 Points ∼31% -30%
Sony Xperia Z5 Premium
2009 Points ∼26% -41%
Apple iPhone 6S Plus
3316 Points ∼42% -3%
1280x720 offscreen Ice Storm Unlimited Physics (sort by value)
OnePlus 3
21771 Points ∼25%
OnePlus 2
10985 Points ∼13% -50%
Samsung Galaxy S7 Edge
19610 Points ∼23% -10%
LG G5
20997 Points ∼24% -4%
HTC 10
20344 Points ∼24% -7%
Huawei P9
15517 Points ∼18% -29%
Google Nexus 6P
14983 Points ∼17% -31%
Motorola Moto X Force
11963 Points ∼14% -45%
Sony Xperia Z5 Premium
12852 Points ∼15% -41%
Apple iPhone 6S Plus
12854 Points ∼15% -41%
1280x720 offscreen Ice Storm Unlimited Graphics Score (sort by value)
OnePlus 3
34023 Points ∼6%
OnePlus 2
31858 Points ∼6% -6%
Samsung Galaxy S7 Edge
33031 Points ∼6% -3%
LG G5
32109 Points ∼6% -6%
HTC 10
30061 Points ∼6% -12%
Huawei P9
21577 Points ∼4% -37%
Google Nexus 6P
34758 Points ∼7% +2%
Motorola Moto X Force
38394 Points ∼7% +13%
Sony Xperia Z5 Premium
37725 Points ∼7% +11%
Apple iPhone 6S Plus
41615 Points ∼8% +22%
1280x720 offscreen Ice Storm Unlimited Score (sort by value)
OnePlus 3
30241 Points ∼13%
OnePlus 2
22400 Points ∼9% -26%
Samsung Galaxy S7 Edge
28671 Points ∼12% -5%
LG G5
28730 Points ∼12% -5%
HTC 10
27176 Points ∼11% -10%
Huawei P9
19854 Points ∼8% -34%
Google Nexus 6P
26876 Points ∼11% -11%
Motorola Moto X Force
25751 Points ∼11% -15%
Sony Xperia Z5 Premium
26380 Points ∼11% -13%
Apple iPhone 6S Plus
27795 Points ∼12% -8%
GFXBench (DX / GLBenchmark) 2.7
1920x1080 T-Rex HD Offscreen C24Z16 (sort by value)
OnePlus 3
89 fps ∼1%
OnePlus 2
48 fps ∼0% -46%
Samsung Galaxy S7 Edge
81 fps ∼1% -9%
LG G5
74 fps ∼1% -17%
HTC 10
73 fps ∼1% -18%
Huawei P9
40 fps ∼0% -55%
Google Nexus 6P
44 fps ∼0% -51%
Motorola Moto X Force
58 fps ∼0% -35%
Sony Xperia Z5 Premium
56 fps ∼0% -37%
Apple iPhone 6S Plus
78.9 fps ∼1% -11%
Microsoft Lumia 950 XL
27.11 fps ∼0% -70%
T-Rex HD Onscreen C24Z16 (sort by value)
OnePlus 3
60 fps ∼2%
OnePlus 2
47 fps ∼1% -22%
Samsung Galaxy S7 Edge
51 fps ∼2% -15%
LG G5
47 fps ∼1% -22%
HTC 10
43 fps ∼1% -28%
Huawei P9
43 fps ∼1% -28%
Google Nexus 6P
33 fps ∼1% -45%
Motorola Moto X Force
42 fps ∼1% -30%
Sony Xperia Z5 Premium
52 fps ∼2% -13%
Apple iPhone 6S Plus
59 fps ∼2% -2%
Microsoft Lumia 950 XL
18.75 fps ∼1% -69%
GFXBench 3.0
off screen Manhattan Offscreen OGL (sort by value)
OnePlus 3
47 fps ∼9%
OnePlus 2
23 fps ∼4% -51%
Samsung Galaxy S7 Edge
38 fps ∼7% -19%
LG G5
42 fps ∼8% -11%
HTC 10
39 fps ∼7% -17%
Huawei P9
18 fps ∼3% -62%
Google Nexus 6P
25 fps ∼5% -47%
Motorola Moto X Force
27 fps ∼5% -43%
Sony Xperia Z5 Premium
25 fps ∼5% -47%
Apple iPhone 6S Plus
38.4 fps ∼7% -18%
Microsoft Lumia 950 XL
17.54 fps ∼3% -63%
on screen Manhattan Onscreen OGL (sort by value)
OnePlus 3
46 fps ∼13%
OnePlus 2
23 fps ∼6% -50%
Samsung Galaxy S7 Edge
27 fps ∼7% -41%
LG G5
30 fps ∼8% -35%
HTC 10
24 fps ∼7% -48%
Huawei P9
19 fps ∼5% -59%
Google Nexus 6P
17 fps ∼5% -63%
Motorola Moto X Force
17 fps ∼5% -63%
Sony Xperia Z5 Premium
27 fps ∼7% -41%
Apple iPhone 6S Plus
38.4 fps ∼11% -17%
Microsoft Lumia 950 XL
11.81 fps ∼3% -74%
GFXBench 3.1
off screen Manhattan ES 3.1 Offscreen (sort by value)
OnePlus 3
31 fps ∼1%
OnePlus 2
19 fps ∼0% -39%
Samsung Galaxy S7 Edge
28 fps ∼1% -10%
LG G5
31 fps ∼1% 0%
HTC 10
24 fps ∼1% -23%
Huawei P9
10 fps ∼0% -68%
Google Nexus 6P
16 fps ∼0% -48%
Motorola Moto X Force
20 fps ∼0% -35%
Sony Xperia Z5 Premium
18 fps ∼0% -42%
Apple iPhone 6S Plus
28 fps ∼1% -10%
on screen Manhattan ES 3.1 Onscreen (sort by value)
OnePlus 3
30 fps ∼1%
OnePlus 2
19 fps ∼1% -37%
Samsung Galaxy S7 Edge
15 fps ∼0% -50%
LG G5
17 fps ∼0% -43%
HTC 10
14 fps ∼0% -53%
Huawei P9
11 fps ∼0% -63%
Google Nexus 6P
9.5 fps ∼0% -68%
Motorola Moto X Force
12 fps ∼0% -60%
Sony Xperia Z5 Premium
19 fps ∼1% -37%
Apple iPhone 6S Plus
28 fps ∼1% -7%
GFXBench
off screen Car Chase Offscreen (sort by value)
OnePlus 3
18 fps ∼5%
OnePlus 2
11 fps ∼3% -39%
Samsung Galaxy S7 Edge
15 fps ∼4% -17%
LG G5
18 fps ∼5% 0%
HTC 10
18 fps ∼5% 0%
Huawei P9
6.5 fps ∼2% -64%
Motorola Moto X Force
12 fps ∼3% -33%
Sony Xperia Z5 Premium
5.8 fps ∼1% -68%
on screen Car Chase Onscreen (sort by value)
OnePlus 3
18 fps ∼11%
OnePlus 2
11 fps ∼6% -39%
Samsung Galaxy S7 Edge
7.9 fps ∼5% -56%
LG G5
11 fps ∼6% -39%
HTC 10
10 fps ∼6% -44%
Huawei P9
7.1 fps ∼4% -61%
Motorola Moto X Force
7.3 fps ∼4% -59%
Sony Xperia Z5 Premium
6.1 fps ∼4% -66%
Lightmark - 1920x1080 1080p (sort by value)
OnePlus 3
23.32 fps ∼60%
OnePlus 2
15.68 fps ∼41% -33%
Samsung Galaxy S7 Edge
13.31 fps ∼34% -43%
LG G5
25.26 fps ∼65% +8%
Huawei P9
7.9 fps ∼20% -66%
Sony Xperia Z5 Premium
14.52 fps ∼38% -38%
Basemark ES 3.1 / Metal - offscreen Overall Score (sort by value)
OnePlus 3
631 Points ∼12%
OnePlus 2
427 Points ∼8% -32%
Samsung Galaxy S7 Edge
733 Points ∼14% +16%
LG G5
543 Points ∼10% -14%
HTC 10
608 Points ∼11% -4%
Huawei P9
328 Points ∼6% -48%
Sony Xperia Z5 Premium
478 Points ∼9% -24%
Apple iPhone 6S Plus
858 Points ∼16% +36%
Basemark X 1.1 - High Quality (sort by value)
OnePlus 3
33064 Points ∼75%
OnePlus 2
21533 Points ∼49% -35%
Samsung Galaxy S7 Edge
32273 Points ∼73% -2%
LG G5
25532 Points ∼58% -23%
Huawei P9
16610 Points ∼38% -50%
Sony Xperia Z5 Premium
23747 Points ∼54% -28%

Legend


OnePlus 3 Qualcomm Snapdragon 820 MSM8996, Qualcomm Adreno 530, 64 GB UFS 2.0 Flash

OnePlus 2 Qualcomm Snapdragon 810 MSM8994, Qualcomm Adreno 430, 64 GB eMMC Flash

Samsung Galaxy S7 Edge Samsung Exynos 8890 Octa, ARM Mali-T880 MP12, 32 GB UFS 2.0 Flash

LG G5 Qualcomm Snapdragon 820 MSM8996, Qualcomm Adreno 530, 32 GB eMMC Flash

HTC 10 Qualcomm Snapdragon 820 MSM8996, Qualcomm Adreno 530, 32 GB eMMC Flash

Huawei P9 HiSilicon Kirin 955, ARM Mali-T880 MP4, 32 GB eMMC Flash

Google Nexus 6P Qualcomm Snapdragon 810 MSM8994, Qualcomm Adreno 430, 32 GB eMMC Flash

Motorola Moto X Force Qualcomm Snapdragon 810 MSM8994, Qualcomm Adreno 430, 32 GB eMMC Flash

Sony Xperia Z5 Premium Qualcomm Snapdragon 810 MSM8994, Qualcomm Adreno 430, 32 GB eMMC Flash

Apple iPhone 6S Plus Apple A9, Apple A9 / PowerVR GT7600, Apple AP0064K (iPhone NVMe)

Microsoft Lumia 950 XL Qualcomm Snapdragon 810 MSM8994, Qualcomm Adreno 430, 32 GB eMMC Flash

Subjectively, the browser performance of the OnePlus 3 is very good. Websites open fast in the preloaded Google Chrome and the benchmarks confirm this impression. The review sample is always in the upper third in the comparison field, but cannot outrun the S7 Edge or the iPhone in this sector.

WebXPRT 2015 - Overall Score (sort by value)
OnePlus 3
Adreno 530, 820 MSM8996, 64 GB UFS 2.0 Flash
122 Points ∼15%
OnePlus 2
Adreno 430, 810 MSM8994, 64 GB eMMC Flash
80 Points ∼10% -34%
Samsung Galaxy S7 Edge
Mali-T880 MP12, 8890 Octa, 32 GB UFS 2.0 Flash
163 Points ∼20% +34%
LG G5
Adreno 530, 820 MSM8996, 32 GB eMMC Flash
108 Points ∼13% -11%
HTC 10
Adreno 530, 820 MSM8996, 32 GB eMMC Flash
108 Points ∼13% -11%
Huawei P9
Mali-T880 MP4, Kirin 955, 32 GB eMMC Flash
128 Points ∼16% +5%
Google Nexus 6P
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
116 Points ∼14% -5%
Motorola Moto X Force
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
103 Points ∼13% -16%
Sony Xperia Z5 Premium
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
106 Points ∼13% -13%
Apple iPhone 6S Plus
A9 / PowerVR GT7600, A9, Apple AP0064K (iPhone NVMe)
190 Points ∼24% +56%
Microsoft Lumia 950 XL
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
113 Points ∼14% -7%
JetStream 1.1 - Total Score (sort by value)
OnePlus 3
Adreno 530, 820 MSM8996, 64 GB UFS 2.0 Flash
54.4 Points ∼15%
OnePlus 2
Adreno 430, 810 MSM8994, 64 GB eMMC Flash
44.286 Points ∼13% -19%
Samsung Galaxy S7 Edge
Mali-T880 MP12, 8890 Octa, 32 GB UFS 2.0 Flash
75.12 Points ∼21% +38%
LG G5
Adreno 530, 820 MSM8996, 32 GB eMMC Flash
49.7 Points ∼14% -9%
HTC 10
Adreno 530, 820 MSM8996, 32 GB eMMC Flash
52.1 Points ∼15% -4%
Huawei P9
Mali-T880 MP4, Kirin 955, 32 GB eMMC Flash
68.4 Points ∼19% +26%
Google Nexus 6P
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
47.4 Points ∼13% -13%
Motorola Moto X Force
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
49.373 Points ∼14% -9%
Sony Xperia Z5 Premium
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
48.2 Points ∼14% -11%
Apple iPhone 6S Plus
A9 / PowerVR GT7600, A9, Apple AP0064K (iPhone NVMe)
118.7 Points ∼34% +118%
Microsoft Lumia 950 XL
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
46 Points ∼13% -15%
BaseMark OS II - Web (sort by value)
OnePlus 3
Adreno 530, 820 MSM8996, 64 GB UFS 2.0 Flash
1112 Points ∼55%
OnePlus 2
Adreno 430, 810 MSM8994, 64 GB eMMC Flash
923 Points ∼45% -17%
Samsung Galaxy S7 Edge
Mali-T880 MP12, 8890 Octa, 32 GB UFS 2.0 Flash
994 Points ∼49% -11%
LG G5
Adreno 530, 820 MSM8996, 32 GB eMMC Flash
900 Points ∼44% -19%
HTC 10
Adreno 530, 820 MSM8996, 32 GB eMMC Flash
928 Points ∼46% -17%
Huawei P9
Mali-T880 MP4, Kirin 955, 32 GB eMMC Flash
1029 Points ∼51% -7%
Google Nexus 6P
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
791 Points ∼39% -29%
Motorola Moto X Force
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
939 Points ∼46% -16%
Sony Xperia Z5 Premium
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
986 Points ∼48% -11%
Apple iPhone 6S Plus
A9 / PowerVR GT7600, A9, Apple AP0064K (iPhone NVMe)
1199 Points ∼59% +8%
Microsoft Lumia 950 XL
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
837 Points ∼41% -25%
Octane V2 - Total Score (sort by value)
OnePlus 3
Adreno 530, 820 MSM8996, 64 GB UFS 2.0 Flash
9155 Points ∼17%
OnePlus 2
Adreno 430, 810 MSM8994, 64 GB eMMC Flash
6955 Points ∼13% -24%
Samsung Galaxy S7 Edge
Mali-T880 MP12, 8890 Octa, 32 GB UFS 2.0 Flash
13191 Points ∼25% +44%
LG G5
Adreno 530, 820 MSM8996, 32 GB eMMC Flash
9731 Points ∼19% +6%
HTC 10
Adreno 530, 820 MSM8996, 32 GB eMMC Flash
8905 Points ∼17% -3%
Huawei P9
Mali-T880 MP4, Kirin 955, 32 GB eMMC Flash
11783 Points ∼22% +29%
Google Nexus 6P
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
8804 Points ∼17% -4%
Motorola Moto X Force
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
8699 Points ∼17% -5%
Sony Xperia Z5 Premium
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
8851 Points ∼17% -3%
Apple iPhone 6S Plus
A9 / PowerVR GT7600, A9, Apple AP0064K (iPhone NVMe)
15967 Points ∼30% +74%
Microsoft Lumia 950 XL
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
8059 Points ∼15% -12%
Mozilla Kraken 1.1 - Total Score (sort by value)
OnePlus 3
Adreno 530, 820 MSM8996, 64 GB UFS 2.0 Flash
2920.7 ms * ∼5%
OnePlus 2
Adreno 430, 810 MSM8994, 64 GB eMMC Flash
6585.3 ms * ∼11% -125%
Samsung Galaxy S7 Edge
Mali-T880 MP12, 8890 Octa, 32 GB UFS 2.0 Flash
2564.1 ms * ∼4% +12%
LG G5
Adreno 530, 820 MSM8996, 32 GB eMMC Flash
3461.1 ms * ∼6% -19%
HTC 10
Adreno 530, 820 MSM8996, 32 GB eMMC Flash
3146.3 ms * ∼5% -8%
Huawei P9
Mali-T880 MP4, Kirin 955, 32 GB eMMC Flash
2922.6 ms * ∼5% -0%
Google Nexus 6P
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
4193 ms * ∼7% -44%
Motorola Moto X Force
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
4080.1 ms * ∼7% -40%
Sony Xperia Z5 Premium
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
4377.1 ms * ∼7% -50%
Apple iPhone 6S Plus
A9 / PowerVR GT7600, A9, Apple AP0064K (iPhone NVMe)
1743 ms * ∼3% +40%
Microsoft Lumia 950 XL
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
5552.9 ms * ∼9% -90%

* ... smaller is better

The OnePlus 3 is equipped with a relatively generous internal storage of nominal 64 GB. Approximately 53 GB is still available after initial use. Nevertheless, it is too bad that OnePlus has once again omitted to include a micro-SD slot.

Besides Samsung's devices, the smartphone is one of the few handsets that utilize the fast UFS flash memory. The speeds are correspondingly good, and often even beat those of the Galaxy S7 EdgeLG's G5 is slightly faster in sequential read.

AndroBench 3-5
Random Write 4KB (sort by value)
OnePlus 3
Adreno 530, 820 MSM8996, 64 GB UFS 2.0 Flash
18.23 MB/s ∼7%
OnePlus 2
Adreno 430, 810 MSM8994, 64 GB eMMC Flash
13.94 MB/s ∼6% -24%
Samsung Galaxy S7 Edge
Mali-T880 MP12, 8890 Octa, 32 GB UFS 2.0 Flash
15.79 MB/s ∼6% -13%
LG G5
Adreno 530, 820 MSM8996, 32 GB eMMC Flash
16.22 MB/s ∼6% -11%
HTC 10
Adreno 530, 820 MSM8996, 32 GB eMMC Flash
15.89 MB/s ∼6% -13%
Huawei P9
Mali-T880 MP4, Kirin 955, 32 GB eMMC Flash
47.45 MB/s ∼19% +160%
Google Nexus 6P
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
11.79 MB/s ∼5% -35%
Motorola Moto X Force
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
19.78 MB/s ∼8% +9%
Sony Xperia Z5 Premium
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
14.53 MB/s ∼6% -20%
Random Read 4KB (sort by value)
OnePlus 3
Adreno 530, 820 MSM8996, 64 GB UFS 2.0 Flash
137.62 MB/s ∼79%
OnePlus 2
Adreno 430, 810 MSM8994, 64 GB eMMC Flash
21.87 MB/s ∼12% -84%
Samsung Galaxy S7 Edge
Mali-T880 MP12, 8890 Octa, 32 GB UFS 2.0 Flash
86.71 MB/s ∼49% -37%
LG G5
Adreno 530, 820 MSM8996, 32 GB eMMC Flash
89.26 MB/s ∼51% -35%
HTC 10
Adreno 530, 820 MSM8996, 32 GB eMMC Flash
29.92 MB/s ∼17% -78%
Huawei P9
Mali-T880 MP4, Kirin 955, 32 GB eMMC Flash
39 MB/s ∼22% -72%
Google Nexus 6P
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
20.1 MB/s ∼11% -85%
Motorola Moto X Force
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
22.55 MB/s ∼13% -84%
Sony Xperia Z5 Premium
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
19.11 MB/s ∼11% -86%
Sequential Write 256KB (sort by value)
OnePlus 3
Adreno 530, 820 MSM8996, 64 GB UFS 2.0 Flash
153.3 MB/s ∼30%
OnePlus 2
Adreno 430, 810 MSM8994, 64 GB eMMC Flash
125.51 MB/s ∼25% -18%
Samsung Galaxy S7 Edge
Mali-T880 MP12, 8890 Octa, 32 GB UFS 2.0 Flash
145.11 MB/s ∼29% -5%
LG G5
Adreno 530, 820 MSM8996, 32 GB eMMC Flash
141.26 MB/s ∼28% -8%
HTC 10
Adreno 530, 820 MSM8996, 32 GB eMMC Flash
115.56 MB/s ∼23% -25%
Huawei P9
Mali-T880 MP4, Kirin 955, 32 GB eMMC Flash
72.19 MB/s ∼14% -53%
Google Nexus 6P
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
122.51 MB/s ∼24% -20%
Motorola Moto X Force
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
47.99 MB/s ∼10% -69%
Sony Xperia Z5 Premium
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
99.4 MB/s ∼20% -35%
Sequential Read 256KB (sort by value)
OnePlus 3
Adreno 530, 820 MSM8996, 64 GB UFS 2.0 Flash
408.71 MB/s ∼28%
OnePlus 2
Adreno 430, 810 MSM8994, 64 GB eMMC Flash
234.21 MB/s ∼16% -43%
Samsung Galaxy S7 Edge
Mali-T880 MP12, 8890 Octa, 32 GB UFS 2.0 Flash
487.34 MB/s ∼33% +19%
LG G5
Adreno 530, 820 MSM8996, 32 GB eMMC Flash
427.65 MB/s ∼29% +5%
HTC 10
Adreno 530, 820 MSM8996, 32 GB eMMC Flash
275.09 MB/s ∼19% -33%
Huawei P9
Mali-T880 MP4, Kirin 955, 32 GB eMMC Flash
281.26 MB/s ∼19% -31%
Google Nexus 6P
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
236.33 MB/s ∼16% -42%
Motorola Moto X Force
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
252.03 MB/s ∼17% -38%
Sony Xperia Z5 Premium
Adreno 430, 810 MSM8994, 32 GB eMMC Flash
256.75 MB/s ∼17% -37%

Games

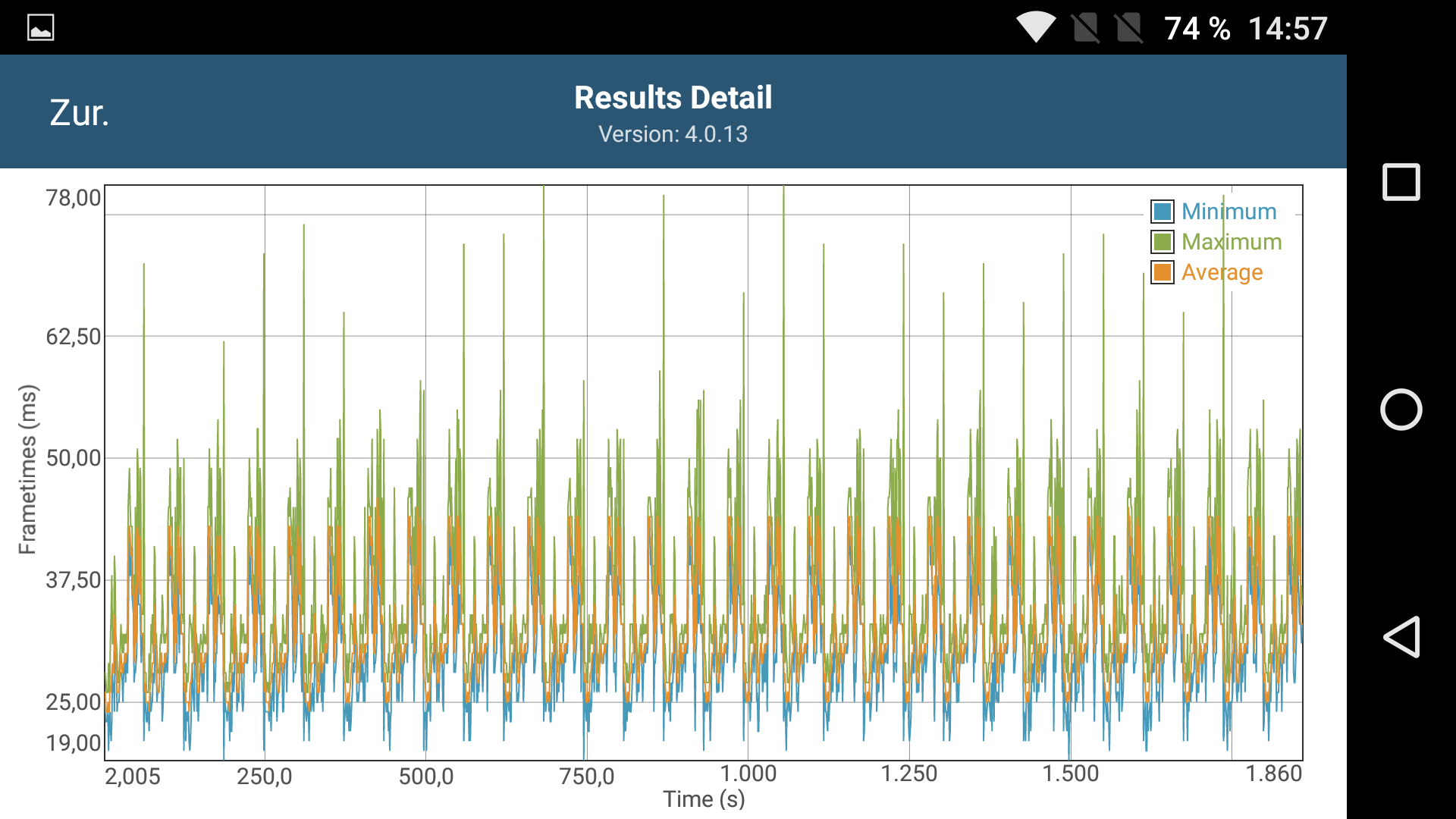

A strong SoC alongside a fast GPU provide the best preconditions for good gaming performance - especially since the OnePlus 3 does not carry the burden of a QHD panel but only has to render Full HD.

However, apparently the manufacturer is not interested in achieving particularly high frame rates since a consistent 30 FPS is achieved only in the racing game "Asphalt 8". HTC's 10 quite impressively proves that the Snapdragon 820 can achieve more even with a higher-resolution panel (48 FPS). Nevertheless, the performance of the OnePlus 3 is absolutely enough, and does not ruin gaming fun. The sensor and touchscreen also function impeccably. Only the speaker is quickly covered in landscape mode.

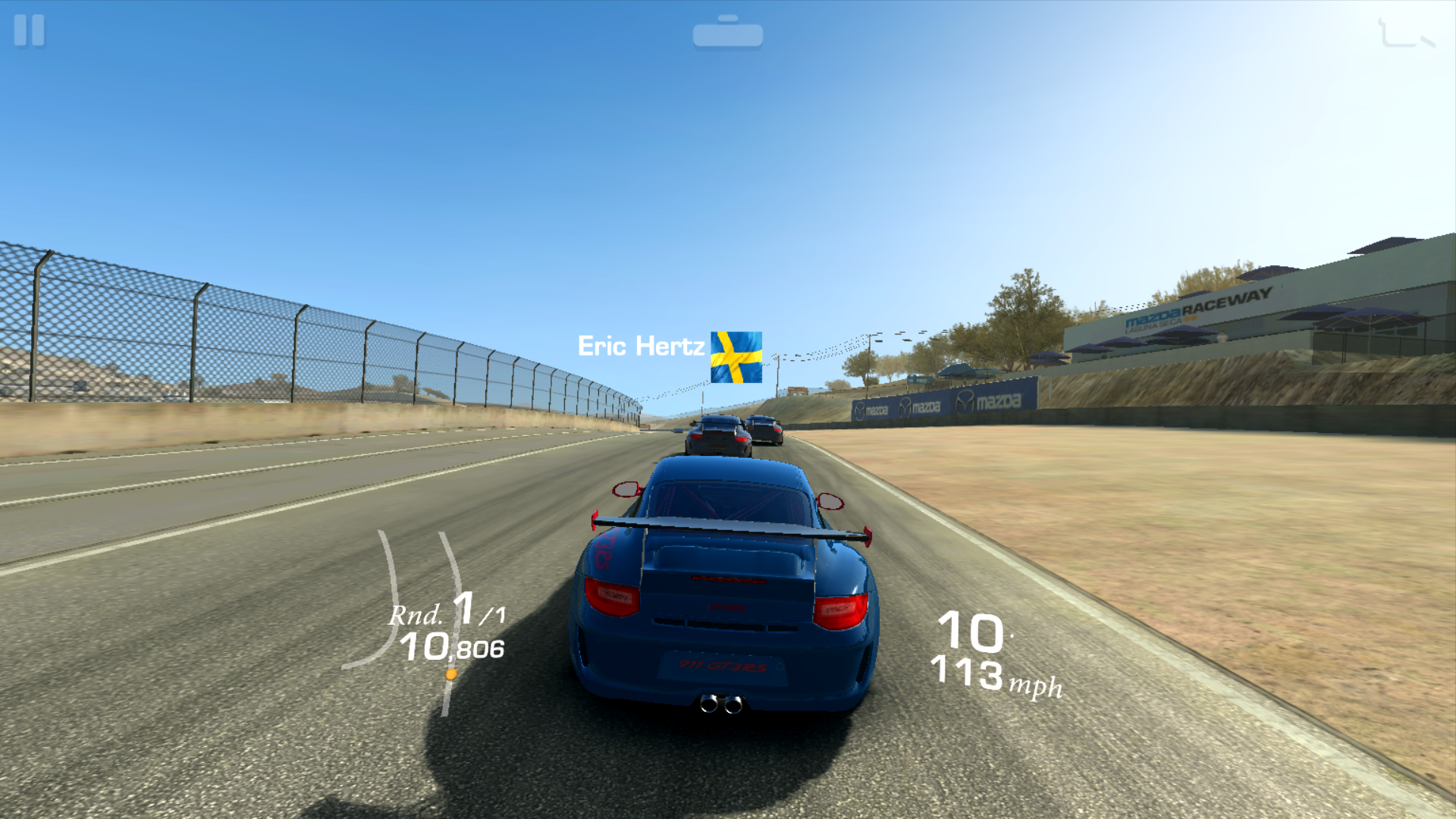

"Real Racing 3"
"Real Racing 3"

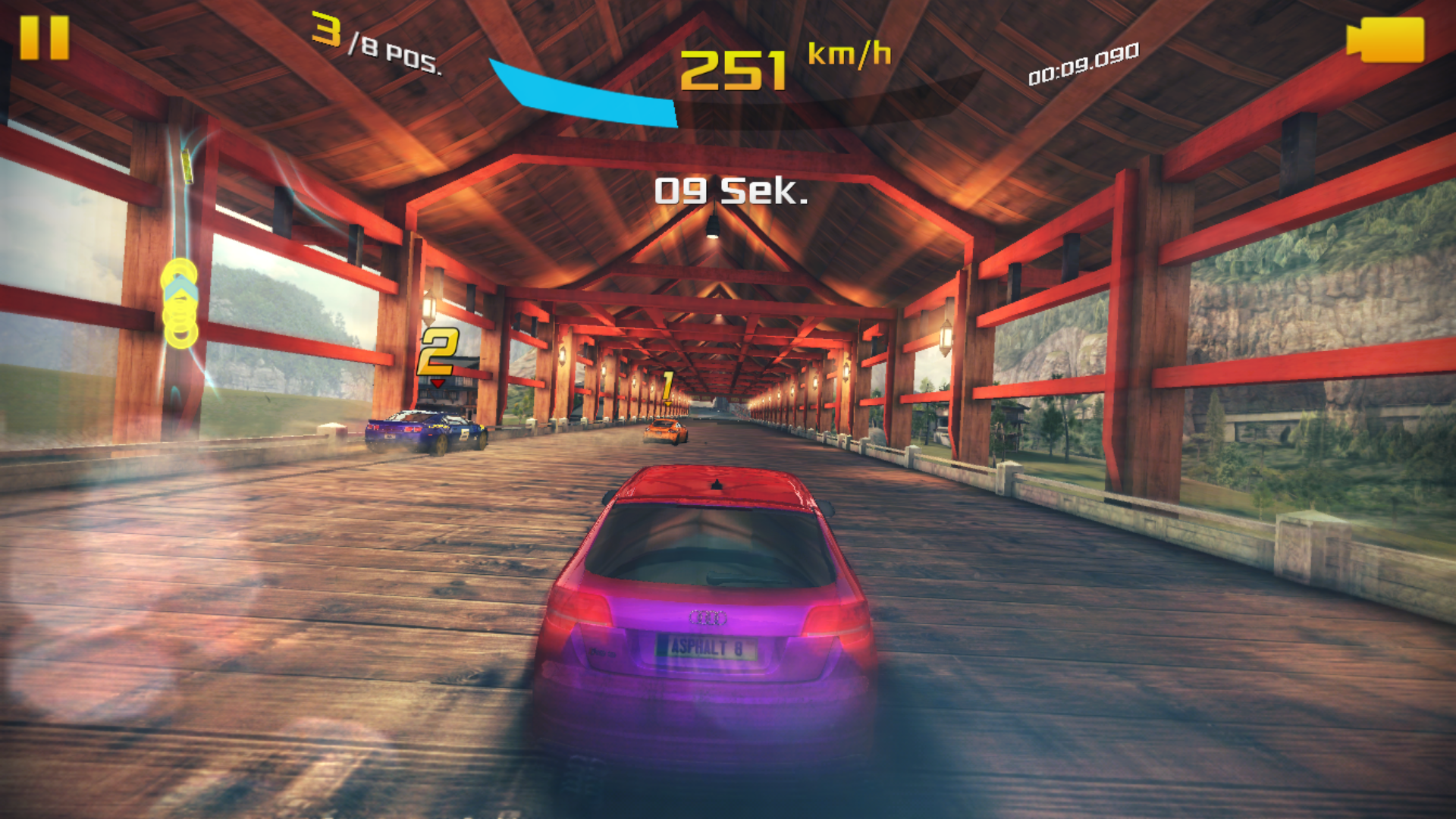

"Asphalt 8: Airborne"
"Asphalt 8: Airborne"
Asphalt 8: Airborne
 SettingsValue
 high30 fps
Real Racing 3
 SettingsValue
 high35 fps

Emissions

System Noise

The OnePlus 3 does not have a fan and is thus absolutely silent. However, we noticed that the power supply produces audible whistling noises when recharging the handset, which is particularly perceptible in silent surroundings.

Temperature

The surface temperatures of the OnePlus 3 stay below 30 °C (~86 °F) in idle mode, and climb to almost 42 °C (~108 °F) during permanent load. This is absolutely uncritical, although the hottest spot is directly in the earpiece area. Thus, users who accept a call while they are playing will get a warm ear.

The SoC's behavior during permanent load is more interesting since the Snapdragon 820 always tended to throttle in our test until now. However, one-place has tamed the dragon, and we did not observe any significant performance loss in either the Open GL ES 2.0 stress test or via GFXBench.

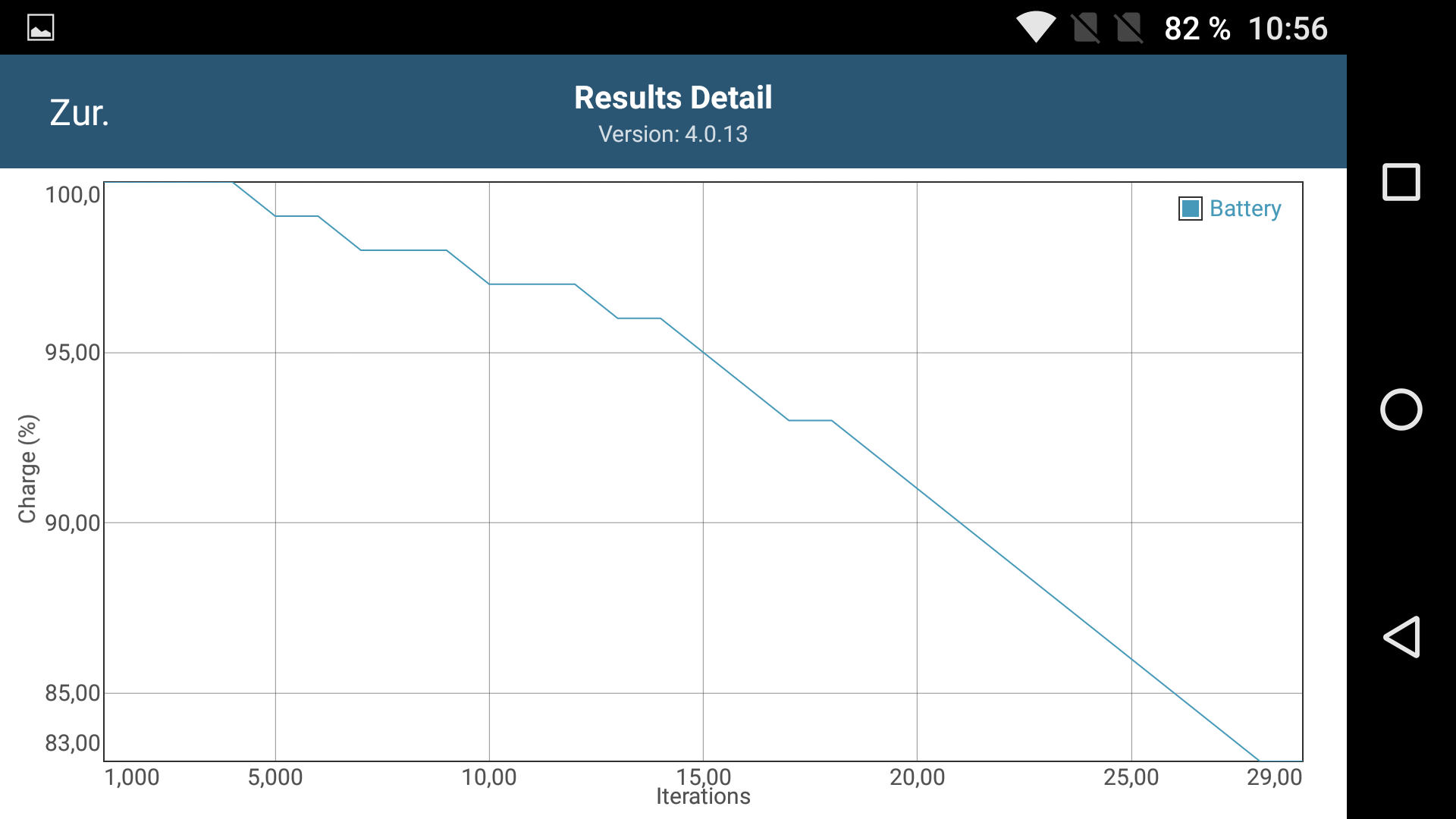

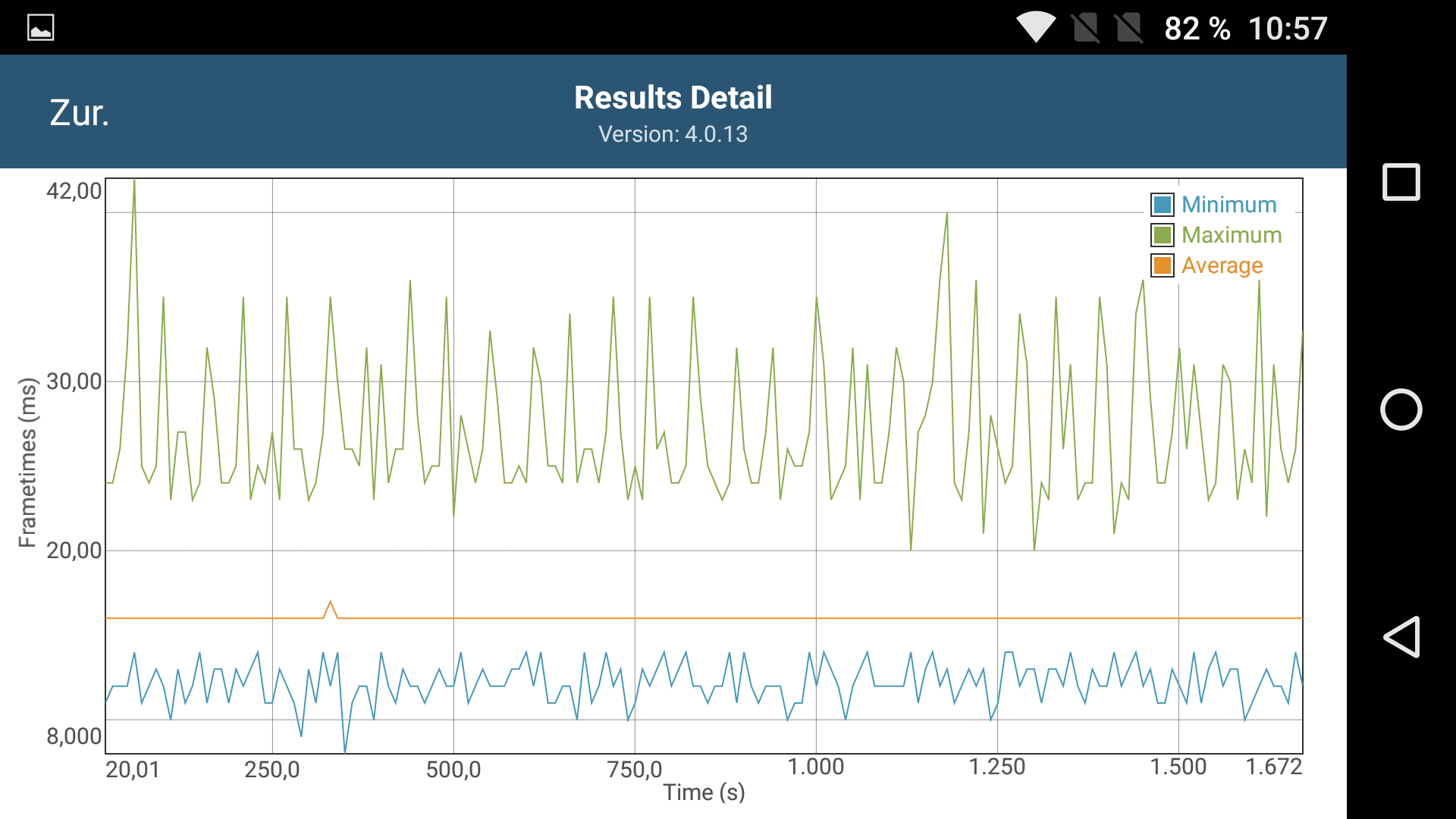

GFXBench battery test (OpenGL ES 2.0)
GFXBench battery test (OpenGL ES 2.0)
GFXBench battery test (OpenGL ES 2.0)
GFXBench battery test (OpenGL ES 2.0)
GFXBench battery test (OpenGL ES 2.0)
GFXBench battery test (OpenGL ES 2.0)

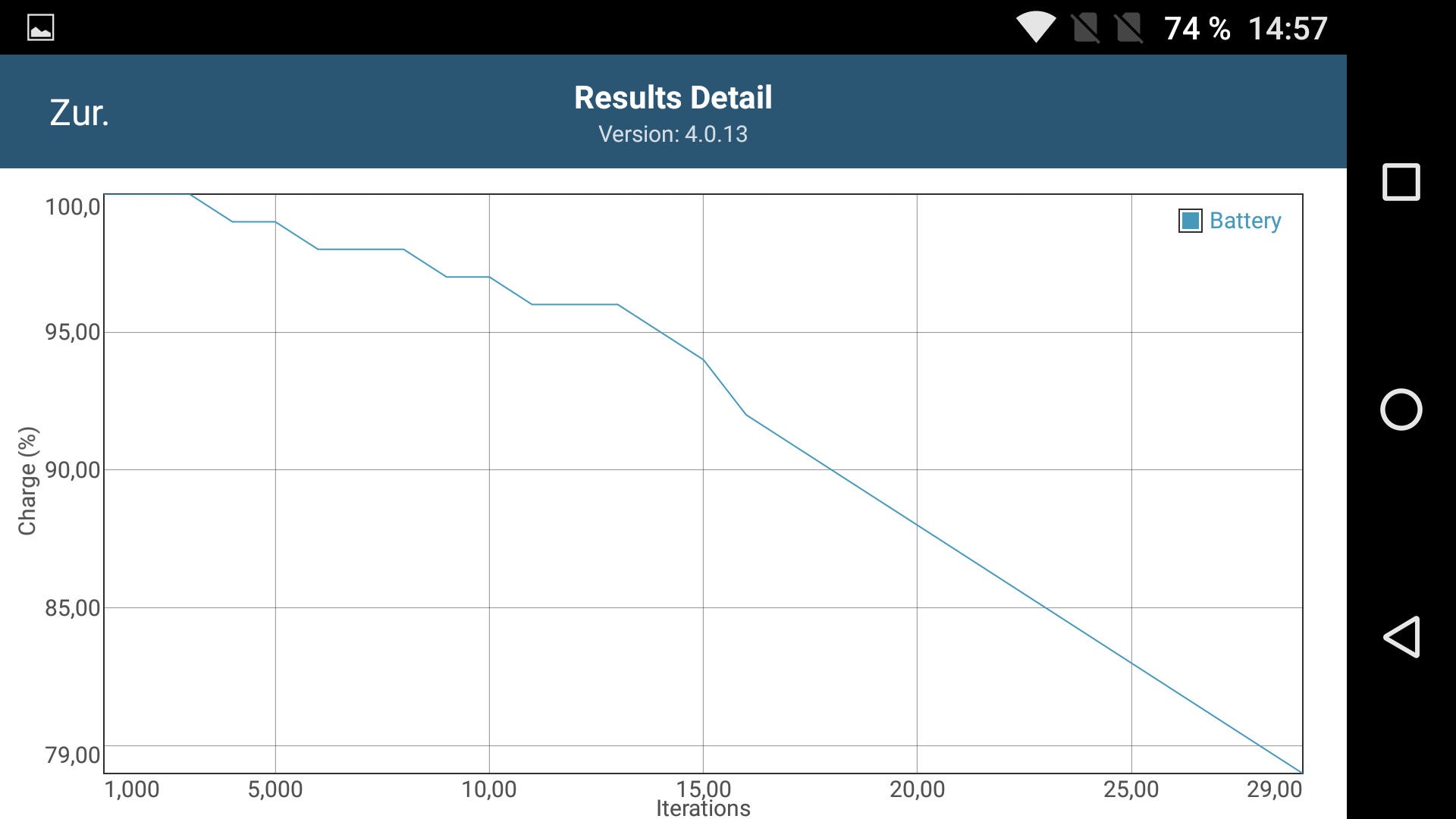

GFXBench battery test (OpenGL ES 3.1)
GFXBench battery test (OpenGL ES 3.1)
GFXBench battery test (OpenGL ES 3.1)
GFXBench battery test (OpenGL ES 3.1)
GFXBench battery test (OpenGL ES 3.1)
GFXBench battery test (OpenGL ES 3.1)
Max. Load
 40.5 °C
105 F
39.7 °C
103 F
36.9 °C
98 F

 42.1 °C
108 F
41.8 °C
107 F
37.1 °C
99 F

 41.4 °C
107 F
39.6 °C
103 F
37.1 °C
99 F

Maximum: 42.1 °C = 108 F
Average: 39.6 °C = 103 F
36.7 °C
98 F
37.2 °C
99 F
39.1 °C
102 F
37.1 °C
99 F
38.5 °C
101 F
39.5 °C
103 F
36.6 °C
98 F
38.8 °C
102 F
39.5 °C
103 F
Maximum: 39.5 °C = 103 F
Average: 38.1 °C = 101 F
Power Supply (max.)  33.8 °C = 93 F | Room Temperature 21.4 °C = 71 F | Voltcraft IR-260
(-) The average temperature for the upper side under maximal load is 39.6 °C / 103 F, compared to the average of 33.1 °C / 92 F for the devices in the class Smartphone.
(±) The maximum temperature on the upper side is 42.1 °C / 108 F, compared to the average of 35.5 °C / 96 F, ranging from 22.4 to 51.7 °C for the class Smartphone.
(+) The bottom heats up to a maximum of 39.5 °C / 103 F, compared to the average of 34.1 °C / 93 F
(+) In idle usage, the average temperature for the upper side is 28.2 °C / 83 F, compared to the device average of 33.1 °C / 92 F.

Speaker

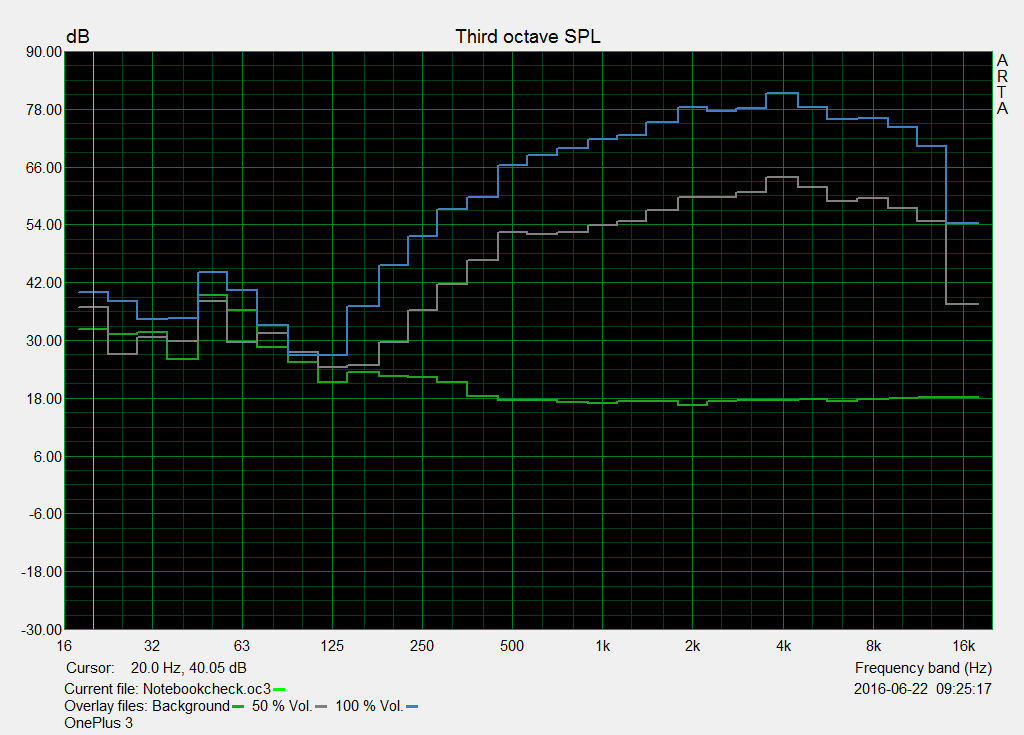

Pink Noise diagram
Pink Noise diagram

As with the Galaxy S7 Edge or Huawei P9, the mono speaker of the OnePlus 3 is situated on the smartphone's lower edge. The advantage here is that the smartphone can be placed on a table without covering the speaker. However, it is usually rather annoying when playing a game or watching a video.

The OnePlus 3 can get really loud with up to 88.6 dB(A). Unfortunately, the sound quality comes too short. As the Pink Noise diagram illustrates, individual frequencies are not rendered particularly linear. Basses are completely absent, and the mids are weak. However, the latter are at least quite linear at a volume of 50% at 500 to 1000 Hz. But maximum volume destroys this. Subjectively, the sound does not seem balanced and is accompanied by a base noise.

The audio jack should be used for better sound quality. It delivers a clear sound impression. The software equalizer known from the OnePlus 2 is no longer preloaded.

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2040.136.832.440.125382731.3383134.330.631.734.34034.529.72634.55044.138.139.444.16340.529.736.240.5803331.428.63310026.827.625.426.812526.924.421.326.91603724.823.33720045.529.522.545.525051.636.222.451.631557.341.721.357.340059.746.618.459.750066.452.517.566.463068.45217.568.480069.952.517.269.9100071.853.816.871.8125072.554.817.372.5160075.256.917.475.2200078.459.716.678.4250077.659.717.377.6315078.260.817.678.2400081.363.817.681.3500078.561.817.778.5630075.958.817.475.9800076.259.417.776.21000074.357.517.974.31250070.354.818.170.31600054.437.618.154.4SPL88.671.129.888.6N7325.81.373median 70.3median 53.8median 17.7median 70.3Delta11.910.41.611.939.632.44132.431.335.531.531.731.234.22630.446.839.441.833.936.234.629.328.630.233.825.430.629.421.334.434.523.340.541.922.544.845.622.450.153.321.355.85518.458.155.817.56056.817.56152.517.256.660.216.861.769.717.362.774.417.466.87416.672.175.317.371.973.717.665.469.717.663.266.317.756.170.617.459.27017.761.167.317.961.259.118.159.463.318.155.583.129.878.149.11.337.6median 60.2median 17.7median 59.410.71.64.733.836.432.433.831.829.931.331.832.732.731.732.732.333.12632.345.446.139.445.429.630.736.229.629.525.228.629.525.923.125.425.925.623.421.325.637.124.723.337.150.127.122.550.156.234.622.456.261.840.421.361.864.74318.464.769.648.717.569.668.847.117.568.867.647.417.267.672.850.316.872.87552.217.37575.953.717.475.97652.116.67674.849.817.374.874.849.417.674.874.548.917.674.576.251.317.776.275.750.817.475.775.451.917.775.472.55117.972.571.150.518.171.164.247.518.164.286.462.729.886.46816.41.368median 71.1median 48.9median 17.7median 71.19.86.81.69.8hearing rangehide median Pink NoiseOnePlus 3HTC 10LG G5

Energy Management

Power Consumption

The power consumption of the OnePlus 3 is exemplary, and proves to be more efficient than most of its rivals. Samsung's Galaxy S7 Edge can score with its low load consumption, and Huawei's P9 Plus is the only handset that is somewhat more frugal in all states.

The OnePlus 3 also supports Quick Charge, and falls back on a so-called dash power supply that delivers a whopping four amperes. Thus, even gaming does not stand in the way of quickly recharging the smartphone. The manufacturer promises that the battery is recharged by 60% within 30 minutes. We can confirm this. The OnePlus 3 recharges its battery to 31%within 15 minutes, and even 63% is reached after 30 minutes. 80% is achieved after 49 minutes and the handset is fully recharged after 70 minutes.

Power Consumption
Off / Standbydarklight 0.07 / 0.27 Watt
Idledarkmidlight 0.57 / 1.24 / 1.36 Watt
Load midlight 5.92 / 10.53 Watt
 color bar
Key: min: dark, med: mid, max: light        Gossen Metrahit Energy
OnePlus 3
3000 mAh
Samsung Galaxy S7 Edge
3600 mAh
Apple iPhone 6S Plus
2750 mAh
LG G5
2800 mAh
HTC 10
3000 mAh
Huawei P9 Plus
3400 mAh
Power Consumption
4%
-4%
-13%
-19%
5%
Idle Minimum *
0.57
0.63
-11%
0.5
12%
0.55
4%
0.68
-19%
0.87
-53%
Idle Average *
1.24
1.1
11%
1.9
-53%
1.37
-10%
1.49
-20%
1.2
3%
Idle Maximum *
1.36
1.56
-15%
2.2
-62%
2.25
-65%
1.91
-40%
1.27
7%
Load Average *
5.92
5.95
-1%
3.2
46%
6.24
-5%
7.4
-25%
4.69
21%
Load Maximum *
10.53
6.7
36%
6.4
39%
9.12
13%
9.71
8%
5.63
47%

* ... smaller is better

Battery Runtime

The runtimes have been improved in all aspects compared with the predecessor although the battery has been slimmed down to 3000 mAh (formerly: 3300 mAh). The OnePlus 3 also achieves very good outcomes in most tests. However, a mixed impression evolves in more practical tests using an adapted screen brightness (150 cd/m²).

While the video playback runtimes were fantastic, Wi-Fi surfing was not very satisfactory with just around six and a half hours on OxygenOS 3.1. The runtimes increased noticeably after updating to the new version, and are outstanding in view of the battery capacity. On the whole, the smartphone offers very good overall runtimes, and will easily last a day even when used intensively.

Battery Runtime
Idle (without WLAN, min brightness)
22h 18min
NBC WiFi Websurfing Battery Test 1.3
14h 00min
Big Buck Bunny H.264 1080p
14h 07min
Load (maximum brightness)
4h 28min
OnePlus 3
3000 mAh
OnePlus 2
 mAh
Honor 7
 mAh
HTC 10
3000 mAh
Samsung Galaxy S7 Edge
3600 mAh
Apple iPhone 6S Plus
2750 mAh
Huawei P9 Plus
3400 mAh
Battery Runtime
-25%
-30%
-26%
16%
-14%
-10%
Reader / Idle
1338
1393
4%
888
-34%
1273
-5%
1663
24%
1655
24%
1446
8%
H.264
847
580
-32%
553
-35%
648
-23%
914
8%
714
-16%
776
-8%
WiFi v1.3
840
356
-58%
484
-42%
413
-51%
732
-13%
513
-39%
530
-37%
Load
268
229
-15%
241
-10%
203
-24%
392
46%
197
-26%
263
-2%

Pros

+ build
+ high performance without throttling
+ decent camera
+ fast storage device
+ fast WiFi
+ dual-SIM
+ USB Type-C
+ notification slider
+ decent screen
+ generous internal storage
+ decent call quality and noise suppression
+ Quick Charge

Cons

- LTE Cat. 6 only
- regionally varying band connectivity
- non-expandable storage
- no radio
- no infrared
- noise-laden speaker
- useless sRGB mode

Verdict

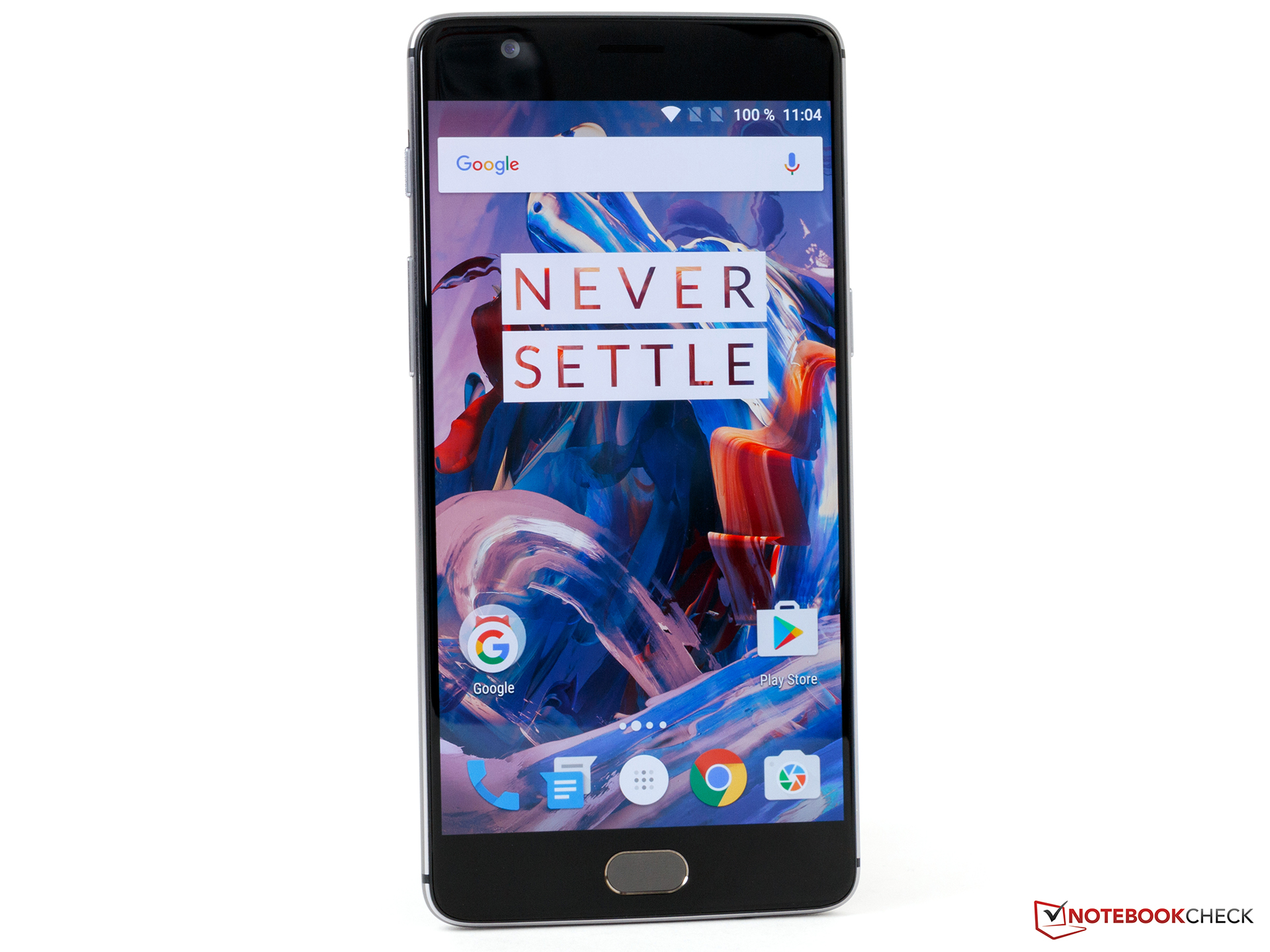

In review: OnePlus 3. Review sample courtesy of OnePlus.
In review: OnePlus 3. Review sample courtesy of OnePlus.

The OnePlus 3 is a successful smartphone that not only offers a solid configuration, but also looks good and is well-built. It features a fast Snapdragon 820, very generous 6 GB of working memory, a fingerprint scanner, dual-SIM, long-awaited NFC, a decent camera and Quick Charge - and all this for under 400 Euros (~$442). Hardly another smartphone with such premium ambitions exists. Even when considering the Chinese market, there are hardly any real alternatives, particularly not with this quality.

Currently the strongest rival is certainly ZTE's Axon 7. Its advantage is that its price will drop while the prices of OnePlus devices are very stable. Another interesting alternative is LG's G5 whose price has already dropped significantly.

More smartphone for under 400 Euros (~$442) is not possible.

However, the OnePlus 3 is not perfect and will not be a threat to the category leader by Samsung. The screen's resolution and reproduction quality is just not enough for that, and the camera in the S7 is at least one grade better, especially in low-light conditions, and the connectivity and sensor equipment in the OnePlus 3 is not impeccable. LTE Cat.6 has been standard since the first half of 2015, and the smartphone has also lost its Globetrotter qualities. Unfortunately, the storage cannot be expanded and the speaker is not impressive.

This is complaining on a high standard, and even if the technical aspects are not enough to ascend the winner’s podium, OnePlus has once again provided a strong device that is appealing.

OnePlus 3 - 07/11/2016 v5.1(old)
Daniel Schmidt

Chassis
89%
Keyboard
70 / 75 → 93%
Pointing Device
97%
Connectivity
48 / 60 → 80%
Weight
91%
Battery
96%
Display
86%
Games Performance
62 / 63 → 98%
Application Performance
63 / 70 → 90%
Temperature
88%
Noise
100%
Audio
53 / 91 → 58%
Camera
76%
Average
78%
89%
Smartphone - Weighted Average

Pricecompare

Read all 4 comments / answer
static version load dynamic
Loading Comments
Comment on this article
Please share our article, every link counts!
> Notebook / Laptop Reviews and News > Reviews > OnePlus 3 Smartphone Review
Daniel Schmidt, 2016-07-13 (Update: 2018-05-15)
