OnePlus 3 Smartphone First Impressions

Daniel Schmidt (translated by Martina Osztovits), 06/19/2016

Power-Player. All good things come in threes. The Chinese smartphone manufacturer might have thought just this and launches the third generation of the flagship killer: the OnePlus 3.

For the original German preview, see here.

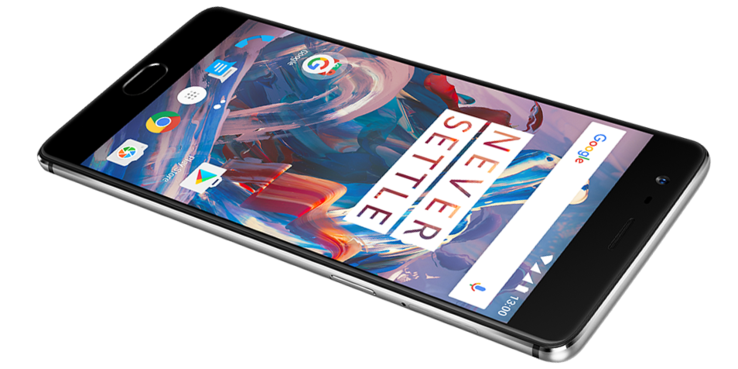

Three follows two and thus, the name of the new flagship killer is not surprising. The OnePlus 3 is the successor of the OnePlus 2. The look remained almost unchanged. The OnePlus dismisses the sanded rear side and uses a aluminium unibody case now. Inside, the current Snapdragon 820 makes for fast performance. 6 GB of RAM are an enormous capacity and the future will show if this is really necessary. The internal storage device features 64 GB and cannot be expanded. In return, there is a dual SIM slot. A 16 MP rear camera and an 8 MP front camera are suitable for this class; at least on paper.

The display brings similar specs as its predecessor: a diagonal of 5.5 inch and a resolution of 1920 x 1080 pixels. As the OnePlus 3 also is designed for use of VR content, we would have wished for an QHD panel at least. OnePlus does no longer use the IPS technology, but incorporates an AMOLED screen. In addition, the OnePlus 3 is finally also available with NFC.

OnePlus offers a powerful product for just under 399 Euros. Definitely, the price is an incentive to buy. Learn how the device compares to the high-end competitors in our in-depth review in a few days.

Please comment if you have questions or constructive suggestions for our review and we will cover as much as possible.

OnePlus 3 (3 Series)
Graphics adapter
Qualcomm Adreno 530, Core: 624 MHz
Memory
6144 MB
, LPDDR4
Display
5.5 inch 16:9, 1920 x 1080 pixel 401 PPI, capacitive touchscreen, 10-point multi-touch, Corning Gorilla Glass 4, optic-AMOLED, glossy: yes
Storage
64 GB UFS 2.0 Flash, 64 GB
, 52.49 GB free
Connections
1 USB 2.0, Audio Connections: headphone + microphone combo (3.5 mm), 1 Fingerprint Reader, NFC, Brightness Sensor, Sensors: proximity, hall, acceleration, position, G-sensor, digital compass, BeiDou
Networking
802.11 a/b/g/n/ac (a/b/g/n/ac), Bluetooth 4.2, GSM/GPRS/EDGE (850, 900, 1800, and 1900 MHz), UMTS/HSPA+ (Band 1, 2, 5, and 8), LTE Cat. 6 (Band 1, 3, 5, 7, 8, 20, 38, 40, 41), Dual SIM, LTE, GPS
Size
height x width x depth (in mm): 7.35 x 152.7 x 74.7 ( = 0.29 x 6.01 x 2.94 in)
Battery
3000 mAh Lithium-Ion
Operating System
Android 6.0 Marshmallow
Camera
Primary Camera: 16 MPix (Sony IMX 298, 1.12 µm, OIS, phase detection autofocus (PDAF), f/2.0, UHD video, RAW support, Auto-HDR)
Secondary Camera: 8 MPix (Sony IMX179, 1.4 µm, EIS, fixed focus, f/2.0, 1080p video)
Additional features
Speakers: mono speaker, Keyboard: virtual, power adapter, data cable, SIM tool, quick guide, OxygenOS 3.1, 12 Months Warranty, Head SAR: 0.394 W/kg, Body SAR: 0.323 W/kg, USB Type-C, dual-nano SIM, fanless
Weight
161 g ( = 5.68 oz / 0.35 pounds), Power Supply: 100 g ( = 3.53 oz / 0.22 pounds)
Price
399 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



158.2 mm / 6.23 inch 77.9 mm / 3.07 inch 7.3 mm / 0.2874 inch 192 g0.4233 lbs154.4 mm / 6.08 inch 76 mm / 2.99 inch 7.8 mm / 0.3071 inch 181 g0.399 lbs151.8 mm / 5.98 inch 74.9 mm / 2.95 inch 9.85 mm / 0.3878 inch 178 g0.3924 lbs151.9 mm / 5.98 inch 78.4 mm / 3.09 inch 8.3 mm / 0.3268 inch 165 g0.3638 lbs152.7 mm / 6.01 inch 74.7 mm / 2.94 inch 7.35 mm / 0.2894 inch 161 g0.3549 lbs149.8 mm / 5.9 inch 78 mm / 3.07 inch 9.2 mm / 0.3622 inch 169 g0.3726 lbs150.9 mm / 5.94 inch 72.6 mm / 2.86 inch 7.7 mm / 0.3031 inch 157 g0.3461 lbs149.4 mm / 5.88 inch 73.9 mm / 2.91 inch 7.7 mm / 0.3031 inch 159 g0.3505 lbs145.9 mm / 5.74 inch 71.9 mm / 2.83 inch 9 mm / 0.3543 inch 161 g0.3549 lbs145 mm / 5.71 inch 70.9 mm / 2.79 inch 6.95 mm / 0.2736 inch 144 g0.3175 lbs
471
cd/m²
421
cd/m²
398
cd/m²
468
cd/m²
419
cd/m²
399
cd/m²
475
cd/m²
429
cd/m²
399
cd/m²
Distribution of brightness
X-Rite i1Pro 2
Maximum: 475 cd/m² Average: 431 cd/m² Minimum: 2.24 cd/m²
Brightness Distribution: 84 %
Center on Battery: 419 cd/m²
Contrast: ∞:1 (Black: 0 cd/m²)
ΔE Color 4.1 | 0.4-29.43 Ø6.2
ΔE Greyscale 3.3 | 0.64-98 Ø6.4
100% sRGB (Argyll 3D) 89.38% AdobeRGB 1998 (Argyll 3D)
Gamma: 2.1
OnePlus 3
Optic-AMOLED, 1920x1080, 5.5
OnePlus 2
IPS, 1920x1080, 5.5
Samsung Galaxy S7 Edge
Super AMOLED, 2560x1440, 5.5
LG G5
IPS Quantum, 2560x1440, 5.3
HTC 10
Super LCD 5, 2560x1440, 5.2
Huawei P9
IPS-NEO, JDI, 1920x1080, 5.2
Microsoft Lumia 950 XL
AMOLED, 2560x1440, 5.7
Apple iPhone 6S Plus
IPS, 1920x1080, 5.5
Screen
-6%
31%
-6%
15%
6%
5%
4%
Brightness middle
419
451
8%
554
32%
784
87%
445
6%
582
39%
297
-29%
583
39%
Brightness
431
446
3%
552
28%
774
80%
434
1%
563
31%
297
-31%
560
30%
Brightness Distribution
84
90
7%
96
14%
91
8%
93
11%
91
8%
93
11%
91
8%
Black Level *
0.3
0.43
0.36
0.38
0.46

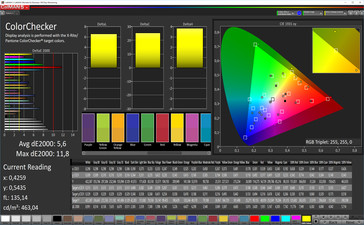

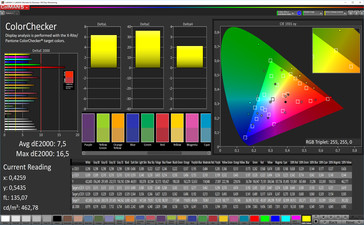

Colorchecker DeltaE2000 *
4.1
3.84
6%
1.59
61%
6.5
-59%
2.8
32%
4.4
-7%
2.67
35%
3.55
13%
Colorchecker DeltaE2000 max. *
12
2.56
79%
11.7
2%
5.8
52%
7.4
38%
3.98
67%
Greyscale DeltaE2000 *
3.3
3.97
-20%
2.01
39%
8
-142%
3.7
-12%
4.8
-45%
2.81
15%
3.88
-18%
Gamma
2.1 105%
2.46 89%
2.01 109%
2.22 99%
2.31 95%
2.2 100%
2.08 106%
2.2 100%
CCT
6550 99%
7283 89%
6321 103%
8699 75%
7164 91%
6175 105%
6379 102%
7280 89%
Color Space (Percent of AdobeRGB 1998)
89.38
58.07
-35%
82.12
-8%
68.08
-24%
77.78
-13%
66.31
-26%
59.05
-34%
Color Space (Percent of sRGB)
100
90.14
-10%
99.98
0%
97.46
-3%
99.44
-1%
99.79
0%
92.8
-7%
Contrast
1503
1823
1236
1532
1267

* ... smaller is better





Graustufen (Werkseinstellung, Zielfarbraum: sRGB)
Graustufen (Werkseinstellung, Zielfarbraum: sRGB)

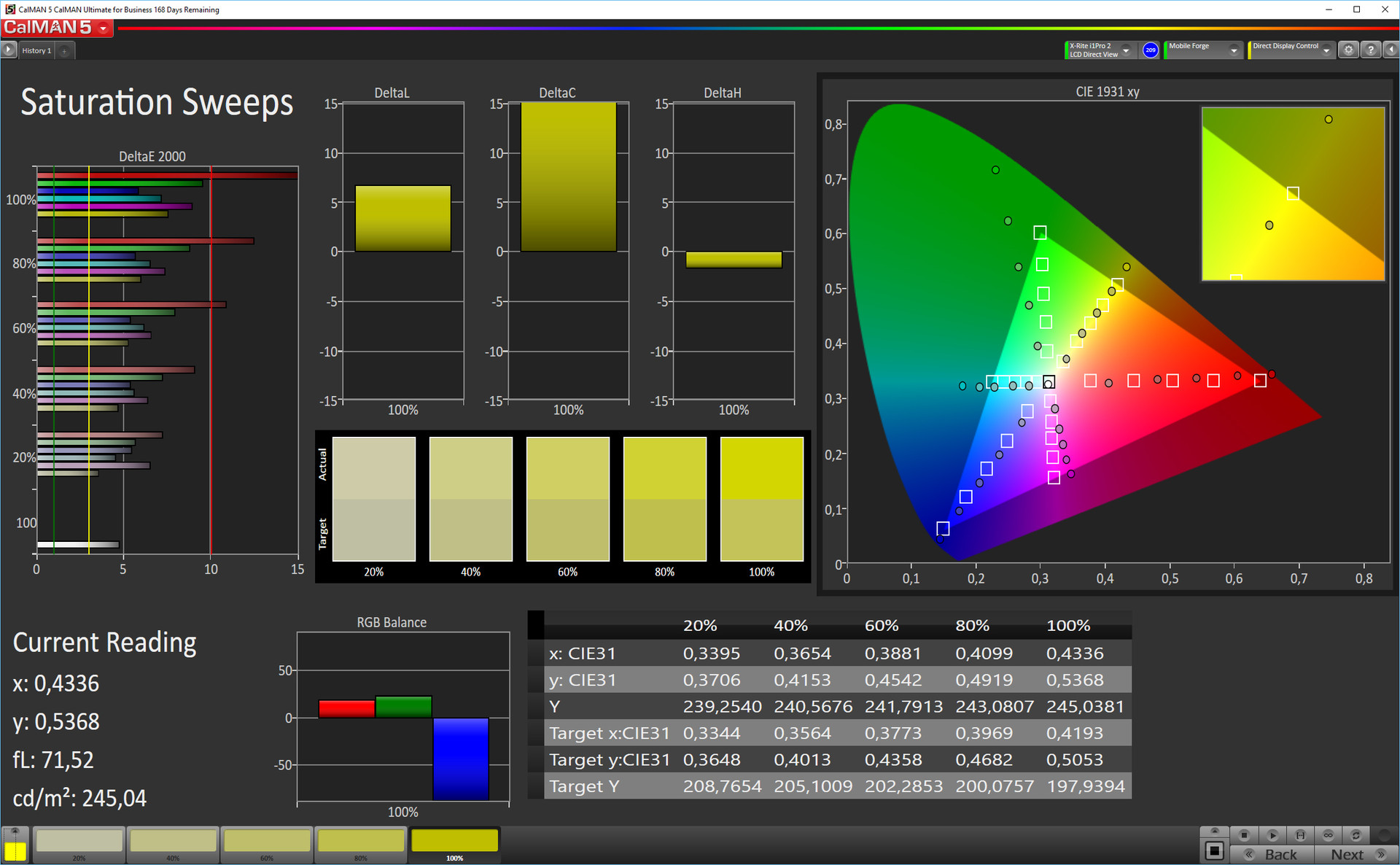

Sättigung (Werkseinstellung, Zielfarbraum: sRGB)
Sättigung (Werkseinstellung, Zielfarbraum: sRGB)

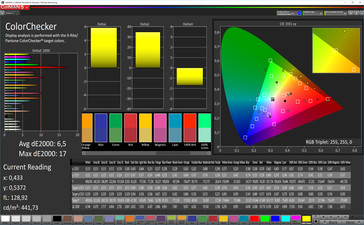

Mischfarben (Werkseinstellung, Zielfarbraum: sRGB)
Mischfarben (Werkseinstellung, Zielfarbraum: sRGB)

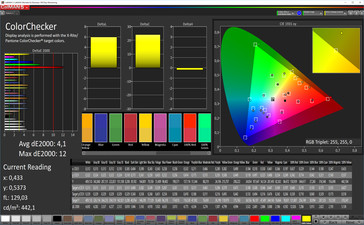

Mischfarben (Werkseinstellung, Zielfarbraum: Adobe RGB)
Mischfarben (Werkseinstellung, Zielfarbraum: Adobe RGB)

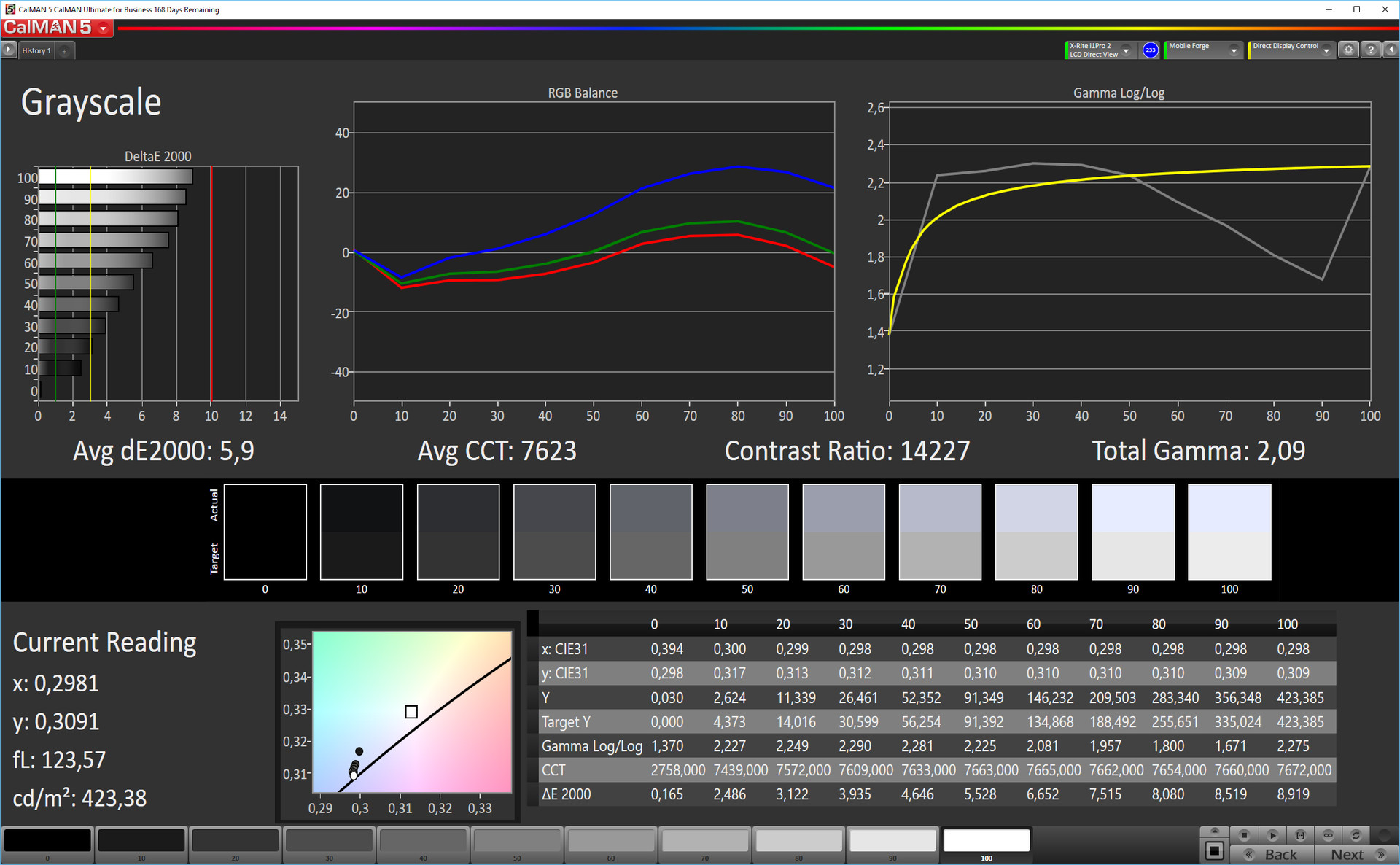

Graustufen (Werkseinstellung, Zielfarbraum: sRGB)
Graustufen (Werkseinstellung, Zielfarbraum: sRGB)

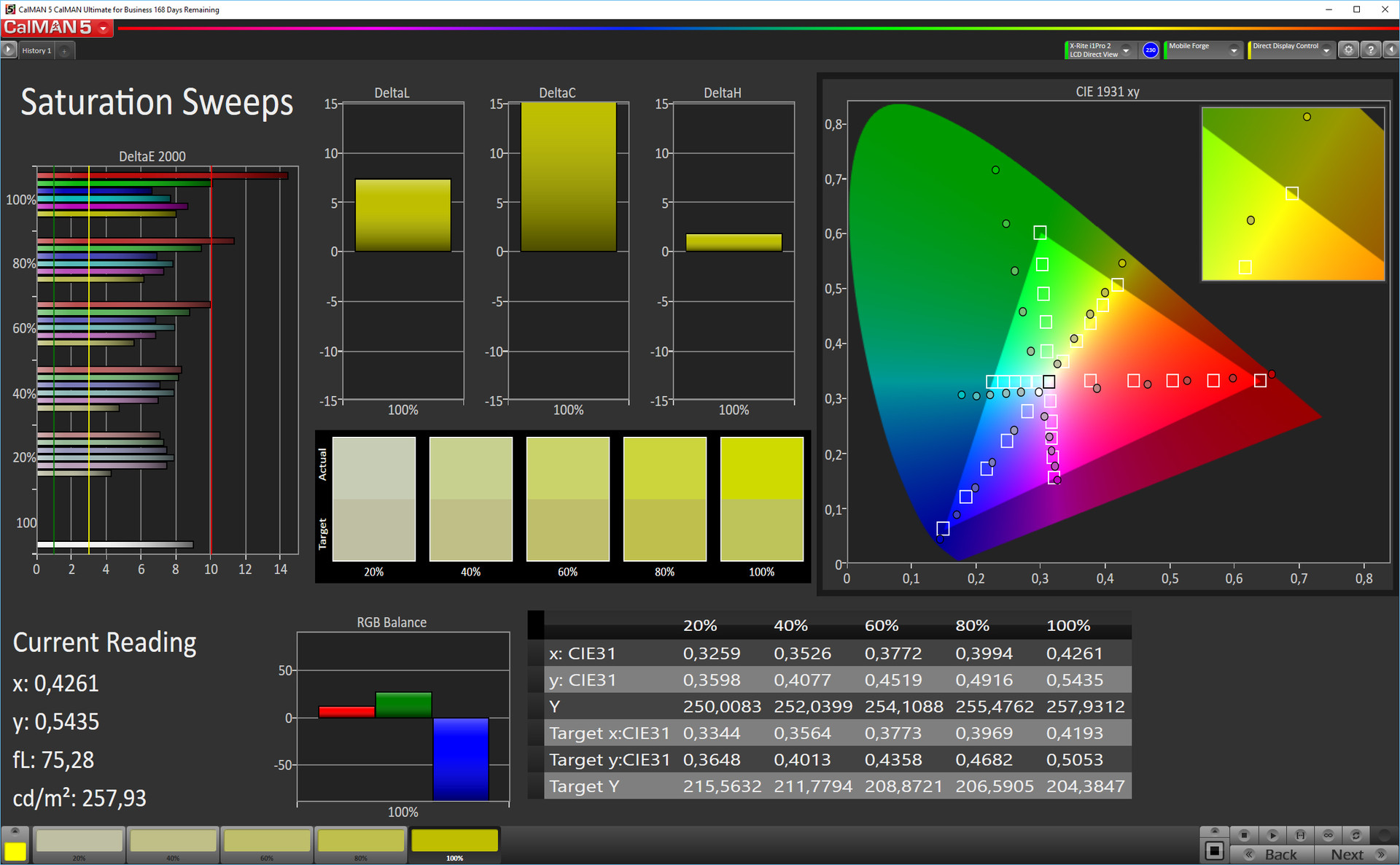

Sättigung (Werkseinstellung, Zielfarbraum: sRGB)
Sättigung (Werkseinstellung, Zielfarbraum: sRGB)
Mischfarben (Werkseinstellung, Zielfarbraum: sRGB)
Mischfarben (Werkseinstellung, Zielfarbraum: sRGB)
Mischfarben (Werkseinstellung, Zielfarbraum: Adobe RGB)
Mischfarben (Werkseinstellung, Zielfarbraum: Adobe RGB)

Display Response Times

Display response times show how fast the screen is able to change from one color to the next. Slow response times can lead to afterimages and can cause moving objects to appear blurry (ghosting). Gamers of fast-paced 3D titles should pay special attention to fast response times.

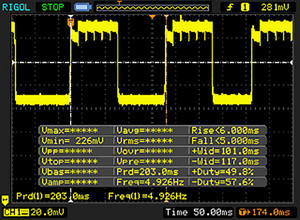

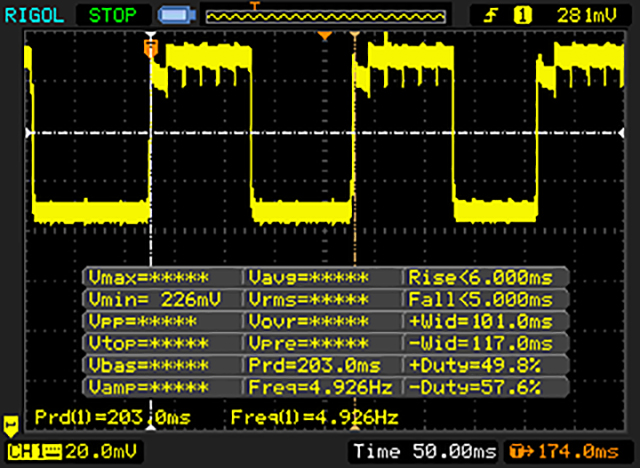

       Response Time Black to White
11 ms ... rise ↗ and fall ↘ combined↗ 6 ms rise
↘ 5 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers.
In comparison, all tested devices range from 0.8 (minimum) to 240 (maximum) ms. » 8 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (25.4 ms).

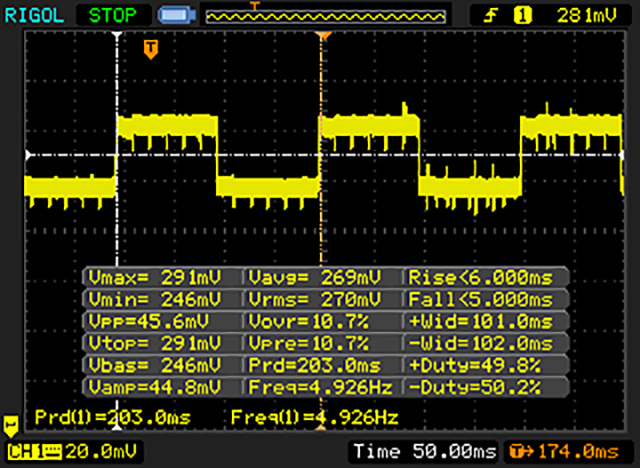

       Response Time 50% Grey to 80% Grey
11 ms ... rise ↗ and fall ↘ combined↗ 6 ms rise
↘ 5 ms fall
The screen shows good response rates in our tests, but may be too slow for competitive gamers.
In comparison, all tested devices range from 0.9 (minimum) to 636 (maximum) ms. » 6 % of all devices are better.
This means that the measured response time is better than the average of all tested devices (40.7 ms).

Screen Flickering / PWM (Pulse-Width Modulation)

To dim the screen, some notebooks will simply cycle the backlight on and off in rapid succession - a method called Pulse Width Modulation (PWM) . This cycling frequency should ideally be undetectable to the human eye. If said frequency is too low, users with sensitive eyes may experience strain or headaches or even notice the flickering altogether.

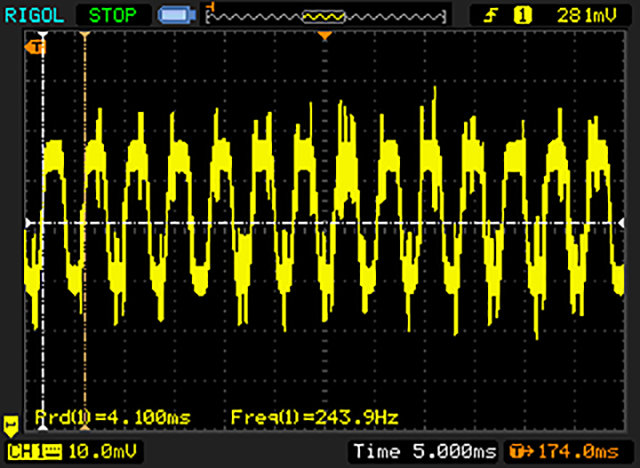

Screen flickering / PWM detected 243.9 Hz

The display backlight flickers at 243.9 Hz (Likely utilizing PWM) .

The frequency of 243.9 Hz is relatively low, so sensitive users will likely notice flickering and experience eyestrain at the stated brightness setting and below.

In comparison: 52 % of all tested devices do not use PWM to dim the display. If PWM was detected, an average of 9705 (minimum: 43 - maximum: 142900) Hz was measured.

Performance

AnTuTu v6 - Total Score (sort by value)
OnePlus 3
142090 Points ∼52%
OnePlus 2
65936 Points ∼24% -54%
Samsung Galaxy S7 Edge
128749 Points ∼47% -9%
LG G5
124244 Points ∼45% -13%
HTC 10
131866 Points ∼48% -7%
Huawei P9
95743 Points ∼35% -33%
Google Nexus 6P
79502 Points ∼29% -44%
Motorola Moto X Force
89911 Points ∼33% -37%
Sony Xperia Z5 Premium
78324 Points ∼29% -45%
Apple iPhone 6S Plus
133626 Points ∼49% -6%
Geekbench 3
64 Bit Multi-Core Score (sort by value)
OnePlus 3
5645 Points ∼15%
OnePlus 2
4804 Points ∼13% -15%
Samsung Galaxy S7 Edge
6480 (min: 6415) Points ∼17% +15%
LG G5
5507 Points ∼15% -2%
HTC 10
5117 Points ∼14% -9%
Huawei P9
6522 Points ∼17% +16%
Google Nexus 6P
4587 Points ∼12% -19%
Motorola Moto X Force
4791 Points ∼13% -15%
Sony Xperia Z5 Premium
4492 Points ∼12% -20%
Apple iPhone 6S Plus
4429 Points ∼12% -22%
64 Bit Single-Core Score (sort by value)
OnePlus 3
2398 Points ∼49%
OnePlus 2
1140 Points ∼23% -52%
Samsung Galaxy S7 Edge
2170 (min: 2120) Points ∼44% -10%
LG G5
2396 Points ∼49% 0%
HTC 10
2376 Points ∼48% -1%
Huawei P9
1767 Points ∼36% -26%
Google Nexus 6P
1335 Points ∼27% -44%
Motorola Moto X Force
1262 Points ∼26% -47%
Sony Xperia Z5 Premium
1335 Points ∼27% -44%
Apple iPhone 6S Plus
2538 Points ∼52% +6%
3DMark
2560x1440 Sling Shot OpenGL ES 3.0 Physics (sort by value)
OnePlus 3
1789 Points ∼42%
OnePlus 2
1414 Points ∼34% -21%
Samsung Galaxy S7 Edge
2002 (min: 1539) Points ∼47% +12%
LG G5
1695 Points ∼40% -5%
HTC 10
1512 Points ∼36% -15%
Huawei P9
2510 Points ∼60% +40%
Google Nexus 6P
1142 Points ∼27% -36%
Motorola Moto X Force
1282 Points ∼30% -28%
Sony Xperia Z5 Premium
1348 Points ∼32% -25%
Apple iPhone 6S Plus
1697 Points ∼40% -5%
2560x1440 Sling Shot OpenGL ES 3.0 Graphics (sort by value)
OnePlus 3
4633 Points ∼44%
OnePlus 2
1854 Points ∼17% -60%
Samsung Galaxy S7 Edge
3015 (min: 2895) Points ∼28% -35%
LG G5
4468 Points ∼42% -4%
HTC 10
4581 Points ∼43% -1%
Huawei P9
1080 Points ∼10% -77%
Google Nexus 6P
2302 Points ∼22% -50%
Motorola Moto X Force
3226 Points ∼30% -30%
Sony Xperia Z5 Premium
2336 Points ∼22% -50%
Apple iPhone 6S Plus
4557 Points ∼43% -2%
2560x1440 Sling Shot OpenGL ES 3.0 (sort by value)
OnePlus 3
3424 Points ∼48%
OnePlus 2
1734 Points ∼24% -49%
Samsung Galaxy S7 Edge
2710 (min: 2421) Points ∼38% -21%
LG G5
3277 Points ∼46% -4%
HTC 10
3157 Points ∼44% -8%
Huawei P9
1237 Points ∼17% -64%
Google Nexus 6P
1877 Points ∼26% -45%
Motorola Moto X Force
2413 Points ∼34% -30%
Sony Xperia Z5 Premium
2009 Points ∼28% -41%
Apple iPhone 6S Plus
3316 Points ∼46% -3%
1280x720 offscreen Ice Storm Unlimited Physics (sort by value)
OnePlus 3
21771 Points ∼25%
OnePlus 2
10985 Points ∼13% -50%
Samsung Galaxy S7 Edge
19610 Points ∼23% -10%
LG G5
20997 Points ∼24% -4%
HTC 10
20344 Points ∼24% -7%
Huawei P9
15517 Points ∼18% -29%
Google Nexus 6P
14983 Points ∼17% -31%
Motorola Moto X Force
11963 Points ∼14% -45%
Sony Xperia Z5 Premium
12852 Points ∼15% -41%
Apple iPhone 6S Plus
12854 Points ∼15% -41%
1280x720 offscreen Ice Storm Unlimited Graphics Score (sort by value)
OnePlus 3
34023 Points ∼6%
OnePlus 2
31858 Points ∼6% -6%
Samsung Galaxy S7 Edge
33031 Points ∼6% -3%
LG G5
32109 Points ∼6% -6%
HTC 10
30061 Points ∼6% -12%
Huawei P9
21577 Points ∼4% -37%
Google Nexus 6P
34758 Points ∼7% +2%
Motorola Moto X Force
38394 Points ∼7% +13%
Sony Xperia Z5 Premium
37725 Points ∼7% +11%
Apple iPhone 6S Plus
41615 Points ∼8% +22%
1280x720 offscreen Ice Storm Unlimited Score (sort by value)
OnePlus 3
30241 Points ∼13%
OnePlus 2
22400 Points ∼10% -26%
Samsung Galaxy S7 Edge
28671 Points ∼12% -5%
LG G5
28730 Points ∼12% -5%
HTC 10
27176 Points ∼12% -10%
Huawei P9
19854 Points ∼8% -34%
Google Nexus 6P
26876 Points ∼11% -11%
Motorola Moto X Force
25751 Points ∼11% -15%
Sony Xperia Z5 Premium
26380 Points ∼11% -13%
Apple iPhone 6S Plus
27795 Points ∼12% -8%
GFXBench (DX / GLBenchmark) 2.7
1920x1080 T-Rex HD Offscreen C24Z16 (sort by value)
OnePlus 3
89 fps ∼1%
OnePlus 2
48 fps ∼0% -46%
Samsung Galaxy S7 Edge
81 fps ∼1% -9%
LG G5
74 fps ∼1% -17%
HTC 10
73 fps ∼1% -18%
Huawei P9
40 fps ∼0% -55%
Google Nexus 6P
44 fps ∼0% -51%
Motorola Moto X Force
58 fps ∼0% -35%
Sony Xperia Z5 Premium
56 fps ∼0% -37%
Apple iPhone 6S Plus
78.9 fps ∼1% -11%
T-Rex HD Onscreen C24Z16 (sort by value)
OnePlus 3
60 fps ∼2%
OnePlus 2
47 fps ∼1% -22%
Samsung Galaxy S7 Edge
51 fps ∼2% -15%
LG G5
47 fps ∼1% -22%
HTC 10
43 fps ∼1% -28%
Huawei P9
43 fps ∼1% -28%
Google Nexus 6P
33 fps ∼1% -45%
Motorola Moto X Force
42 fps ∼1% -30%
Sony Xperia Z5 Premium
52 fps ∼2% -13%
Apple iPhone 6S Plus
59 fps ∼2% -2%
GFXBench 3.0
off screen Manhattan Offscreen OGL (sort by value)
OnePlus 3
47 fps ∼9%
OnePlus 2
23 fps ∼4% -51%
Samsung Galaxy S7 Edge
38 fps ∼7% -19%
LG G5
42 fps ∼8% -11%
HTC 10
39 fps ∼7% -17%
Huawei P9
18 fps ∼3% -62%
Google Nexus 6P
25 fps ∼5% -47%
Motorola Moto X Force
27 fps ∼5% -43%
Sony Xperia Z5 Premium
25 fps ∼5% -47%
Apple iPhone 6S Plus
38.4 fps ∼7% -18%
on screen Manhattan Onscreen OGL (sort by value)
OnePlus 3
46 fps ∼13%
OnePlus 2
23 fps ∼6% -50%
Samsung Galaxy S7 Edge
27 fps ∼7% -41%
LG G5
30 fps ∼8% -35%
HTC 10
24 fps ∼7% -48%
Huawei P9
19 fps ∼5% -59%
Google Nexus 6P
17 fps ∼5% -63%
Motorola Moto X Force
17 fps ∼5% -63%
Sony Xperia Z5 Premium
27 fps ∼7% -41%
Apple iPhone 6S Plus
38.4 fps ∼11% -17%
GFXBench 3.1
off screen Manhattan ES 3.1 Offscreen (sort by value)
OnePlus 3
31 fps ∼1%
OnePlus 2
19 fps ∼0% -39%
Samsung Galaxy S7 Edge
28 fps ∼1% -10%
LG G5
31 fps ∼1% 0%
HTC 10
24 fps ∼1% -23%
Huawei P9
10 fps ∼0% -68%
Google Nexus 6P
16 fps ∼0% -48%
Motorola Moto X Force
20 fps ∼0% -35%
Sony Xperia Z5 Premium
18 fps ∼0% -42%
Apple iPhone 6S Plus
28 fps ∼1% -10%
on screen Manhattan ES 3.1 Onscreen (sort by value)
OnePlus 3
30 fps ∼1%
OnePlus 2
19 fps ∼1% -37%
Samsung Galaxy S7 Edge
15 fps ∼0% -50%
LG G5
17 fps ∼0% -43%
HTC 10
14 fps ∼0% -53%
Huawei P9
11 fps ∼0% -63%
Google Nexus 6P
9.5 fps ∼0% -68%
Motorola Moto X Force
12 fps ∼0% -60%
Sony Xperia Z5 Premium
19 fps ∼1% -37%
Apple iPhone 6S Plus
28 fps ∼1% -7%
PCMark for Android - Work performance score (sort by value)
OnePlus 3
7101 Points ∼36%
OnePlus 2
4282 Points ∼22% -40%
Samsung Galaxy S7 Edge
4660 Points ∼24% -34%
LG G5
5581 Points ∼28% -21%
HTC 10
5809 Points ∼30% -18%
Huawei P9
7058 Points ∼36% -1%
Google Nexus 6P
4716 Points ∼24% -34%
Motorola Moto X Force
5365 Points ∼27% -24%
Sony Xperia Z5 Premium
5094 Points ∼26% -28%
BaseMark OS II
Web (sort by value)
OnePlus 3
1112 Points ∼55%
OnePlus 2
923 Points ∼45% -17%
Samsung Galaxy S7 Edge
994 Points ∼49% -11%
LG G5
900 Points ∼44% -19%
HTC 10
928 Points ∼46% -17%
Huawei P9
1029 Points ∼51% -7%
Google Nexus 6P
791 Points ∼39% -29%
Motorola Moto X Force
939 Points ∼46% -16%
Sony Xperia Z5 Premium
986 Points ∼48% -11%
Apple iPhone 6S Plus
1199 Points ∼59% +8%
Graphics (sort by value)
OnePlus 3
4813 Points ∼17%
OnePlus 2
2631 Points ∼9% -45%
Samsung Galaxy S7 Edge
2203 Points ∼8% -54%
LG G5
4807 Points ∼17% 0%
HTC 10
5009 Points ∼17% +4%
Huawei P9
1583 Points ∼5% -67%
Google Nexus 6P
2424 Points ∼8% -50%
Motorola Moto X Force
3376 Points ∼12% -30%
Sony Xperia Z5 Premium
3137 Points ∼11% -35%
Apple iPhone 6S Plus
4299 Points ∼15% -11%
Memory (sort by value)
OnePlus 3
2052 Points ∼33%
OnePlus 2
1297 Points ∼21% -37%
Samsung Galaxy S7 Edge
2072 Points ∼33% +1%
LG G5
1478 Points ∼24% -28%
HTC 10
1772 Points ∼28% -14%
Huawei P9
2627 Points ∼42% +28%
Google Nexus 6P
1136 Points ∼18% -45%
Motorola Moto X Force
1085 Points ∼17% -47%
Sony Xperia Z5 Premium
876 Points ∼14% -57%
Apple iPhone 6S Plus
1124 Points ∼18% -45%
System (sort by value)
OnePlus 3
3537 Points ∼21%
OnePlus 2
2536 Points ∼15% -28%
Samsung Galaxy S7 Edge
4080 Points ∼25% +15%
LG G5
2925 Points ∼18% -17%
HTC 10
2806 Points ∼17% -21%
Huawei P9
3930 Points ∼24% +11%
Google Nexus 6P
1798 Points ∼11% -49%
Motorola Moto X Force
2878 Points ∼17% -19%
Sony Xperia Z5 Premium
2737 Points ∼17% -23%
Apple iPhone 6S Plus
3925 Points ∼24% +11%
Overall (sort by value)
OnePlus 3
2496 Points ∼30%
OnePlus 2
1681 Points ∼20% -33%
Samsung Galaxy S7 Edge
2074 Points ∼25% -17%
LG G5
2079 Points ∼25% -17%
HTC 10
2193 Points ∼26% -12%
Huawei P9
2025 Points ∼24% -19%
Google Nexus 6P
1405 Points ∼17% -44%
Motorola Moto X Force
1774 Points ∼21% -29%
Sony Xperia Z5 Premium
1649 Points ∼20% -34%
Apple iPhone 6S Plus
2206 Points ∼26% -12%

Legend


OnePlus 3 Qualcomm Snapdragon 820 MSM8996, Qualcomm Adreno 530, 64 GB UFS 2.0 Flash

OnePlus 2 Qualcomm Snapdragon 810 MSM8994, Qualcomm Adreno 430, 64 GB eMMC Flash

Samsung Galaxy S7 Edge Samsung Exynos 8890 Octa, ARM Mali-T880 MP12, 32 GB UFS 2.0 Flash

LG G5 Qualcomm Snapdragon 820 MSM8996, Qualcomm Adreno 530, 32 GB eMMC Flash

HTC 10 Qualcomm Snapdragon 820 MSM8996, Qualcomm Adreno 530, 32 GB eMMC Flash

Huawei P9 HiSilicon Kirin 955, ARM Mali-T880 MP4, 32 GB eMMC Flash

Google Nexus 6P Qualcomm Snapdragon 810 MSM8994, Qualcomm Adreno 430, 32 GB eMMC Flash

Motorola Moto X Force Qualcomm Snapdragon 810 MSM8994, Qualcomm Adreno 430, 32 GB eMMC Flash

Sony Xperia Z5 Premium Qualcomm Snapdragon 810 MSM8994, Qualcomm Adreno 430, 32 GB eMMC Flash

Apple iPhone 6S Plus Apple A9, Apple A9 / PowerVR GT7600, Apple AP0064K (iPhone NVMe)

Emissions

Max. Load
 40.5 °C
105 F
39.7 °C
103 F
36.9 °C
98 F

 42.1 °C
108 F
41.8 °C
107 F
37.1 °C
99 F

 41.4 °C
107 F
39.6 °C
103 F
37.1 °C
99 F

Maximum: 42.1 °C = 108 F
Average: 39.6 °C = 103 F
36.7 °C
98 F
37.2 °C
99 F
39.1 °C
102 F
37.1 °C
99 F
38.5 °C
101 F
39.5 °C
103 F
36.6 °C
98 F
38.8 °C
102 F
39.5 °C
103 F
Maximum: 39.5 °C = 103 F
Average: 38.1 °C = 101 F
Power Supply (max.)  33.8 °C = 93 F | Room Temperature 21.4 °C = 71 F | Voltcraft IR-260
(-) The average temperature for the upper side under maximal load is 39.6 °C / 103 F, compared to the average of 33.1 °C / 92 F for the devices in the class Smartphone.
(±) The maximum temperature on the upper side is 42.1 °C / 108 F, compared to the average of 35.6 °C / 96 F, ranging from 22.4 to 51.7 °C for the class Smartphone.
(+) The bottom heats up to a maximum of 39.5 °C / 103 F, compared to the average of 34.1 °C / 93 F
(+) In idle usage, the average temperature for the upper side is 28.2 °C / 83 F, compared to the device average of 33.1 °C / 92 F.

Power Consumption





Power Consumption
Off / Standbydarklight 0.07 / 0.27 Watt
Idledarkmidlight 0.57 / 1.24 / 1.36 Watt
Load midlight 5.92 / 10.53 Watt
 color bar
Key: min: dark, med: mid, max: light        Gossen Metrahit Energy
OnePlus 3
3000 mAh
Samsung Galaxy S7 Edge
3600 mAh
Apple iPhone 6S Plus
2750 mAh
Huawei P9
3000 mAh
LG G5
2800 mAh
HTC 10
3000 mAh
Power Consumption
4%
-4%
-20%
-13%
-19%
Idle Minimum *
0.57
0.63
-11%
0.5
12%
0.77
-35%
0.55
4%
0.68
-19%
Idle Average *
1.24
1.1
11%
1.9
-53%
2.36
-90%
1.37
-10%
1.49
-20%
Idle Maximum *
1.36
1.56
-15%
2.2
-62%
2.37
-74%
2.25
-65%
1.91
-40%
Load Average *
5.92
5.95
-1%
3.2
46%
3.09
48%
6.24
-5%
7.4
-25%
Load Maximum *
10.53
6.7
36%
6.4
39%
5.35
49%
9.12
13%
9.71
8%

* ... smaller is better

Pricecompare

static version load dynamic
Loading Comments
Comment on this article
Please share our article, every link counts!
> Notebook / Laptop Reviews and News > Reviews > OnePlus 3 Smartphone First Impressions
Daniel Schmidt, 2016-06-19 (Update: 2018-05-15)
