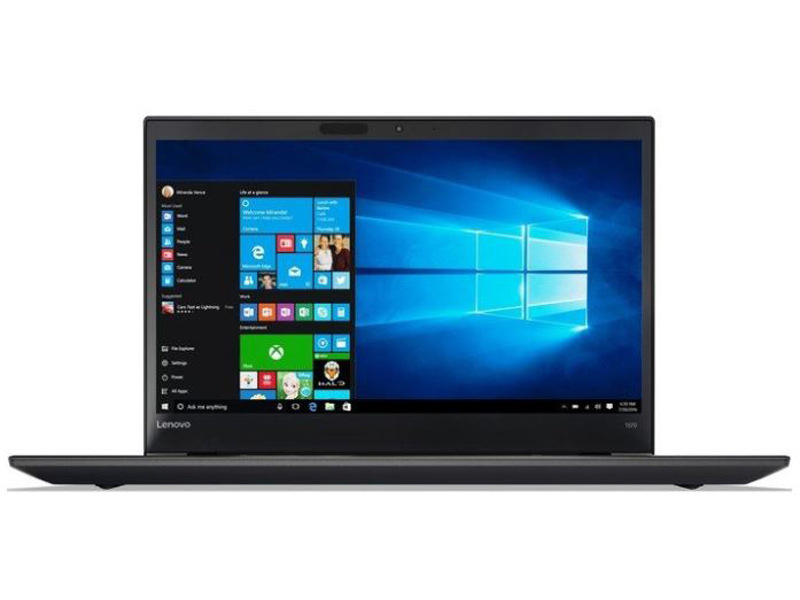

Lenovo ThinkPad T570-20H90002GE


Lenovo ThinkPad T570-20H90002GE
Lenovo ThinkPad T570-20H90002GE (ThinkPad T570 Series)
Intel Core i5-7200U 2 x 2.5 - 3.1 GHz, Kaby Lake
Graphics adapter
8192 MB
, DDR4-2400, Single-channel, 1/2 slots in use, up to 32 GB
15.60 inch 16:9, 1920 x 1080 pixel 141 PPI, N156HCA-EAA, IPS, glossy: no
Intel Kaby Lake-U Premium PCH
Samsung PM961 MZVLW256HEHP, 256 GB
, 215 GB free
Intel Kaby Lake-U/Y PCH - High Definition Audio
3 USB 3.0 / 3.1 Gen1, 1 USB 3.1 Gen2, 1 Thunderbolt, 1 HDMI, 1 DisplayPort, 1 Kensington Lock, 1 Docking Station Port, Audio Connections: 3.5 mm combo, Card Reader: SD 3.0 (UHS-I), 1 SmartCard, 1 Fingerprint Reader
Intel Ethernet Connection I219-V (10/100/1000/2500/5000MBit/s), Intel Dual Band Wireless-AC 8265 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5), Bluetooth 4.1
height x width x depth (in mm): 20.2 x 365.8 x 252.8 ( = 0.8 x 14.4 x 9.95 in)
56 Wh Lithium-Polymer, removeable, 32 Wh internal (4 cells), 24 Wh external (3 cells)
Operating System
Microsoft Windows 10 Pro 64 Bit
Webcam: 720p HD
Additional features
Speakers: Stereo, Keyboard: Chiclet, Keyboard Light: yes, 45-Watt PSU, quick-start guide, warranty card, Lenovo drivers, Microsoft Office (trial), 36 Months Warranty
1.975 kg ( = 69.67 oz / 4.35 pounds), Power Supply: 292 g ( = 10.3 oz / 0.64 pounds)
1550 Euro



Average Score: 78.2% - good
Average of 2 scores (from 3 reviews)
price: - %, performance: 69%, features: 71%, display: 85% mobility: 77%, workmanship: 88%, ergonomy: 47%, emissions: 93%

Reviews for the Lenovo ThinkPad T570-20H90002GE

86.4% Lenovo ThinkPad T570 (Core i5, Full HD) Laptop Review | Notebookcheck
More compact. Lenovo has equipped its 15-inch business classic with a new case and offers an attractive package in many areas. However, there are still some performance bugs, and the Chinese manufacturer is still using a mediocre Full HD panel.
Lenovo ThinkPad T570 review – thin, light, reliable, enduring
Source: Laptop Media English
To our surprise, the 15-inch model from the series isn’t much different from its 14-inch sibling. It doesn’t really offer anything more considering the bigger chassis – storage options are the same, the I/O is identical but on the contrary, the internal battery offers slightly bigger capacity, which in turn delivers better endurance overall.
Single Review, online available, Very Long, Date: 08/31/2017
70% Lenovo ThinkPad T570 Review
Source: Laptop Mag English
The Latitude T570 offers a comfortable keyboard, fantastic battery life and solid multitasking performance. A dim screen and warm bottom mean that this laptop is good enough for the office, but not quite sleek enough for frequent business travel or good enough for creative professionals.
Single Review, online available, Very Long, Date: 04/22/2017
Rating: Total score: 70%

Foreign Reviews

Ревю на Lenovo ThinkPad T570 – тънък, лек, надежден, издръжлив
Source: BU→EN
Positive: Good ergonomy; nice display; long battery life; silent system.
Single Review, online available, Very Long, Date: 09/04/2017


Intel HD Graphics 620: Integrated GPU (GT2) found on some Kaby-Lake CPU models (15 W ULV series).

Modern games should be playable with these graphics cards at low settings and resolutions. Casual gamers may be happy with these cards.

» Further information can be found in our Comparison of Mobile Graphics Cards and the corresponding Benchmark List.

i5-7200U: Kaby-Lake based SoC with two CPU cores clocked at 2.5 to 3.1 GHz, HyperThreading and manufactured with an improved 14nm process.» Further information can be found in our Comparison of Mobile Processsors.


15-16 inch is a standard display size for laptops and offers the biggest variety of products.

» To find out how fine a display is, see our DPI List.

1.975 kg:

This weight is typical for very big tablets, subnotebooks, ultrabooks and convertibles with a 11-13 inch display-diagonal.

Lenovo: Lenovo ( "Le" as in the English word legend and "novo" (Latin) for new) was founded in 1984 as a Chinese computer trading company. From 2004, the company has been the largest laptop manufacturer in China and got the fourth largest manufacturer worldwide after the acquisition of IBM's PC division in 2005. In addition to desktops and notebooks, the company also produces monitors, projectors, servers, etc.

In 2011, Lenovo acquired the majority of Medion AG, a European computer hardware manufacturer. In 2014, Lenovo took over Motorola Mobility, which gave them a boost in the smartphone market.

From 2014 to 2016 Lenovo's market share in the global notebook market was 20-21%, ranking second behind HP. However, the distance decreased gradually. In the smartphone market, Lenovo did not belong to the Top 5 global manufacturers in 2016.

78.2%: This rating is not convincing. The laptop is evaluated below average, this is not really a recommendation for purchase.

» Further information can be found in our Notebook Purchase Guide.
