Review Viewsonic ViewPad 10s Tablet/MID

Siegfried Moersch (translated by Liala Stieglitz), 04/21/2011

Price fighter. The ViewPad 10s has a 10.1 inch capacitive touchscreen and the dual core processor, Tegra 250, from nVIDIA. With that, it should provide up to 16 hours of mains independence. Google Android 2.2 is pre-installed as the operating system on the ViewPad 10s.

The ViewPad 10s is comparable with the Apple opponent, the iPad, in terms of size and weight. The display diagonal is a bit larger in the ViewPad 10s. The Viewsonic has a screen diameter of 10.1 inches rather than 9.7 inches. The weight differences are marginal and almost equal. The biggest difference is found in the pad's dimensions. The device is notably larger and, in particular, thicker. In comparison, the iPad only measures 8.8 mm, the ViewPad 10s is almost twice as thick. According to the manufacturer, it is "only" 14.5 mm. But it feels a great deal thicker though.

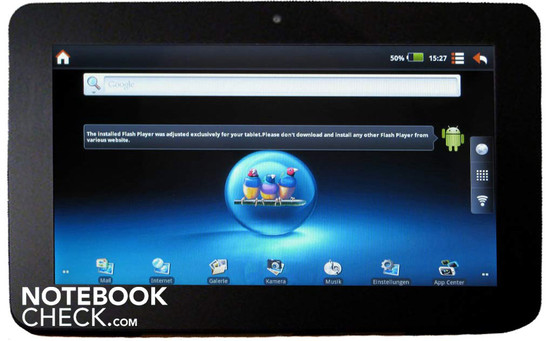

Tablet PC with a 10.1 inch screen from Viewsonic

Case

The ViewPad 10s's case is pleasant to hold despite its 768 grams. There is a lot of room for a secure hold on the case's right and left. The workmanship is acceptable and the pad's case is sufficiently stable. Every now and again, the upper and lower shells creak when the pad is pressed to hard. Black plastic is used as its material. Although it is plastic, pressure isn't passed onto the screen from the back. The sparse control elements are all on the right, respectively on the top. The ViewPad can't compete with the aluminum pad in any way in regards to materials and quality and is rather more in the Samsung Galaxy Tab's (7") league.

The control elements on the ViewPad 10s

Connectivity

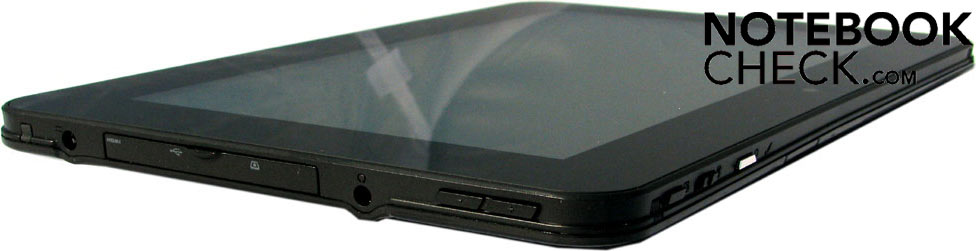

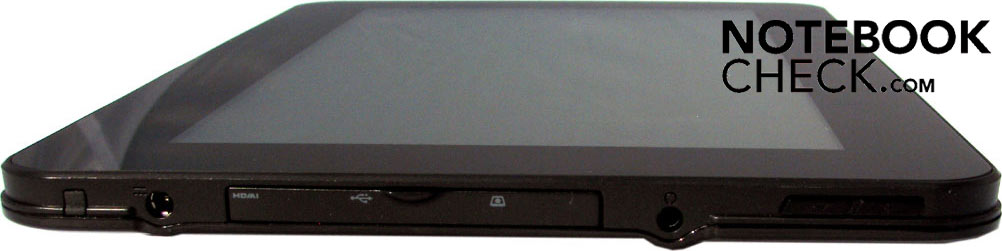

All expansion interfaces are found on the right. The majority of these are beneath a plastic cover. It reveals USB port, a cardreader for micro SD cards and a HDMI interface. Opening the cover is a riddle and a very finicky matter. The cover is kept in place by two magnets that have a tight grip. Almost too good to access the interfaces easily. We had a hard time to take off the cover in the test because of the magnetic force. It even gets harder when you want to pull out the microSD card. One hand has to hold the pad and bend the cover open at the same time. The inserted microSD card fits tight in the cardreader and has to be pressed in a bit. The card can be taken out after that. It's hardly possible to make things more complicated.

The cover can only be removed with difficulty
The cover can only be removed with difficulty
Handy USB slot: USB sticks or hard disks can be inserted directly into the pad
Handy USB slot: USB sticks or hard disks can be inserted directly into the pad

Two controls are found on the pad's right for controlling the volume. A display shows up on the screen when they are pressed, which shows the volume level. The 3.5 mm socket for a headphone plug is also found here. In addition to the lateral elements, the ViewPad has a few switches for pressing and pushing on its top. The "Home" button is found here. It calls up the desktop view when it's triggered. However, running programs aren't closed, but only put into the background. The second key lets you go a step back within applications. Moreover, there is a slider with which the display's direction can be fixed. That means the displayed content doesn't rotate when the pad's position is altered, even if it's set otherwise in the settings.

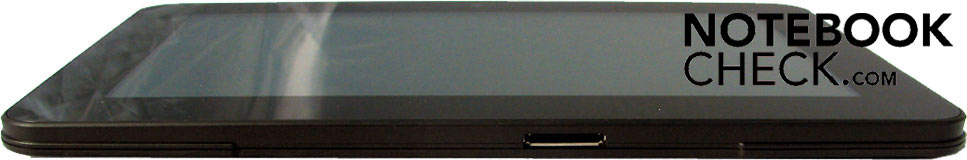

There is a port for connecting a docking station on the case's lower side

The ViewPad 10s has a docking station connector on its lower side. It will be offered optionally. However, looking around on the Internet hasn't led to any shop offering this docking station.

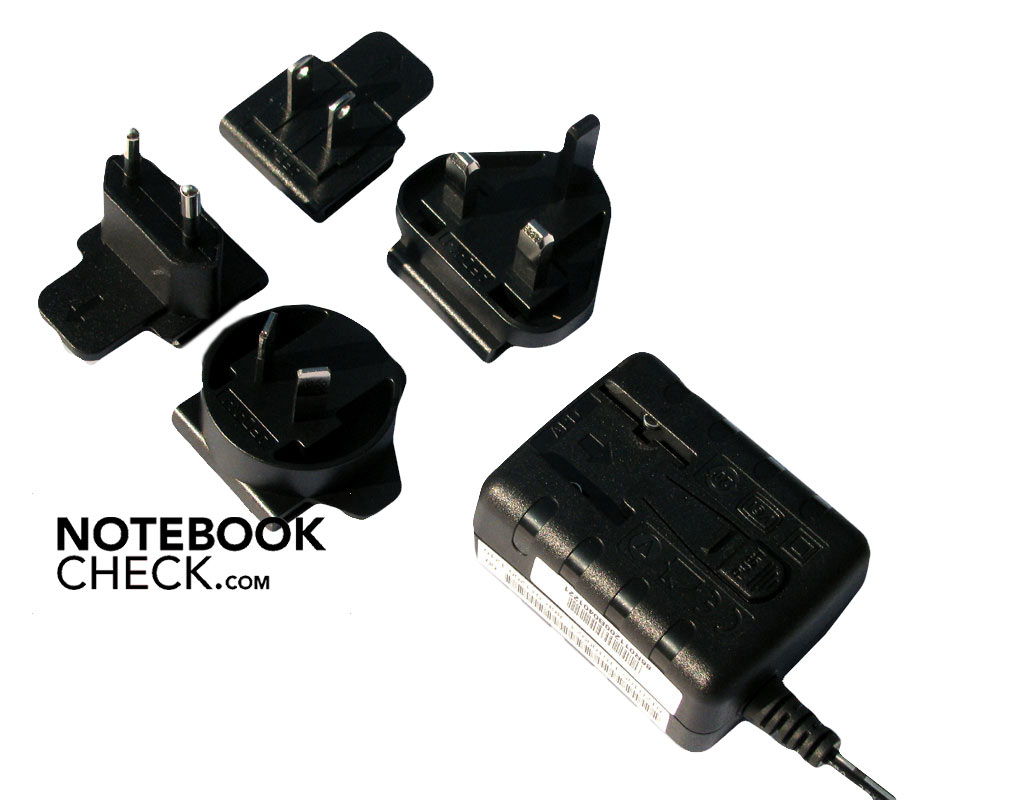

Four different plug adapters are included in the scope of delivery

Supplies and Warranty

Beside the pad, there is a 120 gram light power adapter with various plug adapters included in the scope of delivery. The pad can be used almost everywhere in the world with these adapters. The single plugs can be easily exchanged so that it fits in a variety of power outlets. Additionally, there are a few quick start sheets. However, they only explain the ViewPad 10s's connections. A comprehensive user's manual is installed on the pad.

The warranty periods vary. Viewsonic grants a warranty of 2 years in D-A-CH.

ViewPad 7 "Try for Free"

Viewsonic currently has a special campaign for everyone who would like to try a 7 inch pad. Consumers can return the ViewPad 7 within 4 weeks after purchasing it for free in the campaign "Try for Free". A maximum of 10 euros is remunerated for packaging and shipping expenses. The campaign runs from April 11th to May 15th, 2011.

The tablet PC, ViewPad 7, is equipped with the Android 2.2 operating system, Bluetooth, WLAN and GPU. Moreover, it has a SIM card slot, which allows the pad to also be used for making telephone calls..

Input Devices / Use

The ViewPad 10s is almost only used via the touch sensitive touchscreen. A part of the display is reserved for various status indicators. Aside the current time and wireless network status, the battery state is also displayed. In addition, there are two icons for "home" and "back". Both of these functions are also found as "real buttons" on the case. However, the use of these buttons is a bit complicated due to their positioning. The keys are – when the ViewPad 10s is used horizontally – on the pad's upper right. The right hand has to be relocated for using the Home, respectively Back button when the pad is held with both hands. The ViewPad 10s hasn't got a back key on the display front that can simply be used with the thumb.

The pad's settings are well arranged and can be set in several languages. Viewsonic sticks to the default settings of the Android operating system. The terms are easy to understand so that even unpracticed users quickly find their way around. Wireless Internet access first has to be configured. WLAN access points within the device's range are listed by name and can be used. That is of course that you have the matching security key for that access point. Free hotspot access points, such as found in cafes, hotels or airports, are also detected and fade in via an info report. Internet can't be used after leaving the service area since there is no 3G support. This naturally also applies for checking or writing emails.

A virtual QWERTY keyboard is faded in for text inputting. It is also used for writing emails. The capacitive display responds very quickly. Alternately, it is also possible to connect an external USB keyboard.

Display

Alike all pads, the ViewPad 10s has a reflective display. That is noticed in the office or at home when the ceiling light is mirrored on the screen. It gets even worse outdoors. Reflections of the sun, respectively user, are inevitable. The pad can be used well as a mirror replacement for checking your hairdo. It will save you going to the ladies room in the beer garden.

The backlight can be set in several brightness levels in the settings. It's even faster with the widgets for energy savings that standardly belong to the Android operating system. If the widget is placed on the desktop, three brightness levels can be selected directly. These widgets bid even more functions: WLAN and Bluetooth can be enabled/disabled quickly.
The tablet is about on par with current notebooks with a maximum brightness of 230 cd/m2. The brightness is sufficient for indoor use. It gets a bit more problematic outdoors. The ViewPad can't "excel" in terms of contrast where it is only below average with 133:1. Consequently, black looks rather like faded gray, as can also be seen on the following picture.

230
cd/m²
207
cd/m²
206
cd/m²
230
cd/m²
220
cd/m²
205
cd/m²
216
cd/m²
213
cd/m²
190.5
cd/m²
Distribution of brightness
Information
Gossen Mavo-Monitor
Maximum: 230 cd/m²
Average: 213.1 cd/m²
Brightness Distribution: 83 %
Black: 1.65 cd/m²
Contrast: 133:1

The display immediately responds to finger inputs. Partly so fast that something is entered twice. Actions that aren't intended (at this moment) can also be triggered in games, for example in the Android classic "Angry Birds". The typical two finger gestures (zoom in / out) as known from the iPad are also possible.

You quickly notice the 768 grams during video rendering. A prop doesn't belong to the ViewPad 10s's equipment. Especially the ViewPad 10s's surface is noticed adversely since it magically attracts fingerprints. A box of cleaning wipes should always be at hand for the pad because the display isn't very forgiving. The case's black plastic doesn't forget any touches either. Perfect for police in case the pad is mixed up in a crime.

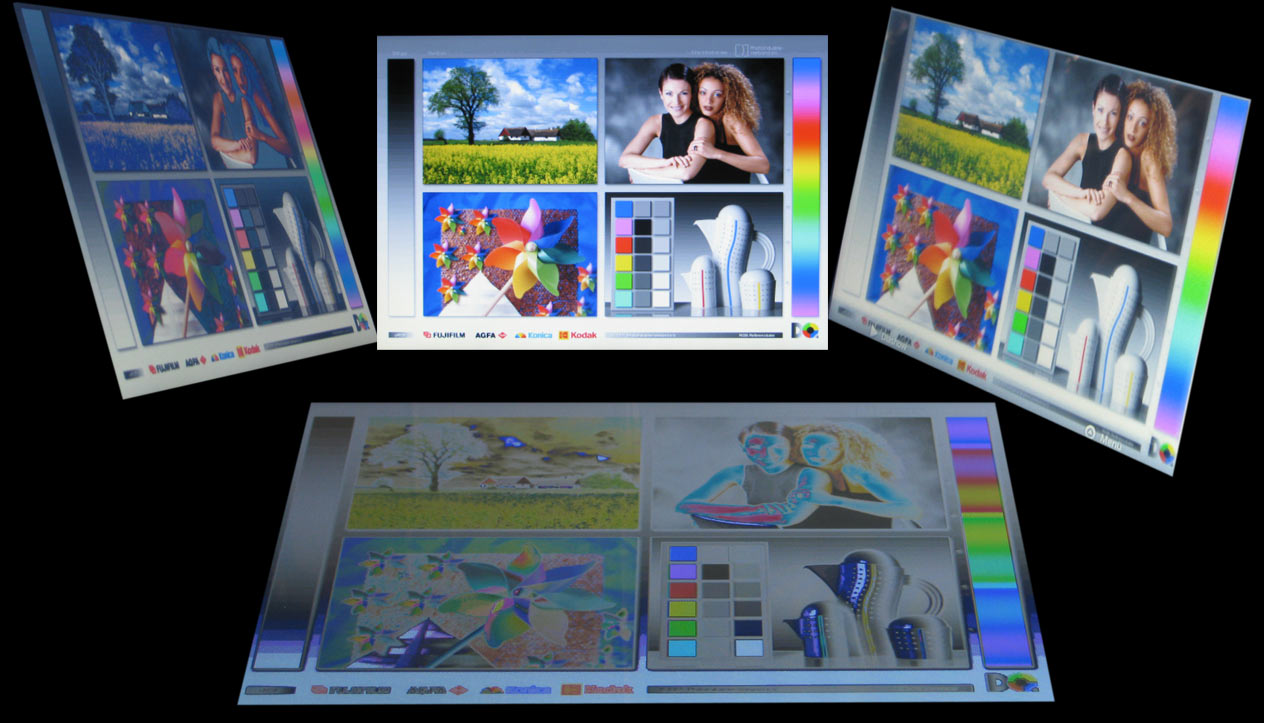

Viewing angles: Viewsonic ViewPad 10s
Viewing angles: Viewsonic ViewPad 10s

Hardware Configuration

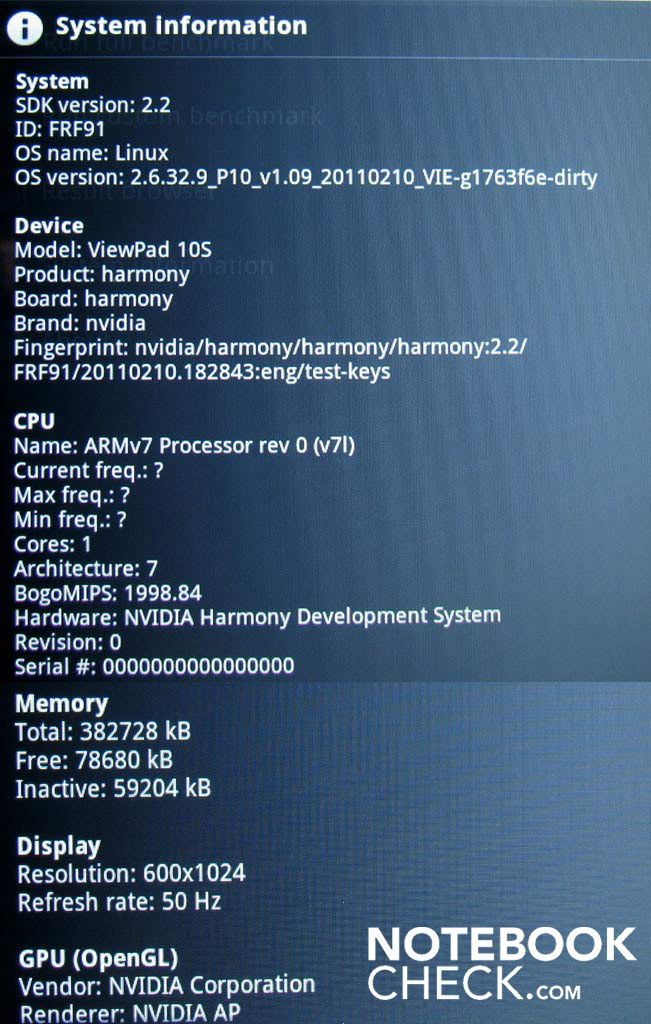

System information read out via program

An ARM Cortex A9 from nVIDIA is used for the processor in the ViewPad 10s. The Tegra 250 is designed as a dual core and is powered with 1 GHz. The tablet has a 512 MB SD RAM DDR2 memory as its RAM. An upgrade option to more RAM isn't presented. The capacitive 16:9 display supports multi-touch inputs. The backlit display has a resolution of 1024x600 pixels and supports 16.7 million colors. A 1.3 megapixel webcam is located above the display – when it's held horizontally.

The ViewPad 10s has WLAN standard 802.11 b/g and Bluetooth 2.1+, including EDR technology for wireless connections. External hard disks, USB sticks or input devices, like keyboard or mouse, can be used directly with the ViewPad 10s via the lateral USB port. The pad can also be used as, for example, a video player on the "big" TFT via the HDMI port. The internal 512 MB ROM can be expanded with a micro SD card, easily and affordably. SDHC card currently have a maximum capacity of 32 GB and cost about 30 euros.

Applications: Surfing, Multimedia and Email Client

The large display is predestined for surfing and rendering movies. Internet sites are reproduced well in the landscape mode, which has a resolution of 1024x600 pixels. It's possible to scroll quickly with one finger. The pivot mode (600x1024 pixels) is more suitable for changing the pad's settings. The ViewPad 10s's display content rotates automatically depending on the pad's position. Automatic rotating can be disabled in the settings or via the slider if this function isn't wanted. That is handy especially when watching videos or playing a game. Disabling the tilt and acceleration sensor would be fatal within games that use the automatic display switching.

Multimedia

Music files can be played via the pre-installed player without problems. Prepared play lists are also supported by the audio player. Information about the artist, album and title is automatically read out via the audio files' ID3 tag. The player creates the according play list depending on how it is to be sorted. The ViewPad 10s doesn't have its own video player. Playing a video is either possible via the iFileManager or via a video player app. They can be found in a vast amount in various Android stores. Many video players can even be directly installed from the AppCenter – to a part even for free.

The ViewPad 10s supports all current video codes and formats up to a 1080p resolution. The ViewPad 10s can even be used as a video player for a larger screen via the HDMI port.

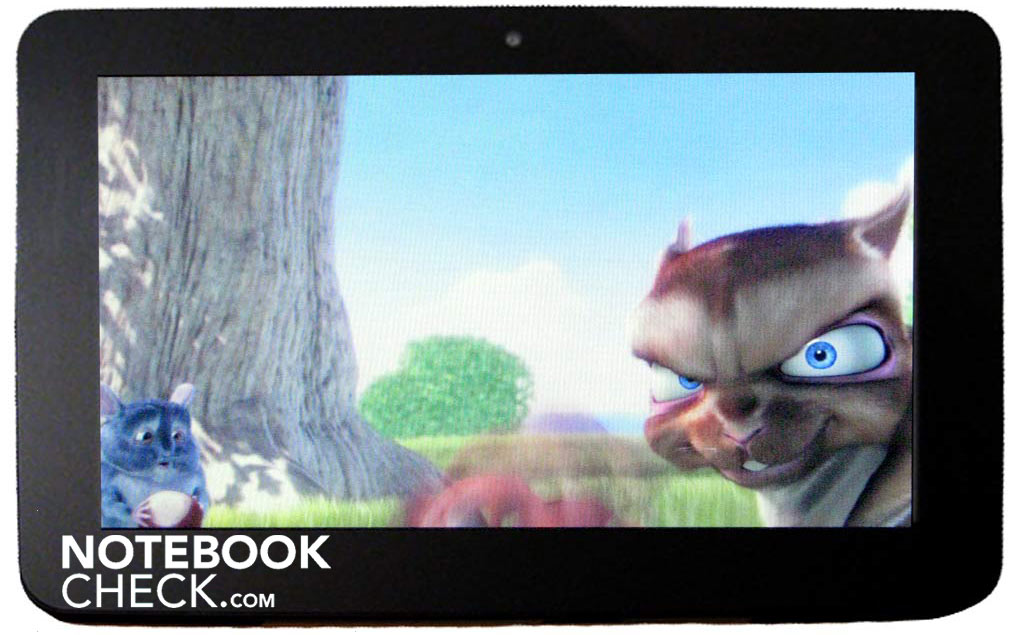

Rendering HD videos isn't a problem for the ViewPad 10s

The incorporated email client supports POP3, IMAP or Exchange email accounts. Even several different account types can be used at the same time on the ViewPad 10s. The email client fulfills all basic functions. Other email clients, such as "K9" can also be installed and used. However, a WLAN connection is still necessary for checking emails. Alternately, a smartphone can be used as an access point. But that depends on the model and telephone providers often don't approve of it.

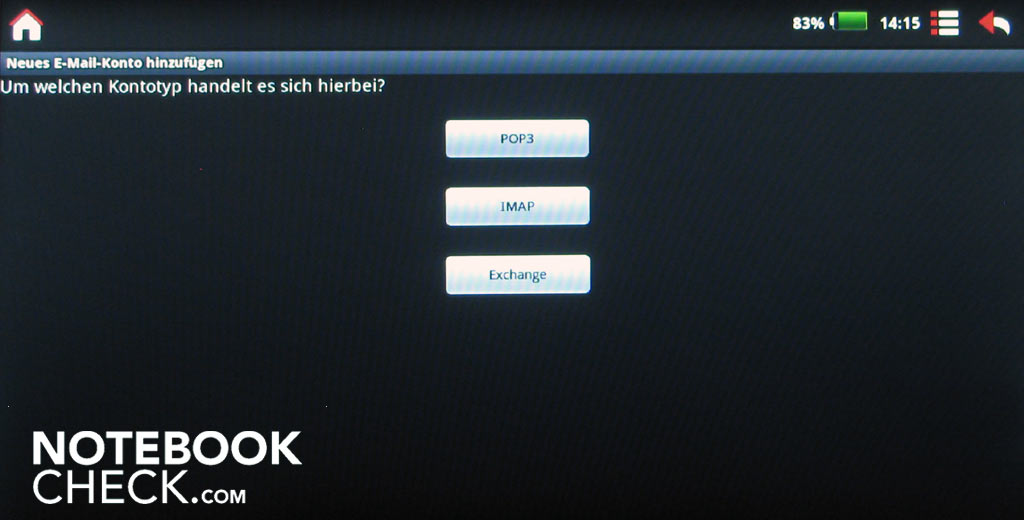

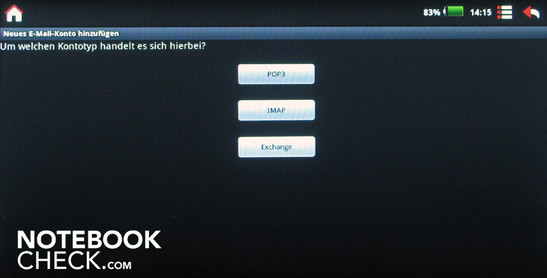

The email client supports POP3, IMAP and Exchange accounts

Idiosyncrasies

Apps run when the memory has been cleared

The ViewPad 10s is based on the Android 2.2 operating system and is thus compatible with almost all apps. A few programs are pre-installed in its state of delivery so that you can start right away. There is an email client, a calendar, a clock and a calculator. The ViewPad 10s connects to the AppStore from Android Pit via the App Center icon. A WLAN access point is mandatory for this.

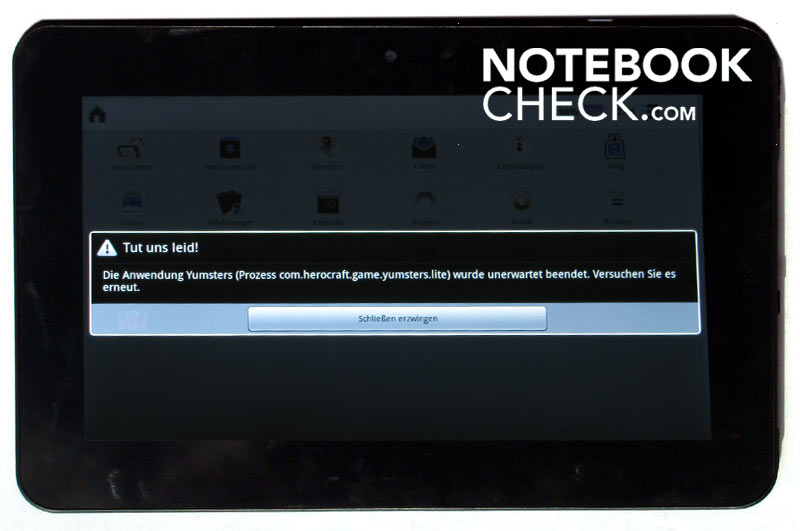

We noticed a few peculiarities in the beginning of the tests with the ViewPad. They ran without problems after installation but started to crash more frequently in the course of time. The more apps were installed and opened on the pad, the more incompatible the ViewPad 10s got. In the beginning we thought that it must be a virus. However, various virus scanners showed that the pad was virus free. In order to find the fault, the ViewPad 10s was frequently set back to the state of delivery. All data, apps and settings were deleted every time. Newly installed apps ran perfectly and without crashes again.

Apps can be deleted from the memory via task manager

First, in the course of various test, could we detect the guilty party. It is no other than the pad that makes itself problems with the applications. Programs or games that had been closed via the home button weren't closed in the memory. The more apps we successively opened, the less memory was available. Android apps may be relatively small, but even 512 MB of flash memory is filled. The operating system's task manager could help here. Single or even all running tasks can be closed with it. This indirect route isn't elegant, but it does the job.

Apps that didn't want to run without using the task manager ran without problems with a cleared memory.

Emissions

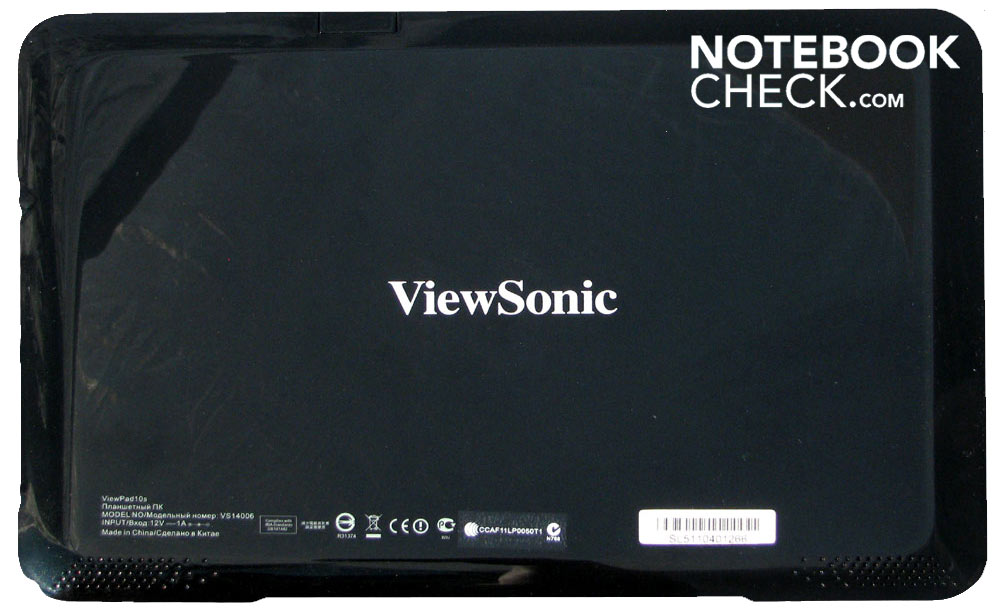

Only marginal heating: ViewPad 10s's flipside

The device works completely without a fan and is thus absolutely silent. No annoying fan or clicking hard disk has been installed into the pad. The power loss of CPU, graphics or battery is hardly noticeable. A "heat source" is merely found on the flipside while charging the battery. But that's normal when charging a battery. However, the device always remained within a lukewarm temperature range during use.

Max. Load
 26.5 °C28.5 °C30.7 °C
 28.3 °C31.1 °C32.9 °C
 32.8 °C34.9 °C33.7 °C
Maximum: 34.9 °C
Average: 31 °C
33.8 °C31.7 °C27.4 °C
36.3 °C33.3 °C28.6 °C
37.0 °C32.3 °C28.2 °C
Maximum: 37.0 °C
Average: 32.1 °C
| Raytek Raynger ST

Speakers

The ViewPad 10s has two built-in speakers with 1.5 watts each for sound emission. They are located on the flipside and emit a good sound. The volume can be controlled via two speaker controls. A headphone can also be connected via the 3.5 mm audio socket.

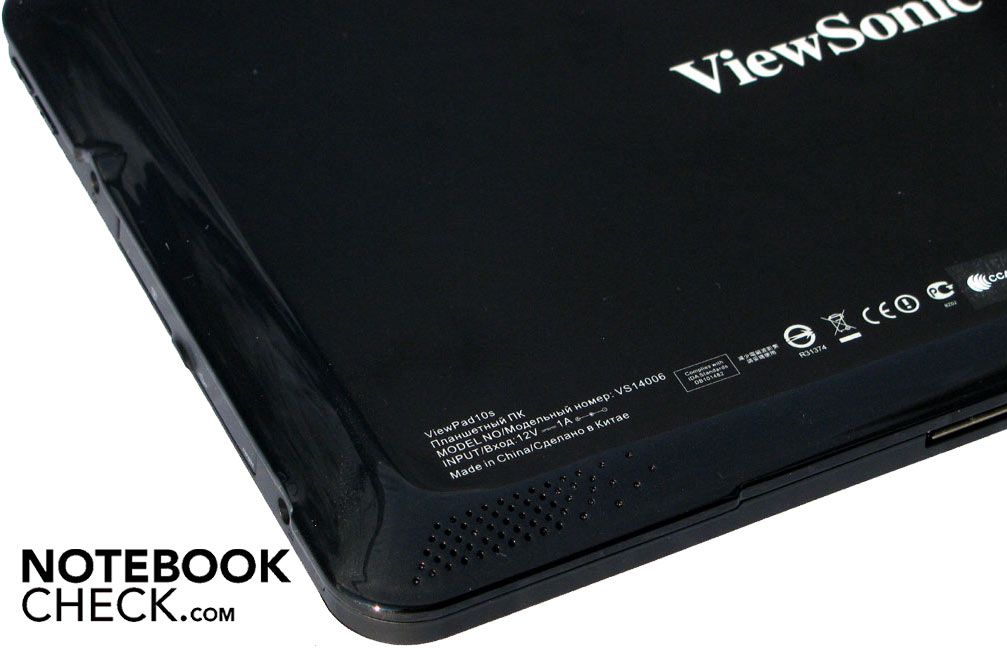

Two speakers are located on the flipside
Two speakers are located on the flipside
They have an output performance of 1.5 watts each
They have an output performance of 1.5 watts each

Battery Life

There is a battery pack based on lithium-ion in the ViewPad 10s. They have a charge capacity of 3300mAh. According to the manufacturer's specs, they are supposed to last for up to 7 hours. It's even allegedly about 16 hours when the pad is solely used as a music player. That sounds good and we want to check it out.

To determine the battery life, the pad was first charged for several hours. The ViewPad shows the battery charge state via a small indicator. After reaching 100% of capacity, we added WLAN for the first run through. The display's brightness was set to maximum. We visited a video site via the web browser. We haven't yet any programs similar to those for notebooks for testing the battery life of tablet PCs with Android. We didn't use a stopwatch because the Android operating system records how long it runs. A 90 minute video was started. It was streamed via WLAN and the Internet access point, and it put the CPU, graphics and WLAN under simultaneous load. An anti-virus program had to check the pad for infections as a second tool. This method was repeated until the battery warned us. The pad made itself noticeable with a warning that the battery was almost drained after 4 hours and 44 minutes. A good point to record the pad's minimum battery life.

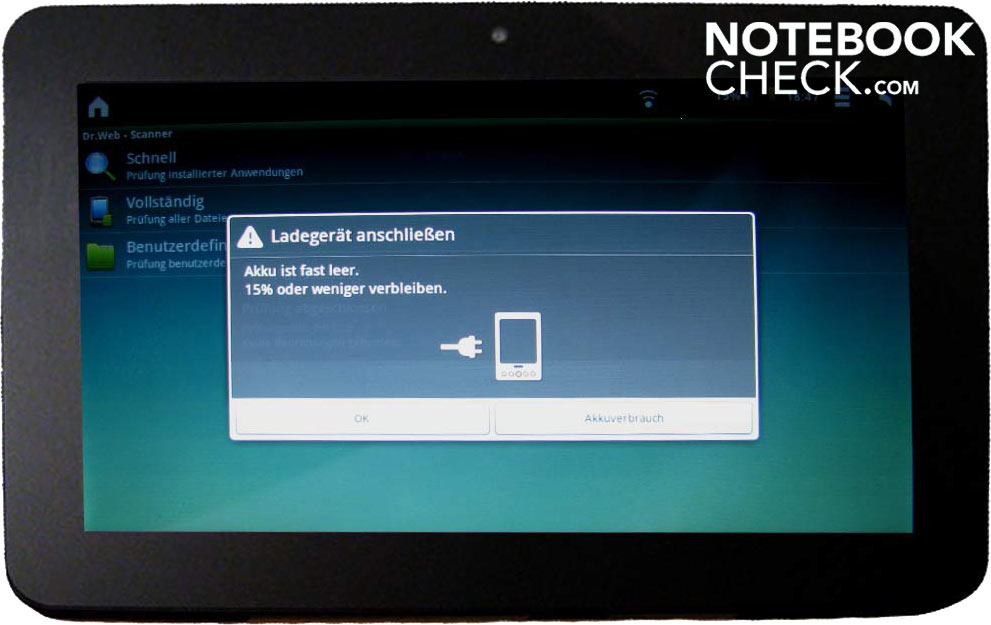

The device displays a message when the battery is almost drained
The device displays a message when the battery is almost drained

The ViewPad 10s lasted for almost 45 minutes longer without WLAN. The battery life can also be increased by reducing the brightness. The setting without WLAN in brightness level 1 achieved a battery runtime of 6 hours and 25 minutes.

The batteries in the Viewsonic Pad need a very long time to recharge. The ViewPad needed good 5 hours for a full recharge after every single test. This means 5 hours of pad use equals 5 hours of charge time. The pad naturally can be used while it's being charged.

Verdict

Aside from a lot of fun, testing the ViewPad 10s also bestowed us with a lot of frustration. Manual deleting of apps from the memory via task manager gets annoying after a while. However, this is not only a problem of the Viewsonic, but of many other Android pads as well. 512 MBs of RAM is quickly filled. It's comparable with, for example, the latest Windows PC that has to work with a 512 MB RAM in Windows. The "Home" key's positioning and the lateral ports' magnetic cover are also unfavorable.

If you can ignore the minor flaws, the pad is a perfect companion on the go, video player or Internet client. However, you always need a WLAN access point for checking emails or the updates from your social network since it doesn't have 3G support.

The capacitive touchscreen responds extremely fast to finger inputs – sometimes even too fast. The image reproduction as well as the viewing angles is acceptable. The display is reflective and occasionally shows more from the surroundings than the display's actual content.

The ViewPad 10s is very contact-friendly with the USB port, HDMI socket and microSD cardreader. The device has a USB 2.0 port standard type A, as known from notebooks or PCs, rather than a mini USB port like common in many models. This allows connecting USB sticks or external hard disks to the system. The Android 2.2 operating system detected various USB hard disks, USB sticks or keyboard right away.

The ViewPad 10s from Viewsonic is an inexpensive entry model at a street price of 299 euros. The 10.1 inch display diagonal is an eye-catcher everywhere – in the train, in the beer garden and even among colleagues. It doesn't always have to be Apple.

By courtesy of ...
In Review: Viewsonic ViewPad 10s, by courtesy of
In Review: Viewsonic ViewPad 10s

Specifications

Viewsonic ViewPad 10s
Processor
Memory
512 MB
, SDRAM DDR2 667MHz
Display
10.1 inch 16:10, 1024x600 pixel, capacitive touchscreen, glossy: yes
Harddisk
2 GB NAND Flash, 2 GB
Connections
1 USB 2.0, 1 HDMI, 1 Docking Station Port, Audio Connections: headphones, Card Reader: microSD, 1 SmartCard,
Networking
802.11b/g (b g )
Size
height x width x depth (in mm): 14.5 x 179 x 276 ( = 0.57 x 7.05 x 10.87 in)
Weight
800 g ( = 28.22 oz) ( = 0 oz)
Battery
, 3300 mah
Price
299 Euro
Operating System
Android 2.2
Additional features
Webcam: 1.3 Megapixel, 24 Months Warranty



[+] compare

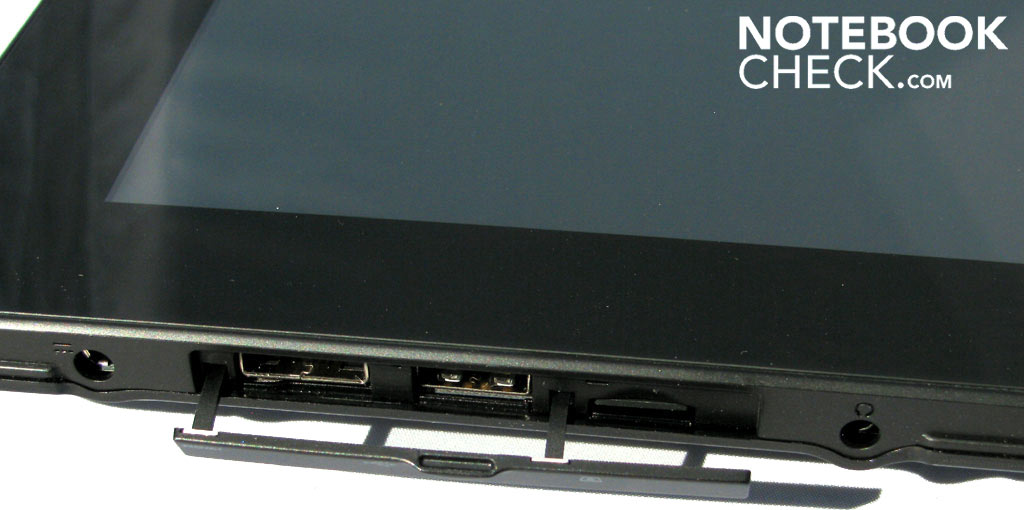

There is one USB, one HDMI socket and one microSD cardreader behind this cover.
There is one USB, one HDMI socket and one microSD cardreader behind this cover.

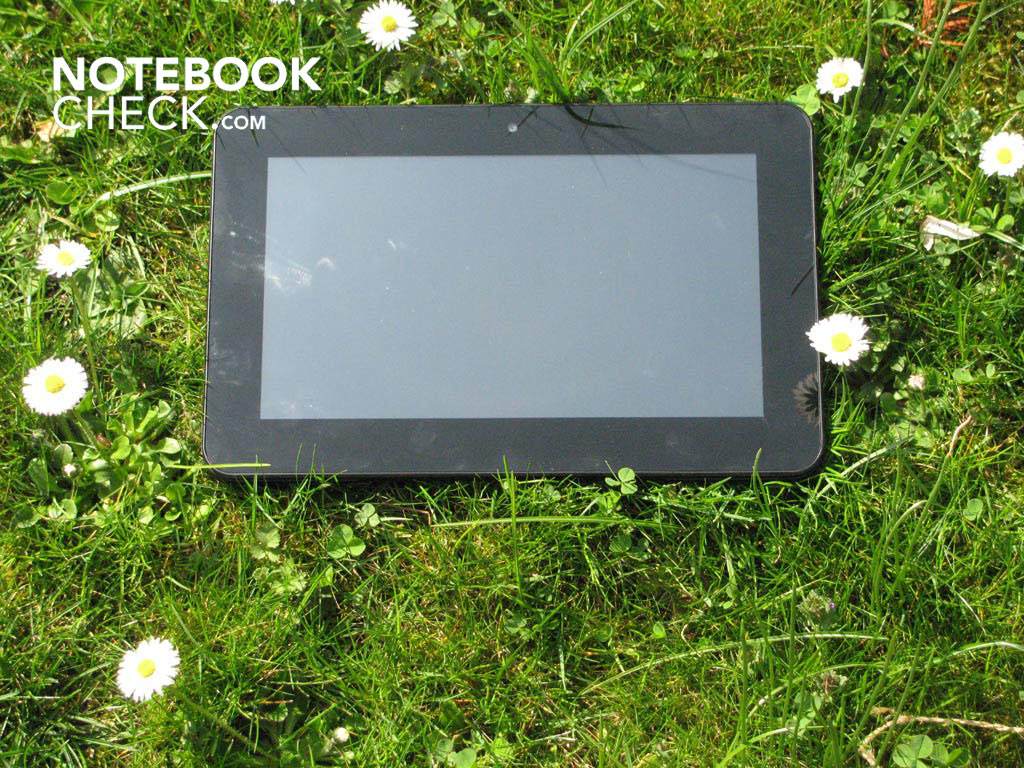

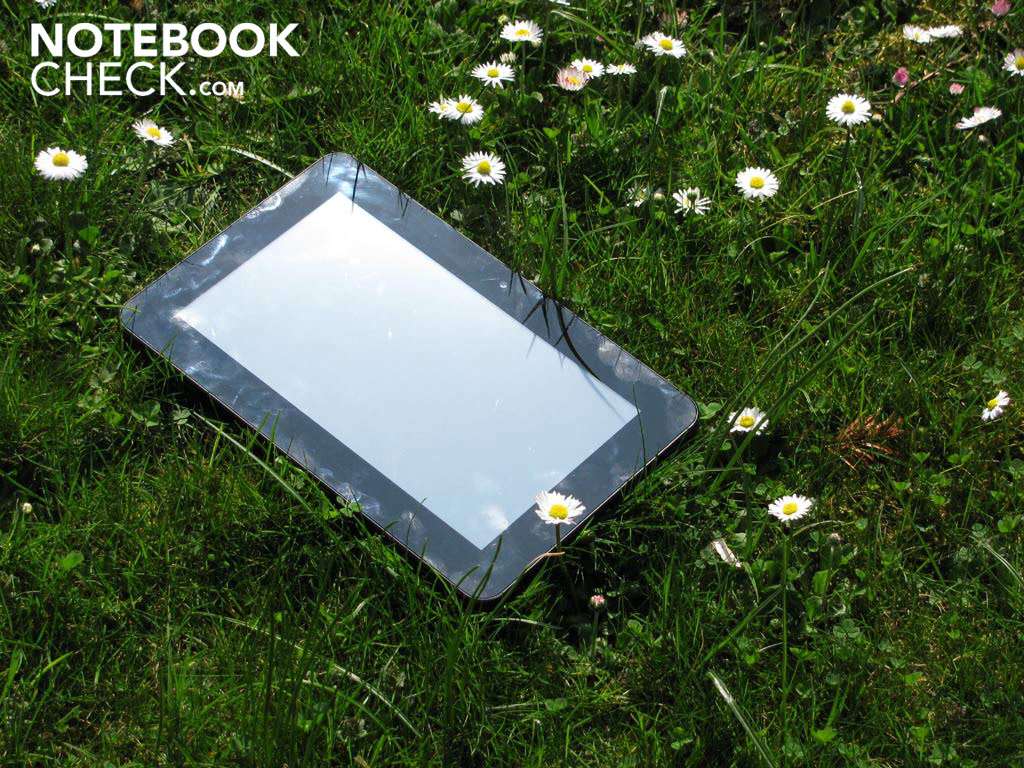

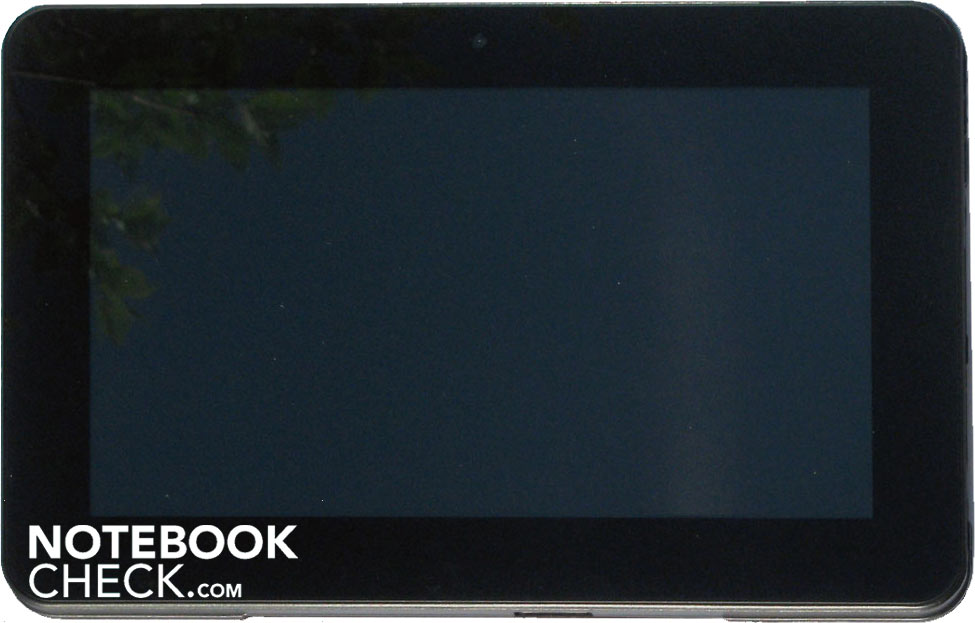

The display mirrors a lot from the surroundings.
The display mirrors a lot from the surroundings.

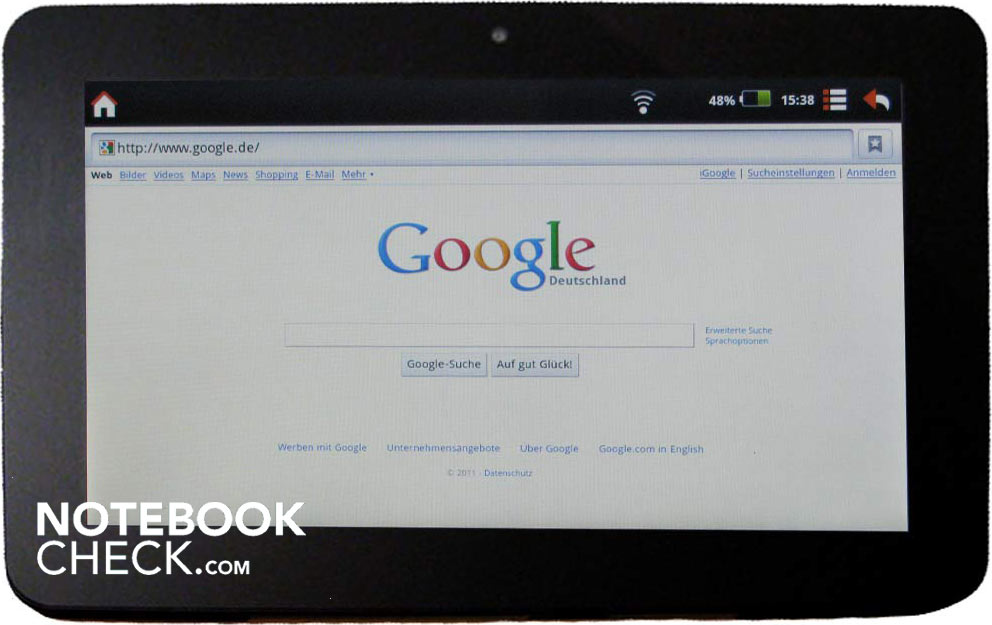

Websites are displayed like on a notebook.
Websites are displayed like on a notebook.
A comprehensive manual can be found on the pad.
A comprehensive manual can be found on the pad.

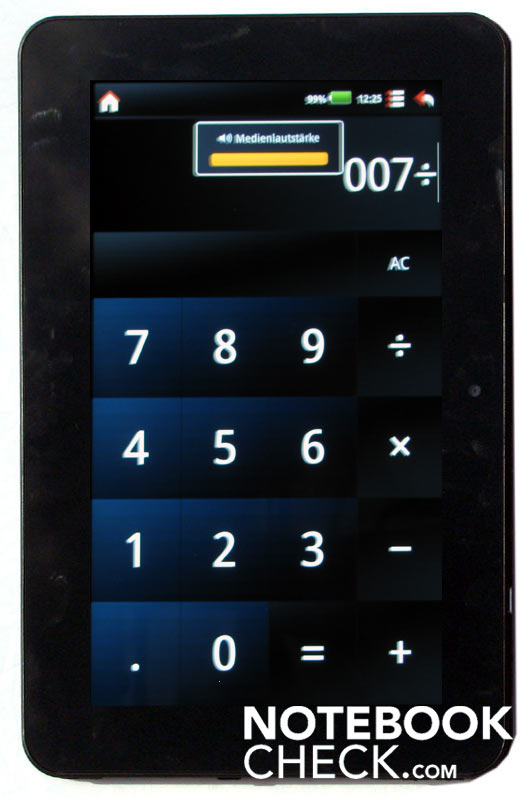

It can also be used as an oversized calculator in a 10.1 inch format.
It can also be used as an oversized calculator in a 10.1 inch format.

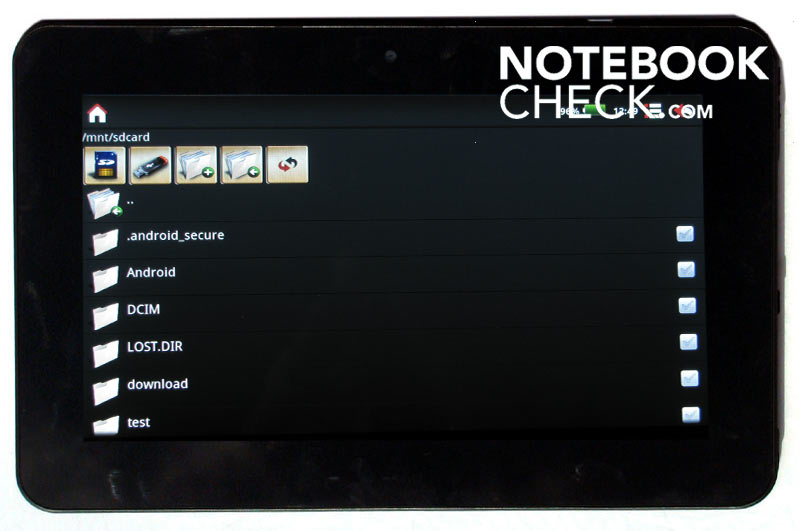

Filed can be copied, moved or deleted via iFileManager.
Filed can be copied, moved or deleted via iFileManager.

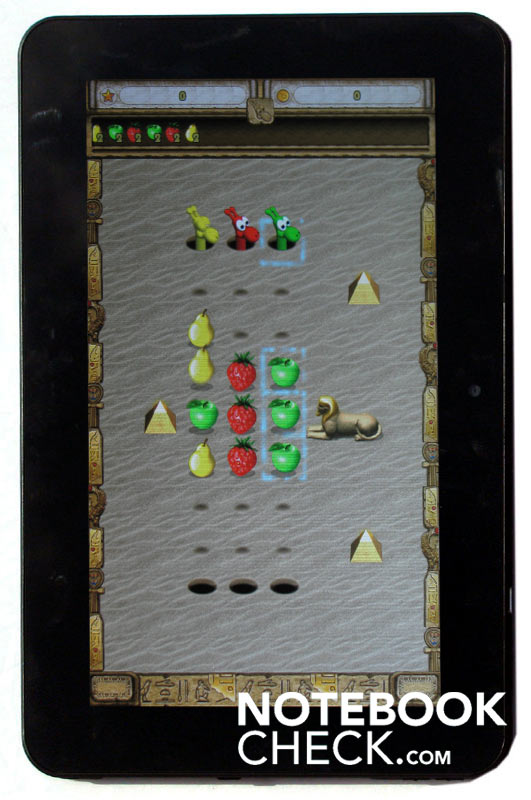

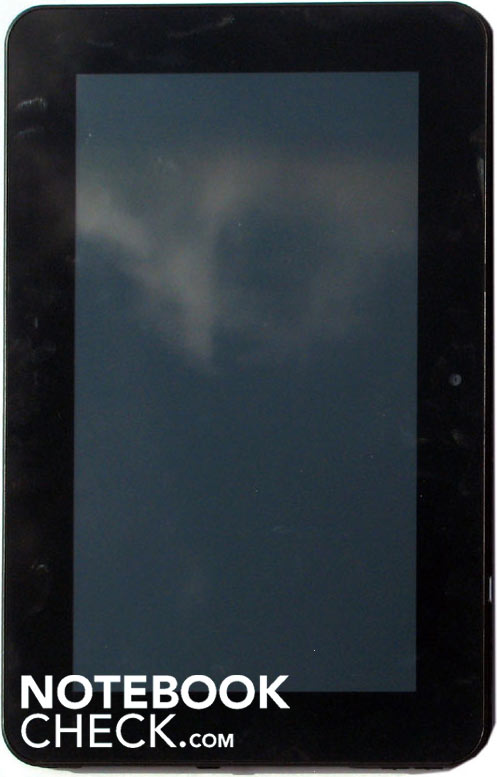

Pad in pivot mode.
Pad in pivot mode.

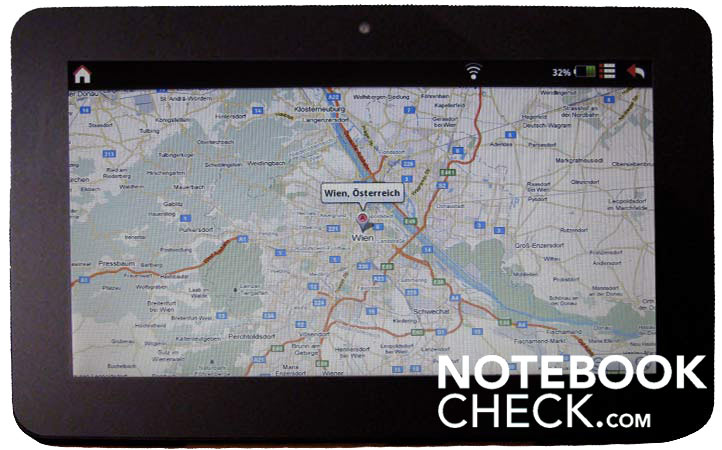

Google map can only be used to an extent on the pad.
Google map can only be used to an extent on the pad.

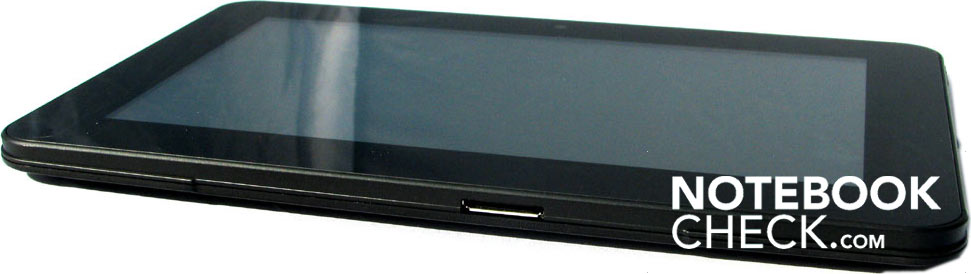

Port for a docking station.
Port for a docking station.
Volume control.
Volume control.
Nicely designed box.
Nicely designed box.

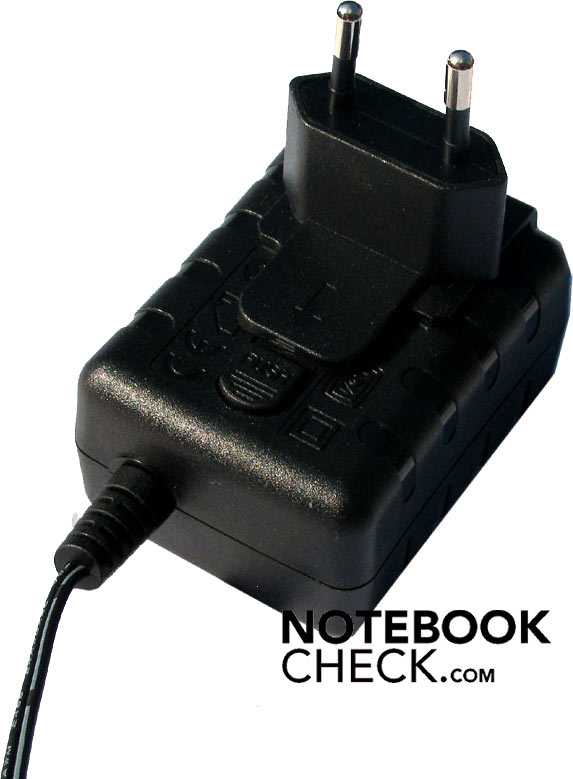

Power adapter for the ViewPad 10s.
Power adapter for the ViewPad 10s.

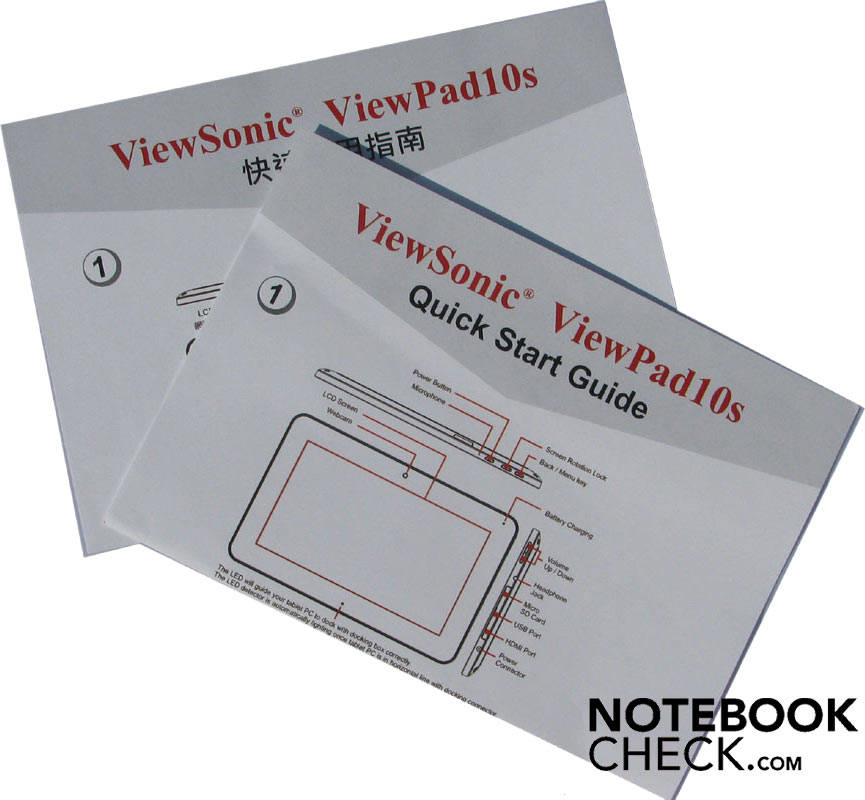

Sparse instructions.
Sparse instructions.

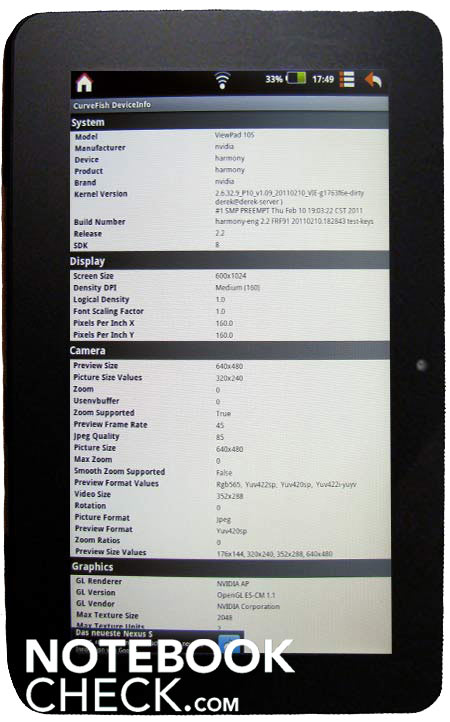

Additionally installed apps show all pad info.
Additionally installed apps show all pad info.

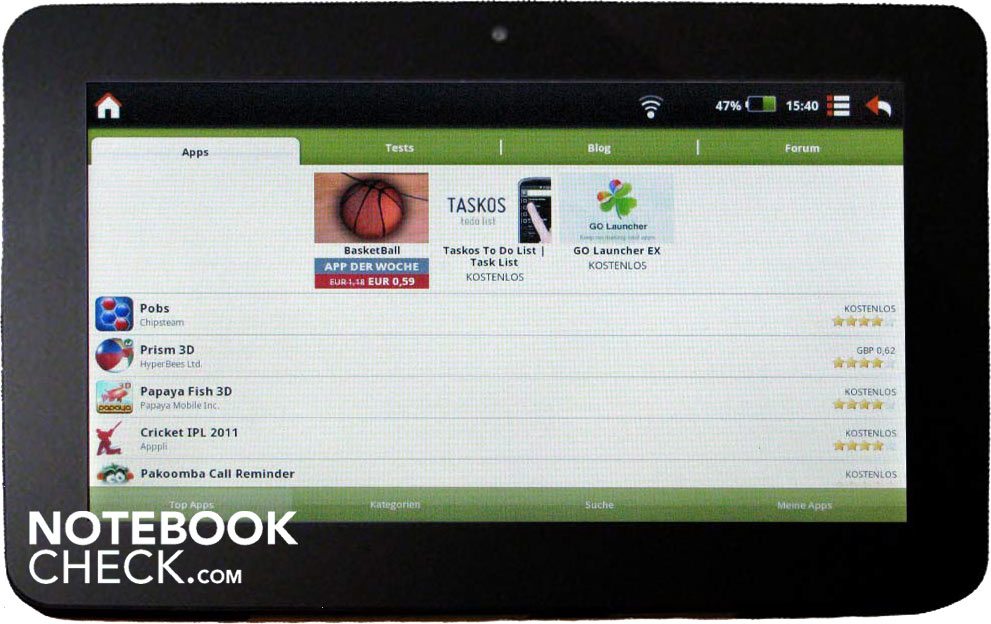

AppStore
AppStore

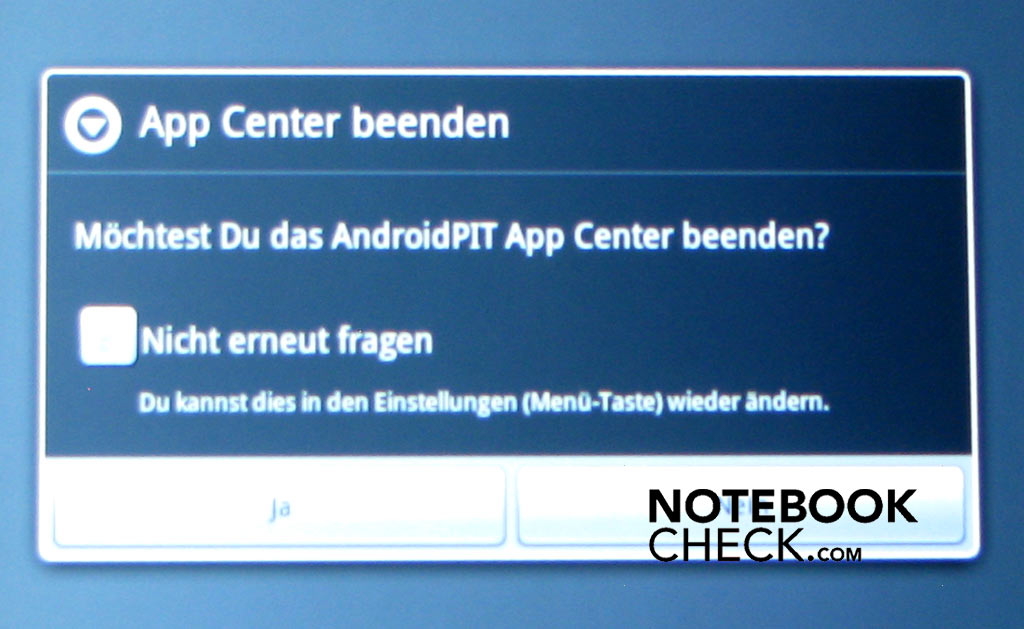

This question is definitely not asked often enough in Android apps.
This question is definitely not asked often enough in Android apps.

Similar Notebooks

Devices with the same GPU and/or Screen Size

» Review Toshiba AT100-100 Tablet/MID
Tegra 2 (250), 0.8 kg
» Lenovo IdeaPad K1 Tablet Review
Tegra 2 (250), 0.75 kg

Links

Compare Prices

Amazon.com

$10.97 Black Flip Leather Wallet Folio Smart Case Stand Cover for Apple Ipad 1 2 3 4 Ipad Air Asus 10.1" Tablet Asus Transformer Pad Infinity Tablet Asus Memo Pad Smart Tablet Asus Vivotab Smart Tablet Asus Eee Pad Tablet Acer Iconia Tablet Archos 101 G9 G9 Turbo Tablet Archos 97 Titanium Hd Tablet Azpen 10.1" Tablet Axess 10.1" Tablet Aluratek Cinepad 9.7 " Tablet Coby Kyros 10.1" Tablet Digital2 Pad Platinum Tablet Ematic Genesis Prime Xl Tablet Envizen Digital Tablet Fuhu Nabi Xd 10.1" Tablet Hannspree T7 Tablet Hipstreet Spectrum 10.1" Tablet Hipstreet Equinox 3 Equinox Bt Tablet Hp Elitepad 900 G1 Tablet Insignia Flex 10.1" Tablet Image 10.1" Android Tablets Iview Cyberpad Tablet Le Pan S Tablet Le Pan Ii Tablet Lenovo Ideatab Tablet Lenovo Ideatab Miix Tablet Lenovo Yoga 10 Tablet Lenovo Thinkpad Tablet Nabi Xd Tablet Nextbook Premium8se V1.0 9" Tablet Microsoft Surface Microsoft Surface 2 Microsoft Surface Pro Microsoft Surface Pro 2 Matsunichi Marquis 9.7" Tablet Mach Speed- Trio Stealth Pro G2 Tablet Michley Mitraveler 10.1" Tablet Motorola Xoom Family Edition Tablet QFX It-429 10.1" Tablet Razer Edge Edge Pro Gaming Tablet RCA 9" Dual Core Tablet Samsung Galaxy Note 10.1 Samsung Galaxy Tab Samsung Galaxy Tab2 Samsung Galaxy Tab3 Sony Xperia Tablet Z Tablet Sony Xperia Tablet Sungale Cyberus Tablet Supersonic 9" 10" Tablet Skytex 9.7" Tablet Trio Stealth G2 Tablet Toshiba Excite Pure Tablet Toshiba Excite Tablet Toshiba Thrive Tablet Velocity Micro Cruz T510 9.7" Tablet Viewsonic Viewpad Tablet Visual Land - Prestige 10 Tablet Vitalasc 9.7" Tablet Xelio 9" Tablet Zeki 10.1" Tablet

Pricerunner n.a.

Pro

+Display's fast response
+USB port
+HDMI out


Cons

-Short battery life
-Placement of "Home" and "Back" buttons
-Small RAM

Shortcut

What we like

The capacitive touchscreen responds very fast. Multi-touch inputs are possible. USB sticks or hard disks can be used directly with the full-fledged USB port standard type A.

What we'd like to see

The ViewPad 10s lacks a "back" button located beside the 10.1 inch display and which can be used with the right thumb. A GPS module for localization would also be a neat gimmick in the ViewPad 10s. UMTS for mobile users.

The competition

In a similar price range: Archos 101, Creative Ziio 7". For Windows fans: Asus Eee Slate EP121. The classic: Apple iPad 1 and its heir Apple iPad 2.

Rating

Viewsonic ViewPad 10s
10/21/2011 v2
Siegfried Moersch

Chassis
80%
Keyboard
35%
Pointing Device
78%
Connectivity
44%
Weight
96%
Battery
80%
Display
67%
Games Performance
20%
Application Performance
40%
Temperature
90%
Noise
100%
Add Points
75%
Average
67%
79%
Tablet *
Weighted Average
