Review Update Lenovo ThinkPad Edge E145-20BC000UGE Notebook

Sascha Mölck (translated by Martina Osztovits), 05/11/2014

Notebook for students. The ThinkPad Edge E145 delivers long battery runtimes and excellent input devices. This makes it ideal for those users who have to do desk work outside of offices and homes. We will scrutinize the computer in our review.

The ThinkPad Edge E145 is familiar to us, since this design has already been in use for several years. The look remained unchanged; changes took place inside. The Edge E1XX series consists of Intel and AMD models. We reviewed a model with an A4-5000 APU (Kabini) from AMD. A few months ago, we reviewed a sister model with an E1-2500 APU (Kabini), which managed third place in our Subnotebook Top 10. Our review will reveal whether the new model can keep up with it.

Because of its display size, the ThinkPad Edge not only competes with other subnotebooks and netbooks but also with tablets and convertibles. Therefore, we compare it to the following competitors: Asus Transformer Book T100TA-C1-GR (Atom Z3740, HD Graphics (Bay Trail)) and HP Pavilion TouchSmart 11-e000sb (AMD A4-1250, Radeon HD 8210).

Since we have already reviewed another model of the ThinkPad Edge E145, we will not cover case, connectivity, input devices, and speakers here. Detailed information about these aspects is available in our review of the technically identical predecessor.

Display

Lenovo uses a matte 11.6-inch display with a native resolution of 1366x768 pixels in the ThinkPad Edge. Unfortunately, it is dark with a below-average brightness of 185.9 cd/m². Contrast (441:1) and black value (0.46 cd/m²) are alright but not great.

188
cd/m²
183
cd/m²
181
cd/m²
195
cd/m²
203
cd/m²
192
cd/m²
174
cd/m²
181
cd/m²
176
cd/m²
Distribution of brightness
Information
X-Rite i1Pro 2
Maximum: 203 cd/m²
Average: 185.9 cd/m²
Brightness Distribution: 86 %
Center on Battery: 204 cd/m²
Black: 0.46 cd/m²
Contrast: 441:1

The average DeltaE 2000 deviation is 10.9 in factory state. Most displays come up with similar values. None of the colors can reach the target range (DeltaE smaller than 3). The display is bluish.

CalMAN - ColorChecker
CalMAN - ColorChecker
CalMAN - gray levels
CalMAN - gray levels
CalMAN - color saturation
CalMAN - color saturation
The Lenovo ThinkPad Edge outdoors.
The Lenovo ThinkPad Edge outdoors.

Thanks to its matte surface, the display can be used outdoors. However, too bright environments should be avoided because of the low display brightness. Lenovo used a conventional TN panel. As a result, the viewing angles are narrow.

Performance

The ThinkPad Edge E145 series includes mobile and very enduring 11.6-inch notebooks. The devices are suitable for typing and occasional surfing. The computers can also play videos. Our test device costs about 480 Euros (~$660). Those who are satisfied with an E1-2500 APU and do not need a Windows OS, can get the notebook from 320 Euros (~$440).

Processor

The ThinkPad Edge is powered by an AMD A4-5000 APU from the Kabini generation. The four CPU cores of the APU clock in at 1.5 GHz. A Turbo is not available. AMD specifies a TDP of 15 Watt for the APU. The processor always runs at full speed during the CPU tests of the Cinebench benchmarks. Overall, the ThinkPad Edge performs better in these tests than its two competitors since it features the fastest CPU. The Transformer Book can keep up with the ThinkPad Edge in multi-thread applications and even performs slightly better in several tests. However, we could not run 64-bit tests, since Asus only installed a 32-bit version of Windows 8.

Cinebench R10 Shading 32Bit
2540
Cinebench R10 Rendering Multiple CPUs 32Bit
2875
Cinebench R10 Rendering Single 32Bit
1086
Cinebench R11.5 OpenGL 64Bit
11.68 fps
Cinebench R11.5 CPU Multi 64Bit
1.48 Points
Cinebench R11.5 CPU Single 64Bit
0.39 Points
Cinebench R15 Ref. Match 64Bit
98 %
Cinebench R15 OpenGL 64Bit
11.26 fps
Cinebench R15 CPU Multi 64Bit
120 Points
Cinebench R15 CPU Single 64Bit
33 Points
Help
Cinebench R10 - Rendering Single 32Bit
Lenovo ThinkPad Edge E145-20BC000UGE
Radeon HD 8330, A4-5000, Western Digital Scorpio Blue WD5000LPVX
1086 Points ∼16%
HP Pavilion TouchSmart 11-e000sb
Radeon HD 8210, A4-1250, Toshiba MQ01ABF050
663 Points ∼10% -39%
Asus Transformer Book T100TA-C1-GR
HD Graphics (Bay Trail), Z3740, 32 GB eMMC Flash
940 Points ∼14% -13%
Toshiba Satellite NB10t-A-101
HD Graphics (Bay Trail), N2810, Toshiba MQ01ABF050
993 Points ∼15% -9%
Lenovo ThinkPad Edge E145
Radeon HD 8240, E1-2500, Hitachi Travelstar Z5K500 HTS545050A7E380
1052 Points ∼16% -3%
Acer Aspire V5-131-10172G50akk
HD Graphics (Ivy Bridge), 1017U, Seagate Momentus Thin ST500LT0 12-9WS142
2201 Points ∼33% +103%
Lenovo ThinkPad Edge E130 NZUAXMB
HD Graphics 4000, 3227U, Hitachi Travelstar Z7K500 HTS725050A7E630
2663 Points ∼40% +145%
Cinebench R10 - Rendering Multiple CPUs 32Bit
Lenovo ThinkPad Edge E145-20BC000UGE
Radeon HD 8330, A4-5000, Western Digital Scorpio Blue WD5000LPVX
2875 Points ∼8%
HP Pavilion TouchSmart 11-e000sb
Radeon HD 8210, A4-1250, Toshiba MQ01ABF050
1188 Points ∼3% -59%
Toshiba Satellite NB10t-A-101
HD Graphics (Bay Trail), N2810, Toshiba MQ01ABF050
1474 Points ∼4% -49%
Lenovo ThinkPad Edge E145
Radeon HD 8240, E1-2500, Hitachi Travelstar Z5K500 HTS545050A7E380
2016 Points ∼6% -30%
Asus Transformer Book T100TA-C1-GR
HD Graphics (Bay Trail), Z3740, 32 GB eMMC Flash
3334 Points ∼10% +16%
Acer Aspire V5-131-10172G50akk
HD Graphics (Ivy Bridge), 1017U, Seagate Momentus Thin ST500LT0 12-9WS142
4155 Points ∼12% +45%
Lenovo ThinkPad Edge E130 NZUAXMB
HD Graphics 4000, 3227U, Hitachi Travelstar Z7K500 HTS725050A7E630
5860 Points ∼17% +104%
Geekbench 3 - 32 Bit Single-Core Score
Lenovo ThinkPad Edge E145-20BC000UGE
Radeon HD 8330, A4-5000, Western Digital Scorpio Blue WD5000LPVX
870 Points ∼25%
Toshiba Satellite NB10t-A-101
HD Graphics (Bay Trail), N2810, Toshiba MQ01ABF050
762 Points ∼22% -12%
Asus Transformer Book T100TA-C1-GR
HD Graphics (Bay Trail), Z3740, 32 GB eMMC Flash
792 Points ∼23% -9%
Lenovo ThinkPad Edge E145
Radeon HD 8240, E1-2500, Hitachi Travelstar Z5K500 HTS545050A7E380
785 Points ∼22% -10%
Acer Aspire V5-131-10172G50akk
HD Graphics (Ivy Bridge), 1017U, Seagate Momentus Thin ST500LT0 12-9WS142
1367 Points ∼39% +57%
Geekbench 3 - 32 Bit Multi-Core Score
Lenovo ThinkPad Edge E145-20BC000UGE
Radeon HD 8330, A4-5000, Western Digital Scorpio Blue WD5000LPVX
2766 Points ∼22%
Toshiba Satellite NB10t-A-101
HD Graphics (Bay Trail), N2810, Toshiba MQ01ABF050
1328 Points ∼10% -52%
Lenovo ThinkPad Edge E145
Radeon HD 8240, E1-2500, Hitachi Travelstar Z5K500 HTS545050A7E380
1340 Points ∼10% -52%
Acer Aspire V5-131-10172G50akk
HD Graphics (Ivy Bridge), 1017U, Seagate Momentus Thin ST500LT0 12-9WS142
2308 Points ∼18% -17%
Asus Transformer Book T100TA-C1-GR
HD Graphics (Bay Trail), Z3740, 32 GB eMMC Flash
2617 Points ∼20% -5%

System Performance

The system runs smoothly in most scenarios. As long as the processor is not overloaded, there are no delays. The PCMark 7 results are on the level we are used to from computers with AMD APUs. Despite a weaker processor, the Transformer Book achieved a better result thanks to its SSD. Although it is not a particularly fast model, it is still faster than conventional hard drives.

PC Mark
PCMark 71473 points
Help
PCMark 7 - Score
Lenovo ThinkPad Edge E145-20BC000UGE
Radeon HD 8330, A4-5000, Western Digital Scorpio Blue WD5000LPVX
1473 Points ∼22%
Lenovo ThinkPad Edge E135 NZV5YGE
Radeon HD 7340, E2-1800, Hitachi Travelstar Z7K500 HTS725050A7E630
1114 Points ∼17% -24%
Lenovo ThinkPad Edge E145
Radeon HD 8240, E1-2500, Hitachi Travelstar Z5K500 HTS545050A7E380
1254 Points ∼19% -15%
Toshiba Satellite NB10t-A-101
HD Graphics (Bay Trail), N2810, Toshiba MQ01ABF050
1504 Points ∼23% +2%
Acer Aspire V5-131-10172G50akk
HD Graphics (Ivy Bridge), 1017U, Seagate Momentus Thin ST500LT0 12-9WS142
1973 Points ∼30% +34%
Asus Transformer Book T100TA-C1-GR
HD Graphics (Bay Trail), Z3740, 32 GB eMMC Flash
2339 Points ∼35% +59%
Lenovo ThinkPad Edge E130 NZUAXMB
HD Graphics 4000, 3227U, Hitachi Travelstar Z7K500 HTS725050A7E630
2470 Points ∼37% +68%

Storage Devices

Lenovo equipped the ThinkPad Edge with a hard drive from Western Digital's Scorpio Blue series with a capacity of 500 GB and a revolution speed of 5400 rpm. The measured values are normal for a 5400 rpm hard drive.

Western Digital Scorpio Blue WD5000LPVX
Sequential Read: 108.4 MB/s
Sequential Write: 104.8 MB/s
512K Read: 30.88 MB/s
512K Write: 40.92 MB/s
4K Read: 0.336 MB/s
4K Write: 0.908 MB/s
4K QD32 Read: 0.699 MB/s
4K QD32 Write: 0.86 MB/s

Graphics Card

A Radeon HD 8330 GPU is responsible for graphics output. The GPU supports DirectX 11.1 and clocks in at 500 MHz. A Turbo is not available. Since the ThinkPad Edge features the fastest graphics core, it achieves better results in the 3DMark tests than the two competitors.

3D Mark
3DMark 11581 points
3DMark Ice Storm27609 points
3DMark Cloud Gate2080 points
3DMark Fire Strike309 points
Help
3DMark 11 - 1280x720 Performance
Lenovo ThinkPad Edge E145-20BC000UGE
Radeon HD 8330, A4-5000, Western Digital Scorpio Blue WD5000LPVX
581 Points ∼4%
Asus Transformer Book T100TA-C1-GR
HD Graphics (Bay Trail), Z3740, 32 GB eMMC Flash
209 Points ∼2% -64%
Toshiba Satellite NB10t-A-101
HD Graphics (Bay Trail), N2810, Toshiba MQ01ABF050
212 Points ∼2% -64%
Acer Aspire V5-131-10172G50akk
HD Graphics (Ivy Bridge), 1017U, Seagate Momentus Thin ST500LT0 12-9WS142
356 Points ∼3% -39%
Lenovo ThinkPad Edge E135 NZV5YGE
Radeon HD 7340, E2-1800, Hitachi Travelstar Z7K500 HTS725050A7E630
366 Points ∼3% -37%
Lenovo ThinkPad Edge E145
Radeon HD 8240, E1-2500, Hitachi Travelstar Z5K500 HTS545050A7E380
464 Points ∼4% -20%
Lenovo ThinkPad Edge E130 NZUAXMB
HD Graphics 4000, 3227U, Hitachi Travelstar Z7K500 HTS725050A7E630
596 Points ∼5% +3%

Gaming Performance

The small ThinkPad Edge was not designed for computer games. Nevertheless, several games can be played with low resolution and low quality settings. Games with modest demands on hardware - for example, games of the FIFA series - also allow higher settings.

low med.high ultra
Tomb Raider (2013) 24.612.48.7fps
Lenovo ThinkPad Edge E145-20BC000UGE
AMD A4-5000, AMD Radeon HD 8330, Western Digital Scorpio Blue WD5000LPVX
Lenovo ThinkPad Edge E145
AMD E1-2500, AMD Radeon HD 8240, Hitachi Travelstar Z5K500 HTS545050A7E380
Asus Transformer Book T100TA-C1-GR
Intel Atom Z3740, Intel HD Graphics (Bay Trail), 32 GB eMMC Flash
Tomb Raider
-11%
-40%
1024x768 Low Preset24.621.8
-11%
15.9
-35%
1366x768 Normal Preset AA:FX AF:4x12.411
-11%
6.9
-44%

Emissions

System Noise

While idle, the fan runs quietly, yet audibly. Under load, it gets louder, but the noise remains within limits. The TouchSmart 11 is similar while the Transformer Book is silent since the convertible does not have a fan.

Noise Level

Idle 30.6 / 32.7 / 33.1 dB(A)
HDD 30.9 dB(A)
Load 33.4 / 37.2 dB(A)

    30 dB
silent
40 dB
audible
50 dB
loud

min: , med: , max:    Voltcraft sl-320 (15 cm distance)
Lenovo ThinkPad Edge E145-20BC000UGE
AMD A4-5000, AMD Radeon HD 8330, Western Digital Scorpio Blue WD5000LPVX
Lenovo ThinkPad Edge E145
AMD E1-2500, AMD Radeon HD 8240, Hitachi Travelstar Z5K500 HTS545050A7E380
Lenovo ThinkPad Edge E135 NZV5YGE
AMD E2-1800, AMD Radeon HD 7340, Hitachi Travelstar Z7K500 HTS725050A7E630
HP Pavilion TouchSmart 11-e000sb
AMD A4-1250, AMD Radeon HD 8210, Toshiba MQ01ABF050
Loudness
5%
0%
1%
Idle Minimum *30.630
2%
32.3
-6%
31.3
-2%
Idle Average *32.730
8%
32.3
1%
31.3
4%
Idle Maximum *33.130
9%
32.6
2%
31.6
5%
Load Average *33.432.8
2%
34.2
-2%
33.0
1%
Load Maximum *37.235.1
6%
35.3
5%
38.6
-4%

* ... smaller is better

Temperature

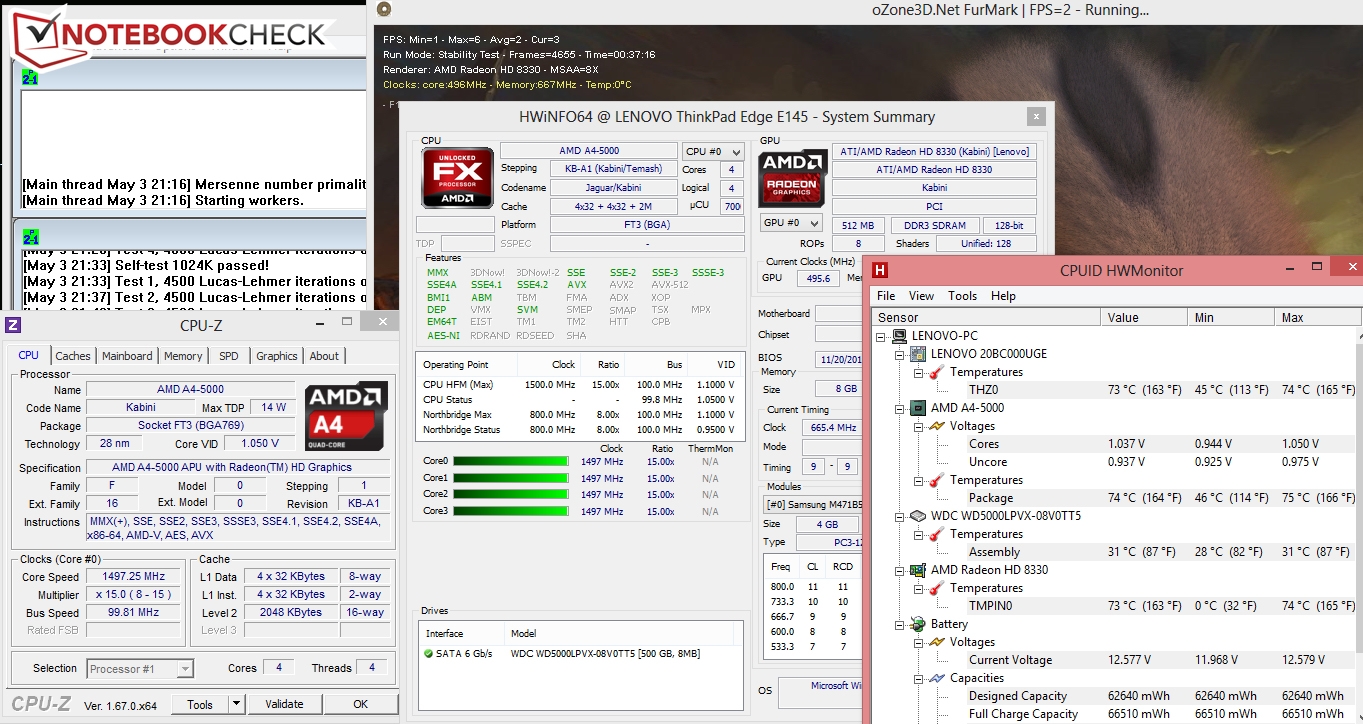

The ThinkPad Edge during the stress test.
The ThinkPad Edge during the stress test.

The ThinkPad Edge never gets particularly hot. The temperatures are in the green in all measurement segments. The same is true for the TouchSmart. But, the Transformer Book gets warmer during the stress test than its competitors since it lacks a fan.

The CPU clocks at 1.5 GHz in mains operation and on battery during the stress test (Prime95 and Furmark run for at least one hour). The graphics core clocks at 500 MHz in mains operation and at 400 MHz on battery during the stress test. The CPU temperatures hover at around 74 °C during the stress test (mains operation).

 31.2 °C31 °C29.9 °C
 31.1 °C31.7 °C29.9 °C
 28.4 °C28.7 °C28.7 °C
Maximum: 31.7 °C
Average: 30.1 °C
32.2 °C32.8 °C31.2 °C
31.9 °C31.8 °C31.5 °C
31.5 °C29.8 °C21.3 °C
Maximum: 32.8 °C
Average: 30.4 °C
Power Supply (max.)  29.1 °C | Room Temperature 24 °C | Voltcraft IR-360

Energy Management

Power Consumption

The ThinkPad Edge does not need a lot of energy. The power consumption is as expected. The TouchSmart and the Transformer Book need significantly less energy since they use weaker CPUs. The E145 sister model with E1-2500 APU also requires less energy. This is not surprising since it only features a dual-core CPU.

Power Consumption

Off / Standby 0.3 / 0.3 Watt
Idle 5.6 / 7.7 / 7.9 Watt
Load 22.3 / 22.8 Watt

Key: min: , med: , max:         Voltcraft VC 940
Lenovo ThinkPad Edge E145-20BC000UGE
AMD A4-5000, AMD Radeon HD 8330, Western Digital Scorpio Blue WD5000LPVX
Lenovo ThinkPad Edge E145
AMD E1-2500, AMD Radeon HD 8240, Hitachi Travelstar Z5K500 HTS545050A7E380
Asus Transformer Book T100TA-C1-GR
Intel Atom Z3740, Intel HD Graphics (Bay Trail), 32 GB eMMC Flash
HP Pavilion TouchSmart 11-e000sb
AMD A4-1250, AMD Radeon HD 8210, Toshiba MQ01ABF050
Power Consumption
23%
54%
18%
Idle Minimum *5.64.2
25%
1.7
70%
4.8
14%
Idle Average *7.75.9
23%
3.9
49%
6.6
14%
Idle Maximum *7.96.3
20%
3.9
51%
9.0
-14%
Load Average *22.314.9
33%
10.7
52%
13.6
39%
Load Maximum *22.820.1
12%
11.8
48%
14.2
38%

* ... smaller is better

Battery Life

The first Edge E145 model with E1-2500 APU reviewed by us shone with excellent battery life. It is clear a priori that the model with an A4-5000 APU cannot keep up with it since it comes with a quad-core CPU. Nevertheless, the small ThinkPad Edge does not need to hide.

In our realistic WLAN test the ThinkPad Edge achieved a battery life of 7:44 h and is not too far behind its sister model (8:19 h). The Transformer Book's (10:47 h) is even longer, but the TouchSmart (4:23 h) shuts down significantly earlier. During our WLAN test, websites are automatically loaded in 40-second intervals. The energy-saving profile is active and the display brightness is set to about 150 cd/m².

Battery Runtime
WiFi Surfing
7h 44min
Battery Runtime - WLAN
Lenovo ThinkPad Edge E145-20BC000UGE
Radeon HD 8330, A4-5000, Western Digital Scorpio Blue WD5000LPVX
464 min ∼31%
HP Pavilion TouchSmart 11-e000sb
Radeon HD 8210, A4-1250, Toshiba MQ01ABF050
263 min ∼18% -43%
Lenovo ThinkPad Edge E135 NZV5YGE
Radeon HD 7340, E2-1800, Hitachi Travelstar Z7K500 HTS725050A7E630
368 min ∼25% -21%
Lenovo ThinkPad Edge E145
Radeon HD 8240, E1-2500, Hitachi Travelstar Z5K500 HTS545050A7E380
499 min ∼33% +8%
Asus Transformer Book T100TA-C1-GR
HD Graphics (Bay Trail), Z3740, 32 GB eMMC Flash
647 min ∼43% +39%

Verdict

The Lenovo ThinkPad Edge E145-20BC000UGE is the slightly more powerful relative of the model already reviewed by us with an E1-2500 APU. The performance is absolutely sufficient for simple tasks. The computer only needs little energy, works quietly in most scenarios and it hardly gets warmer. In addition, it has excellent input devices and is easy to maintain. Furthermore, the battery life is excellent. The display is a point of critique: It is rather dark, low-contrast, and bluish. A warranty of only 12 months is no longer appropriate, either.

If you do not need more processing performance, you can safely buy the model with an E1-2500 APU. It is already available for 320 Euros (~$440, without Windows OS).

The advantages of the Asus Transformer Book T100TA-C1-GR are its longer battery life and that it can also be used as tablet. The HP Pavilion TouchSmart 11-e000sb is not a real alternative. It performs worse than the ThinkPad Edge in all aspects.

Comment this article:

In Review: Lenovo ThinkPad Edge E145 (20BC000UGE). Test model courtesy of notebooksbilliger.de
In Review: Lenovo ThinkPad Edge E145 (20BC000UGE). Test model courtesy of notebooksbilliger.de

Specifications

Lenovo ThinkPad Edge E145-20BC000UGE

:: Processor
AMD A4-5000 1.5 GHz
:: Mainboard
AMD Yangtze
:: Memory
8192 MB, DDR3, single channel, two RAM slots (both occupied)
:: Graphics adapter
:: Display
11.6 inch 16:9, 1366x768 pixel, ChiMei N116BGE-L32, TN LED, glossy: no
:: Harddisk
Western Digital Scorpio Blue WD5000LPVX, 500 GB 5400 rpm , 420 GB free
:: Soundcard
AMD Kabini - High Definition Audio Controller
:: Connections
1 USB 2.0, 2 USB 3.0, 1 VGA, 1 HDMI, 1 Kensington Lock, Audio Connections: audio combo, Card Reader: SD, SDHC, SDXC, MMC,
:: Networking
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit), Broadcom BCM43228 (a b g n ), 4.0 Bluetooth
:: Size
height x width x depth (in mm): 23 x 287 x 212
:: Weight
1.54 kg
:: Battery
63 Wh Lithium-Ion, 11.1 V, 5600 mAh
:: Price
499 Euro
:: Operating System
Microsoft Windows 8 64 Bit
:: Additional features
Webcam: HD web cam, Speakers: stereo, Keyboard: Chiclet, Keyboard Light: no, Microsoft Office 365 (trial version), Norton Internet Security (trial version), Nitro Pro 8, 12 Months Warranty



Similar Devices

Notebooks with the same GPU

» Review Toshiba Satellite C70D-A-10L Notebook
A-Series A4-5000, 17.3", 2.7 kg
» Review HP Pavilion 15-n050sg Notebook
A-Series A4-5000, 15,6", 2.28 kg
» Review Acer Aspire E1-522-45004G50Mnkk Notebook
A-Series A4-5000, 15.6", 2.4 kg
» Review Toshiba Satellite C50D-A-10E Notebook
A-Series A4-5000, 15.6", 2.184 kg
» Review Toshiba Satellite C75D-A7286 Notebook
A-Series A4-5000, 17.3", 2.64 kg

Links

Compare Prices

Amazon: Invalid XML response.

Amazon.com

Show results on Amazon.com

Pricerunner n.a.

Pro

+very good battery life
+very easy to maintain
+matte display
+very good keyboard
+case temperature hardly increases
+sturdy lid
+matte, non-slip surfaces
+Dual-Pointing


Cons

-dark, low-contrast, bluish display
-only 12 months warranty

Shortcut

What we like

Long battery life, excellent input devices and low power consumption.

What we would like to see

A bright, contrast-rich display.

What surprises us

With its weight and battery life, the ThinkPad Edge is ideal for mobile use. The dark, low-contrast display is not suitable for this, since it makes it nearly impossible to use the device outside of buildings.

The competition

Asus Transformer Book T100TA-C1-GR, HP Pavilion TouchSmart 11-e000sb, Acer Aspire V5-131, Lenovo IdeaPad S215, Toshiba Satellite NB10t-A-101, Lenovo ThinkPad Edge E135, Lenovo ThinkPad Edge E130.

Rating

Lenovo ThinkPad Edge E145-20BC000UGE
05/04/2014 v4
Sascha Mölck

Chassis
85 / 98 → 87%
Keyboard
88%
Pointing Device
85%
Connectivity
62 / 95 → 65%
Weight
69 / 78 → 79%
Battery
90%
Display
75%
Games Performance
54 / 85 → 64%
Application Performance
49%
Temperature
90 / 91 → 99%
Noise
90%
Audio
40%
Camera
33%
Average
70%
80%
Subnotebook *
Weighted Average

> Notebook / Laptop Reviews and News > Reviews > Review Update Lenovo ThinkPad Edge E145-20BC000UGE Notebook
Author: Sascha Mölck, 2014-05-11 (Update: 2014-05-13)
