Review LG S1 Pro Notebook

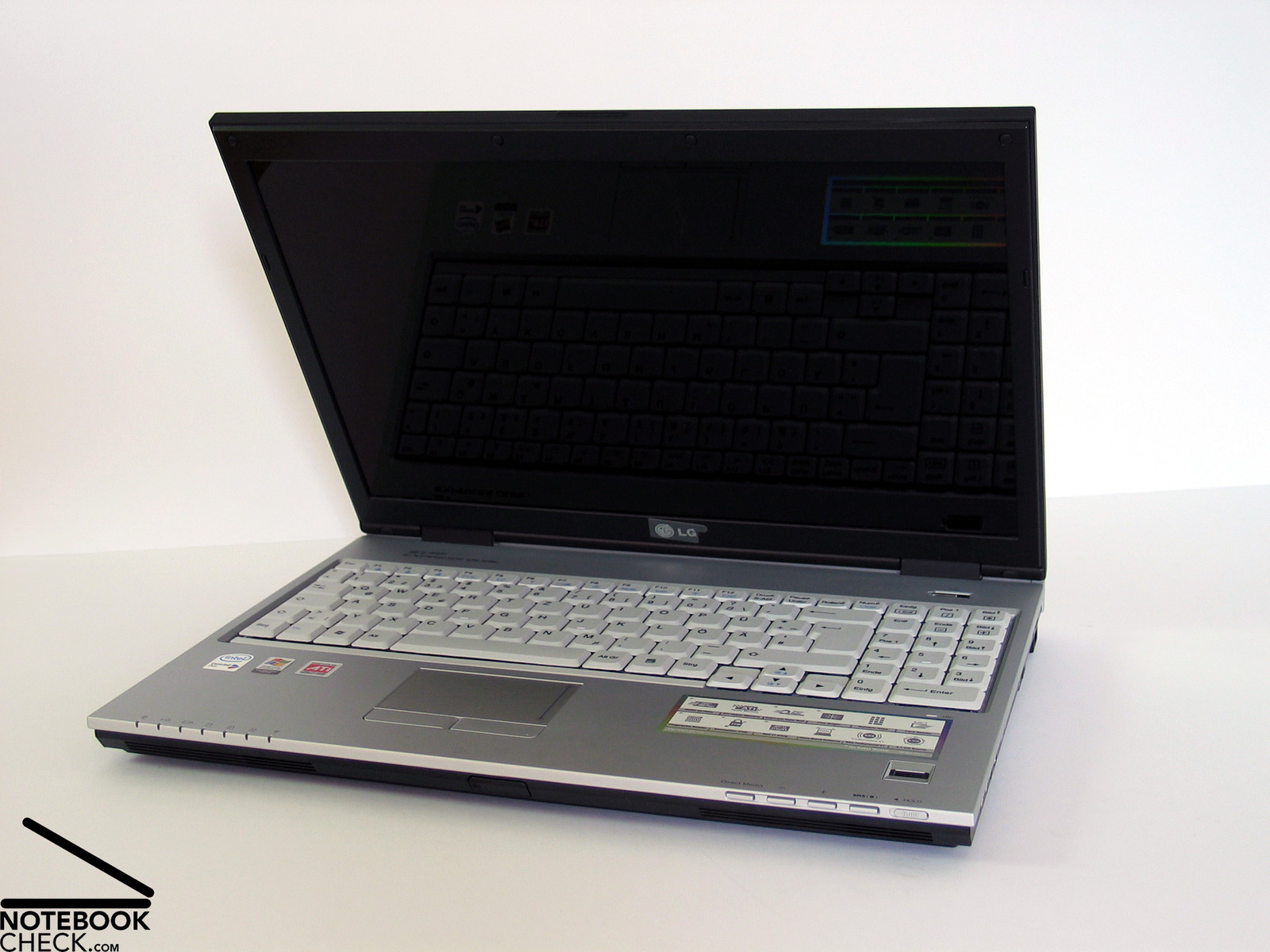

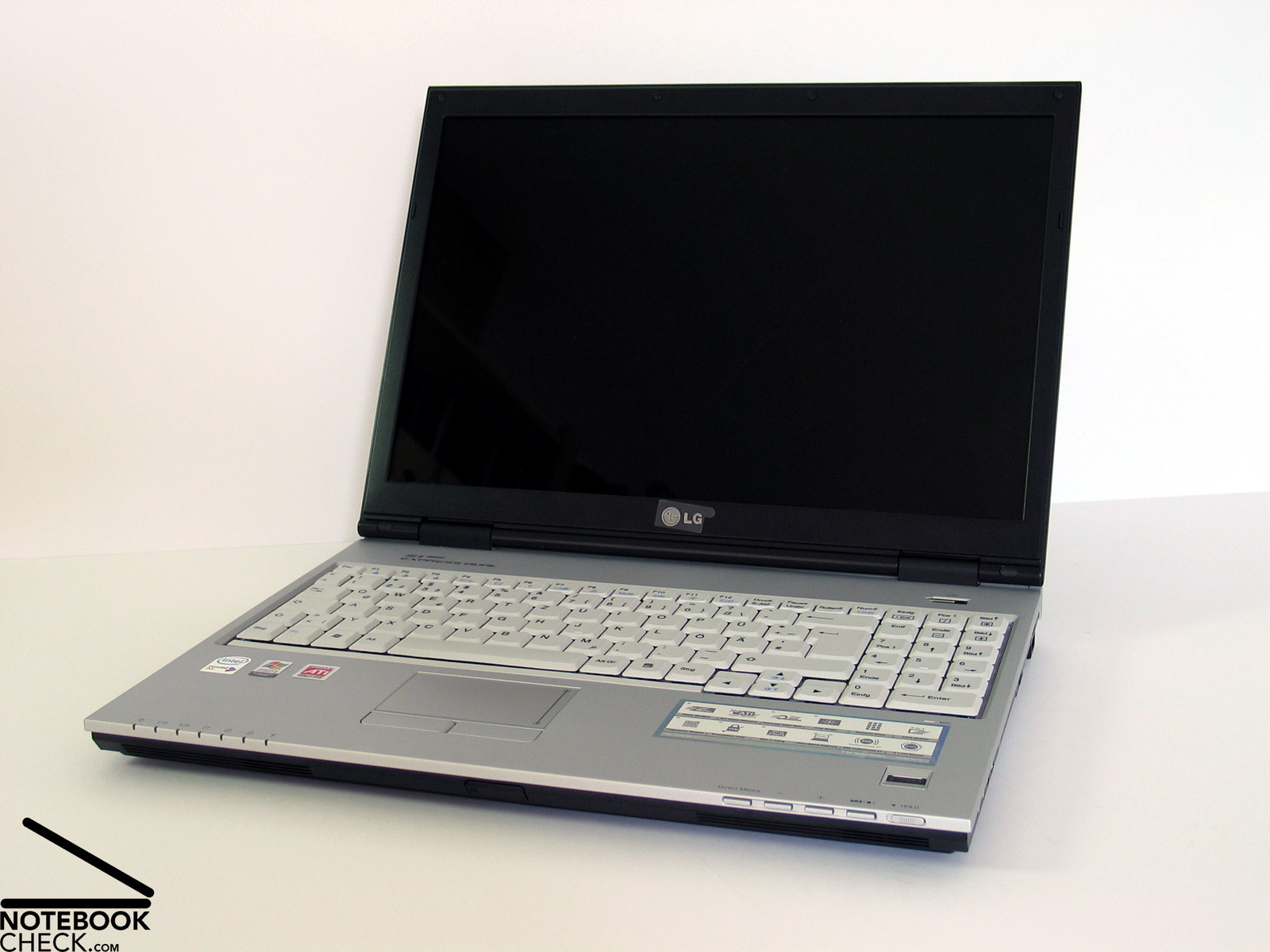

Red Dot Winner. The LG S1 Notebook is really well designed and impresses by its elegant simplicity as well as by its good workmanship. Because of a Core 2 Duo and ATI X1600 the LG S1 is also technically interesting.

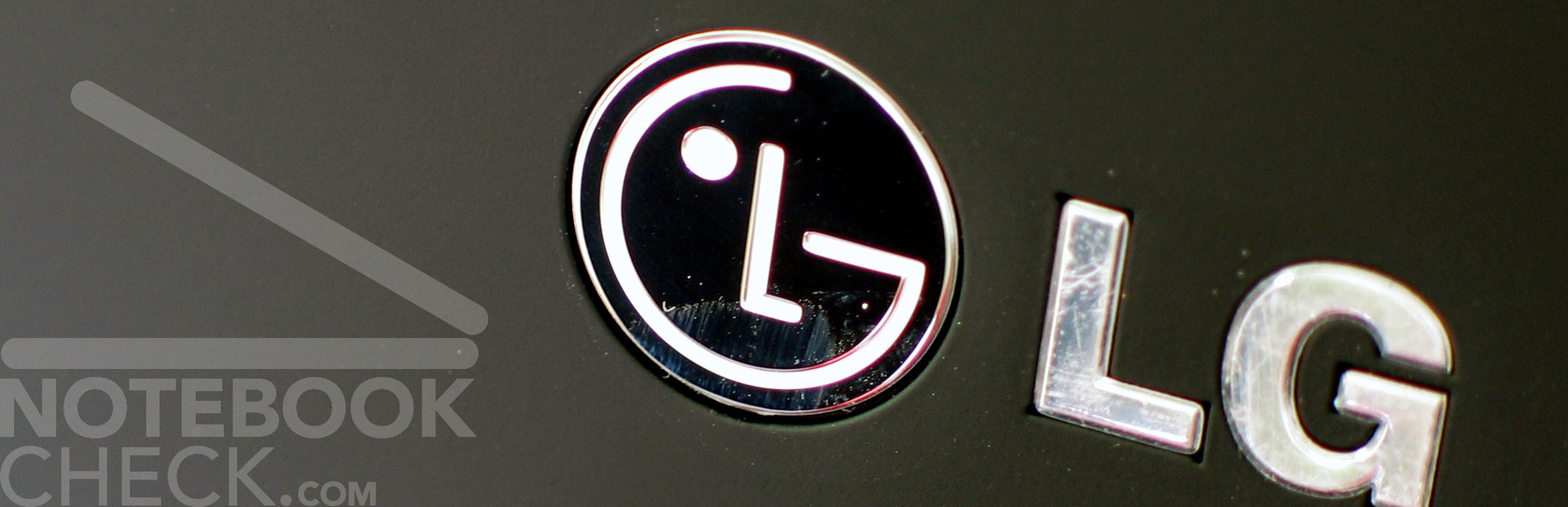

LG S1 Pro Logo

Case

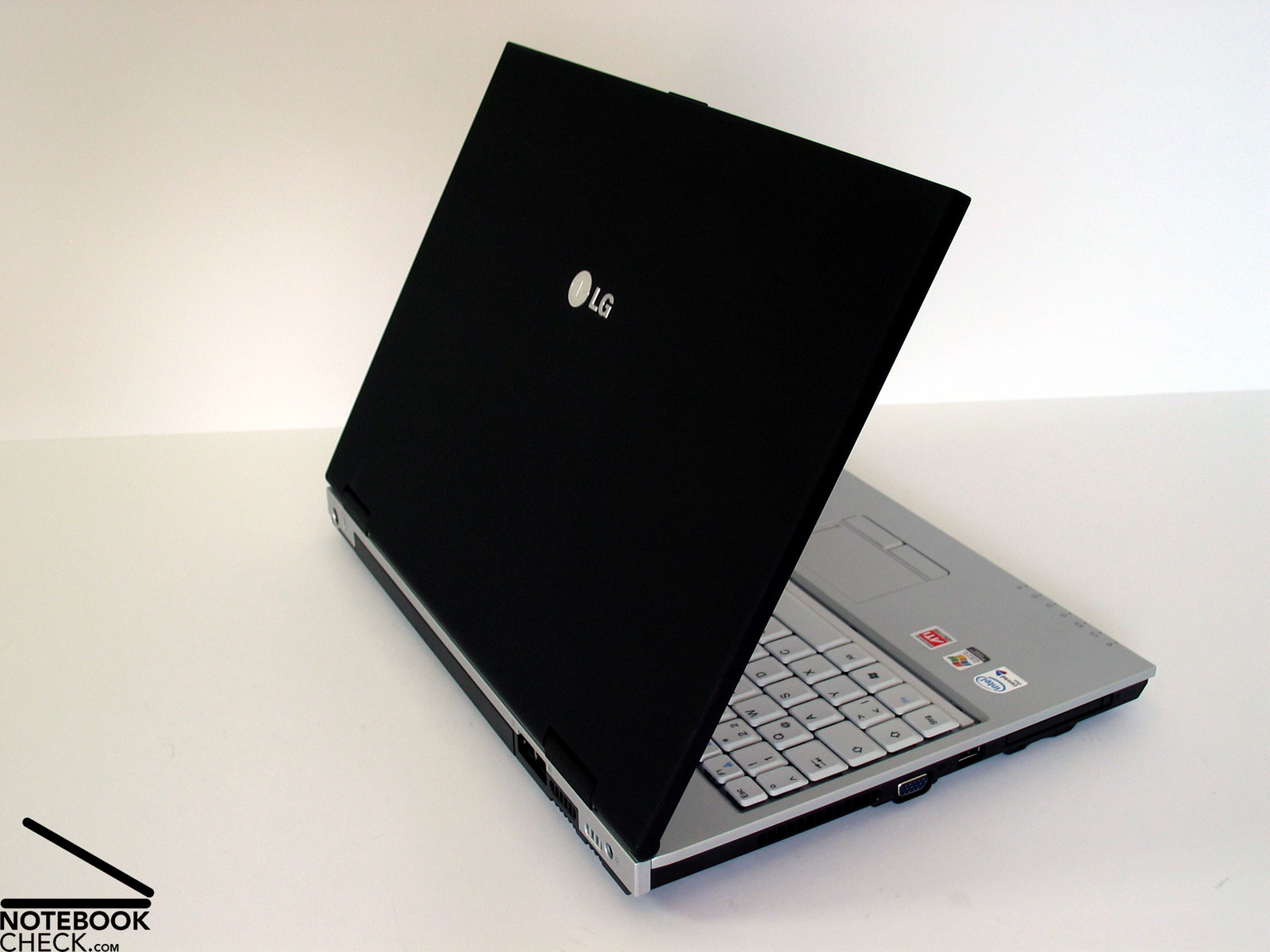

As already outlined, the LG S1 is the winner of the recognized Red Dot Design Awards. Not wrongly, if I may judge.
The colors of the S1 are black and light silver. More precisely, the black trough is covered by a silver overlay and a light fawn keyboard. The display is completely black.

Most of the used materials should be plastics, however, the quality of the surfaces are nearly inimitable. The haptics of the parts is nearly regarding all matters excellent and of high-quality.

The LG S1 does not only please the eyes. Even regarding robustness and stability one can hardly detect any weaknesses. We found only one weakness, but, a very excruciating, on the bottom side of the notebook next to the fan.  The case can be regrettably pushed in there and causes a relatively loud snap.

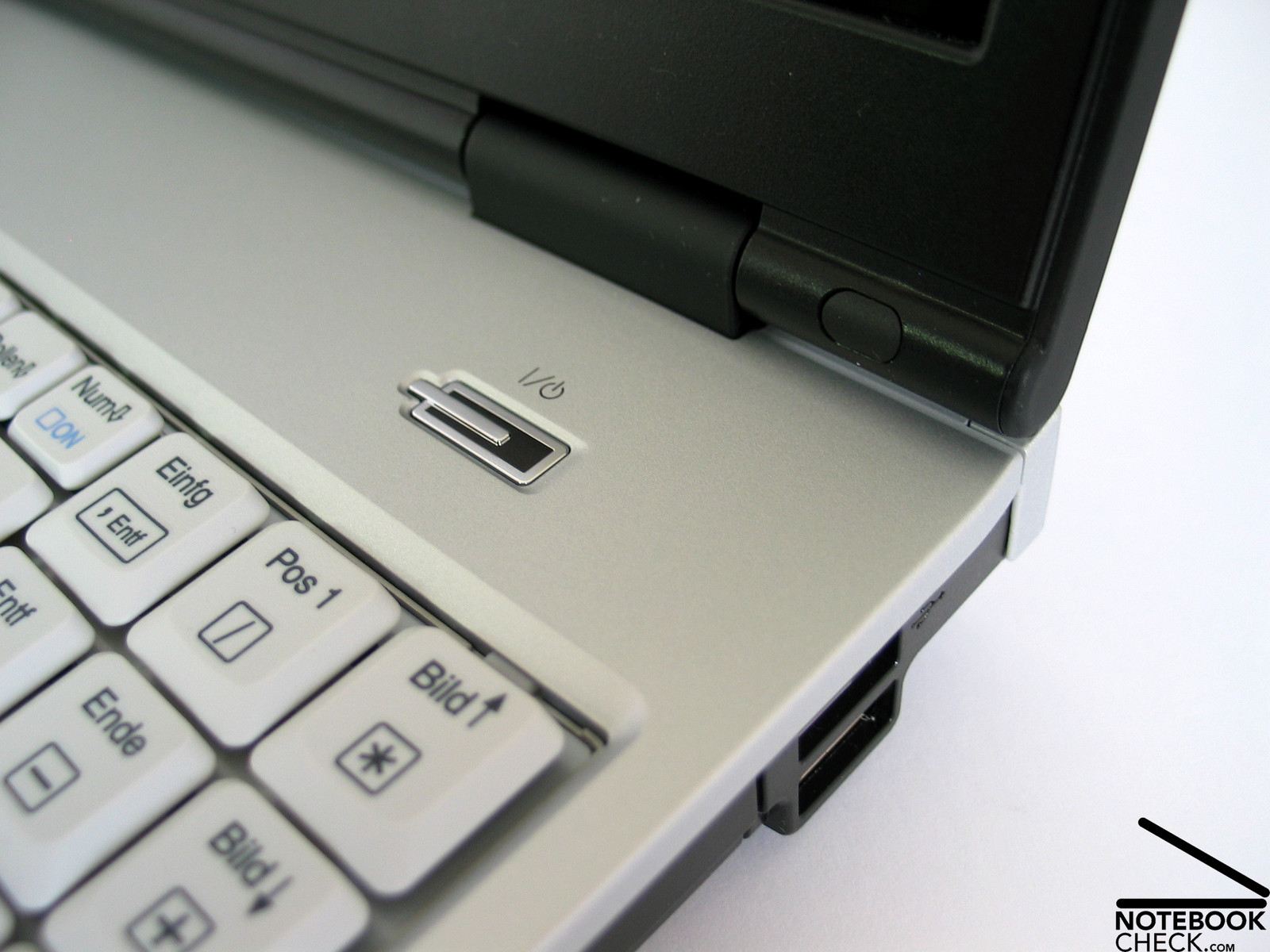

Both of the display's hinges seem to be robust, and also allow to change the position of the display precisely and trouble free. However, there is no locking mechanism, presumably because of the look. If the display is open at an angle of 15° or less, a mechanism closes the notebook completely and ensure that it is surprisingly firmly locked. In order to protect the notebook from penetrating objects at least a little bit, the display was positioned a little more to the back in relation to the base unit.

The ports are partly at the backside of the notebook but also placed on both sides. Depending on the use, either the VGA port, which is in the middle of the left side or the audio ports, which are in the front region of the right side, might be placed disadvantageous.

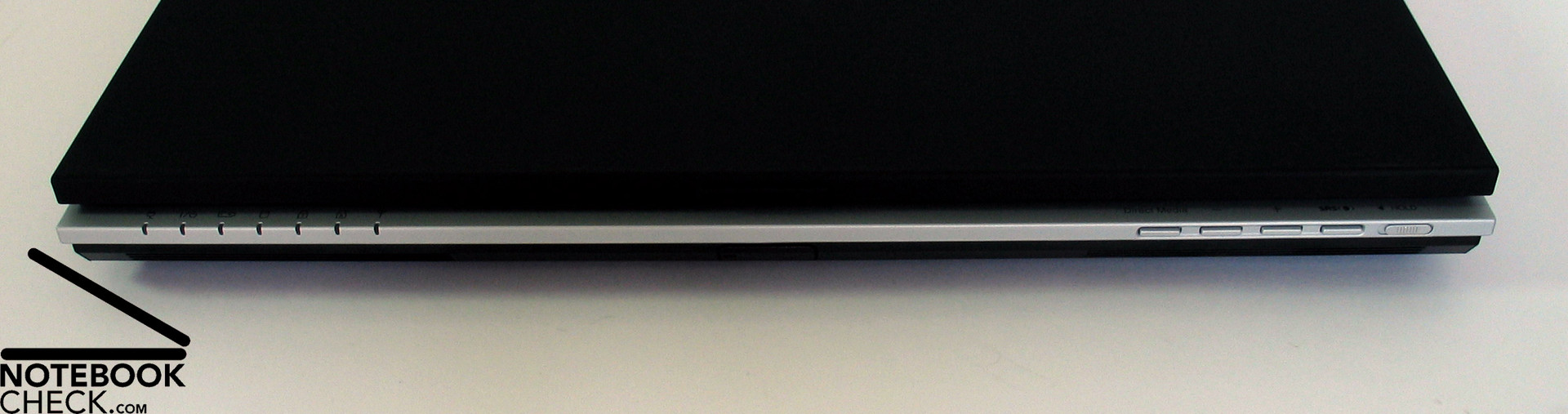

Front Side: No Interfaces
LG S1 Pro Interfaces

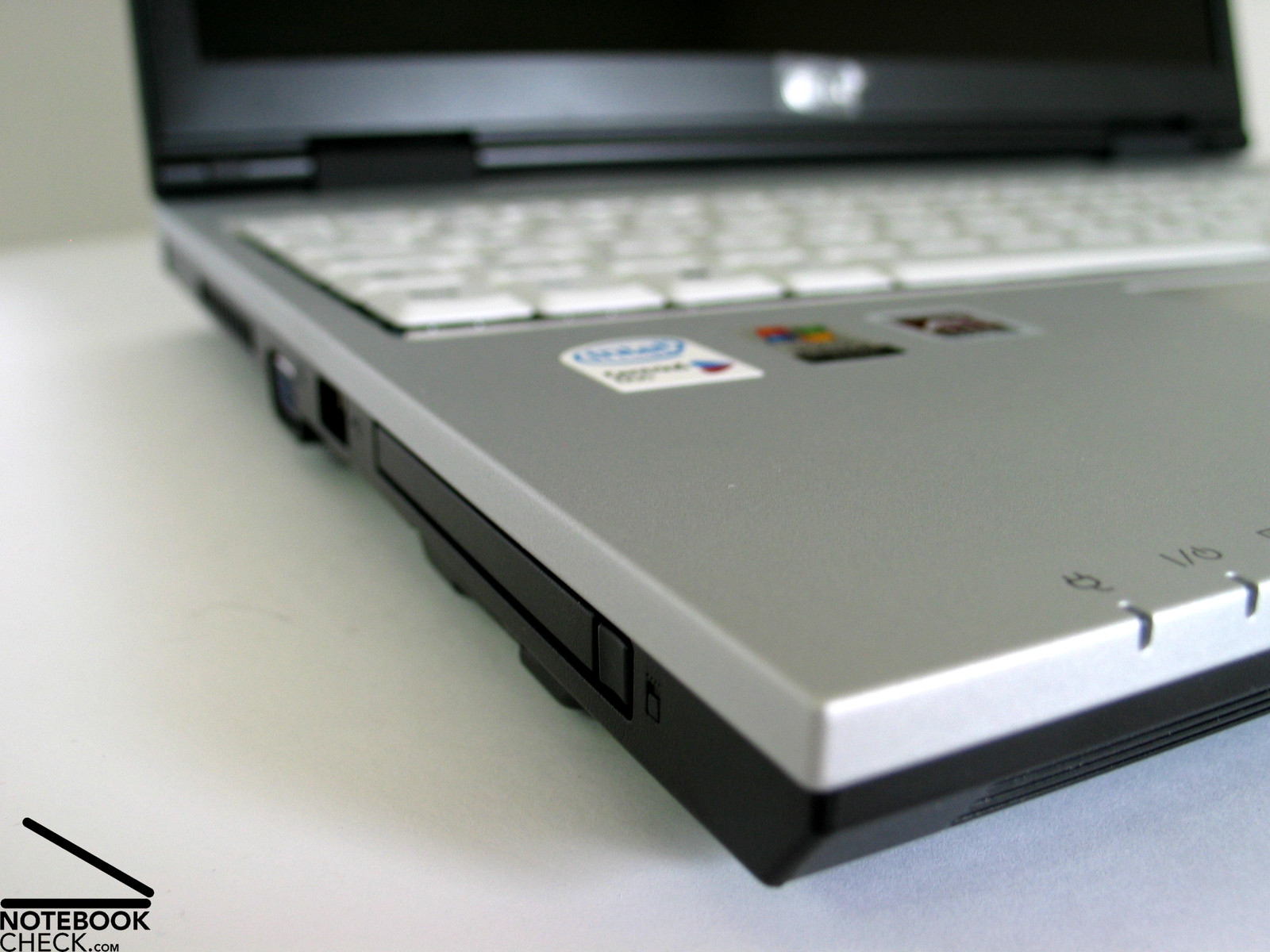

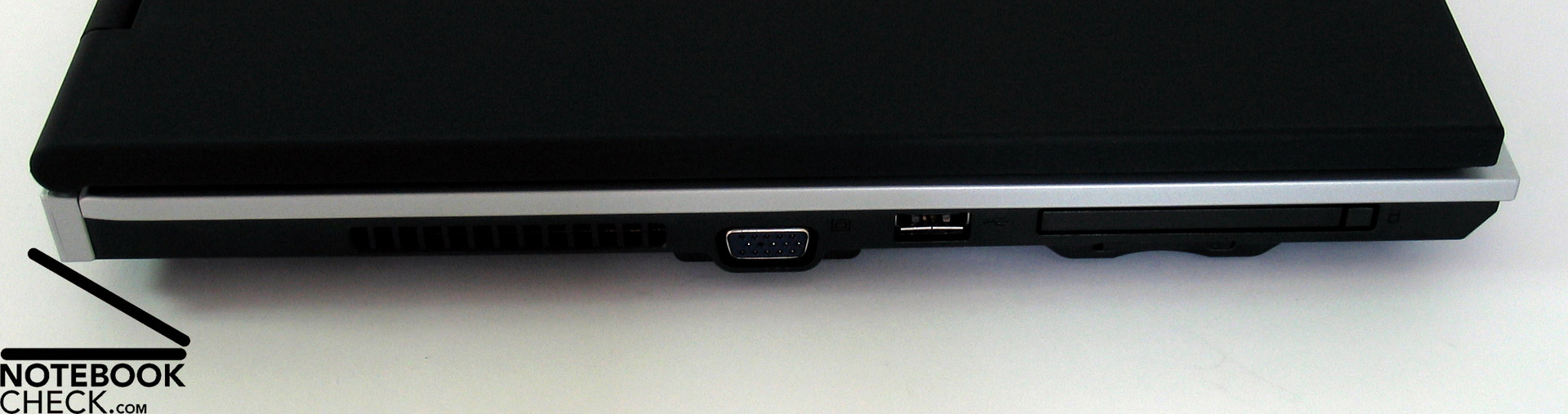

Left Side: Fan, VGA-Out, USB, PCCard, Card Reader
LG S1 Pro Interfaces

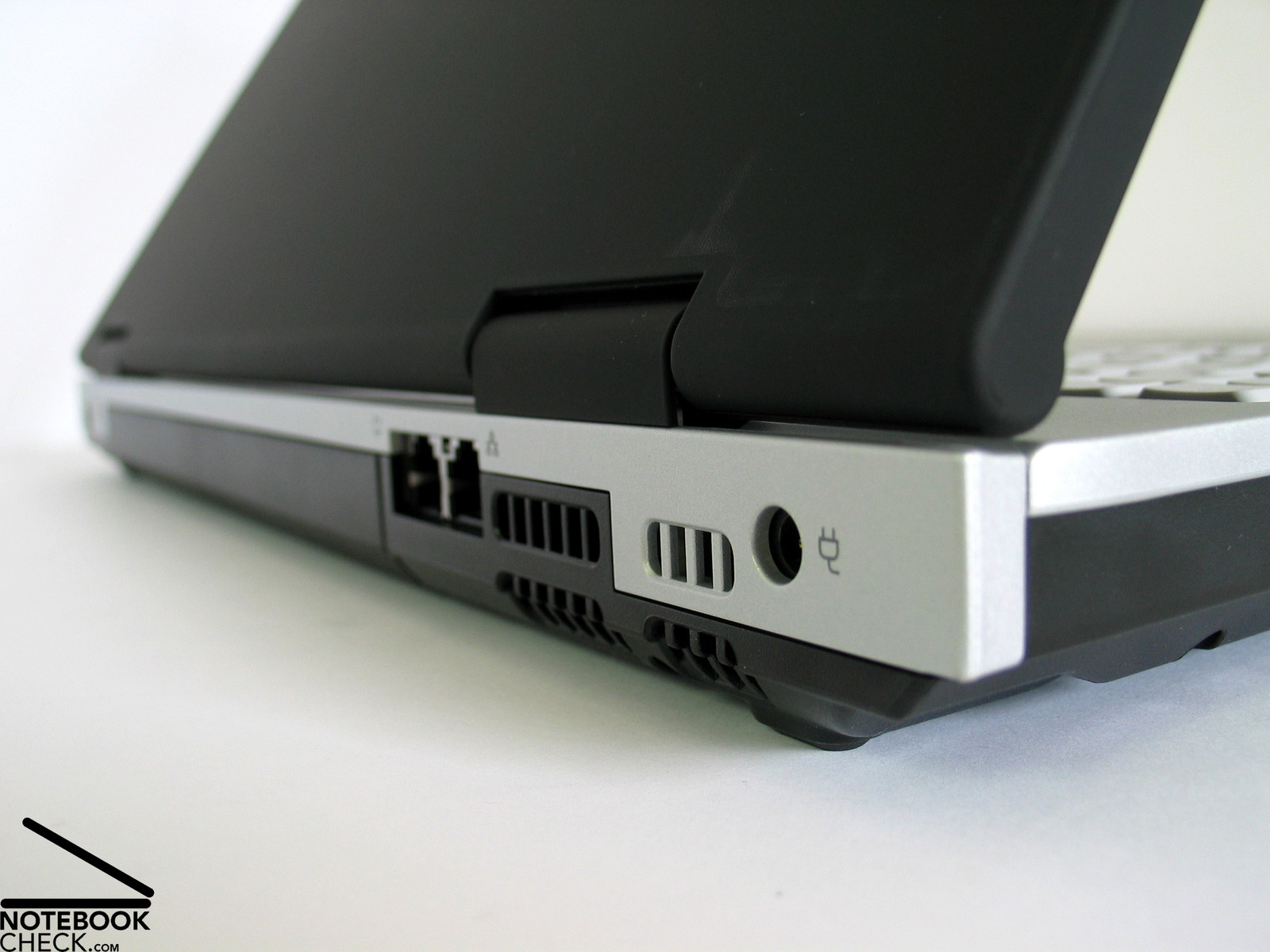

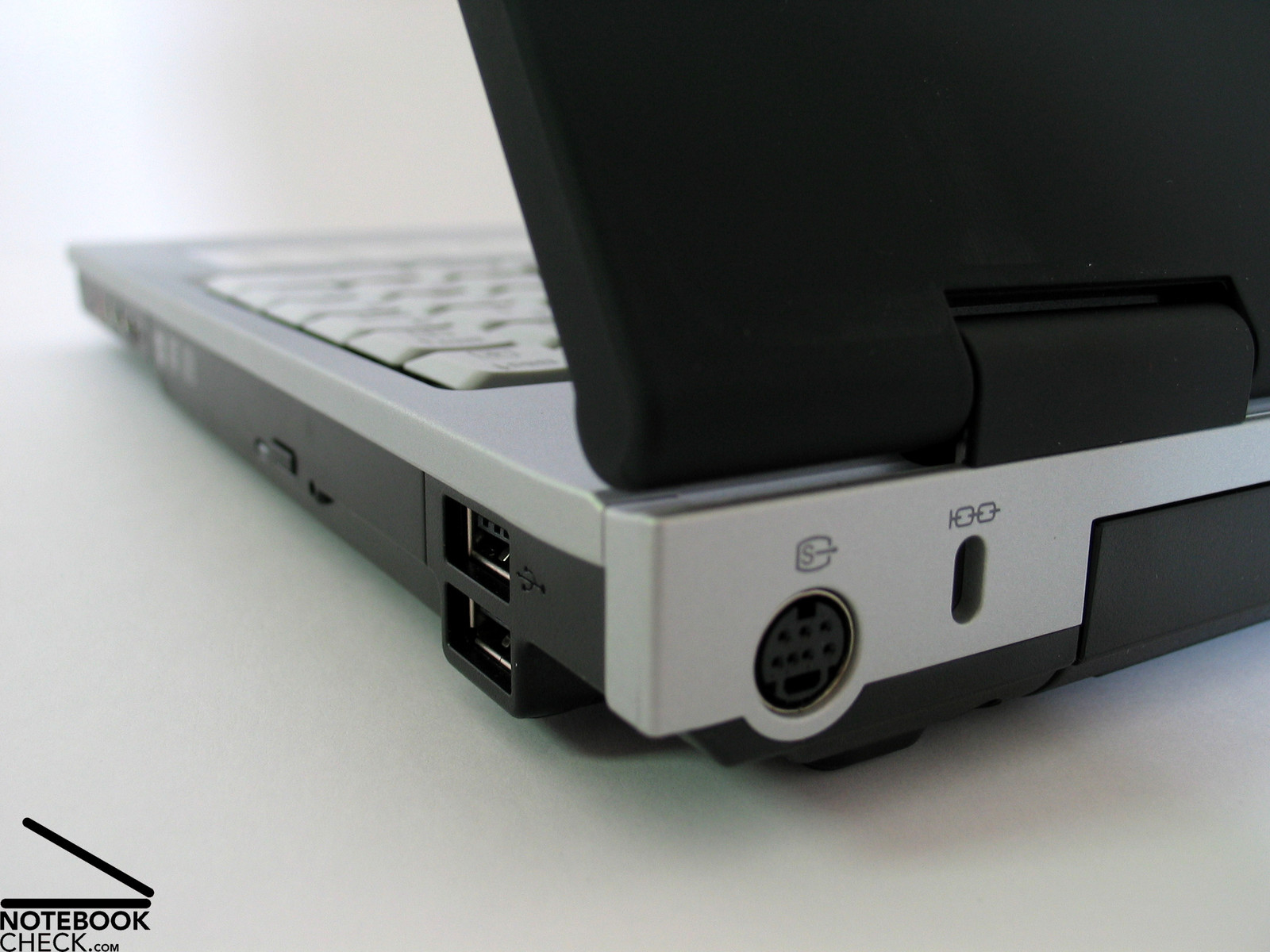

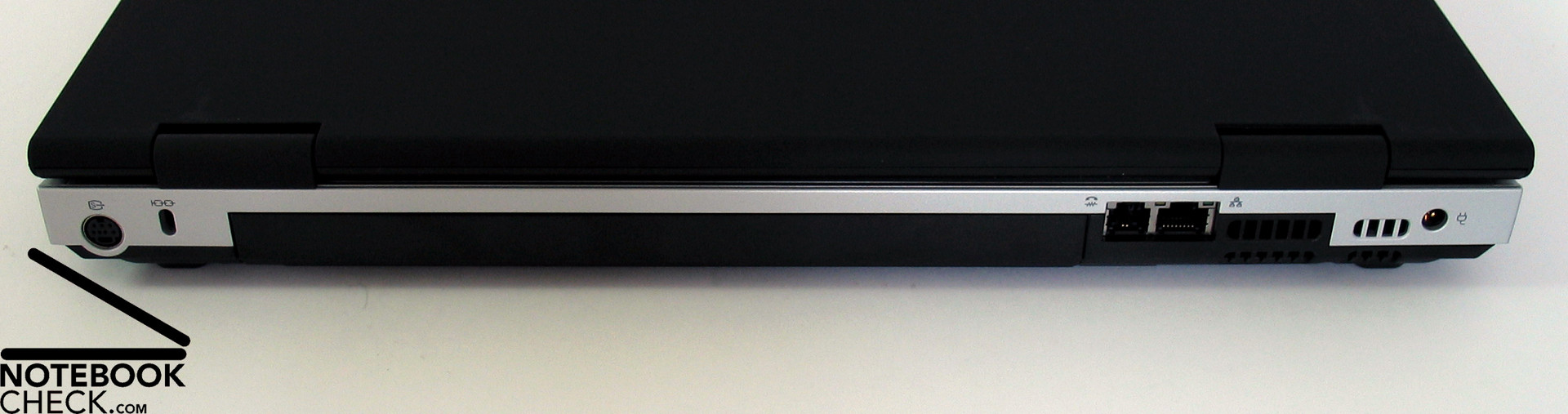

Back Side: S-Video, Kensington, Battery, Modem, LAN, Fan, Power Connector
LG S1 Pro Interfaces

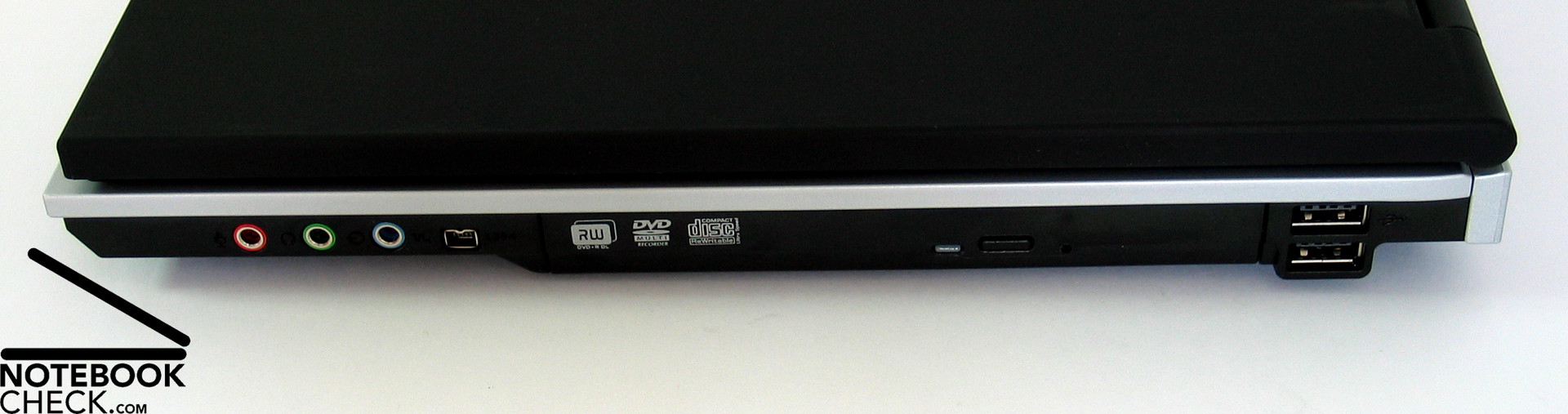

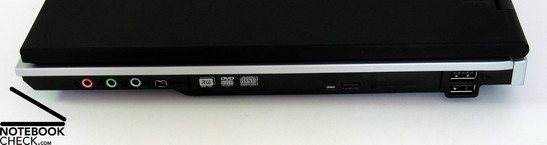

Right Side: Audio, Firewire, DVD drive, 2x USB 2.0
LG S1 Pro Interfaces

Input Devices

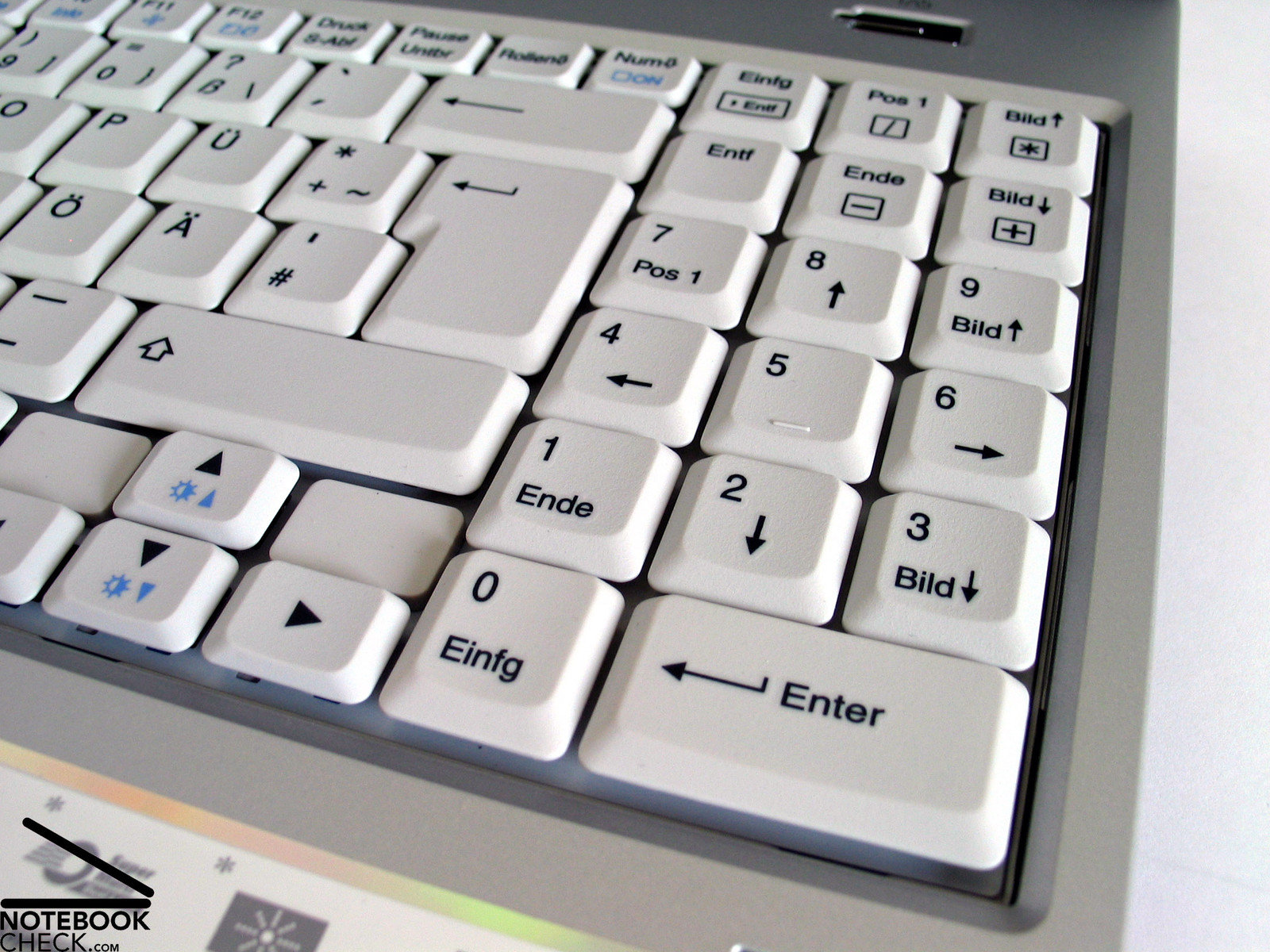

Unusually, considering it is a 15 inch notebook, the LG S1 has a separate number block at the right edge of the keyboard. Although this reduces the available space for the standard keyboard, the keys aren't really too small.

Regarding the layout of the keys we can only criticizes that the delete and the insert key are possibly placed inconvenient right above the standard keyboard and integrated in the number block. So,  they are somewhat difficult to hit.

Typing with the LG S1's keyboard leaves nothing to be desired. The keys can be precisely used by applying comfortable force and are rather calm, even if you type faster.

Also the touch pad convinces through good response and a comfortable surface. Both keys are nearly difficult to hit, because they are narrow and at the same level than the case. However, the pressure resistance is alright.

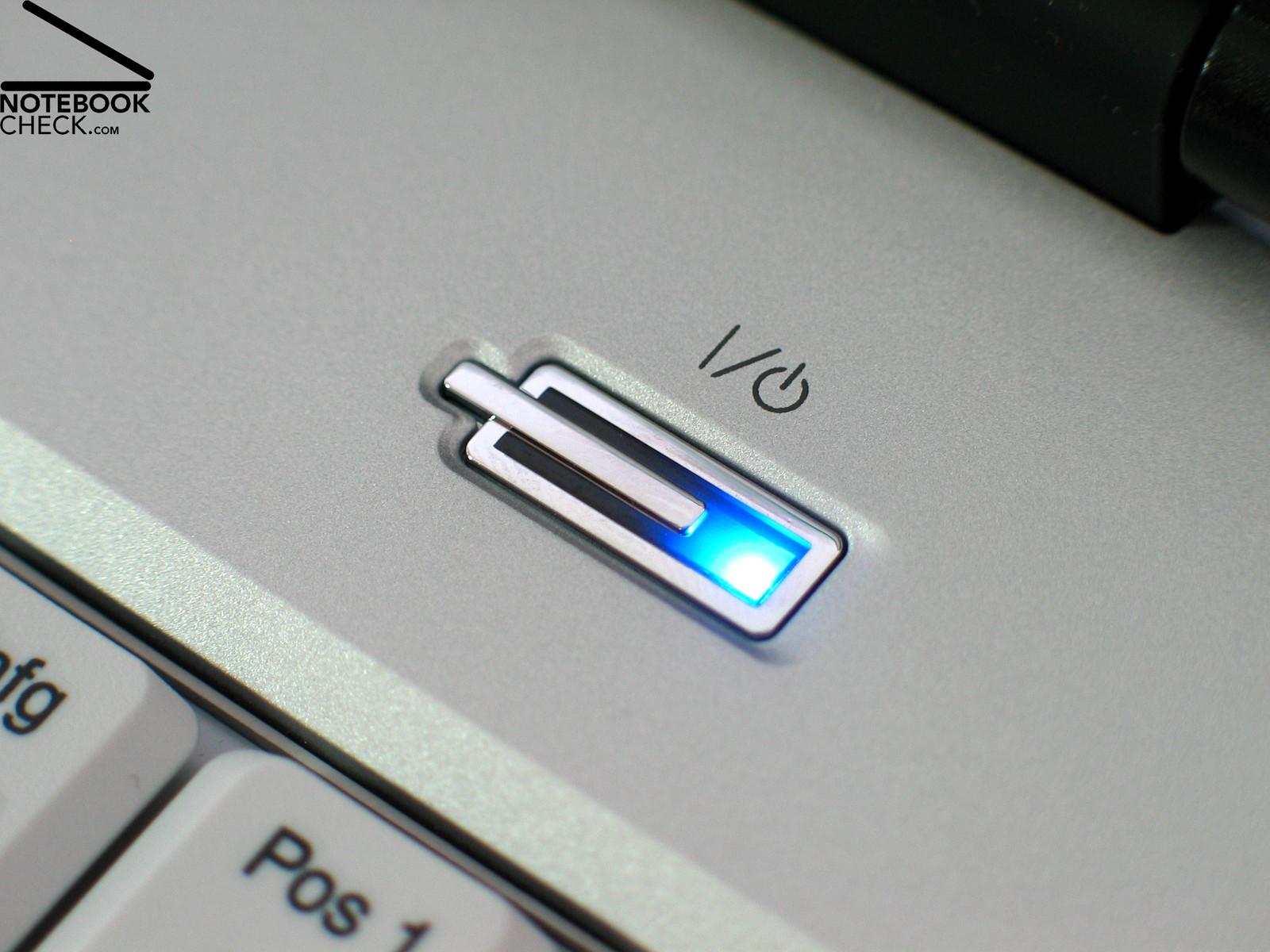

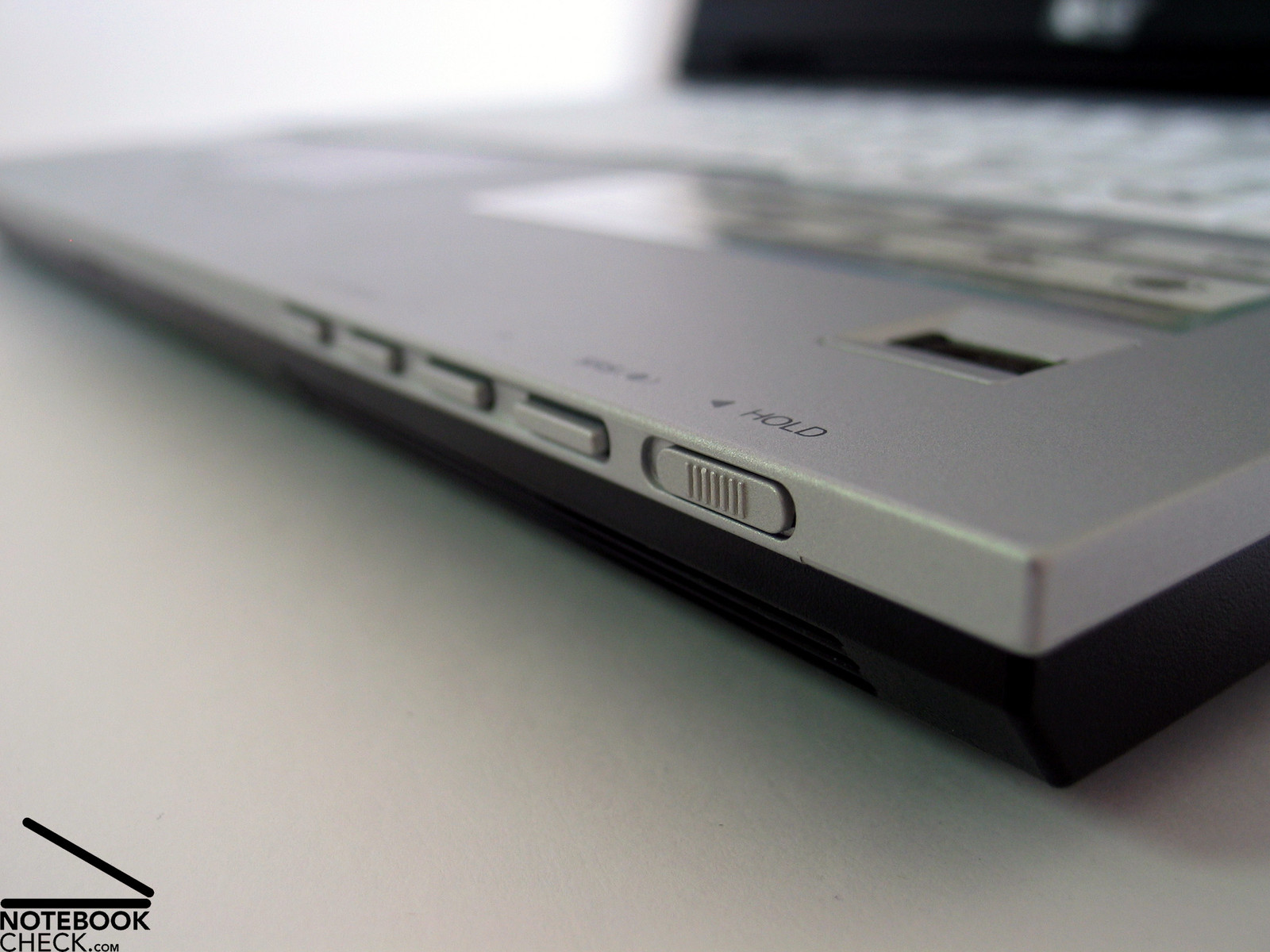

The S1's additional keys have a pleasing, decent form, are placed at the notebook's front edge, and are comfortable in use.

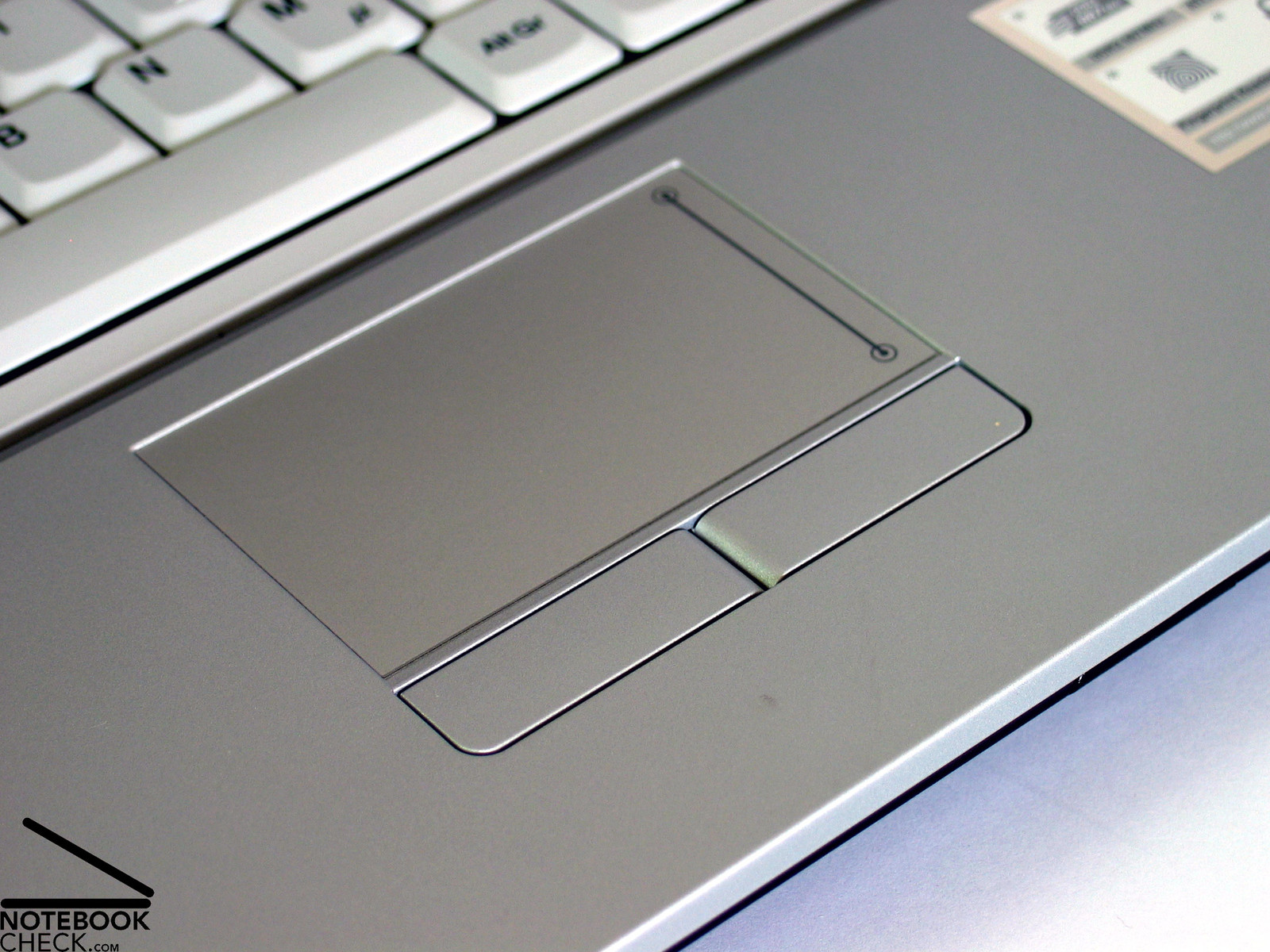

Touch pad
LG S1 Pro Touch pad

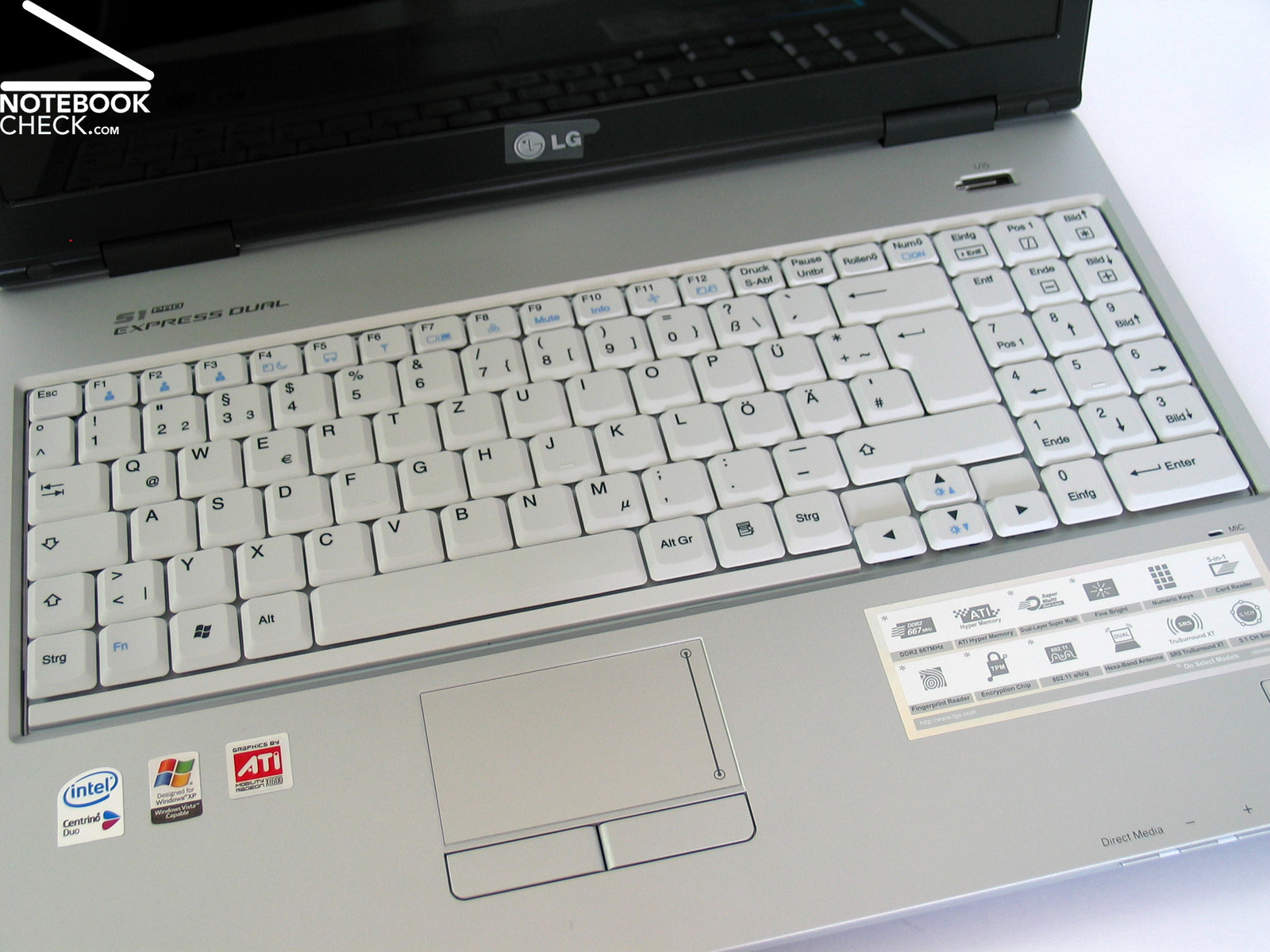

Keyboard
LG S1 Pro Keyboard

Display

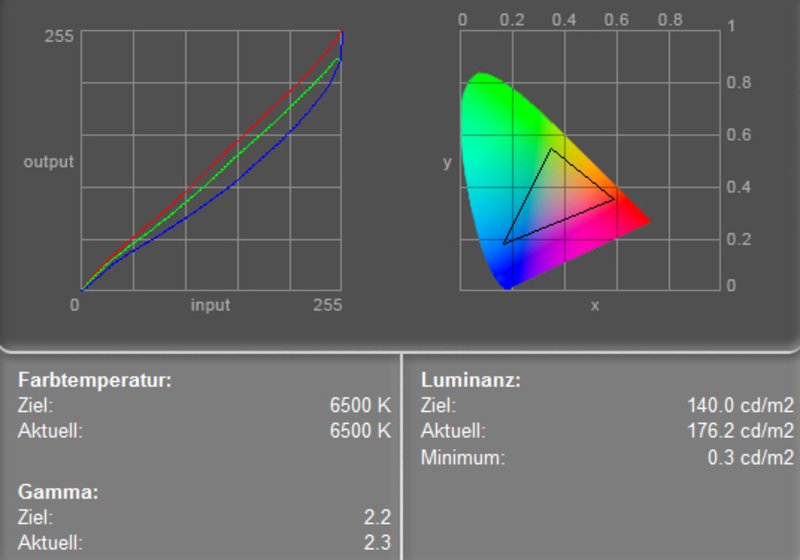

Color Diagram
LG S1 Pro Display Measurement

The LG S1 utilizes a 1280x800 WXGA display. This is a display with reflecting surface. The maximum brightness is excellent at 186.7 cd/m². The illumination of 75.8% is,  because of the yet very good minimum brightness of 141.5 cd/m² alright.

The measurement diagram shows an ideal red color curve. However, the blue color curve is clearly below the ideal. Therefore, the red colors dominate and the colors appear to be warmer.

169.7
cd/m²
186.7
cd/m²
142.3
cd/m²
156.1
cd/m²
176.2
cd/m²
141.5
cd/m²
185.3
cd/m²
184.5
cd/m²
150.7
cd/m²
Distribution of brightness
Information
Maximum: 186.7 cd/m²
Average: 165.9 cd/m²
Brightness Distribution: 76 %
Black: 0.3 cd/m²
Contrast: 587:1

The black value (minimum brightness) is very low at 0.3 cd/m². This leads to an excellent contrast ratio of 622:1.

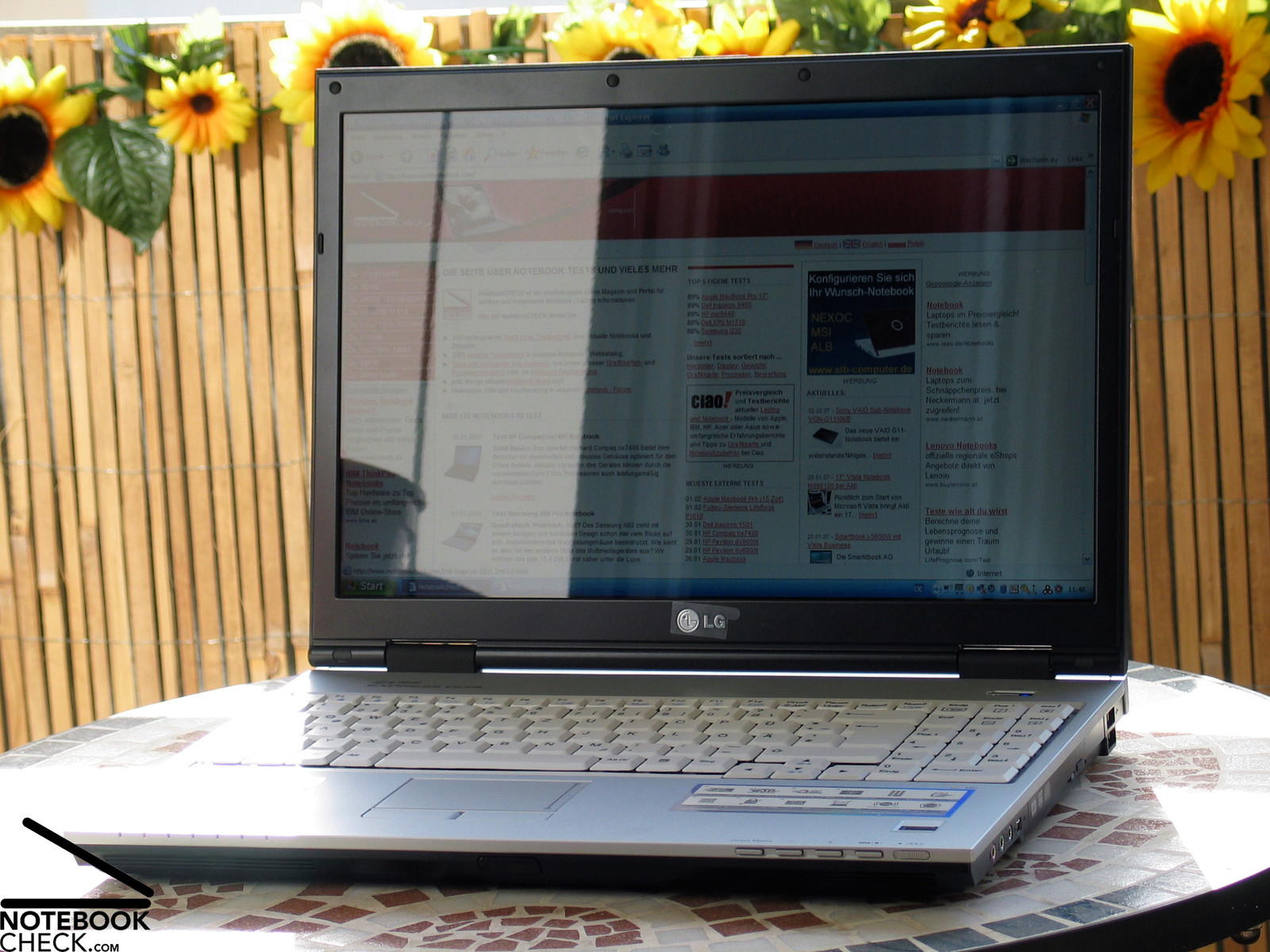

Operation Outdoors
LG S1 Pro Outdoors

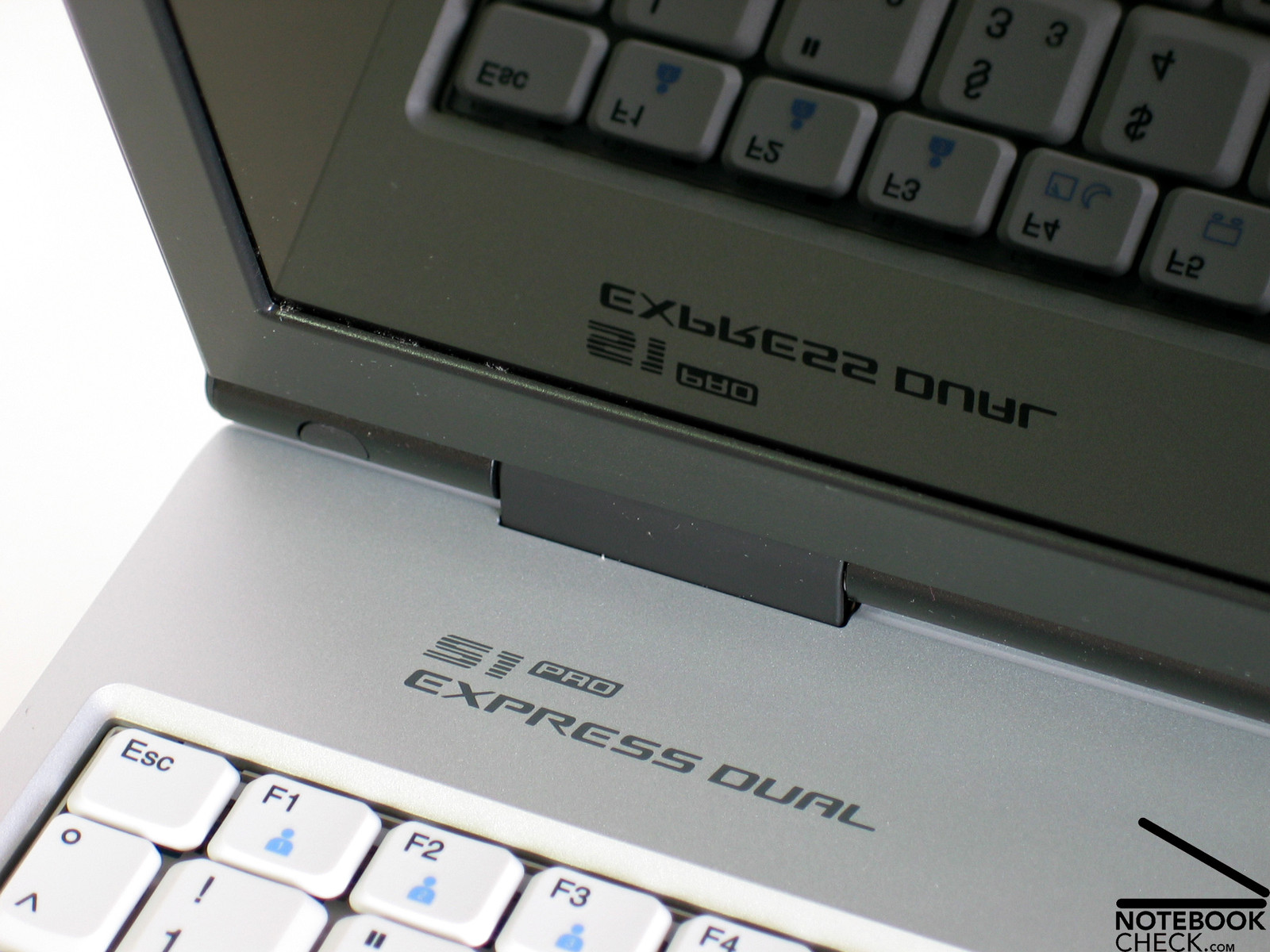

The reflecting display makes it difficult to use the notebook outdoors. Depending on the solar radiation and the lightening conditions of the environment, more or less heavy reflections can be observed.

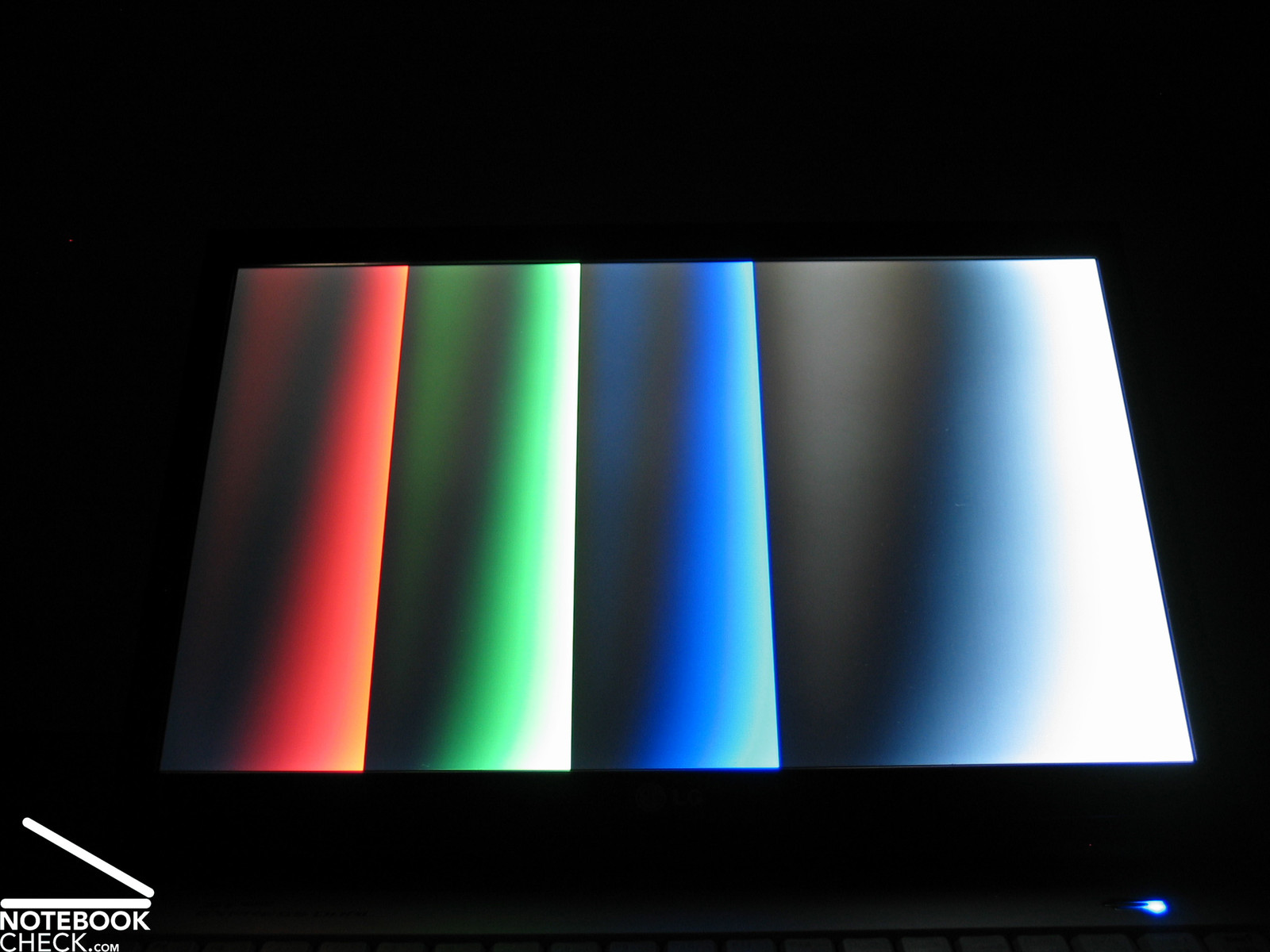

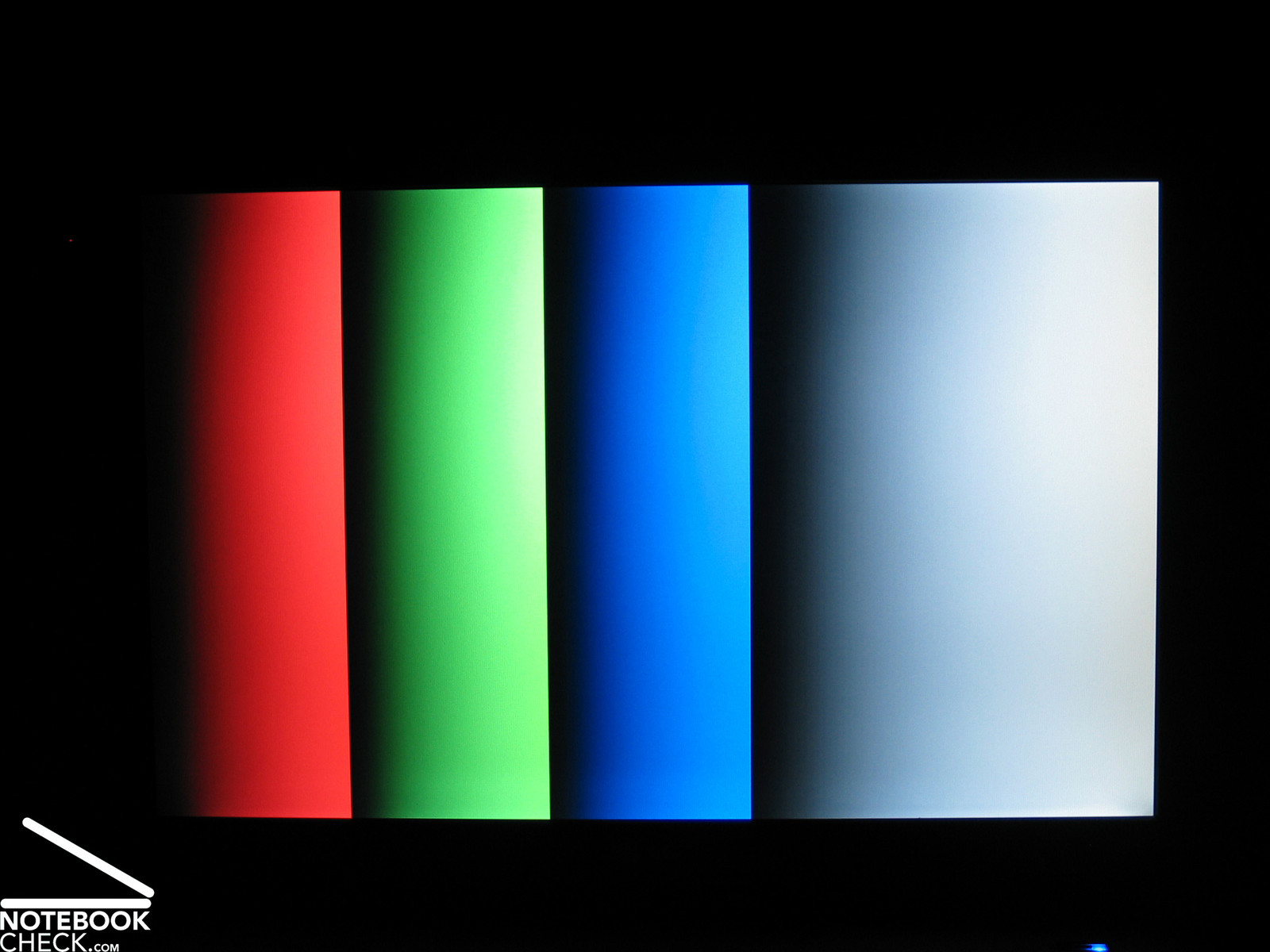

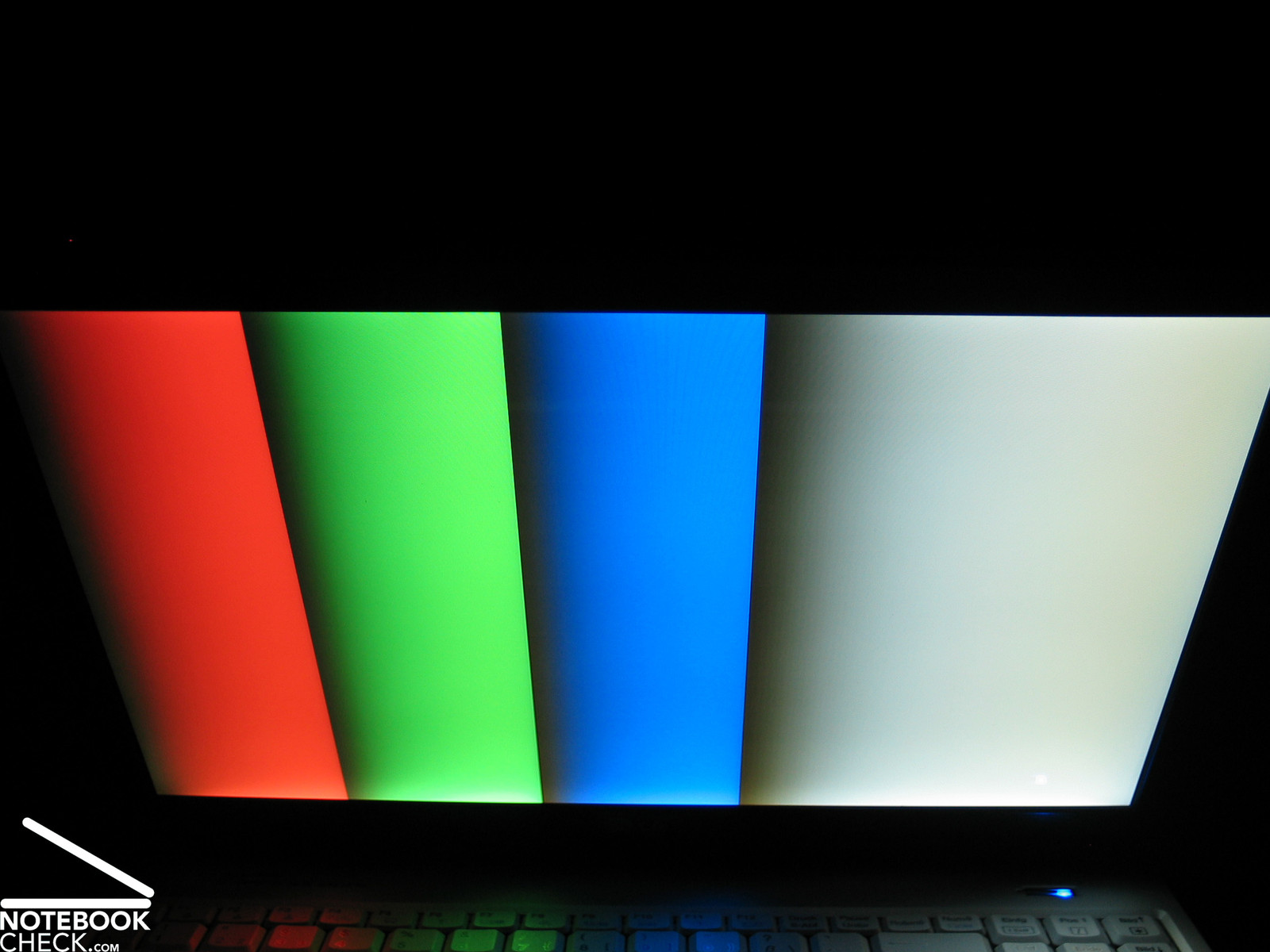

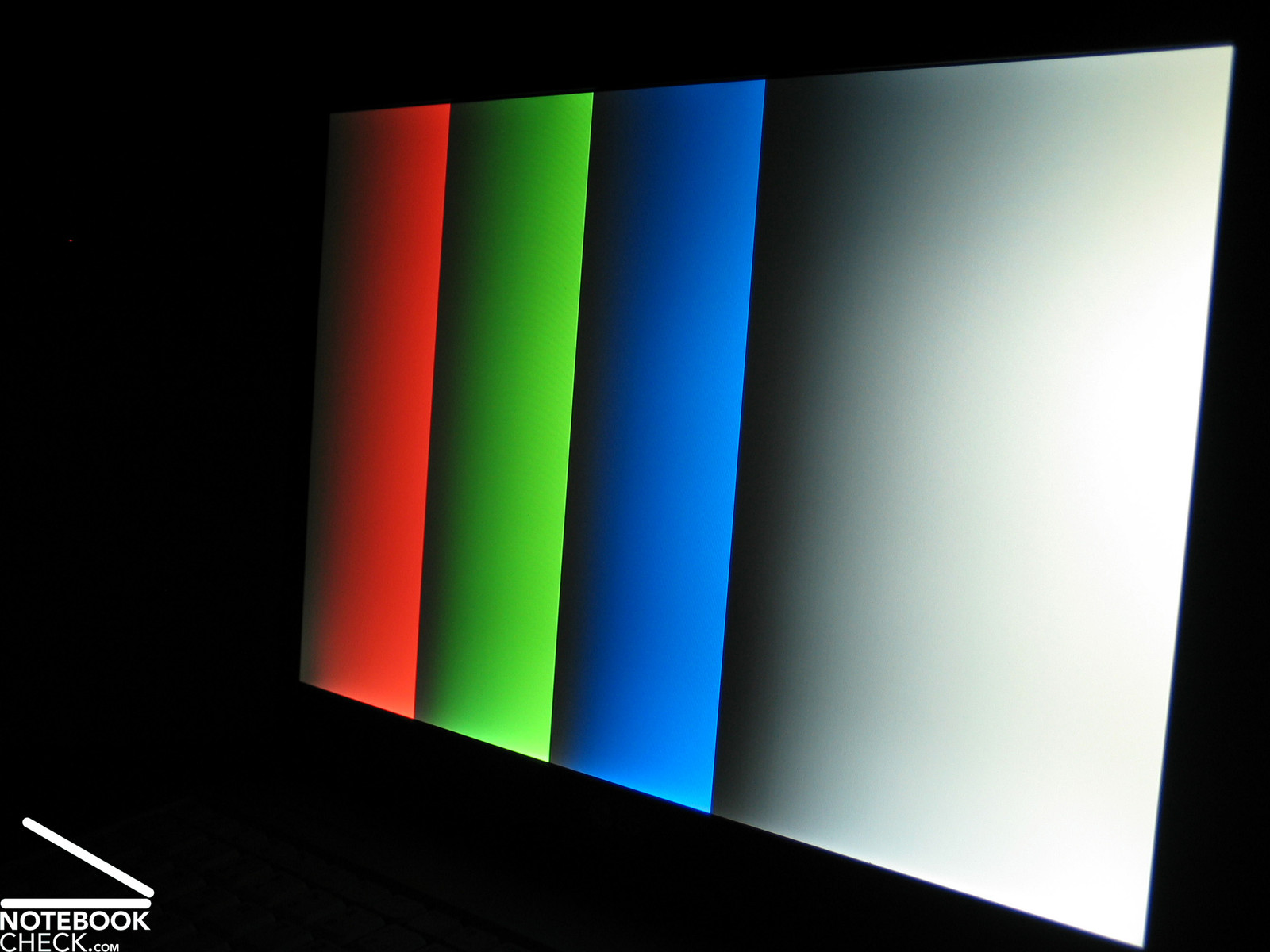

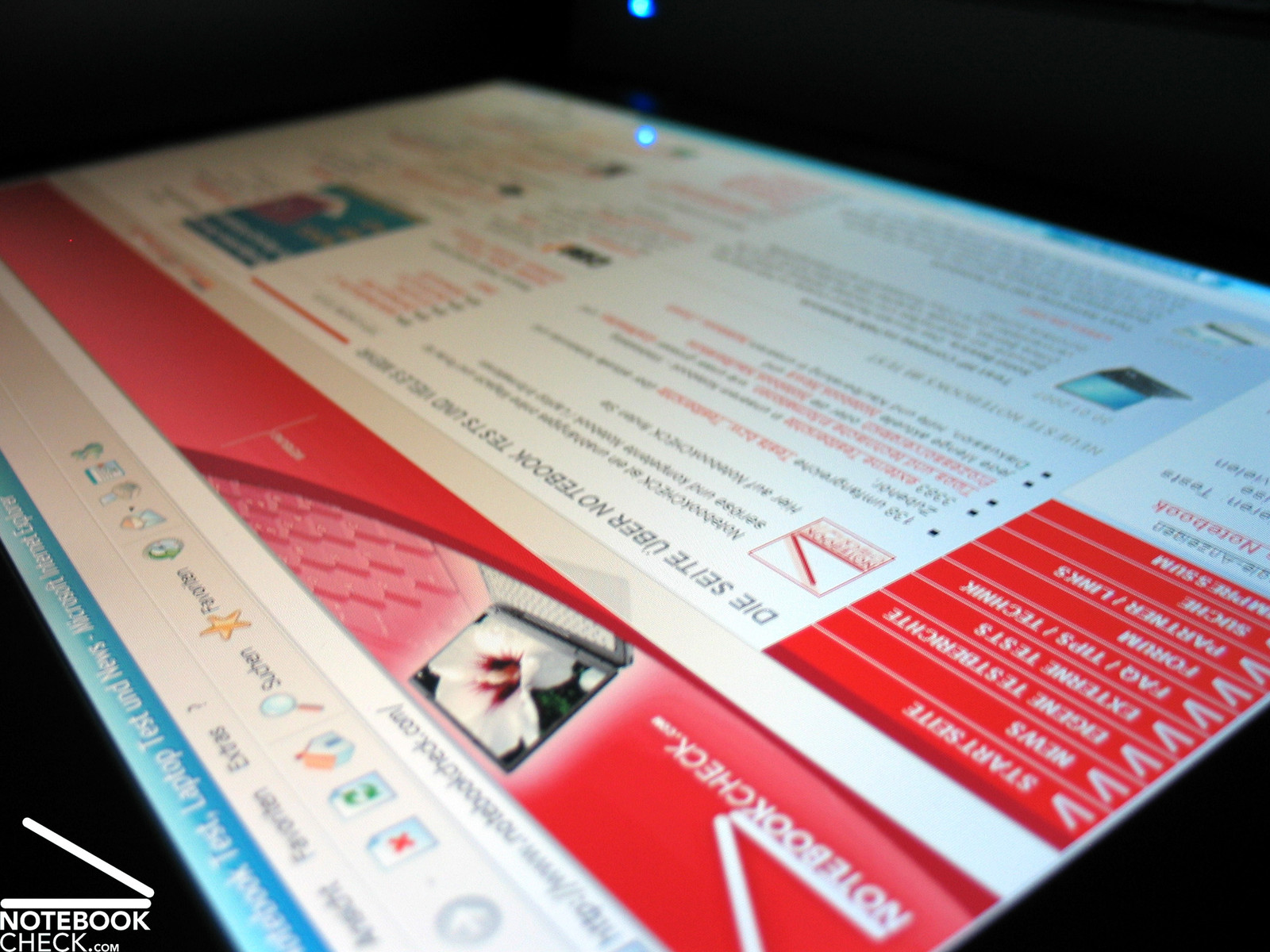

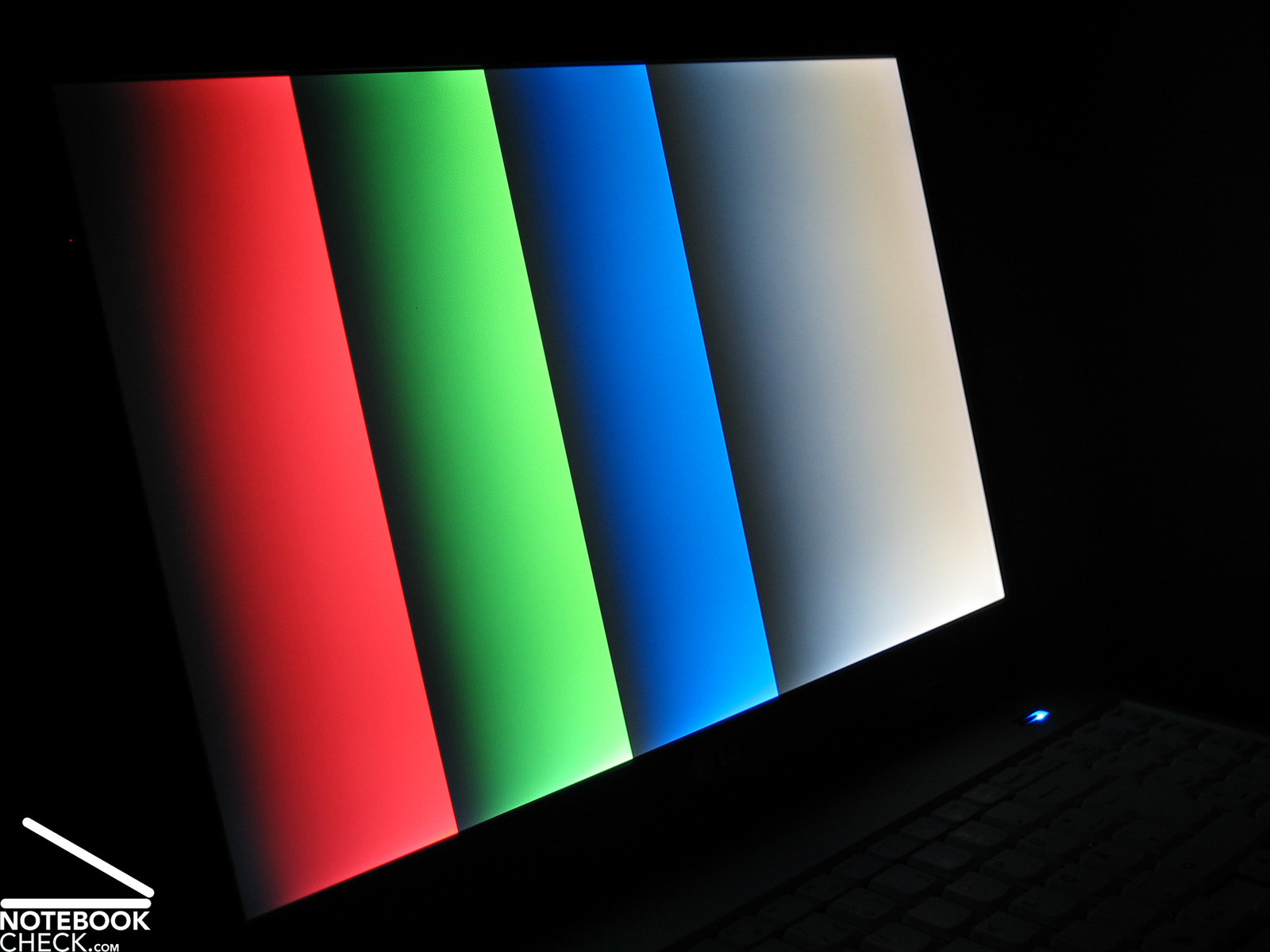

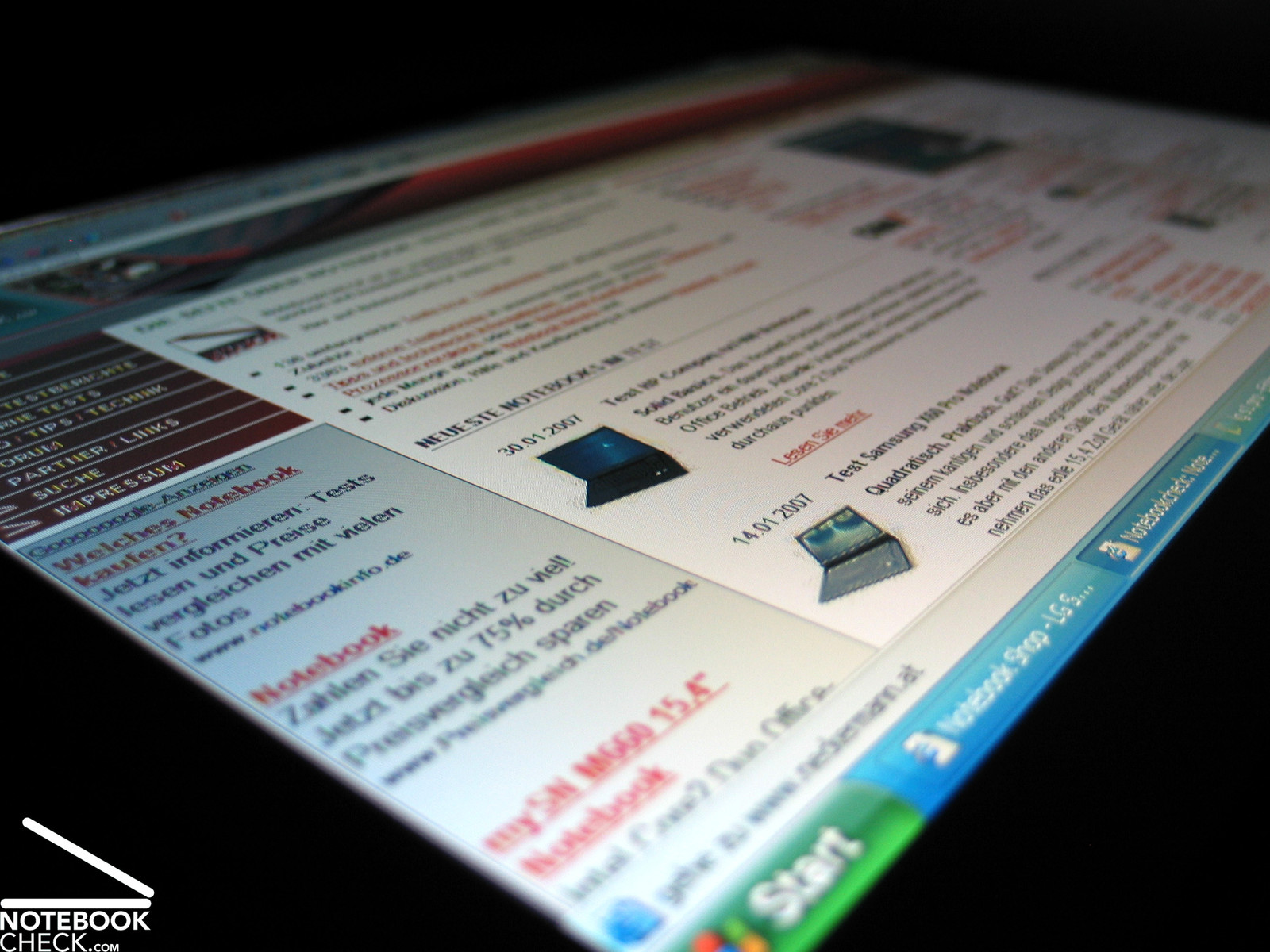

Vertically, the stability to the vantage point is alright. Outside an adequate area of operation, the contrast diminishes very much.
Horizontally the display is in general stable to the vantage point, however the reflecting surface limits the possible vantage points a little bit.

LG S1 Pro Stability to the Vantage Point
LG S1 Pro Stability to the Vantage Point
LG S1 Pro Stability to the Vantage Point
LG S1 Pro Stability to the Vantage Point
LG S1 Pro Stability to the Vantage Point
LG S1 Pro Stability to the Vantage Point
LG S1 Pro Stability to the Vantage Point
LG S1 Pro Stability to the Vantage Point

Performance

The LG S1 has in the fields of 3D- as well as in the fields of applications compared to different notebooks of the same class a good performance. Especially the ATI X1600 video chip (GPU/clock rate: 425/400 MHz, 256MB VRAM) surprises by good performance.
It should be well possible to play current games with this video card, although you might need to reduce the resolution and/or the number of details a little bit.

Equipped with a Core 2 Duo T5600 CPU the notebook provides you with sufficient power for calculation intensive applications.

The Hitachi 5K160 hard disk with a storage capacity of 120GB has a good and short access time and at the same time an above-average transfer rate.

Further information about the video card can be found here or in our comparison of mobile video cards. Detailed information about the Core 2 Duo CPU can be found here.

Please also look at our benchmark list of mobile processors or at our benchmark list of mobile video cards, in order to compare this notebook to other configurations.

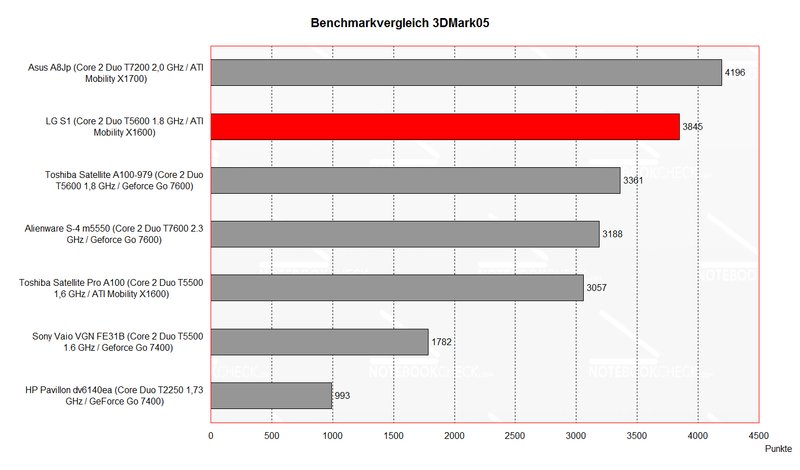

Benchmark Comparison 3DMark
LG S1 Pro Benchmark Comparison

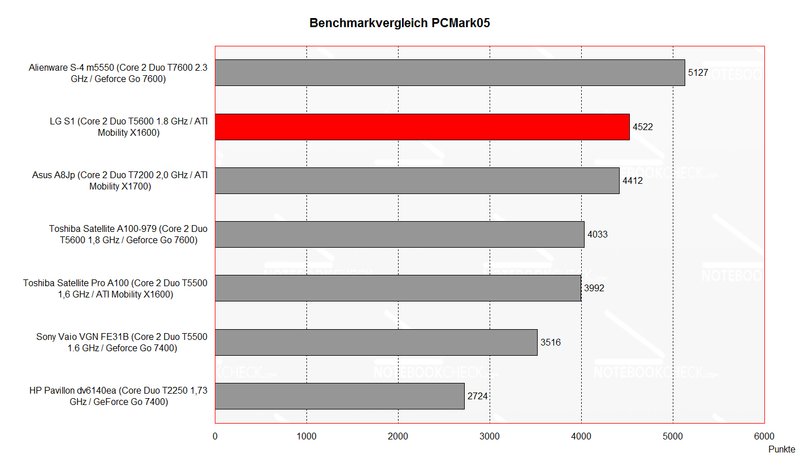

Benchmark Comparison PCMark
LG S1 Pro Benchmark Comparison
3D Mark
3DMark 2001SE18947 points
3DMark 036480 points
3DMark 053845 points
3DMark 06

2008 points
Help
3DMark 06 in comparison
Sony Vaio VGN-FS485B (min)
 740, Graphics Media Accelerator (GMA) 900
54
   ...
Acer Aspire 5253-E352G32Mnkk
 E-350, Radeon HD 6310
1987
Lenovo G575-4383
 E-350, Radeon HD 6310
1997
LG S1 Pro
 T5600, Mobility Radeon X1600
2008
Acer Aspire Switch 10 SW5-011-12VU
 Z3745D, HD Graphics (Bay Trail)
2009
Lenovo ThinkPad X121e NWS5QGE
 E-350, Radeon HD 6310
2035
   ...
Clevo Clevo P157SM (max)
 4930MX, GeForce GTX 880M
29955
PC Mark
PCMark 046347 points
PCMark 054522 points
Help
PCMark 05 in comparison
Acer Aspire One 751 (min)
 Z520, Graphics Media Accelerator (GMA) 500
692
   ...
Lenovo ThinkPad SL300
 P8600, Graphics Media Accelerator (GMA) 4500MHD
4508
Asus N20A
 T5850, Graphics Media Accelerator (GMA) 4500MHD
4516
LG S1 Pro
 T5600, Mobility Radeon X1600
4522
HP ProBook 4310s
 T6670, Graphics Media Accelerator (GMA) 4500MHD
4559
Apple MacBook Pro 15" 2.2GHz
 T7500, GeForce 8600M GT
4576
   ...
Fujitsu Celsius H710 WXP11DE (max)
 2820QM, Quadro 1000M
13842
120 GB - 5400 rpm
Transfer Rate Minimum: 17.5 MB/s
Transfer Rate Maximum: 37.3 MB/s
Transfer Rate Average: 29.5 MB/s
Access Time: 16.1 ms
Burst Rate: 87.5 MB/s
CPU Usage: 3.6 %

Emissions

Loudness

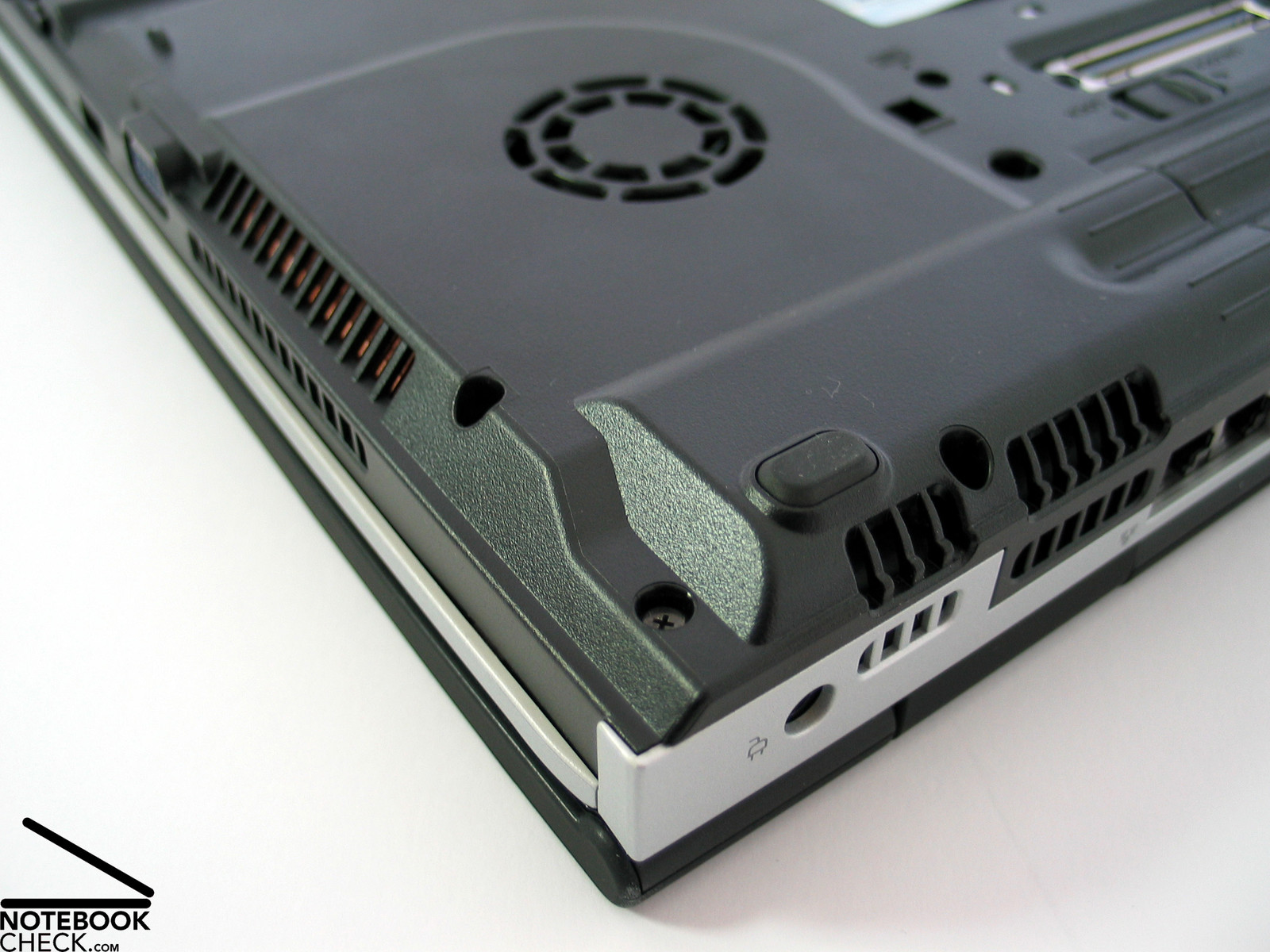

Although the fan runs steadily even in idle mode, the LG S1 is a rather pleasing notebook regarding its noise emissions. During "moderate" office operation the fan works time and again with higher frequency, but yet within a limited range.
Even under load, at maximum revolutions the noise of the notebook is never really disturbing.

The noise of the DVD drive is alright during playback, but, during copying data or playback of Mpeg movies it is rather loud.

Noise Level

Idle 35.0 / 38.3 / 36.2 dB(A)
HDD 37.6 dB(A)
DVD 37.5 / dB(A)
Load / 39.1 dB(A)

    30 dB
silent
40 dB
audible
50 dB
loud

min: , med: , max:     (15 cm distance)

Temperature

Even the surface temperatures of the notebook are rather low. At the top side we measured a maximum of 34.3°C and a maximum of 38.4°C at the bottom side. In general the values are rather normal.

Upper side

palmwrist: 29.6°C max: 34.3°C avg: 26.4°C

Bottom side

max: 38.4°C avg: 29.7°C

Speakers

The speakers are left and right at the front edge of the notebook. Their sound is more or less alright, even if it does not really delight, because it's a little dull. By activating SRS TruSurround it can be improved, still it doesn't become a sound miracle.

Battery Runtime

Despite the runtime under load, which is rather short (a little bit above one hour), the LG S1 has an average runtime provided by a 5200 mAh battery. You can expect a maximum runtime of about 3 hours and a runtime of about 2 hours during DVD playback.

Battery Runtime
Idle (without WLAN, min brightness)
3h 24min
DVD
2h 05min
Load (maximum brightness)
1h 15min

Power Consumption

Idle 24.4 / 29.1 / 29.8 Watt
Load 62.0 / 58.0 Watt

Key: min: , med: , max:

Verdict

The LG S1 Pro pleases by decent design and choice of color. Even the materials, which seem to be of high-quality, and the precise workmanship convince.

The input devices pleased us, especially the keyboard, which proved to be very comfortable in use. The provided number block could also be of use for one or the other user, and is hardly provided by any 15 inch notebook.

The display completely convinced despite of a reflecting surface. A good brightness, a good contrast ratio and stability to the vantage point leave nothing to be desired.

The performance is, thanks to a Core 2 Duo CPU and ATI X1600 mid-class video card rather passable. Even current applications and Windows Vista should run trouble-free.

The low noises and also the low surface temperatures are other pros of the LG S1 Pro. The battery runtime is about average, under load below average.

LG S1 Pro Notebook
LG S1 Pro Notebook
Reviewed: LG S1 Pro
LG S1 Pro

Specifications

LG S1 Pro
Graphics adapter
Memory
2048 MB
, DDR2 PC5300 SDRAM (667MHz), max. 4096MB, 2x1024MB
Display
15.4 inch 16:10, 1280x800 pixel, WXGA FineBright TFT Display, glossy: yes
Mainboard
Intel 945PM
Harddisk
120 GB - 5400 rpm, 120 GB
5400 rpm Hotachi Travelstar 5K160: 120GB, 5400rpm
Connections
PCCard Typ II, Mikrofon, Kopfhörer, S/PDIF (Line In), 3x USB 2.0, VGA-Out, S-Video, Firewire, Kensington Lock, LAN, Modem, Docking Connector
Size
height x width x depth (in mm): 32 x 359 x 264 ( = 1.26 x 14.13 x 10.39 in)
Weight
2.86 kg ( = 100.88 oz) ( = 0 oz)
Battery
, 5200 mAh Lithium Ionen Akku
Price
1850 Euro
Additional features
HDD: 120GB, 5400rpm, Hotachi Travelstar 5K160, Realtek HD Audio, DVD +/-R (DL) GSA-T10N,



[+] compare
The LG S1 Pro is the winner...
HP Compaq nx7400 Image
Also the surface temperatures are alright.
HP Compaq nx7400 Image
The fan can be quietly heard.
HP Compaq nx7400 Image

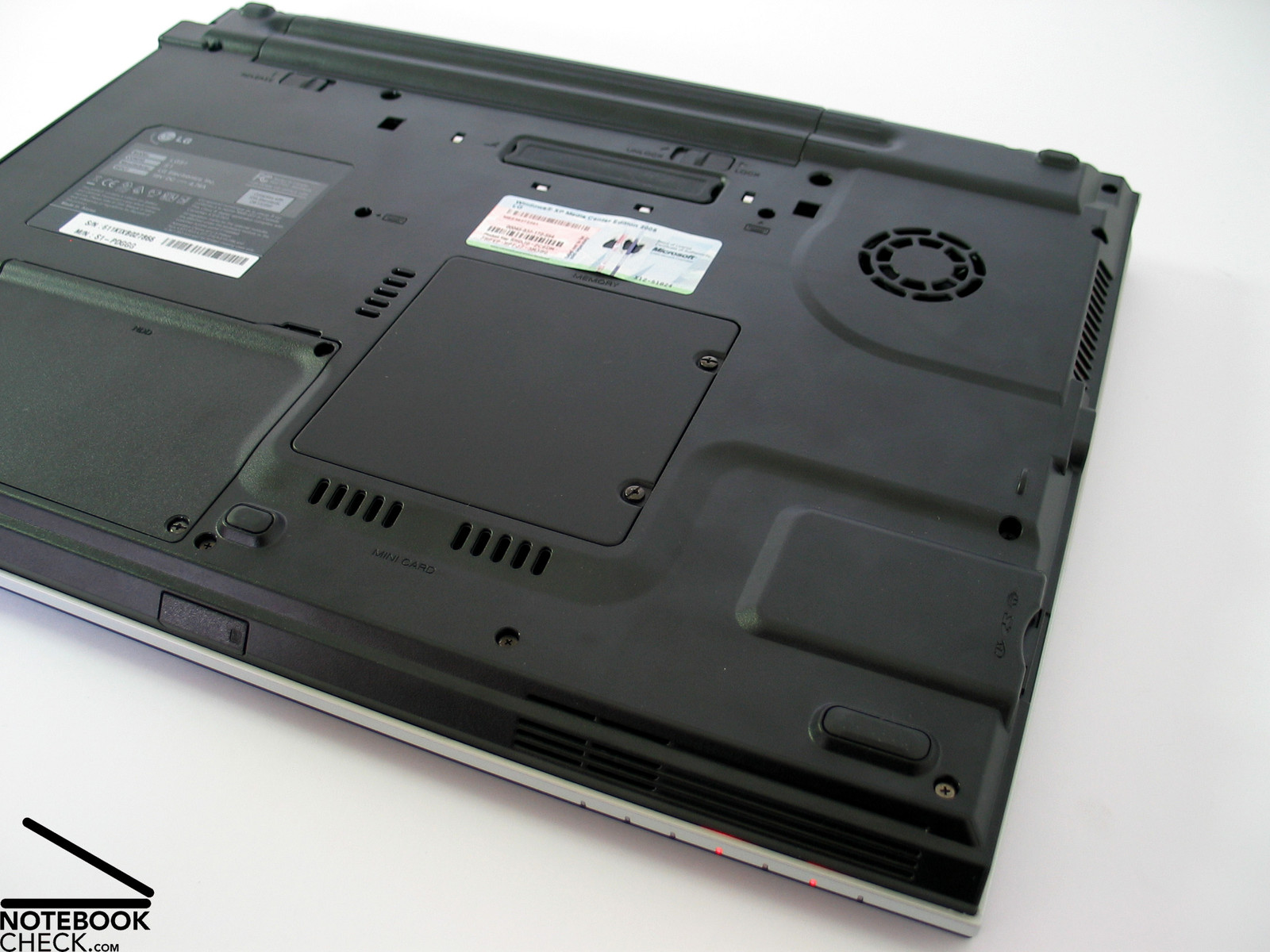

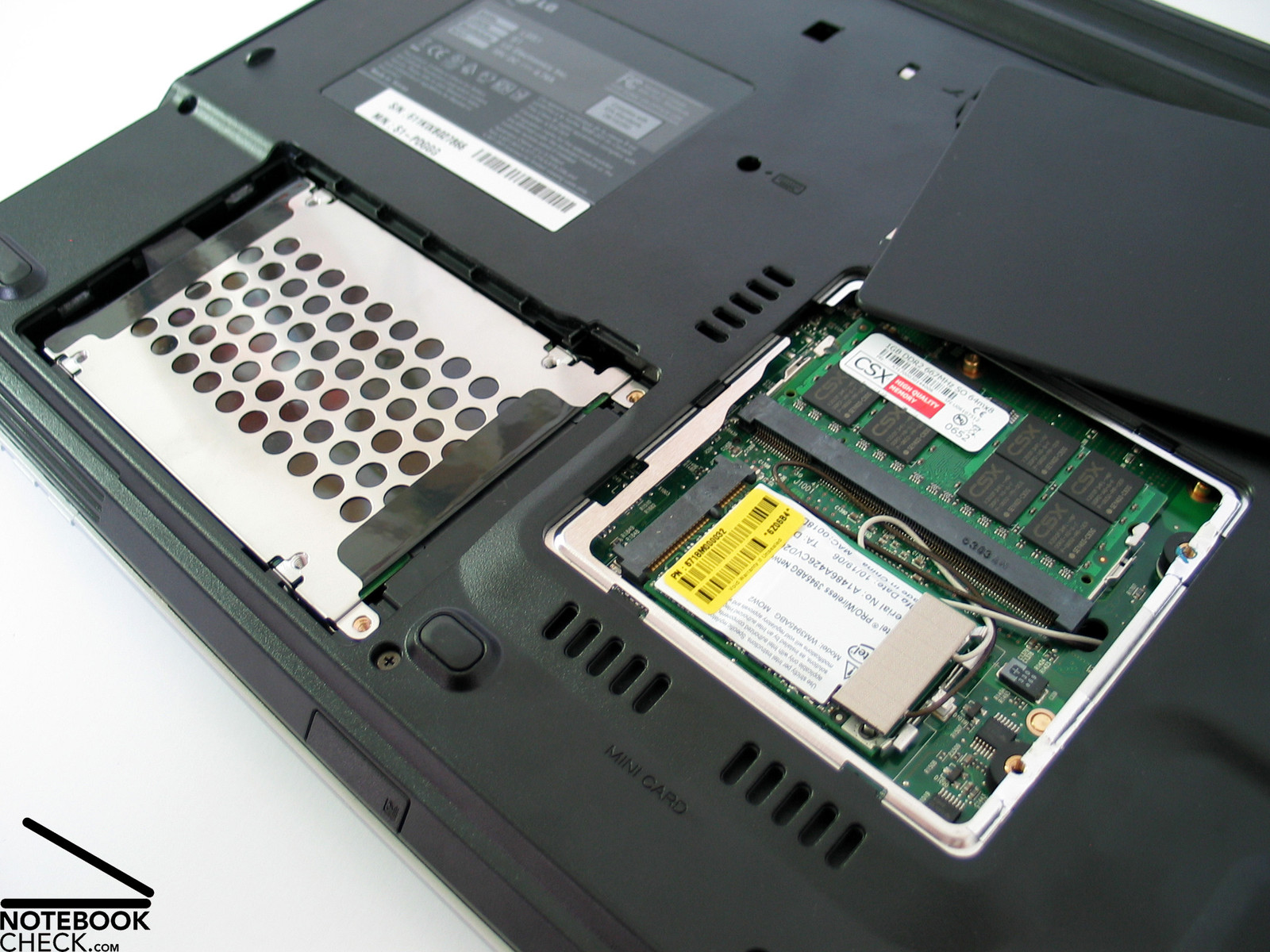

Easy to access: Maintenance access at the bottom of the notebook.
HP Compaq nx7400 Image

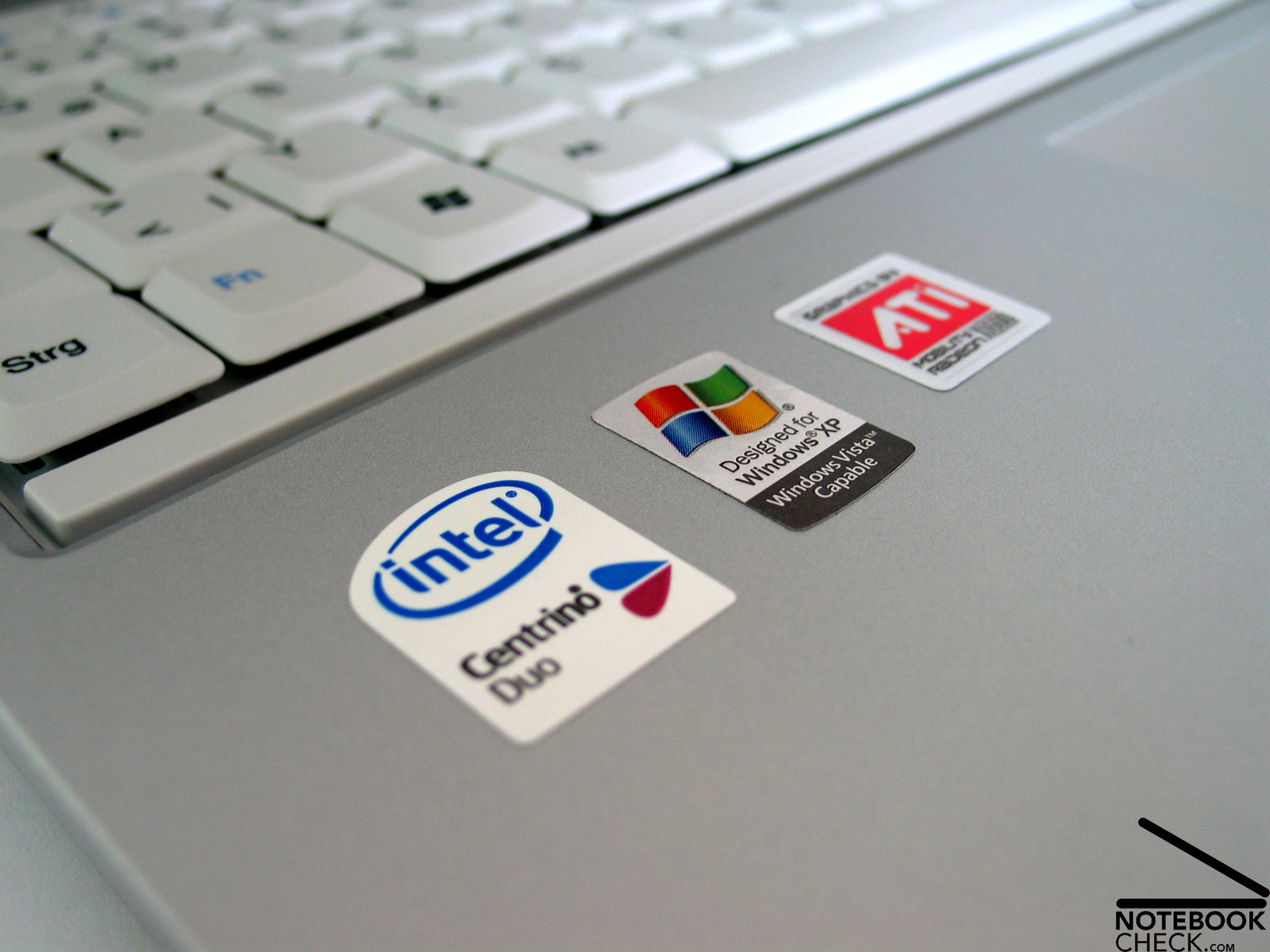

A Core 2 Duo CPU and a X1600 video card do their work inside.
HP Compaq nx7400 Image

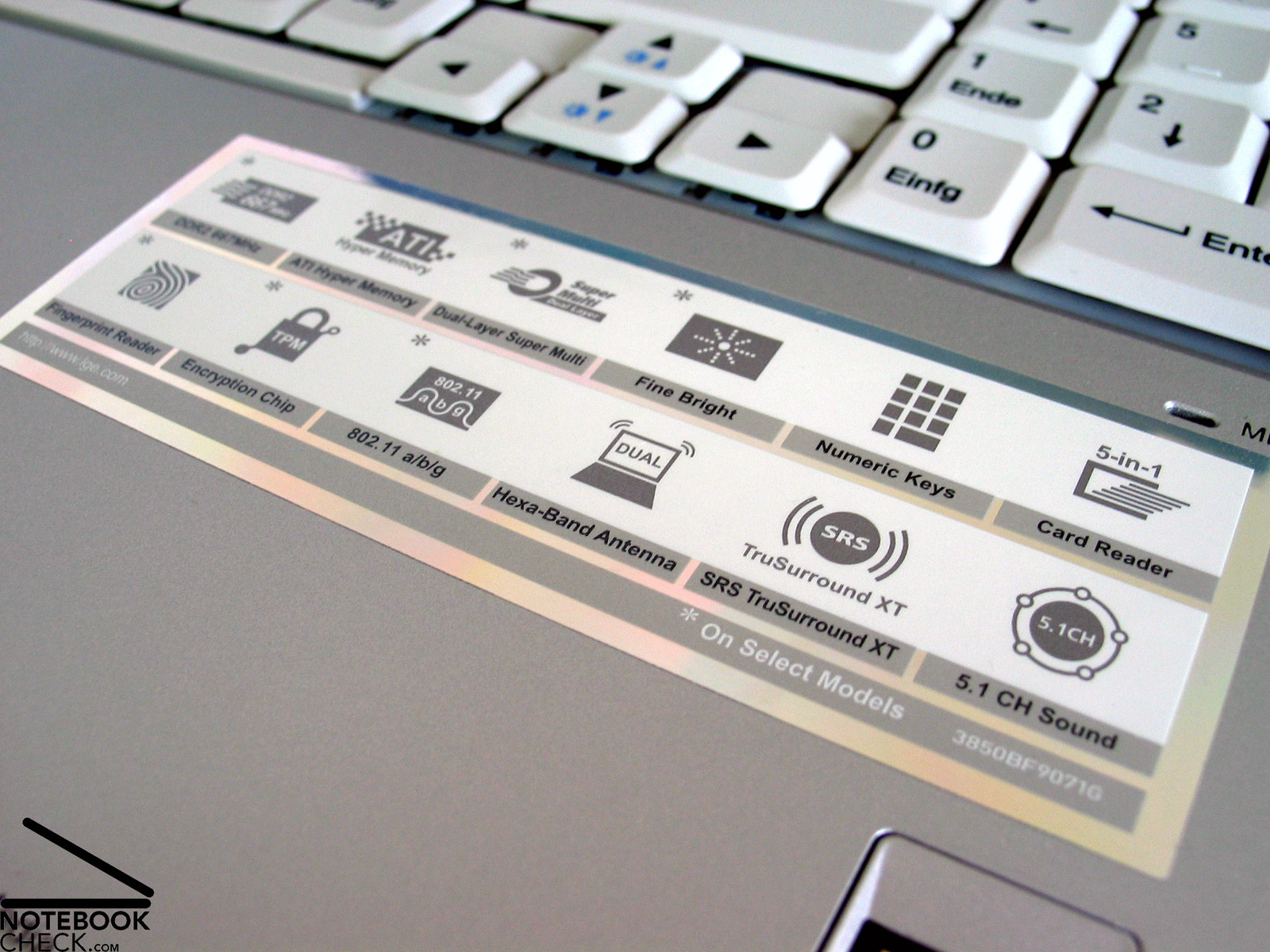

The notebook is generously equipped with a fingerprint reader and a TPM chip.
HP Compaq nx7400 Image
Despite the display reflects, it convinces by good measurement values.
HP Compaq nx7400 Image
The keyboard comes with a separate number block and is comfortable in use.
HP Compaq nx7400 Image
The ports are more or less evenly distributed on the sides of the notebook.
HP Compaq nx7400 Image
...and we liked the geometric forms .
HP Compaq nx7400 Image
In addition the haptics are good...
HP Compaq nx7400 Image
The decent design pleases the eyes.
HP Compaq nx7400 Image
Rightly, to our opinion.
HP Compaq nx7400 Image
...of the Red Dot Design Awards.
HP Compaq nx7400 Image

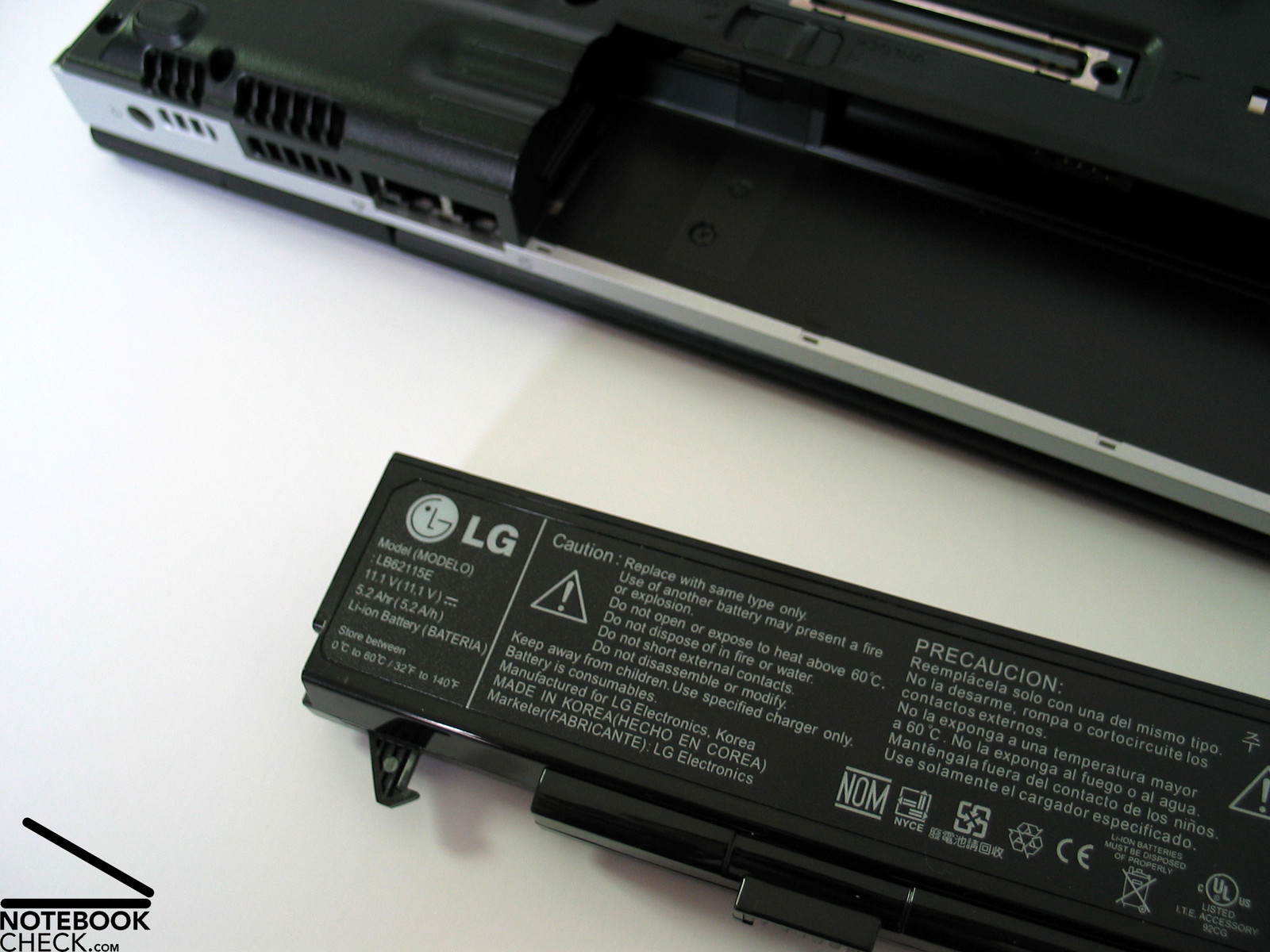

No miracles can be expected from a 5200 mAh battery.
HP Compaq nx7400 Image

Pro

  • Challenging Design
  • Good workmanship
  • Robust case
  • User-friendly input devices
  • Bright display with excellent contrast
  • Acceptable noise and temperature emissions
  • Contra

  • Case is partly hardly pressure resistant
  • Missing transport hook
  • Reflecting display
  • Similar Notebooks

    Bewertung

    LG S1 Pro
    08/31/2007
    J. Simon Leitner

    Chassis
    90%
    Keyboard
    90%
    Pointing Device
    84%
    Connectivity
    82%
    Weight
    76%
    Battery
    63%
    Display
    86%
    Games Performance
    85%
    Application Performance
    87%
    Temperature
    79%
    Noise
    80%
    Add Points
    94%
    Average
    83%
