Review Dell Inspiron 1520 Notebook

Topseller? Late, but, finally we got the new 15 inch Inspiron 1520 notebook by Dell for a review. It is the successor of the 6400 series and a beginner's multimedia notebook. A variety of different configurations are available, so, the Dell Inspiron 1520 can even be enhanced to a professional multimedia notebook.

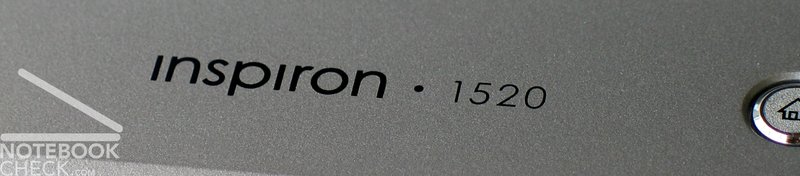

Dell Inspiron 1520 Logo

Case

There is no doubt that the Dell Inspiron 1520 is the counterpart of the Inspiron 1720. Considering the outlook only, it is apparently the same notebook, but smaller. It has the same curves and even the same color choice.

Not absolutely, the design of the display cover can be freely chosen. Therewith Dell follows the increasing shift to individual design.

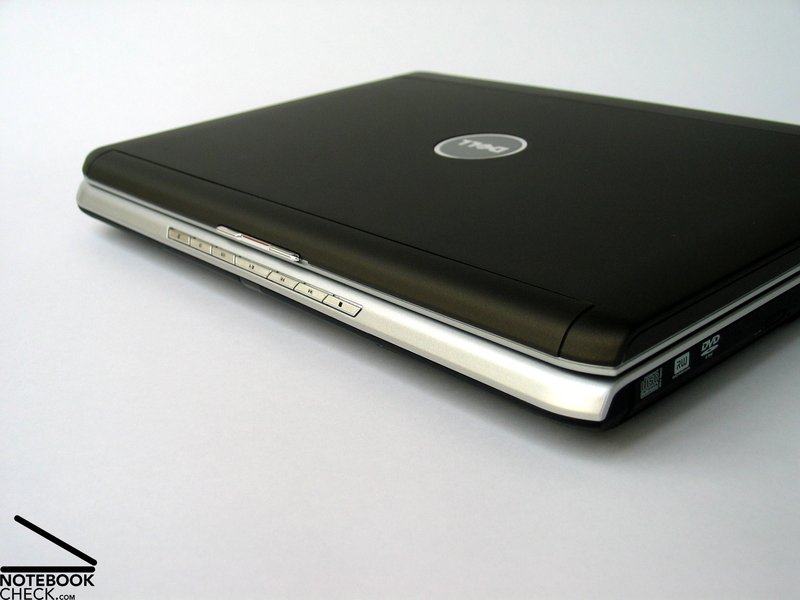

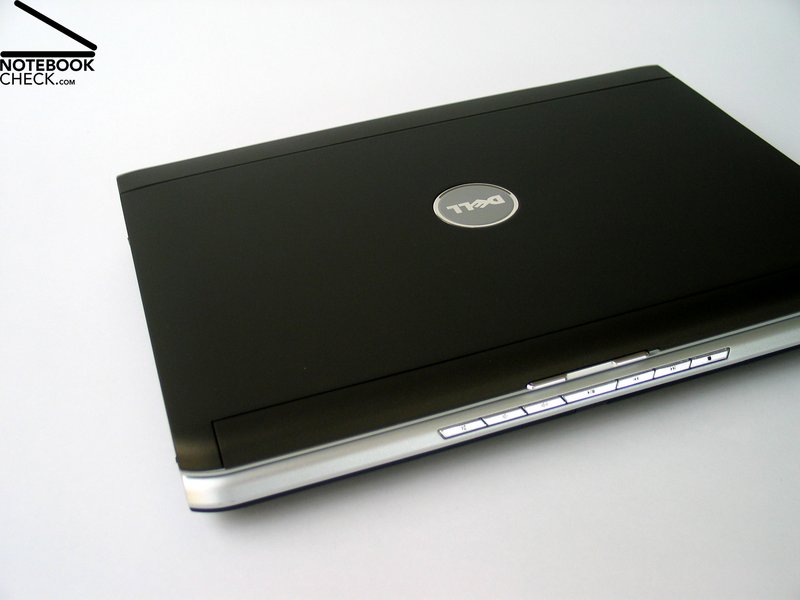

The reviewed notebook had a  matte black display cover surface, which felt velvety, nearly rubberized. The coating appeared very robust in contrary to the diverse glossy piano coatings.

The decent silver case has a good flexural rigidity and pressure resistance. Handling the notebook, no creaking noise got evident, besides when pressing the display cover. The size of the gaps above the keyboard could not completely convince. Besides the left gap was bigger than the right one, the size of the gap was generally too big, as its width is more than 1mm.

The two hinges were unable to hold the 15'' inch display without some wobbling. Still, they seemed robust and durable. The display in light clamshell design is securely locked by a ramshorn hook. But, you can detect a clear possible wobbling of the display, if closed.

The rather sparely provided interfaces are distributed at the back side and the back parts of the notebook's flanks. This order is user-friendly as the front side and the areas beside the notebook are free of disturbing cable spaghetti.

We especially missed a video port - a digital video out. The size of the plug was the mostly brought forward argument that a DVI could not be provided, but, this excuse won't hold water any longer since the introduction of the HDMI port.

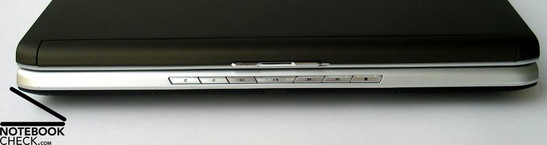

Front Side: No Ports
Dell Inspiron 1520 Interfaces

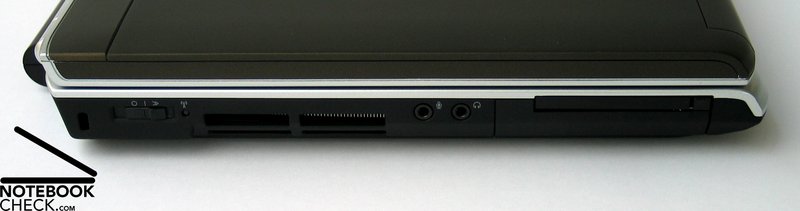

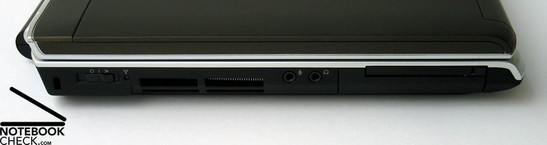

Left Side: Kensington Lock, Fan, Audio Ports, ExpressCard
Dell Inspiron 1520 Interfaces

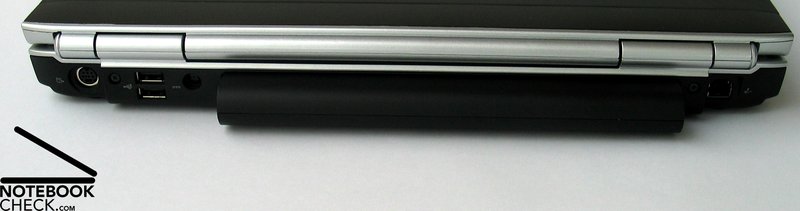

Back Side: S-Video, 2xUSB, AC-In, Battery, Modem, Cardreader
Dell Inspiron 1520 Interfaces

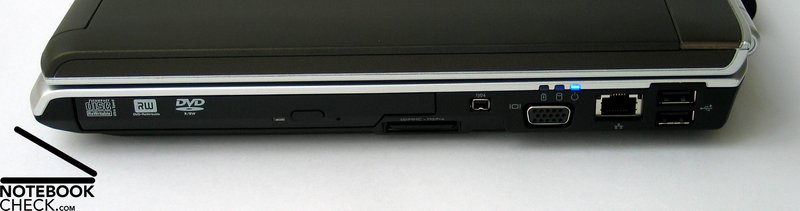

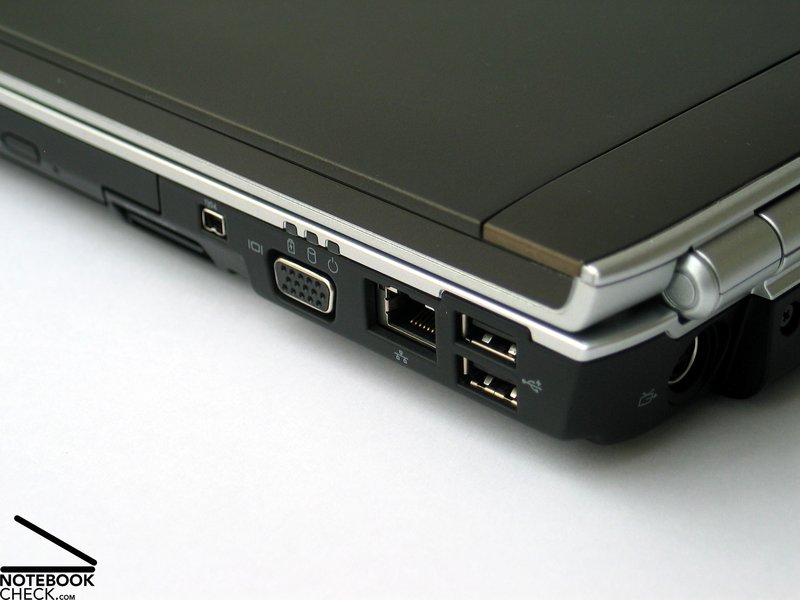

Right Side: DVD Drive, Card Reader, Firewire, VGA-Out, LAN, 2xUSB
Dell Inspiron 1520 Interfaces

Input Devices

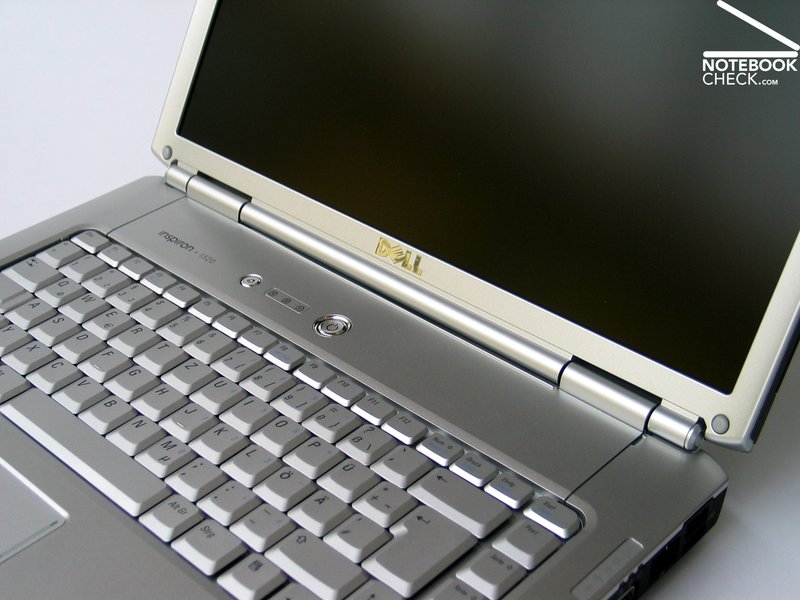

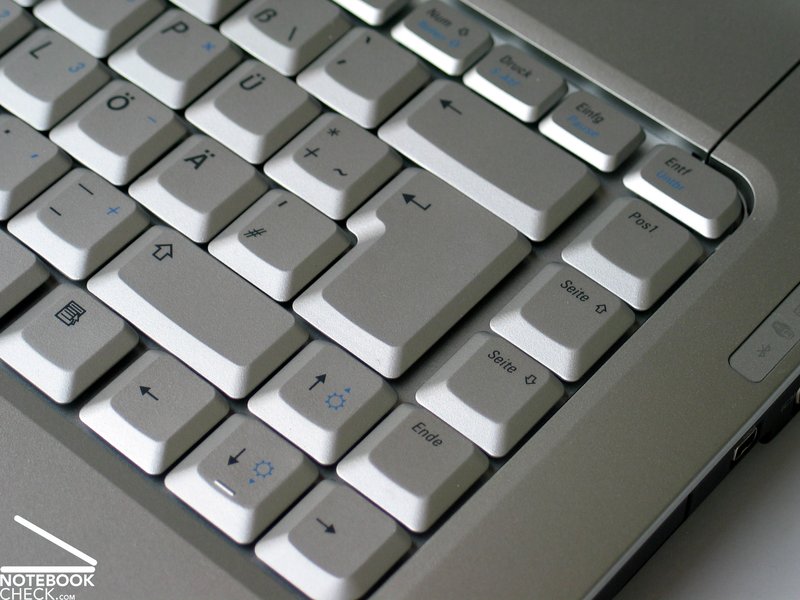

The keyboard of the Dell Inspiron 1520 appears to be rather compact, still it provides a user-friendly layout by a little bit separated groups of keys. Also the size of the single keys is alright.

Typing feels user-friendly. The keys can be softly pressed, still they have a clear point of pressure. The keyboard unit is completely tightly attached to the case, and even when typing fast the noise does not appear disturbing.

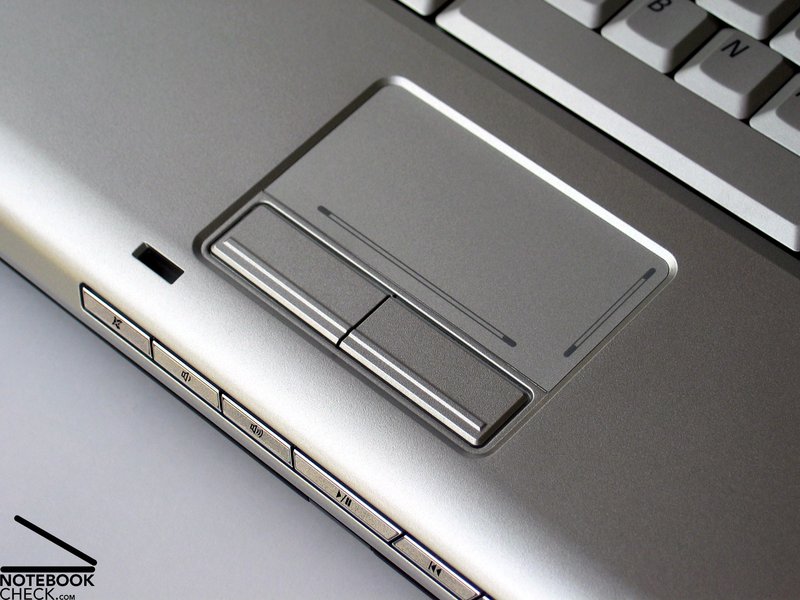

The touch pad is flawless. It has scroll areas for both axis and a comfortable surface. Both of its buttons are user-friendly, because of their long travel.

Touch Pad
Dell Inspiron 1520 Touch Pad
Keyboard
Dell Inspiron 1520 Keyboard

Display

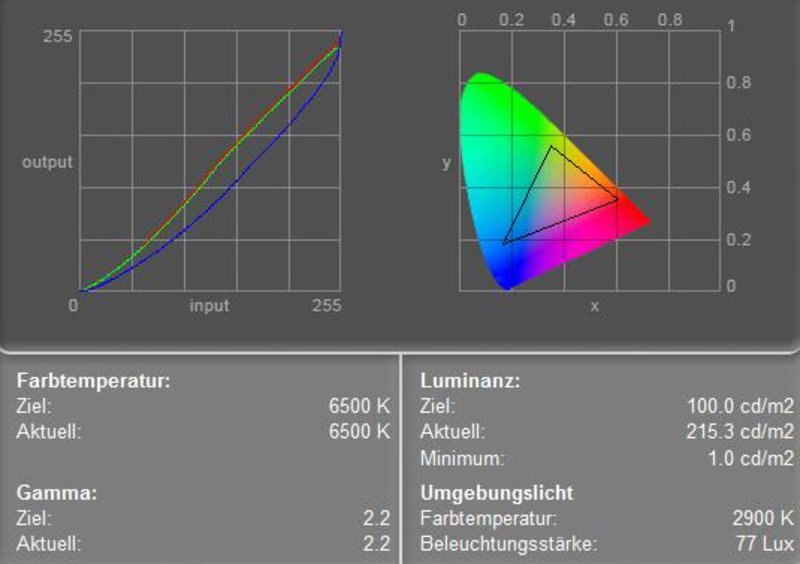

Color Diagram
Display measurement

Besides you can choose the color of the display cover, you can also choose between a variety of different panels. Besides the WXGA version with matt display, the reviewed notebook was equipped with, also a WXGA display with reflecting surface (TruLife), a WXGA+ TruLife panel, and a WSXGA+ display with a resolution of 1680x1050 pixels and TruLife panel are available. The top version costs 98.- Euro more.

Regarding overview, the WXGA+ and WSXGA+ displays are of course interesting versions. Unfortunately, both displays are only available as TruLife version. So, you'll have to live with a reflecting surface in return for a plus of overview.

The good maximum brightness of the built-in 1280x800 display was 231.5 cd/m². Also the average brightness of 199.6 cd/m² is alright. The illumination is 73.6%, which is clearly below-average.

170.4
cd/m²
214.8
cd/m²
192.2
cd/m²
175.1
cd/m²
215.2
cd/m²
198.2
cd/m²
202.5
cd/m²
231.5
cd/m²
196.6
cd/m²
Information
Maximum: 231.5 cd/m²
Average: 199.6 cd/m²
Brightness Distribution: 74 %
Black: 1.0 cd/m²
Contrast: 215:1
Distribution of brightness

Because of a measured black value 1.0 cd/m², the maximum representable contrast is 232:1, which is average. We did not detect any anomalies regarding speed of reaction.

The matte display and the good brightness of the WXGA panels make an outdoor usage of the Dell Inspiron 1520 even in bright environments possible.

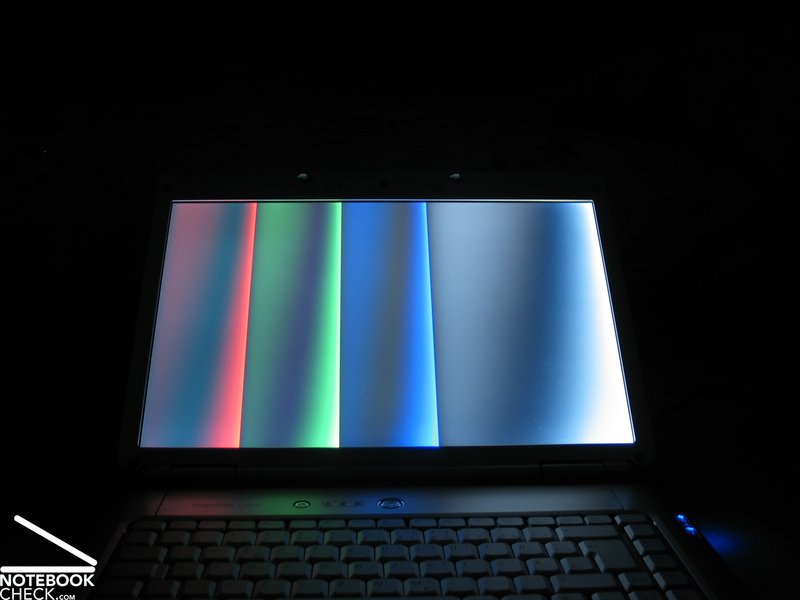

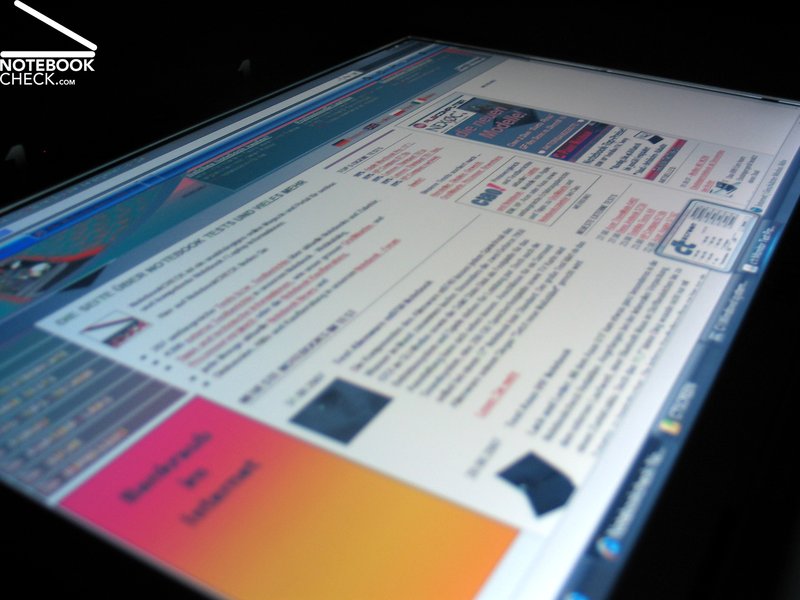

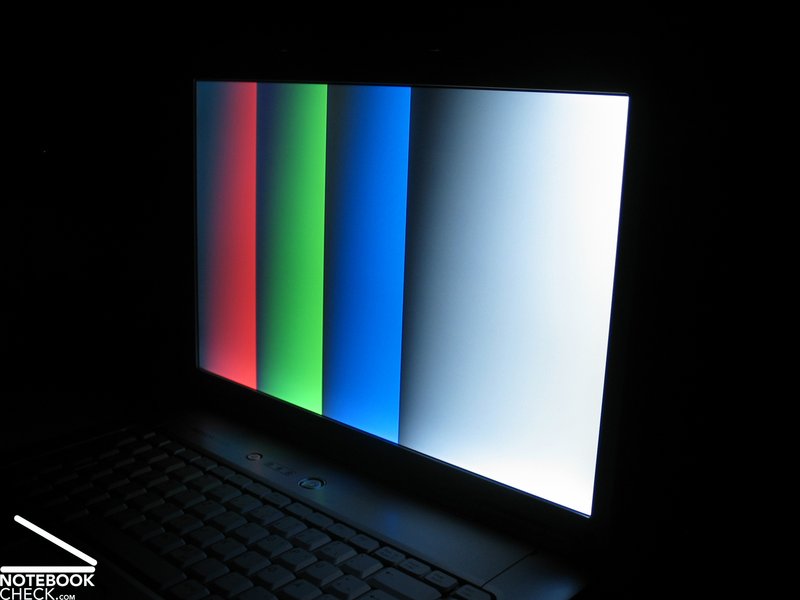

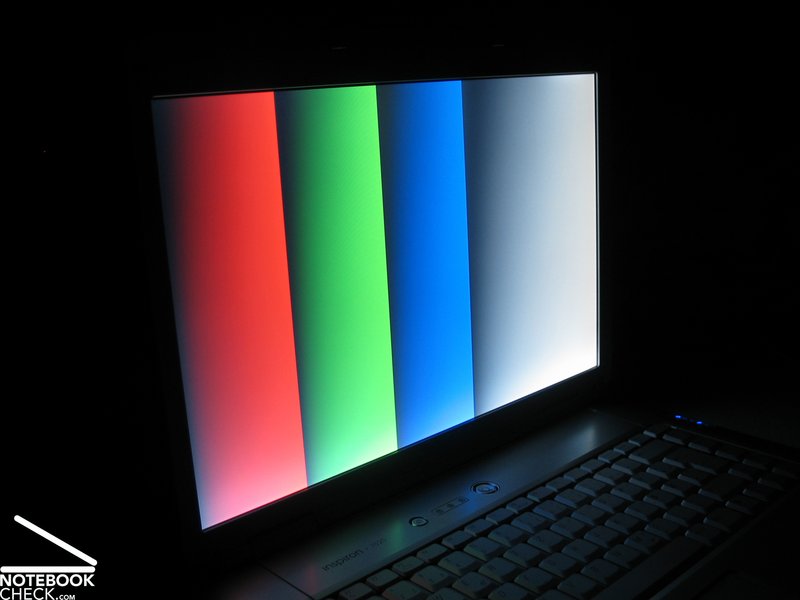

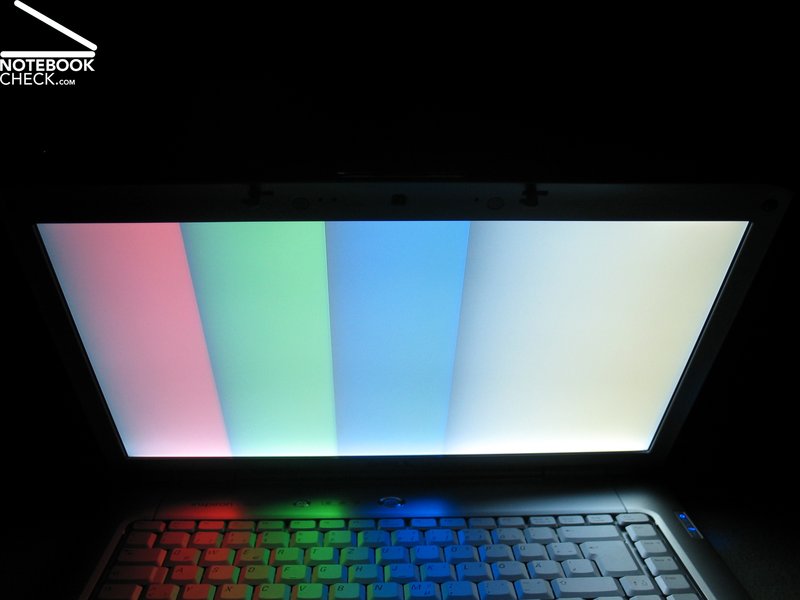

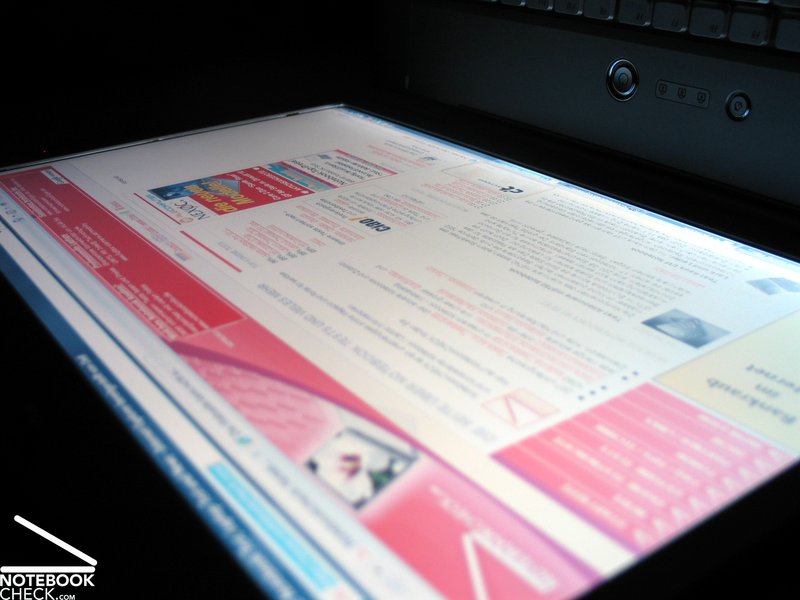

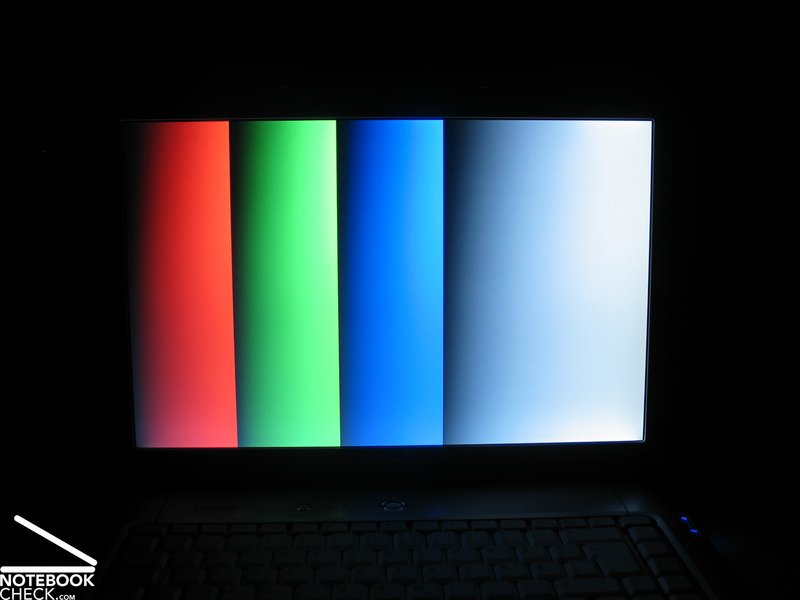

Vertically, the viewing angles of the reviewed display are rather narrow. Outside the area of operation you'll face heavy darkening or whitening of the display. However, horizontally, the viewing angles are alright. At acuter angles you'll face a slight loss of contrast.

Dell Inspiron 1520 Viewing Angles
Dell Inspiron 1520 Viewing Angles
Dell Inspiron 1520 Viewing Angles
Dell Inspiron 1520 Viewing Angles
Dell Inspiron 1520 Viewing Angles
Dell Inspiron 1520 Viewing Angles
Dell Inspiron 1520 Viewing Angles
Dell Inspiron 1520 Viewing Angles



Video of Display's Viewing Angles

Performance

The reviewed Dell Inspiron 1520 was a reasonable base version. So, it was only equipped with a Core 2 Duo T5450 processor with 1.66 GHz and a NVIDIA Geforce 8400 M GS.

Combined with 120 GB hard disk and 1GB main memory, it was still a useful notebook, which is able to master office tasks as well as light multimedia applications.

However, a variety of upgrade possibilities are also offered. Besides the already mentioned display version, there are also a lot of alternatives regarding performance relevant parts.

E.g., CPUs up to T7500 (2.2 GHz), main memory up to 4 GB, hard disks up to 250GB or faster 7200 rpm models, but, also a clearly more powerful video card, a Geforce 8600M GT with 256MB DDR2 Ram are offered.

So, it gets quickly obvious that also a playable version of the Dell Inspiron 1520 is available without problems. For good gaming performance you could for example choose a T7300 CPU, 2GB main memory, a WXGA+ panel, a fast 160 GB 7200 rpm hard disks and of course the Geforce 8600M GT.

At the time of writing this version of the Dell Inspiron 1520 would cost about 1300.- Euro. Compared to the recommended  price of the base equipment of about 800.-, this is a clear increase, but also the performance should clearly increase...

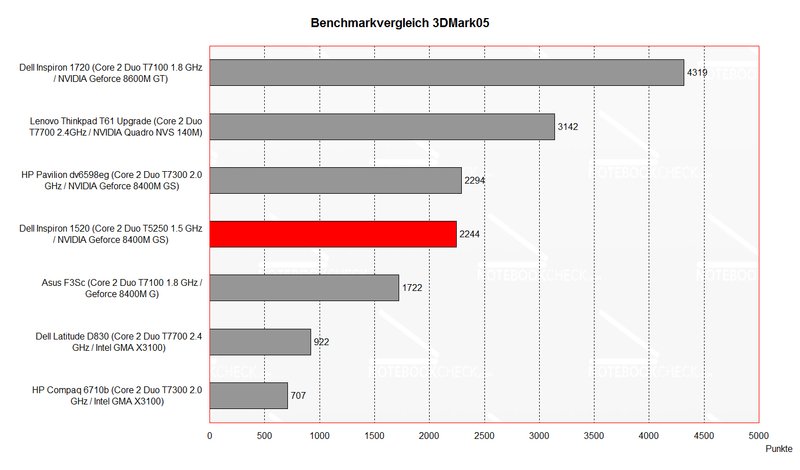

Benchmark Comparison 3DMark
Benchmark Comparison 3DMark

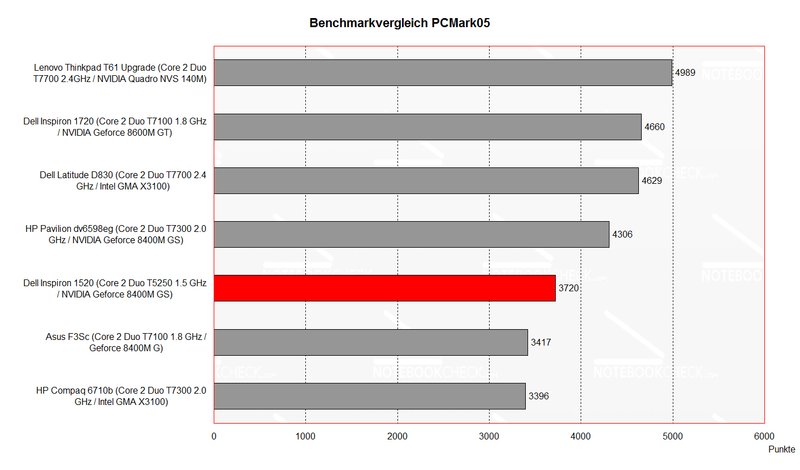

Benchmark Comparison PCMark
Benchmark Comparison PCMark
3D Mark
3DMark 2001SE10921 points
3DMark 034199 points
3DMark 052244 points
3DMark 06
 1024x768
1208 points
Help
3DMark 06 in comparison
Asus Eee PC 901 (min)
 N270, Graphics Media Accelerator (GMA) 950
73
   ...
Toshiba Tecra M9
 T7100, Graphics Media Accelerator (GMA) X3100
508
Fujitsu-Siemens Amilo Pi2515
 T7100, Graphics Media Accelerator (GMA) X3100
547
Dell Inspiron 1520-PP22L
 T5250, GeForce 8400M GS
1208
Toshiba Satellite A200-1O6
 T7100, Mobility Radeon HD 2400
1328
Lenovo ThinkPad T61
 T7300, Quadro NVS 140M
1406
   ...
Gigabyte P25W (max)
 4700MQ, GeForce GTX 770M
23917
PC Mark
PCMark 053720 points
Help
PCMark 05 in comparison
Acer Aspire One 751 (min)
 Z520, Graphics Media Accelerator (GMA) 500
692
   ...
HP Compaq 6720s
 T7250, Graphics Media Accelerator (GMA) X3100
3715
HP nc6400
 T7400, Graphics Media Accelerator (GMA) 950
3716
Dell Inspiron 1520-PP22L
 T5250, GeForce 8400M GS
3720
Toshiba Satellite Pro S300
 P8600, Graphics Media Accelerator (GMA) 4500MHD
3731
Samsung R530-JA09DE
 T4500, Graphics Media Accelerator (GMA) 4500MHD
3747
   ...
Fujitsu Celsius H710 WXP11DE (max)
 2820QM, Quadro 1000M
13842
120 GB - 5400 rpm
Transfer Rate Minimum: 17.9 MB/s
Transfer Rate Maximum: 45.2 MB/s
Transfer Rate Average: 32.8 MB/s
Access Time: 17.7 ms
Burst Rate: 78.1 MB/s
CPU Usage: 3.4 %
Command and Conquer III
 ResolutionSettingsValue
 1280x800high14 fps
 1024x768high16 fps
 800x600high20 fps

Emissions

Loudness

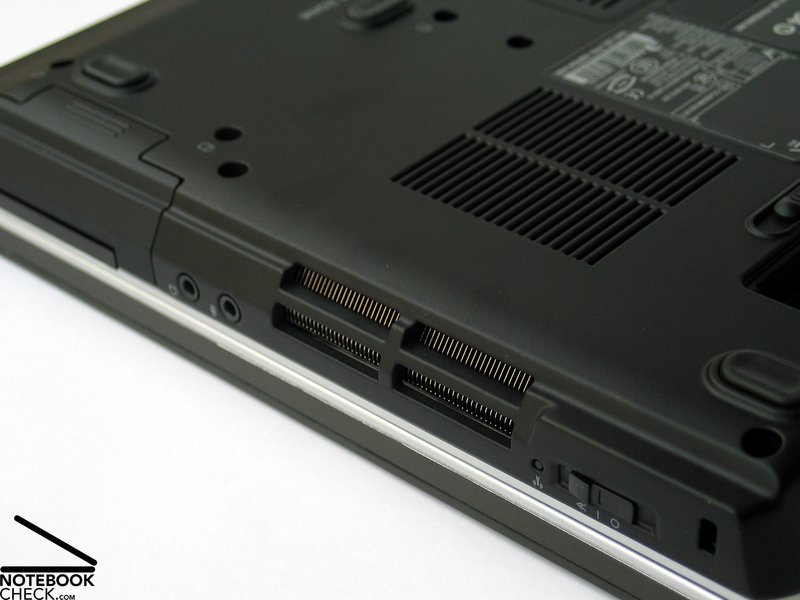

An advantage of the moderate base equipment are surely the low noise and temperature emissions. The notebook was very quiet in idle mode, we measured a noise level of 34.8 dB.

Under load you can hear the 1520 better, but, the maximum of 37.1 dB is still alright, and absolutely not disturbing.

However, the noise of the 120GB hard disk was sometimes disturbing, because it loudly crackled.

Noise Level

Idle / 34.8 / dB(A)
HDD 43.3 dB(A)
DVD 36.4 / dB(A)
Load 37.1 / dB(A)

    30 dB
silent
40 dB
audible
50 dB
loud

min: , med: , max:     (15 cm distance)

Temperature

Also the surface temperature of the Inspiron 1520 is very low. Maxima of 33.1 °C on the top side or 37.1 °C on the bottom side are alright.

Max. Load
 32.2 °C32.9 °C33.1 °C
 31.1 °C31.2 °C30.9 °C
 27.2 °C30.8 °C27.3 °C

34.9 °C36.4 °C36.3 °C
34.3 °C37.1 °C36.8 °C
31.6 °C33.5 °C34.2 °C
Maximum: 33.1 °C
Average: 30.7 °C
 Maximum: 37.1 °C
Average: 35 °C
Room Temperature 21.0 °C

Speakers

The two speakers at the front edge of the notebook provide good and, if demanded, also loud sound. The sound is alright, and also the basses are rather good. When we checked the audio out, we observed a quiet cheeping and cracking noise, which was clearly superimposed by the played back music, but, was always present.

Battery Runtime

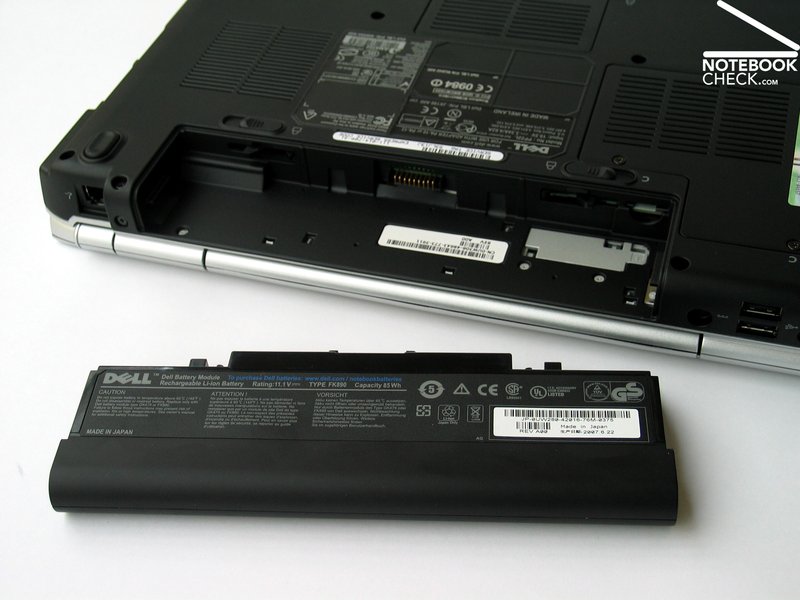

Protruding 9-Cells Battery
Dell Inspiron 1520 battery

The reviewed Dell Inspiron 1520 was equipped with the optionally available 9 cells battery. Its capacity of 85 Wh combined with the moderate equipment promised a good runtime. This battery upgrade is surely interesting, also because it only costs 35.- Euro. However, the drawback is that the battery protrudes the case.

The measured runtime ranges from a minimum of somewhat above 2.5h to a maximum of above 8 hours with maximum energy saving settings.

Also the runtime with WLAN operation of above 4 hours are a criterion supporting the battery upgrade of the Dell Inspiron 1520.

Battery runtime
Idle (without WLAN, min brightness)
8h 30min
WiFi Surfing
4h 50min
DVD
4h 10min
Load (maximum brightness)
2h 40min

Verdict

In summary the Dell Inspiron 1520 is a dignified successor of the successful Inspiron 6400 series. The large number of available configurations, which allow an office version and also a gaming version, make the 1520 especially interesting.

The design of the aluminum case can be adapted to the different configurations and the chassis convinces by robustness and flexural rigidity. Besides some smaller weaknesses, most notably the missing digital video out has to be mentioned. This would be a reasonable supplement especially for a compact 15 inch notebook.

The input devices are fit for office work and games and are liked, because of their reasonable layout and user-friendly typing. Also the touch pad is alright.

The built-in WXGA display has the advantage that it is due to a matte surface and good brightness fit for outdoor usage. However, the resolution of the 1280x800 panels could be higher. Regarding this aspect, Dell also offers a variety of alternatives, but they all have a reflecting surface.

Regarding performance the Dell Inspiron 1520 can be individually adapted to your demands. Possible configurations ranges form averagely equipped office notebooks to playable multimedia notebooks.
The emissions of the reviewed office version were very low. More powerful versions will likely have higher emissions.

Finally, also the battery runtime of the Dell Inspiron 1520 is a clear pro, of course also because of the optional 9-cells battery. A  runtime of up to 8 hours leaves nothing to be desired and prepares the ground for mobile use.

Dell Inspiron 1520
Dell Inspiron 1520



Über den Testbericht bzw. das Notebook können Sie hier in unserem Forum diskutieren.

Reviewed - Dell Inspiron 1520
Dell Inspiron 1520

Specifications

Dell Inspiron 1520-PP22L

:: Processor
Intel Core 2 Duo T5250 1.5 GHz (Intel Core 2 Duo)
:: Mainboard
Intel PM965
:: Memory
1024 MB, DDR2 PC5300 667 MHz, 2x512MB, max. 4096MB
:: Graphics adapter
NVIDIA GeForce 8400M GS - 128 MB, Core: 400 MHz, Memory: 400 MHz, DDR2 RAM
:: Display
15.4 inch 16:10, 1280x800 pixel, WXGA TFT, glossy: no
:: Harddisk
120 GB - 5400 rpm, 120 GB 5400 rpm Hitachi HTS541612J9S
:: Soundcard
SigmaTel STAC9205
:: Connections
1 Express Card 54mm, 4 USB 2.0, 1 Firewire, 1 VGA, 1 S-Video, 1 Modem, 1 Kensington Lock, Audio Connections: headphones, microphone, Card Reader: 8-in-1, 2 mp webcam
:: Networking
10/100 MBit Lan Adapter (10/100MBit), 802.11b/g (b g )
:: Optical drive
TSSTcorp DVD-RW TS-L632D
:: Size
height x width x depth (in mm): 45 x 269 x 358
:: Weight
3.3 kg Power Supply: 0.49 kg
:: Battery
85 Wh Lithium-Ion, 11.1V
:: Price
800 Euro
:: Operating System
Microsoft Windows Vista Home Premium 32 Bit
:: Additional features
12 Months Warranty

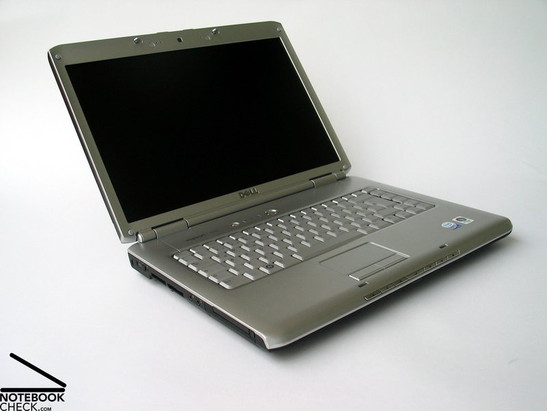

The Dell Inspiron 1520 is regarding design...
Dell Inspiron 1520 Image
...very similar to the Dell 1720.
Dell Inspiron 1520 Image
The case is robust and flexural rigid...
Dell Inspiron 1520 Image

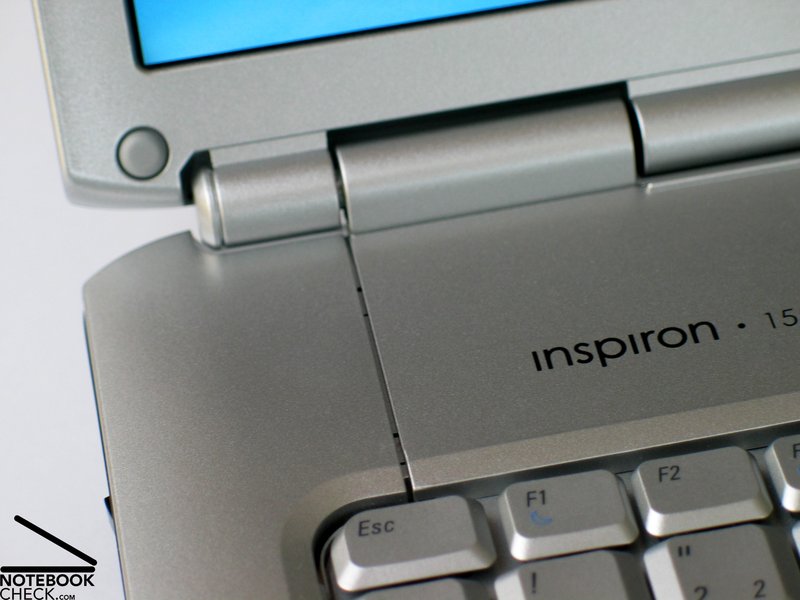

...but, there are some weaknesses, e.g., uneven gaps.
Dell Inspiron 1520 Image
The order of the interfaces is alright, but, a digital video out is missing.
Dell Inspiron 1520 Image

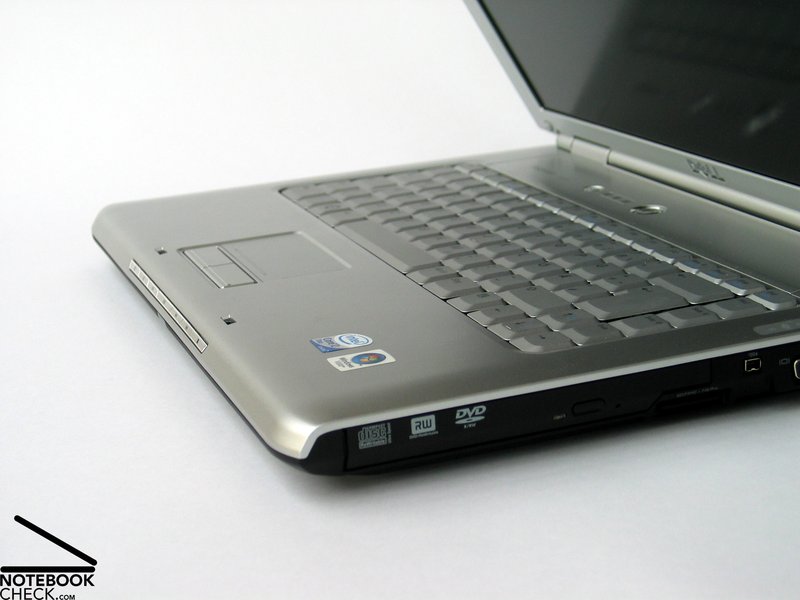

The keyboard is user-friendly and provides a passable layout.
Dell Inspiron 1520 Image
You can choose between a number of displays for your Dell 1520:
Dell Inspiron 1520 Image
Available panels range from 1280x900 WXGA to WSXGA+ displays.
Dell Inspiron 1520 Image
Also regarding performance, the notebook can be adapted to your demands.
Dell Inspiron 1520 Image
The Core 2 Duo CPU is either combined with a 8400M GS or even a 8600M GT video card.
Dell Inspiron 1520 Image
At least in the office version, the fan stays comfortably quiet all the time.
Dell Inspiron 1520 Image
Also the surface temperatures are alright.
Dell Inspiron 1520 Image

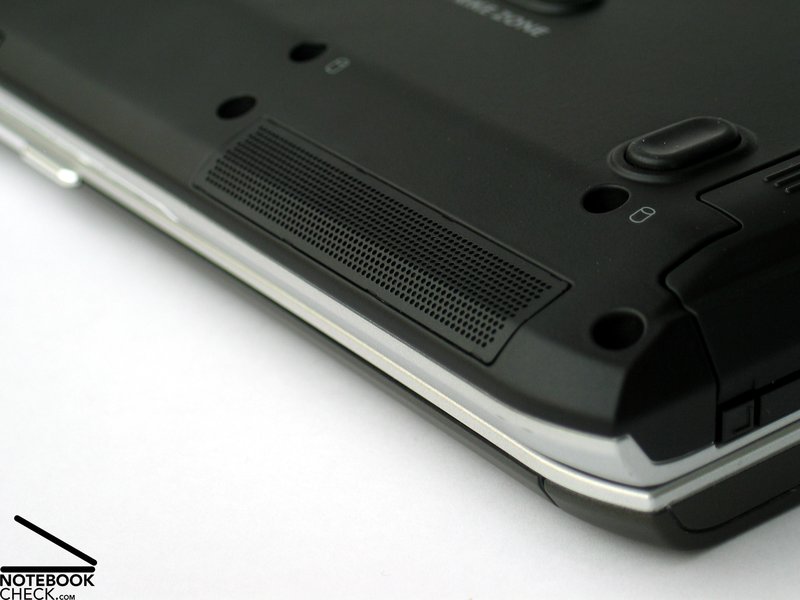

In general the sound of the speakers is also alright.
Dell Inspiron 1520 Image
A special strength of the Inspiron 1520 is the good battery runtime of the 9-cells battery.
Dell Inspiron 1520 Image

Pro

  • Decent pleasing design
  • Very stable and fexural rigid aluminum case
  • User-friendly input devices
  • Variety of display versions available
  • Reasonable office or powerful mutlimedia equipment available
  • Low noise emissions
  • Low surface temperatures
  • Very good battery runtime
  • Contra

  • Smaller weaknesses regarding gaps
  • Display hinges allow see-saw, display wobbles, if closed.
  • No DVI-D/HDMI port
  • Mostly glossy displays available
