New Shuttle XPC Nano mini PCs launch with up to 96GB RAM and Core Ultra 9

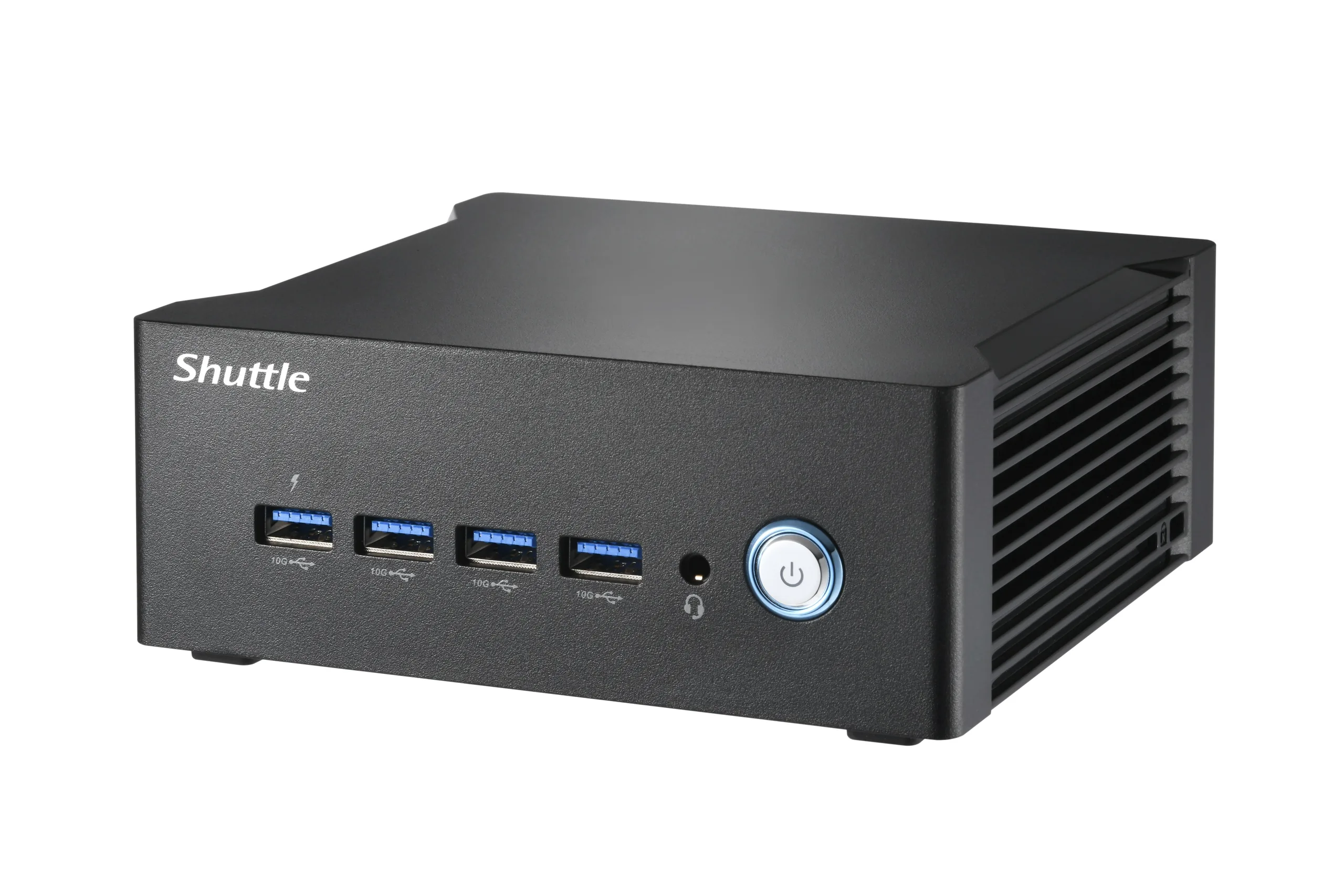

Shuttle has introduced two new mini PCs, but basically it’s just one device in two different configurations. First of all, the NT10H9 comes with an Intel Core Ultra 9 185H, while the NT10H5 is powered by the Intel Core Ultra 5 125H. Both systems are quite compact and measure just 5.2 x 5.6 x 2.2 inches. According to the manufacturer, these mini PCs can be used at ambient temperatures between 32 °F and 104 °F and are compatible with VESA mounts, which makes it easy to attach them to the back of a monitor, for example.

Furthermore, the new Shuttle mini PCs support a single M.2 2280 SSD, which is connected via four PCIe 4.0 lanes. SATA SSDs are not supported, but users can add two DDR5 RAM modules with clock speeds of up to 5,600MHz and a capacity of 96GB. In order to hook up monitors, there are two HDMI 2.0 and two USB 4 ports, the latter of which support DisplayPort 1.4. The two USB Type-C ports can also be used to connect external storage devices or a docking station, among other accessories.

Alternatively, there are five USB 3.2 Gen 2 plus one USB 2.0 port. Network access can be realized via two Ethernet ports with a bandwidth of up to 2.5 Gbit/s. Last but not least, these new mini PCs ship without a WiFi module, which can be retrofitted after purchase.
