Apple MacBook Air 11 (Early 2015) Notebook Review

Unchanged evergreen. Apple refreshes its MacBook Air-series with current Broadwell processors. This does improve the performance noticeably, but something is missing – innovation.

For the original German review, see here.

Apple introduced fundamental changes at the keynote in March, including the new MacBook and the innovative Force Touch touchpads. The update of the MacBook Air-series, however, was a pretty quiet process. It is just a hardware upgrade that is limited to the processor and the internal graphics solution. We want to use this review to analyze the performance differences and see whether there are consequences for the emissions and the battery runtimes. First of all we start with the noticeable price increase in the Eurozone. Our current review unit represents the base configuration. Instead of €900 (~$1014), the starting price is now €1,000 (~$1126). The price was, however, reduced from $1,000 to $900 in the United States. The hardware upgrades are more expensive as well. Our base model is equipped with 4 GB memory, a new Intel Core i5-5250U with the integrated Intel HD Graphics 6000 as well as 128 GB flash storage. Our review update mainly covers the differences to the previously reviewed MacBook Air 2013, which was tested with the minimum specifications (Intel Core i5-4250U, 4 GB memory and 128 GB SSD) two years ago.

Choosing a sophisticated 11-inch notebook is becoming more and more difficult. The competition prefers, besides the usual input devices, touch inputs for Ultrabooks and convertibles in this size. Lenovo, for example, offers such a convertible for around 1,370 Euros (~$1543). The Lenovo ThinkPad Helix 2 convinced us with a good display and the good system performance in our review.

Apple MacBook Air 11 inch 2015-03 (MacBook Air Series)
Processor
Intel Core i5-5250U 2 x 1.6 - 2.7 GHz, Broadwell, 2 Kerne und 4 Threads
Graphics adapter
Intel HD Graphics 6000, Core: 950 MHz, Memory: 800 MHz, 10.18.14.4112
Memory
4 GB
, Dual-channel
Display
11.00 inch 16:9, 1366 x 768 pixel, APP9CF3, IPS, glossy: yes
Mainboard
Intel Broadwell-U PCH-LP (Premium)
Storage
Apple SSD SM0128F, 128 GB
, 128 GB
Soundcard
Intel Broadwell PCH-LP - High Definition Audio Controller
Connections
2 USB 3.0 / 3.1 Gen1, 1 Thunderbolt, Audio Connections: Combined stereo jack, Sensors: Brightness sensor
Networking
Broadcom 802.11ac (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth Bluetooth 4.0
Size
height x width x depth (in mm): 17 x 300 x 192 ( = 0.67 x 11.81 x 7.56 in)
Battery
38 Wh Lithium-Ion, Battery runtime (according to manufacturer): 9 h
Operating System
Apple OS X 10.10 Yosemite
Camera
Webcam: 720p
Additional features
Speakers: Stereo speakers, Keyboard: Chiclet, Keyboard Light: no, 12 Months Warranty
Weight
1.086 kg ( = 38.31 oz / 2.39 pounds), Power Supply: 220 g ( = 7.76 oz / 0.49 pounds)
Price
1000 Euro
Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.



Display

The MacBook Air has a TN panel with a resolution of 1366x768 pixels and an aspect ratio of 16:10. You will have to wait if you want the small device with a Retina display. You can see some individual pixels when you are used to high-resolution panels, but the manufacturer makes everything right in respect of the brightness and brightness distribution. We can measure an average luminance of 350 cd/m² and the display leaves a very good first impression with a brightness distribution of 90%. The glossy panel is supposed to improve the color brilliance. You will have a hard time if you want to find an 11-inch device with a matte panel in this class.

Apple MacBook Air 11 inch 2015-03
HD Graphics 6000, 5250U, Apple SSD SM0128F
Apple MacBook Air 11 inch 2013-06 MD711D/A
HD Graphics 5000, 4250U, Apple SSD SM0128F
Lenovo ThinkPad Helix 2
HD Graphics 5300, 5Y71, Toshiba THNSFJ256GDNU 256 GB
Display
-12%
Display P3 Coverage
40.56
35.63
-12%
sRGB Coverage
60.6
53.2
-12%
AdobeRGB 1998 Coverage
41.95
36.87
-12%
Screen
-39%
7%
Brightness middle
368
357
-3%
365
-1%
Brightness
349
329
-6%
342
-2%
Brightness Distribution
90
85
-6%
86
-4%
Black Level *
0.493
0.59
-20%
0.329
33%
Contrast
746
605
-19%
1109
49%
Colorchecker dE 2000 *
3.29
6.92
-110%
4.37
-33%
Colorchecker dE 2000 max. *
5.22
Greyscale dE 2000 *
3.06
7.26
-137%
2.8
8%
Gamma
2.68 82%
2.4 92%
2.3 96%
CCT
6397 102%
9456 69%
6595 99%
Color Space (Percent of AdobeRGB 1998)
38.8
35
-10%
Total Average (Program / Settings)
-26% / -32%
7% / 7%

* ... smaller is better

339
cd/m²
363
cd/m²
347
cd/m²
347
cd/m²
368
cd/m²
351
cd/m²
330
cd/m²
363
cd/m²
334
cd/m²
Distribution of brightness
APP9CF3 tested with X-Rite i1Pro 2
Maximum: 368 cd/m² (Nits) Average: 349.1 cd/m²
Brightness Distribution: 90 %
Center on Battery: 368 cd/m²
Contrast: 746:1 (Black: 0.493 cd/m²)
ΔE Color 3.29 | 0.5-29.43 Ø5
ΔE Greyscale 3.06 | 0.57-98 Ø5.3
38.8% AdobeRGB 1998 (Argyll 1.6.3 3D)
41.95% AdobeRGB 1998 (Argyll 2.2.0 3D)
60.6% sRGB (Argyll 2.2.0 3D)
40.56% Display P3 (Argyll 2.2.0 3D)
Gamma: 2.68

Although the brightness was slightly increased according to our measurements, the black value was improved to 0.493 cd/m², which results in a better contrast of 746:1. The black value is okay for everyday tasks, but the contrast could be higher at the maximum brightness level. We could not determine PWM flickering in a video test (60 fps), even with a dimmed panel.

The available color space is not sufficient for professional graphics applications (AdobeRGB 39.8% and sRGB 55.2%). The integrated TN panel is already pretty well-calibrated under Mac OS X ex-works and we cannot notice a blue cast. The deviations are low at 3.06 for the grayscale and 3.23 for the colors. Calibration improves these DeltaE values to 0.81 (grayscale) and 1.59 (colors) according to our CalMAN analysis. These results are pretty good for a TN panel and even surpass some IPS panels.

AdobeRGB coverage
AdobeRGB coverage

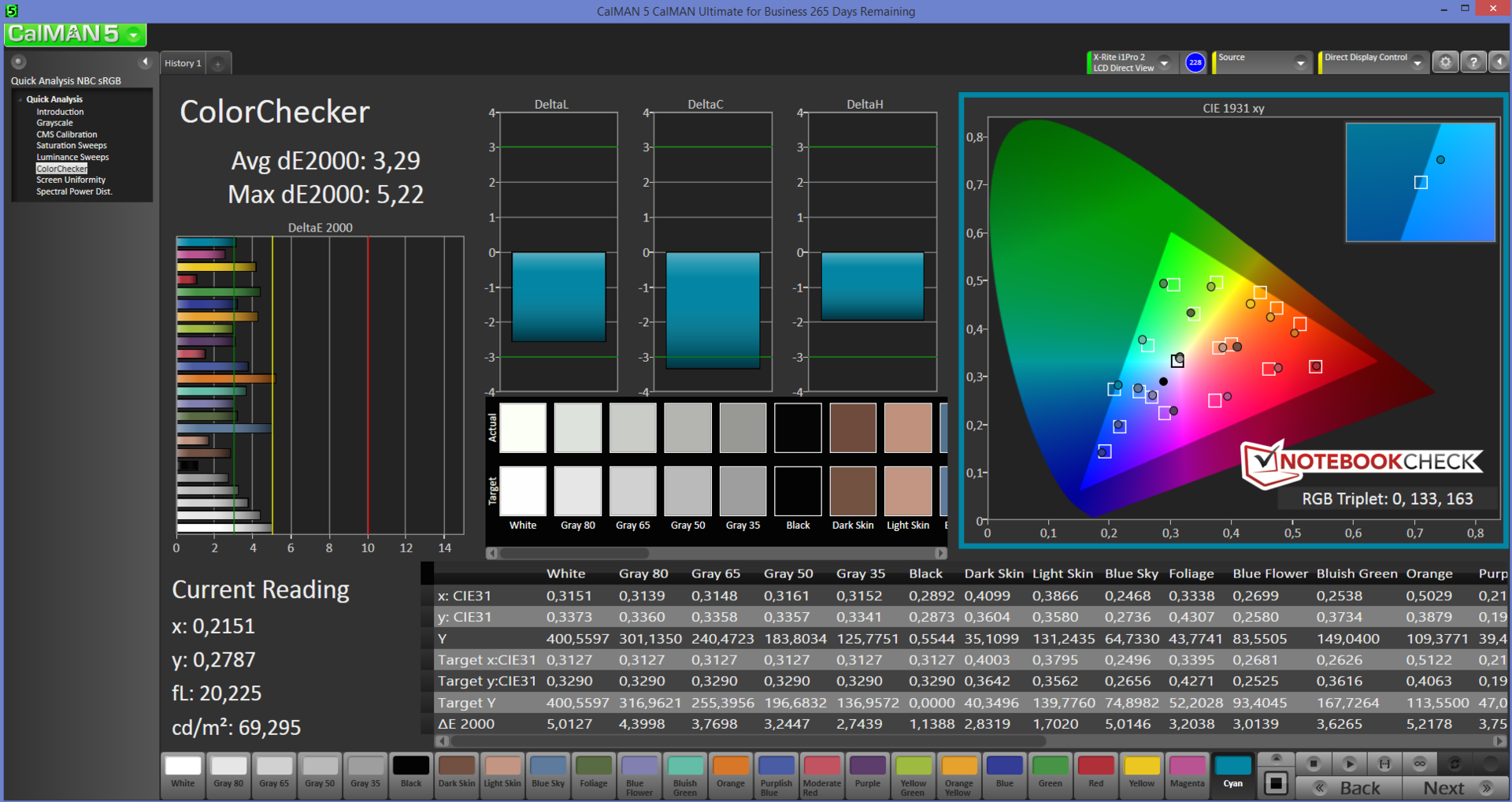

CalMAN: ColorChecker without calibration
CalMAN: ColorChecker without calibration
CalMAN: Grayscale without calibration
CalMAN: Grayscale without calibration
CalMAN: Saturation Sweeps without calibration
CalMAN: Saturation Sweeps without calibration
sRGB coverage
sRGB coverage

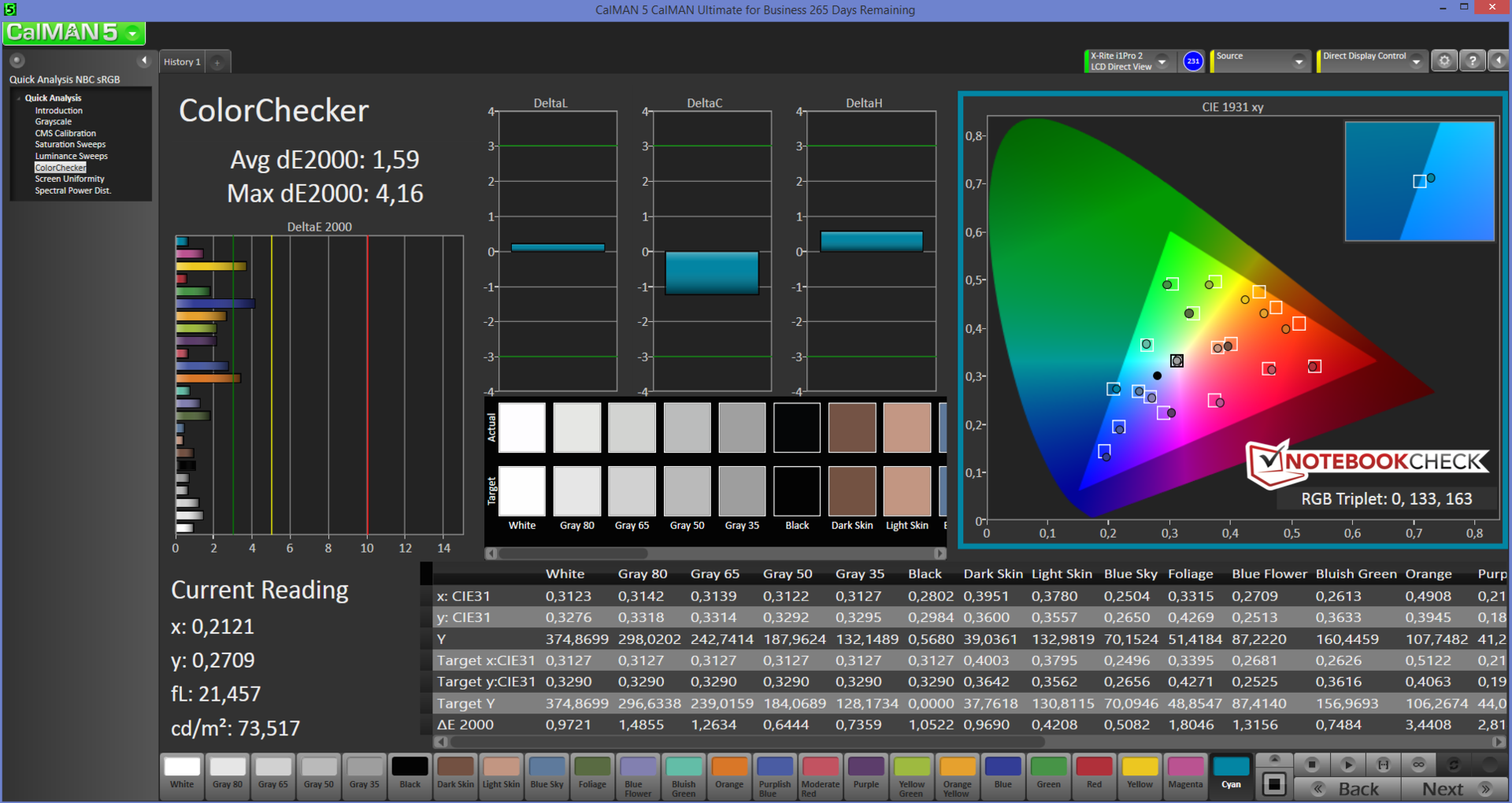

CalMAN: ColorChecker calibrated
CalMAN: ColorChecker calibrated

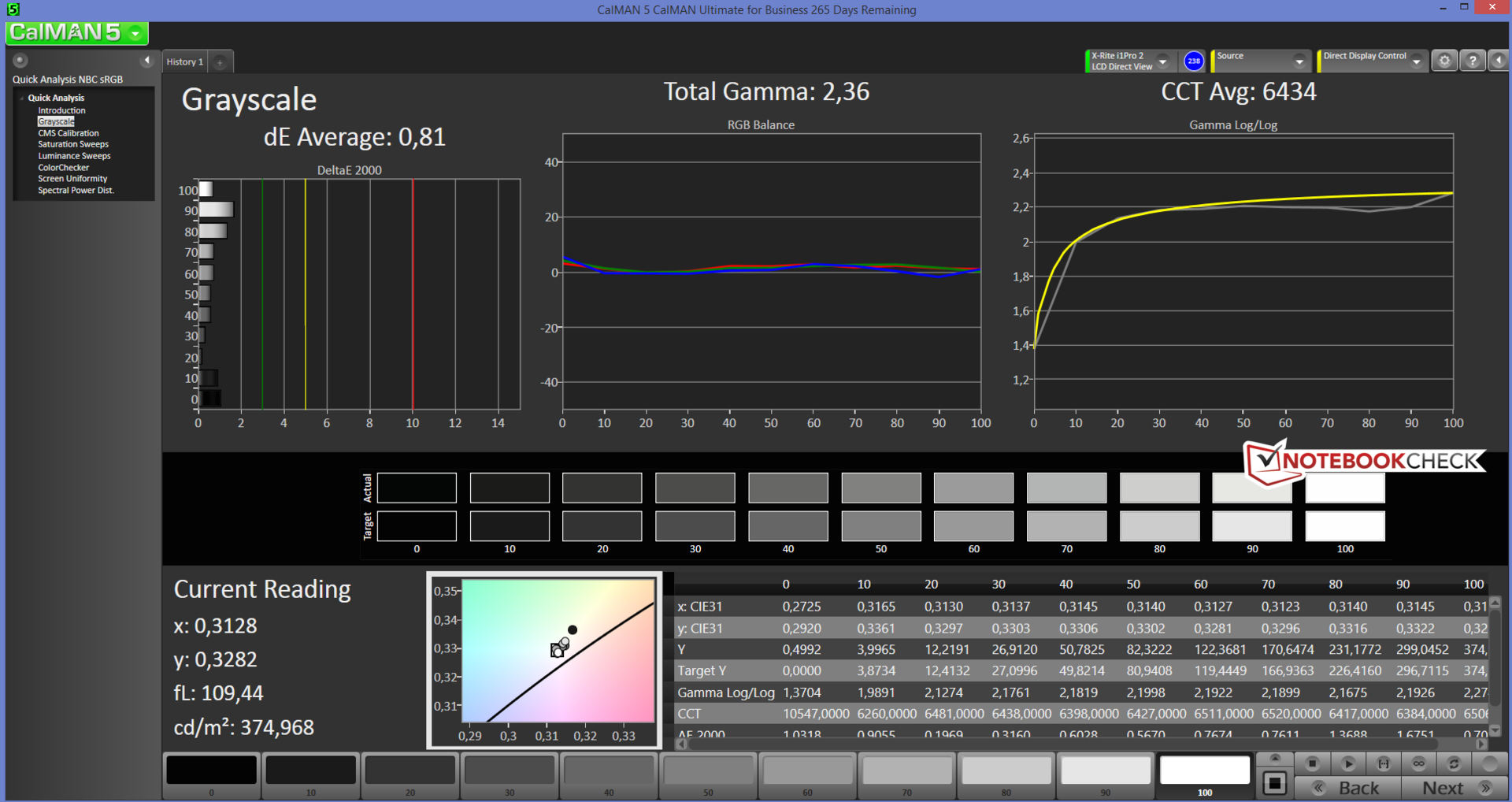

CalMAN: Grayscale calibrated
CalMAN: Grayscale calibrated

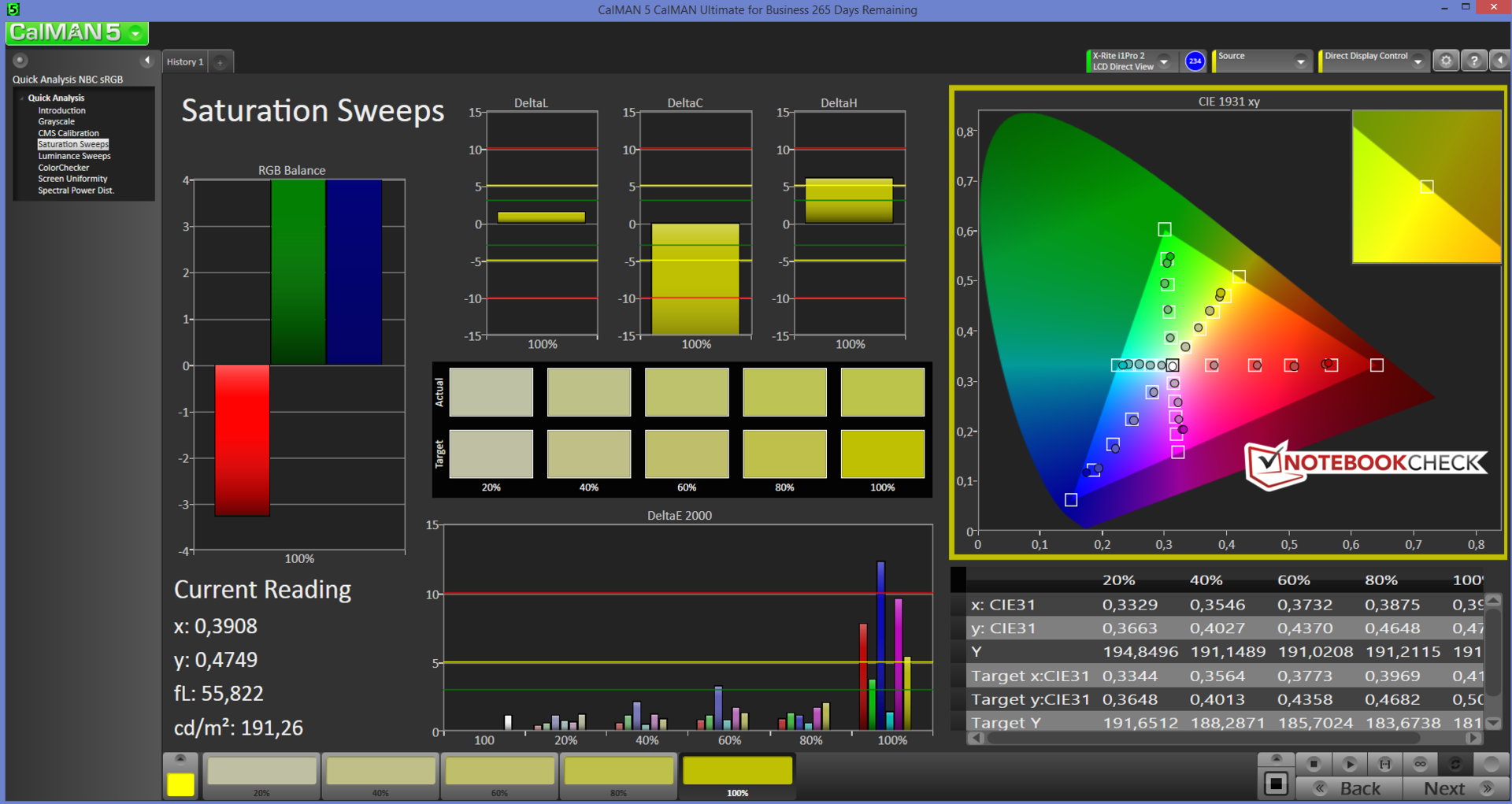

CalMAN: Saturation Sweeps calibrated
CalMAN: Saturation Sweeps calibrated

Thanks to the high luminance, you can actually use the small 11-inch device outdoors. Apple uses a special coating to reduce reflections, but you should still avoid direct light sources behind the display. We were already able to test this detail in the review of the Apple MacBook Pro 2013. Using the device in the shade is usually no problem.

The glossy display...
The glossy display...
...can actually be used outdoors...
...can actually be used outdoors...
...thanks to its good luminance.
...thanks to its good luminance.

Because of the TN technology there will be some deviations of the colors and the brightness when you look at the display from the side. It is still one of the better products based on this technology. The opening angle of almost 135 degrees is usually sufficient and you can even use the laptop on your lap, but we would still appreciate a bigger angle.

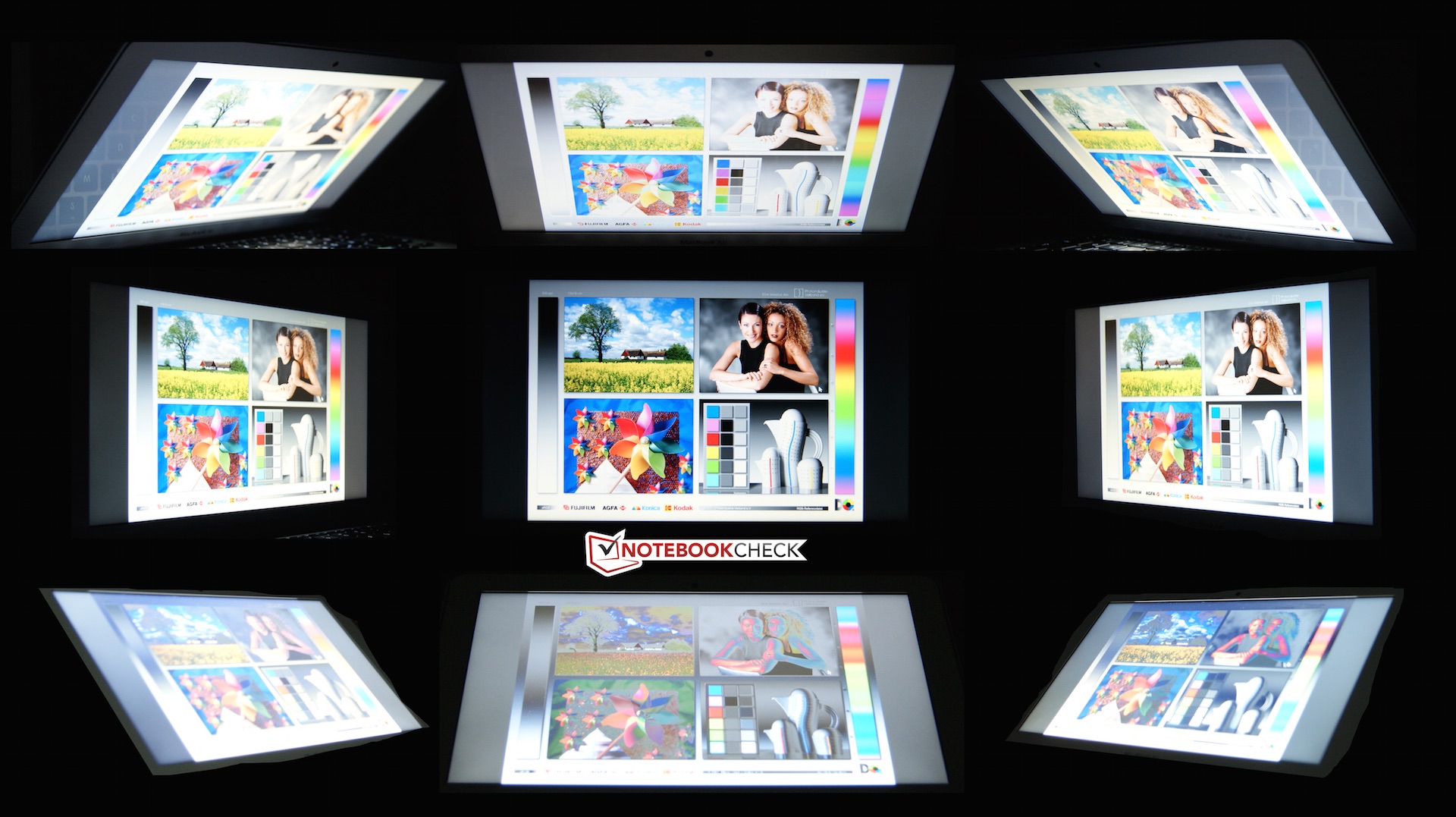

Viewing-angle stability
Viewing-angle stability

Performance

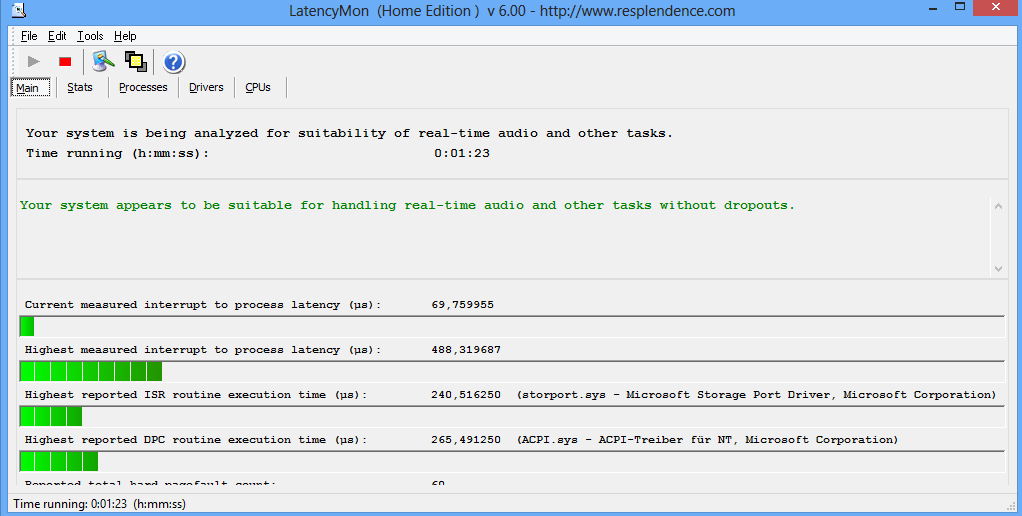

LatencyMon
LatencyMon

As always, Apple offers different configurations, and we have a look at the base model in this review. The hardware components are perfect for an office device or small multimedia notebook for every day. The small MacBook Air is equipped with a frugal dual-core processor that is fast enough for office and multimedia tasks. The processor graphics card is supported by a dual-channel memory configuration. 128 GB storage should be sufficient for many users; an upgrade to 256 GB is pretty expensive at 250 Euros (~$281). An upgrade by the user is not easy, which is proven by our colleagues from ifixit. The more powerful Intel Core i7-5650U CPU is available for 200 Euros (~$225).

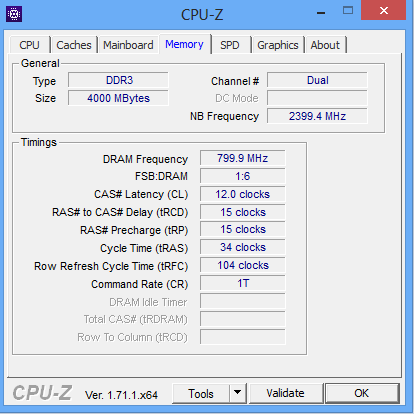

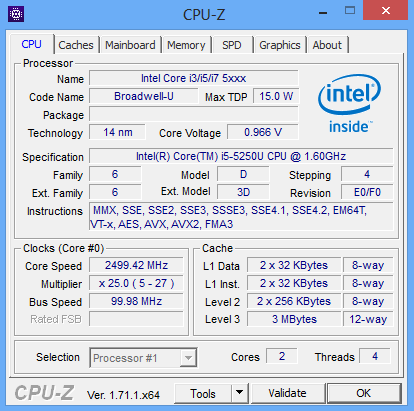

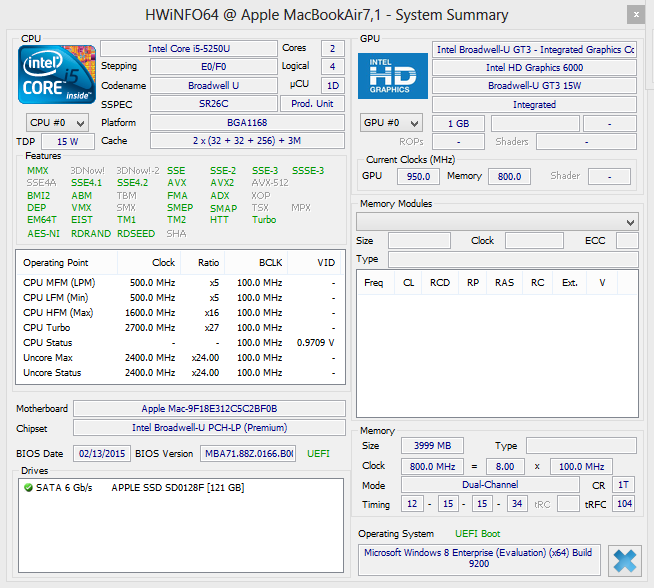

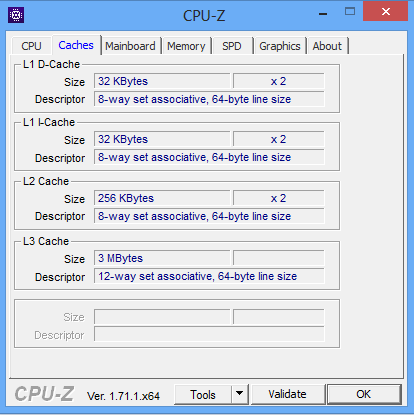

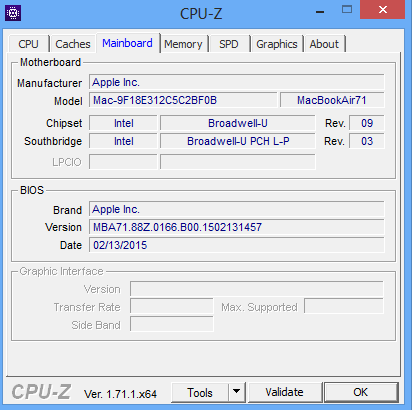

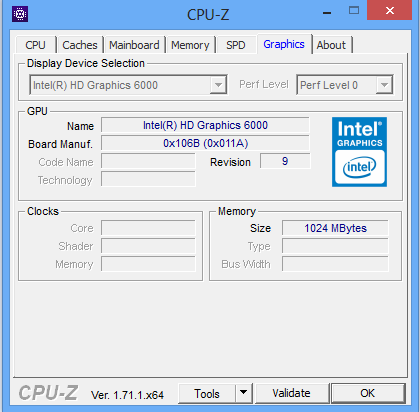

System information Apple MacBook Air 11 Early 2015

Processor

Apple uses this update to equip the device with chips based on the Broadwell architecture. Our configuration of the MacBook Air uses the Intel Core i5-5250U. This processor has two cores and can execute four threads. The base clock is now 1.6 GHz and was increased by 100 MHz compared to our old review unit. The chip can reach up to 2.7 GHz via Turbo Boost. Intel specifies a maximum power consumption of 15 Watts (TDP).

Performance Mac OS X Yosemite vs. Windows 8.1

We use Cinebench R15 to determine the performance of both operating systems because the tool is compatible with both systems. Our review unit manages around 260 points in the multi-core test, it does not matter which OS you use. The current MacBook Air has an advantage of around 11% over the old model from 2013 in Cinebench R11.5. We can see bigger differences between the individual operating systems in the single-core test and the OpenGL benchmarks. The single-core test under Windows determines 41% more points and the OpenGL test 30 instead of 26 fps. The maximum clock of 2.5 GHz was maintained during the whole first run of the benchmark and the CPU temperature reached 97 °C. We were able to measure 98 °C after multiple runs, but there was no sign of throttling. Running on battery power does not affect the performance and the results are similar compared to mains power.

More comparisons and details are available in our list of current mobile processors.

Cinebench R10 Shading 64Bit
6650 Points
Cinebench R10 Rendering Multiple CPUs 64Bit
11412 Points
Cinebench R10 Rendering Single CPUs 64Bit
5419 Points
Cinebench R10 Shading 32Bit
6148
Cinebench R10 Rendering Multiple CPUs 32Bit
8687
Cinebench R10 Rendering Single 32Bit
4065
Cinebench R11.5 OpenGL 64Bit
21.27 fps
Cinebench R11.5 CPU Multi 64Bit
2.72 Points
Cinebench R11.5 CPU Single 64Bit
1.03 Points
Cinebench R15 Ref. Match 64Bit
99.3 %
Cinebench R15 OpenGL 64Bit
25.89 fps
Cinebench R15 CPU Multi 64Bit
259 Points
Cinebench R15 CPU Single 64Bit
77 Points
Help

System Performance

Working with the small test model is a joy since everything is smooth and the responsiveness is very good. You should think about 8 GB RAM or a more powerful processor if you plan to use more demanding applications. PCMark 7 supports our subjective impression and determines a good result of 5,200 points for the MacBook, which is much better than the Apple MacBook Air 11 from 2013 that scored around 900 points less.

PCMark 7 - Score (sort by value)
Apple MacBook Air 11 inch 2015-03
HD Graphics 6000, 5250U, Apple SSD SM0128F
5200 Points
Apple MacBook Air 11 inch 2013-06 MD711D/A
HD Graphics 5000, 4250U, Apple SSD SM0128F
4333 Points -17%
Lenovo ThinkPad Helix 2
HD Graphics 5300, 5Y71, Toshiba THNSFJ256GDNU 256 GB
4602 Points -11%
PCMark 7 Score
5200 points
Help

Storage Solution

Apple uses an M.2 SSD with a storage capacity of 128 GB. We already mentioned that an upgrade to 256 GB is available for 250 Euros (~$281). Nothing really changed in respect of the transfer rates (read & write) compared to the predecessor. The integrated SSD manages decent results for the read and write performance, but Apple could improve the performance for the important 4K files.

Apple MacBook Air 11 inch 2015-03
HD Graphics 6000, 5250U, Apple SSD SM0128F
Apple MacBook Air 11 inch 2013-06 MD711D/A
HD Graphics 5000, 4250U, Apple SSD SM0128F
Lenovo ThinkPad Helix 2
HD Graphics 5300, 5Y71, Toshiba THNSFJ256GDNU 256 GB
CrystalDiskMark 3.0
-8%
-13%
Read Seq
567
554
-2%
422.7
-25%
Write Seq
312.1
313.3
0%
247.4
-21%
Read 512
345.7
345.6
0%
333.7
-3%
Write 512
260.6
195.1
-25%
164.9
-37%
Read 4k
20.36
17.34
-15%
19.44
-5%
Write 4k
32.84
45.08
37%
43.08
31%
Read 4k QD32
313.9
213.7
-32%
295.9
-6%
Write 4k QD32
220.5
154.4
-30%
139.3
-37%
Apple SSD SM0128F
Sequential Read: 567 MB/s
Sequential Write: 312.1 MB/s
512K Read: 345.7 MB/s
512K Write: 260.6 MB/s
4K Read: 20.36 MB/s
4K Write: 32.84 MB/s
4K QD32 Read: 313.9 MB/s
4K QD32 Write: 220.5 MB/s

Graphics Card

Another big improvement of the Broadwell architecture is the integrated Intel HD Graphics 6000 processor GPU. It is supposed to be 20-25% faster than the predecessor Intel HD Graphics 5000. The GPU also supports important standards like DirectX 11.2, OpenCL 1.3/2.0 and OpenGL 4.3. We can measure a core clock of 950 MHz.

We use 3DMark 11 to compare the new GPU with the Intel HD Graphics 5000 in the predecessor. As expected, the performance is much better and the predecessor falls behind by around 14%. The difference is even bigger in the Ice Storm benchmark of 3DMark (2013) with 30%.

More details and comparisons for the HD Graphics 6000 are available in our Tech section.

Apple MacBook Air 11 inch 2015-03
HD Graphics 6000, 5250U, Apple SSD SM0128F
Apple MacBook Air 11 inch 2013-06 MD711D/A
HD Graphics 5000, 4250U, Apple SSD SM0128F
3DMark 11
1280x720 Performance
1328
1138
-14%
3DMark
-26%
1280x720 Cloud Gate Standard Score
5449
4331
-21%
1280x720 Ice Storm Standard Score
52027
36262
-30%
Total Average (Program / Settings)
-20% / -22%
3DMark 06 Standard Score
7844 points
3DMark Vantage P Result
5797 points
3DMark 11 Performance
1328 points
3DMark Ice Storm Standard Score
52027 points
3DMark Cloud Gate Standard Score
5449 points
3DMark Fire Strike Score
844 points
Help

Gaming Performance

No question, gaming is not a strength of the Air 11, but some older titles should still run smoothly. It is important that you use Windows for gaming. A good example is Tomb Raider, where you can determine 31.2 fps with the lowest quality settings under Mac OS X, but the Air actually manages almost twice that under Windows. Even medium settings are playable under Windows 8.1 at 33.4 fps.

If you still want to use the small 11-inch device for gaming and have some time and money, you can also attach external graphics cards via Thunderbolt. More details on that are available in our article "external graphics cards."

Tomb Raider
1024x768 Low Preset (sort by value)
Apple MacBook Air 11 inch 2013-06 MD711D/A
HD Graphics 5000, 4250U, Apple SSD SM0128F
53.9 fps
Lenovo ThinkPad Helix 2
HD Graphics 5300, 5Y71, Toshiba THNSFJ256GDNU 256 GB
35.9 fps
1366x768 Normal Preset AA:FX AF:4x (sort by value)
Apple MacBook Air 11 inch 2013-06 MD711D/A
HD Graphics 5000, 4250U, Apple SSD SM0128F
26 fps
Lenovo ThinkPad Helix 2
HD Graphics 5300, 5Y71, Toshiba THNSFJ256GDNU 256 GB
18.8 fps

Emissions

System Noise

Our review unit is completely silent with light workloads. The heat-conducting characteristics of aluminum help in this respect. The fans will only start to spin under load and we can measure up to 43 dB(A). This value is 4 dB(A) higher compared to the MacBook Air from 2013. The maximum fan speed of our review unit is 6,500 rpm.

Noise Level

Idle
29 / 29 / 29 dB(A)
Load
35.2 / 43.1 dB(A)
  red to green bar


30 dB
silent
40 dB(A)
audible
50 dB(A)
loud

min: dark, med: mid, max: light   Voltcraft sl-320 (15 cm distance)

Temperature

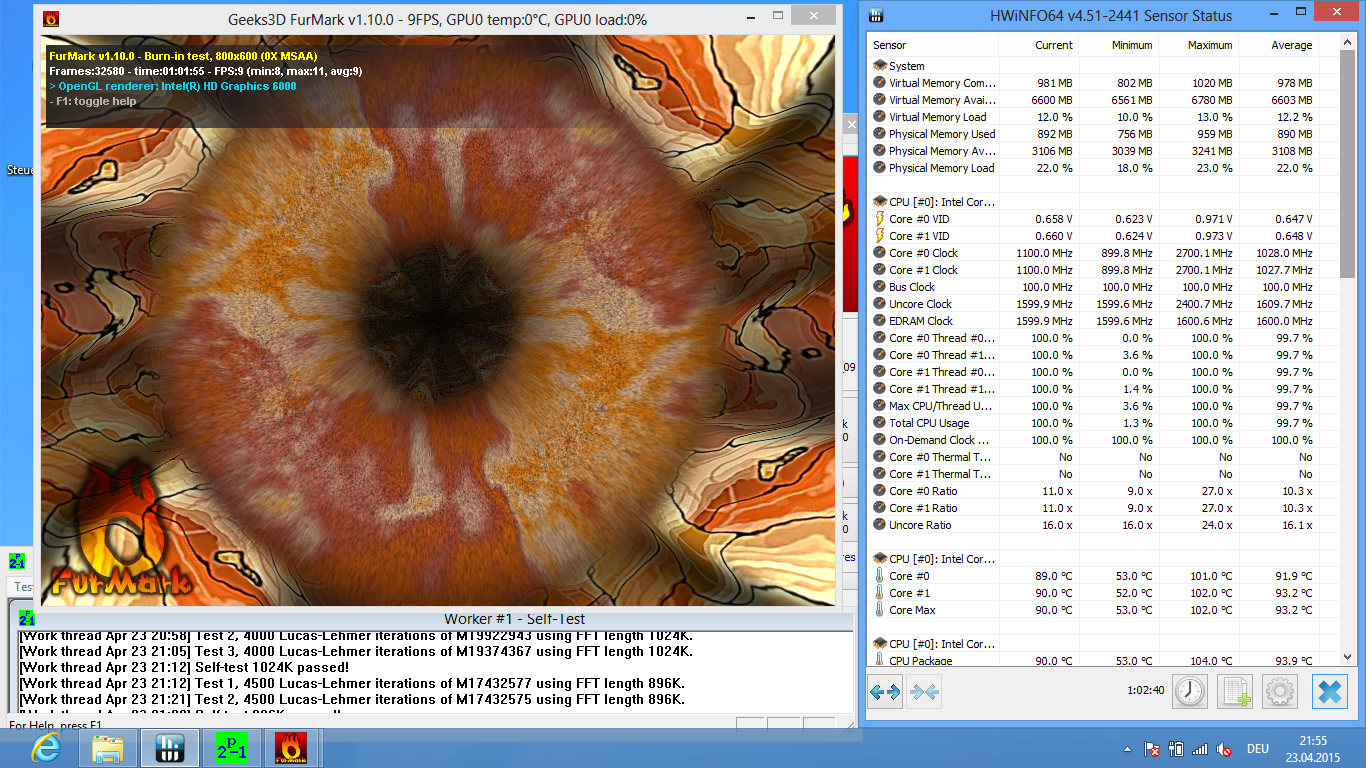

Stress test Windows
Stress test Windows

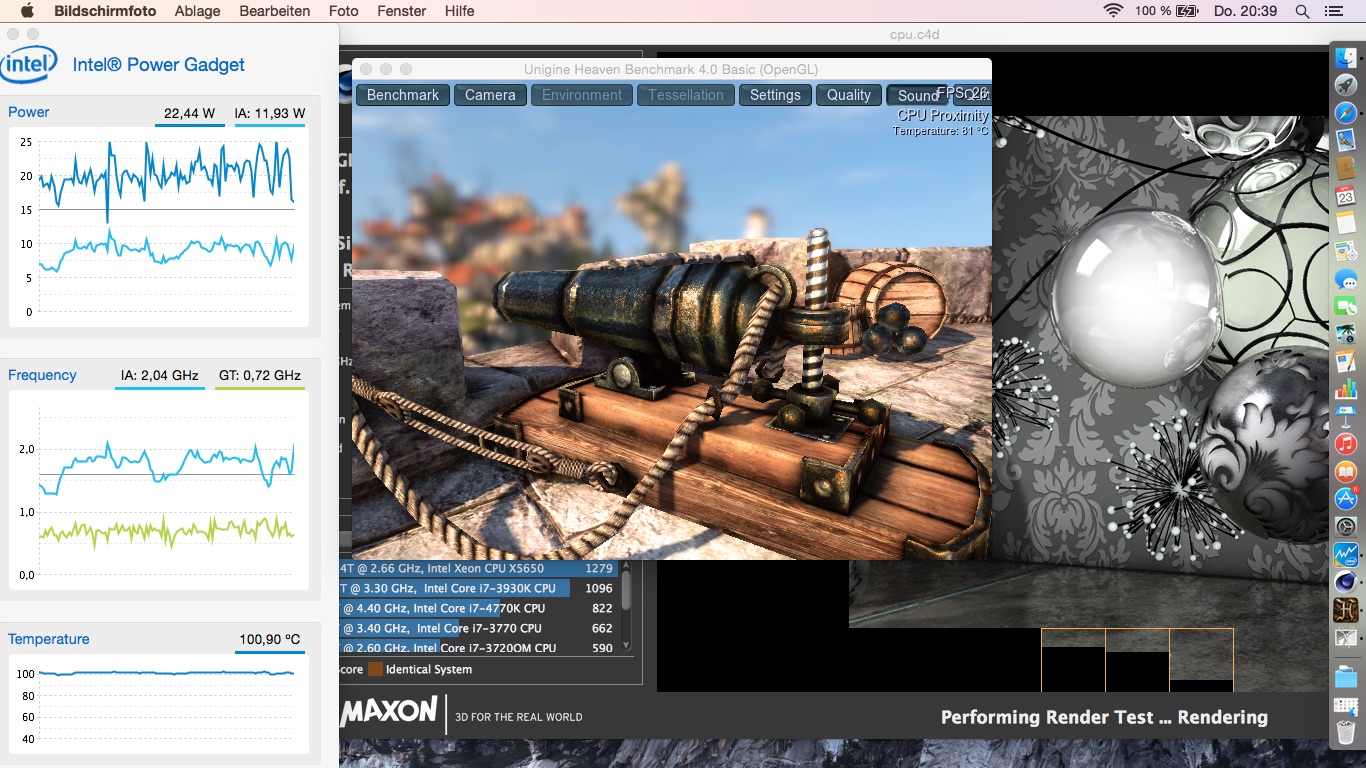

Stress test Mac OS X
Stress test Mac OS X

As long as you do not stress the device or just browse the web, for example, the review unit hardly gets warm. The aluminum chassis will only warm up noticeably under sustained load. The hotspot of 44.5 °C at the top (at the rear) is in the working environment. It is still no problem to type on the keyboard, despite the higher temperatures. All in all, the temperature development hardly changed. The power adaptor also gets quite warm at 47 °C, so you should not hide it under pillows or blankets.

We realize the stress test under Mac OS X with the applications Cinebench R15 and Unigine Heaven 4.0. After the start of the two applications, the CPU temperature reaches more than 100 °C, so the CPU has to reduce the clocks. Even the nominal clock can often not be maintained. After the stress test we start Cinebench R15 and get the same score compared to a cold run.

We use the tools FurMark and Prime95 for the Windows stress test. The processor clock is reduced to 900 MHz and stays much longer at this frequency. Windows already throttles the CPU at 92 °C (Mac OS X at 100 °C). The consequence is that the CPU can keep up the performance slightly longer under Mac OS X. Similar to Mac OS X we ran a benchmark immediately after the stress test for a comparison. 3DMark 11 also manages the same score with 1,359 points.

Max. Load
 40.9 °C
106 F
44.5 °C
112 F
36.6 °C
98 F

 35.6 °C
96 F
40.2 °C
104 F
35.3 °C
96 F

 34.9 °C
95 F
31.7 °C
89 F
34.2 °C
94 F

Maximum: 44.5 °C = 112 F
Average: 37.1 °C = 99 F
37.5 °C
100 F
42.1 °C
108 F
40.6 °C
105 F
35.6 °C
96 F
37.8 °C
100 F
37.2 °C
99 F
34.1 °C
93 F
39.9 °C
104 F
34.5 °C
94 F
Maximum: 42.1 °C = 108 F
Average: 37.7 °C = 100 F
Power Supply (max.)  47.7 °C = 118 F | Room Temperature 20.1 °C = 68 F | Voltcraft IR-360
(±) The average temperature for the upper side under maximal load is 37.1 °C / 99 F, compared to the average of 30.7 °C / 87 F for the devices in the class Subnotebook.
(±) The maximum temperature on the upper side is 44.5 °C / 112 F, compared to the average of 35.9 °C / 97 F, ranging from 21.4 to 59 °C for the class Subnotebook.
(±) The bottom heats up to a maximum of 42.1 °C / 108 F, compared to the average of 39.4 °C / 103 F
(+) In idle usage, the average temperature for the upper side is 26.9 °C / 80 F, compared to the device average of 30.7 °C / 87 F.
(+) The palmrests and touchpad are reaching skin temperature as a maximum (34.9 °C / 94.8 F) and are therefore not hot.
(-) The average temperature of the palmrest area of similar devices was 28.3 °C / 82.9 F (-6.6 °C / -11.9 F).

Energy Management

Power Consumption

The consumption is very low with values between 2.5 Watts and 6.1 Watts as long as the Apple notebook is idling. The Windows results are much higher with 5.3 Watts - 9.6 Watts. The predecessor already had some issues with the 45-Watt power adaptor under load because the power consumption is higher than the nominal output. The current Broadwell version of the Air 11 starts the measurement under maximum load (stress test) at 49.3 Watts and finally levels off at 33.9 Watts. The last value can be explained with the throttling under load that we determined in the Temperature section. The lower clocks also result in lower power consumption.

Power Consumption
Off / Standbydarklight 0 / 0.1 Watt
Idledarkmidlight 2.5 / 5.1 / 6.1 Watt
Load midlight 37.6 / 43.4 Watt
 color bar
Key: min: dark, med: mid, max: light        Voltcraft VC 940
Currently we use the Metrahit Energy, a professional single phase power quality and energy measurement digital multimeter, for our measurements. Find out more about it here. All of our test methods can be found here.

Battery Runtime

The manufacturer equips the small 11-inch device with a 38 Wh battery and advertizes a WLAN runtime of up to 9 hours. Our MacBook Air lasts around 8.5 hours in our WLAN test, which means it should survive even longer business days. A direct comparison with the 9 hours of the predecessor is not possible because we slightly adjusted our Wi-Fi settings for the test.

Battery Runtime - WiFi Websurfing (sort by value)
Apple MacBook Air 11 inch 2015-03
HD Graphics 6000, 5250U, Apple SSD SM0128F
512 min
Battery Runtime
WiFi Websurfing
8h 32min
Load (maximum brightness)
1h 32min

Pros

+ Very good system performance
+ Increased GPU performance
+ Battery runtime
+ Input devices
+ Build quality

Cons

- Increased price
- HD resolution
- Port variety

Verdict

Apple MacBook Air 11, courtesy of Notebooksbilliger.
Apple MacBook Air 11, courtesy of Notebooksbilliger.

The Apple MacBook Air is still some kind of evergreen in the notebook world, despite the lack of innovation. As expected, the new components inside the chassis are very convincing and the performance was increased compared to the predecessors. Although the display is still not a Retina model and only has limited viewing angles, you get good results for the brightness distribution, the luminance and the contrast.

The biggest issue, however, is the significantly increased price in the Euro region, so we cannot recommend an upgrade for owners of previous MacBook Airs.

The higher price in combination with the outdated HD resolution does affect the appeal of the Air 11. In the end, the Apple MacBook Air is still a very convenient office and multimedia notebook, which has a good mobility thanks to its battery runtime and the dimensions.

Apple MacBook Air 11 inch 2015-03 - 05/02/2015 v4(old)
Nino Ricchizzi

Chassis
92 /  98 → 94%
Keyboard
90%
Pointing Device
97%
Connectivity
56 / 80 → 70%
Weight
74 / 35-78 → 91%
Battery
83%
Display
81%
Games Performance
69 / 68 → 100%
Application Performance
79 / 87 → 91%
Temperature
86 / 91 → 95%
Noise
92%
Audio
60 / 91 → 66%
Camera
63 / 85 → 74%
Average
79%
86%
Subnotebook - Weighted Average

Pricecompare

Read all 2 comments / answer
static version load dynamic
Loading Comments
Comment on this article
Please share our article, every link counts!
Nino Ricchizzi, 2015-05- 8 (Update: 2018-05-15)
