Z490 motherboard roundup: 50+ models
Intel Comet Lake processors and motherboards have been introduced, and they’ll be available by the end of May. The new CPUs support up to 10 cores and require a new socket that goes by the name LGA1200, which is cooler-compatible with the older LGA115x socket. This means that any CPU cooler that works on the LGA115x socket won't require any mounting updates. The new flagship chipset is the Intel Z490, and it will be followed with mainstream and budget-oriented models.

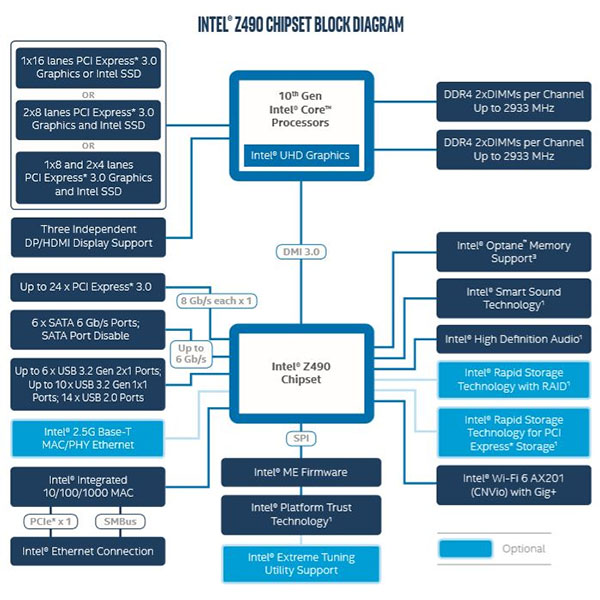

What’s the main difference between the upcoming Intel Z490 chipset and the current Z390 chipset?
First things first: With Comet Lake-S CPUs you will need a new motherboard that is compatible with the LGA1200 socket. If you want to upgrade your main rig and you have a Coffee Lake Refresh CPU with an Intel 300 motherboard (e.g. Core i9-9900K with Intel Z390 main board) you’ll have to buy a new combo compatible with Comet Lake.

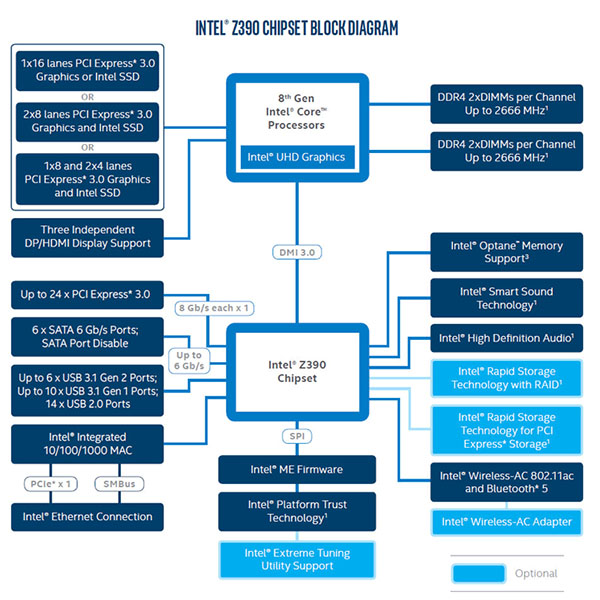

The difference betweens Intel Z490 and Z390 are minimal; not much has changed since both CPU and chipset main specifications are more or less the same. For example, both chipsets continue to use the outperformed PCI Express 3.0 interface for connecting peripherals, cards and storage devices. Although a few OEM vendors have made the Z490 models compatible with the upcoming PCI Express 4.0 interface, a functionality available on AMD X570 and TRX40 motherboards, Intel hasn’t officially reported this support. Furthermore, Intel has improved the wired and not-wired network interface, introducing a new Intel 2.5G Gigabit chip (rev b2, without any bugs) and sixth-generation Wi-Fi like its mobile namesake.
One of the major differences of these new motherboards is the integration of a beefier power design that can handle the upcoming flagship CPUs with a thermal design power (TDP) up to 125 Watts. As you might know, the TDP listed from Intel guarantees the power consumption of a specific model at standard clocks. In other words, a powerful Core i9-10900K with a base clock of 3.70 GHz and a max frequency of 5.30 GHz can easily burn more than 125 Watts. Although this isn’t a rule for each model around, most of them come with a solid power design.
Like the previous chipset, the Intel Z490 supports overclocking with Intel’s unlocked CPUs (-K and -KS) and this isn’t a big surprise. Although Intel has not recommended overclocking the BLCK since it is linked to the other main areas that could be unstable, the company has enabled support for PEG and DMI buses overclocking that won’t affect SATA ports and peripherals anymore. Last but not least, you can have a better control of the voltage-frequency curve and change frequency of the Hyper-Threading per core.
Alongside the high-end Z390 chipset, Intel has also introduced mainstream and budget-oriented chipsets like the H470, B460 and H410 variants. While the mainstream chipset appears to be very close to the previous one (Intel H370), there are several differences between the B460 and B360 chips. The new generation features up to 16 PCIe 3.0 lanes, which is 30% more over the previous model (12). This improvement was obtained by changing the lanes route and reducing the amount of USB 3.2 Gen2 ports available. Intel H410 is the successor of H310 and at the moment there is no datasheet about this chipset; we’ll update the article once Intel releases more information.
At the time of writing, you can choose from motherboards based on the Intel Z390 chipset only and you can find a wide list of models ranging from the tiny mini-ITX size up to the large E-ATX.
Z490 | Z390 | Z370 | H470 | H370 | B460 | B360 | |
---|---|---|---|---|---|---|---|
Socket | LGA1200 | LGA1155 | LGA1155 | LGA1200 | LGA1155 | LGA1200 | LGA1155 |
PCIe 3.0 (CPU) | 1x16x or 2x8 1x8 + 2x4 |
1x16x or 2x8 1x8 + 2x4 |
1x16x or 2x8 1x8 + 2x4 |
1x16x | 1x16x | 1x16x | 1x16x |
PCIe 3.0 (chipset) | 24x1 | 24x1 | 24x1 | 20x1 | 20x1 | 16x1 | 12x1 |
USB (USB 3.2 Gen1) | 14 (10) | 14 (10) | 14 (10) | 14 (8) | 14 (8) | 12 (8) | 12 (6) |
USB (USB 3.2 Gen2) | 6 | 6 | No | 4 | 6 | No | 4 |
SATA | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
Intel RST | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
Intel RST (PCIe 3.0) | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
Intel RST PCIe (max 4 SSD M.2) | ? | 3 | 3 | ? | 2 | ? | 1 |
Intel Memory Optane | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
Intel Gigabit LAN | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
Intel 2.5G LAN | Yes | No | No | Yes | No | Yes | No |
Wi-Fi (CNVio) | Wi-Fi 6 (ax) | Wi-Fi 5 (ac) | Wi-Fi 5 (ac) | Wi-Fi 6 (ax) | Wi-Fi 5 (ac) | Wi-Fi 6 (ax) | Wi-Fi 5 (ac) |
Overclock | Yes | Yes | Yes | No | No | No | No |
Memory | DDR4-2933 | DDR4-2933 | DDR4-2666 | DDR4-2933 | DDR4-2666 | DDR4-2666 | DDR4-2666 |
E-ATX
The E-ATX (Extended ATX) form factor is the largest format available for PC gamers, measuring at 305 x 330 mm. The only thing you have to worry about is if your case is large enough to fit one of these motherboards. While the ATX is usually the most used, the E-ATX might be supported but at the same time it might cover some rubber grommets for cable management. We suggest checking the datasheet of your case before buying anything.
Since the motherboards of this range are rather big, you can expect a good amount of memory slots as well as PCIe connectors: E-ATX motherboards definitely have the lead in this department. Extra PCIe slots can be quite useful if you are considering adding a second graphics card, an additional audio card or even a capture card (if you are a streamer). Furthermore, most of the premium models fall in this category since OEMs have more space for adding extra features for overclockers or PC enthusiasts.
Model | PCIe | Storage | USB header | PWM | RGB | USB Type-A | USB Type-C | TB 3 | Video | Networking | Audio |
---|---|---|---|---|---|---|---|---|---|---|---|
ASUS ROG Maximus XII Extreme | 2x PCIe 3.0 x16 1x PCIe 3.0 x4 |
8x SATA6 4x M.2 |
4x 2.0 4x 3.2 Gen1 |
14 | 2x ARGB 2x RGB |
2x 2.0 6x 3.2 Gen1 3x 3.2 Gen2 |
1x 3.2 Gen2 | 1 | No | Aquantia 10GbE Intel 2.5GbE Intel Wi-Fi 6 AX201 |
7.1 channel S/PDIF Out |
ASRock Z490 Aqua | 3x PCIe 3.0 x16 2x PCIe 3.0 x2 |
8x SATA6 3x M.2 |
1x 2.0 2x 3.2 Gen1 |
8 | 2x ARGB 2x RGB |
4x 3.2 Gen1 3x 3.2 Gen2 |
2x 3.2 Gen2 | 2 | 2x MiniDP 1x HDMI |
Aquantia 10GbE Dragon 2.5GbE Intel Wi-Fi 6 AX201 |
7.1 channel S/PDIF Out |
EVGA Z490 Dark | 3x PCIe 3.0 x16 1x PCIe 3.0 x4 |
8x SATA6 3x M.2 |
6x 2.0 2x 3.2 Gen1 |
8 | No | 1x 2.0 2x 3.2 Gen1 5x 3.2 Gen2 |
1x 3.2 Gen2 | No | 1x MiniDP | Intel 2.5GbE Intel 1GbE Intel Wi-Fi 6 AX201 |
7.1 channel S/PDIF Out |
Gigabyte Z490 AORUS XTREME WATERFORCE |
1x PCIe 3.0 x16 1x PCIe 3.0 x8 1x PCIe 3.0 x4 |
6x SATA6 3x M.2 |
4x 2.0 2x 3.2 Gen1 |
10 | 2x ARGB 2x RGB |
2x 2.0 2x 3.2 Gen1 4x 3.2 Gen2 |
2x 3.2 Gen2 | 2 | 1x HDMI | Aquantia 10GbE Intel 2.5GbE Intel Wi-Fi 6 AX201 |
7.1 channel S/PDIF Out |
Gigabyte Z490 AORUS XTREME | 1x PCIe 3.0 x16 1x PCIe 3.0 x8 1x PCIe 3.0 x4 |
6x SATA6 3x M.2 |
4x 2.0 2x 3.2 Gen1 |
8 | 2x ARGB 2x RGB |
2x 2.0 2x 3.2 Gen1 4x 3.2 Gen2 |
2x 3.2 Gen2 | 2 | 1x HDMI | Aquantia 10GbE Intel 2.5GbE Intel Wi-Fi 6 AX201 |
7.1 channel S/PDIF Out |
MSI MEG Z490 GODLIKE | 1x PCIe 3.0 x16 1x PCIe 3.0 x8 1x PCIe 3.0 x4 |
6x SATA6 3x M.2 |
2x 2.0 2x 3.2 Gen1 1x 3.2 Gen2 |
10 | 2x RGB | 2x 2.0 4x 3.2 Gen1 2x 3.2 Gen2 |
2x 3.2 Gen2 | 2 | No | Aquantia 10GbE Realtek 2.5GbE Intel Wi-Fi 6 AX201 |
7.1 channel S/PDIF Out |
ATX
Introduced in the mid to late 90s, this form factor is the most common motherboard design, and it can be installed in almost any mid-tower PC cases. This model measures 305 x 244 mm and can accommodate at least a pair of graphics cards, up to four memory sticks and a solid amount of storage devices. While the E-ATX form factor is usually quite a niche product, the ATX is widely used by most OEMs and you can find several models with different price tags covering a wide price range. Consumer and enthusiast models fall in this category.
Model | PCIe | Storage | USB header | PWM | RGB | USB Type-A | USB Type-C | TB 3 | Video | Networking | Audio |
---|---|---|---|---|---|---|---|---|---|---|---|
ASUS ROG Maximus XII Formula |
3x PCIe 3.0 x16 1x PCIe x1 |
6x SATA6 3x M.2 |
4x 2.0 4x 3.2 Gen1 |
8 | 2x ARGB 2x RGB |
6x 3.2 Gen1 3x 3.2 Gen2 |
1x 3.2 Gen2 | No | No | Aquantia 10GbE Intel 2.5GbE Intel Wi-Fi 6 AX201 |
7.1 channel S/PDIF Out |
ASUS ROG Maximus XII Apex |
2x PCIe 3.0 x16 1x PCIe 3.0 x4 1x PCIe x1 |
8x SATA6 3x M.2 |
5x 2.0 2x 3.2 Gen1 |
9 | 2x ARGB 1x RGB |
5x 3.2 Gen1 4x 3.2 Gen2 |
1x 3.2 Gen2 | No | No | Intel 2.5GbE Intel Wi-Fi 6 AX201 |
7.1 channel S/PDIF Out |
ASUS ROG Maximus XII Hero Wi-Fi |
3x PCIe 3.0 x16 3x PCIe x1 |
6x SATA6 3x M.2 |
4x 2.0 2x 3.2 Gen1 |
8 | 2x ARGB 2x RGB |
2x 2.0 4x 3.2 Gen1 3x 3.2 Gen2 |
1x 3.2 Gen2 | No | 1x HDMI | Marvell 5GbE Intel 2.5GbE Intel Wi-Fi 6 AX201 |
7.1 channel S/PDIF Out |
ASUS ROG Strix Z490-E Gaming |
3x PCIe 3.0 x16 3x PCIe x1 |
6x SATA6 2x M.2 |
4x 2.0 2x 3.2 Gen1 |
7 | 2x ARGB 2x RGB |
4x 2.0 2x 3.2 Gen1 3x 3.2 Gen2 |
1x 3.2 Gen2 | No | 1x DP 1x HDMI |
Intel 2.5GbE Intel Wi-Fi 6 AX201 |
7.1 channel S/PDIF Out |
ASUS ROG Strix Z490-F Gaming |
3x PCIe 3.0 x16 3x PCIe x1 |
6x SATA6 2x M.2 |
4x 2.0 2x 3.2 Gen1 |
7 | 2x ARGB 2x RGB |
4x 2.0 2x 3.2 Gen1 3x 3.2 Gen2 |
1x 3.2 Gen2 | No | 1x DP 1x HDMI |
Intel 2.5GbE | 7.1 channel S/PDIF Out |
ASUS ROG Strix Z490-A Gaming |
3x PCIe 3.0 x16 1x PCIe 3.0 x2 1x PCIe x1 |
6x SATA6 2x M.2 |
4x 2.0 2x 3.2 Gen1 |
6 | 1x ARGB 2x RGB |
2x 2.0 4x 3.2 Gen1 1x 3.2 Gen2 |
1x 3.2 Gen2 | No | 1x DP 1x HDMI |
Intel 2.5GbE | 7.1 channel S/PDIF Out |
ASUS ROG Strix Z490-H Gaming |
3x PCIe 3.0 x16 1x PCIe 3.0 x2 1x PCIe x1 |
6x SATA6 2x M.2 |
4x 2.0 4x 3.2 Gen1 |
6 | 1x ARGB 2x RGB |
1x 2.0 4x 3.2 Gen1 1x 3.2 Gen2 |
1x 3.2 Gen2 | No | 1x DP 1x HDMI |
Intel 2.5GbE | 7.1 channel S/PDIF Out |
ASUS TUF Gaming Z490-Plus Wi-Fi |
2x PCIe 3.0 x16 3x PCIe x1 |
6x SATA6 2x M.2 |
3x 2.0 2x 3.2 Gen1 |
6 | 1x ARGB 2x RGB |
4x 3.2 Gen1 1x 3.2 Gen2 |
1x 3.2 Gen2 | No | 1x DP 1x HDMI |
Intel 1GbE Intel Wi-Fi 6 AX201 |
7.1 channel S/PDIF Out |
ASUS TUF Gaming Z490-Plus |
2x PCIe 3.0 x16 3x PCIe x1 |
6x SATA6 2x M.2 |
3x 2.0 2x 3.2 Gen1 |
6 | 1x ARGB 2x RGB |
4x 3.2 Gen1 1x 3.2 Gen2 |
1x 3.2 Gen2 | No | 1x DP 1x HDMI |
Intel 1GbE | 7.1 channel S/PDIF Out |
ASUS ProArt Z490-Creator 10G |
3x PCIe 3.0 x16 2x PCIe x1 |
6x SATA6 2x M.2 |
4x 2.0 3x 3.2 Gen1 |
6 | 1x ARGB 2x RGB |
3x 3.2 Gen1 4x 3.2 Gen2 |
2x 3.2 Gen2 | 2 | 1x DP 1x HDMI |
Hyper 10G Intel 2.5GbE |
7.1 channel S/PDIF Out |
ASUS Prime Z490-A |
3x PCIe 3.0 x16 3x PCIe x1 |
6x SATA6 2x M.2 |
4x 2.0 2x 3.2 Gen1 |
7 | 2x ARGB 2x RGB |
2x 2.0 2x 3.2 Gen1 3x 3.2 Gen2 |
1x 3.2 Gen2 | No | 1x DP 1x HDMI |
Intel 2.5GbE | 7.1 channel S/PDIF Out |
ASUS Prime Z490-P |
2x PCIe 3.0 x16 4x PCIe x1 |
4x SATA6 2x M.2 |
4x 2.0 4x 3.2 Gen1 |
5 | 1x ARGB 2x RGB |
2x 2.0 2x 3.2 Gen1 2x 3.2 Gen2 |
1x 3.2 Gen2 | No | 1x DP 1x HDMI |
Realtek 1GbE | 7.1 channel S/PDIF Out |
ASRock Z490 Taichi | 3x PCIe 3.0 x16 2x PCIe x1 |
8x SATA6 3x M.2 |
4x 2.0 4x 3.2 Gen1 |
8 | 2x ARGB 2x RGB |
5x 3.2 Gen1 2x 3.2 Gen2 |
1x 3.2 Gen2 | No | 1x DP 1x HDMI |
Dragon 2.5GbE Intel 1GbE Intel Wi-Fi 6 AX201 |
7.1 channel S/PDIF Out |
ASRock Z490 Steel Legend |
2x PCIe 3.0 x16 3x PCIe x1 |
6x SATA6 2x M.2 |
4x 2.0 4x 3.2 Gen1 |
7 | 2x ARGB 2x RGB |
2x USB 2.0 2x 3.2 Gen1 1x 3.2 Gen2 |
1x 3.2 Gen2 | No | 1x DP 1x HDMI |
Dragon 2.5GbE | 7.1 channel S/PDIF Out |
ASRock Z490 Extreme4 | 2x PCIe 3.0 x16 3x PCIe x1 |
6x SATA6 2x M.2 |
4x 2.0 4x 3.2 Gen1 |
7 | 2x ARGB 2x RGB |
2x USB 2.0 2x 3.2 Gen1 1x 3.2 Gen2 |
1x 3.2 Gen2 | No | 1x DP 1x HDMI |
Dragon 2.5GbE | 7.1 channel S/PDIF Out |
ASRock Z490 Pro4 | 2x PCIe 3.0 x16 3x PCIe x1 |
6x SATA6 2x M.2 |
4x 2.0 4x 3.2 Gen1 |
6 | 2x ARGB 2x RGB |
2x USB 2.0 2x 3.2 Gen1 1x 3.2 Gen2 |
1x 3.2 Gen2 | No | 1x D-Sub 1x HDMI |
Intel 1GbE | 7.1 channel |
ASRock Z490 PG Velocita | 2x PCIe 3.0 x16 3x PCIe x1 |
8x SATA6 2x M.2 |
4x 2.0 4x 3.2 Gen1 |
7 | 2x ARGB 2x RGB |
4x 3.2 Gen1 1x 3.2 Gen2 |
1x 3.2 Gen2 | No | 1x DP 1x HDMI |
Dragon 2.5GbE Intel 1GbE |
7.1 channel S/PDIF Out |
ASRock Z490 Phantom Gaming 4 |
2x PCIe 3.0 x16 3x PCIe x1 |
6x SATA6 1x M.2 |
2x 2.0 4x 3.2 Gen1 |
6 | 2x ARGB 2x RGB |
2x 3.2 Gen1 1x 3.2 Gen2 |
1x 3.2 Gen2 | No | 1x HDMI | Intel 1GbE | 7.1 channel |
ASRock Z490 Phantom Gaming 4/ax |
2x PCIe 3.0 x16 3x PCIe x1 |
6x SATA6 1x M.2 |
2x 2.0 4x 3.2 Gen1 |
6 | 2x ARGB 2x RGB |
2x USB 2.0 2x 3.2 Gen1 1x 3.2 Gen2 |
1x 3.2 Gen2 | No | 1x HDMI | Intel 1GbE Intel Wi-Fi 802.11ax |
7.1 channel |
ASRock Z490 Phantom Gaming 4/ac |
2x PCIe 3.0 x16 3x PCIe x1 |
6x SATA6 1x M.2 |
2x 2.0 4x 3.2 Gen1 |
6 | 2x ARGB 2x RGB |
2x USB 2.0 2x 3.2 Gen1 1x 3.2 Gen2 |
1x 3.2 Gen2 | No | 1x HDMI | Intel 1GbE Intel Wi-Fi 802.11ac |
7.1 channel |
ASRock Z490 Phantom Gaming 4/2.5G |
2x PCIe 3.0 x16 3x PCIe x1 |
6x SATA6 1x M.2 |
2x 2.0 4x 3.2 Gen1 |
6 | 2x ARGB 2x RGB |
2x USB 2.0 2x 3.2 Gen1 1x 3.2 Gen2 |
1x 3.2 Gen2 | No | 1x HDMI | Dragon 2.5GbE | 7.1 channel |
ASRock Z490 Phantom Gaming 4SR |
2x PCIe 3.0 x16 3x PCIe x1 |
4x SATA6 1x M.2 |
3x 2.0 4x 3.2 Gen1 |
5 | 2x ARGB 2x RGB |
2x 3.2 Gen1 2x 3.2 Gen2 1x 3.2 Gen2 |
1x 3.2 Gen2 | No | 1x HDMI | Intel 1GbE | 7.1 channel |
Biostar Z490GTA EVO | 2x PCIe 3.0 x16 3x PCIe x1 |
6x SATA6 2x M.2 |
2x 2.0 2x 3.2 Gen1 |
5 | 2x ARGB 1x RGB |
8x 3.2 Gen1 1x 3.2 Gen2 |
1x 3.2 Gen2 | No | 1x HDMI | Intel 1GbE | 7.1 channel S/PDIF Out |
Biostar Z490GTA | 2x PCIe 3.0 x16 3x PCIe x1 |
6x SATA6 2x M.2 |
2x 2.0 2x 3.2 Gen1 |
4 | 2x ARGB 1x RGB |
2x 2.0 4x 3.2 Gen1 |
No | No | 1x DP 1x HDMI 1x VGA |
Intel 1GbE | 7.1 channel |
EVGA Z490 FTW WiFi | 2x PCIe 3.0 x16 1x PCIe x1 |
6x SATA6 3x M.2 |
4x 2.0 2x 3.2 Gen1 |
7 | No | 1x USB 2.0 2x 3.2 Gen1 4x 3.2 Gen2 |
1x 3.2 Gen2 | No | 1x DP 1x HDMI |
Intel 2.5GbE Intel 1GbE Intel Wi-Fi 6 AX201 |
7.1 channel S/PDIF Out |
Gigabyte Z490 AORUS MASTER |
3x PCIe 3.0 x16 | 6x SATA6 3x M.2 |
4x 2.0 2x 3.2 Gen1 |
8 | 2x ARGB 2x RGB |
4x USB 2.0 3x 3.2 Gen1 2x 3.2 Gen2 |
1x 3.2 Gen2 | No | 1x HDMI | Intel 2.5GbE Intel Wi-Fi 6 AX201 |
7.1 channel S/PDIF Out |
Gigabyte Z490 AORUS ULTRA G2 |
2x PCIe 3.0 x16 1x PCIe 3.0 x4 |
6x SATA6 3x M.2 |
4x 2.0 2x 3.2 Gen1 |
8 | 2x ARGB 2x RGB |
4x USB 2.0 2x 3.2 Gen1 3x 3.2 Gen2 |
1x 3.2 Gen2 | No | 1x HDMI | Intel 2.5GbE Intel Wi-Fi 6 AX201 |
7.1 channel S/PDIF Out |
Gigabyte Z490 AORUS ULTRA |
2x PCIe 3.0 x16 1x PCIe 3.0 x4 |
6x SATA6 3x M.2 |
4x 2.0 2x 3.2 Gen1 |
8 | 2x ARGB 2x RGB |
4x USB 2.0 2x 3.2 Gen1 3x 3.2 Gen2 |
1x 3.2 Gen2 | No | 1x HDMI | Intel 2.5GbE Intel Wi-Fi 6 AX201 |
7.1 channel S/PDIF Out |
Gigabyte Z490 AORUS PRO AX |
3x PCIe 3.0 x16 2x PCIe x1 |
6x SATA6 2x M.2 |
4x 2.0 2x 3.2 Gen1 |
8 | 2x ARGB 2x RGB |
4x USB 2.0 3x 3.2 Gen1 2x 3.2 Gen2 |
1x 3.2 Gen2 | No | 1x HDMI | Intel 2.5GbE Intel Wi-Fi 6 AX201 |
7.1 channel S/PDIF Out |
Gigabyte Z490 AORUS ELITE AC |
2x PCIe 3.0 x16 2x PCIe x1 |
6x SATA6 2x M.2 |
4x 2.0 2x 3.2 Gen1 |
5 | 2x ARGB 2x RGB |
4x USB 2.0 4x 3.2 Gen1 2x 3.2 Gen2 |
No | No | 1x HDMI | Realtek 2.5GbE Intel Wi-Fi 9462 |
7.1 channel S/PDIF Out |
Gigabyte Z490 AORUS ELITE |
2x PCIe 3.0 x16 2x PCIe x1 |
6x SATA6 2x M.2 |
4x 2.0 2x 3.2 Gen1 |
5 | 2x ARGB 2x RGB |
4x USB 2.0 4x 3.2 Gen1 2x 3.2 Gen2 |
No | No | 1x HDMI | Realtek 2.5GbE | 7.1 channel S/PDIF Out |
Gigabyte Z490 AORUS VISION G |
3x PCIe 3.0 x16 2x PCIe x1 |
6x SATA6 2x M.2 |
4x 2.0 2x 3.2 Gen1 |
5 | 2x ARGB 2x RGB |
2x USB 2.0 4x 3.2 Gen1 3x 3.2 Gen2 |
1x 3.2 Gen2 | No | 1x DP 1x HDMI |
Intel 2.5GbE | 7.1 channel S/PDIF Out |
Gigabyte Z490 AORUS VISION D |
3x PCIe 3.0 x16 1x PCIe x1 |
6x SATA6 3x M.2 |
4x 2.0 2x 3.2 Gen1 |
5 | 2x ARGB 2x RGB |
2x USB 2.0 4x 3.2 Gen1 2x 3.2 Gen2 |
2x 3.2 Gen2 | 2 | 1x DP 1x HDMI |
Intel 2.5GbE Intel 1GbE Intel Wi-Fi 6 AX201 |
7.1 channel S/PDIF Out |
Gigabyte Z490 AORUS GAMING X |
1x PCIe 3.0 x16 1x PCIe 3.0 x4 1x PCIe x1 |
6x SATA6 2x M.2 |
2x 2.0 2x 3.2 Gen1 |
5 | 2x ARGB 2x RGB |
2x USB 2.0 5x 3.2 Gen1 1x 3.2 Gen2 |
No | No | 1x HDMI | Intel 1GbE | 7.1 channel |
Gigabyte Z490 UD AC | 1x PCIe 3.0 x16 1x PCIe 3.0 x4 3x PCIe x1 |
6x SATA6 2x M.2 |
2x 2.0 2x 3.2 Gen1 |
5 | 2x ARGB 2x RGB |
2x USB 2.0 5x 3.2 Gen1 1x 3.2 Gen2 |
No | No | 1x HDMI | Realtek 1GbE Intel Wi-Fi 9462 |
7.1 channel S/PDIF Out |
Gigabyte Z490 UD | 1x PCIe 3.0 x16 1x PCIe 3.0 x4 3x PCIe x1 |
6x SATA6 2x M.2 |
2x 2.0 2x 3.2 Gen1 |
5 | 2x ARGB 2x RGB |
2x USB 2.0 5x 3.2 Gen1 1x 3.2 Gen2 |
No | No | 1x HDMI | Realtek 1GbE | 7.1 channel S/PDIF Out |
MSI MEG Z490 ACE | 3x PCIe 3.0 x16 2x PCIe x1 |
6x SATA6 3x M.2 |
4x 2.0 2x 3.2 Gen1 |
8 | 1x ARGB 3x RGB |
2x USB 2.0 2x 3.2 Gen1 3x 3.2 Gen2 |
1x 3.2 Gen2 | No | No | Realtek 2.5GbE Intel 1GbE Intel Wi-Fi 6 AX201 |
7.1 channel S/PDIF Out |
MSI MEG Z490 Unify | 3x PCIe 3.0 x16 2x PCIe x1 |
6x SATA6 3x M.2 |
4x 2.0 2x 3.2 Gen1 |
8 | 1x ARGB 3x RGB |
2x USB 2.0 2x 3.2 Gen1 3x 3.2 Gen2 |
1x 3.2 Gen2 | No | No | Realtek 2.5GbE Intel Wi-Fi 6 AX201 |
7.1 channel S/PDIF Out |
MSI MPG Z490 Gaming Carbon WiFi |
3x PCIe 3.0 x16 2x PCIe x1 |
6x SATA6 2x M.2 |
4x 2.0 2x 3.2 Gen1 |
8 | 1x ARGB 3x RGB |
2x USB 2.0 2x 3.2 Gen1 2x 3.2 Gen2 |
1x 3.2 Gen2 | No | 1x DP 1x HDMI |
Realtek 2.5GbE Intel Wi-Fi 6 AX201 |
7.1 channel S/PDIF Out |
MSI MPG Z490 Gaming Edge WiFi |
1x PCIe 3.0 x16 1x PCIe 3.0 x4 2x PCIe x1 |
6x SATA6 2x M.2 |
4x 2.0 2x 3.2 Gen1 |
8 | 2x ARGB 3x RGB |
2x USB 2.0 4x 3.2 Gen1 |
1x 3.2 Gen2 | No | 1x DP 1x HDMI |
Realtek 2.5GbE Intel Wi-Fi 6 AX201 |
7.1 channel S/PDIF Out |
MSI MPG Z490 Gaming Plus |
1x PCIe 3.0 x16 1x PCIe 3.0 x4 3x PCIe x1 |
6x SATA6 2x M.2 |
4x 2.0 4x 3.2 Gen1 |
8 | 1x ARGB 2x RGB |
2x USB 2.0 2x 3.2 Gen1 1x 3.2 Gen2 |
1x 3.2 Gen2 | No | 1x DP 1x HDMI |
Realtek 2.5GbE | 7.1 channel S/PDIF Out |
MSI MAG Tomahawk | 1x PCIe 3.0 x16 1x PCIe 3.0 x4 2x PCIe x1 |
6x SATA6 2x M.2 |
4x 2.0 2x 3.2 Gen1 |
8 | 2x ARGB 2x RGB |
2x USB 2.0 4x 3.2 Gen1 1x 3.2 Gen2 |
1x 3.2 Gen2 | No | 1x DP 1x HDMI |
Realtek 2.5GbE | 7.1 channel S/PDIF Out |
MSI Z490-A Pro | 1x PCIe 3.0 x16 1x PCIe 3.0 x4 3x PCIe x1 |
6x SATA6 2x M.2 |
4x 2.0 4x 3.2 Gen1 |
8 | 1x ARGB 2x RGB |
2x USB 2.0 2x 3.2 Gen1 1x 3.2 Gen2 |
1x 3.2 Gen2 | No | 1x DP 1x HDMI |
Realtek 2.5GbE | 7.1 channel |
mATX
The micro-ATX form factor has been around for a long time, and it was developed by Intel in the mid to late 90s. This form factor (which measures 244 x 244 mm) is a small step-down from ATX. As you might notice from the pictures, one of the first differences between ATX and mATX motherboards is the amount of memory and PCIe slots available. While the amount of PCIe slots might not affect your final decision, the DDR4 slots are much more important since this could limit your future upgrade decisions and make you spend more money in quite expensive high-density memory kits. At the moment there are mATX motherboards with four or two DIMM slots and we recommend choosing a motherboard with four memory slots in order to save money in case of future upgrades.
Compared to the ATX motherboards, there are much fewer models available and the price of the Intel Z490 can be a bit steep. While with mainstream and budget-oriented chipsets you could save some money by buying a micro-ATX model, in regard to the high-end chipset you won't find any cheap motherboards.
Model | PCIe | Storage | USB header | PWM | RGB | USB Type-A | USB Type-C | TB 3 | Video | Networking | Audio |
---|---|---|---|---|---|---|---|---|---|---|---|
ASUS ROG STRIX Z490-G Gaming |
1x PCIe 3.0 x16 1x PCIe 3.0 x4 |
6x SATA6 2x M.2 |
4x 2.0 2x 3.2 Gen1 |
6 | 2x ARGB 2x RGB |
2x 2.0 4x 3.2 Gen1 2x 3.2 Gen2 |
1x 3.2 Gen2 | No | 1x HDMI 1x DP |
Intel 1GbE | 7.1 channel S/PDIF Out |
ASUS ROG STRIX Z490-G Wi-Fi Gaming |
1x PCIe 3.0 x16 1x PCIe 3.0 x4 |
6x SATA6 2x M.2 |
4x 2.0 2x 3.2 Gen1 |
6 | 2x ARGB 2x RGB |
2x 2.0 4x 3.2 Gen1 2x 3.2 Gen2 |
1x 3.2 Gen2 | No | 1x HDMI 1x DP |
Intel 1GbE Intel Wi-Fi 6 AX201 |
7.1 channel S/PDIF Out |
ASUS Prime Z490M-Plus | 1x PCIe 3.0 x16 1x PCIe 3.0 x4 |
5x SATA6 2x M.2 |
4x 2.0 4x 3.2 Gen1 |
5 | 1x RGB | 2x 2.0 6x 3.2 Gen1 2x 3.2 Gen2 |
1x 3.2 Gen2 | No | 1x HDMI 1x DP 1x DVI-D |
Intel 1GbE | 7.1 channel |
ASRock Z490M Pro4 | 2x PCIe 3.0 x16 2x PCIe 3.0 x1 |
4x SATA6 2x M.2 |
2x 2.0 2x 3.2 Gen1 |
6 | 2x ARGB 2x RGB |
4x 3.2 Gen1 1x 3.2 Gen2 |
1x 3.2 Gen2 | No | 1x HDMI 1x DP 1x DVI-D |
Intel 1GbE | 7.1 channel |
Gigabyte Z490M | 1x PCIe 3.0 x16 1x PCIe 3.0 x4 1x PCIe 3.0 x1 |
6x SATA6 1x M.2 |
2x 2.0 1x 3.2 Gen1 |
4 | 1x RGB | 4x 3.2 Gen1 1x 3.2 Gen2 |
1x 3.2 Gen2 | No | 1x HDMI 1x DP 1x DVI-D |
Intel 1GbE | 7.1 channel |
Gigabyte Z490M Gaming X | 1x PCIe 3.0 x16 1x PCIe 3.0 x4 1x PCIe 3.0 x1 |
6x SATA6 1x M.2 |
2x 2.0 1x 3.2 Gen1 |
4 | 2x ARGB 2x RGB |
4x 3.2 Gen1 1x 3.2 Gen2 |
1x 3.2 Gen2 | No | 1x HDMI 1x DP |
Intel 1GbE | 7.1 channel S/PDIF Out |
MSI MPG Z490M Gaming Edge Wi-Fi |
2x PCIe 3.0 x16 2x PCIe 3.0 x1 |
4x SATA6 2x M.2 |
2x 2.0 1x 3.2 Gen1 1x 3.2 Gen1 |
5 | 2x RGB | 2x 2.0 2x 3.2 Gen1 1x 3.2 Gen2 |
1x 3.2 Gen2 | No | 1x HDMI 1x DP |
Intel 1GbE | 7.1 channel S/PDIF Out |
mini-ITX
Last but not least, there's the mini-ITX form factor, which is the smallest type on the list, and it measures 170 x 170 millimeters. This form factor is another step-down and can currently accommodate just a pair of memory modules (max 2x 32 GB) and up to one PCI-Express card. These kinds of motherboards are stuck with only a single PCIe slot and a fewer amount of storage options and internal connectors. Furthermore, in regard to aftermarket CPU coolers, you’ll have to check the size of the heat sink since it could block the memory slots and make future upgrades quite annoying to carry out. Since the components are very close to each other, any kind of task or even building the PC itself might need a bit more time than a more standard ATX system.
Since the mini ITX motherboards are quite small, you could think that they would also be quite cheap but the truth might surprise you. These motherboards are quite expensive since they contain a huge concentration of features, and there are high-end models with daughter PCBs that can cost even more than a regular ATX motherboard.
Model | PCIe | Storage | USB header | PWM | RGB | USB Type-A | USB Type-C | TB 3 | Video | Networking | Audio |
---|---|---|---|---|---|---|---|---|---|---|---|
ASUS ROG STRIX Z490-I Gaming |
1x PCIe 3.0 x16 | 4x SATA6 2x M.2 |
4x 2.0 2x 3.2 Gen1 2x 3.2 Gen2 |
3 | 1x ARGB 1x RGB |
2x 2.0 2x 3.2 Gen1 3x 3.2 Gen2 |
1x 3.2 Gen2 | No | 1x HDMI 1x DP |
Intel 1GbE | 7.1 channel |
ASRock Z490M-ITX/ac | 1x PCIe 3.0 x16 | 4x SATA6 1x M.2 |
1x 2.0 1x 3.2 Gen1 |
3 | 1x ARGB 1x RGB |
2x 2.0 1x 3.2 Gen1 4x 3.2 Gen2 |
1x 3.2 Gen2 | No | 1x HDMI 1x DP |
Intel 1GbE Dragon 2.5GbE Intel Wi-Fi 6 AX201 |
7.1 channel |
ASRock Z490 Phantom Gaming-ITX TB3 |
1x PCIe 3.0 x16 | 4x SATA6 2x M.2 |
1x 2.0 1x 3.2 Gen1 |
3 | 1x ARGB 1x RGB |
2x 3.2 Gen1 3x 3.2 Gen2 |
1x 3.2 Gen2 | 1 | 1x HDMI 1x DP |
Dragon 2.5GbE Intel Wi-Fi 6 AX201 |
7.1 channel S/PDIF Out |
Biostar Z490GTN | 1x PCIe 3.0 x16 | 4x SATA6 1x M.2 |
2x 2.0 2x 3.2 Gen1 |
3 | 1x ARGB 1x RGB |
2x USB 2.0 4x 3.2 Gen1 |
No | No | 1x HDMI 1x VGA |
Intel 1GbE | 7.1 channel |
Gigabyte Z490I Aorus Ultra | 1x PCIe 3.0 x16 | 4x SATA6 2x M.2 |
1x 2.0 1x 3.2 Gen1 |
4 | 1x ARGB 1x RGB |
2x 2.0 4x 3.2 Gen1 1x 3.2 Gen2 |
1x 3.2 Gen2 | No | 1x HDMI 1x DP |
Intel 2.5GbE Intel Wi-Fi 6 AX201 |
7.1 channel |
MSI MEG Z490I Unify | 1x PCIe 3.0 x16 | 4x SATA6 2x M.2 |
2x 2.0 2x 3.2 Gen1 |
3 | 3x RGB | 2x 2.0 2x 3.2 Gen1 1x 3.2 Gen2 |
1x 3.2 Gen2 | 1 | 1x HDMI 1x DP |
Realtek 2.5GbE Intel Wi-Fi 6 AX201 |
7.1 channel S/PDIF Out |
