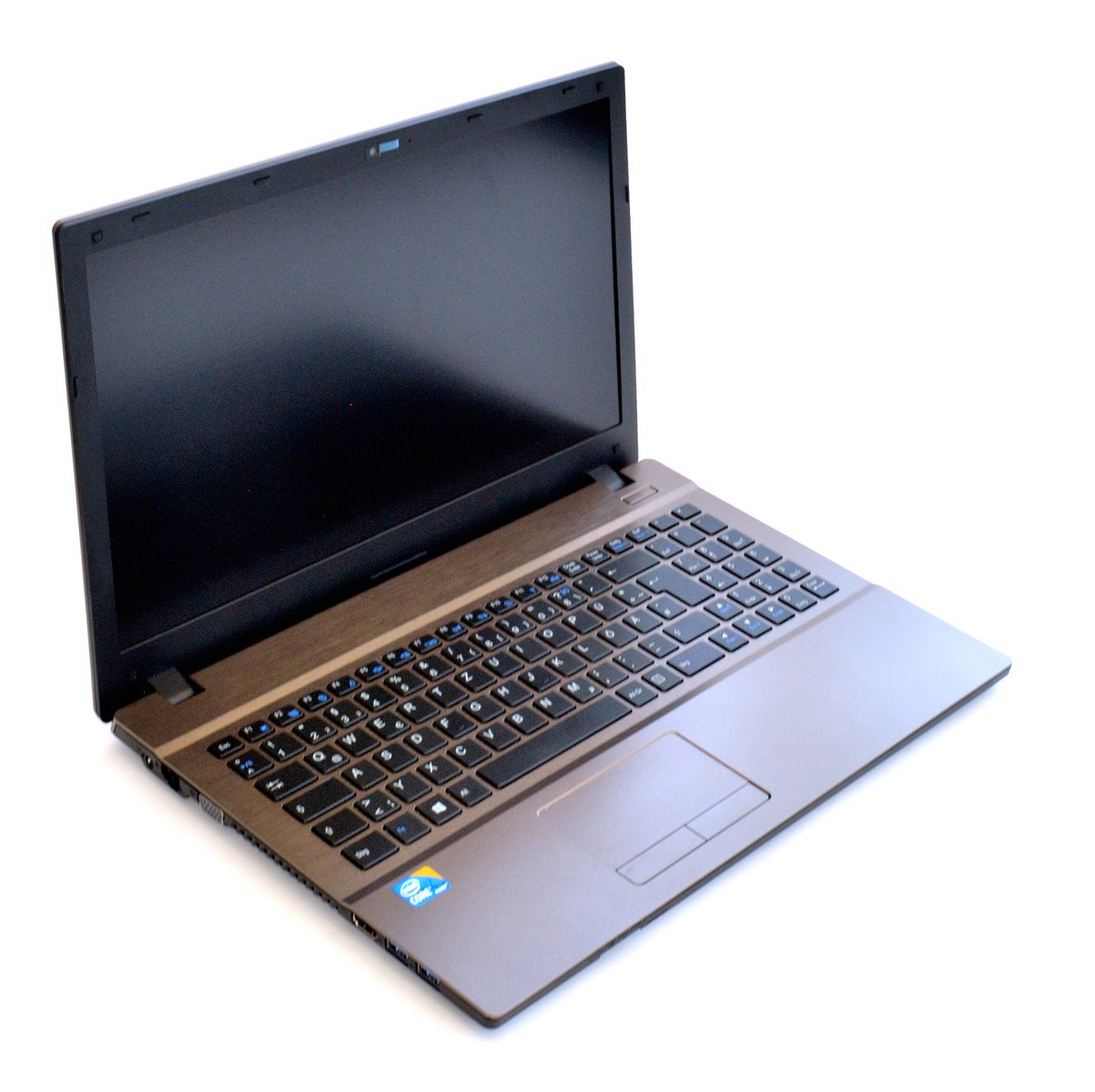

SCHENKER XIRIOS B502 i7-3632QM

Specifications

SCHENKER XIRIOS B502 i7-3632QM
SCHENKER XIRIOS B502 i7-3632QM (XIRIOS B502 Series)
Processor
Intel Core i7-3632QM 4 x 2.2 - 3.2 GHz (Intel Core i7)
Graphics adapter
Intel HD Graphics 4000, Core: 1150 MHz, Memory: 800 MHz
Memory
8 GB
, 2x 4 GB PC3-12800 DDR3 SDRAM
Display
15.60 inch 16:9, 1920 x 1080 pixel, LG Display LP156WF4-SLB5, IPS, glossy: no
Mainboard
Intel HM77 (Panther Point)
Storage
Samsung SSD PM841 MZMTD128HAFV mSATA, 128 GB
, Addition: Seagate Momentus SpinPoint ST320LM001 installed
Soundcard
VIA VT1802P @ Intel Panther Point PCH - High Definition Audio Controller
Connections
2 USB 2.0, 2 USB 3.0 / 3.1 Gen1, 1 VGA, 1 HDMI, 1 Kensington Lock, Audio Connections: Headphone, Microphone, Card Reader: MMC, RSMMC, MS, MS Pro, MS Duo, SD, Mini SD, SDHC, SDXC
Networking
Realtek RTL8168/8111 Gigabit-LAN (10/100/1000MBit/s), Intel Centrino Advanced-N 6235 (a/b/g/n = Wi-Fi 4/), Bluetooth 4.0 LE, 1,3 MP
Optical drive
TSSTcorp CDDVDW TS-U633J
Size
height x width x depth (in mm): 32 x 373 x 252 ( = 1.26 x 14.69 x 9.92 in)
Battery
62 Wh Lithium-Ion
Operating System
Microsoft Windows 7 Home Premium 64 Bit
Additional features
Keyboard Light: no, 24 Months Warranty
Weight
2.2 kg ( = 77.6 oz / 4.85 pounds), Power Supply: 400 g ( = 14.11 oz / 0.88 pounds)
Price
1100 Euro



Pricecompare

Average Score: 79% - good
Average of 1 scores (from 1 reviews)
price: - %, performance: 84%, features: 68%, display: 91% mobility: 85%, workmanship: 67%, ergonomy: 76%, emissions: 87%

Reviews for the SCHENKER XIRIOS B502 i7-3632QM

79% Review Schenker XIRIOS B502 (Clevo W155EU) Notebook | Notebookcheck
Chameleon? Schenker offers an inexpensive and very freely configurable business notebook based on the Clevo W551EU Barebone. Does the endless competition leave room for such an alternative?
German Business von der Schoko-Seite
Source: Tom's Hardware German DE→EN Archive.org version
Positive: device can be composed individually
Single Review, online available, Long, Date: 05/21/2013

Comment

Intel HD Graphics 4000: Processor graphics card in the high end Ivy Bridge models. Offers a different clock speed in the different CPU models (ULV to desktop quad core) and therefore a different performance.

Non demanding games should be playable with these graphics cards.

» Further information can be found in our Comparison of Mobile Graphics Cards and the corresponding Benchmark List.


Intel Core i7: The Intel Core i7 for laptops is based on the LG1156 Core i5/i7 CPU for desktops. The base clock speed of the CPUs is relatively low, but because of a huge Turbo mode, the cores can dynamically overclock to up to 3.2 GHz (920XM). Therefore, the CPU can be as fast as high clocked dual-core CPUs (using single threaded applications) but still offer the advantage of 4 cores. Because of the large TDP of 45 W / 55 W, the CPU is only intended for large laptops.


3632QM: An Ivy Bridge-based quad-core processor clocked at 2.2 GHz with Turbo Boost support up to 3.2 GHz. Offers an integrated HD Graphics 4000 GPU and a dual channel DDR3 memory controller. The speciality of the i7-3632QM is the low TDP of 35 Watt compared to 45 Watt of the other Ivy Bridge quad core CPUs (e.g. 3610QM).» Further information can be found in our Comparison of Mobile Processsors.


15.60":

15-inch display variants are the standard and are used for more than half of all laptops.

The reason for the popularity of mid-sized displays is that this size is reasonably easy on the eyes, often allows high resolutions and thus offers rich details on the screen, yet does not consume too much power and the devices can still be reasonably compact - simply the standard compromise.

» To find out how fine a display is, see our DPI List.


79%: This rating is not earth-shattering. This rating must actually be seen as average, since there are about as many devices with worse ratings as better ones. A purchase recommendation can only be seen with a lot of goodwill, unless it is about websites that generally rate strictly.


» Further information can be found in our Notebook Purchase Guide.
