Amazon Echo Dot Review

Daniel Schmidt, 👁 Daniel Schmidt, Tanja Hinum (translated by Liala Stieglitz), 05/14/2017

Big ears. With the Amazon Dot, we are looking at the smaller of the two speakers from the US-based retail giant. While the assistant Alexa was very convincing in the test, the power consumption and data security provided reasons for criticism.

With its Echo and Echo Dot products Amazon is Google's biggest competitor in terms of speaker and home assistant. We have looked a bit closer at the smaller Echo Dot speaker.

Amazon's Echo Dot is not much more than a small speaker with seven microphones. The product first becomes really useful with its assistant, Alexa that analyzes and implements voice commands. As well as allowing the user to place orders in Amazon's shop, it can play music and audio books, provide news and weather forecasts. It is also possible to program appointment reminders and Smart Home components. The product costs approximately 60 Euros (~$50).

The benefits and risks of Amazon's Echo Dot can be discovered in our test.

Case

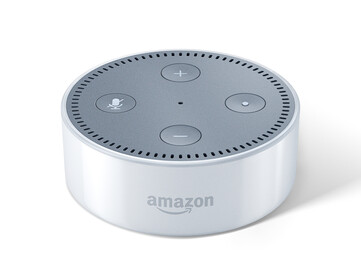

Amazon's Echo Dot has a diameter of 83.5 millimeters (~3.3 in) and weighs 163 grams (~5.7 oz) without its cable. Thus, it is relatively compact and can easily fit on small surfaces. Its rubber-coated underside prevents it from slipping on smooth surfaces.

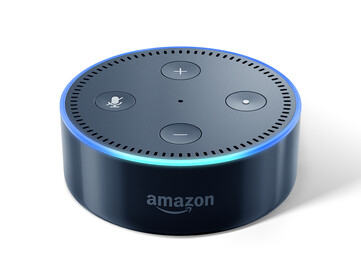

Glossy plastic dominates the casing's exterior, and it is available in black and white. Fabric or leather cases (~10 Euros/~$15) that give the Echo Dot a higher-quality appearance are also available.

It is a pity that the white model also comes with a black power supply and cable.

Amazon Echo Dot
Amazon Echo Dot
Amazon Echo Dot
Amazon Echo Dot
Amazon Echo Dot
Amazon Echo Dot

Connectivity

Amazon's Echo Dot connects to the home network via Wi-Fi. The Wi-Fi module supports the IEEE 802.11 a/b/g/n standards and can use both the 2.4 and 5.0 GHz networks. The more modern ac standard is not supported, but the capacities of the supported standards are quite sufficient for all tasks and even bigger distances to a router (Fritz!Box 6360, 15 meters/~49 ft, angled hallway) were not a problem in the test. Bluetooth is also present; unfortunately, Amazon does not specify the exact version.

A micro USB port for supplying power and a 3.5-mm audio jack are in the casing's bezel below the plus sign. The latter allows connecting the Echo Dot to external speakers. However, users who believe that they can connect the Dot to the stereo system and can still experience a great sound will be disappointed. The connected receiver is then the only output source and the internal speaker is muted. Rather, the audio jack is made for connecting a headphone to Amazon's Echo Dot when the device is used as a streaming client.

Data Security

Probably the most sensitive aspect of using Amazon's Echo products is the data security issue. According to the US Company, the device's seven microphones only record when a trigger word is uttered. The Echo does not analyze the audio file, but it is sent to an Amazon server and processed there. This server does not have to be situated in Germany so that it is possible that the request is processed in a country with weaker data security acts. Furthermore, it makes it easier for secret services and hackers to access data, especially since no information concerning encryption is available. Thus, it is quite possible for third parties to use the microphones for wiretapping the user.

The consumer rights organization of North Rhine-Westphalia has also examined Amazon's Echo products and sees a risk in using the services and in accepting the data privacy statement. Not only Amazon itself uses the gathered information for analyzing consumer's behavior, but it also is allowed to divulge information to third parties within the legal regulations. We would recommend studying articles of consumer organizations for learning how high the data protection risks are for the user and for his/her guests.

Handling

Setting up Amazon's Dot is very easy. The device has only to be connected to an outlet and the free Alexa app (Android and iOS) guides the user through the installation step by step. Additional Echoes can be added or removed via the app later, and it provided information about active Skills, recent voice commands and the organization of Amazon skills and utilized standard applications.

Amazon's assistant Alexa is activated by calling out the preset word (at test time: Alexa, Amazon, echo or computer). The LED ring on the casing that lights up gradually and aligns itself to the user indicates activation visually.

Voice recognition functioned very well, even in a somewhat louder environment, although the user had to speak a bit louder. The provided services worked quite reliably and we only rarely had to repeat a command. Alexa automatically uses Prime Music when music is demanded, but other providers can be selected as the standard service in the app, which also functioned well. In addition, Echo Dot also supports Spotify Connect and thus the device is largely independent of the smartphone. However, it would be practical if the output speaker in Spotify could be switched via a voice command for transmitting the signal to an AV receiver, for example. Knowing the right keywords is important for good voice control so that Alexa understands the corresponding commands.

Many functions can be supplemented via the so-called Skills that add corresponding voice commands from the individual provider to Alexa. These can be an ordering function for delivery services or cabs and even news services or smaller games. Generally, Alexa provides many options out-of-the-box. For example, the user can place orders in Amazon's store or call up the current cinema program, play Audible audio books or keep their personal calendar up-to-date. Among other services, Google and Outlook.com are supported for this purpose. We deem placing orders at Amazon via Alexa as a bit risky, especially when children live at home.

The buttons on the casing's upper side can be used for muting the microphones and volume control. There is also a so-called action button that is occasionally needed for setting up Amazon's Echo Dot.

Smart Home Control

One of the fundamental features of Amazon's Echo Dot is controlling Alexa Smart Home products via the assistant. The user can scan for compatible products within the home network directly with the Alexa app. Our experience showed that devices that use the ZigBee protocol are identified directly and can be controlled via Alexa immediately. Z-Wave products require Skills provided by the manufacturer. Alternatively, they can be added via the IFTTT (If This, Then That) service. However, this involves a higher configuration effort and less technically savvy users will find it more difficult to do.

We tested the functionality with Philips Hue lamps (ZigBee) and a Devolo Smart Home (Z-Wave). The Hue lamps were identified without issues and could be controlled directly. Alexa uses the lamps' names; unfortunately, the room settings of the Hue hub are disregarded. It is possible to turn the lights on and off and to dim them via voice control without further settings. Users who want to directly control different scenarios and moods will have to install an additional Skill. This adds corresponding commands for all lamps that are visible as Smart Home devices in the Alexa app. However, this can quickly become confusing and may require sorting.

Devolo products could only be controlled via IFTTT at the market launch, which is still possible. This functions quite well, but the service sometimes needs quite a long time (up to 30 seconds) before implementation. A Skill is now available for Devolo's Smart Home products, which allows implementing scenarios directly and which is also much faster.

Voice control itself functions well, but learning some vocabulary to prevent frustration is necessary at first. We would wish that Alexa had a bigger selection of supported synonyms. While "Alexa, switch on the lights" worked perfectly, everything remained dark when saying "Alexa, turn on the light".

Independent journalism is made possible by advertising. We show the least amount of ads whenever possible but we intentionally show more ads when an adblocker is used. Please, switch off ad blockers and support us!

Emissions and Energy Management

Temperature

The surface temperatures of Amazon's Echo Dot are within an absolutely uncritical range. At an ambient temperature of 21.4 °C (~70.5 °F), the Flir One thermal camera measured a maximum of 34.9 °C (~95 °F). Although the temperature is quite noticeable on the plastic surface, it is absolutely harmless. However, the temperature development indicates a relatively high dissipation loss.

Speaker

The speaker quality is the biggest difference between Amazon's big Echo and the Echo Dot. While the more expensive model is quite suitable for listening to music, the smaller model only provides a limited quality and is made for voice output in our opinion.

The quality is acceptable, but a really good sound output is not possible. The sound impression is too unbalanced and the Echo Dot simply lacks power and volume especially at full volume. The mids and high tones are relatively linear, but the Echo is not capable of playing low tones and the speaker has problems with trebles starting at 6 kHz. Thus, the Dot tends to sound tinny at a high volume.

The output via the audio jack is decent. We would have wished for aptX protocol support for the Bluetooth connection.

dB(A) 0102030405060708090Deep BassMiddle BassHigh BassLower RangeMidsHigher MidsLower HighsMid HighsUpper HighsSuper Highs2031.636.62525.435.73125.329.14032.928.55033.630.76331.629.18028.429.91002739.112520.846.21602252.720021.360.225020.864.531521.270.340019.475.950019.577.863017.777.880017.977.5100017.876.9125017.376.7160017.475.5200016.771.5250017.270315018.270.9400017.970.7500017.667.1630017.758.1800017.850.71000017.950.61250018.145.51600018.246.6SPL3085.4N1.362.9median 17.9median 70Delta1.311.931.659.725.465.925.366.232.967.133.669.531.677.928.480.72785.620.886.82288.221.388.720.88821.282.919.486.919.58417.784.317.984.417.885.717.385.517.486.816.787.217.286.318.285.817.984.917.684.317.781.617.879.917.979.418.181.218.277.73097.21.3150.7median 17.9median 85.51.31.831.661.525.459.925.361.332.971.733.682.131.68628.483.62782.620.885.92286.121.387.520.88421.282.119.486.919.586.817.786.117.984.917.883.617.381.417.479.516.77917.281.918.281.617.981.117.681.917.78117.874.717.978.318.181.418.277.33094.31.3133.3median 17.9median 81.91.32.5hearing rangehide median Pink NoiseAmazon Echo DotBose SoundLink IIIB&O Play A2
Amazon Echo Dot audio analysis

(+) | speakers can play relatively loud (85.4 dB)
Bass 100 - 315 Hz
(±) | reduced bass - on average 14.6% lower than median
(±) | linearity of bass is average (12.9% delta to prev. frequency)
Mids 400 - 2000 Hz
(±) | higher mids - on average 6.2% higher than median
(+) | mids are linear (3.3% delta to prev. frequency)
Highs 2 - 16 kHz
(±) | reduced highs - on average 7.9% lower than median
(+) | highs are linear (6.2% delta to prev. frequency)
Overall 100 - 16.000 Hz
(±) | linearity of overall sound is average (20% difference to median)
Compared to same class
» 41% of all tested devices in this class were better, 8% similar, 50% worse
» The best had a delta of 3%, average was 21%, worst was 53%
Compared to all devices tested
» 41% of all tested devices were better, 8% similar, 50% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Bose SoundLink III audio analysis

(+) | speakers can play relatively loud (97.21 dB)
Bass 100 - 315 Hz
(+) | good bass - only 2.1% away from median
(+) | bass is linear (3.4% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1% away from median
(+) | mids are linear (1.9% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 2.6% away from median
(+) | highs are linear (1.6% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (3.3% difference to median)
Compared to same class
» 0% of all tested devices in this class were better, 1% similar, 99% worse
» The best had a delta of 3%, average was 18%, worst was 41%
Compared to all devices tested
» 0% of all tested devices were better, 0% similar, 100% worse
» The best had a delta of 3%, average was 21%, worst was 53%

B&O Play A2 audio analysis

(+) | speakers can play relatively loud (94.3 dB)
Bass 100 - 315 Hz
(+) | good bass - only 2.8% away from median
(+) | bass is linear (3% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 3.1% away from median
(+) | mids are linear (2.5% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.8% away from median
(+) | highs are linear (3.4% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (4% difference to median)
Compared to same class
» 1% of all tested devices in this class were better, 1% similar, 98% worse
» The best had a delta of 3%, average was 18%, worst was 41%
Compared to all devices tested
» 0% of all tested devices were better, 0% similar, 100% worse
» The best had a delta of 3%, average was 21%, worst was 53%

Frequency diagram in comparison (checkboxes above can be turned on/off!)

Power Consumption

The strong power supply's nominal output of 9 watts (5.2 volts, 1.8 amperes) surprised us a bit. The power consumption of Amazon's Dot ranges between 2.86 watts and 4.38 watts when we used the Alexa assistant at full volume. The consumption dropped a bit when we reduced the volume to minimum and we measured 1.67 to 4.23 watts.

In fact, the speaker is relatively efficient considering that streaming music at full volume consumed 1.98 to 2.43 watts. The device's energy consuming part is apparently Alexa and its microphone. When we used the assistant while playing music, we even measured a power consumption of over 6 watts.

Amazon's Echo Dot needs quite a lot of power when it is not used in standby with a minimum power consumption of 1.63 watts. Thus, the power costs of the assisting speaker will add up to at least 4.14 Euros (~$4.50) annually (calculation basis: 365 days and 29 cent/31 cents per kWh). Users who want to use the device as far-reaching as possible in their home should consider how many Dots are really necessary.

It is also possible to use Amazon's Echo Dot with an external battery.

Pros

+ assistant Alexa
+ expandable via skills
+ compact build

Cons

- data security
- high standby power consumption

Verdict

In review: Amazon Echo Dot
In review: Amazon Echo Dot

With the Amazon Echo Dot, the US Company offers a home assistant at a fair price that definitely has its charm thanks to the assistant Alexa. We see its advantages primarily in the Smart Home control that does not require additional switches or a smartphone. However, voice control is sometimes awkward here and also needs a smart configuration depending on the device.

The other features are impressive; integrating it into an existing audio system is difficult, though. Furthermore, users who would like to listen to music via the Echo should perhaps consider the larger speaker. Smaller organizational tasks, the timer and reminder functions and playing audio books functioned well in the test.

Amazon's Echo Dot and Alexa are a strong team, but there is a need for improvement in terms of data security.

We see the greatest point of criticism for Amazon's Echo Dot in the data security aspect. We would wish that Amazon provides clear statements concerning data encryption and guarantees a high data protection standard.

Amazon's Echo Dot fits perfectly in the retail giant's product portfolio. Although the added value in everyday use is not tremendous and is often just a nice gimmick, this gives the product an entertainment value and is particularly interesting for controlling Smart Home products.
