Review Asus Eee PC 4G Subnotebook

Family PC - According to Asus this small and reasonable notebook is a notebook for the whole family. Here you can read how it performed in our technical tests and whether it is able to actually replace the classical PC.

Test Asus EeePC Notebook

Case

The big display hinge (combined with battery) dominates the design of the Eee PC. Overall it looks good - rather decent. The only optical highlight are the two stereo speakers located beside the display. They make the display look like providing 4:3 format on a wide-screen TV. Due to the striped frame this still looks good. The used materials look good and feel nice to the touch too.

The flexural rigidity of the bottom trough is without doubt very good. It hardly yields under pressure, so that it is able to safely protect the inner parts. The same is true for the lid.
Gaps are overall even and the battery is attached tightly to the case, something, which one cannot take for granted as other notebooks prove.

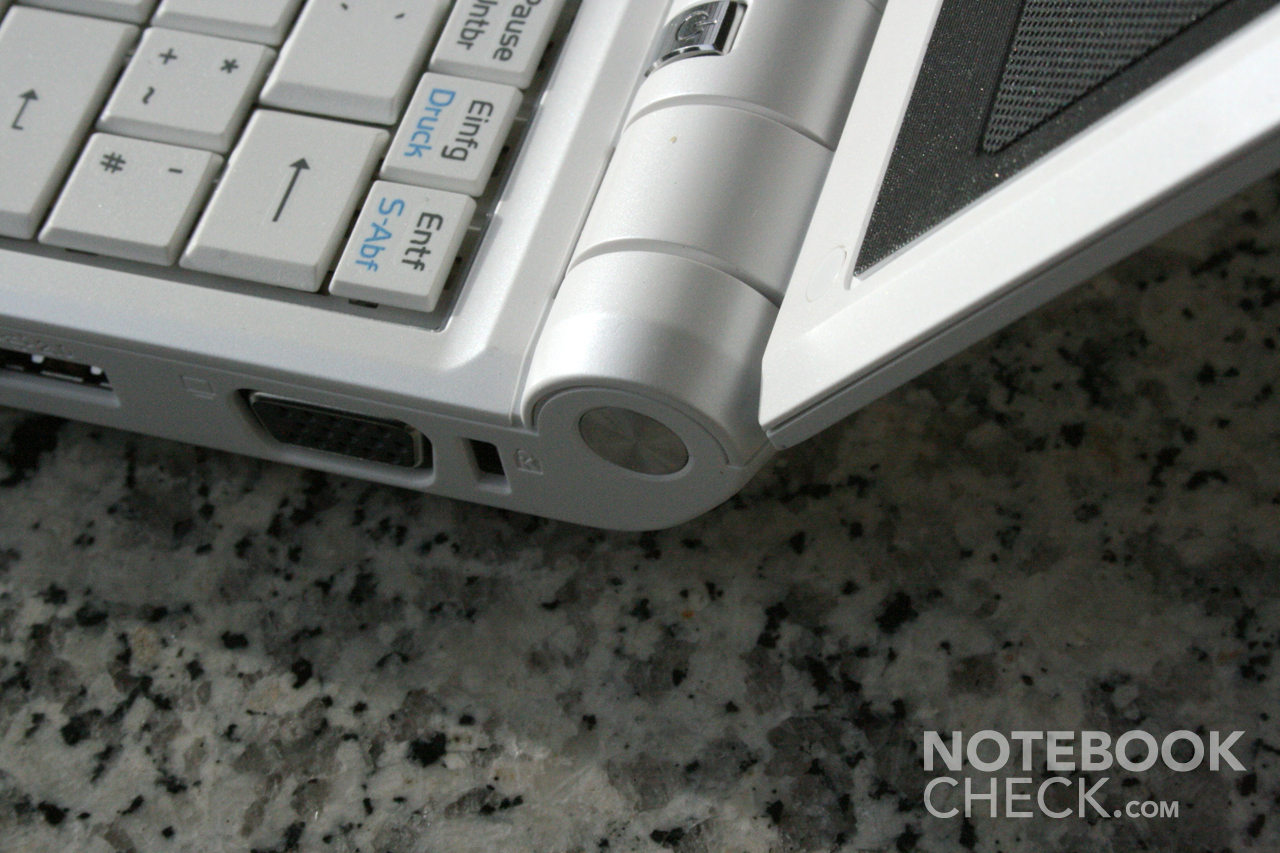

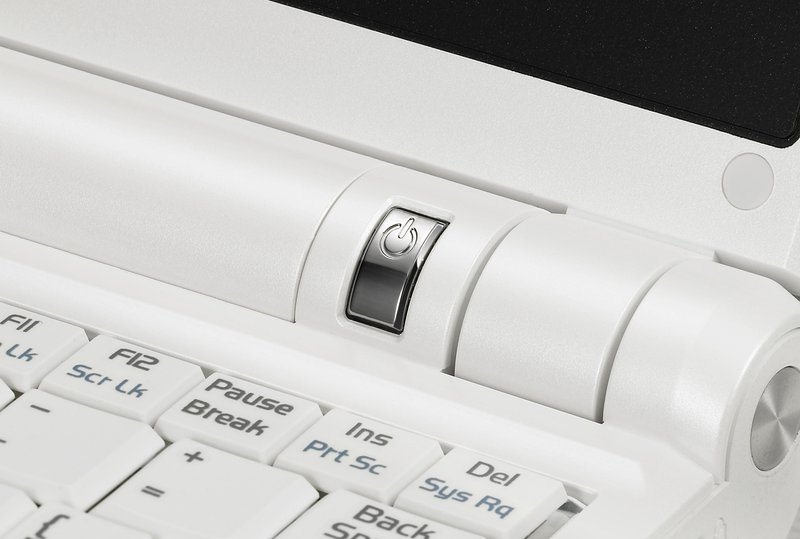

The dominating display hinge appears to be robust and supports every adjusted opening angle without any see-saw. The Eee PC has no transport hook, so, you should carry it in the provided protective cover.

Considering the small case the interface equipment is generous. LAN, WLAN, 3x USB, headphone, microphone, SD/MMC card reader (for increasing the memory capacity), and VGA are at the left or right sides of the case. Beside a 10/100 MBit LAN port there is also a modem port, which is covered by a plastic cover. We suspect that it is not connected, because also the manufacturer does not list it. According to Wikipedia only the 4G (a model which does not support extensively browsing the Internet) provides an integrated modem.

The built-in WLAN card by Atheros worked combined with our WLAN router Trendnet TEW-633GR without problems. Under Linux and Windows XP we only needed to key in the WPA password. Afterwards we had a stable connection.

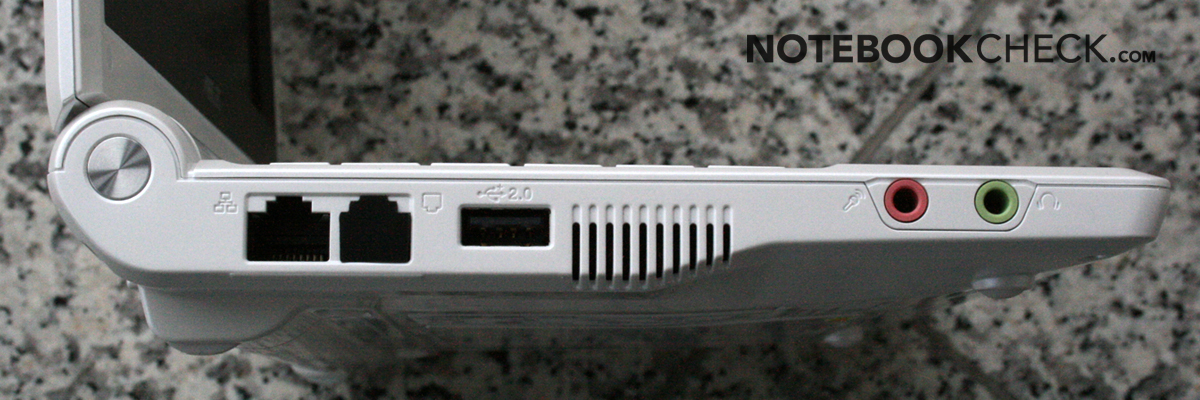

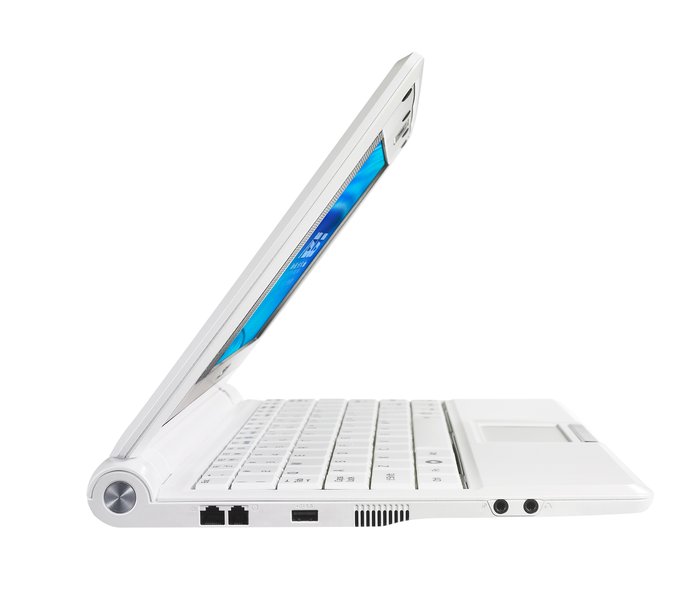

Left Side: LAN, USB, Microphone, Headphone
Left Side: LAN, USB, Microphone, Headphone

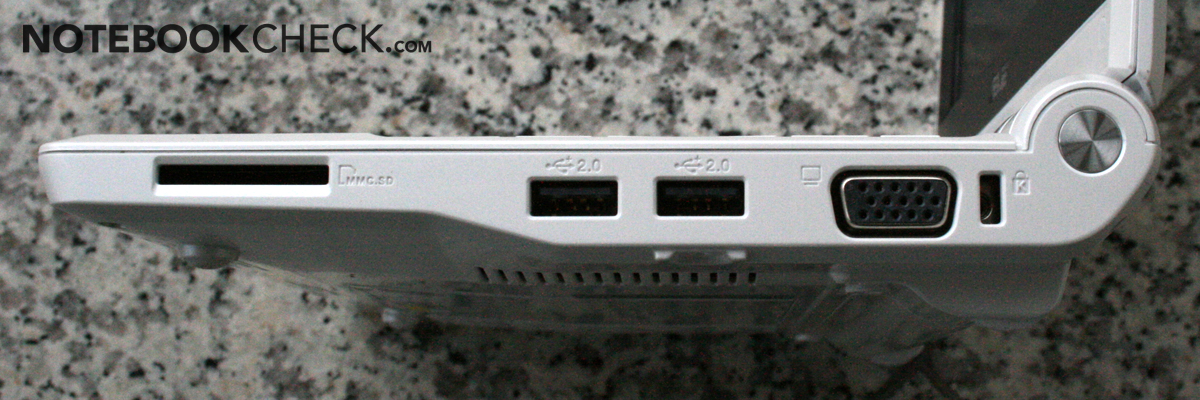

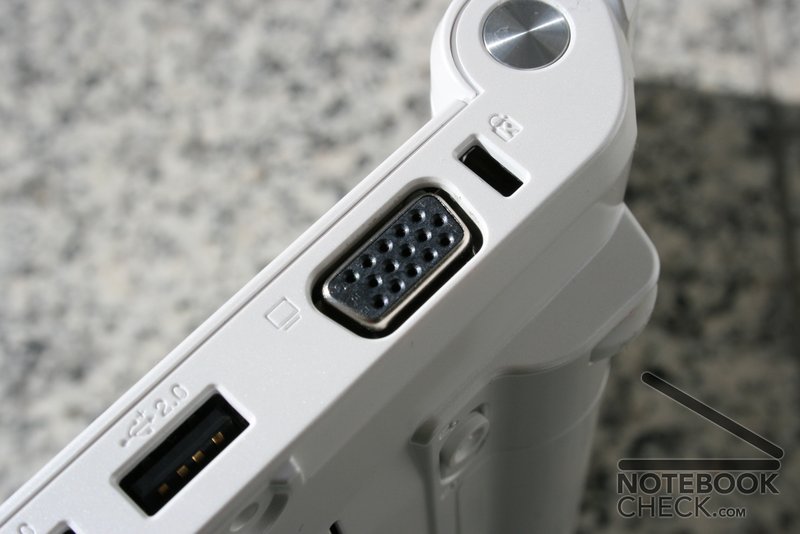

Right Side: Kensington Lock, VGA, 2x USB, SD/MMC Card Reader
Right Side: Kensington Lock, VGA, 2x USB, SD/MMC Card Reader

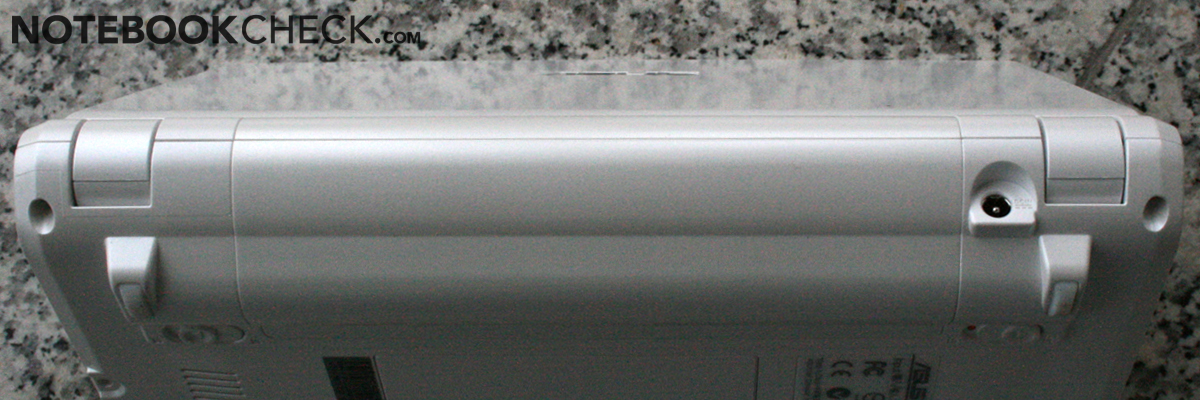

Back Side: Power Connector
Back Side: Power Connector

The built-in 0.3 MegaPixel web cam has to be activated in the BIOS first. Afterwards you can either use it with the UVC camera tool (for pictures and videos) or if you download the newest Skype Beta 2.0 for Linux also for video chats in Skype. The quality of the pictures is sufficient for simple video chats.

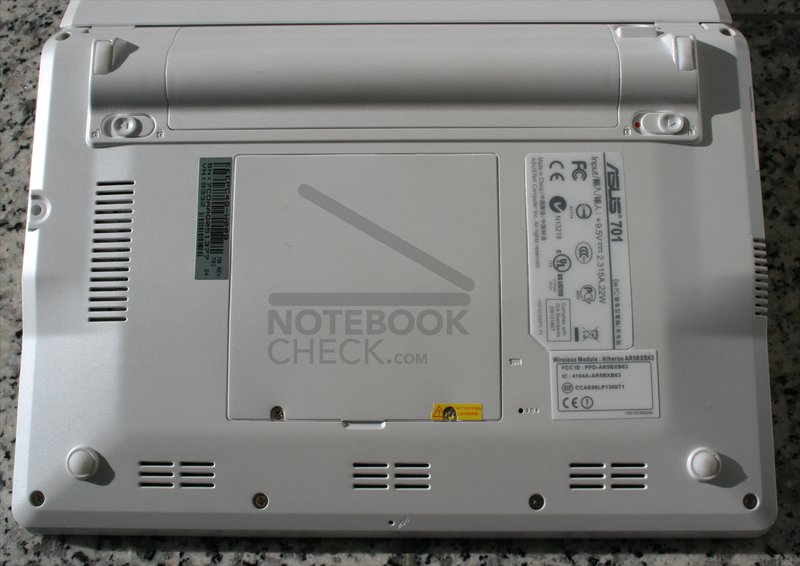

Furthermore, there is a small cover fixed with two screws at the bottom side of this very small notebook. Beneath it you'll find the single, but, replaceable memory module. Although it says, that you'll loose warranty, if the seal is broken, you shouldn't have any problems, if you replace the memory in a professional manner. In the meanwhile this has also been confirmed by Asus via media (News in German).

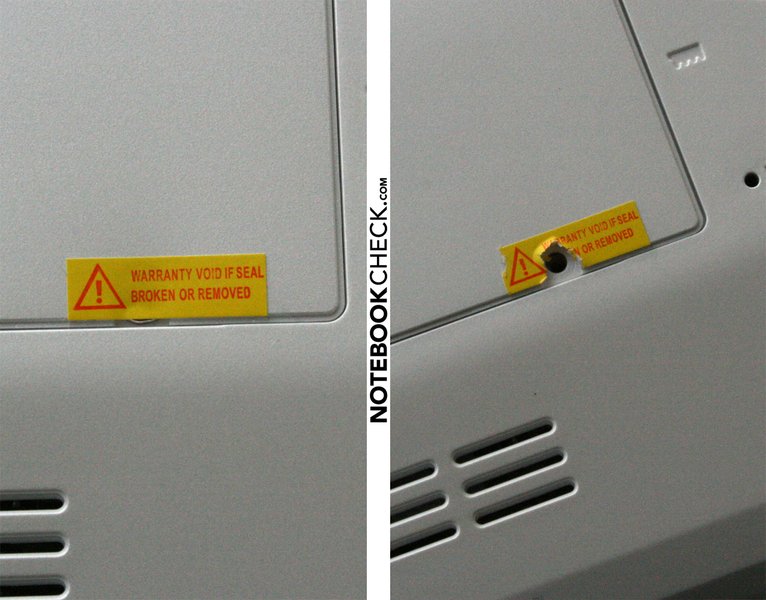

Warranty seal

Input Devices

The first serious weakness of the Asus Eee PC notebook is that its keyboard is, because of its total size, small. The size of the keys is only 16 mm x 14 mm (13 mm x 13 mm at the top, the size of the umlauts is even only 11 mm x 13 mm). So, only persons with small finger are able to touch type and this only after some time of getting used to the small keys. Because of very little space, also the keyboard layout had to be changed. Thereby it is most annoying that the right shift key was somewhat moved to the right. So, you'll hit the 'cursor up' key again and again instead. This is most annoying if you work with a Linux shell.
The keyboard itself is attached sufficiently tight, the key feedback is very clear, and the key travel sufficient. Besides the layout problem with the shift key, the keyboard is considering the size of the notebook in general alright.

The touch pad reacts sensibly and has an scroll area, but, its size is only 45 x 31 mm², which is very small. With standard settings it is just possible to move the mouse pointer from one side to the other. Despite this, you'll knock against its borders again and again. Primary and secondary mouse button are designed as chrome moulding with toggle push button. So, clicking works only on the outer third of the button. Here you'll need some time to get used to too.

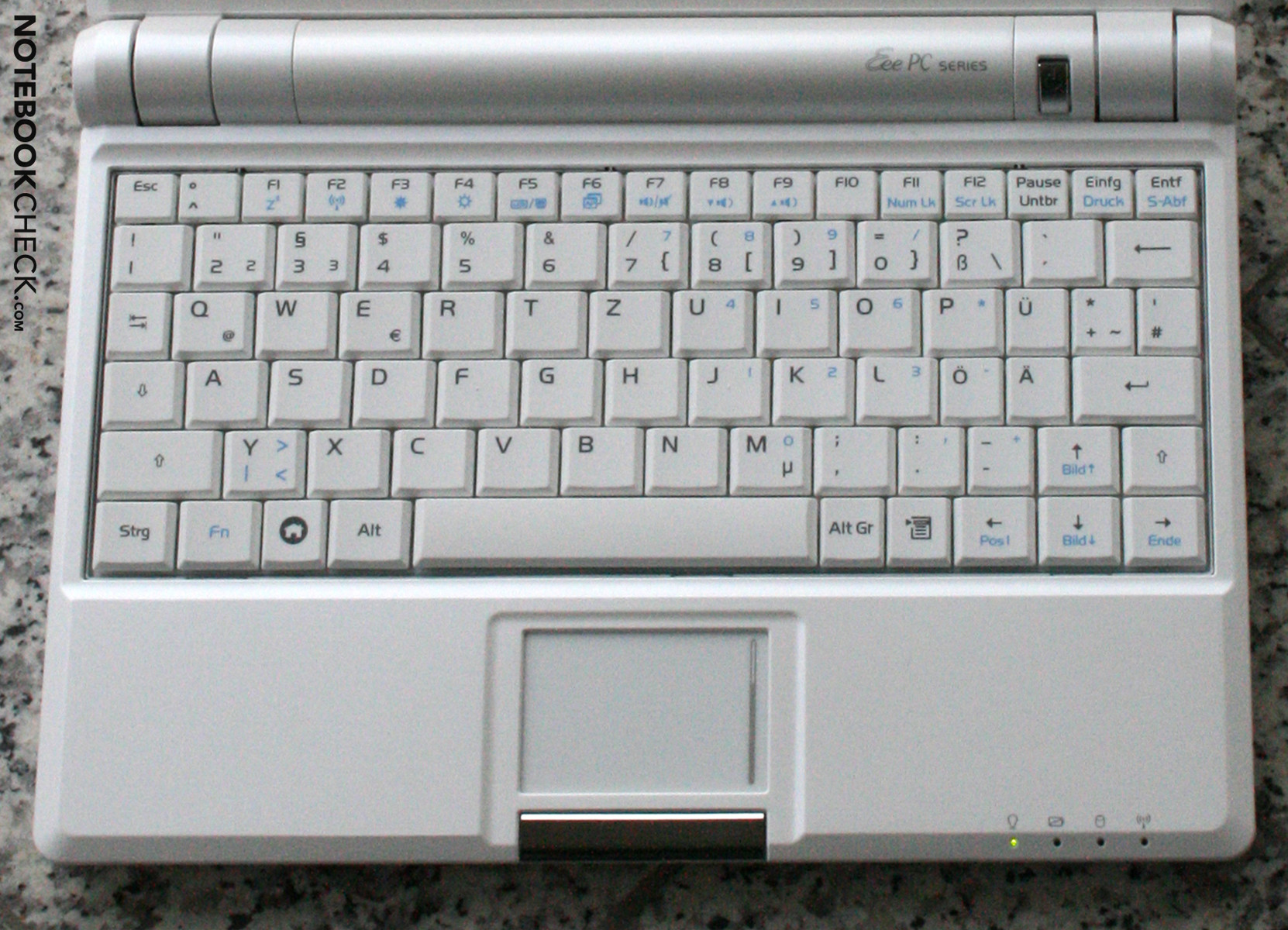

Keyboard

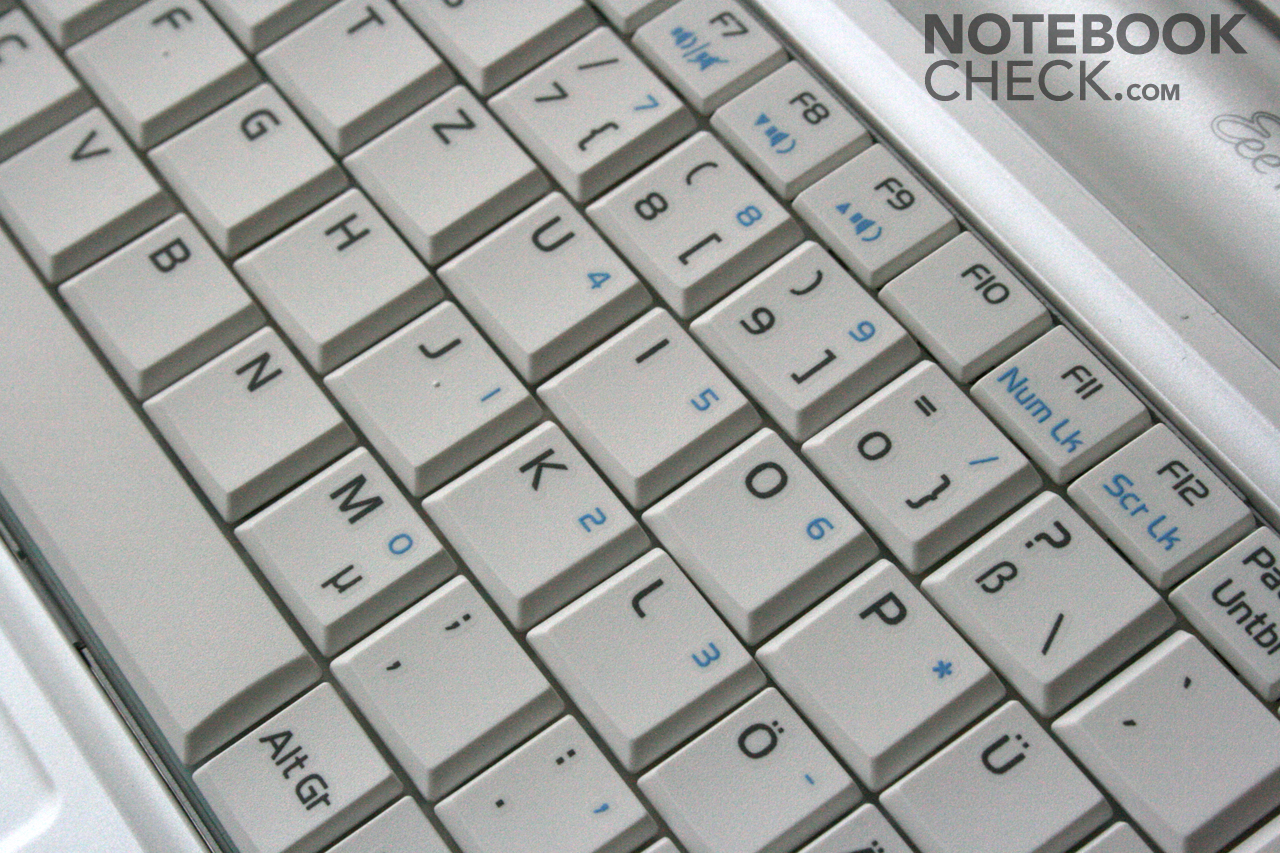

Keyboard of the Eee PC

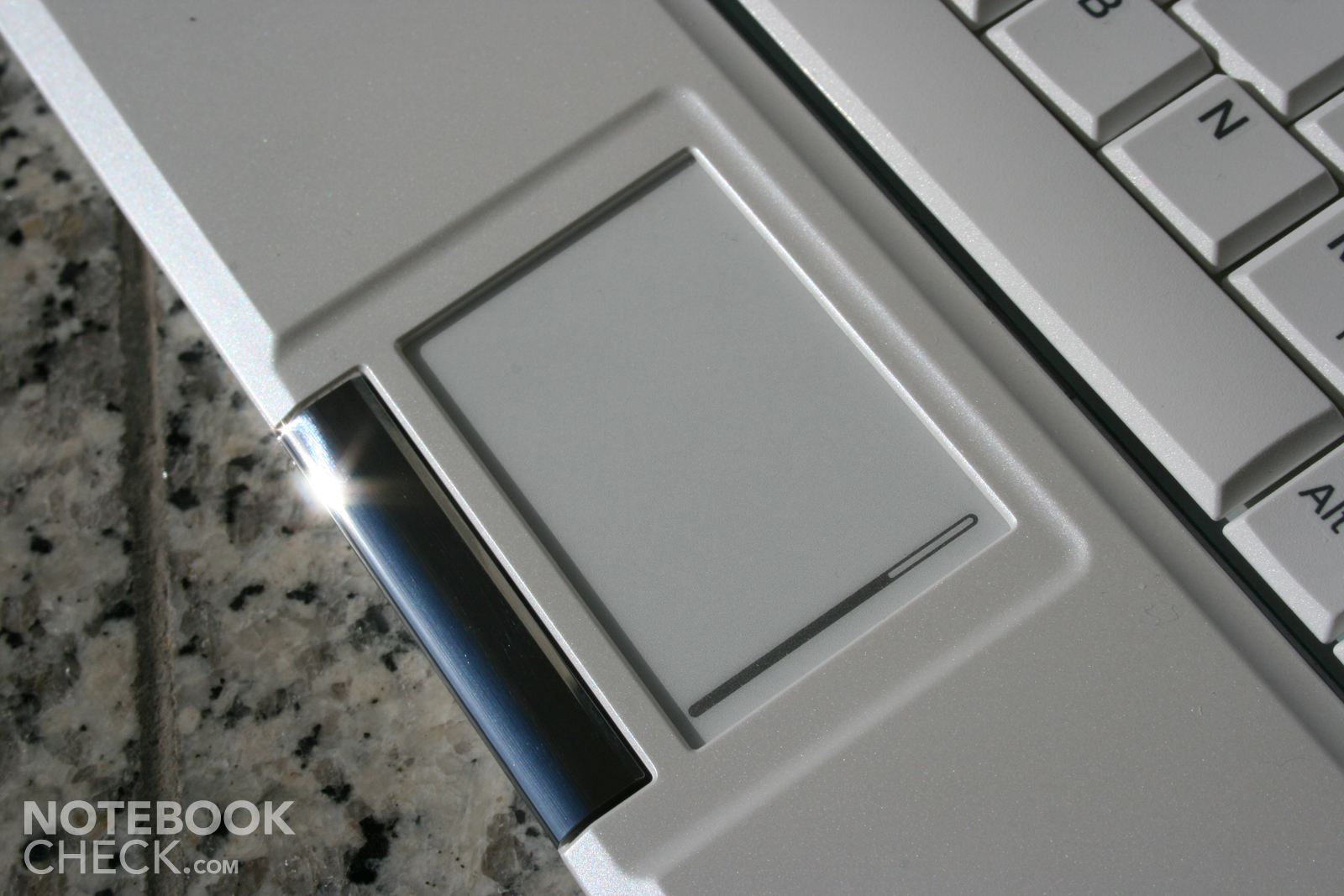

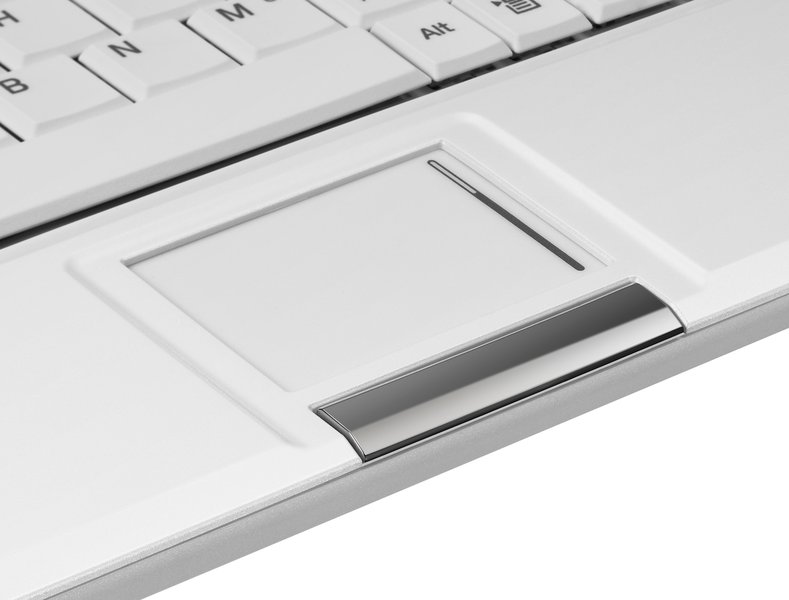

Touch Pad
Touch pad of the Eee PC

Display

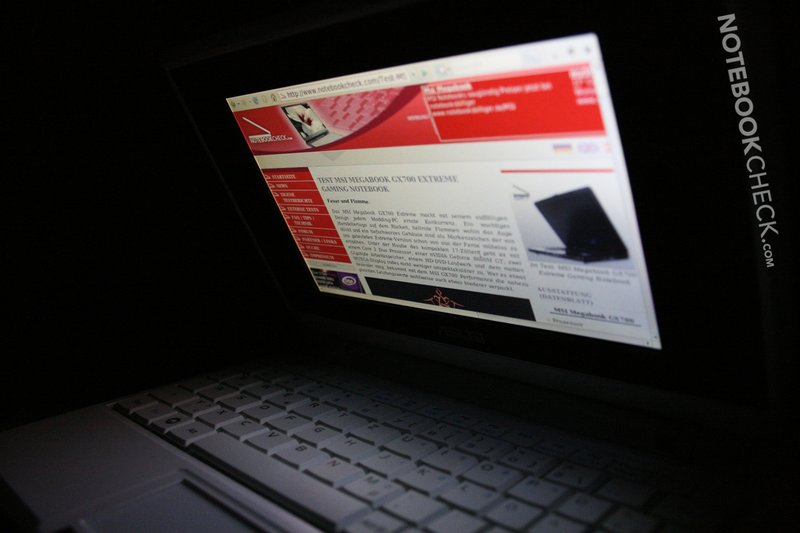

The small 7" TFT display with LED background lightening is surely the weakest point of the Eee PCs. Due to the small resolution of only 800x480 pixels  the desktop size is clearly too small. Sometimes even system dialogues cannot completely be  displayed, whereas this is true under Windows XP and standard Linux desktop). So, you need to hide the task bar and if this is still not sufficient, you need to blind choose the proper option with tab and enter. Under Windows, there is a tool, which sets the resolution to 800x600 and allows scrolling.

Furthermore, the maximum brightness of only 91.6 Candela is rather low. This is sufficient for working indoors, but, it is hardly possible to work outside in the sunshine. So, you cannot really gain profit from the otherwise good mobility of this very small notebook. To summarize, a trans-reflecting display or a better background lightning would have been better choices. Also due to the small size of the display the viewing angles are relatively good.

80.6
cd/m²
77.6
cd/m²
76.6
cd/m²
87.7
cd/m²
91.6
cd/m²
82.7
cd/m²
80.4
cd/m²
79.7
cd/m²
81.5
cd/m²
Distribution of brightness
Information
Maximum: 91.6 cd/m²
Average: 82 cd/m²
Brightness Distribution: 84 %
Black: 0.25 cd/m²
Contrast: 366:1

It's easy to enhance the available desktop size by connecting an external screen to the VGA out. However, the pre-installed Linux supports only a resolution of up to 1024x768 pixels at the external screen. Under Windows XP we could run the external screen with usable definition with a resolution of up to 1280x1024 at 75 Hz.

Compared to the reference screen (Dell 2407WFPD) the colours appear to be somewhat cold. The low black value of 0.25 Candela gives together with the maximum brightness an acceptable contrast ratio of 366:1. However,  because of the low maximum brightness you won't really notice this.

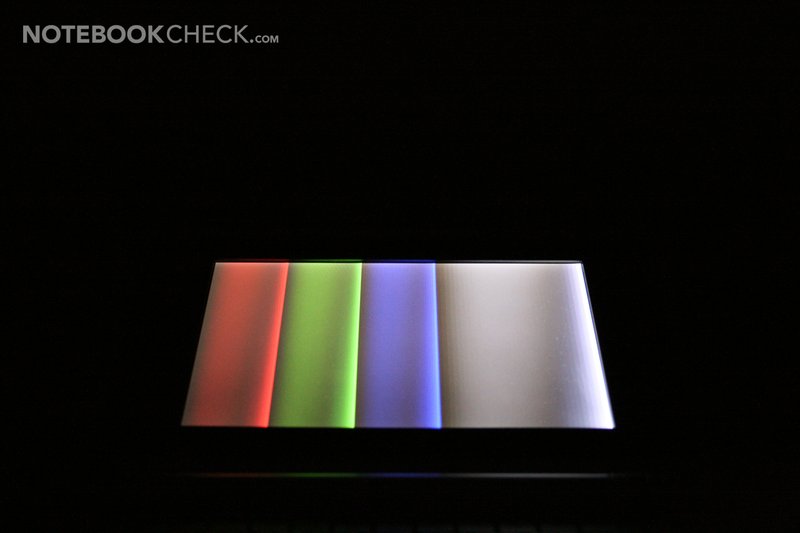

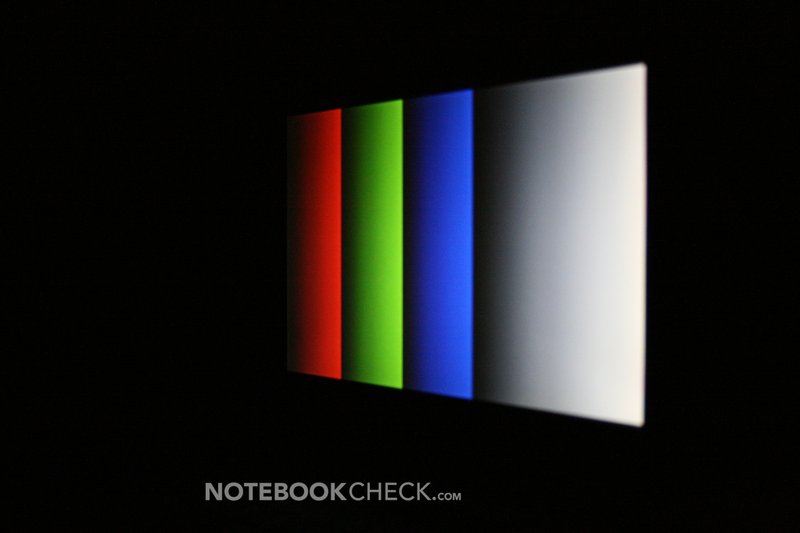

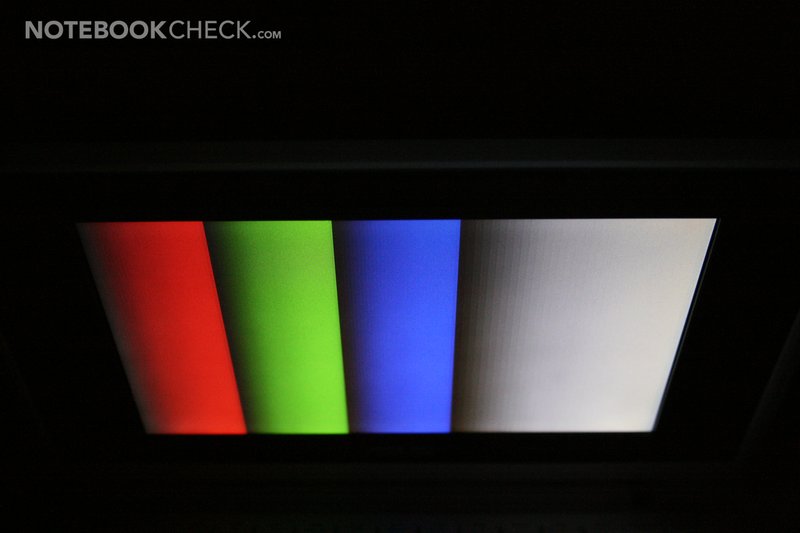

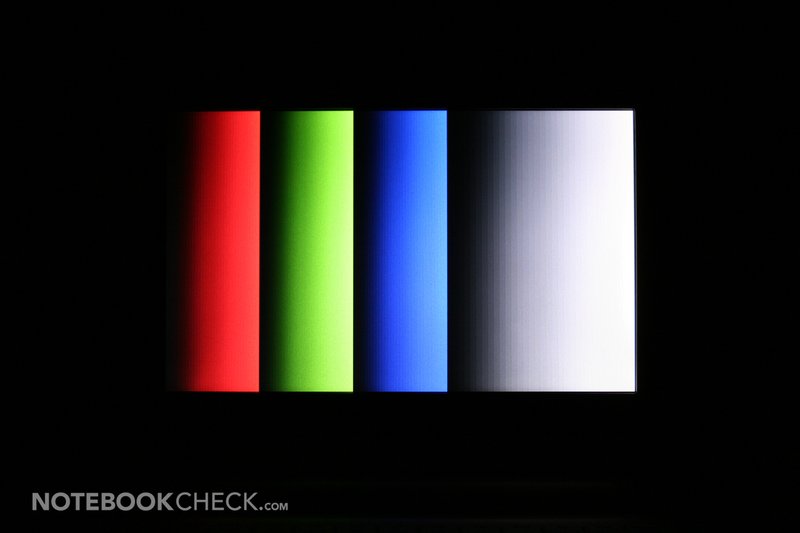

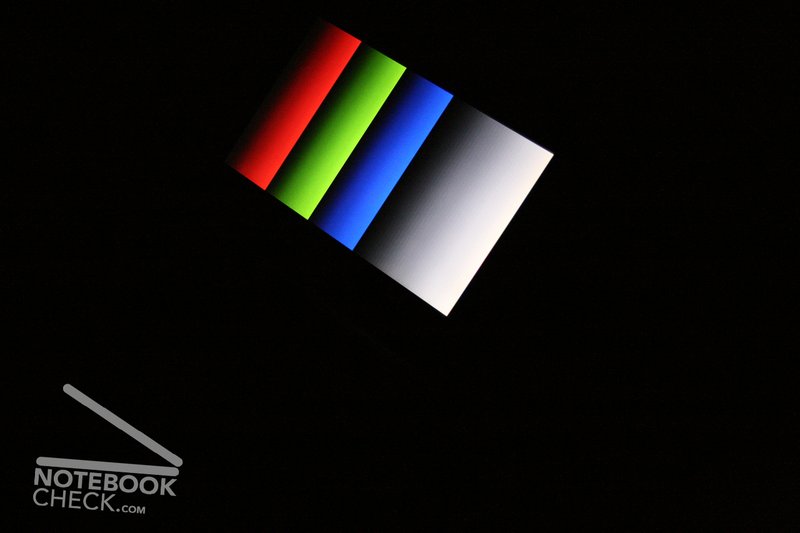

Horizontally the viewing angles are good, i.e., the contrast stays a long time at nearly the same level. Looking top down, the colours change much faster. However, due to the small panel size this is hardly a big problem.

Asus Eee-PC Viewing Angles
Asus Eee-PC Viewing Angles
Asus Eee-PC Viewing Angles
Asus Eee-PC Viewing Angles
Asus Eee-PC Viewing Angles
Asus Eee-PC Viewing Angles
Asus Eee-PC Viewing Angles


Performance

Due to a Celeron-M CPU and integrated video chip (GMA 900) the performance of this reasonable small notebook is rather moderate. The Celeron M, specified with 900MHz was due to reducing the FSB clock rate from 100 MHz (FSB 400) to 70 MHz (FSB 280) with 630 MHz lower clocked. Therefore the performance is rather poor.
When displaying complex web pages, we noticed a short delay, which was not really annoying.

This is also proved by the PCMark 05 benchmark. The Eee-PC is worse than all other notebooks reviewed so far, but, surprisingly,  only slightly worse than the Samsung Q30 with Intel Pentium M 753 1.2 GHz ULV processor.

Its 3D Mark 2001 benchmark results are even better than those of two of its subnotebook competitors (Sony Vaio VGN-TX2XP/B and Nexoc Osiris S607). The performance is still absolutely insufficient for playing 3D games. Only Quake 3 Arena, a rather old game, was playable with an average of 31 fps (1024x768 - high). Warcraft 3 was playable in single user mode, but not very well (20 fps in single player mode with some details). The Aquamark test resulted in´2632 points (starting with 3000 Aquanox should be playable with low details). Doom 3 was even with low details far away from running smoothly. 2.8 fps are the speed you change pictures in a slide show. We ran all test with the provided, out-of-date video driver (6.14.10.4704) for GMA 900. Running test with the newest driver downloaded from Intel's homepage (6.14.10.4764) resulted in less points in the 3D Mark 2001 benchmark and a crash of the 3D Mark 2003.

Bigger notebooks with Intel or AMD processor perform clearly better in this aspect. However, games are not the field of operation the Eee PCs was designed for.

The performance of the Eee PC is sufficient for daily work. We could start working with the pre-installed and adapted Xandros Linux already 26 seconds after we turned the computer on. The OpenOffice software bundle ran without problem and without longer delays. The same is true for browsing the Internet. This small notebook could also handle most video format (YouTube, DivX, DVD from external HDD) without problems. However, its performance was not sufficient for HD videos. Of course you'll need a modern core duo processor for watching HD videos.

To summarize, the Family notebook is no portable gaming notebook, but fast enough for Office and Internet applications.

Quake 3 Arena - Timedemo
 ResolutionSettingsValue
 1024x768highest, 0xAA, 0xAF32.1 fps
Doom 3
 ResolutionSettingsValue
 640x480Low, 0xAA, 0xAF2.8 fps
3D Mark
3DMark 2001SE1726 points
3DMark 05279 points
Help
3DMark 05 in comparison
Nokia Booklet 3G (min)
 Z530, Graphics Media Accelerator (GMA) 500
120
   ...
Asus Eee PC R101
 N450, Graphics Media Accelerator (GMA) 3150
272
Sony Vaio VPCM11M1E/W
 N450, Graphics Media Accelerator (GMA) 3150
276
Asus Eee PC 701 4G (RM miniBook)
 630 MHz, Graphics Media Accelerator (GMA) 900
279
Samsung NC210-A01DE
 N550, Graphics Media Accelerator (GMA) 3150
280
Samsung NF210-HZ1
 N550, Graphics Media Accelerator (GMA) 3150
280
   ...
Alienware M18x R2 (max)
 3920XM, Radeon HD 7970M Crossfire
36878
PC Mark
PCMark 05855 points
Help
PCMark 05 in comparison
Acer Aspire One 751 (min)
 Z520, Graphics Media Accelerator (GMA) 500
692
   ...
Nokia Booklet 3G
 Z530, Graphics Media Accelerator (GMA) 500
820
Asus Eee PC 701 4G (RM miniBook)
 630 MHz, Graphics Media Accelerator (GMA) 900
855
Samsung Q30
 753, Extreme Graphics 2
861
Zepto Notus A12
 A110, Graphics Media Accelerator (GMA) 950
890
   ...
Fujitsu Celsius H710 WXP11DE (max)
 2820QM, Quadro 1000M
13842

Compared to the slow 1.8" hard disk of the Samsung Q30 the SSD hard disk by SiliconMotion inside the Eee PC is excellent.  The constantly high transfer rate of about 30 MB per second is noticeable. However, compared to up-to-date high-performance notebook hard disks, e.g., a Hitachi Travelstar HTS722020K9SA00 inside the Schenker MySn M570RU the transfer rates appear low. The Hitachi runs at 7200 rpms and has transfer rates in between 30 and 66 MB/s. The SSD has a access time of only 0.5 ms and clearly outperforms the Hitachi regarding this aspect, whose access time is 15 ms. Overall the SDD is regarding performance alright. However, its capacity is low.

You can enhance the low hard disk capacity by, e.g., attaching an external hard disk. The reviewed one had a transfer rate of nearly 20 MB/s (in comparison: desktop PC with P5B attached to USB Hub: 25 MB/s, MacBook Pro: 30 MB/s).

Silicon Motion SM223A
Transfer Rate Minimum: 5.9 MB/s
Transfer Rate Maximum: 30.6 MB/s
Transfer Rate Average: 28.7 MB/s
Access Time: 0.5 ms
Burst Rate: 30.8 MB/s
CPU Usage: 7 %

Emissions

Even in idle mode the fan starts running after about 20 minutes and keeps running afterwards. Because of the small case and because the Intel Celeron comes without speed-step technology this is no surprise. It seems that the processors clock rate is reduced to 112 MHz in idle mode under Linux though. Nonetheless, the fan reacts very similar under Windows and Linux. Actually, we didn't notice any difference.

Although the whirring of the fan  is rather quiet, it is accompanied by a nasty high frequency noise. Due to its inherent technology the SSD hard disk is nearly utterly quiet during the first 20 minutes. Even if you put your ears onto the case you will hardly hear anything.

Noise Level

Idle 28 / 35.5 / 35.5 dB(A)
HDD 28 dB(A)
Load 35.5 / 36.0 dB(A)

    30 dB
silent
40 dB
audible
50 dB
loud

min: , med: , max:     (15 cm distance)

Temperature

The temperature of this small notebook increases to up to 39°C in area of the keyboard. However, we didn't feel that this is disturbing (test in winter), because the maximum temperature of the palm rest area was 36°C, which is alright. In summer, if it's hot, this could lead to sweating hands.

Max. Load
 34.1 °C36.8 °C36.6 °C
 36.3 °C39.1 °C39.2 °C
 35.3 °C36.7 °C36.8 °C
Maximum: 39.2 °C
Average: 36.8 °C
32.2 °C32.9 °C36.3 °C
32.4 °C33.3 °C36.3 °C
33.2 °C35.3 °C35.7 °C
Maximum: 36.3 °C
Average: 34.2 °C
Room Temperature 21 °C

Speakers

The two  stereo speakers besides the display are not really loud and without basses, but there sound is clear. So, they are fit for background music and sound of videos.
Audio out via the provided Sennheiser PC 150 headset is flawless. Even at maximum volume the sound was undistorted and without disturbing noise.

Battery Runtime

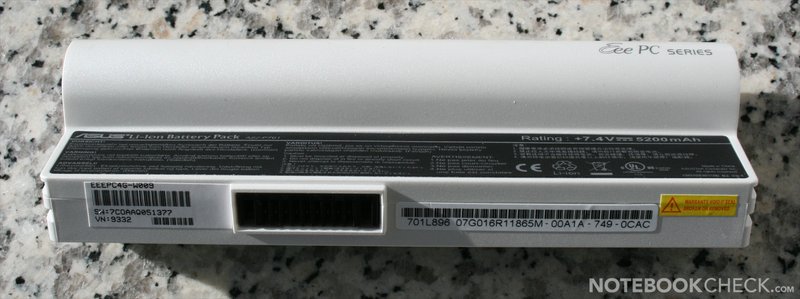

The runtime of the 38.5 Wh battery, which weighs nearly 200g, ranges depending on the load from 2 to 3h. The difference between idle mode and full load is low, because their energy demand is very similar. Because the notebook comes quickly back from stand-by mode, the battery is sufficient for occassionally use during the day (accessing mail, writing, browsing the Internet).

BatteryEater Reader
BatteryEater Reader

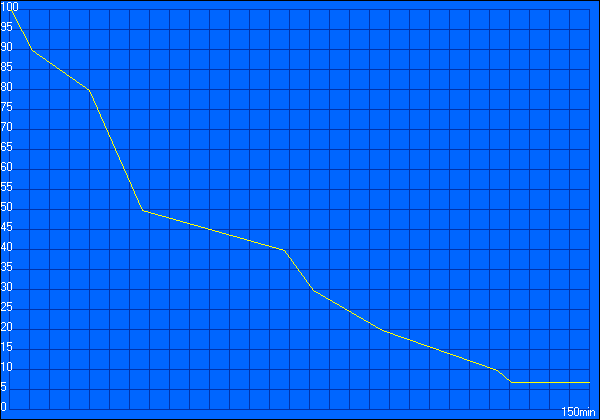

BatteryEater Classic
BatteryEater Classic
Battery Runtime
Idle (without WLAN, min brightness)
3h 18min
WiFi Surfing
2h 41min
Load (maximum brightness)
2h 14min

This small notebook does not demand a lot of energy. Only between 13 and 18 Watt are energy demands, which are worth mentioning, especially in times of increased environmental awareness.  However, the energy demand in stand-by mode is rather high. Especially bad: During our review the energy demand of the Eee PC was even 4 Watt when turned off.

Power Consumption

Idle 13 / 16 / 18 Watt
Load 18 / 18 Watt

Key: min: , med: , max:

Missing USB DVD Drive

After a software update the reviewed notebook brought only up a black desktop. We could not start the menu any longer. Obviously the simpleui.rc was corrupted by the Asus Update Utility. We tried to fix the problem, by restoring the original file from the recovery partition. Unfortunately there was no recovery partition on the reviewed notebook. So, we had to restore via USB CD-ROM drive or via sufficiently big USB stick. Unfortunately, we could not get hold of any of them during our short test period.

In order to get the operating system image on a CD, we accessed the Asus CD via a desktop CD drive. The software immediately prompted us to provide the AsusACPI driver (of course for the EeePC, as we saw later on). Unfortunately, FreeOS, a tool for copying images, did not recognize the external hard disk, which was FAT32 formatted.

Finally we found the original file on this web page:
http://wiki.eeeuser.com/list:simpleui.rc
Unfortunately, there was still no success. The launcher still claimed that the file were corrupt. The final solution was to format a CompactFlash card via USB card reader (we used the one of our digital camera, which was sufficiently big) and to copy the recovery system onto it. Restoring was, after booting from CompactFlash card (ESC for boot menu), pretty easy.

Following these instructions (German) we also installed Windows XP on the Eee PC.

Verdict

Asus Eee PC Price/Performance Award

Easy to Learn, Easy to Work, Easy to Play - EeePC - this is how Asus calls its small notebook. This is especially true, because of the very well adapted Xandros Linux. However, you should not expect too much. Especially if you need to configure something not supported by the Asus Launcher, you'll need in depth knowledge of Linux. If you are willing to learn, you'll find a lot of help for every change (even concerning hardware) provided by many Internet forums.

Because of its size the EeePC has to be compared to other subnotebooks. Here its biggest weakness gets obvious at once: The low resolution of its display. Without modifications using the standard Linux desktop (KDE) or the Windows desktop with 800x480 is not very user-friendly. The poor brightness of this LED illuminated display is another con.

During typing, a layout problem due to moved right shift key is very annoying. The small size of the keys is due to the small overall size, so, it cannot really be criticized.

Noise and temperature emissions are alright, but far away from 'very good'. The fan could be quieter and the temperature characteristics better. Although the battery runtime is not overall long, it is alright.

To summarize, the Eee PC cannot replace a PC, because there are too many restrictions due to performance and ergonomics and the final rating reflects this. Because of its low price, it is a good second PC. Its Linux desktop, which can be intuitively used, makes it an ideal 'Family PC' also for beginners.

Pictures

Asus EeePC Notebook
Asus EeePC Notebook
Asus EeePC Notebook
Asus EeePC Notebook
Asus EeePC Notebook
Asus EeePC Notebook
Asus EeePC Notebook
Asus EeePC Notebook
Asus EeePC Notebook
Asus EeePC Notebook
Asus EeePC Notebook
Asus EeePC Notebook
Asus EeePC Notebook
Asus EeePC Notebook
Asus EeePC Notebook
Asus EeePC Notebook
Asus EeePC Notebook
Asus EeePC Notebook
Asus EeePC Notebook
Asus EeePC Notebook
Reviewed: Asus Eee PC Familiy Notebook
Reviewed: Asus Eee PC Familiy Notebook

Specifications

Asus Eee PC 701 4G (RM miniBook)

:: Processor
Intel Celeron M 630 MHz 0.63 GHz
:: Mainboard
Intel 910GML
:: Memory
512 MB, DDR2 (1x 512MB)
:: Graphics adapter
:: Display
7.0 inch 16:10, 800x480 pixel, glossy: no
:: Harddisk
Silicon Motion SM223A, 4 GB attached via PCI-E
:: Soundcard
HD Audio
:: Connections
3 USB 2.0, 1 VGA, 1 Kensington Lock, Audio Connections: microphone, headphones, Card Reader: SD/MMC, 0.3 MPix web cam, integrated microphone
:: Networking
Atheros L2 100MBit (10/100MBit), Atheros AR5007EG (b g )
:: Size
height x width x depth (in mm): 3.7 x 23 x 16
:: Weight
1 kg Power Supply: 0.2 kg
:: Battery
38.5 Wh Lithium-Ion
:: Price
299 Euro
:: Operating System
Xandros Linux
:: Additional features
protective cover, manual, recovery CD, AsusLauncher, OpenOffice, various Linux software and games, 24 Months Warranty

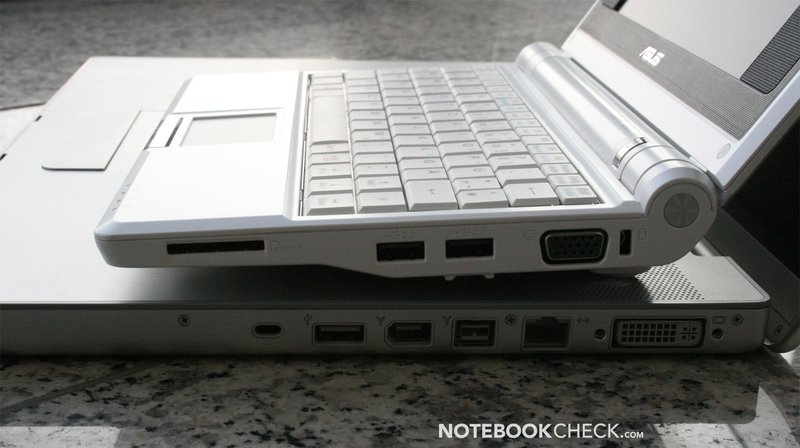

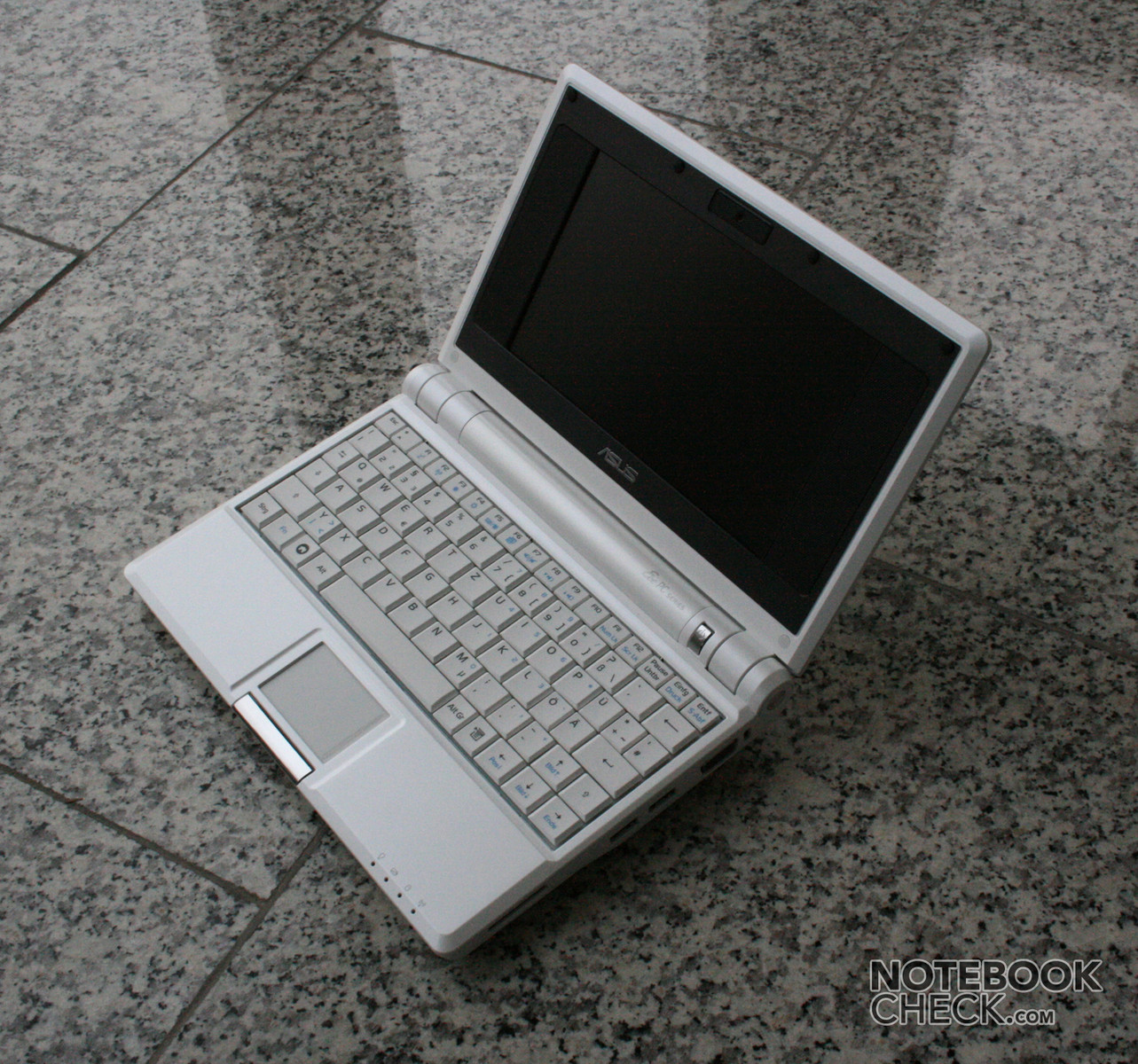

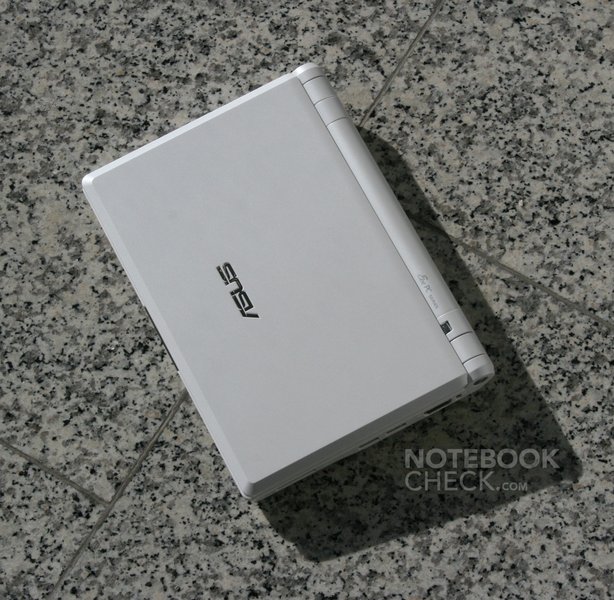

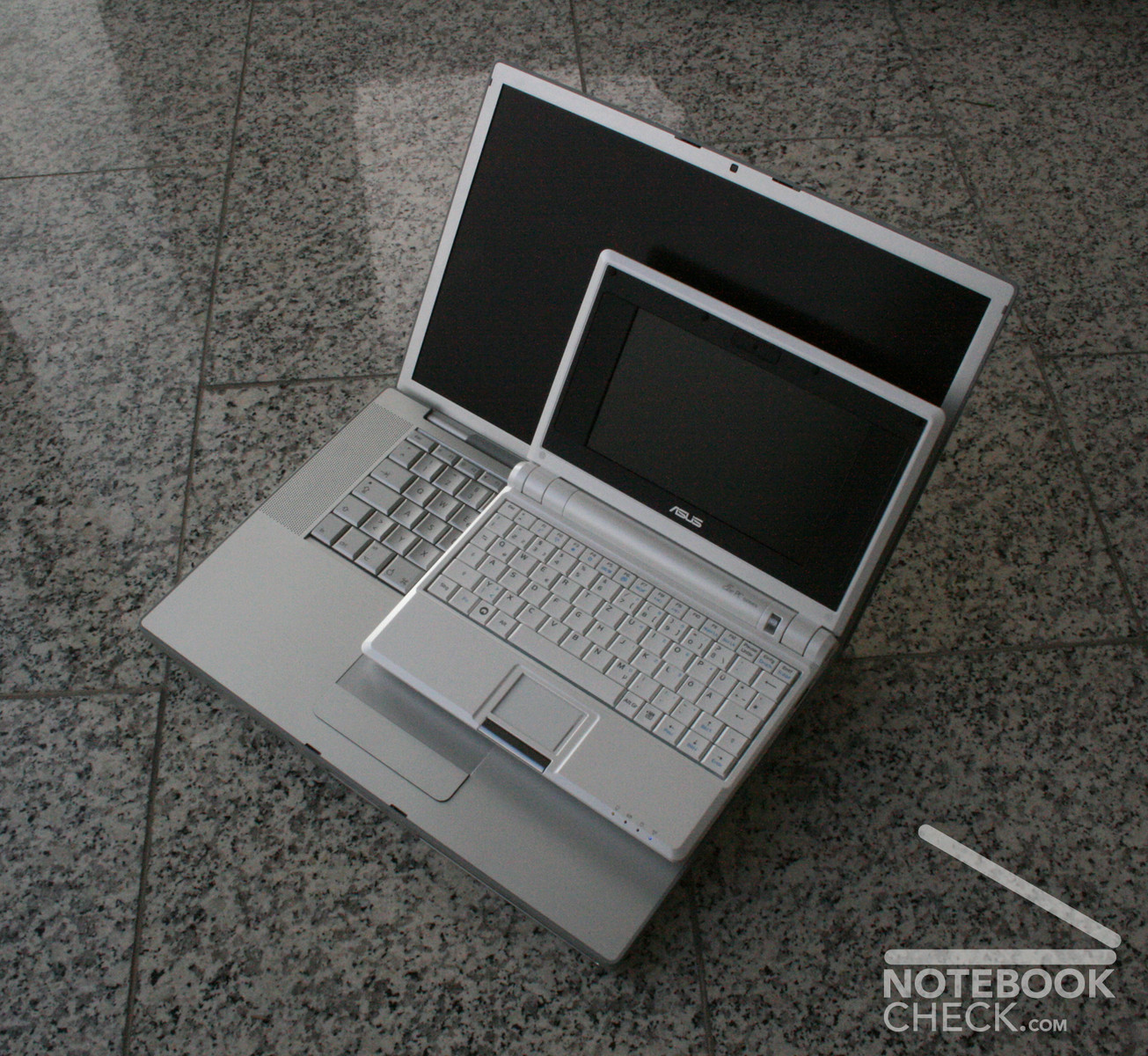

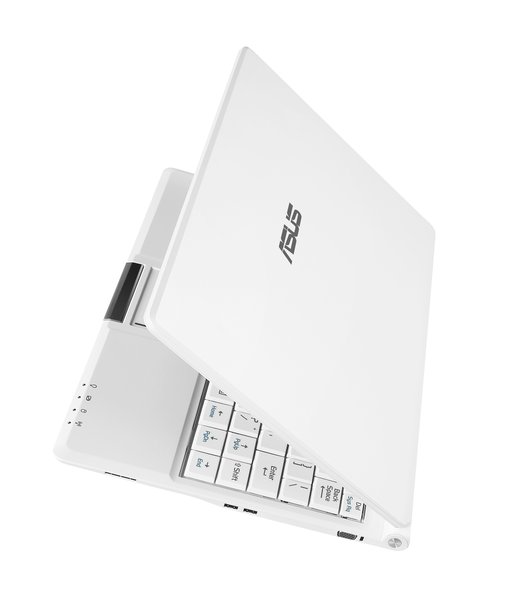

The Asus EeePC weighs below 1 kg and is designed as family PC.
The Asus EeePC weighs below 1 kg and is designed as family PC.

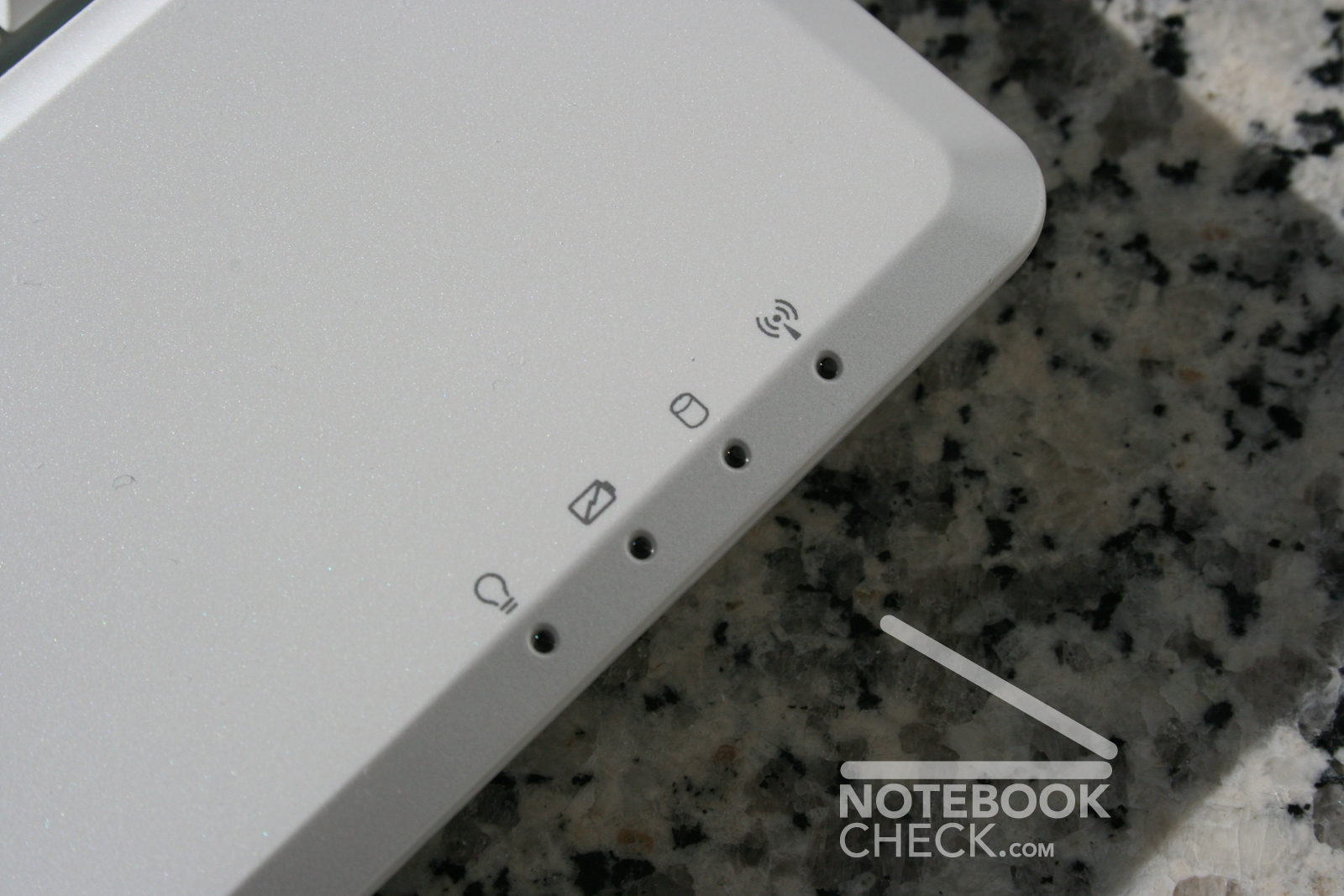

Indicator LEDs at the right front edge inform about the current operating mode.
Indicator LEDs at the right front edge inform about the current operating mode.

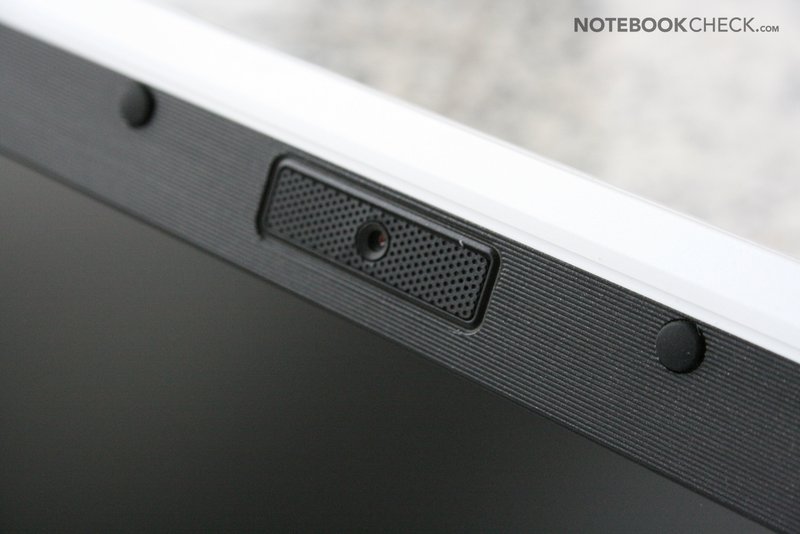

A 0.3 MPixel web cam and an built-in microphone are also provided.
A 0.3 MPixel web cam and an built-in microphone are also provided.
The quality of the small web cam is sufficient for video telephony.
The quality of the small web cam is sufficient for video telephony.

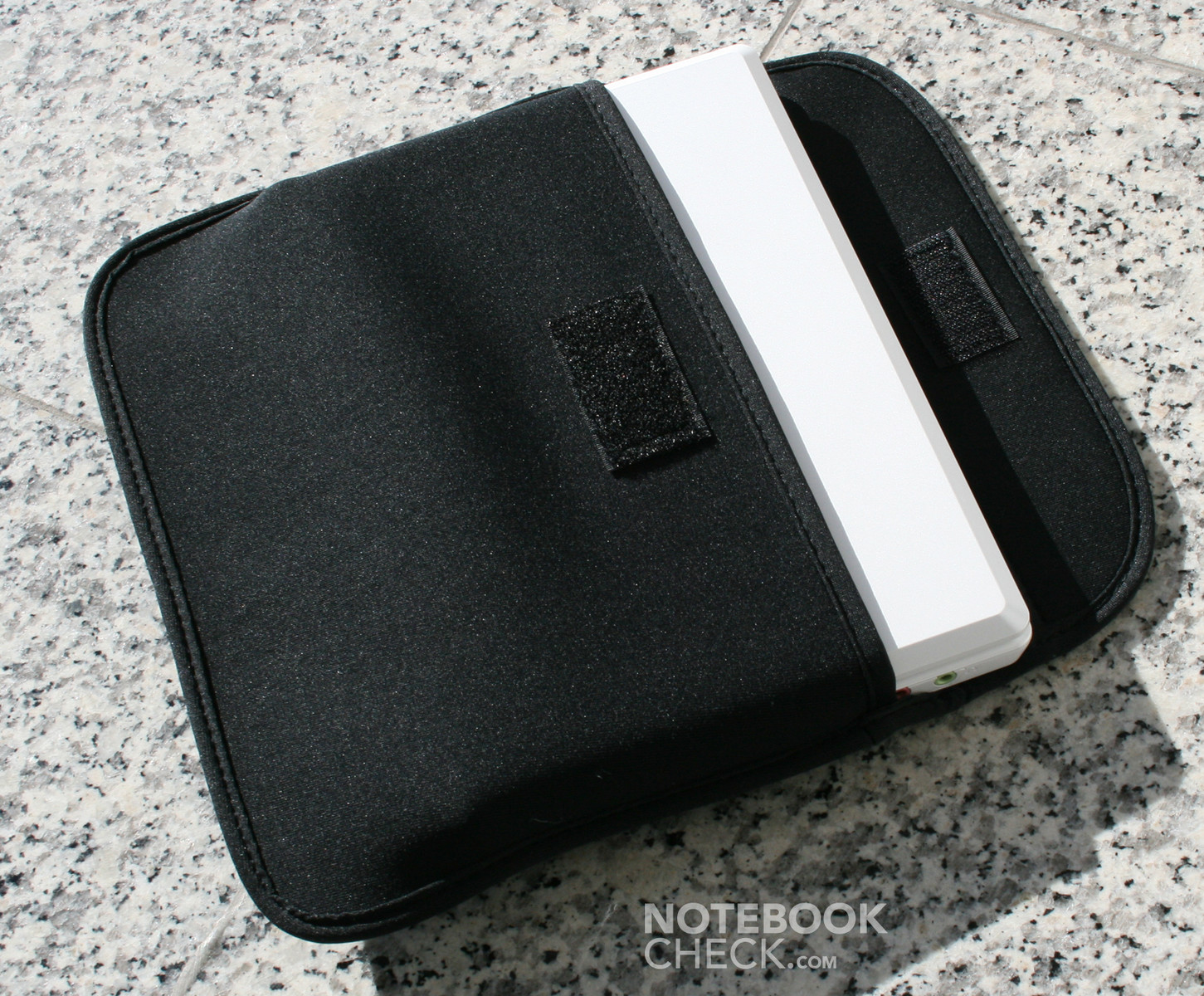

A protective cover is among the accessories.
A protective cover is among the accessories.

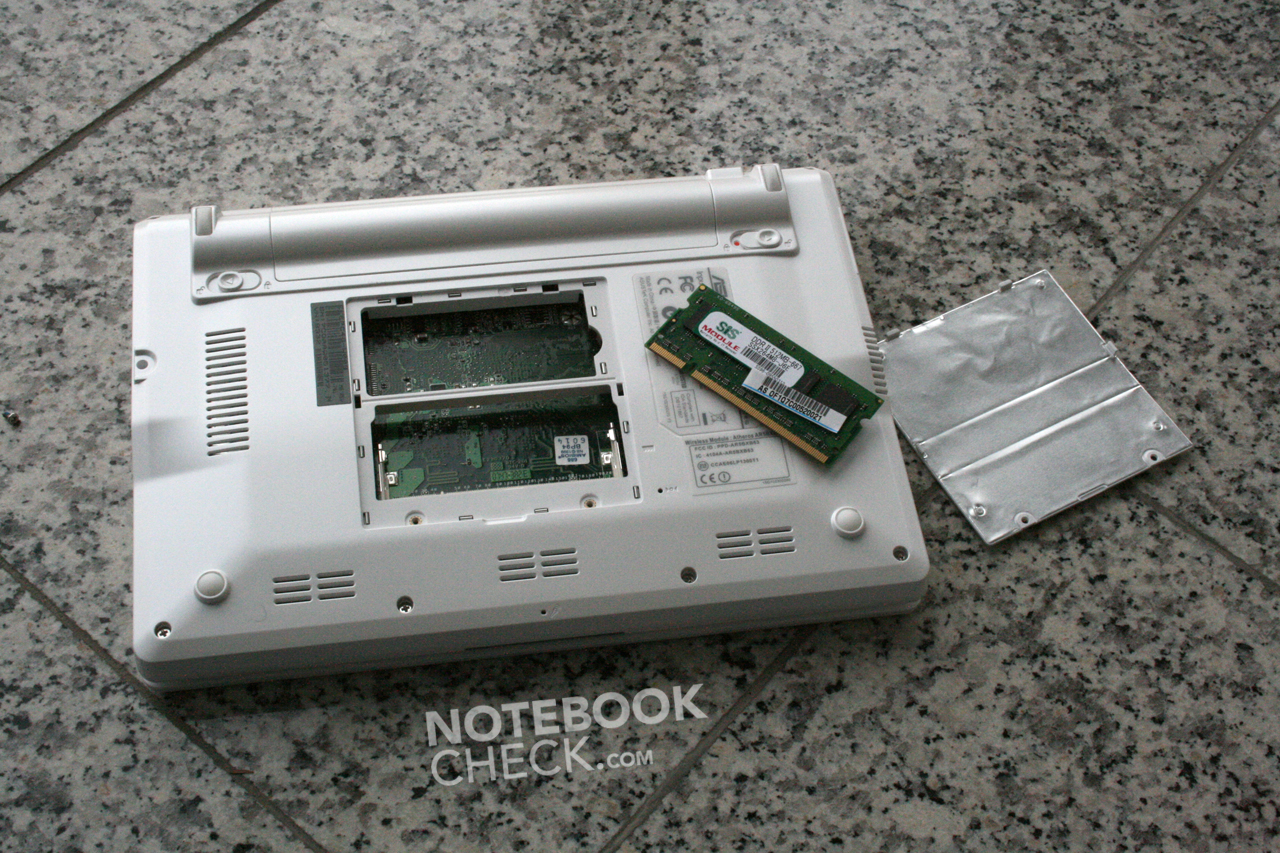

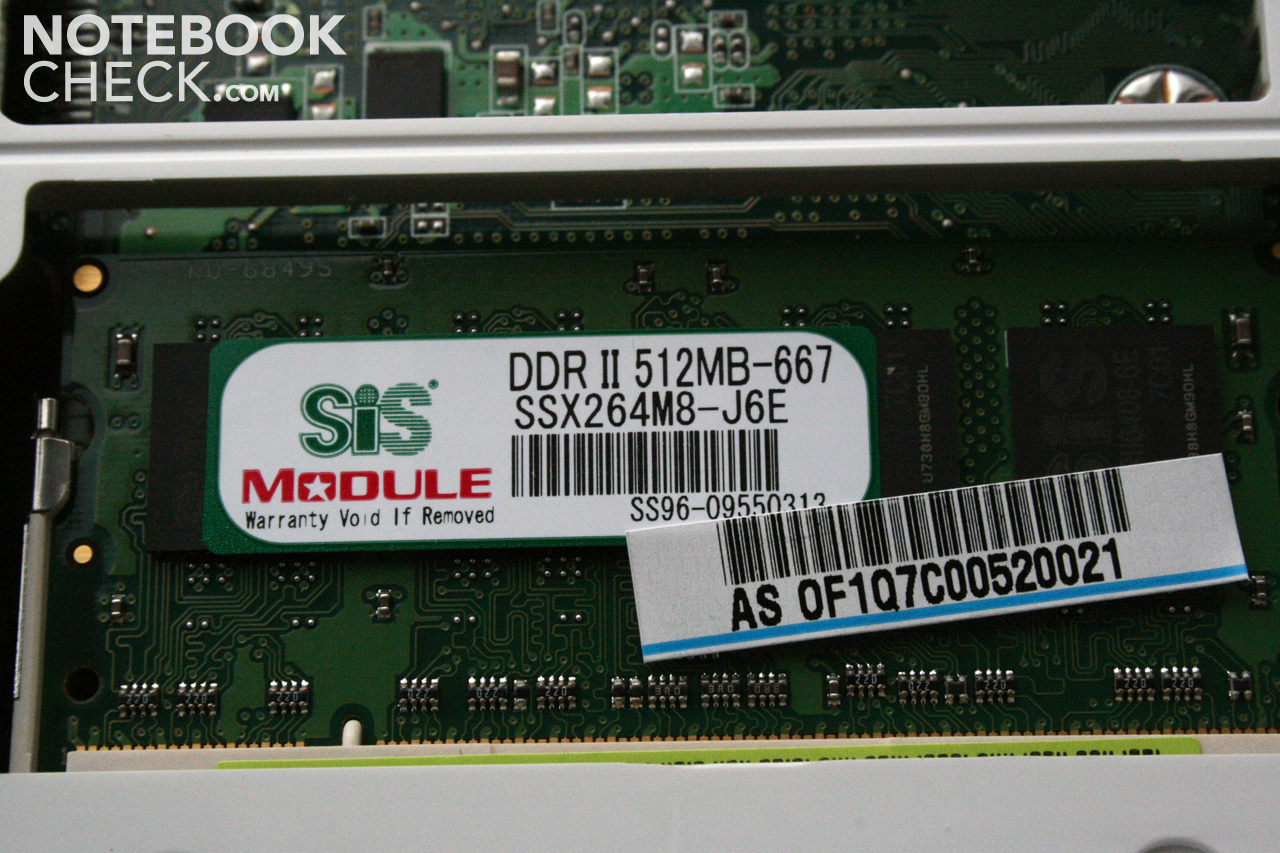

The RAM capacity of this small PC can be upgraded through a sealed maintenance opening at its bottom side (access to the only DDR2 memory module).
The RAM capacity of this small PC can be upgraded through a sealed maintenance opening at its bottom side (access to the only DDR2 memory module).

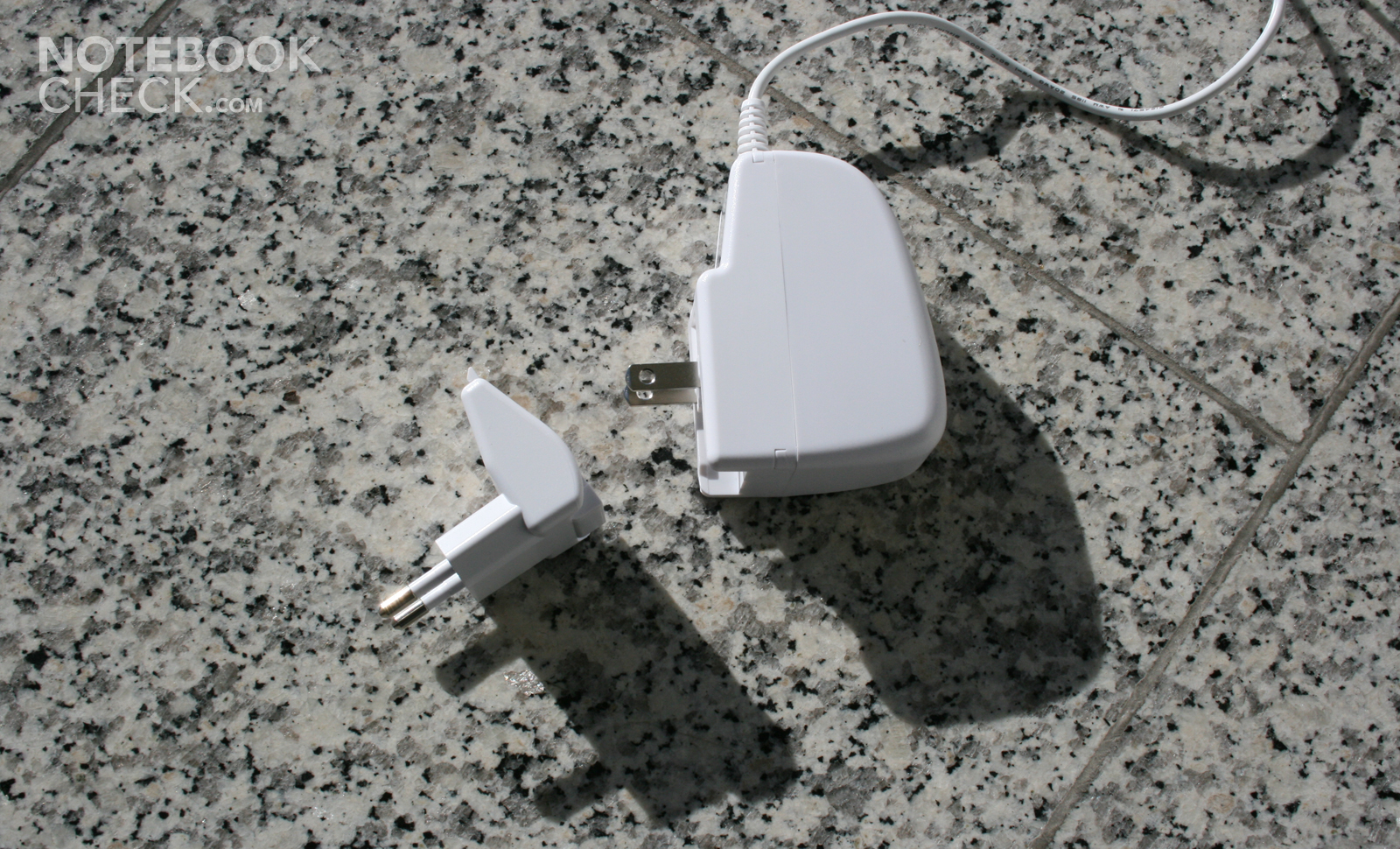

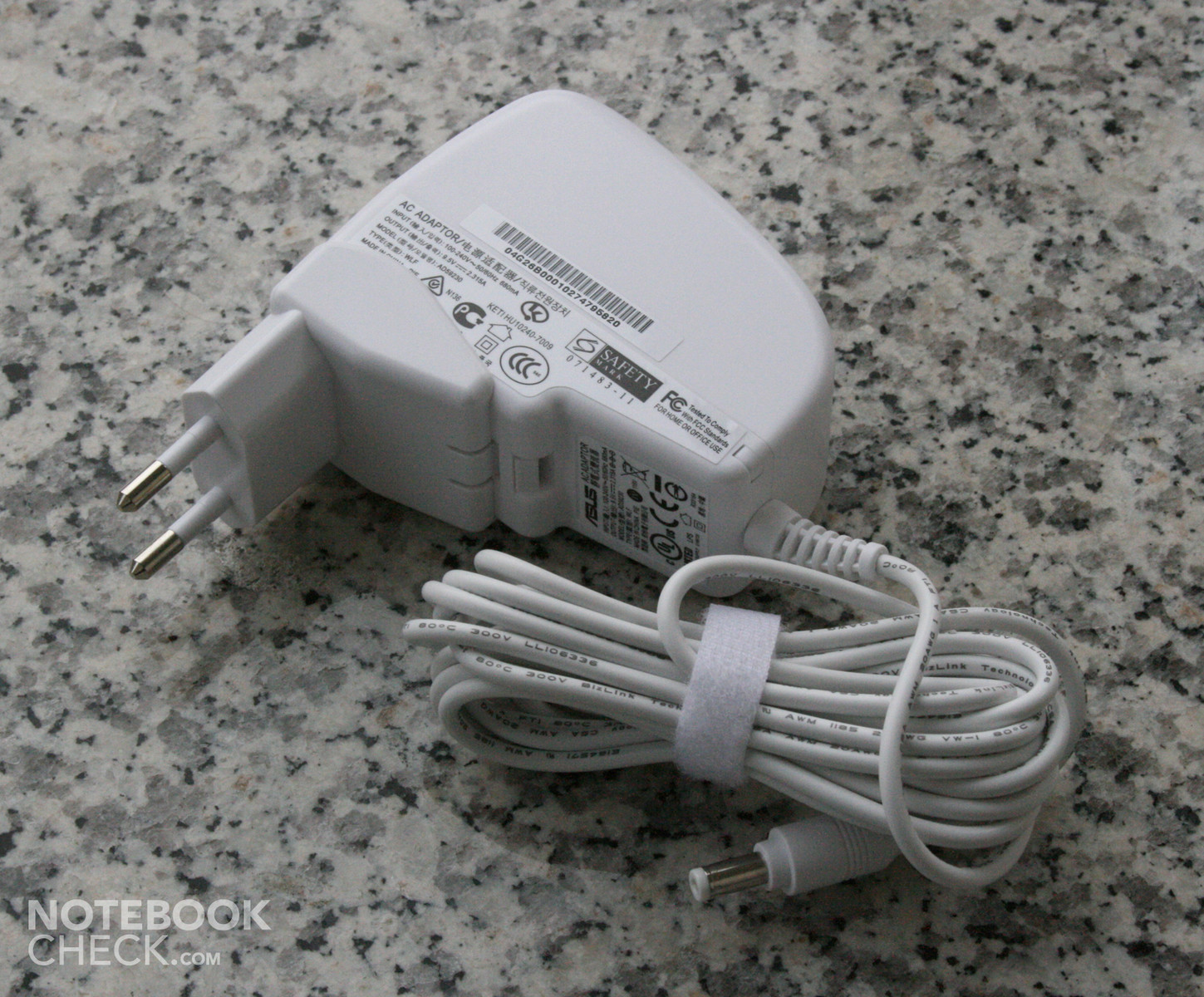

Due to low energy demand of only 18 Watt, a small power adapter (with integrated US plug) is sufficient.
Due to low energy demand of only 18 Watt, a small power adapter (with integrated US plug) is sufficient.

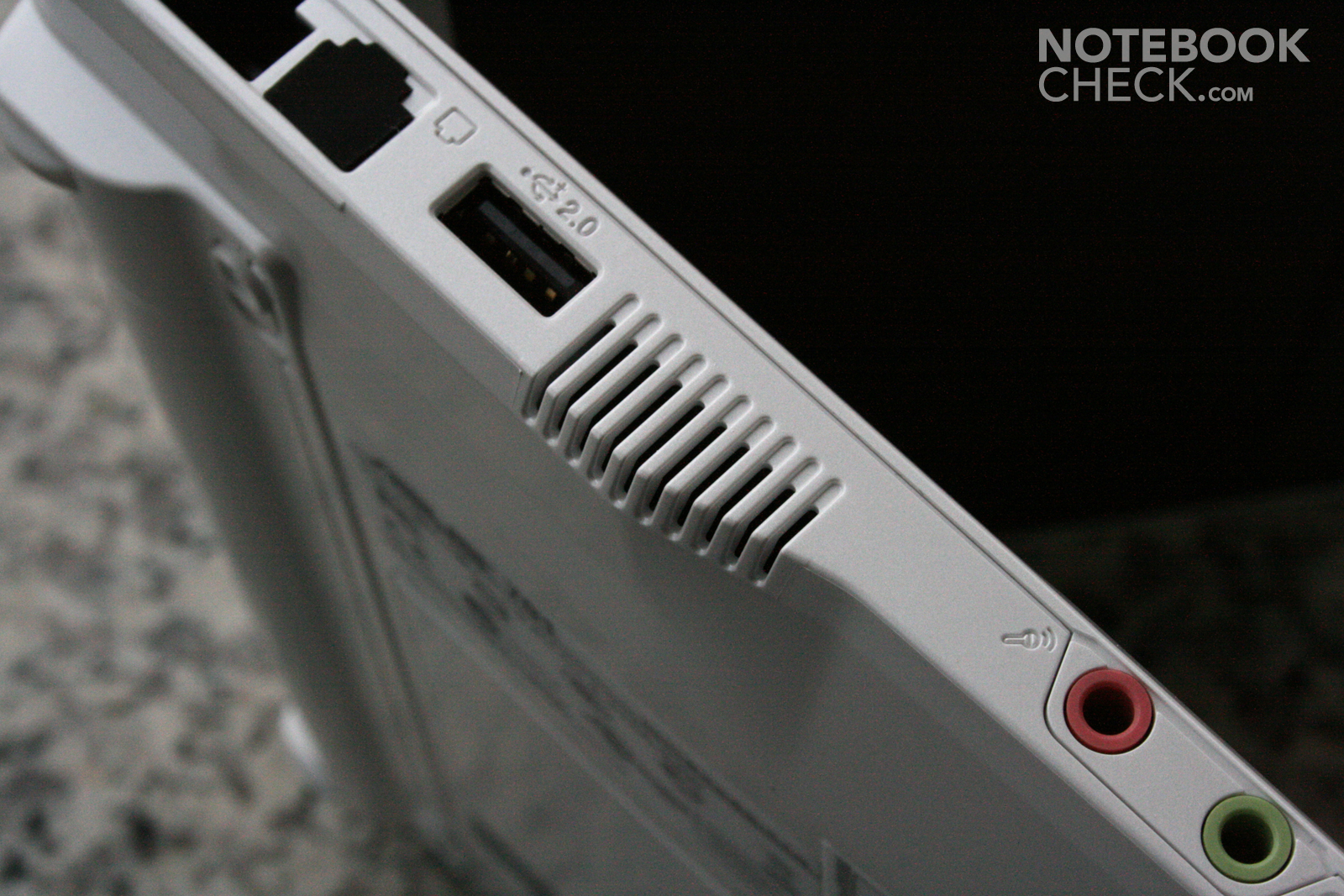

The fan of the Eee PC starts running after 20 minutes, and keeps running, whereas its noise is quiet, but, annoying.
The fan of the Eee PC starts running after 20 minutes, and keeps running, whereas its noise is quiet, but, annoying.
The maximum temperature of the Eee PCs is 39°C, which is rather high.
The maximum temperature of the Eee PCs is 39°C, which is rather high.

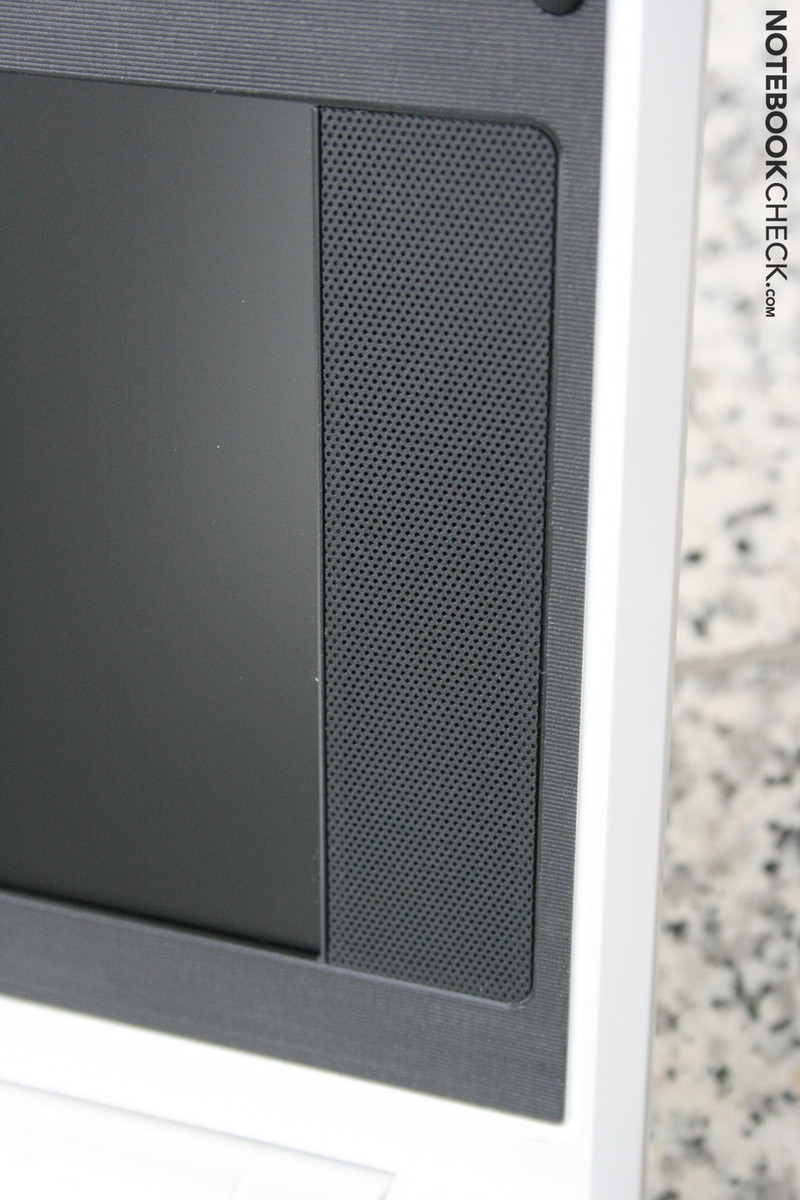

Considering the size of the speakers, their sound is alright. However, due to the used technology they don't have basses.
Considering the size of the speakers, their sound is alright. However, due to the used technology they don't have basses.

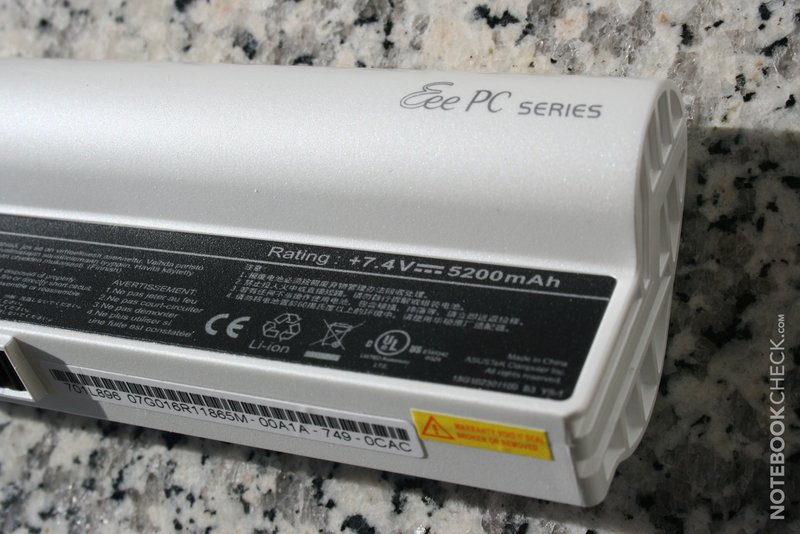

Depending on the load, the runtime of the 4 cell battery is about 2-3 hours. Optionally, the range of accessories will be enhanced by a 6 cells battery soon.
Depending on the load, the runtime of the 4 cell battery is about 2-3 hours. Optionally, the range of accessories will be enhanced by a 6 cells battery soon.

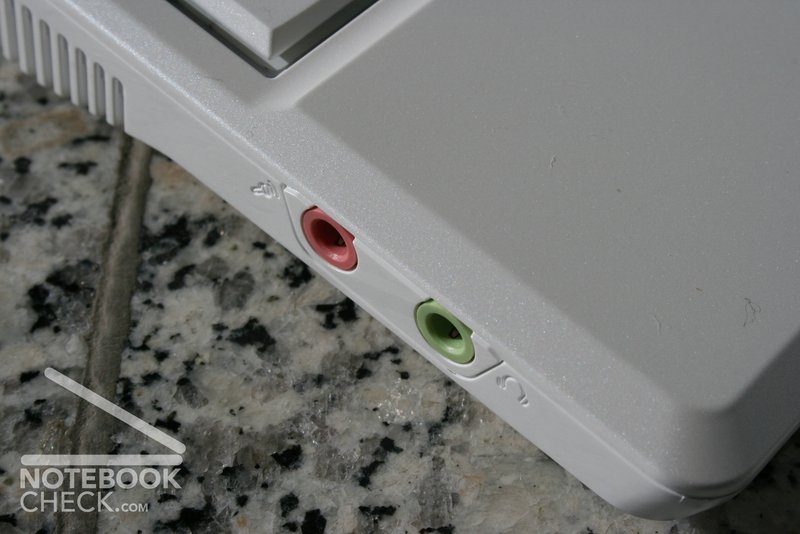

and good audio ports are the highlights.
and good audio ports are the highlights.
... analogue VGA out (up to 1280x1024 75Hz) ...
... analogue VGA out (up to 1280x1024 75Hz) ...

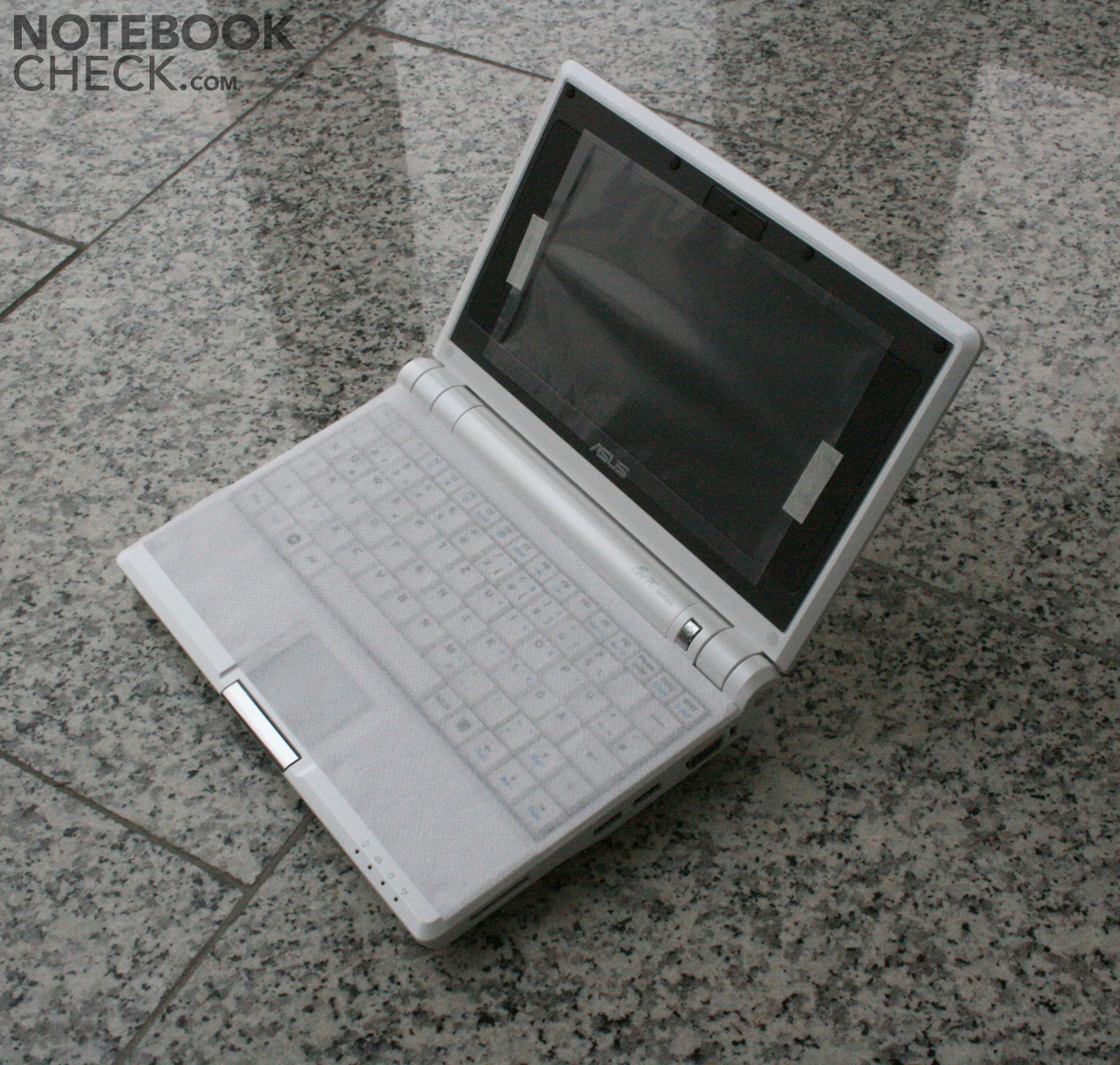

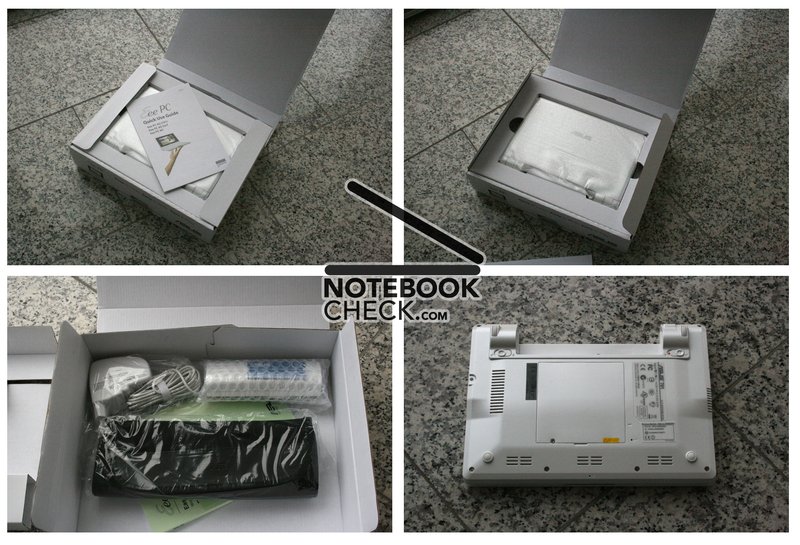

Immediately after unpacking this subnotebook ...
Immediately after unpacking this subnotebook ...

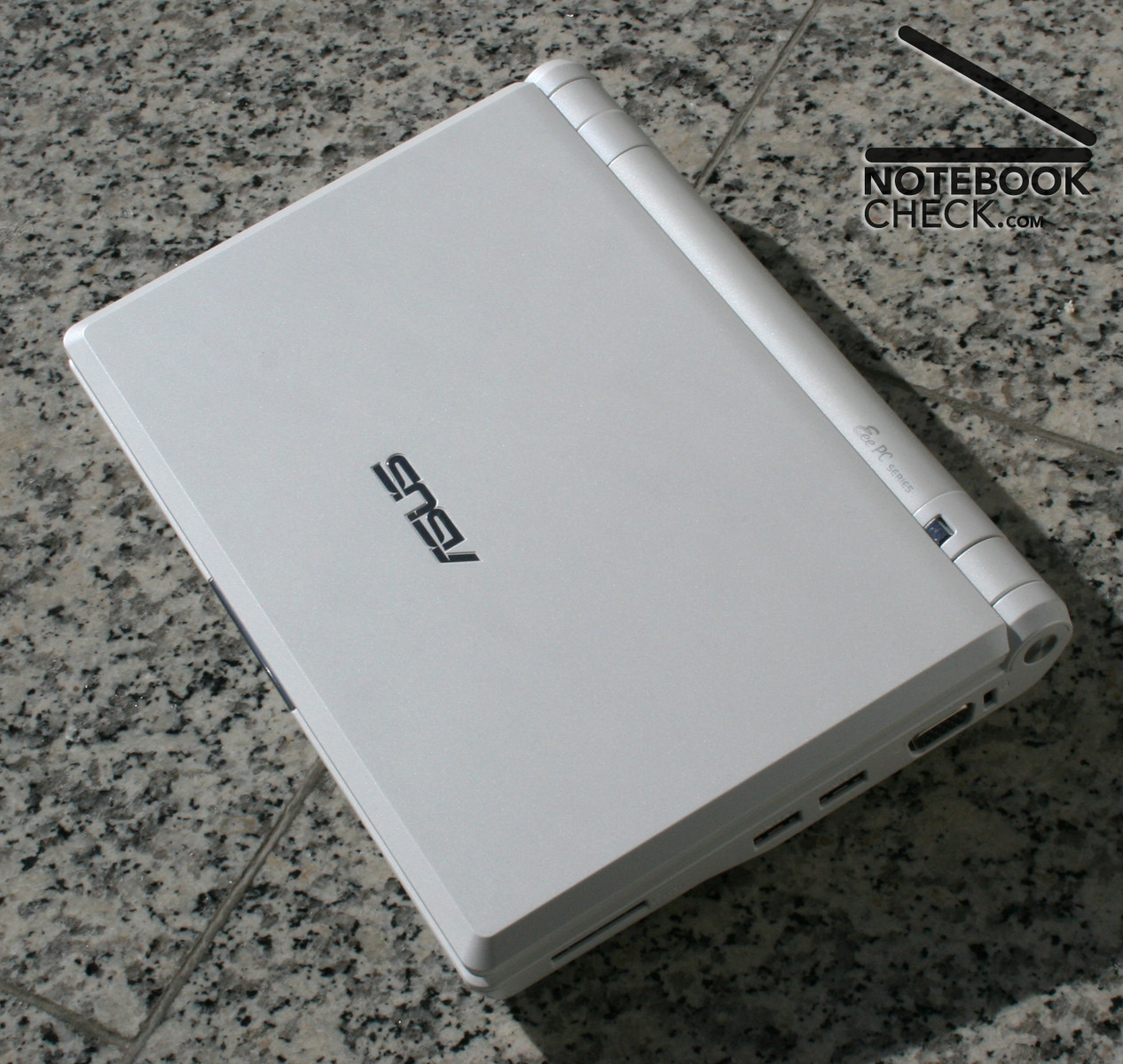

it attracts attention by its smallness and the, considering the price, good workmanship.
it attracts attention by its smallness and the, considering the price, good workmanship.
Because of its big battery this laptop slants.
Because of its big battery this laptop slants.

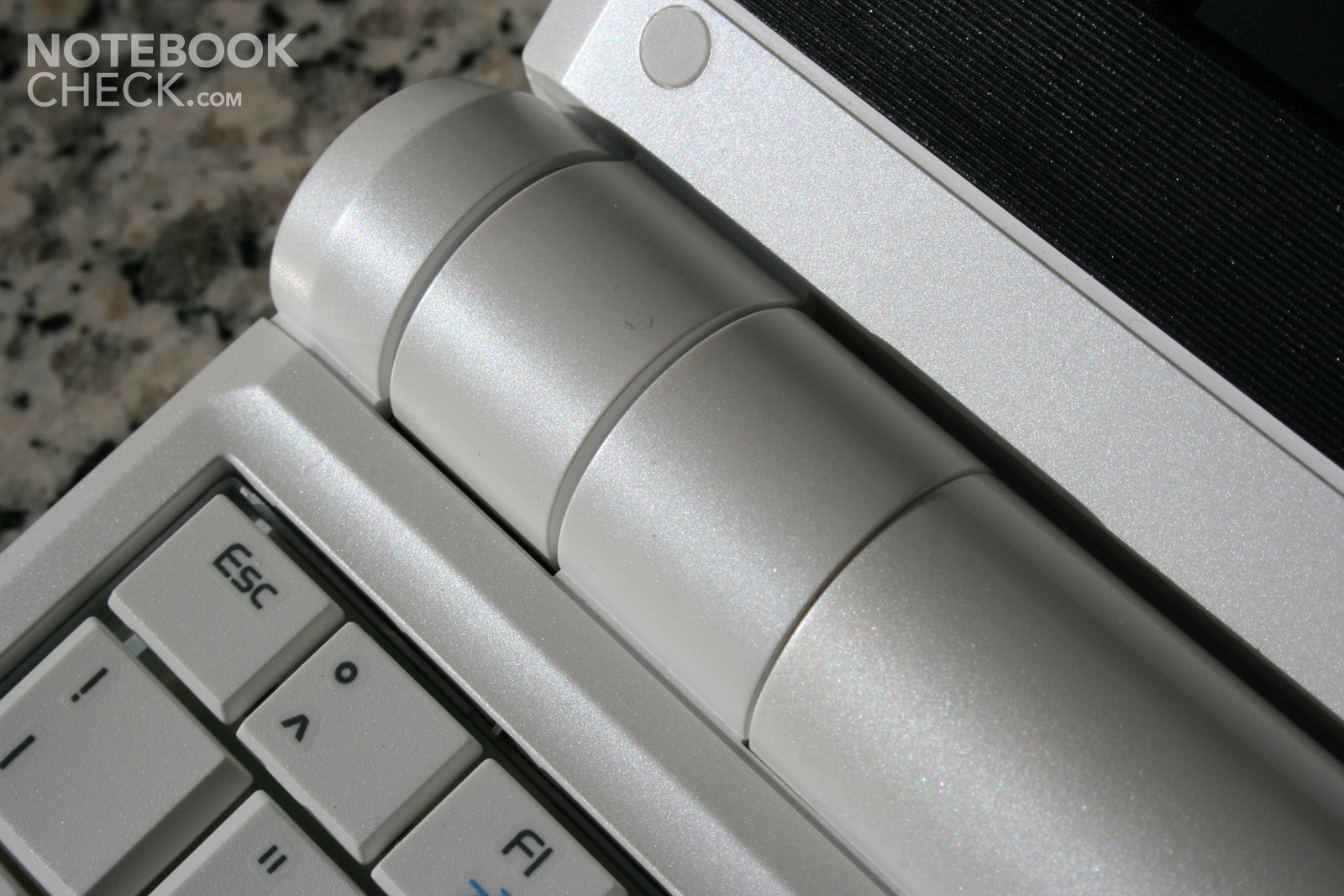

We were pleased by the even gaps and the used materials.
We were pleased by the even gaps and the used materials.

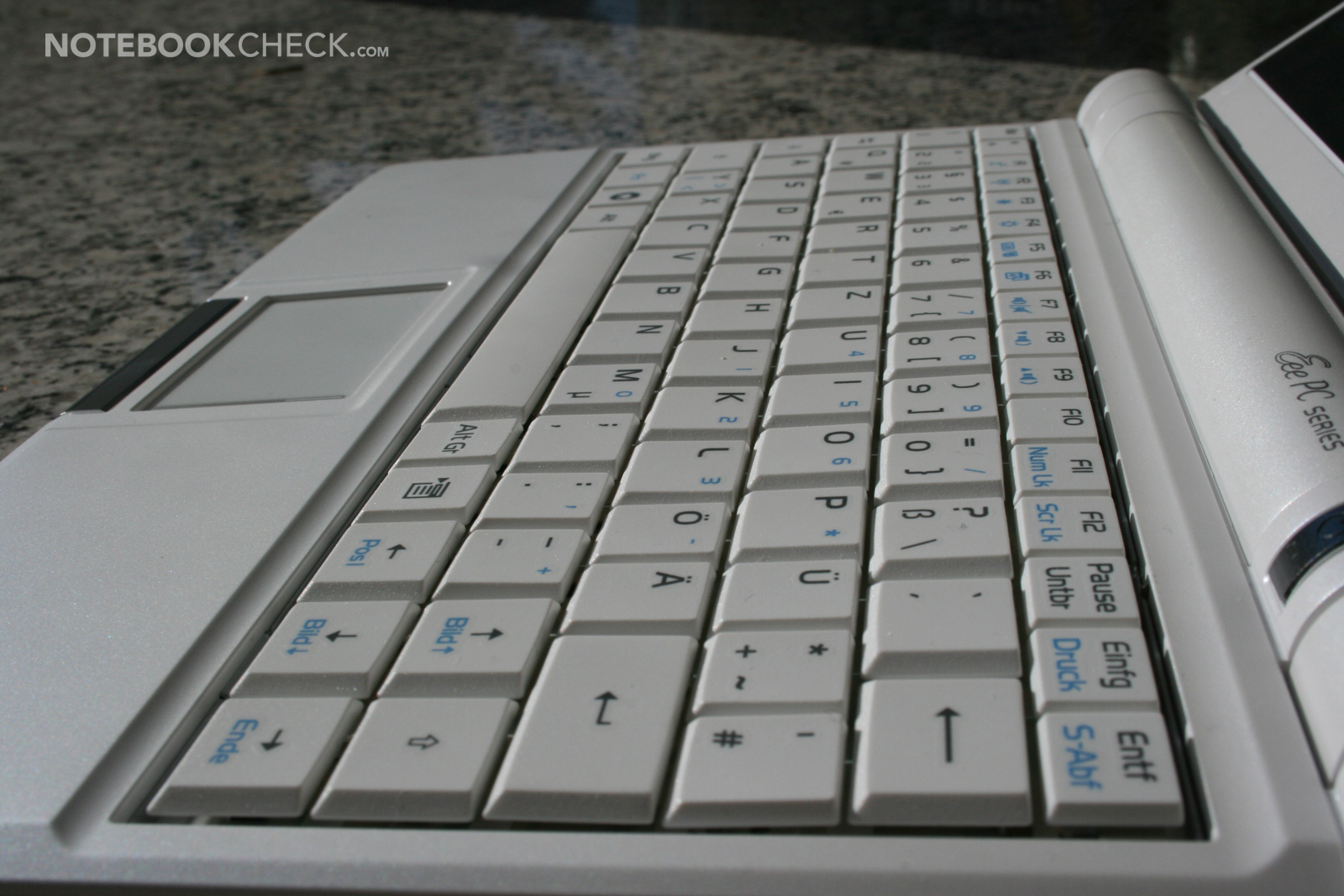

The small keyboard is one of the Eee PC's weaknesses.
The small keyboard is one of the Eee PC's weaknesses.

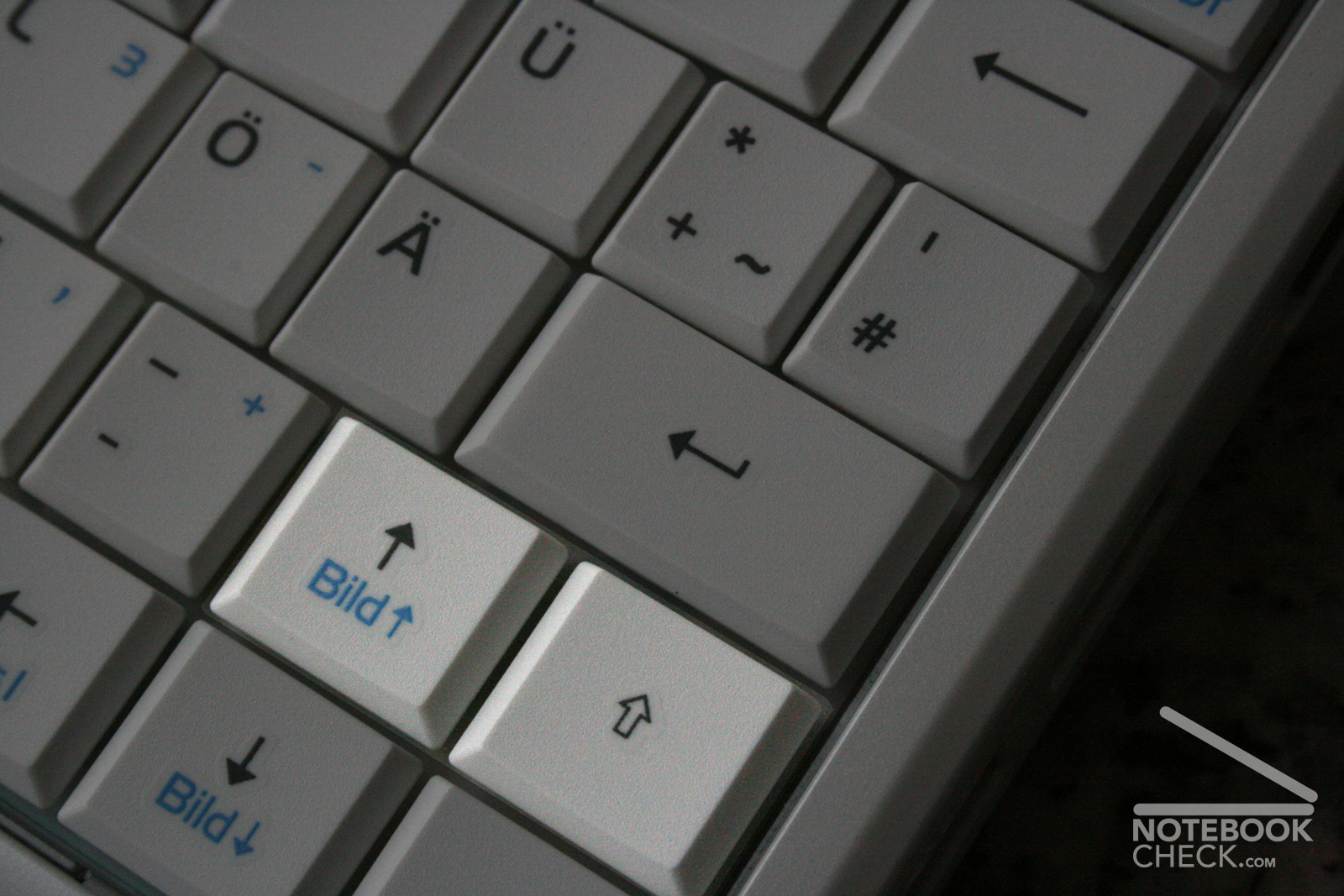

The unusual location of 'cursor up' and 'right shift' key is annoying.
The unusual location of 'cursor up' and 'right shift' key is annoying.
The touch pad is also very small, and comes with a toggle switch one needs to get used to first.
The touch pad is also very small, and comes with a toggle switch one needs to get used to first.

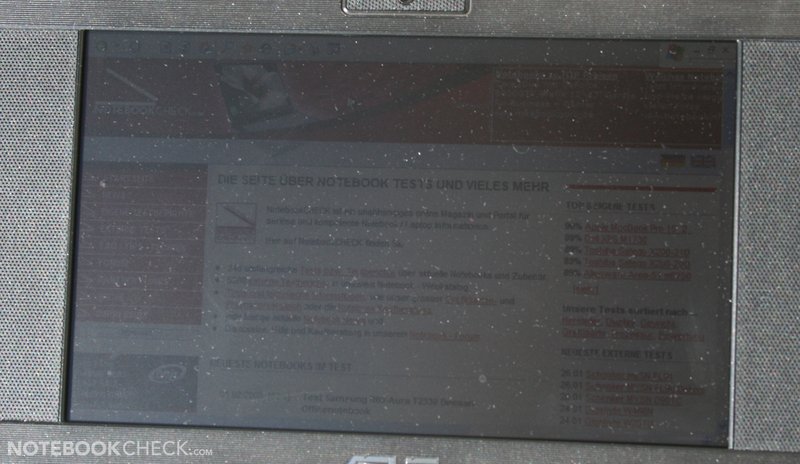

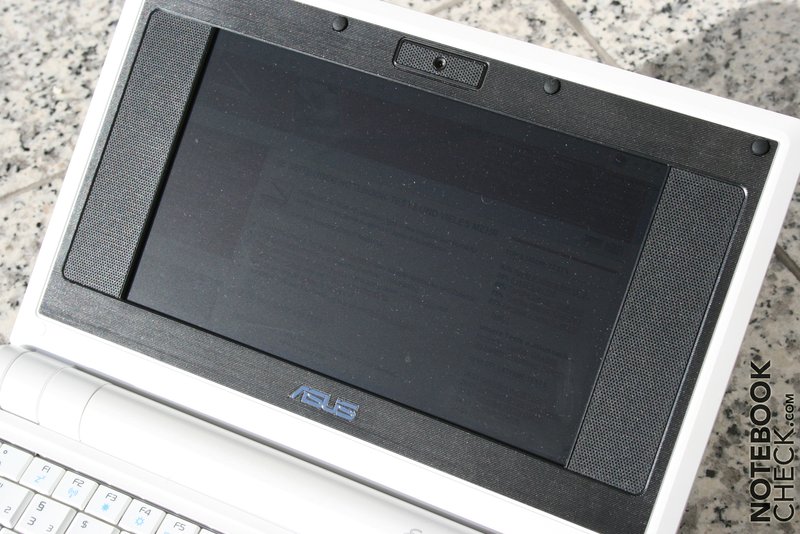

The built-in 7" display is the second weakness. It is dark and its resolution is low.
The built-in 7" display is the second weakness. It is dark and its resolution is low.

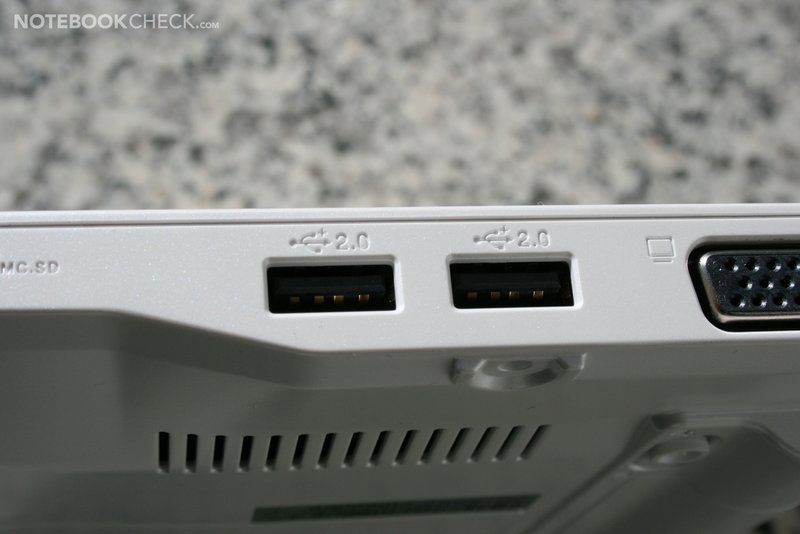

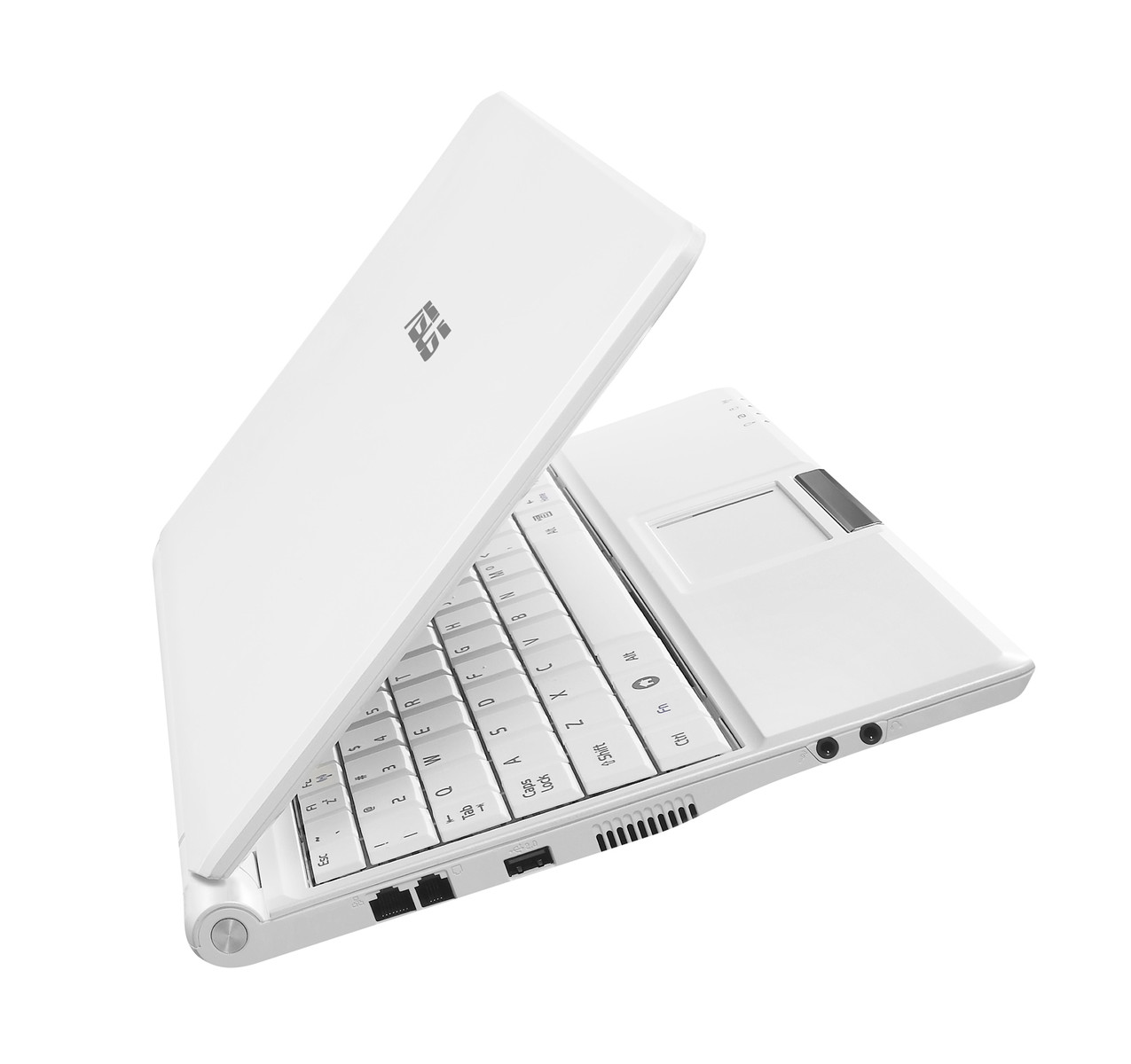

Considering the small size of this notebook its interface equipment is good. 3x USB 2.0, ...
Considering the small size of this notebook its interface equipment is good. 3x USB 2.0, ...

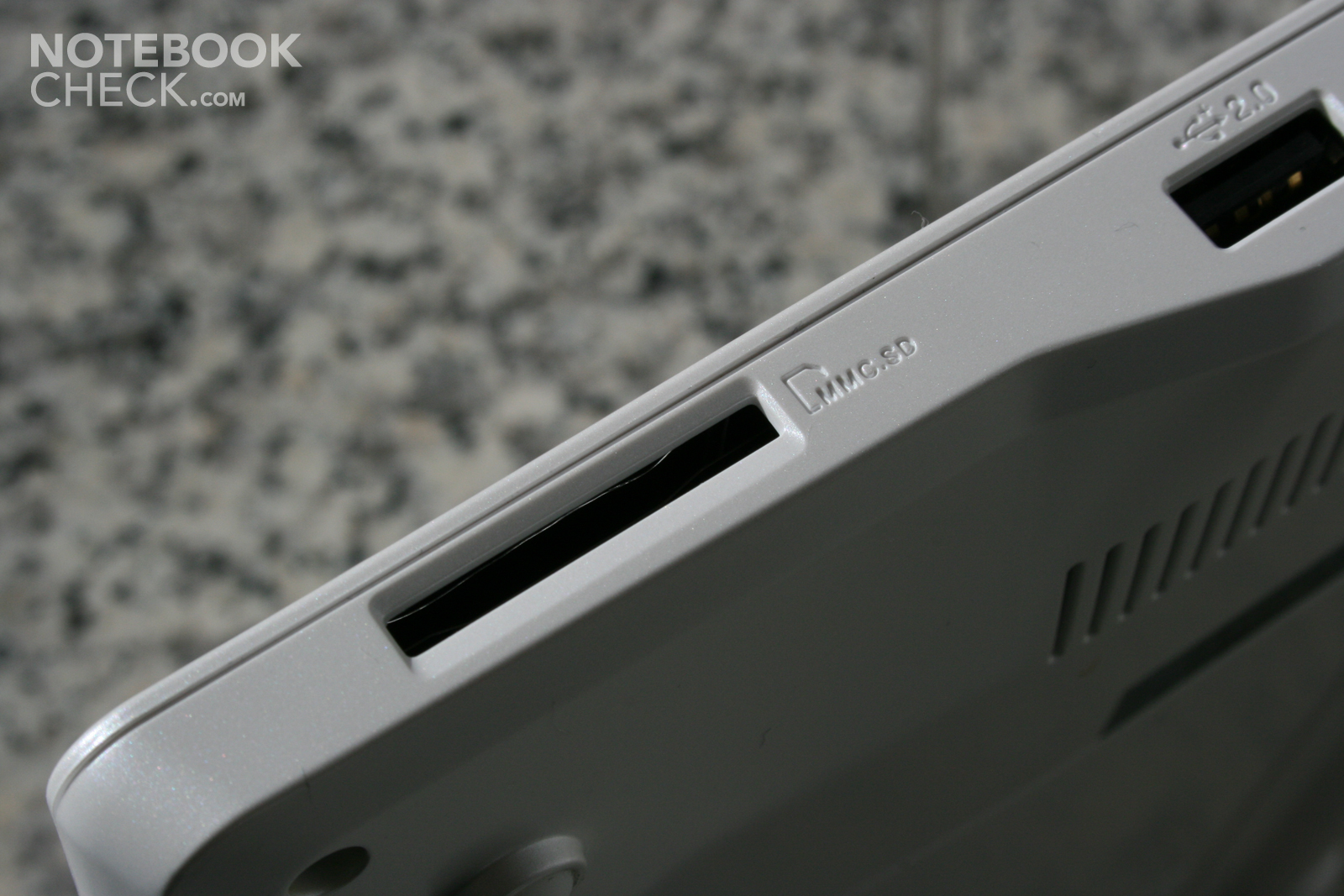

... SD/MMC card reader for enhancing the memory capacity, ...
... SD/MMC card reader for enhancing the memory capacity, ...

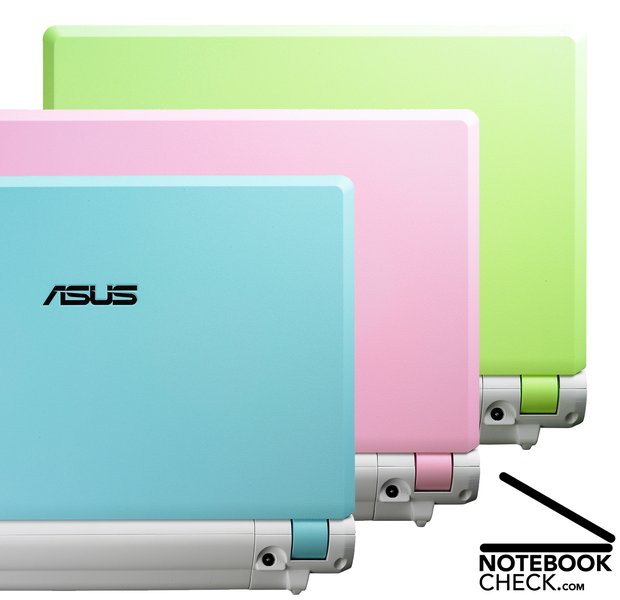

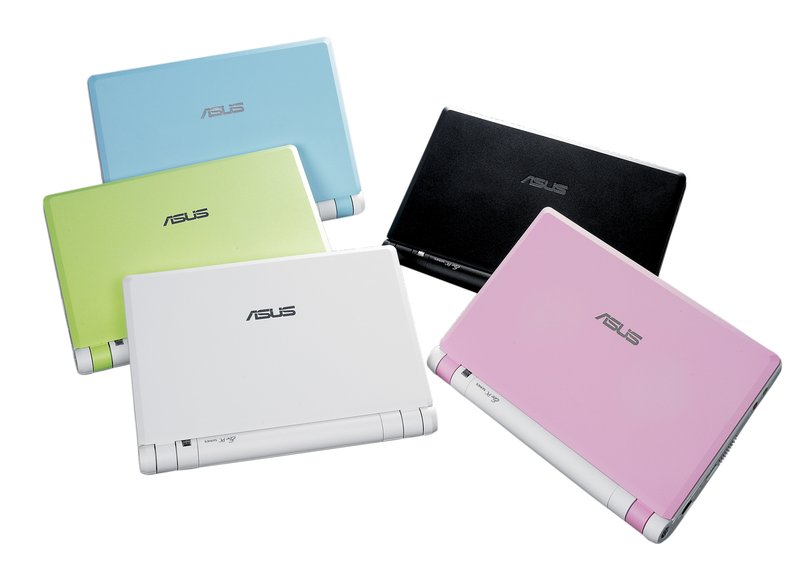

In addition, this notebook should be available in other colours soon. Furthermore, the Eee PC series is going to be expanded soon (bigger display?)
In addition, this notebook should be available in other colours soon. Furthermore, the Eee PC series is going to be expanded soon (bigger display?)

Similar Notebooks

Notebooks with the same GPU

» Short Review: Asus Eee PC 900 Subnotebook
Celeron M 353, 8.9", 1 kg
» Review Sony Vaio VGN-FS485B Notebook
Pentium M 740, 15.4", 2.675 kg
» User-Review BenQ S53W
Pentium M 750, 13", 2.1 kg

Notebooks from the same Manufacturer

» Asus GL550JK-CN391H Notebook Review
GeForce GTX 850M, Core i7 4700HQ, 15.6", 2.29 kg
» Asus G750JM-T4014H Notebook Review Update
GeForce GTX 860M, Core i7 4700HQ, 17.3", 3.94 kg
» Asus Memo Pad HD 7 ME176C Tablet Review
HD Graphics (Bay Trail), Atom Z3745, 7", 0.295 kg
» Asus Zenbook UX32LA-R3025H Ultrabook Review
HD Graphics 4400, Core i5 4200U, 13.3", 1.45 kg
» Asus Transformer Book T300LA-C4006H Convertible Review
HD Graphics 4400, Core i5 4200U, 13.3", 1.9 kg
» Asus Transformer Pad TF103C-1B072A Tablet Review
HD Graphics (Bay Trail), Atom Z3745, 10.1", 0.55 kg
» Asus N750JK-T4042H Notebook Review
GeForce GTX 850M, Core i7 4700HQ, 17.3", 3.11 kg
» Asus Zenbook UX32LN-R4029H Ultrabook Review Update
GeForce 840M, Core i7 4500U, 13.3", 1.441 kg
» Asus Zenbook UX32LN-R4053H Ultrabook Review
GeForce 840M, Core i5 4200U, 13.3", 1.441 kg
» Asus N550JK-CN109H Notebook Review
GeForce GTX 850M, Core i5 4200H, 15.6", 2.389 kg
» Asus F550LN-CN89H Notebook Review
GeForce 840M, Core i7 4500U, 15.6", 2.3 kg

Pro

+reasonable
+small and handy
+light
+configured Linux
+SSD memory (robust)


Cons

-weak performance
-dark low resolution display
-noise of the fan (slightly vibrant)
-low memory capacity
-missing drive
-

Rating

Asus Eee PC 701 4G (RM miniBook)
11/07/2007
Klaus Hinum

Chassis
90%
Keyboard
70%
Pointing Device
77%
Connectivity
78%
Weight
100%
Battery
65%
Display
62%
Games Performance
19%
Application Performance
55%
Temperature
80%
Noise
75%
Add Points
87%
Average
72%
77%
Netbook *
Weighted Average

Price Comparison

Geizhals.at

Asus Eee PC white (EU)

Pricerunner.de

Amazon.com

Show results on Amazon.com

Pricerunner n.a.

> Notebook / Laptop Reviews and News > Reviews > Archive of our own reviews > Review Asus Eee PC Family Notebook
Author: Klaus Hinum, 2008-02-13 (Update: 2012-05-26)
