Eurocom announces 780 W external PSU for notebooks

Feb 07, 2017

Eurocom launches 780 W high efficiency external power supply - AC/DC adapter for high performance laptops, Industrial Computers

Contact:
Braden Taylor
613-656-7961
[email protected]

Eurocom is launching a newly designed and developed, high efficiency 780 Watt power supply / AC/DC Adapter.

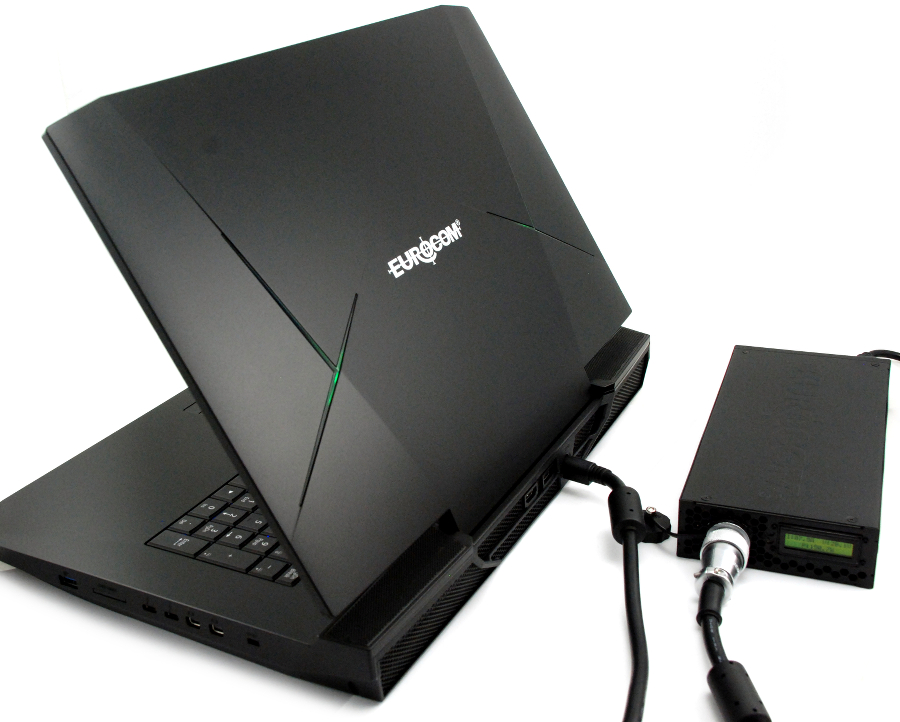

This AC Adapter/Power Supply was developed to power high performance laptops that Eurocom specializes in, such as the Sky X9E2 and Sky X7E2. A variety of other laptops can also be powered by this AC adapter. This high efficiency AC Adapter can be applied to a variety of high performance applications, where high efficiency, highly mobile, rugged power supplies are needed. For workstations, desktops, small form factor PCs and servers it is highly advantageous to have the AC adapter outside of the enclosure to reduce heat and increase performance of the system.

Up until this point Eurocom customers have used a dual 330 Watt AC Adapter solution to power certain high performance configurations. We, in part, developed this solution to give our customers a single solution for increased mobility and convenience.

To complete the Eurocom tradition of providing as much performance and innovation as possible to our customers we also included several features that are not found in typical power supplies. These include the LED display, detachable/removable DC cable with screw locking mechanism, detachable/removable AC cable, power switch, auto switching capability, industrial grade chassis design and dual high speed fans for thermal management.

“The 780W AC adapter brings an unprecedented level of convenience to owners of large desktop replacement notebooks that would normally require two 330W AC adapters. Whether the customer is a traveler that benefits by having one less item to lug around in their backpack or briefcase, or a customer that uses their laptop in the same place every day, the reduction in clutter and weight are things that are easy to appreciate.” Brenner Fox, Technology Tester, Overclocker, reviewer of 780 W AC adapter “The LCD panel that shows the power draw is wonderful.”

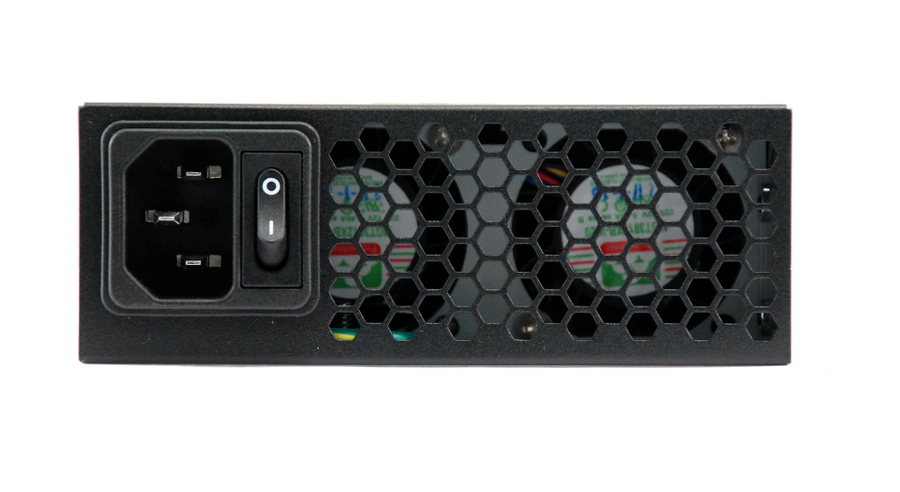

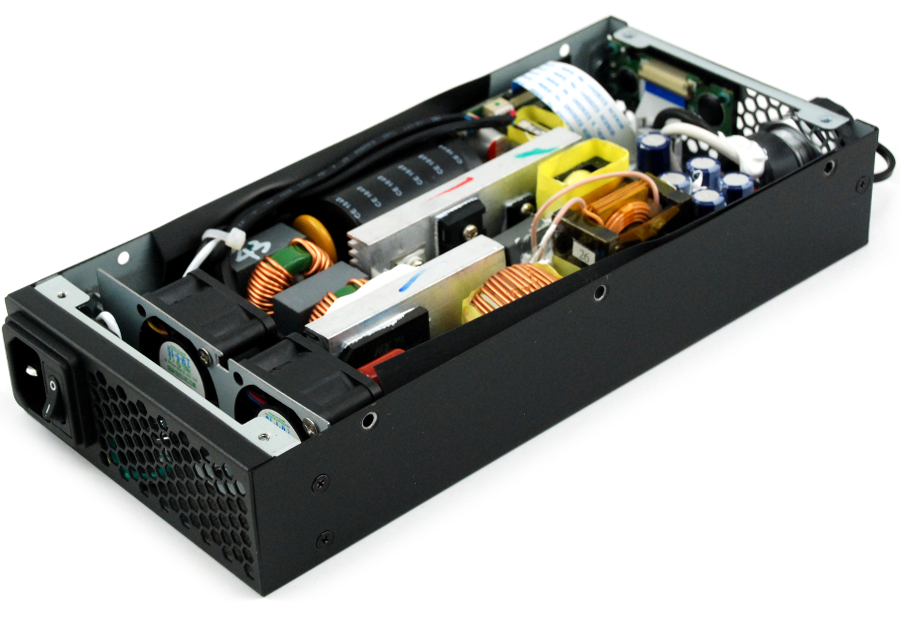

The 780 W AC/DC adapter is equipped with two high speed fans and ventilation ports to manage the thermals of the internal components of chassis.

“We are very pleased to finally be able to offer this innovative solution to our customers who have been demanding a high wattage, high efficiency AC Adapter for their multitudes of uses, while being extremely light and mobile for those on the go.” Mark Bialic, Eurocom President.

Having this AC Adapter outside of a server or workstation chassis allows for lower heat inside of the enclosure, leading to longer life span of internal components.

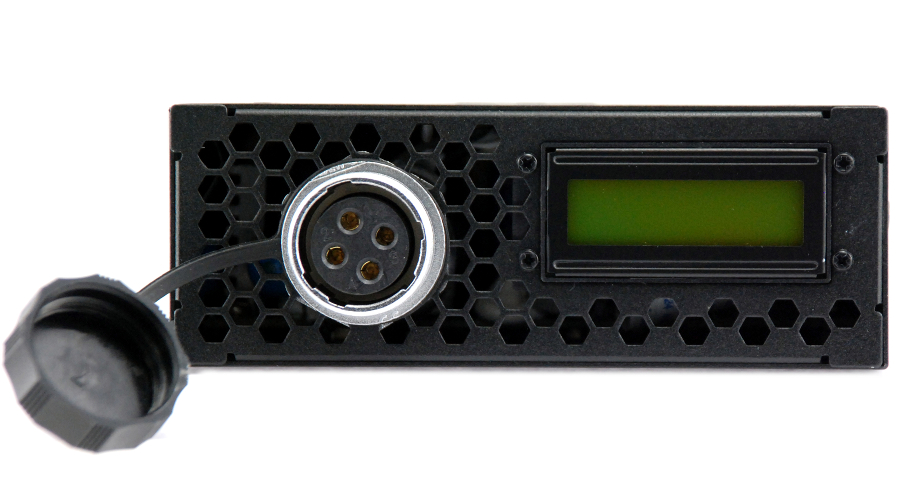

“this product supports all Clevo and MSI notebooks that use the four-conductor DIN-type connector. With plans to offer a variety of removable cords with different connections at the laptop end, this product has potential to become an item of interest for all high performance notebook owners.” Brenner Fox.

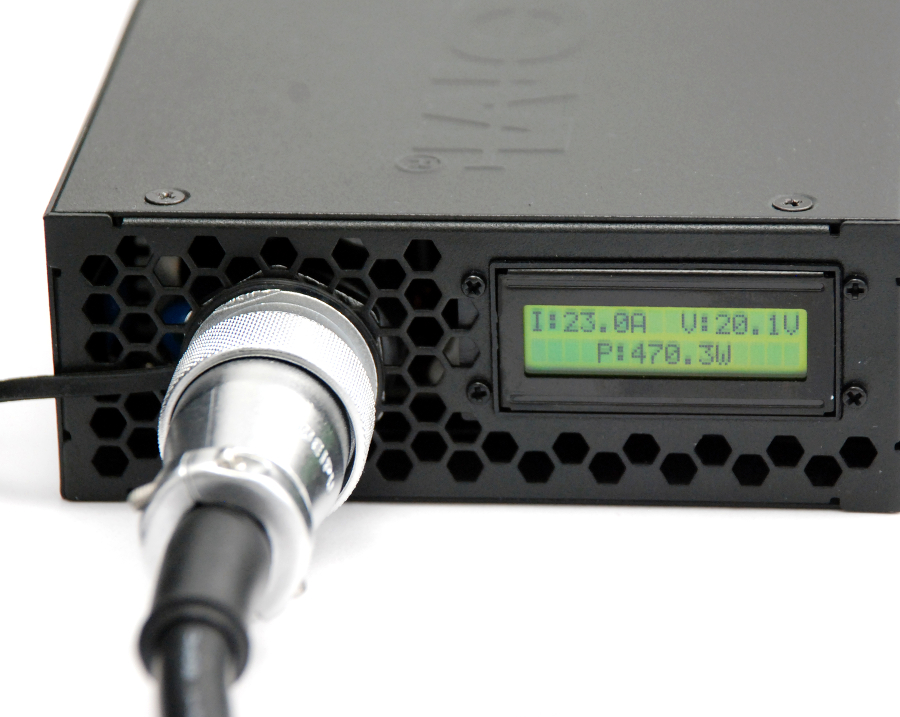

An LED display gives users a real time breakdown of the amps, volts and wattage being utilized.

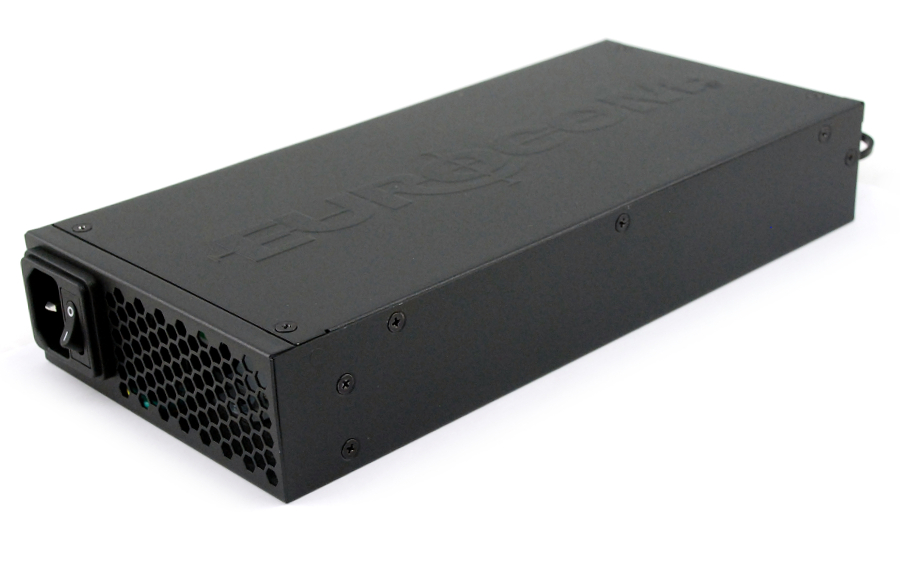

A metal powder coated enclosure provides a simple yet classy exterior that won’t feel out of place in your home or office.

780 Watt AC Adapter Applications
• Laptop
• Server
• Workstation
• Small Form Factor PC
• Industrial PC
• Embedded Solutions
• Desktop PC

Efficiency
• The efficiency (watts out / watts in) higher than 90% typically while measuring at nominal line and maximum load.

Physical Characteristics
• Dimensions:
o 12.8” / 325mm Length
o 4.3” / 110mm Width
o 1.5” / 40mm Height

o 75.5” / 1917.7mm DC Cable Length

• Weight:
o Adapter: 2.9 lbs / 1.32 kg
o Cable: .85 lbs / .38 kg

Input Voltage & Frequency
• The range of input voltage is from 90Vac to 264Vac.
• Input Frequency 63Hz 50/60 Hz 47Hz

Output Requirements - Static Load
• Output Voltage: 20Vdc
• Minimum Load: 0A
• Maximum Load: 39A
• Peak Load 45A (duration Time 25ms)
• Line Regulation 2%
• Load Regulation: ±5%
• Voltage Accuracy: Min 19V Max 21V
• Ripple & Noise(*) 200mVp-p

Input Voltage & Frequency
• The range of input voltage is from 90Vac to 264Vac.
• Input Frequency 63Hz 50/60 Hz 47Hz

Input Current
• The maximum input current is 10A at AC Input 100Vac/60Hz.

Inrush Current
• The inrush current will not exceed 100A at 230Vac/63Hz AC input for a cold start at 25?.

Power Factor
• The Power supply power factor at full load operation shall be more than 0.9 at 230Vac input.

About Eurocom:
Eurocom is the leading developer of long lifespan, fully upgradable notebooks, as well as, high-performance mobile workstations and servers since 1989. Eurocom prides itself as an Industry leader in providing ground-breaking technology and continues to engineer innovative solutions that inspire individuals and companies to new growth and development. For more information on Eurocom please visit us at www.eurocom.com.
