The NXP i.MX 6SLL or i.MX6SLL (i.MX 6 Series, MCIMX6V7DVN10AB Part Number) is a single core processor for e-readers. It integrates a single ARM Cortex-A9 processor core clocked at up to 1 GHz and a 2D graphics accelerator called Pixel Processor PXP (including E-INK display controller EPDC with support of up to 2332x1650 and 5-bit greyscale). The integrated memory controller supports up to 400 MHz LPDDR2 or LPDDR3 (32-bit interface). Flash memory can be attached using eMMC 5.0 or SD 3.0 (three connections available). Furthermore, the SoC supports 2x USB 2.0 OTH with PHY. The chip is pin-compatible with the i.MX 6SoloLite which features an additional Vivante GC320 graphics card. WiFi, Bluetooth, GPS or other peripherals have to be connected with external chips.
The Rockchip RK3188 is a fast ARM SoC primarily designed for tablets. It integrates four ARM Cortex A9 cores with NEON extension and a clock speed of up to 1.8 GHz, a Mali-400 MP4 graphics card (up to 600 MHz, 24 GFLOPS) and a low-power (LP-)DDR2/DDR3 memory controller. Due to the high clock rates, the performance of the CPU and GPU is superior to other Cortex-A9 quad-cores such as the Nvidia Tegra 3 and Samsung Exynos 4412. These high frequencies are possible due to the 28nm process (TSMC). However, this results in high power consumption and is thus not suited for compact smartphones.

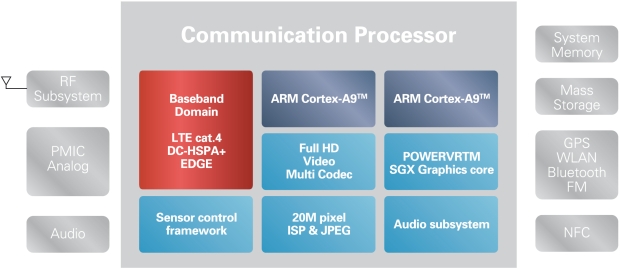

The Renesas MP5232 is an entry level ARM Cortex-A9 dual-core SoC with integrated LTE cat. 4 radio. It aims at "cheap" Android based smartphones with LTE between 150 and 300 Dollars. Both CPU cores are clocked at up to 1.5 GHz, although e.g. in the Samsung Galaxy Core LTE SM-G386F they are limited to 1.2 GHz. In addition to the ARM processor cores, the MP5232 features a PowerVR SGX544 graphics card, LTE cat. 4 / DC-HSPA+ 3G / Edge radio, 1080p video de- and encoder, and a 20 MP ISP.
- Range of benchmark values for this graphics card - Average benchmark values for this graphics card * Smaller numbers mean a higher performance 1 This benchmark is not used for the average calculation
