Short Presentation Samsung X50 1730

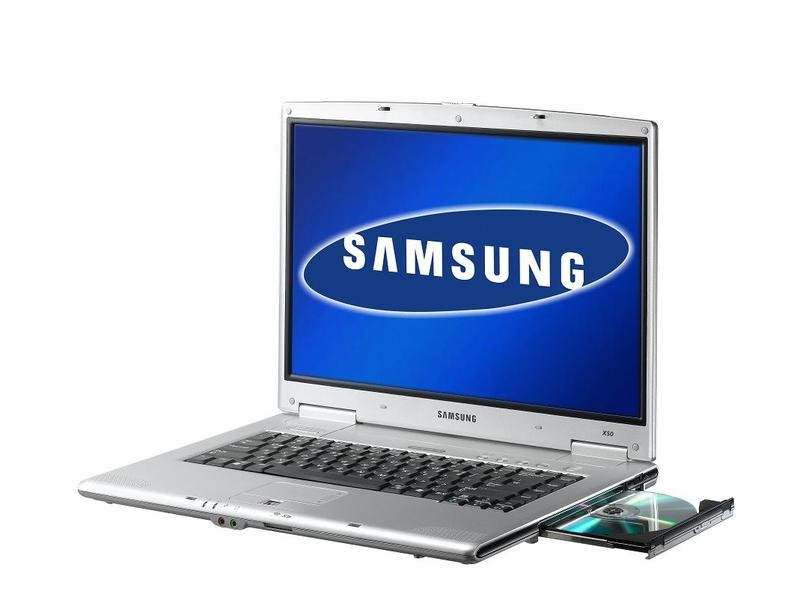

The Samsung X50 1730 is quite easy for a 15 inch notebook (2,6kg) and only 2,6 cm slim. Nice features are the SuperSilentMode and the FingerPrint-reader.
This is not a test report, but a small presentation of the this laptop type.

Processor

Activation of the SuperSilentMode
Activation of the SuperSilentMode

At the moment Pentium M by far is the most frequently used processor in laptops. Compared with other processor types it is very fast per megahertz and does not need much energy (see processor comparison). The same processor Pentium M 740 with same clock frequency 1.73 MHz is integrated in the following models tested by us:
Asus Z9252V (German)

Nexoc Osiris S607 (German)

DTK EDL-70 (German)

Sony Vaio VGN-FS215M (German)

Acer Extensa 4102 WLMi (German)

Fujitsu-Siemens Amilo M1451G (English)

Video Card

Samsung offers two different video cards for the Samsung X50 1730:

ATI Mobility Radeon X700:
The video card RADEON X300 is positioned in the performance class 2 (1=best, 6=worst) of our video card comparison. These cards can be compared with the desktop grafic cards with the same name. Newest games should run with full details well. Samsung X50 1730 is a mobile computer for gamers with this grafics card.
Properties: 8 Pixel-, 6 Vertexpipelines, 128 Bit memory bus;
Benchmarks: about 16500 / 5700 3DMark 01 / 03;
There are hardly any laptops with a better video card; in our list of tests only the Nexoc Odin E803 (Clevo D900T barebone).
Notebooks tested by us with a Radeon X700:
MSI Megabook 635 (English)
Acer Aspire 1690WLMi (English)
Acer Extensa 4102 WLMi (German)
Alb Eagle C19 (Clevo M4A M400A) (German)
Asus Z9252V (German)
Chiligreen Mobilitas CT C5-600 (Elitegroup 600) (German)

ATI Mobility Radeon X600 is positioned in the performance class 3. So it is quite capable to represent newest games well, but not with all details.
Properties of this video solution: 4 Pixel-, 2 Vertexpipelines, 128 Bit, 9700 with PCI-E, PowerPlay 5.0 and VPU Recover II;
Benchmarks: about 10000 / 3000 3DMark 01 / 03;

Notebooks tested by us with a Radeon X600:
Sony Vaio VGN A417M (English)
DTK EDL-70 (German)

Gericom 1st Supersonic PCI-E ML-32 (Turion) (German)

Display and Weight

15.4"  widescreen displays are a very frequently used format for notebooks and represents an average size for laptop screens.
The notebook can be used at the same time with its integrated TFT-display and with an external screen.
Here a few of our tested models with the same display size format:
MSI Megabook 635 (English)
Sony Vaio VGN A417M (English)
Sony Vaio VGN-FS215M (German)
Acer Aspire 1681WLMi-M11 (German)


Samsung X50 1730 is quite light-weight with its weight of 2,4 kg. None of our tested mobile computers with 15,4 inch display has less weight. Of course much slighter are the 12 inch subnotebooks.

Keyboard, USB and Ventilator

The enter key is smaller than with most keyboards and is not positioned at the right border of the keyboard (wrong clicks). The arrow keys are not separated from the rest of the keyboard and small (unfavorable for players).
There are 3 special function keys, which are free to be programmed and furthermore a Wireless-LAN-start-key. It is useful that the touchpad can be deactivated. This prevents from unwished movement inputs while using the keyboard.

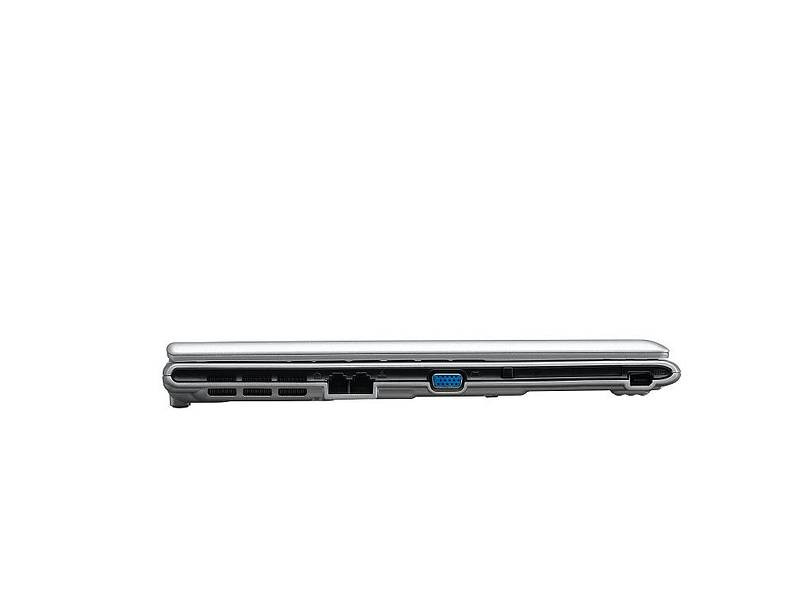

2 USB-connections are at the right side and one at the backside. Regrettably there are not much connections behind, where they would not hinder anyone.

The ventilator exit is at the rear side left. This position is not optimal for left-handed people with mouse. The SuperSilent Mode allows to reduce the processor frequency by pushing a button. So the ventilator inactivates itself. That reduces noise, heat and less energy is spent.

Selected German Reviews

Light-Weight Flounder with Fingerprint Reader
Source: Netzwelt
Rating: mobility high, performance high, workmanship positive
Date: September 2005

Please share our article, every link counts!
Mail Logo

Equipment (Data Sheet)

  • Processor: Pentium M Prozessor 740, 1,73 GHz 2, MB Cache 533 MHz FSB
  • Operating System: Microsoft Windows XP Professional with Recovery-CD
  • Chipset: Intel 915PM
  • RAM: max. 2.048 MB, PC2-3200 (400 MHz) or PC2-4300 (533 MHz) DDR2 SODIMM, 2 x gilded SODIMMs
  • Display: 15,4" WXGA SuperBright Glare TFT (1.280 x 800) or 15,4" WSXGA+ TFT (1.680 x 1.050)
  • Video card: 64 MB or 128 MB DDR ATI Mobility Radeon X600 or 128 MB DDR ATI Mobility Radeon X700, max. resolution extern 2.048 x 1.536 High Color with 85 Hz image refresh frequency;
  • Hard disc: 60 or 80 GB EIDE- or SATA-Festplatte, S.M.A.R.T. II
  • Disc drive: 3,5"-disc drive optional extern USB
  • Optical device: Ultra Slim 8 x DVD-ROM 24 x 10 x 24 x CD-RW Combo or Ultra Slim DVD-Multi 2x DVD-RW, 2x DVD-R, 2x DVD-RAM, 8x DVD-ROM integrated
  • Network: 10/100/1000 Ethernet UTP, Wireless Intel PRO/Wireless Network Connection 802.11a/b/g
  • Modem: 56 Kbps/V.92 onboard
  • Audio: AC-97 Audio Codec; 2 stereo-loudspeaker x 1,5 Watt per channel
  • Input device: Touch Pad (can be deactivated) & Scroll Scope
  • Power supply: Adapter with automatic recognition of tension (100 up to 240 Volt for worldwide usage)
  • Accu: Standard-Lithium-Ion 6 celles 53,28 Wh Accu-duration time up to 5 hours, loading time 2:00 hours ON / 2:00 hours OFF and / or Lithium-Ion 79,92 Wh, Accu-duration up to 7 hours, loading time 3:00 hours ON / 3:00 hours OFF, LED for accu status
  • Interfaces:
  • 3 x USB 2.0
  • seriell/parallel
  • 1 x headset, 1 x microphone
  • SPDIF 1 x SPDIF optical for Dolby 5.1 Digital
  • VGA / TV Out 1 x VGA, 1 x TV Out (SVHS/HDTV support)
  • Modem / Network 1 x RJ-11 (Modem), 1 x RJ-45 (Network)
  • IEEE1394 1 x IEEE1394 (6 pin) digital connection (400 Mbps)
  • Memory Stick reader 1 x Memory Stick Pro reader
  • SD Card Memory reader 1 x SD Card Memory reader
  • PCMCIA: 1 x PCMCIA Typ I and II (R5C841)
  • Dimensions: (BxTxH) 357 x 267 x 25,9-31,3 mm
  • Weight: ca. 2.410 g
  • Security:
  • removable hard disc
  • hard disc-password
  • Kensington Lock Slot
  • FingerPrint-reader
  • TPM - Trusted Platform Module
  • Software:
  • Adobe Acrobat Reader
  • Samsung Online manual
  • Norton AntiVirus-Software 90 days lizence
  • Ulead Video Studio/ Photo explorer
  • Nero Burning
  • Samsung Network Manager
  • Samsung Smart Screen
  • Samsung Theme
  • Samsung Update Plus
  • Easy Box2
  • Samsung Battery Manager
  • AV Station Premium
  • Service & support: 24 months
Addon: Fingerprint-Reader
Addon: Fingerprint-Reader
