Rockchip RK3288 vs Telechips TCC8803 1GHz

Rockchip RK3288

RK3288

The Rockchip RK3288 is a mid-range ARM SoC for Android and Chrome OS mobile systems. It integrates four Cortex-A12 cores clocked at up to 1.8 GHz. ARM calls these cores Cortex-A17 due to them having very similar performance levels. The SoC includes an ARM Mali-T760 MP4 (also called Mali-T764) GPU clocked at 600 MHz and a dual-channel DDR3, DDR3L, LPDDR2, LPDDR3 memory controller.

The ARM Cortex-A12 is the successor to the Cortex-A9 and is based on a 32 Bit ARMv7-A microarchitecture. A single A12 core should be roughly 40 % more powerful than an A9 core according to ARM.

The integrated video engine supports encoding of H.264, VP8, and MVC videos up to 1080p. Decoding is supported for videos up to 4K H.264 and 10 Bit H.265.

The chip is manufactured under a 28 nm HKMG process.

Telechips TCC8803 1GHz

► remove from comparison TCC8803 1GHz

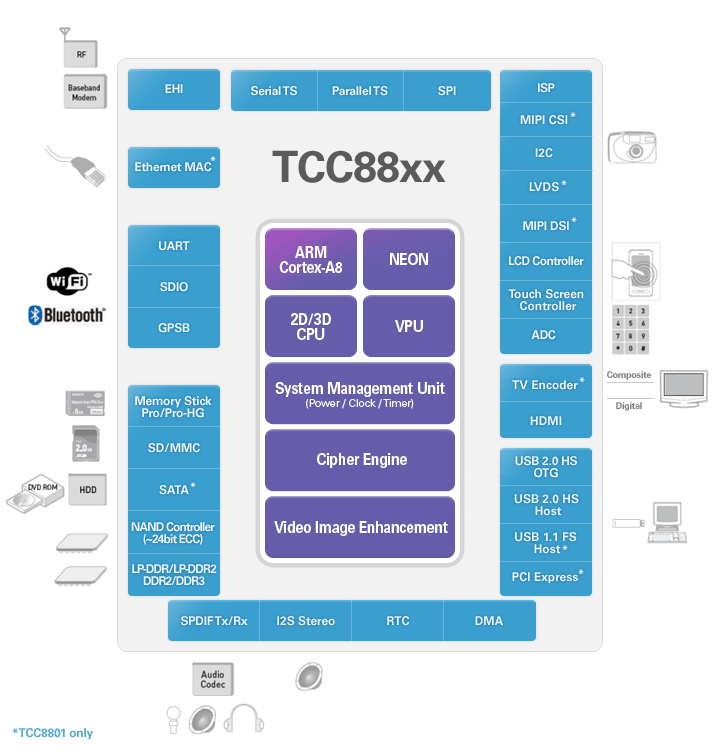

ARM Mali 2D/3D graphics accelerator, DDR / DDR2 / LP-DDR2 / LP-DDR2 memory interface, LVDS Transmitter, HDMI 1.4, Composite TV-Out (NTSC / PAL), USB 2.0 HS OTG, USB 2.0 host, USB 1.1 HOST, EHI (External Host Interface), UART, NAND Flash Interface

Telechips' TCC88xx application processor will redefine the mobile device of tomorrow with new' innovative user experience by PC-like web browsing, 1080p full HD video record & playback, intuitive user interfaces, location based services and next generation social networking applications. TCC88xx supports development of planned features for the Tablet PC and HMP of tomorrow with tremendous performance and programmability to support new applications yet to be imagined. TCC88xx is equipped with hardwired VPU/GPU/ISP to maximize multimedia experience at its peak level.



show full text
ModelRockchip RK3288Telechips TCC8803 1GHz
Series
Series:
UNISOC Tiger T310 compare1.8 - 2 GHz4 / 4 cores
Rockchip RK3288 « 1.8 GHz4 / 4 cores
Apple A6x compare1.4 GHz2 cores
Apple A6 compare1 GHz2 cores
Apple S5 compare2 / 2 cores
HiSilicon k3v2 Hi3620 compare1.2 GHz4 / 4 cores
Rockchip RK3066 1.5 GHz compare1.5 GHz2 / 2 cores
Amlogic AML8726-MX compare1.5 GHz2 / 2 cores
Rockchip RK3168 compare1.2 GHz2 / 2 cores
Rockchip RK2918 1.2 GHz compare1.2 GHz1 / 1 cores
ARM Cortex A8 1.2 GHz compare1.2 GHz1 / 1 cores
Telechips TCC8803 1GHz1 GHz1 / 1 cores
Loongson 2F 900MHz compare0.9 GHz1 / 1 cores
CSR8670 compare0.08 GHz2 cores
ARM Cortex-M4 compare cores
HiSilicon Hi6262 compare cores
DK3.5+ST compare2 cores
unknown compare cores
UNISOC Tiger T310 compare1.8 - 2 GHz4 / 4 cores
Rockchip RK32881.8 GHz4 / 4 cores
Apple A6x compare1.4 GHz2 cores
Apple A6 compare1 GHz2 cores
Apple S5 compare2 / 2 cores
HiSilicon k3v2 Hi3620 compare1.2 GHz4 / 4 cores
Rockchip RK3066 1.5 GHz compare1.5 GHz2 / 2 cores
Amlogic AML8726-MX compare1.5 GHz2 / 2 cores
Rockchip RK3168 compare1.2 GHz2 / 2 cores
Rockchip RK2918 1.2 GHz compare1.2 GHz1 / 1 cores
ARM Cortex A8 1.2 GHz compare1.2 GHz1 / 1 cores
Telechips TCC8803 1GHz « 1 GHz1 / 1 cores
Loongson 2F 900MHz compare0.9 GHz1 / 1 cores
CSR8670 compare0.08 GHz2 cores
ARM Cortex-M4 compare cores
HiSilicon Hi6262 compare cores
DK3.5+ST compare2 cores
unknown compare cores
Clock1800 MHz1000 MHz
Cores / Threads4 / 41 / 1
Technology28 nm65 nm
FeaturesARM MAli-T624 at 600 MHz, dedicated 2D processor, 1080P H.264, VP8, MVC encoding, 4K H.264 and 10 Bits H.265 decoding, 1080p multi video decode, Dual-channel DDR3(L) memory controller, HDMI 2.0
iGPUARM Mali-T760 MP4 (600 MHz)
ArchitectureARMARM
Announced
Manufacturer RK3288

Benchmarks

3DMark - 3DMark Ice Storm Unlimited Physics
100%
1 RK3288 +
15496 Points (13%)
Geekbench 3 - Geekbench 3 32 Bit Multi-Core
100%
1 RK3288 +
min: 1909     avg: 2183     median: 2182.5 (4%)     max: 2456 Points
Geekbench 3 - Geekbench 3 32 Bit Single-Core
100%
1 RK3288 +
min: 698     avg: 779     median: 778.5 (15%)     max: 859 Points
Linpack Android / IOS - Linpack Single Thread
13.4 MFLOPS (1%)
Mozilla Kraken 1.1 - Kraken 1.1 Total Score *
100%
1 RK3288 +
min: 4753     avg: 5809     median: 5790 (7%)     max: 6884 ms
Sunspider - Sunspider 1.0 Total Score *
100%
1 RK3288 +
min: 745     avg: 746     median: 745.5 (8%)     max: 746 ms
Octane V2 - Octane V2 Total Score
100%
1 RK3288 +
min: 5967     avg: 6798     median: 7107 (7%)     max: 7319 Points
AnTuTu v6 - AnTuTu v6 Total Score
100%
1 RK3288 +
47100 Points (16%)
PCMark for Android - PCM f. Android Work Score
100%
1 RK3288 +
3888 Points (19%)

Average Benchmarks Rockchip RK3288 → 0% n=

Average Benchmarks Telechips TCC8803 1GHz → 0% n=

- Range of benchmark values for this graphics card
- Average benchmark values for this graphics card
* Smaller numbers mean a higher performance
1 This benchmark is not used for the average calculation
