Mediatek MT6752 vs Qualcomm Snapdragon 801 MSM8974AA vs Mediatek MT6750

Mediatek MT6752

The MediaTek MT6752 is a 64-bit ARM-based SoC launched in 2014 primarily for mid-range Android devices. The octa-core processor is manufactured in 28 nm and is based on the Cortex-A53 architecture. The cores clock at up to 1.7 GHz. It integrates an LTE modem and an ARM Mali-760 MP2 GPU at 700 MHz capable of decoding and encoding videos of up to 1080p30.

Processor

The Cortex-A53 is the successor to the popular Cortex-A7 design. In addition to the jump from 32-bit to 64-bit architecture (ARMv8 ISA) to address more than 4 GB of memory, the new design offers better branch prediction and higher performance-to-power ratio that rivals the Cortex-A9. The four cores of the MT6732 are clocked at up to 1.5 GHz and sits roughly in between the Qualcomm Snapdragon 610 (4x Cortex-A53 at 1.7 GHz) and Snapdragon 410 (4x Cortex-A53 at 1.2 to 1.4 GHz). The power-efficient processor is fit for common tasks like browsing and running light applications.

Graphics

The integrated Mali-T760 MP2  is an entry-level GPU clocked at up to 700 MHz. Most Android games will play at acceptable frame rates on medium resolutions and quality.

Features

The MT6752 SoC integrates a memory controller (1x 32-bit LPDDR3, 6.4 GB/s), multiple radios (WLAN, Bluetooth, GPS), and a cellular modem (GSM, UMTS, GPRS, HSPA+, HSUPA, TD-SCDMA, EVDO, and LTE Cat 4). Its integrated video engine allows for 1080p playback at 30 FPS (H.265). Cameras are supported up to 16 MP.

Qualcomm Snapdragon 801 MSM8974AA

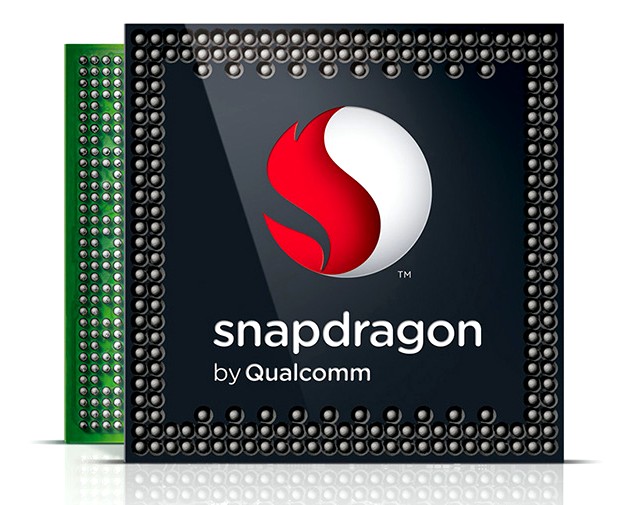

The Qualcomm Snapdragon 801 MSM8974AA is an ARM-based SoC for tablets and smartphones. It is built at TSMC in a 28nm HPM (High Performance Mobile) HKMG process, whereas the Snapdragon 600 was manufactured in 28nm LP. In addition to 4 CPU cores with a clock speed of up to 2.26 GHz, the chip also integrates an Adreno 330 GPU up to 450 MHz, an LPDDR3-1600 memory controller and various radio modules (UMTS/LTE, WiFi, Bluetooth, GPS). Compared to other S801 SoCs (e.g the MSM8974AB), the MSM8974AA offers the lowest CPU-, GPU- and memory clock rates.

Processor

The CPU portion is based on Qualcomm's Krait architecture, which is compatible with the ARMv7 ISA. Compared to the Snapdragon 600 (Krait 300), the new Krait 400 cores of the Snapdragon 800/801 have been tweaked just slightly with faster L2 cache. Thanks to a clock rate of up to 2.26 GHz and a high performance per MHz somewhere between an ARM Cortex-A9 and a Cortex-A15, the Snapdragon 801 offers very strong CPU performance. The S801 competes with the Nvidia Tegra 4, Samsung Exynos 5420 and Apple A7 and is therefore one of the fastest ARM SoCs on the market as of 2013.

Graphics

Another difference between the Snapdragon 600 and 800/801 is the graphics unit. While the S600 implements an Adreno 320 (400 to 450 MHz), the S800 /S801 feature the faster Adreno 330 (MSM8974Aa: 450 MHz). Both GPUs offer the same amount of texture units (8 TMUs), but the Adreno 330 has 50 percent more shaders (probably 6x SIMD16 vs. 4x SIMD16 of the previous generation). In conjunction with the higher memory bandwidth, the performance is significantly better. As a result, the Adreno 330 is slightly faster than the Mali-T628 (Exynos 5420) and the PowerVR G6430 (Apple A7). Depending on the device and cooling, however, the performance may vary. The GPU supports OpenGL ES 3.0 as well as OpenCL 1.2.

Features

Furthermore, the MSM8974AA supports many wireless technologies: Bluetooth 4.0, WLAN, IEEE 802.11a/b/g/n/ac (2.4/5 GHz), GSM (GPRS, EDGE), W-CDMA/UMTS (HSDPA, HSUPA, HSPA+, cat.29 DC-HSPA+), MBMS, cat.4 LTE, CDMA2000 (1X RTT, 1 × EV-DO Rel.0/Rev.A/Rev.B, 1× EV-DO Rev.A MC, 1× Adv Rev.A/Rev.B) and TD-SCDMA.

The MSM8974AA can encode and play UHD 4K videos in 3840x2160 at 30 FPS (120 Mbps H.264 High Profile) simultaneously via dedicated hardware. Moreover, it supports both USB 2.0 and 3.0 and cameras up to 55 megapixels and stereoscopic 3D.

Power Consumption

Thanks to the new 28nm HPM HKMG process, the energy efficiency has been improved significantly compared to its LP 28nm S600 predecessor. Depending on the field of application, the maximum power consumption should be about 3 W for smartphones or 4 W or greater for tablets. This should be similar to comparable ARM SoCs currently in the market. However, the MSM8974AA will likely to need a little less power than the other S801 SoCs due to the lower clock rates.

Mediatek MT6750

The ARM-based Mediatek MT6750 SoC (System on a Chip) is a mid-range mobile processor announced in Q2 2016 for smartphones and tablets (mostly Android based). It integrates 8 ARM Cortex-A53 cores consisting of 4 high-performance cores clocked at up to 1.5 GHz plus 4 low-power cores clocked at up to 1 GHz each. Furthermore, the SoC integrates a Cat. 6 LTE radio and an ARM Mali-T860 MP2 GPU with 802.11n WiFi and Bluetooth connectivity.

The Cortex-A53 is the successor to the Cortex-A7 and introduces 64-Bit support (ARMv8-ISA). Its performance-per-Watt is significantly higher and is even slightly ahead of the old Cortex-A9. If utilizing all 8 of its cores, the Cortex-A53 can rival competing mobile processes in the high-end class range. However, no practical software has been specifically coded to use all 8 cores at such high performance levels.

The integrated GPU is the modern ARM Mali-T860 MP2 (two clusters) clocked at up to 520 MHz. It should be able to run all current Android games.

In addition to the CPU and GPU cores, the SoC also contains a memory controller and the aforementioned Cat.6 LTE modem (FDD/TDD, DC-HSPA+, TD-SCDMA, CDMA2000, EDGE) with both 802.11n WiFi and Bluetooth. The integrated video engine is able to record and playback 1080p videos at up to 30 FPS in hardware. Cameras are supported at up to 16 MP.

The MT6750 is still manufactured in 28nm and so power efficiency is not on par with modern 14/16nm chips.
