Review Toshiba Satellite M100-165 Notebook

Small, still powerful. Toshiba M100 is a prime example of a 14 inch notebook. We were especially interested in it, because it is equipped with a very potent ATI Mobility Radeon X1400 video card.

Toshiba Satellite M100-165 Logo

Case

Following review is provided by notebookcheck.pl, our Polish editor team.

The Satellite M100 is a small notebook. Like the Satellite A100s or L100s it has a silver, beveled case and a black keyboard. Above the keyboard it provides some large, useful, elegant looking, but loud hotkeys, the power switch and Harman Kardon speakers. The display cover is charcoal-gray.

M100 is made of plastic. The display cover yields under pressure. The panel above the keyboard, near the left speaker is not accurately built and the battery wobbles. So, the total workmanship is only fair to average.

The big hinges work alright, there is no wobbling after adjusting the screen's position. That is particularly  important, because you'll need to adjust the position quite often depending on the way you sit in front of the screen, because of pretty narrow viewing angles.

A big strength of the Satellite M100 is its modest dimensions. This notebook is no midget, but, because of its weight, a lot mobiler than its bigger competitors.

For a laptop of this size the provided number and kind of interfaces is by all means satisfactory. Because of the rather small dimensions of the notebook, their order is unfortunately not optimal. Only one of four USB ports is at the back, the second one is in the middle of the left side, and two more USB ports are near the front of the right side.

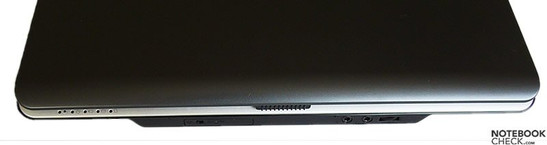

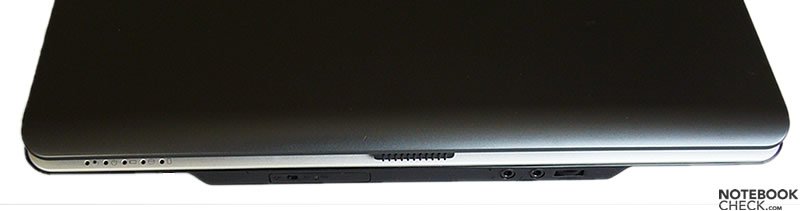

Front Side: Microphone, Headphones
Toshiba Satellite M100-165 interfaces

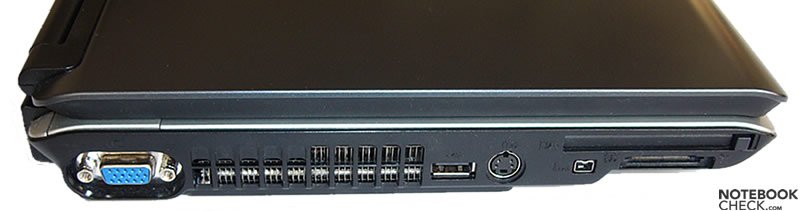

Left Side: D-Sub, USB, S-Video, PCMCIA, FireWire, Card Reader
Toshiba Satellite M100-165 interfaces

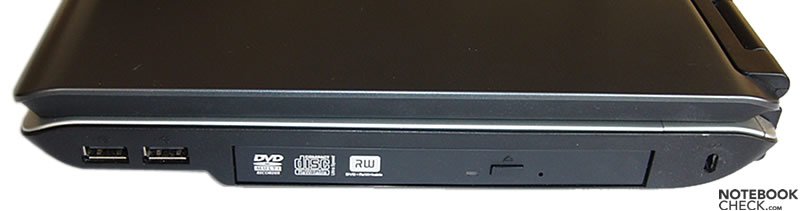

Right Side: 2x USB, DVD drive, Kensington Lock
Toshiba Satellite M100-165 interfaces

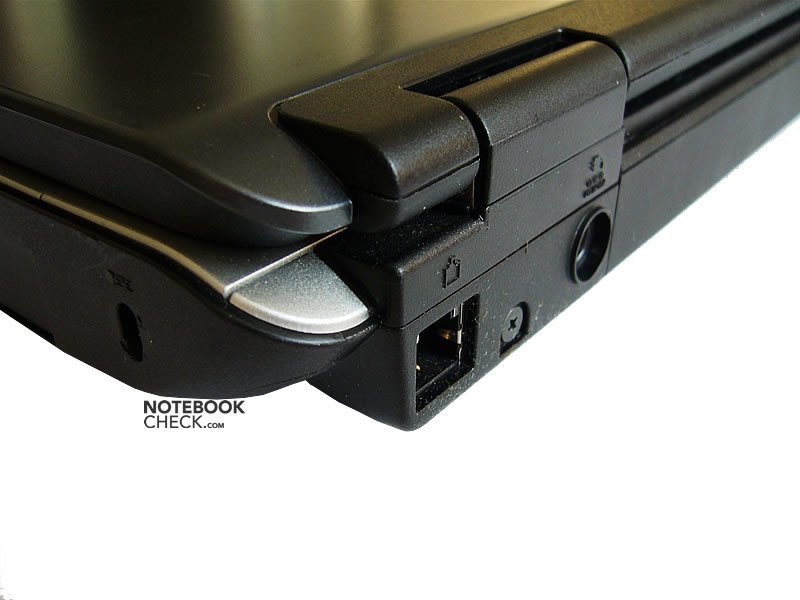

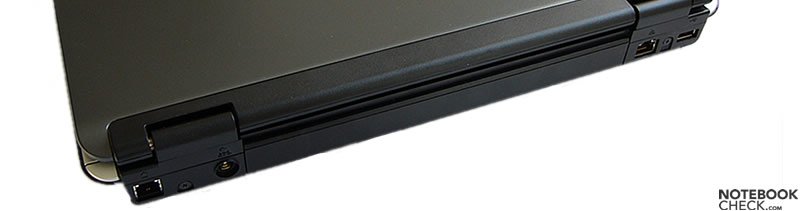

Back Side: Power Connector, LAN, Modem, 2x USB 2.0, VGA
Toshiba Satellite M100-165 interfaces

Input Devices

The 14'' Satellite M100 is equipped with the same keyboard than the bigger Tecra A7. So, it also has the same weaknesses, e.g. rather small keys which might lead to typing mistakes, like pressing more than one key at once. During quicker typing, the possibility of typing mistakes increases especially at left-hand part of the keyboard. However, a strength of the keyboard is that it hardly yields. The keys are definitely soft, and their travel is rather long, so typing is comfortable, however, unfortunately a little too loud.

The touchpad of the Satellite M100 measures 6.2x3.5cm. The height is a whole centimeter smaller than that of the Tecra A7's touchpad, which is also rather small - typical old Toshiba layout. Still, the pad's surface has good gliding properties and with a little practice you'll be able to manage simple operations without an external mouse.

Touchpad
Toshiba Satellite M100-165 Touchpad
Keyboard
Toshiba Satellite M100-165 Keyboard

Display

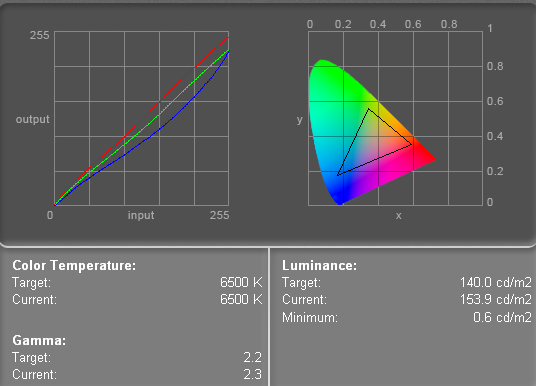

Color Diagram
Toshiba Satellite M100-165 Display

The Satellite M100 is equipped with a 14,1" WXGA panel with 1280x800. For a Toshiba notebook it is quite bright with 159.7 cd/m². The illumination is satisfying at 82%. However, the brightness significantly diminishes at the bottom and the top of the screen.

135.8
cd/m²
159.7
cd/m²
131.5
cd/m²
139.3
cd/m²
153.9
cd/m²
132.0
cd/m²
148.0
cd/m²
147.6
cd/m²
133.6
cd/m²
Distribution of brightness
Information
Maximum: 159.7 cd/m²
Average: 142.4 cd/m²
Brightness Distribution: 82 %
Black: 0.7 cd/m²
Contrast: 220:1

The black value is 0.7 cd/m², the maximum contrast of 228:1 is alright.

Operation Outdoor
Toshiba Satellite M100-165 Outdoor

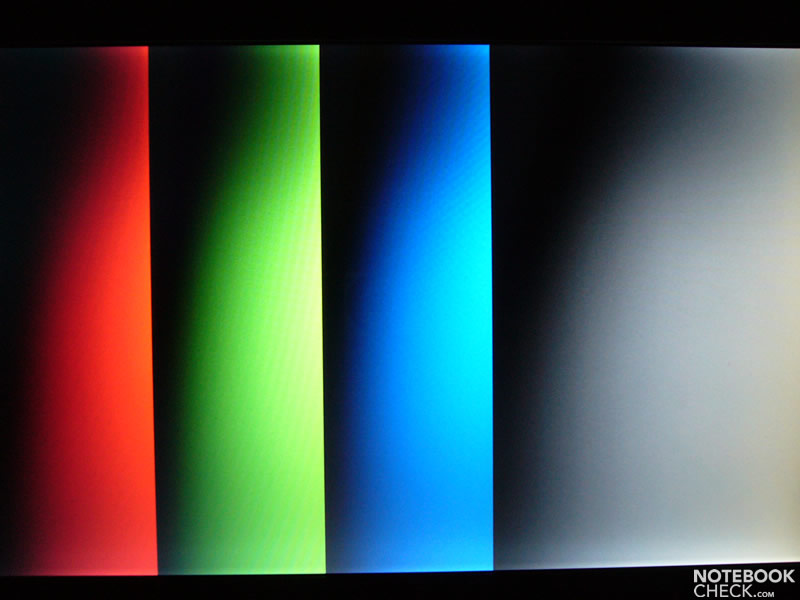

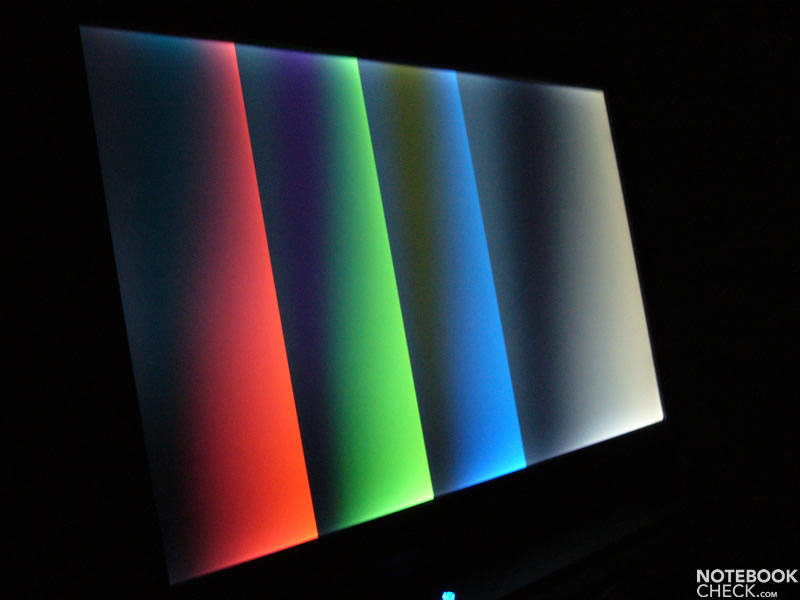

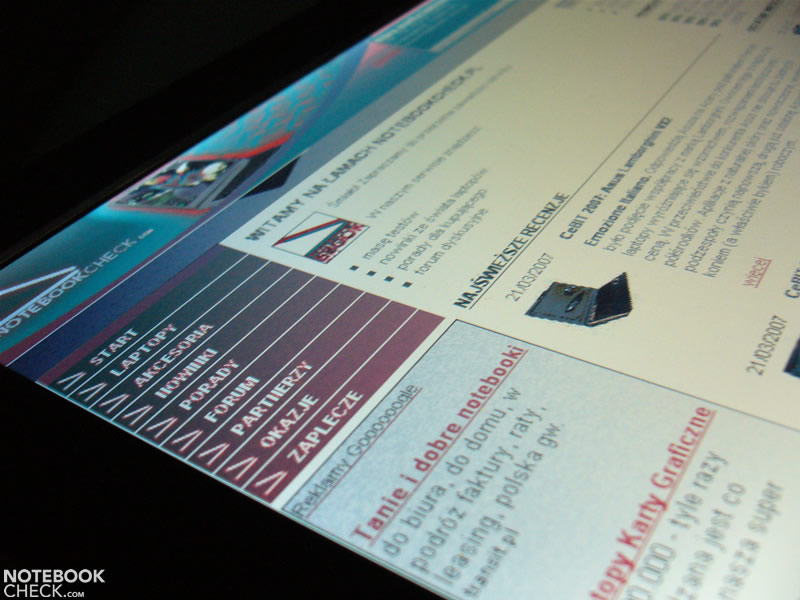

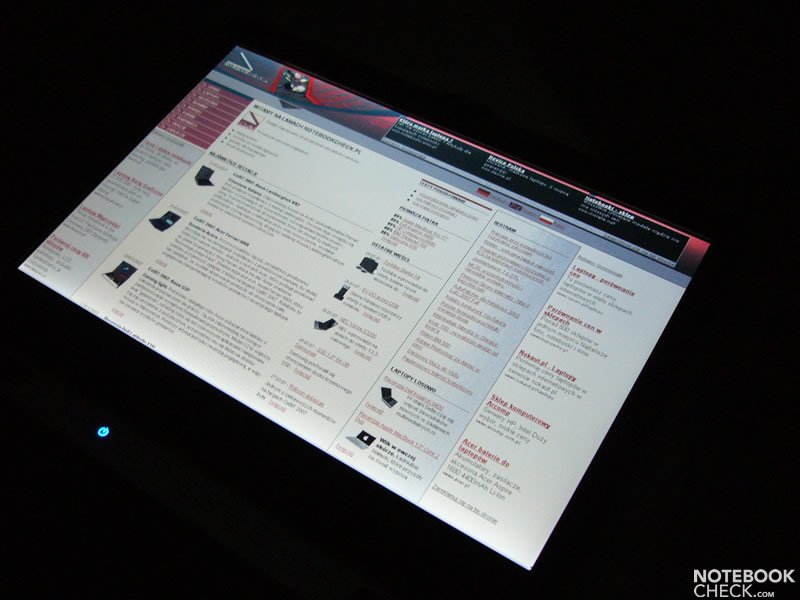

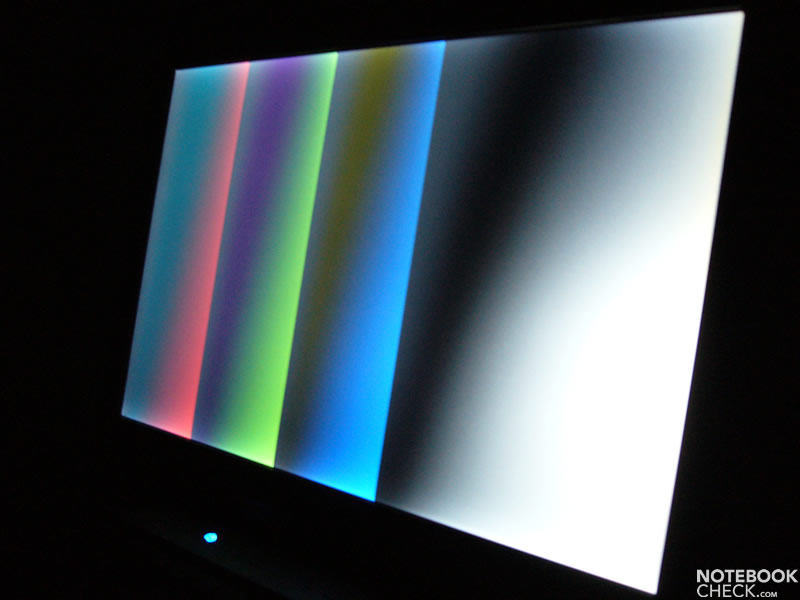

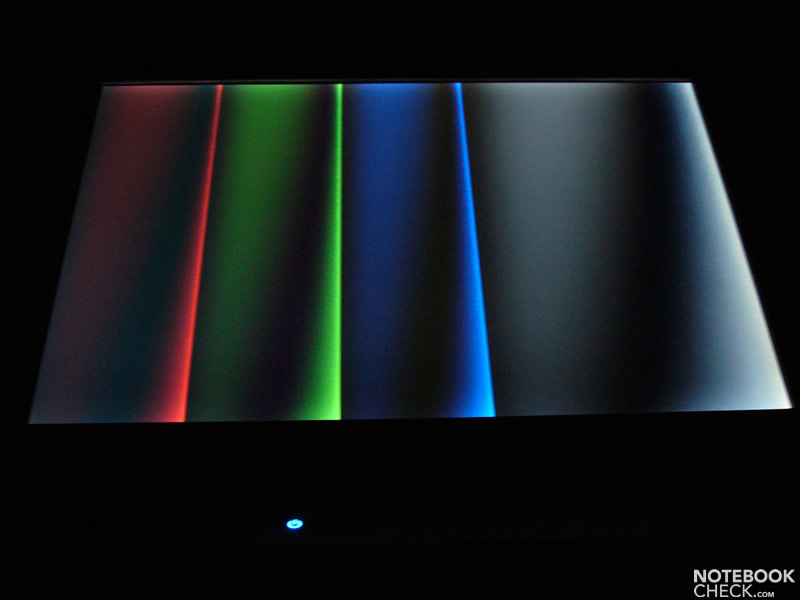

The viewing angles are poor, especially vertically. It darkens when looking from bottom upwards and whitens when looking from top downwards.

Toshiba Satellite M100-165 viewing angles
Toshiba Satellite M100-165 viewing angles
Toshiba Satellite M100-165 viewing angles
Toshiba Satellite M100-165 viewing angles
Toshiba Satellite M100-165 viewing angles
Toshiba Satellite M100-165 viewing angles
Toshiba Satellite M100-165 viewing angles
Toshiba Satellite M100-165 viewing angles

Performance

The Toshiba M100-165 is equipped with a Core Duo T2300 (1.66GHz) CPU. Although there are numerous more powerful dual core processors available, its performance is sufficient for working efficiently with office applications.
Graphics are done by a MR X1400 video card. This video card performs equally than a GeForce Go 7400, whose performance is alright. It allows to play older games and some newer ones with reduced resolution and details, and is yet a little more powerful than an integrated GMA 950.

The provided 80GB Toshiba hard disc drive is average.

Further information about the video card can be found  here or in our comparison of mobile video cards. Detailed information about the Core Duo CPU can be found here.

Please also look at our benchmark list of mobile processors or at our benchmark list of mobile video cards, in order to compare this notebook to other configurations.

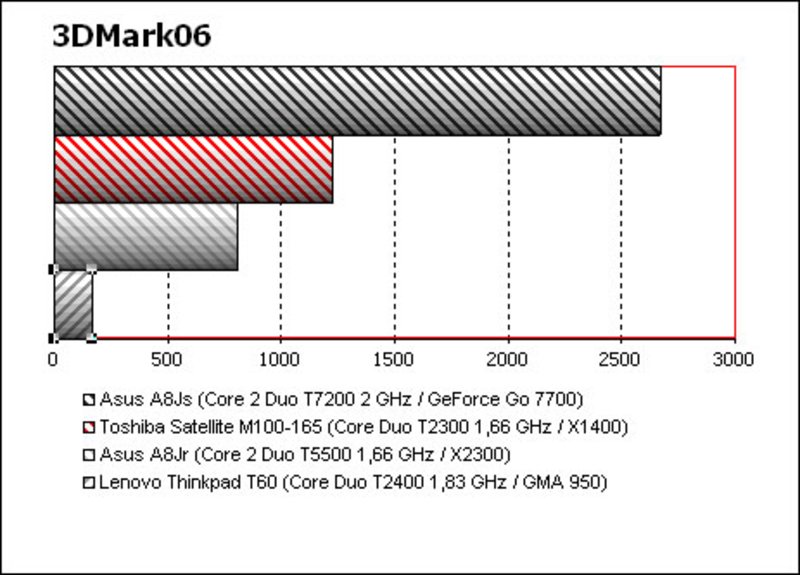

Benchmark Comparison 3DMark
Toshiba Satellite M100-165 Benchmark

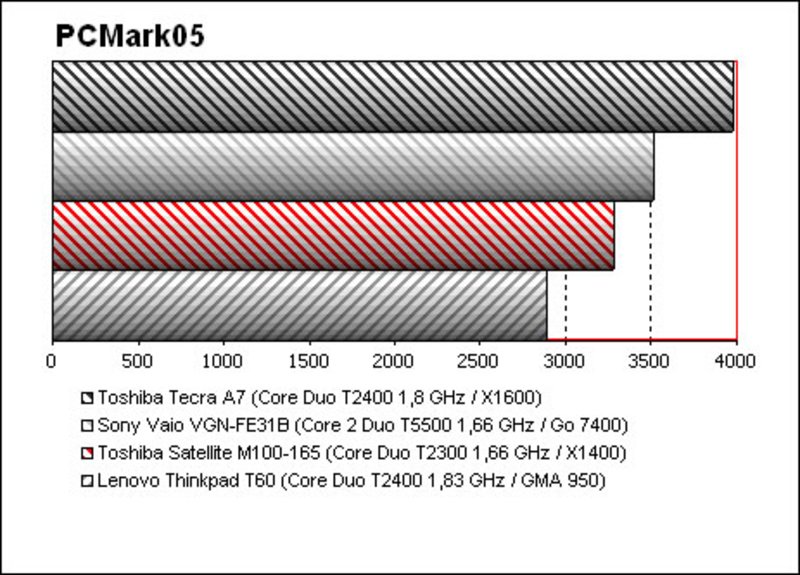

Benchmark Comparison PCMark
3D Mark
3DMark 2001SE13809 points
3DMark 034730 points
3DMark 052298 points
3DMark 06

1228 points
Help
3DMark 06 in comparison
Sony Vaio VGN-FS485B (min)
 740, Graphics Media Accelerator (GMA) 900
54
   ...
Acer Aspire 5672AWLMi
 T2250, Mobility Radeon X1600
1221
Lenovo Thinkpad T410s
 520M, Graphics Media Accelerator (GMA) HD Graphics
1225
Toshiba M100-165
 T2300, Mobility Radeon X1400
1228
Fujitsu Lifebook S710
 520M, Graphics Media Accelerator (GMA) HD Graphics
1256
Lenovo ThinkPad R61
 T7100, Quadro NVS 140M
1281
   ...
Clevo Clevo P157SM (max)
 4930MX, GeForce GTX 880M
29955
PC Mark
PCMark 045015 points
PCMark 053285 points
Help
PCMark 05 in comparison
Acer Aspire One 751 (min)
 Z520, Graphics Media Accelerator (GMA) 500
692
   ...
Acer TravelMate 8371
 SU9400, Graphics Media Accelerator (GMA) 4500MHD
3258
Acer TravelMate 8471-944G32Mn
 SU9400, Graphics Media Accelerator (GMA) 4500MHD
3275
Toshiba M100-165
 T2300, Mobility Radeon X1400
3285
Acer TravelMate 8571-944G32Mn
 SU9400, Graphics Media Accelerator (GMA) 4500MHD
3292
Lenovo X61 T
 L7500, Graphics Media Accelerator (GMA) X3100
3356
   ...
Fujitsu Celsius H710 WXP11DE (max)
 2820QM, Quadro 1000M
13842
No HDD benchmark entry found!

Emissions

If the load is low, the M100 is just like a typical Toshiba, very quiet. However, with growing load and especially with high 3D demands, the fan starts running. So, during playing games, the fan runs all the time, quite audibly exhausting the hot air. However, it really rarely works at full speed.

Noise Level

Idle 34,2 / 36,1 / 34,6 dB(A)
HDD 34,6 dB(A)
DVD 36,7 / dB(A)
Load / 39,5 dB(A)

    30 dB
silent
40 dB
audible
50 dB
loud

min: , med: , max:     (15 cm distance)

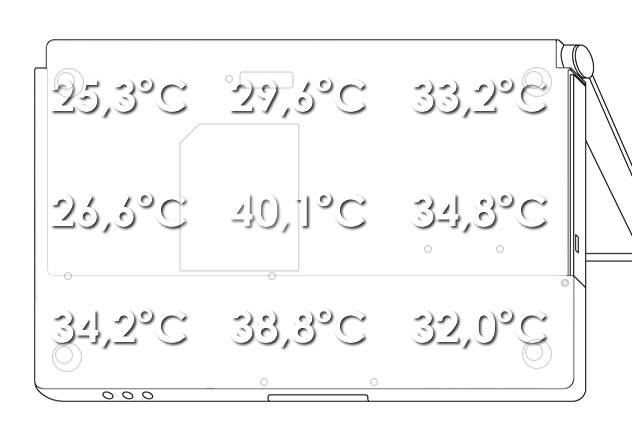

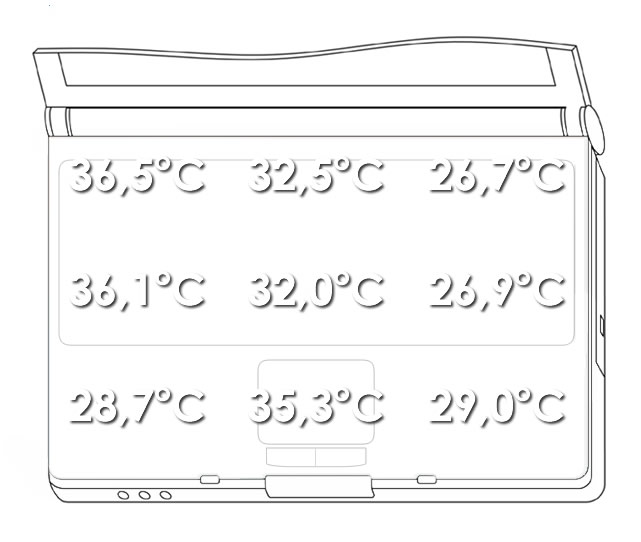

Temperature

Although the case is rather small, no heat accumulated inside which was transmitted to the laptop's surfaces. Even after enjoying demanding graphical applications for a long time, we measured only a maximum temperature of 36.5 degrees Celsius at the top side of the case. Whereas on the bottom side the temperature went slightly above 40 degrees.

Upper side

palmwrist: 35,3°C max: 36,5°C avg: 31,5°C

Bottom side

max: 40,1°C avg: 32,7°C

Speakers

The Toshiba M100 is equipped with Harman Kardon speakers. Besides of a low maximum volume, they're quite apt.

Battery Runtime

Alike many other Toshiba Satellite notebooks and the Tecra A7 the M100 is also equipped with a standard 4000mAh battery. Because the M100 comes with energy demanding components, it is not possible to work unplugged for a longer time. So, the Satellite M100's mobility is considerably limited in an unpleasant way.

Battery Runtime
Idle (without WLAN, min brightness)
2h 04min
DVD
1h 21min
Load (maximum brightness)
0h 55min

Power Consumption

Idle 24.1 / 27,3 / 29.1 Watt
Load 56. / 47 Watt

Key: min: , med: , max:

Verdict

Slender, deft, and powerful, the Toshiba Satellite M100-165 provides an interesting way out of the dilemma of powerful components embedded in a rather slim case. First of all the ATI Mobility Radeon X1400 GPU has its own dedicated memory. So, those who like playing video games time and again, would certainly prefer the M100 to a notebook with integrated GPU. But, the drawback is a shorter battery runtime. And the M100's battery runtime turned out to be really short. So, if you demand a very mobile notebook, you should rather choose another one.

Many thanks to our partners of Notebookcheck Polen for this review.

Toshiba Satellite M100-165
Toshiba Satellite M100-165
Reviewed: Toshiba Satellite M100-165
Toshiba Satellite M100-165

Specifications

Toshiba M100-165
Processor
Intel Core Duo T2300 1.66 GHz (Intel Core Duo)
Graphics adapter
Memory
512 MB
, Hyundai DDR2-533, maks. 4096 MB
Display
14.1 inch 16:10, 1280x800 pixel, WXGA TrueBrite (LG Philips LP141WX1-TL02)
Harddisk
80 GB - 5400 rpm, 80 GB
5400 rpm Toshiba MK8032GSX: 80GB, 5400rpm
Connections
PCMCIA typ II, 4x USB 2.0, S-video (wyj¶cie TV), D-SUB (wyj¶cie VGA), IEEE 1394, RJ11 (modem), RJ45 (LAN), wej¶cie mikrofonowe, wyj¶cie s³uchawkowe
Size
height x width x depth (in mm): 38 x 343 x 242 ( = 1.5 x 13.5 x 9.53 in)
Weight
2.5 kg ( = 88.19 oz) ( = 0 oz)
Battery
, litowo-jonowy 4000 mAh
Price
4199 Euro
Additional features
Mobile Intel Calistoga i945PM, HDD: 80GB, 5400rpm, Toshiba MK8032GSX, Realtek ALC861 @ Intel 82801GBM ICH7-M - HD audio, Matshita DVD-RAM UJ-841S,



[+] compare

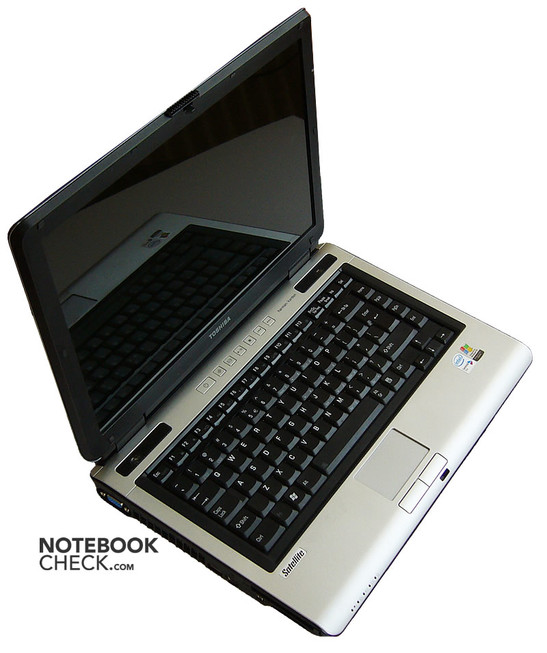

Light, compact, and powerful - the Toshiba Satellite M100 in all its splendor.

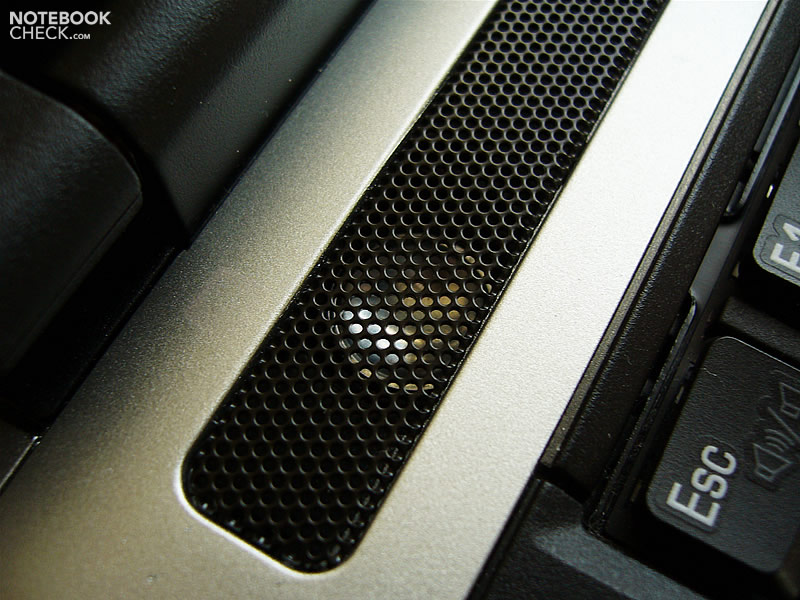

Although equipped with Harman Kardon speakers, the sound is not excellent.

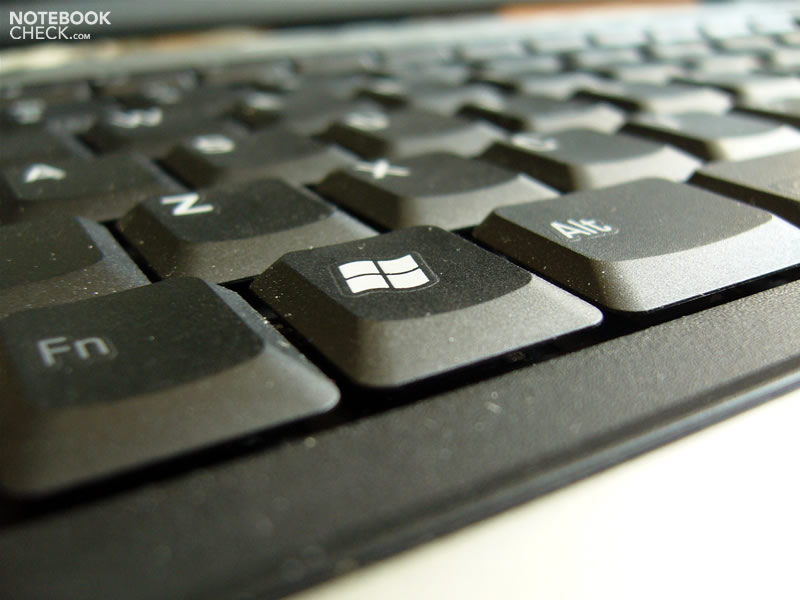

The keys are flat.
The WLan switch has to be activated with finger nails.

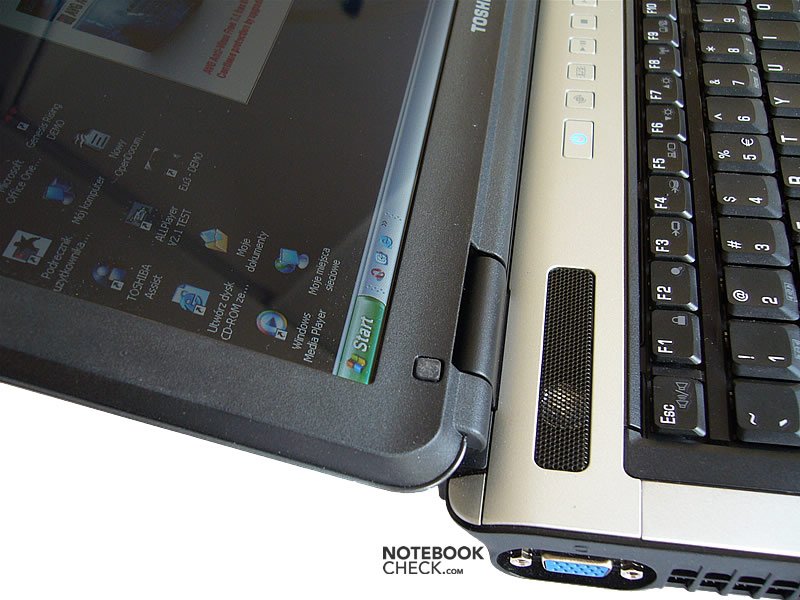

The hinges are doing a well, they do not allows any wobbling.

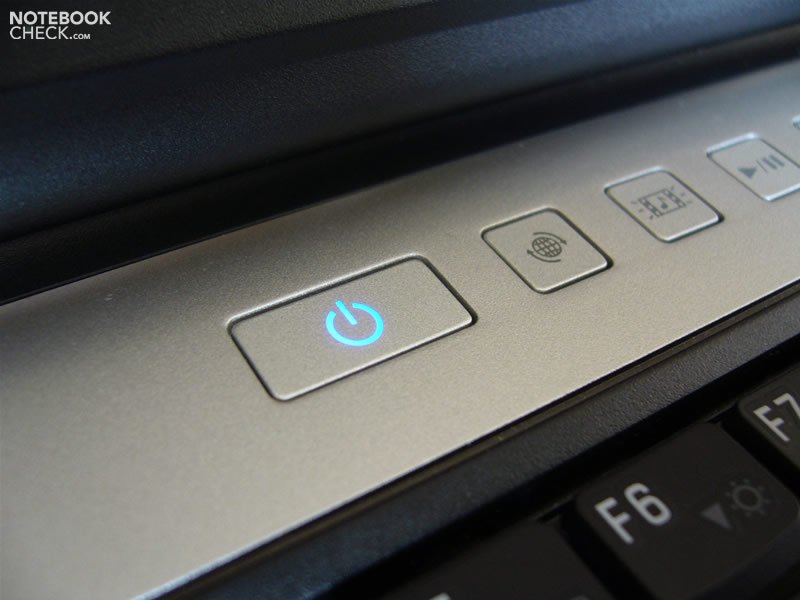

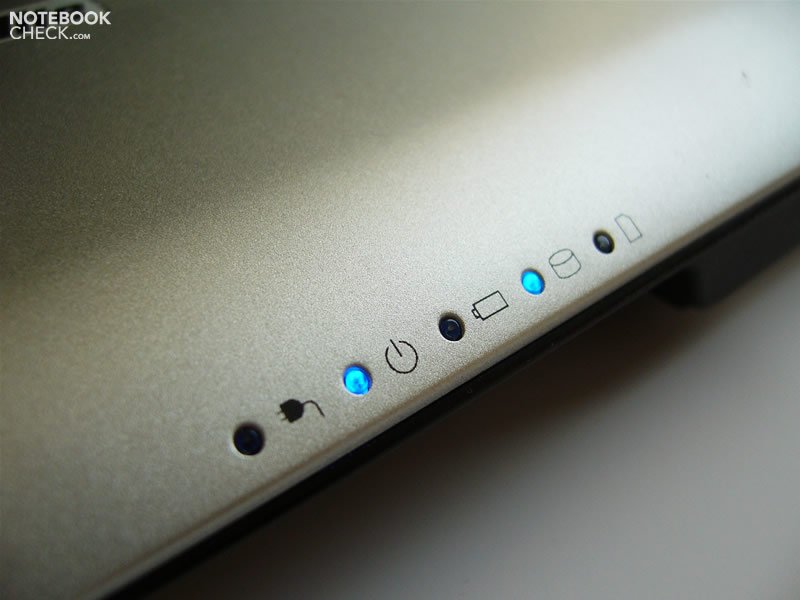

The blue indicator lights fit well to the silver top case coating.
The hot keys are large and elegant, and the power switch even shines.
The workmanship is not accurate - the region between the Esc key and the display is slightly higher than the surrounding case.

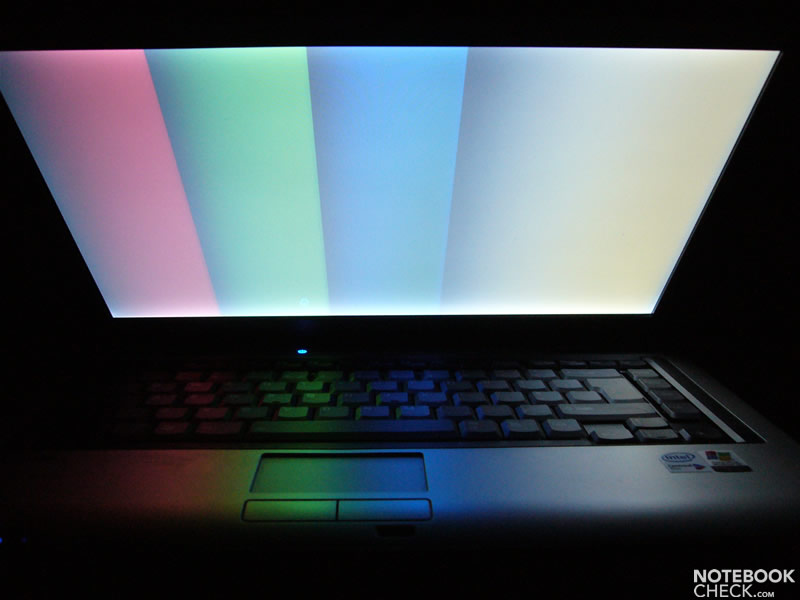

The considerable light leakage at the bottom of the screen has to be mentioned.

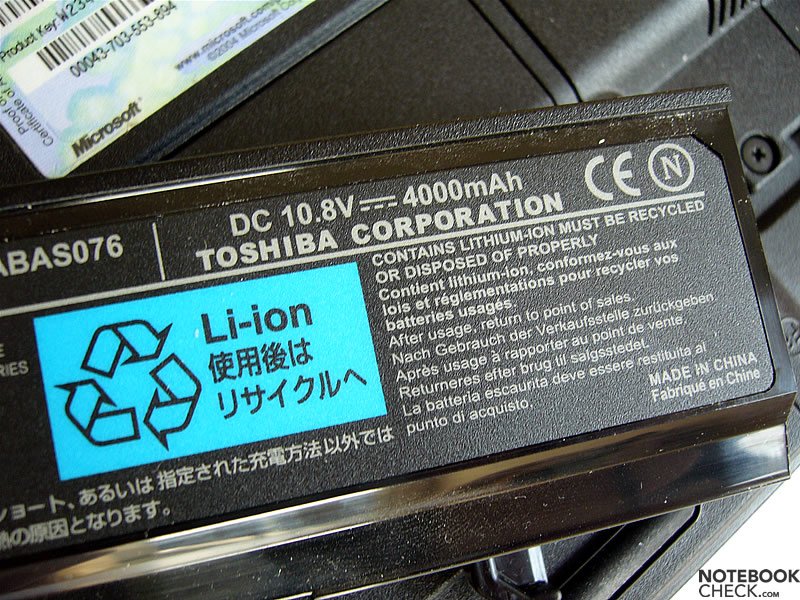

The moderate battery will provide you with one up to two hours runtime.

Pro

  • Non-integrated video card
  • Relatively bright display
  • Handy
  • Proper hinges
  • Contra

  • Numerous shortcomings of workmanship
  • Moderate battery runtime
  • Tiny touchpad
